A-Neuvideo ANI-HDB70-RM Rackmount Bracket For The ANI-HDB670
Rackmount Bracket For The ANI-HDB670
19 inch Rack Mount Bracket for the ANI-HDB70.
Rackmount Bracket For The ANI-HDB670
A-NeuVideo ANI-OUT-DV 8 Port DVI Output Module
8 Port DVI Output Module
A-NeuVideo ANI-OUT-HD 8 Port HDMI Output Module
8 Port HDMI Output Module
A-NeuVideo Fiber Optic Hdmi Active Optical Cable - 100m/328ft
Fiber Optic HDMI Active Optical Cable 4K@60Hz / HDMI 2.0 / High Speed 18Gbps
Features
Plug and play, no need for extra power or signal amplifier
Lengths: 100M / 328ft
Standard HDMI Type A plug
Compatible to Latest HDMI 2.0
Max. bandwidth up to 18Gbps(Single 6Gbps each*3)
Max. resolution support up to 4K@60HZ(4:4:4)
Supports HDCP2.2/CEC/EDID/HDR/ARC/3D
Supports HDR10 and Dolby Vision
EMI & amp; RFI Immunity
Outer Diameter 0.189 inch (4.8mm) Fiber Optic cables are slim for Pro AV installation.
A-NeuVideo ANI-OUT-4K 8 Port 4K HDMI Output Module
8 Port 4K HDMI Output Module
A-NeuVideo 3x1 4K60 UHD HDMI Switcher with Auto Source Switch
The ANI-3AUTOHDMI UHD+ 3x1 HDMI Switcher features (3) HDMI inputs and one HDMI output with manual or automatic source switching. Every input and output supports full bandwidth 4K@60Hz (4:4:4, 8-bit) HDMI 2.0 with HDCP 2.2 signals. Automatic source management allows for hands-free switching based on input signal and hot plug detection with a & ldquo;Last Memory & rdquo; switching feature upon signal loss. This switch is an ideal addition to any conference room, lecture hall or home entertainment setup with its portable and easy to install design. Control is via a top panel button and RS-232. These products have a 3 year warranty.
Features
HDMI 2.0 and DVI 1.0 compatible
HDCP 1.x and HDCP 2.2 compliant
(3) HDMI inputs, 1 HDMI output
Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output
Supports Deep Color input and output up to 12-bit
Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output
Supports pass-through of many audio formats including 8 channel LPCM, Bitstream, and HD Bitstream
Supports manual input selection or automatic input selection with hot plug detection and & ldquo;Last Memory & rdquo; feature
Sophisticated EDID management ensures optimal compatibility
LED indicators provide input selection as well as automatic switch status information
Small and portable switch box design
Can be powered via the Micro USB port (1A minimum) or an optional external power supply
Control via top panel button, RS-232, and IR (requires optional IR remote).
A-NeuVideo ANI-HPNHN HDMI (PAL/NTSC) to HDMI Standards Converter/Scaler
A-NeuVideo ANI-HPNHN HDMI (PAL/NTSC) to HDMI Standards Converter/Scaler condition: New Brand: A-NeuVideoMPN: ANI-HPNHN
A-NeuVideo ANI-MFAV-CP Optional Control Panel for Extender ANI-MFAC
A-NeuVideo ANI-MFAV-CP Optional Control Panel for Extender ANI-MFAC condition: New Brand: A-NeuVideoMPN: ANI-MFAV-CP
A-NeuVideo ANI-IN-DV ANI-MODZ 8 Port DVI Input Module
8 Port DVI Input Module
A-NeuVideo ANI-IN-VG ANI-MODZ 8 Port VGA Input Module
8 Port VGA Input Module
A-Neuvideo ANI-QUAD 4x4 HDMI VIDEO WALL PROCESSOR & MATRIX SWITCH
The ANI-HEAC41 HDMI 4x1 is a High Speed HDMI Switcher with Ethernet and ARC (Audio Return Channel) engineered with InstaPort ™ technology. InstaPort technology enables immediate access to content by reducing HDMI port switching time and perform the HDCP authorization routine immediately upon connecting the device. Consumers will no longer experience a four to seven second delay – and a long black screen – when switching between source devices connected to their HDTVs. As an added feature, this switcher provides ARC- Audio Return Channel, which allow televisions with built-in tuners to transmit audio from the TV to an A/V receiver. Perfect for old and existing A/V receivers that does not support ARC. HDTV resolutions up to 1080p/60 with 12-bit Color depth and PC resolutions up to 1920x1200 are maintained together with stereo or multi-channel digital audio. Ideal for system integrators and installers who are looking to implement fast, reliable HDCP switching with HEC-HDMI Ethernet Channel & ARC – Audio Return Channel. The ANI-QUAD is a high performance, high speed HDMI video processing system that can be easily configured and controlled for three different output modes (Matrix, Dual and Video Wall) for various applications. Matrix mode routes the source signals to output displays as a regular matrix does, Dual mode allows 2 sets of 2 selected sources to be shown on designate output displays (2 displays as a set) and Video Wall mode extends a selected source to all 4 output displays as one time. Supports full range of video resolutions up to WUXGA@60 (RB) or 1080p and different audio formats up to 7.1CH LPCM at 192 kHz sampling rate based on input source capability. The ANI-QUAD control can be done through IR using the included remote control, Telnet (Ethernet), RS-232 or from the front panel buttons. FEATURES HDMI, HDCP1.1 and DVI compliant Deep color support 8/10/12 bit source Seamless switching Supports three different modes: Matrix mode/ Dual mode/ TV Wall mode Matrix mode: Can routes and 4 Input source to any 4 Output displays with seamless switching Note: Under output timing 1080i@50/60 input 4 will be disabled, OSD will show “IN 4 Disabled” Dual mode: Can display POP (Picture Of Picture) image combined by 2 sources to be presented on the HDMI output ports (Dual A and Dual B) Video Wall mode: Can output any source to 4 displays (2 by 2 Video wall) as a full image with adjustable Bezel Correction for each display. Supports OSD, RS-232, IP (Telnet), Remote control and front panel control Input resolutions support VGA to WUXGA and 480i to 1080p Output resolutions support 480p to 1080p Supports different input resolution and output resolution selectable from OSD menu. The factory default value for the output resolution is 720p@60Hz/ 2CH LPCM Audio support for LPCM 2CH, 6CH, 8CH/AC3/DTS/Dolby Digital Plus/ Dolby TrueHD & DTS-HD
A-NeuVideo ANI-IN-HD ANI-MODZ 8 Port HDMI Input Module
8 Port HDMI Input Module
A-NeuVideo HD-44G 4x4 HDMI HDTV Matrix Routing Switcher Selector
The HD-44G is professional 4x4 matrix routing switch. Supporting (4) HDMI Inputs and (4) HDMI Outputs. The HD-44G is based on HDMI standards and supports full resolution HDMI video with embedded EDID. With a signal bandwidth of 225Mhz, there is no signal degradation. High definition digital signals can be selected and distributed from any of the (4) Inputs to any of the (4) Outputs in any combination. This switcher is certified as being fully CEC and HDCP 1.2 compliant and is full HD HDMI V 1.3 b compatible with RoHS, CE, FCC certifications. Supports UXGA/WUXGA/DVI 1920x1200 resolutions to any HD display. Supports high resolution HDMI sources routed to HDMI displays, monitors, projector or audio receivers. The EDID management can be selected between (7) different modes. Control is provided via front panel push buttons, IR remote and RS-232. A RS-232 Windows GUI interface is provided for matrix routing control (Windows only). This product has a 1 year warranty Features (4) HDMI digital source devices matrix switched to (4) HDMI devices HDMI digital video w/ embedded audio, DVI format and CEC/HDCP 1.2 compliant (7) function key control and worldwide EDID modes for HDTV resolutions Link clock rate of 225MHz, supports HDMI 1.3 b Wide range of HD resolutions from PC XGA to WUXGA 1920x1200 and HDTV/DTV resolutions from 480i/480p, 576i/576p, 720p, 1080i & 1080p Compatible with all HDMI source devices, PC monitors, Plasma HD displays, HDT Vs and audio receivers/amplifiers Digital video TMDS formats resolutions up to 1080p-60 with 36-bit Deep color Digital Audio Support: Dolby True HD, Dolby Digital, Dolby Digital Plug/ex, DTS, DTS-HD, DTS-HD Master, DTS-EX, PCM, PCM2, LPCM2 Various User Interface Control: Windows based GUI control via RS-232 port Front panel push button IR wireless remote control Third party RS-232 controller (via simple ASCII) Supports Worldwide Control Functions: ALL/OFF/RECALL/ENTER/MEMORY/EDID/LOCK Supports EDID Modes: Embedded EDID Modes: FSS/H24-3D/H24-3D-M/H36-3D/H36-3D-M/DVI-D 1280x1024- 60Hz/DVI-D 1920x1200-60Hz External Modes: Learning mode Input & output status via front panel Supports IR remote and IR extender for a distance of up to ~ 984 ft (300M) Maximum EDID configuration via internal modes Consumer Electronic Control (CEC) switch all open or OFF
A-NeuVideo ANI-705XBD HDMI Extender (Transmitter/Receiver) Kit over CAT5e/6/7
The HDMI over CAT5e/6/7 Transmitter and Receiver set can send uncompressed video/audio and IP data over an single run of CAT5e/6/7 cable up to 328 ft/100M. It has the added benefit of control through the built-in RS-232 pass-through and 2-way IR control and a LAN serving connection. Additionally, it has bidirectional Power over Cable (PoC) functionality that allows for greater flexibility in installations. Features: HDMI (with 3D format and 4K2K resolution support), HDCP and DVI compliant Supports CEC bypass function Simultaneous transmission of uncompressed video/audio and data over a single CAT5e/6 cable up to 100M/328 ft Supports uncompressed video up to 4K2K resolution (3840x2160@30Hz or 4096x2160@24Hz) Supports pass-through of high-definition audio formats: LPCM 7.1CH, Dolby TrueHD and DTS-HD Mater Audio HDBaseT? convergence: uncompressed high-definition Video and Audio, LAN serving, Bi-directional Power over Cable (PoC) and IR/ RS-232 Control pass-through Installation friendly
A-NeuVideo ANI-IN-4k ANI-MODZ 8 Port 4K HDMI Input Module
8 Port 4K HDMI Input Module
A-NeuVideo ANI-315XLR HDMI over CAT5e/6 Extender (Receiver) with IR/RS-232
This listing is for ANI-315XLR Receiver only. Use description below as a general reference The ANI-315XL HDMI Extender over single CAT5e/6 incorporating IR and RS-232 signal transfer, allows for a more efficient system setup and is easy to install. Uncompressed video and audio can be transmitted for distances up to ~197 ft (60M) @1080p and ~115 ft (35M) @4K and supports High Definition Audio and 3D signals. Designed with HDBaseT? technology, for greater flexibility in custom installations with full HDMI and control signal transfer over a single CAT5e/6 cable. Features HDMI with 3D, 4K2K support, HDCP and DVI compliant Complies with the HDBaseT Lite? class Supports HDMI (including HDCP) over a single CAT5e/6 up to 196 ft (60M) Full HD resolution supports (1080p@60Hz/36bit), 3D and 4K2K for up to ~131 ft (40M) and PC resolution supports (VGA to WUXGA) over a CAT5e/6 cable HDMI input cable length up to ~50 ft (15M) with 8bit resolution or ~33 feet (10M) with 12bit resolution HDMI output cable length up to ~50 ft (15M) with 8/12bit resolution Multiple control interfaces such as RS-232 with baud rate up to 115200/sec and IR Supports HDCP repeater and CEC bypass Supports High Definition LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission Compact size with stylish design
A-NeuVideo 4x1 HDMI Quad Multi-Viewer with Seamless Switcher #ANI-QUAD-LITE
The ANI-QUAD-LITE is a high performance 4x1 Quad Multi-Viewer with seamless switcher. It supports (4) high definition input source displays on one screen and has (3) multi-view effect modes. As a switcher, it can also seamlessly switch the (4) HD inputs freely. This unit can be controlled via front panel button control, IR control and RS-232 control. This product provides a S/PDIF link to output the HDMI source audio at the same time. This product has a 3 year warranty.
A-Neuvideo ANI-POE-RM Rackmount Bracket For The ANI-0104POE w/3-Yr Warranty
Rackmount Bracket For The ANI-0104POE
19 inch Rack Mount Bracket for the ANI-0104POE.
Rackmount Bracket For The ANI-0104POE

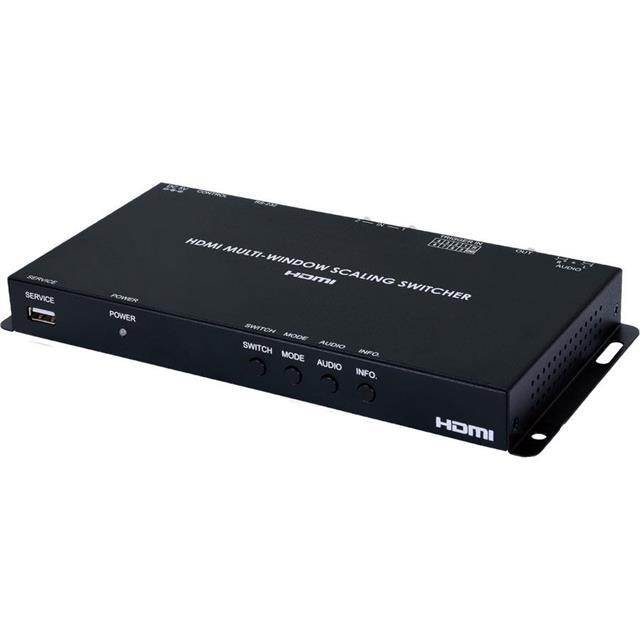

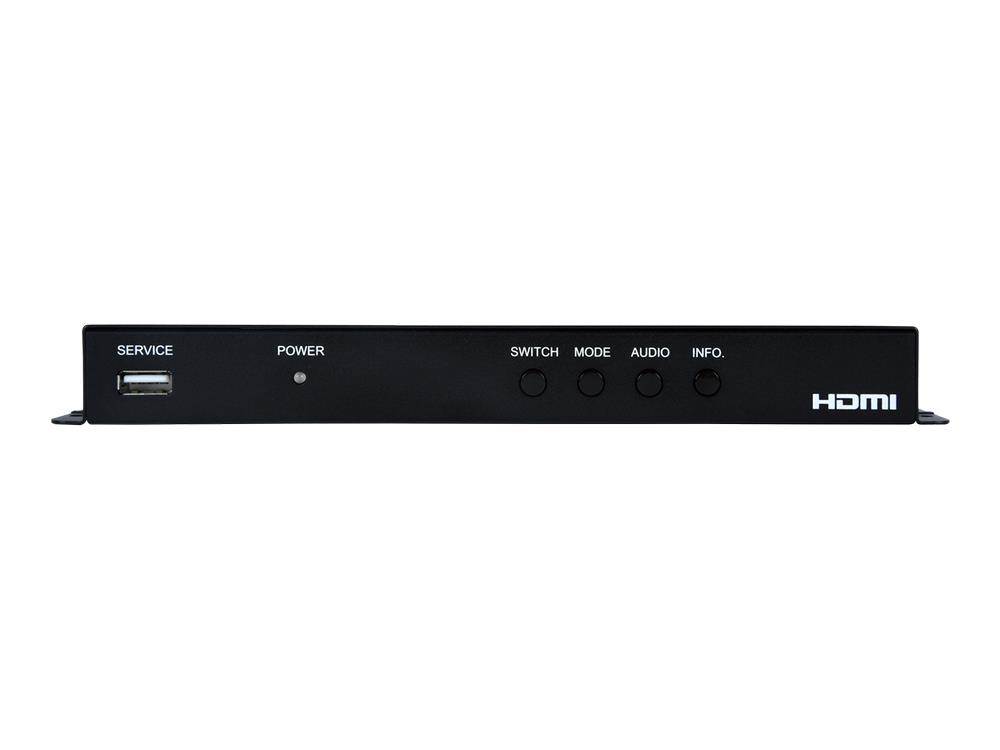

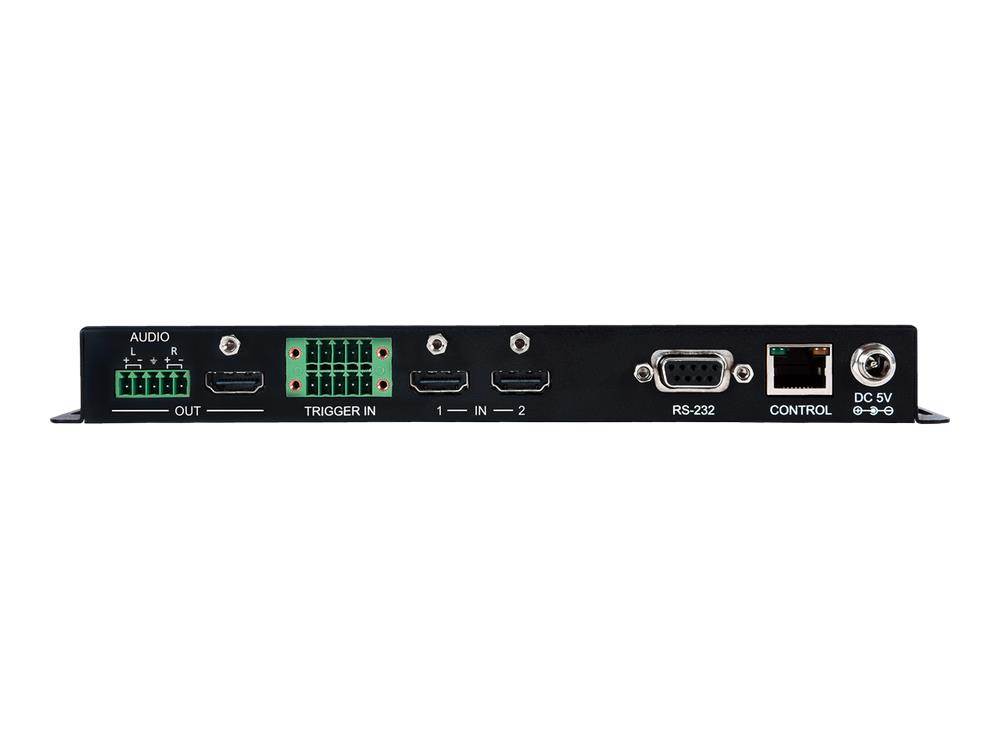

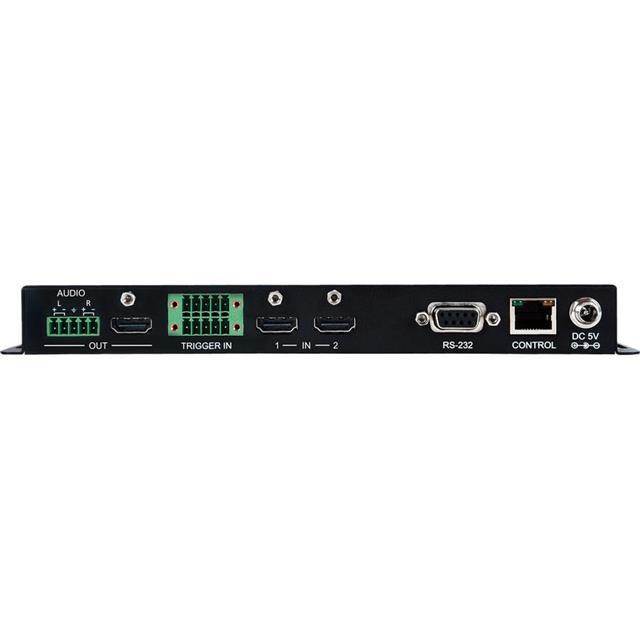

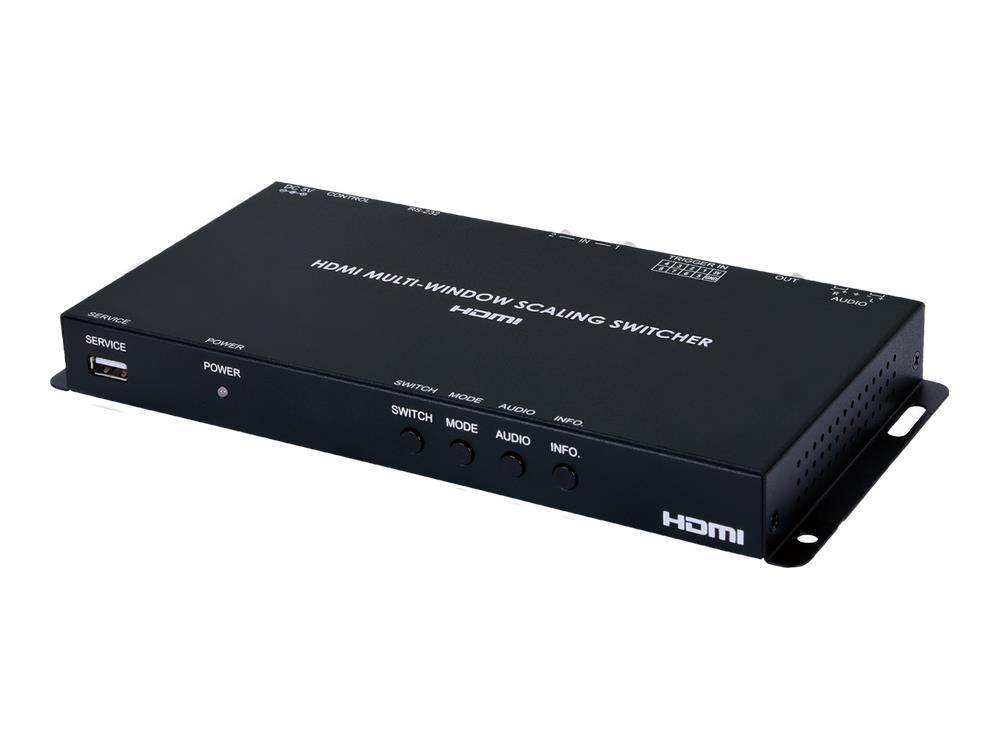

A-NeuVideo ANI-2PIP-LOGO 2x1 HDMI Dynamic Multiviewer PiP/PoP with Logo Inserter
The ANI-2PIP-LOGO HDMI Multiviewer is capable of scaling up to (2) sources and displaying both simultaneously on a single HDMI output within their own windows. This is the ideal solution for monitoring multiple sources simultaneously for use in control rooms, or for flexible display presentations in conference rooms or classrooms. Both inputs support resolutions up to 1920x1200@60Hz and LPCM audio with up to 7.1 channels at 192kHz. The multi-window output is sent to a single HDMI output at scaled resolutions up to 1920x1200@60Hz along with the selected audio source. The HDMI output supports up to LPCM 7.1 digital audio while the analog audio output supports up to LPCM 2.0. Each of the (2) HDMI sources may be displayed individually, full screen, or they can be displayed using a variety of dual-window modes including Picture-in-Picture, Side-by-Side, or freely positioned (with layer priority control). Each window can also be mirrored, flipped, swapped, or frozen (with live audio). Chroma keying and a custom uploadable logo/graphic are also supported. Features HDMI & HDCP 1.3 compliant (2) HDMI inputs and (1) HDMI output Inputs and output support HD resolutions up to 1080p@60Hz and PC resolutions up to WUXGA (RB) Supports audio pass-through of LPCM 2.0 / 5.1 / 7.1 sources via HDMI Balanced analog stereo audio extraction support via 5-pin terminal block (LPCM 2.0 only) Supports PiP (Picture-in-Picture), Side-by-Side, and free positioning window modes Chromakey support Uploadable logo support Support for Windows PC character generation software to simplify the process of generating text or graphics to use with keying/overlay (Optional) (8) Trigger inputs for easy remote control of the unit with optional keypad
A-NeuVideo ANI-HDROTATE-PLUS 2x1 UHD Plus HDMI Video Wall Rotation Processor
The ANI-HDROTATE-PLUS UHD+ 2x1 HDMI Video Wall Rotation processor is capable of scaling and rotating the selected input source to nearly any angle and size desired. It & rsquo;s the ideal solution for presenting sources across the unique video display arrangements often found in commercial displays, control rooms, or classrooms. HDMI input and output resolutions up to 4K@60Hz with 2 channel LPCM audio is supported. In Warping mode the output is locked to 4K, but video latency is only 1 to 2 frames and the unit is capable of scaling and rotating the source, with an accuracy of 1 & deg;, as required.
FEATURES
HDMI 2.0 and DVI 1.0 compliant (with the use of an HDMI-DVI adapter)
HDCP 1.x and 2.2 compliant
(2) HDMI inputs and (1) HDMI output
Supports up to 4K UHD+ (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output
Only 1 to 2 frames of video latency
Supports horizontal/vertical video warping with zooming in/out and 360 degree display rotation in 1 & deg; increments (Warping mode)
Supports up to two simultaneous, freely scalable, PiP windows in multiwindowing modes (Scaling mode)
Seamless switching (no loss of sync to display) when switching sources in Scaling mode
Each window can have a border with a selectable color (Scaling mode)
Wide variety of video adjustments, including: contrast, brightness, hue, sharpness, aspect ratio
Supports the ability to store a multi-window or warping arrangement as a preset that can be recalled later
Independent audio source selection and routing in all modes
Uploadable and freely positionable graphic logo support
Per-input EDID management with internal or external EDID options
Control of the unit is accomplished by use of front panel buttons with OSD menu, Telnet, RS-232 or dedicated Video Wall PC software
A-NeuVideo ANI-8WP 8-Button Programmable Illuminated Ip Wall Plate Control Keypad
The ANI-8WP Wall-Plate Control System is a fantastic and useful design for system installers and smart home users. With (8) direct macro command buttons, plus an additional (8) macro commands in the WebGUI, this unit has up to (16) commands that can be executed with one push of a button for a total of 128 command capacity inside this box. Soft and colorful LED design makes for a professional presentation and the PoE (Power over Ethernet) function allows for a flexible installation without the need for an external power supply. Further, this units relay output and scheduling functions can be used to raise and lower projection screens, control matrix switchers or any device that supports Telnet. This product has a 3 year warranty. Features (8) Macro buttons + (8) extra Macro programmable commands via WebGUI for up to 128 commands (1) Relay Output for additional device control Scheduling control for date/time specific events Supports Key Pad, Telnet and WebGUI control PoE or external DC power supply US (1) Gang wall plate design with adjustable LED intensity (56) Button Labels included (28 Pre-Printed & 28 Blank)
A-NeuVideo ANI-VW 1x4 HDMI Video Wall Scaler Splitter with Looping Output (Cascadable)
The ANI-VW 1x4 HDMI TV Wall Scaler Splitter supports CVBS/VGA/HDMI/USB Input signal types arranged on (4) displays. The embedded scaler converts signals from the input sources to match the native resolution of monitors, flat panel displays, projectors as well as user-selectable output settings up to 1920x1080. Operational control via the included remote, IR, Ethernet or RS-232. This product has a 3 year warranty. FeaturesHDMI 1.3 a, DVI 1.0 Compliant Output source signal to (4) displays (2 by 2 Video wall) as a full image with adjustable Bezel Correction IR, Ethernet and RS-232 control Cascade to (9) displays (3 by 3 video wall) Supports CVBS/VGA/HDMI Inputs USB movie, picture and music playback Advanced video De-interlaced for improving 480i and 576i SD video input Supports output resolutions up to 1080p60Hz Perfect as a video screen splitter, a video converter and a video switcherProduct informationManufacturerA-NeuVideoASINB07JC32B6XItem model numberANI-VWBest Sellers Rank#6, 534 in Video ConvertersDate First AvailableOctober 11, 2018Warranty & SupportProduct Warranty: For warranty information about this product, please click here FeedbackWould you like to tell us about a lower price? VideosPage 1 of 1Start OverPage 1 of 1Previous pageVideos for related products 9:47 Click to play videoSuper 8/8mm Film Scanner, Converts Film into Digital Video BEST REVIEWS Videos for related products 7:19 Click to play videoVideo capture box with screen! DARIO & MININA - (MEDIABOXENT) Videos for related products 18:52 Click to play videoBirddog Mini Review: NDI Video Capture Device vs. Newtek Spark Lon. TVVideos for related products 13:43 Click to play videoFEELWORLD LIVEPRO L1 V1 Multi Camera Video Mixer Switcher FEELWORLD Official Store-USVideos for related products 7:13 Click to play videoHow to use Video Scaler Upscale or Downscale 4K 1080p Bombay ElectronicsVideos for related products 8:57 Click to play videoDigital Audio Extender over LAN - How to Use Bombay ElectronicsVideos for related products 6:24 Click to play videoHDA-912 4K Audio Extractor Bombay ElectronicsVideos for related products 7:32 Click to play videoHDA-925 Audio Extractor Bombay ElectronicsVideos for related products 3:59 Click to play videoExternal Capture Card Video Recorder - AV Recording System, Plug-and-Play PC Computer Record Abil... Merchant VideoVideos for related products 3:15 Click to play videoJ-Tech Digital HDMI Audio Extractor J-Tech Digital, IncNext pageUpload your video Customer Review: Super 8/8mm Film Scanner, Converts Film into Digital VideoSee full review BEST REVIEWS Onsite Associates ProgramAmazon Influencer Customer Questions & Answers
A-NeuVideo ANI-5MFS UHD 4K Multi-Format Video Presentation Scaler Switch w Audio
Brown Paper - 52619
A-NeuVideo 4x4 4K60 HDR HDMI Matrix Routing Switcher with 1080 Down Scaling/Analog Audio Output
This 4K UHD+ 4x4 HDMI Matrix provides the ability to connect up to (4) 4K UHD+ HDMI sources to up to (4) 4K UHD+ HDMI displays and freely switch between them. This unit comes with full support for 18Gbps resolutions up to, and including 4K@60Hz (4:4:4, 8-bit) as well as support for 16-bit Deep Color, HDR (High Dynamic Range), HD audio and other features defined by the HDMI 2.0 specification. With a comprehensive EDID management feature that includes the ability to select between built in EDIDs, EDIDs copied from connected sink devices, as well as user provided EDIDs, this matrix can solve many interconnectivity problems. The unit & rsquo;s OSD has the ability to display up to 2 lines of user customized text, on top of the video displayed over each output, in the color of your choice. This unit provides an intuitive set of front panel controls with an OSD as well as RS-232, Telnet, WebGUI, and IR remote control options. This product has a 3 year warranty.
Features
HDMI inputs and outputs support 18Gbps 4K UHD+ with HDR signals
DVI 1.0 compliant with the use of an HDMI to DVI adapter
HDCP 1.x and 2.2 compliant
DMI inputs and outputs support UHD+ resolutions up to 4096x2160@60Hz (4:4:4, 8-bit)
Supports 16-bit Deep Color up to 1080p60
Supports pass-through of LPCM (up to 8 channels), bitstream and HD bitstream audio formats
High-quality DAC (Digital to Analog audio Conversion) with local analog stereo audio breakout for each HDMI output (LPCM 2.0 sources only)
Supports (6) internal EDIDs, (4) external EDIDs copied from connected devices, and (4) user provided EDIDs
OSD with user customizable information text
Controllable via front-panel buttons with LCD, WebGUI, Telnet, RS-232, and IR remote.
A-Neuvideo ANI-0104POE: HDMI POE 1x4 SPLITTER OVER CAT5e/6 EXTENDER (Includes (4) Receivers)
The ANI-0104POE splits a single HDMI signal into five (5) separate signals (1 local, 4 remote), transmitting a 1080p (60Hz) signal to (4) monitors up to 150 ft. away using a CAT5e/6 cable. The ANI-0104POE allows for the video source to be in a secure, remote location for controlled access while still delivering a signal to devices in other areas. The receivers obtain power from the base unit over the same CAT5e/6 cable (PoE). This eliminates the need for an additional power outlet at each receiver.
The ANI-0104POE 4-Port HDMI over CAT5/6 Extender/Splitter allows extension of a HDMI signal beyond the 15 ft. (5M) distance limitation. The ANI-0104POE can extend a 1080p (60Hz) resolution up to 150 ft. Supports 24bit True Color (8bits per channel), HDCP, 3D and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM). Installation is simple. Connect the ANI-0104POE transmitter to a HDMI source using a HDMI cable (not included). Connect the ANI-0104POE receivers (included) to each display using a HDMI cable (not included). Finally, each remote receiver is connected to a RJ-45 port on the ANI-0104POE using a single CAT5e/6 cable. For maximum distance performance, always use 24 AWG Solid Wire CAT5e/6 cable.
The ANI-0104POE includes surface mounting hardware enabling it to be installed in any venue. A rack mount option is available separately. This unit has a 3 year warranty.
Package Contents:
-------------------------------
ANI-0104POE
(4) Receivers
(1) Wideband IR Tx
(4) Wideband IR Rx
(2) Surface Mounting brackets (Main unit only)
(1) 12V 2.5A DC Power Supply adapter - Main Unit
Users Guide
----------------------------------------------------
Optional: 19 in EIA Rackmount
----------------------------------------------------
A-NeuVideo ANI-8MFS 8 INPUT HDMI/VGA MULTI-FORMAT SCALER SWITCH w VOLUME CONTROL
A-Neu Video ANI-8MFS 8 INPUT HDMI/VGA MULTI-FORMAT SCALER SWITCH w VOLUME CONTROL condition: New Brand: A-Neu Video MPN: ANI-8MFS
A-Neuvideo ANI-23TCDRX Analog Stereo Audio 985ft (300M) and RS-232 over CAT5e/6/7 Receiver
Analog Stereo Audio 985ft (300M) and RS-232 over CAT5e/6/7 Receiver
The ANI-23TCDRX Analog Stereo Audio and RS-232 over CAT5e/6/7 extender Receiver is designed to extend analog stereo audio over a single run of CAT5e/6/7 cable up to ~985ft/300M. With Bi-directional RS-232 control and PoC features added these units can be used with Receiver or Transmitter unit that supports RS-232 device control and one-way power supply. This product has a 3 year warranty.
Analog Stereo Audio 985ft (300M) and RS-232 over CAT5e/6/7 Receiver
Supports Coaxial or Optical digital audio S/PDIF signal
Supports stereo and multi-channel digital audio such as LPCM 2CH, Dolby Digital or DTS 5.1CH
Supports industry standard Category 5/5e/6 cable
Digital audio S/PDIF performance sampling rate 96kHz
Supports single Coaxial input to Coaxial signal output
Supports single Optical input to Optical signal output
Why not buy this Analog Stereo Audio 985ft (300M) and RS-232 over CAT5e/6/7 Receiver today?
A-Neuvideo ANI-PIP-LITE 2x1 HDMI Multi-Viewer W/PIP w/3-Yr Warranty
The ANI-PiP-LITE is a high performance 2 by 1 Multi-Viewer. It supports (2) High definition input source displays on (1) screen. As a Multi-Viewer, it can display on one screen in (4) different modes. This product has a 3 year warranty.
A-NeuVideo 9x2 4K60Hz Multi-Format/USB-C/VGA to HDMI HDBaseT Scaler Presentation Switch with Audio
This 9x2 multi-format scaling switcher provides HDMI, USB-C, HDBaseT & trade; and VGA inputs which can be freely selected for output at a scaled resolution of the user & rsquo;s choosing over the mirrored HDMI and HDBaseT & trade; outputs. The HDMI and USB-C ports support resolutions up to 4K@60 (4:4:4, 8bit) while the HDBaseT & trade; output supports automatic color subsampling of 4K50/60(4:4:4) sources to 4K50/60(4:2:0). The VGA inputs support resolutions up to WUXGA. The HDBaseT & trade; output provides a great solution to extend your audio and video up to ~328 ft / 100M over a single run of CAT6A cable as well as providing PoH power to compatible HDBaseT & trade; Transmitters and Receivers.
Features
HDMI 2.0 and DVI 1.0 compliant
HDCP 1.X and 2.2 compliant
(9) Video inputs (USB-C, (2) HDBaseT & trade;, (4) HDMI, (2) VGA)
(2) mirrored video outputs (HDMI, HDBaseT & trade;)
Supports switching and scaling of all AV inputs for display over the mirrored HDMI and HDBaseT & trade; outputs
Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8bit) digital video input (HDMI, USB-C) and output (HDMI)
VGA input supports resolutions up to 1080p60/WUXGA (RB)
HDBaseT & trade; output supports resolutions up to 4K@60Hz (4:2:0, 8bit) or 4K@30Hz (4:4:4, 8bit). 4K@50/60Hz (4:4:4, 8bit) or 4K@any (10/12bit) sources will be automatically color space converted to fit within the available bandwidth
Supports Deep Color input and output up to 12bit (Bypass only)
Supports 10bit and 12bit HDR (High Dynamic Range) input/output (HDMI Bypass only)
HDBaseT & trade; inputs/output extend video, audio, and data over a single CAT5e/6/7 cable and can reach distances up to 100M / 328 ft at 4K when using CAT6a/7
A-NeuVideo ANI-1082UHD-KIT 10x10 HDMI/HDBaseT 4K/60Hz and Audio Matrix Routing Switcher Kit
A-NEUVIDEO ANI-1082UHD 10x10 HDMI/HDBaseT & trade; Matrix Kit supports Video and Audio signal routing and transmission (for resolutions up to 4K@60Hz w/ HDMI 2.0 & amp; HDCP 2.2) and audio (multi-channel digital/stereo analog). It has flexible control via IR, RS-232, and WebGUI. 10 UHD sources can be rerouted up to 10 Displays. (8) via a single CAT5e/6/7 cable (up to 328 ft/100M at 1080p or up to 197ft/60M at 4k@30hz).and (2) via HDMI cables. HMDI outputs support the transmission of 6G UltraHD HDMI sources (Up to 4K@60Hz YUV 444 (6G)) from any HDMI inputs (Up to 4K@60Hz YUV 444 (6G)), or they can mirror any of the HDBaseT & trade; outputs (Up to 4K@60Hz YUV 420 (3G)) for local monitoring. ANI-1082UHD support 3D when compatible sources and displays are connected. ANI-1082UHD supports passing 7.1 channel LPCM digital audio as well as advanced bitstream and HD bitstream audio formats. Switcher supports & nbsp; (4) analog audio outputs are available to provide stereo breakout audio from the associated HDBaseT & trade; output (LPCM 2.0 sources only). WHAT'S INCLUDED: ANI-1082UHD 10x10 HDMI and HDBaseT & trade; Matrix w/ Audio Matrixing (8) ANI-1080UHD HDMI over CAT5e/6/7 Receiver Remote Control (ANI-163) (10) IR Extender Cable (10) IR Blaster Cable (2) 24V/6.25A DC Power Adaptor (2) Power Cords Rack Ear Set RS-232 terminal (Phoenix Connector) Audio terminal (Phoenix Connector) Surface Mount Tab Set Users Guide
A-NeuVideo ANI-MFAV Multi-Function 4k HDBaseT/HDMI/VGA Extender (Transmitter/Receiver) Kit up to 230ft/70m
The ANI-MFAV is a multi-function AV intelligent education system. It offers (2) HDMI and VGA video extension, video switching, system control and analog audio amplification. Uncompressed video and audio can be transmitted up to 230ft/70M. This design of HDBaseT? technology allows for full usage of HDMI and controls over CAT5e/6/6A cable. The product supports Web GUI and panel button control. Transmitter support HDCP 1.4 and can be switched manually, auto, hybrid or priority. And the maximum distance can be up to 230ft/70M at 1920x1200@60Hz or up to 131ft/40M at 4K@30Hz. Receiver support a microphone input, analog audio output, 2x30 at 4 Ohms speaker output, and relay control to the projector screen rise and fall or RS-232 control to the display power on and off. A USB port on the receiver will transmit interactive display connections to the transmitter. Optional Control Panel supports volume control and system control. At the same time, it can support (2) HDMI and one VGA input selection. (Note: Optional Control Panel NOT inclaidet). Features HDMI 1.4b A HDCP 1.4 compliant Video resolutions up to 4K2K@30Hz, 1080p@120Hz and 1080P 3D@60Hz Audio up to 7.1 channels of High Definition audio pass through (LPCM, Dolby TrueHD, and DTS-HD Master Audio) HDBaseT? over a single CAT5e/6/7 cable up to 230ft/70M distance Supports multi-VESA Standard VGA formats input Supports MIC input 2x30watts@4Ohms amplifier output Supports interactive display USB pass-through Supports Web GUI control Supports optional control panel volume control and system control Supports relay control Supports RS-232 control
A-NeuVideo ANI-9251RX HDCP 2.2/HDMI 2.0 Extender w OAR/Audio Insertion Receiver
A-NeuVideo ANI-9251RX HDCP 2.2/HDMI 2.0 Extender w OAR/Audio Insertion Receiver condition: New Brand: A-NeuVideoMPN: ANI-9251RX
A-NeuVideo ANI-1082UHD 10x10 HDMI/HDBaseT 4K/60Hz Matrix Routing Switcher with Audio Matrixing and LAN Server
10x10 HDMI & HDBaseT 4K@60Hz Matrix Routing Switcher W/ Audio Matrixing & Lan Server
This 10x10 HDMI/HDBaseT Matrix supports routing and transmission of video (for resolutions up to 4K@60Hz w/ HDMI 2.0 & HDCP 2.2) and audio (multi-channel digital/stereo analog) while providing flexible control via IR, RS-232, Telnet or WebGUI. As many as (10) HD sources may be routed to any of the (8) destinations via a single CAT5e/6/7 cable (up to 328 ft/100M at 1080p or up to 197ft/60M at 4K@30Hz).
The (2) HDMI 2.0 outputs support transmission of 6G UltraHD HDMI sources (Up to 4K@60Hz YUV 444 (6G)) from any HDMI inputs (Up to 4K@60Hz YUV 444 (6G)) or they can mirror any of the HDBaseT outputs (Up to 4K@60Hz YUV 420 (3G)) for local monitoring. 3D video is also supported when compatible sources and displays are connected. This product supports passing 7.1 channel LPCM digital audio as well as advanced bitstream and HD bitstream audio formats. Additionally, (4) analog audio outputs are available to provide stereo breakout audio from the associated HDBaseT output (LPCM 2.0 sources only).
10x10 HDMI & HDBaseT 4K@60Hz Matrix Routing Switcher W/ Audio Matrixing & Lan Server
HDMI 2.0, HDCP 1.4 and HDCP 2.2 compliant
Routes (10) HDMI sources to (10) displays using (8) HDBaseT™ outputs and (2) independent or mirrored HDMI outputs
HDBaseT™ 5-Play™ Convergence: High-Definition video and audio, 100BaseT™ Ethernet, PoH (Power over HDBaseT™) and control (Bi- directional IR & RS-232 pass through)
Supported HDBaseT™ Resolutions: VGA~WUXGA, 480i~1080p, 4K@24/25/30Hz (RGB, YUV 4:4:4 & YUV 4:2:2) & 4K@60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
Supports HDMI output resolutions up to 4K@60Hz (RGB/YUV 4:4:4)
Supports automatic 4K@60Hz RGB/YUV 4:4:4 to YUV 4:2:0 conversion for HDBaseT™ outputs
4K@30Hz signals can be transmitted up to 198ft/60M via CAT5e/6 and up to 328ft/100M via CAT6a/7
Supports pass-through of all standard digital audio formats: LPCM 2.0/5.1/7.1, bitstream and HD bitstream
Supports audio matrix functionality enabling full audio management of the system including HDBaseT™ audio selection, fully independent audio-only zones and HDMI audio embedding and de-embedding (LPCM only)
Supports Digital to Analog Conversion (DAC) and Analog to Digital Conversion (ADC) for audio integration
Supports integrated audio over CAT inputs and outputs for transmission up to 984ft/300M
Supports volume, treble, bass, and audio delay for lip-sync (up to 230ms) on analog audio outputs and mute on all outputs
HDBaseT™ outputs with Optical Audio Return (OAR) support
Audio mixer functionality (3 mixers in total)
Advanced internal and external EDID management with (4) sets of configurable EDID settings
Internal test pattern generation for self and sink testing
Capable of generating test signals up to 4K@60Hz
Bi-directional IR support over HDBaseT™
A-Neuvideo ANI-8MFS (8) Input Multi-Format Scaler Switch W/ Volume Control –Mirrored HDMI/VGA Output
(8) Input Multi-Format Scaler Switch W/ Volume Control –Mirrored HDMI/VGA Output
The ANI-8MFS is a multi input scaler has Composite Video, Component Video, PC (VGA) and HDMI inputs and can switch and scale the signal to HDMI or VGA with audio outputs. It supports HDMI output resolutions up to 1080p/WUXGA and Analog Digital Conversion (ADC) and Digital Analog Conversion (DAC) allowing a wide range of AV signals to be displayed on a HDMI or VGA display. Further, the On-screen Display (OSD), IR remote, RS-232, IP and on-panel controls make this product very versatile. This product has a 3 year warranty.
(8) Input Multi-Format Scaler Switch W/ Volume Control –Mirrored HDMI/VGA Output
Supports switching and scaling of multiple AV inputs to HDMI or PC/HD outputs
Supports EDID and HDCP
Supports 3D de-interlace, noise reduction and 3D comb filter
Supports frame rate conversion
Supports RS-232, IP (Telnet/WebGUI) and IR controls
Supports output timing hot keys switching
HDMI compatible with DVI
Supports Digital to Analog (DAC) and Analog to Digital (ADC) Audio conversion
Supports non-HDCP signal of Apple computers
Why not buy this (8) Input Multi-Format Scaler Switch W/ Volume Control –Mirrored HDMI/VGA Output today?
A-NeuVideo ANI-9-MV 9x1 4K HDCP HDMI Seamless Mutli-Viewer Switcher with IR/RS-232/LAN
The ANI-9-MV 9x1 seamless switcher supports (9) HDMI inputs to (1) HDMI output. It allows the user to view up to (9) HD video sources on one display at the same time. Output resolution can be chosen for a supporting legacy display. This switcher is a suitable solution for presentation purposes such as classrooms and conference rooms. This product has a 3 year warranty.
A-NeuVideo HD-88Kp 8x8 UHD 4K2K HDMI Matrix Switch/98ft HDMI Output Cable Booster w/ Preview
The HD-88Kp is a professional 8x8 matrix routing switch. Supporting (8) HDMI Inputs and (8) HDMI Outputs with (1) preview Output port. The HD-88Kp is based on HDMI standards and supports full resolution HDMI video with embedded HDCP, with a signal bandwidth of 340Mhz, so there is no signal degradation. High definition digital signals can be selected and distributed to any of the (8) Inputs to the (8)+(1) preview Outputs. The switcher is certified as being fully CEC, ARC and HDCP 1.3 compliant, full HD 4K2K HDCP 1.3, HDMI 1.4a, 4K2K@30Hz, DVI 1.0, 3D formats and a wide frequency range of 25MHz ~ 340MHz. Supports UXGA/WUXGA/DVI 1920x1200 resolution to any HD display. EDID management can be selected between (7) different modes. Control is provided via front panel push buttons, IR remote, RS-232 or TCP/IP (not a web-browser). A RS-232 Windows GUI interface is provided for matrix routing control (Windows only). Features: (8) HDMI source devices matrix switched to (8)+(1) preview HDMI Output destinations HDMI digital video w/ embedded HDCP, DVI format and CEC/HDCP 1.3 compliant Worldwide EDID control modes for HDMI full 4K2K (24/30Hz) HD video resolutions Wide frequency range of 25MHz ~ 340MHz, Supports HDMI 4K2K, 1.4b 3D formats Wide range of HD resolutions from PC XGA to WUXGA 1920x1200 and HDTV/DTV HDMI resolutions of 480i/480p, 576i/576p, 720p, 1080i/p & 3860x2160p (24/30Hz) Compatible with all HDMI source devices, PC monitors, Plasma HD displays, HDTVs and audio receivers or audio amplifiers Digital video TMDS formats resolutions up to 4K2K with Deep color 36bit Digital Audio Support: Dolby TrueHD, Dolby Digital, Dolby Digital Plus/EX, DTS, DTS-HD, DTS-HD Master, DTS-EX, PCM, PCM2, LPCM2
A-NeuVideo ANI-9251RX HDCP 2.2/HDMI 2.0 Extender with OAR/Audio Insertion Receiver for use with the ANI-1082UHD
The ANI-9251RX HDMI over single CAT5e/6/7 Receiver is a great solution to extend uncompressed Audio/Video and IP data over a single CAT5e/6/7 cable at a distance up to 328ft (100M). Multi-control interfaces are available which includes IR, RS-232, USB and LAN connection. This extender set complies with advanced protocols of HDCP 2.2 and HDMI 2.0, and HDCP 1.4 is also supported. 6G HDMI video supports and extends 4K2K data with features like “Optical Audio Return” which supports audio from the Receiver. The “audio insertion” allows you to insert external audio into HDMI video for applications such as background music insertion. HDBT clock stretch and TMDS re-clocking are also supported. The Receiver can be powered via the PoH when connected to the ANI-1082UHD. This product has a 3 year warranty. Features: HDCP 1.4/HDCP 2.2 and HDMI 2.0 compliant HDMI with 3D, 4K2K@60Hz support and DVI Compliant Simultaneous transmission of uncompressed data over a single CAT5e/6/7 cable up to 328ft/100M at 1080p and 230ft/70M at 4K2K@60Hz 5Play™ convergence: HDMI, LAN, PoE & Control (IR & RS-232) (PoH) Receives power over a CAT cable when connected to the ANI-1082UHD Supports output resolution up to 4K2K@50/60Hz (YUV 420) Supports deep color input and output of 8 bits, 10 bits and 12 bits Supports CEC bypass Optical audio return supports audio transmit back from receiver to ANI-1082UHD Audio insertion supports external audio insert to HDMI video such as background music insertion Supports EDID management PC software with default EDID and native EDID from display or other sink devices Supports HDMI DDC bus clock stretch for better compatibility of some Blu-ray players Manages TMDS re-clocking and signal re-generation for better signal stability Easy firmware update via USB
A-NeuVideo ANI-62HDRH 6X2 HDR HDCP 2.2 4k 60Hz HDMI 18G Matrix Switcher with Audio De-Embedding
This 4K UHD+ 6 by 2 Matrix provides the ability to connect up to (6) 4K UHD HDMI sources to up to (2) 4K UHD HDMI displays and freely switch between them. This unit comes with full support for 18Gbps (600Mhz) resolutions up to, and including 4K@60Hz (4:4:4, 8-bit) as well as support for 16-bit Deep Color (up to 1080p@60Hz), HDR (High Dynamic Range), HD audio and other features defined by the HDMI 2.0 specification. With a comprehensive EDID management feature that includes the ability to select between (6) built in default EDIDs, or an EDID copied from a connected sink device, this matrix can solve many interconnectivity problems. Added flexibility comes from the ability to extract audio from each HDMI output?s source and output it as optical digital audio (LPCM 2.0 and standard Bitstream only). (6) fully configurable presets are also provided to simplify the routing process. Features HDMI input and output with 18Gbps (600MHz) 4K UHD support DVI 1.0 compliant with the use of an HDMI-DVI adaptor HDCP 1.4 and 2.2 compliant Supports HD resolutions up to 3840x2160@60Hz (YUV 4:4:4, 8-bit) and 4096x2160@60Hz (YUV 4:4:4, 8-bit) Supports 16-bit Deep Color up to 1080p@60Hz (6) HDMI inputs and (2) HDMI outputs Optical audio extraction paired with each HDMI output (LPCM 2.0 or Bitstream only) Supports (6) internal EDIDs or (2) external EDIDs copied from connected devices

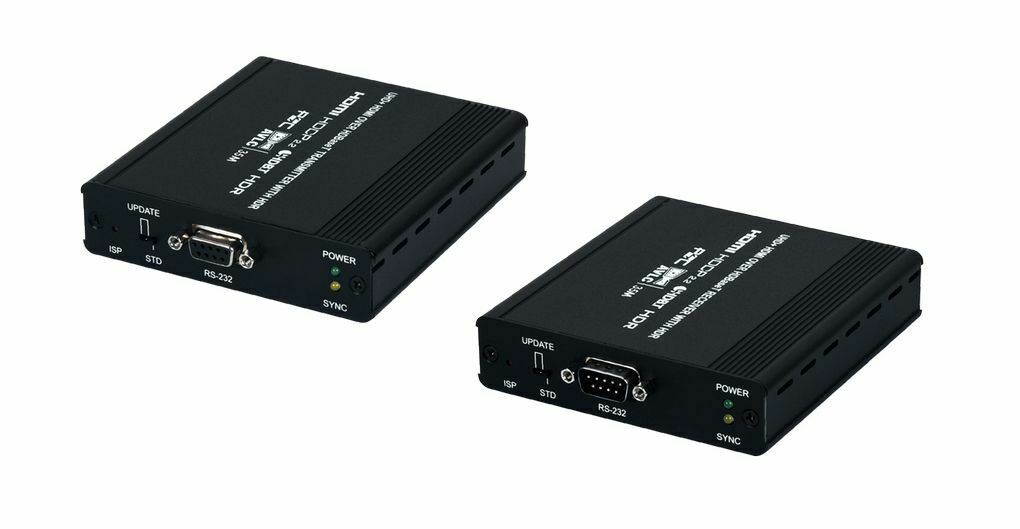

A-Neuvideo ANI-527XX UHD+ 4K@60Hz HDMI HDBaseT w/24V PoC - TX & RX Kit w/3-Yr Warranty
This A-Neuvideo ANI-527XX UHD+ 4K@60Hz HDR HDMI HDBaseT & trade; w/ Bi-Directional 24V PoC - Transmitter & Receiver Kit are a great solution for extending UHD video and audio as well as Ethernet and control via a single run of CAT5e/6/7 cable over distances up to 230 ft / 70M. This extender complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. In addition, despite HDBaseT & trade;'s 10.2Gbps bandwidth limitation, 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8bit) as well as 10/12bit sources with HDR, are able to be processed and extended by the use of AVLC (Adaptive Visually Lossless Compression) when needed. Multiple data and control interfaces are also able to be extended, including IR, RS-232, and LAN connections.
This unit supports bi-directional 24V PoC (Power over Cable) allowing the system to be completely powered by, or provides power to, the compatible connected Receiver or Transmitter, allowing for greater flexibility within different installation scenarios. This product has a 3 year warranty.
A-Neuvideo ANI-527XX UHD+ 4K@60Hz HDR HDMI HDBaseT & trade; w/ Bi-Directional 24V PoC - Transmitter & Receiver Kit Features:
HDMI with HDR, 3D & amp; 4K@60Hz support, DVI 1.0 compatible
HDCP 1.x and HDCP 2.2 compliant
Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8bit) video input and output
Supports Deep Color input and output up to 12bit
Supports 10bit and 12bit HDR (High Dynamic Range) input/output
Supports CEC bypass
HDBaseT & trade; feature support: HD Video and Audio, 24V PoC and Control (bi-directional IR/RS-232 pass-through)
Receiver: & nbsp;HDBaseT & trade; input receives video, audio and data over a single CAT5e/6/7 cable and can reach distances up to 70M / 230 ft at 1080p and 40M / 131 ft at 4K when using CAT6a/7
Transmitter: & nbsp;HDBaseT & trade; output transmits video, audio and data over a single CAT5e/6/7 cable and can reach distances up to 70M / 230 ft at 1080p and 40M / 131 ft at 4K when using CAT6a/7
Integrated AVLC (Adaptive Visually Lossless Compression) activates when the bandwidth requirements of the source are beyond 10.2Gbps (340MHz) allowing for support of sources up to 18Gbps (600MHz) with no loss of visual quality
Supports pass-through of many audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
Bi-directional 24V PoC allows the unit to be powered by, or provide power to, a compatible connected Transmitter
Note: & nbsp;The 24V PoC function is designed to power, or receive power from, compatible Transmitter units only. Non-PoC Transmitters will need their own power supply. Other brands of Transmitter may not be compatible.
Note: & nbsp;The 24V PoC function is designed to power, or receive power from, compatible Receiver units only. Non-PoC Receivers will need their own power supply. Other brands of Receiver may not be compatible.
A-NeuVideo ANI-7.1CH4K 4K 18Gbps HDR HDCP 2.2 HDMI 2/5.1/7.1CH Audio Extractor
This HDMI 18Gbps Audio Extractor could extract audio signals from any HDMI compliant source to digital optical or analog stereo L/R audio outputs. Further, both input and output HDMI support video resolution up to 4K2K@50/60Hz (YUV444). It supports 10bits HDR (High Dynamic Range) pass through and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby True HD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio, audio sampling rate up to 192kHz. HDCP 2.2 and CEC bypass are supported. This product has a 3 year warranty. Features HDMI 2.0 b (18Gbps), HDCP 2.2 and DVI compliant Video resolutions up to 4K2K@50/60Hz (YUV444) Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio Optical audio supports LPCM 2CH, Dobly Digital 2/ 5.1CH, DTS 2/ 5.1CH Supports HDMI High Bit Rate (HBR) audio pass through Audio sample rates up to 192kHz 10bits HDR (High Dynamic Range) pass through Supports CEC bypass
8 Port Gigabit Ethernet Network Switch | Ethernet Splitter | Plug and Play | Fanless | Sturdy Metal w/ Shielded Ports (TL-SG108)
PLUG AND Play: Easy setup with no configuration or no Software needed 8 Ports GIGABIT ETHERNET 8 10/100/1000 Mbps Gigabit auto negotiation RJ45 ports greatly Expand network Capacity Sturdy Metal Case: Fanless quiet Design, desktop or wall mounting Design; Operating Temperature 0 °C to 40 °C (32 °F to 104 °F); Storage Temperature: 40°C to 70°C ( 40°F to 158°F) RELIABLE IEEE 802.3 x flow Control provides reliable data transfer TRAFFIC OPTIMIZATION: 802.1 p and DSCP QoS enable smooth latency sensitive traffic such as Voice and video UP to 80 percentage Power Saving Automatically adjusts Power consumption according to the link status and cable length AUTO NEGOTIATION Suppots Auto MDI/MDIX, eliminating the need for crossover cables
Shinybow ANI-1X2COMPDA 1x2 Component Video(RCA) Splitter Distribution Amplifier
DESCRIPTION The ANI-1X2COMPDA is a 1 input to 2 output Component Video Distribution Amplifier with Digital Coaxial/Optical Audio. They are used to distribute video and Audio signals to multiple destinations, These products provide multiple outputs that are identical to the source signal. There are useful for distributing signals from VCRs, Camcorders, Video Game Consoles, DVDs, Satellite Receivers, CATV Set Top Boxes, etc. The ANI-1X2COMPDA can also be cascaded. FEATURES Input: 1x Component Video with Digital Coaxial/Optical Audio Output: 2x Component Video with Digital Coaxial/Optical Audio High resolution Support HDTV 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Lighted Power Indicator Video Bandwidth >400 Mhz Accepts NTSC and PAL Regulatory Approvals CE, FCC, RoHS(2002/95/EC) SPECIFICATIONS Type of Amplifier: 1x2 Component Video Distribution Amplifier with Digital Coaxial/Optical Audio Input: Video x 1: Component (RCA) (YPbPr/YCbCr/RGB) Video 75 0hms Audio x 1: Digital Coaxial/Optical Audio (RCA and Toslink) Output: Video x 2: Component Video (RCA) (YPbPr/YCbCr/RGB) Audio x 2: Digital Coaxial/Optical Audio (RCA and Toslink) Video Bandwidth: 400MHz Enclosure Type: Metal case Power Consumed: 420mA Maximum Power Source: DC 12 Volts, @500mA Size(L, W, H): 12 in x 6.4 in x 1.55 in WHAT'S INCLUDED ANI-1X2COMPDA Distribution Amplifier Users Guide AC/DC Adapter: 12VDC, 500mA
ANI-16-MV 16x1 HDMI 1.3 Multi-Viewer with Seamless Switcher
The ANI-16-MV is a high performance 16x1 Multi-Viewer with seamless switcher. It supports (16) High definition input source displays on (1) screen. As a switcher, it can also seamlessly switch the (16) HD inputs freely. The product can be controlled in various ways, through the front panel button control and RS-232 control etc. This product has a 3 year warranty.
IMPORTANT INFORMATION: If using a USB to RS-232 cable, you must use one that contains FTDI chipset. A cable that utilizes CH340 will not function correctly.
Features
HDMI 1.3a, HDCP 1.2 compliant
Supports multiplexed HDMI (16) inputs and (1) output
Supports up to 1080p High Definition resolution
Supports (16) by (1) Quad Multi-viewer and seamless switch
Supports scale up, scale down function
Supports multiple output resolution
Supports digital audio format LPCM/AC3/DTS
Supports button and RS-232 control
11x2 MULTI-FORMAT VIDEO SCALER SWITCH w AUDIO/Tx/Rx
The ANI-11x2MFS is a multi-format video presentation scaler switch with audio. It features (11) inputs of various video formats including HDMI, VGA, Component, Composite and HDBaseT? with HDMI and HDBaseT? outputs. Video can be scaled to various aspect ratios and resolutions from 640x480 up to 1920x1080@60Hz, and using by-pass supports up to 4k@30Hz.? Embedded splitter and dual switcher modes, it can work as 11:1x2 multiple splitter or 5x1 & 11x1 dual switcher. It also features a switchable digital bypass output allowing any HDMI input to be directly bypassed via that HDMI output to cater for the 4K source. With advanced audio embedding and de-embedding, it can provide flexible audio signal integration. Each source can be switched to the HDMI output using the front-panel, IR remote control or RS-232 interface.? The ANI-11x2MFS integrates easily in various analog to digital applications such as when used in collaboration environments, lecture halls, conference rooms, class rooms, healthcare facilities and control centers.? The ANI-11x2MFS-Tx (Transmitter)/ANI-11x2MFS-Rx (Receiver) are HDBaseT? Extenders. They can transmit 1080p@60Hz at 48bit deep color via a single CAT5e up to 330ft/100M and 4K up to 230ft/70M. Bi-directional IR, RS-232 and Ethernet can also be transmitted over the same CAT5e cable. With support of POH (power over HDBaseT?), only one power supply is needed at either transmitter or the receiver. Features Switch & Scale 11-inputs to 2 HD/UHD displays 4x HDMI, 4x VGA, 1x YPbPr, 1x Composite, 1x HDBaseT? Inputs (2) simultaneous outputs (1x HDMI, 1x HDBaseT?), bypass and scaled formatted output selectable Dual mode selectable (1x2 Splitter Mode or 5x1 & 11x1 Dual Switcher Mode) HDTV formats up to 4K@30Hz on both Input and Output (bypass) Scaling from 640x480 to 1920x1080 @ 60Hz HDBaseT? PoE Transmitter (sold separately) HDBaseT? PoE Receiver (sold separately) supports distance up to 330 ft /100M Built in Ethernet Hub HDCP 1.4 compliant Audio embedder and audio extractor OSD menu for volume control and resolution selection Controllable via front panel, IR remote, TCP/IP or RS-232 Front-panel LCD display for status feedback Easy installation with rack-mounting ears Transmitter & Receiver HDMI v1.4 and HDCP compliant, supports 1080p@60Hz, 3D and 4K2K Supports 1080p@60Hz or VESA: 1920x1200@60Hz up to 330 ft/100M Transmission distance for 4K2K@30Hz up to 230 ft/70M Dolby TrueHD and DTS-HD master audio pass through HDMI output Bi-Directional IR, RS-232 and Ethernet pass through Power over HDBaseT? supported, only one power supply needed at either transmitter or receiver side ESD Protection
2x8 UHD 4K 60Hz HDR 18G HDMI Splitter Individual Output
The ANI-28UHDDA 4K UHD Switching Splitter with HDCP 2.2 is an advanced solution providing high performance audio and video support including HDR and other features defined by the HDMI 2.0a specification. 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be passed along to the (8) outputs. Pass-through of multiple digital audio formats such as LPCM 7.1, Bitstream and advanced HD Bitstream with audio sampling rates up to 192kHz are also supported. An independent HDCP management engine for each output ensures stable HDCP performance. This splitter also includes a special & ldquo;Group Mode & rdquo; which allows the unit to function as two independent 1x4 splitters. When Group Mode is enabled, each of the (2) HDMI inputs are routed to their own discrete set of (4) outputs.
Support for the CEC & ldquo;active source & rdquo; command to periodically reset input selection on CEC-compatible connected displays is also included.
Features
HDMI with HDR, 3D & amp; 4K@60Hz support, DVI 1.0 compatible
HDCP 2.2 and HDCP 1.0 compliant
Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video signals
(8) output HDMI splitter with (2) selectable inputs and automatic input switching support
Special & ldquo;Group Mode & rdquo; allows the unit to function as two independent 1x4 splitters in a single box
Supports current 10-bit and 12-bit HDR (High Dynamic Range) formats
Supports pass-through of LPCM 7.1, Bitstream and advanced HD Bitstream audio formats
Per-output, selectable, 4K to 1080p down-scaling/color space conversion (4:4:4 to 4:2:0)
Support for the CEC & ldquo;active source & rdquo; command to periodically reset input selection on CEC-compatible connected displays
Controllable via front-panel buttons with OSD and RS-232
