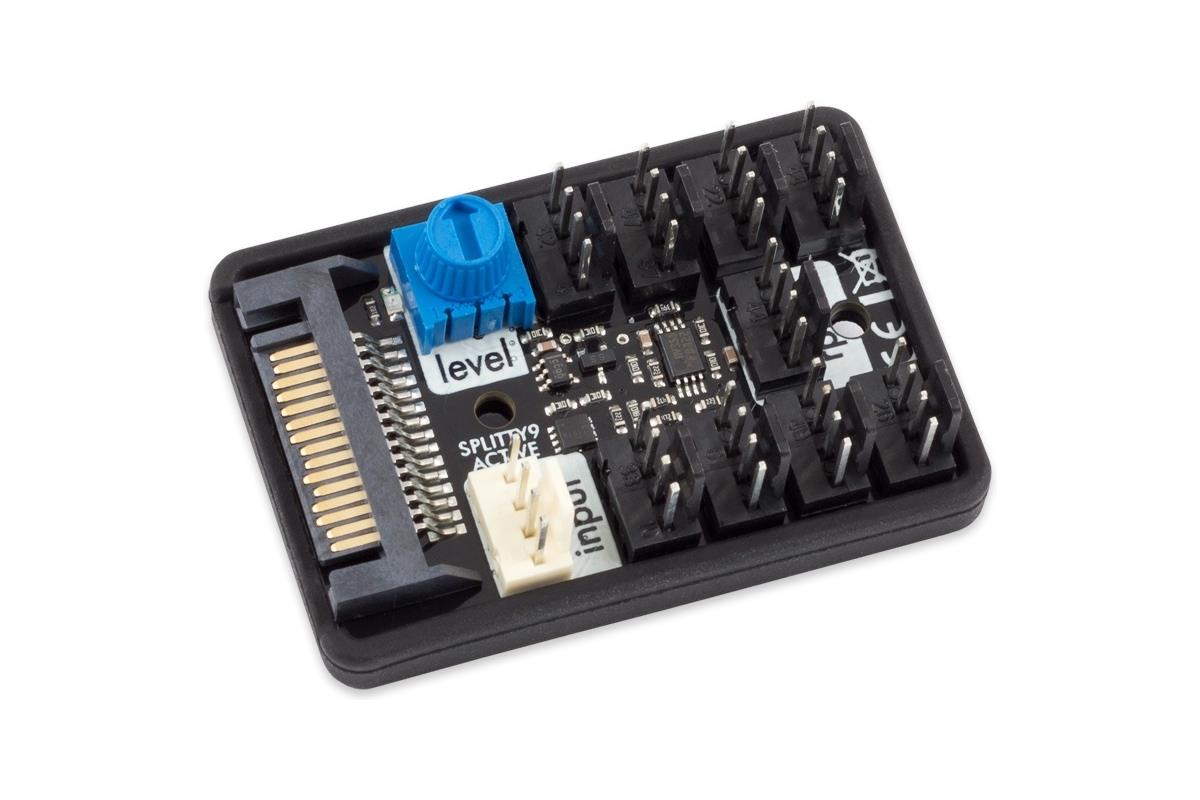

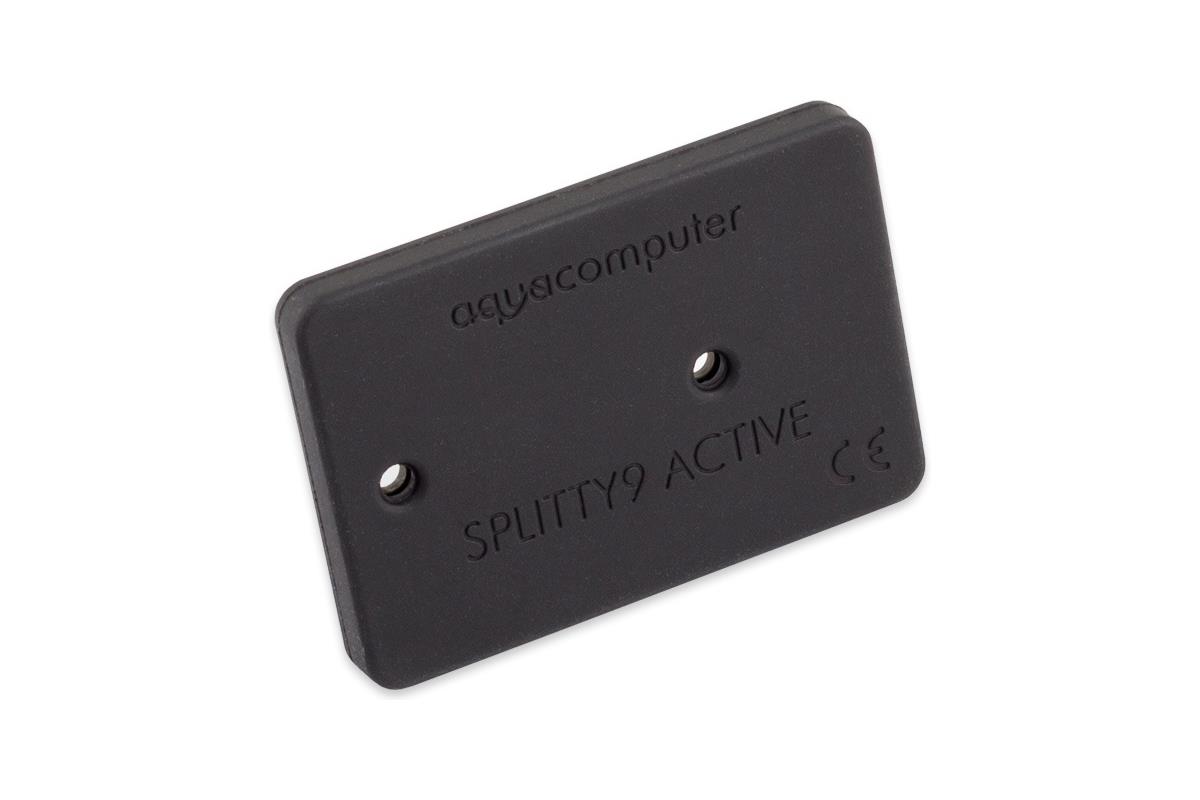

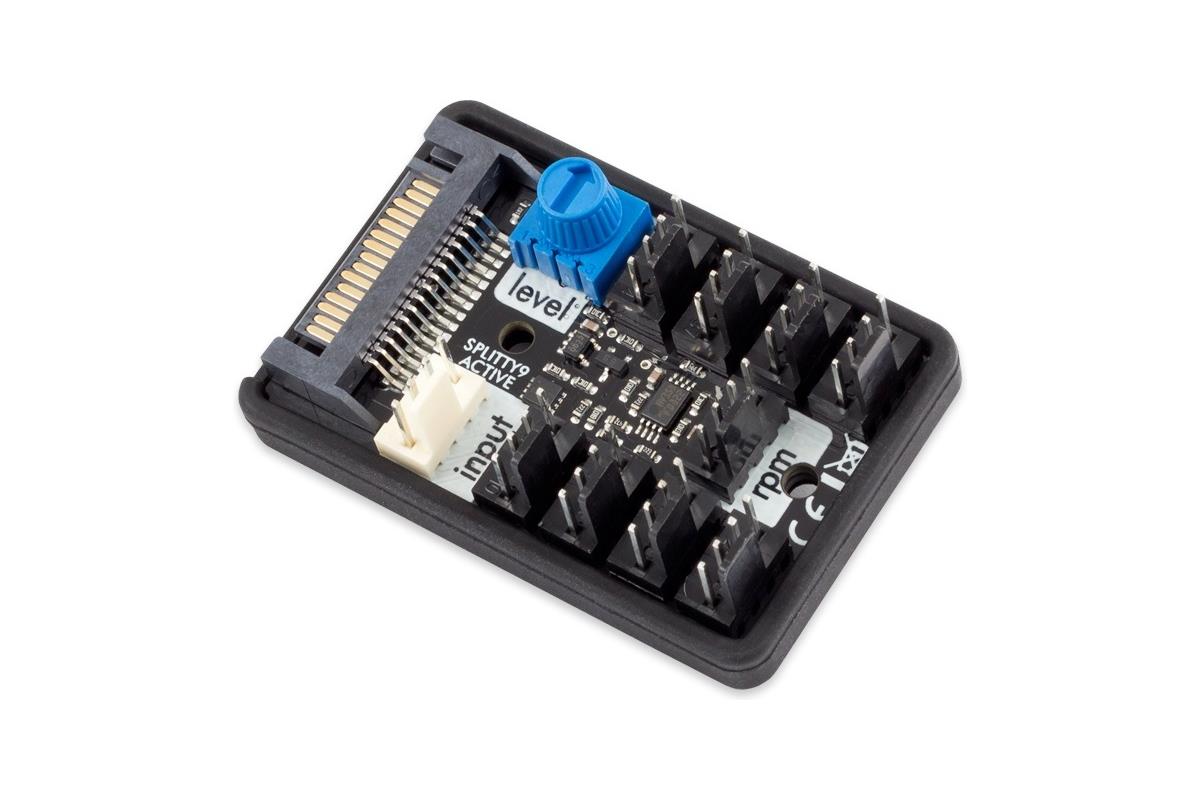

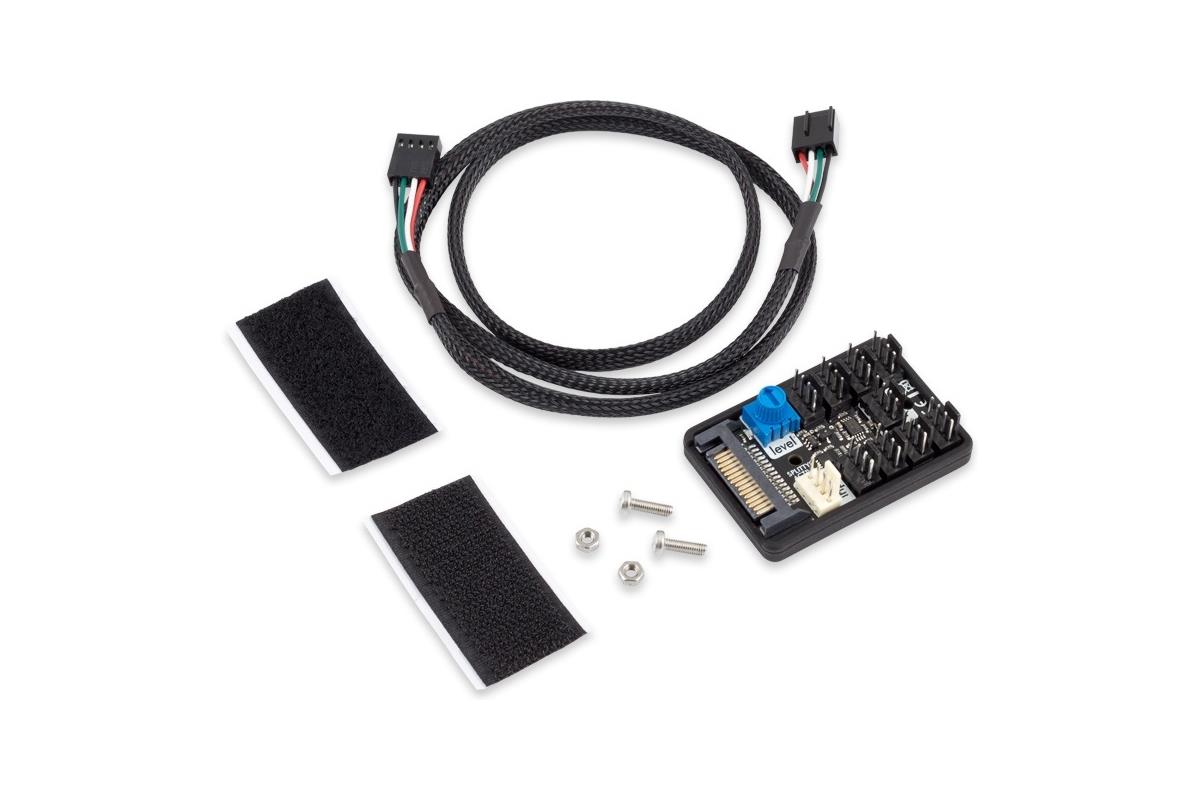

Aquacomputer SPLITTY9 ACTIVE Splitter (53283)
SPLITTY9 ACTIVE has significant advantages over a passive splitter:Power supply through SATA connector:Fans connected to the splitter are not supplied from the fan output, but from a SATA power connector to be connected directly to the PSU. This means that fan power consumtion is not limited to the maximum load of the fan output, but to the maximum power of a SATA connector - that is 4.5 Amps or 54 Watts according to specification.PWM signal amplification:When using a passive splitter, each connected fan puts a strain on the PWM signal of the fan output - depending on fan output and fan type, even a small number of fans might overload the PWM signal, the fans cannot be controlled in this case. SPLITTY9 ACTIVE amplifies the PWM signal to be able to control problematic fans with out-of-spec PWM inputs.Adjustable switching threshold:PWM fans can usually not be switched off using the PWM signal - SPLITTY9 ACTIVE adds this useful feature. A rotary knob can be used to adjust the switching threshold. If the PWM signal is below the threshold, SPLITTY9 ACTIVE will cut power to the fans. A LED on the splitter indicates whether the fans are currently powered.A self-adhesive hook-and-loop strip is included for easy installation, alternatively two mounting holes can be used.Maximum current:4.5 ADimensions:ca. 57 x 39 x 16 mmInstallation Manual

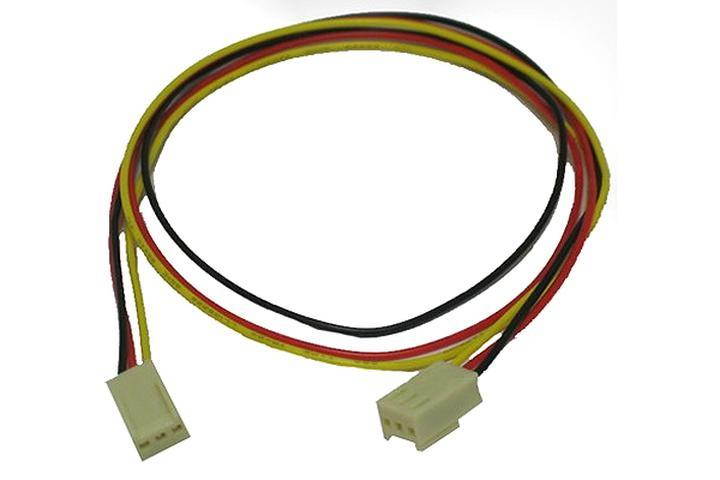

Aquacomputer Aquastream RPM and Aquabus Cable (93111)
Signal cable for connecting the tacho signal output of the aquastream controller to a mainboard fan connector. This cable can also be used for aquabus connections (e. g., aquaero + multiswitch)

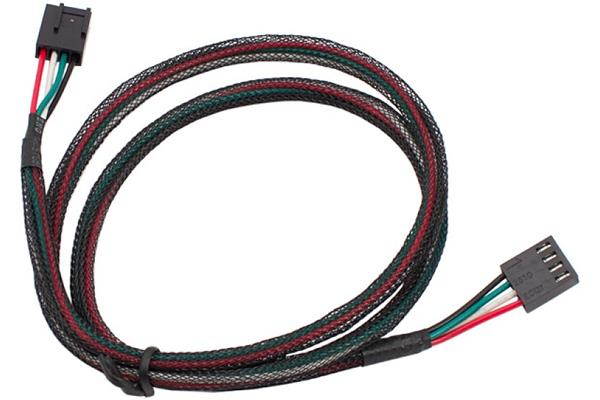

Aquacomputer Aquabus Cable 4-Pin (53122)
This connection cable can be used for connection of different devices from aquacomputer via the aquabus interface.

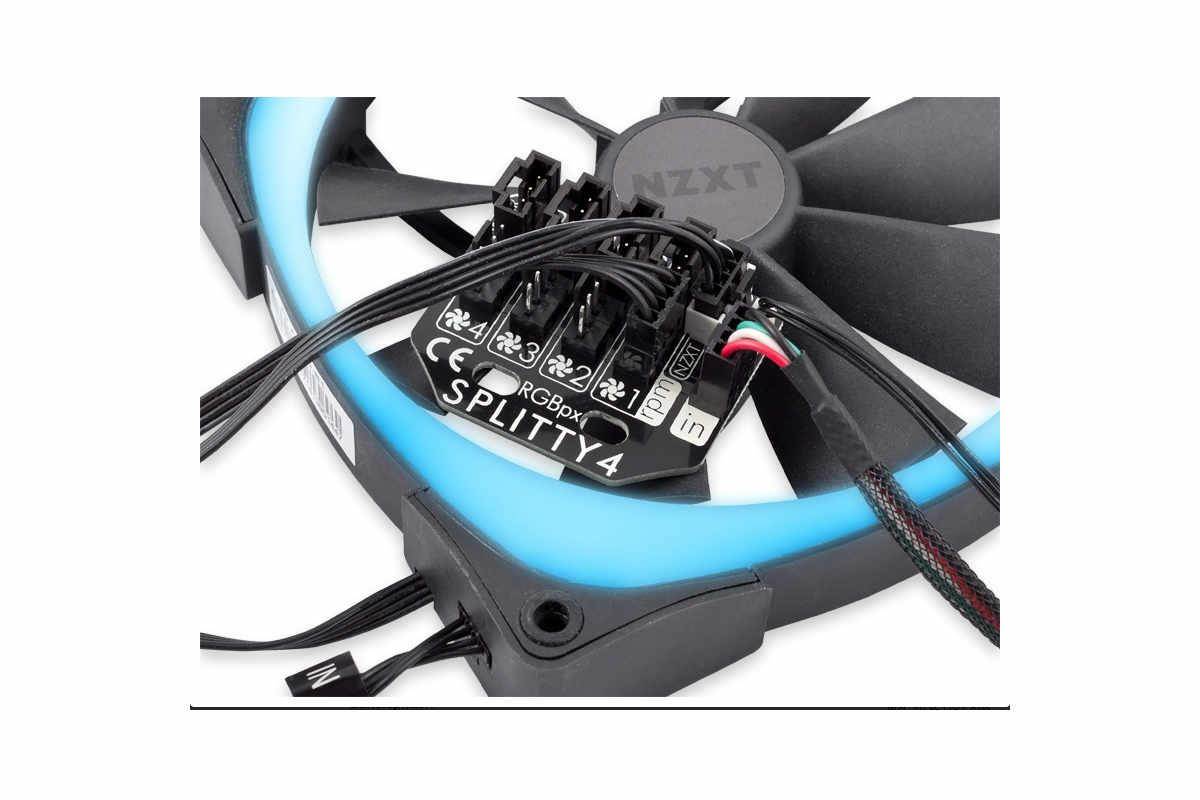

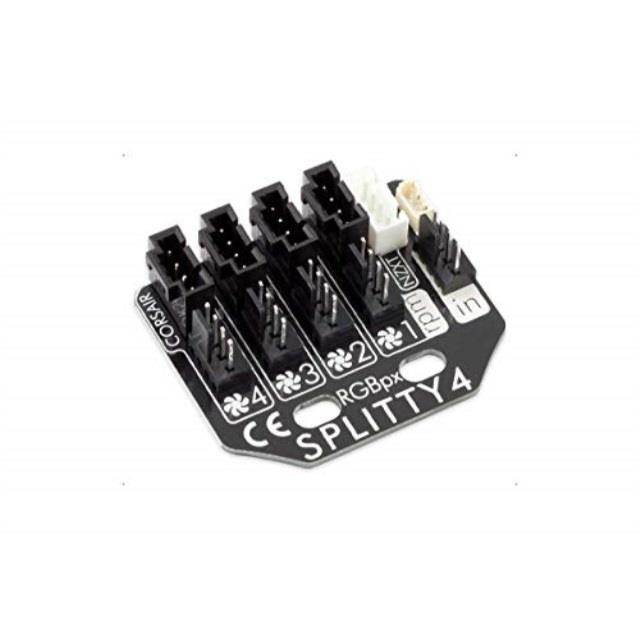

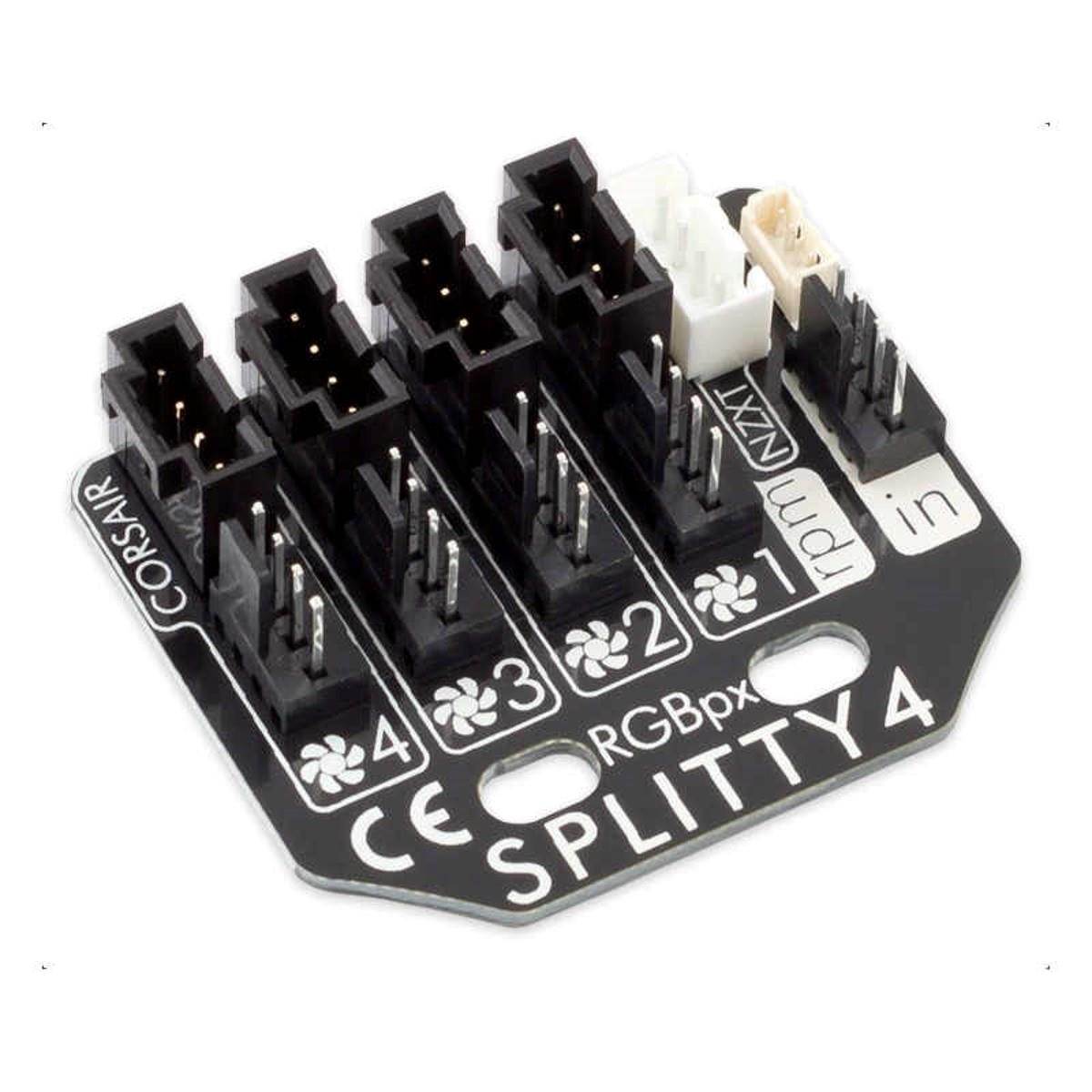

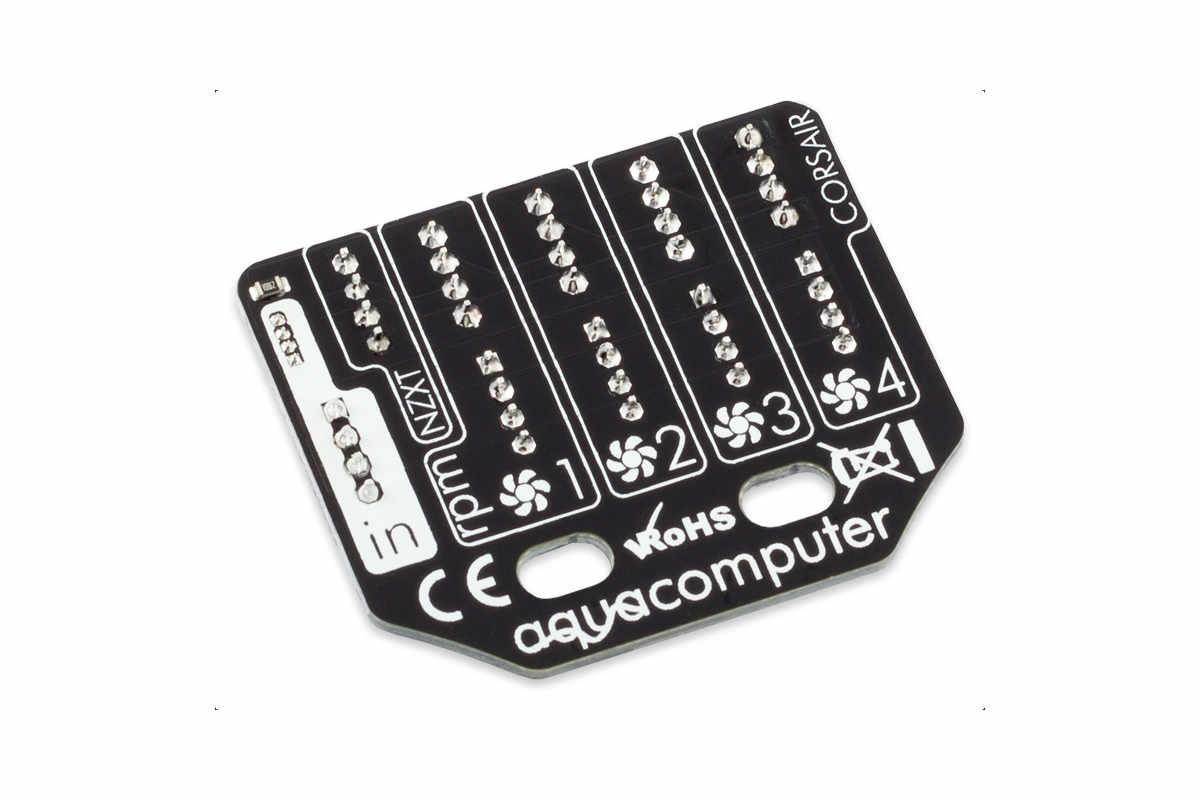

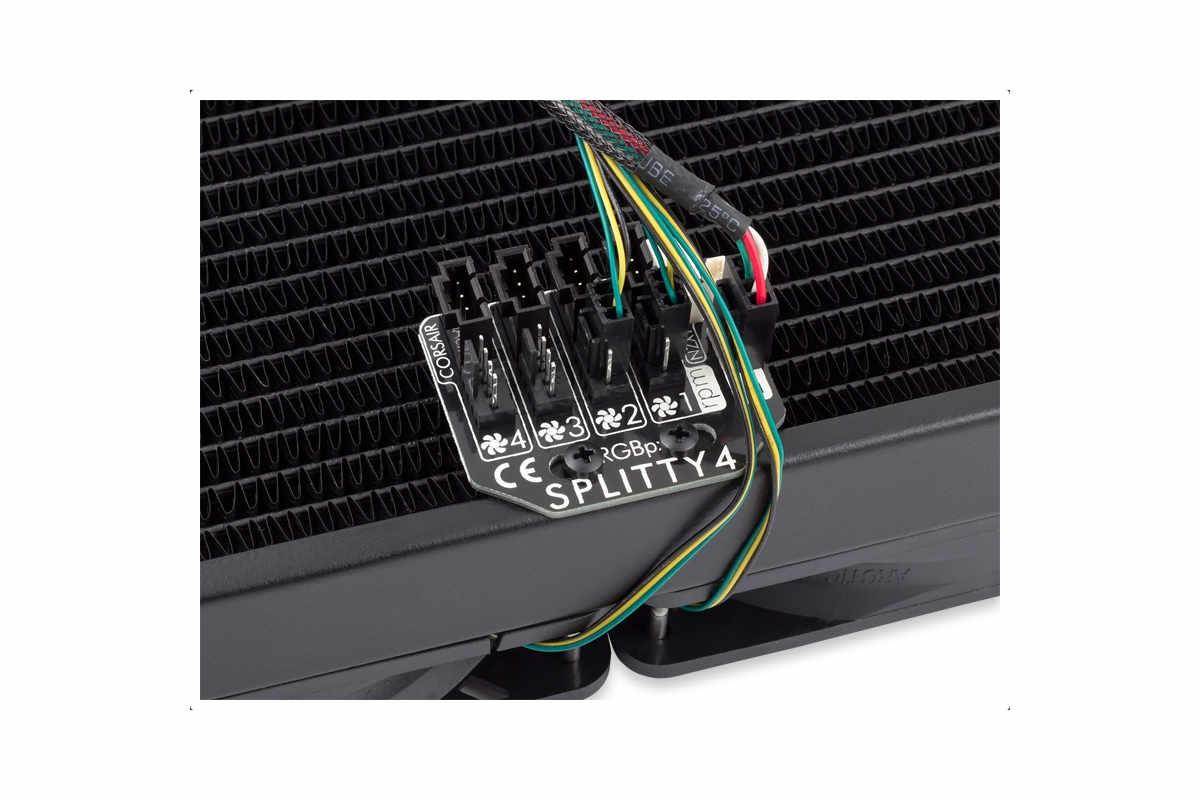

aquacomputer rgbpx splitty4 board 4way splitter
Splitter for fan power supply and RGBpx lighting control.This compact board combines two functions1. A 4-way splitter for powering up to four fans from a single fan connector2. Connection adapter for connecting the lighting systems of various fan manufacturers to the RGBpx system Both functions are independent of each other, RGBpx Splitty4 can also be used "only" as fan splitter or as pure lighting adapter. Fan splitterIn the function as fan splitter, fans with 3-pole as well as 4-pole connectors can be used, provided that the connected fan output supports these types (voltage regulated/PWM signal). The speed signal of a connected fan (connector label "rpm") is fed back to the fan output. Technical detailsManufacturer Corsair (four connectors for maximum four fans, "LED hub" not required) LL120 RGB, LL140 RGB (16 LEDs per fan) HD120 RGB, HD140 RGB (12 LEDs per fan) ML120 PRO RGB LED, ML140 PRO RGB LED (4 LEDs per fan) Manufacturer NZXT (one connector, additional fans can be connected to the previous one, maximum eight fans in total) Aer RGB120, Aer RGB140 (8 LEDs per fan) The board can easily be attached to two adjacent fans and thus allows a visually very attractive cable laying without the usual "cable clutter". Guidelines and notes: The mixed connection of lighting systems from different manufacturers is not possible! Scope of delivery RGBpx Splitty4 board Fixing material Fan connection cable 4-pole, approx. 70 cm Connection cable RGBpx, approx. 50 cmModel: 53267UPC NO:4260473312048 SKU:ADIB07G1C1MS6

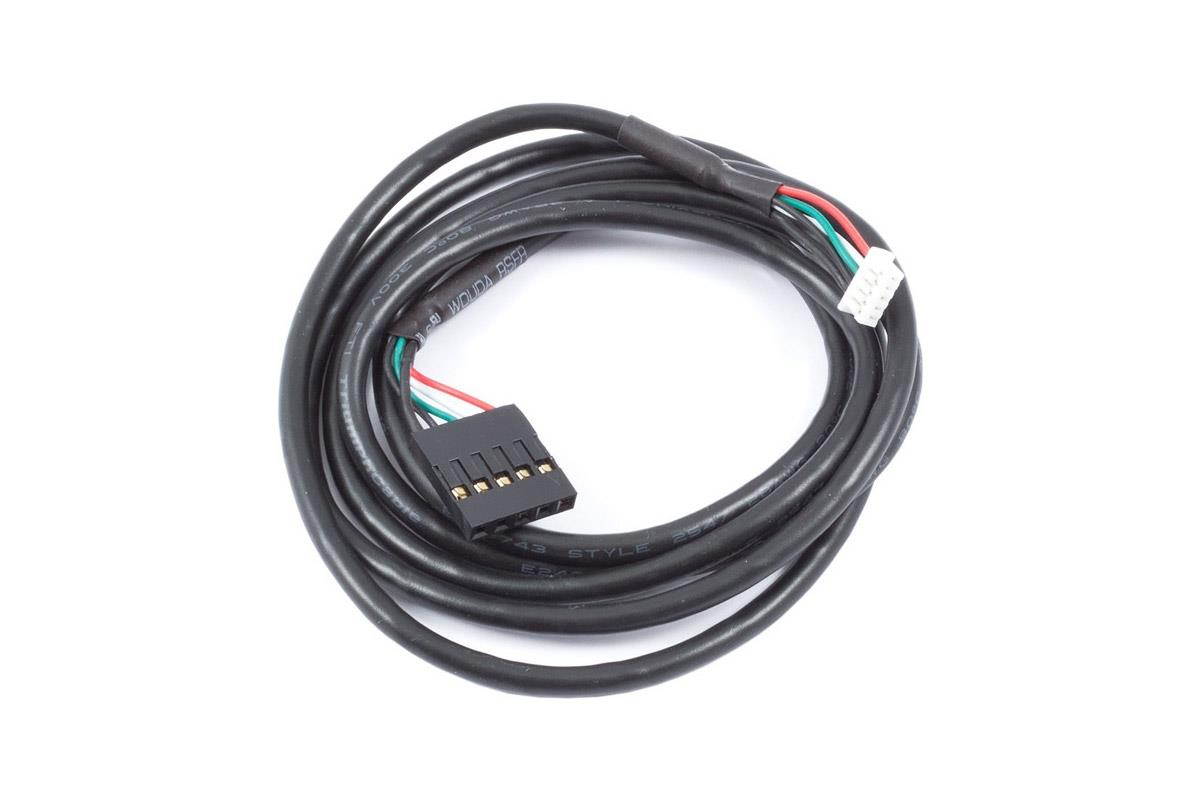

Aquacomputer Internal USB Connection Cable 100cm for VISION (53215)
Internal USB connection cable to connect an Aqua Computer USB device with miniature connector (for example VISION) to a free USB port (pin header) of the mainboard. Length approx. 100 cm.

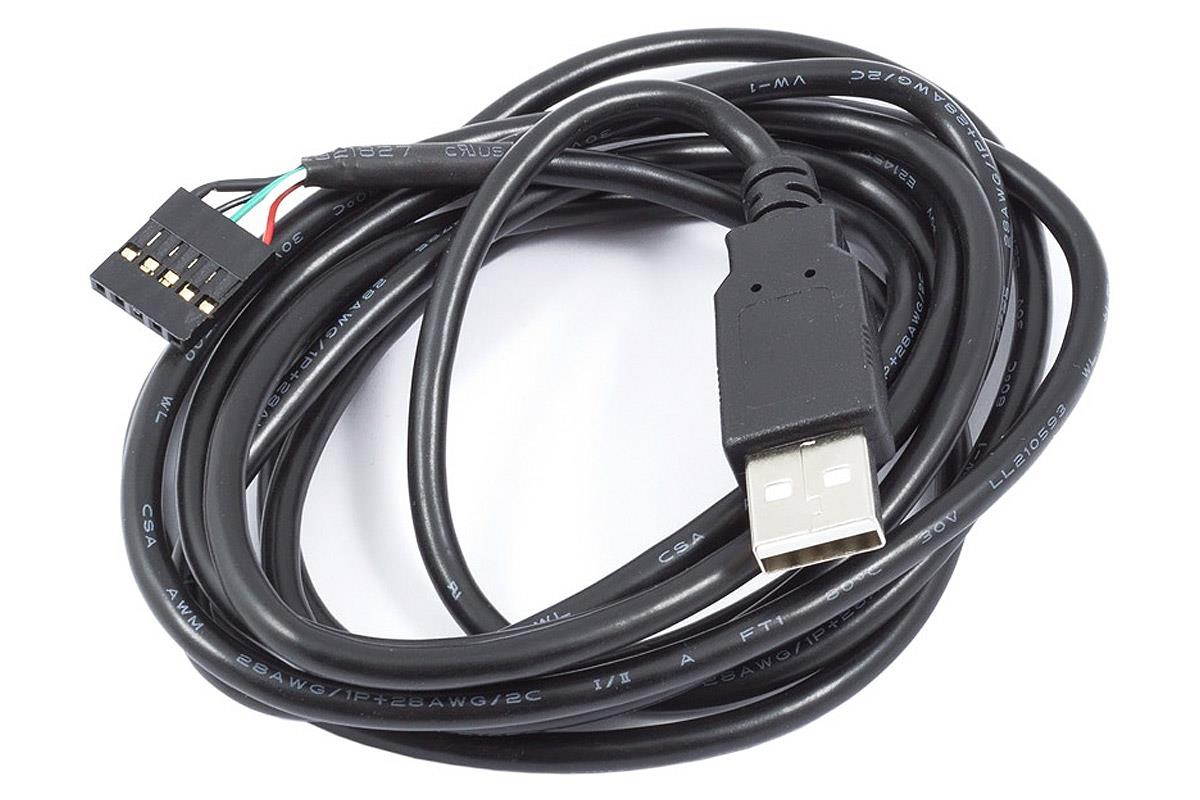

Aquacomputer USB Cable A-plug to 5 pin Female Connector, 200 cm (53210)
This cable can be used to connect an Aqua Computer USB-device with a 5 pin male USB header (for example aquaero, aquastream XT, poweradjust, mps) to a USB Type A port on the motherboard. Length approx. 200 cm.
