HPE Aruba 2530-48G - Switch - 48 Ports - Managed - Rack-Mountable (J9775A#ABA)
HP 2530-48G Switch U.S. - English localization

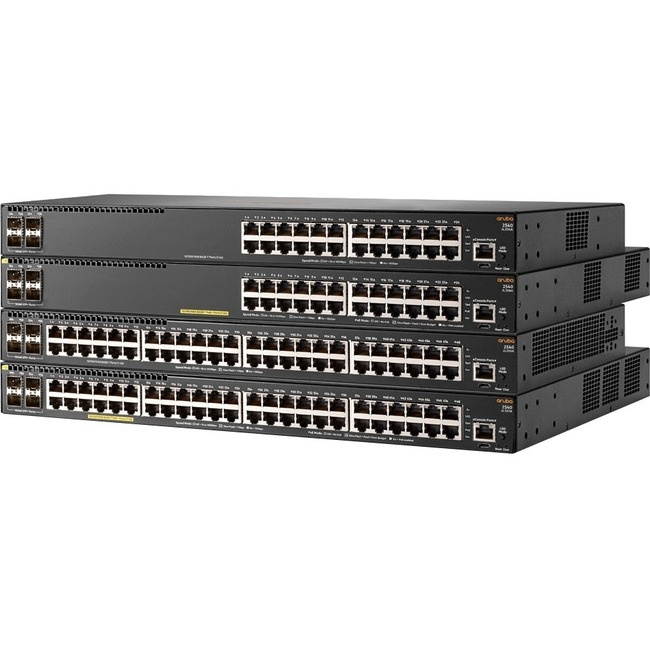

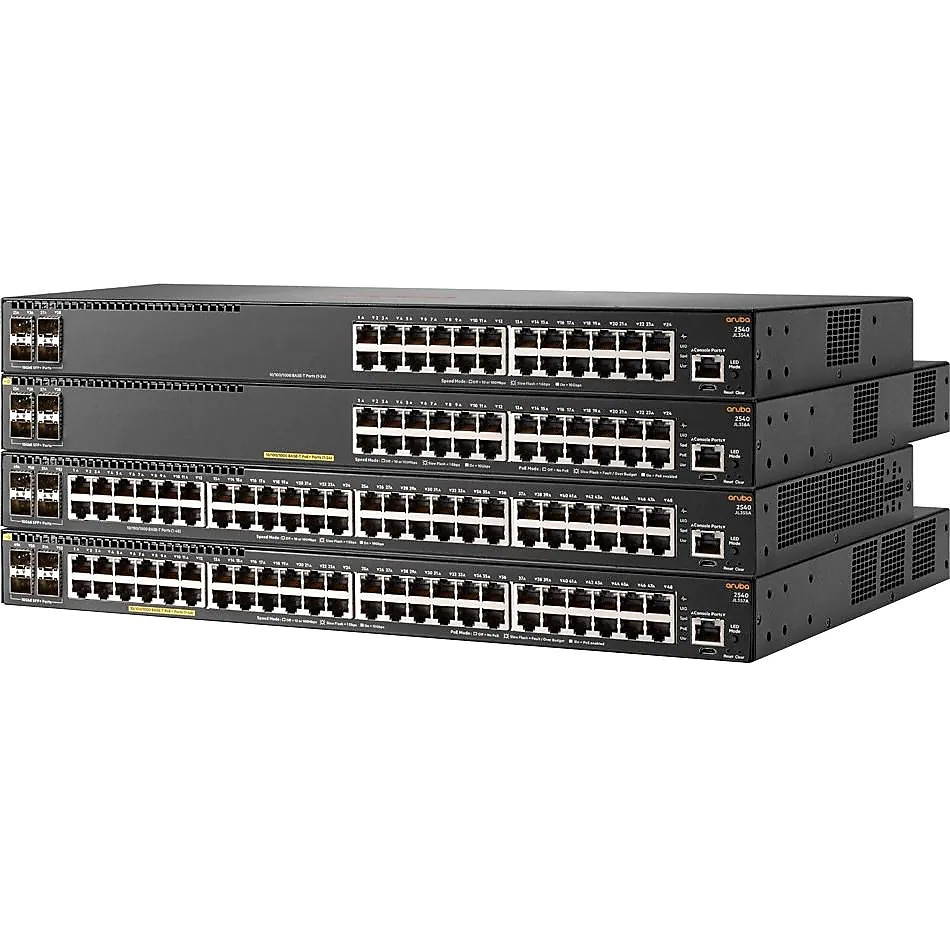

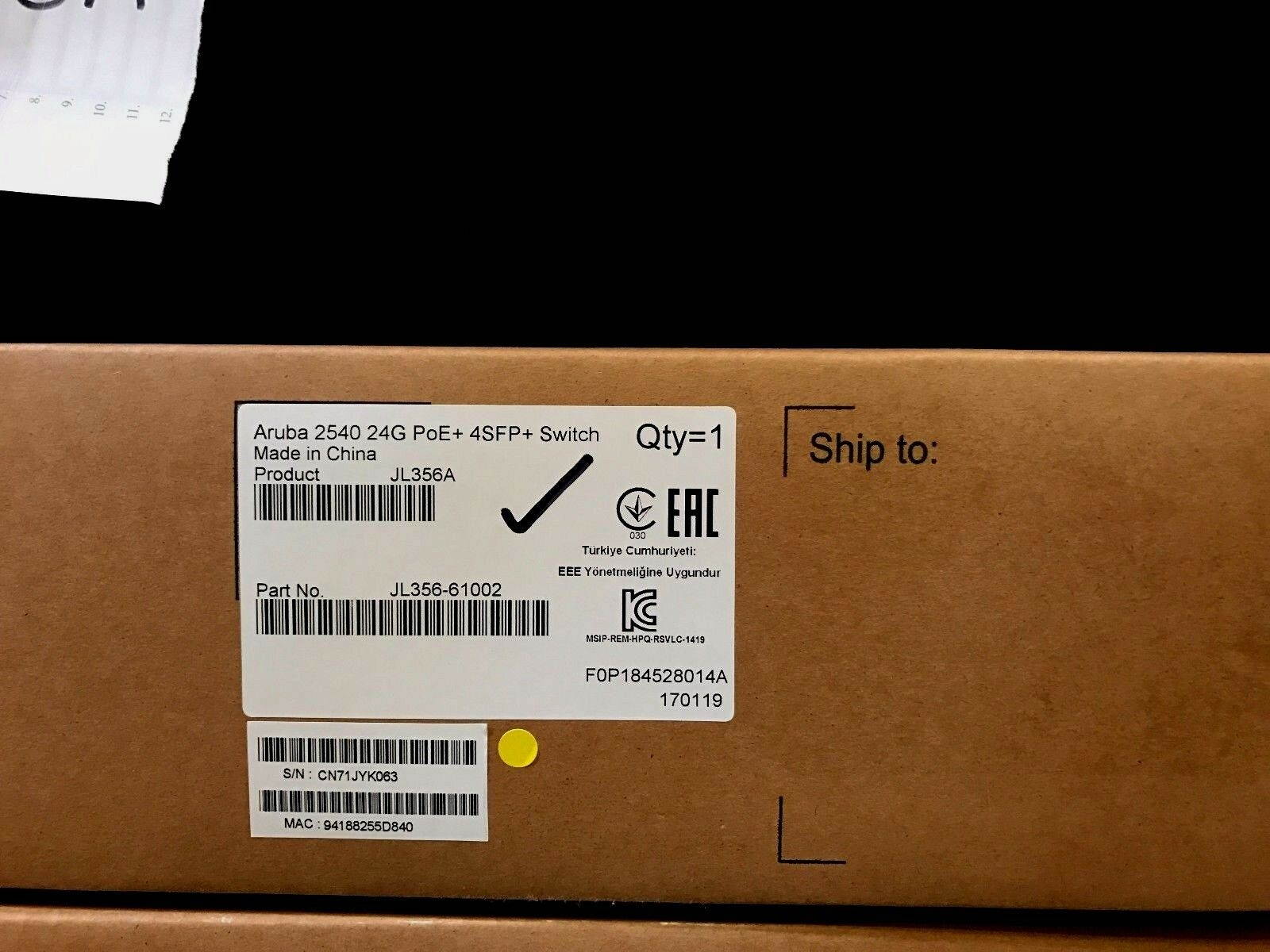

Aruba 2540 24G 4SFP+ 24-Port Switch w/ 4 SFP+ Ports
ARUBA 2540 24G 4SFP+ SWITCH
Aruba JL681A Instant On 1930 8G Class4 PoE 2SFP 124W Switch
Aruba JL681A Instant On 1930 8G Class4 PoE 2SFP 124W Switch
Aruba R6P90A#ABA Instant On AP22 Flush Mount Sleeve
Aruba R6P90A#ABA Instant On AP22 Flush Mount Sleeve
Aruba JL685A Instant On 1930 48G 4SFP/SFP+ Switch
Aruba JL685A Instant On 1930 48G 4SFP/SFP+ Switch

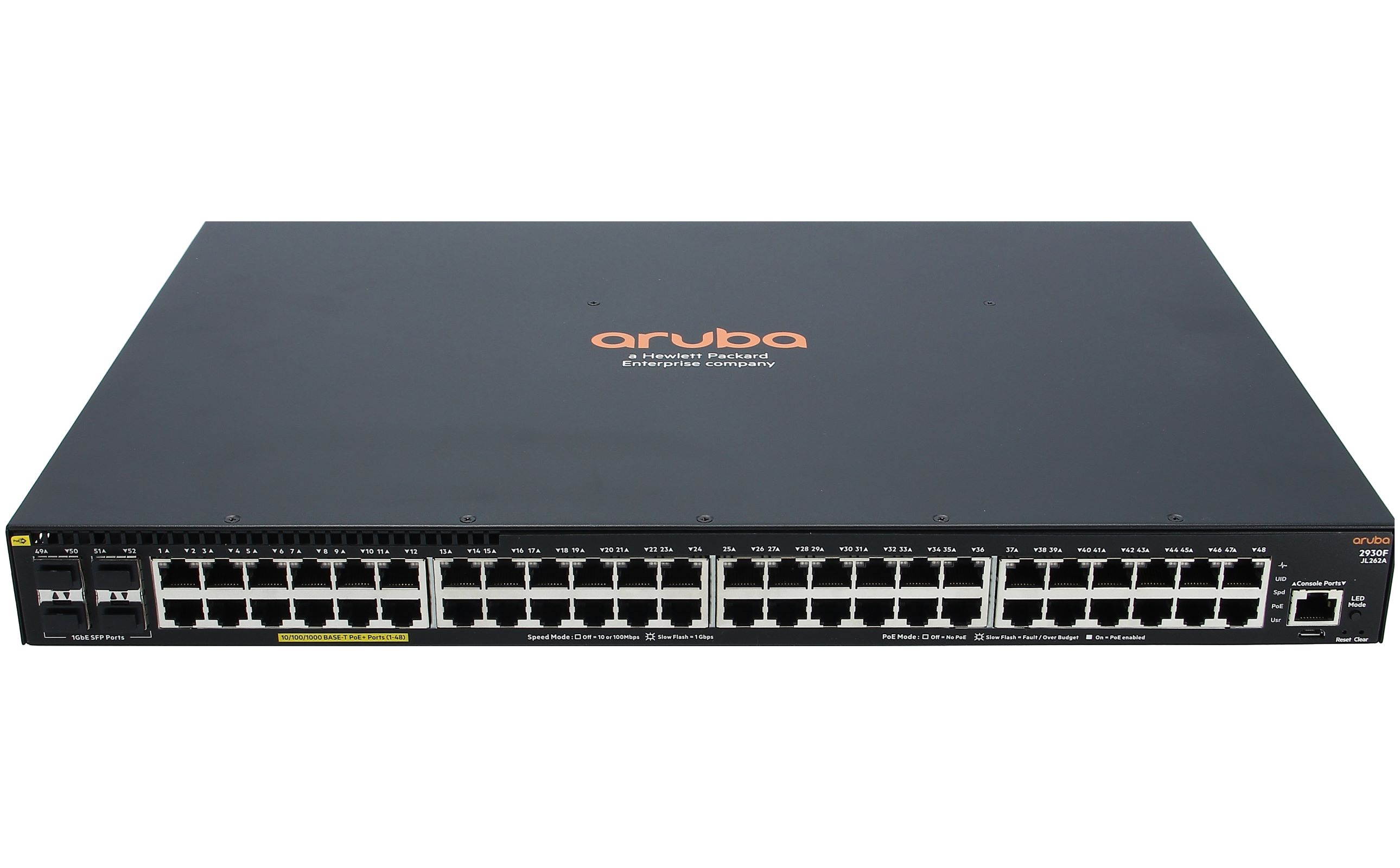

HPE Aruba 2930F 48G PoE+ 4SFP+ - switch - 48 ports - managed - rack-mountable JL256A
Product Specifications
General
Device Type Switch - 48 ports - L3 - managed - stackable
Enclosure Type Side to side airflow rack-mountable 1U
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+
Power Over Ethernet (PoE) PoE+
PoE Budget 370 W
Performance Throughput: 112 Mpps | Switching capacity: 176 Gbps | Latency (1 Gbps): 3.8 µs | Latency (10 Gbps): 1.6 µs | Latency (1 Gbps): 3.8 µs
Capacity IPv4 routing table entries: 2000 | IPv6 routing table entries: 1000 | MAC address entries: 32768
MAC Address Table Size 32K entries
Jumbo Frame Support 9220 bytes
Routing Protocol OSPF, RIP, RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, XRMON
Encryption Algorithm MD5, SSL
Authentication Method RADIUS, PAP, CHAP, TACACS, TACACS+
Features Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), MAC address lockout, dynamic ARP protection, DHCP protection, Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), Type of Service (ToS), OpenFlow support, CPU protection, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Virtual Extensible LAN (VXLAN), Management Information Base (MIB) II, Energy-Efficient Ethernet (EEE)
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Processor 1 x ARM Cortex: 1.016 GHz
RAM 1 GB DDR3 SDRAM
Flash Memory 4 GB
Expansion / Connectivity
Interfaces 48 x 1000Base-T RJ-45 PoE+ | 4 x Gigabit / 10Gbit LAN SFP+ | 1 x serial (console) RJ-45 | 1 x Type B
Power
Power Device Internal power supply
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 459 Watt
80 PLUS Certification 80 PLUS Silver
Miscellaneous
Compliant Standards CISPR 22 Class A, CISPR 24, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, ICES-003 Class A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, IEC 60825-1:2007, CNS 13438, EN 55024:2010, EN 55022:2010, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 60825-1:2007, FCC CFR47 Part 15 A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
Dimensions & Weight
Width 17.4 in
Depth 12 in
Height 1.7 in
Weight 9.83 lbs
New Genuine Aruba Networks AP-ANT-92 802.11n Dual Band 3 Element Outdoor MIMO Antenna FF6PM M282710200015
New Genuine Aruba Networks AP-ANT-92 802.11n Dual Band 3 Element Outdoor MIMO Antenna FF6PM M282710200015
Brand: Aruba
Part Number: FF6PM
MPN: M282710200015
Model Number: AP-ANT-92
Type: Wireless Antenna
Layer: 2.4-2.5GHz 4.9-5.875GHz
Gain: 5 dBi (for 4900 MHz - 5875 MHz), 6 dBi (for 2400 MHz - 2500 MHz)
Max Data Transfer Rate: 802.11n
Condition: New
This item will be shipped exactly as shown in the pictures
To Our Customers,
Thank you for shopping with us.
Please feel free to contact us if you have any question with the item before you place the order or after you receive it.
Your positive feedback is very valuable to our company and we appreciate your kindly understanding and support towards us.
Aruba AP-ANT-MNT-3 AP-ANT-25A/28/35A/38 Azimuth and Elevation Adjustable Mount Kit
AP-ANT-MNT-3 Azimuth and Elevation adjustable Mount Kit for AP- ANT-35A, AP-ANT-38. Includes hardware for pole or wall mounting with AZ/EL adjustment.
HPE Aruba 2930F 24G PoE+ 4SFP+ - switch - 24 ports - managed - rack-mountable JL255A
Product Specifications
General
Device Type Switch - 24 ports - L3 - managed - stackable
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE) PoE+
PoE Budget 370 W
Performance Throughput: 95.2 Mpps | Switching capacity: 128 Gbps | Latency (1 Gbps): 3.8 µs | Latency (10 Gbps): 1.6 µs
Capacity Jumbo frame size: 9220 | IPv4 routing table entries: 10000 | IPv6 routing table entries: 5000
MAC Address Table Size 32K entries
Routing Protocol OSPF, RIP, RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, XRMON
Encryption Algorithm MD5, SSL
Authentication Method RADIUS, PAP, CHAP, TACACS, TACACS+
Features Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), MAC address lockout, dynamic ARP protection, DHCP protection, Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), Type of Service (ToS), OpenFlow support, CPU protection, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Virtual Extensible LAN (VXLAN), Management Information Base (MIB) II
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Processor 1 x ARM Cortex-A9: 1.016 GHz
RAM 1 GB DDR3 SDRAM
Flash Memory 4 GB
Expansion / Connectivity
Interfaces 24 x 1000Base-T RJ-45 PoE+ | 4 x Gigabit / 10Gbit LAN SFP+ | 1 x serial (console)
Expansion Slots 1 (total) / 1 (free) x expansion slot
Installed Modules Qty (Max) 0 (installed) / 4 (max)
Power
Power Device Internal power supply
Installed Qty 1
Voltage Required AC 120/230 V
80 PLUS Certification 80 PLUS Silver
Miscellaneous
Included Accessories Mounting screws, 4 mounting ears, 4 bumper feet, cable tie
Compliant Standards CISPR 22 Class A, CISPR 24, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, ICES-003 Class A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, IEC 60825-1:2007, CNS 13438, EN 55024:2010, EN 55022:2010, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 60825-1:2007, FCC CFR47 Part 15 A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
Software / System Requirements
Software Included Command Line Interface (CLI), HP Web browser, HP Intelligent Management Center
Dimensions & Weight
Width 17.4 in
Depth 12 in
Height 1.7 in
Weight 8.6 lbs
HP Power Supply 5400R 1100W PoE+ zl2 Power Supply J9829A
HP 5400R 1100W PoE+ zl2 Power Supply U. S. - English localization
Aruba Networks AP-120-MNT-WJ Access Point Enclosure KIT for AP-121 AP-125 H514X
Aruba Networks AP-120-MNT-WJ Access Point Enclosure KIT for AP-121 AP-125 H514X
Brand: Aruba Networks
Part Number: H514X
MPN: 0H514X, CN-0H514X
Model: AP-120-MNT-WJ
Type: ACCESS POINT ENCLOSURE
Operating Mode
• 802.11a/b/g/n AP, air monitor (AM) and Remote AP (RAP)
• Spectrum monitor, AM and RAP
• AM and RAP
• Remote AP
• Secure enterprise mesh
Radios
• Software-configurable dual radio capable of supporting 2.4 GHz
and 5 GHz
RF Management
• Automatic transmit power and channel management control with auto
coverage hole correction via Adaptive Radio Management (ARM)
• Spectrum analysis* remotely scans the 2.4-GHz and 5-GHz radio
bands to provide increased visibility into non-802.11n RF interference
sources and their effect on 802.11n channel quality.
ADVANCED FEATURES
• Integrated RAP, secure enterprise mesh point or portal, and wireless
intrusion detection and prevention
• Integrated Trusted Platform Module (TPM) for secure storage of
credentials and keys
• SecureJack-capable for secure tunneling of wired Ethernet traffic
Wireless Radio Specifications
• AP type: 3x3 multiple input/multiple output (MIMO)
• Supported frequency bands (country-specific restrictions apply):
- 2.400 to 2.4835 GHz
- 5.150 to 5.250 GHz
- 5.250 to 5.350 GHz
- 5.470 to 5.725 GHz
- 5.725 to 5.850 GHz
• Available channels: Controller-managed, dependent upon configured
regulatory domain
• Supported radio technologies:
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11a/g/n: Orthogonal frequency division multiplexing (OFDM)
802.11n: 3x3 MIMO with 2 spatial streams
• Supported modulation types:
802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
• Transmit power: Configurable in increments of 0.5 dBm
• Maximum transmit power:
2.4GHz: 23 dBm (limited by local regulatory requirements)
5 GHz: 22 dBm (limited by local regulatory requirements)
• Maximum ratio combining (MRC) for improved receiver performance
• Association rates (Mbps):
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: MCS0 - MCS15 (6.5 Mbps to 300 Mbps)
• 802.11n high-throughput (HT) support: HT 20/40
• 802.11n packet aggregation: A-MPDU, A-MSDU
Antenna

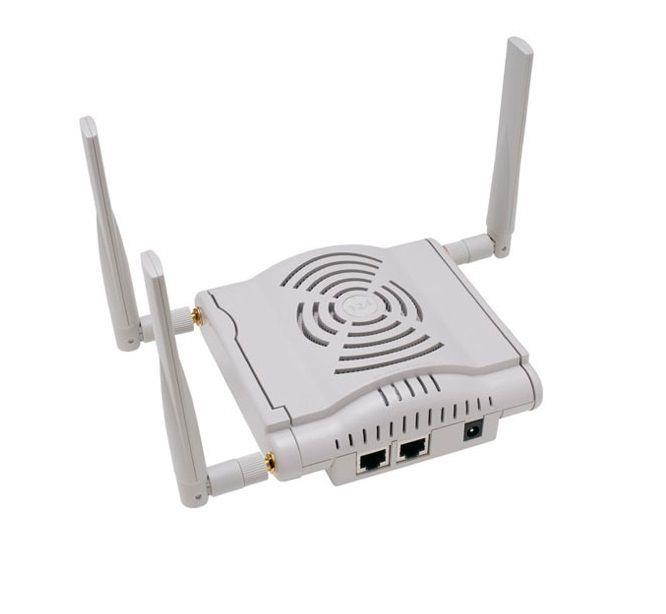

• AP-124: Three RP-SMA interfaces for external antenna support
(supports up to 3x3 MIMO with spatial diversity)
• AP-125: Integrated, tri, omni-directional multiband dipole antenna
elements (supports up to 3x3 MIMO with spatial diversity)
• AP-125 antenna maximum gain:
- 2.4 GHz-2.5 GHz/3.2 dBi
- 5.150 GHz- 5.875 GHz/5.2 dBi
Power
• 48 V DC 802.3af or 802.3at or PoE+
• 5 V DC for external AC supplied power (adapter sold separately)
• Maximum power consumption: 16 watts
Interfaces
• Network:
- 2 x 100/1000BASE-T Ethernet (RJ-45), auto-sensing link speed
and MDI/MDX
- Accepts 48 V DC 802.3af or 802.3at or PoE+ interoperable
Power-over-Ethernet (PoE-PD) on either port
• Antenna (model AP-124 only):
- 3 x RP-SMA antenna interfaces (supports up to 3x3 MIMO with
spatial diversity)
• Other:
- 1 x RJ-45 console interface
COMPATIBILITY:
Compatible With: Desktop
Condition: New
This item will be Shipped exactly as shown in the pictures
To Our Customers,
Thank you for shopping with us.
Please feel free
2530 8-port Switch Pwr Adptr
The HP 2530 8-port Switch Power Adapter Shelf Power is an easy-to-use solution for attaching the external power adapter to any of the HP 2530 8-port switches. The power adapter shelf can be quickly attached on the rear of the HP 2530 8 port switch and the adapter fit into place. This power adapter shelf is designed for wall, table or rack deployments.

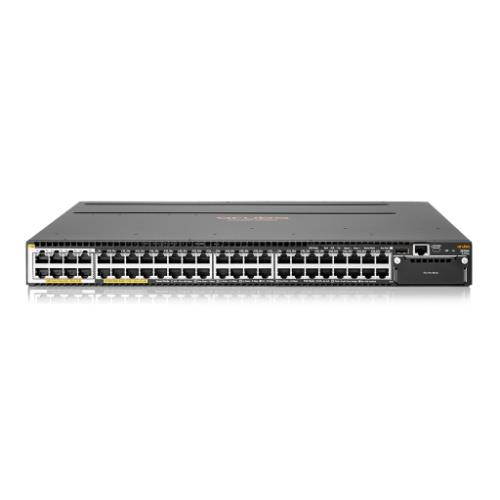

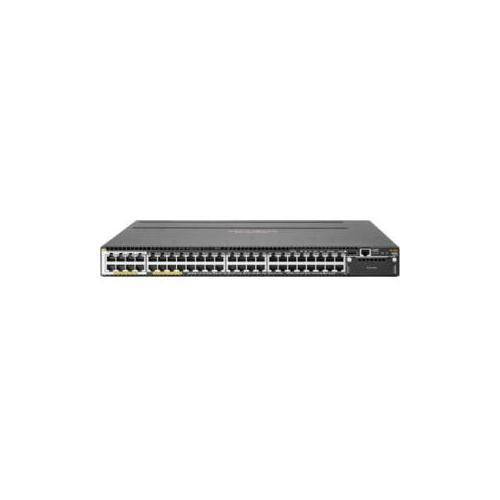

HP 3810M 24G 1-Slot Switch (JL071A)
The Aruba 3810 Switch Series provides performance and resiliency for the mobile-first campus network. Based on a powerful ProVision ASIC and ready for high-speed APs with HPE Smart Rate multi-gigabit Ethernet, the Aruba 3810 delivers a better application experience with low latency, virtualization with resilient stacking technology, and line rate 40GbE for plenty of back haul capacity.The Aruba 3810 has comprehensive Layer 3 features, right size deployment models, and is SDN ready with OpenFlow support.FeaturesPerformance and Power for the Mobile-First CampusThe Aruba 3810 Switch Series is an industry leading mobile campus access solution for enterprises, SMBs, and branch office networks. With HPE Smart Rate multi-gigabit ports for high speed 802.11ac devices, the Aruba 3810 will prepare your network for tomorrow.HPE Smart Rate ports support multi-gigabit Ethernet speeds (1, 2.5, 5, and 10 gigabit Ethernet) on existing cabling for cost-effective and convenient network upgrades with no rip and replace of cabling.Delivers consistent wired and wireless user experience by supporting unified management tools such as ClearPass Policy Manager and AirWave Network Management. Provides optimal configuration automatically when connected to Aruba APs for PoE priority, VLAN configuration, and rogue AP containment.Rightsizes deployment and back haul capacity with modular 10GbE and 40GbE uplinks. Full PoE+ provisioning on 48-ports. Dual, redundant, hot-swappable power supplies and innovative backplane stacking technology delivers resiliency and scalability in a convenient 1U form factor.Advanced Layer 2 and 3 feature set with OSPF, IPv6, IPv4 BGP, robust QoS and policy-based routing are included with no software licensing. With support for OpenFlow, the Aruba 3810 is ready to take advantage of SDN applications such as HPE Network Visualizer, Optimizer, and Protector Applications.Resiliency and High Availability You Can Depend OnThe Aruba 3810 Switch Series is designed with a ProVision ASIC designed to enable the mobile campus with SDN optimizations, very low latency, increased packet buffering, and adaptive power consumption.Backplane stacking technology delivers high-performance stacking with up to 336 Gb/s of stacking throughput and increased resiliency. Up to ten Aruba 3810 switches can be stacked in a ring topology or up to five can be stacking in a mesh topology.Dual hot-swappable power supplies provide power and allow swapping of modules on the fly to reduce impact on the network availability. More performance with selectable queue configurations and associated memory buffering that best meets requirements of prioritized network applications.Selectable queue configurations enables increased performance by selecting the number of queues and associated memory buffering that best meet the requirements of the network applications.Uninterrupted switching and routing for improved application experience and enhanced L3 availability. Supports virtual router redundancy protocol (VRRP) allowing groups of two routers to dynamically back each other up to create highly available router environments in both IPv4 and IPv6 networks.
HP J9772A Managed Switch
Hp 2530-48G-Poe+ Switch - Switch - Managed - 48 X 10/100/1000 (Poe+) + 4 X Gigabit Sfp - Desktop Rack-Mountable Wall-Mountable - Poe+ Hp 2530 Switch Series Consists Of Four Fully Managed Layer 2 Edge Switches Delivering Cost-Effective Reliable An
Aruba R3J18A AP-MNT-D Campus AP Mount Bracket Kit (Individual) Type D: Solid Surface
RAP-MNT-D Campus AP mount bracket kit (individual) type D: solid surface
Aruba S1500-12P S1500-12P Mobility Access Switch
General InformationManufacturer: Hewlett Packard EnterpriseManufacturer Part Number: S1500-12PManufacturer Website Address: http: //www. hpe. comBrand Name: ArubaProduct Series: S1500Product Model: S1500-12PProduct Name: S1500-12P Mobility Access SwitchMarketing Information: The S1500 Mobility Access Switch from Aruba Networks extends role-based user access, security and operational simplicity to wired networks. A vital part of the Aruba Mobile Virtual Enterprise & trade; (MOVE) architecture, the S1500 delivers secure, virtualized access services to users, regardless of their location, access method, device or applications. The S1500 is available in three models with 12, 24 or 48 10/100/1000BASE-T ports with power-over-Ethernet (PoE). The 24- and 48-port models include four 1000BASE-X SFP fixed Gigabit Ethernet uplink ports, and the 12-port model includes two 1000BASE-X uplink ports. Power-over-Ethernet (PoE) is available with up to 15.4 watts per port based on the IEEE 802.3 af PoE and up to 30 watts per port on the IEEE 802.3 at PoE+ standards. Product Type: Layer 3 SwitchInterfaces/PortsTotal Number of Network Ports: 12Modular: NoPort/Expansion Slot Details: 12 x Gigabit Ethernet Network2 x Gigabit Ethernet Expansion SlotMedia & PerformanceMedia Type Supported: Twisted PairEthernet Technology: Gigabit EthernetNetwork Technology: 10/100/1000Base-TI/O ExpansionsNumber of Total Expansion Slots: 2Expansion Slot Type: SFP Number of SFP Slots: 2Network & CommunicationLayer Supported: 3Management & ProtocolsManageable: YesPower DescriptionPoE (RJ-45) Port: NoInput Voltage: 110 V AC220 V ACPower Source: Power SupplyPhysical CharacteristicsForm Factor: Rack-mountableDesktopHeight: 1.8"W idth: 13"Depth: 8.8"W eight (Approximate): 7 lbMiscellaneousEnvironmentally Friendly: YesEnvironmental Certification: RoHS-5
Aruba AP-130-MNT-W2 Wall Mount Kit 2 for Aruba AP-130 Series
Aruba AP-130-MNT-W2 Wall Mount Kit 2 for Aruba AP-130 Series
HPE J9733A - Aruba 2920 Switch Module 2-Port Stacking Module
Specifications
General
Device Type Network stacking module - 2 ports
Form Factor Plug-in module
Networking
Connectivity Technology Wired
Cabling Type Stacking
Expansion / Connectivity
Interfaces 2 x stack port
Compatible Slots 1 x Stacking Module slot
Compatibility Information
Designed For HPE Aruba 2920-24G, 2920-24G-PoE+, 2920-48G, 2920-48G-PoE+
HPE Aruba 2530 J9774A - Gigabit Ethernet Switch 8G PoE Rack-Mountable
Specifications:
Product Name Aruba 2530 8G PoE+ Switch
Manufacturer Part Number J9774A
Product Type Ethernet Switch
Manageable Yes
Ethernet Technology Gigabit Ethernet
Number of Total Expansion Slots 2
Product Family 2530
Media Type Supported Twisted Pair
Total Number of Network Ports 8
PoE (RJ-45) Port No
Expansion Slot Type SFP
Form Factor Rack-mountable
Wall Mountable
Desktop
Power Source Power Supply
Layer Supported 2
Compatible Rack Unit 1U
Number of SFP Slots 2
Modular No
Shared SFP Slot Yes
Port / Expansion Slot Details 10 x Gigabit Ethernet Network
2 x Gigabit Ethernet Expansion Slot
Height 1.8"
Width 10"
Depth 6.3"
Product Series 2530
Product Model 2530-8G-PoE+
Network Technology 10/100/1000Base-T
Input Voltage 110 V AC
220 V AC
Token Ring Port No
LRE Port No
USB No
Number of Network (RJ-45) Ports 2
Management Port Yes
Number of PoE+ (RJ-45) Ports 8
Bypass No
Memory Technology DDR3 SDRAM
Flash Memory 128 MB
Standard Memory 256 MB
ARUBA 2930F 12G POE+ SWCH
The Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F delivers performance and value with support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.What's newAruba Layer 3 switch series that is easy to deploy and manage with Aruba ClearPass Policy Manager and Aruba AirWave.Simplify with zero touch provisioning (ZTP) and cloud-based Aruba Central support.Scale with 8 chassis VSF stacking.Convenient built-in 1GbE or 10GbE uplinks and up to 740W PoE+.FeaturesHigh-Performance Access Layer SwitchesThe Aruba 2930F Switch Series provides performance, security, and ease of use for enterprise edge, SMB, and branch office networks.Optimized for the digital workplace with unified management tools such as Aruba ClearPass Policy Manager, Aruba Airwave and Aruba Central. Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment.Stacking with Virtual Switching Framework (VSF) and convenient built-in 1GbE or 10GbE uplinks and PoE+ models deliver right-size network access performance.Robust Layer 3 feature set includes Access OSPF, static and RIP routing, ACLs, sFlow, IPv6 with no software licensing required.Performance and Power at the EdgeThe Aruba 2930F Switch Series is designed with a powerful Aruba ProVision ASIC, to enable the mobile campus with SDN optimizations, low latency, increased packet buffering, and adaptive power consumption.Increase performance with selectable queue configurations and associated memory buffering that meets your specific network application requirements.Virtual Switching Framework (VSF) virtualizes up to eight physical switches into one logical device for simpler, flatter, more agile networks.Supports up to 740W of internal PoE+ power for wireless access points, cameras and phones.Security and Quality of Service You Can Rely onThe Aruba 2930F Switch Series includes security and quality of services features to build a network that meets ever-changing corporate policies and compliances while protecting your data from both inside and outside attacks.Flexible authentication options include standards based security protocols such as 802.1X, MAC and Web Authentication, to enhance security and policy-driven application authentication.Powerful, multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address lockout.Simplify with Integrated Wired/Wireless ManagementThe Aruba 2930F Switch Series supports Aruba ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.Supports Aruba Airwave Network Management software to provide common platform for Zero Touch Provisioning management, and monitoring for wired and wireless network devices.
Aruba 2930M 48G POE+ 1-Slot Switch
The Aruba 2930M Switch Series is designed for digital workplaces optimized for mobile users. These powerful Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Modular stacking, uplinks and power provide scalability and simplicity for enterprise edge, SMB and branch office networks. The 2930M delivers performance and value with support for static, RIP and Access OSPF routing, 10GbE and 40GbE uplinks, models with 24 ports of HPE Smart Rate multi-gigabit Ethernet, up to 1440W of PoE, robust QoS, and Dynamic Segmentation for unified and secure access.

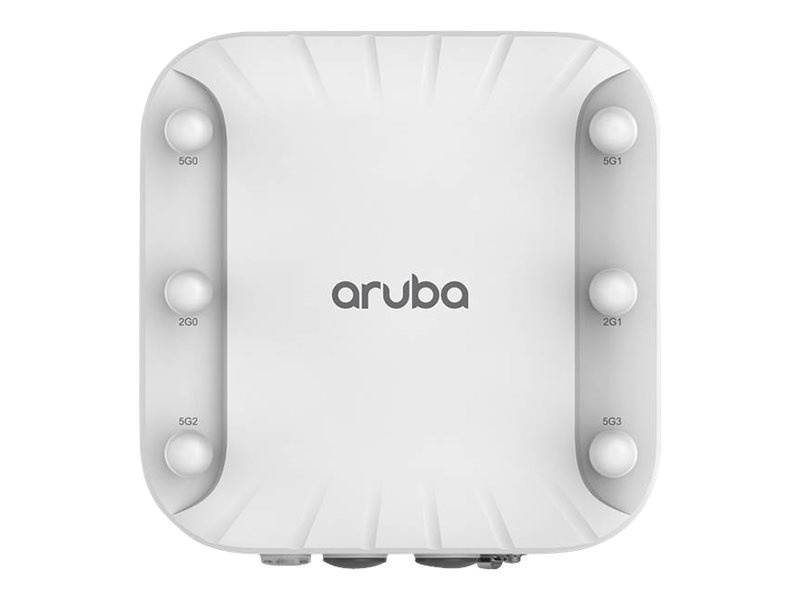

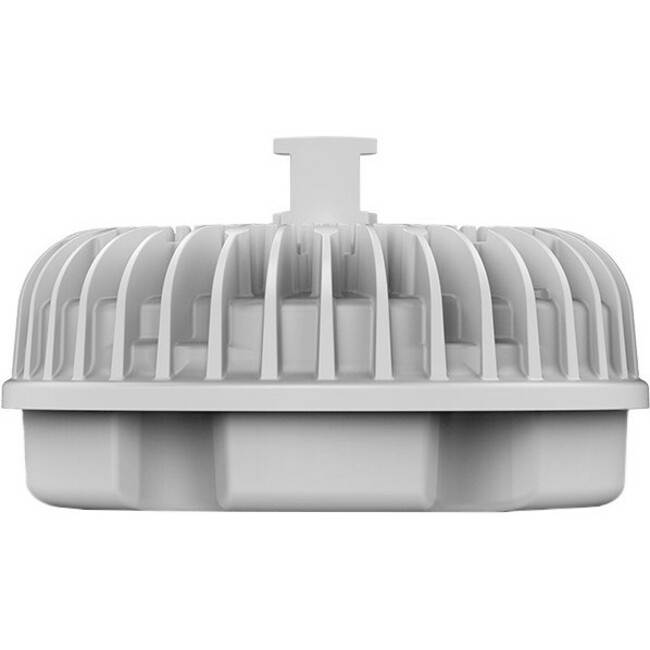

Aruba Apex 0577 Outdoor Access Point (AP-577 US)
The Aruba 570 series outdoor access points, with Wi-Fi 6 (802.11ax) technology, deliver the highest performance in outdoor and harsh weather environments such as parking lots, stadiums, and other public venues. The 570 series is purpose-built to withstand extreme high and low temperatures, persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants. Innovations include AI-powered RF optimization, Live upgrades, WPA3 and Enhanced Open certified security, and unified wired and wireless policy with Dynamic Segmentation.
HEWLETT PACKARD ENTERPRISE JL321A ARUBA 2930M 48G 1-SLOT SWITCH
Aruba 2930M 48G with 1 - Slot Switch - 2 Layer SupportedLayer Supported: 2
Aruba R3J17A AP-MNT-C Campus AP Mount Bracket Kit (Individual) Type C: Suspended Ceiling Rail, Profile 9/16
AP-MNT-C Campus AP mount bracket kit (individual) type C: suspended ceiling rail, profile 9/16

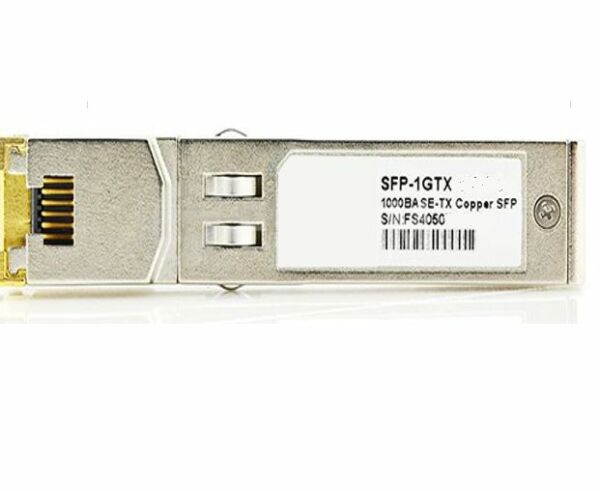

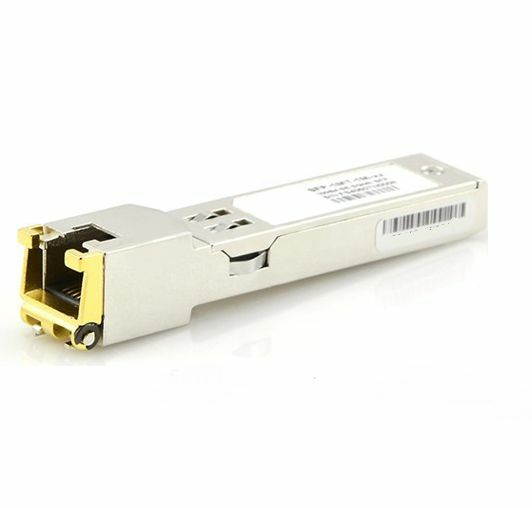

Aruba Networks SFP-TX Compatible 1000BASE-T SFP Copper RJ-45 100m-49028
Aruba Networks SFP-TX Compatible 1000BASE-T SFP Copper RJ-45 100m-49028
Aruba Genuine SFP-TX
Vendor Name Third Party
Form Type SFP Max
Data Rate 1000Mbps
Cable Type Cat 5
Max Cable Distance 100m
Interface RJ-45
DOM Support No
Commercial Temperature Range 0 to 70°C (32 to 158°F)
HTS-Harmonized Code

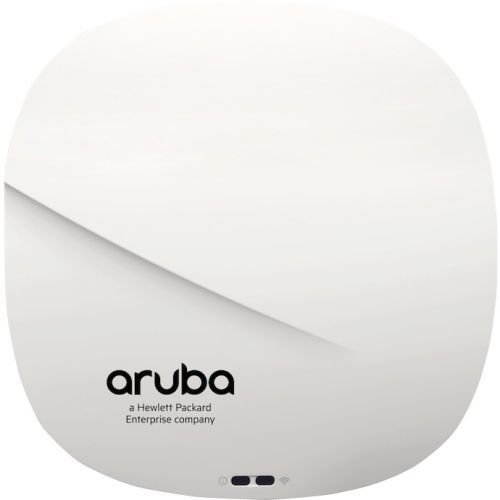

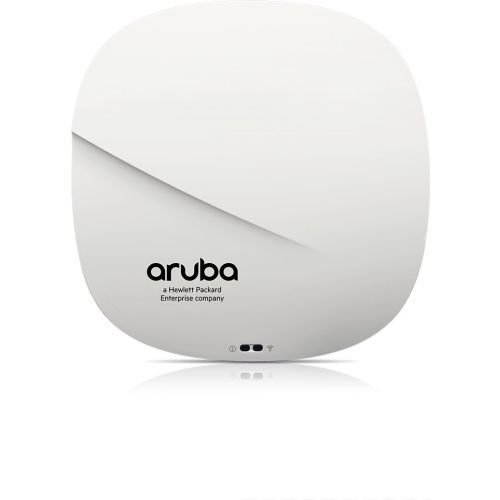

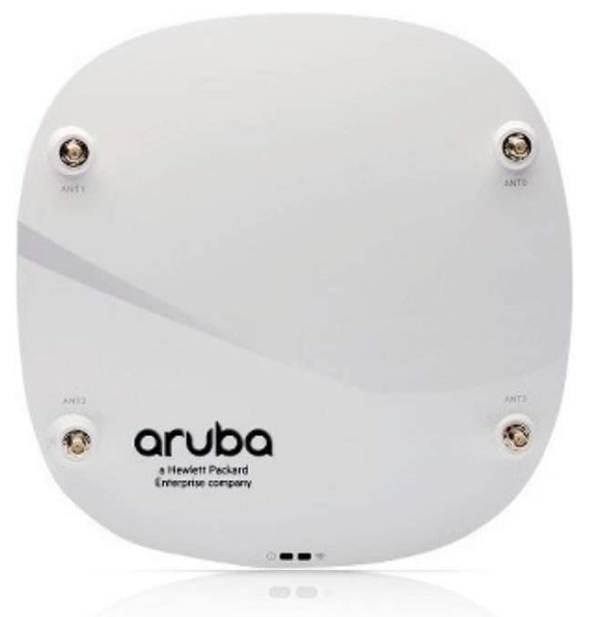

HP JW801A Aruba AP-335 - Wireless access point - 802.11a/b/g/n/ac - Dual Band - DC power
The Aruba access points deliver high performance and superb user experience for mobile devices, Internet of Things (IoT) devices, and applications in dense office environments. Featuring the MU-MIMO capability, advanced Aruba ClientMatch radio management, and Aruba Beacon technologies, the access point enables an all-wireless digital work environment in a cost-effective manner.
The HP JW801A Aruba 330 Series access points provide the fastest gigabit data
speeds and superb user experience for mobile devices and applications in a digital workplace. Designed with an integrated HPE Smart Rate port to scale up to 5Gbps Ethernet, the 330 Series allows enterprises to leverage their multi-gigabit Ethernet wired network infrastructures to eliminate bottlenecks. With a maximum concurrent data rate of 1,733 Mbps in the 5 GHz band and 800 Mbps in the 2.4 GHz band, the 330 Series Access Points deliver a best-in-class, next-generation 802.11ac Wi-Fi infrastructure that is ideal for lecture halls, auditoriums, public venues and high-density office environments.
90-Day Limited Warranty
This product is backed by our 90 Day Warranty
JW797A Aruba AP-315 - Wireless access point - 802.11a/b/g/n/ac - Dual Band - in-ceiling
Aruba 310 Series Access Points are high-performance 802.11ac Wave 2 access points providing the best performance/price ratio, due to the full 4SS MU-MIMO performance @ 5GHz and its comparably lower price. The unrestricted operation on 802.3.af power enables customers to leverage their power sources without giving up any features. It's ideal for high device density environments, such as schools, retail branches, hotels and enterprise offices, where the organization is cost sensitive.
Specs:
-Wireless LAN Standard IEEE 802.11ac
-Frequency Band 5 GHz
-2.40 GHz
-Total Number of Antennas 4
-Number of Internal Antennas 4
-Wireless Transmission Speed 1.69 Gbit/s
-MIMO Technology Yes
-Beamforming Technology Yes
Interfaces/Ports
-Ethernet Technology Gigabit Ethernet
-Number of Network (RJ-45) Ports 1
-PoE (RJ-45) Port No
-VGA No
-HDMI No
-USB Yes
-Powerline No
-Management Port Yes
Physical Characteristics
-Form Factor Wall Mountable
-Ceiling Mountable
90-Dy Limited Warranty
This product is backed by our 90-DAy limited warranty.
Aruba IAP-315-US (JW813A)
Product Type: Wireless Access Point
Product Model: IAP-315
Wireless LAN Standard: IEEE 802.11ac
Wireless Transmission Speed: 2.10 Gbit/s
Product Family: Instant 310

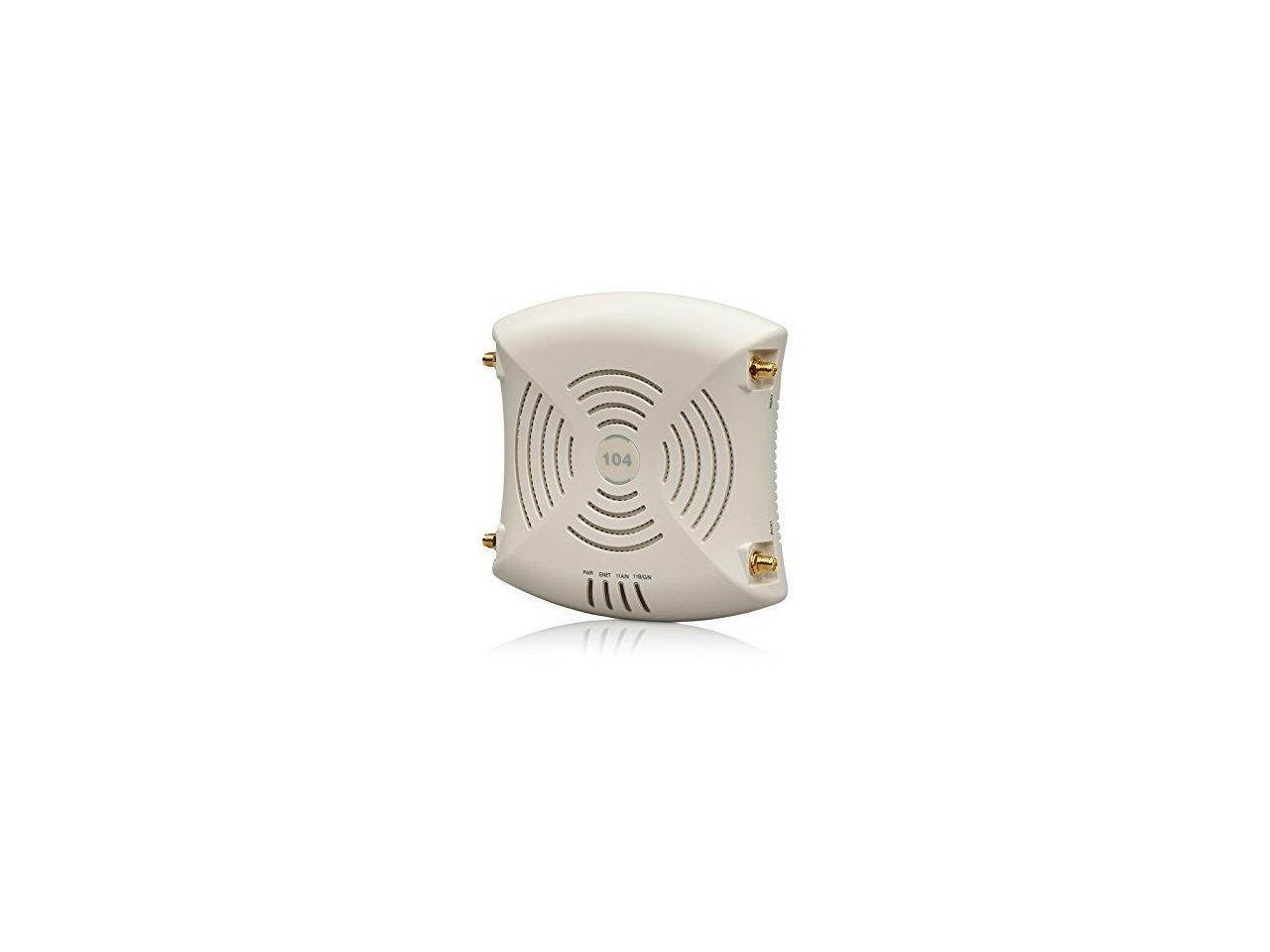

Aruba Networks AP-104 Wireless Access Point, 802.11a/b/g/n, 2x2:2 Dual Radio, 300Mbps per radio, Ant
These high-performance 802.11n APs deliver wireless data rates up to 300 Mbps per radio and ensure peak performance by utilizing channel bonding, block acknowledgement and MIMO radios. The 105 series of APs features two dual-band 2.4-GHz and 5-GHz radios with 2x2 MIMO and four integrated omni-directional downtilt antennas, making it ideal for warehouses and high-ceiling deployments.
Aruba AP-207 802.11n/ac 2x2:2 Dual Radio Integrated Antenna AP
MAIN OVERVIEW FEATURES: Wireless LAN Standard: IEEE 802.11 acFrequency Band: 5 GHz, 2.40 GHzTotal Number of Antennas: 2Number of Internal Antennas: 2Wireless Transmission Speed: 1.30 Gbit/sMIMO Technology: Yes Beamforming Technology: Yes Ethernet Technology: Gigabit Ethernet Number of Network (RJ-45) Ports: 1PoE (RJ-45) Port: NoVGA: NoHDMI: NoUSB: NoPowerline: NoManagement Port: Yes Form Factor: Ceiling Mountable Height: 1.6"W idth: 5.9"D epth: 5.9"W eight (Approximate): 13.40 ozLimited Warranty: Lifetime
Aruba JZ031A HP AP-345 (RW)
Wireless access point
Wi-Fi
Dual Band
in-ceiling
Aruba AP-334 JW799A
Product Type: Wireless Access Point
Wireless LAN Standard: IEEE 802.11ac
Wireless Transmission Speed: 2.50 Gbit/s
Product Family: 330
Ethernet Technology: Gigabit Ethernet
Aruba JZ320A HP AP-303 (RW)
Aruba AP-303 IEEE 802.11ac 1.20 Gbit/s Wireless Access Point - 5 GHz, 2.40 GHz - 2 x Antenna(s) - 2 x Internal Antenna(s) - MIMO Technology - Beamforming Technology - 1 x Network (RJ-45) - USB - Ceiling Mountable, Wall Mountable JZ320A
ARUBA AP-303 RW UNIFIED Access Point

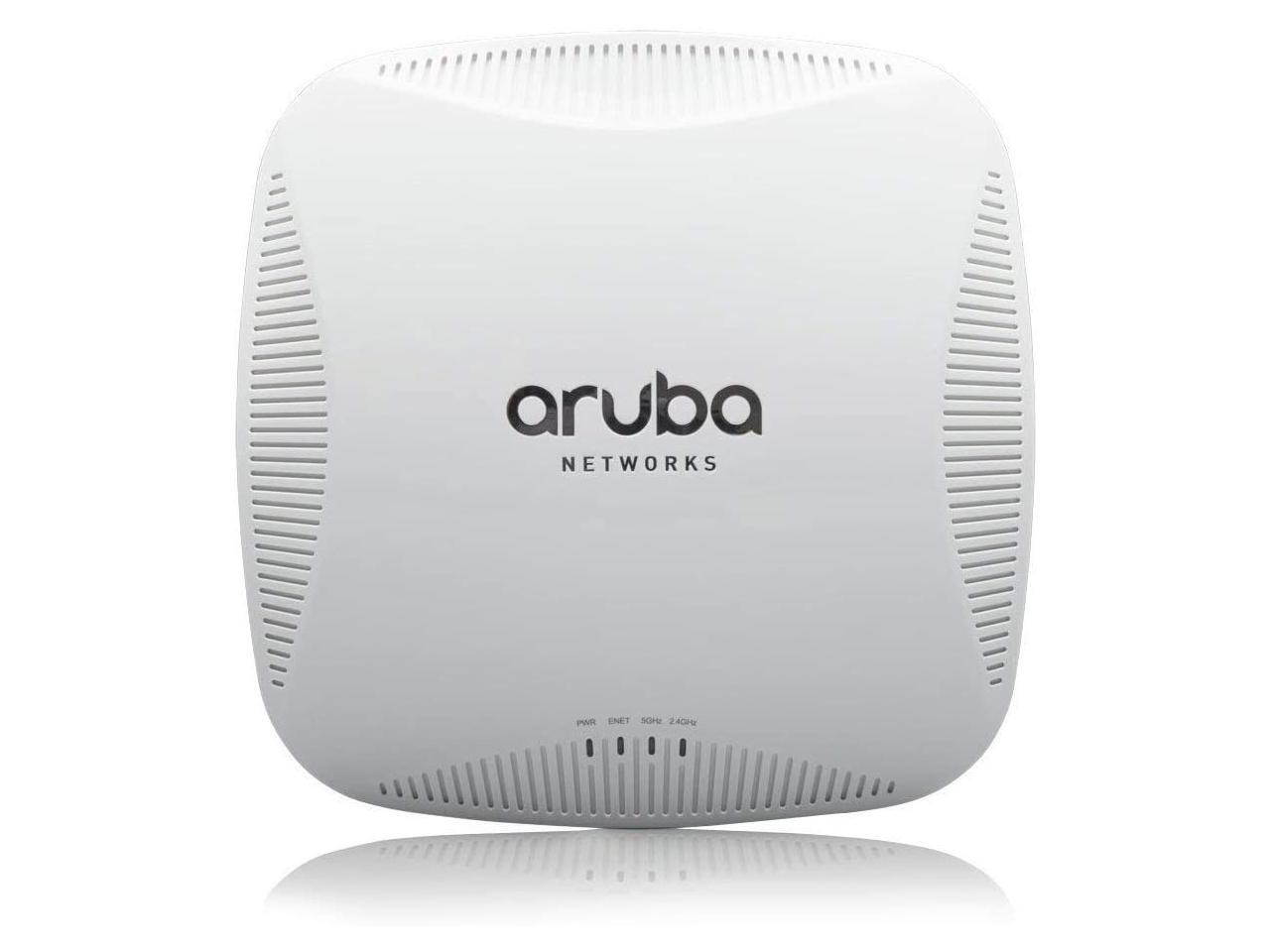

Aruba IAP-215-US Wireless Network Access Point 1.3Gbps, 3x3:3 Dual Band PoE
Multifunctional and affordable Aruba 210 series wireless access points (APs) maximize mobile device performance in medium-density, highperformance Wi-Fi environments.
These compact and cost-effective dual-radio APs deliver wireless data rates of up to 1.3 Gbps to 5-GHz devices with 802.11ac technology. They also support 3x3 MIMO with three spatial streams as well as 2.4-GHz 802.11n clients at data rates up to 450 Mbps.
The AP-215 and IAP-215 models have six integrated omnidirectional downtilt antennas, while the AP-215 and IAP-215 support external, detachable dual-band antennas using three RP-SMA connectors.
Choose your operating mode
The 210 series supports your choice of operating modes to meet unique management and deployment requirements.
Controller-managed AP or Remote AP (RAP) running ArubaOS.
When managed by Aruba Mobility Controllers, 210 series APs offer centralized configuration, data encryption, policy enforcement and network services as well as distributed and centralized traffic forwarding. Please refer to the Aruba Mobility Controller data sheets for more details.
Aruba Instant AP running InstantOS.
In Aruba Instant mode, a single AP automatically distributes the network configuration to other Instant APs in the WLAN. Simply power-up on Instant AP, configure it over the air, and plug in the other APs – the entire process takes about five minutes.
For large installations across multiple sites, the Aruba Activate service significantly reduces deployment time by automating device provisioning, firmware upgrades, and inventory management. With Aruba Activate, Instant APs are factoryshipped to any site and configure themselves when powered up.

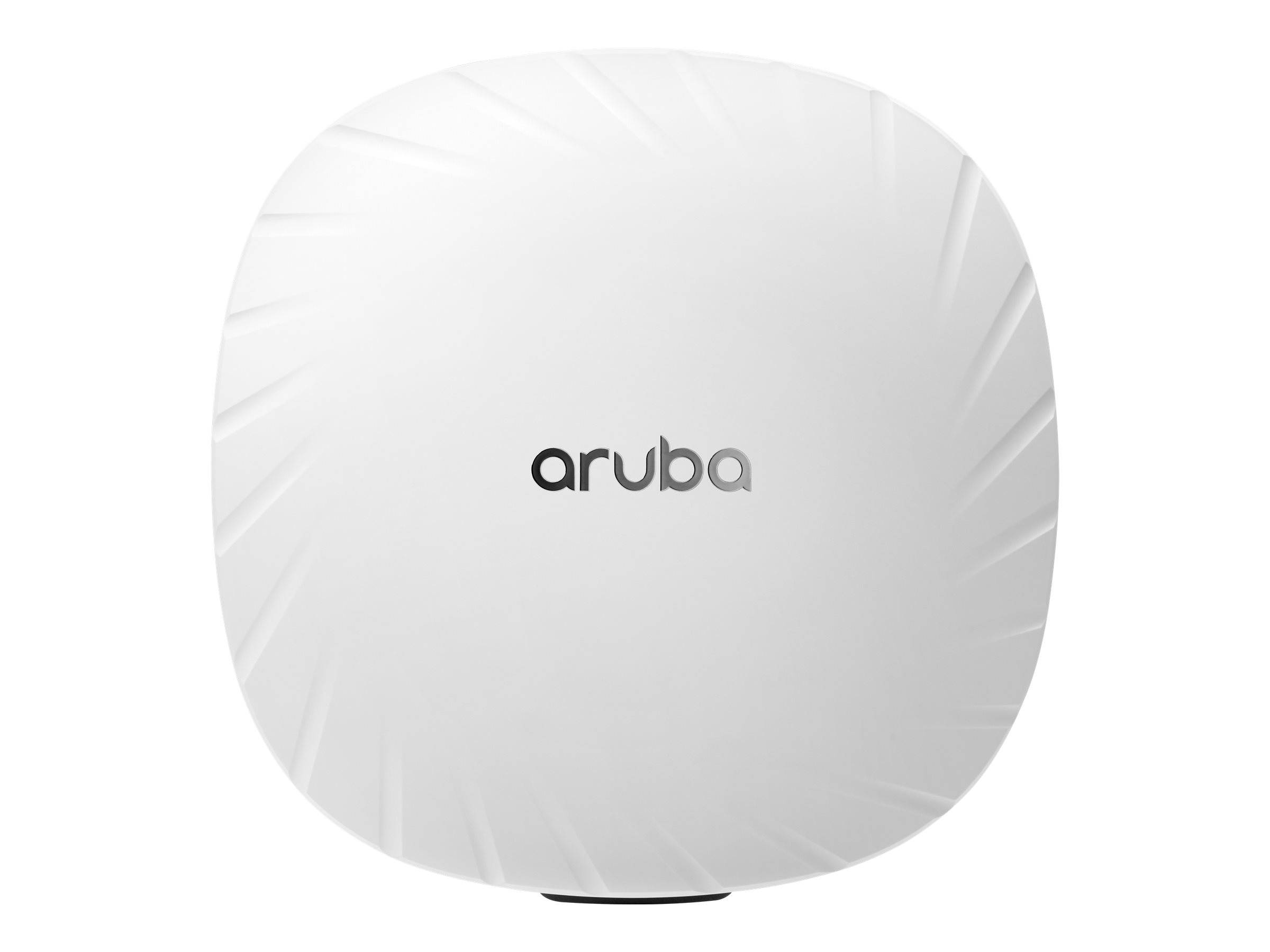

HPE Aruba AP-535 (RW) - JZ336A 1 x HPE Smart Rate - RJ-45 Campus - wireless access point
Specifications
General
Device Type Wireless access point
Ruggedized Design Indoor
Width 9.4 in
Depth 9.4 in
Height 2.2 in
Weight 2.8 lbs
Networking
Form Factor External
Connectivity Technology Wireless
Data Transfer Rate 2.4 Gbps
Line Coding Format CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA
Data Link Protocol IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)
Spread Spectrum Method OFDM, DSSS
Frequency Band 2.4 GHz, 5 GHz
Performance Maximum data rate (2.4 GHz): 1.150 Mbps ¦ Maximum data rate (5 GHz): 2.4 Gbps ¦ Aggregate bandwidth: 3.55 Gbps
Capacity Wireless clients per Wi-Fi radio: 1024 ¦ OFDMA units: 37 ¦ BSSIDs per radio: 16
Status Indicators System, status
Features Trusted Platform Module (TPM), LACP support, Adaptive Radio Management (ARM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), AppRF technology, MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Air Monitor (AM), Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), Secure Core Technology (SCT), High-Throughput (HT) support, 4x4 MU-MIMO technology, LED off mode, Energy-Efficient Ethernet (EEE), Orthogonal Frequency Division Multiplexing (OFDM), Aruba AirMatch, spectrum analyzer, Very High Throughput (VHT) support, security slot (Kensington security lock compatible), Orthogonal Frequency Division Multiple Access (OFDMA), unified AP support, custom deep-sleep mode, High Efficiency (HE) support, Target Wait Time (TWT)
Encryption Algorithm WPA, WPA2, WPA3
Compliant Standards IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax
Antenna
Antenna Internal
Antenna Qty 4
Directivity Omni-directional
Gain Level 5.4 dBi

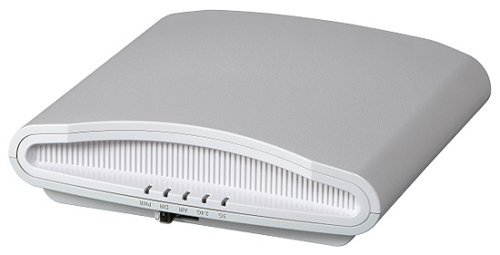

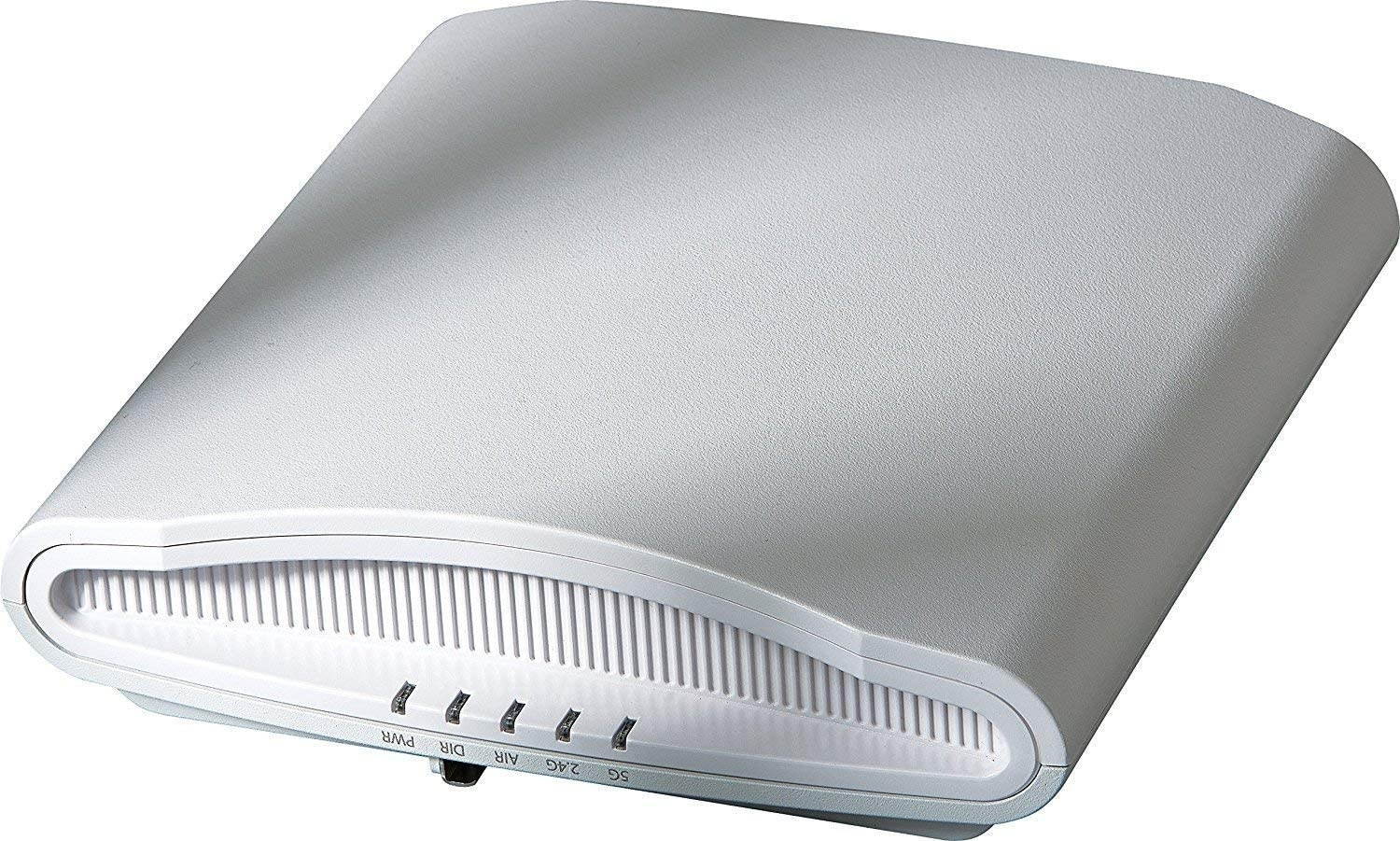

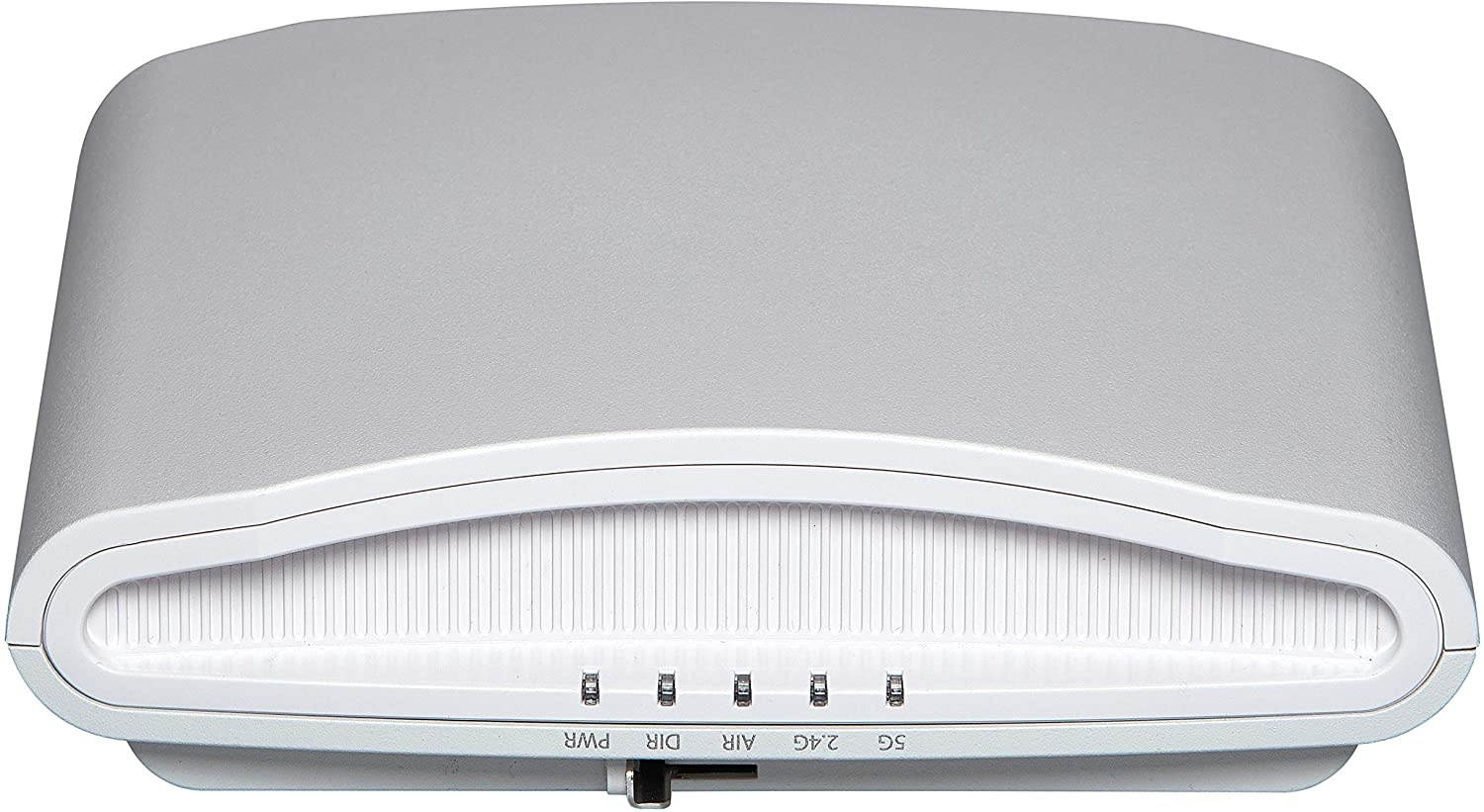

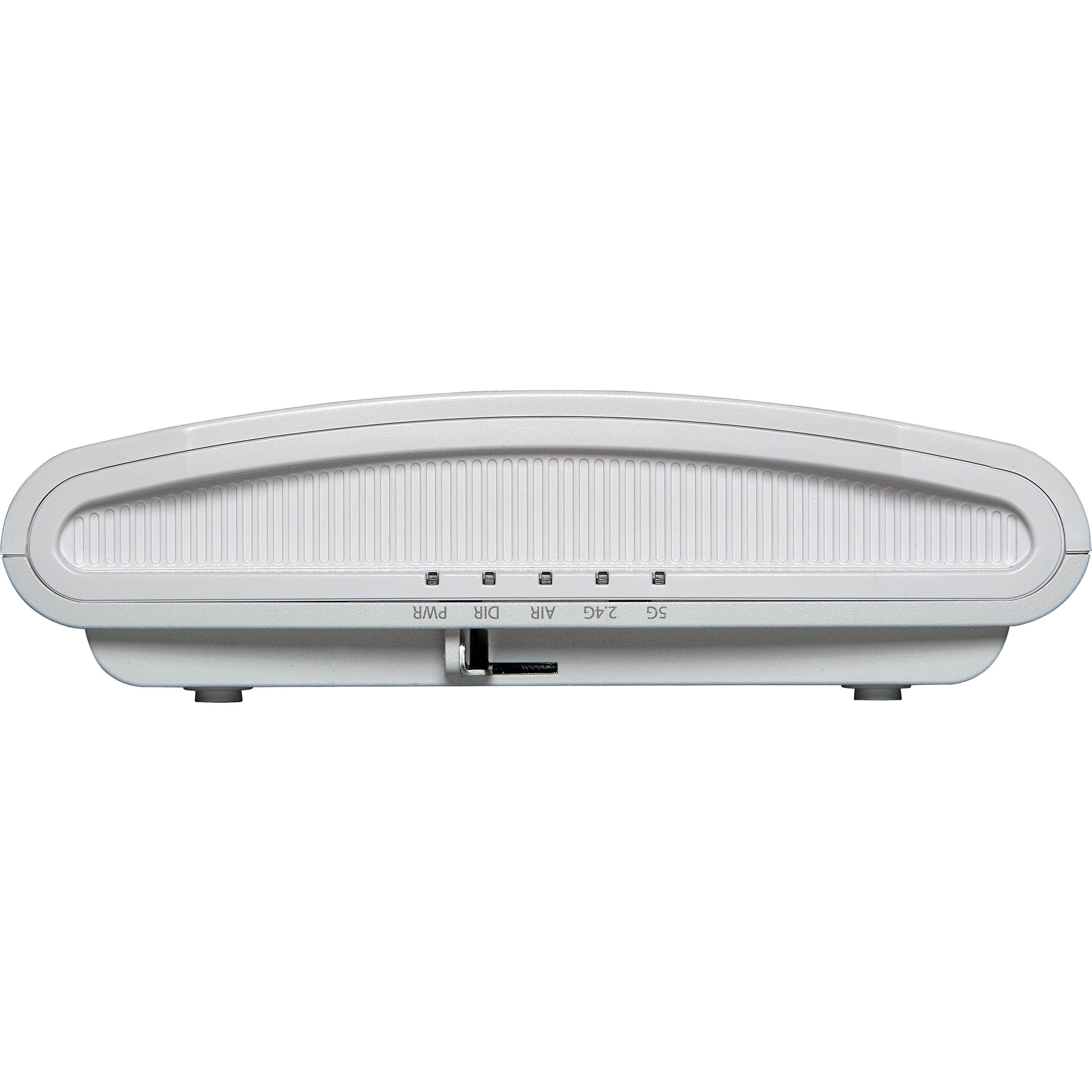

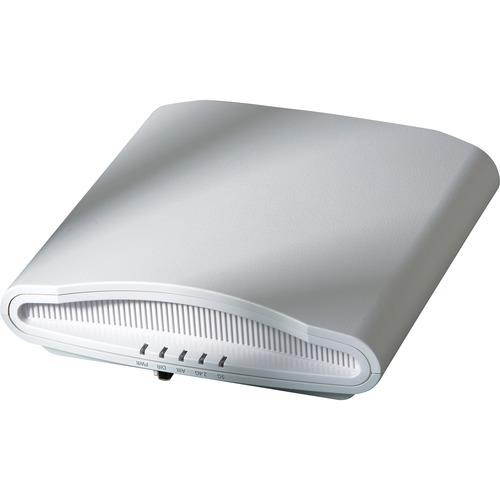

Ruckus Wireless ZoneFlex R710 Dual-Band, 802.11ac Wave 2 Access Point, 4x4:4 Streams, BeamFlex+, Dual Ports, 802.3af PoE, US
Ruckus Wireless ZoneFlex R710 Dual-Band, 802.11 ac Wave 2 Access Point, 4x 4:4 Streams, BeamFlex+, Dual Ports, 802.3 af PoE, US

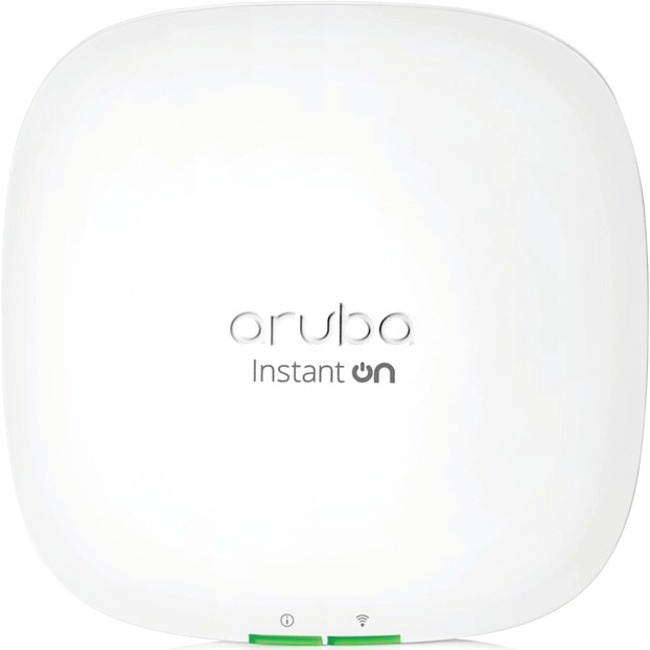

Aruba Instant On AP22 802.11ax 1.66 Gbit/s Wireless Access Point R6M51A
HPE Aruba Instant ON AP22 - Wireless access point - 802.11 ax - Bluetooth, Wi-Fi - Dual Band - DC power - wall / ceiling mountable

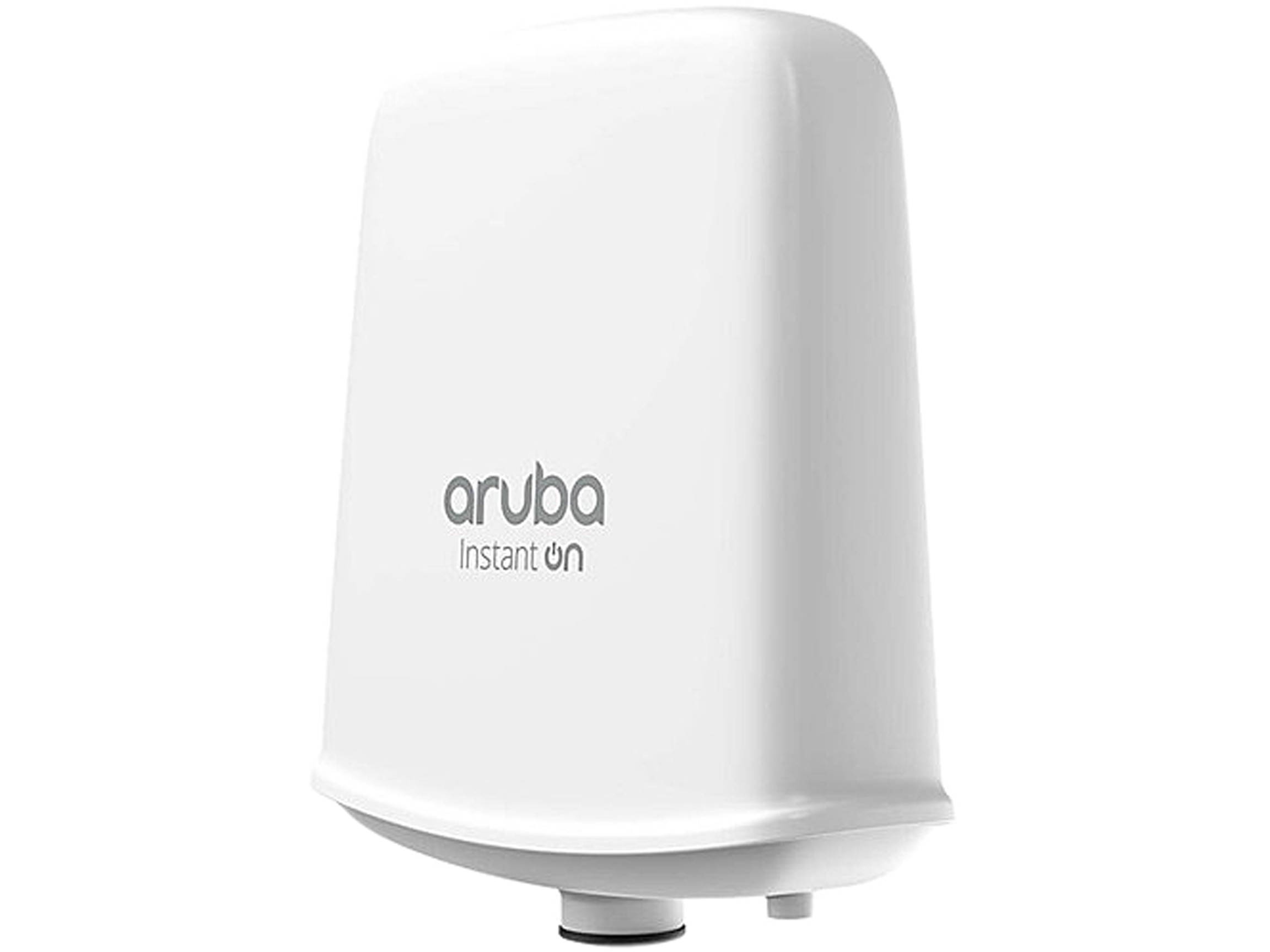

Aruba Instant On AP17 (US) 2x2 11ac Wave2 Outdoor Access Point
Designed for harsh outdoor conditions such as high and low temperatures rain or high winds they're built to withstand the elements. Perfect for outdoor cafes loading docks or even pool-side.

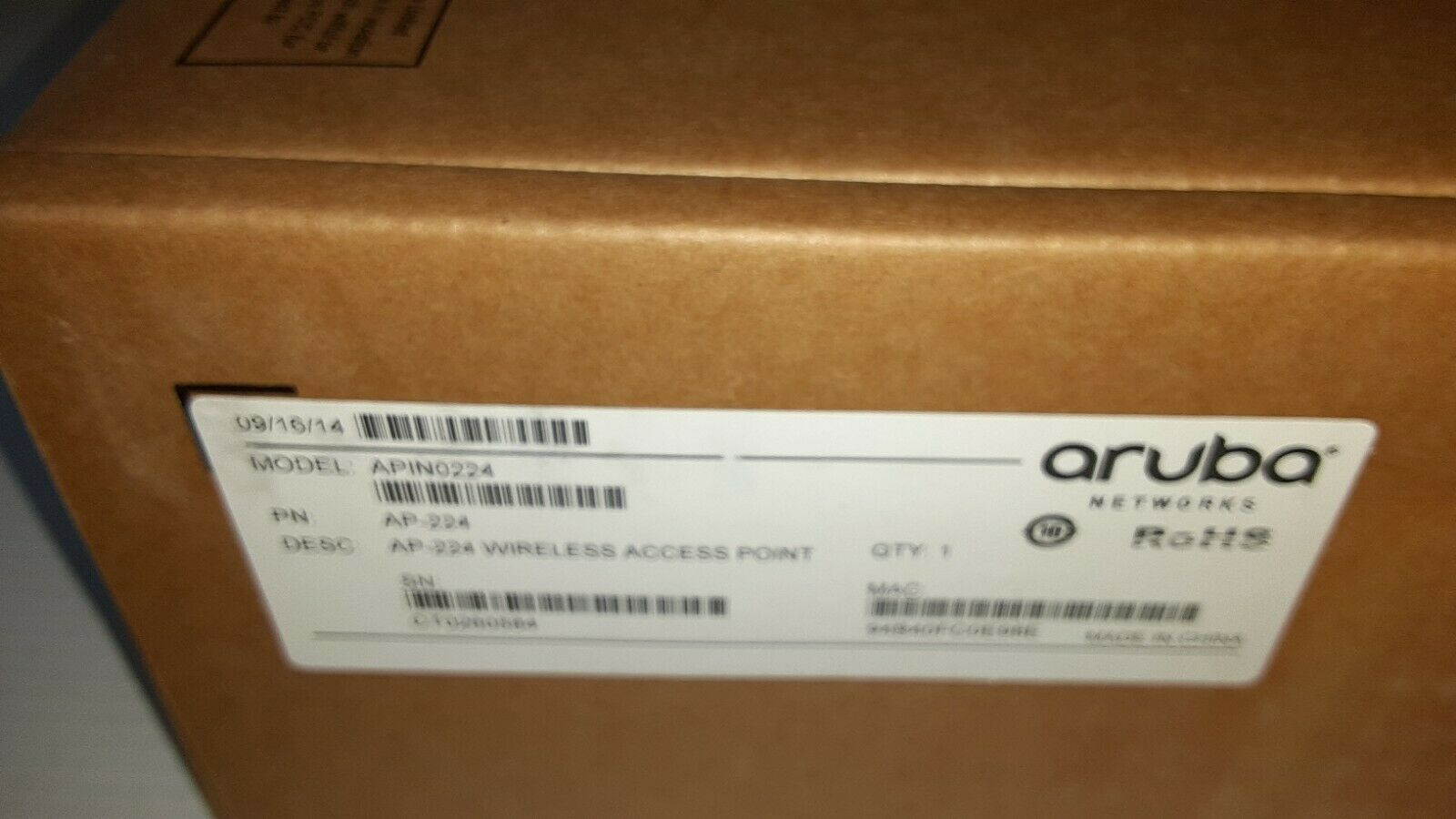

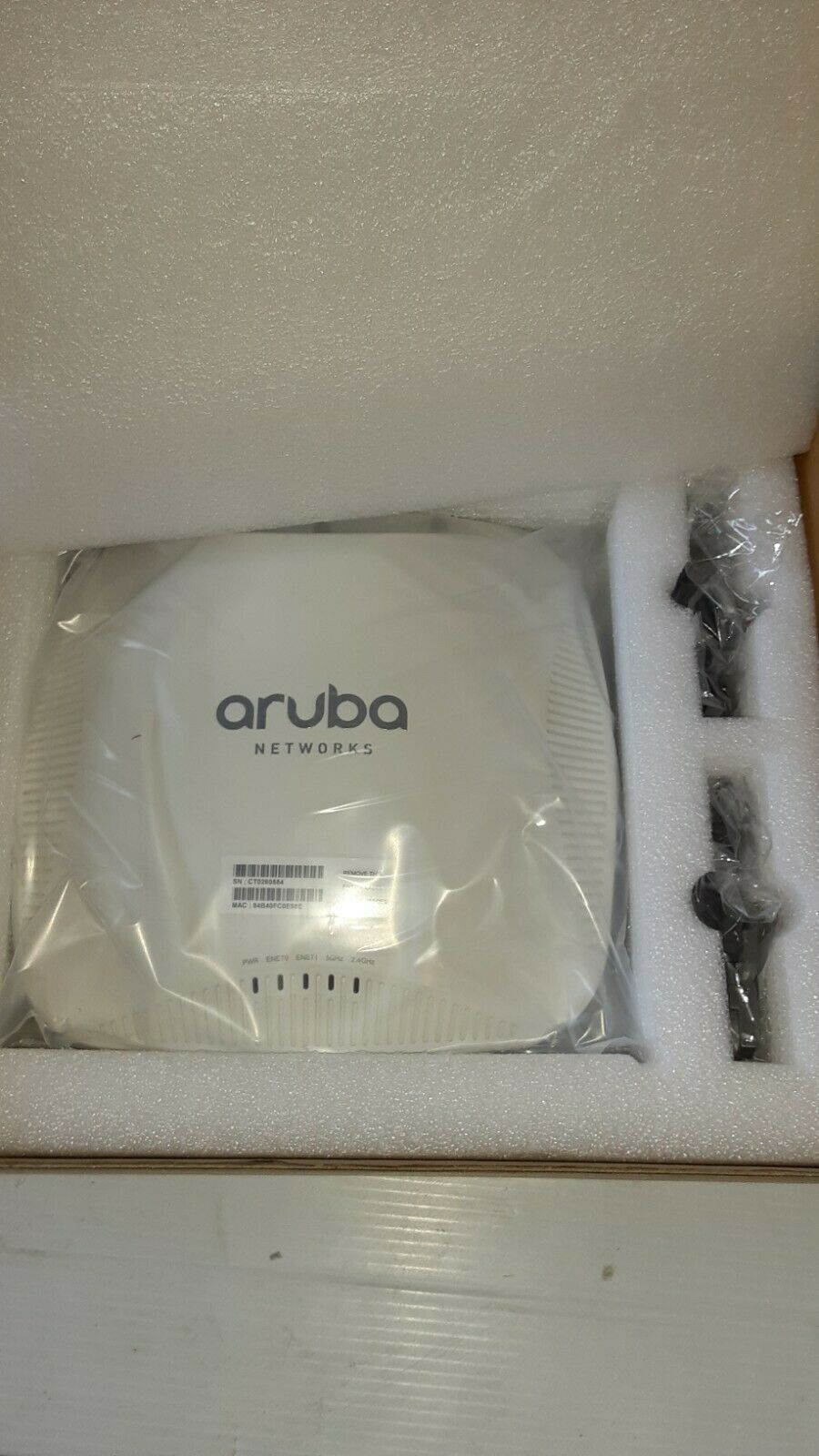

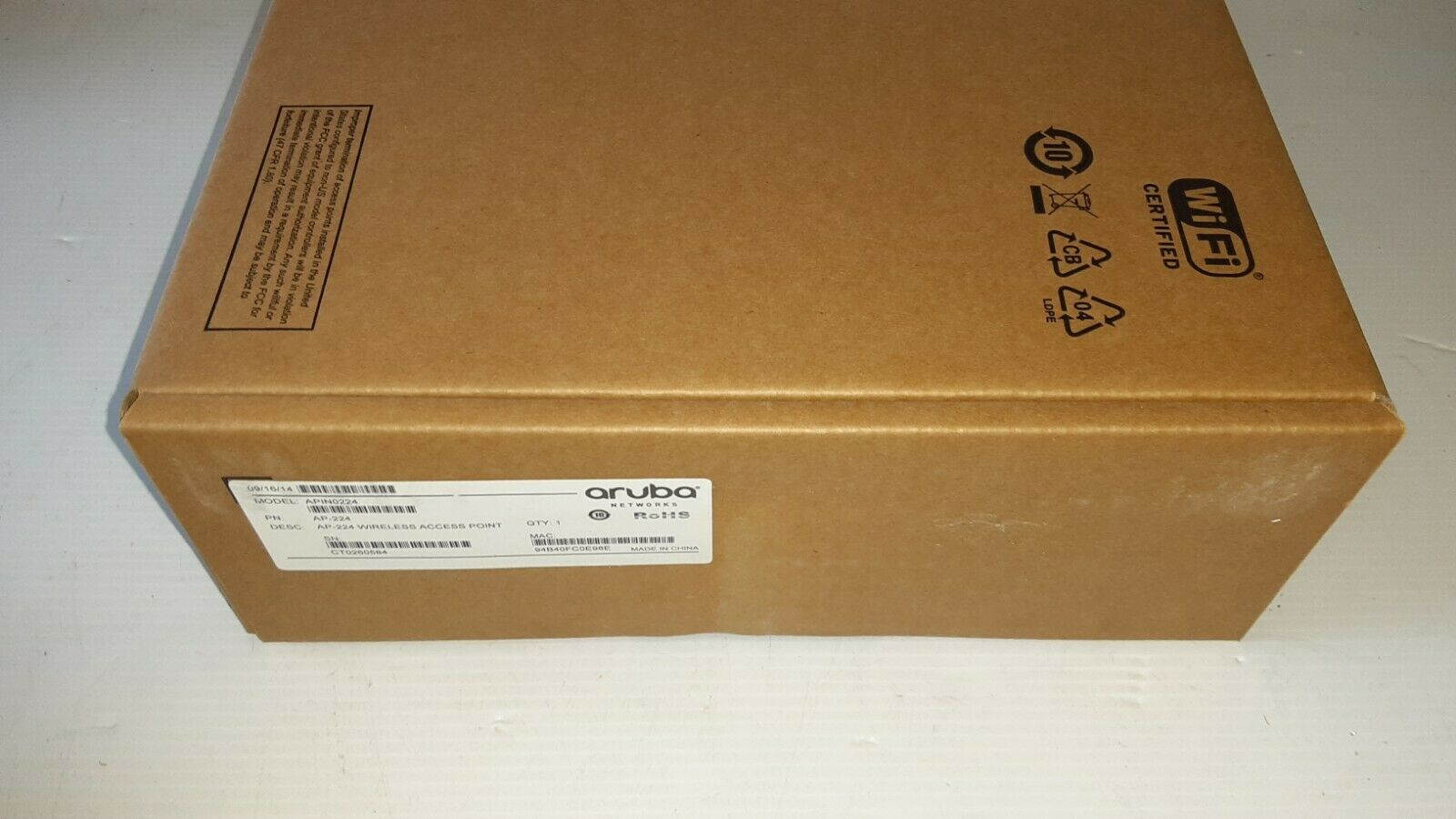

Aruba 220 Series AP-224 Wireless Access Point
Aruba 220 Series AP-224 Wireless Access Point
HP Aruba AP-577 802.11ax 4.80 Gbit/s Wireless Access Point - 2.40 GHz, 5 GHz - MIMO Technology - 2 x Network (RJ-45) - Gigabit Ethernet, 2.5 Gigabit E
ARUBA AP-518 US INDR HARDENED 11AX AP PL-VL
Aruba AP-105-MNT-C Mount Kit for Aruba 100 Series Access Points
Aruba AP-105-MNT-C Mount Kit for Aruba 100 Series Access Points
HPE Aruba AP-505HR (US) Unified Remote - Wireless access point - 802.11ac Wave 2, Bluetooth 5.0, 802.11ax - Bluetooth, Wi-Fi - 2.4 GHz, 5 GHz - BTO
HPE Aruba AP-505HR (US) Unified Remote - Wireless access point - 802.11 ac Wave 2, Bluetooth 5.0, 802.11 ax - Bluetooth, Wi-Fi - 2.4 GHz, 5 GHz - BTO

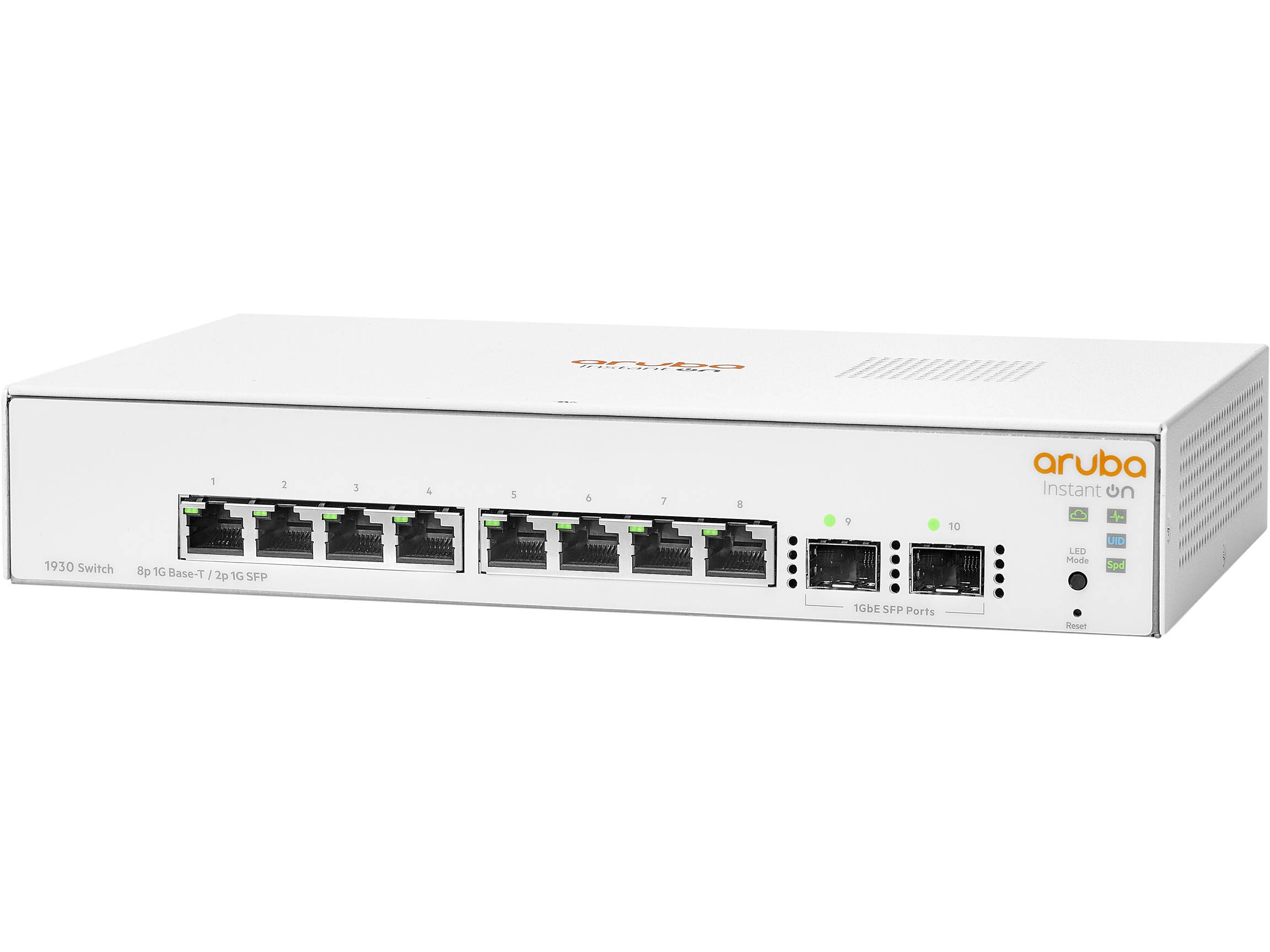

Aruba Instant On 1930 8-Port Gb Ethernet 8 x GE, 2X 1G SFP, L2+ Smart Switch US Cord (JL680A#ABA)
Aruba Instant On 1930 8-Port Gb Ethernet 8 x GE, 2X 1G SFP, L2+ Smart Switch US Cord (JL680A#ABA)

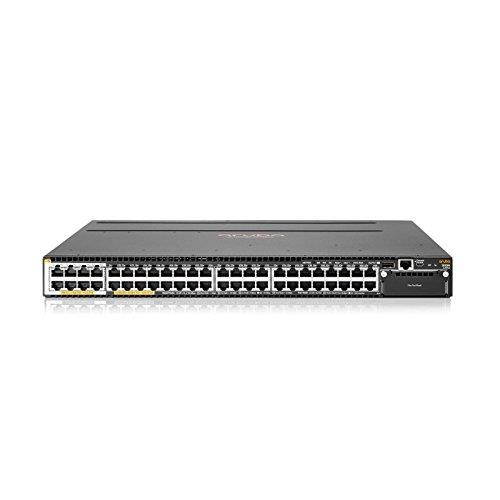

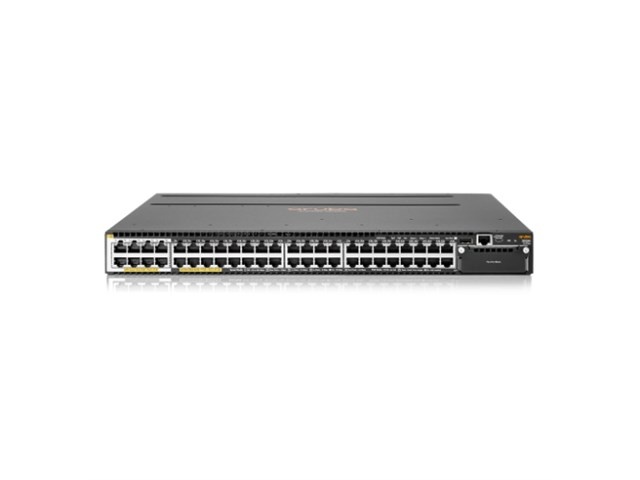

HPE Aruba 3810M 40G 8 Smart Rate PoE+ 1-slot Switch
The Aruba 3810 Switch Series provides performance and resiliency for the mobile-first campus network. Based on a powerful ProVision ASIC and ready for high-speed APs with HPE Smart Rate multi-gigabit Ethernet, the Aruba 3810 delivers a better application experience with low latency, virtualization with resilient stacking technology, and line rate 40GbE for plenty of back haul capacity. The Aruba 3810 has comprehensive Layer 3 features, right size deployment models, and is SDN ready with OpenFlow support. FeaturesPerformance and Power for the Mobile-First Campus The Aruba 3810 Switch Series is an industry leading mobile campus access solution for enterprises, SMBs, and branch office networks. With HPE Smart Rate multi-gigabit ports for high speed 802.11 ac devices, the Aruba 3810 will prepare your network for tomorrow. HPE Smart Rat... Total Number of Network Ports: 48Uplink Port: YesModular: YesStack Port: YesPort/Expansion Slot Details: 1 x Expansion SlotPort/Expansion Slot Details: 48 x Gigabit Ethernet NetworkMedia Type Supported: Twisted PairEthernet Technology: Gigabit EthernetNetwork Technology: 10/100/1000Base-TNumber of Total Expansion Slots: 1Layer Supported: 3Manageable: YesPower Source: Power SupplyRedundant Power Supply: YesCompatible Rack Unit: 1UForm Factor: Rack-mountableHeight: 1.7W idth: 17.4"D epth: 17"Weight (Approximate): 13.61 lb"

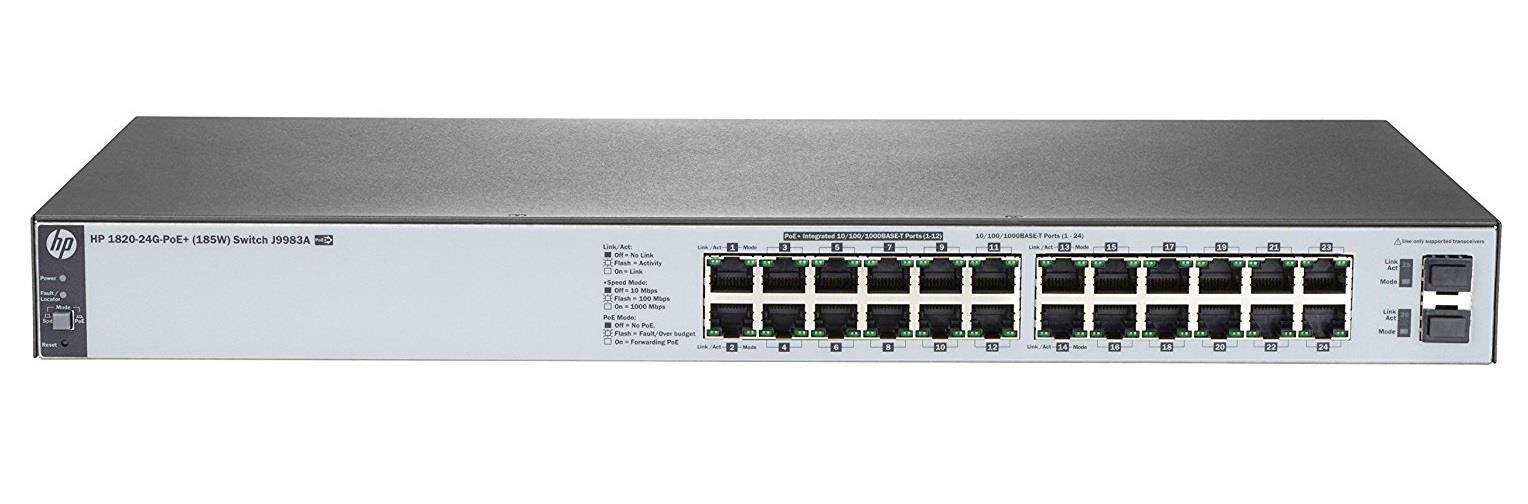

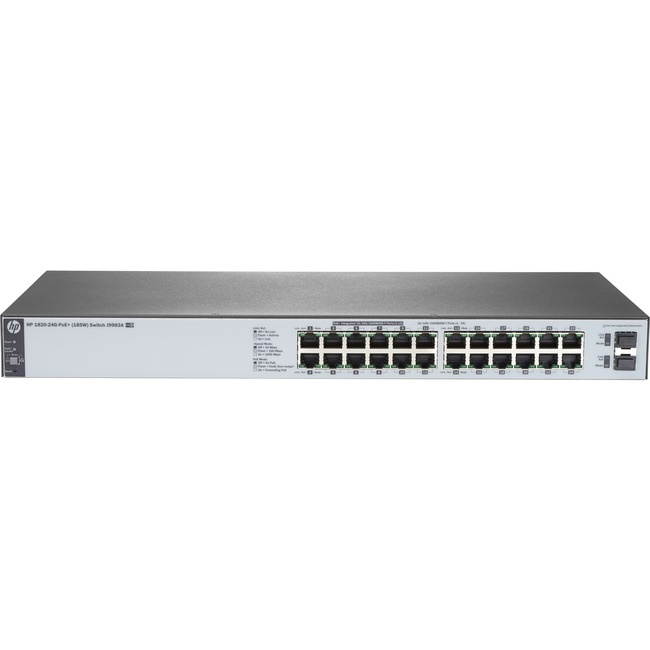

HP 1820-24G-POE+ 185W SWITCH
HP 1820 Switch Series devices are basic smart-managed fixed-configuration Gigabit Ethernet Layer 2 switches designed for small businesses looking for key features in an easy-to-administer solution. The series consists of 6 switches including 8- 24-and 48 port Gigabit Ethernet switches and 8- 24- and 48 port Gigabit PoE+ models each providing non-blocking Gigabit per port performance. Some models include SFP ports for fiber connectivity and some are fanless making them ideal for office deployments. All 1820 Switches support flexible installation options including mounting on wall under table or on desktop. The 8-port Gigabit Ethernet model can be powered by an upstream Power over Ethernet (PoE) switch for environments where no line power is available. These Gigabit switches are plug-and-play out of the box yet network operation can be fine-tuned through features available from a simple web browser-based GUI if necessary. Customizable features include VLANs Rapid Spanning Tree IGMP Snooping link aggregation trunking and DSCP QoS policies. All models include the latest energy-saving capabilities including Energy Efficient Ethernet (EEE) and idle-port power down. Features 24 networking ports to meet the requirements of the most demanding workgroupsWith PoE+ Port transfer data and up to 25.5 W of power on a single cable to places where a power outlet is not presentSupports cost-efficient twisted pair cables for high-speed data transfer up to 100 metersGigabit Ethernet port for ultra-fast network speedsLayer 2 switch provides a complete lineup of features including IGMP snooping port mirroring and spanning treeBuilt-in power supply to ensure all components are being supplied with accurate voltageRack mounting enables you to organize wires & secure cables for professional installation

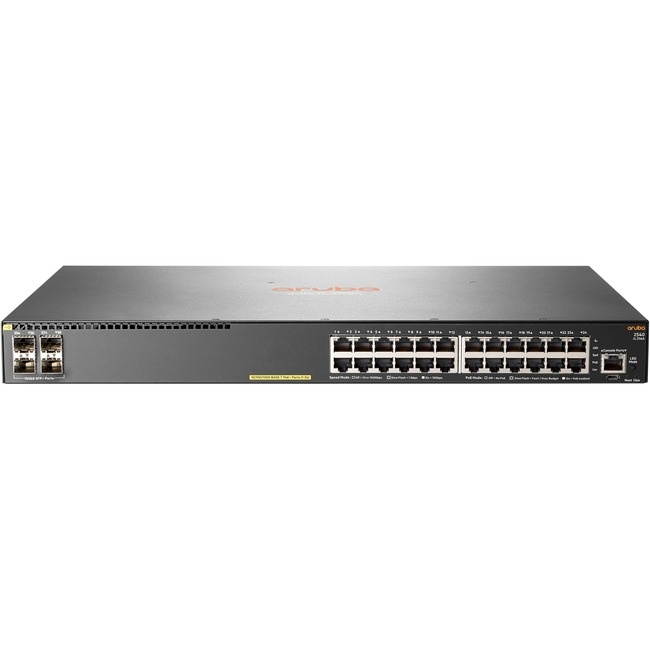

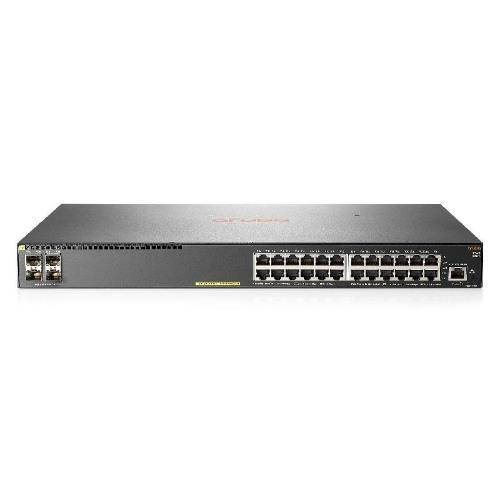

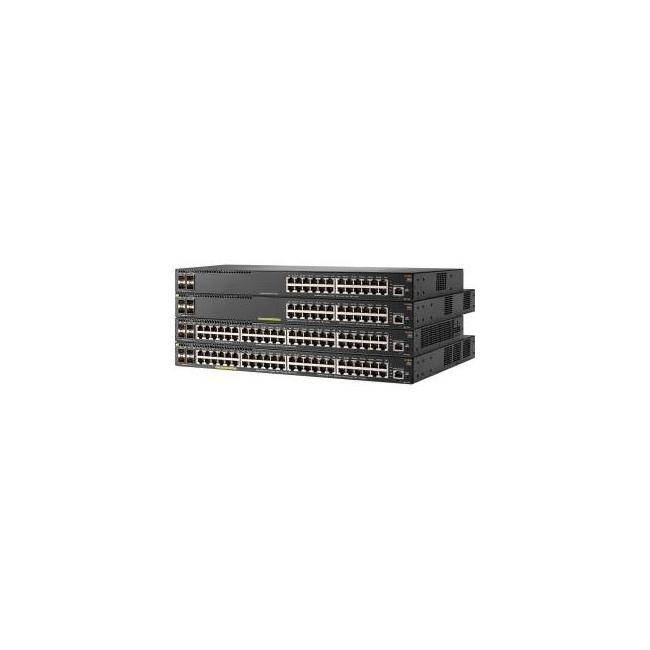

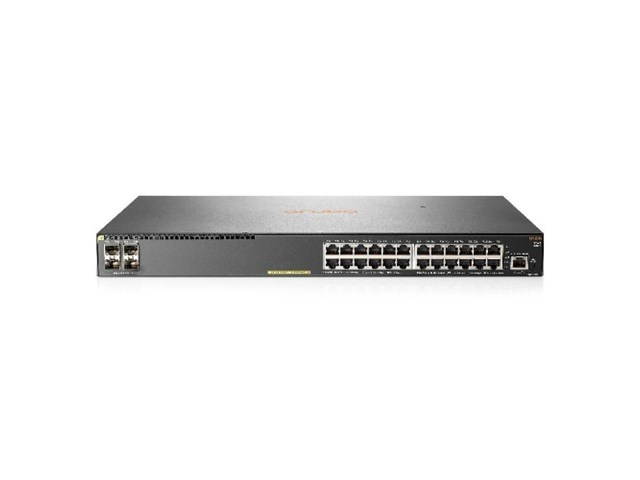

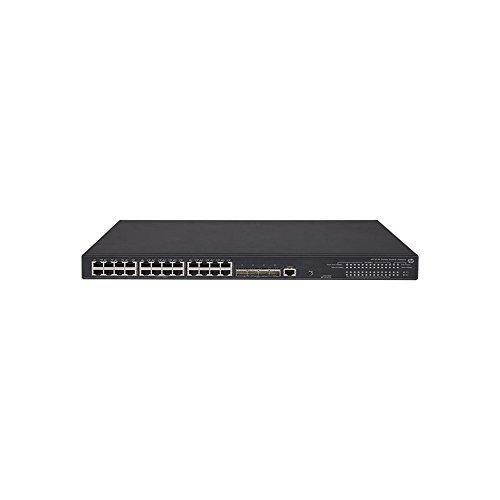

Aruba Iot Ready And Cloud Manageable Access Switch
MAIN OVERVIEW FEATURES:Uplink Port: YesModular: YesPort/Expansion Slot Details: 24 x Gigabit Ethernet Network4 x 10 Gigabit Ethernet UplinkMedia Type Supported: Twisted PairOptical FiberEthernet Technology: Gigabit Ethernet10 Gigabit EthernetNetwork Technology: 10/100/1000Base-T10GBase-XNumber of Total Expansion Slots: 4Expansion Slot Type: SFP+Number of SFP+ Slots: 4Layer Supported: 2Manageable: YesPower Source: Power SupplyCompatible Rack Unit: 1UForm Factor: Rack-mountableWall MountableDesktopHeight: 1.73" (43.94 mm)Width: 17.42" (442.47 mm)Depth: 11.98" (304.29 mm)Weight (Approximate): 3.90 kgLimited Warranty: Lifetime

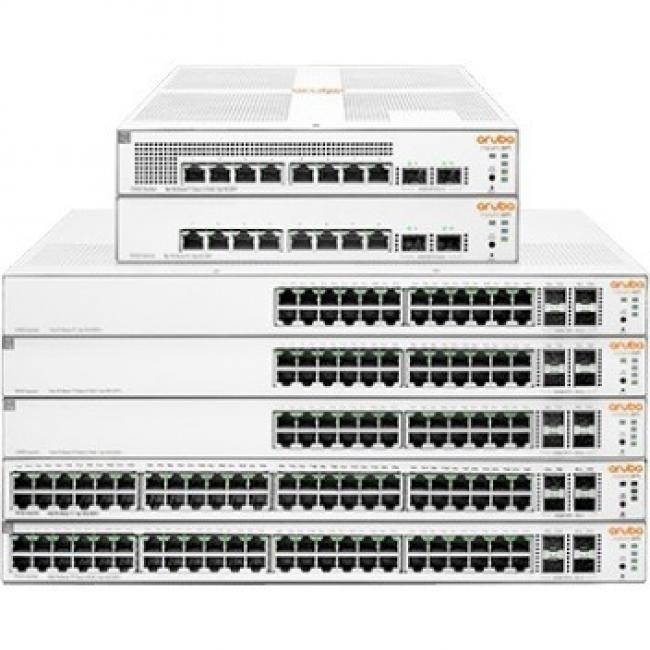

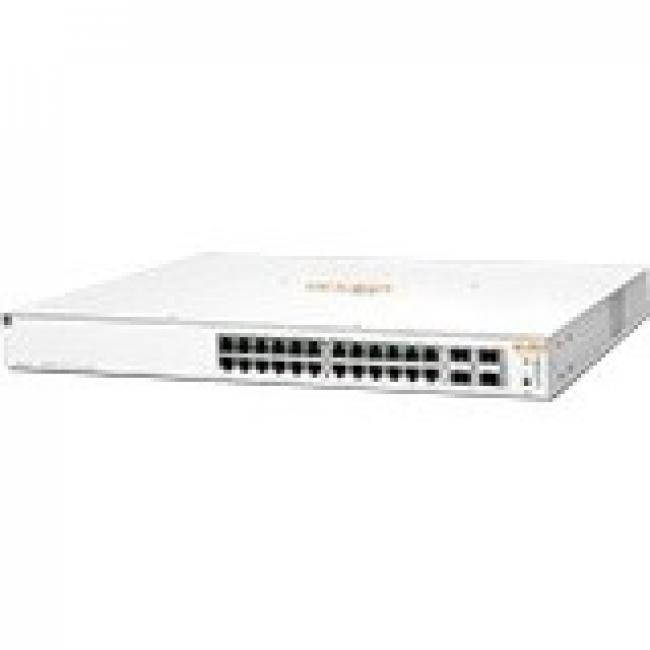

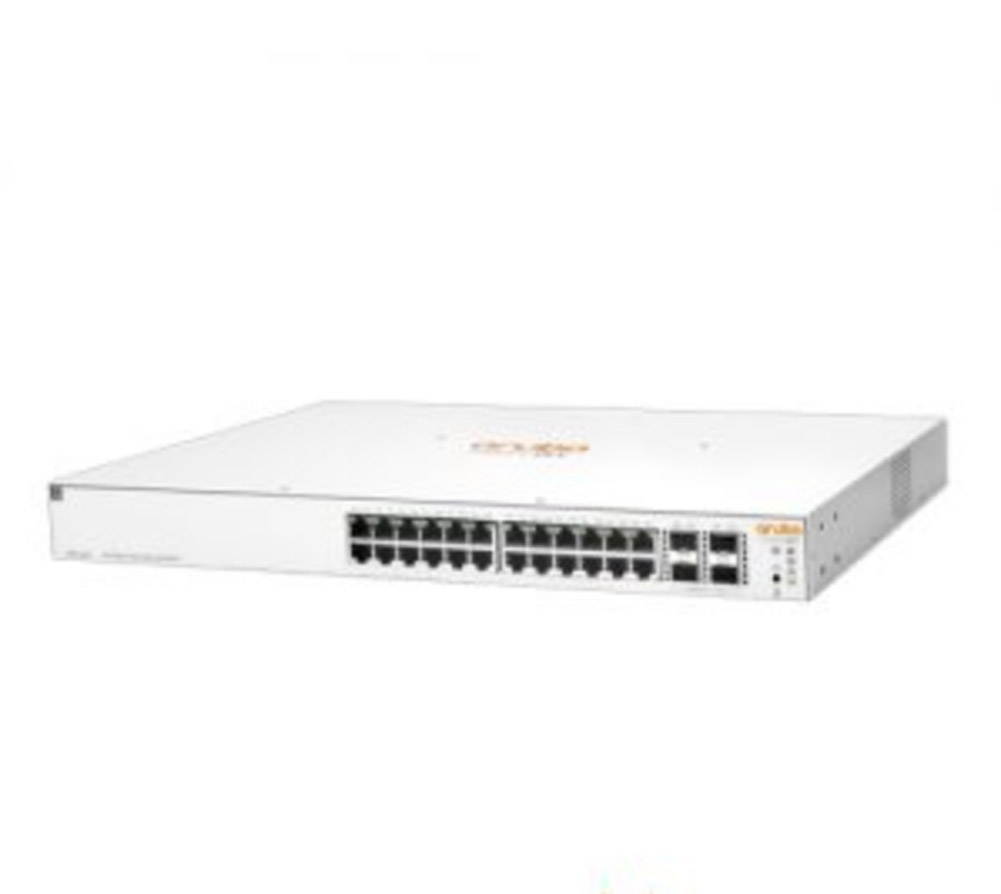

Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch JL684AABA
Aruba Instant On 1930 switches are advanced, smart-managed, fixed configuration Gigabit switches designed for small businesses and SMBs looking for high performance networking that is easy-to-deploy and affordable. They're made to handle today's bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to enhance performance. This model supports 28 active ports -- 24x 10/100/1000 copper Ethernet RJ45 ports and four 1-Gigabit / 10-Gigabit SFP+ style uplink slots. Power over Ethernet both PoE and PoE+ can operate on any of its 24 RJ45 ports, with a total PoE budget of 370 Watts. Using either the Instant On mobile app or its cloud-based web portal, you can quickly set up, monitor and manage the 1930 switch series from anywhere at any time. Also available is a comprehensive local web interface. Built-in security features protect your network from unauthorized access by allowing you to segment traffic and define access to each area of the network. Advanced features include VLANs, 802.1X radius-based network login, three levels of Spanning Tree protocol, and Layer 3 static routing, among others. And all of this is included in the price of the hardware - there are no hidden subscription or licensing fees. All are backed by Aruba's Limited Lifetime Warranty.

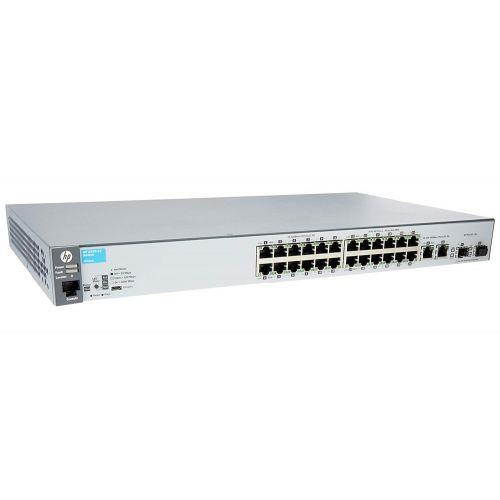

HP 24-Port Switch, Managed - (J9782A#ABA)
Aruba 2530 24 Switch Aruba 2530 24 Switch US en - (J9782A#ABA)

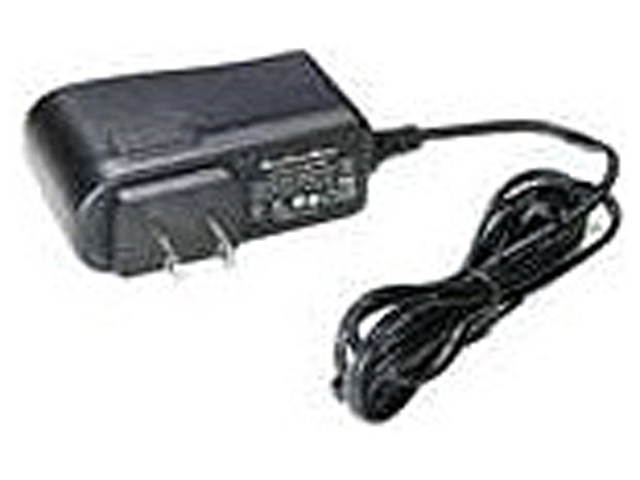

Aruba PC-OD-AC-P-NA Weatherproof AC Power Cable
Aruba PC-OD-AC-P-NA Weatherproof AC Power Cable
HPE Aruba 2930F 48G PoE+ 4SFP JL262A - switch - 48 ports - managed - rack-mountable
Product Specifications
General
Device Type Switch - 48 ports - L3 - managed - stackable
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
Power Over Ethernet (PoE) PoE+
PoE Budget 370 W
Performance Throughput: 77.4 Mpps | Switching capacity: 104 Gbps | Latency (1 Gbps): 3.8 µs
Capacity Jumbo frame size: 9220 | IPv4 routing table entries: 10000 | IPv6 routing table entries: 5000
MAC Address Table Size 32K entries
Routing Protocol OSPF, RIP, RIP-1, RIP-2, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, XRMON
Encryption Algorithm MD5, SSL
Authentication Method RADIUS, PAP, CHAP, TACACS, TACACS+
Features Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, MLD snooping, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), MAC address lockout, dynamic ARP protection, DHCP protection, Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), SNMP support, Type of Service (ToS), OpenFlow support, CPU protection, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Virtual Extensible LAN (VXLAN), Management Information Base (MIB) II
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Processor 1 x ARM Cortex-A9: 1.016 GHz
RAM 1 GB DDR3 SDRAM
Flash Memory 4 GB
Expansion / Connectivity
Interfaces 48 x 1000Base-T RJ-45 PoE+ | 4 x Gigabit LAN SFP | 1 x serial (console)
Expansion Slots 1 (total) / 1 (free) x expansion slot
Installed Modules Qty (Max) 0 (installed) / 4 (max)
Power
Power Device Internal power supply
Installed Qty 1
Power Provided 459 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 48.6 Watt
80 PLUS Certification 80 PLUS Silver
Miscellaneous
Included Accessories Mounting screws, 4 mounting ears, 4 bumper feet, cable tie
Compliant Standards CISPR 22 Class A, CISPR 24, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, ICES-003 Class A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, IEC 60825-1:2007, CNS 13438, EN 55024:2010, EN 55022:2010, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 60825-1:2007, FCC CFR47 Part 15 A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
Software / System Requirements
Software Included Command Line Interface (CLI), HP Web browser, HP Intelligent Management Center
Dimensions & Weight
Width 17.4 in
Depth 12 in
Height 1.7 in
Weight 9.83 lbs
Manufacturer Warranty
Service & Support Limited warranty - lifetime
HPE Aruba 2930F 24G PoE+ 4SFP+ - switch - 24 ports - managed - rack-mountable JL255A
Product Specifications
General
Device Type Switch - 24 ports - L3 - managed - stackable
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE) PoE+
PoE Budget 370 W
Performance Throughput: 95.2 Mpps | Switching capacity: 128 Gbps | Latency (1 Gbps): 3.8 µs | Latency (10 Gbps): 1.6 µs
Capacity Jumbo frame size: 9220 | IPv4 routing table entries: 10000 | IPv6 routing table entries: 5000
MAC Address Table Size 32K entries
Routing Protocol OSPF, RIP, RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, XRMON
Encryption Algorithm MD5, SSL
Authentication Method RADIUS, PAP, CHAP, TACACS, TACACS+
Features Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), MAC address lockout, dynamic ARP protection, DHCP protection, Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), Type of Service (ToS), OpenFlow support, CPU protection, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Virtual Extensible LAN (VXLAN), Management Information Base (MIB) II
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Processor 1 x ARM Cortex-A9: 1.016 GHz
RAM 1 GB DDR3 SDRAM
Flash Memory 4 GB
Expansion / Connectivity
Interfaces 24 x 1000Base-T RJ-45 PoE+ | 4 x Gigabit / 10Gbit LAN SFP+ | 1 x serial (console)
Expansion Slots 1 (total) / 1 (free) x expansion slot
Installed Modules Qty (Max) 0 (installed) / 4 (max)
Power
Power Device Internal power supply
Installed Qty 1
Voltage Required AC 120/230 V
80 PLUS Certification 80 PLUS Silver
Miscellaneous
Included Accessories Mounting screws, 4 mounting ears, 4 bumper feet, cable tie
Compliant Standards CISPR 22 Class A, CISPR 24, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, ICES-003 Class A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, IEC 60825-1:2007, CNS 13438, EN 55024:2010, EN 55022:2010, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 60825-1:2007, FCC CFR47 Part 15 A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
Software / System Requirements
Software Included Command Line Interface (CLI), HP Web browser, HP Intelligent Management Center
Dimensions & Weight
Width 17.4 in
Depth 12 in
Height 1.7 in
Weight 8.6 lbs
Manufacturer Warranty
Service & Support Limited warranty - lifetime

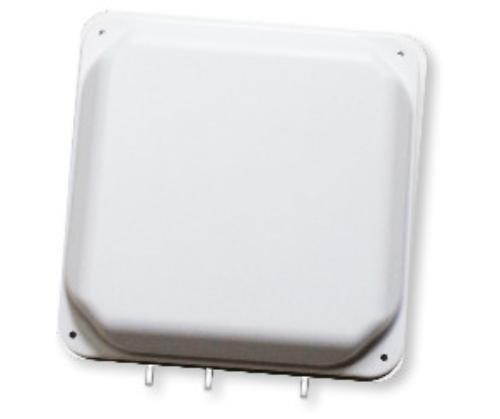

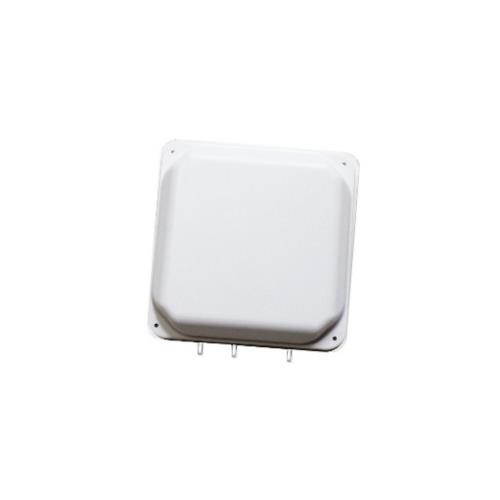

Aruba Indoor/Outdoor Mimo Antenna
AP-ANT-38 is a multipolarized antenna with 60 H x 60 V beamwidths. This antenna is well suited for 2.4 -GHz and 5-GHz sector coverage for Wi-Fi access. Provides optimized pattern coverage with 4.90 GHz to 6 GHz frequency Operates at 7.5 dBi gain Designed for indoor Antenna can be mounted as pole/wall
Aruba AP124 AP-124 Dual Radio IEEE 802.11n Wireless Access Point *New*
Aruba AP124 AP-124 Dual Radio IEEE 802.11n Wireless Access Point *New* condition: New Brand: ArubaModel: AP-124MPN: AP124Max. Wireless Data Rate: 11MbpsNetwork Connectivity: Wireless-Wi-Fi 802.11nCode : aa9-086123000401151

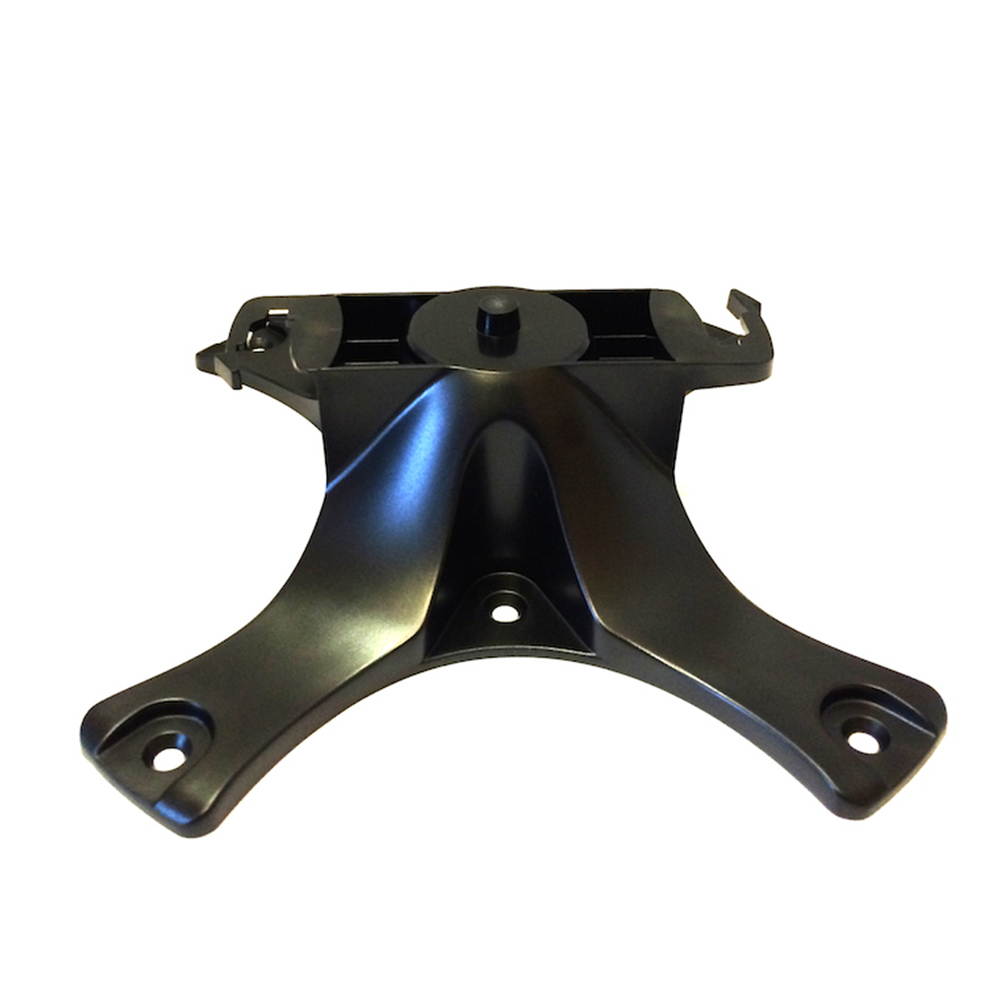

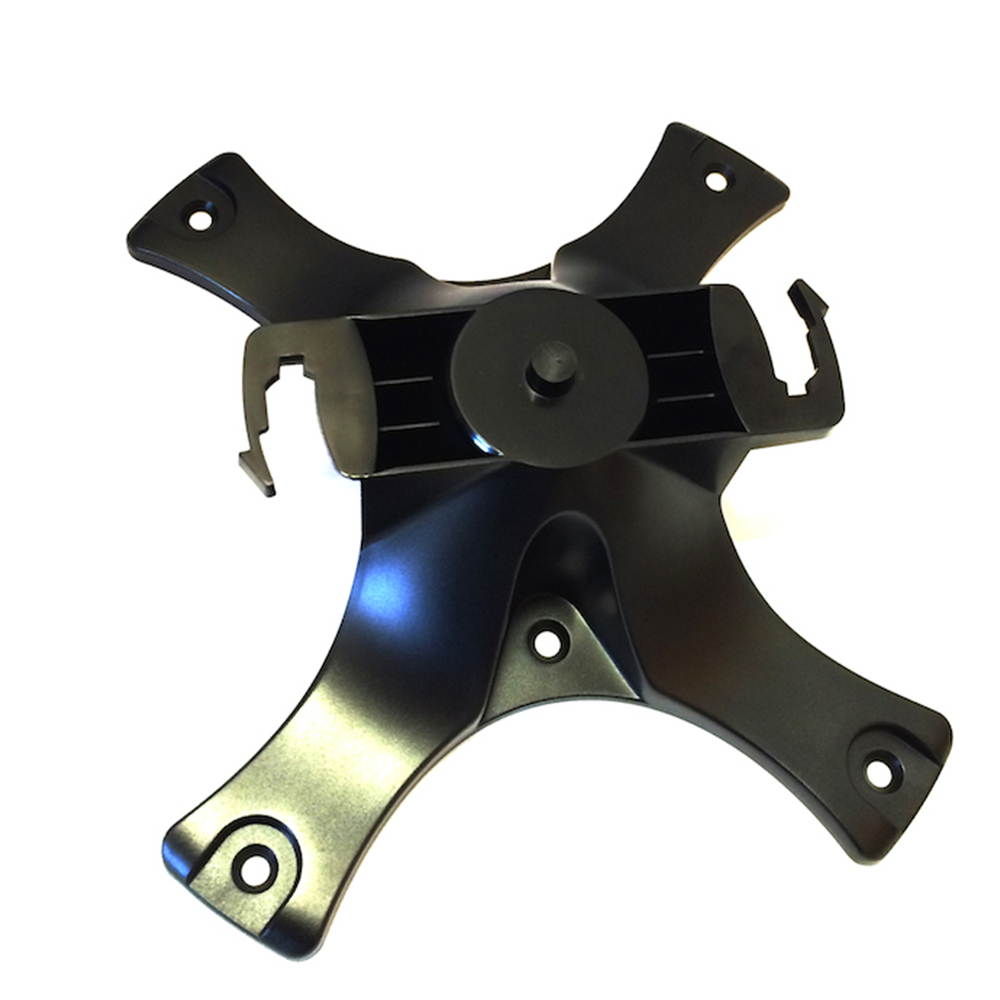

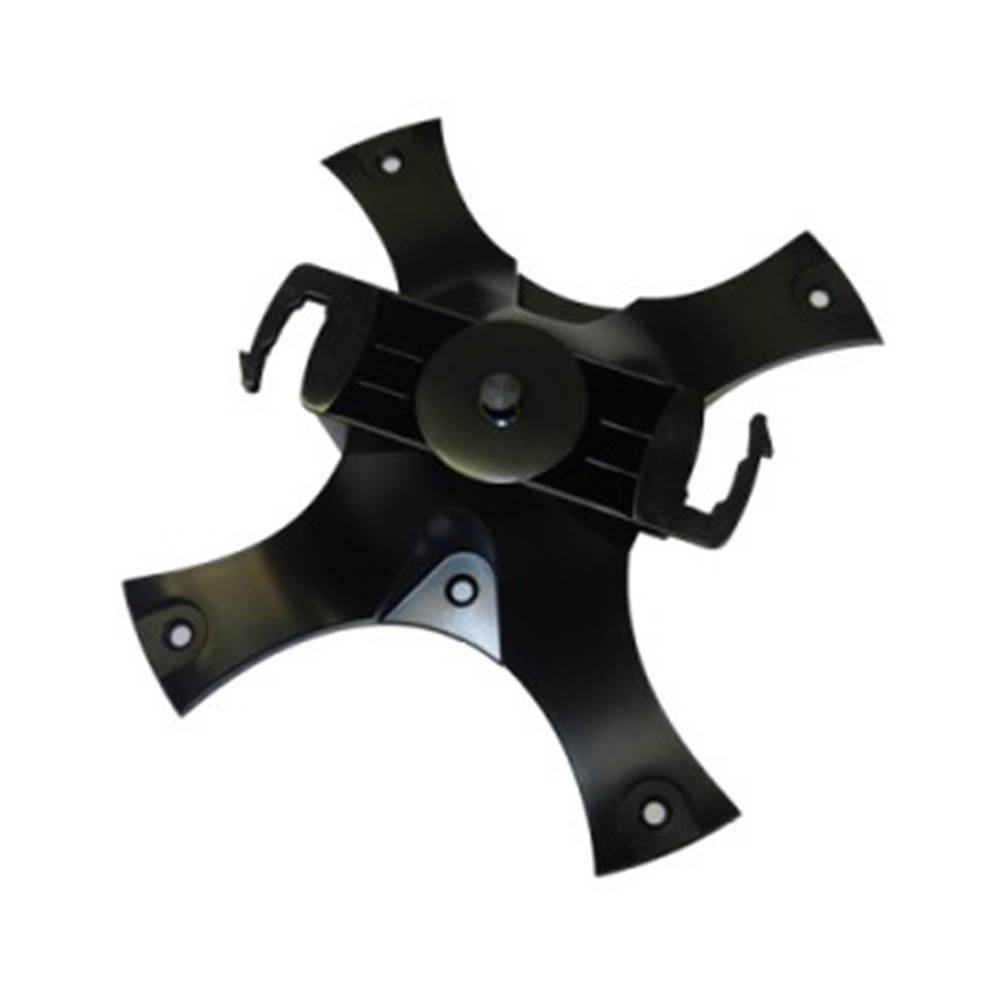

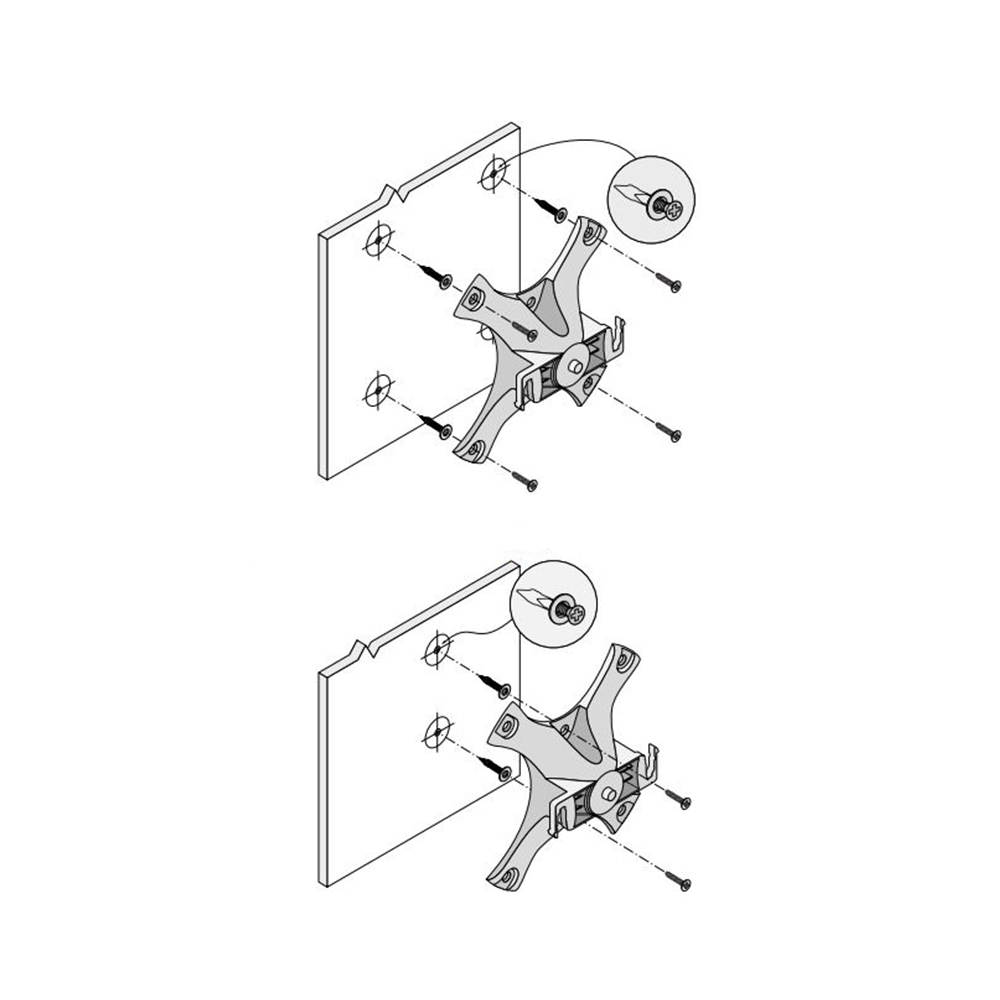

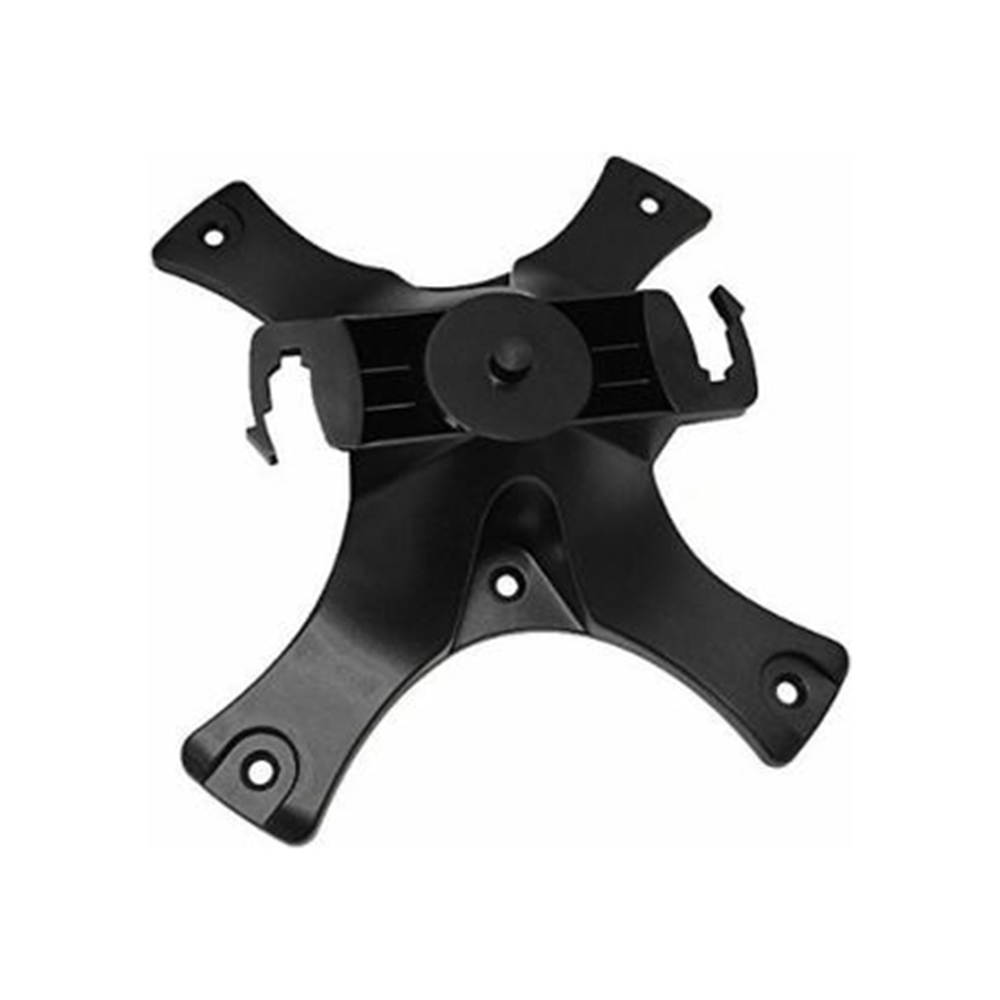

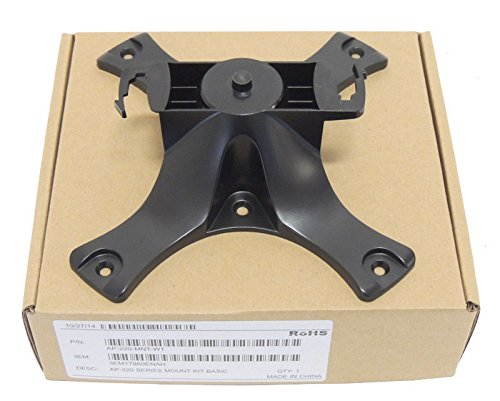

Aruba Networks AP-220-MNT-W1 Mounting Bracket for Wireless Access Point JW046A
Safely and securely mount your high-performance network devices with the HP Aruba AP-220-MNT-W1 Network Device Mounting Kit. This wall mount kit lets you install your modems and routers to walls and other flat surfaces, thus reducing desk space and clutter. In addition, mounting at a height allows the network device to offer more coverage to a wide area. Alternative Part Number: JW046A. The mounting kit is compatible with the following devices: AP-214, IAP-214, AP-215, IAP-215, AP-224, IAP-224, AP-225, IAP-225, AP-228, IAP-228, AP-314, IAP-314, AP-315, IAP-315, AP-324, IAP-324, AP-325, IAP-325, AP-334, IAP-334, AP-335, IAP-335.
Aruba R2H45A HP AP-303P (US)
Extended service agreement
replacement
5 years
shipment
9x5
response time: NBD
academic
Aruba AP-305 JX936A
HPE Aruba AP-305 - Wireless access point - Wi-Fi - Dual Band - in-ceiling

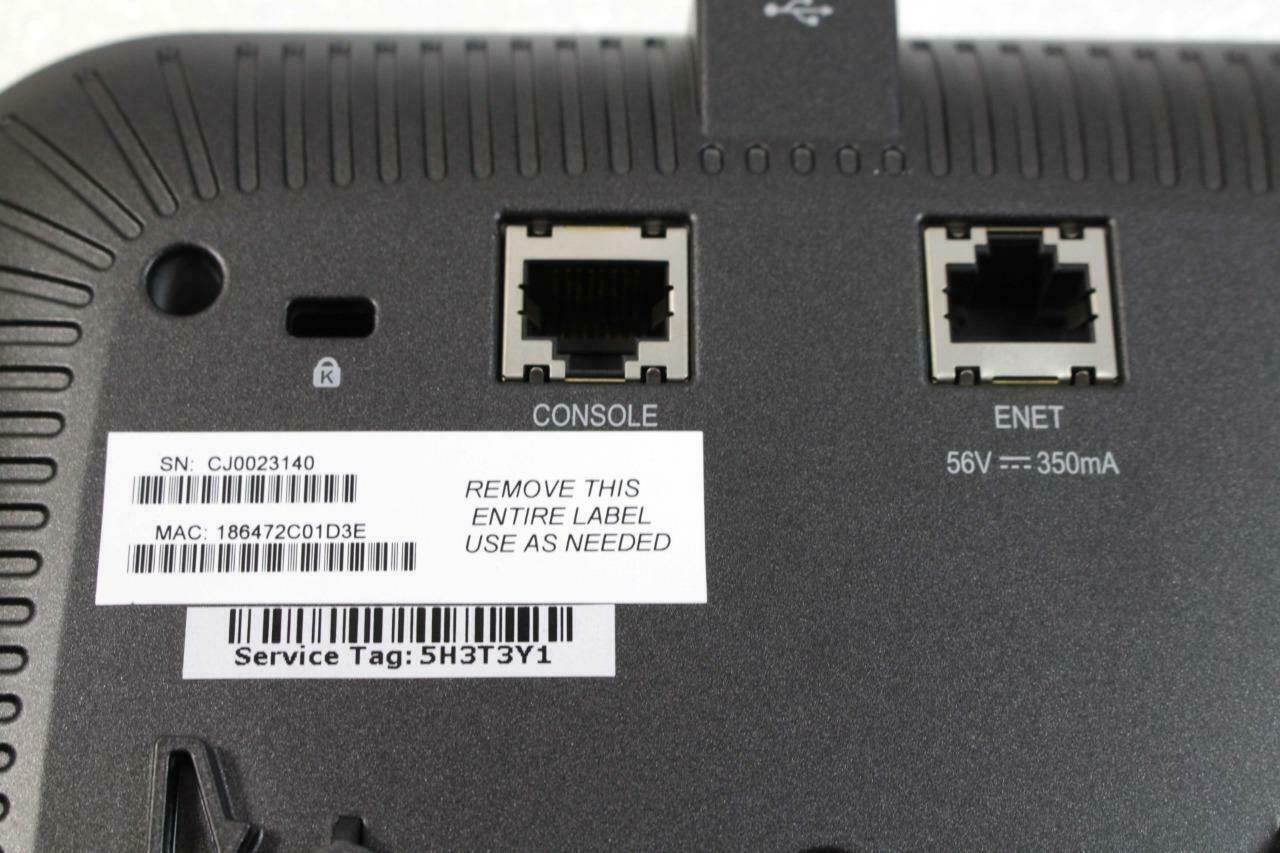

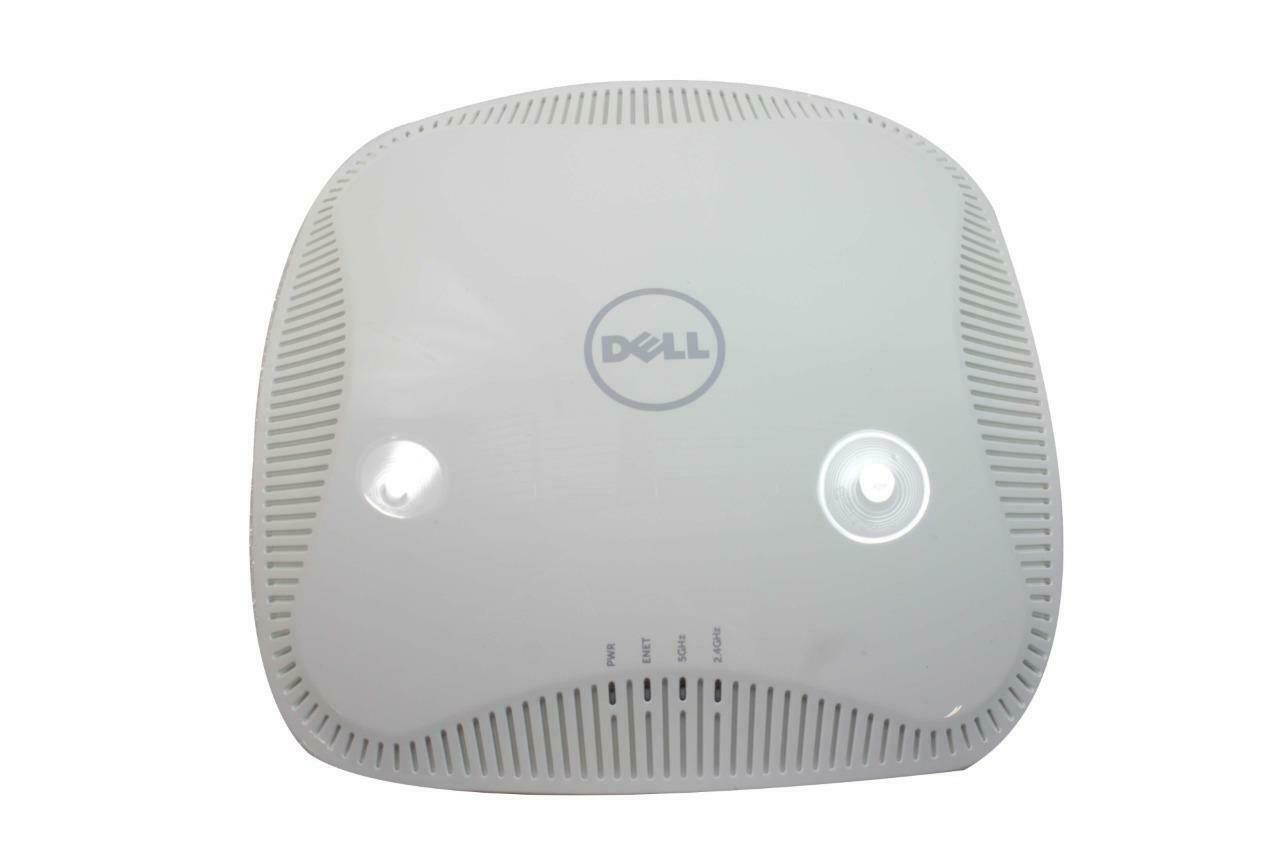

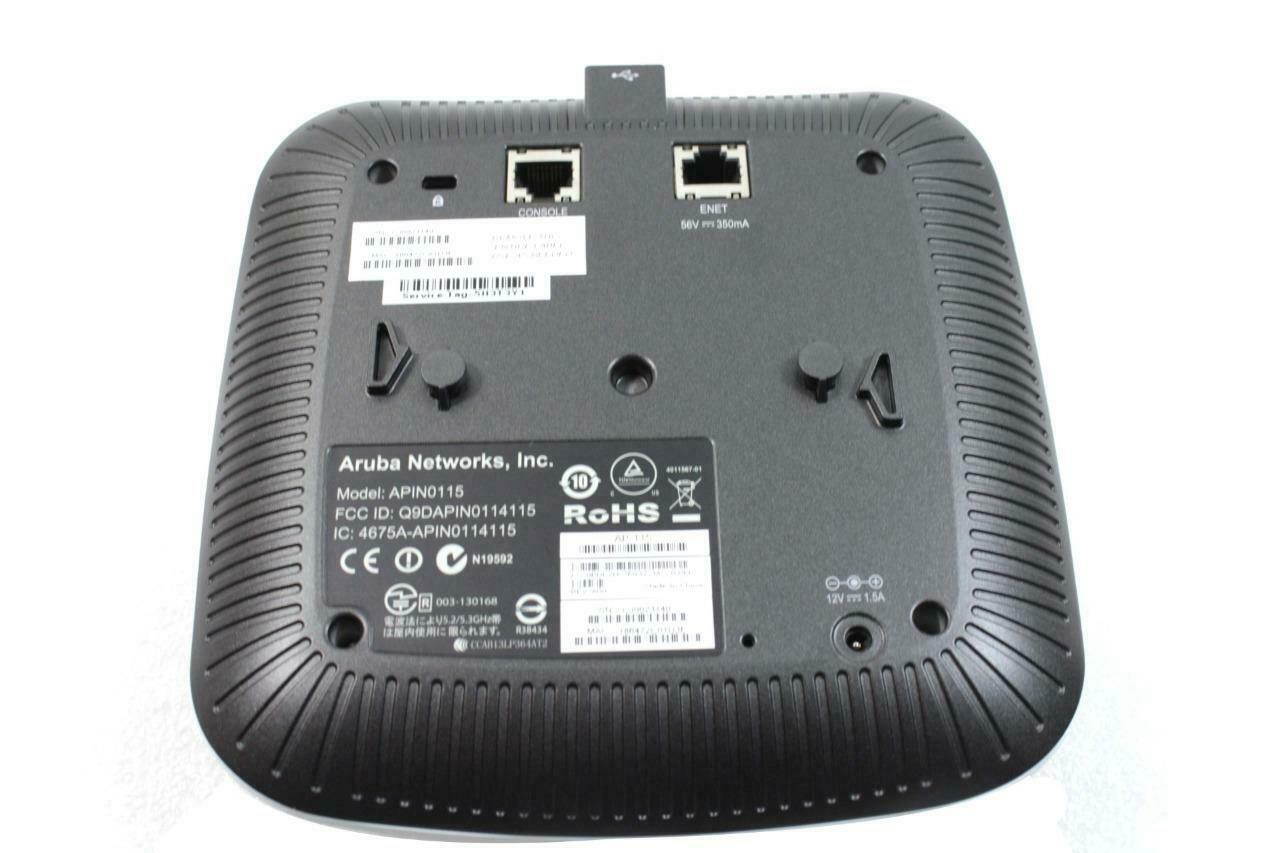

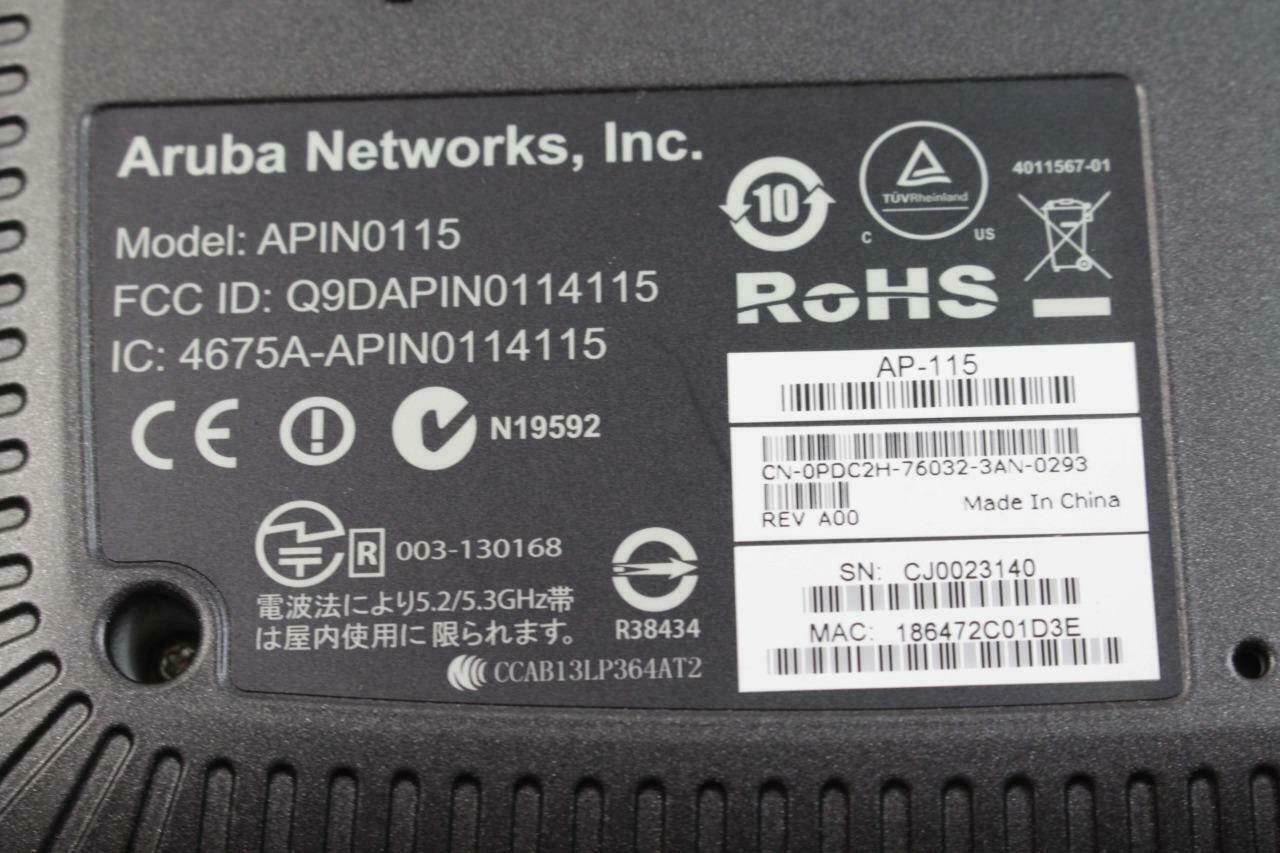

Dell Aruba Access Point APIN0115 10 100 1000BASE-T RJ45 Ethernet 802.11n PDC2H 0PDC2H
Dell Aruba Access Point APIN0115 10 100 1000BASE-T RJ45 Ethernet 802.11 n PDC2H 0PDC2H Brand: Dell Manufacturer: Aruba Part Number: PDC2H MPN: 0PDC2H, CN-0PDC2H Model: AP-115 and IAP-115: APIN0115 Type: ACCESS POINT MOUNTING Included with AP: Mounting brackets (2) for attaching to 9/16-inch or 15/16-inch T-bar drop-tile ceiling Optional mounting kits: AP-220-MNT-C2: Aruba AP mount kit contains two ceiling-grid rail adapters for Interlude and Silhouette style rails AP-220-MNT-W1: Aruba AP mount kit contains one flat-surface wall/ceiling mount bracket AP-220-MNT-W2: Aruba AP mount kit contains one flat-surface wall/ceiling secure mount cradle MINIMUM SOFTWARE VERSIONS Aruba OS 6.3. 1.0 Aruba Instant OS 4.0. 0.0 Interface: 10/100/1000BASE-T Ethernet network interface (RJ-45) Auto-sensing link speed and MDI/MDX 802.3 az Energy Efficient Ethernet (EEE) PoE-PD: 48 Vdc 802.3 af PoE or 802.3 at PoE+ Coniditon: Manufacturer Refurbished This item will be Shipped exactly as n in the picture. To Our Customers, Thank you for shopping with us. Please feel free to contact us if you have any question with the item before you place the order or after you receive it. Your positive feedback is very valuable to our company and we appreciate your kindly understanding and support towards us.
Aruba Networks 2400 Network Mobility Controller 24 FE Ports 2 GE 2400-48-AOS-STD *NOB*
The Aruba 2400 Controller is a fully-featured wireless LAN controller that aggregates up to 48 access points (APs) and delivers centralized control and security for wireless deployments. The Aruba 2400 delivers solid performance and military-grade encryption through dedicated control, network, and encryption processors.

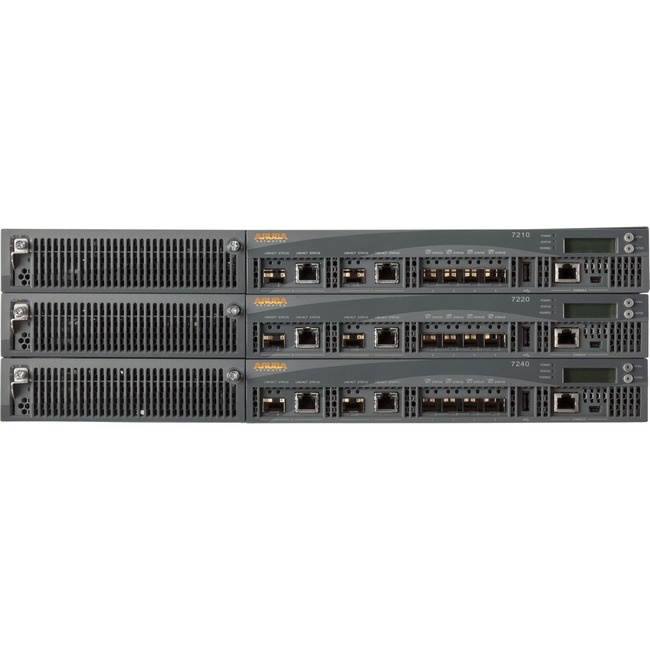

Electronic Gadgets

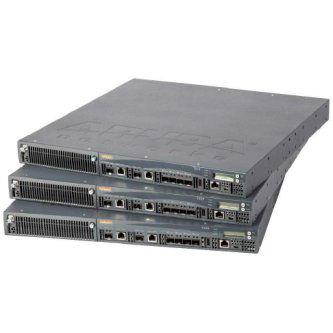

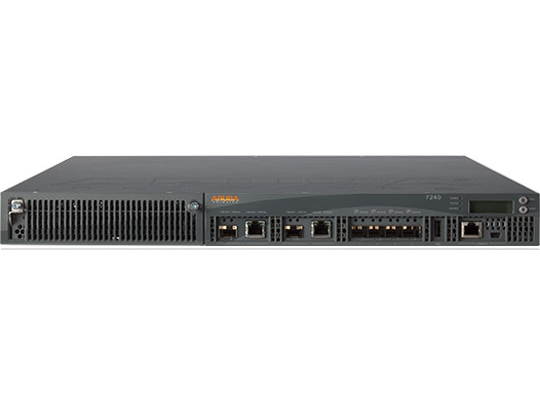

The Aruba 7200 series Mobility Controller is the next-generation networking platform optimized for mobile application delivery to ensure the best mobility experience over Wi-Fi. With a new central processor that employs eight cores with four threads each it's like having a total of 32 virtual CPUs. As a result the 7200 series supports 32000 mobile devices and performs stateful firewall policy enforcement at 40 Gbps - plenty of capacity and speed for BYOD and 802.11 ac devices. New levels of visibility are provided by Aruba's unique AppRF technology which runs on 7200 series Mobility Controllers. With AppRF IT can see applications by user including top web-based applications like Facebook and Box. The 7200 series also manages authentication encryption VPN connections IPv4 and IPv6 Layer 3 services the Aruba Policy Enforcement Firewall Aruba Adaptive Radio Management and Aruba RFProtect spectrum analysis and wireless intrusion protection. Clustering and centralized management enable the deployment of large networks with hundreds of Mobility Controllers with minimal staff. A master Mobility Controller can manage local Mobility Controllers while Aruba AirWave network management provides enterprise-wide clarity and control through real-time monitoring historical reporting and troubleshooting. Architected for high AvAilAbility Redundant power supplies: The 7200 series supports dual field-replaceable redundant power supplies to maintain uninterrupted network operations. Hot-swappable fan tray with multiple fans: The 7200 series includes a field-replaceable fan tray with multiple fans providing sufficient cooling and rapid time to repair. Solid state drives for maximum reliability and uptime. Two dual-media ports: 1000BASE-X or 10/100/1000BASE-T connections for high availability. Network administrators or network operations centers can use this wireless LAN controller to manage wireless access points in large quantities convenientlyGigabit Ethernet port for ultra-fast wired network speedsIts management capability provides efficient control over setup and configuration of your network

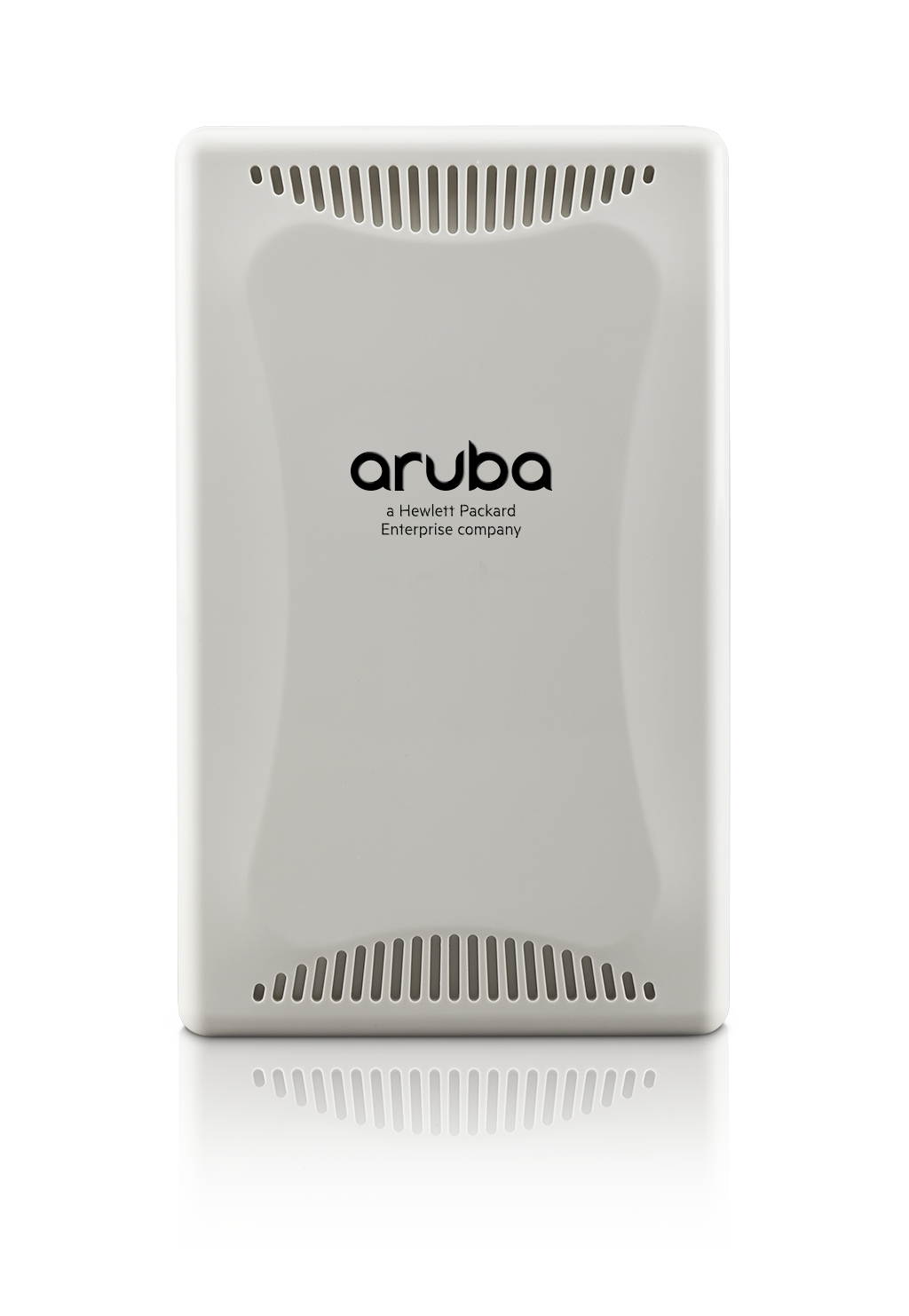

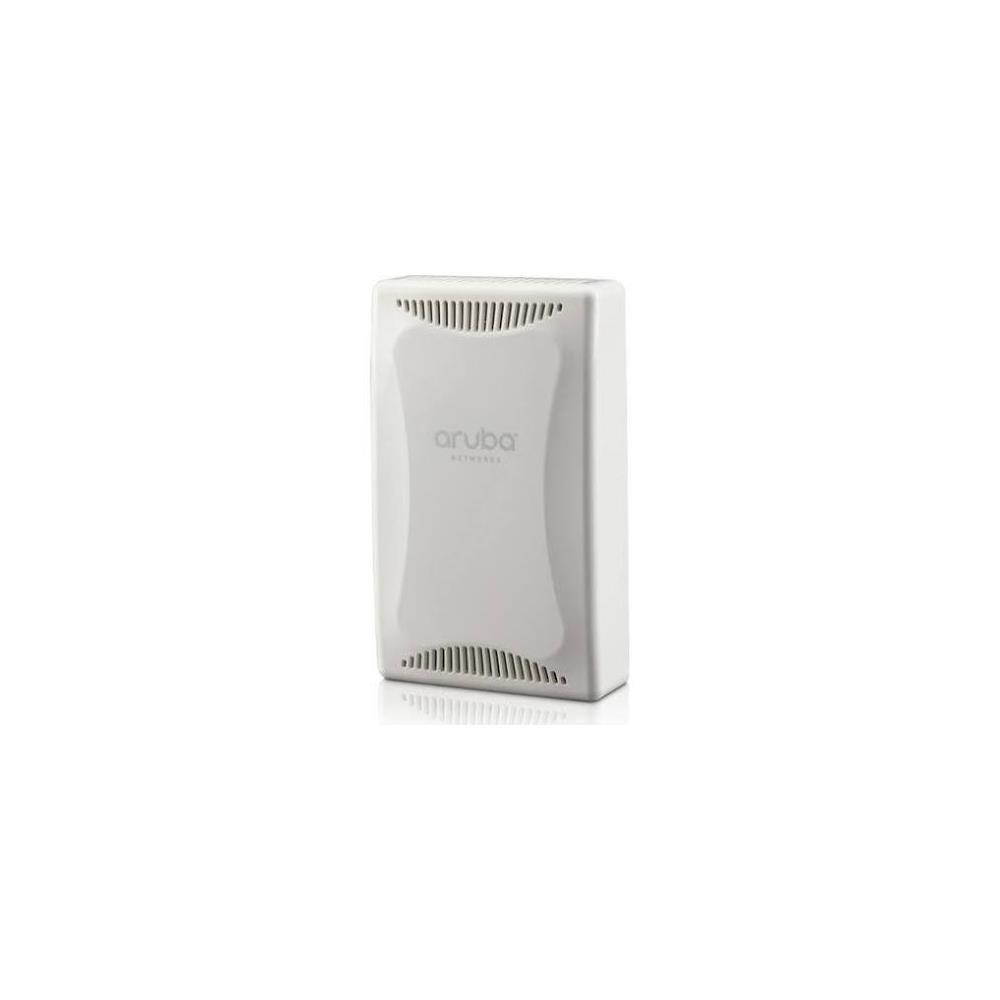

Aruba AP-103H AP-103H IEEE 802.11n 300 Mbit/s Wireless Access Point
General InformationManufacturer: Hewlett Packard EnterpriseManufacturer Part Number: AP-103HManufacturer Website Address: http: //www. hpe. comBrand Name: ArubaProduct Model: AP-103HProduct Name: AP-103H Hospitality Access PointMarketing Information: Multifunctional and affordable, the dual-radio AP-103H hospitality access point (AP) maximizes mobile device performance in moderately dense Wi-Fi environments while minimizing interference from cellular networks. The AP-103H installs in minutes and easily mounts to an electrical or data wall box. It uses the existing structured cabling system to provide secure wired and Wi-Fi network access in dormitories, classrooms, hotels, medical clinics and multitenant environments. The compact and cost-effective AP-103H delivers wireless data rates up to 300 Mbps per radio employing 802.11 n technology with two spatial MIMO streams. This 2? 2:2 AP features dedicated 2.4 -GHz and 5-GHz radios and integrated omni-directional antennas. Product Type: Wireless Access PointTechnical InformationWireless LAN Standard: IEEE 802.11 nTotal Number of Antennas: 2Number of Internal Antennas: 2Wireless Transmission Speed: 300 Mbit/sInterfaces/PortsEthernet Technology: EthernetFast EthernetGigabit EthernetNumber of Network (RJ-45) Ports: 3VGA: NoHDMI: NoUSB: NoPowerline: NoManagement Port: YesPhysical CharacteristicsForm Factor: Wall MountableHeight: 5.5"W idth: 3.4"D epth: 1.2"W eight (Approximate): 9.17 oz
