Buy Bare Paint Conductive Products online in United States

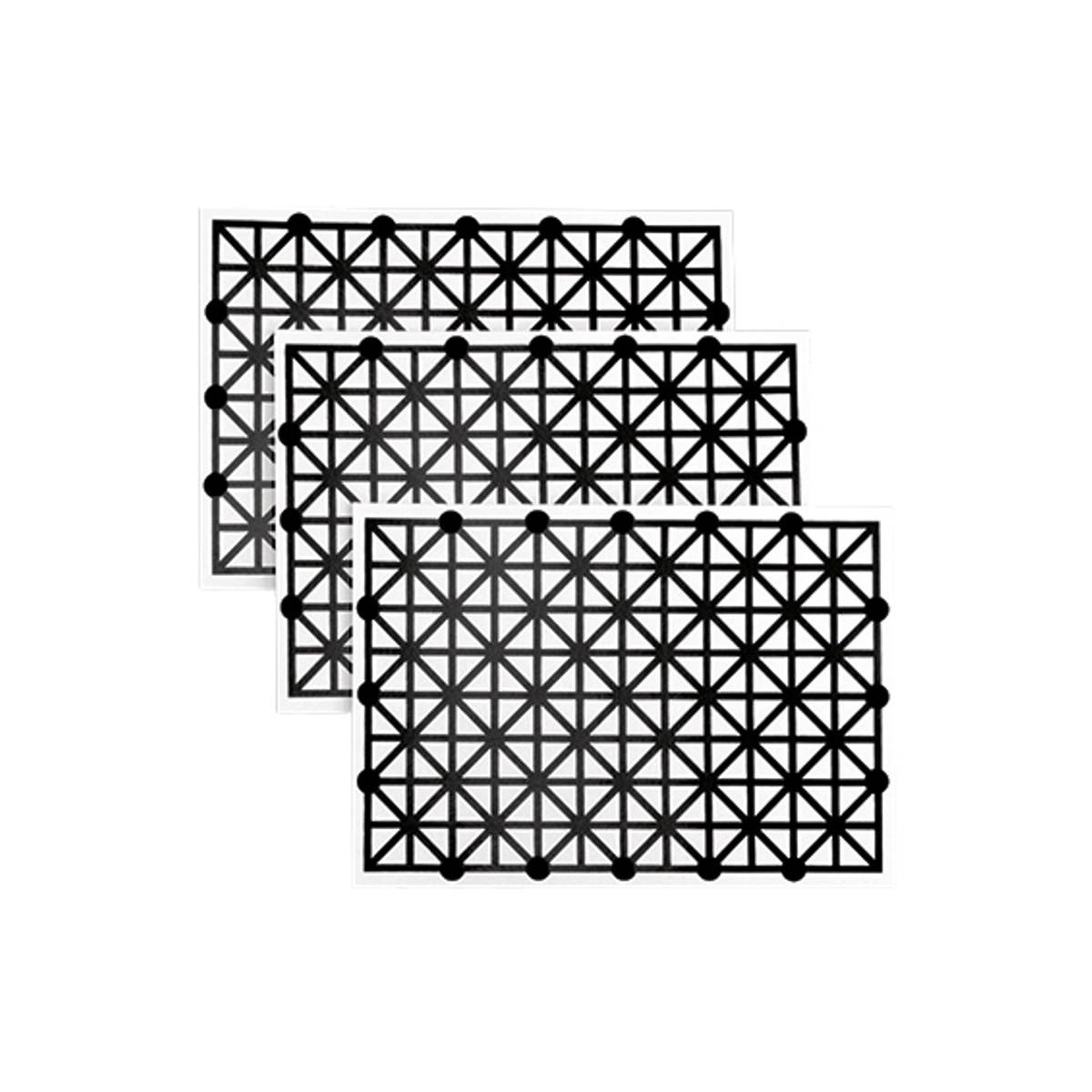

Bare Conductive Printed Sensor (3 pack)

Key Features: Prototype your ideas with ready-to-use touch and distance sensors Flexible paper sensors which have been screen printed using Electric Paint Can be cut, folded, concealed or integrated 16 exposed access nodes Printed Sensors are flexible paper sensors which have been screen printed using Electric Paint. They & rsquo; re the perfect material for quickly testing, modifying, and iterating touch and proximity sensors. Printed Sensors are screen printed with a unique pattern optimized for distance sensing, and sealed with a water-proof varnish to protect from humidity and smudging. 16 exposed access nodes allow for easy connection to capacitive electrodes, like those on the Touch Board, Pi Cap, and Light Up Board. Item Specifics 3 - Printed Sensors Size: 0.118" x 8.5" x 6.2" Weight: 1.34 oz

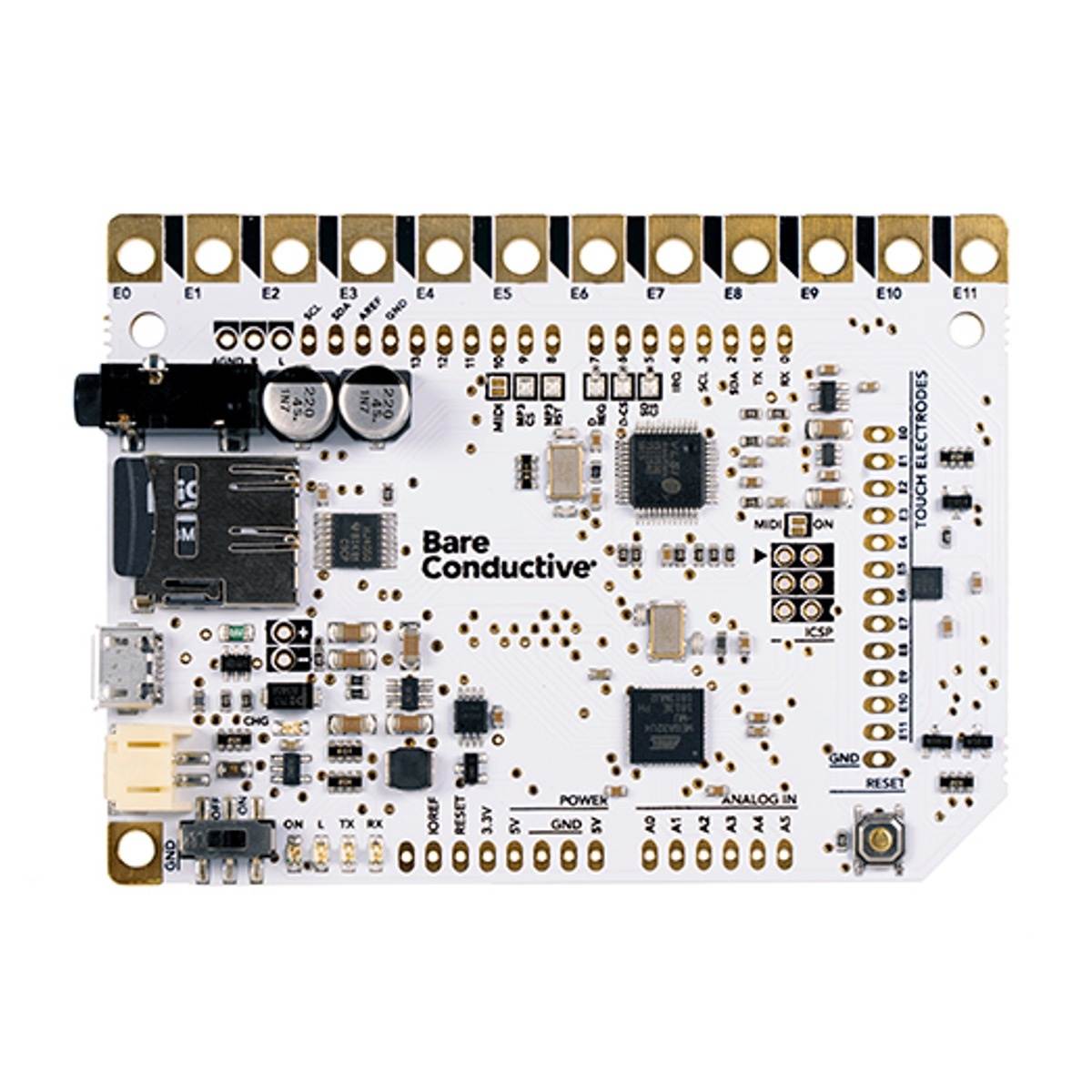

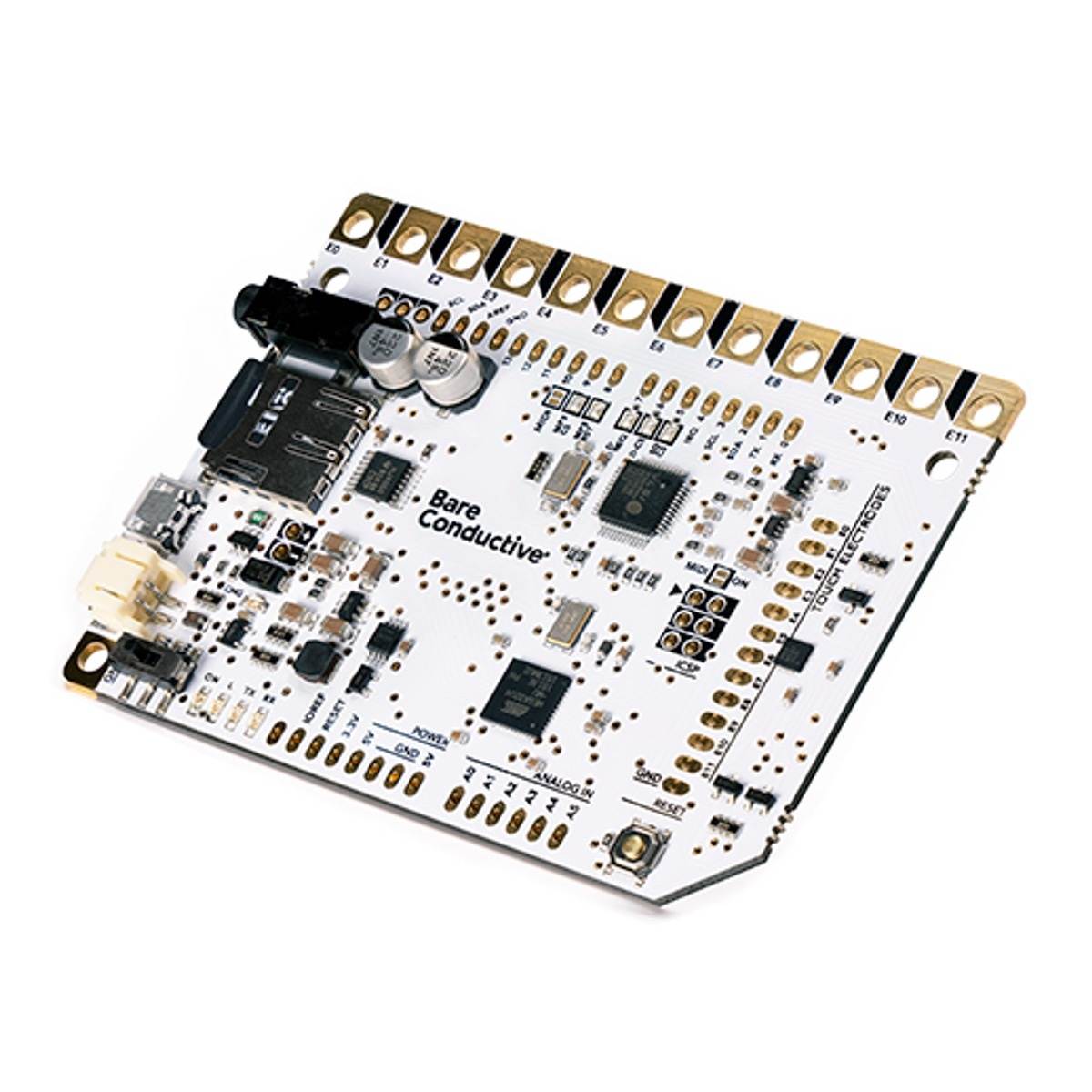

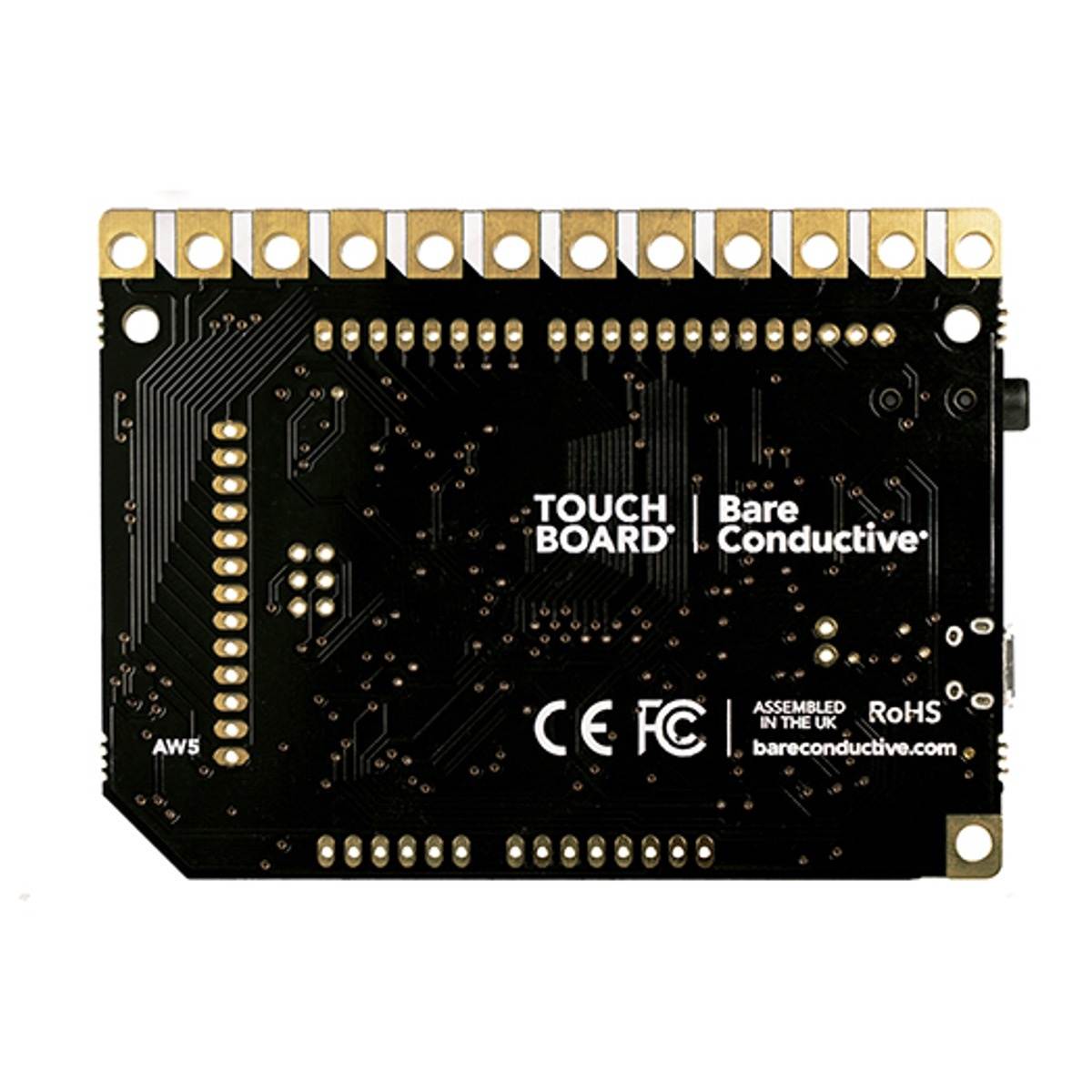

Bare Conductive Touch Board

Key Features: No programming required Touch and Distance sensing Arduino compatible (recognised as an Arduino Leonardo in IDE) and easy to use Works great with Electric Paint - turn anything into an interface! Play MP3s or MIDI notesThe Touch Board is a microcontroller board with 12 capacitive touch and proximity electrodes, so you can use it to turn any material or surface into a sensor. Extend each of the Touch Board & rsquo;s electrodes using Electric Paint or other conductive materials to create sensors on a range of objects or substrates. The base of the Touch Board is completely level, so you can easily attach it onto any flat surface.The Touch Board has an MP3 decoder and MIDI synthesizer, so you can use it as a USB mouse or keyboard, or as a USB serial port or USB MIDI device. It has a 3.5mm audio jack and micoSD cardholder and comes with a 128MB microSD card.The Touch Board is based on the Arduino Leonardo and uses the ATmega32U4, running at 16MHz and 5V. You can reprogram it using the Arduino IDE and a micro USB cable. The Touch Board also has a JST connector for an external LiPo battery, a power switch and a reset button.Item Specifics1 - Touch Board1 - microSD cardMicro USB cable not includedSize: 1.2" x 5.3" x 4.2"Weight: 2.2oz

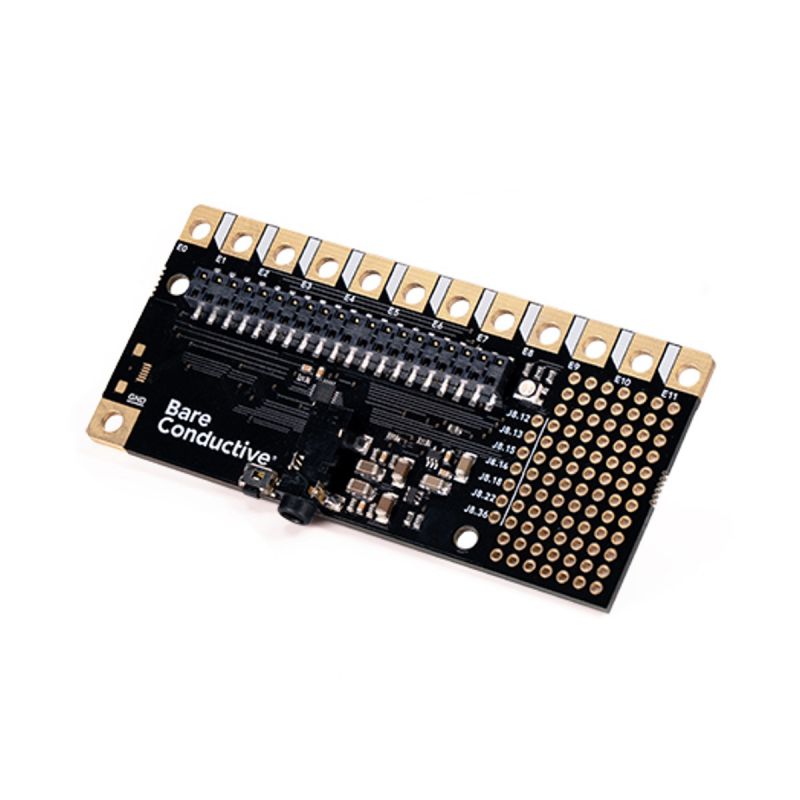

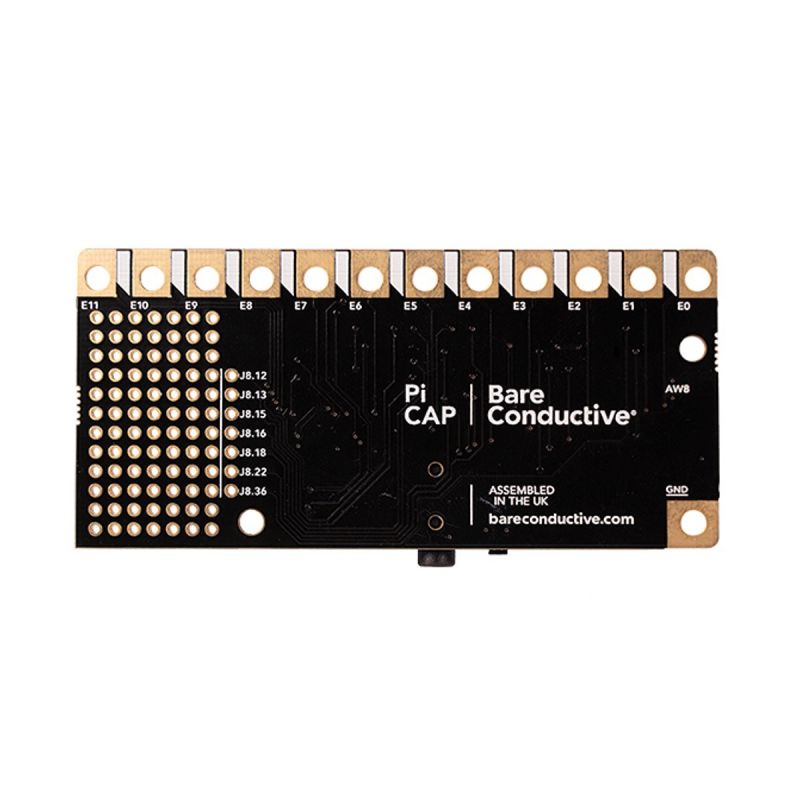

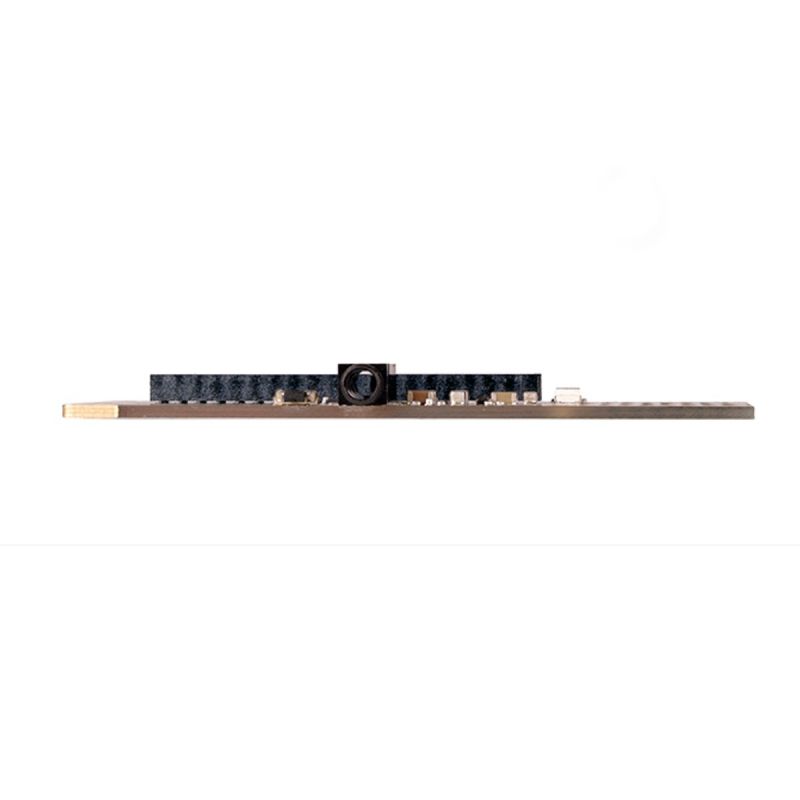

Bare Conductive Pi Cap

Key Features: Turn touch into sound, light or data with your Raspberry Pi 12 high resolution capacitive electrodes Comes with example code and libraries written in C++, Python and Node. js Compatible with any Raspberry Pi that has a 40 pin GPIO connector, including the latest Raspberry Pi 4 and Pi Zero W The Pi Cap is an easy-to-attach to add-on board that brings capacitive sensing to your Raspberry Pi projects. It features 12 capacitive electrodes that can be used as touch or distance sensors. Extend each of these electrodes with Electric Paint or other conductive materials to create sensors on a wide range of substrates. In addition to 12 capacitive sensors, the Pi Cap has a 3.5 mm audio jack, multi-function button, user-programmable RBG LED and a prototyping area with GPIO breakout. Item Specifics 1 - Pi Cap Size: 1.2" x 5.3" x 4.2" Weight: 2oz
