brainboxes ed-008 ethernet to 8 digital io ports 8 digital input/output channels by brainboxes limited
Brand Name: Brainboxes Product Model: ED-008 Product Name: Ethernet to 8 Digital IO Lines - ED-008 Marketing Information: Ethernet to DIO device: 8 digital input/output channels. Powerful ARM 80 MHz, 32 Bit CPU. Offers robust and intelligent 'control side' devices that provide the interface to systems on the 24V factory floor environment, commonly referred to as 'process side'. The device installs as a COM Port on the PC to give complete backwards compatibility essential for legacy applications. Product Type: Device Server Processor Speed: 80 MHz Media Type Supported: Twisted Pair Wireless LAN: No Ethernet Technology: Fast Ethernet Network Standard: 10/100Base-TX Network (RJ-45): Yes USB: No Parallel Port: No Centronics Port: No PoE (RJ-45) Port: No Number of Network (RJ-45) Ports: 1 Form Factor: Rail-mountable Height: 1" Width: 4.5" Depth: 3.9" Weight (Approximate): 8.82 oz Package Contents: Ethernet to 8 Digital IO Lines - ED-008 , Installation CD Including Manual, Microsoft Signed Drivers & Utilities, Quick Start Guide Green Compliant: Yes Green Compliance Certificate/Authority: RoHS, WEEE
Brainboxes ES-571 Brainboxes Es-571 Industrial Isolated Ethernet to Serial + Switch - 1 x Network (RJ-45) - 1 x Serial Port - Fast Ethernet - Rail-mountable
Factory floors can be harsh environments. Extreme temperatures can be generated in the manufacturing process, machinery can be noisy and generate electromagnetic interference and space is a premium. But engineers still needto be able to access and maintain equipment safely and without downtime. As factories expand and modernise older equipment and remote devices need to be networked, but cabling can be expensive and impractical, especially overlarger areas. The ES-571 with total galvanic isolation has 1 serial port that is software selectable as either RS232, RS422 or RS485 and 2 Ethernet ports. The 'Easy Wire' removable colour coded Screw Terminals Blocks are individually numbered for simple fast, error free wiring. The slim 'end on' case with integral mount clips straight on to a DIN Rail. The ES-571 has an operating temperature range of -30Media Type Supported: Twisted PairWireless LAN: NoEthernet Technology: Fast EthernetNetwork Standard: 10/100Base-TXNetwork (RJ-45): YesUSB: NoSerial Port: YesParallel Port: NoCentronics Port: NoPoE (RJ-45) Port: NoNumber of Network (RJ-45) Ports: 1Number of Serial Ports: 1Form Factor: Rail-mountableHeight: 4.5W idth: 3.9"D epth: 0.9"P ackage Contents: ES-571 Industrial Isolated Ethernet to Serial + Switch Installation CD including manual Microsoft signed drivers utilities Quick Start Guide Green Compliant: YesGreen Compliance Certificate/Authority: RoHSGreen Compliance Certificate/Authority: WEEE Country of Origin: United KingdomLimited Warranty: LifetimePackage Contents ES-571 Industrial Isolated Ethernet to Serial + Switch Installation CD including manual Microsoft signed drivers utilities Quick Start Guide "
Brainboxes - SW-715 - Brainboxes Hardened Industrial 5 Port Gigabit Ethernet Switch DIN Rail Mountable - 5 Ports - TAA Compliant - 2 Layer Supported - Twisted Pair - DIN Rail Mountable - Lifetime
Industrial Ethernet -40F to +176FProduct informationTechnical DetailsManufacturer & lrm; BrainboxesPart Number & lrm; SW-715Item Weight & lrm; 9.5 ouncesProduct Dimensions & lrm; 3.9 x 3.7 x 1.14 inchesItem model number & lrm; SW-715Is Discontinued By Manufacturer & lrm; NoMaterial & lrm; Information not AvailableVoltage & lrm; 24 VoltsItem Package Quantity & lrm; 1Switch Type & lrm; Information not AvailablePlug Profile & lrm; DIN Rail MountSwitch Style & lrm; Information Not AvailableCertification & lrm; Weee, RohsIncluded Components & lrm; Information not AvailableBatteries Included? & lrm; NoBatteries Required? & lrm; NoAdditional InformationASINB087XCYB6FBest Sellers Rank#9, 224 in Computer Networking SwitchesDate First AvailableApril 30, 2020Warranty & SupportProduct Warranty: For warranty information about this product, please click here FeedbackWould you like to tell us about a lower price? VideosPage 1 of 1Start OverPage 1 of 1Previous pageVideos for related products 16:43 Click to play videoMultigig Networking on a Budget - 2.5 and 10 gig options! Lon. TVVideos for related products 3:20 Click to play videoIndustrial DIN Rail Security & Networking POE+ Switch Unboxing-| POE-SW802-DIN PoE DepotVideos for related products 1:56 Click to play videoIntroducing NETGEAR 16-Port PoE+ Gig Ethernet Plus Switches Netgear IncVideos for related products 1:25 Click to play videoIntroducing NETGEAR Business Unmanaged Switches Netgear IncVideos for related products 2:18 Click to play videoNETGEAR ProSAFE 10-Gigabit Ethernet Switches | XS708Ev2 & XS716E NETGEAR Videos for related products 1:38 Click to play videoNETGEAR ProSAFE Gigabit Web Managed Click Switches NETGEAR Videos for related products 1:28 Click to play video300 Series Switches Demo Merchant VideoVideos for related products 2:51 Click to play videoIndustrial Switches Video TREN DnetVideos for related products 2:18 Click to play videoLearn About the New NETGEAR Smart Plus Switches GUI Netgear IncVideos for related products 1:28 Click to play videoHow to Setup Link Aggregation on the Nighthawk X10 Router and S8000 Switch | NETGEAR NETGEAR Next pageUpload your video Customer Review: Multigig Networking on a Budget - 2.5 and 10 gig options! See full review Lon. TVOnsite Associates ProgramAmazon Influencer Important informationBulb Voltage24 voltsCustomer Questions & Answers

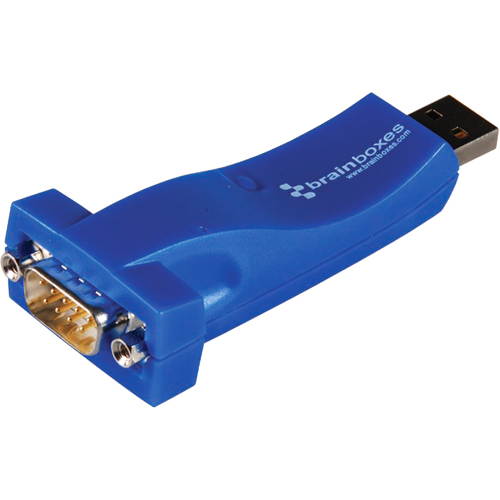

Brainboxes Adapter
MAIN OVERVIEW FEATURES: Adapter Type: Serial/USBConnector on First End: 1 x Type A Male USBConnector on Second End: 1 x 9-pin DB-9 Male RS-422 SerialPackage Contents: USB to Serial AdapterInstallation CDEnvironmentally Friendly: YesEnvironmental Certification: RoHS,WEEELimited Warranty: Lifetime
Brainboxes MK-070 Mounting Kit
SNAP IN DIN-RAIL CLIP KIT FOR ES/US 4 and 8 PORT - RETAIL PACK. Enables wall mountable products to be secured to a DIN rail. This light weight snap on DIN rail kit is compatible with Brainboxes 4 & 8 port Ethernet to Serial and USB to Serial Devices. DIN Rail mount Brainboxes 4 & 8 port USB and Ethernet productsSimple installationLight WeightMounts enclosures to 35 mm and 32mm wide DIN railsConforms to IEC International Standard 60715Conforms to European Standard EN 50022
Brainboxes Pw-600 Ac Adapter
MAIN OVERVIEW FEATURES:Input Voltage: 120 V AC230 V ACOutput Voltage: 5 V DCOutput Current: 1 ACompatibility: Brainboxes Products: ED-004 ED-008 ED-204 ED-516 ED-527 ED-588 ES-020 ES-031 ES-042 ES-357 (ES-057) ES-511 ES-522 ES-551 ES-571 SW-005 SW-504 Environmentally Friendly: YesEnvironmental Certification: RoHSLimited Warranty: 1 Year
Brainboxes Ethernet to Analogue 8 Inputs
MAIN OVERVIEW FEATURES:Height: 0.91" (23 mm)Width: 5.04" (128 mm)Depth: 4.02" (102 mm)Weight (Approximate): 140 gPackage Contents: Ethernet to 8 Analogue Inputs + RS485 Gateway Installation CD Including Manual, Microsoft Signed Drivers & Utilities Quick Start Guide Environmentally Friendly: YesEnvironmental Certification: RoHSWEEECountry of Origin: United KingdomLimited Warranty: Lifetime

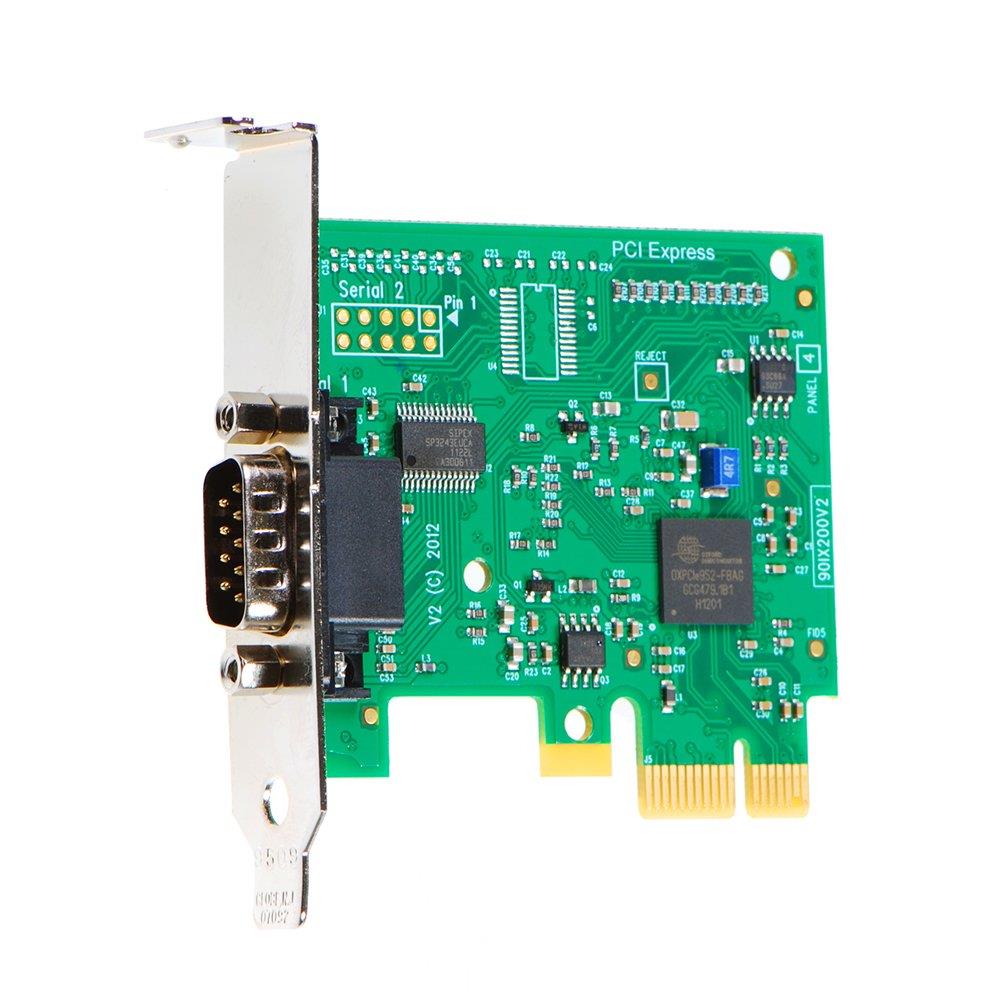

Brainboxes Serial Adapter Components Other IX-150
1 x 9 pin, D Type RS232 serial portPCI Express busFully Plug and play - simple installation and test software providedThis card provides 1 industry standard 9 pin RS232 Serial COM port in a single PCI Express slot. As PCI Express is fully plug and play compatible your BIOS and operating system will automatically configure the card ensuring a conflict free installation.

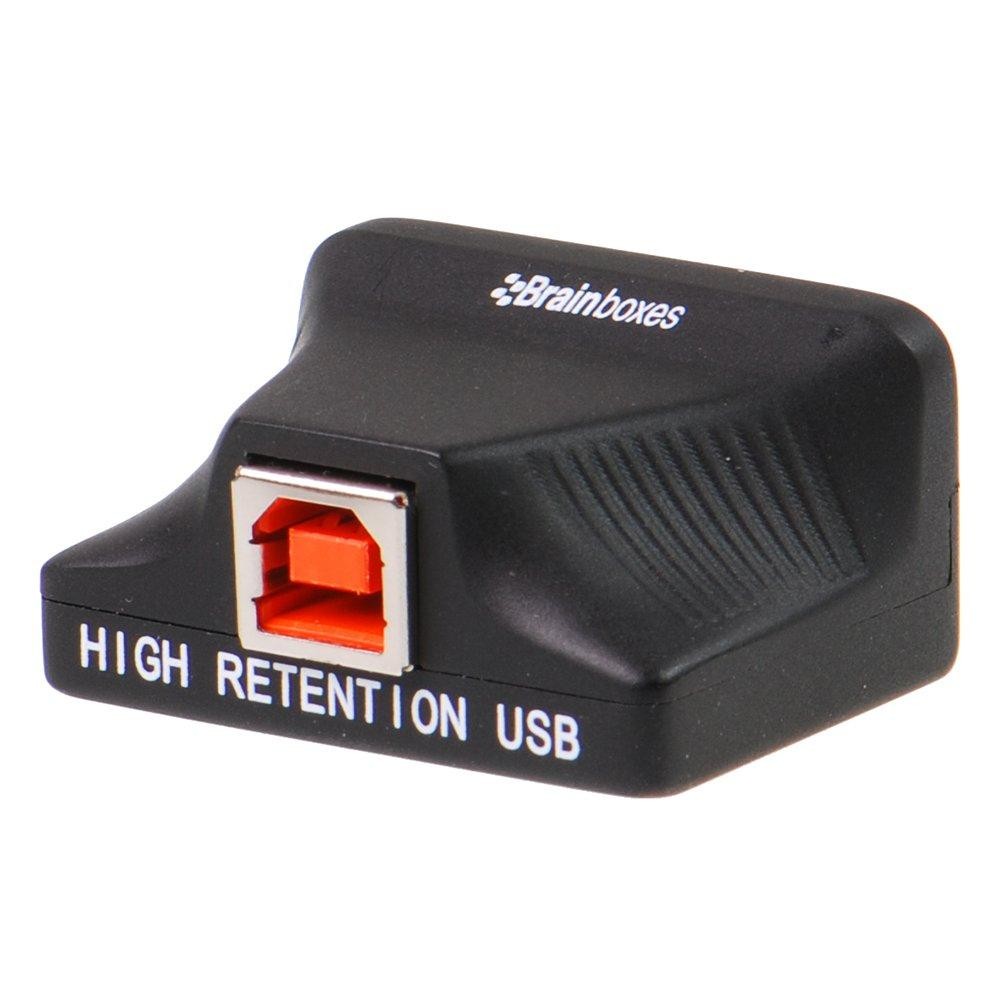

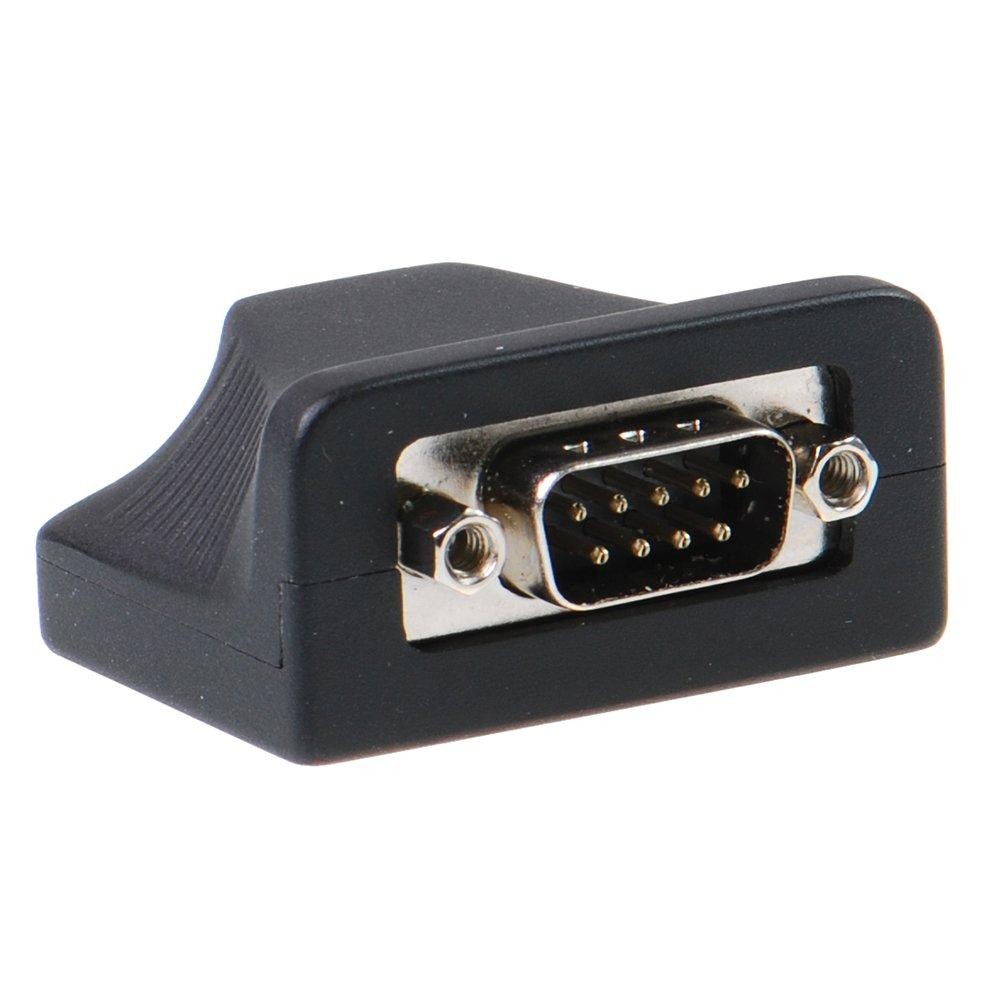

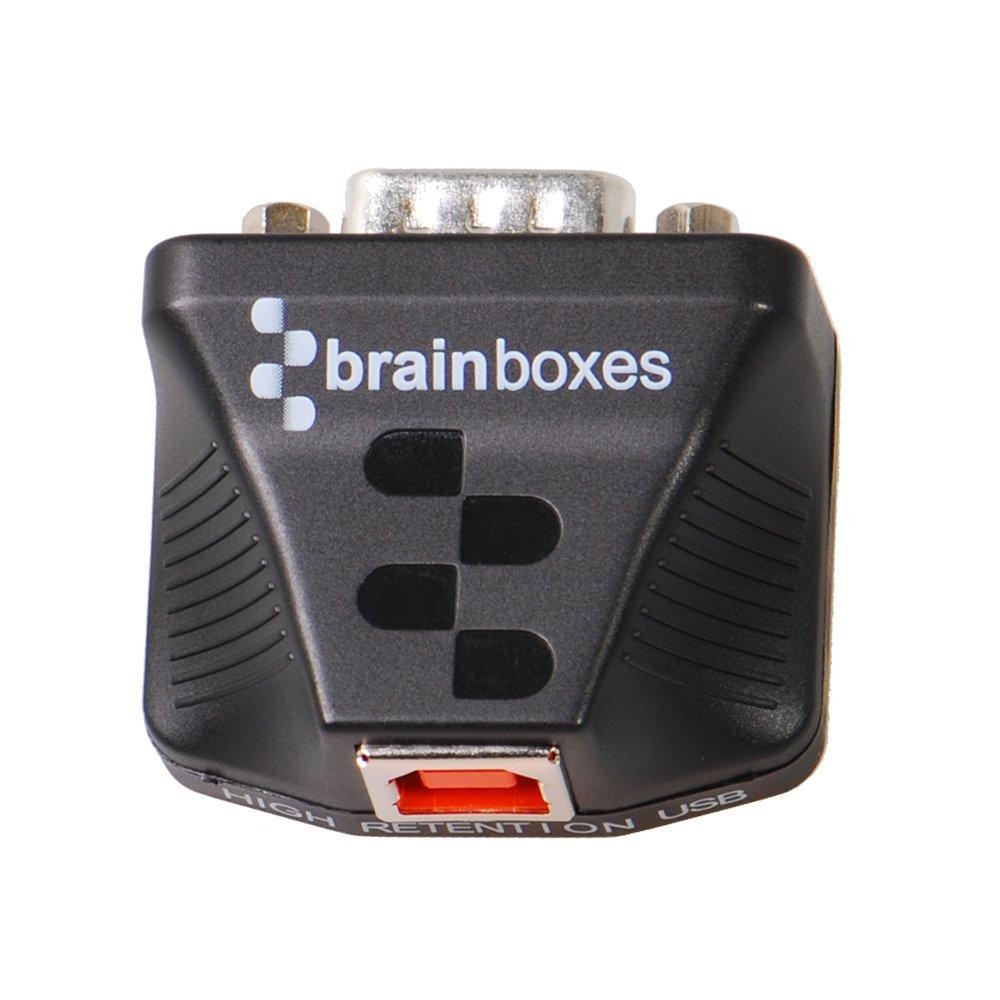

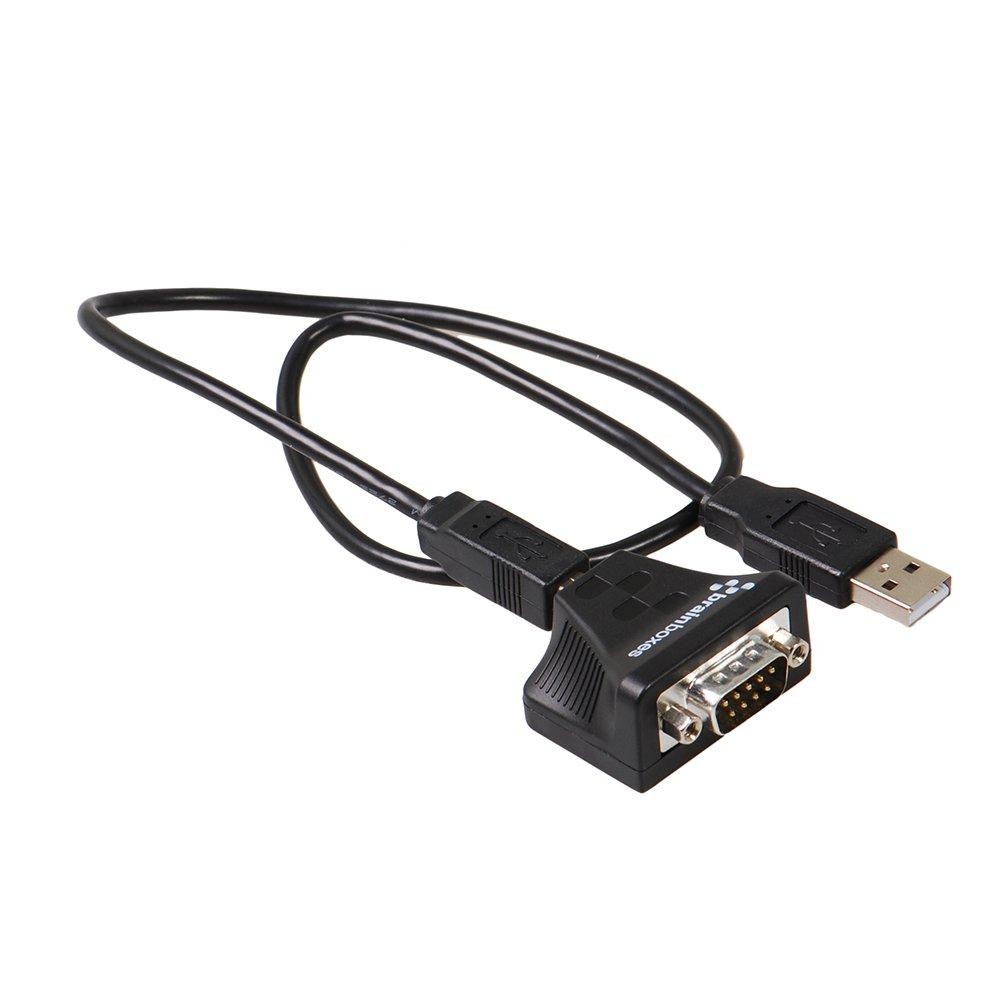

Brainboxes Serial Adapter Component (US-235)
Brand: Brainboxes Features: 1 port RS-232 USB to Serial adapter High retention USB connector with 50 cm USB cable The smallest form Factor USB to Serial Binding: Personal Computers Details: Tough Ultra small USB to serial adapter suitable for any environment. The closest you can get to an integrated serial port. High retention USB connector for an unbreakable connection. Have confidence this product will match whatever baud rate your equipment needs without data loss. Includes large 512 byte TX and rx and High data throughput. Works across the full spectrum of baud rates up to 921600 including standard and arbitrary values. Package Dimensions: 6.1 x 5.3 x 1.9 inches
Brainboxes 4 Port Rs232 Ethernet To Serial Adapter
MAIN OVERVIEW FEATURES:Ports: 4 x 9-pin DB-9 Male RS-232 - Serial ExternalForm Factor: Wall-mountableDIN Rail MountableHeight: 1.34" (34 mm)Width: 8.46" (215 mm)Thickness: 5.20" (132 mm)Weight (Approximate): 678 gTAA Compliant: Yes
BRAINBOXES SW-104 EMBEDDED 4PORT ETHERNET SWITCH
Industrial Ethernet 4 Port unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40C to +80C (-40F to 176F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for embedded applications. Total Number of Network Ports: 4Uplink Port: NoModular: NoStack Port: NoPort/Expansion Slot Details: 4 x Fast Ethernet NetworkMedia Type Supported: Twisted PairEthernet Technology: Fast EthernetNetwork Technology: 10/100Base-TLayer Supported: 2Manageable: NoPower Source: USB Power Source: Power SupplyForm Factor: Plug-inHeight: 0.8W idth: 3.7"D epth: 3.3"W eight (Approximate): 2.15 ozPackage Contents: Industrial Embeddable 4 Port Ethernet Switch Quick Start Guide Environmentally Friendly: YesEnvironmental Certification: WEEE Environmental Certification: RoHSCountry of Origin: United KingdomTAA Compliant: YesLimited Warranty: LifetimePackage Contents Industrial Embeddable 4 Port Ethernet Switch Quick Start Guide "
BRAINBOXES SW-705 HARDENED 5PORT ETHERNET SWITCH
Industrial Compact Ethernet 5 Port unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
BRAINBOXES SW-108 EMBEDDED 8PORT ETHERNET SWITCH
MAIN OVERVIEW FEATURES: Total Number of Network Ports: 8Uplink Port: NoModular: NoStack Port: NoPort/Expansion Slot Details: 8 x Fast Ethernet NetworkMedia Type Supported: Twisted PairEthernet Technology: Fast EthernetNetwork Technology: 10/100Base-TLayer Supported: 2Manageable: NoPower Source: USB,Power SupplyForm Factor: Plug-inHeight: 0.8"Width: 3.7"Depth: 3.5"Weight (Approximate): 3.10 ozPackage Contents: Industrial Embeddable 8 Port Ethernet Switch Quick Start Guide Environmentally Friendly: YesEnvironmental Certification: WEEE,RoHSCountry of Origin: United KingdomTAA Compliant: YesLimited Warranty: Lifetime
BRAINBOXES SW-105 EMBEDDED 5PORT ETHERNET SWITCH
MAIN OVERVIEW FEATURES: Total Number of Network Ports: 5Uplink Port: NoModular: NoStack Port: NoPort/Expansion Slot Details: 5 x Fast Ethernet NetworkMedia Type Supported: Twisted PairEthernet Technology: Fast EthernetNetwork Technology: 10/100Base-TLayer Supported: 2Manageable: NoPower Source: USB,Power SupplyForm Factor: Plug-inHeight: 0.8"Width: 3.7"Depth: 3.5"Weight (Approximate): 2.40 ozPackage Contents: Industrial Embeddable 5 Port Ethernet Switch Quick Start Guide Environmentally Friendly: YesEnvironmental Certification: WEEE,RoHSCountry of Origin: United KingdomTAA Compliant: YesLimited Warranty: Lifetime
Brainboxes US-346 4-port Serial Hub
Brainboxes US-346 4-port Serial Hub

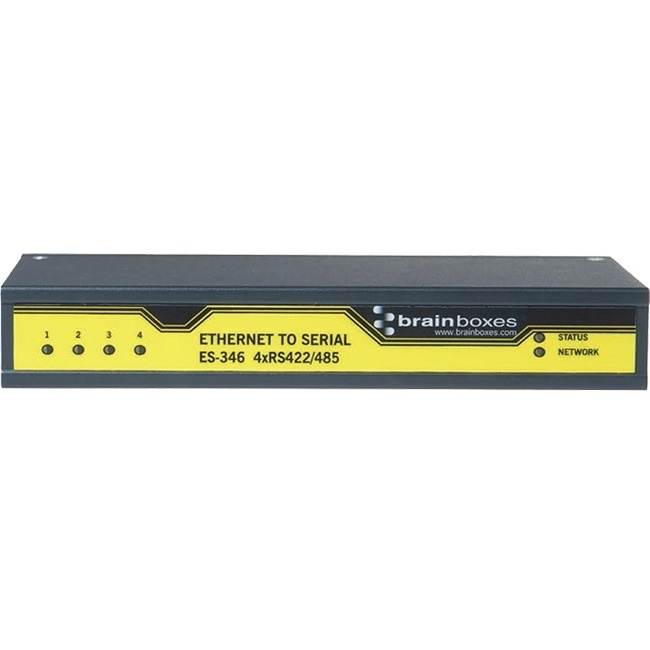

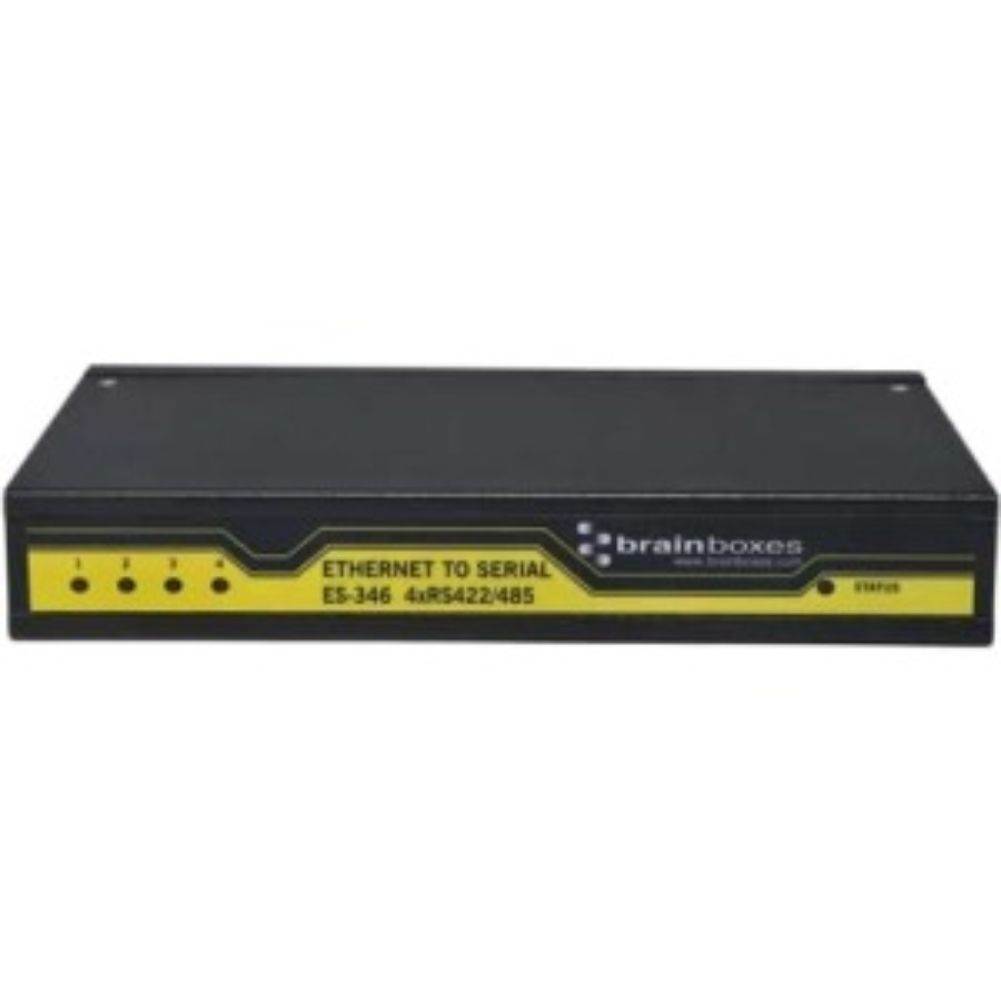

BRAINBOXES ES-346 4PORT RS422/485 ETHERNET TO
MAIN OVERVIEW FEATURES:Ports: 4 x 9-pin DB-9 Male RS-422/485 - Serial ExternalForm Factor: DIN Rail MountableWall-mountableHeight: 1.34" (34 mm)Width: 8.46" (215 mm)Thickness: 4.84" (123 mm)Weight (Approximate): 700 gPackage Contents: 4 Port RS422/485 Ethernet to Serial Adapter Installation CD including Manual Microsoft Signed Drivers & Utilities Environmentally Friendly: YesEnvironmental Certification: RoHSWEEETAA Compliant: YesCountry of Origin: United KingdomLimited Warranty: Lifetime
Brainboxes BL-830 BLUETOOTH 1XRS232 DCE-CLASS 2
Brainboxes BL-830 BLUETOOTH 1XRS232 DCE-CLASS 2 BLUETOOTH 1XRS232 DCE-CLASS 2 MPN:BL-830837324000061

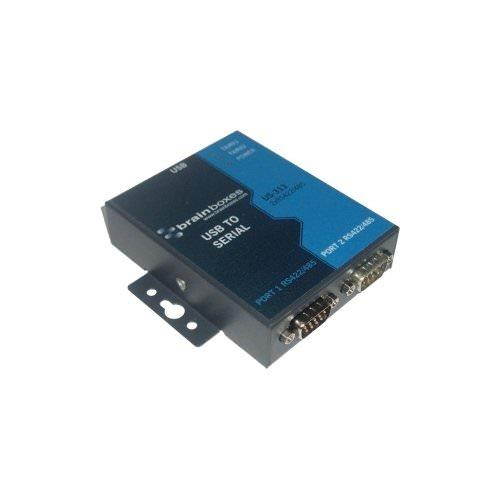

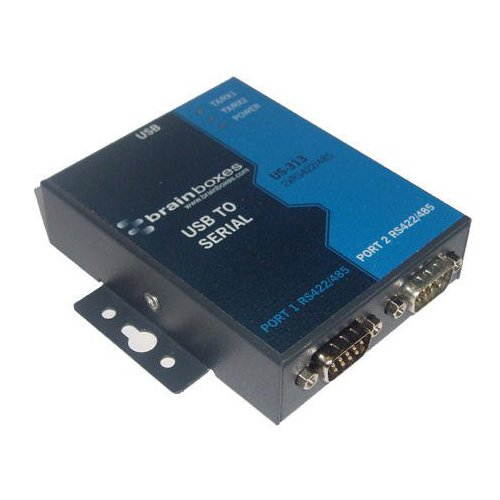

Brainboxes 2 Port Rs422/485 Usb To Serial Adapter
MAIN OVERVIEW FEATURES:Host Interface: USB 2.0Ports: 2 x 9-pin DB-9 Male RS-422/485 - Serial ExternalForm Factor: DIN Rail MountableHeight: 1.06" (27 mm)Width: 3.94" (100 mm)Thickness: 4.02" (102 mm)Weight (Approximate): 115 g

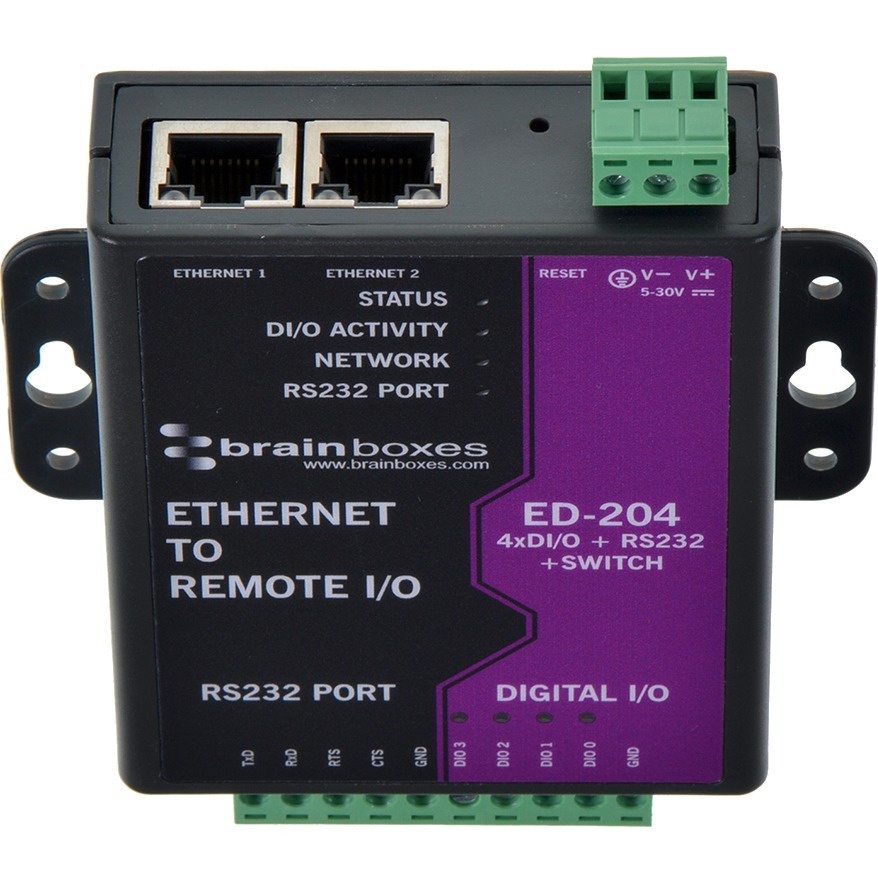

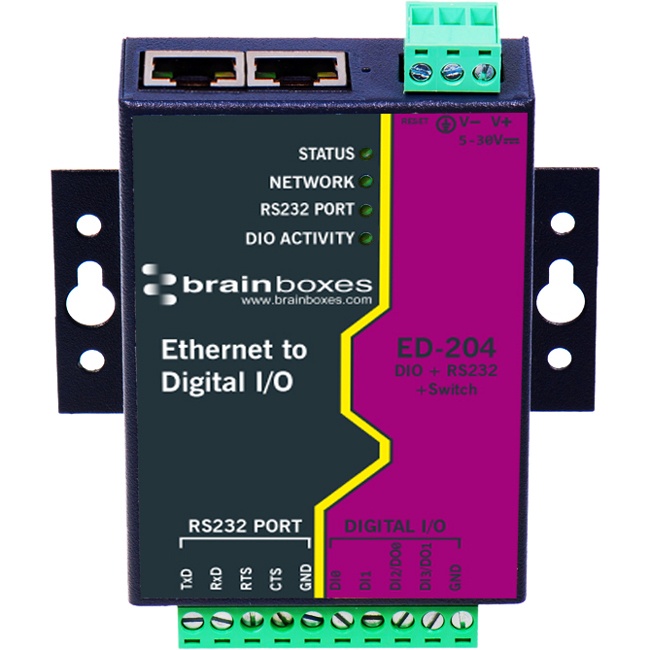

BRAINBOXES ED-204 ETHERNET 4 DIO + RS232 + SWITCH
MAIN OVERVIEW FEATURES:Height: 1.02" (26 mm)Width: 4.57" (116 mm)Depth: 3.94" (100 mm)Weight (Approximate): 134 gPackage Contents: Ethernet to 4 Digital IO and RS232 Serial Port with Ethernet Switch Installation CD Including Manual, Microsoft Signed Drivers & Utilities Quick Start Guide Environmentally Friendly: YesEnvironmental Certification: RoHSWEEECountry of Origin: United KingdomLimited Warranty: Lifetime
Brainboxes Switch - 4 ports - DIN rail mountable (SW-504)
Slim shapeExtended temperature rangeBrainboxes' easy wire featureRedundant dual power inputsRedundant dual power inputs: +5V to +30V DCGalvanically isolatedPower consumption is optimized based on the status of the link deviceNo software needed-
Brainboxes SW-504 Industrial Unmanaged Ethernet Switch 4 Ports
Industrial Ethernet 4 Port unmanaged switch. Galvanically Isolated Ports. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications. Item Weight - 0.2 lbs.
Brainboxes ES-279 8 Port RS232 Ethernet to Serial Adapter
MAIN OVERVIEW FEATURES: Ports: 8 x 9-pin DB-9 Male RS-232 - Serial ExternalForm Factor: DIN Rail Mountable,Wall-mountableHeight: 2.20" (56 mm)Width: 8.46" (215 mm)Thickness: 5.20" (132 mm)Weight (Approximate): 824 gTAA Compliant: Yes

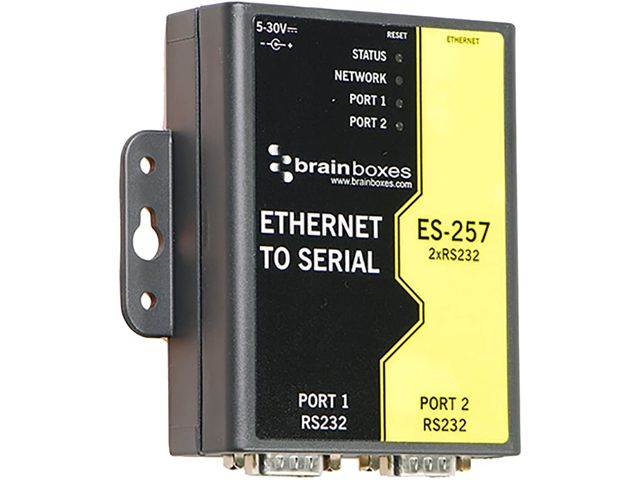

Brainboxes ES-257 2 Port RS232 Ethernet to Serial Adapter
MAIN OVERVIEW FEATURES: Ports: 2 x 9-pin DB-9 Male RS-232 - Serial ExternalForm Factor: DIN Rail MountableHeight: 1.10" (28 mm)Width: 4.13" (105 mm)Thickness: 4.17" (106 mm)Weight (Approximate): 126 gTAA Compliant: Yes
Brainboxes ED-588 Ethernet to Digital IO 8 Inputs + 8 Outputs
MAIN OVERVIEW FEATURES: Height: 0.91" (23 mm) Width: 5.08" (129 mm) Depth: 4.02" (102 mm) Weight (Approximate): 138 gPackage Contents: Ethernet to 8 Digital Inputs and 8 Digital Outputs + RS485 Gateway Installation CD Including Manual, Microsoft Signed Drivers & Utilities Quick Start Guide Environmentally Friendly: Yes Environmental Certification: RoHS, WEEE Country of Origin: United Kingdom Limited Warranty: Lifetime

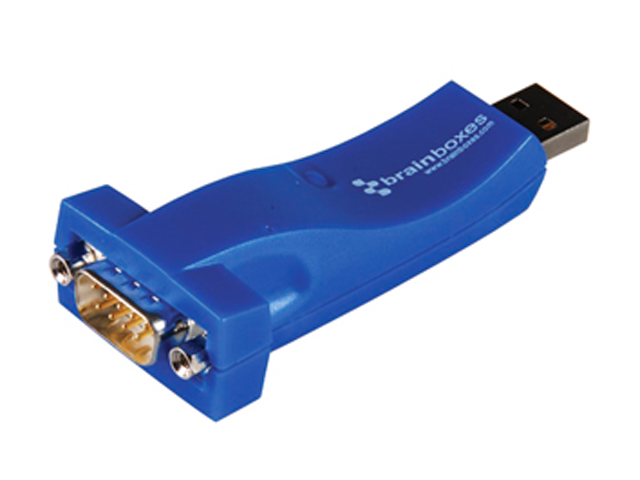

Brainboxes US-101-001 1 Port USB TO Serial RS232 1MBaud
MAIN OVERVIEW FEATURES: Adapter Type: Serial/USBConnector on First End: 1 x Type A Male USBConnector on Second End: 1 x 9-pin DB-9 Male RS-232 SerialWeight (Approximate): 0.80 ozPackage Contents: USB to Serial AdapterInstallation CD0.25m USB Extender CableEnvironmentally Friendly: YesEnvironmental Certification: RoHS,WEEELimited Warranty: Lifetime
Brainboxes ES-279 Es-279 8port Rs232 Ethernet To Perp Serial (es279)
Brainboxes ES-279 Es-279 8port Rs232 Ethernet To Perp Serial (es279) condition: New Brand: Brainboxes MPN: es-279 Type: Device Server
2UK1960 - Brainboxes 1 Port RS422/485 Ethernet to Serial Adapter ES-320
Ethernet to Serial device server providing access to one RS422/485 serial port. Data transfer rates up to 1, 000, 000 baud, coupled with 1Mbit/s line drivers deliver uncompromising performance. Our ES range provides simple instant networked serial ports. RS485 - 1 twisted pair - half duplex configuration with autogating provides trouble free data transmission due to automatic control of data direction. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser. For Windows our in-house designed (32 bit and 64 bit) driver gives you local COM ports, retaining existing software applications and allowing you to connect across your network to remote devices just as if they were attached locally. Serial Port Tunnelling (individually configurable) allows serial cable replacement over any distance, no software required. You can access the device via TCP/IP sockets from any networked device like an Android tablet, PC or phone. On Windows OS TCP/IP sockets are handled by the Winsock API, this will differ on other OSs. UPC: 8716065295030 SKU: ADIB00AAJWP0Y

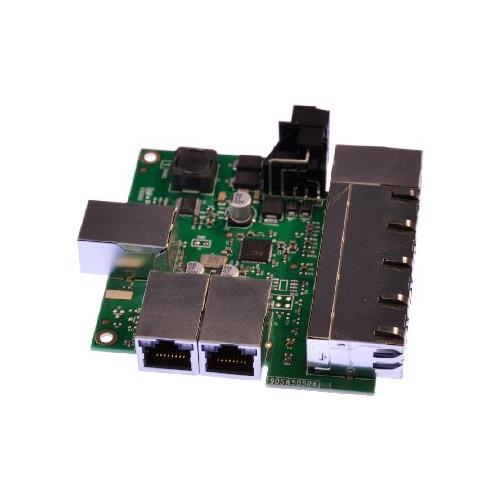

Brainboxes SW-108#2 SW-108 10/100 FAST ENET 8PORT
Brainboxes SW-108#2 SW-108 10/100 FAST ENET 8PORTSW-108 10/100 FAST ENET 8PORT MPN:SW-108#2837324004151
Brainboxes US-101-001 USB 1 PORT RS232 TOP SELLER 8INCH CABLE
Brainboxes US-101-001 USB 1 PORT RS232 TOP SELLER 8INCH CABLE USB 1 PORT RS232 TOP SELLER 8INCH CABLE MPN: US-101-001 837324001990
Brainboxes Unmanaged Ethernet Switch 5 Ports - 5 Ports - 5 X Rj-45 - (sw005)
Brainboxes Unmanaged Ethernet Switch 5 Ports - 5 Ports - 5 X Rj-45 - (sw005) condition: New Brand: BrainboxesMPN: sw-005Code : 4cc-286299000332006

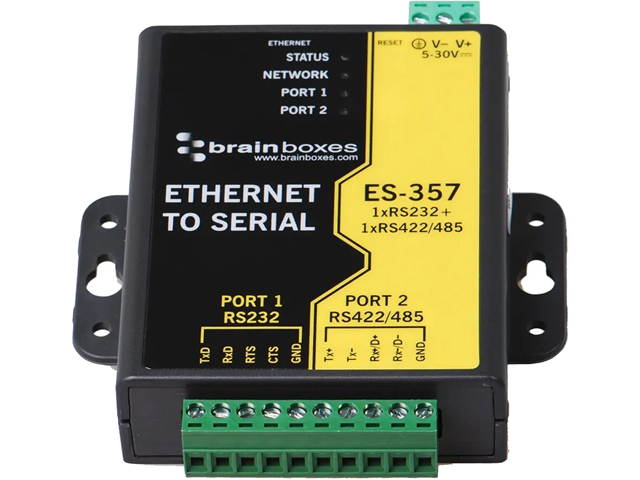

Brainboxes ES-357 1 Port RS232 and 1 Port RS422/485 Ethernet to Serial Adapter
Brainboxes ES-357 1 Port RS232 and 1 Port RS422/485 Ethernet to Serial Adapter

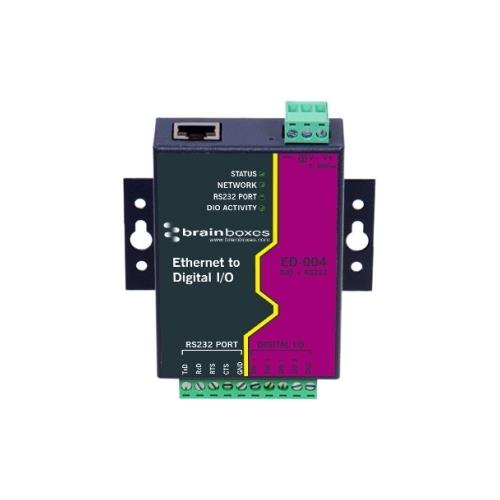

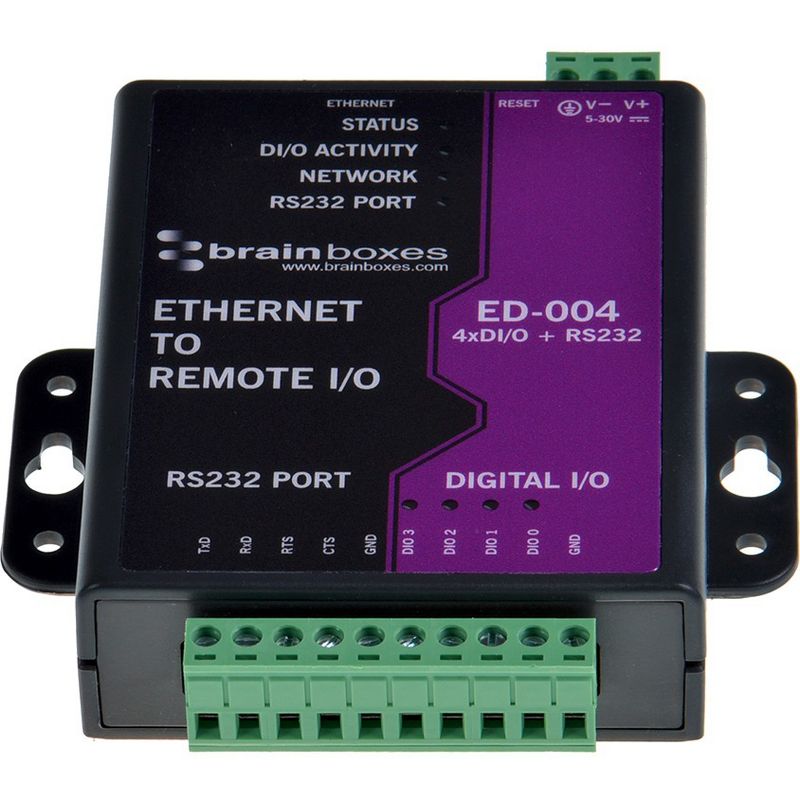

Brainboxes ED-004 ETHERNET TO 4 DIO + ETHERNET TO 4 DIG IN OR OUT+1 RS232+1 ETHERNET
Brainboxes ED-004 ETHERNET TO 4 DIO + ETHERNET TO 4 DIG IN OR OUT+1 RS232+1 ETHERNETBrand Name: Brainboxes
Product Model: ED-004
Product Name: ED-004 4 Port Selectable DIO + RS232
Marketing Information: Complete Ethernet to Serial Device Server:
One RS232 serial port up to 1 MegaBaud, delivers uncompromising performance. Software drivers give Windows users a local COM port allowing you to retain your existing software applications and connect to your devices over the network. Web confguration and RFC2217 compliant interface for non-Windows users. Serial Port Tunnelling allows serial cable replacement over any distance, no software required.
Product Type: Device Server
Media Type Supported: Twisted Pair
Wireless LAN: No
Ethernet Technology: Fast Ethernet
Network Standard: 10/100Base-TX
Network (RJ-45): Yes
USB: No
Serial Port: Yes
Parallel Port: No
Centronics Port: No
PoE (RJ-45) Port: No
Number of Network (RJ-45) Ports: 1
Number of Serial Ports: 1
Form Factor: Rail-mountable
Package Contents:
ED-004 4 Port Selectable DIO + RS232 , Installation CD (Manual, Microsoft Signed Drivers and Utilities, Quick Start Guide) MPN:ED-004837324009859
brainboxes sw-504 / industrial unmanaged ethernet switch 4 ports / 4 ports - 4 x rj-45 - 10/100base-tx - rail-mountable
Brand Name: Brainboxes Product Model: SW-504 Product Name: SW-504 Industrial Unmanaged Ethernet Switch 4 Ports Product Type: Ethernet Switch Stack Port: No Total Number of Network Ports: 4 Number of Network (RJ-45) Ports: 4 Port/Expansion Slot Details: 4 x Fast Ethernet Network Media Type Supported: Twisted Pair Ethernet Technology: Fast Ethernet Network Technology: 10/100Base-TX Layer Supported: 2 Manageable: No PoE (RJ-45) Port: No Input Voltage: 5 V DC Form Factor: Rail-mountable Package Contents: SW-504 Industrial Unmanaged Ethernet Switch 4 Ports , Quick Start Guide

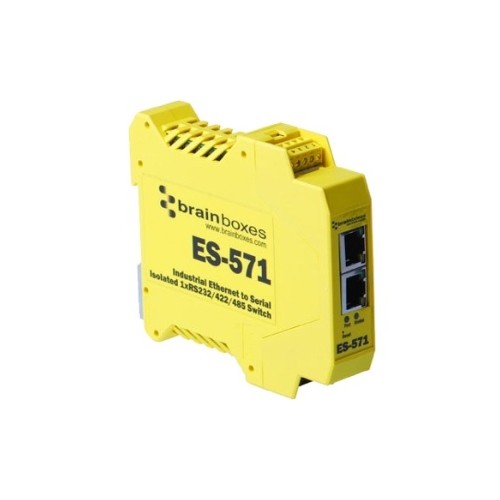

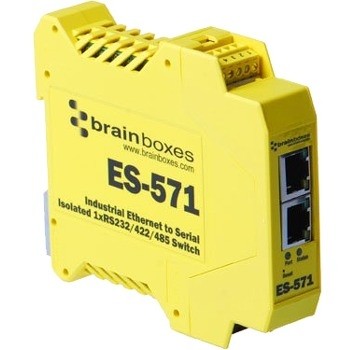

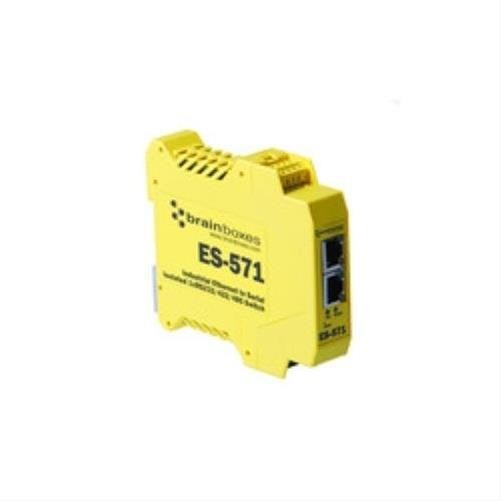

Brainboxes ES-571 Es-571 Industrial Isolated Ethernet to Serial + Switch // 1PORT RS232 422/485 ETHERNET TO SERIAL INDUSTRIAL DIN RAIL MOUNTED
Brainboxes ES-571 Es-571 Industrial Isolated Ethernet to Serial + Switch // 1PORT RS232 422/485 ETHERNET TO SERIAL INDUSTRIAL DIN RAIL MOUNTEDBrand Name: Brainboxes
Product Model: ES-571
Product Name: Es-571 Industrial Isolated Ethernet to Serial + Switch
Marketing Information: Factory floors can be harsh environments. Extreme temperatures can be generated in the manufacturing process, machinery can be noisy and generate electromagnetic interference and space is a premium. But engineers still need
to be able to access and maintain equipment safely and without downtime. As factories expand and modernise older equipment and remote devices need to be networked, but cabling can be expensive and impractical, especially over
larger areas.
The ES-571 with total galvanic isolation has 1 serial port that is software selectable as either RS232, RS422 or RS485 and 2 Ethernet ports. The Easy Wire removable colour coded Screw Terminals Blocks are individually numbered for simple fast, error free wiring. The slim end on case with integral mount clips straight on to a DIN Rail. The ES-571 has an operating temperature range of -30ºC to +80ºC and +5VDC to +30VDC Dual input reverse polarity protected
power supply. The two port 10/100Mbps unmanaged Ethernet Switch assures fast packet delivery by utilising a 1k MAC address lookup table and a store and forward architecture.
Product Type: Device Server
Media Type Supported: Twisted Pair
Wireless LAN: No
Ethernet Technology: Fast Ethernet
Network Standard: 10/100Base-TX
Network (RJ-45): Yes
USB: No
Serial Port: Yes
Parallel Port: No
Centronics Port: No
PoE (RJ-45) Port: No
Number of Network (RJ-45) Ports: 1
Number of Serial Ports: 1
Form Factor: Rail-mountable
Height: 4.5"
Width: 3.9"
Depth: 0.9"
Package Contents:
ES-571 Industrial Isolated Ethernet to Serial + Switch , Installation CD including manual , Microsoft signed drivers and utilities , Quick Start Guide MPN:ES-571837324002904

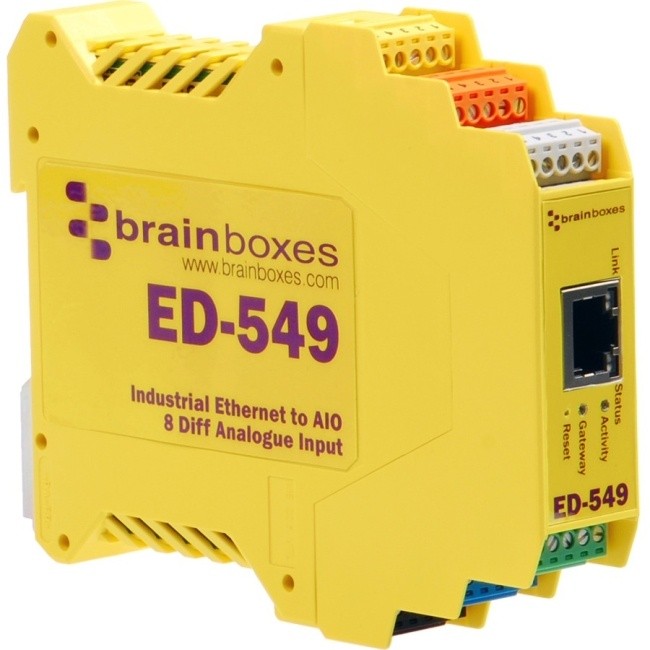

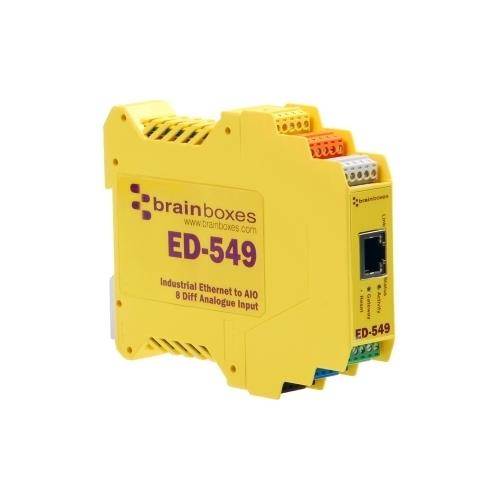

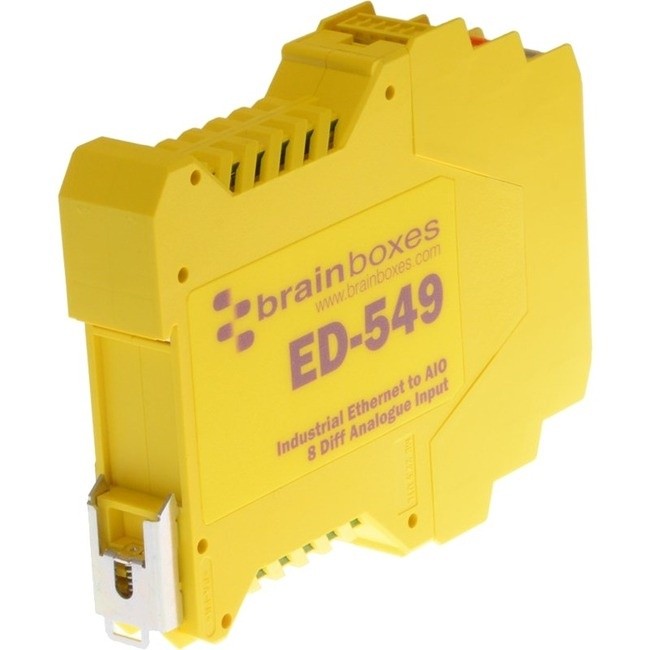

Brainboxes ED-549 Ethernet to Analogue 8 Inputs - 1 x Network (RJ-45) - 1 x Serial Port - Fast Ethernet - Rail-mountable
Brainboxes ED-549 Ethernet to Analogue 8 Inputs - 1 x Network (RJ-45) - 1 x Serial Port - Fast Ethernet - Rail-mountableManufacturer/Supplier: Brainboxes Limited
Marketing Information:
Ethernet to IO Device Server:
The Ethernet to IO device is implemented using a Windows COM port driver that is completely compatible with all popular PC packages such as LabView, MATLAB and Agilent VEE and support a range of popular APIs. Continue to get value from your existing development and process control system.
Slim Shape:
Small footprint for when DIN rail space is a premium Only 22.6mm wide
Extended Temperature Range:
-30ºC to +80ºC operating range copes with changing temperatures for harsh environments. Monitor CPU temperature via the web interface or programmatically using ASCII commands.
Package Contents:
Ethernet to Analogue 8 Inputs
Installation CD including manual, Microsoft signed drivers and utilities, Quick Start Guide
Product Model: ED-549
Product Name: Ethernet to Analogue 8 Inputs
Product Type: Device Server
Interfaces/Ports
Centronics Port: No
Ethernet Technology: Fast Ethernet
Management Port: No
Network (RJ-11): No
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
Number of Serial Ports: 1
Parallel Port: No
Phone Line (RJ-11): No
PoE (RJ-45) Port: No
Serial Port: Yes
USB: No
Wireless LAN: No MPN:ED-549837324003369

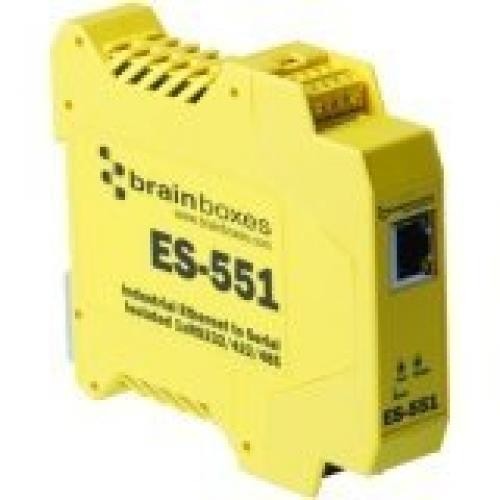

Brainboxes ES-551 Ethernet To Serial Device Server / 1 x Network (RJ-45) - 1 x Serial Port - Fast Ethernet - Rail-mountable
Brainboxes ES-551 Ethernet To Serial Device Server / 1 x Network (RJ-45) - 1 x Serial Port - Fast Ethernet - Rail-mountableBrand Name: Brainboxes
Product Model: ES-551
Product Name: ES-551 Ethernet To Serial Device Server
Marketing Information: Ethernet to Serial Device with 1 Port software selectable as RS232, RS422/485 Full duplex or RS422 Half duplex and 2 Ethernet ports. ES-551 has removable Screw Terminals Blocks for easy wiring, a slim end on case and integral DIN rail mount. Our Industrial Ethernet to Serial has an operating temperature range of -30 to +80 degrees Celsius and with +5VDC to +30VDC Dual input reverse polarity protected power supply making it perfect for industrial applications. Data transfer rates up to 1,000,000 baud, coupled with 1Mbit/s line drivers deliver uncompromising performance. Our Industrial ES range provides simple instant networked serial ports in demanding environments. Serial Port Tunneling allows serial cable replacement over any distance, no software required. Suitable to be wired into existing power and network infrastructure or can be used with our PW-600 power supply.
Product Type: Device Server
Media Type Supported: Twisted Pair
Wireless LAN: No
Ethernet Technology: Fast Ethernet
Network Standard: 10/100Base-TX
Network (RJ-45): Yes
USB: No
Serial Port: Yes
Parallel Port: No
Centronics Port: No
Number of Network (RJ-45) Ports: 1
Number of Serial Ports: 1
Form Factor: Rail-mountable
Height: 3.9"
Width: 0.9"
Depth: 4.5"
Package Contents:
ES-551 Ethernet To Serial Device Server, Installation CD (Manual, Microsoft Signed Drivers and Utilities) MPN:ES-551837324002898
Brainboxes ED-588 Ethernet to Digital IO 8 Inputs + 8 Outputs /1 x Network (RJ-45) - 1 x Serial Port - Fast Ethernet - Rail-mountable
Brainboxes ED-588 Ethernet to Digital IO 8 Inputs + 8 Outputs /1 x Network (RJ-45) - 1 x Serial Port - Fast Ethernet - Rail-mountableBrand Name: Brainboxes
Product Model: ED-588
Product Name: ED-588 Ethernet to Digital IO 8 Inputs + 8 Outputs
Marketing Information: Ethernet to DIO Device Server:
The Ethernet to DIO device is implemented using a Windows COM port driver that is completely compatible with all popular PC packages such as LabView, MATLAB and Agilent VEE and support a range of popular APIs. Continue to get value from your existing development and process control system.
Product Type: Device Server
Media Type Supported: Twisted Pair
Wireless LAN: No
Ethernet Technology: Fast Ethernet
Network Standard: 10/100Base-TX
Network (RJ-45): Yes
USB: No
Serial Port: Yes
Parallel Port: No
Centronics Port: No
Number of Network (RJ-45) Ports: 1
Number of Serial Ports: 1
Form Factor: Rail-mountable
Package Contents:
ED-588 Ethernet to Digital IO 8 Inputs + 8 Outputs , Installation CD (Manual, Microsoft Signed Drivers and Utilities, Quick Start Guide) MPN:ED-588837324003178

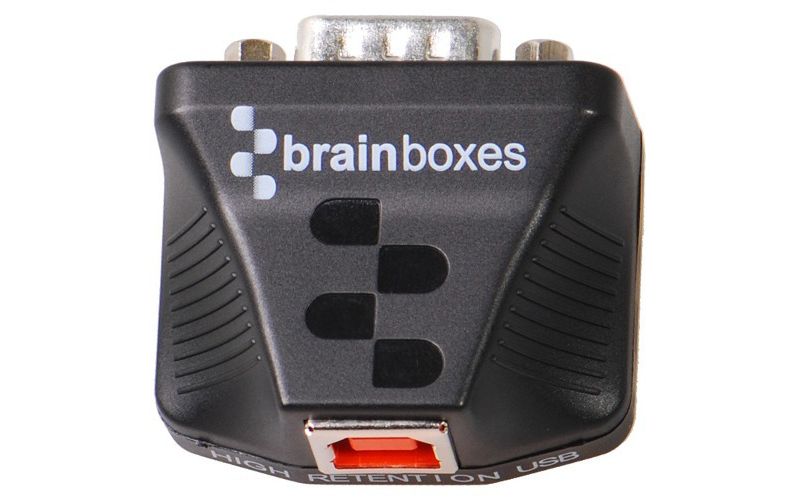

Brainboxes Ultra 1 Port RS232 USB to Serial Adapter - 1 x DB-9 Male Serial - 1 x Type B Male USB RS 232 HIGH RETENTION USB CONNECTOR - US-235
Tough ultra small USB to serial adapter suitable for any environment. The closest you can get to an integrated serial port. High retention USB connector for an unbreakable connection. Have confidence, this product will match whatever baud rate your equipment needs without data loss. Includes large 512 byte Tx and Rx and high data throughput. Works across the full spectrum of baud rates up to 921,600 including standard and arbitrary values. We provide our own software drivers - eliminating many common problems with USB to Serial - giving you have a reliable, stable, native com port solution. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows XP, Server 2003, Vista, ServAdapter Type: Serial/USBBrand Name: BrainboxesConnector on First End: DB-9 SerialConnector on Second End: Type B Male USBProduct Type: Data Transfer AdapterBasicAdapter Type: Serial/USBBrand Name: BrainboxesConnector on First End: DB-9 SerialConnector on Second End: Type B Male USBProduct Type: Data Transfer AdapterGeneral InformationBrand Name: BrainboxesManufacturer: Brainboxes LimitedManufacturer Part Number: US-235Package Contents: Ultra 1 Port RS232 USB to Serial Adapter 0.5m USB Cable Installation CD Including Manual Microsoft Signed Drivers & Utilities Quick Start GuideProduct Model: US-235Product Name: Ultra 1 Port RS232 USB to Serial AdapterProduct Type: Data Transfer AdapterMiscellaneousGreen Compliance Certificate/Authority: RoHSWEEEGreen Compliant: YesPackage Contents: Ultra 1 Port RS232 USB to Serial Adapter 0.5m USB Cable Installation CD Including Manual Microsoft Signed Drivers & Utilities Quick Start GuidePhysical CharacteristicsDepth: 1.5Height: 0.9Weight (Approximate): 0.85 ozWidth: 1.6Product InformationWidth: 1.6Technical InformationAdapter Type: Serial/USBConnector on First End: 1 x 9-pin DB-9 Male RS-232 SerialConnector on Second End: 1 x Type B Male USB 2.0 USBWarrantyLimited Warranty: LifetimeHeight 2.00
ES-511 1PORT DEVICE SVR
MAIN OVERVIEW FEATURES:Platform Supported: PCLinuxNumber of Serial Ports (External): 1Form Factor: DIN Rail MountableHeight: 0.91" (23 mm)Width: 4.13" (105 mm)Depth: 4.53" (115 mm)Weight (Approximate): 103 gPackage Contents: Industrial Ethernet to Serial 1xRS232/422/485 Installation CD Including Manual Microsoft Signed Drivers & Utilities Quick Start Guide Environmentally Friendly: YesEnvironmental Certification: WEEERoHSCountry of Origin: United KingdomTAA Compliant: YesLimited Warranty: Lifetime
SMALL PROFILE USB SERIAL DEVICE
MAIN OVERVIEW FEATURES:Host Interface: USB 2.0Platform Supported: PCMacLinuxNumber of Serial Ports (External): 1Form Factor: ExternalHeight: 0.87" (22 mm)Width: 1.50" (38 mm)Depth: 1.61" (41 mm)Weight (Approximate): 24 gPackage Contents: Ultra 1 Port RS422/485 USB to Serial Adapter Installation CD Including Manual Microsoft Signed Drivers & Utilities Quick Start Guide Environmentally Friendly: YesEnvironmental Certification: WEEERoHSCountry of Origin: United KingdomTAA Compliant: YesLimited Warranty: Lifetime
INDUSTRIAL ISOLATED RS232
INDUSTRIAL ISOLATED RS232

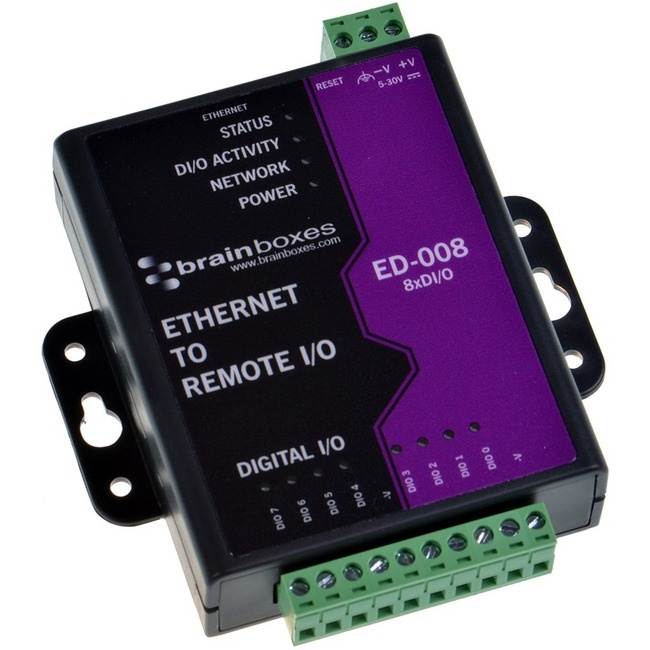

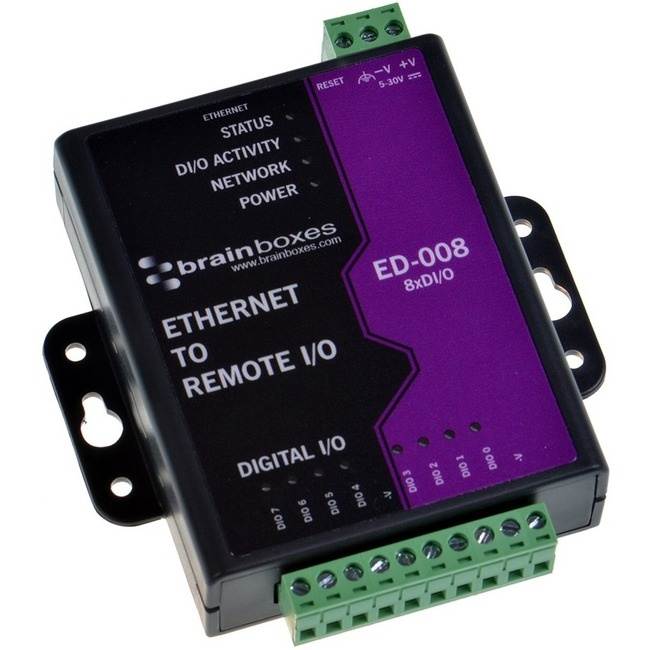

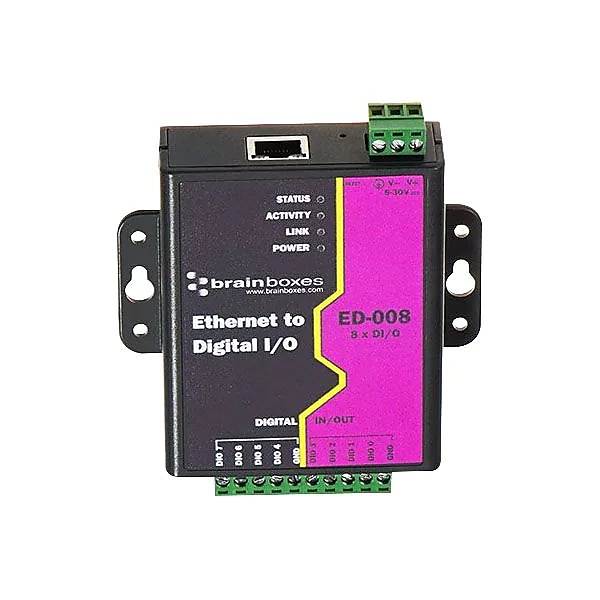

ETHERNET TO 8 DIGITAL IO PORTS
Ethernet to DIO device: 8 digital input/output channels. Powerful ARM 80 MHz, 32 Bit CPU. Offers robust and intelligent 'control side' devices that provide the interface to systems on the 24V factory floor environment, commonly referred to as 'process side'. The device installs as a COM Port on the PC to give complete backwards compatibility essential for legacy applications. Processor Speed: 80 MHzMedia Type Supported: Twisted PairWireless LAN: NoEthernet Technology: Fast EthernetNetwork Standard: 10/100Base-TXNetwork (RJ-45): YesUSB: NoParallel Port: NoCentronics Port: NoPoE (RJ-45) Port: NoNumber of Network (RJ-45) Ports: 1Form Factor: Rail-mountableHeight: 1Width: 4.5"D epth: 3.9"W eight (Approximate): 8.82 ozPackage Contents: Ethernet to 8 Digital IO Lines - ED-008 Installation CD Including Manual, Microsoft Signed Drivers Utilities, Quick Start Guide Green Compliant: YesGreen Compliance Certificate/Authority: RoHSGreen Compliance Certificate/Authority: WEEE Limited Warranty: LifetimePackage Contents Ethernet to 8 Digital IO Lines - ED-008 Installation CD Including Manual, Microsoft Signed Drivers Utilities, Quick Start Guide "

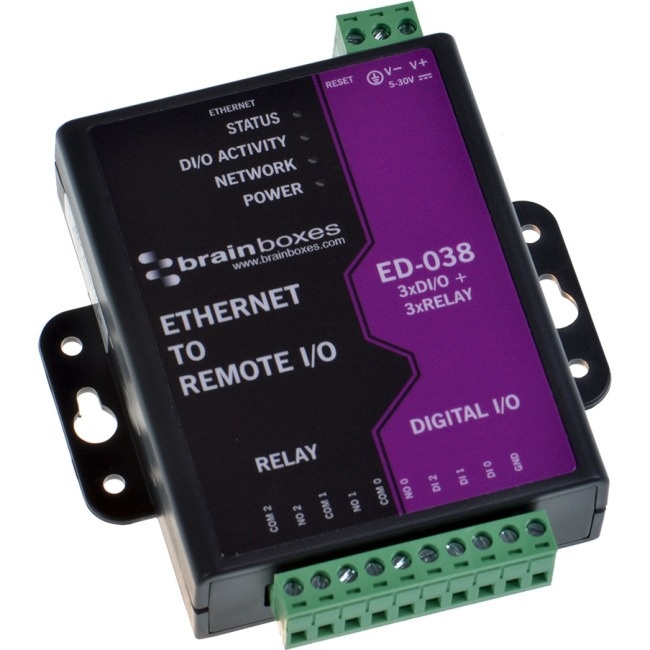

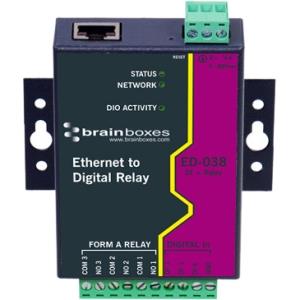

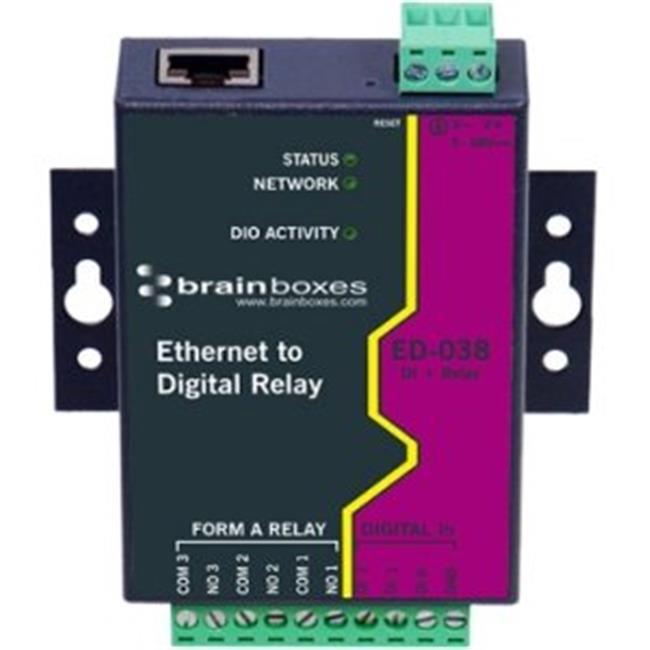

ETHERNET TO DIGITAL IO RELAY
3 Digital Inputs and 3 Form A Relays 1 Ethernet Port Drives high current and high voltage loads ideal for inductive, capacitive and resistive loads User friendly software interface Simple web based configuration, monitoring and control Legacy compatible Package Contents: ED-038 Ethernet to Digital IO Relay Installation CD including Manual, Microsoft Signed Drivers Utilities and Quick Start Guide Green Compliant: YesGreen Compliance Certificate/Authority: WEEEGreen Compliance Certificate/Authority: RoHSLimited Warranty: LifetimePackage Contents ED-038 Ethernet to Digital IO Relay Installation CD including Manual, Microsoft Signed Drivers Utilities and Quick Start Guide

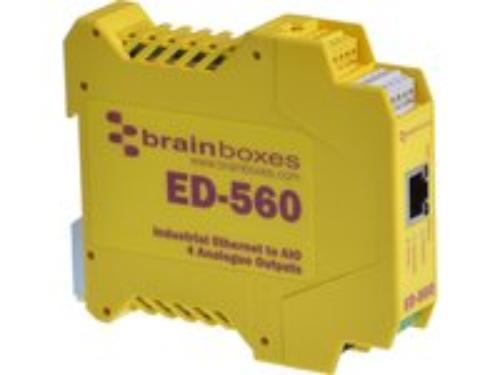

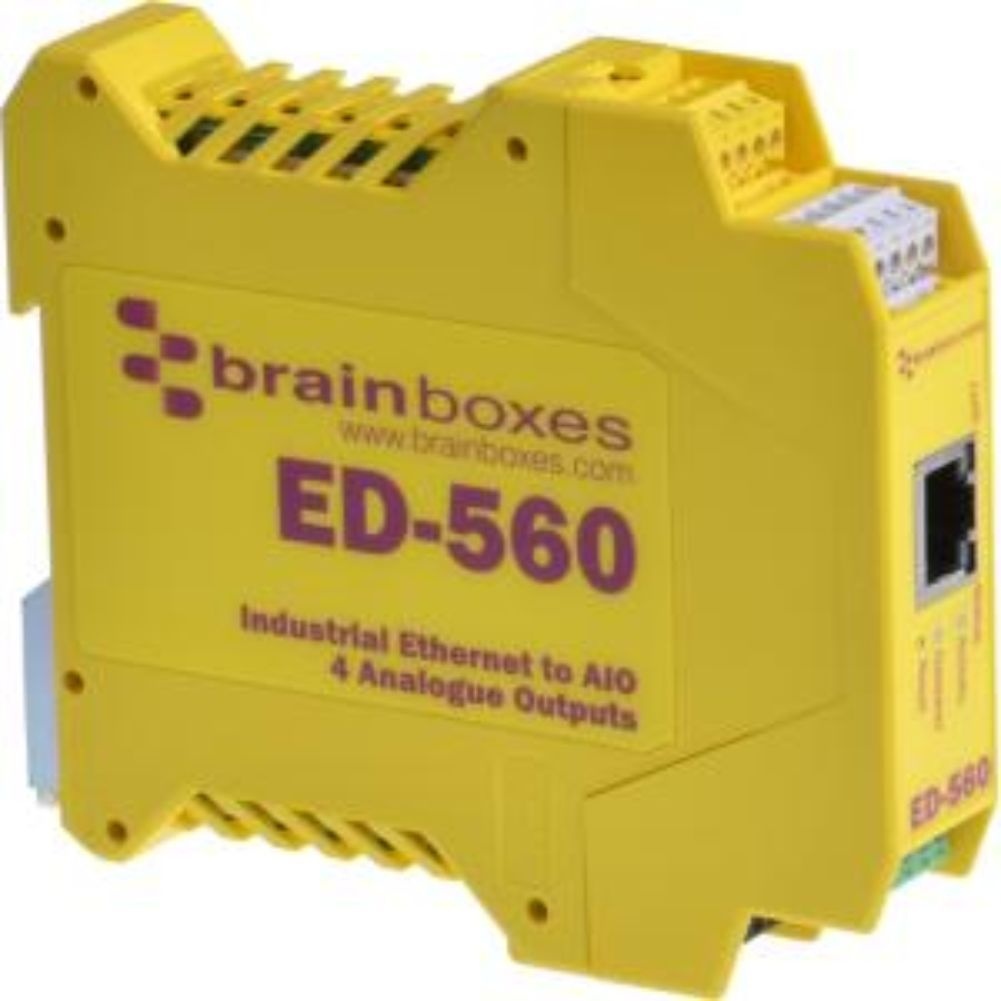

ETHERNET TO TO 4 ANALOG I/O
MAIN OVERVIEW FEATURES:Height: 0.91" (23 mm)Width: 4.49" (114 mm)Depth: 3.90" (99 mm)Weight (Approximate): 124 gPackage Contents: Ethernet to 4 Analogue Outputs + RS485 Gateway Installation CD Including Manual, Microsoft Signed Drivers & Utilities Quick Start Guide Environmentally Friendly: YesEnvironmental Certification: RoHSWEEECountry of Origin: United KingdomLimited Warranty: Lifetime

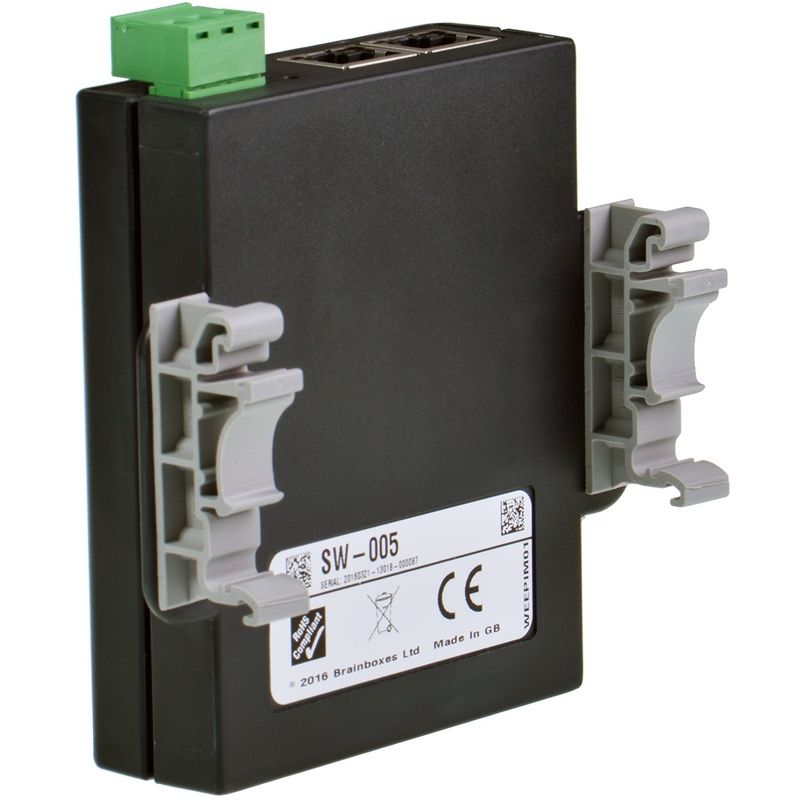

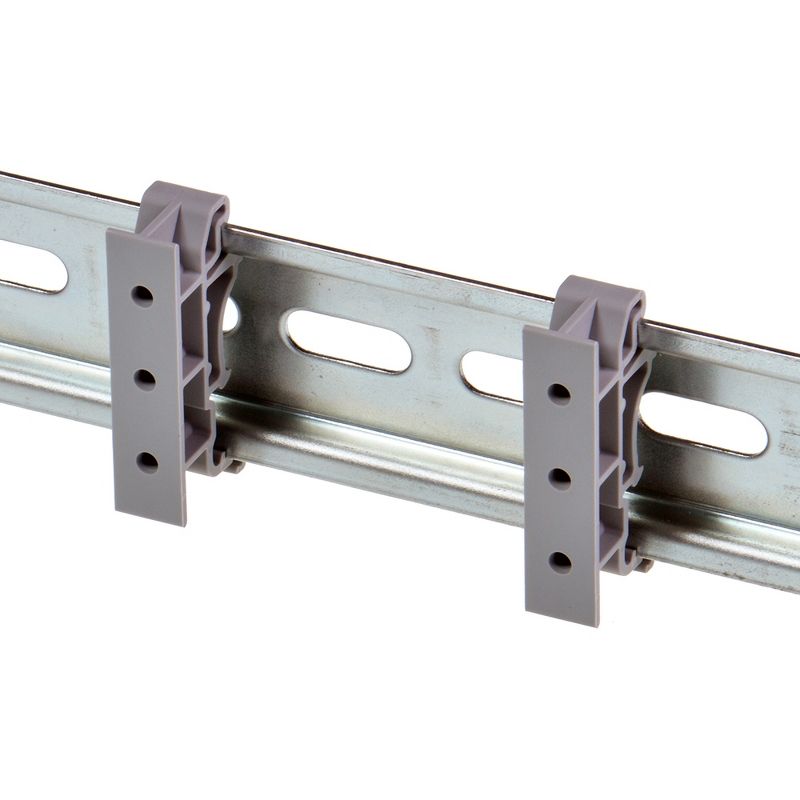

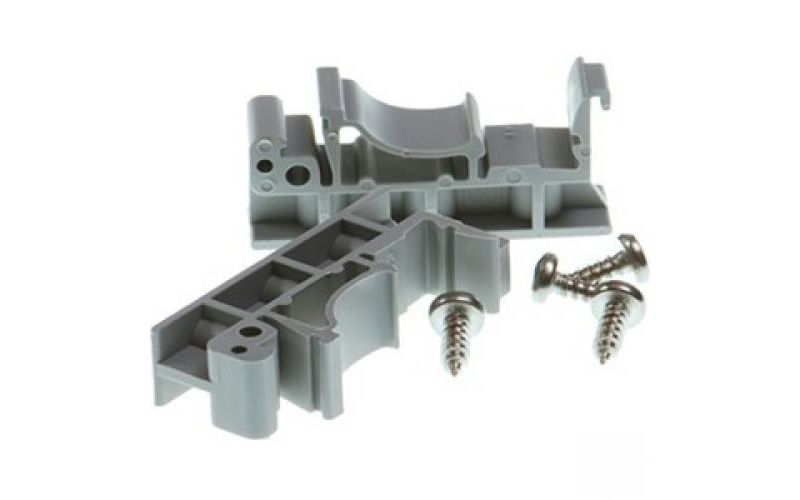

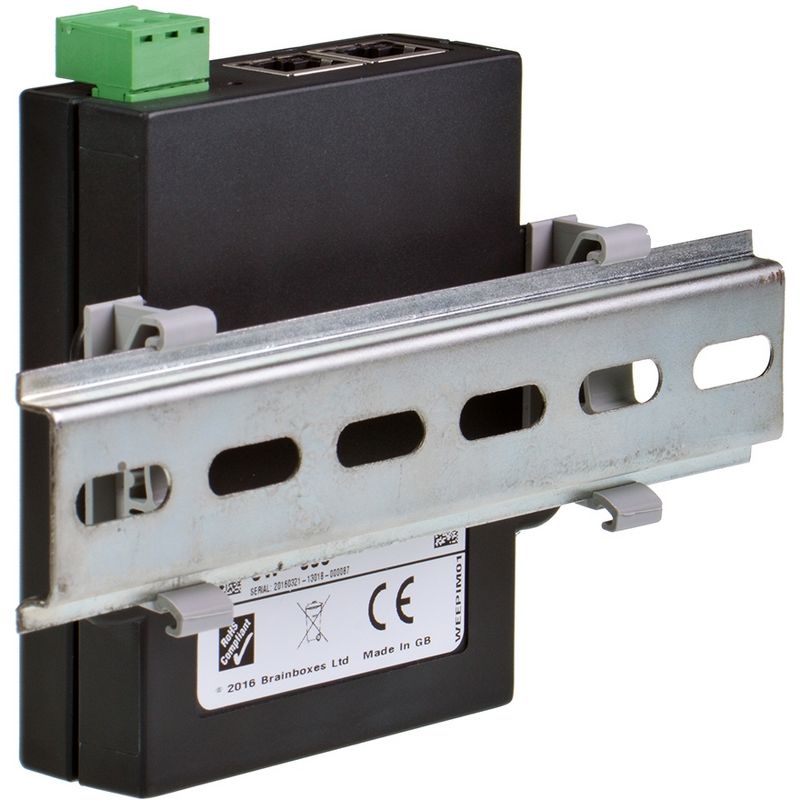

Brainboxes Mounting Rail Kit for Network Equipment - Aluminum
& bull; Height: 0.8" & bull; Material: Aluminum & bull; Features: Lightweight & bull; Device Supported: Network Equipment & bull; Width: 1.7"This light weight snap on DIN rail kit is compatible with Brainboxes 2 port Ethernet to Serial and USB to Serial Devices. Contains: 2 snap on clips (plastic), 2 screws (to attach to device lugs).

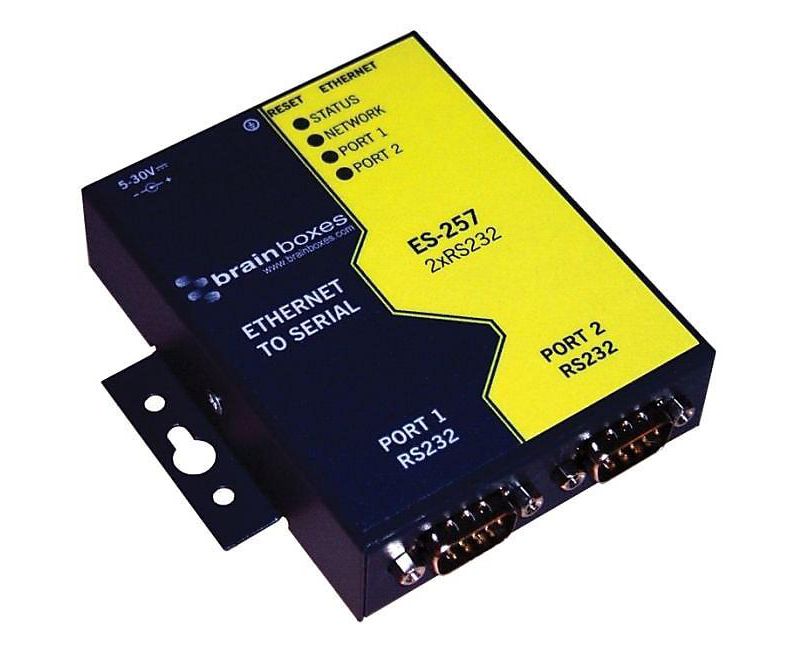

Brainboxes ES-257 2 Port Ethernet to Serial Adapter
Dimensions (Overall): 9.29 inches (L), 2.69 inches (H) x 6.79 inches (W)Weight: .4 poundsCable/Cord Length: 6 feetConnection Gender: Male-To-FemaleConnection Types: RJ-45 (Ethernet)Data Transfer Rate: Up to 100 MbpsWarranty: No Applicable Warranty. To obtain a copy of the manufacturer's or supplier's warranty for this item prior to purchasing the item, & bull; Sold as 1 Each. & bull; Interface Ethernet. Data transfer rate Up to 10 100 Mbps. & bull; Data transfer rate Up to 10 100 Mbps. & bull; Ports 1 x RJ-45 network port, 2 x serial port. & bull; Number of ports 2.Brainboxes ES-257 2 Port Ethernet to Serial Adapter card provides a simple, instant cable replacement providing network integration. This card offers web interface that allows secure configuration and control of the serial ports over a local network or the internet using any browser. Interface Ethernet. Data transfer rate Up to 10 100 Mbps. Ports 1 x RJ-45 network port, 2 x serial port. Number of ports 2. Operating systems Windows 7 (32- 64-bit), Vista (32- 64-bit), XP (32- 64-bit), Server 2003 & 2008 (32- 64-bit), Server 2008. Ethernet technology Fast Ethernet. Network standard 10 100Base-TX. Connector type 9 pin male (DB-9). Operating Temperature 0 to 55 deg C. Dimensions 1.10"(H) x 49"(W) x 42"(L). 4 PCB layers. Power consumption 0.92W typical. Flow control RTS CTS, DSR DTR, Xon Xoff. Data bits 5,6,7 or 8, Stop bits 1, 2. Package contents ES-257 ethernet to serial device server, installation CD including manual, microsoft signed drivers & utilities, power supply. Weight 0.515 kg. Certification and standards Green compliant, FCC, WEEE, RoHs. Warranty Lifetime limited. Interface Ethernet. Data transfer rate Up to 10 100 Mbps. Data transfer rate Up to 10 100 Mbps. Ports 1 x RJ-45 network port, 2 x serial port. Number of ports 2. Sold as 1 Each.

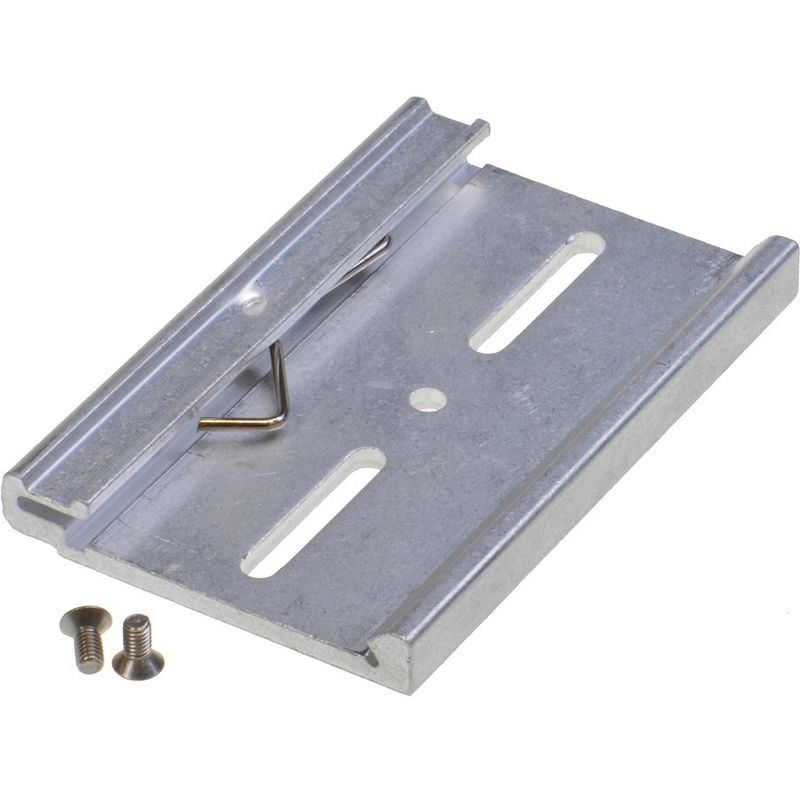

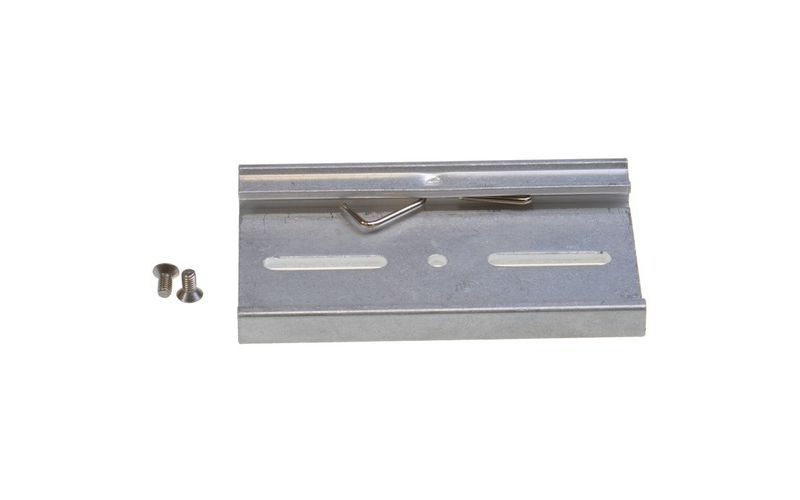

Brainboxes Mounting Rail Kit for Serial/Parallel Adapter - Aluminum
Model name: MK-070 & bull; Length: 3.9" & bull; Material: Aluminum & bull; Width: 0.3" & bull; Device Supported: Serial/Parallel Adapter & bull; Height: 1.1"SNAP IN DIN-RAIL CLIP KIT FOR ES/US 4 and 8 PORT - RETAIL PACK. Enables wall mountable products to be secured to a DIN rail. This light weight snap on DIN rail kit is compatible with Brainboxes 4 & 8 port Ethernet to Serial, and USB to Serial Devices.
Brainboxes US-10102 Data Transfer Adapter - USB - DB-9 Serial
& bull; Height: 0.8" & bull; Connector on Second End: 1 x 9-pin DB-9 Male RS-232 Serial & bull; Connector on First End: 1 x USB & bull; Adapter Type: Serial/USB & bull; Width: 1.4"USB to Serial providing one RS232 serial port. Up to 921,600 data transfer rates and the 128 byte deep transmit and 256 byte receive FIFOS, coupled with 1Mbit line drivers deliver uncompromising performance on your laptop/PC.USB to serial is the quick low cost way to connect your computer to a serial comms enabled device. Boost software gives industry leading functionality and compatibility.These products do away with traditional issues with USB technology so you can buy with confidence!

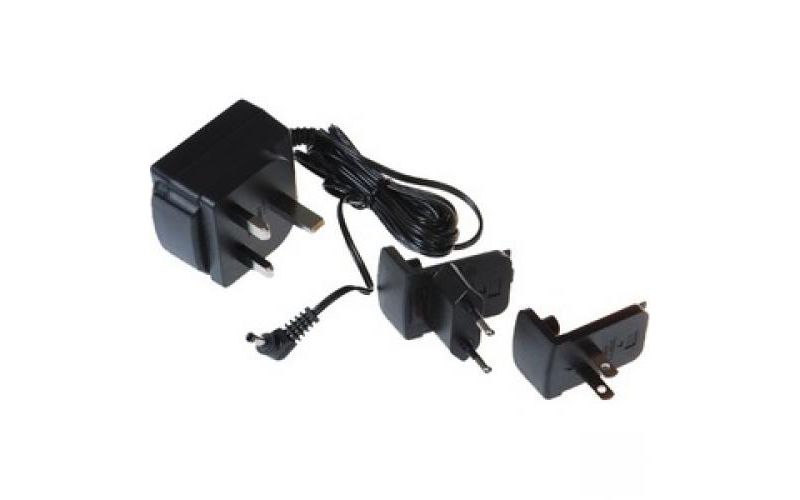

Brainboxes Power Supply - 120 V AC, 230 V AC Input / 5 V DC / 1 A
& bull; Output Current: 1 A & bull; Output Voltage: 5 V DC & bull; Input Voltage Range: 100 V AC to 240 V AC & bull; Input Voltage: 120 V AC, 230 V AC & bull; Additional Information: Power Supply Power Plug:EU (type C) Power Supply Length: 1.530 mm Power Supply Temperature OperBrainboxes Power Supply - 120 V AC, 230 V AC Input / 5 V DC / 1 A
Brainboxes USB to Serial Adapter - 1 x Type A Male USB - 1 x DB-9 Male Serial
Model name: US-101-001 & bull; Connector on Second End: 1 x 9-pin DB-9 Male RS-232 Serial & bull; Adapter Type: Serial/USB & bull; Package Contents: USB to Serial AdapterInstallation CD0.25m USB Extender Cable & bull; Weight (Approximate): 0.80 oz & bull; Connector on First End: 1 x Type A Male USBBrainboxes USB to Serial Adapter - 1 x Type A Male USB - 1 x DB-9 Male Serial

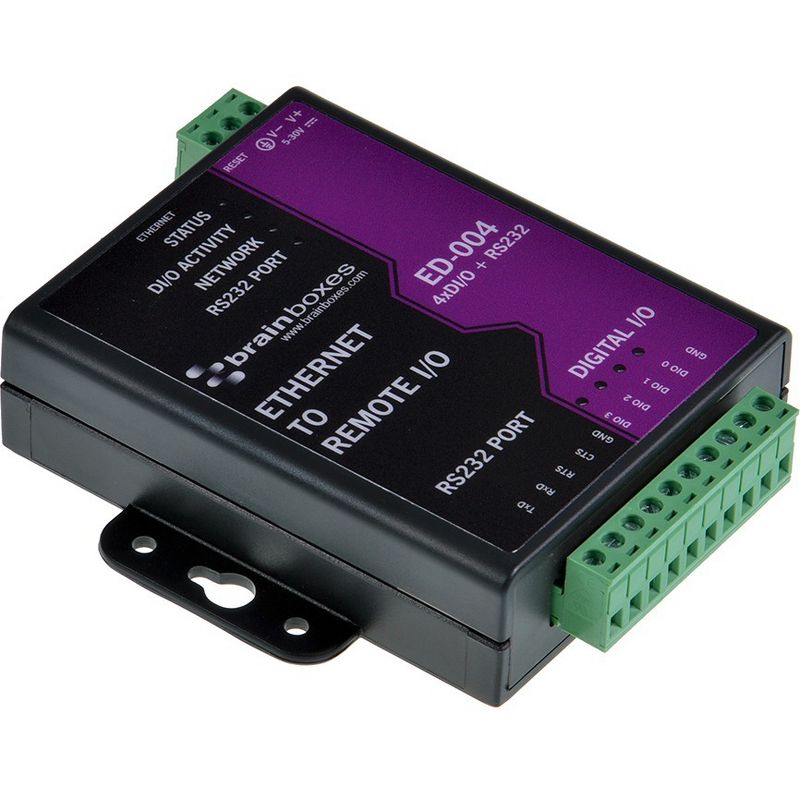

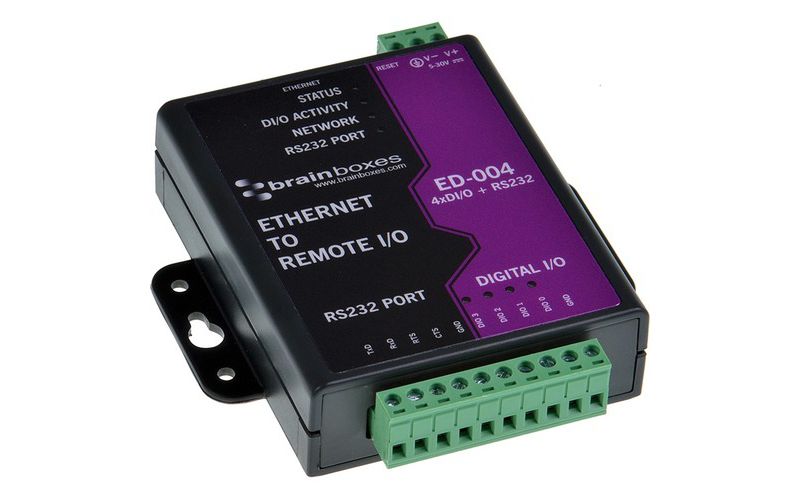

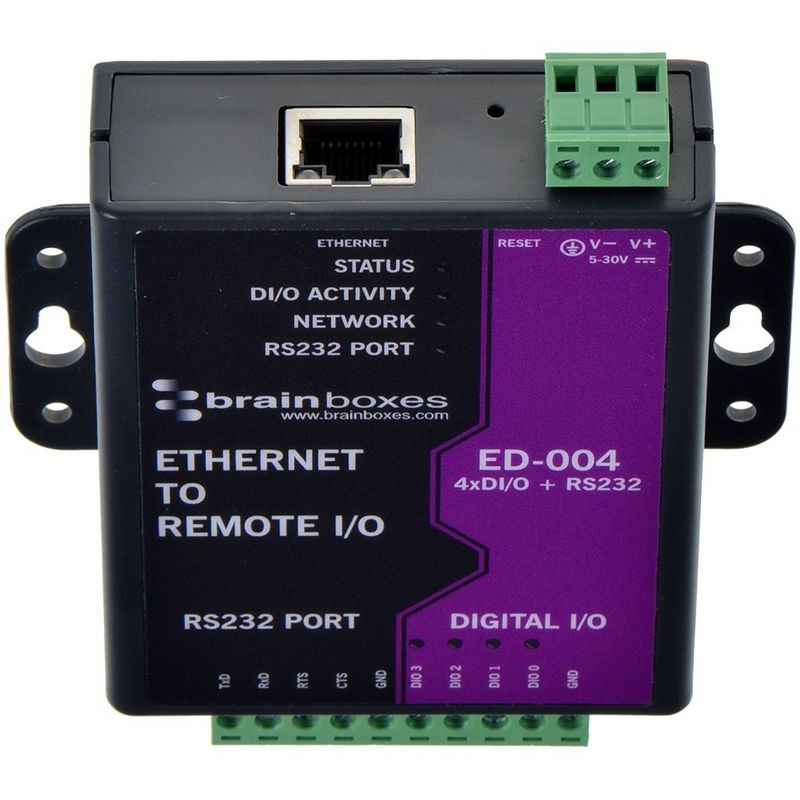

Brainboxes - Ethernet to 4 Digital IO and RS232 Serial Port - 1 x Network (RJ-45) - 1 x Serial Port - Fast Ethernet - Rail-mountable
Model name: ED-004 & bull; Depth: 3.9" & bull; Height: 1" & bull; Package Contents: Ethernet to 4 Digital IO and RS232 Serial Port Installation CD Including Manual, Microsoft Signed Dri & bull; Weight (Approximate): 4.44 oz & bull; Width: 4.6"Ethernet to DIO device with Serial port: 4 digital input channels or 4 digital output channels. Powerful ARM 80 MHz, 32 Bit CPU. Offers robust and intelligent 'control side' devices that provide the interface to systems on the 24V factory floor environment, commonly referred to as 'process side'. The device installs as a COM Port on the PC to give complete backwards compatibility essential for legacy applications. Typical applications are control and switching of AC and DC motors, Fans, relay drivers, pumps, Voltage Regulators and Battery Chargers, LEDs and Bulbs, Air Conditioning, Heaters and Solenoids..
Brainboxes BL-819 Bluetooth 1.1 - Bluetooth Adapter - TAA Compliant - Serial - 723 kbit/s - 2.40 GHz ISM - 32.8 ft Indoor Range
Model name: BL-819Warranty: 3 Year Limited Warranty. To obtain a copy of the manufacturer's or supplier's warranty for this item prior to purchasing the item, & bull; Indoor Antenna Range: 32.8 ft & bull; ISM Maximum Frequency: 2.40 GHz & bull; ISM Band: Yes & bull; Bluetooth Standard: Bluetooth 1.1 & bull; Outdoor Antenna Range: 98.4 ftCompact, Award winning Brainboxes RS232 Adaptor (BL-819 - male connector or BL-830 female connector) allows any device with an RS232 port to communicate with another Bluetooth device without the need for any additional software. Ideal for Bluetooth enabling dumb RS232 devices such as dataloggers etc. with option to power from Pin 9. Based on fully tested Bluetooth silicon, allowing communications at the full Bluetooth data rates. No visible antenna.

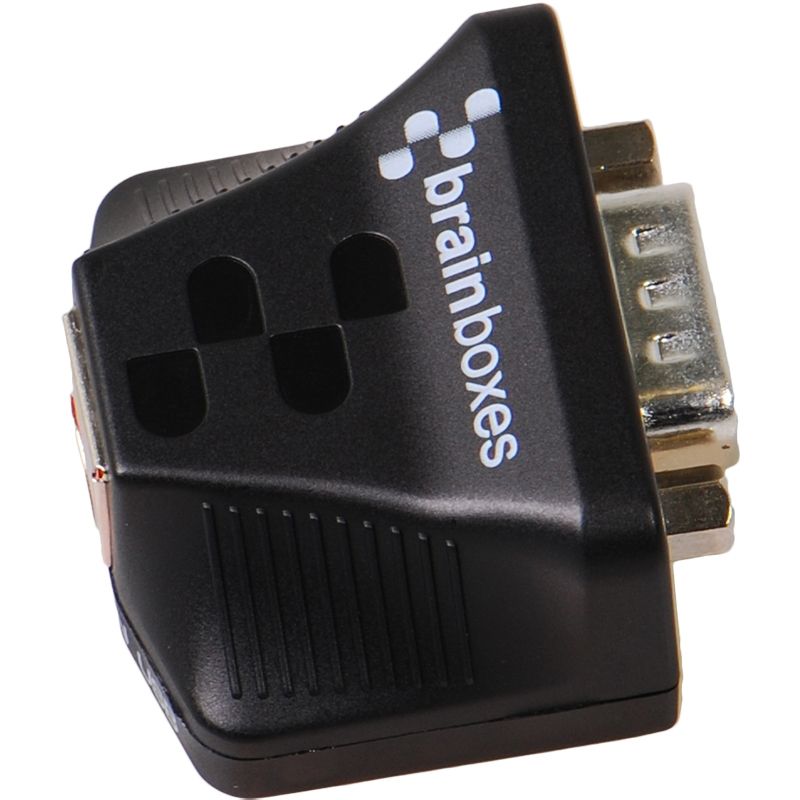

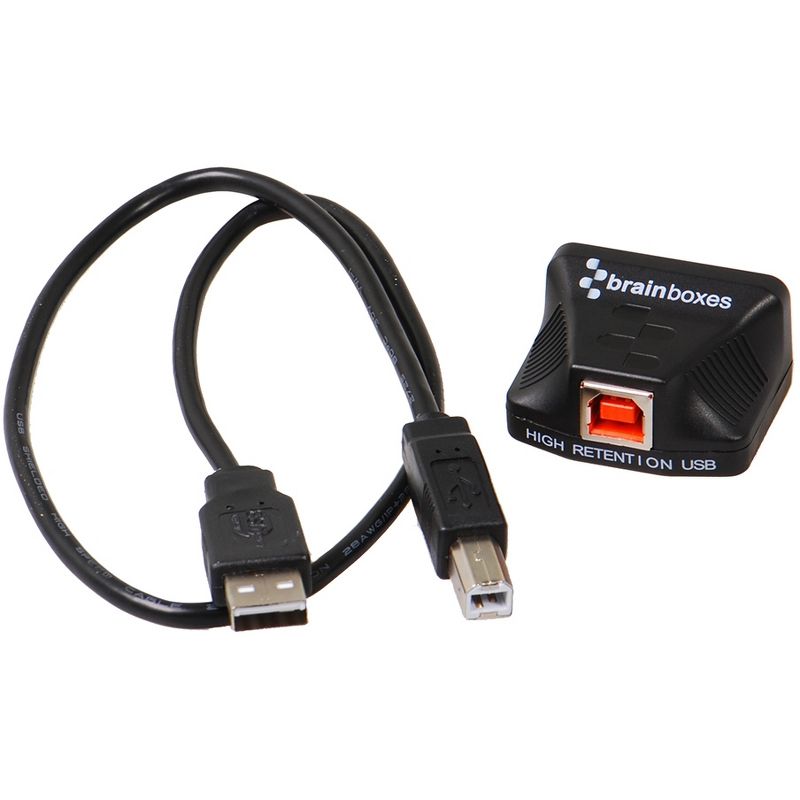

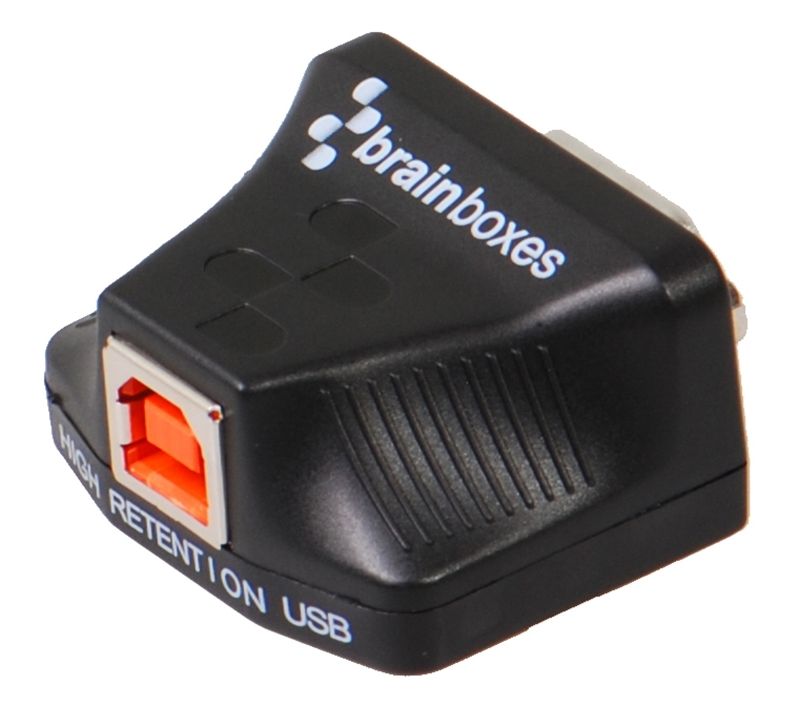

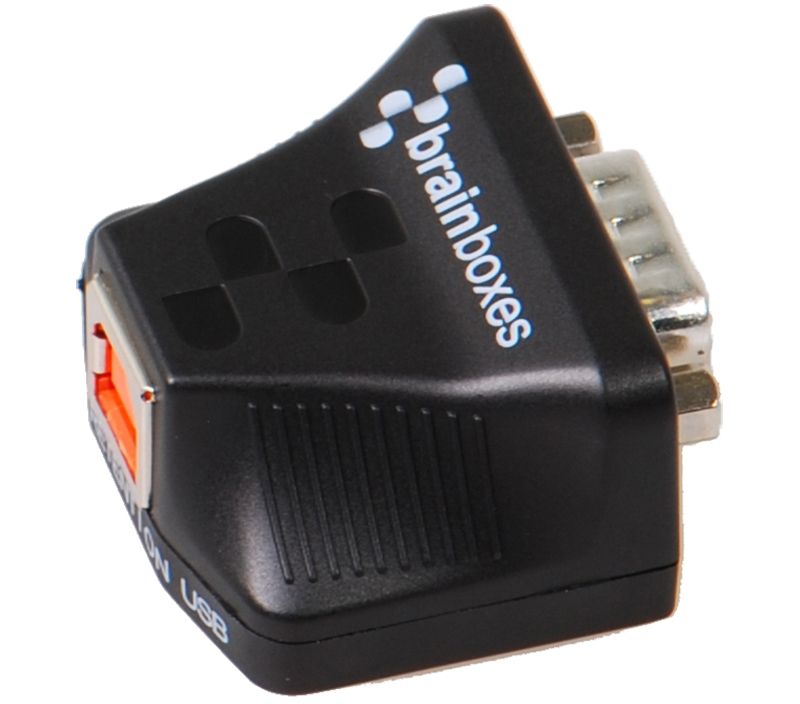

Brainboxes Ultra 1 Port RS232 USB to Serial Adapter - External - USB 2.0 - PC, Mac, Linux - 1 x Number of Serial Ports External - TAA Compliant
Model name: US-235 & bull; Host Interface: USB 2.0 & bull; Number of Serial Ports (External): 1 & bull; Height: 0.9" & bull; Form Factor: External & bull; Platform Supported: PC, Mac, LinuxTough ultra small USB to serial adapter suitable for any environment. The closest you can get to an integrated RS232 serial COM port. High retention USB connector for an unbreakable connection. Have confidence, this product will match whatever baud rate your equipment needs without data loss. Includes large 512 byte Tx and Rx FIFOs and high data throughput. Works across the full spectrum of baud rates up to 921,600 including standard and arbitrary values. We provide our own software drivers - eliminating many common problems with USB to Serial - giving you have a reliable, stable, native com port solution. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 10, Windows 8, Windows 7, Server 2008, Vista, Server 2003 and Windows XP with additional drivers for Raspberry Pi, Mac OS X and Linux.

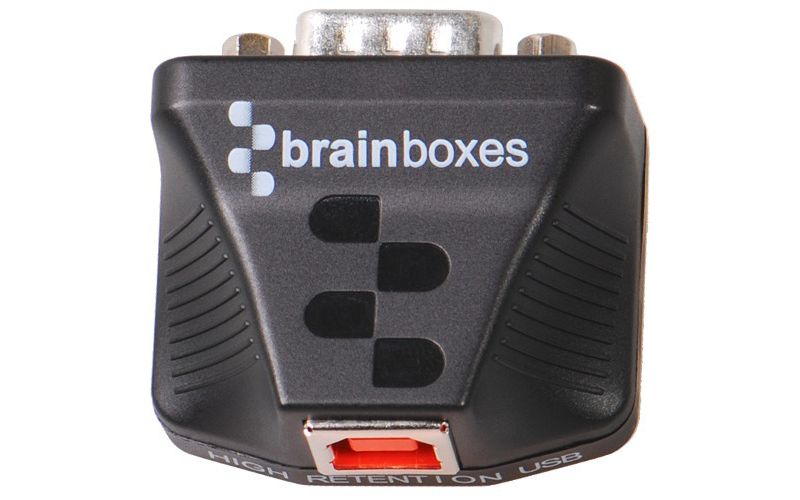

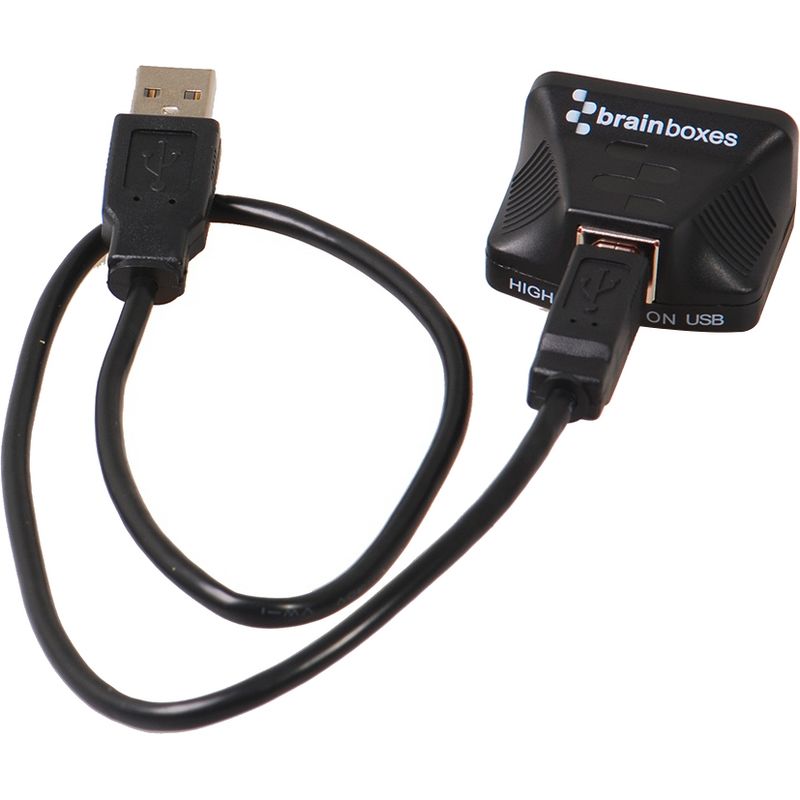

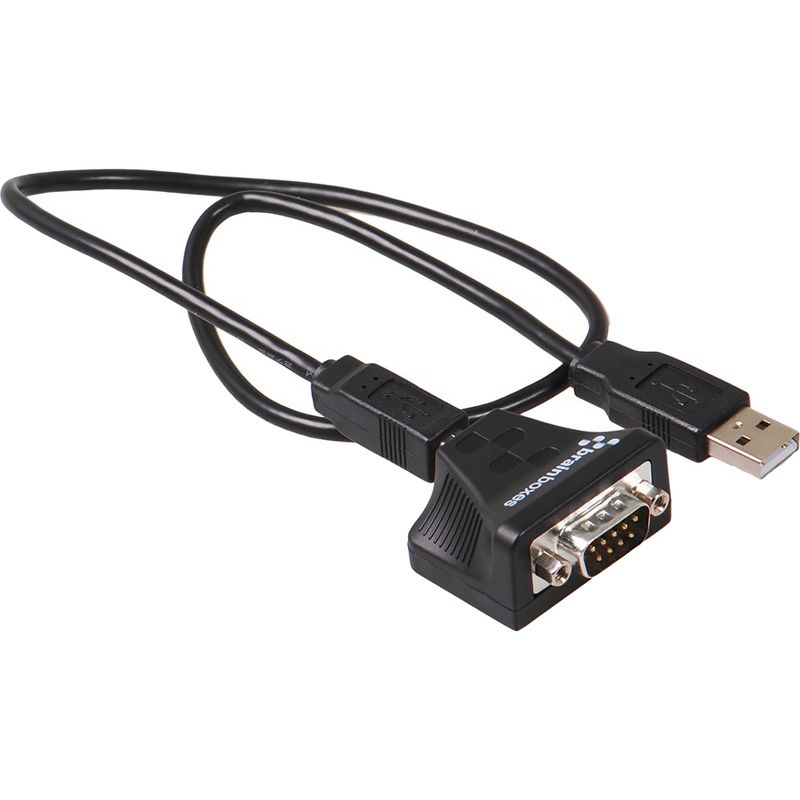

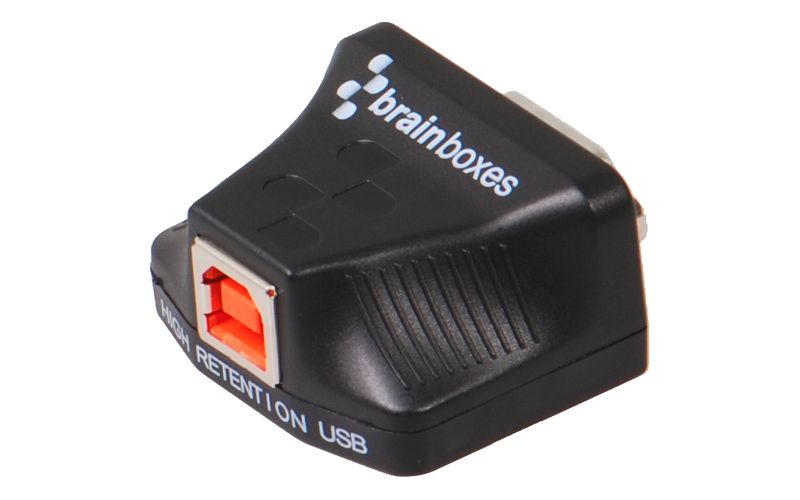

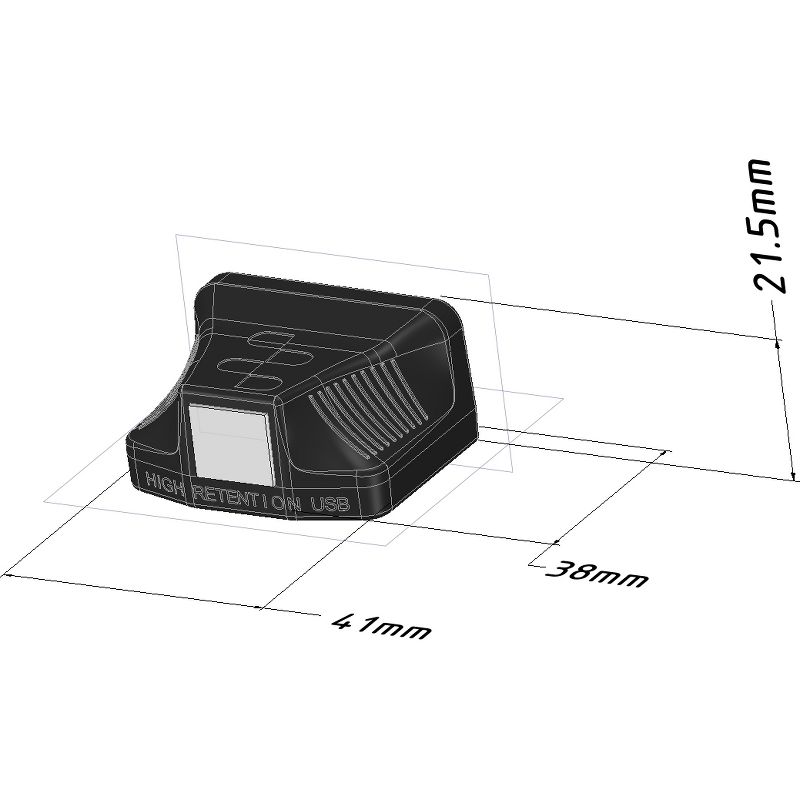

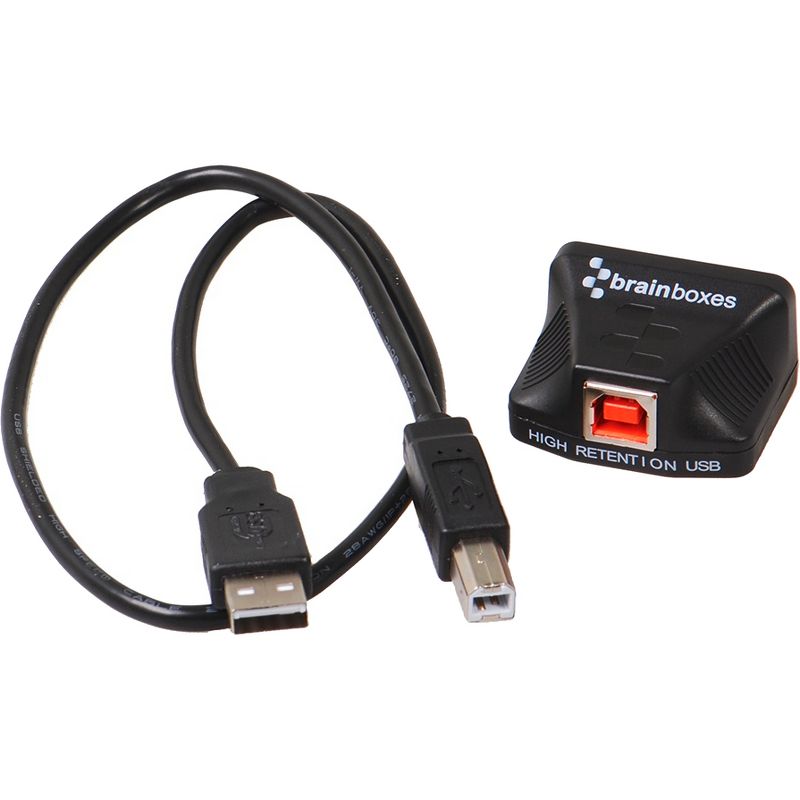

Brainboxes Ultra 1 Port RS422/485 USB to Serial Adapter - External - USB 2.0 - PC, Mac, Linux - 1 x Number of Serial Ports External - TAA Compliant
Model name: US-320 & bull; Platform Supported: PC, Mac, Linux & bull; Form Factor: External & bull; Height: 0.9" & bull; Number of Serial Ports (External): 1 & bull; Host Interface: USB 2.0Tough ultra small USB to serial adapter suitable for any environment. The closest you can get to an integrated RS422/485 serial COM port. High retention USB connector for an unbreakable connection. Have confidence, this product will match whatever baud rate your equipment needs without data loss. Includes large 512 byte Tx and Rx and high data throughput. Works across the full spectrum of baud rates up to 921,600 including standard and arbitrary values. We provide our own software drivers - eliminating many common problems with USB to Serial - giving you have a reliable, stable, native com port solution. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 10, Windows 8, Windows 7, Server 2008, Vista, Server 2003 and Windows XP with additional drivers for Raspberry Pi, Mac OS X and Linux.
