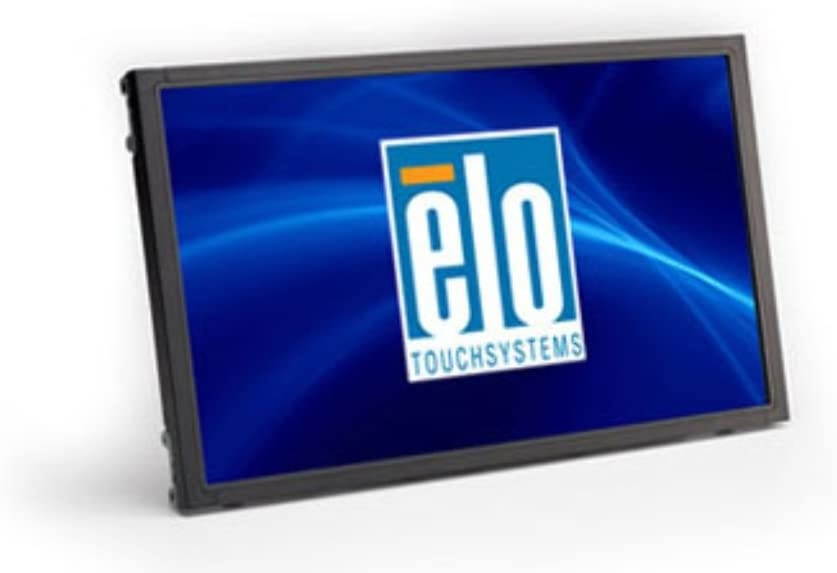

elo touch systems 2243l 22" led open-frame lcd touchscreen monitor - 16:9 - 5 ms (power cable sold separately) e237584
the Elo Touchsystems 2243l Open-frame Lcd Touchmonitor With Its Slim Design And Narrow Outside Dimensions Gives Kiosk Integrators An Edge In Developing The Most Aesthetically Pleasing Products. Wide-aspect Displays Like The Elo 2243l Are Easier To Use And Incorporate Than Traditional Open-frame Touchmonitors. Wide-screen Format Displays Allow Extra Content On The Screen And Are Quickly Becoming Preferred In Casino Gaming, Amusement And Entertainment Settings And Are Increasingly Popular In Public Venue Environments Due To The High-definition Cinematic-like Experience. Typical Applications For The 2243l Include: Gaming And Amusement, Information Kiosks And Self-service, As Well As Interactive Digital Signage Applications.
Elo 2203LM 21.5" LCD Touchscreen Monitor - 16:9 - TouchPro Projected Capacitive - Multi-touch Screen - 1920 x 1080 - Full HD - 16.7 Million Colors - 2
03-Series Healthcare Touchscreen Monitors The Elo 03-Series of Touchscreen Monitors designed for the Healthcare applications includes four sizes - a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration the 03-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. Additionally, the 03-Series offers IEC60601-1 4th edition and IP54 compliance to support healthcare installations. Brilliant Displays from 19 to 27-inches The clear glass touchscreens with Elo's industry-leading TouchPro (r) PCAP technology offer wide viewing angles with excellent image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 03-Series Monitors provide a tablet-like experience. Well-Suited for The 03-Series Touchscreen Monitors offer flexibility for instal

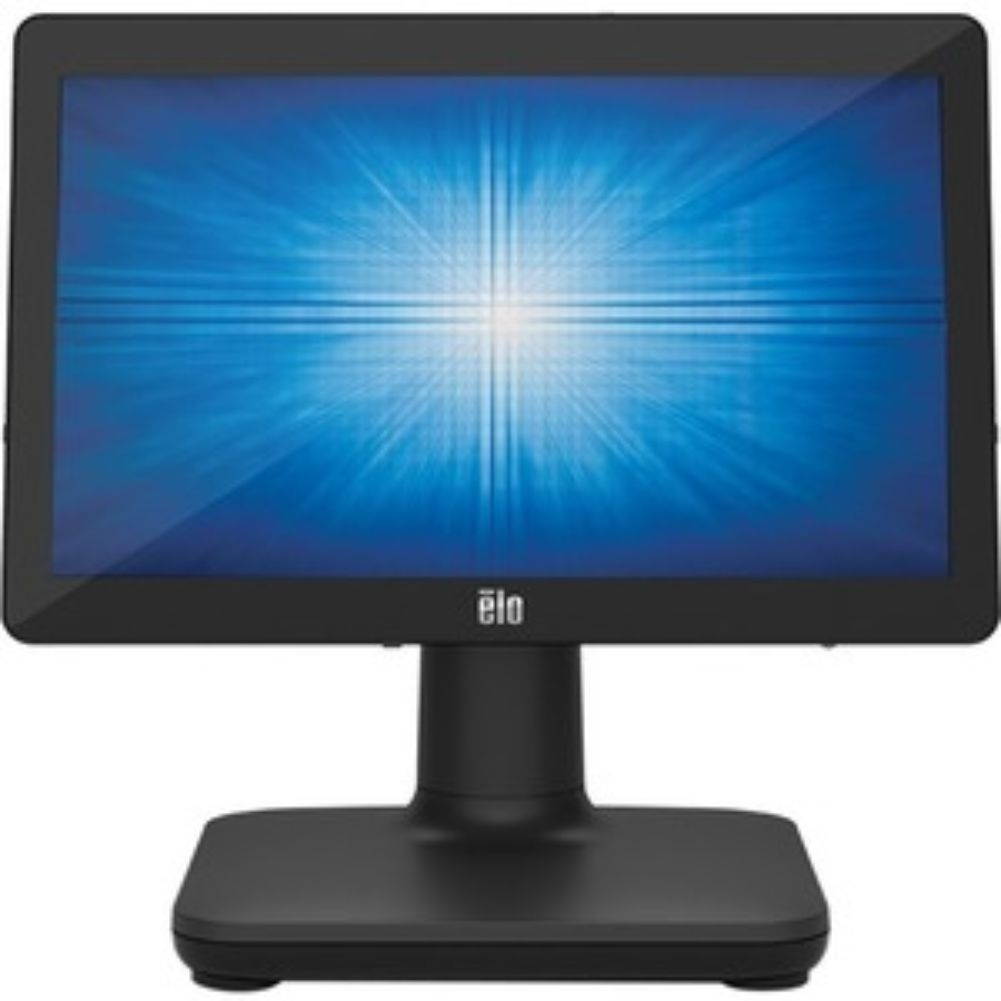

ELO ELOPOS SYSTEM 15 FULL HD WIN 10 CORE I3 4GB RAM 128SSD PCAP 10TOUCH ZB ANTIGLARE BLACK WITH IO HUB STAND
ELO ELOPOS SYSTEM 15 FULL HD WIN 10 CORE I3 4GB RAM 128SSD PCAP 10TOUCH ZB ANTIGLARE BLACK WITH IO HUB STAND
elo e077464 desktop touchmonitors 1717l intellitouch 17'' led-backlit lcd monitor, black
The 1717L 17-inch touch monitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touch monitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems are found. The 1717L with IntelliTouch surface acoustic wave technology features a pure-glass touchscreen in a standard bezel design. IntelliTouch touch screens deliver the ultimate in optical quality for dry retail and hospitality applications. The 1717L touch monitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.
ELO E126483 2702L 27-INCH WIDE LCD DESKTOP FULL HD PROJECTED CAPACITIVE 10-TOUCH USB CONTROLLER CLEAR ZERO-BEZEL NO STAND VGA AND HDMI VIDEO
ELO E126483 2702L 27-INCH WIDE LCD DESKTOP FULL HD PROJECTED CAPACITIVE 10-TOUCH USB CONTROLLER CLEAR ZERO-BEZEL NO STAND VGA AND HDMI VIDEO INTERFACE BLACK WORLDWIDEELO, 2702L 27-INCH WIDE LCD DESKTOP, FULL HD, PROJECTED CAPACITIVE 10-TOUCH, USB CONTROLLER, CLEAR, ZERO-BEZEL, NO STAND, VGA AND HDMI VIDEO INTERFACE, BLACK, WORLDWIDE MPN:E126483
Elo Open-Frame Touchmonitors LED-Backlit LCD Monitor 17" Black (E326347)
Offers pristine optical clarity and touch durabilityThe touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosureCommercial-grade - rigorous reliability testing (over 20 tests) to deliver 50,000 MTBFHDMI, VGA & Display Port video interfaces60 hertz
elo touch e323425 front mount bezel for 1537l touch monitor
Elo Touch Solutions is a premier global supplier of touch solutions including touchscreen components, touchmonitors, and all-in-one (AiO) touchcomputers. With multiple touchscreen technology options, including surface acoustic wave (SAW), resistive, projected capacitive, acoustic pulse recognition (APR), infrared (IR), and optical, Elo touch solutions meet the diverse requirements of digital signage, retail, point-of-sale (POS), hospitality, medical/healthcare IT, industrial, and consumer. Elographics was founded in 1971 and invented touchscreen overlay technology and was acquired by Tyco Electronics Corporation in 1999.

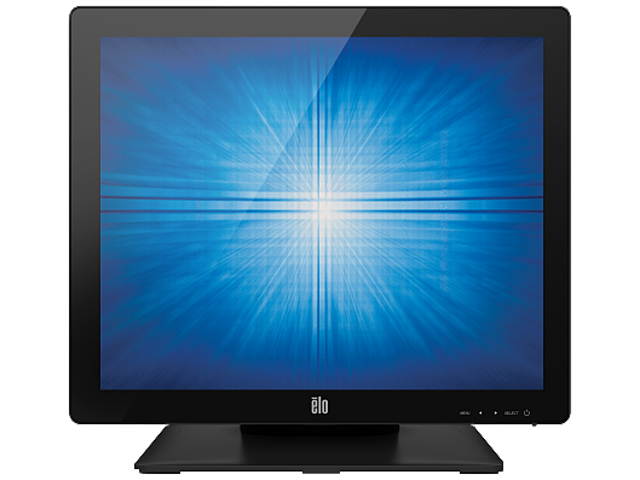

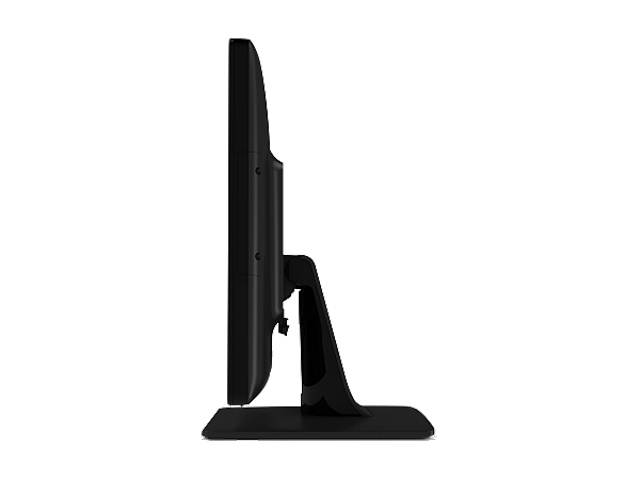

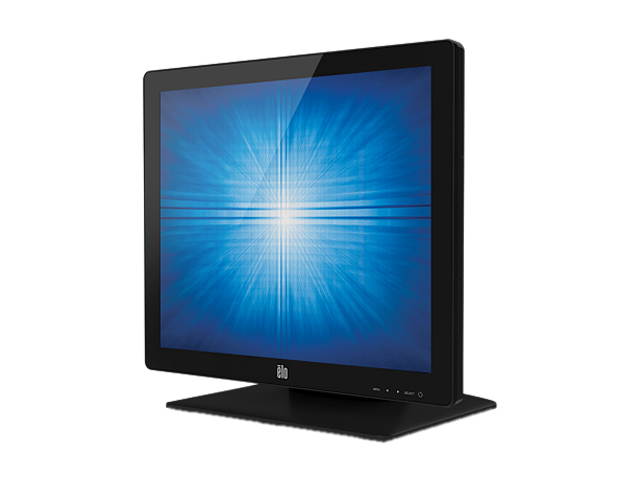

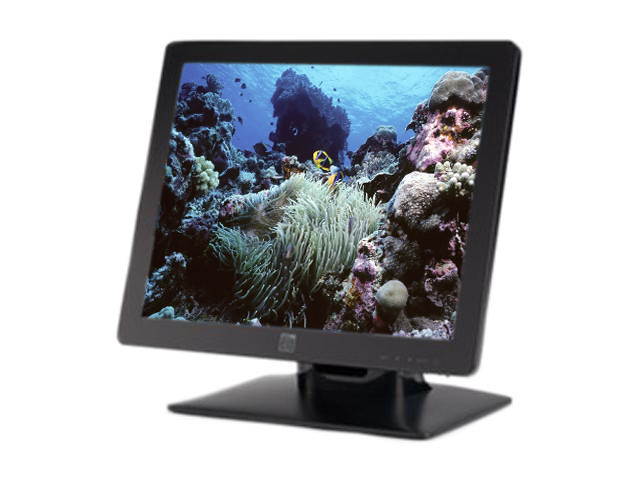

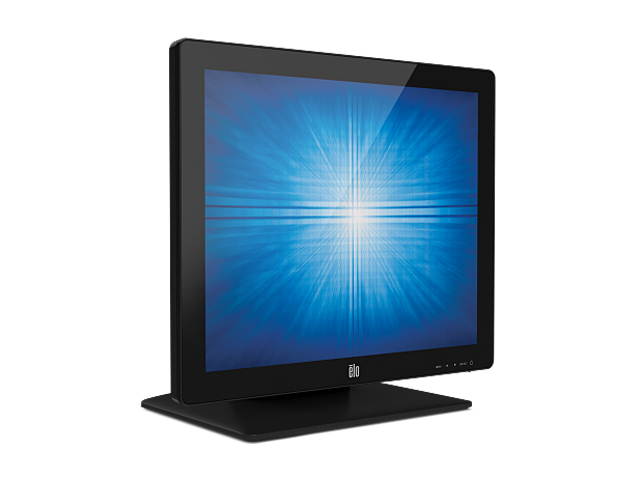

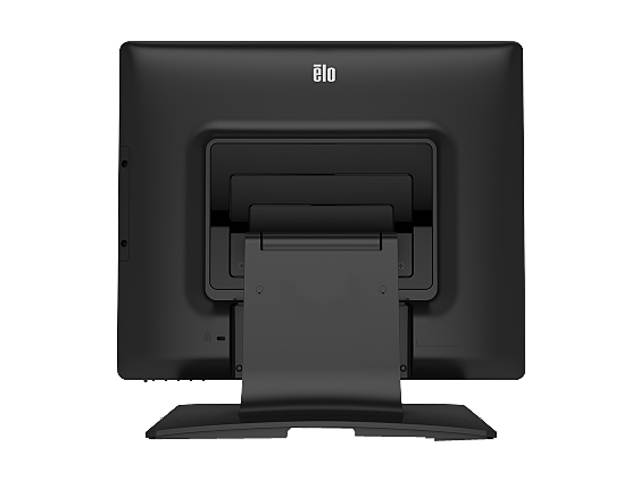

Elo Touch E077464 1717L Intelli Touch Desktop 17-inch Touch Screen Monitor
Features:
Sleek and thin design with “Built for Touch” Reliability.
Flexible and space-saving.
40% Energy savings using LED technology.
Zero-bezel touchscreen versions for a smooth, easy-to-clean surface.
Antiglare or Clear glass.
Removable base and mounting options including VESA, wall and pole-mounting for installation flexibility and capped through-mount holes on base for table-top security.
17” diagonal active matrix TFT LED-backlit LCD.
Active Display Area: 13.3 x 10.6 inches/338 x 270 mm.
5:4 aspect ratio.
1280 x 1024 native resolution. Other resolutions supported.
USB and RS232 serial connections.
Touch technology: AccuTouch (single- touch), IntelliTouch (single-touch) and iTouch (single-touch).
Typical power consumption: 20W, internal and external power options.
Display
Touchscreen Type
IntelliTouch
Panel
Active Matrix, TFT LCD
Screen Size
17"
Aspect Ratio
5:4
Maximum Resolution
1280 x 1024
Recommended Resolution
1280 x 1024
Viewing Angle
Horizontal: ±85° or 170° totalVertical: ±80° or 160° total
Display Colors
16.7 Million
Brightness
225 cd/m2
Contrast Ratio
1000:1
Response Time
7.8msec
Connectivity
Touchscreen Interface
Serial/USB
Video
Analog VGA on Female DE-15 connectorInput Video Horizontal Sync frequency range: 31.5- 80KHzInput Video Vertical Sync (frame rate) frequency range: 56-75Hz
Power
Complies with
RoHS China RoHS WEEE
Power Supply
100 - 240 VAC, 50/60Hz
Power Consumption
ON (monitor only): 20WSLEEP (monitor only) : 1.1WOFF (monitor only) : 0.8W
Convenience
VESA Compatibility - Mountable
Yes
Dimensions
Dimensions (H x W x D)
15.40" x 7.50" x 14.20" (With Stand)
Weight
11.90 lbs.
Humidity Range
Operating: 20%-80%Storage: 10%-90%
Temperature Range
Operating: 32°F to 104°F (0°C to 40°C)Storage: -4°F to 140°F (20°C to 60°C)
ET1302L USB-C TO USB-C CABLE
ET1302L USB-C TO USB-C CABLE

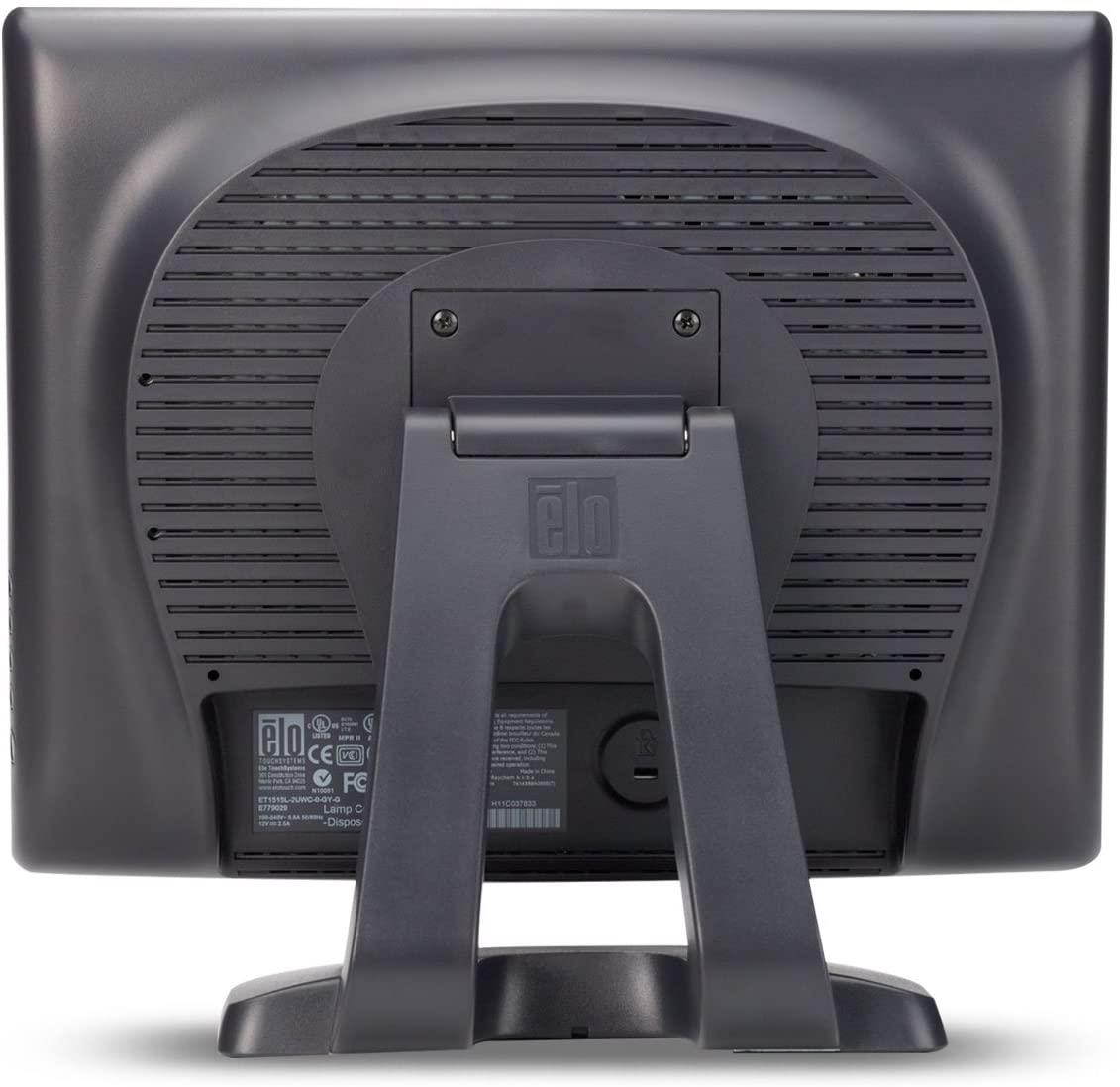

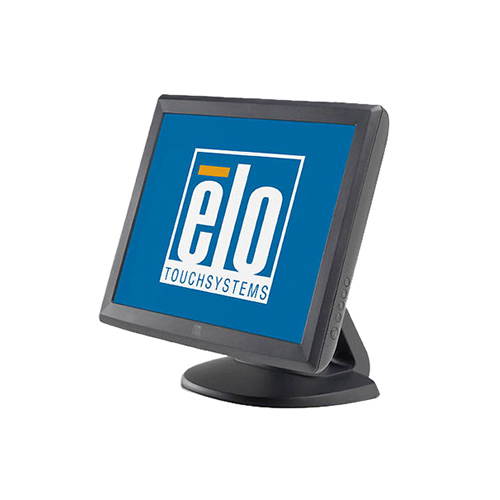

Elo Touch E210772 1515L 15-inch AccuTouch 5-Wire Resistive POS Touch Screen Moni
Elo Touch E210772 1515L 15-inch Accu Touch 5-Wire Resistive POS Touch Screen Moni condition: New Manufacturer: Elo Touch Solutions Model: E210772 MPN: E210772 Brand: Elo Touch Solutions Code: 0d6-361967000301559
Elo Touch Solutions E757859 Msr For 2201L - Gray
MSR (Gray) for the 2201L
2D BARCODE SCANNER USB KIT
Improve self-service and price-checker applications when you couple the 2D Barcode scanner with an Elo touchscreen. Change the way your customers interact in-store by deploying a new generation of price-checkers that can run apps and websites, allowing companies to utilize the product for brand messaging and endless aisle applications while maintaining the main purpose as a price checking solution. When coupling the 2D barcode scanner with Elo's I-Series for Android and EloView, content and device management can be done with ease. EloView is a ground breaking platform from Elo that allows you to deploy content for kiosk based applications to multiple locations remotely. POS and kiosk management can be even easier with EloView. A revolutionary interactive platform, EloView is a secure management platform for remote content delivery and device management. Whether you need to... Connectivity Technology: Plug-in CardBarcode Dimension: 1DBarcode Dimension: 2DBarcode Symbology Supported: 1D Linear: Codabar Code 11 Code 128 Code 2 of 5 Code 39 Code 93 and 93i EAN/JAN-13 EAN/JAN 8 IATA Code 2 of 5 Interleaved 2 of 5 Matrix 2 of 5 MSI GS1 Databar UPC-A UPC E UPC-A/EAN-13 with Extended coupon Code Coupon GS1 Code 32 (PARAF) EAN-UCC Emulation GS1 Data bar 2D Stacked: Codablock A Codablock F PDF417 MicroPDF417 2D Matrix: Aztec Code Data Matrix MaxiCode QR Code Chinese Sensible (Han Xin) code Postal Codes: Australian Post British Post Canadian Post China Post Japanese Post Korea Post Netherlands Post Planet Code Postnet Image Sensor: CMOS Host Interface: USB Color: BlackWeight (Approximate): 0.96 oz
Elo Touch Solutions E107766 2201L Intellitouch Plus (Multi Touch), Usb, Widescreen, Gray
2201L LCD Desktop Touchmonitor (IntelliTouch Plus - Multi-Touch, USB, Widescreen, Gray)

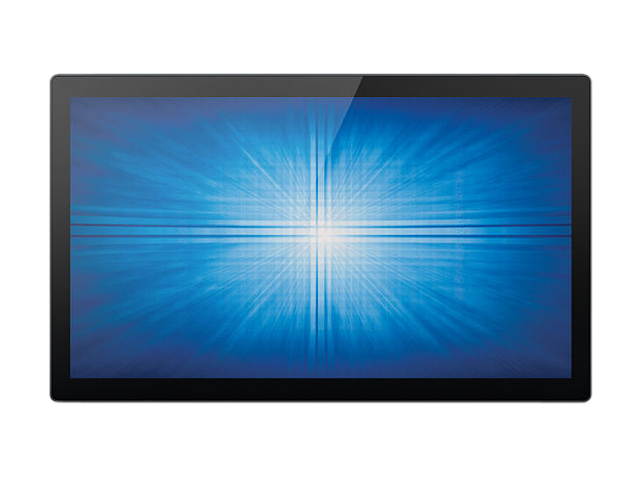

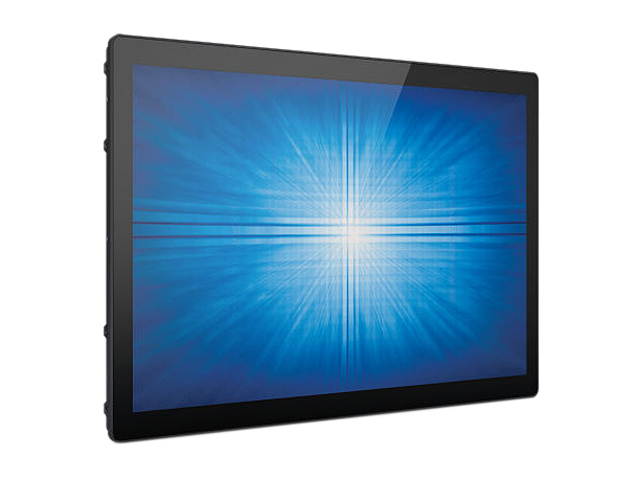

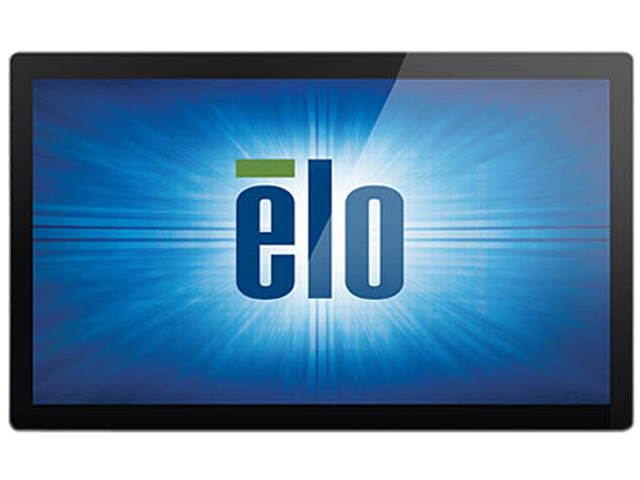

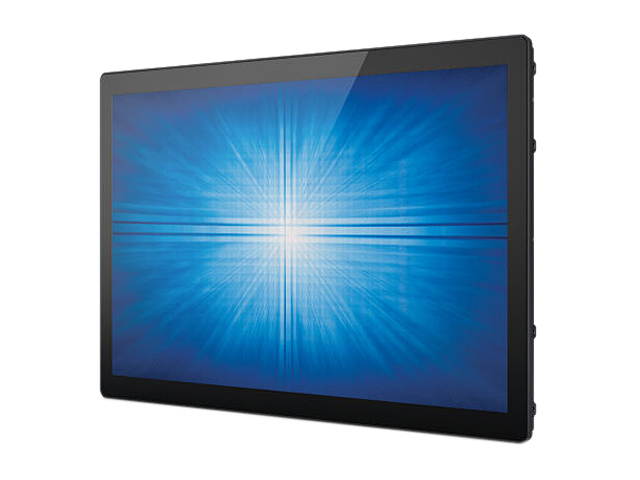

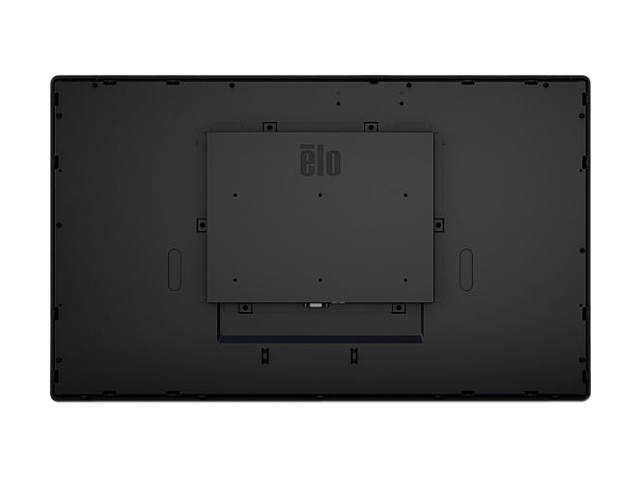

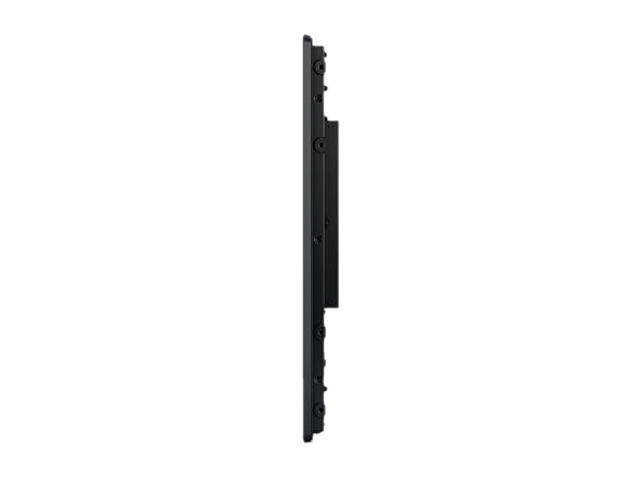

Elo E329077 2794L 27” Open-frame Commercial-grade Touchscreen Display with IntelliTouch Dual Touch
The Elo 2794L 27-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 2794L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments. Easily integrated. The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs. Touch ready. Available with a choice of industry-leading touch technologies, in single-, dual- or multi-touch technology, including Intelli Touch & reg; Plus dual-touch surface acoustic wave (SAW), and our latest multi-touch Touch Pro & trade; PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves. Commercial-grade. The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50, 000 MTBF. Other features. Viewing angle of 178 (h) x 178 (v), for sharp colors and graphics in both portrait and landscape modes Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing Display Port and VGA video interfaces High definition LCD display offers ultimate HD interactivity, clarity and resolution 10-touch Touch Pro & trade; projected capacitive (PCAP) with two-touch Thru-glass capabilities

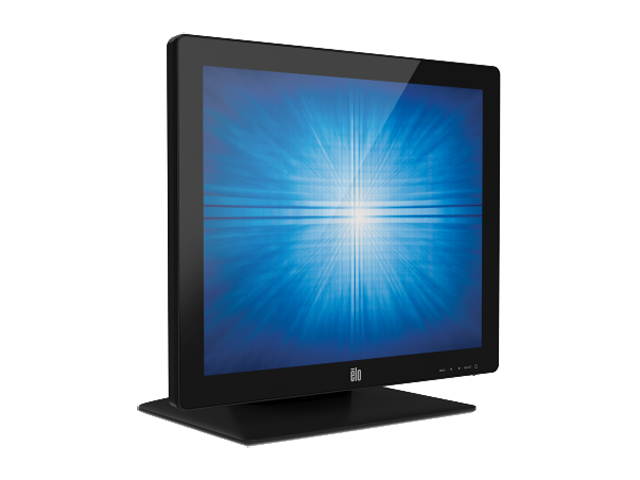

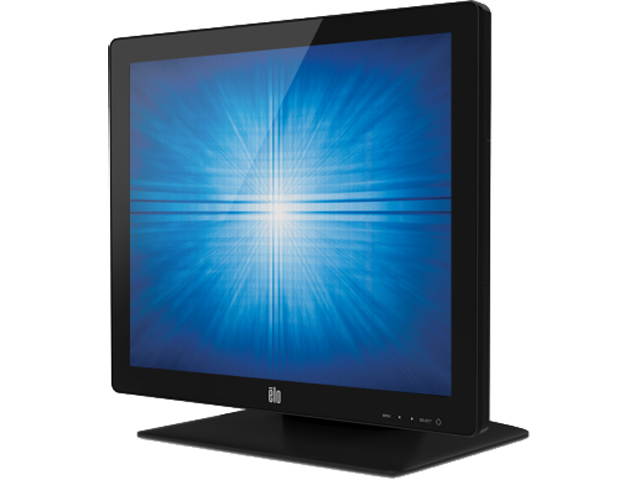

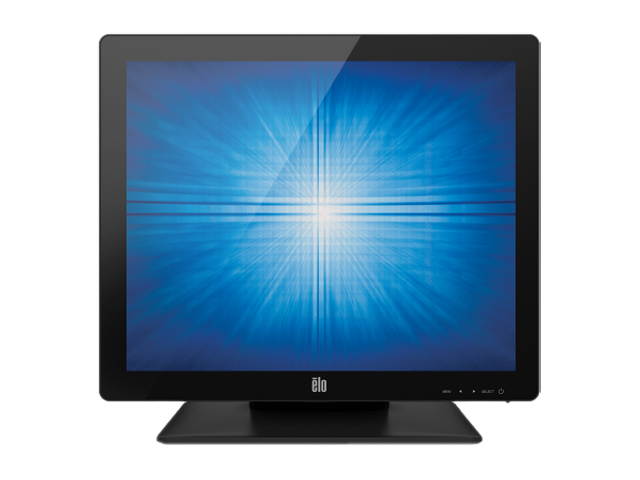

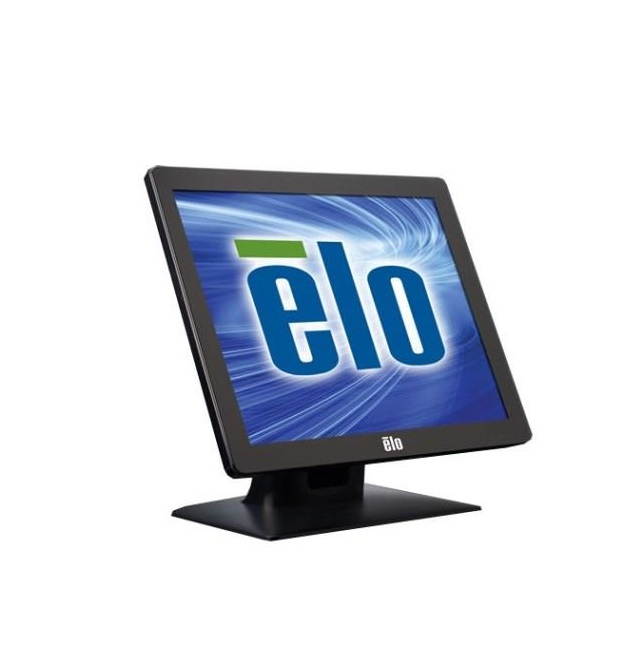

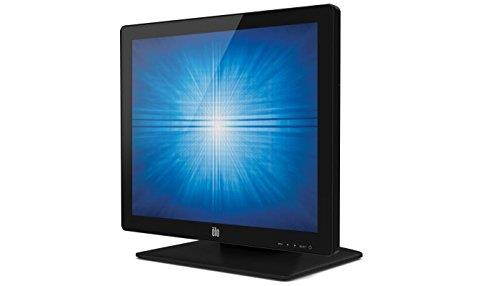

1717L 17IN LCD VGA ITOUCH USB
1717L 17IN LCD VGA ITOUCH USB condition: New Manufacturer: Elo Touch SolutionsModel: E179069MPN: E179069Brand: Elo Touch SolutionsCode : e0d-482885000301575
Elo E001297 ECMG2B-i5 Computer Modules for Interactive Digital Signage
MAIN OVERVIEW FEATURES: Processor Manufacturer: IntelProcessor Type: Core i5Processor Model: i5-4590SProcessor Speed: 3.70 GHzStandard Memory: 4 GBMaximum Memory: 16 GBMemory Technology: DDR3 SDRAMTotal Hard Drive Capacity: 320 GBHard Drive Interface: Serial ATAGraphics Controller Manufacturer: IntelGraphics Controller Model: HD 4600Ethernet: YesEthernet Technology: Gigabit EthernetUSB: YesHDMI: YesDisplayPort: YesNetwork (RJ-45): YesAudio Line In: YesAudio Line Out: YesOperating System: Windows 8.1Height: 1.5"Width: 10.8"Depth: 9.9"Weight (Approximate): 4.40 lbLimited Warranty: 3 Year
ELO CONFIG/KITTING FEE
CONFIG/KITTING FEE
Elo 1502l Touchscreen 15.6" Led Lcd Monitor - 16:9 - 35 Ms - (e318746)
SPECIFICATION
Interfaces/Ports
USB Yes
VGA Yes
General Information
Product Type LCD Touchscreen Monitor
Product Name M-Series 1502L 15-inch LED Touch Monitor
Manufacturer Part Number E318746
Manufacturer Elo Touch Solutions, Inc
Product Model 1502L
Marketing Information The Elo M-Series 1502L widescreen LED touch monitor is a modern and stylish interactive solution for customer engagement and employee effectiveness at the point of sale. The sleek wide aspect ratio touchscreen features full HD edge-to-edge glass with display area real estate to showcase engaging, memorable and rewarding content. An HD display model is available for transactional and other applications not requiring 1920x1080 resolution. For environments where space is scarce, the 1502L is an ideal POS terminal screen or stylish interactive information display. Built to withstand the rigors of continuous public use, the 1502L is well suited for high use retail venues. The sleek, thin look pairs well with any modern store environment.
Product Series M
Brand Name Elo
Built-in Devices
Built-in Devices Speaker
Physical Characteristics
Weight (Approximate) 6.72 lb
VESA Mount Compatible Yes
Height 9.6"
Width 15.2"
Depth 1.3"
Color Black
Touchscreen Information
Multi-touch Screen Yes
Touchscreen Type IntelliTouch Pro Projected Capacitive
Power Description
Operating Power Consumption 8.70 W
Audio
Speakers Yes
Technical Information
Mount Type
Wall Mountable
Pole Mount
Screen Mode Full HD
Response Time 35 ms
Aspect Ratio 16:9
Backlight Technology LED
Screen Size 15.6"
Video
Maximum Resolution 1920 x 1080
Brightness 300 Nit
Contrast Ratio 700:1
Color Supported 262,000 Colors
Title
Product Title Elo 1502L 15.6" LCD Touchscreen Monitor - 16:9 - 35 ms (E318746)
Ac Power Cable (Rohs) For Power Brick - Model#: e042259
ELO Touch Solutions E042259 AC Power Cable (ROHS) for Power Brick
Elo EMV Cradle
The fully integrated EMV cradle mounts seamlessly and allows the customer to control the checkout process with confidence and ease. Currently available for the Verifone E355 and Ingenico ICMP mPOS payment devices, the cradles are compatible with multiple Elo products including I-Series (10.1-inch, 15.6-inch, 21.5 inch), X-series (15-inch, 17-inch, 19.5-inch), M-series (1002L, 1502L, 2002L), IDS 02-Series (3202L, 4202L, 4602L) and PayPoint (Android, Windows, iPad). By combining an Elo touchscreen with the EMV Cradle, you can help improve service for endless aisle, loyalty programs, brand experience, self-service, mPOS, POS applications and more. POS and kiosk management can be even easier with EloView®. A revolutionary interactive platform, EloView is a secure management platform for remote content delivery and device management. Whether you need to push new content to a device or simply change the screen brightness, EloView has got you covered. EloView software provides device setup, remote management, alerts, attract loops, and the ability to securely upgrade the operating system, applications, and content.Features* Package Contents: EMV Cradle USB Cable (Type-A to Micro, Charging only) * Product Type: Cradle * Device Supported: Payment Terminal * Device Supported: Digital Signage Display * Device Supported: Touchscreen Monitor * Product Type: Cradle * Compatibility: Ingenico ICMP Payment Terminal Elo I-series Touchscreen Signage: 10.1-inch 15.6-inch 21.5 inch Elo M-series Touchscreen Monitors: 1002L 1502L 2002L * Device Supported: Payment Terminal * Device Supported: Digital Signage Display * Device Supported: Touchscreen Monitor * Limited Warranty: 3 Year * Weight (Approximate): 2.03 lb * Color: Black * Connectivity Technology: Wireless * Color: Black * Connectivity Technology: Wireless * Product Name: EMV Cradle * Wireless Technology: Bluetooth * Brand Name: Elo * Brand Name: Elo * Charging Capability: Yes * Height: 5.4" * Width: 3.4" * Depth: 0.9" * Synchronizing Capability: Yes* Product Type: Cradle * Device Supported: Payment Terminal * Device Supported: Touchscreen Monitor * Device Supported: Digital Signage Display * Color: Black * Connectivity Technology: Wireless * Brand Name: Elo
Elo E331799 1593L 15.6" Open-frame LCD Touchscreen (RevB) with 10-touch Projected Capacitive
MAIN OVERVIEW FEATURES: Viewable Screen Size: 15.6"S creen Mode: WXGA Response Time: 10 msAspect Ratio: 16:9 Mount Type: Flush Mount, Rear Mount Backlight Technology: LED Maximum Resolution: 1366 x 768Color Supported: 16.7 Million Colors Contrast Ratio: 500:1 Brightness: 300 Nit Touchscreen Type: Projected Capacitive Multi-touch Screen: Yes HDMI: Yes USB: Yes VGA: Yes Display Port: Yes Operating Power Consumption: 13.60 WColor: Black VESA Mount Compatible: Yes Height: 9.5"W idth: 15.5"D epth: 1.7"W eight (Approximate): 6.70 lbPackage Contents: 1593L 15.6" Open Frame Touchscreen (Rev B) HDMI cable VGA Cable RJ45 OSD Remote Touch USB Cable User Manual CD Quick Install Guide Flush Mount Brackets w/Screws EEI Label Japan Class-B TM info sheet Environmentally Friendly: Yes Environmental Certification: T? V, RoHS, China RoHS, WEEE Limited Warranty: 3 Year
