NET485 - RS485 Ethernet Adapter (GC-NET485-01)

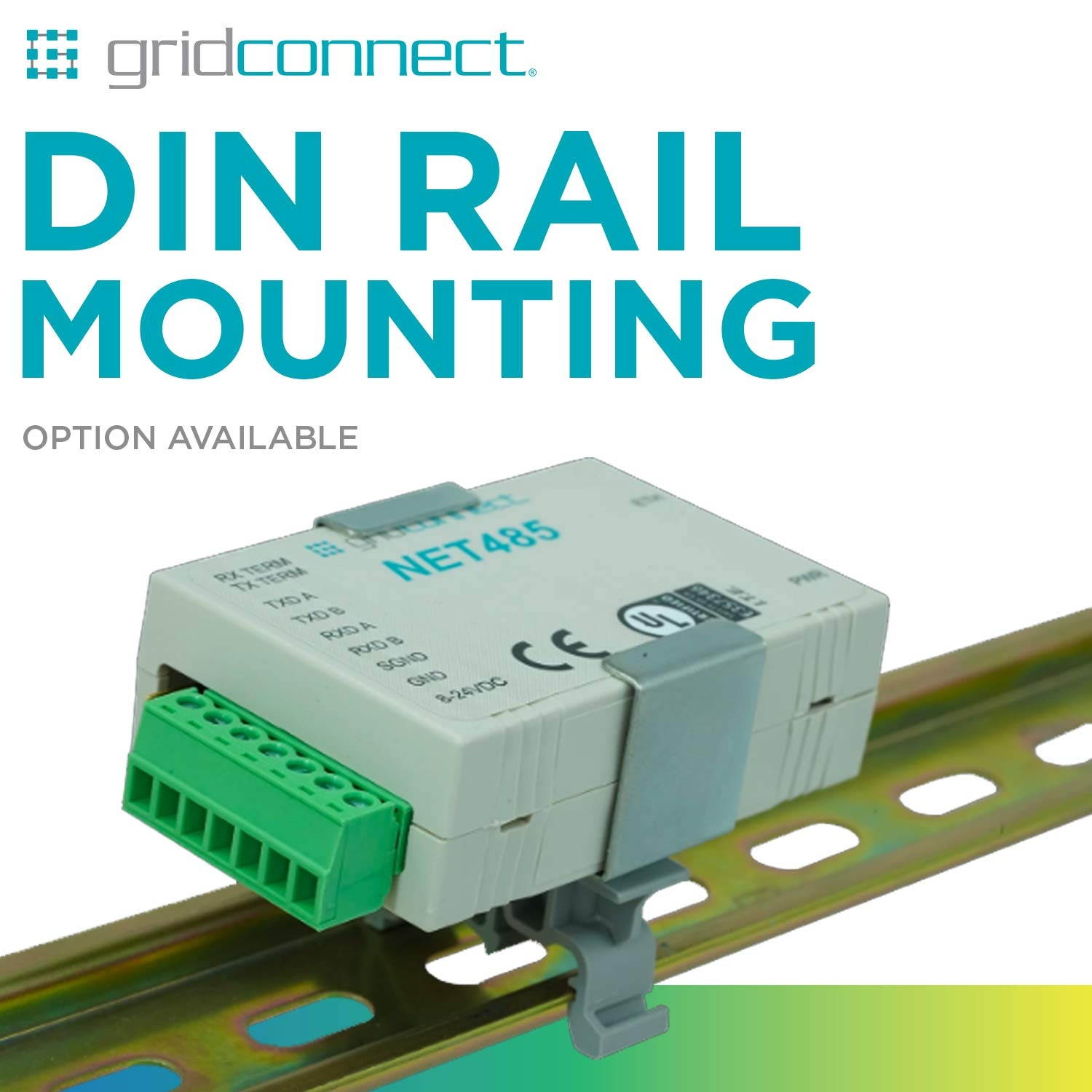

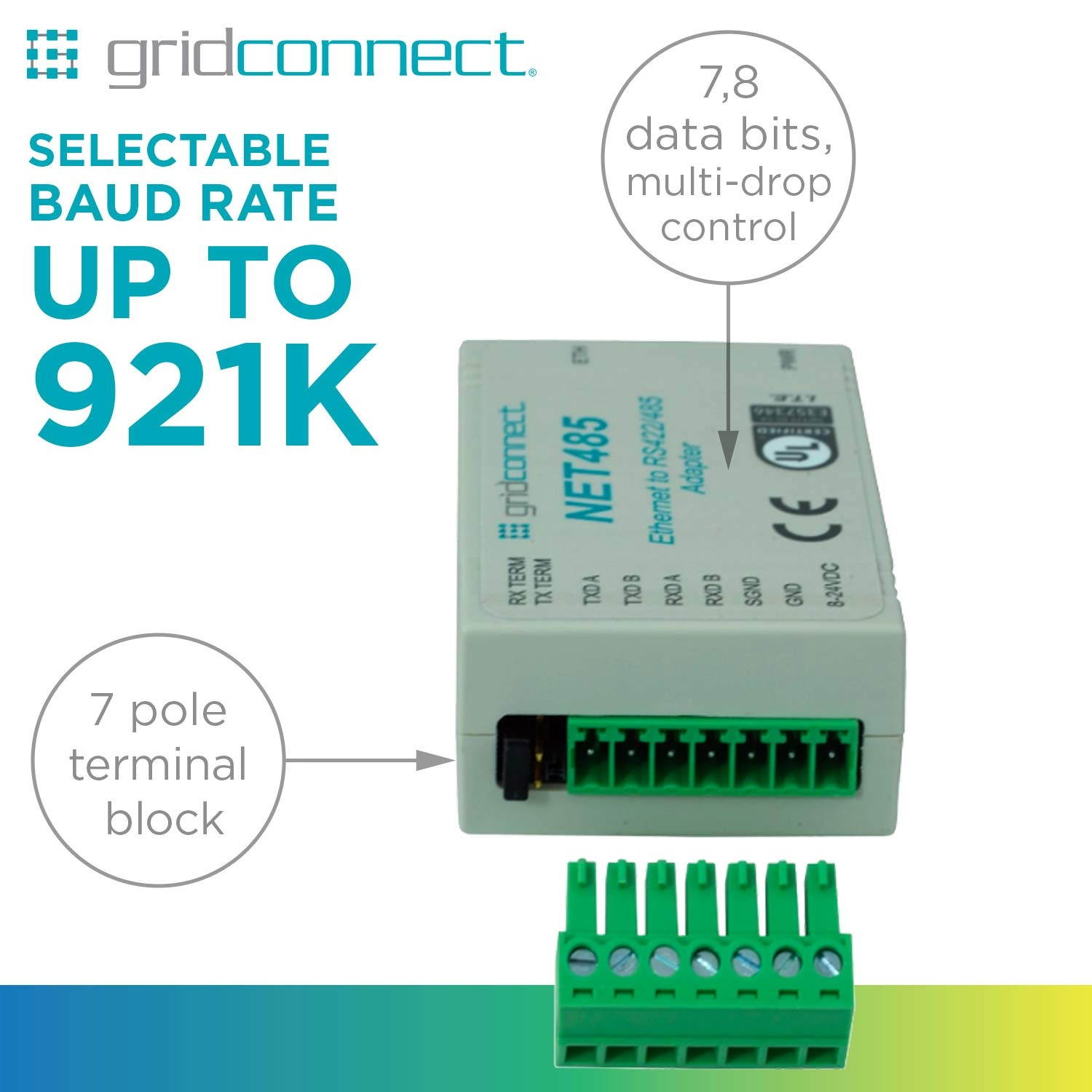

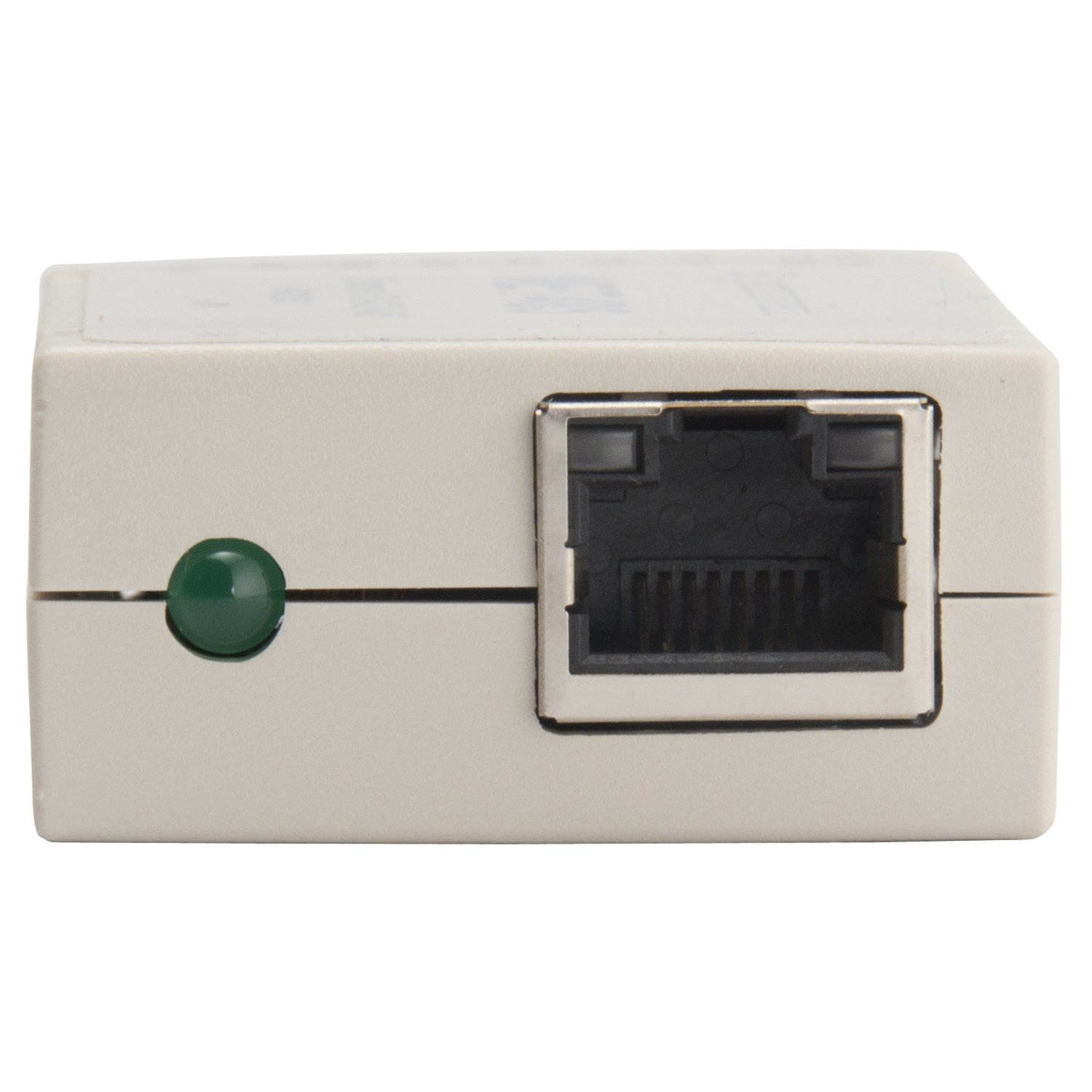

NET485 - RS485 Ethernet Adapter (GC-NET485-01) Item Condition: New Brand: grid connect Item model number: GC-NET485-01 Product Information - Auto Sensing 10BASET/100BASE-TX compliant - Supports baud rates up to 921K - 7, 8 data bits, multi-drop control - Local or Worldwide Internet Connection - 6-Page built-in Web Server, configuration and user pages - Jumpers to enable optional Tx/Rx Termination Resistors - 7 pole terminal block for all signals and power connections - Serial Device Server using XPort - Auto Sensing 10BASET/100BASE-TX compliant - Ethernet Activity, Status, and Power LEDs The NET485 RS485 Ethernet adapter allows you to connect either RS422 or RS485 transceivers in order to enable remote serial communications up to 4, 000 feet, thus making the device web enabled and eliminating the limitations generally imposed by cable length. Additionally the RS485 Ethernet adapter also allows for "serial tunneling" of the device through TCP/IP or Ethernet allowing two devices to be used as a cable replacement. With the RS485 two-wire mode, you can connect the NET485’s serial interface to several devices within a multi-drop network. The NET485 RS485 Ethernet adapter is based off of the XPort Serial to Ethernet device server, which provides the same features as a high performance device server, including a built-in web server for user customized web pages.
