Orange Pi PC Plus Support Lubuntu linux and android mini PC Beyond Raspberry Pi 2 Wholesale is available
Hardware specification CPU H3 Quad-core Cortex-A7 H. 265/HEVC 4K GPU ·Mali400MP2 GPU @600MHz ·Supports OpenGL ES 2.0 Memory (SDRAM) 1GB DDR3 (shared with GPU) Onboard Storage TF card (Max. 32GB) / MMC card slot 8GB EMMC Flash Onboard Network 10/100 Ethernet RJ45 Video Input A CSI input connector Camera: Supports 8-bit YUV422 CMOS sensor interface Supports CCIR656 protocol for NTSC and PAL Supports SM pixel camera sensor Supports video capture solution up to 1080p@30fps Audio Input MIC Video Outputs Supports HDMI output with HDCP Supports HDMI CEC Supports HDMI 30 function Integrated CVBS Supports simultaneous output of HDMI and CVBS Audio Output 3.5 mm Jack and HDMI Power Source DC input, USB OTG input don't supply power USB 2.0 Ports Three USB 2.0 HOST, one USB 2.0 OTG Buttons Power button Low-level peripherals 40 Pins Header, compatible with Raspberry Pi B+ GPIO (1x3) pin UART, ground. LED Power led & Status led Key IR input, POWER Supported OS Android Lubuntu, Debian, Raspbian Image Interface definition Product size 85mm × 55mm Weight 70g

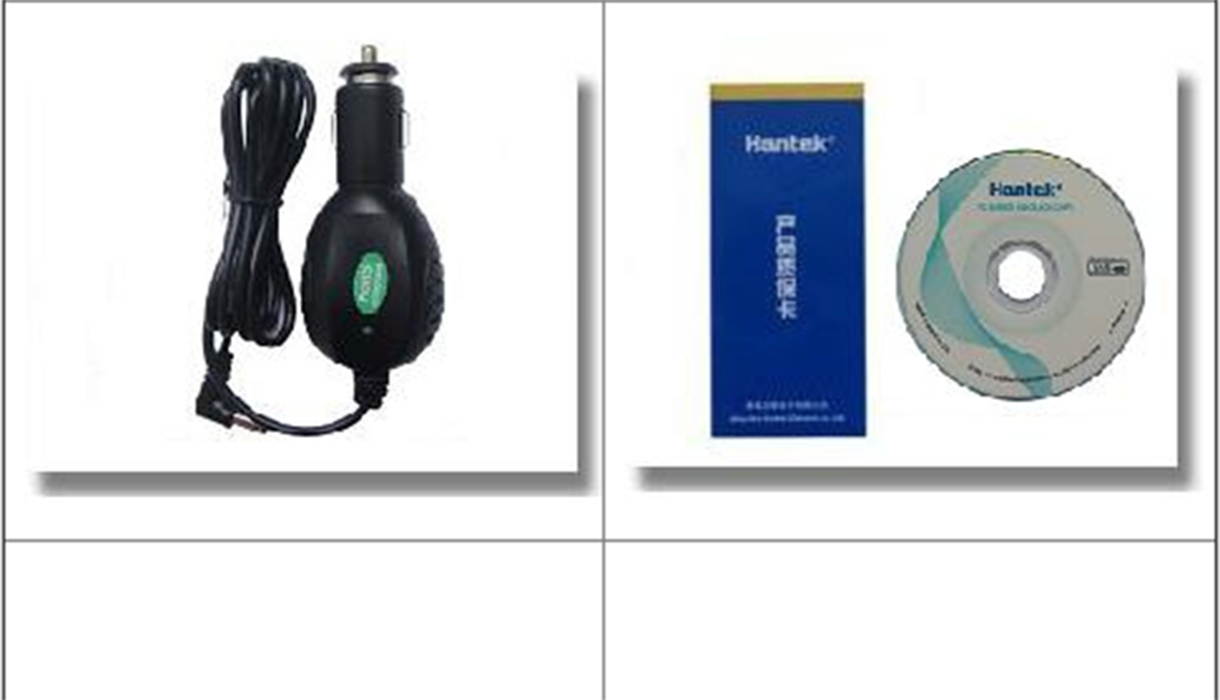

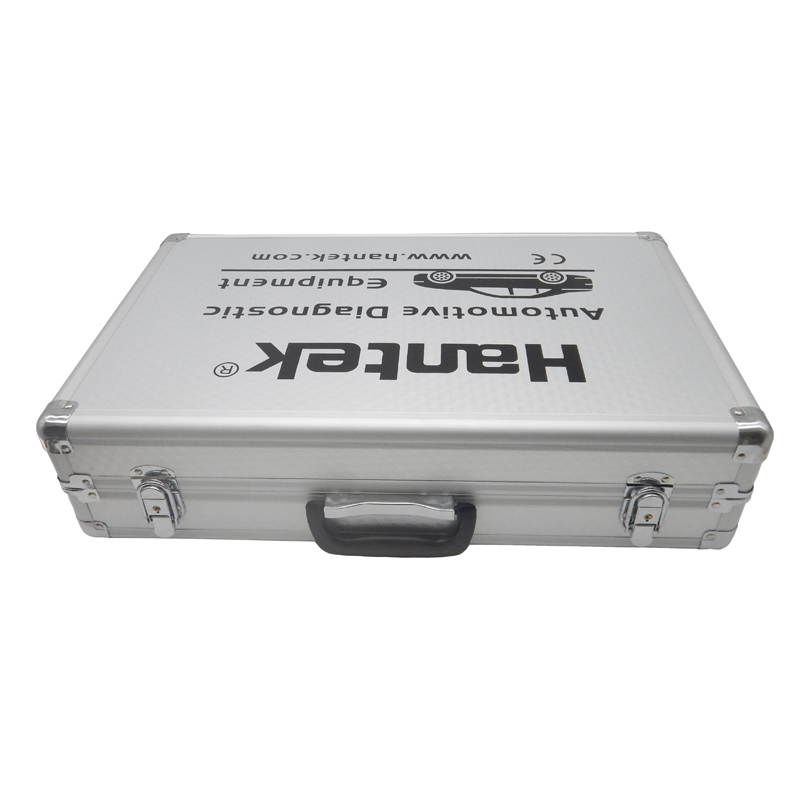

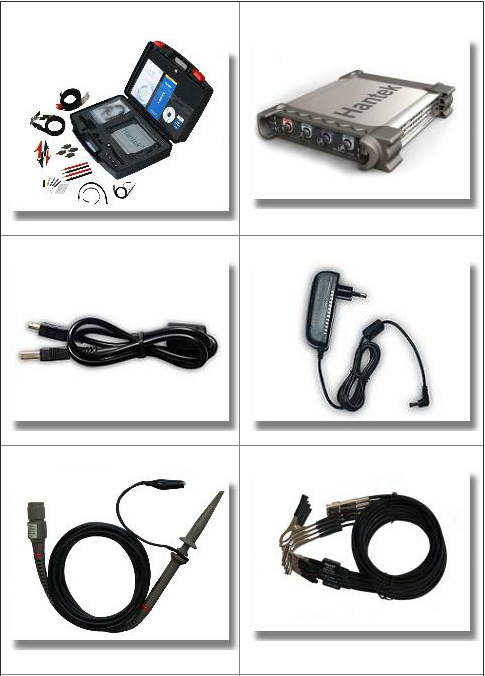

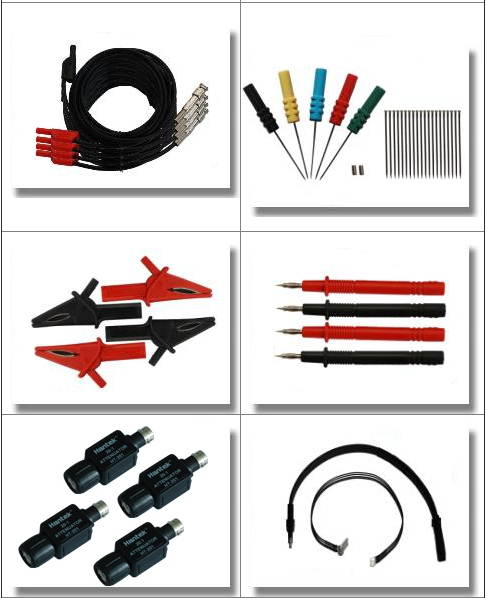

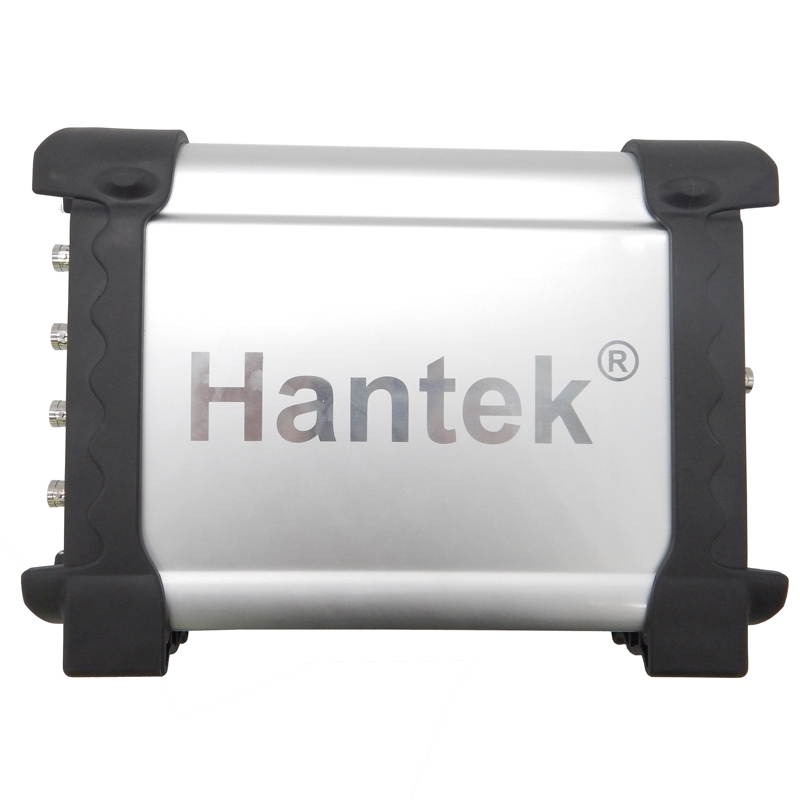

Hantek DSO3064 Kit II PC-Base USB 60MHz 4CH 200MS/s Digital Oscilloscope
Qingdao Hantai genuine DSO3064 virtual oscilloscope 4 channel / car diagnostics (set one) Characteristics Car diagnosis: Primary ignition Starter and charging circuit Oxygen sensor, air flow sensor, intake pressure sensor, vehicle speed sensor, detonation sensor, ABS wheel speed sensor... CAN bus, LIN bus and Fex Ray Injector and fuel pump Battery, alternator and starter motor Glow plug, time relay, etc... Oscilloscope: 4-channel oscilloscope and EXT trigger, 60MHz bandwidth 200MS/s real-time sampling rate, 10K-16M memory depth per channel. Frequency counter, spectrum analysis. other: 8-36V wide input voltage, suitable for automotive power detection USB 2.0 interface plug and play, LAN and WIFI interface optional More than 20 automatic detection functions, pass/fail detection function, suitable for engineering applications. Excellent industrial design, similar to the desktop oscilloscope, easy to use. Software support: Windows NT, Window 2000, Windows XP, VISTA, Windows 7 Provide VC, VB, LABVIE secondary development sample source code Introduction: 4Channels Oscilloscope, 60MHz Bandwidth. 200MS/s sampling rate, 10k--16M memory depth. Frequency Counter, FFT spectrum analysis. USB, LAN optional. Overview: Vehicle Diagnosis: First Diagnosis (Cranking Exhaust Diagnosis) Ignition Action(Current/Voltage) The Sensor(Air Flow Meter, Camshaft, Crankshaft? ) Bus Diagnosis (CAN Bus Data View) Performer(Petrol/Diesel) Startup & Charge(Charging Circuits Current/Voltage) Oscilloscope: 4 Channels and EXT trigger, 60MHz Bandwidth. 200MS/s real-time sampling rate, 10k--16M memory depth per Channel. Frequency Counter, FFT spectrum analysis. 8--36V Wide range of input voltage, suitable for vehicle power test USB 2.0 interface plug and play, LAN optional. More than 20 kinds of automatic measurement and PASS/FAIL Check function, which is suitable for engineering application. Excellent industrial design, similar interface with bench oscilloscope, Easy to use. Software support: Windows NT, Windows 2000, Windows XP, VISTA, Win7, Win8. Supply DEMO code (VC, VB, LABVIEW) and technical support. Vertical System Analog Channels: 4 Bandwidth: 60MHz(-3dB) Rise Time: 5.8 ns Input Impedance: Resistance: 1MO; Capacitance: 25 pF Input Sensitivity: 10mV/div to 5V/div Input Coupling: AC/DC/GND Vertical Resolution: 8 bits Memory Depth: 10K-16M/CH Maximum Input: 400V (DC+AC Peak) Horizontal System Real-Time Sampling Rate: 200MS/s Time Base Range: 5ns/div to 1000s/div(1-2-5 sequences) Time Base Precision: ±50ppm Trigger System Source: CH1, CH2, CH3, CH4, EXT Mode: Edge, Pulse, Viedo, Alternative Voltage Measurement: Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle Cursors Measurement: Horizontal, Vertical, Track, Auto Measure Modes Waveform Signal Process: +, -, x, ÷, FFT, Invert Voltage Range: 10mV to 5V/div @ x 1 probe; 100mV to 50V/div @ x 10 probe; 1V to 500V/div @ x 100 probe; 10V to 5000V/div @ x 1000 probe; 100V to 50000V/div @ x 10000 probe; 200mV to 100V/div @ 20:1 Current Range: CC65 (20A), CC65 (60A), CC650, CC1100 FFT: Rectangular, Hanning, Hamming, Blackman Window Math: Adition, subtraction, multiplication, division Gennral Feature Interface: USB 2.0 (Lan Optional) Power Source: 8--36V Wide range of input voltage Volume: 255 x 190 x 45 (mm) Weight: 1Kg

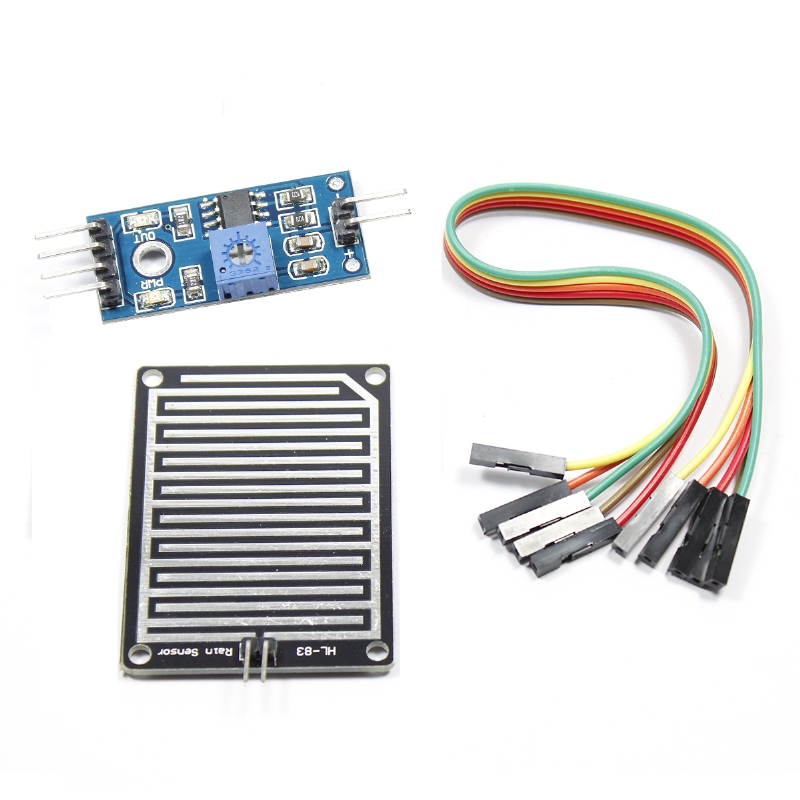

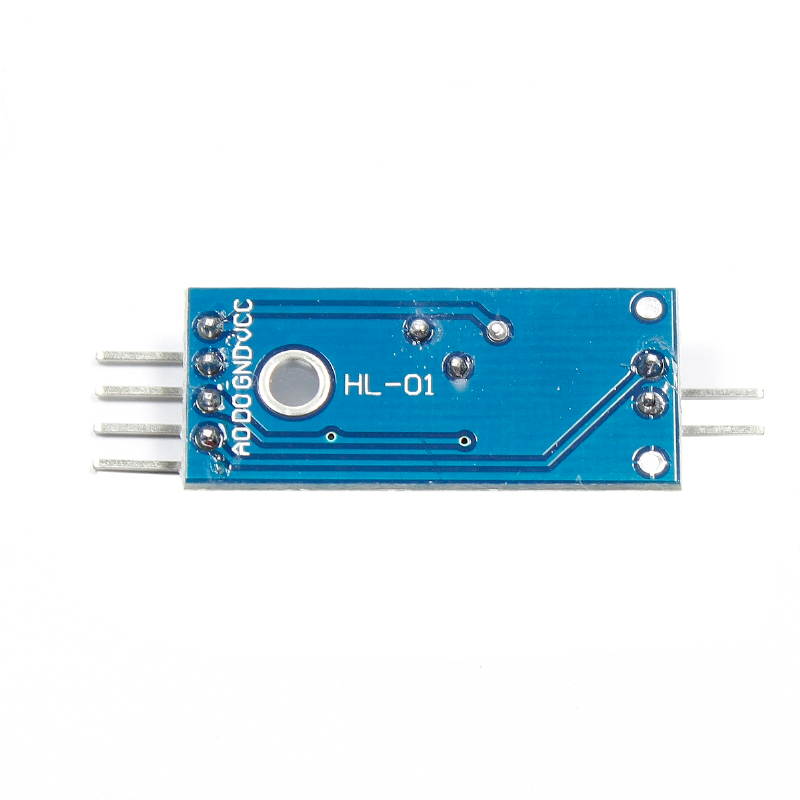

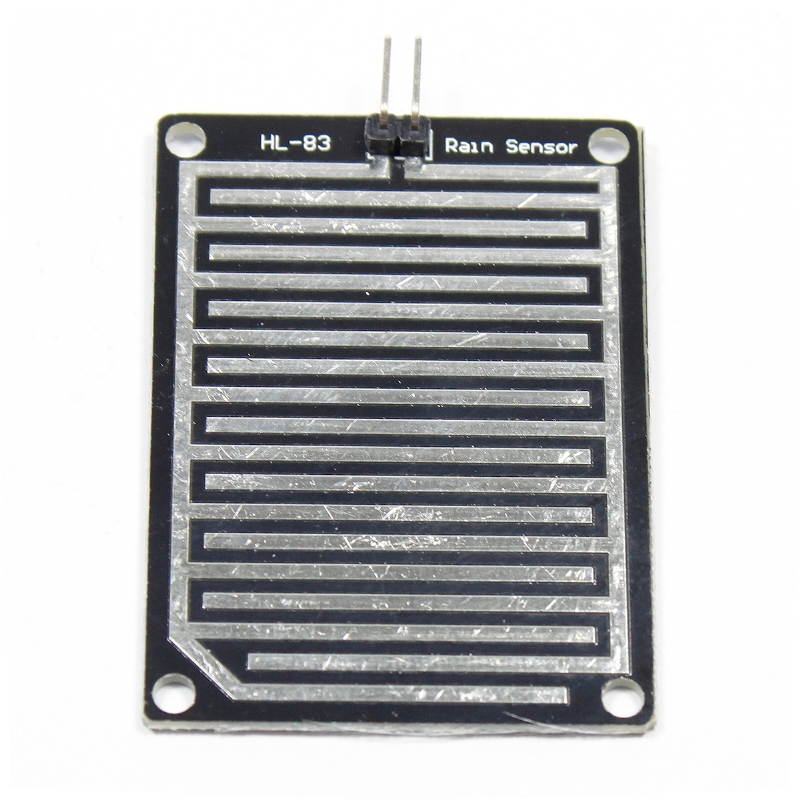

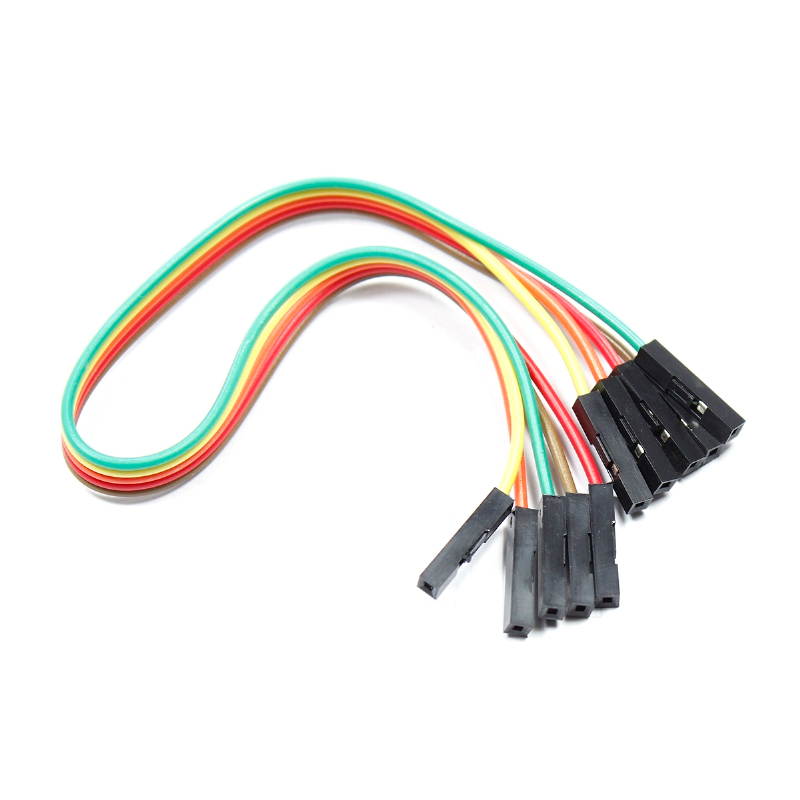

Weather Raindrop Rain module Rain sensor Leaf sensor module Highly sensitive
Product Usage: Raindrops, rain sensors, can be used to monitor various weather conditions and convert to digital signals and AO outputs. product description: 1. The sensor adopts high-quality FR-04 double-sided material, with a large area of?? 5.0 * 4.0CM, and is treated with nickel-plated surface, which has superior performance against oxidation, electrical conductivity and life; 2, the comparator output, the signal is clean, the waveform is good, the driving ability is strong, more than 15mA; 3, with potentiometer adjustment sensitivity; 4, working voltage 3.3V -5V 5. Output form: digital switch output (0 and 1) and analog AO voltage output; 6, with fixed bolt holes for easy installation 7, small board PCB size: 3.2 cm x 1.4 cm 8, using a wide voltage LM393 comparator Features: Connected to the 5V power supply, the power indicator light is on, when there is no water droplet on the sensor board, the DO output is high level, the switch indicator light is off, a drop of water is dropped, the DO output is low level, and the switch indicator light is on. Brush the water droplets above and return to the high level state.... AO analog output, you can connect the AD port of the microcontroller to detect the amount of rain on the drop. The DO TTL digital output can also be connected to a microcontroller to detect rain. Wiring: 1. VCC: Connect the positive pole of the power supply (3-5V) 2, GND: connected to the negative power supply 3, DO: TTL switch signal output 4, AO: analog signal output

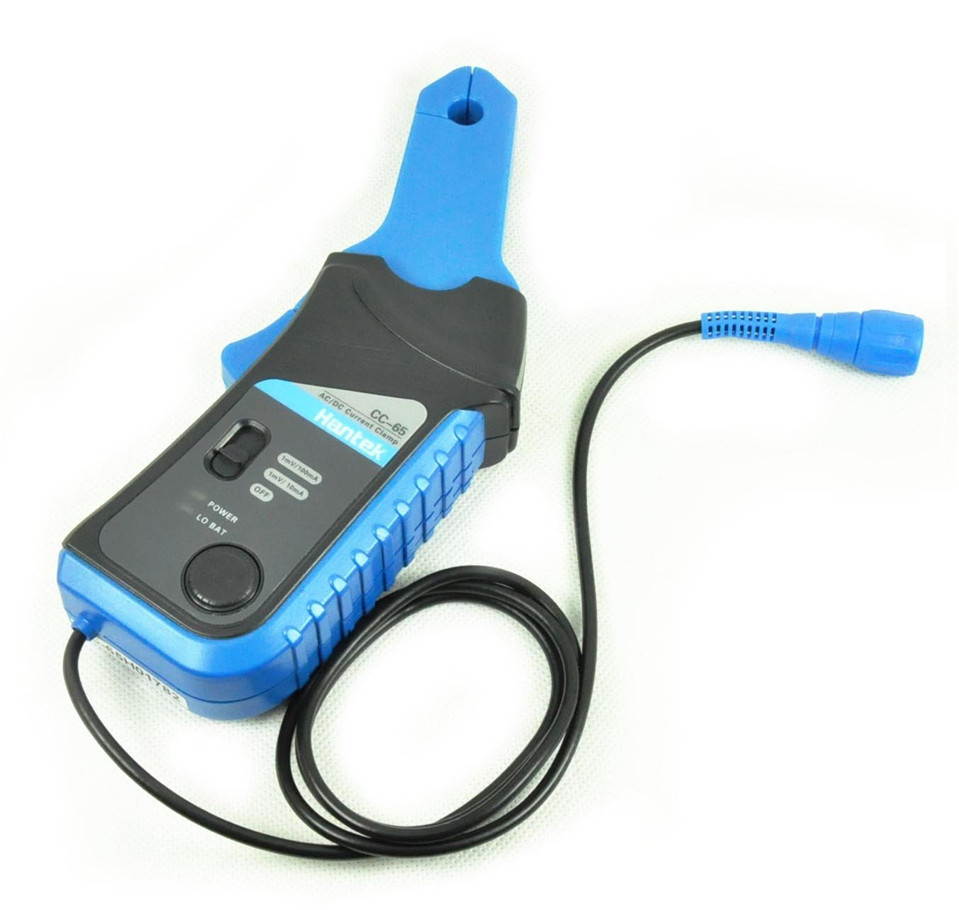

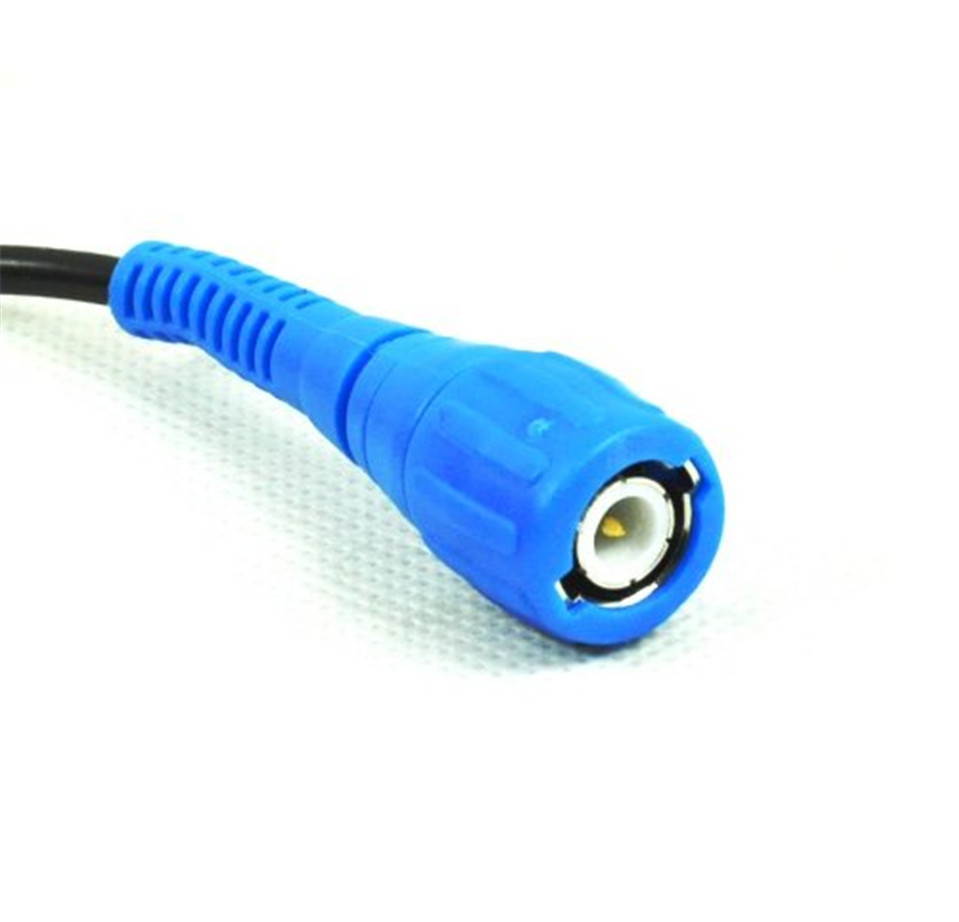

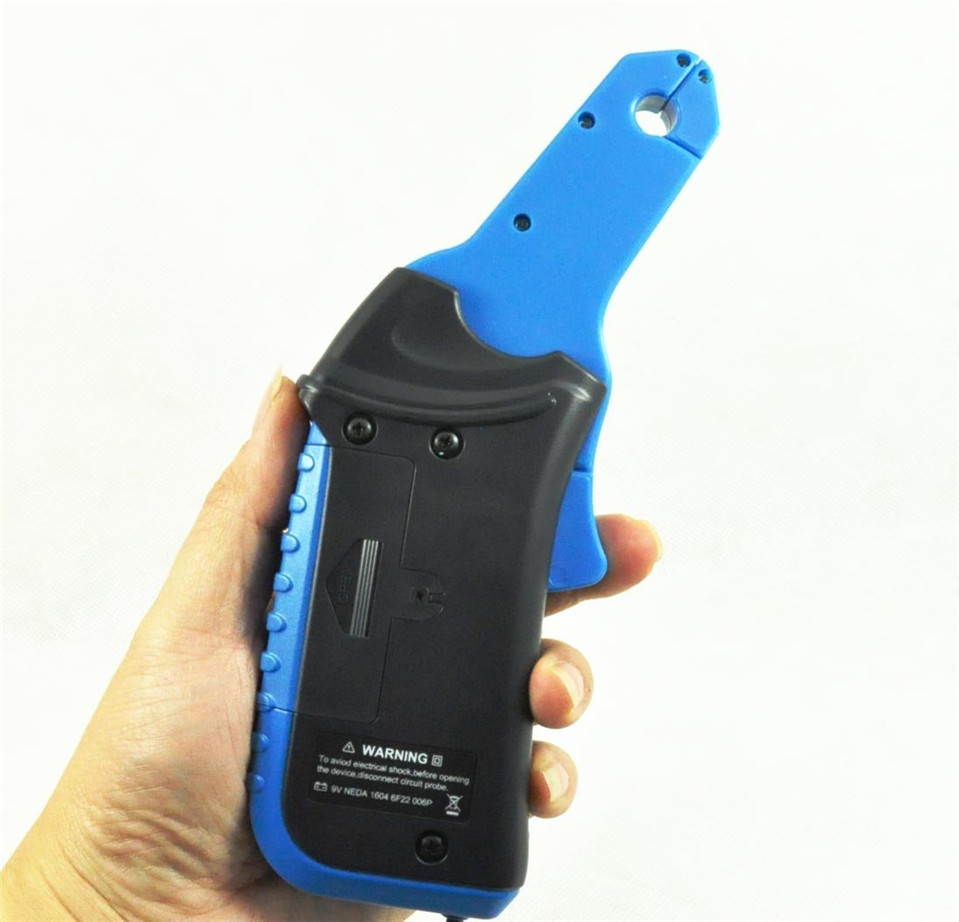

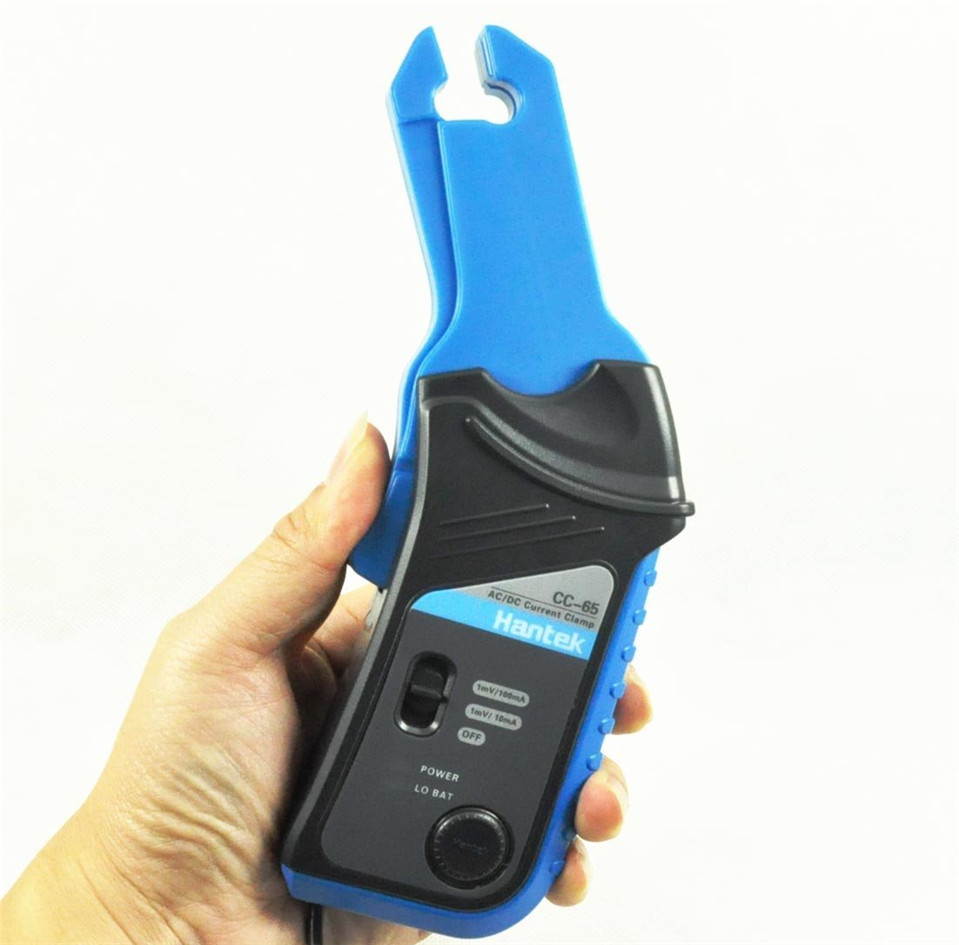

Hantek CC-65 AC/DC Multimeter Current Clamp Meter with BNC Connector CC65
1) AC/DC frequency range: Up to 20 kHz 2) Effective Measurement Range: 20mA to 65A DC 3) It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms. 4) Its current transducer is composed by permalloy and hall element, which linearly transform the AC or DC current to AC or DC current voltage. 5) And if connect to an oscilloscope by BNC type connector, you are able to observe the current waveforms; If connect to a multimeter by banana type connector, you can obtain the current data. 6) Application: Power circuit measurement and malfunction analysis; Motor drive of frequency converter (or other electronics) measurement; Power electronics equipments measurement
V48.88 SBB Pro2 Key Programmer Support Cars to 2017 Replace SBB 46.02
Product Description Now SBB PRO2 Key Programmer Updated to V 48.88 Version. support new cars to 2017.12. like for Acura 2017, Chevrolet 2017, Buick 2017, Cadillac, GMC 2017, Ford 2017, Dodge 2017, Toyota 2017... Sbb Pro2 Key Programmer Updated to V 48.88 Can Support New Cars to 2017 Replace SBB 46.02 Now SBB PRO2 Key Programmer Updated to V 48.88 Version. support new cars to 2017.12. like for Acura 2017, Chevrolet 2017, Buick 2017, Cadillac, GMC 2017, Ford 2017, Dodge 2017, Toyota 2017. Sbb Pro2 Key Programmer Highlights: 1. SBB PRO2 Key Programmer Software Version: 48.88 2. Language: English, Italiano, Deutsch, Francais, Espaniol, Portugues, Turkish 3. It is without limited tokens. 4. Support Toyota G Chip 5. It is a new generation of the SBB Key Programmer, the replace version 6. Support Toyota, Honda and Ford... Year 2017 7. SBB V 33.03 works to V 2011.12, SBB V 46.02 works to V 2015.12. SBB PRO2 key programmer is better for European vehicles, and it is no token system 1. Programming new keys 2. Reading keys from immobilizer's memory /pin code 3. Reactivating keys no longer in the car owner's possession 4. Operation by means of a menu guided programming 5. SBB PRO2 Key Programming new remote controls. SBB PRO2 Key Programmer Car List Multi Brands 1 Acura HONDA MITSUBISHI USA 2 Alfa Romeo HONDA USA NISSAN 3 AUDI HYUNDAI NISSAN JAPAN 4 CADILLAC (GM) HYUNDAI USA NISSAN (TRUCKS) 5 CHEVROLET - for DAEWOO JAGUAR NISSAN USA 6 CHRYSLER JEEP OPEL-for VAUXHALL 7 CITROEN KIA PEUGEOT 8 DODGE KIA USA RENAULT 9 EAGLE LANCIA SEAT 10 FIAT LEXUS SKODA 11 FIAT - PSA LINCOLN SUBARU 12 FORD AUSTRALIA MAZDA SUZUKI 13 FORD EU MERCURY TOYOTA - PSA 14 FORD USA MITSUBISHI TOYOTA USA 15 GENERAL MOTORS BRASIL MITSUBISHI AUSTRALIA VOLKSWAGEN 16 HOLDEN MITSUBISHI GREEK VOLKSWAGEN (BRAZIL) Check detailed V 48.88 SBB Pro2 Full Support IMMO and Remote List SBB PRO2 Key Programmer Function Vehicle List: PIN Code Service HYUNDAI pincode KIA pincode NISSAN bcm code VAG pincode VAG 7-4 pincode How to use SBB PRO2 to make keys: 1) Before running SBB PRO2 key programmer, please insert the blank new key into your car keyhole; 2) Turn on ignition switch; 3) Insert SBB 16-pin interface into your car OBD2 diagnostic seat. 4) Follow the instructions showed on the SBB screen. SBB PRO2 key programmer copies chip according to car model, and it programs key not clones key, you only needs to insert SBB 16-pin interface into your car OBD2 diagnostic seat, then read out immobilizer pin code from immobilizer dump/EEPROM of the car before writing it into new blank key. When programming for Ford vehicle, it does not need pin code.
Itead microcontroller sim900 module GSM SMS gprs module extension compatible with raspberry delivery antenna
1. There is a switch on the expansion board to select SIM900 serial port or SIM900 debug port connection. If you select Debug port, you must use Arduino hardware serial port to control, the analog serial port is invalid. A Farah capacitor is provided on the board to power the RTC of the module. 2. Debug toggle switch, you can connect the DE900 port of SIM900 to Arduino or connect to PC via ATMEGA8U2/FT232 on Arduino for debug debugging. 3. 3.3V and 5V automatic level compatible, can adapt to 3.3V or 5V main control board, support other platform development boards such as leaf maple and Chipkit 3.3V If you need to download the data, please contact us.

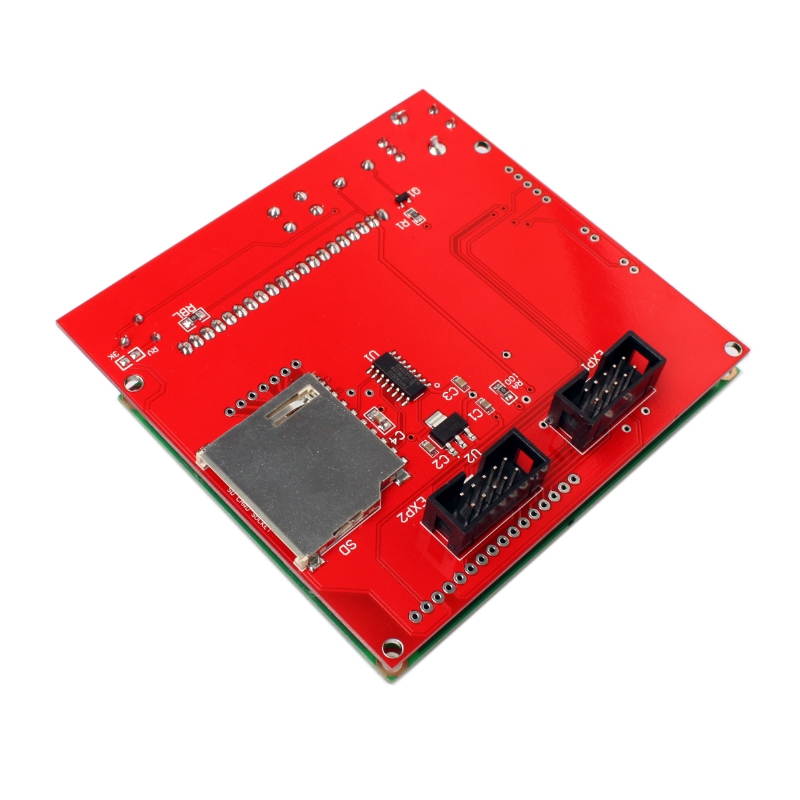

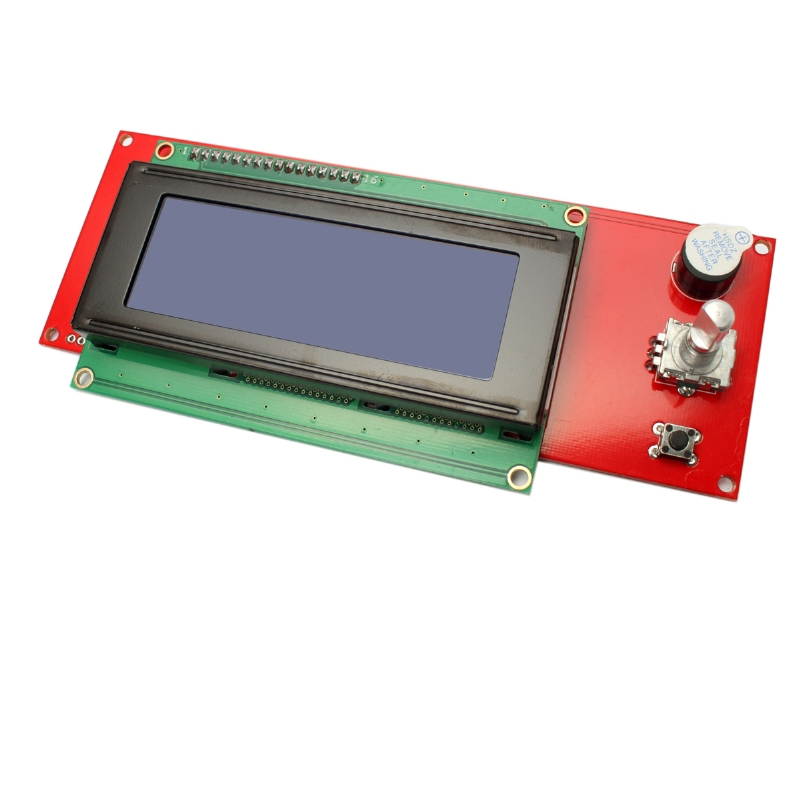

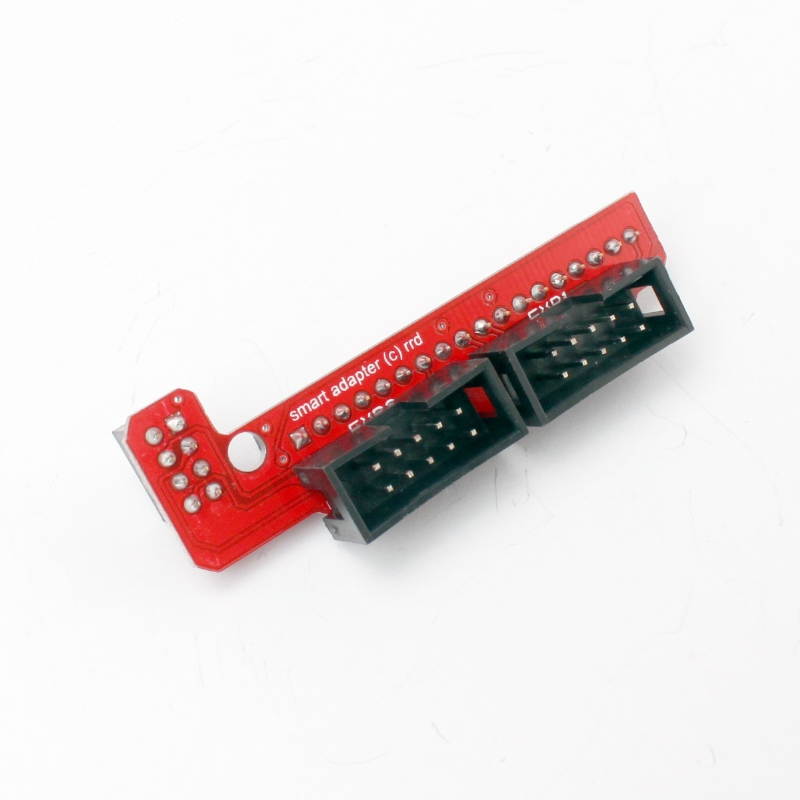

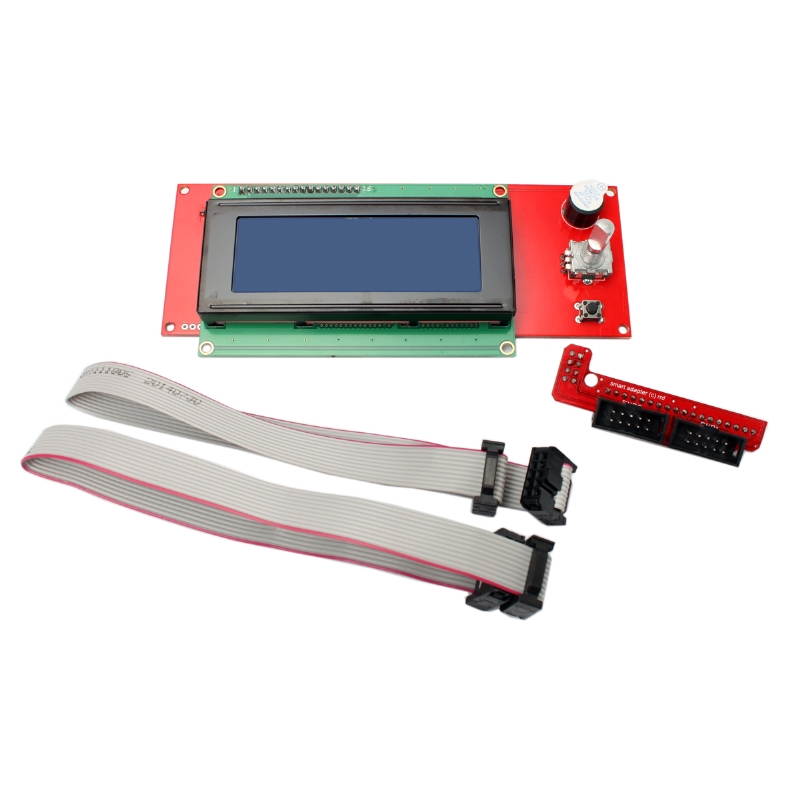

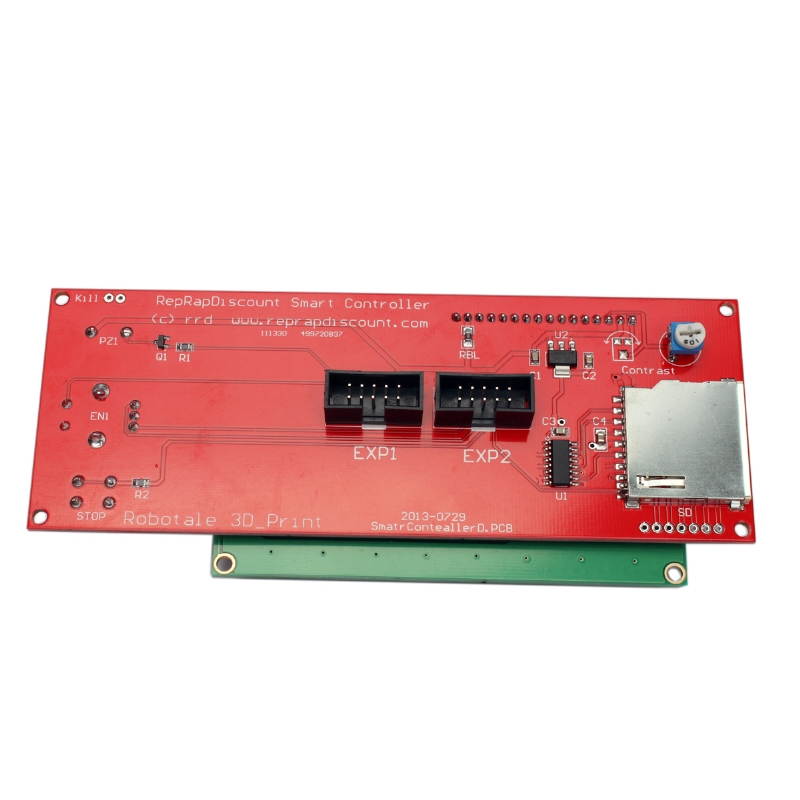

3D Printer Kit Reprap Smart Parts Controller Display Reprap Ramps 1.4 2004 LCD LCD 2004 Control
The intelligent controller includes an SD card reader, rotary encoders and a 20-character × 4 line LCD display. You can easily connect it to your RAMPS 1.4 board using "smart adapter" included.
This panel connect your RAMPS 1.4, you do not need your computer, your SD card intelligent controller power supply. All further operations, such as calibration, the axis movement can be done only with a rotary encoder intelligent controller. 3D design print without a computer, just use the G code design stored on the SD card.
Keyboard 2.4G Wireless Keyboard Russian Spanish English Version For PC Android TV Raspberry Pi for Orange Pi
Package Iist:
1 x Wireless Keyboard ( not include battery)
1 x USB Receiver
Orange Pi One Plus H6 1GB Quad-core 64bit development board Support android7.0 mini PC
Hardware specification CPU H6 Quad-core 64-bit ARM Cortex™-A53 GPU • High-performance multi-core GPU Mali T720 • OpenGL ES 3.1 / 3.0 / 2.0 / 1.1 • Microsoft DirectX 11 FL9_3 • ASTC (Adaptive Scalable Texture Compression) • Floating point operation greater than 70 GFLOPS Memory (SDRAM) 1GB LPDDR3 (shared with GPU) Onboard Storage TF card (Max. 32GB) /MMC card slot Onboard Network 10/100M/1000M Ethernet RJ45 Network Chip RTL8211 Audio Input MIC Audio Output HDMI 2.0 a Video Decoding H265/HEVC Main/Main10 profile@Level 5.2 High-tier; 4K@60fps, up to 6Kx4K@30fps H264/AVC BP/MP/HP@level 5.1, MVC, 4K@30fps VP9, Profile 0/2, 4K@30fps AVS+/AVS JIZHUN profile@level 6.0, 1080P@60fps Video Outputs HDMI 2.0 a TX with HDCP 2.2 output Power Source DC input, USB OTG input can supply power PMU AXP805 USB 2.0 Ports One USB 2.0 Host, one Micro USB 2.0 Low-level peripherals 26 Pins Header GPIO (1x3) pin UART, ground. LED Power led & Status led IR Receiver Yes Key Power (K1) Supported OS Android, Ubuntu, Debian Interface definition Product size 68 mm × 48mm Weight 45g

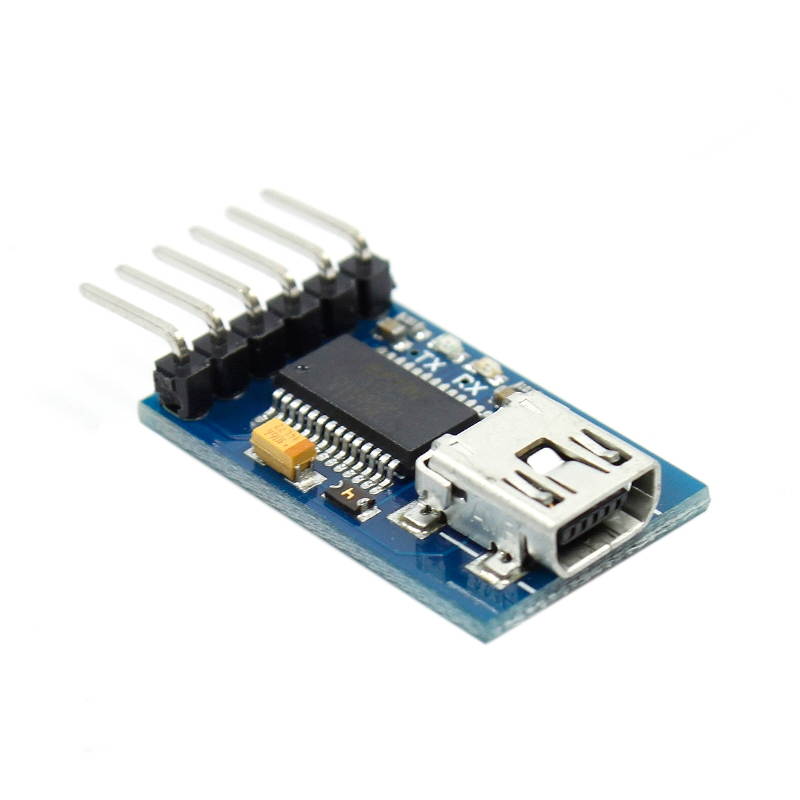

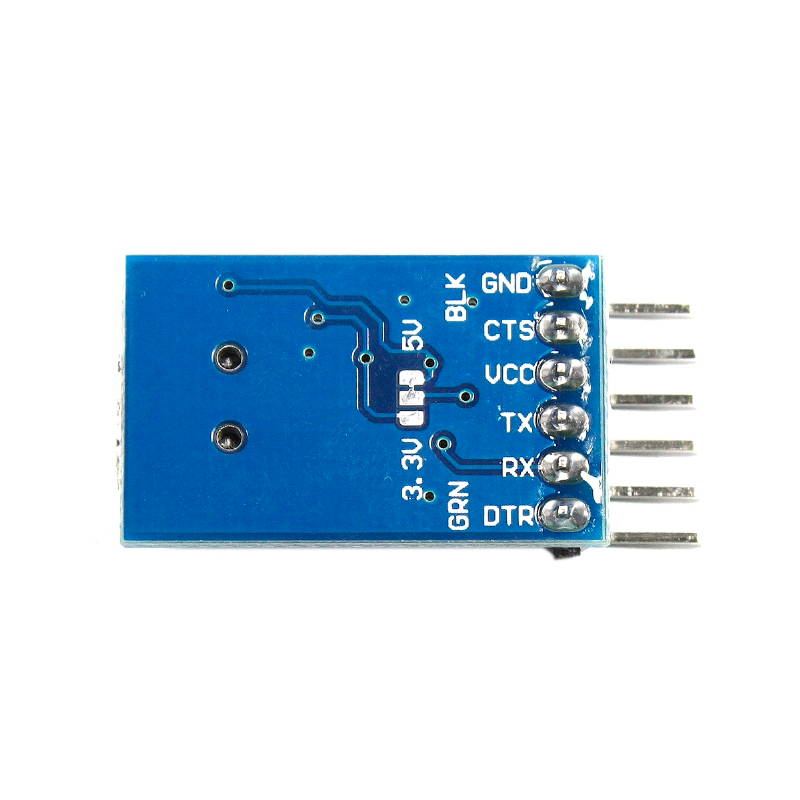

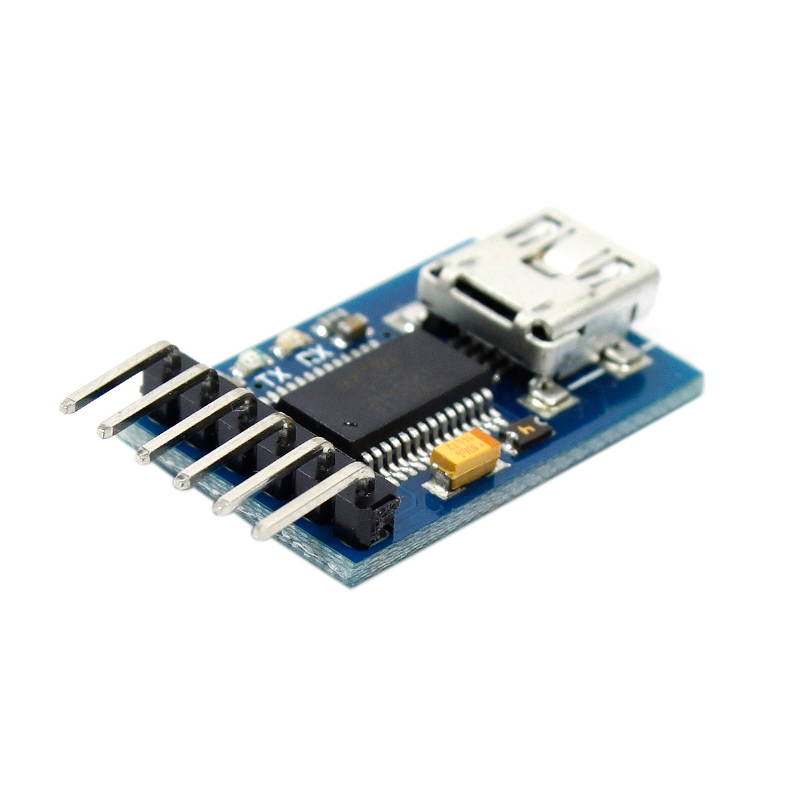

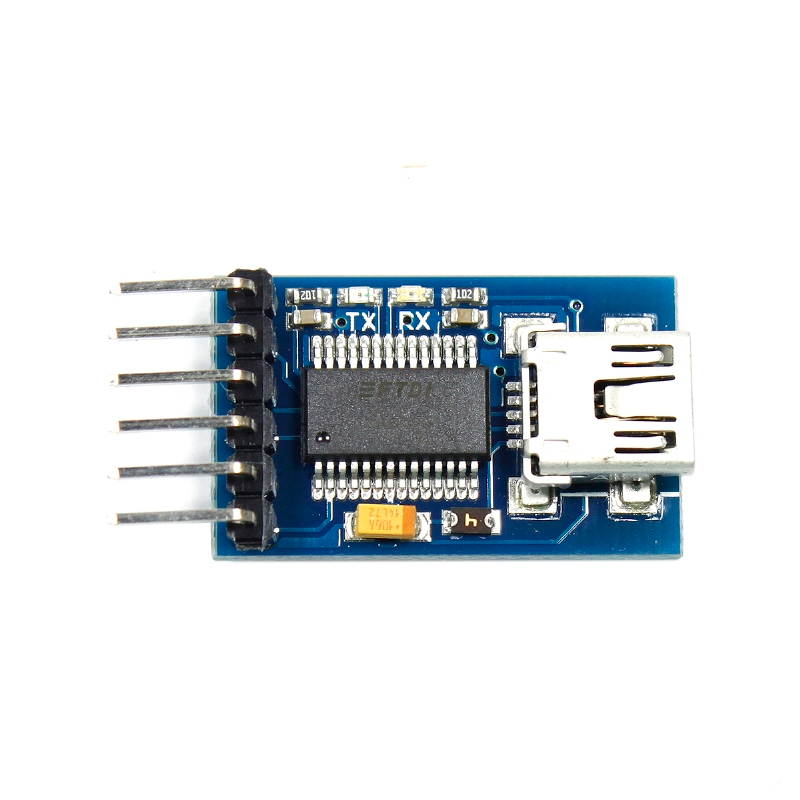

USB to TTL support 3.3V 5V dual power supply FT232RL FTDI MWC debugger
USB2TTL protected version overcurrent protection version!! Using USB 2.0 good FT232RL chip, USB power supply uses 500MA fuse (FUSE) to protect your USB power and equipment! More stable performance!! This product uses a new design, using USB 2.0 good FT232RL chip, convert USB into serial port. Available in two power versions. Each module is tested by the self-receiving 10W bytes before leaving the factory!! PCB board size: 17mm by 32.5 mm [Introduction to FT232R] With the development of computer technology, the parallel port and serial port slowly disappeared on the PC, and now there are few parallel ports on the desktop. But for engineers, both the parallel port and the serial port are essential interfaces, especially the serial port. For a computer without a serial port, the convenient solution is to use a USB to serial port chip to virtualize a serial port. Many manufacturers have such chips, such as the CP210x series of silicon LABS, the TUSB3410 of TI, the CH34x series of Nanjing Haoheng, and FTDI. FT232 series, Prolific's PL230x series, Aike's ARK3116 and more. From the perspective of stability, the FT232 series is reliable, and it can be used to safely debug the program without worrying about the blue screen. The FT232R chip is a single-chip solution that typically uses essentially no peripherals. The EEPROM, USB matching resistors, and EEPROM for placing product information are already integrated. The FT232R has some more useful features. See the FT232R data sheet for details. [Hardware Introduction] · Adopt FTDI FT232RL chip; ·Export all signal ports of FT232RL chip, TTL/CMOS level; · RXD/TXD transceiver communication indicator; USB powered, selectable 5V or 3.3V interface level (if other levels are required, the target voltage can be provided directly on the VCC and GND pins).

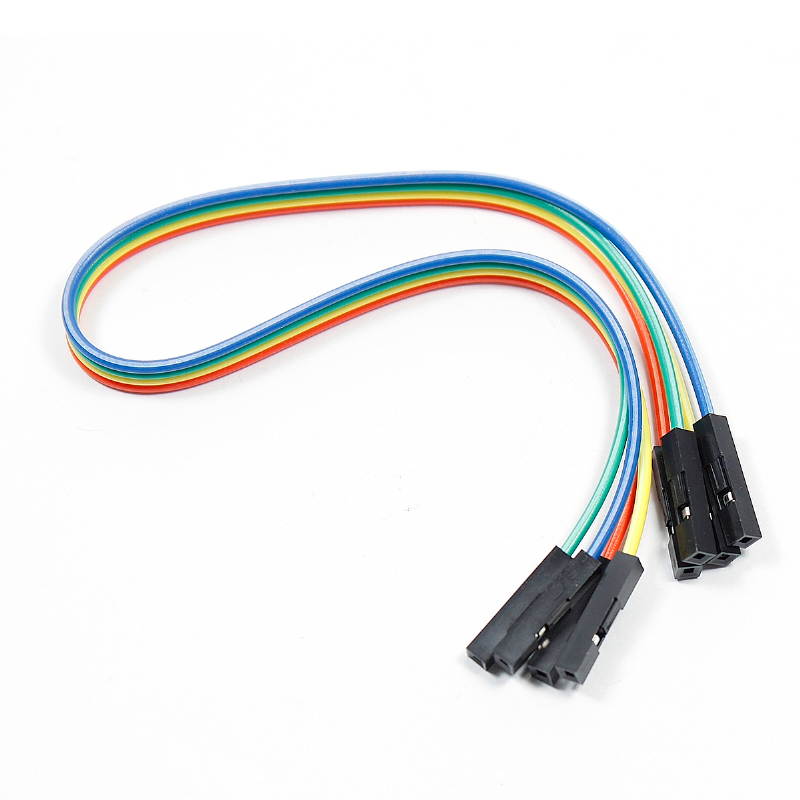

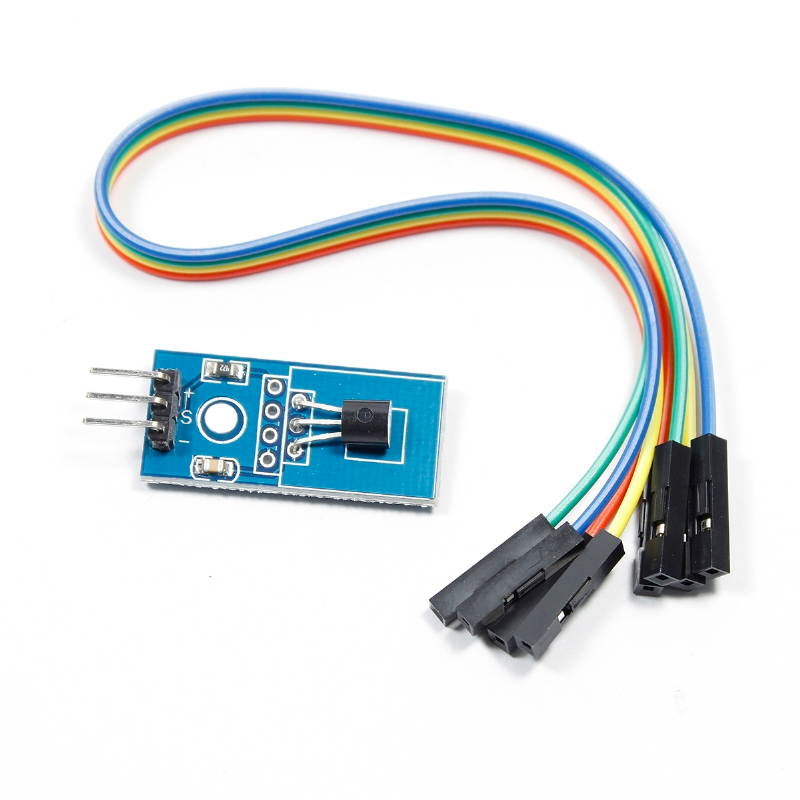

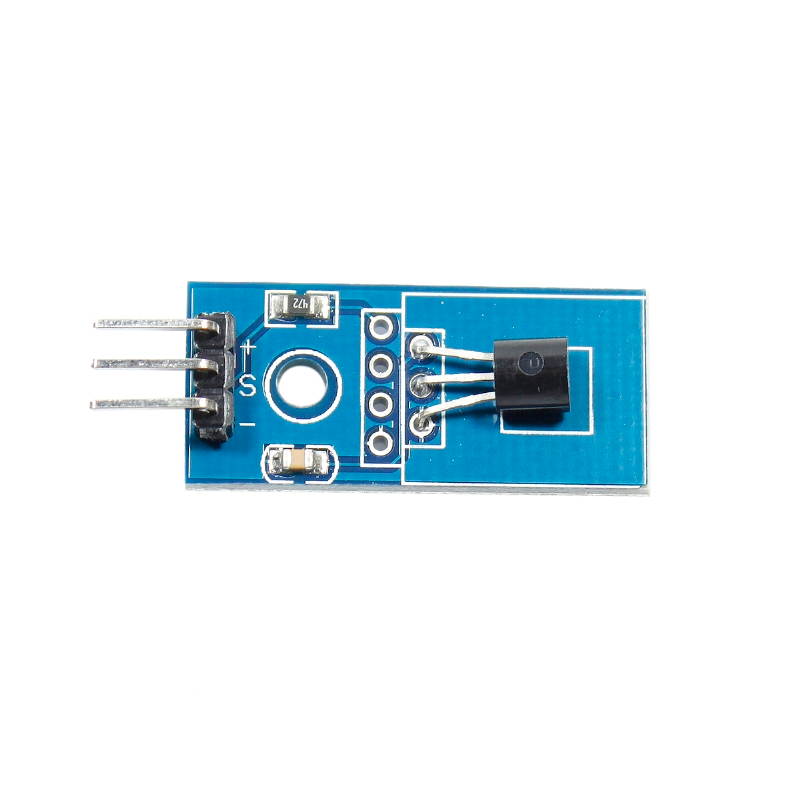

DS18B20 module Single bus digital temperature and humidity sensor Temperature sensor module Send DuPont line
Features
First, long size: 28mm X width 12mm X height 10mm
Second, the main chip: 18B20 temperature sensor
Third, the working voltage: DC 5V
Fourth, the characteristics:
1, resolution adjustment range: 9-12
2, with mounting holes for easy installation, aperture: 2.5
3. Temperature measurement range: -55~+125°C
4, temperature measurement accuracy: 0.5 ° C
5, working voltage: DC5V
6, digital signal output
Orange Pi i96 256MB Cortex-A5 32bit with WIFI and Bluetooth
Hardware specification CPU ARM Cortex-A5 32bit GPU Separate graphic processor, Vivante's GC860 support OpenGLES 1.1 / 2.0 support OpenVG 1.4 support DirectFB support GDI/DirecShow 30M Triangle/s, 250M Pixel/s Memory (SDRAM) Integrated 256MB LPDDR2 SDRAM Onboard Storage TF card / Integrated 512MB 8Bit 1.8V 4K SLC Nand Flash Onboard WIFI+BT RDA5991, WIFI+BT Video Input A CSI input connector Camera Supports 8-bit YUV422 CMOS sensor interface Supports CCIR656 protocol for NTSC and PAL Supports SM pixel camera sensor Supports video capture solution up to 1080p@30fps Power Source USB OTG can supply power Battery input can supply power (Optional) GPIO (1x3) pin UART, ground. USB 2.0 Ports One USB 2.0 HOST, One USB 2.0 OTG Buttons Power Button (SW602) Low-level peripherals 40 Pins Header LED Power led Supported OS Android, Ubuntu, Debian, Raspbian Image Interface definition Product size 60 mm × 30mm Weight 30g

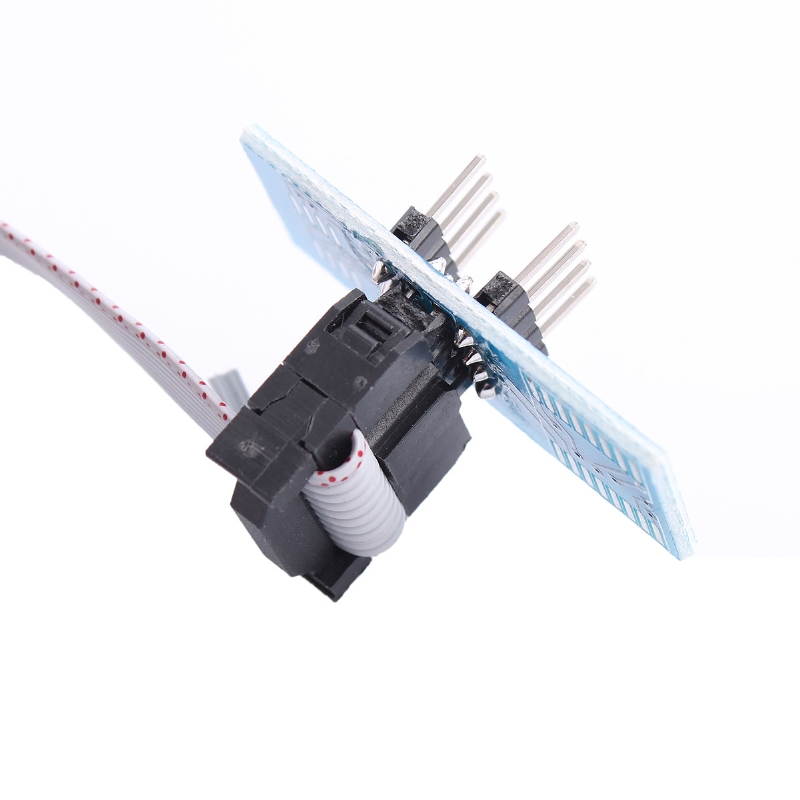

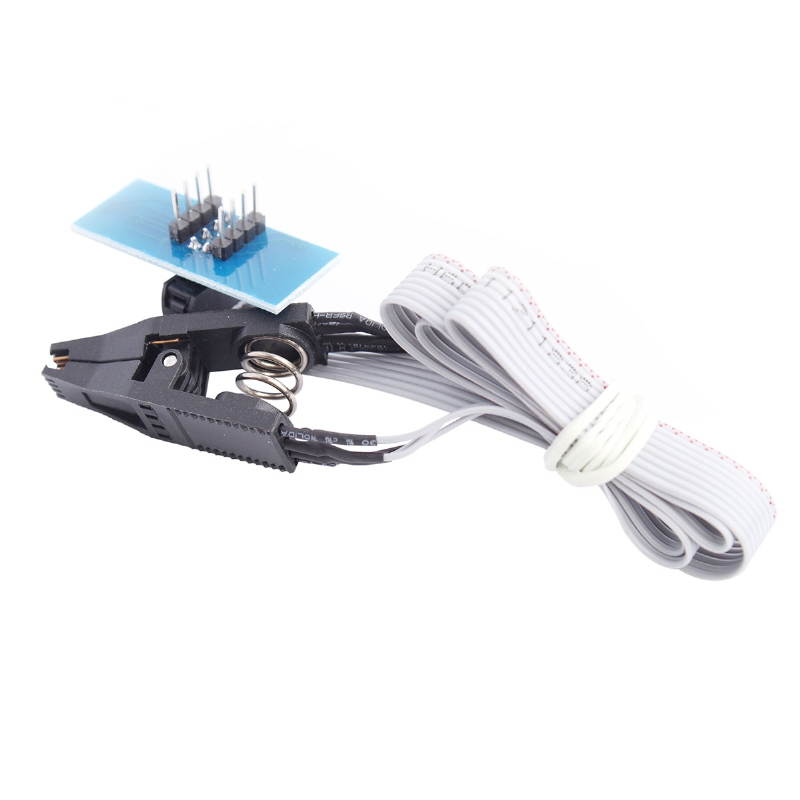

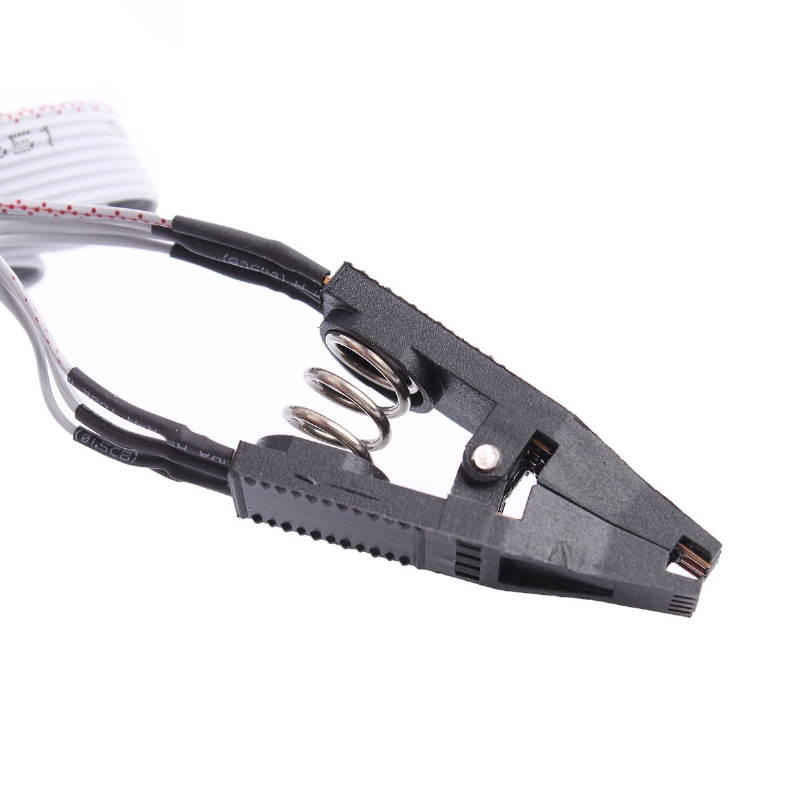

New test clip SOP8 foot BIOS clip Wide and narrow body 8 foot universal clip Adapter clip Burning chip clip
100% brand new and high quality
This item for sop8 chip ,such as 25c, 24c , 93c and so on .
It can be used for the online in-circuit sop8 -dip8 adapter ,it is used for a sop8 chip programming that has been soldered on circuit board , it can online programming the sop8 chip , do not need take the chip of the circuit board , so it can save people\'s time
TEST CLIP, SOIC 8/ SOP8
Connector type: Test Clip
Pin format: SOIC / SOP
Hantek 6074BE Kit II Automotive Diagnostic Oscilloscope 70MHz 1GSa/s 4Channels
Technical Parameters: model Hantek6074BE Analog bandwidth 70MHz Car measurement function Intake manifold vacuum and ignition, soot adjustment valve vacuum and ignition, exhaust ignition (idle), exhaust ignition (start), etc.; Ignition: primary/secondary; Sensors: air flow meter, camshaft, crankshaft, distributor, lambda sensor, throttle position, etc.; bus detection: CAN bus data observation, CAN bus signal integrity, CAN bus LH long-term acquisition, LIN bus, etc.; Actuator: sub-gasoline engine / diesel engine, etc.; Start & Charge: charging circuit, current and voltage detection, etc.; Number of channels 4 channels Real-time sampling rate 1GSa/s Storage depth 64K Time base accuracy ±50ppm Time base range 2ns/div-1000s/div (stepping in 1-2-4) input resistance 1MO 25pF Input sensitivity range 2mV/div~10V/div Vertical resolution 8Bit Vertical displacement range 2mV ~ 10V/div @ x1 probe; 20mV ~ 100V/div @ x10 probe; 200mV ~ 1000V/div @ x100 probe; 2V ~ 10000V/div @ x1000 probe DC gain accuracy ±3% Bandwidth limit 20MHz Trigger type Edge, alternating, pulse width, video Trigger source CH1, CH2, CH3, CH4 Waveform calculation +, -, x, ÷, FFT, reverse Cursor measurement Cross, tracking, vertical, horizontal Automatic measurement Maximum, minimum, peak-to-peak, top value, bottom value, intermediate value, effective value, amplitude, average, period average, pre-shoot, overshoot, period, frequency, rise time, fall time, positive Air ratio, negative duty cycle, positive pulse width, negative pulse width size Length: (175mm) Width: (105mm) Height: (25mm) weight 0.9KG
Raspberry Pi 4 Power Supply 5V 3A USB Type C Power Adapter with ON/OFF Switch CE Certification Power Charger for Raspberry Pi 4B
Introduction
This 5V 3A USB C power adapter is made for Raspberry Pi 4 Model B. There is CE certification for this power supply.
Specification
1. Input: 100-240V AC 50/60Hz, 0.5A Max
2. Output: 5V DC, 3A
3. Interface: USB Type C
4. Plug: EU/US
5. Cable length: 1.5m approx
6. Weight: 100g approx
7. Use for: Raspberry Pi 4 ( also suitable for cellphone)
Features
1. There is ON/OFF switch botton on the power adapter. You can press the switch botton to make the power be on, and press it again to make the power be off. That is very convenient for use.
2. 5V 3A standard power supply for Raspberry Pi 4 Model B.
3. There is CE certification for the power adapter.
HC-SR501 Human Body Pyroelectric Sensor Motion Sensor Module Detector Module for Arduino, Raspberry Pi, PIC and Microcontrollers Electronic Projects
Product Description Specifications: Product Type: HC--SR501 Body Sensor Module Operating voltage range: DC 4.5 -20V Quiescent Current:
Orange Pi Lite2 H6 1GB USB3.0 Bluetooth4.1 Quad-core 64bit development board Support android7.0 mini PC
Hardware specification CPU H6 Quad-core 64-bit ARM Cortex™-A53 GPU • High-performance multi-core GPU Mali T720 • OpenGL ES 3.1 / 3.0 / 2.0 / 1.1 • Microsoft DirectX 11 FL9_3 • ASTC (Adaptive Scalable Texture Compression) • Floating point operation greater than 70 GFLOPS Memory (SDRAM) 1GB LPDDR3 (shared with GPU) Onboard Storage TF card (Max. 32GB) /MMC card slot WIFI+BT AP6255, IEEE 802.11 AC/bb/g/n, BT 4.1 Audio Input MIC Audio Output HDMI 2.0 a Video Input A CSI input connector Camera: Support 8 bit digital camera interface Maximum still capture resolution for parallel interface to 5M Maximum still capture resolution for parallel interface to 5M Video Decoding H265/HEVC Main/Main10 profile@Level 5.2 High-tier; 4K@60fps, up to 6Kx4K@30fps H264/AVC BP/MP/HP@level 5.1, MVC, 4K@30fps VP9, Profile 0/2, 4K@30fps AVS+/AVS JIZHUN profile@level 6.0, 1080P@60fps Video Outputs HDMI 2.0 a TX with HDCP 2.2 output Power Source DC input, USB OTG input can supply power PMU AXP805 USB 2.0 Ports One USB 2.0 Host, one Micro USB 2.0 USB 3.0 Ports One USB 3.0 Host Low-level peripherals 26 Pins Header GPIO (1x3) pin UART, ground. LED Power led & Status led IR Receiver Yes Key Power (K1) Supported OS Android, Ubuntu, Debian Interface definition Product size 69 mm × 48mm Weight 50g
NRF24L01+ wireless module power enhanced version 2.4G wireless receiving communication module
The NRF24L01 is a single-chip transceiver chip operating in the 2.4-2.5GHz world-wide ISM band. The wireless transceiver includes: frequency generator enhanced SchockBurstTM mode controller power amplifier crystal amplifier modulator demodulator output power channel selection and protocol The setting can be set to very low current consumption through the SPI interface. When the transmission power is 6dBm in the transmitting mode, the current consumption is 9.0mA. The receiving mode is 12.3mA in the power-down mode and the standby mode is lower in the current consumption mode.
The ball is open to the ISM band with a maximum 0dBm transmit power and is free of license. Empty 180-240 meters!
Compared with the import and import, it is more than double the import!
The open condition has a baud rate of 250Kb and a signal above 240 meters. At this time, the direction is extremely strong, but the 2.4G diffraction and penetration are not strong, which is a drawback, and must be explained. Everyone is the same!
Supports six channels of data reception
1. Low working voltage: 1.9 ~ 3.6V low voltage operation
2. High rate: 2Mbps, because the air transmission time is very short, the collision phenomenon in wireless transmission is greatly reduced (software sets the air transmission rate of 1Mbps or 2Mbps)
3. Multi-frequency point: 125 frequency points, meeting the needs of multi-point communication and frequency hopping communication
4. Ultra-small: built-in 2.4GHz antenna, small size, 15x29mm (including antenna)
5. Low power consumption: When working in response mode communication, fast air transmission and startup time greatly reduce current consumption.
6. Low application cost: NRF24L01 integrates all high-speed signal processing parts related to RF protocol, such as: automatic retransmission of lost data packets and automatic generation of response signals, etc. The SPI interface of NRF24L01 can be connected with the hardware SPI port of the microcontroller or with a single-chip microcomputer. The I/O port is simulated, and the internal FIFO can interface with various high and low speed microprocessors, which is convenient for using low-cost single-chip microcomputers.
7. Easy to develop: Since the link layer is fully integrated on the module, it is very easy to develop. Automatic retransmission function, automatic detection and retransmission of lost data packets, retransmission time and number of retransmissions. Software control automatically stores the packet auto-answer function without receiving the response signal. After receiving valid data, the module automatically sends a response. Signal, no need to separately program carrier detection - fixed frequency detection built-in hardware CRC error detection and point-to-multipoint communication address control packet transmission error counter and carrier detection function can be used for frequency hopping setting can set six receiving channel address at the same time, can be selective Open the receiving channel standard pin Dip2.54MM pitch interface for easy embedded applications.
NRF905 Wireless Module (PTR8000+) Wireless Digital Transmission Module 905 Module
Fully compatible (PTR8000+) module
[product name:] NRF905 module
[Product unit:] (including antenna)
[product introduction:] communication module
Application areas:
Vehicle monitoring, remote control, telemetry, small wireless network, wireless meter reading, access control system, cell paging, industrial data acquisition system, wireless tag, identification, contactless RF smart card, small wireless data terminal, security fire prevention system, wireless remote control system, Biosignal acquisition, hydrometeorological monitoring, robot control, wireless 232 data communication, wireless 485/422 data communication, digital audio, digital image transmission, etc.
Features:
The three-band transceiver is integrated, the working frequency is 433/868/915MHz GMSK modulation in the international ISM frequency band, and the anti-interference ability is strong. It is especially suitable for industrial control occasions. It adopts DSS+PLL frequency synthesis technology, and the frequency stability is excellent and the sensitivity is high. 100dBm low operating voltage (2.7V), low power consumption, standby mode is only 1uA, can meet the requirements of low-power devices, maximum transmit power up to +10dBm, with multiple channels (up to 170 or more), especially for multi-channel operation Special occasions can work up to 76.8Kbps
The minimum number of peripheral components (only 10), basically no debugging. Due to the low transmission power and high receiving sensitivity design, the use of open space is up to 1000 meters* without using a license. * It is related to the specific use environment and component parameters.
Electrical characteristics:
nRF905 operating frequency band: 433/868/915MHz
Number of channels: 170
Function: Transmit/Receive
Frequency stabilization mode: PLL
Modulation method: FSK/GMSK
Maximum output power: +10dBm
Sensitivity: -100dBm
Maximum working speed: 76.8Kbit/s
Working voltage: 2.7--3.3V
Hantek 6074BE Kit III Automotive Diagnostic Oscilloscope 70MHz 1GSa/s 4Channels
Technical Parameters: model Hantek6074BE Analog bandwidth 70MHz Car measurement function Intake manifold vacuum and ignition, soot adjustment valve vacuum and ignition, exhaust ignition (idle), exhaust ignition (start), etc.; Ignition: primary/secondary; Sensors: air flow meter, camshaft, crankshaft, distributor, lambda sensor, throttle position, etc.; bus detection: CAN bus data observation, CAN bus signal integrity, CAN bus LH long-term acquisition, LIN bus, etc.; Actuator: sub-gasoline engine / diesel engine, etc.; Start & Charge: charging circuit, current and voltage detection, etc.; Number of channels 4 channels Real-time sampling rate 1GSa/s Storage depth 64K Time base accuracy ±50ppm Time base range 2ns/div-1000s/div (stepping in 1-2-4) input resistance 1MO 25pF Input sensitivity range 2mV/div~10V/div Vertical resolution 8Bit Vertical displacement range 2mV ~ 10V/div @ x1 probe; 20mV ~ 100V/div @ x10 probe; 200mV ~ 1000V/div @ x100 probe; 2V ~ 10000V/div @ x1000 probe DC gain accuracy ±3% Bandwidth limit 20MHz Trigger type Edge, alternating, pulse width, video Trigger source CH1, CH2, CH3, CH4 Waveform calculation +, -, x, ÷, FFT, reverse Cursor measurement Cross, tracking, vertical, horizontal Automatic measurement Maximum, minimum, peak-to-peak, top value, bottom value, intermediate value, effective value, amplitude, average, period average, pre-shoot, overshoot, period, frequency, rise time, fall time, positive Air ratio, negative duty cycle, positive pulse width, negative pulse width size Length: (175mm) Width: (105mm) Height: (25mm) weight 0.9KG
Orange Pi Win Plus A64 Quad-core 2GB WIFI Development Board Support linux and android Wholesale is available
Hardware specification
CPU
A64 Quad-core Cortex-A53 64bit
GPU
Mali400MP2 GPU
Supports OpenGL ES 2.0 and OpenVG1.1
Memory (SDRAM)
2GB (shared with GPU)
Onboard Storage
TF card (Max. 32GB) / NOR flash(2MB)/eMMC(Default empty)
Onboard Network
1000M/100M Ethernet RJ45
Onboard WIFI+BT
AP6212, IEEE 802.11 b/g/n,BT4.2
Video Input
A CSI input connector Camera
Supports 8-bit YUV422 CMOS sensor interface
Supports CCIR656 protocol for NTSC and PAL
Supports SM pixel camera sensor
Supports video capture solution up to 1080p@30fps
Audio Input
MIC, 3.5 mm Jack
Video Outputs
LCD
Audio Outputs
3.5 mm Jack, HDMI
Power Source
DC input can supply power
USB OTG input can supply power
Battery input can supply power
GPIO(1x3) pin
UART, ground.
USB 2.0 Ports
Four USB 2.0 HOST, one USB 2.0 OTG
Buttons
Power Button(SW2), Reset Button (SW4)
Low-level peripherals
40 Pins Header,compatible with Raspberry Pi B+
LED
Power led & Status led
Key
IR input, POWER,Reset
Supported OS
Android, Ubuntu, Debian, Raspbian
Interface definition
Product size
93 mm × 60mm
Weight
48g
RFID Starter Kit for UNO R3 Upgraded Advanced Learning Suite without Retail Box for Raspberry Pi 3 B+/B + CD
RFID Starter Kit for UNO R3 Upgraded version Learning Suite without Retail Box
Introduction:
This is the starter kit , especially include RFID module , motor and SG90 .
Package Iist: ( without box )
1 x UNO R3
1 x USB cable
1 pack x jumper wires ( 30 pcs )
1 x 830 Point Breadboard
30 x led ( Red, Green, Blue )
40 x resistance ( 330R,220R, 10K, 1K )
1 x 20 pin dupont line ( male to female )
1 x potentiometer
1 x active buzzer
1 x passive buzzer
1 x 74HC595N
1 x Infrared receiving head
1 x LM35DZ
1 x Flame sensor
2 x Roll Ball Switch
3 x 5mm LDR
5 x Button Switch with Cap
1 x IR remote control
1 x one digital tube
1 x four digital tube
1 x 8*8 dot matrix tube
1 x ULN 2003 driver board
1 x 5V stepper motor
1 x SG90
1 x LCD1602 IIC I2C
1 x PS2 game joystick module
1 x DHT11 Temperature and Humidity sensor module
1 x Water level measurement module
1 x RFID module
1 x RFID key ring
1 x RFID card
1 x sound sensor module
1 x one road relay module
1 x RTC module
1 x 16 buttons matrix keyboard module
1 x RGB three color module
1 x 9V Battery Connector
1 x 2.54mm 40pin
White 7 inch Touch Screen Digitizer Glass For 3Q Qoo! Q-pad RC0719H RC0743H RC0727H Tablet PC
Notice:
We are factory professional in touch screen digitizer.We also have alibaba for wholesale.We offer thousands of touch screen digitizer.The more you need,the much better price.
1. Each screen is tested before shipping & 100% working;Repair/Replacing old, broken, cracked,damaged faulty touch screen.
2. please open your tablet to check the touch screen connector cable and the code number.Because there is some tablets with different touch screen connector cable for same tablet.
3. Please kindly leave us your exact full name (especially buyer from RU ) & Telephone No. , when you filling your informations as buyer, so that the courier can delivery the your items timely & easily.
4. Note:When you got the package ,please make a video that when you open the package.
5 .We just can guarantee the one you received that will be compatible with your tablet, if your touch screen is not with the same connector cable as the picture on web!So Please DO NOT buy if you do not accept an A+ grade compatible touch screen digitizer with different flex cable numbers as our title / description /photo states is out of supply in the market, thank you!
6.When you got the package ,please make a video that when you open the package. (If there is any damage in transit, you can send this video as evidence to the dispute.)
7.For multi-item orders, please DO NOT submit payment until you have won all items you wish to combine.
Above & following provisions take effect once upon you place an order!(Very important for you,Please read it before bidding.)
Orange Pi Prime: Development Board H5 Quad-core Support linux and android Beyond Raspberry Pi 2 Wholesale is available
Hardware specification CPU H5 Quad-core Cortex-A53 GPU Mali450 GPU including dual Geometry Processors (GP) and quad Pixel Processors Supports OpenGL ES 2.0 and OpenVG 1.1 3000Mpix/sec and 163Mtri/sec Full scene over-sampled 4X anti-aliasing engine with no additional bandwidth usage Memory (SDRAM) 2GB DDR3 (shared with GPU) Onboard Storage TF card (Max. 32GB) / NOR flash (optional) Onboard Network 1000M/100M Ethernet RJ45 Onboard WIFI+BT 8723BS, IEEE 802.11 b/g/n, BT 4.0 Video Input A CSI input connector Camera Supports 8-bit YUV422 CMOS sensor interface Supports CCIR656 protocol for NTSC and PAL Supports SM pixel camera sensor Supports video capture solution up to 1080p@30fps Audio Input MIC Video Outputs Supports HDMI output with HDCP Supports HDMI CEC Supports HDMI 30 function Audio Outputs 3.5 mm Jack, HDMI Power Source DC input can supply power GPIO (1x3) pin UART, ground. USB 2.0 Ports Three USB 2.0 HOST, one USB 2.0 OTG Buttons Power Button (SW2), Reset Button (SW4) Low-level peripherals 40 Pins Header, compatible with Raspberry Pi B+ LED Power led & Status led Key IR input, POWER, Reset Supported OS Android, Ubuntu, Debian, Raspbian Image Interface definition Product size 98 mm × 60mm Weight 68g

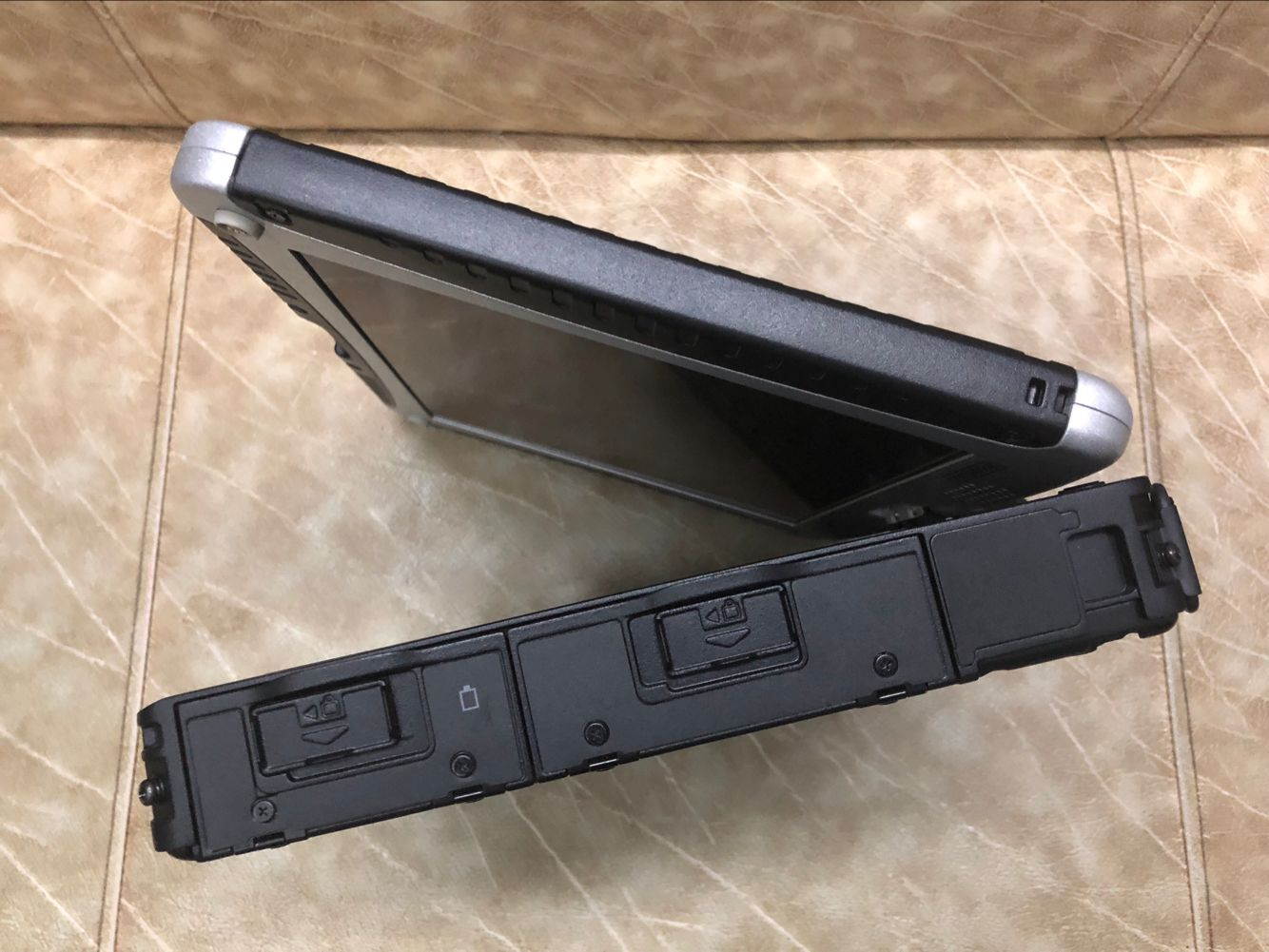

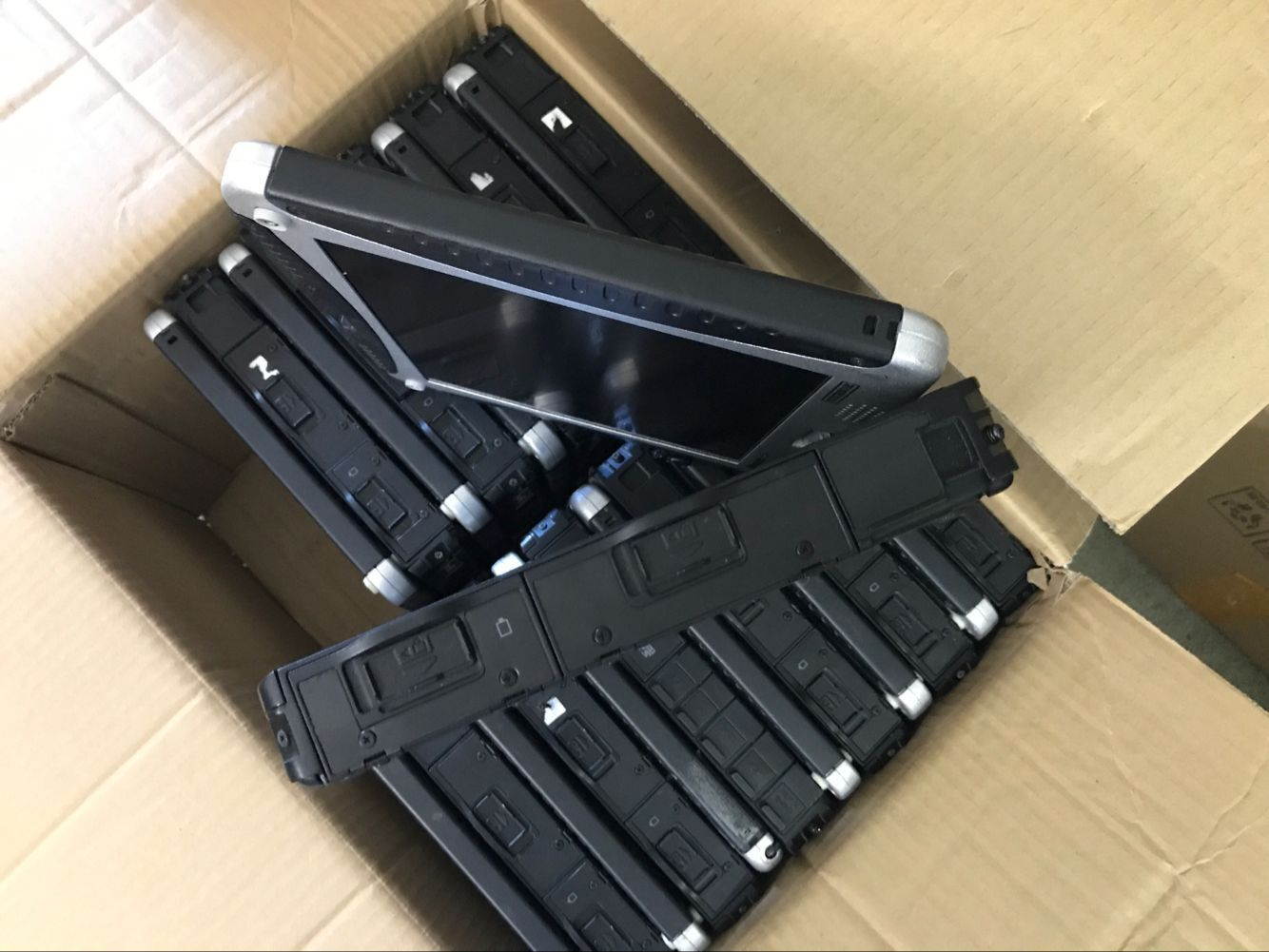

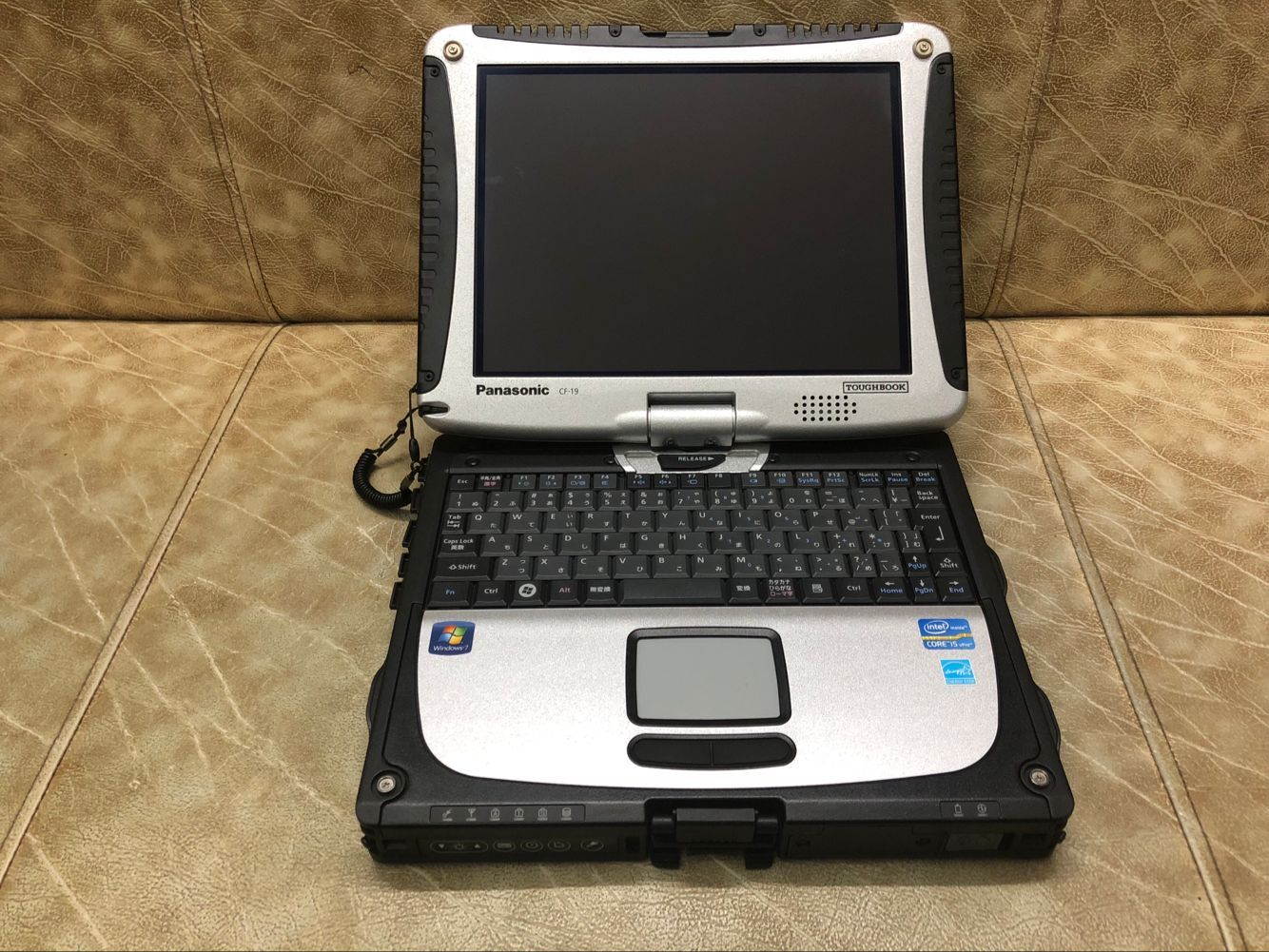

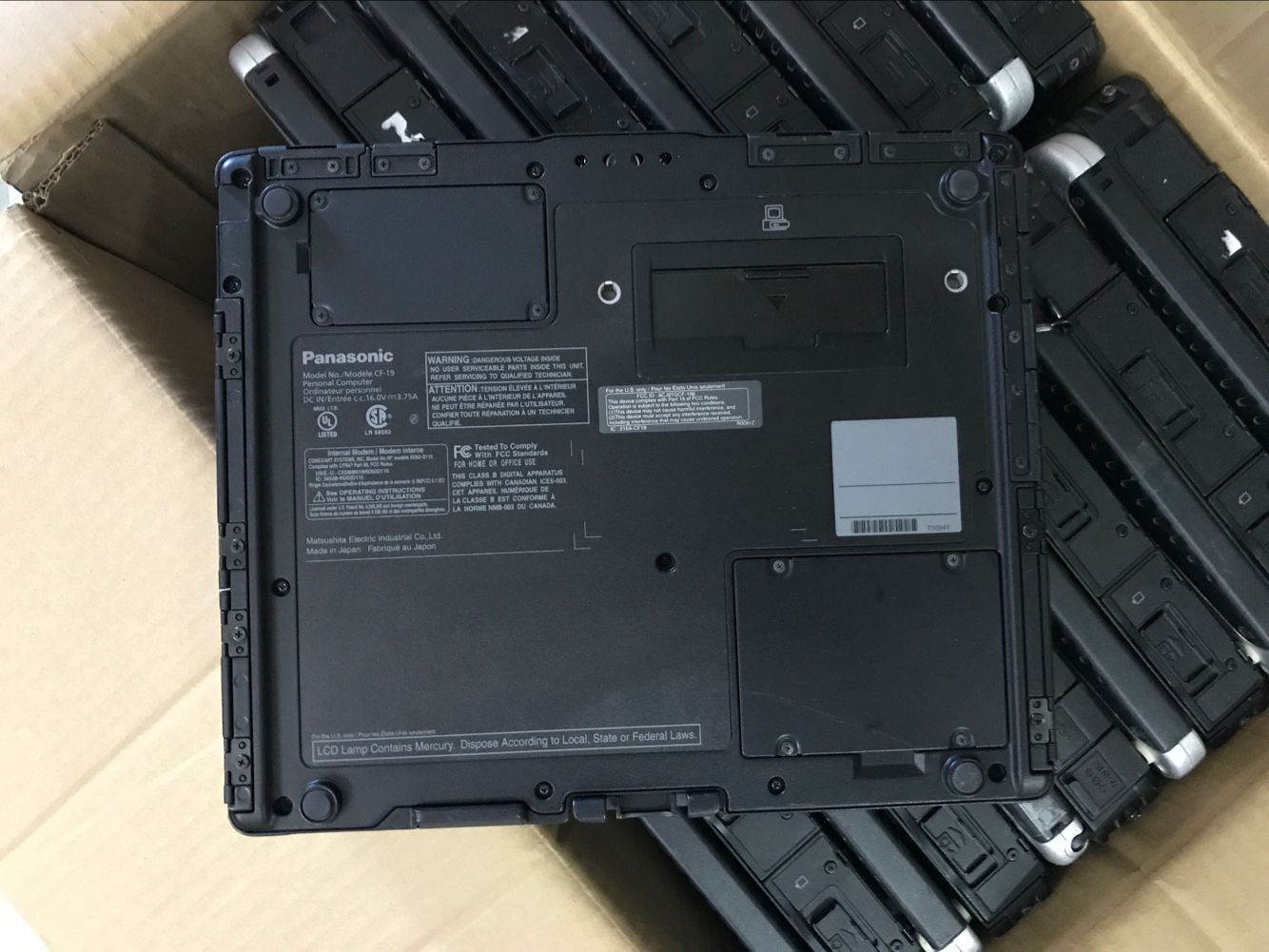

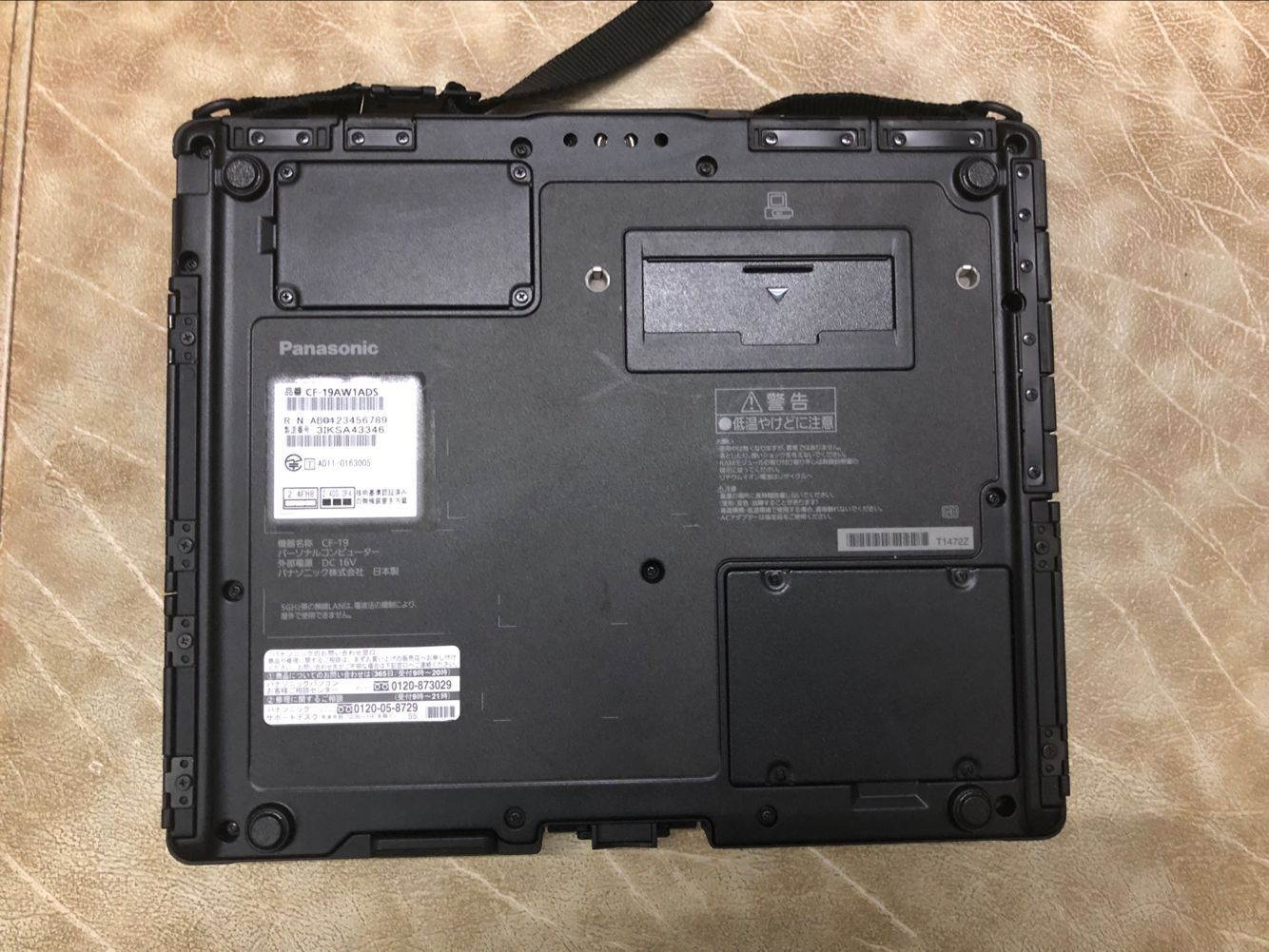

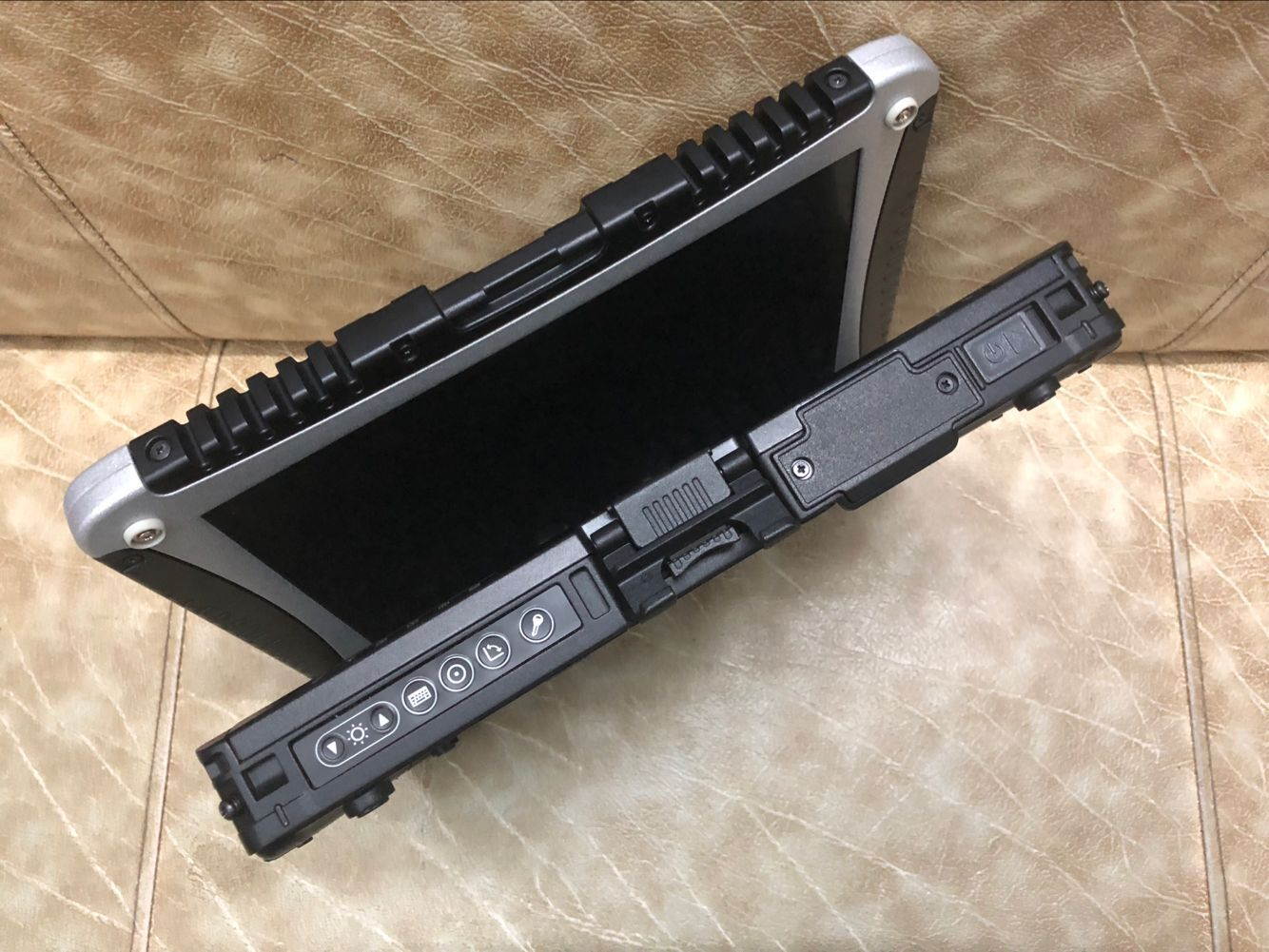

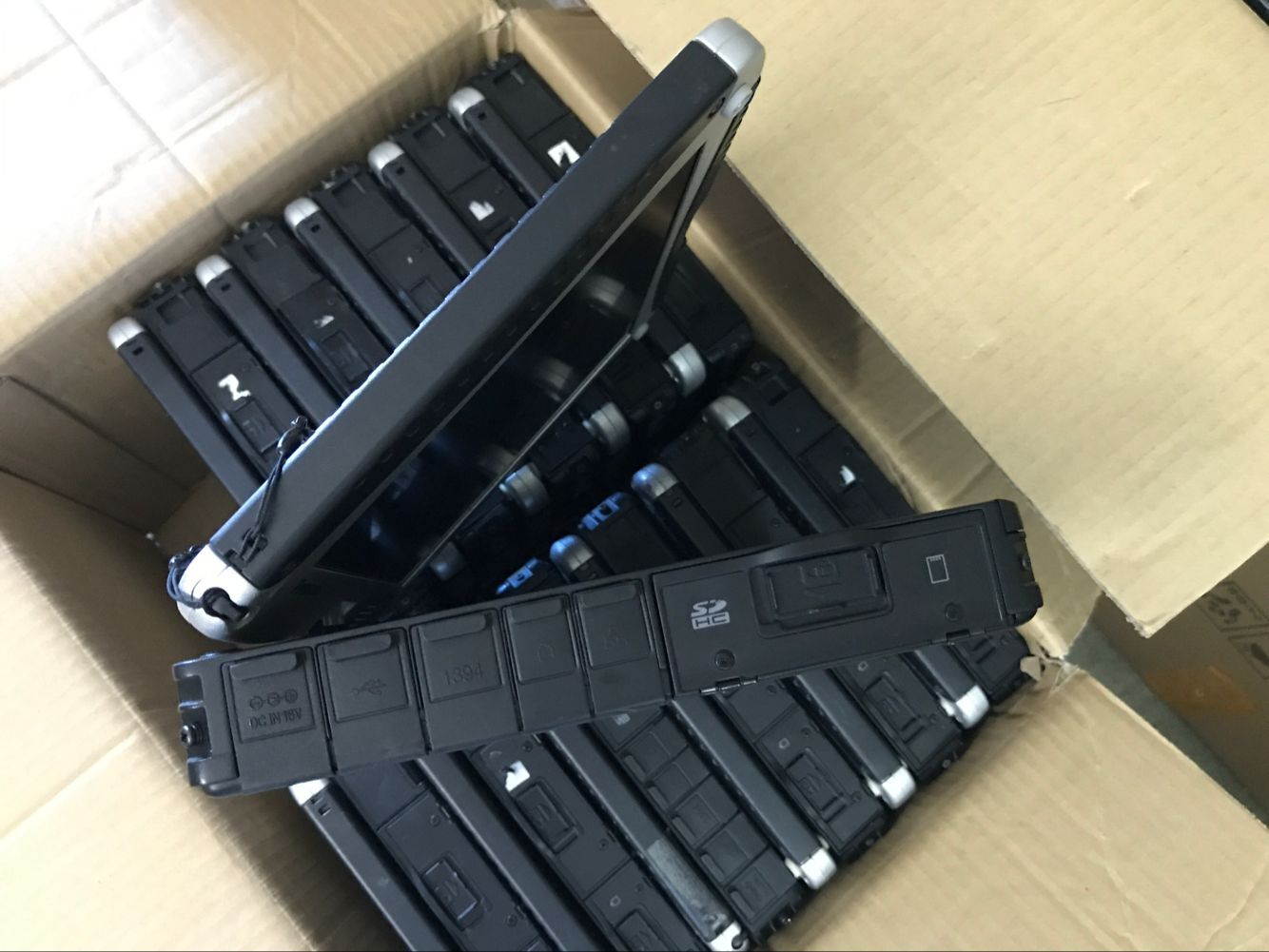

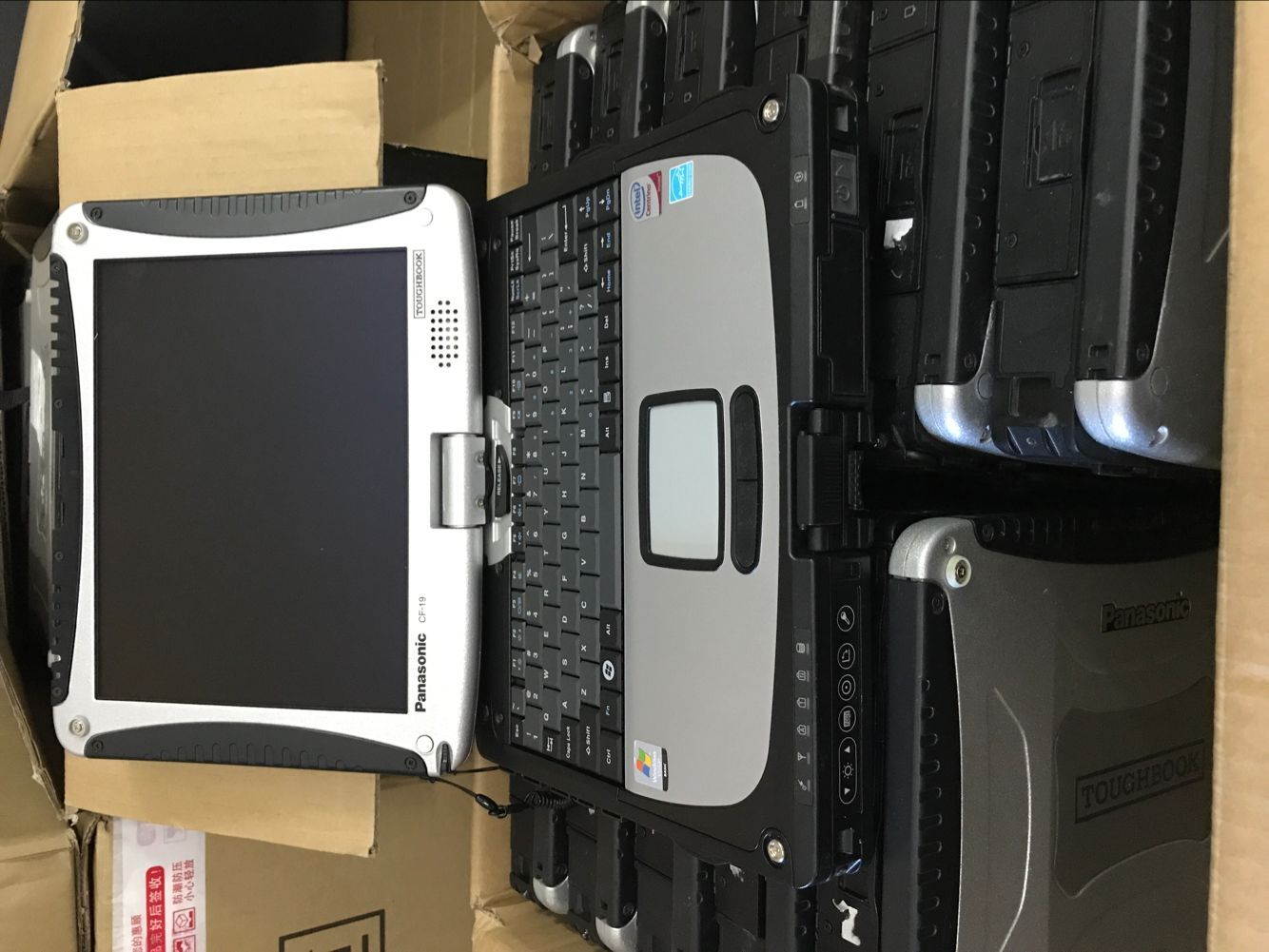

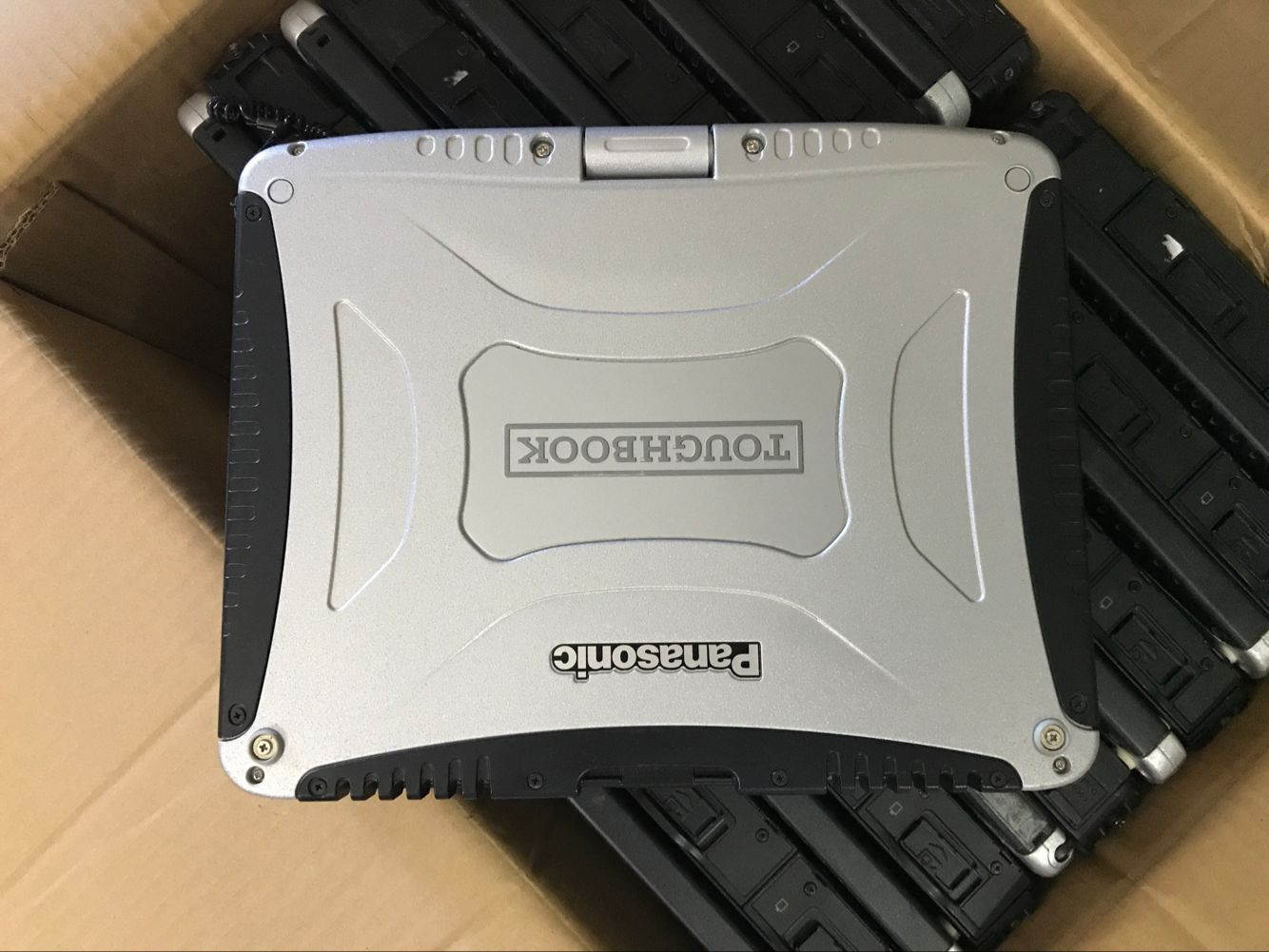

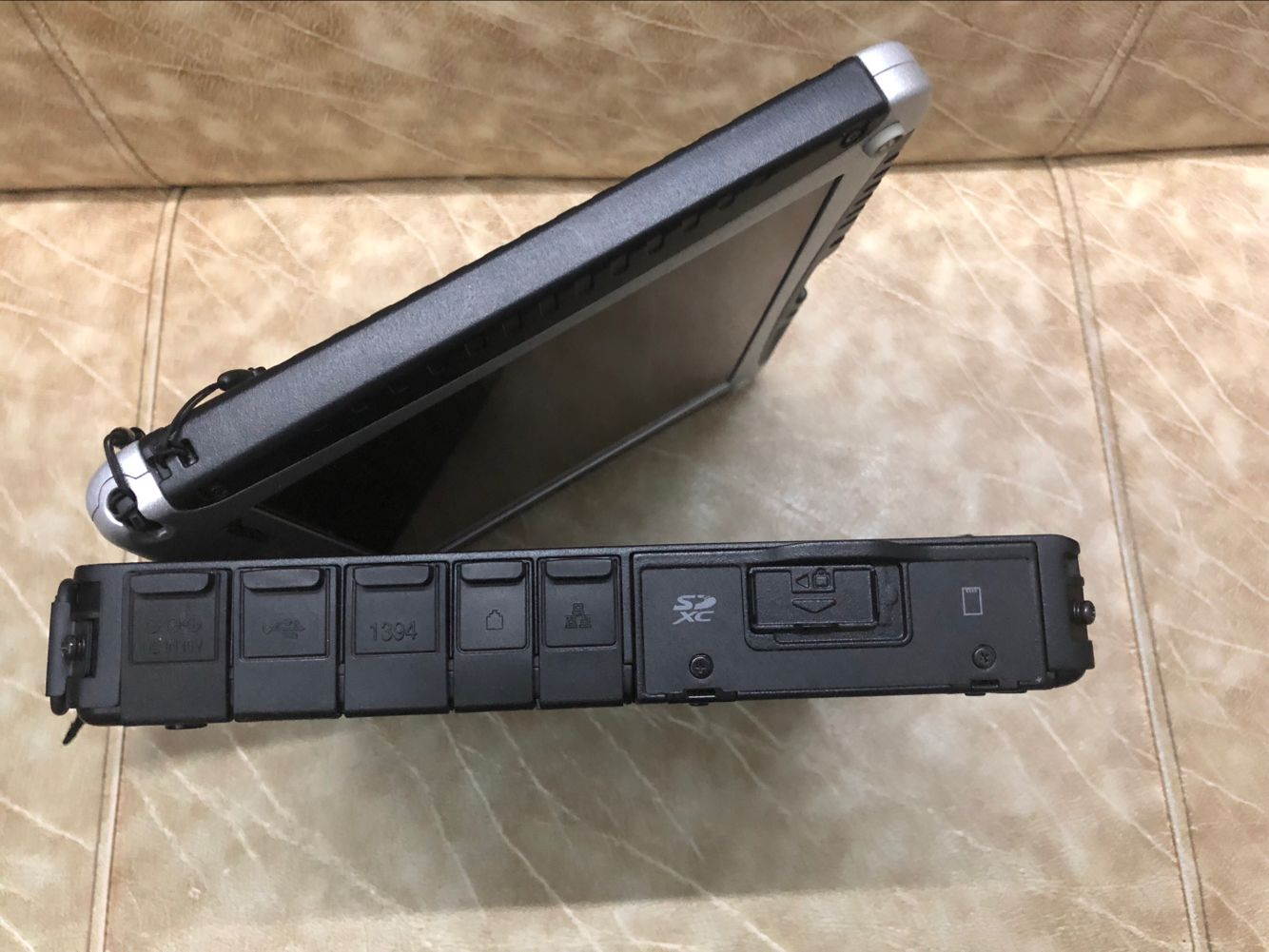

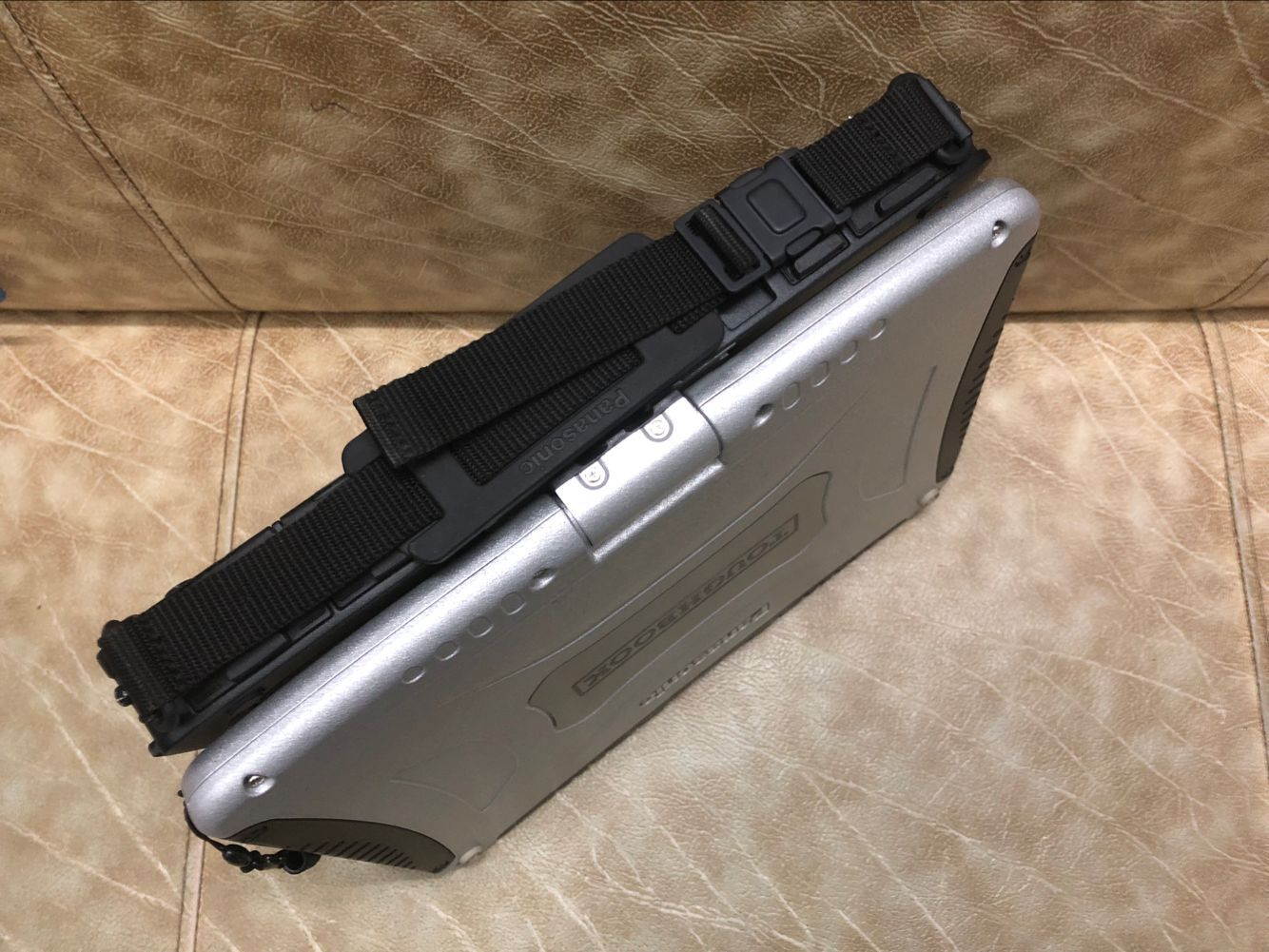

Panasonic laptop CF-19 fully rugged CPU i5/U540/MK4 memory 4G/DDR3 HDD 500G 10 inch LED screen 1024*768 hand touch rotating Windows 7/XP
Screen Size 10.4"
Maximum Resolution 1024 x 768
Display Type Touch screen
CPU i5/U540/MK4
memory 4G/DDR3
HDD 500G
Operating system Windows 7/XP 32/64
Audio Specifications
Audio Description Integrated Audio
Audio Channels Integrated speaker
Media Ports
PS/2 Mouse Connectors N/A
PS/2 Keyboard Connectors N/A
Serial Communication Ports 1
Parallel Ports 1
USB Ports (Total) 2
FireWire Ports 1
LAN Ports 1
Modem Ports 1
Audio Out Jacks 1
Microphone Jacks 1
VGA Ports 1
DVI Video N/A
HDMI Ports N/A
S-Video Connectors N/A
Port Replicator/Connector Port Replicator
eSATA Ports N/A
Fast Infrared Ports (FIR) N/A
Communications
Communications Description Integrated LAN
Integrated Modem
Wireless LAN
Interface Type RJ-11 Phone Connector
RJ-45 Ethernet Connector
Intel® Wireless WiFi Link 5100 802.11a/b/g/n
Data Transfer Rate 56Kbps Modem
Up to 300 Mbps
10/100/1000 Gigabit Ethernet LAN
Protocols V.92
WIFI
802.11b
802.11a
802.11g
802.11n
Dimensions
Width 10.7"
Height 1.9"
Depth 8.5"
Weight 5.1 lbs
Mouse Specifications
Mouse Type Pressure sensitive Touchpad
Buttons 2
Scrolling Capability Vertical Scroll Up/Down
Keyboard Specifications
Keyboard Type 82 Key Qwerty Keyboard
Battery
Battery Type Lithium-Ion
Color
Color Black
Silver
Webcam
Integrated Webcam No

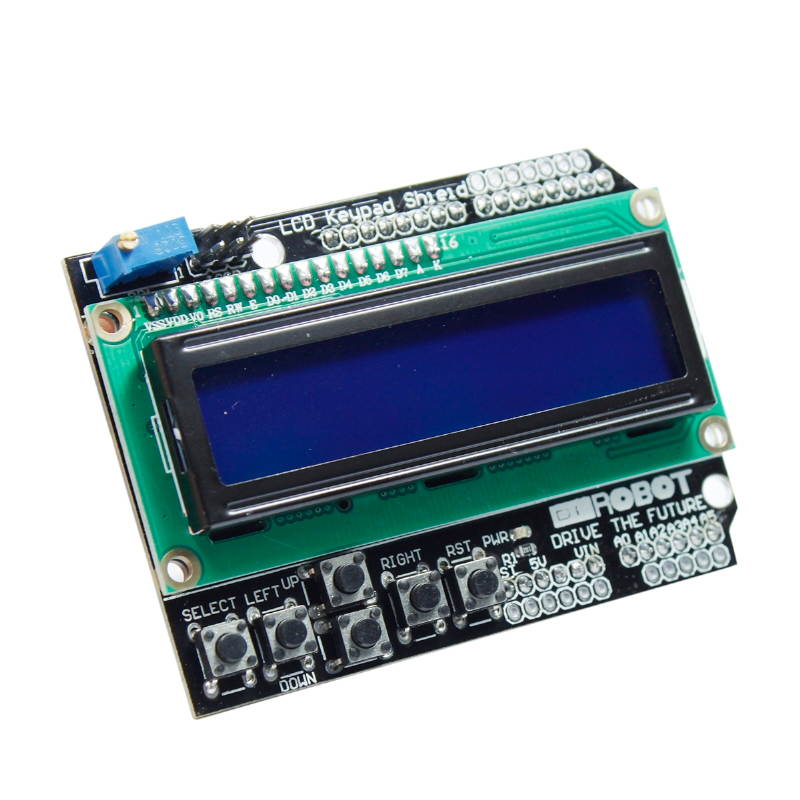

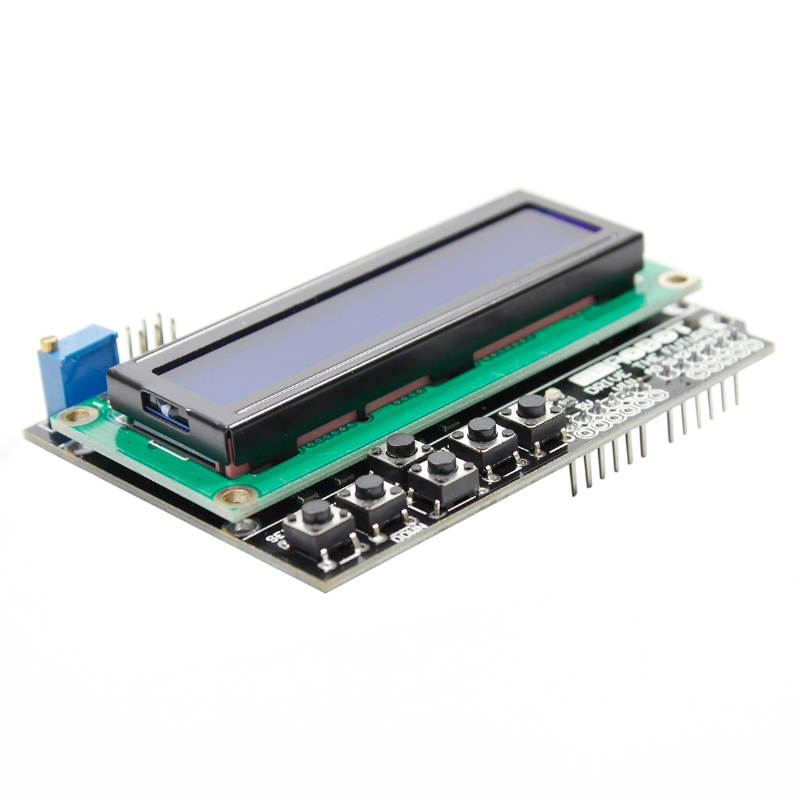

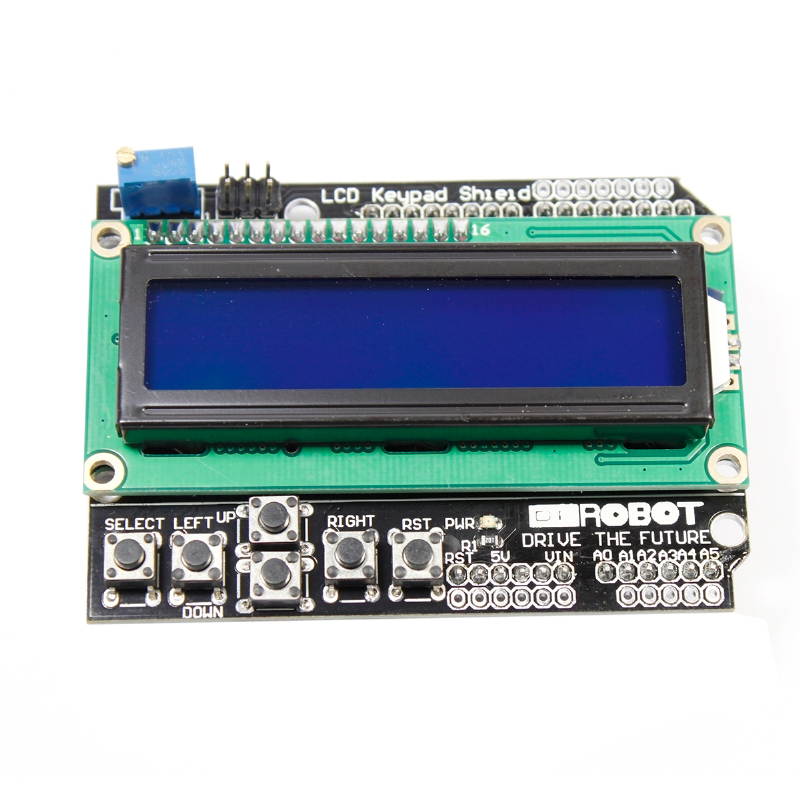

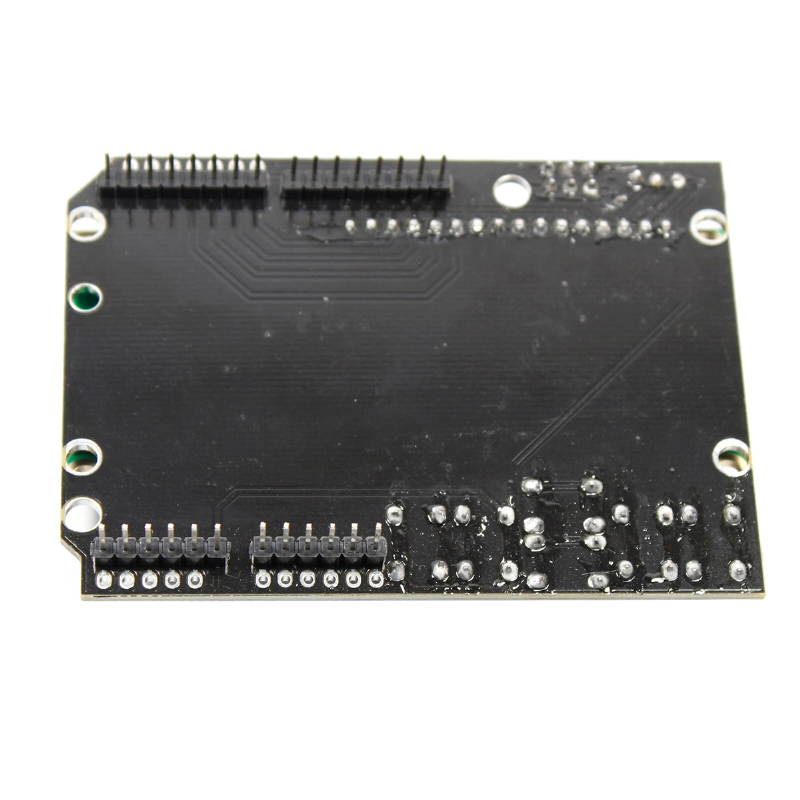

LCD1602 Character LCD Input/Output Expansion Board Keypad Shield Compatible with Arduino
Arduino LCD1602 character LCD expansion board, PCB immersion gold processing, full of materials, the motherboard uses a new high-quality 2 lines 16 characters LCD, not only has contrast adjustment knob, backlight selection switch, also has 4 direction buttons, 1 selection button And a reset button; this 1602 LCD expansion board really simplifies the circuit, directly plug this board into the Arduino Duemilanove controller. Specifications 1. Module size: 20.5 mm × 41mm 2. Module weight: 57g Introduction to 1602 Character LCD 1602LCD main technical parameters: 1. Display capacity: 16 × 2 characters 2. Chip working voltage: 4.5 - 5.5V 3. Working current: 2.0 mA ( 5.0V ) 4. Module best working voltage: 5.0V 5. Character size: 2.95 × 4.35 (W × H) mm 1 VSS power ground 9 D2 data 2 VDD power positive 10 D3 data 3 VL liquid crystal display bias 11 D4 data 4 RS data / command selection 12 D5 data 5 R/W read/write selection 13 D6 data 6 E enable signal 14 D7 data 7 D0 data 15 BLA backlight positive 8 D1 data 16 BLK backlight negative Pin 1: VSS is the ground power. Pin 2: VDD is connected to 5V positive power supply. Pin 3: VL is the contrast adjustment end of the LCD monitor. When the positive power is connected, the contrast is the weakest. The highest, too high contrast will produce "ghosting", you can adjust the contrast through a 10K potentiometer. Pin 4: RS is the register selection. When the high level is selected, the data register is selected, and when the low level is selected, the instruction register is selected. Pin 5: R/W is the read/write signal line. When it is high, it performs a read operation, and when it is low, it performs a write operation. When RS When the R/W is low, the command or display address can be written. When RS is low, R/W is high. The busy signal can be read, and data can be written when RS is high and R/W is low. Pin 6: The E terminal is the enable terminal. When the E terminal changes from a high level to a low level, the liquid crystal module executes the command. Pins 7 to 14: D0 to D7 are 8-bit bidirectional data lines. Pin 15: The backlight is positive. Pin 16: Backlight negative. Instructions for the 1602LCD: The controller inside the 1602 LCD module has 11 control commands, as shown in the table below: Serial number command RS R/W D7 D6 D5 D4 D3 D2 D1 D0 1 clear screen 0 0 0 0 0 0 0 0 0 1 2 cursor returns 0 0 0 0 0 0 0 0 1 * 3 input mode 0 0 0 0 0 0 0 1 I/D S 4 display on/off control 0 0 0 0 0 0 1 D C B 5 cursor or character shift 0 0 0 0 0 1 S/C R/L * * 6 set function 0 0 0 0 1 DL N F * * 7 character occurrence memory address 0 0 0 1 character occurrence memory address 8 data memory address 0 0 1 display data memory address 9 read busy flag or address 0 1 BF counter address 10 writes to CGRAM or DDRAM) 1 0 data content to be written 11 data content read from CGRAM or DDRAM reading 1 1 1602 LCD module read and write operations, screen and cursor operations are achieved through instruction programming. (Note: 1 is high level and 0 is low level) Command 1: Clear display, command code 01H, cursor reset to address 00H position. Instruction 2: The cursor is reset and the cursor returns to address 00H. Instruction 3:
Orange Pi 4G-IOT 1G Cortex-A53 8GB EMMC Support 4G SIM Card Bluetooth Android6.0 mini PC
Hardware specification Processor MT6737 CPU Quad core ARM® Cortex-A53, Main frequency up to 1.25GH z GPU * ARM Mali-T720 MP1 Memory 1GB DDR3 Emmc 8GB EMMC Flash Wireless WIFI / BT / FM / GPS Four in one Radio frequency GSM: 900/1800 (850/1900 optional) WCDMA: B1/B8 (B2/B4/B5 optional) TD-CDMA CDMA2000 FDD-LTE: B1/B3/B7/B20 (B2/B4/B17optional) TDD-LTE: B38/40/41B Display HD Capacitance touch Support Camera 13M (25pin ZIF Connector) Accelerometer Sensor Support IR Control Support (Adapted iDroid remote controller) Fingerprint Identification Support SIM Card mini Single SIM Card TF Card Support hot-plugging Audio Earphone: For audio input / output Mic: For audio input USB USB Host × 3: Support OTG Micro USB × 1: Only for writing image LED Power Indicator LED: Red Status Indicator LED: Green Key Power HDMI Support Low-level peripherals 40pin Headers: 1.8V, SPI × 2, I2C × 3, UART × 2 Power DC: 5V 2A Battery: Connection through a weld plate OS Android 6.0 Programming support C? C++? Kotlin? Java? Shell? Pyhon Interface definition Size 55mm × 85mm Weight 43g
New Ethernet W5100 Network Expansion Board Module SD Card Expansion Compatible with Arduino
The Ethernet W5100 network expansion module enables rduino to be a simple web server or to control the network applications such as digital and analog interfaces of rduino through network control. A simple web server can be implemented directly using the Ethernet library files in the IDE.
At the same time, this version supports mini SD card (TF card) reading and writing.
The expansion board has a stackable design that plugs directly into the rduino, and our other expansion boards can be plugged in.
RS232 to TTL module 2 generation serial module download line brush board MAX3232 send 4 DuPont line
The products are widely used in radio modification, cell phones Brush, XBOX360 Brush, GPS, vehicle inspection, DVD Brush, hard disk repair, set-top box upgrades.
Can be used to program the microcontroller type:
STC microcontroller
STM32 MCU
NXP microcontroller
Renesas MCU
NEC MCU
Communications chip: Domestic MAX3232
Operating voltage: 3.3V-5.5V
Interface: TX RX VCC GND
Note: Domestic max3232 chip chip, there are some buyers purchase found no compatibility problems, please confirm before buyers to purchase the chip compatible with your system, to avoid buying the wrong, thank you!
Buyer issue summary (we will buyers case problems are listed after the purchase, the buyer for future reference, we believe that the case of failure is greater than the benefits of successful cases buyers):
A Lenovo notebook + Serial small plate (max3232) + usb to serial cable (340 drivers) Download stc89c52 not use; Lenovo desktop + Serial small plates (max3232) + usb to serial cable (340 drivers)
Download stc89c52 normal use; max3232 chip will replace max232 Lenovo laptop + Serial small plates (max232) + usb to serial cable (340 drivers) can normally download download stc89c52
Initially concluded: After max3232 through usb to serial cable, may have incompatibilities with certain notebooks. Buyers encountered a similar situation, you can select the appropriate serial chip based on the above test results.
2 Samsung 2440 development board + max3232 small plate Operating voltage 3.3v serial communications found is not normal, the voltage rises to 3.8v will work properly.
We only guarantee the module can be used for serial communication, does not provide guidance related to Brush! Does not provide technical support, do not have any information!
New Photosensitive Sensor Module Light Detection Photosensitive Resistor Module Photosensitive Module 3-pin B17
Purpose:
Light intensity detected light level sensors, optical module Smart car search
Module Features:
1, using the sensitive type photosensitive resistance sensor
2, the comparator output signal clean waveform is good, driving ability, than 15mA.
3, with adjustable potentiometer can adjust the brightness of the light detected
4, Working voltage 3.3V-5V
5, the output format: Digital switching output (0 and 1)
6, with bolt holes for easy installation
7, a small board PCB size: 3.2cm x 1.4cm
8, using a wide voltage LM393 comparator
Module for use
1, the photosensitive resistor module most sensitive to ambient light, generally used to detect the brightness of the ambient light, triggering microcontroller or relay modules;
2, the module brightness of ambient light reach the set threshold, DO-side output high when the ambient light level exceeds the set threshold, DO-ended output low;
3, DO output can be directly connected with the microcontroller through the microcontroller to detect high and low, thereby detecting changes in ambient light intensity;
4, DO OUR outputs can directly drive the relay module, which can be composed of a light control switch.
Hantek DSO3064 Kit IV Automotive Diagnostic Oscilloscope 4CH 200MS/s 60MHz kit 4
Introduction:
4 Channels, 10K-16M Memory Depth, Frenquency Counter, FFT, USB 2.0 interface plug and play; LAN optional.
Overview:
Vehicle Diagnosis :
First Diagnosis(Cranking Exhaust Diagnosis)
Ignition Action(Current/Voltage)
The Sensor(Air Flow Meter,Camshaft,Crankshaft?)
Bus Diagnosis(CAN Bus Data View)
Performer(Petrol/Diesel)
Startup & Charge(Charging Circuits Current/Voltage)
Oscilloscope:
4 Channels and EXT trigger, 60MHz Bandwidth.
200MS/s real-time sampling rate, 10k--16M memory depth per Channel.
Frequency Counter,FFT spectrum analysis.
8--36V Wide range of input voltage,suitable for vehicle power test.
USB 2.0 interface plug and play, LAN optional.
More than 20 kinds of automatic measurement andPASS/FAIL Check function, which is suitable for engineering application.
Excellent industrial design, similar interface with bench oscilloscope ,Easy to use.
Software support: Windows NT, Windows 2000, Windows XP,VISTA,Win7,Win8.
Supply DEMO code (VC,VB,LABVIEW) and technical support.
Parameters:
Vertical System
Analog Channels :4
Bandwidth :60MHz(-3dB)
Rise Time :5.8ns
Input Impedance :Resistance: 1MO ; Capacitance: 25 pF
Input Sensitivity :10mV/div to 5V/div
Input Coupling :AC/DC/GND
Vertical Resolution :8 bits
Memory Depth :10K-16M/CH
Maximum Input :400V (DC+AC Peak)
Horizontal System
Real-Time Sampling Rate :200MS/s
Time Base Range :5ns/div to 1000s/div(1-2-5 sequences)
Time Base Precision :±50ppm
Trigger System
Source :CH1, CH2,CH3,CH4,EXT
Mode :Edge,Pulse,Viedo,Alternative
Voltage Measurement :Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Cursors Measurement :Horizontal ,Vertical, Track, Auto Measure Modes
Waveform Signal Process :+,- , x,÷, FFT, Invert
Voltage Range :10mV to 5V/div @ x 1 probe; 100mV to 50V/div @ x 10 probe; 1V to 500V/div @ x 100 probe; 10V to 5000V/div @ x 1000 probe;100V to 50000V/div @ x 10000 probe; 200mV to 100V/div @ 20:1
Current Range :CC65(20A),CC65(60A),CC650,CC1100
FFT :Rectangular,Hanning,Hamming,Blackman Window
Math :Adition,subtraction,multiplication,division
Gennral Feature
Interface :USB 2.0(Lan Optional)
Power Source :8--36V Wide range of input voltage
Volume :255 x 190 x 45 (mm)
Weight :1Kg
Hantek CC650 AC/DC Current Clamp Meter Multimeter with Oscillosc BNC Connector
It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms. When measuring AC/DC Current with the Current Clamp, a multimeter or scope can directly measure the current up to 650A, with a frequency uo to 400Hz. In this method, there is no need to break a circuit or to affect the isolation to measure the current. Features: AC/DC frequency range: up to 400Hz. Effective measurement range: 20mA to 650A DC. Allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms. Its current transducer is composed by permalloy and hall element, which linearly transform the AC or DC current to AC or DC current voltage. If connect to an oscilloscope by BNC type connector, you're able to observe the current waveforms. Application: Power circuit measurement and malfunction analysis; Motor drive of frequency converter (or other electronics) measurement; Power electronics equipment measurement. Specifications: Efficient Measure Range: 1mV/100mA: 100mA to 20A, Multimeter Range is set to DC or rms AC 200mV 1mV/1A: 1A to 200A, Multimeter Range is set to DC or rms AC 200mV; 200A to 650A, DC or rms AC 2V DC Current Accuracy: 0 to 650A, +/- (3% reading + 2A ) AC Current Accuracy: 50Hz arrive at 400Hz Captured Conductor Size: Max. 30mm Low Battery Indicator: Red LED Lighting Operating Temperature: 0°C to 50°C 70% RH Storage Temperature: -20°C to +70°C, 80% RH Battery Type: 1 * 9V 6F22 Battery (Not Included) Output: BNC Plug Dimensions: 175 * 70 * 33mm / 6.9 * 2.75 * 1.3 in Weight: 235g / 8.31 oz Package Size: 21.5 * 11 * 5cm / 8.46 * 4.33 * 1.97 in Package Weight: 303g / 10.71 oz Package Size: 21.5 * 11 * 5cm / 8.46 * 4.33 * 1.97 in Package listing 1 x cc-650 clamp meter
Itead 13.56mHz PN532 compatible Raspberry pie board NFC card reader module ARDUINO
Introduction
The ITEAD PN532 NFC module, as its name suggests, is based on the PN532 chip for near field communication at 13.56 MHz. The module is equipped with an onboard antenna so there is no external antenna coil. It is compatible with SPI, IIC, and UART interfaces for communication. With the NFC library supporting Arduino and the Raspberry Pi we offer, the development of NFC-enabled products is very convenient.
Characteristics
The longest effective communication distance is 5 cm
Support SPI, IIC, UART interface switching.
Can be used for 13.56M contactless communication
Compatible with ISO14443 TYPE A and Class B standards
specification
Chip NXP PN532
Working voltage 3.3V
Power supply voltage 3.3 ~ 5.5V
Maximum supply current 150 mA
Working current (standby mode) 100 mA
Working current (write mode) 120 mA
Working current (read mode) 120 mA
Pointer PWR
Interface Raspberry Pi's 20pins interface standard SPI interface,
Board size: length 79mm × width 48mm × height 11mm
Packing weight: 15.9g
Proto Shield Prototype Expansion Board SYB-170 MINI Solderless Breadboard For Arduino UNO R3 MEGA328P ATMEGA328P ProtoShield One
Brand new and high quality.
Small soldering area.
All For Arduino pins are brought to the top level.
1 reset button, 1 general use button, and 2 LED circuits can be used directly.
5V, GND, and Raw pins are exposed as well.
SOIC place for IC.
The mini breadboard has 170 tie points.
The breadboard sticks on the prototype shield with its self-adhesive backing.
Prototype Size:7cm x 5.5cm x 2cm
Mini breadboard size: 4.4 * 3.4 * 1cm
Package Included:
1 x For Arduino prototype shield
1 x Mini breadboard
Orange Pi Zero H2+ Quad Core Open-source 256MB development board beyond Raspberry Pi
Hardware specification CPU H2 Quad-core Cortex-A7 H. 265/HEVC 1080P. GPU Mali400MP2 GPU @600MHz · Supports OpenGL ES 2.0 Memory (SDRAM) 256MB/512MB DDR3 SDRAM (Share with GPU) (256MB version is Standard version) Onboard Storage TF card (Max. 32GB)/ Spi Flash Onboard Network 10/100M Ethernet RJ45 POE is default off. Onboard WIFI XR819, IEEE 802.11 b/g/n Audio Input MIC Video Outputs Supports external board via 13pins Power Source USB OTG can supply power USB 2.0 Ports Only One USB 2.0 HOST, one USB 2.0 OTG Buttons Power Button Low-level peripherals 26 Pins Header, compatible with Raspberry Pi B+ 13 Pins Header, with 2x USB, IR pin, AUDIO(MIC, AV) LED Power led & Status led Supported OS Android, Lubuntu, Debian, Raspbian Interface definition Product size 48 mm × 46mm Weight 26g
V10.2 VPECKER Easydiag WINDOWS 10 Wireless OBDII Full Diagnostic Tool With Special Function
Product Description Best Wireless OBDII Diagnostic Tool VPECKER Easydiag Support total 85 brand vehicle from European, Aisan, American, contain lots of Chinese vehicle brand Support Multi-language, can be used for customer from different country One OBDII Adapter, software is completely free downloading, support online update. VPECKER aimed at provide best service for customer and we are keep improving! VPECKER Easydiag Wireless OBDII Full Version Diagnostic Tool Support Wifi with Special Function Top 12 Reasons to Buy VPECKER Easydiag: 1. Languages avaliable: Supporting 25 languages, including Italian, Chinese (Simplified), English, Chinese (Traditional), Japanese, German, Russian, French, Spanish, Portuguese, Polish, Turkish, Dutch, Hungarian, Korean, Czech, Arabic, Indonesian, Persian, Thai, Vietnamese, Finnish, Swedish, Romanian, Bosnian, etc. 2. Complete function capability including live data, ECU programming and so many others. 3. Unparalleled OBDII functionalities-support ALL 5 OBDII protocols and ALL 10 test modes. 4. Automatic Wi-Fi updates available in new software releases. Wi-Fi internet capability allows for wireless access throughout the workshop. 5. Can check out the year and model of the vehicles automatically and quickly. 6. Can work stably in high and low temperature environment, and work well. 7. The genuine Windows XP~10 operating systems allows for more stable performances, better compatibility and expandability 8. Extremely easy-to-use with touch-screen operation and intuitive operation in the windows. 9. Software support online update. 10. Hardware architecture uses a new design with multiple protection, interference and stability. Built-in overvoltage protection module is applied, in order to protect scanner and vehicle against accidental damage during checking. 11. Extensive vehicle coverage for more than 73 US domestic, Europea, Asia, Australia and Chinese vehicles makes. 12. Support Kia and Hyundai cars till the year 2017
TB6560 3A Stepper Motor Driver Stepper Motor Driver Board Single-axis Controller 10-speed current
1)Working voltage DC 10V-35V. It is recommended to use a switching power supply DC24V for power supply. 2) Adopt 6N137 high-speed diaphragm to ensure high speed without losing step. 3) Adopt Toshiba TB6560AHQ brand new original chip, which has low voltage shutdown, overheat shutdown and overcurrent protection circuit to ensure the best performance. 4) The rated maximum output is: ±3A, peak 3.5A. 5) It is suitable for two-phase/four-phase/four-wire/six-wire stepping motor with 42, 57 stepping within 3A, not suitable for stepping motor over 3A. 6) Automatic semi-flow function. 7) Subdivision: full step, half step, 1/8 step, 1/16 step, maximum 16 subdivision. 8) Volume: width 50* length 75* height 35 (MM) Features in similar products: 1. The current level can be adjusted to meet your various application needs. 2, automatic semi-flow adjustable. 3, using 6N137 high-speed diaphragm, to ensure high speed without losing step. 4, board printing settings instructions, can also be operated without instructions. 5, the use of thick tooth radiator, good heat dissipation.
Banana Pi BPI W2 smart NAS router RTD1296 chip design
Introduction: Banana PI BPI-W2 is a highly integrated multimedia network router with Realtek RTD1296 chip design; it can be used for high wireless performance, homeentertainment, home automation and so on… BPI-W2 integrate a Quad-core ARM Cortex-A53 MPcore operating up to 1.5GH z, The Router also includes a variety of peripherals, including RX/TX, Mini DP, PCIe 2.0, PCIe 1.1 & SDIO, M. 2 interface, USB 2.0, USB 3.0 Port, TYPE C, SATA port, 2 Gbps Port Gigabit Ethernet port, also support 802.11 ac/n WLAN connection thru PCI-e port BPI-W2 can run with Android 6.0 smoothly, it also can run OpenWRT, Debian, Linux, Ubuntu linux, Raspbian and others OS. The size of Banana Pi BPI-W2 same asBPI- R2, it can easily run with the game it support 1080P high definition video output, the GPIO compatible with Raspberry Pi3 More specs follow below. Realtek RTD1296, Quad-core ARM Cortex-A5 Mali T820 MP3 GPU 2G DDR4 SDRAM PCIE 2.0 interface. PCEe 1.1 & SDIO support 2 SATA interface MicroSD slot supports up to 256GB expansion 8G eMMC flash (option 16/32/64G) Mini DP 2 port 10/100/1000 Mb Ethernet port (1) USB 3.0 and (2) USB 2.0, otg port 1080P high-definition video playback In/Out TYPE C interface
New Real Touch Keyboard 2.4G Wireless Mini Touchpad Mouse Keyboard for PC Laptop Tablet Pad Smart Android TV Box Raspberry Pi 3
Instruction 1. This is the newest type of touch keyboard, the large touch EAR for mini keyboard is coming. It will bring you a different and newfangled experience. There is many gesture to control the keyboard, which is showing in the product picture. 2. You can use the keyboard for keyboard mode and touch mouse mode by one switch key. It will very convenient to use. 3. Its appearance using the human body engineering design so you can hold it comfortable. 4.. It is also the 2.4G hz wireless keyboard with rechargeable lithium battery. Use for: 1. Android TV Box, Smart TV 2. PC, Laptop, Pad 3. Mini PC such as for Orange Pi, Raspberry Pi Note: If you want to use the 2.4 g keyboard for your TV, please confirm that your TV is smart TV or Android system TV! 2.4G keyboard is not suitable for Apple TV, Samsung TV, webos system TV. Package Iist: 1 x Touch Keyboard 1 x USB Cable 1 x Lithium Battery 1 x USB Receiver 1 x Manual
Hantek 1008B 8CH PC USB Oscilloscope/DAQ/8CH Programmable Generator 2.4MSa/s
diagnostic function Ignition function Primary ignition Primary ignition Primary ignition (current) Primary ignition (voltage & current) Primary ignition & crankshaft sensor Primary ignition & secondary ignition Secondary ignition Distributor secondary (spark plug line) Camshaft & Crankshaft & Injector Current & Primary Ignition Distributor secondary (spark plug line) Distributor secondary (line full line) Distributorless system secondary (positive ignition) Distributorless system secondary / per cylinder - coil (negative ignition) Secondary coil output test Secondary ignition & primary ignition Amplifier ground sensor Air flow meter Accelerator ABS digital quantity ABS analog quantity Hot wire flow meter Air valve flow meter BOSCH diesel air flow sensor BOSCH diesel engine intake pressure sensor Camshaft Camshaft (inductive) Camshaft (AC excitation) Camshaft (Hall Utility Sensor) Camshaft and crankshaft sensor Camshaft (BOSCH diesel Hall Hall sensor) Crankshaft Inductive crankshaft operation Inductive crankshaft start Crankshaft Hall sensor Crankshaft & primary ignition Distribution Hall effect picking Inductive loss (in startup) Inductive picking (in operation) Lambda sensor Lambda Titania (titanium oxide) oxygen sensor Lambda Zirconia (zirconia) oxygen sensor Zirconia front & rear Throttle position Throttle potentiometer Throttle switch Accelerator pedal Bosch diesel engine Anti-skid brake system digital Anti-skid brake system analog Refrigerant temperature (5V) Coolant temperature (Vauxhall row) Knock sensor Intake manifold absolute pressure simulation Intake manifold absolute pressure number Travel speed - Hall sensor Bus detection CAN bus CAN bus data observation CAN bus signal integrity CAN bus LH collection for a long time LIN bus K-line detection FlexRay LIN bus Actuator gasoline engine Single point injector (voltage) Single point injector (current) Multi-point injector (voltage) Multi-point injector (current) Injector voltage & current Injector Current & Primary Ignition diesel engine Common rail diesel engine (current) Injector Bosch CDI3 (current) Injector Bosch diesel engine (idle speed) Injector Bosch diesel engine (acceleration) Diesel spark plug Fuel pump Activated carbon solenoid valve ERG solenoid valve Stepper motor example 1 Stepper motor example 2 Idle control valve (rotating) Idle speed control valve (electromagnetic) Throttle servo motor (idle speed) Throttle servo motor (acceleration) Oil inlet control valve Bosch CDI3 Pressure control valve Bosch CDI3 Gearbox cooling fan (open) Gearbox cooling fan (off) Variable valve timing Camshaft timing adjuster Start & charge Charging circuit Current and voltage Current and voltage idle speed (24V) Current and voltage start (24V) Alternator output AC ripple / diode test Cylinder relative compression pressure (gasoline engine) Cylinder relative compression pressure (diesel) Start voltage drop Universal oscilloscope function model Hantek1008B Analog channel 8 channels input resistance Resistance: 1MO Input sensitivity 10mV/div to 5V/div Input coupling DC Resolution 12 bits Memory depth 4K Maximum input 400V (DC AC Peak) Real-time sampling rate 2.4MS a/s Benchmark range 1n
1PCS MEGA Sensor Shield V1.0/V2.0 Dedicated Sensor Expansion Board for Mega 2560 r3
1PCS MEGA Sensor Shield V1.0/V2.0 Dedicated Sensor Expansion Board for Mega 2560 r3
Item Description:
Arduino is an open-source physical computing platform based on a simple i/o board and a development
environment that implements the Processing/Wiring language.
Arduino can be used to develop stand-alone interactive objects or can be connected to software on your computer (e.g. Flash, Processing, MaxMSP).
The open-source IDE can be downloaded for free (currently for Mac OS X, Windows, and Linux)
Sensor Shield allows you to connect to various modules like sensors, servos, relays, buttons, potentiometers.
Mega Sensor Shield V1.0 pinout all of the Arduino digital and analog interface.
Support IIC interface.
Support 32 road Servo Motor Drive Shield interface.
Support bluetooth module communication interface.
Support SD card module communication interface.
Support APC220 wireless rf modules communication interface.
Support RB URF ultrasonic sensors interface.
Support LCD serial and parallel interface.
Support Kinds of interface and can be fully compatibled with Arduino Mega.
Smart Parts RAMPS 1.4 Controller Control Panel LCD 12864 Display Monitor Motherboard Blue Screen Module
The intelligent controller includes an SD card reader, rotary encoders and a 20-character × 4 line LCD display. You can easily connect it to your RAMPS 1.4 board using "smart adapter" included. This panel connect your RAMPS 1.4, you do not need your computer, your SD card intelligent controller power supply. All further operations, such as calibration, the axis movement can be done only with a rotary encoder intelligent controller. 3D design print without a computer, just use the G code design stored on the SD card. Package Included: 1Set 12864 LCD controller
Panasonic laptop CF-19 fully rugged CPU i5/3340/MK7 memory 4G/DDR3 HDD 500G 10 inch LED screen 1024*768 hand touch rotating Windows 7/XP
Screen Size 10.4"
Maximum Resolution 1024 x 768
Display Type Touch screen
CPU i5/3340/MK7
memory 4G/DDR3
HDD 500G
Operating system Windows 10/7/XP 32/64Audio Specifications
Audio Description Integrated Audio
Audio Channels Integrated speaker
Media Ports
PS/2 Mouse Connectors N/A
PS/2 Keyboard Connectors N/A
Serial Communication Ports 1
Parallel Ports 1
USB Ports (Total) 2
FireWire Ports 1
LAN Ports 1
Modem Ports 1
Audio Out Jacks 1
Microphone Jacks 1
VGA Ports 1
DVI Video N/A
HDMI Ports N/A
S-Video Connectors N/A
Port Replicator/Connector Port Replicator
eSATA Ports N/A
Fast Infrared Ports (FIR) N/A
Communications
Communications Description Integrated LAN
Integrated Modem
Wireless LAN
Interface Type RJ-11 Phone Connector
RJ-45 Ethernet Connector
Intel® Wireless WiFi Link 5100 802.11a/b/g/n
Data Transfer Rate 56Kbps Modem
Up to 300 Mbps
10/100/1000 Gigabit Ethernet LAN
Protocols V.92
WIFI
802.11b
802.11a
802.11g
802.11n
Dimensions
Width 10.7"
Height 1.9"
Depth 8.5"
Weight 5.1 lbs
Mouse Specifications
Mouse Type Pressure sensitive Touchpad
Buttons 2
Scrolling Capability Vertical Scroll Up/Down
Keyboard Specifications
Keyboard Type 82 Key Qwerty Keyboard
Battery
Battery Type Lithium-Ion
Color
Color Black
Silver
Webcam
Integrated Webcam No
Panasonic laptop CF-19 fully rugged CPU i5/3340/MK7 memory 4G/DDR3 HDD 160G 10 inch LED screen 1024*768 hand touch rotating Windows 7/XP
Screen Size 10.4"
Maximum Resolution 1024 x 768
Display Type Touch screen
CPU i5/3340/MK7
memory 4G/DDR3
HDD 160G
Operating system Windows 10/7/XP 32/64Audio Specifications
Audio Description Integrated Audio
Audio Channels Integrated speaker
Media Ports
PS/2 Mouse Connectors N/A
PS/2 Keyboard Connectors N/A
Serial Communication Ports 1
Parallel Ports 1
USB Ports (Total) 2
FireWire Ports 1
LAN Ports 1
Modem Ports 1
Audio Out Jacks 1
Microphone Jacks 1
VGA Ports 1
DVI Video N/A
HDMI Ports N/A
S-Video Connectors N/A
Port Replicator/Connector Port Replicator
eSATA Ports N/A
Fast Infrared Ports (FIR) N/A
Communications
Communications Description Integrated LAN
Integrated Modem
Wireless LAN
Interface Type RJ-11 Phone Connector
RJ-45 Ethernet Connector
Intel® Wireless WiFi Link 5100 802.11a/b/g/n
Data Transfer Rate 56Kbps Modem
Up to 300 Mbps
10/100/1000 Gigabit Ethernet LAN
Protocols V.92
WIFI
802.11b
802.11a
802.11g
802.11n
Dimensions
Width 10.7"
Height 1.9"
Depth 8.5"
Weight 5.1 lbs
Mouse Specifications
Mouse Type Pressure sensitive Touchpad
Buttons 2
Scrolling Capability Vertical Scroll Up/Down
Keyboard Specifications
Keyboard Type 82 Key Qwerty Keyboard
Battery
Battery Type Lithium-Ion
Color
Color Black
Silver
Webcam
Integrated Webcam No
Panasonic laptop CF-31 fully rugged CPU i5/2520/MK2 memory 4G/DDR3 HDD 160G 13 inch LED screen 1024*768 hand touch rotating Windows 7/XP
Screen Size 13 Maximum Resolution 1024 x 768 Display Type Touch screen CPU i5/2520/MK2 memory 4G/DDR3 HDD 160G Operating system Windows 10/7/XP 32/64 Audio Specifications Audio Description Integrated Audio Audio Channels Integrated speaker Media Ports PS/2 Mouse Connectors N/A PS/2 Keyboard Connectors N/A Serial Communication Ports 1 Parallel Ports 1 USB Ports (Total) 2 FireWire Ports 1 LAN Ports 1 Modem Ports 1 Audio Out Jacks 1 Microphone Jacks 1 VGA Ports 1 DVI Video N/A HDMI Ports N/A S-Video Connectors N/A Port Replicator/Connector Port Replicator eSATA Ports N/A Fast Infrared Ports (FIR) N/A Communications Communications Description Integrated LAN Integrated Modem Wireless LAN Interface Type RJ-11 Phone Connector RJ-45 Ethernet Connector Intel® Wireless WiFi Link 5100 802.11 a/b/g/n Data Transfer Rate 56Kbps Modem Up to 300 Mbps 10/100/1000 Gigabit Ethernet LAN Protocols V. 92 WIFI 802.11 b 802.11 a 802.11 g 802.11 n Dimensions Width 10.7" Height 1.9" Depth 8.5" Weight 5.1 lbs Mouse Specifications Mouse Type Pressure sensitive Touchpad Buttons 2 Scrolling Capability Vertical Scroll Up/Down Keyboard Specifications Keyboard Type 82 Key Qwerty Keyboard Battery Battery Type Lithium-Ion Color Color Black Silver Webcam Integrated Webcam No
Panasonic laptop CF-52 semi-solid CPU i5-3360/MK5 memory 4G / DDR3 hard drive 1TB 15 inch 1920*1200 widescreen / discrete graphics Windows 7 32/64 bit
Screen Size 15" Maximum Resolution 1920*1200 Display Type Touch screen CPU i5-3360/MK5 memory 4G/DDR3 HDD 1TB Audio Description Integrated Audio Audio Channels Integrated speaker Media Ports PS/2 Mouse Connectors N/A PS/2 Keyboard Connectors N/A Serial Communication Ports 1 Parallel Ports 1 USB Ports (Total) 2 FireWire Ports 1 LAN Ports 1 Modem Ports 1 Audio Out Jacks 1 Microphone Jacks 1 VGA Ports 1 DVI Video N/A HDMI Ports N/A S-Video Connectors N/A Port Replicator/Connector Port Replicator eSATA Ports N/A Fast Infrared Ports (FIR) N/A Communications Communications Description Integrated LAN Integrated Modem Wireless LAN Interface Type RJ-11 Phone Connector RJ-45 Ethernet Connector Intel® Wireless WiFi Link 5100 802.11 a/b/g/n Data Transfer Rate 56Kbps Modem Up to 300 Mbps 10/100/1000 Gigabit Ethernet LAN Protocols V. 92 WIFI 802.11 b 802.11 a 802.11 g 802.11 n Dimensions Width 10.7" Height 1.9" Depth 8.5" Weight 5.1 lbs Mouse Specifications Mouse Type Pressure sensitive Touchpad Buttons 2 Scrolling Capability Vertical Scroll Up/Down Keyboard Specifications Keyboard Type 82 Key Qwerty Keyboard Battery Battery Type Lithium-Ion Color Color Black Silver Webcam Integrated Webcam No
Gaming Mice Gaming Mause 7 Button Wired Mouse DIY 4 Color Breathing Lamp Ajustable 4000DPI USB Mice Mechanical Mouse Gamer For Jedi survival LOL
Basic parameters:
1: Model: X200 macro defines mechanical mouse
2:100% new gaming mouse
3: Built-in 64k storage memory
4: Cool LED lighting effect
5:7 programmable macro game button
6: Adjust the report rate through the drive
7:4 adjustable DPI up to 4000 DPI
8: High-strength woven fiber cable
9: Cable length: 170cm
10: Switch life: 20 million times
11: Product weight: 171g
12: Item size: 123 * 85 * 39mm (L * W * H)
13: Packing weight: 255g
14: Packing size: 155 * 121 * 46MM (length * width * height)
15:Support Windows 2000 / XP / win7 / win8 /win10 Vista 32bit or latest
Custom driver download and use:
1. Insert the driver CD into your computer and run "setup.exe" to install it.
2. When the mouse is successfully connected and used normally, you can start the installation.
3. When the installation is complete, the “X200” drive icon will appear on the desktop.
4. Adopt Avago A3050 professional game chip with high-performance program control decoding chip to achieve smooth motion and precise control.
5. For keys 2-7 (as shown), custom settings are supported through the drive.
6. Advanced Settings: Support for custom macro editing of game effects.
7. Advanced settings: You can set the pointer accuracy, wheel speed and double-click speed.
8. Basic settings: 250 DPI-4000 DPI, 12 segments available, each with a value of 250 DPI increments.
9. Three lighting modes, standard lighting, breathing lighting, neon lighting.
10. Plug and play, you can achieve more new features through the drive.
11. When the setup is complete, click Applications and then click Save Configuration. The driver should be restarted the next time it is used so that all custom features are available.
Gaming Mice Gaming Mause 7 Button Wired Mouse DIY G Software 4 Color Breathing Lamp Ajustable 5600DPI USB Mice Mechanical Mouse Gamer For Jedi survival LOL
Game chip: Avago A5050 Number of keys: 6 DPI: 5600 Refresh rate: 6600FPS Max Speed: 20G Line length: 160cm Mouse memory: Built in 128Bytes Key life: 20 million clicks Breathing lamp: 3colors Clump weight: Metal Clump weight Wire: Special magnetic shielding wire Size: 120X75X45mm Weight: close 159 g Mouse rate: USB 2.0 input 125 to 1000HZ
Panasonic laptop CF-19 fully rugged CPU i5/2520/MK5 memory 4G/DDR3 HDD 1TB 10 inch LED screen 1024*768 hand touch rotating Windows 7/XP
Screen Size 10.4"
Maximum Resolution 1024 x 768
Display Type Touch screen
CPU i5/2520/MK5
memory 4G/DDR3
HDD 1TB
Operating system Windows 7/XP 32/64
Audio Specifications
Audio Description Integrated Audio
Audio Channels Integrated speaker
Media Ports
PS/2 Mouse Connectors N/A
PS/2 Keyboard Connectors N/A
Serial Communication Ports 1
Parallel Ports 1
USB Ports (Total) 2
FireWire Ports 1
LAN Ports 1
Modem Ports 1
Audio Out Jacks 1
Microphone Jacks 1
VGA Ports 1
DVI Video N/A
HDMI Ports N/A
S-Video Connectors N/A
Port Replicator/Connector Port Replicator
eSATA Ports N/A
Fast Infrared Ports (FIR) N/A
Communications
Communications Description Integrated LAN
Integrated Modem
Wireless LAN
Interface Type RJ-11 Phone Connector
RJ-45 Ethernet Connector
Intel® Wireless WiFi Link 5100 802.11a/b/g/n
Data Transfer Rate 56Kbps Modem
Up to 300 Mbps
10/100/1000 Gigabit Ethernet LAN
Protocols V.92
WIFI
802.11b
802.11a
802.11g
802.11n
Dimensions
Width 10.7"
Height 1.9"
Depth 8.5"
Weight 5.1 lbs
Mouse Specifications
Mouse Type Pressure sensitive Touchpad
Buttons 2
Scrolling Capability Vertical Scroll Up/Down
Keyboard Specifications
Keyboard Type 82 Key Qwerty Keyboard
Battery
Battery Type Lithium-Ion
Color
Color Black
Silver
Webcam
Integrated Webcam No
Panasonic laptop CF-19 fully rugged CPU i5/3320/MK6 memory 4G/DDR3 HDD 160G 10 inch LED screen 1024*768 hand touch rotating Windows 7/XP
Screen Size 10.4" Maximum Resolution 1024 x 768 Display Type Touch screen CPU i5/3320/MK6 memory 4G/DDR3 HDD 160G Operating system Windows 7/XP 32/64 Audio Specifications Audio Description Integrated Audio Audio Channels Integrated speaker Media Ports PS/2 Mouse Connectors N/A PS/2 Keyboard Connectors N/A Serial Communication Ports 1 Parallel Ports 1 USB Ports (Total) 2 FireWire Ports 1 LAN Ports 1 Modem Ports 1 Audio Out Jacks 1 Microphone Jacks 1 VGA Ports 1 DVI Video N/A HDMI Ports N/A S-Video Connectors N/A Port Replicator/Connector Port Replicator eSATA Ports N/A Fast Infrared Ports (FIR) N/A Communications Communications Description Integrated LAN Integrated Modem Wireless LAN Interface Type RJ-11 Phone Connector RJ-45 Ethernet Connector Intel® Wireless WiFi Link 5100 802.11 a/b/g/n Data Transfer Rate 56Kbps Modem Up to 300 Mbps 10/100/1000 Gigabit Ethernet LAN Protocols V. 92 WIFI 802.11 b 802.11 a 802.11 g 802.11 n Dimensions Width 10.7" Height 1.9" Depth 8.5" Weight 5.1 lbs Mouse Specifications Mouse Type Pressure sensitive Touchpad Buttons 2 Scrolling Capability Vertical Scroll Up/Down Keyboard Specifications Keyboard Type 82 Key Qwerty Keyboard Battery Battery Type Lithium-Ion Color Color Black Silver Webcam Integrated Webcam No
Panasonic laptop CF-19 fully rugged CPU i5/2520/MK5 memory 4G/DDR3 HDD 500G 10 inch LED screen 1024*768 hand touch rotating Windows 7/XP 32/64
Screen Size 10.4"
Maximum Resolution 1024 x 768
Display Type Touch screen
CPU i5/2520/MK5
memory 4G/DDR3
HDD 500G
Operating system Windows 7/XP 32/64
Audio Specifications
Audio Description Integrated Audio
Audio Channels Integrated speaker
Media Ports
PS/2 Mouse Connectors N/A
PS/2 Keyboard Connectors N/A
Serial Communication Ports 1
Parallel Ports 1
USB Ports (Total) 2
FireWire Ports 1
LAN Ports 1
Modem Ports 1
Audio Out Jacks 1
Microphone Jacks 1
VGA Ports 1
DVI Video N/A
HDMI Ports N/A
S-Video Connectors N/A
Port Replicator/Connector Port Replicator
eSATA Ports N/A
Fast Infrared Ports (FIR) N/A
Communications
Communications Description Integrated LAN
Integrated Modem
Wireless LAN
Interface Type RJ-11 Phone Connector
RJ-45 Ethernet Connector
Intel® Wireless WiFi Link 5100 802.11a/b/g/n
Data Transfer Rate 56Kbps Modem
Up to 300 Mbps
10/100/1000 Gigabit Ethernet LAN
Protocols V.92
WIFI
802.11b
802.11a
802.11g
802.11n
Dimensions
Width 10.7"
Height 1.9"
Depth 8.5"
Weight 5.1 lbs
Mouse Specifications
Mouse Type Pressure sensitive Touchpad
Buttons 2
Scrolling Capability Vertical Scroll Up/Down
Keyboard Specifications
Keyboard Type 82 Key Qwerty Keyboard
Battery
Battery Type Lithium-Ion
Color
Color Black
Silver
Webcam
Integrated Webcam No
Panasonic laptop CF-31 fully rugged CPU i5/2520/MK2 memory 4G/DDR3 HDD 1TB 13 inch LED screen 1024*768 hand touch rotating Windows 7/XP
Screen Size 13 Maximum Resolution 1024 x 768 Display Type Touch screen CPU i5/2520/MK2 memory 4G/DDR3 HDD 1TB Operating system Windows 10/7/XP 32/64 Audio Specifications Audio Description Integrated Audio Audio Channels Integrated speaker Media Ports PS/2 Mouse Connectors N/A PS/2 Keyboard Connectors N/A Serial Communication Ports 1 Parallel Ports 1 USB Ports (Total) 2 FireWire Ports 1 LAN Ports 1 Modem Ports 1 Audio Out Jacks 1 Microphone Jacks 1 VGA Ports 1 DVI Video N/A HDMI Ports N/A S-Video Connectors N/A Port Replicator/Connector Port Replicator eSATA Ports N/A Fast Infrared Ports (FIR) N/A Communications Communications Description Integrated LAN Integrated Modem Wireless LAN Interface Type RJ-11 Phone Connector RJ-45 Ethernet Connector Intel® Wireless WiFi Link 5100 802.11 a/b/g/n Data Transfer Rate 56Kbps Modem Up to 300 Mbps 10/100/1000 Gigabit Ethernet LAN Protocols V. 92 WIFI 802.11 b 802.11 a 802.11 g 802.11 n Dimensions Width 10.7" Height 1.9" Depth 8.5" Weight 5.1 lbs Mouse Specifications Mouse Type Pressure sensitive Touchpad Buttons 2 Scrolling Capability Vertical Scroll Up/Down Keyboard Specifications Keyboard Type 82 Key Qwerty Keyboard Battery Battery Type Lithium-Ion Color Color Black Silver Webcam Integrated Webcam No
Panasonic laptop CF-19 fully rugged CPU i5/3320/MK6 memory 4G/DDR3 HDD 500G 10 inch LED screen 1024*768 hand touch rotating Windows 7/XP
Screen Size 10.4" Maximum Resolution 1024 x 768 Display Type Touch screen CPU i5/3320/MK6 memory 4G/DDR3 HDD 160G Operating system Windows 7/XP 32/64 Audio Specifications Audio Description Integrated Audio Audio Channels Integrated speaker Media Ports PS/2 Mouse Connectors N/A PS/2 Keyboard Connectors N/A Serial Communication Ports 1 Parallel Ports 1 USB Ports (Total) 2 FireWire Ports 1 LAN Ports 1 Modem Ports 1 Audio Out Jacks 1 Microphone Jacks 1 VGA Ports 1 DVI Video N/A HDMI Ports N/A S-Video Connectors N/A Port Replicator/Connector Port Replicator eSATA Ports N/A Fast Infrared Ports (FIR) N/A Communications Communications Description Integrated LAN Integrated Modem Wireless LAN Interface Type RJ-11 Phone Connector RJ-45 Ethernet Connector Intel® Wireless WiFi Link 5100 802.11 a/b/g/n Data Transfer Rate 56Kbps Modem Up to 300 Mbps 10/100/1000 Gigabit Ethernet LAN Protocols V. 92 WIFI 802.11 b 802.11 a 802.11 g 802.11 n Dimensions Width 10.7" Height 1.9" Depth 8.5" Weight 5.1 lbs Mouse Specifications Mouse Type Pressure sensitive Touchpad Buttons 2 Scrolling Capability Vertical Scroll Up/Down Keyboard Specifications Keyboard Type 82 Key Qwerty Keyboard Battery Battery Type Lithium-Ion Color Color Black Silver Webcam Integrated Webcam No
Panasonic laptop CF-52 semi-solid CPU i5/m540/MK3 memory 4G / DDR3 hard drive 160G 15 inch 1280*800 widescreen Windows 7 32/64 bit
Screen Size 15" Maximum Resolution 1280*800 Display Type Touch screen CPU i5/m540/MK3 memory 4G/DDR3 HDD 160G Audio Description Integrated Audio Audio Channels Integrated speaker Media Ports PS/2 Mouse Connectors N/A PS/2 Keyboard Connectors N/A Serial Communication Ports 1 Parallel Ports 1 USB Ports (Total) 2 FireWire Ports 1 LAN Ports 1 Modem Ports 1 Audio Out Jacks 1 Microphone Jacks 1 VGA Ports 1 DVI Video N/A HDMI Ports N/A S-Video Connectors N/A Port Replicator/Connector Port Replicator eSATA Ports N/A Fast Infrared Ports (FIR) N/A Communications Communications Description Integrated LAN Integrated Modem Wireless LAN Interface Type RJ-11 Phone Connector RJ-45 Ethernet Connector Intel® Wireless WiFi Link 5100 802.11 a/b/g/n Data Transfer Rate 56Kbps Modem Up to 300 Mbps 10/100/1000 Gigabit Ethernet LAN Protocols V. 92 WIFI 802.11 b 802.11 a 802.11 g 802.11 n Dimensions Width 10.7" Height 1.9" Depth 8.5" Weight 5.1 lbs Mouse Specifications Mouse Type Pressure sensitive Touchpad Buttons 2 Scrolling Capability Vertical Scroll Up/Down Keyboard Specifications Keyboard Type 82 Key Qwerty Keyboard Battery Battery Type Lithium-Ion Color Color Black Silver Webcam Integrated Webcam No
Panasonic laptop CF-52 semi-solid CPU i5/m540/MK3 memory 4G / DDR3 hard drive 1TB 15 inch 1280*800 widescreen Windows 7 32/64 bit
Screen Size 15" Maximum Resolution 1280*800 Display Type Touch screen CPU i5/m540/MK3 memory 4G/DDR3 HDD 1TB Audio Description Integrated Audio Audio Channels Integrated speaker Media Ports PS/2 Mouse Connectors N/A PS/2 Keyboard Connectors N/A Serial Communication Ports 1 Parallel Ports 1 USB Ports (Total) 2 FireWire Ports 1 LAN Ports 1 Modem Ports 1 Audio Out Jacks 1 Microphone Jacks 1 VGA Ports 1 DVI Video N/A HDMI Ports N/A S-Video Connectors N/A Port Replicator/Connector Port Replicator eSATA Ports N/A Fast Infrared Ports (FIR) N/A Communications Communications Description Integrated LAN Integrated Modem Wireless LAN Interface Type RJ-11 Phone Connector RJ-45 Ethernet Connector Intel® Wireless WiFi Link 5100 802.11 a/b/g/n Data Transfer Rate 56Kbps Modem Up to 300 Mbps 10/100/1000 Gigabit Ethernet LAN Protocols V. 92 WIFI 802.11 b 802.11 a 802.11 g 802.11 n Dimensions Width 10.7" Height 1.9" Depth 8.5" Weight 5.1 lbs Mouse Specifications Mouse Type Pressure sensitive Touchpad Buttons 2 Scrolling Capability Vertical Scroll Up/Down Keyboard Specifications Keyboard Type 82 Key Qwerty Keyboard Battery Battery Type Lithium-Ion Color Color Black Silver Webcam Integrated Webcam No
Panasonic laptop CF-19 fully rugged CPU i5/U540/MK4 memory 4G/DDR3 HDD 1TB 10 inch LED screen 1024*768 hand touch rotating Windows 7/XP
Screen Size 10.4" Maximum Resolution 1024 x 768 Display Type Touch screen CPU i5/U540/MK4 memory 4G/DDR3 HDD 1TB Operating system Windows 7/XP 32/64 Audio Specifications Audio Description Integrated Audio Audio Channels Integrated speaker Media Ports PS/2 Mouse Connectors N/A PS/2 Keyboard Connectors N/A Serial Communication Ports 1 Parallel Ports 1 USB Ports (Total) 2 FireWire Ports 1 LAN Ports 1 Modem Ports 1 Audio Out Jacks 1 Microphone Jacks 1 VGA Ports 1 DVI Video N/A HDMI Ports N/A S-Video Connectors N/A Port Replicator/Connector Port Replicator eSATA Ports N/A Fast Infrared Ports (FIR) N/A Communications Communications Description Integrated LAN Integrated Modem Wireless LAN Interface Type RJ-11 Phone Connector RJ-45 Ethernet Connector Intel® Wireless WiFi Link 5100 802.11 a/b/g/n Data Transfer Rate 56Kbps Modem Up to 300 Mbps 10/100/1000 Gigabit Ethernet LAN Protocols V. 92 WIFI 802.11 b 802.11 a 802.11 g 802.11 n Dimensions Width 10.7" Height 1.9" Depth 8.5" Weight 5.1 lbs Mouse Specifications Mouse Type Pressure sensitive Touchpad Buttons 2 Scrolling Capability Vertical Scroll Up/Down Keyboard Specifications Keyboard Type 82 Key Qwerty Keyboard Battery Battery Type Lithium-Ion Color Color Black Silver Webcam Integrated Webcam No
Panasonic laptop CF-19 fully rugged CPU i5/3320/MK6 memory 4G/DDR3 HDD 1TB 10 inch LED screen 1024*768 hand touch rotating Windows 7/XP
Screen Size 10.4" Maximum Resolution 1024 x 768 Display Type Touch screen CPU i5/3320/MK6 memory 4G/DDR3 HDD 1TB Operating system Windows 7/XP 32/64 Audio Specifications Audio Description Integrated Audio Audio Channels Integrated speaker Media Ports PS/2 Mouse Connectors N/A PS/2 Keyboard Connectors N/A Serial Communication Ports 1 Parallel Ports 1 USB Ports (Total) 2 FireWire Ports 1 LAN Ports 1 Modem Ports 1 Audio Out Jacks 1 Microphone Jacks 1 VGA Ports 1 DVI Video N/A HDMI Ports N/A S-Video Connectors N/A Port Replicator/Connector Port Replicator eSATA Ports N/A Fast Infrared Ports (FIR) N/A Communications Communications Description Integrated LAN Integrated Modem Wireless LAN Interface Type RJ-11 Phone Connector RJ-45 Ethernet Connector Intel® Wireless WiFi Link 5100 802.11 a/b/g/n Data Transfer Rate 56Kbps Modem Up to 300 Mbps 10/100/1000 Gigabit Ethernet LAN Protocols V. 92 WIFI 802.11 b 802.11 a 802.11 g 802.11 n Dimensions Width 10.7" Height 1.9" Depth 8.5" Weight 5.1 lbs Mouse Specifications Mouse Type Pressure sensitive Touchpad Buttons 2 Scrolling Capability Vertical Scroll Up/Down Keyboard Specifications Keyboard Type 82 Key Qwerty Keyboard Battery Battery Type Lithium-Ion Color Color Black Silver Webcam Integrated Webcam No
Mechanical Gaming Mouse 8 Button 2500DPI A5050 Chip Wired Mouse Gamer Macros Programming Optical Computer Mouse for Laptop PC(black /white )
Specifications: 1: Product model: X600 Mechanical Macros Define the game mouse 2:100 % new mouse game 3: High-end brand mechanical macro definition gaming mouse 4: Human body engineering design 5:8 programmable keys 6: Cool LED variable light effect 7:8 -level adjustable DPI, Max. 2500 DPI 8: Voltage rating / electric current: DC 5V / 100mA 9: USB plug and pla 10: Switch life: 20million cycle 11: Cable length: 150cm 12: Item Weight: 168g±5g 13: Item Size: 132*87*35MM (L * W * H) 14: Package Weight: 245g 15: Package Size: 159*121*47MM 16: Support Windows 2000 / XP / win7 / win8 /win10 Vista 32bit IOS or latest. The custom driver download and use: 1. Insert the driver CD to computer, and run the "setup. exe" installation. 2. The installation can be started when the mouse is successfully connected and in normal use. 3. When the installation is completed, "X600" drive icon appears on the desktop. 4. Adopt Avago A5050 professional game chips, with high-performance program control decoder chip, to achieve smooth movement and precise control. 5. For key 2-8 (as the picture shows), custom settings are supported via the drive. 6. Advanced Settings: the custom macro editing for gaming effects are supported. 7. Advanced Settings: pointer precision, scroll wheel speed and double-click speed can be set. 8. Basic Settings: 250 DPI~2500 DPI, 8 segments available, each with a value of 250 DPI increments. 9. Three light modes, standard lighting, breathing lighting, neon lighting available. 10. Plug and play, more new functions can be achieved via the drive. 11. When settings done, click Application, and click Save the Configuration. You should boot the driver again when next use so that all the self-defined functions can be used. Pakage Including: 1X Gaming Mouse
Panasonic laptop CF-31 fully rugged CPU i5/M520/MK1 memory 4G/DDR3 HDD 500G 13 inch LED screen 1024*768 hand touch rotating Windows 7/XP
Screen Size 13" Maximum Resolution 1024 x 768 Display Type Touch screen CPU i5/M520/MK1 memory 4G/DDR3 HDD 500G Operating system Windows 10/7/XP 32/64 Audio Specifications Audio Description Integrated Audio Audio Channels Integrated speaker Media Ports PS/2 Mouse Connectors N/A PS/2 Keyboard Connectors N/A Serial Communication Ports 1 Parallel Ports 1 USB Ports (Total) 2 FireWire Ports 1 LAN Ports 1 Modem Ports 1 Audio Out Jacks 1 Microphone Jacks 1 VGA Ports 1 DVI Video N/A HDMI Ports N/A S-Video Connectors N/A Port Replicator/Connector Port Replicator eSATA Ports N/A Fast Infrared Ports (FIR) N/A Communications Communications Description Integrated LAN Integrated Modem Wireless LAN Interface Type RJ-11 Phone Connector RJ-45 Ethernet Connector Intel® Wireless WiFi Link 5100 802.11 a/b/g/n Data Transfer Rate 56Kbps Modem Up to 300 Mbps 10/100/1000 Gigabit Ethernet LAN Protocols V. 92 WIFI 802.11 b 802.11 a 802.11 g 802.11 n Dimensions Width 10.7" Height 1.9" Depth 8.5" Weight 5.1 lbs Mouse Specifications Mouse Type Pressure sensitive Touchpad Buttons 2 Scrolling Capability Vertical Scroll Up/Down Keyboard Specifications Keyboard Type 82 Key Qwerty Keyboard Battery Battery Type Lithium-Ion Color Color Black Silver Webcam Integrated Webcam No
Mechanical Mouse 5-speed DPI GT650 1.8M Wire 10 Buttons Plug And Play For Windows/mac Supports Macro Programmable Gaming Mouse(gray/white)
Mechanical Mouse 5-speed DPI GT650 1.8M Wire 10 Buttons Plug And Play For Windows/mac Supports Macro Programmable Gaming Mouse
Features:
Titanium alloy base, magnetic ring braided line, stereo scroll, five-speed DPI, engineering design, five-color breathing lamp, 10mm hand distance that can be adjusted freely.
Description:
Mouse model: GT650
Mouse features: Avago A3050 chip, onboard storage, hardware macro
Operating performance: designed to be suitable for game application
Mouse size(Approx.):
125*70*38mm/ 4.92*2.76*1.5in (length adjustable range 115~125mm)
Number of buttons: 10 buttons
Length of the mouse line: 1.8-meter braided wire
