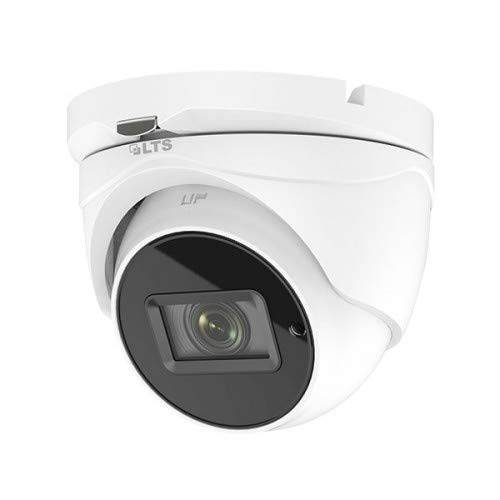

CMHT1923W-Z Platinum Motorized Varifocal Turret HD-TVI Camera 2.1MP
2.1MP High Definition1920x1080P@30fps2.8-12mm Motorized Varifocal LensTrue WDR 120dB6 Matrix IR up to 131ft (40mDC 12VOSD Menu via UTC technology with Platinum TVI DVRIP66 weatherproof

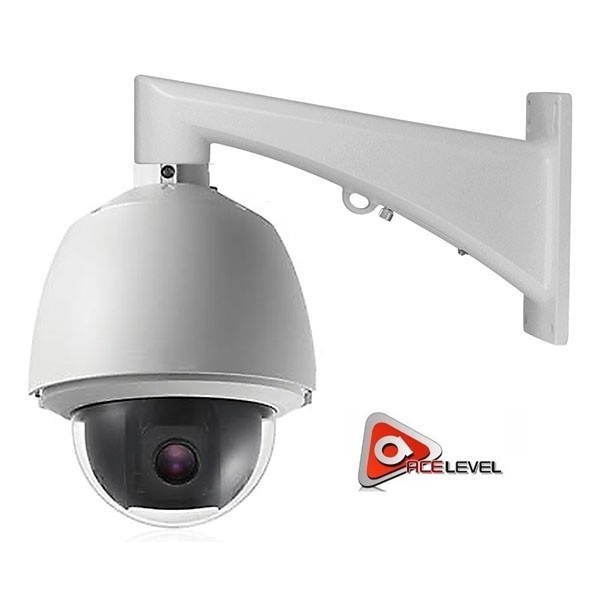

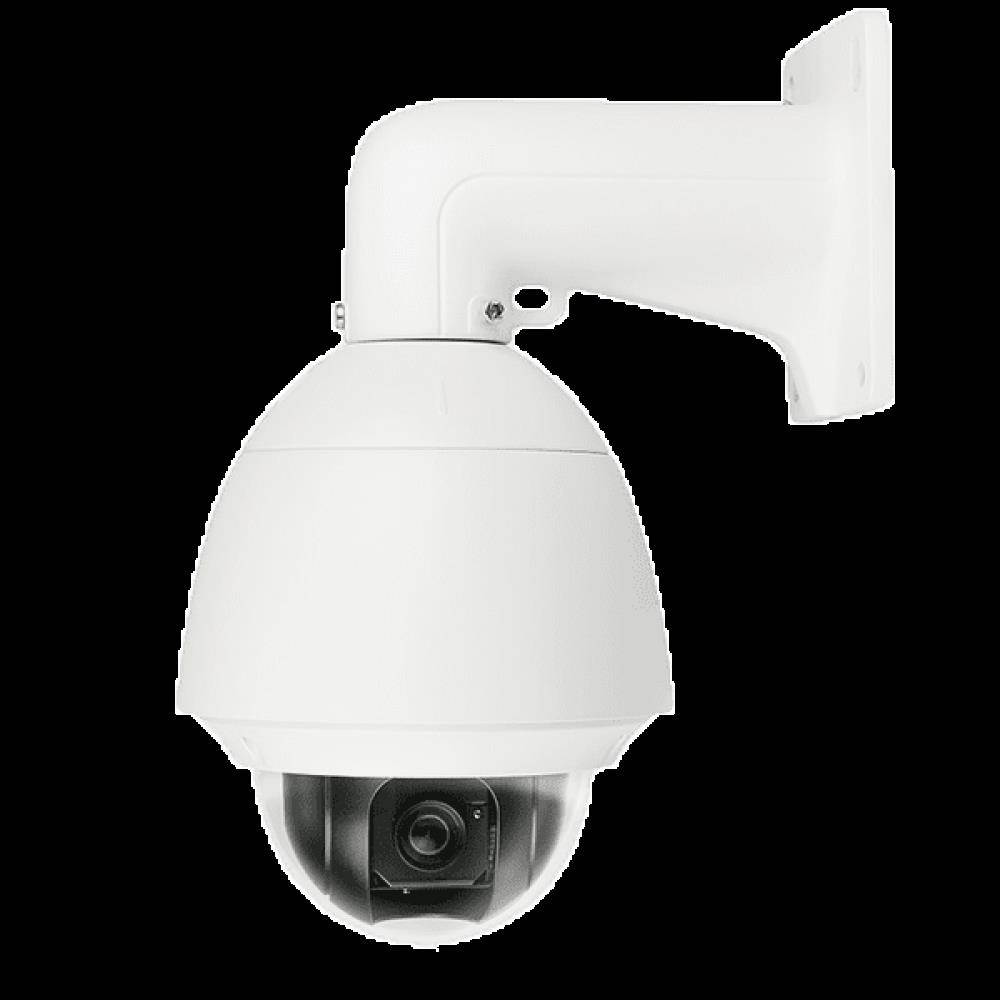

LTS Platinum IP PTZ High Speed Dome Camera 1.3MP
Image Sensor: 1/3'' sensor Effective Pixel: 1320K pixels Min. Illumination: Color: 0.05L ux@( F 1.4, AGC ON) B/W: 0.01L ux @ (F 1.4, AGC ON) White Balance: Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp AGC: Auto / Manual S/ N Ratio: = 50dB Digital Noise Reduction: 3D DNR Backlight compensation: BLC Wide Dynamic Range: Digital WDR Shutter Speed: 1 ~ 1/10, 000s Day & Night: IR Cut Filter Focus Mode: Auto / Semiautomatic / Manual Focal Length: 4.7 ~ 94.0 mm, 20x Zoom Speed: Approx 3s(Optical Wide-Tele) Angle of View: 58.3 ~ 3.2 degree (Wide-Tele) Min. Working Distance: 10 ~ 1000mm(Wide-Tele) Aperture Range: F 1.4 ~ F 3.5 Pan / Tilt Range: Pan: 360° endless; Tilt: -5° ~ 90° (Auto Flip ) Pan / Tilt Speed: Pan Manual Speed: 0.1 ° ~ 250°/s, Pan Preset Speed: 300°/s Tilt Manual Speed: 0.1 ° ~ 150°/s, Tilt Preset Speed: 200°/s Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples Number of Preset: 256 Park action: Pattern/Pan scan/Tilt scan/Frame scan/Panorama scan/Random scan Patrol: 8 patrols, up to 32 presets per patrol Audio Input: Audio input (Line input), 2 ~ 2.4V [p-p]; output impedance: 1KO±10% Audio Output: Line level, impedance: 600O Ethernet: 10Base-T / 100Base-TX, RJ45 connector Max. Image Resolution: 1280×960 Frame Rate: 60Hz: 30 fps (1280×960), 30 fps (1280×720); 50Hz: 25 fps (1280×960), 25 fps (1280×720) Image Compression: H. 264/MPEG4 Audio Compression: G. 711u /G. 711a /G. 726 Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1 x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE Simultaneous Live View: Up to 6 Streams: Dual Streams Mini SD Memory Card: Micro SD Slot, up to 32GB User/Host Level: Up to 32 users, 3 Levels: Administrator, Camera control, Live view only Security Measures: User authentication (ID and PW), Host authentication (MAC address), IP address filtering Application programming: Open-ended API, support Onvif, PSIA and CGI Web Browser: IE 7, IE 8, IE 9, Chrome 8 +, Firefox 3.5 +, Safari 5 + Working Temperature/ Humidity: -30 °C ~ 65°C(-22°F ~ 149°F) 90% or less Power Supply: 24 VAC / PoE+; Power Consumption: Max. 22W Ingress protection level: IP66 standard; TVS 4, 000V lightning protection, surge protection and voltage transient protection Impact Protection: IEC60068-275Eh, 20J; EN50102, up to IK10 Dimensions: F220×305mm (F 8.66 ”× 12.02 ” without bracket) Weight: 5kg( 11.02I bs without bracket)

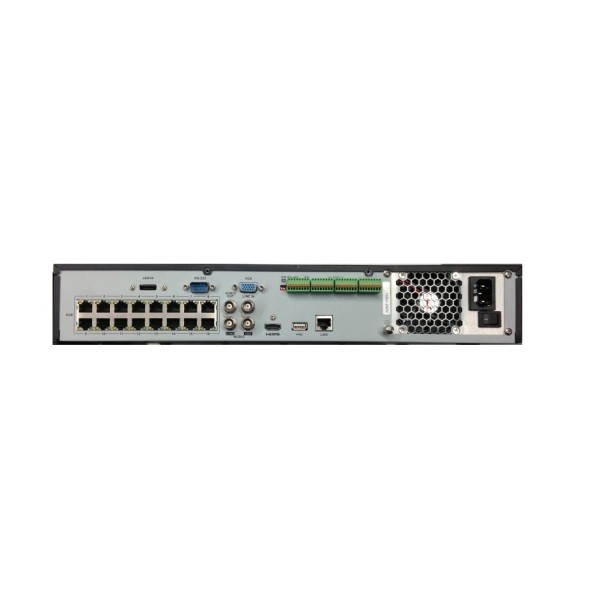

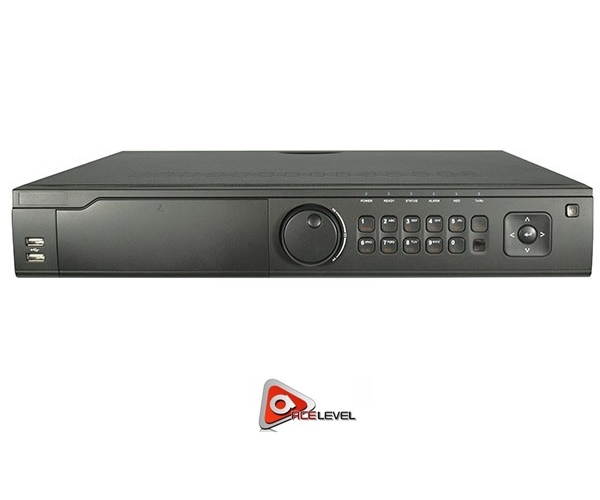

LTS Platinum Enterprise Level 32 Channel NVR 1.5U
Recorder Series: Platinum Series Recorder Channel: 32-Channel Recorder Case: 1.5U Case Recorder Technology: IP / NVR IP video input: 32-ch Two-way audio input: 1-ch, BNC ( 2.0 Vp-p, 1kO) Incoming bandwidth: 160Mbps Recording resolution: 6MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF CVBS output: 1-ch, BNC ( 1.0 Vp-p, 75 O) Resolution: 704 × 576 (PAL); 704 × 480 (NTSC) HDMI output: 1-ch, resolution: 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz VGA output: 1-ch, resolution: 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 12 ×80 720 /60Hz, 1024 × 768 /60Hz Audio output: 2-ch, BNC (Linear, 600O) Playback resolution: 6MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF Synchronous playback: 16-ch SATA: 4 SATA interfaces for 2 HDDs + 1 DVD-R/W (default), or 4HDDs eSATA: 1 eSATA interface Capacity: Up to 6TB capacity for each HDD Network interface: 1 RJ-45 10 / 100 / 1000 Mbps self-adaptive Ethernet interface; 16 independent 100 Mbps PoE network interfaces Serial interface: 1 RS-232 interface (for parameters configuration, maintenance, transparent channel); 1 RS-485 interface (reserved); 1 RS-485 keyboard interface (for special keyboard control) USB interface: 3 × USB 2.0 Alarm in: 16 Alarm out: 4 Power supply: 100 ~ 240VAC, 6.3A, 50 ~ 60Hz Consumption: less than 45 W Working temperature: -10 ºC ~ +55 ºC (14°F ~ 131°F) Working humidity: 10% ~ 90% Dimensions (W × D × H): 440 × 390 × 70 mm ( 17.3" x 15.3" x 2.8" ) Weight: less than 4 Kg ( 8.8 lb. ) (Without hard disk or DVD-R/W)
LTS Platinum Mini Bullet IP Camera 3.2MP - Black Color
Image Sensor: 1/3" Sensor
Min. Illumination: 0.01 lux @F1.2, AGC ON, 0 lux with IR; 0.028 lux @F2.0, AGC ON, 0 lux with IR
Shutter Speed: 1/25s~1/100,000s
Lens: 4mm @F2.0
2048X1536: Angle of view: 70°
1920X1080: Angle of view: 79°
Lens Mount: M12
Day & Night: IR cut filter with auto switch
Digital noise reduction: 3D DNR
Video Compression: H.264 / MJPEG
H.264 codec profile: Main profile
Bit Rate: 32 Kbps ~ 16 Mbps
Max. Resolution: 2048 × 1536
Frame Rate: 60Hz: 15fps (2048 x 1536), 30fps (1920 ×1080), 30fps (1280 x 720); 50Hz: 12.5fps (2048 x 1536), 25fps (1920 ×1080), 25fps (1280 x 720)
Image Settings: Saturation, brightness, contrast adjustable through client software or web browser
BLC: Yes, zone configurable
Network Storage: NAS (iSCSI optional)
Alarm Trigger: Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception
Protocols: TCP/ IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP,802.1x, Qos (SIP, SRTP, IPv6 optional)
Interoperability: ONVIF, PSIA, CGI
Security: User authentication, watermark, flickerless, heartbeat, dual stream, mirror
Communication Interface: 1 RJ45 10M / 100M ethernet interface
Working Temperature/ Humidity: -25 °C ~ 60 °C (-13°F ~ 140 °F); Humidity 95% or less (non-condensing)
Power Supply: 12 VDC ± 10%, PoE (802.3af)
Power Consumption: Max. 5W
Ingress protection level: IP66
IR range: Up to 30m (100ft)
Dimension: 60.4 x 76.5 x 138.1mm (2.4”x 3.0”x 5.4”)
Weight: 300g (0.66lbs)

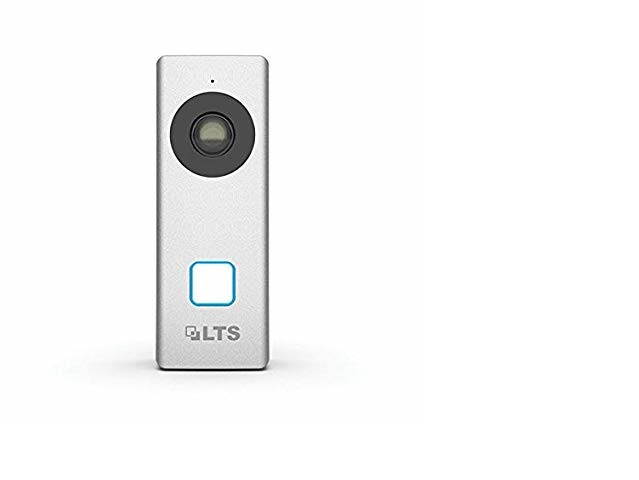

Platinum Network HD Video Doorbell 2MP LTK6128W-WIFI
2.1MP High Definition
180° panoramic view
Day/Night view with built-in IR
True WDR 120dB
Replacing the existing doorbell
Connect to the existing chime, no extra wire needed
See/hear/speak to visitors via phone APP
Connect/record to NVR as an IP camera
MicroSD card slot for local storage 128GB
LTS Platinum Motorized Dome HD-TVI Camera
2 Matrix IR up to 131ft (40m)
2.8-12mm Motorized Varifocal Lens
True WDR 120dB
OSD Menu via UTC technology compatible with TVI DVR
Must be Used with HD-TVI 3.0 DVRs

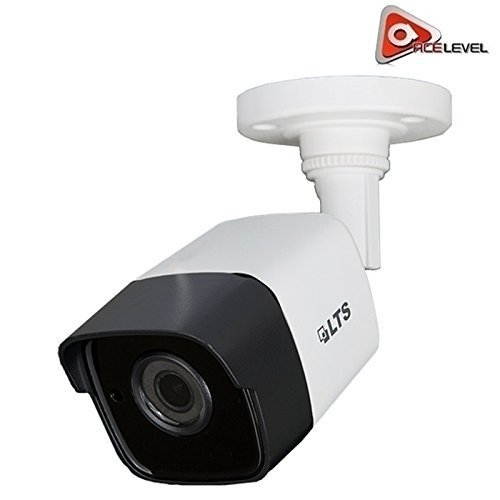

LTS Platinum Bullet HD-TVI Camera
3MP High Definition
True WDR 120dB
2 Matrix IR up to 65ft (20m)
OSD Menu via UTC technology compatible with TVI DVR
Must be Used with HD-TVI 3.0 DVRs
LTS LTN8816-P16 Video Record,16 Independent PoE
Network Video Recorder, Number of IP Camera Inputs 16, Resolution 1920 x 1080, Height 2 51/64 in, Width 17 19/64 in, Depth 15 19/64 in, Max. Frames per Second 30, Maximum Number of Hard Drives 4, Power Required 12V DC, Video Export Function USB, Network, Network Interface 10/100/1000 mbps, Recording Modes Continuous, Motion, Alarm, Viewing Types Local, Web, Smart Device, Video Compression Format H. 264, Video Output VGA, HDMI, Standards UL Listed. This item has been restricted from sale in the following state (s): []

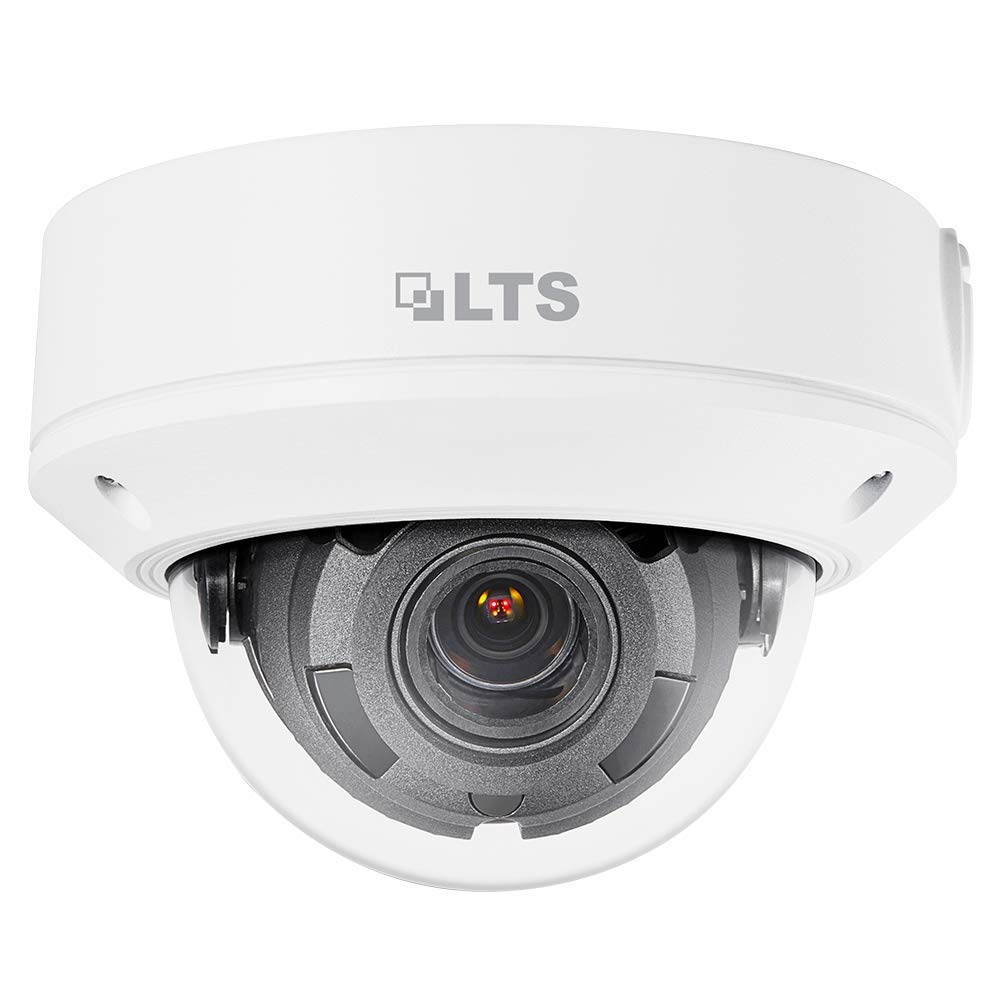

LTS,LTCMIP7043W-MZ Platinum Network Vandal Dome IP Camera, 4MP, True WDR, Motorized Lens, SD Card Slot
4MP High Definition Up to 2560x1440@20fps 2.8 -12mm Varifocal Motorized Lens IR Range up to 100 feet H. 265+, H. 265, H. 264, H. 264 Zip+ Ready True WDR 120dB WEATHERPROOF IP67, IK10 DC 12V, PoE Metal Housing Platinum Network Vandal Dome IP Camera, 4MP, True WDR, Motorized Lens, SD card slot

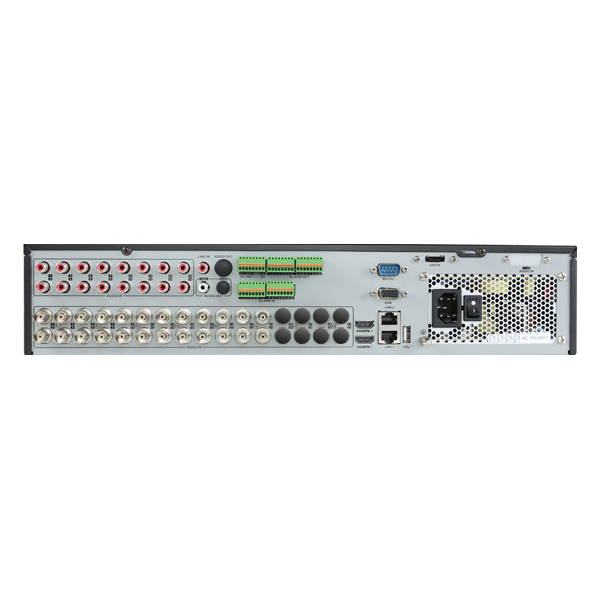

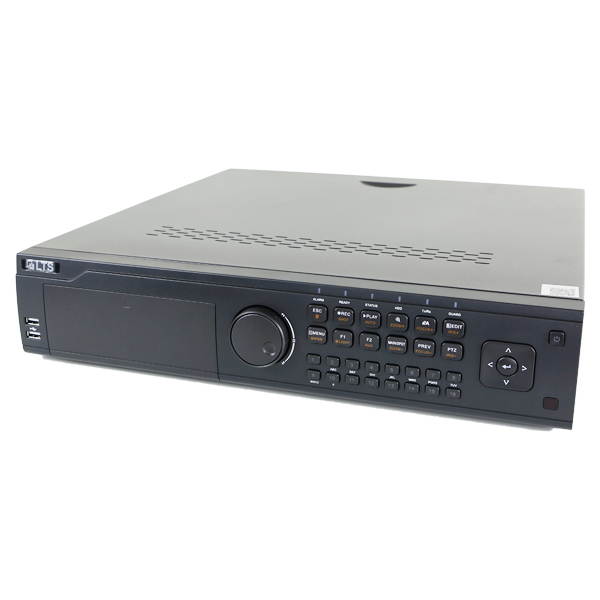

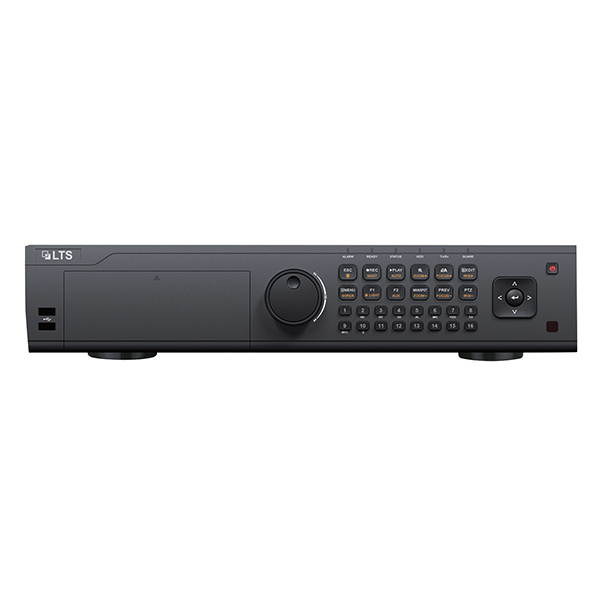

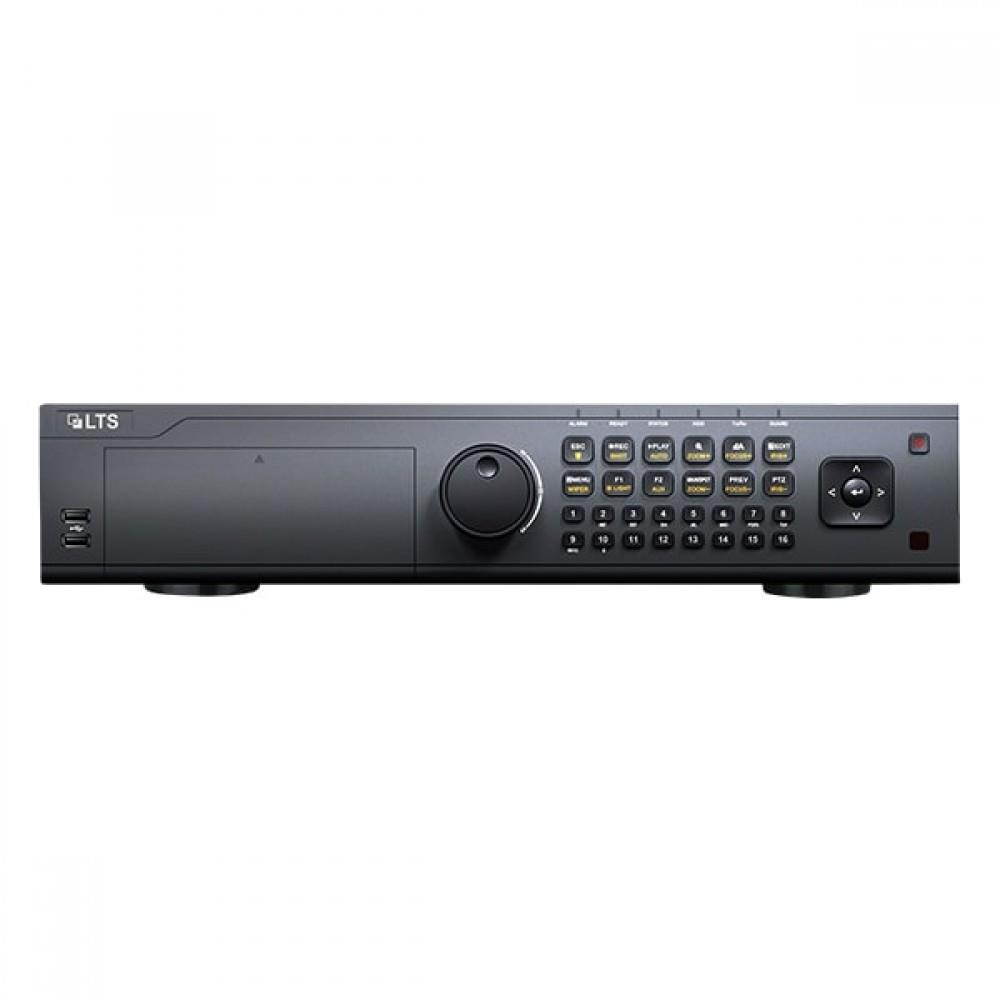

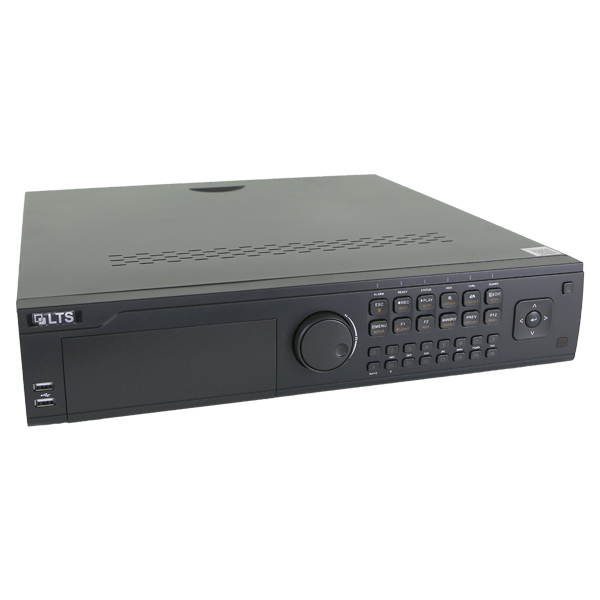

LTS LTD9224T-FA 24CH HD TVI or Analog and 16CH IP Triple Hybrid 720P 1080P DVR Recorder NO HDD
Video / Audio input Video Compression H. 264 Analog and HD-TVI Video Input 24CH Video Input Interface BNC ( 1.0 Vp-p, 75 O), PAL / NTSC self-adapive IP Input Add up to 16CH ( 1080P@30fps) Audio Compression G. 711u Audio Input 16-CH, RCA ( 2.0 Vp-p, 1 kO) Two-way Audio Input 1-CH, RCA ( 2.0 Vp-p, 1 kO) Video / Audio output HDMI / VGA output 2 HDMI (1 Spot Out) / 1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60Hz Encoding resolution Main Stream: 1080P (Non-Real-Time) / 720P / VGA / WD1 / 4CIF / CIF Sub-Stream: WD1 (12fps) / 4CIF (12fps) / CIF / QCIF / QVGA Frame rate Main Stream: 1 / 16 fps ~ Real-Time Frame Rate Sub-Stream: 1 / 16 fps ~ Real-Time Frame Rate Video Bit Rate 32 Kbps-6 Mbps Audio Output 1CH, RCA (Linear, 1 kO) Audio Bit rate 64 Kbps Dual-Stream Support Stream Type Video, Video & Audio Synchronous Playback 24CH Playback Resolution 1080P / 720P / V GA / WD1 / 4CIF / CIF / QVGA / QCIF Network Remote Connections 128 Network Protocols TCP / IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS Hard disk SATA 8 SATA Interfaces for 8 HDDs; 1 eSATA Interface Capacity Up to 6TB Capacity for Each Disk External interface Network Interface 2:10 M / 100M / 1000M Self-Adaptive Ethernet Interface Serial Interface RS-232, RS-485, Keyboard USB Port 3 × USB 2.0 Alarm In/ Out 16/ 8 General Power Supply 100 ~ 240VAC, 47 ~ 63HZ Consumption = 60W Working Temperature 14°F - 131°F (-10 °C ~ +55 °C) Working Humidity 10% ~ 90% Casing 19in Rack-Mounted 2U Casing Dimensions ( WxDxH) 417.5 × 18.5 × 3. 5in (45 × 470 × 90mm) Weight 17.6 lb (=8kg)

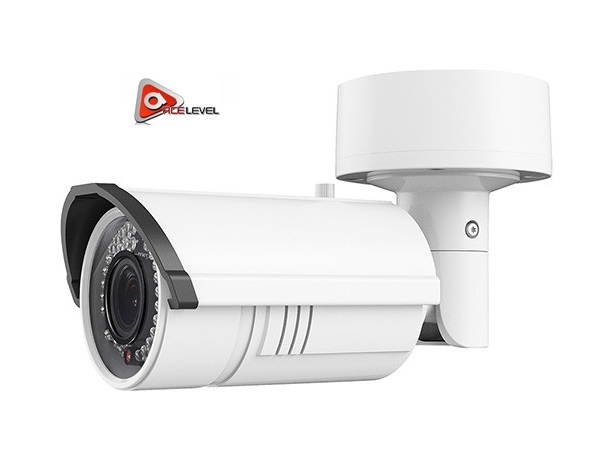

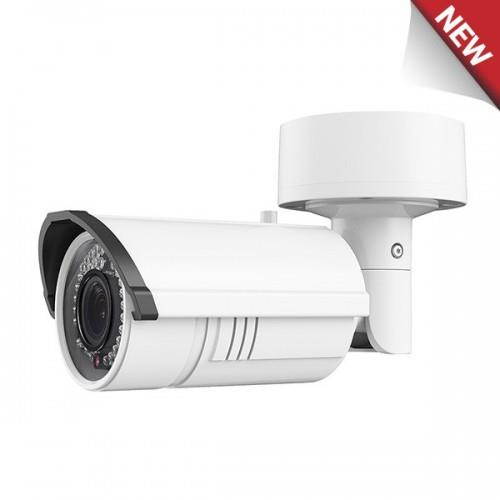

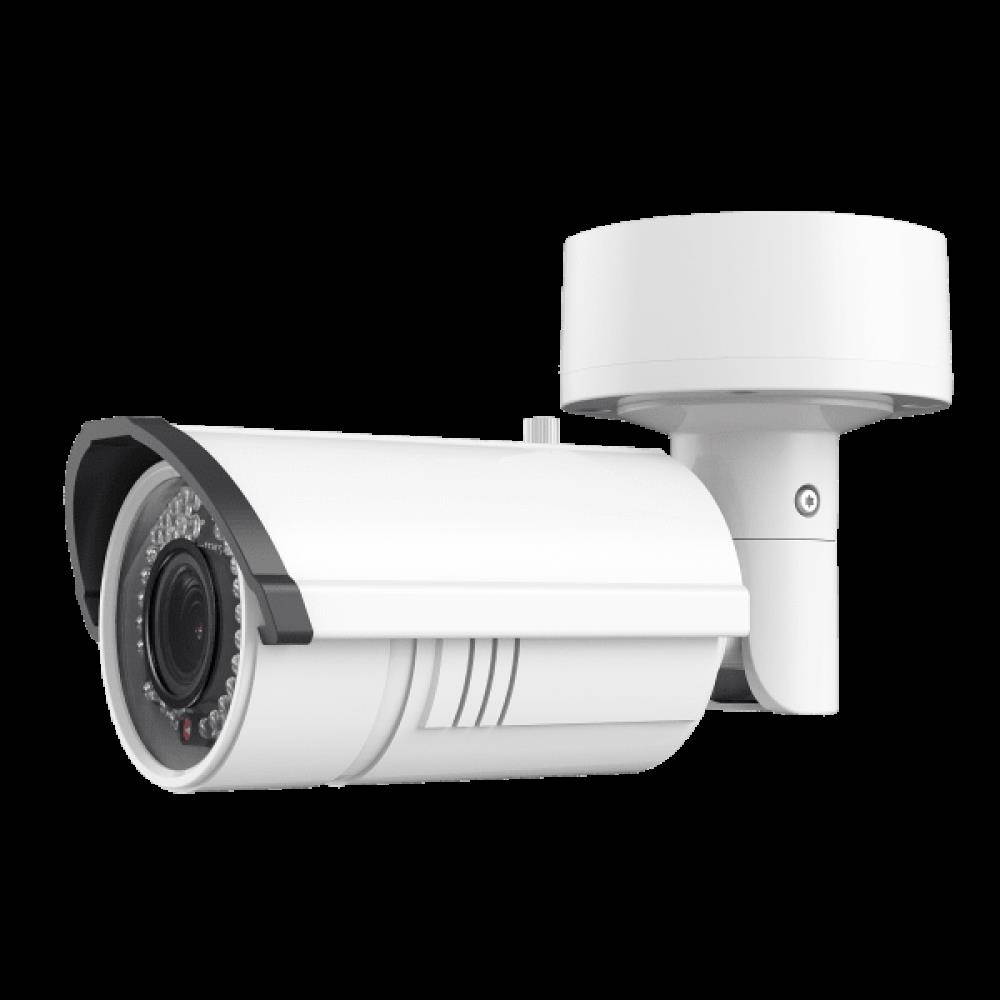

LTS Platinum Motorized Varifocal Bullet IP Camera 4.1MP
Camera Technology: IP / Network Camera Housing: Bullet Image Sensor: 1/3" Progressive Scan CMOS Min. Illumination: 0.01L ux @ (F 1.2, AGC ON), 0.014 Lux @ (F 1.4, AGC ON), 0 Lux w/ IR Shutter Speed: 1/3-1/10, 000 s Slow Shutter: Support Lens: 2.8 -12mm @ F 1.4 Lens Mount: F14 Day & Night: IR cut filter w/ auto switch DNR: 3D DNR Wide Dynamic Range: 120Db Video Compression: H. 264/ MJPEG/ H. 264 Zip+ H. 264 Type: Main Profile Video Bit Rate: 32 Kbps ~ 16 Mbps Audio Compression: G. 711/G. 722.1 /G. 726/MP2L2 Audio Bit Rate: 64 Kbps (G. 711)/ 16 Kbps (G. 722.1 )/ 16 Kbps (G. 726)/ 32-128 Kbps (MP2L2) Max. Resolution: 2688×1520 Frame Rate: 60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps (1280×720); 50Hz: 20fps (2688×1520), 25fps (1920×1080), 25fps (1280×720) Image Setting: Rotate Mode, Saturation, Brightness, Contrast; Sharpness adjustable by client software or web browser BLC: Support, zone configurable ROI Codec: Support Network Storage: NAS (Support NFS, SMB/ CIFS), ANR Alarm Trigger: Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception Protocols: TCP/ IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour General: One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access Standard: ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI Communication Interface: 1 RJ45 10M/100M Ethernet port Reset: Yes Working Temperature/ Humidity: -22°F~140°F (-30°C~60°C); Humidity 95% or less (non-condensing) Power Supply: DC12V ± 10%, PoE ( 802.3 af) Power Consumption: Max. 5.5W (Max. 7.5 W w/ IR cut filter on) IR Range: Approx. 100' (30 meters) Weather Proof Ratings: IP66 Dimensions: 3.7" × 4.1" × 10.2" (95×105× 258.6 mm) Weight: 2.65 lbs (1200g)

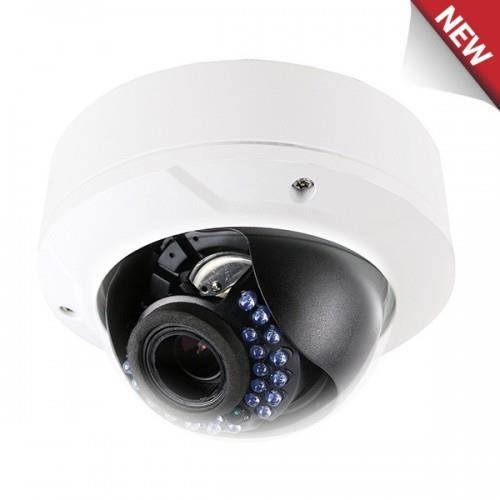

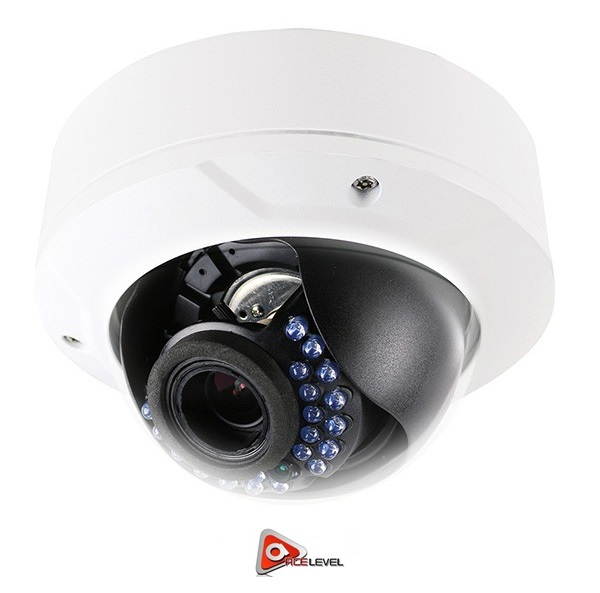

LTS Platinum Varifocal Vandal Dome IP Camera 2.1MP
Image Sensor: 1/2.8" Progressive Scan CMOS
Min. Illumination: 0.01Lux @ (F1.2, AGC ON), 0.01 4 Lux @(F1.4,AGC ON), 0 Lux w/ IR
Shutter Speed: 1/3 s to 1/10,000 s
Slow Shutter: Support
Lens: 2.8-12 mm @ F1.4
Lens Mount: F14
Day/ Night: IR cut filter w/auto switch
DNR: 3D DNR
Wide Dynamic Range: 120dB
Angle Adjustment: Pan:0°-355°, Tilt: 0°-75°, Rotation: 0°-355°
Video Compression: H.264 / MJPEG/H.264 Zip+
H.264 Type: Main Profile
Video Bit Rate: 32 Kbps~8 Mbps
Audio Compression: G.711/G.722.1/G.726/MP2L2
Audio Bit rate: 64Kbps (G.711)/ 16Kbps(G.722.1)/ 16Kbps(G.726)/ 32-128Kbps(MP2L2)
Max. Resolution: 1920×1080
Frame Rate: 60Hz: 30fps (1920×1080, 1280×960, 1280×720)
50Hz: 25 fps (1920×1080, 1280×960, 1280×720)
Image Setting: Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC: Support, zone configurable
ROI Codec: Support
Network Storage: NAS (Support NFS, SMB/CIFS), ANR
Alarm Trigger: Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General: One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anon. access
Standard: ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Communication Interface: 1 RJ45 10M/100M Ethernet port
Reset: Yes
Working Temperature/ Humidity: -22°F~140°F (-30°C~60°C); Humidity: 95% or less (non-condensing)
Power Supply: DC12V ± 10%, PoE (802.3af)
Power Consumption: Max. 5.5W
IR Range: Approx. 100' (30 meters)
Weather Proof Ratings: IP66
Impact Protection: IEC6006 8-27 5Eh, 20J; EN50102, up to IK10
Dimensions: 5.5"×3.9" (140×99.9mm)
Weight: 2.20lbs(1000g)
LTS DV-AT1210A-D07 Power Supply,Beige,Alum,9 Ports/10A
Power Supply, Output Voltage 12V DC, Input Voltage 110V AC, VA Rating 110, Body Material Aluminum, Material Aluminum, Characteristics 10A, 9 Ports, Wall Mount, Color Beige, For Use With Surveillance Cameras, Standards UL Listed, Includes Power Cord. This item has been restricted from sale in the following state (s): []

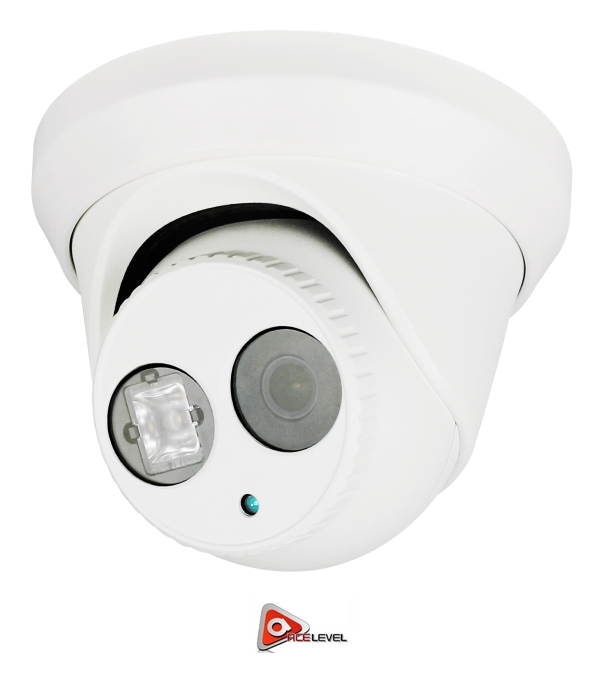

LTS Platinum IP HD Fixed Lens Turret Camera 2MP - 4mm
Image Sensor: 1/2.8” progressive scan CMOS
Min. Illumination: 0.01 lux @ F1.2, AGC on: 0 lux with IR
Shutter Speed: 1/3s ~ 1/100,000s
Lens: 4 mm @ F2.0, Angle of view: 79°
Lens Mount: M12
Angle adjustment: Horizontal: 0° ~ 360°, vertical: 0° ~ 7
Day & Night: ICR
Wide Dynamic Range: Digital WDR
Digital Noise Reduction: 3D DNR
Video Compression: H.264 / MJPEG
Bit Rate: 32 Kbps ~ 8 Mbps
Dual Stream: Yes
Max. Resolution: 1920 × 1080
Frame Rate: 60 Hz: 30fps (1920 ×1080), 30fps (1280×960) , 30fps (1280×720); 50 Hz: 25fps (1920 ×1080), 25fps (1280 ×960), 25fps (1280×720)
Image Settings: Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
BLC: Yes, zone optional
ROI: Support
Network Storage: NAS
Alarm Trigger: Intrusion detection, Line crossing detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protocols: TCP/ IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
System compatibility: ONVIF, PSIA, CGI, ISAPI
General functionalities: One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access
Communication Interface: 1 RJ45 10 M / 100 M Ethernet port
Working Temperature/ Humidity: -22 °F ~ 140 °F (-30 °C ~ 60 °C; Humidity 95% or less (non-condensing)
Power Supply: DC12V±10% / PoE (802.3af)
Power Consumption: Max. 7.5W
Weather proof rating: IP66
IR Range: About 65 to 100ft (30m)
Dimension: F5.0“× 3.8”(F126.7 x 97.2 mm)
Weight: 1.3lb (570g)
LTS LTAC2125W 125 ft. All-in-One Power and Video Cable (White)
LTS LTAC2125W 125 ft. All-in-One Power and Video Cable (White)

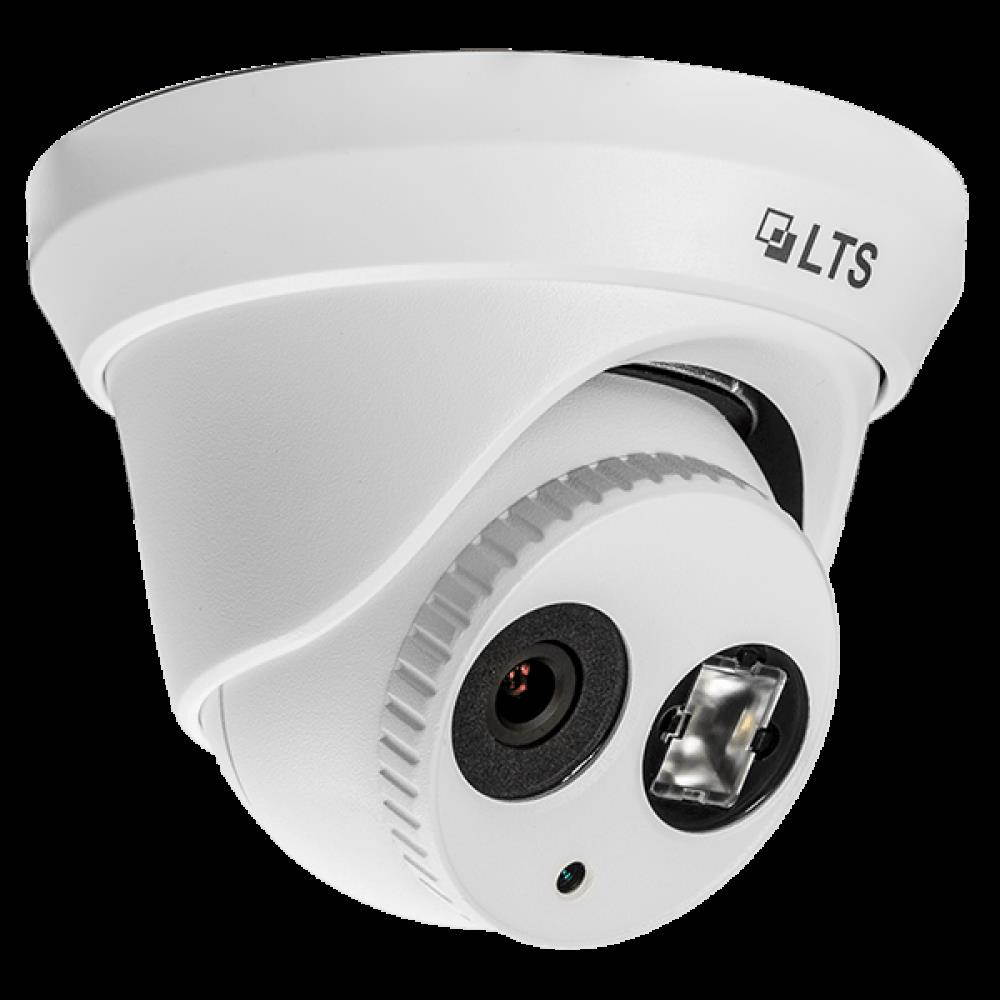

CMIP3042W-6 Platinum Matrix IR Turret Network IP Camera 4.1MP - 6mm
4.1MP High Definition6mm Fixed Lens2688X1520P@20fps1 Matrix IR LED up to 100ftTrue WDR 120dB3D DNR, BLC, VCAIP66DC 12V, PoEJunction Box Sold Seperately
CMHR6422W-28 Platinum Fixed Lens Bullet HD-TVI Camera 2.1MP - 2.8mm
2.1MP High Definition1920x1080P@30fps2.8mm Fixed LensTrue WDR 120dB2 Matrix IR up to 65ft (20m)DC 12VOSD Menu via UTC technology with Platinum TVI DVRIP66 weatherproof

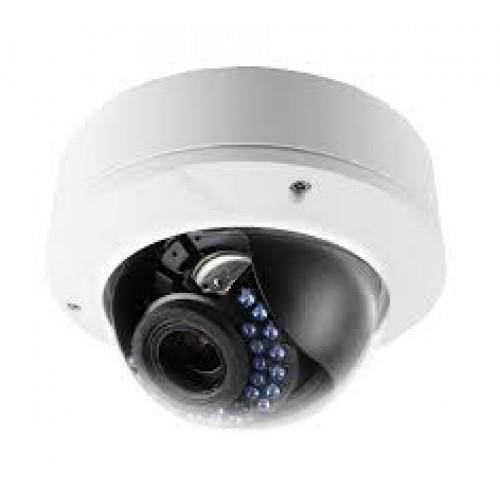

LTS Platinum Varifocal Vandal Dome Camera 3MP
Image Sensor: 1/3” progressive scan CMOS
Min. Illumination: 0.01 lux, AGC on 0 lux with IR
Lens: 2.8-12mm
Lens Mount: M12
Day & Night: ICR
Video Compression: H.264 / MJPEG
Bit Rate: 32 Kbps ~ 8 Mbps
Dual Stream: Yes
Max. Resolution: 2048 × 1536
Frame Rate: 60 Hz: 30fps (1920 ×1080), 30fps (1280×720); 50 Hz: 25fps (1920 ×1080), 25fps (1280 ×720)
Power over Ethernet: Yes
Motion Detection: Yes
On-board Storage: Built-in Micro SD card slot, up to 64 GB
Audio Input/Output: 1/1
Alarm Input/Output: 1/1
IR LEDs: 24pcs, Up to 100ft (30m)
Other Features: 3D DNR, DWDR, BLC
Power Supply: 12V DC/ POE (802.3af)
Protection: IP66
Certification: UL, cUL, FCC, CE
Operating Temperature: -22 °F -140 °F (-30 °C - 60 °C)
Product Dimension: F5.5" × 3.9" (F140.0 × 99.9mm)
Product Weight: 1.7lb (0.8Kg)
LTS DV-AT1207M-D09 Power Supply,Beige,Alum,9 Ports/7A
Power Supply, Output Voltage 12V DC, Input Voltage 110V AC, VA Rating 110, Body Material Aluminum, Material Aluminum, Characteristics 7A, 9 Ports, Wall Mount, Color Black, For Use With Surveillance Cameras, Includes Power Cord. This item has been restricted from sale in the following state (s): []

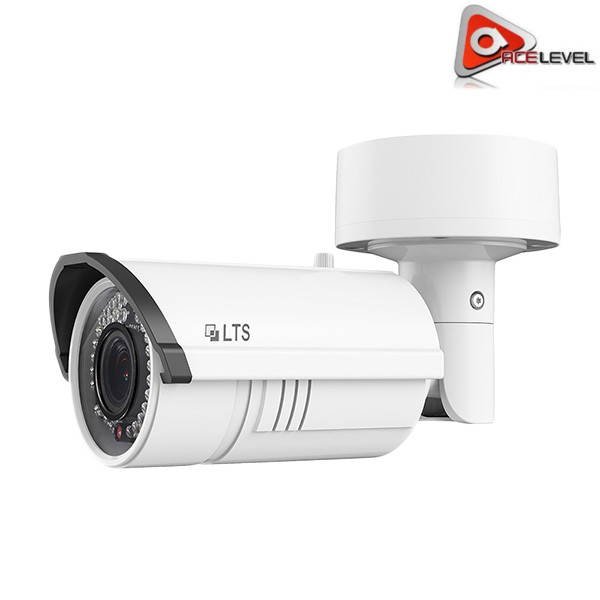

LTS CMIP7923LPR-20 Platinum Motorized VF Network IP Camera 2.1MP - LPR
Camera Image Sensor 1/ 2.8" Progressive Scan CMOS Min. Illumination 0.01L ux @(F 1.2, AGC ON), 0.014 Lux @(F 1.4, AGC ON), 0 Lux with IR Shutter Speed 1/3 s to 1/10, 000 s Slow Shutter Support Lens 8 - 20 mm @ F 1.4, Motorized Lens Lens Mount F14 DNR 3D DNR Wide Dynamic Range 120dB Compression Standard Video Compression H. 264 / MJPEG/H. 264 Zip+ H. 264 Type Main Profile Video Bit Rate 32 Kbps ~ 8 Mbps Audio Compression G. 711/G. 722.1 /G. 726/MP2L2 Audio Bit rate 64Kbps(G. 711) / 16Kbps(G. 722.1 ) / 16Kbps(G. 726) / 32-128Kbps (MP2L2) Image Max. Resolution 1920 × 1080 Frame Rate 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) 50Hz: 25fps(1920 × 1080, 1280 × 960, 1280 × 720) Image Setting Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser BLC Support, zone configurable ROI Codec Support Network Network Storage NAS (Support NFS, SMB/CIFS), ANR Alarm Trigger Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTS P, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour General One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI Interface Communication Interface 1 RJ45 10M/100M Ethernet port On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128GB Reset Yes General Working Temperature/Humidity - 22 ° F ~ 14 0°F (- 30 °C ~ 60 °C) Humidity 95% or les s (non- condens ing) Power Supply DC12V ± 10%, PoE ( 802.3 af) Power Consumption Max. 5.5W (Max. 7.5 W with IR cut filter on) Weatherproof Ratings IP66

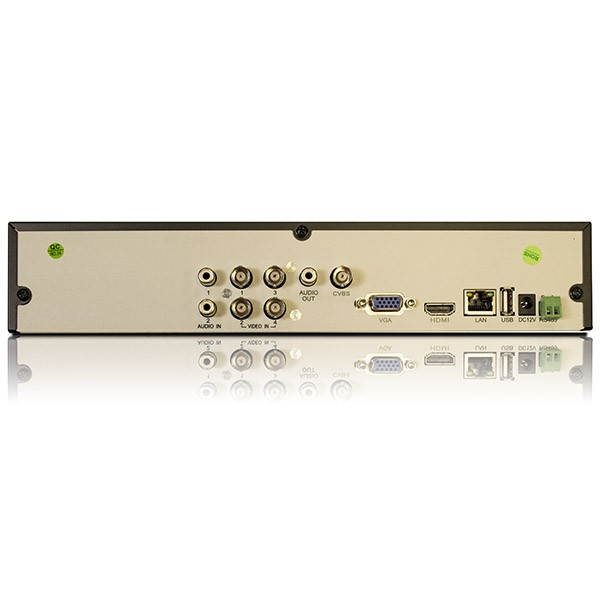

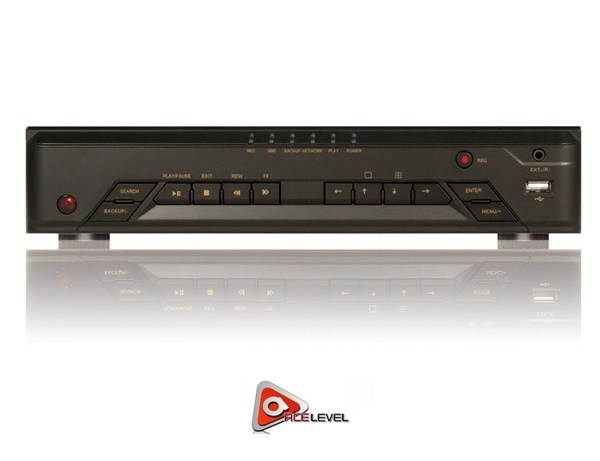

LTS Analog Advanced Level 4 Channel DVR - Compact Case
System
Compression Standard: H.264 High Profile
OS: Embedded Linux
Video
Input: 4CH, BNC (1.0Vp-p, 75O)
BNC output: 1* BNC: PAL: 704 × 576, NTSC: 704 × 480;
VGA Output: 1*VGA: 1920x1080, 1280x1024, 800x600,
HDMI Output: 1*HDMI: 1080P: 1920×1080/60Hz
Audio
Audio Input: 2CH, RCA (2.0 Vp-p, 1 kO)
Audio Output: 1CH RCA (Linear, 1 kO)
Recording
Real-time Recording: 960H/D1/CIF
960H: 120(NTSC)/100(PAL)fps
D1: 120(NTSC)/100(PAL)fps
CIF: 120(NTSC)/100(PAL)fps
Recording Mode: Schedule, Manual, Motion, Sensor
Playback
Max Playback: 4CH
Search Mode: time, event, file
Backup
USB Disk: USB or SATA
Remote Application
Dual Stream: Support; sub-stream @ CIF
Browser: IE (windows XP/2000/Vista/7), Safari (Mac OS),Chrome, Firefox
Mobile Phone: Broview for iPad/iPad2/iPhone//Android
Storage
HDD: 1 x SATA, up to 3TB
PTZ
PTZ: 1 RS-485 interface, half-duplex
PTZ Protocol: Multiple PTZ protocols supported
Network
Ethernet: 1, RJ45 10M / 100M Ethernet interface
Protocol: TCP/IP,UDP,DHCP,DNS,PPPoE,DDNS,Email
Others
IR Controller: YES
Power Supply: DC12V 2A
Operating Temperature: -10 ºC ~+55 ºc
Humidity: 10% ~ 90% humidity
Product Dimension: 300mm ×270mm ×58mm
Accessories
Power Adapter: 1
Remote: 1
Mouse: 1
Screws: 4
CD: 1
Manual: 1

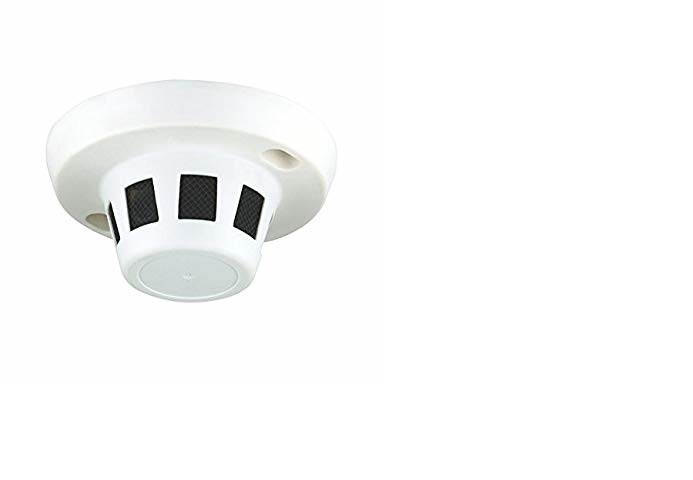

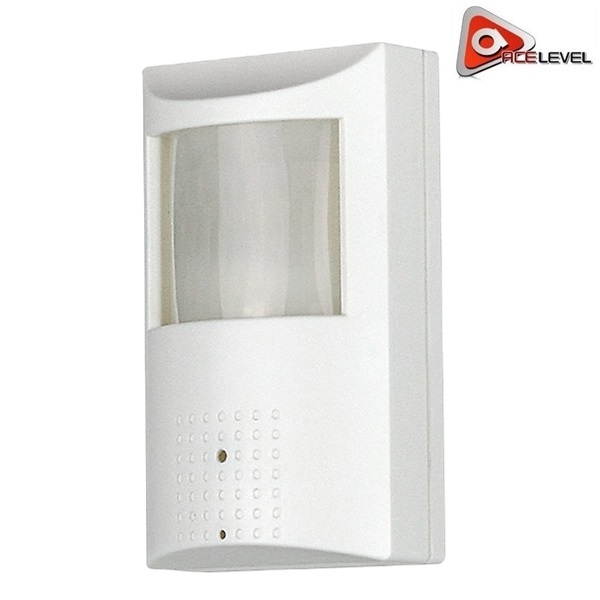

LTS Platinum HD-TVI Covert Camera 2.1MP/1080P, 3.7mm Pinhole Lens, Full HD 1080P, 1/2.8" Sensor, 2D/3D Noise Reduction - CM1925T
Camera Series: Platinum Series.
Camera Resolution: 2.1MP / 1080P.
Camera Technology: TVI.
Camera Housing: Covert.
Image Sensor: 1/2.8" CMOS.
Signal System: NTSC/PAL.
Effective Pixels: 1944 (H) x 1213 (V).
Min. Illumination: 0.1 Lux.
Shutter Speed: 1/30 (1/25)s to 1/50,000s.
Lens: 3.7mm Lens.
Synchronization: Internal.
Video Frame Rate: 1080p @ 30fps / 1080p @ 25fps.
Digital Noise Reduction: 2D NR & 3D NR.
S/N Ratio: More than 50dB.
Working Temperature/ Humidity: 14°F - 122°F (-10°C - 50°C), Humidity: 85% or less (non-condensing).
Power Supply: DC 12V.
Power Consumption: Max. 3W.
Dimension: 2.7" x 4.7" x 1.9" (69mm x 120mm x 47mm).
Weight: 0.4lb (200g).
LTS LTA1007 BNC CRIMP RG59 Connector (20 Packs)
LTS LTA1007 BNC CRIMP RG59 Connector (20 Packs)

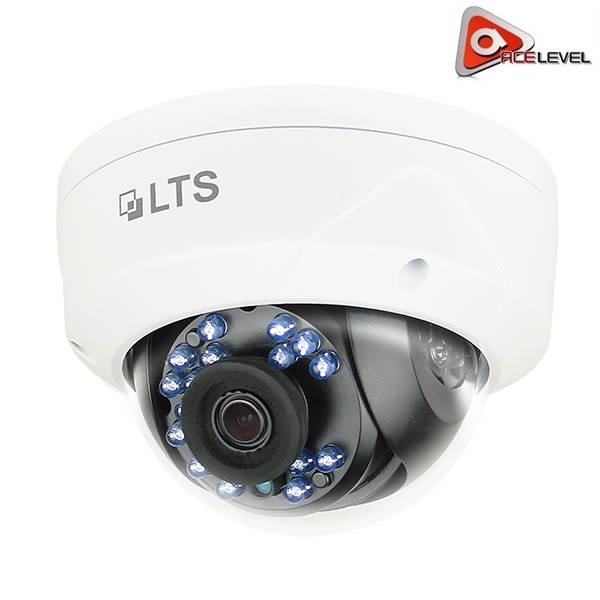

LTS Platinum 2.1MP/1080P HD-TVI Vandal Proof Dome Camera: 2.8mm Fixed Lens, True Day/Night, Smart IR up to 65ft - CMHD7422-28
Camera Series: Platinum Series.
Camera Resolution: 2.1MP/1080P.
Camera Technology: TVI.
Camera Housing: Dome.
Image Sensor: 1/2.9" CMOS.
Signal System: NTSC/ PAL.
Effective Pixels: 1930 (H) x 1088 (V).
Min. Illumination: 0.01 Lux, 0 Lux with IR.
Shutter Speed: 1/30 (1/25)s to 1/50,000s.
Lens: 2.8mm Lens.
Angle of View: 105.8°.
Day & Night: ICR.
Synchronization: Internal.
Video Frame Rate: 1080p @ 30fps/ 1080p @ 25fps.
HD Video Output/span>: 1 Analog HD Output.
S/N Ratio: More than 52dB.
AGC: Support.
D/N Mode: Color/ BW/ Smart.
White Balance: ATW/ MWB.
Language: English.
Function: Digital Noise Reduction, Mirror.
Working Temperature/ Humidity: -40°F - 140°F (-40°C - 60°C);
Humidity: 90% or less (non-condensing).
Power Supply: DC 12V.
Power Consumption: Max .3W.
Weather Proof Ratings: IP66.
IR Range: Up to 65ft (20m).
Dimensions: f4.4" x 3.2" (f111.0 x 82.4mm).
Weight: 1.2lb. (550g).
CMHD35T3DW-Z Platinum Motorized Dome HD-TVI Camera 3MP
3MP High Definition2.8-12mm Motorized Varifocal LensTrue WDR 120dB2 Matrix IR up to 131ft (40m)DC 12V, AC 24VOSD Menu via UTC technology compatible with TVI DVRIP66 weatherproof3-Axis

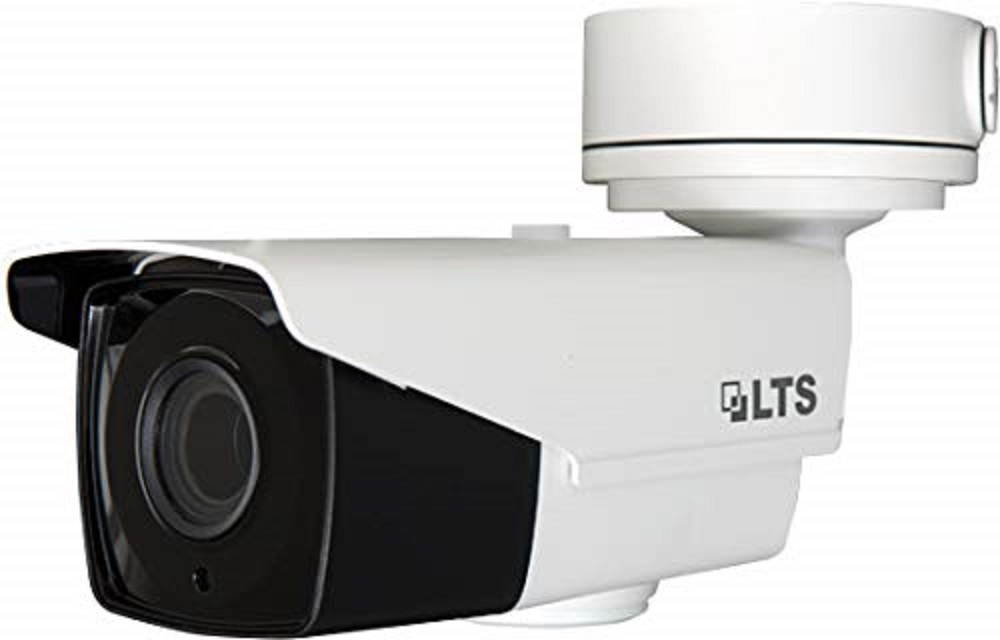

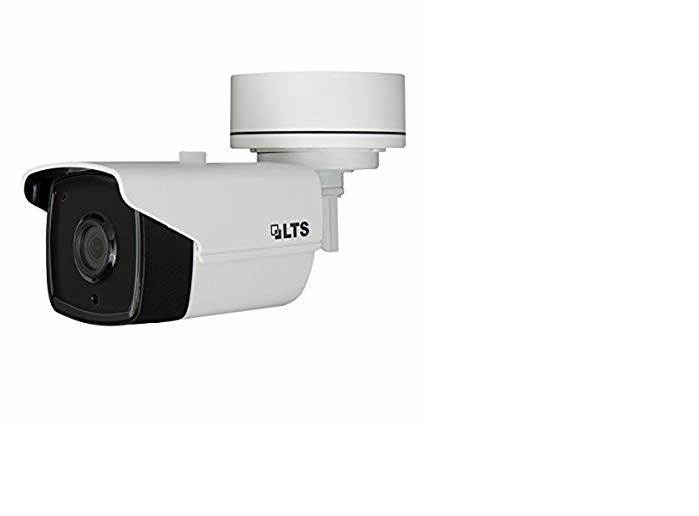

LTS CMHR9252-28 HD TVI 5MP Starlight 2.8mm Wide Angle 131ft Smart IR Bullet Camera
High Definition Bullet 5MP HD-TVI Camera
2.8mm Fixed Lens
2560x1944@20fps
0.008 Lux@F1.2
IP67
2 Matrix IR 2.0 LED up to 131ft
UTC Control to OSD Menu
*Must be used with 5MP HD-TVI 4.0 DVR

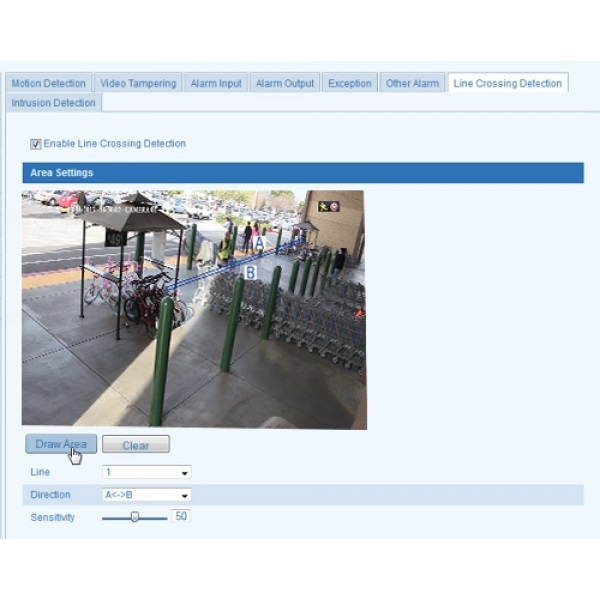

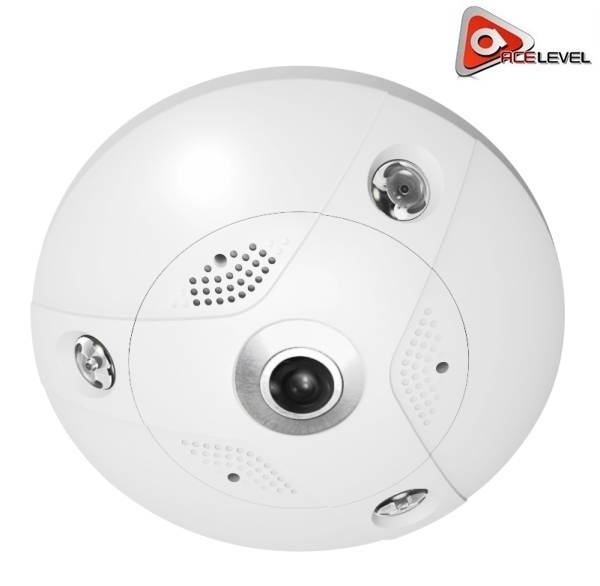

LTS Platinum 6MP Fisheye IP Camera: Indoor, 360° View Angle, IR up to 33ft, 1.27mm Fixed Lens, Built-In Card Slot, 3D DNR, DWDR - CMIP7562F
Camera Image Sensor: 1/ 1.8"S ensor Min. Illumination: 0.05 lux @ (F 1.2, AGC ON), 0.3 lux @ (F 2.8, AGC ON) 0 lux with IR Shutter Speed: 1/25 s to 1/100, 000 s Slow Shutter: Support Lens: 1.27 mm @F 2.0, angle of view: 360° Lens mount: M12 Day & Night: ICR Digital Noise Reduction: 3D DNR Wide dynamic range: Digital WDR Compression Standard Video Compression: H. 264/MPEG4 H. 264 Type: Baseline Profile/Main Profile/High Profile Video Bit Rate: 32 Kbps-16 Mbps Audio Compression: G. 711/G. 726/MP2L2 Audio Bit Rate: 64Kbps(G. 711) / 16Kbps(G. 726) / 64Kbps (MP2L2) Image Max Resolution: 3072 x 2048 Frame Rate: High-frame Mode: support 60Hz: 1 x fisheye (3072 x 2048, 25fps) or (2048 x 2048, 30fps) or 4 x PTZ at (1024 x 768, 30fps) 50Hz: 1 x fisheye (3072 x 2048, 25fps) or (2048 x 2048, 25fps) or 4 x PTZ at (1024 x 768, 30fps) Multi-channel Mode: support 60Hz: 1 x fisheye (1280 x 1280, 15fps) and 1 x panoramic (2048 x 1536, 15fps) and 3 x PTZ (1024 x 768, 15fps) 50Hz: 1 x fisheye (1280 x 1280, 12.5 fps) and 1 x panoramic (2048 x 1536, 12.5 fps) and 3 x PTZ(1024 x 768, 12.5 fps) Image Setting: Saturation, Brightness, Contrast, Hue, Sharpness, AGC, White Balance High Light Compensation: Support Day/night Switch: Auto / Schedule / Alarm trigger Network Network Storage: NAS, SAMB / CIFS Alarm trigger: Motion detection, dynamic analysis, tamper alarm, network disconnect, IP address conflict, storage full, storage error Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour Security: User Authentication, Watermark, IP address filtering, Anonymous access Standard: ONVIF, PSIA, CGI Interface Communication Interface: 1 RJ45 10M/100M Ethernet port, 1 RS-485 interface On-board storage: Built-in Micro SD/SDXC slot, up to 64 GB General Working Temperature/Humidity: -22°F – 140°F(-30°C – 60°C ) Humidity: 95% or less (non-condensing) Power Supply: 12V DC/ PoE Power Consumption: Max. 11W IR range: Max. 10m (33ft) Protection: IEC 60068-2-75 test, Eh, 50J; EN 50102, EN50155 Dimension: F 6.6 ” x 1.7 ” (F 167.4 x 43.8 mm) Weight: 1.7 lb (800g)
LTS Platinum 8 Channel TriBrid DVR: HD-TVI/Analog 960H 30fps/720p, 15fps/1080p + 2ch IP, VGA/HDMI, 1x Audio, Alarm, 1x SATA, 3yr
Video & Audio Video Input 8 x BNC (HD TVI / HD AHD / 960H) IPC Input 1 x IP Camera Video Output HDMI/VGA/CVBS(SPOT) Audio In 4 x RCA Audio Out 1 x RCA Recording Recording Resolution 1080P, 1080P lite, 720P Frame Rate (fps) 30fps/CH@1.3MP, 15fps/CH@2MP Frame Rate (IPC) 22fps/CH@3MP Bit Rate 1M ~ 6Mbps Encode VBR/CBR Record Mode Manual, Timer, Motion Quality 6 Level File Manage Lock, Unlock, Reserving TimeUPC:760488915134SKU:ADIB00Y1H0Q3O

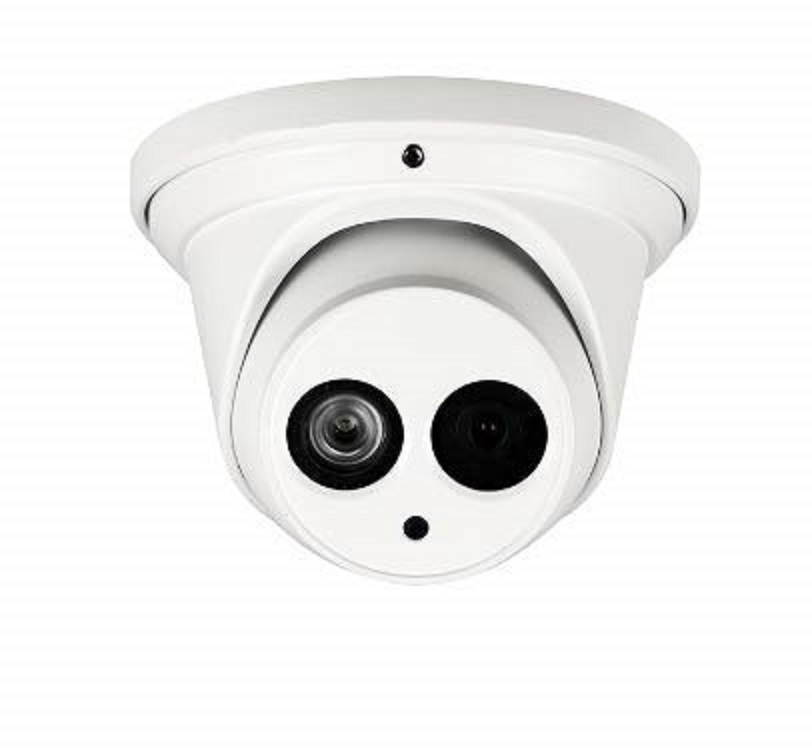

LTS LTDHIP3682W-4ISM IP Eyeball 1/2.5” Built-in Mic, 8MP, 4mm, WDR H.265 IR 50m, Micro SD Memory, Weatherproof IP67
8MP/4K Eyeball Camera - Up to 3840 x 2160@15fps .
4mm Fixed Lens - Horizontal FOV:88°, Vertical FOV: 48° .
IR Range up to 164ft - H.265+/H.265/ H.264 .
True WDR 120dB - 3D DNR, BLC - Built-In Mic .
WEATHERPROOF IP67 - MicroSD Slote up to 128GB .
IP Eyeball 1/2.5” Built-in Mic, 8MP/4K Eyeball Camera Up to 3840 x 2160@15fps 4mm Fixed Lens Horizontal FOV:88°, Color: 0.06 Lux@f/1.6, B/W: 0Lux @ f/1.6 , PoE/ePoE
LTS LTA2011 Power Splitter CCTV Security System Camera DC 1 Female to 4 Male Adapter Cable
Convenient and cost effective way to power up 4 cameras with 1 power adapter

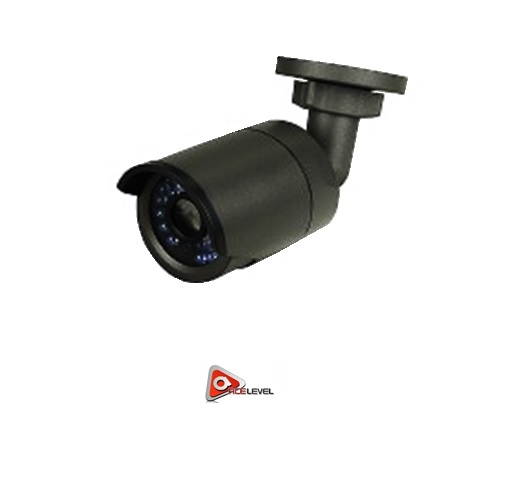

LTS Platinum Mini Bullet IP Camera 2.1MP - Black Color
Image Sensor: 1/2.8" Progressive Scan CMOS
Min. Illumination: 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Speed: 1/3 s to 1/10,000 s
Lens: 4mm
Lens Mount: M12
Day & Night: IR cut filter with auto switch
DNR: 3D DNR
Wide Dynamic Range: 120dB
Video Compression: H.264 / MJPEG/H.264 Zip+
H.264 Type: Main Profile
Video Bit Rate: 32 Kbps ~ 8 Mbps
Dual streams: Support
Max. Resolution: 1920 × 1080
Frame Rate: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
Image Setting: Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC: Support, zone configurable
ROI Codec: Support
Network Storage: NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger: Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General: One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access
Standard: ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Communication Interface: 1 RJ45 10M/100M Ethernet port
Reset: Yes
Working Temperature/ Humidity: -22 °F ~ 140 °F (-30 °C ~ 60 °C); Humidity: 95% or less (non-condensing)
Power Supply: DC12V ± 10%, PoE (802.3af)
Power Consumption: Max. 5W
IR Range: Approx. 100ft (30 meters)
Weather Proof Ratings: IP66
Dimensions: 2.4” × 3.0” × 5.5”(60.4×76.9×139.2 mm )
Weight: 1.1 lbs (500g)
LTS Platinum HD-TVI Varifocal Turret Camera 2.1MP - Black Color
Camera Resolution: 2.1MP / 1080P
Camera Technology: TVI
Camera Housing: Dome
Image Sensor: 1/2.7"Sensor
Signal System: NTSC / PAL (Euro Version)
Effective Pixels: 1930(H) × 1088(V)
Min. Illumination: 0 Lux (Infrared Lamps Turn on)
Shutter Speed: NTSC: 1/30 ~ 1/50,000; PAL: 1/25 ~ 1/50,000
Lens: 2.8-12mm
Day & Night: ICR
Synchronization: Internal
S/N Ratio: More than 50Db
Digital Noise Reduction: 2D DNR & 3D DNR
White Balance: Auto Tracking White Balance
BLC: Auto
Auto Gran Control: Auto
Smart IR: Yes
Working Temperature/ Humidity: 14°F - 122°F (-10 °C - 50 °C); Humidity: 85% or less (non-condensing)
Power Supply: 12V DC
Power Consumption: Max.5W (when the infrared lamps turn on)
Weather Proof Ratings: IP66
Infrared Red Lamps: 36 pcs
IR Range: Up to 115ft
Dimension: 4.7'' × 3.5'' (120 x 90mm)
Weight: 1.5lb (710g)

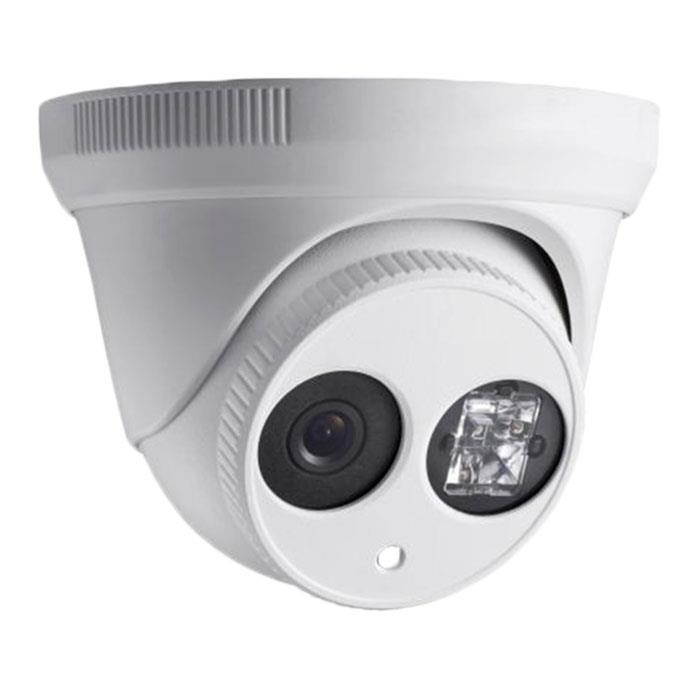

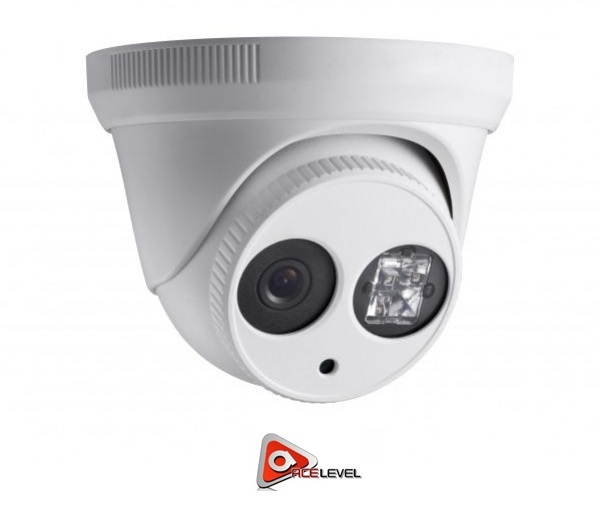

LTS Platinum HD-TVI Matrix IR Camera 2.1MP
LTS Mpn: cmht2722-28f condition: new 2.1MP full HD 1080P 2.8mm fixed lens 1920x1080P@30fps 0.01 lux, smart IR TVI/AHD/CVI/960H switchable 2 Matrix IR up to 131 ft IP66 specifications: camera series: platinum Series Camera resolution: 2MP camera technology: HD-TVI camera housing: Turret image sensor: 2 MP CMOS image sensor signal system: PAL/NTSC frame rate: PAL: 1080p@25fps NTSC: 1080P@30fps resolution: 1920 (H) × 1080 (V) min. Illumination: 0.01 lux @ (F1.2, AGC on), 0 lux with IR shutter time: 1/25(1/30) s to 1/50, 000 s Lens: 2.8mm fixed lens horizontal field of view: 103° (2.8 mm), 82.2°(3.6mm) lens mount: M12 day & night: IR cut filter angle adjustment: pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360° synchronization: internal synchronization AGC: low/middle/High day/Night Mode: smart/Color/bw(black and white) backlight Compensation: Yes DWDR: Yes language: English functions: brightness, sharpness, DNR, mirror video output: 1 HD Analog output switch button: TVI/AHD/CVI/CVBS Operating conditions: -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation) power supply: 12 V dc±15% power consumption: Max. 4 W Ingress Protection: IP66 Material: plastic matrix IR range: up to 131ft(40 m) dimension: f 5.0” × 4.0”(F 126.7× 102.1mm) weight: 1.1Lb(500g)
LTS LTA1001 BNC Connector (20 Packs)
LTS LTA1001 BNC Connector (20 Packs)
CMIP9743-SZ Platinum Varifocal Bullet Network IP Camera 4.1MP
4.1MP High Definition2.8-12mm Varifocal Motorized Lens2688X1520P@20fps42 IR LEDs up to 100ftAudio I/O, Alarm I/O3D DNR, WDR, BLC, VCAMicro SD/SDHC/SDXC Card SlotIP66Junction Box IncludedDC 12V, PoE
LTS CMIP8042-28 Platinum Mini Bullet Network IP Camera 4MP - 2.8mm
Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination 0.01Lux @ (F1.2, AGC ON), 0 .028Lux @ (F2.0, AGC ON)
Shutter Speed 1/3 s to 1/10,000 s
Lens 2.8mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117°
Lens Mount M12
Day & Night IR cut filter with auto switch
DNR 3D DNR
Wide Dynamic Range DWDR
Angle Adjustment Pan: 0° to 360°, tilt: 0°to 180°, rotation:0° to 360°
Compression Standard
Video Compression
Main stream: H. 265/H.264
Sub stream: H.265/H. 264/MJPEG
H.264 / H.264 Zip+ Type Base Profile / Main Profile / High Profile / Main Stream Supports
H.265 / H.265+ Type Main Profile / Main Stream Support
Video Bit Rate 32 Kbps ~ 8 Mbps
Max. Resolution 2560 × 1440
Main Stream 50Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream 50Hz: 20fps (704 × 576, 352 × 288, 640 × 480, 320 × 240) 60Hz: 20fps (704 × 480, 352 × 240, 640 × 480, 320 × 240)
Image Setting
Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
ROI 1 fixed region for main stream and sub-stream
Day/Night Switch Auto / Scheduled
Network
Network Storage NAS (NFS,SMB/CIFS)
Alarm Trigger Motion detection, video tampering alarm, illegal login
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Simultaneous Live View Up to 6 channels
Interface
Communication Interface 1 RJ45 10M/100M Ethernet port
General
Working Temperature
/Humidity -22 °F ~ 122°F (-30 °C ~50 °C)
Humidity 95% or less (non-condensing)
Power Supply DC 12V ± 10%, PoE (802.3af)
Power Consumption Max. 5W
IR Range Approx. 100ft (30 meters)
Weather Proof Ratings IP67

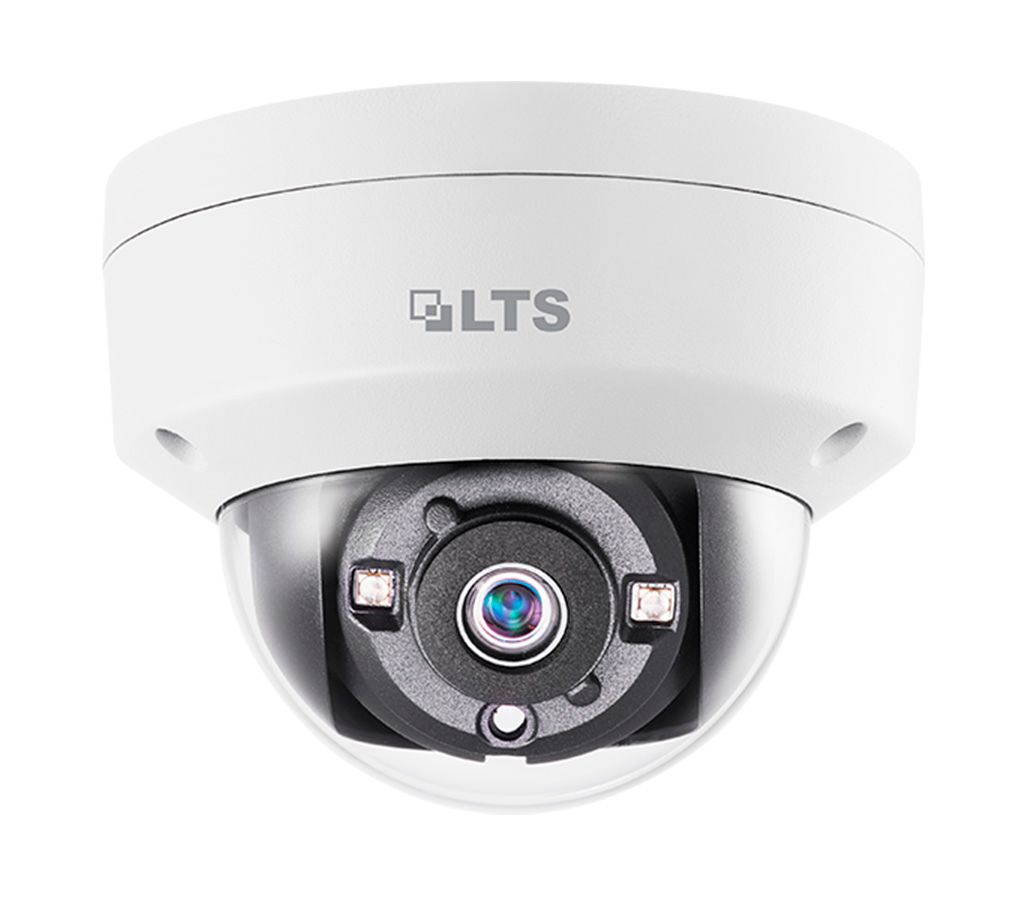

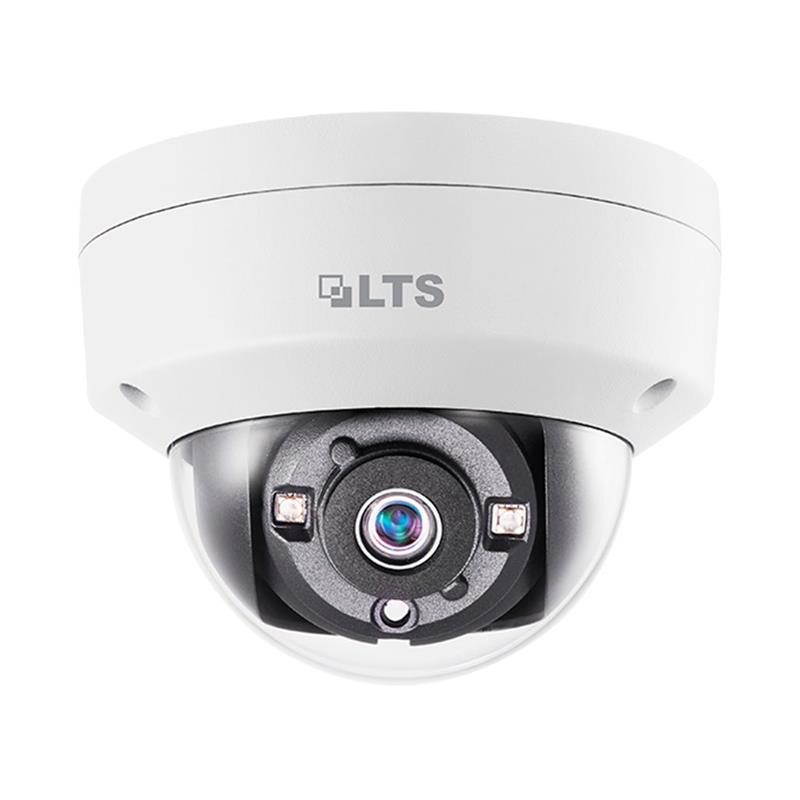

LTS CMHD7352-28 HD-TVI 5MP Platinum Starlight 2.8mm IR LED 65ft Security Camera
LTS CMHD7352-28 HD-TVI 5MP Platinum Starlight 2.8 mm IR LED 65ft Security Camera Brand: LTS MPN: CMHD7352-28 Condition: New High Definition Dome 5MP HD-TVI Camera 2.8 mm Fixed Lens 2560x1944@20fps 0.008 Lux@F 1.2 IP67 2 Matrix IR 2.0 LED up to 65ft UTC Control to OSD Menu IK10 Vandal-Proof Dome 3-Axis Easy Installation Smart IR DC 12V *Must be used with HD-TVI 4.0 DVR
LTS LTA1002 BNC Connector (20 Packs)
LTS LTA1002 BNC Connector (20 Packs)

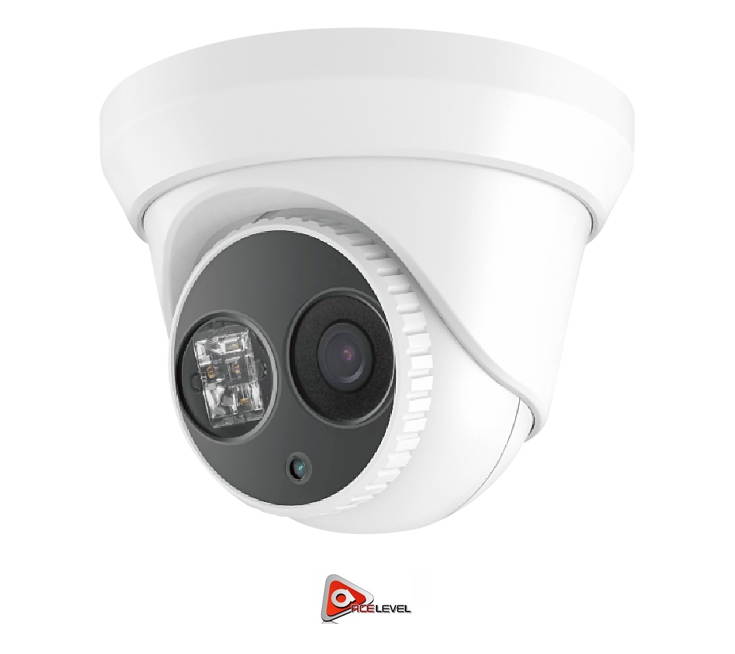

Platinum HD Fixed Lens Turret IP Camera 3.2MP - 4mm
Image Sensor: 1/3" sensor
Min. Illumination: 0.14 lux@F2.0, AGC on 0 lux with IR
Shutter time: 1/25s ~ 1/100,000s
Lens: 4mm@F2.0
2048 × 1536: angle of view: 70°
1920 × 1080: angle of view: 79°
Lens Mount: M12
Angle adjustment: Horizontal: 0° ~ 360°, vertical: 0° ~ 75°, rotation: 0° ~ 360°
Digital noise reduction: 3D DNR
Wide dynamic range: Digital WDR
Day & Night: ICR
Video Compression: H.264 /MJPEG
Bit Rate: 32 Kbps ~ 16 Mbps
Dual stream: Yes
Max. Image Resolution: 2048 x 1536
Frame Rate: 60Hz: 20fps (2048 x 1536), 30fps (1920 x
1080), 30fps (1280 x 720); 50Hz: 20fps (2048 x 1536), 25fps (1920 x
1080), 25fps (1280 x 720)
Image Settings: Saturation, brightness, contrast adjustable through client software or web browser
Network Storage: NAS (iSCSI optional)
Alarm Trigger: Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception
Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos (SIP, SRTP, IPv6 optional)
System Compatibility ONVIF, PSIA, CGI
General functionalities: Flickerless, heartbeat, mirror, user authentication, video mask, watermark
Communication Interface: 1 RJ45 10M/ 100M ethernet interface
Operating Conditions: -13°F ~ 140°F(-25°C ~ 60°C )
Humidity: 95% or less (non-condensing)
Power Supply: 12 VDC ± 10%, PoE (802.3af)
Power Consumption: Max. 7W
Weather Proof: IP66
IR Range: Up to 100ft(30m)
Dimensions: 5.0”x3.8” (127.0 x 97.5 mm)
Weight: 1.5lb(670g)
Platinum HD-TVI Covert Camera 2.1MP CM1924T
2.1MP High Definition
Full HD 1080P
1920X1080P@30fps
3.7mm Pinhole Lens
DC 12V

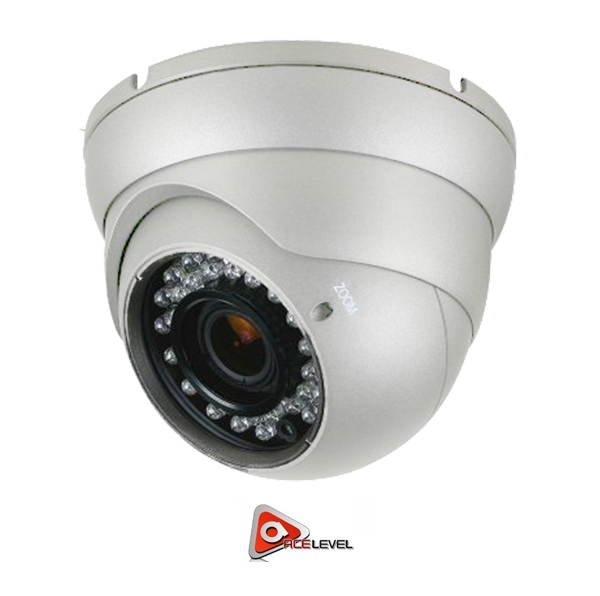

LTS Platinum HD-TVI Turret Camera 2MP with Varifocal Lens - White Color
Camera Resolution: 2.1MP / 1080P
Camera Technology: TVI
Camera Housing: Turret
Image Sensor: 1/3"Sensor
Signal System: NTSC / PAL (Euro Version)
Effective Pixels: 1920(H) × 1080(V)
Min. Illumination: 0 Lux (Infrared Lamps Turn on)
Shutter Speed: NTSC: 1/30 ~ 1/50,000; PAL: 1/25 ~ 1/50,000
Lens: 2.8-12mm
Day & Night: ICR
Synchronization: Internal synchronization
S/N Ratio: More than 50Db
Working Temperature/ Humidity: 14°F - 122°F (-10 °C - 50 °C); Humidity: 85% or less (non-condensing)
Power Supply: 12V DC
Power Consumption: Max.5W
Weather Proof Ratings: IP66
Infrared Red Lamps: 36 pcs
IR Range: Up to 100ft (30m)
Dimension: 4.7'' × 3.5'' (120 x 90mm)
Weight: 1.5lb (710g)
LTS LTAC2125B Pre-made 125 ft. BNC & DC Siamese Cable (Black)
LTS LTAC2125B Pre-made 125 ft. BNC & DC Siamese Cable (Black)

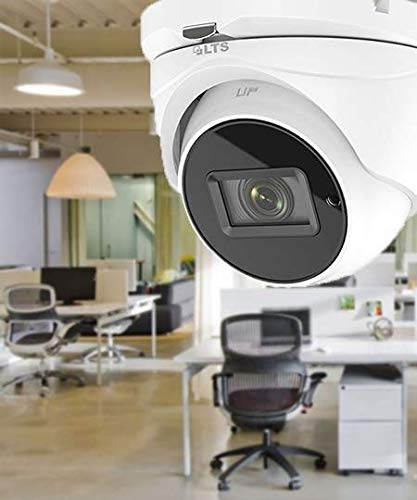

LTS CMHT1953N-Z Platinum Motorized Varifocal Turret HD-TVI Camera - 5MP
CAMERA
Image Sensor 1/2.7" CMOS
Signal System NTSC/PAL
Effective Pixels 2560(H)*1944(V)
Min. Illumination 0.01 Lux, 0 Lux with IR
Lens 2.8-12mm Motorized Varifocal Lens; FoV 90°~28°
Shutter Speed 1/30(1/25) s to 1/50,000 s
Day & Night ICR
Synchronization Internal
Video Frame Rate 2560 x 1944@20fps
HD Video Output 1 HD-TVI Output
S/N Ratio More than 62dB
MENU
AGC Support
D/N Mode Auto/ Color/ BW
White Balance ATW/ MWB
BLC Support
Function Brightness, Sharpness, Digital noise reduction, Mirror , Smart IR
GENERAL
Working Temperature /Humidity
-40 °F ~ 140 °F (-40 °C ~ 60 °C) Humidity 90% or less (non-condensing)
Power Supply DC 12V
Power Consumption Max. 6W
Weather Proof Ratings IP67
IR Range Up to 131ft (40m)
PoE-SW541E 4-Port 10/100 Base-T(x) PoE Switch
PoE-SW541E 4-Port 10/100 Base-T(x) PoE Switch
Features
1×Uplink port, 4×10/100 Base-T(x) with PoE(Half/Full power)
Compatible with IEEE802.3af PoE standard
48V/DC per port output; 15.4W Max per port
Max. 65W power consumption
LTS, CMHR9252N-28F, LTCMHR9252N-28F,Platinum Bullet HD-TVI Camera,5MP,2.8mm,4-in-1,Matrix IR 2.0
LTS, CMHR9252N-28F, LTCMHR9252N-28F, Platinum Bullet HD-TVI Camera, 5MP, 2.8 mm, 4-in-1, Matrix IR 2.0 Key features: High Definition Bullet 5MP HD-TVI Camera 2.8 mm Fixed Lens 2560x1944@20fps 0.01 Lux, Smart IR 2 Matrix IR 2.0 LED up to 131ft UTC Control to OSD Menu 2D DNR, DWDR DC 12V Weatherproof IP67 4-in-1 Video Output
LTS LTA2005 1 Female to 2 Male Security Camera Pigtail Cable Power Connector Splitter DC
Power Adaptor DC Splitter 1 Female to 2 Male Cable

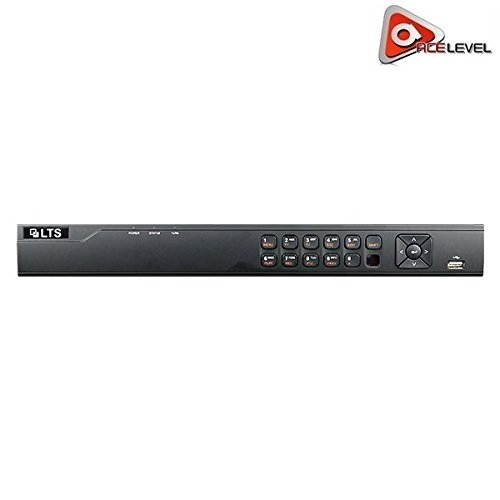

LTS LTN8708K-P8 Platinum Professional Plus Level 8 Channel 4K NVR 1U
Video/Audio Input IP Video Input 8-CH Two-Way Audio Input 1-CH, RCA ( 2.0 Vp-p, 1kO) Network Incoming Bandwidth 80Mbps Outgoing Bandwidth 160Mbps Remote Connection 128 Video/Audio Output Recording Resolution 8MP/6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF HDMI Output 4K (3840 × 2160)/20Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 ×1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA Output 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz Audio Output 1-CH, RCA (Linear, 1kO) Decoding Decoding Format H. 265/H. 264/H. 264+/MPEG4 Recording Resolution 8MP/6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF Synchronous Playback 8 -ch Capability 2-ch @ 4K, or 8-ch @1080p Hard Disk SATA 2 SATA Interfaces for 2 HDDs Capacity Up to 6TB for Each Disk External Interface Network Interface 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces U TCP/IP, DHCP, PT CLOUD, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS USB Interface 1 × USB 2.0 and 1 × USB 3.0 Alarm In/Out 4/1 PoE Interface 8RJ-45 10/100 Mbps self-adaptive Ethernet interfaces Max. Power =120W Supported Standard IEEE 802.3 af/at General Power Supply 100~240V AC Consumption = 15W Working Temperature 14°F - 131°F(-10 °C ~ +55 °C) Working Humidity 10% - 90% Casing 15-inch rack-mounted 1U chassis

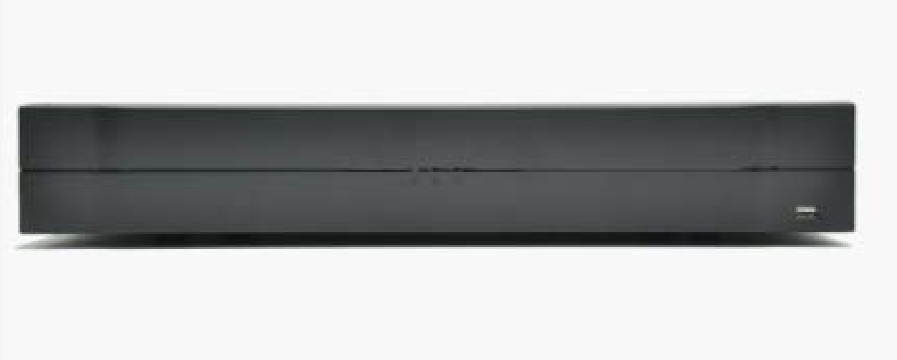

LTS LTD3104C-PL 4 CH Penta-brid 1080P 1SATA H.265+/H.265 4+2CH IP upto 6MP, Smart Search and Intelligent Video System, NO HDD INCLUDED
4 Channel Digital Video Recorder 6CH IP Up to 6MP 5MP CVI and 6MP IP Camera 2MP CVI@ 15fps,4MP-N CVI@ 15fps,5MP-N CVI@ 10fps HDMI up to 4K (3840X2160)/ VGA up to (1920 X1080) CVI/ TVI/ AHD/Analog 1 SATA up to 10TB H.265+/H.265/ H.264 Playback:4CH@4MP-N, 4CH @2MP Audio I/O:1CH/ 1CH, RCA, Support Audio over Coxial cable Audio Over Coxal:4CH, BNC 100M, 1 Network Port . NO HDD INCLUDED
LTS Platinum HD-TVI Turret Camera 1.3MP - 2.8mm
Image Sensor: 1/3"Sensor
Signal System: NTSC / PAL(Euro Version)
Effective Pixels: 1280(H)×720(V)
Min. Illumination: 0.01 Lux @ (AGC ON),0 Lux with IR
Shutter Speed: NTSC: 1/30 ~ 1/50,000
PAL: 1/25 ~ 1/50,000
Lens: 2.8mm
Day & Night: ICR
Synchronization: Internal synchronization
Video Frame Rate: NTSC:720p@30fps/PAL:720p@25fps
HD Video Output: 1 Analog HD output
S/N Ratio: More than 52dB
Working Temperature/ Humidity: -40°F - 140°F (-40 °C - 60 °C); Humidity 90% or less (non-condensing)
Power Supply: 12V DC
Power Consumption: Max.3.5W
Weather Proof Ratings: IP66
IR Range: 65ft(20m)
Dimensions: 3.5" × 2.3" (89.6 ×59.1 mm)
Weight: 0.9lb(400g)
LTS LTN8716-HT 16 Channel Platinum Series Hybrid Network Recorder **NO HDD**
H.264 video compression,Third-party network cameras supported,Up to 5 Megapixels resolution recording,HDMI and VGA output at up to 19201080P resolution,16-ch synchronous playback,HDD quota and group managementUPC:632014578567SKU:ADIB00PMEB22Y

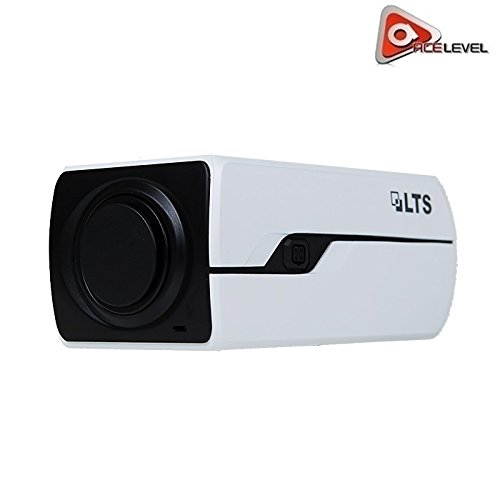

LTS CMIP2832DW-S Platinum Box Network IP Camera 3.2MP
Camera Image Sensor 1/3" Progressive Scan CMOS Min. Illumination Color: 0.1 Lux @ (F 1.2, AGC ON); B/W: 0.01 Lux @ (F 1.2, AGC ON) Shutter Speed 1 s to 1/100, 000 s Slow Shutter Support Lens Mount C/CS Mount Auto Iris DC Drive Day & Night IR cut filter with auto switch DNR 3D DNR Wide Dynamic Range 120dB Compression Standard Video Compression H. 264 Zip+/H. 264/MPEG4/MJPEG H. 264 Type Baseline Pro? le / Main Pro? le / High Pro? le Video Bit Rate 32 Kbps ~ 16 Mbps Audio Compression G. 711/G. 722.1 /G. 726/MP2L2 Audio Bit Rate 64Kbps(G. 711) / 16Kbps(G. 722.1 ) / 16Kbps(G. 726) / 32-128Kbps (MP2L2) Image Max Resolution 2048x1536 Frame Rate 60Hz: 20fps (2048 × 1536), 30fps (1920 × 1080), 30fps (1280 × 720) 50Hz: 20fps (2048 × 1536), 25fps (1920 × 1080), 25fps (1280 × 720) Third Stream Independent with Main Stream and Sub Stream, up to 50Hz: 20fps (2048 × 1536) 60Hz: 20fps (2048 × 1536) BLC Support Smart Defog Support EIS Support Image Setting Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser Day/Night Switch Auto/Schedule/Triggered by Alarm In ROI Support 4 different areas con? guration in all the three streams with adjustable 6 levels. Automatically dynamic tracking with face detection can be con? gured. Picture Overlay LOGO picture can be overlaid on video with 128x128 24bit bmp format Network Network Storage NAS (Support NFS, SMB/CIFS) Alarm Trigger Intrusion detection, Defocus detection, Motion detection, Face detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour Security User Authentication, Watermark, IP address? ltering, Anonymous access Standard ONVIF, PSIA, CGI, ISAPI Interface Audio Input 1- ch 3.5 mm audio interface, Mic in/Line in. 1 built-in Microphone Audio Output 1-ch 3.5 mm audio interface Communication Interface 1 RJ45 10M/100M Ethernet port, 1 RS-485 interface and 1 RS-232 interface Alarm Input 1 Alarm Output 1 Video Output 1Vp-p composite output (75 O/BNC) On-board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB Reset Button Yes General Working Temperature -22 ° F ~ 140 °F (-30 °C ~ 60 °C) Humidity 95% or less (non-condensing) Power Supply 24 V AC ± 10%, 12 V DC ± 10%, PoE ( 802.3 af) Power Consumption Max. 6.5 W (Max. 9.5 W with IR cut? lter on)

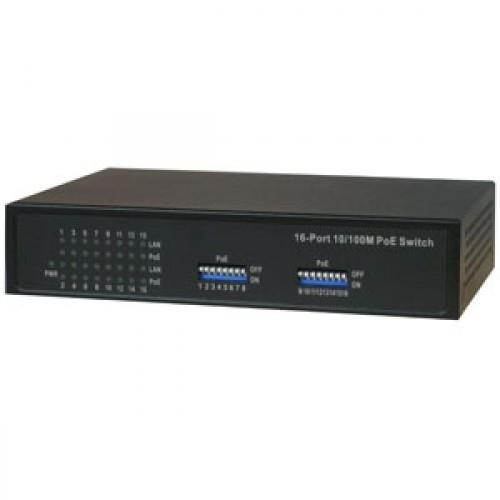

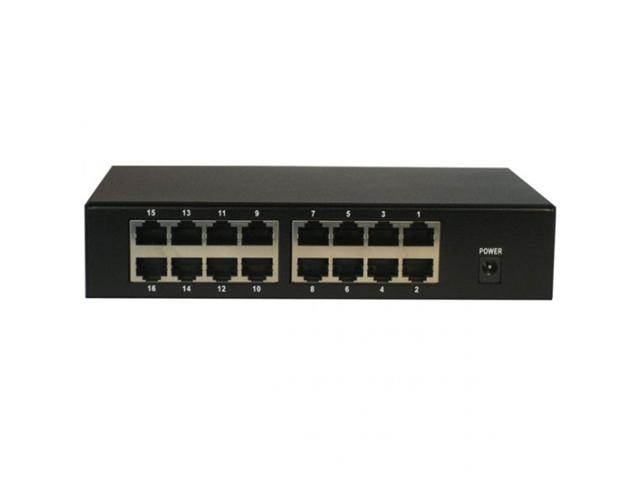

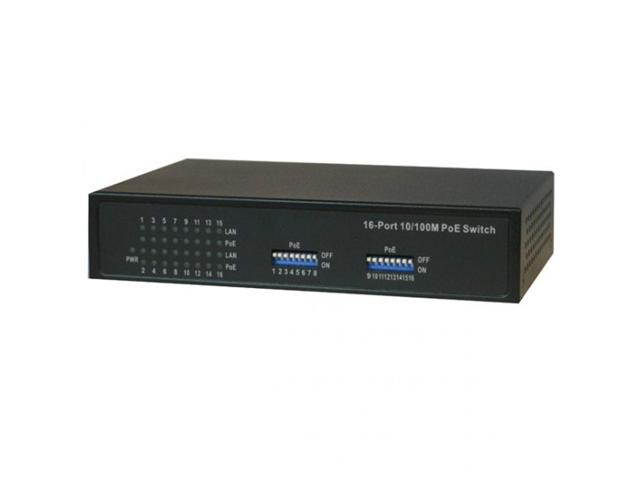

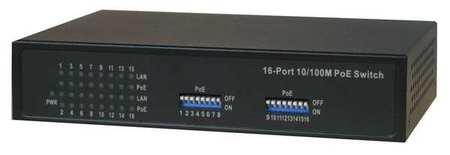

LTS POE-SW1600E LTS 16 Port Network PoE Switch-max 120W
PoE Injector, Load Capacity 120W, Power Supply 100 to 240V, Voltage 48, Standards IEEE802.3af, Camera Inputs 16

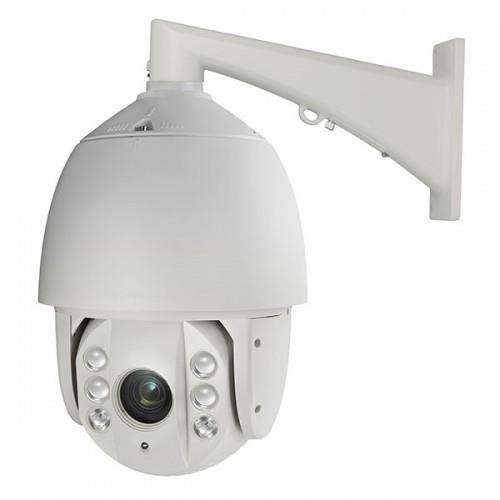

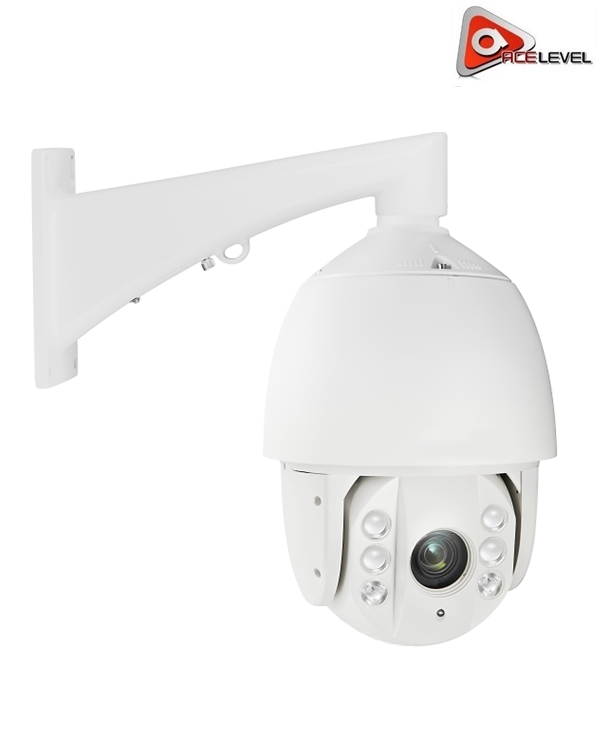

LTS Platinum IP PTZ High Speed Dome Camera 2.1MP
Image Sensor: 1/2.8'' sensor
Effective Pixel: 2230K pixels
Min. Illumination: Color: 0.05Lux@F1.6, AGC ON; B/W: 0.01Lux@F1.6, AGC ON; 0 Lux with IR
White Balance: Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC: Auto/ Manual
S/ N Ratio: = 50dB
Digital Noise Reduction: 3D DNR
Backlight compensation: BLC
Wide Dynamic Range: 128X Digital WDR
Shutter Speed: 1 ~ 1/10,000s
Day & Night: IR Cut Filter
Focus Mode: Auto / Semiautomatic / Manual
Focal Length: 4.3 ~ 129mm, 30x
Zoom Speed: Approx 3s(Optical Wide-Tele)
Angle of View: 65.1 ~2.34 degree (Wide-Tele)
Min. Working Distance: 10 ~ 1500mm(Wide-Tele)
Aperture Range: F1.6 ~F5.0
Pan/ Tilt Range: Pan: 360° endless; Tilt: -15° ~ 90° (Auto Flip )
Pan/ Tilt Speed: Pan Manual Speed: 0.1° ~ 160°/s, Pan Preset Speed: 240°/s
Tilt Manual Speed: 0.1° ~ 120°/s, Tilt Preset Speed: 200°/s
Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset: 256
Park action: Pattern/Pan scan/Tilt scan/Frame scan/Panorama scan/ Random scan
Patrol: 8 patrols, up to 32 presets per patrol
Power-off Memory: Support
IR Distance: Up to 328ft
IR Intensity: Automatically adjusted, depending on the zoom ratio
Audio Input: Audio input (Line input), 2 ~ 2.4V[p-p]; output impedance: 1KO±10%
Audio Output: Line level, impedance: 600O
Ethernet: 10Base-T / 100Base-TX, RJ45 connector
Max. Image Resolution:1920×1080
Frame Rate: 60Hz: 30 fps (1920×1080),30 fps (1280×960) , 30 fps (1280×720) 50Hz: 25 fps (1920×1080),25 fps (1280×960) , 25 fps (1280×720)
Image Compression: H.264/MPEG4
Audio Compression: G.711u /G.711a /G.726
Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous Live View: Up to 6
Streams: Dual Streams
Mini SD Memory Card: Micro SD Slot, up to 32GB
User/Host Level: Up to 32 users, 3 Levels: Administrator, Camera control, Live view only
Security Measures: User authentication (ID and PW), Host authentication (MAC address), IP address filtering
Integration
Application programming: Open-ended API, support Onvif, PSIA and CGI
Web Browser: IE 7, IE 8, IE 9, Chrome 8 +, Firefox 3.5 +, Safari 5 +
Working Temperature/ Humidity: -30 °C ~ 65°C (-22°F ~ 149°F)
90% or less
Power Supply: 24 VAC / PoE+;
Power Consumption: Max. 30W / 21W (IR On / Off )
Ingress protection level: IP66 standard; TVS 4,000V lightning protection, surge protection and voltage transient protection
Dimension: F220×353.4mm (F8.66”×13.91” without bracket)
Weight: 5.5kg(12.13Ibs without bracket)
32 CH PoE NVR
H.265/H.264 codec decoding
· Max 200Mbps Incoming Bandwidth
· Up to 8MP Resolution for Preview and Playback
· HDMI/VGA simultaneous video output
· Support IPC UPnP, 16PoE ports
· Support ANR technology to enhance the storage reliability when the network break down

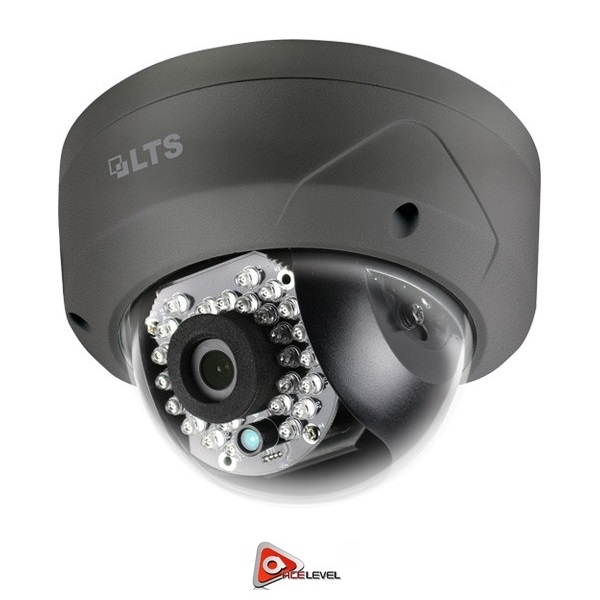

LTS Platinum HD-TVI Dome Camera 2.1MP
Image Sensor: 1 / 2.7" Sensor
Signal System: NTSC/PAL(Euro Version)
Effective Pixels: 1930(H)*1088(V)
Min. Illumination: 0.1 Lux @(F1.2,AGC ON), 0 Lux with IR
Shutter Speed: 1/30(1/25) s to 1/50,000 s
Lens: 3.6mm
Angle: of View: 90°
Day & Night: ICR
Synchronization: Internal synchronization
Video Frame Rate: 1080p@30fps/PAL:1080p@25fps
HD Video Output: 1 Analog HD output
S/N Ratio: More than 52dB
Camera ID: On/off (0-255)
AGC: Support
D/N Mode: Color/BW/Auto/EXT
White Balance: Auto/User/Push/8000K/6000K/4200K/3200K/HOLD
Privacy Mask: On/Off, maximum 2 zones
Motion Detection: On/Off
BLC: Support
Anti-flicker: On/Off
Language: English, Chinese
Function: Mirror
Working Temperature/ Humidity: -40° F - 140° F (-40° C - 60° C)
Humidity: 80% or less (non-condensing)
Power Supply: 12V DC
Power Consumption: Max.3W
Weather Proof Ratings: IP66
IR Range: Up to 65ft(20m)
Dimensions: 111 × 82.4 mm (4 .37" × 3.24")
Weight: 1.2lb(550g)
lts ltd8316ket h.265+ platinum professional level 16 channel hdtvi dvr, digitech solutions inc.
(Model# LTD8316K-ET) 16CH DVR H.265+, 5 in 1, 1-4 Channel support up to 3MP HD-TVI, Up to 2CH 4MP IP cameras, Up to 4K (3840X2160) HDMI Video Output**(NO HDD Installed)**UPC NO:673681137275 SKU:ADIB075NTH871
Access Control 4 Doors Controller LTK2804
LTS LTK2804 Access Control 4 Doors Controller 32-bit high-speed processor TCP/IP network communication, with self-adaptive; network interface. The communication data is encrypted to ensure information security; Massive storage with 10 thousand cards information and 50 thousand card swiping records; Data can be permanently saved when the access controller is powered off. Key Features of LTS LTK2804 4 Doors Access Control with Keyed Metal Enclosure 32-bit High Speed Processor Up to 4 Wiegand Card Readers 10, 000 Cards Record 50, 000 Event Record Anti Passing Back, Authentication Password with Keypad Card Reader Video Verification Log Search with Video Playback
LTS LTA2018 CCTV Power Splitter Secuirty System Camera DC 1 Female to 8 Male Adapter Cable
* 100% brand new and high quality.
* 1 DC Female to 8 Male Power Splitter Cable
* Plug Diameter: 5.5 mm outer, inner 2.1 mm
* Convenient and cost effective way to power up 8 cameras with 1 power adapter
* This DC Power Adapter Y Cable Pigtail splits 1 power signal into 8 and is useful for powering multiple cameras from one central adapter.
Economic Mifare Card Reader LTK1802M
Key Features:
·Meets the standard of ISO 14443-A and the card reading frequency is 13.56MHz. The number and content of MIFARE card can be read; ·Watchdog design for repairing itself in case that exception occurs, to ensure the long service life of the reader; ·Built-in buzzer for identifying the reading status.

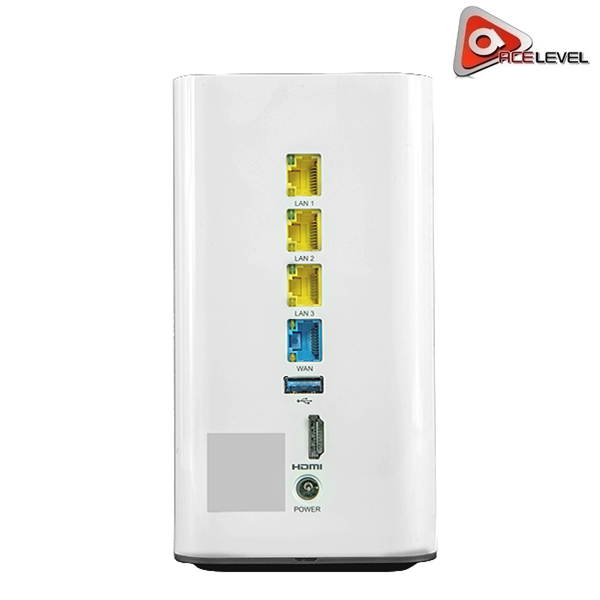

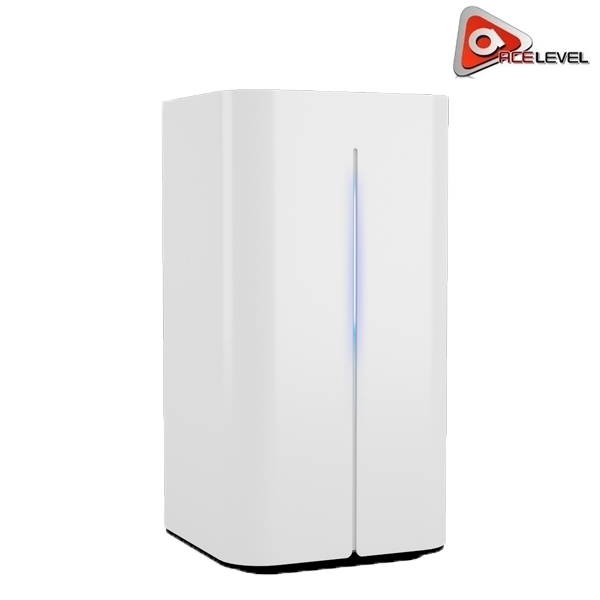

LTS Platinum 8 Channel Wifi NVR with Pre-installed 1TB HDD - LTN8208-W
Video/Audio Input
IP Video Input: 8-CH
Video Compression: H.264, MPEG4
Protocol: LTS, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANONZHUNT, ONVIF (version 2.4), PANASONIC, PELCO, PSIA, RTSP, SAMSUNG, SANYO, SONY, VIVOTEK, ZAVIO
Network
Incoming Bandwidth: 50Mbps
Outgoing Bandwidth: 80Mbps
Protocol: IPv6, UpnP, SNMP, NTP, SADP, DDNS, SMTP, NFS, iSCSI
Video/Audio Output
Recording Resolution: 6MP/ 5MP/ 3MP/ 1080P/ UXGA/ 720P/ VGA/ 4CIF/ DCIF/ 2CIF/ CIF/ QCIF
HDMI Output (with audio output): 1-CH, resolution: 1920 x 1080P/ 60Hz, 1600 x 1200/ 60Hz, 1280 x 1024/ 60Hz, 1280 x 720/ 60Hz, 1024 x 768/ 60Hz
Playback Resolution: 6MP/ 5MP/ 3MP/ 1080P/ UXGA/ 720P/ VGA/ 4CIF/ DCIF/ 2CIF/ CIF/ QCIF
Synchronous Playback: 8-CH
Record
Record Type: Manual, Continuous, Motion Detection, Alarm, Motion Detection & Alarm, Motion Detection, Alarm, VCA
Playback Type: Instant Playback, Normal Playback, Event Playback, Tag Playback, Log Playback, Smart Playback, External file Playback
Backup Mode: Normal, Event
Hard Disk
SATA: 1 SATA interface for 1 HDD
Capacity: 1TB Pre-installed
External Interface
Network Interface: 1 RJ-45 10 /100 Mbps WAN interface; 3 RJ-45 10 / 100M LAN interfaces
USB Interface: 1 x USB 3.0
Wireless
Frequency Band: 2.4GHz
Antenna Structure: 2 x 2MIMO
General
Power Supply: DC 12V
Consumption: =12W
Working Temperature: 32°F - 140°F (0°C - 40°C)
Working Humidity: 10% - 90%
Dimensions (WxDxH): 3.4 x 3.4 x 6.2in (87 x 87 x 157mm)
Weight: 1.2lb (=0.53kg)
