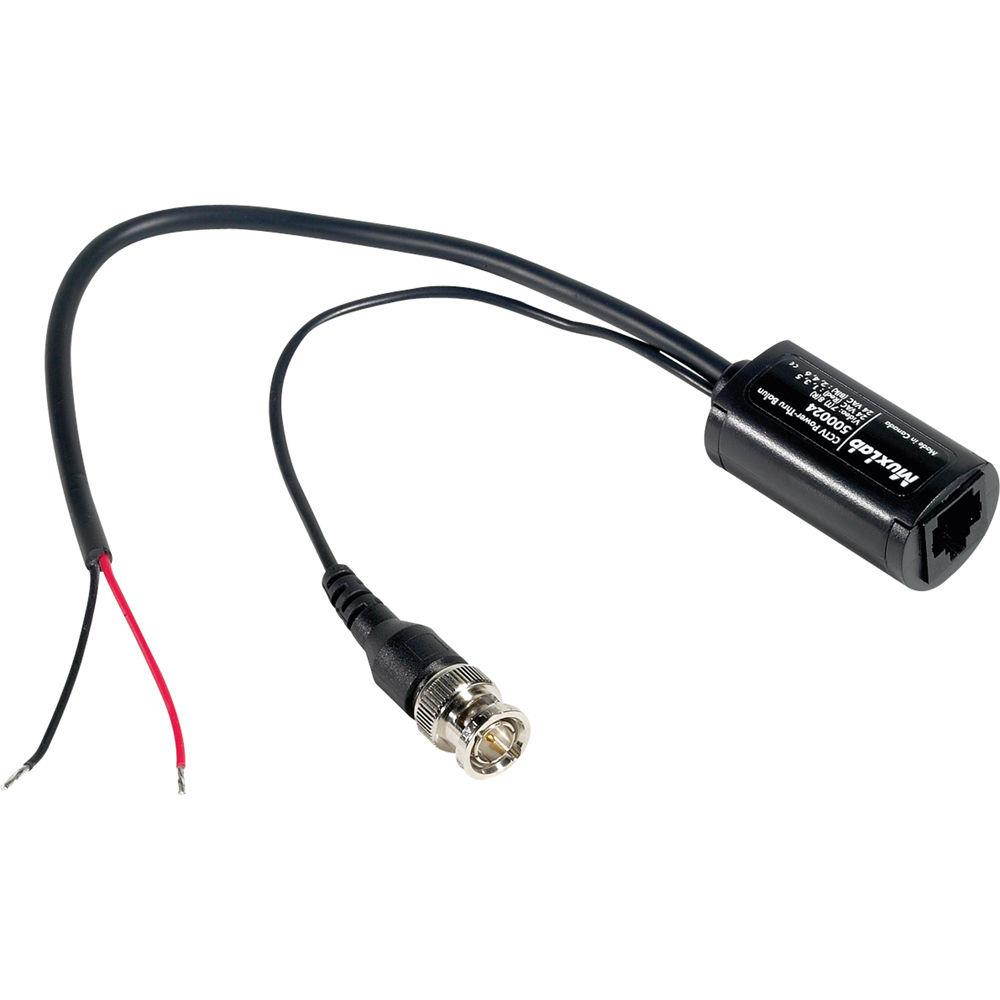

500024-CNV MUXLAB INC CCTV POWER THRU CNVRTR BALUN
500024-CNV 5M-500024CNV MUXLAB INC CCTV POWER THRU CNVRTR BALUN

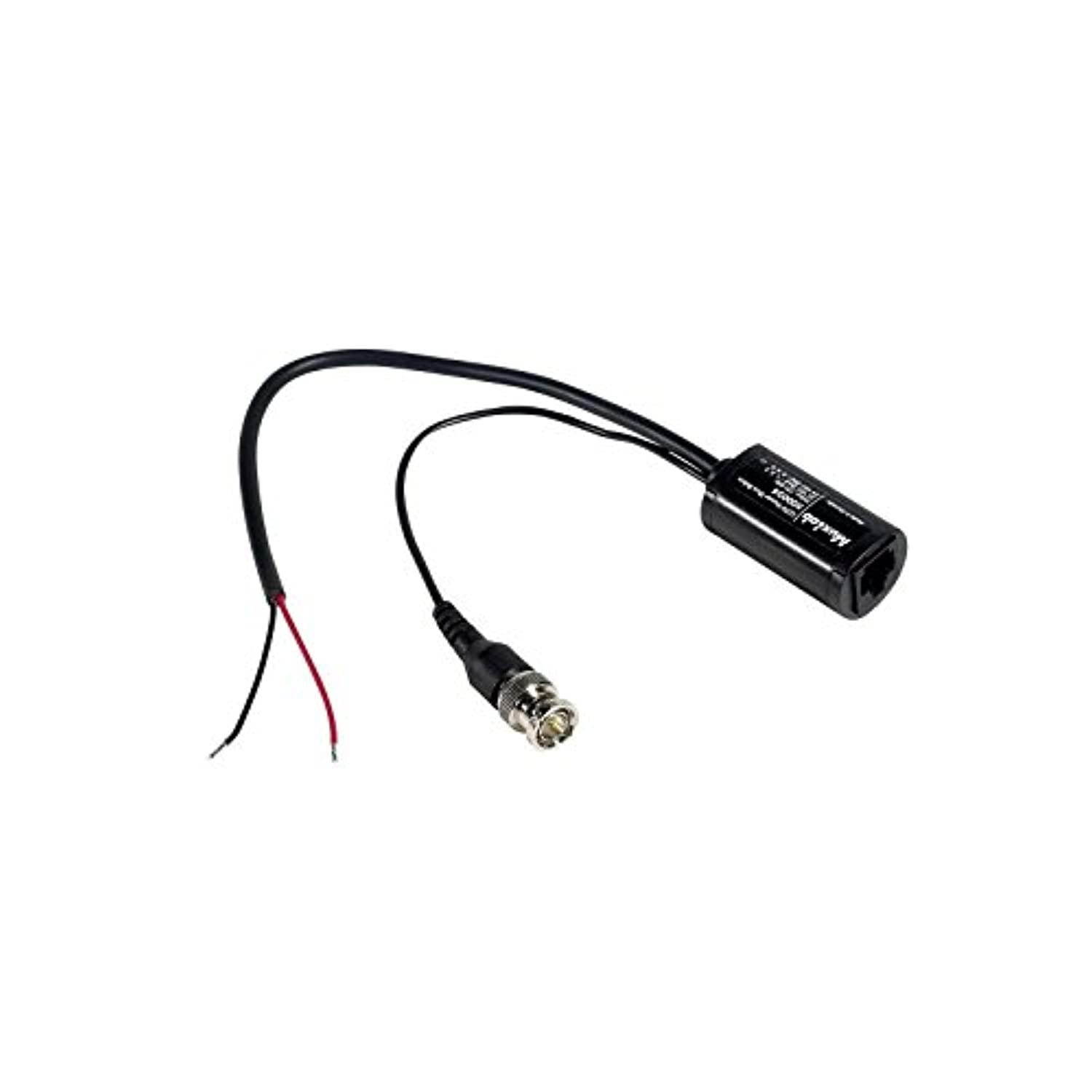

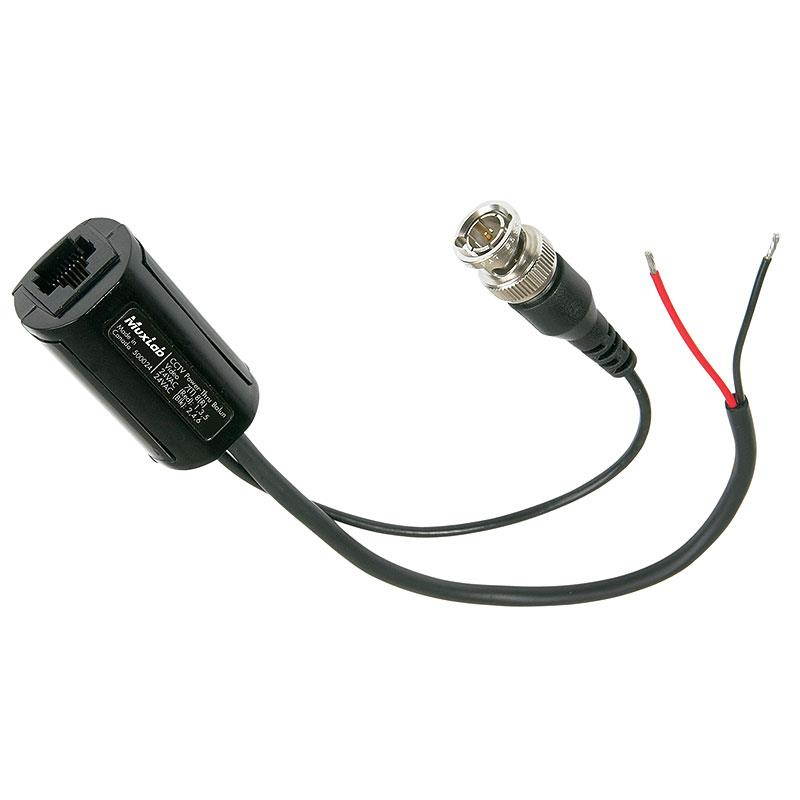

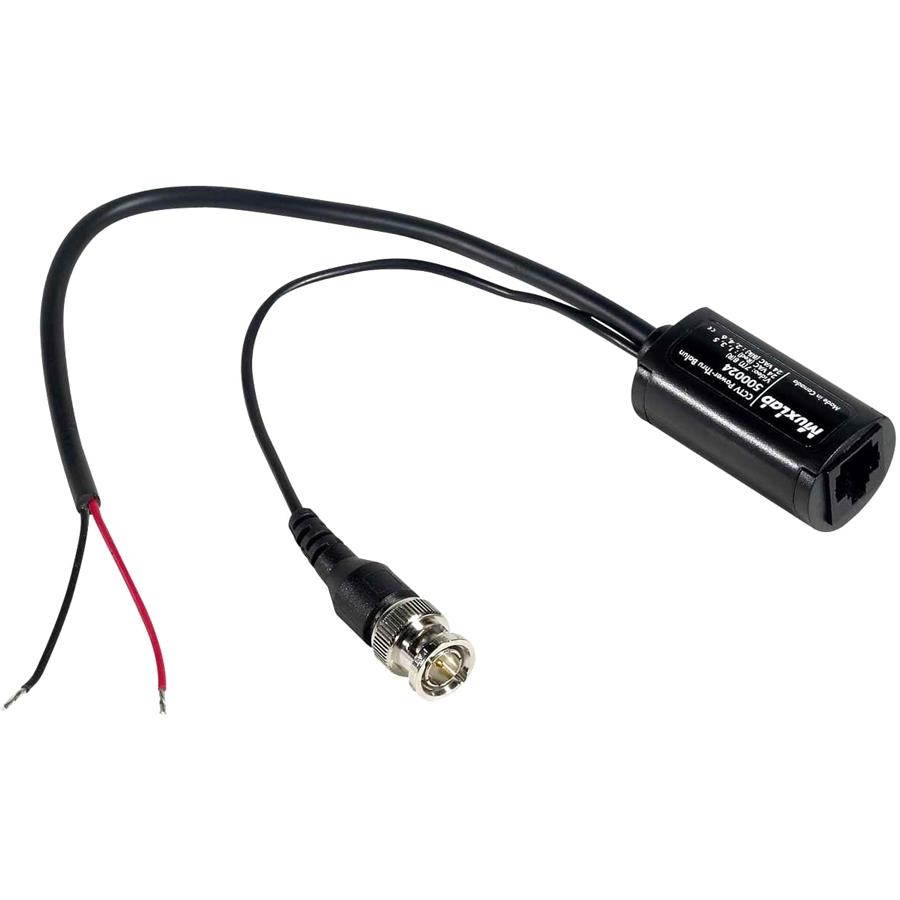

CCTV Pass-Thru Balun
This balun allows video, two-wire pan/tilt/zoom control and remote power to be transmitted via one four-pair cat. 5 cable, thus eliminating the need to install multiple cables for more efficient cabling in your closed-circuit security and surveillance env
Surveillance - Home Automation
Send VGA signals over affordable unshielded twisted pair cable instead of the more expensive coaxial cable with these VGA Baluns.
MuxLab 500771-RX KVM DVI over IP PoE Extender Receiver (330') w/2-Yr Warranty
The KVM DVI over IP PoE Extender Kit allows DVI & USB equipment to be connected up to 330ft (100m) over an Ethernet LAN, supporting 1920x1200 and 1080p resolution @ 60Hz via Cat5e/6 cable in multiple point-to-point and point-to-multipoint configurations. The Transmitter (500771-TX) and Receiver (500771-RX) support PoE (PD) if used with a PoE (PSE) Ethernet Switch.
The Transmitter terminates to a computer server/workstation via a DVI & USB port, The Receiver terminates to a DVI display and up to 4 USB devices such as a keyboard, mouse, printer, drawing pad, storage device, camera, etc., via a 4 port USB hub. A single Receiver can be switched via hotkey sequences to any Transmitter on the network, allowing a single operator to manage numerous servers/workstations, in a distributed KVM application.
MuxLab 500771-RX KVM DVI over IP PoE Extender Receiver (330') Features:
One operator can manage multiple servers/workstations
Supports DVI up to 1920x1200 and 1080p @ 60Hz
Receiver side includes a 4-port USB hub, for KVM applications
Up to 330ft (100m) over Cat5e/6
Supports 100's of Transmitters & Receivers depending on network bandwidth
Supports multiple point-to-point, and point-to-multipoint applications
Supports audio insert & mic-out (TX), and audio extract & mic-in (RX)
MuxLab 500718 1x6 12G-SDI UHD 4K Splitter w/2-Yr Warranty
The 12G-SDI 1x6 Splitter, 4K/60 (500718) allows one (1) 12G/6G/3G/HD/SD-SDI source to be distributed and amplified to up to six (6) 12G/6G/3G/HD/SD-SDI displays. The splitter supports up to 4K (3840 X 2160) video and HD audio, including 480i (SD-SDI), 720p/1080i (HDSDI), 1080p (3G-SDI), 4K/30 (6G-SDI) and 4K/60 (12G-SDI).
The device automatically detects the 12G/6G/3G/HD/SD-SDI signal and re-clocks and regenerates the signal at the output for extending distances between source and displays. Additionally, all connectors are on the rear panel for neater cabling.
MuxLab 500718 1x6 12G-SDI UHD 4K Splitter Features:
Distribute one 12G-SDI source to six displays
Supports up to 4K @ 60Hz, including 12G/6G/3G/HD/SD-SDI
Automatically detects re-clocks and regenerates the 12G/6G/3G/HD/SD-SDI signal
LED diagnostic
Connectors on rear for neater cabling
MuxLab 500756-RX 3G-SDI Over IP Receiver Unit with PoE w/2-Yr Warranty
The MuxLab 500756 - 3G-SDI /RS232 over IP Extender with PoE allows easy extension and distribution of broadcast quality SDI, HD-SDI or 3G-SDI video with embedded audio over local area networks (LAN).
This low-latency and versatile extender kit consists of individual transmitter and receiver units which can be configured in a variety of combinations. It is a cost effective alternative to a dedicated SDI matrix switch. The 3G-SDI over IP extender allows users to send any SDI signals over CAT5/6 cable infrastructure instead of using the traditional SDI coax infrastructure, saving cable cost and making installation easy and fast. This extender kit is ideal for many quality critical video/audio applications such as original video source contribution, live video delivery around the broadcast facility or running media exchanges between different studios within the facility.
MuxLab 500756-RX 3G-SDI Over IP Receiver Unit with PoE Features:
Supports up to 1080p resolutions
Motion JPEG compression with very low latency
Supports 100's of Transmitters and Receivers, depending on network bandwidth
LAN Switch based configurations support point-to-point, point-to-multipoint, and multipoint-to-multipoint
Extend transmission up to 330ft (100m) over an IP network (when a LAN Switch is used)
Extend transmission up to 400ft (120m) in a point-to-point configuration (when a LAN Switch is not used)
Supports RS232 and one way IR transmission for remote control of end devices
PoE Powered
Compatible with the 500811 ProDigital Network Controller for software management
Compatible with 500752, 500753, and 500754 products
MuxLab 500463 DVI over Fiber Optic Extender Kit (3,280' Range) w/2-Yr Warranty
The MuxLab DVI Fiber Optic Extender Kit lengthens your DVI display from your video source using a single strand of fiber optic cable.
Automatic EDID programming enables simple synchronization of the video source to the display.
MuxLab 500463 DVI over Fiber Optic Extender Kit (3,280' Range) Features:
Extends DVI devices up to 3,280 ft. (1km)
Supports video resolutions up to 1080p and 1920 x 1200
Uses single-strand multimode fiber optic cable
Easy EDID programming enables simple synchronization
Supports DDWG standard for DVI compliant monitors
Video Amplifier Bandwidth: 165 MHz (single link)
Input DDC Signal: 5 volts p-p (TTL)
DVI Connector: Type DVI-D male
Link Connector: SCPower Supply: 5V DC
MuxLab 500464 HDMI 2.0 Fiber Extender Kit w/2-Yr Warranty
The HDMI 2.0 Fiber Extender Kit, 500464 enables the user to transmit 4K (4096x2160) video at 60Hz signal up to 330ft (100m) via OM3 multi-mode fiber, with any form of scaling or data compression being applied to the signal. This device supports a total data throughput of 18Gbps (6Gbps per lane).
The unit supports two (2) LC connectors The Transmitter may be powered via USB power (with the included power supply), or from the 5V supplied from pin #18 of the HDMI connector of the source side only.
MuxLab 500464 HDMI 2.0 Fiber Extender Kit Features:
Supports the HDMI 2.0 standard
Up to 4K (4096x2160) resolution, @ 60Hz
Bandwidth of 18Gbps
Up to 330ft (100m) over OM3 50/125µm multi-mode fiber
Supports CEC, EDID & HDCP 2.2
High retention HDMI connector to prevent accidental disconnection
Robust compact metal enclosure
MuxLab 500426 1x4 4K HDMI Splitter w/2-Yr Warranty
The HDMI 1x4 Splitter, 4K60 (500426) allows one (1) HDMI 2.0 source to be distributed to up to four (4) HDMI displays. The HDMI audio video splitter supports up to 4K (3840 X 2160) video @ 60Hz, HDR, Deep Color and HD audio. The HDMI audio video splitter is HDCP 1.4 & 2.2 compliant and features EDID management and LED diagnostics. Additionally, all connectors are on the rear panel for neater cabling. Mux Lab 500426 1x4 4K HDMI Splitter Features: Distribute one HDMI 2.0 source to four displays Supports up to 4K @ 60Hz ( 4:4: 4) HDCP 1.4 and 2.2 compliant Supports HDR and Deep Color Supports LPCM 7.1CH, Dolby True HD, Dolby Atmos, DTS-HD Master Audio and DTS: X 8 position rotary switch for EDID management LED diagnostic Connectors on rear for neater cabli
MuxLab 500454-PoE HDMI/RS232 Extender Kit with PoE w/2-Yr Warranty
This HDMI extender 4K allows HDMI equipment to be connected up to 131ft (40m) at 4K/30 (4:4:4) or 4K/60 (4:2:0) resolutions, or 230 ft (70 m) at resolutions up to 1080p via one (1) Cat 5e/6 unshielded twisted pair cable in a point-to-point configuration. For ease of cabling the extender kit features PoE (PD), including PoC, on both the transmitter and receiver. The HDMI extender 4K supports RS232 and bidirectional IR for end devices remote control. This kit comes with one (1) transmitter, one (1) receiver, one (1) IR Emitter, and one (1) IR sensor.
MuxLab 500454-PoE HDMI/RS232 Extender Kit with PoE Features:
Supports 1080p deep color and full 3D to distances of up to 230 ft (70m) over single Cat5e/6
Supports 4K @ 24/25/30Hz (4:4:4) and 4K/60 (4:2:0) to distances of up to 131 ft (40m) over single Cat5e/6
Supports RS232
Supports Bi-directional IR pass through
Supports all digital audio modes
PoE (PD) & PoC on both the transmitter and receiver
Includes IR emitter and IR sensor (carrier-wave)
Compatible with 500454 (non PoE version)
MuxLab, Inc. 500130 Passive CCTV Hub, UTP/Coax
Wire video, remote power, and PTZ control through one Cat5 cable.
Surveillance - Home Automation
The VideoEase RGB Balun can be used in home or commercial applications as a smart, fast and cost-effective means of cabling component RGB video equipment using twisted pair instead of coax cable.
MuxLab 500505 1x2 UHD 4K DisplayPort Splitter w/2-Yr Warranty
The DisplayPort 1.2a 1x2 Splitter, SST allows you to duplicate identical DisplayPort 1.2a content from one DisplayPort connector to two monitors. The splitter supports video resolutions up to 4K and PCM Audio up to 7.1-Channel and up to 192 kHz sampling rate, supporting a Single Stream Transport (SST).
muxlab 500030 stereo pc audio balun
The Stereo PC-Audio Balun allows unbalanced line level stereo analogue audio to be transmitted via Category 5/6 unshielded copper twisted pair (UTP) in a point-to-point connection. The product is designed for audio equipment equipped with 3.5mm line-level stereo output such as PC sound cards, laptops and multi-media servers where midrange audio frequency response is required. The Stereo PC-Audio Balun also works in conjunction with other MuxLab products such as the 500019, 500001, 500012, 500017, 500027, 500028 and 500200 for a more complete cabling solution.UPC NO:769260502609 SKU:B001JIG6JQ
MuxLab VGA Balun II Kit
The VGA Balun II eliminates costly and bulky VGA cable, allowing a VGA source to be connected to a VGA monitor via one (1) 4-pair Cat 5 unshielded twisted pair (UTP) cable. Used in pairs, the VGA Balun II allows VGA video to be transmitted up to 350ft (107m) via Cat 5 at 800 x 600 resolution. Each VGA connection requires p/n 500040 at the source and either p/n 500041 or 500042 at the display. The product features a reset button that may be required when using certain displays. More inforUPC:551599636663SKU:ADIB00HUAGRIC
Muxlab SDI to USB 3.0 Video Capture & Streamer
The SDI to USB 3.0 Video Capture & Streamer (500705) allows the user to record from SDI video sources to a PC over USB 3.1 Gen 1 (USB 3.0 ). The unit supports an SDI Input port for the source and SDI Loop Out for a monitor. The 500705 is capable of connecting to a 3G/HD/SD-SDI (1080p @ 60Hz) source and will stream at up to 1080p/60 over the USB 3.1 Gen 1 port to a PC or similar device to record and/or send the video to a broadcasting service such as YouTube, Facebook, and other broadcasting services. The device is compatible with OBS Studio, AMCap, etc., and supports a variety of SDI sources such as Cameras, Computers, Media Players, and many others. Less ThanBrGreater ThanLess ThanbRGreater ThanThe SDI to USB 3.0 Video Capture & Streamer supports a 2CH Audio In port for a microphone. The Audio streamed can be selected between the embedded SDI Audio or the 2CH Audio In port. Product informationProduct Dimensions 6.5 x 4.5 x 1.7 inchesItem Weight1 poundsASINB08P5CWL9CItem model numberVideo Capture & StreamerBest Sellers Rank#3, 267 in Video ConvertersDate First AvailableNovember 20, 2020ManufacturerMuxlabWarranty & SupportProduct Warranty: For warranty information about this product, please click here FeedbackWould you like to tell us about a lower price? VideosPage 1 of 1Start OverPage 1 of 1Previous pageVideos for related products 9:47 Click to play videoSuper 8/8mm Film Scanner, Converts Film into Digital Video BEST REVIEWS Videos for related products 7:19 Click to play videoVideo capture box with screen! DARIO & MININA - (MEDIABOXENT) Videos for related products 8:43 Click to play videoMagewell XI100DUSB HDMI Review - 1080p60 Video Capture gen. videoVideos for related products 13:43 Click to play videoFEELWORLD LIVEPRO L1 V1 Multi Camera Video Mixer Switcher FEELWORLD Official Store-USVideos for related products 7:13 Click to play videoHow to use Video Scaler Upscale or Downscale 4K 1080p Bombay ElectronicsVideos for related products 8:57 Click to play videoDigital Audio Extender over LAN - How to Use Bombay ElectronicsVideos for related products 6:24 Click to play videoHDA-912 4K Audio Extractor Bombay ElectronicsVideos for related products 7:32 Click to play videoHDA-925 Audio Extractor Bombay ElectronicsVideos for related products 3:59 Click to play videoExternal Capture Card Video Recorder - AV Recording System, Plug-and-Play PC Computer Record Abil... Merchant VideoVideos for related products 3:15 Click to play videoJ-Tech Digital HDMI Audio Extractor J-Tech Digital, IncNext pageUpload your video Customer Review: Super 8/8mm Film Scanner, Converts Film into Digital VideoSee full review BEST REVIEWS Onsite Associates ProgramAmazon Influencer Customer Questions & Answers
Muxlab HDMI to USB 3.0 Video Capture & Streamer #500467
Muxlab HDMI to USB 3.0 Video Capture & Streamer
MuxLab, Inc. 500401 HDMI over Cat5e/6 Econo Plus Extender Kit
500401
MuxLab 500732-SM40 6G-SDI over Single-Mode Fiber Extender Kit w/2-Yr Warranty
MuxLab 500732-SM40 6G-SDI over Single-Mode Fiber Extender Kit (132,000') is a unique solution from MuxLab for extending SDI cameras or other SDI sources in up to 4K resolutions to a distance of up to 985ft (300m) using OM3 fiber (model 500732), up to 1300ft (400m) using OM4 fiber (model 500732), up to 33,000ft (10km) using single mode fiber (model 500732-SM10), up to 132,000ft (40km) using single mode fiber (model 500732-SM40), and up to 264,000ft (80km) using single mode fiber (model 500732-SM80). This product allows for versatile combinations of sources, such as one 6G SDI source, two 3G-SDI sources, or four HD-SDI sources.
MuxLab 500732-SM40 6G-SDI over Single-Mode Fiber Extender Kit (132,000') Features:
Supported modes: SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M
Supports all 6G channel configurations (1, 2, or 4 BNC)
Automatic SDI Link recognition and configuration
USB interface for field upgradable firmware and diagnostics
Standard SFP+ module for optical fibre interface, or other media
Aluminum ruggedized enclosures
Supports RS232 pass through
MuxLab 500436 4K/60 HDMI to HDMI Extender with Audio Extraction w/2-Yr Warranty
The HDMI to HDMI with Audio Extraction, 4K/60 allows one (1) HDMI source to be distributed to one (1) HDMI display. The device supports up to 4K (3840 x 2160) video resolution at 60Hz, 8-bit color and HD audio.The unit extracts LPCM, Dolby Digital, DTS, Dolby Digital Plus and Atmos digital audio from the S/PDIF TosLink port and 2CH analog audio from the 3.5mm 2CH audio port. The product is HDCP 2.2 compliant and features LED diagnostics.Applications: Commercial and residential AV systems Classroom projector systems Digitial signage Boardroom systems Collaborative PC systems
MuxLab 500502 DisplayPort 1.2a WQUXGA Fiber Extender Kit (330') w/2-Yr Warranty
The DisplayPort 1.2a Fiber Extender Kit, 500502 enables the user to transmit WQUXGA (3840x22400) video at 60Hz signal up to 330ft (100m), with any form of scaling or data compression being applied to the signal. This device support a total data throughput of 21.6Gbps (5.4Gbps per lane).
MuxLab 500502 DisplayPort 1.2a WQUXGA Fiber Extender Kit (330') Features:
Extend DisplayPort connectivity via multi-mode fiber
Supports the DisplayPort 1.2a standard
Up to 330ft (100m) over 50/125???m multi-mode fiber
Supports WQUXGA (3840x2400) resolution @ 60Hz
Bandwidth of 21.6Gbps
Supports Dual-Mode DP (DP++)
Supports auxiliary/I2C channel over fiber
Compact Metal Enclosure for a robust and easy installation

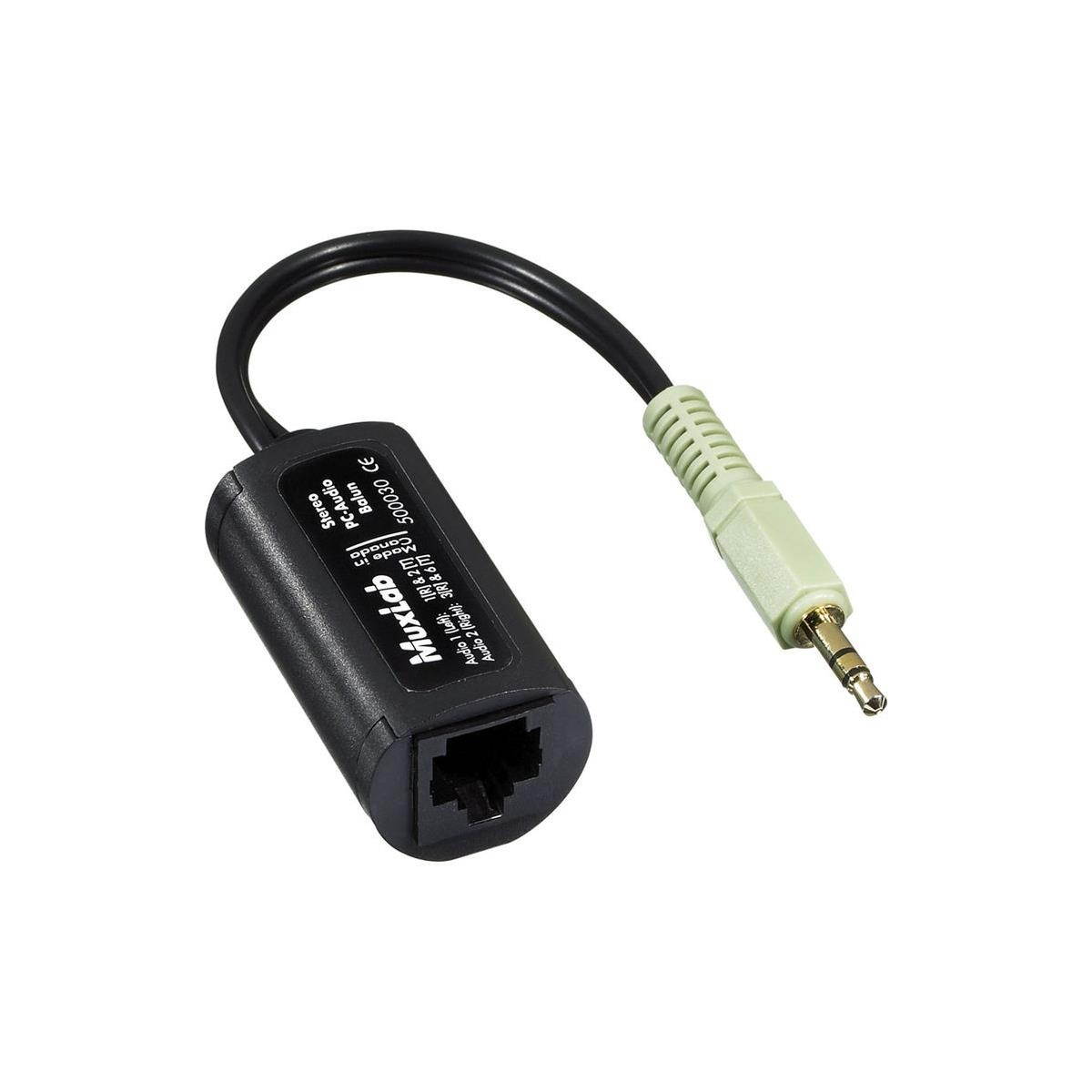

Stereo Pc Audio Balun
Stereo Pc Audio Balun
MuxLab, Inc. 500140 Active VGA Over Cat5e/6 Balun II Kit
500140

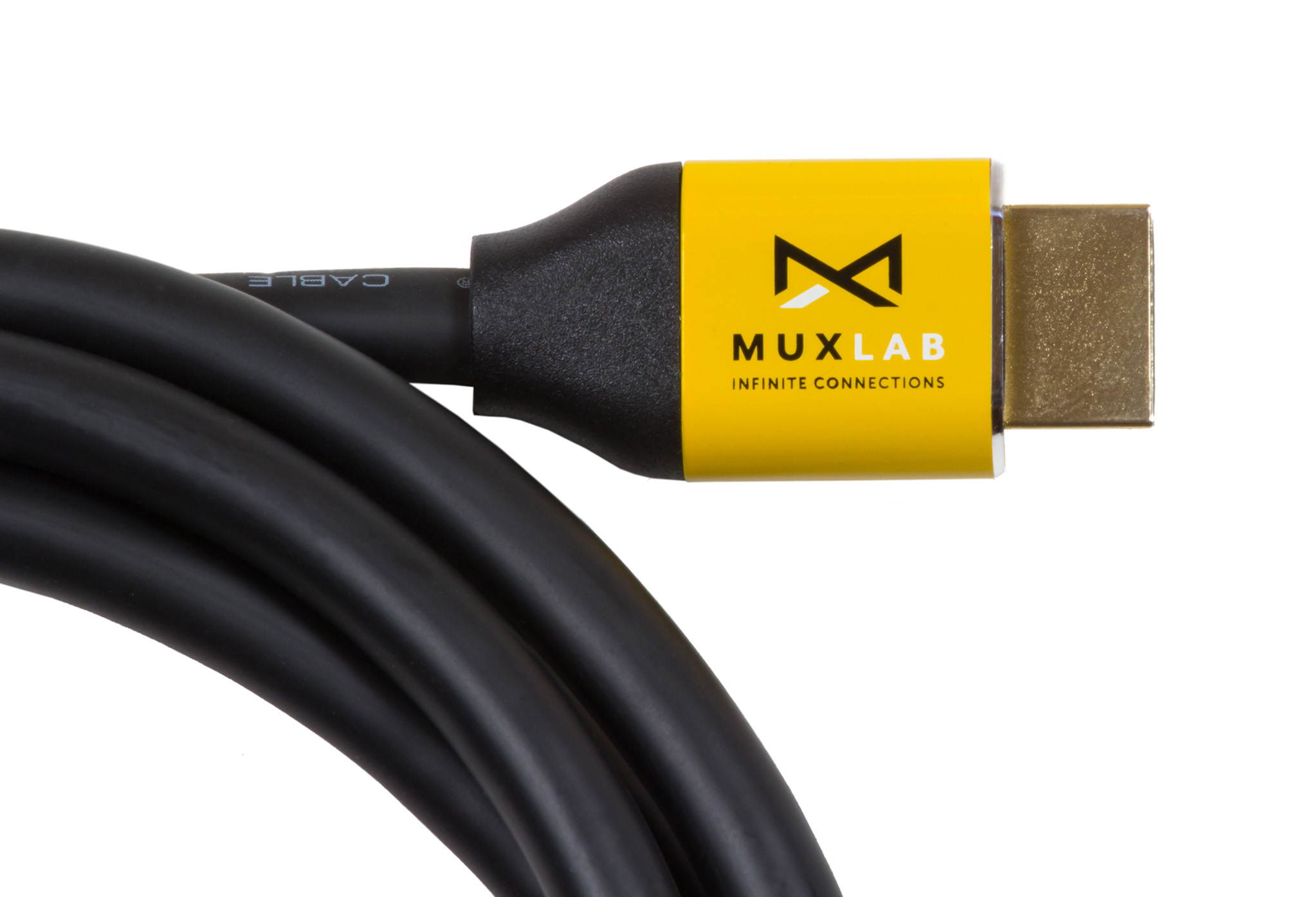

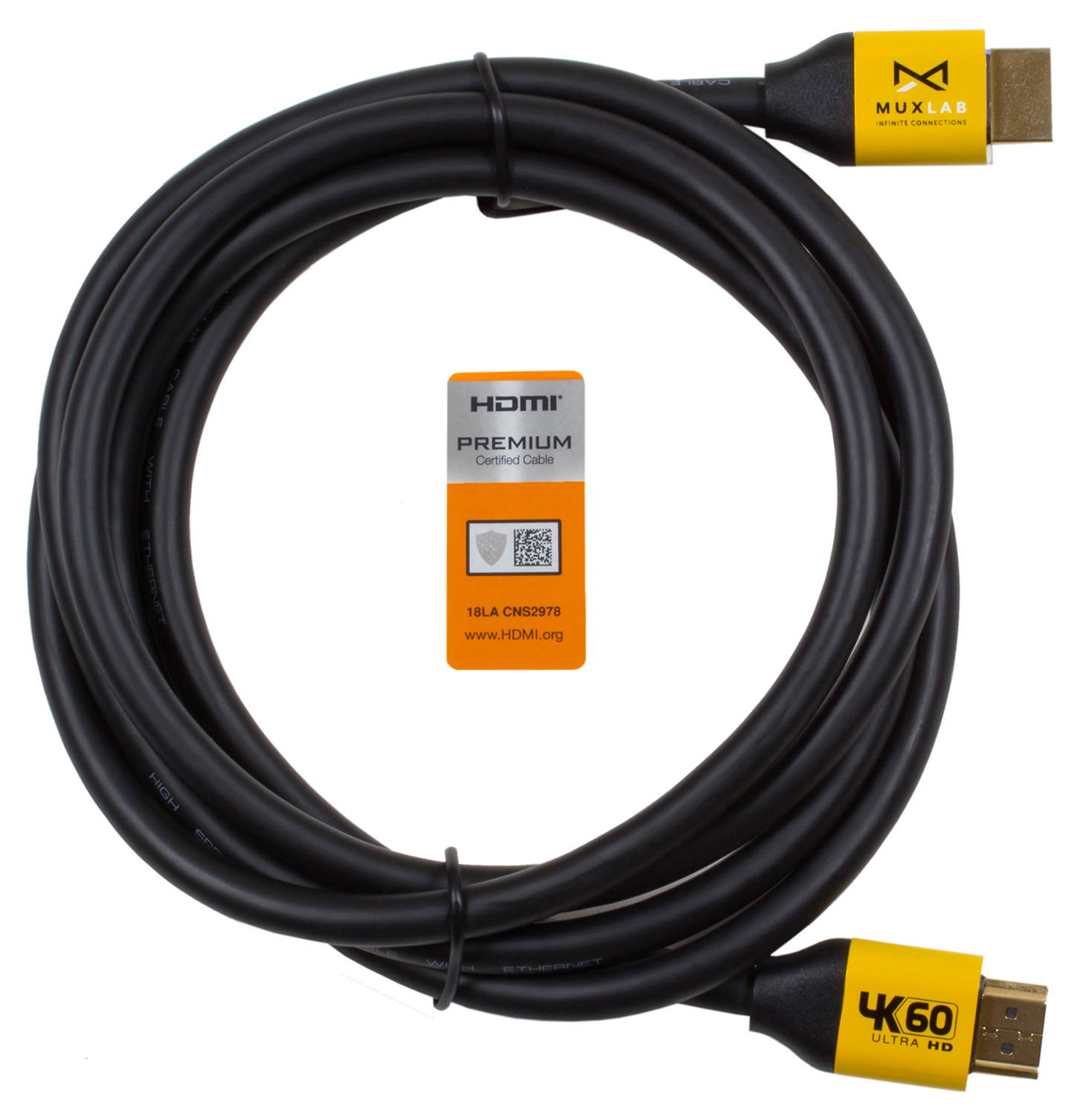

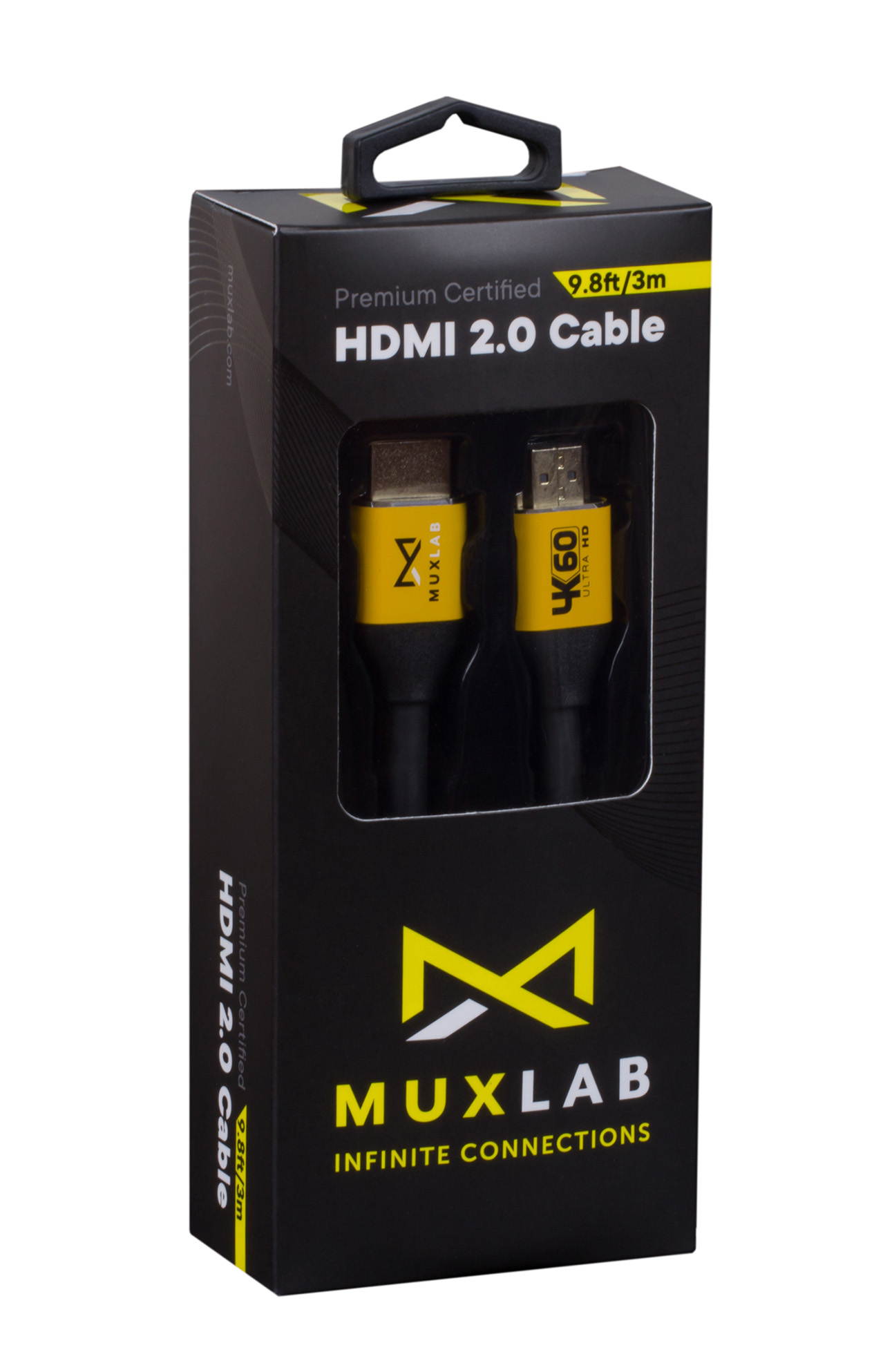

MuxLab Certified HDMI 2.0 Cable 10 Feet | Premium High Speed 18Gbps | Supports 4K @ 60Hz (4:4:4), 3D, Ethernet, ARC, HDTV, Projector, Playstation, PS3
The MuxLab Premium Certified HDMI 2.0 Cable, 3M supports 4K @ 60Hz (4:4:4), 3D, Ethernet and ARC (Audio Return Channel). This high quality HDMI cable is triple shielded for optimal EMI and RFI performance. The HDMI connector contacts are 24K gold plated for excellent signal transfer. The cable is 10ft / 3m in length and is ideal to use with UltraHD and HD TVs.
Premium Certified HDMI 2.0
Supports 18Gbps, 4K @ 60Hz (4:4:4)
3D, Ethernet & ARC support
Triple shielding for EMI and RFI
24K gold plated connector contacts
Length of 10ft / 3m
Ideal for UltraHD TVs

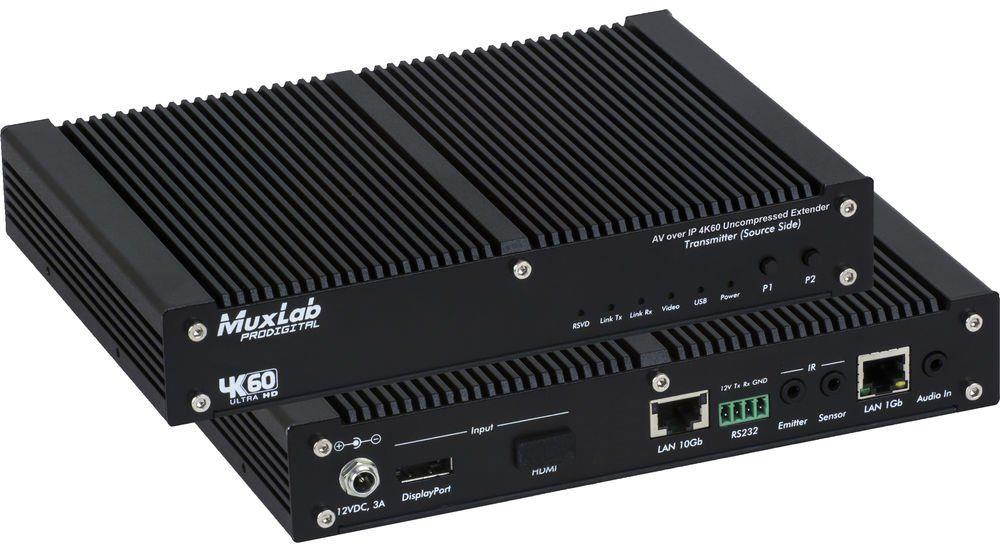

MuxLab 500760-RX-US AV over IP 4K/60 Uncompressed Receiver , UTP w/2-Yr Warranty
The AV over IP 4K/60 Uncompressed Extender, UTP allows HDMI and DisplayPort source equipment supporting up to 4K @ 60Hz resolution to be connected and extended to create a 4K/60 HDMI based Video Wall, Virtual Matrix Switch, and Virtual Splitter arrangements of user configurable size (X by Y) supporting 100's of screens, depending on network bandwidth, utilizing one Receiver for each display in the array. Each Transmitter (500760-TX) and Receiver (500760-RX) can be connected via Cat5e/6 cable up to 330ft (100m) from a 10Gig Ethernet Switch.
The Transmitter supports 2CH audio insertion and the Receiver supports 2CH audio extraction. The Transmitter and Receiver, each come with a power supply, an IR Emitter and IR Sensor for IR based remote control applications, a wall mount bracket kit for securing the unit to a wall and a 4-pin terminal block connector for RS232 connectivity.
The MuxLab Pro Digital Network Controller (500811) is available to simplify centralized configuration and control, software updates and allows for third party smartphone and tablet management.
MuxLab 500760-RX-US AV over IP 4K/60 Uncompressed Receiver , UTP Features:
Supports HDMI up to 4K/60 on Transmitter and Receiver
Supports DisplayPort 1.2a up to 4K/60 on Transmitter
Uncompressed up to 4K/60 (4:2:0) (zero latency), and light compression visually lossless at (4:4:4) (1 frame latency)
Supports Video Wall, Virtual Matrix Switch and Virtual Splitter configurations.
Supports point-to-point, point-to-multipoint and multipoint-to-multipoint applications.
Transmission up to 330ft (100m) over Cat5e/6
Supports audio insert (TX) & audio extract (RX)
Supports RS232 and IR transmission for remote control
Control via any web device (mobile, tablet) with use of model 500811 (Pro Digital Network Controller)

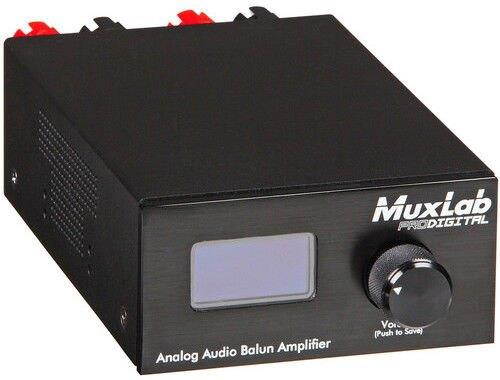

MuxLab 500219 Analog Audio Balun Amplifier w/2-Yr Warranty
The MuxLab Analog Audio Balun Amplifier allows one (1) analog audio source using one of the MuxLab Hi-Fi Audio Baluns to feed a compact 30W per channel stereo Class D Amplifier using a single Cat5e/6 cable to distances of up to 3,250ft / 1km.
With a simple OSD showing graphical input level (left & right) and volume level. Push and turn button on front of unit for power on/off and volume.
Compatible with MuxLab transmitter baluns: 500028, 500028-WP-US, 500028-WP-UK, or 500028-F; or the MuxLab 8x8 Line Level Audio Matrix Switch (500210).
MuxLab 500219 Analog Audio Balun Amplifier Features:
30W per channel (PMPO) Class D Digital Amplifier
Receive signals from compatible MuxLab balun/s from up to 3,250ft / 1km over single Cat5e/6
OSD: volume and input level
Input: one (1) RJ45
Output: two (2) binding posts for speaker output
Front panel control: volume, power on/off, set volume memory
Ground loop isolation
Dimensions: 4" x 5" x 2" (90 x 130 x 50mm)
Weight: 5lb / 2.0kg
Optional mounting brackets: 500917 (not included)
Power supply: 110-240V / 24V DC 5A with interchageable blades

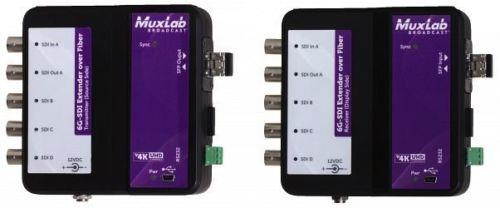

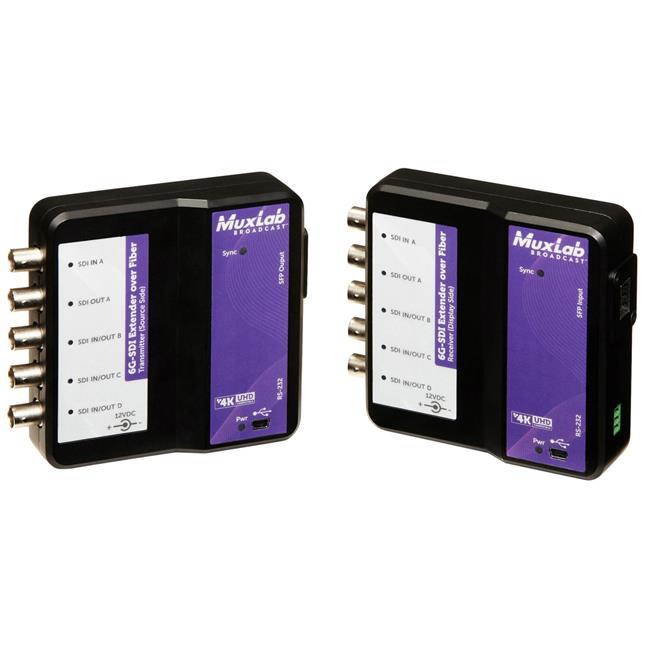

MuxLab 500734-SM40 6G-SDI Extender over Fiber Optic w/Return Channel w/2-Yr Warranty
MuxLab 500734-SM40 6G-SDI Extender over Fiber Optic with Return Channelis a unique solution from MuxLab for extending SDI cameras or other SDI sources in up to 4K resolutions to a distance of up to 400m (1300ft) using OM4 multi-mode fiber (model 500734), 10km (33,000ft) using single-mode fiber (model 500734-SM10), 40km (132,000ft) using single-mode fiber (model 500734-SM40), and 80km (264,000ft) using single-mode fiber (model 500734-SM80).
The product supports multichannel transmission, and can simultaneously transmit up to 9Gbps of data throughput over the fiber link, and allows for versatile combinations of sources, including 6G-SDI, 3G-SDI and HD-SDI. The unit supports simultaneous transmission of mixed signals such as one 6G-SDI signal + one 3G-SDI, or two 3G-SDI signals + two HD-SDI signals, and many other combinations up to 9Gbps.
The device supports one input and one output SDI port, plus three directional SDI ports that can be individually configured as input or output. This flexibility allows for up to four source ports and one return channel, or up to one source port and four return channels, or anything in between. The SDI return channel may be used for AV monitoring and talk-back, while the RS232 pass-through supports return of tally light, camera control unit (CCU) and control of end devices
MuxLab 500734-SM40 6G-SDI Extender over Fiber Optic with Return Channel Features:
Extend up to 4K @ 30Hz resolution from 300m to 80km over multimode or singlemode fiber
Supports multichannel transmission, and can simultaneously transmit up to 9Gbps of data
Accepts mixed signal transmission of up to one 6G-SDI signal + one 3G-SDI, or two 3G-SDI signals + two HD-SDI signals, and many other combinations in any direction, including the return channels
Supports one input and one output SDI port, plus three configurable directional SDI ports
Supports RS232 pass-through for remote control and as a return channel for tally light and camera control unit (CCU)
Supported modes: SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M
Supports all 6G channel configurations (1, 2, or 4 BNC)
Automatic SDI Link recognition and configuration
Supports a standard SFP+ module for the optical fiber interface, or other media
USB interface for diagnostics and field upgradable firmware
Aluminum casting enclosure for ruggedized use

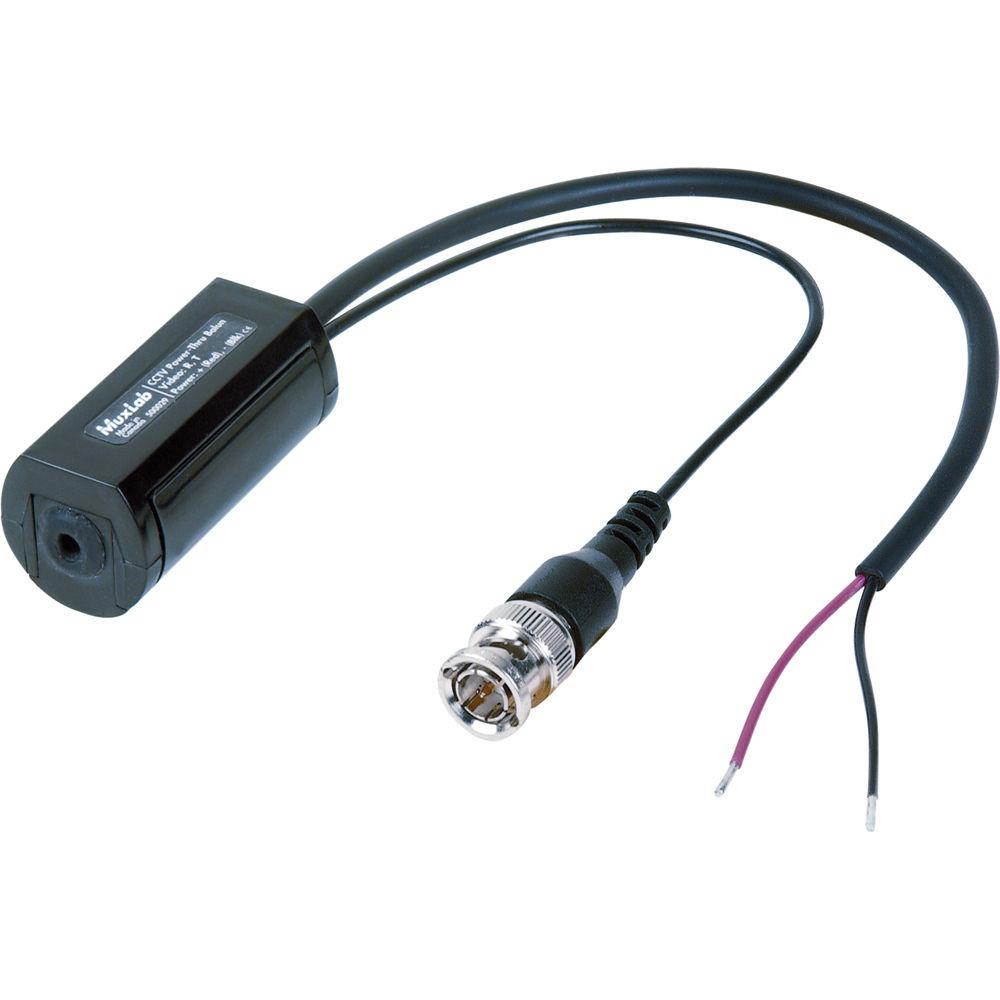

500029 MUXLAB INC CCTV PASS-THRU BALUN ST.
500029 5M-500029 MUXLAB INC CCTV PASS-THRU BALUN ST.
MuxLab, Inc. 500013 Dual S-Video Balun
500013

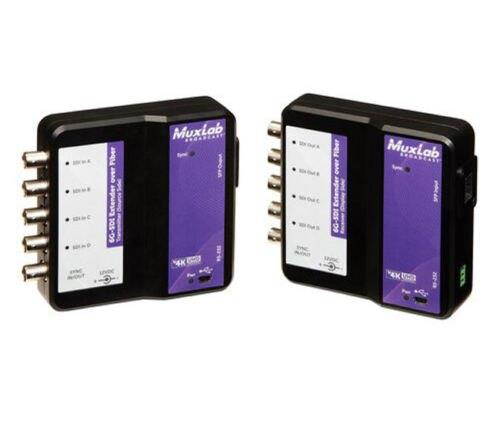

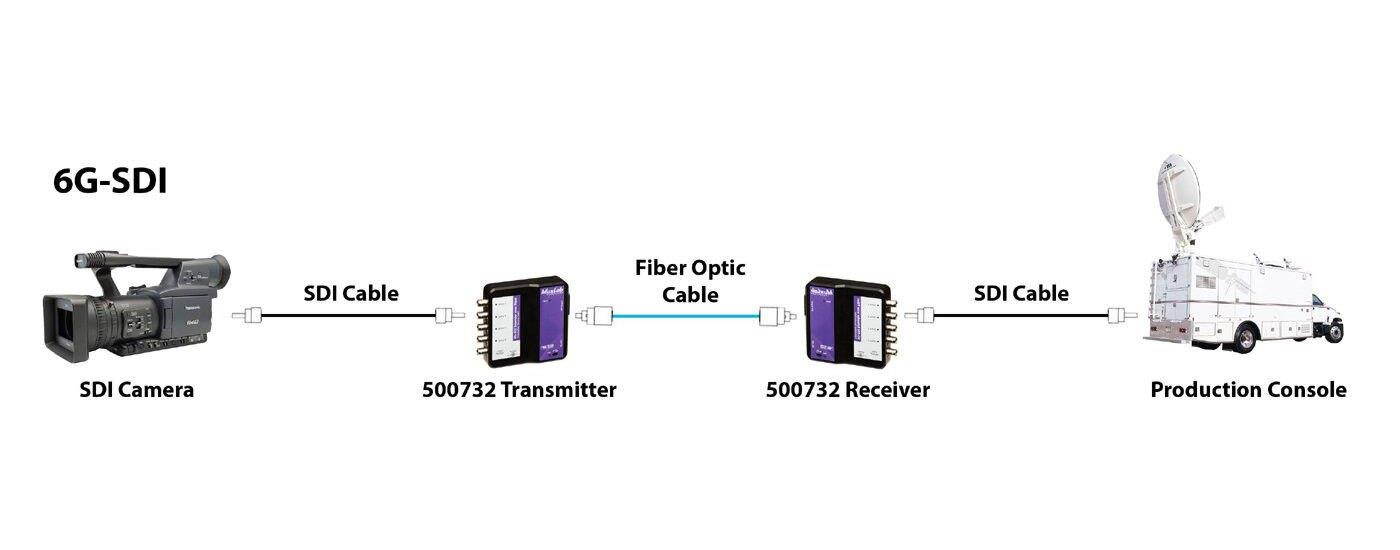

MuxLab 500732-SM80 6G-SDI Extender Over Fiber Optic w/2-Yr Warranty
MuxLab 500732-SM80 6G-SDI Extender Over Fiber Optic is a unique solution from MuxLab for extending SDI cameras or other SDI sources in up to 4K resolutions to a distance of up to 985ft (300m) using OM3 fiber (model 500732), up to 1300ft (400m) using OM4 fiber (model 500732), up to 33,000ft (10km) using single mode fiber (model 500732-SM10), up to 132,000ft (40km) using single mode fiber (model 500732-SM40), and up to 264,000ft (80km) using single mode fiber (model 500732-SM80). This product allows for versatile combinations of sources, such as one 6G SDI source, two 3G-SDI sources, or four HD-SDI sources.
MuxLab 500732-SM80 6G-SDI Extender Over Fiber Optic Features:
Supported modes: SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M
Supports all 6G channel configurations (1, 2, or 4 BNC)
Automatic SDI Link recognition and configuration
USB interface for field upgradable firmware and diagnostics
Standard SFP+ module for optical fibre interface, or other media
Aluminum ruggedized enclosures
Supports RS232 pass through

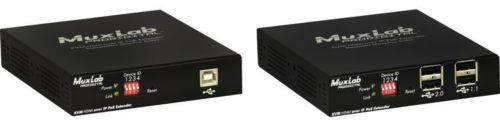

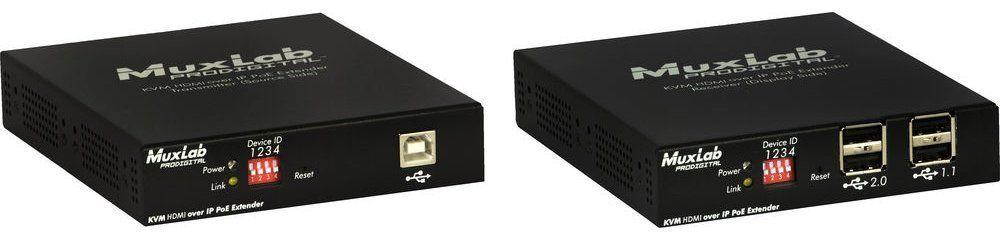

MuxLab 500770-TX KVM HDMI over IP PoE Transmitter w/2-Yr Warranty
The KVM HDMI over IP PoE Extender Kit allows HDMI & USB equipment to be connected up to 330ft (100m) over an Ethernet LAN, supporting 1920x1200 and 1080p resolution @ 60Hz via Cat5e/6 cable in multiple point-to-point and point-to-multipoint configurations. The Transmitter (500770-TX) and Receiver (500770-RX) support PoE (PD) if used with a PoE (PSE) Ethernet Switch.
The Transmitter terminates to a computer server/workstation via an HDMI & USB port, The Receiver terminates to an HDMI display and up to 4 USB devices such as a keyboard, mouse, printer, drawing pad, storage device, camera, etc., via a 4 port USB hub. A single Receiver can be switched via hotkey sequences to any Transmitter on the network, allowing a single operator to manage numerous servers/workstations, in a distributed KVM application.
MuxLab 500770-RX KVM HDMI over IP PoE Transmitter Features:
One operator can manage multiple servers/workstations
Supports HDMI up to 1920x1200 and 1080p @ 60Hz
Receiver side includes a 4-port USB hub, for KVM applications
Up to 330ft (100m) over Cat5e/6
Supports 100's of Transmitters & Receivers depending on network bandwidth
Supports multiple point-to-point, and point-to-multipoint applications
Supports audio insert & mic-out (TX), and audio extract & mic-in (RX)

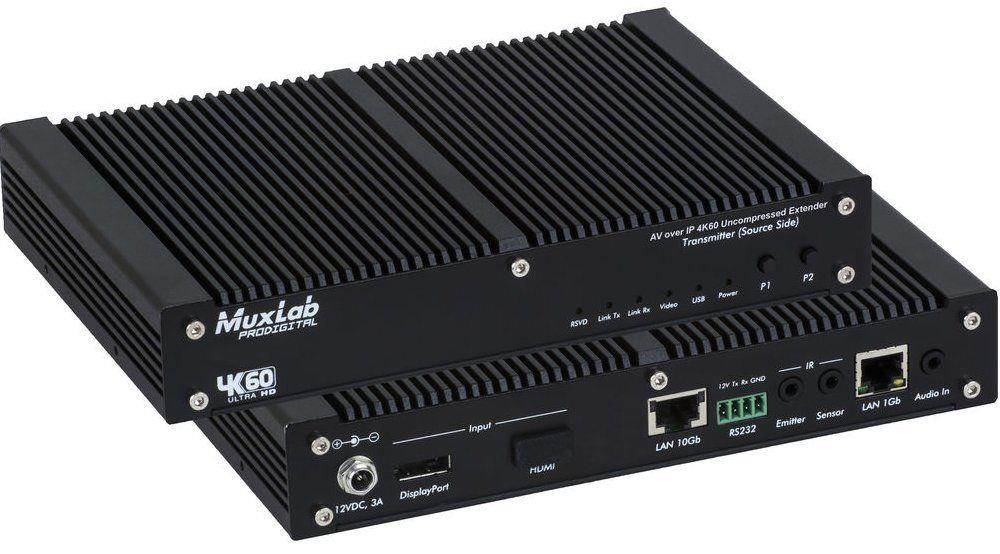

MuxLab 500760-TX-US AV over IP 4K/60 Uncompressed Transmitter, UTP w/2-Yr Warranty
The AV over IP 4K/60 Uncompressed Extender, UTP allows HDMI and DisplayPort source equipment supporting up to 4K @ 60Hz resolution to be connected and extended to create a 4K/60 HDMI based Video Wall, Virtual Matrix Switch, and Virtual Splitter arrangements of user configurable size (X by Y) supporting 100's of screens, depending on network bandwidth, utilizing one Receiver for each display in the array. Each Transmitter (500760-TX) and Receiver (500760-RX) can be connected via Cat5e/6 cable up to 330ft (100m) from a 10Gig Ethernet Switch.
The Transmitter supports 2CH audio insertion and the Receiver supports 2CH audio extraction. The Transmitter and Receiver, each come with a power supply, an IR Emitter and IR Sensor for IR based remote control applications, a wall mount bracket kit for securing the unit to a wall and a 4-pin terminal block connector for RS232 connectivity.
The MuxLab Pro Digital Network Controller (500811) is available to simplify centralized configuration and control, software updates and allows for third party smartphone and tablet management.
MuxLab 500760-TX-US AV over IP 4K/60 Uncompressed Transmitter , UTP Features:
Supports HDMI up to 4K/60 on Transmitter and Receiver
Supports DisplayPort 1.2a up to 4K/60 on Transmitter
Uncompressed up to 4K/60 (4:2:0) (zero latency), and light compression visually lossless at (4:4:4) (1 frame latency)
Supports Video Wall, Virtual Matrix Switch and Virtual Splitter configurations.
Supports point-to-point, point-to-multipoint and multipoint-to-multipoint applications.
Transmission up to 330ft (100m) over Cat5e/6
Supports audio insert (TX) & audio extract (RX)
Supports RS232 and IR transmission for remote control
Control via any web device (mobile, tablet) with use of model 500811 (Pro Digital Network Controller)
Muxlab 500053-UP-US
Muxlab 500053-UP-US COMPONENT/ANALOG VIDEO BALUN WALL
MuxLab 500756-TX 3G-SDI Over IP Transmitter Unit with PoE w/2-Yr Warranty
The MuxLab 500756 - 3G-SDI /RS232 over IP Extender with PoE allows easy extension and distribution of broadcast quality SDI, HD-SDI or 3G-SDI video with embedded audio over local area networks (LAN).
This low-latency and versatile extender kit consists of individual transmitter and receiver units which can be configured in a variety of combinations. It is a cost effective alternative to a dedicated SDI matrix switch. The 3G-SDI over IP extender allows users to send any SDI signals over CAT5/6 cable infrastructure instead of using the traditional SDI coax infrastructure, saving cable cost and making installation easy and fast. This extender kit is ideal for many quality critical video/audio applications such as original video source contribution, live video delivery around the broadcast facility or running media exchanges between different studios within the facility.
MuxLab 500756-TX 3G-SDI Over IP Transmitter Unit with PoE Features:
Supports up to 1080p resolutions
Motion JPEG compression with very low latency
Supports 100's of Transmitters and Receivers, depending on network bandwidth
LAN Switch based configurations support point-to-point, point-to-multipoint, and multipoint-to-multipoint
Extend transmission up to 330ft (100m) over an IP network (when a LAN Switch is used)
Extend transmission up to 400ft (120m) in a point-to-point configuration (when a LAN Switch is not used)
Supports RS232 and one way IR transmission for remote control of end devices
PoE Powered
Compatible with the 500811 ProDigital Network Controller for software management
Compatible with 500752, 500753, and 500754 products
MuxLab - 500050-2PK - MuxLab Component Video/Digital Audio Balun 2-Pack - Component Video In - Network (RJ-45)
The Component Video/Digital Audio Balun allows one component video (YPbPr or RGB) signal and one Digital Audio signal to be transmitted via cost-effective unshielded twisted pair (UTP) cable in a point-to-point configuration. Used in pairs, the Component-Digital Balun supports 480i/p, 720p and 1080i/p video formats for hi-definition (HDTV) video applications. Product Type: Video Balun Product Type: Video Balun Manufacturer Part Number: 500050-2PK Packaged Quantity: 2 Manufacturer: MuxLab, Inc Product Name: Component Video/Digital Audio Balun 2-Pack Brand Name: MuxLab Brand Name: MuxLab Number of Network (RJ-45) Ports: 1 Number of Network (RJ-45) Ports: 1 Network (RJ-45): Yes Component Video In: Yes
MuxLab 500151 VGA 1x4 Distribution Hub (220-240V) w/2-Yr Warranty
The VGA 1x4 Distribution Hub allows one (1) VGA (RGBHV) source to be distributed up to up to four (4 displays via Cat5/6 cable for more cost-efficient cabling. The hub works in conjunction with the Active VGA Balun II Kit (500140) and Active VGA Balun II Receivers (500142). At least one (1) 500140 is required to support one (1) display. Up to three (3) additional 500142 may be added to support up to three (3) additional displays.
MuxLab 500151 VGA 1x4 Distribution Hub (220-240V) Features:
Plug and Play - DDC1 and DDC2 Compliant
Remote power up to 150 ft (46 m)
Modular RJ45 on input and output
Supports up to 1920 x 1440, 1080p
Ground loop isolation on every port
Works in conjunction with 500140 and 500142.
MuxLab 500033 VideoEase Quad Audio Balun
The Muxlab Quad Audio Balun (500033) allows up to four (4) individual RCA or two (2) stereo RCA, line-level audio signals to be extended via single Cat5e/6 cable in a point-to-point connection to distances of up to 3250' / 1km. Used in pairs, the Quad Audio Balun eliminates the requirement for additional cable infrastructure, allowing audio equipment to be connected via a single cost-effective Cat5e/6 cable. The Quad Audio Balun is compatible with the Muxlab 500033-WP-US (decora) and the 500033-WP-UK where a convenient wall plate is required and also works in conjunction with other Muxlab stereo audio baluns such as the 500019 (single RCA) or the 500028 (dual RCA).
MuxLab - 500759-RX - MuxLab Video Wall 4K over IP PoE Extender RX - 1 Output Device - 328.08 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - Serial Po
The Video Wall 4K over IP PoE Extender Kit allows HDMI equipment supporting up to 4K @ 30Hz or 1080p at 60Hz resolution to be connected and extended to create a Video Wall of user configurable size (X by Y) supporting 100's of screens, depending on network bandwidth, utilizing one Receiver for each display in the array. Each Transmitter (500759-TX) and Receiver (500759-RX) can be connected via Cat5e/6 cable up to 330ft (100m) from an Ethernet Switch. The Transmitters and Receivers support PoE (PD) and may be powered by a PoE (PSE) Ethernet Switch. The kit comes with one (1) Transmitter and one (1) Receiver. The IR Emitter and IR Sensor, if required, may be purchased separately for IR based remote control applications. The MuxLab Pro Digital Network Controller (500811) is available to simplify configuration and control and allows for third party smartphone and tablet management. Product Type: Video Extender Receiver Product Type: Video Extender Receiver Manufacturer Part Number: 500759-RX Limited Warranty: 2 Year Weight (Approximate): 1.50 lb Connectivity Technology: Wired Connectivity Technology: Wired Manufacturer: MuxLab, Inc Product Model: 500759-RX Product Name: Video Wall 4K over IP PoE Extender RX Brand Name: MuxLab Brand Name: MuxLab Height: 1 Width: 5.1 Depth: 4.4 Maximum Operating Distance: 328.08 ft Number of Network (RJ-45) Ports: 1 Media Type Supported: Twisted Pair Number of Output Devices Supported: 1 Graphics Modes: 4K Environmentally Friendly: Yes Environmental Certification: RoHS Maximum Video Resolution: 3840 x 2160 Twisted Pair Cable Standard: Category 6 Maximum Operating Distance: 328.08 ft Number of Network (RJ-45) Ports: 1 Network (RJ-45): Yes Serial Port: Yes Number of HDMI Outputs: 1 HDMI Out: Yes Media Type Supported: Twisted Pair Number of Output Devices Supported: 1
MuxLab 500000R Modular CCTV Balun, R8T7
Route a single CCTV video signal through a cost-effective UTP cable.
MuxLab Cisco SG300-10P 10-Port Gigabit PoE Managed Switch (Pre-Configured)
Features* Product Type: Ethernet Switch * Power Source: Power Supply * Layer Supported: 3 * Product Type: Ethernet Switch * Power Source: Power Supply * Layer Supported: 3 * Weight (Approximate): 2.73 lb * Form Factor: Desktop * Network Technology: 10/100/1000Base-TX * Network Technology: 1000Base-X * Form Factor: Desktop * Product Model: SG300-10P * Product Name: Cisco SG300-10P 10-Port Gigabit PoE Managed Switch (Pre-Configured) * Network Technology: 10/100/1000Base-TX * Network Technology: 1000Base-X * Brand Name: MuxLab * Brand Name: MuxLab * Expansion Slot Type: SFP * Expansion Slot Type: SFP * Height: 1.5" * Width: 11" * Depth: 6.7" * Manageable: Yes * Ethernet Technology: Gigabit Ethernet * Number of Total Expansion Slots: 2 * Media Type Supported: Twisted Pair * Media Type Supported: Optical Fiber * Total Number of Network Ports: 8 * Port/Expansion Slot Details: Gigabit Ethernet * Manageable: Yes * Ethernet Technology: Gigabit Ethernet * Number of Total Expansion Slots: 2 * Number of SFP Slots: 2 * Media Type Supported: Twisted Pair * Media Type Supported: Optical Fiber * Total Number of Network Ports: 8 * Shared SFP Slot: Yes * Port/Expansion Slot Details: 8 x Gigabit Ethernet Network* Product Type: Ethernet Switch * Power Source: Power Supply * Layer Supported: 3 * Form Factor: Desktop * Network Technology: 1000Base-X * Network Technology: 10/100/1000Base-TX * Brand Name: MuxLab * Expansion Slot Type: SFP * Manageable: Yes * Ethernet Technology: Gigabit Ethernet * Number of Total Expansion Slots: 2 * Media Type Supported: Twisted Pair * Media Type Supported: Optical Fiber * Total Number of Network Ports: 8 * Port/Expansion Slot Details: Gigabit Ethernet
MuxLab 500770-RX KVM HDMI over IP PoE Receiver w/2-Yr Warranty
The KVM HDMI over IP PoE Extender Kit allows HDMI & USB equipment to be connected up to 330ft (100m) over an Ethernet LAN, supporting 1920x1200 and 1080p resolution @ 60Hz via Cat5e/6 cable in multiple point-to-point and point-to-multipoint configurations. The Transmitter (500770-TX) and Receiver (500770-RX) support PoE (PD) if used with a PoE (PSE) Ethernet Switch.
The Transmitter terminates to a computer server/workstation via an HDMI & USB port, The Receiver terminates to an HDMI display and up to 4 USB devices such as a keyboard, mouse, printer, drawing pad, storage device, camera, etc., via a 4 port USB hub. A single Receiver can be switched via hotkey sequences to any Transmitter on the network, allowing a single operator to manage numerous servers/workstations, in a distributed KVM application.
MuxLab 500770-RX KVM HDMI over IP PoE Receiver Features:
One operator can manage multiple servers/workstations
Supports HDMI up to 1920x1200 and 1080p @ 60Hz
Receiver side includes a 4-port USB hub, for KVM applications
Up to 330ft (100m) over Cat5e/6
Supports 100's of Transmitters & Receivers depending on network bandwidth
Supports multiple point-to-point, and point-to-multipoint applications
Supports audio insert & mic-out (TX), and audio extract & mic-in (RX)
500111-2PK MUXLAB INC IP ECONO POE EXTENDER 2 PACK
500111-2PK 5M-5001112PK MUXLAB INC IP ECONO POE EXTENDER 2 PACK
500111 MUXLAB INC IP ECONO POE EXTENDER
500111 5M-500111 MUXLAB INC IP ECONO POE EXTENDER
500058-2PK MUXLAB INC COMPONENT VID/STEREO AUD BALUN
500058-2PK 5M-5000582PK MUXLAB INC COMPONENT VID/STEREO AUD BALUN
500039-GLI MUXLAB INC STEREO HI-FI VIDEO GLI BALUN
500039-GLI 5M-500039GLI MUXLAB INC STEREO HI-FI VIDEO GLI BALUN
500009-2PK MUXLAB INC CCTV SCREW TERMINAL BALUN 2PK
500009-2PK 5M-5000092PK MUXLAB INC CCTV SCREW TERMINAL BALUN 2PK
500039-2PK MUXLAB INC STEREO HI-FI VIDEO BALUN 2PACK
500039-2PK 5M-5000392PK MUXLAB INC STEREO HI-FI VIDEO BALUN 2PACK
500250 MUXLAB INC 8-PORT-COMPONENT-VID HUB-
500250 5M-500250 MUXLAB INC 8-PORT-COMPONENT-VID HUB-
500475 MUXLAB INC HDMI 4-CHANNEL OUTPUT CARD
500475 5M-500475 MUXLAB INC HDMI 4-CHANNEL OUTPUT CARD
500028-WP MUXLAB INC HI FI STER AUD BAL WP
500028-WP 5M-500028WP MUXLAB INC HI FI STER AUD BAL WP
500390 MUXLAB INC DVI\AUDIO EXTENDER KIT
500390 5M-500390 MUXLAB INC DVI\AUDIO EXTENDER KIT
MuxLab Active DisplayPort to HDMI Adapter 4k | Male to Female DP to HDMI Converter | Supporting Ultra HD 4K@60 Hz Resolution
The DisplayPort to HDMI Active Adapter, 4K/60 allows a DisplayPort source such as a PC or laptop to be connected to an existing HDMI display or projector at up to 4K @ 60Hz.
Converts DisplayPort to HDMI
Supports up to 4K (3840x2160) @ 60Hz
HDCP Compliant
Active device for improved compatibility
No external power required
Includes a pigtail for convenient connectivity in tight spaces
500420 MUXLAB INC 1X4 HDMI DISTRIBUTION HUB
500420 5M-500420 MUXLAB INC 1X4 HDMI DISTRIBUTION HUB
500407 MUXLAB INC HDMI IR-EXTENDER RX,INCL PSU
500407 5M-500407 MUXLAB INC HDMI IR-EXTENDER RX,INCL PSU
Component Video-Analog Audio Balun
Use a pair of these baluns (male) to transmit an HD video and analog audio signal over long distance using Cat. 5 cable. It converts component video and mono RCA audio to an RJ-45 port.
Surveillance - Home Automation
The S-Video/Hi-Fi Balun allows a single S-Video signal to be transmitted via unshielded twisted pair (UTP) cable up to 1000' (305m) in a point-to-point connection. The S-Video/Hi-Fi Balun features full audio bandwidth response for high fidelity applications and features built-in color-coded cable leads for ease of installation. The S-Video/Hi-Fi Balun also works in conjunction with MuXLab' s Audio-Video Distribution Hub (p/n 500200) to allow S-Video signals to be distributed via UTP. Some of the applications are; classroom video distribution, commercial and home audio/video systems, hospital video training, video conferencing and video kiosks.
Muxlab 500033 Quad Audio Balun
Cost-efficient cabling - save up to four cables Analog audio up to 5, 000 ft ( 1.5 km) via Cat 5 Compact design for neater wiring The Quad Audio Balun allows up to four analog line audio signals to be transmitted via unshielded twisted pair (UTP) cable in a point-to-point connection.
VideoEase CCTV Video and Power-Thru Balun (Each)
The CCTV Power Thru Balun allows video and remote power to be transmitted via one 4 pair Cat 5 cable, thus eliminating the need to install multiple cables for more efficient cabling in the CCTV security and surveillance environment. The Power Thru Balun may be used in pairs or in conjunction with standard twisted pair cross connect devices and other MuxLab CCTV baluns such as the 500000, 500009, 500023 and 500015.
MuxLab Active VGA Audio Balun Kit
The Active VGA/Audio Balun Kit (500145) allows VGA and stereo or digital audio to be transmitted via cost-efficient unshielded copper twisted cable in a point-to-point configuration. The product also supports RS232 and is DDC compliantFeatures* Package Contents: Active VGA Audio Balun Kit PSU Removable AC Blades * Product Type: Video Extender * Product Type: Video Extender * Limited Warranty: 2 Year * Weight (Approximate): 1.98 lb * Color: Black * Product Name: Active VGA Audio Balun Kit * Brand Name: MuxLab * Brand Name: MuxLab * Height: 6" * Width: 4.3" * Depth: 1.5" * Maximum Operating Distance: 600 ft * Media Type Supported: Twisted Pair * Environmentally Friendly: Yes * Environmental Certification: RoHS * Maximum Video Resolution: 1920 x 1200 * Twisted Pair Cable Standard: Category 6 * Maximum Operating Distance: 600 ft * Serial Port: Yes * VGA In: Yes * Media Type Supported: Twisted Pair
Muxlab 500040-40-42-2PK
Muxlab 500040-40-42-2PK VGA BALUN II, 2 PACK, PC SIDE AND MONITOR SIDE
