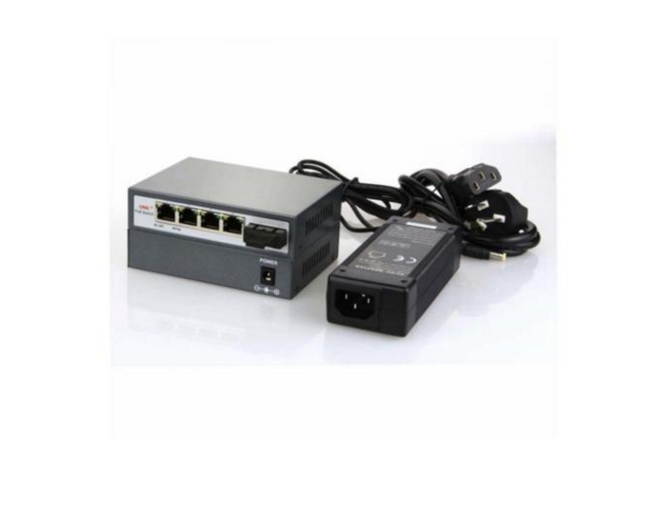

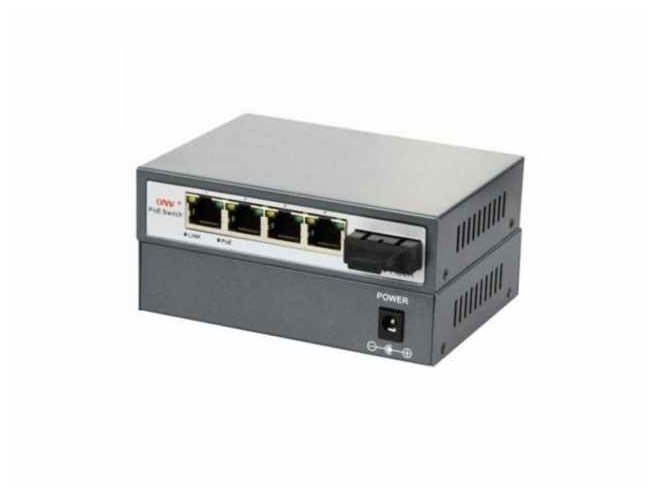

ONV-POE31004PF-at 4 PoE IEEE802.3at 5-Port SC Fiber Port Media Converter Switch

The PoE Switch ONV-POE31004PF-at provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. The four RJ45 network ports + one fiber port can be used for any 10/100 Mbps link and four of these ports can supply industry-standard IEEE 802.3 af power. Advanced auto-sensing algorithm gives power only to IEEE 802.3 at end devices, so no need to worry about damaging proprietary PoE or non-PoE equipment. In addition, it discontinues the power when PoE devices are disconnected. Easy and reliable, the PoE Switch ONV-POE31004P automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink™. Product Features Supply power to wireless access points and surveillance cameras over Cat-5 cabling 4 10/100 Mbps Ports with AutoUplink™ The 5 port is optical fiber SC interface of 155 Mbps Supports PoE power up to 30W for each PoE port Supports PoE power up to 120W for all PoE ports Supports PoE IEEE 802.3 at compliant PDs Supports IEEE 802.3 x flow control for Full-duplex Mode and backpressure for Half-duplex Mode 1K entry MAC address table of the PoE Switch ONV-POE31004P-at with auto-learning and auto-aging LED indicators for monitoring power, link, activity and speed External power adapter supply

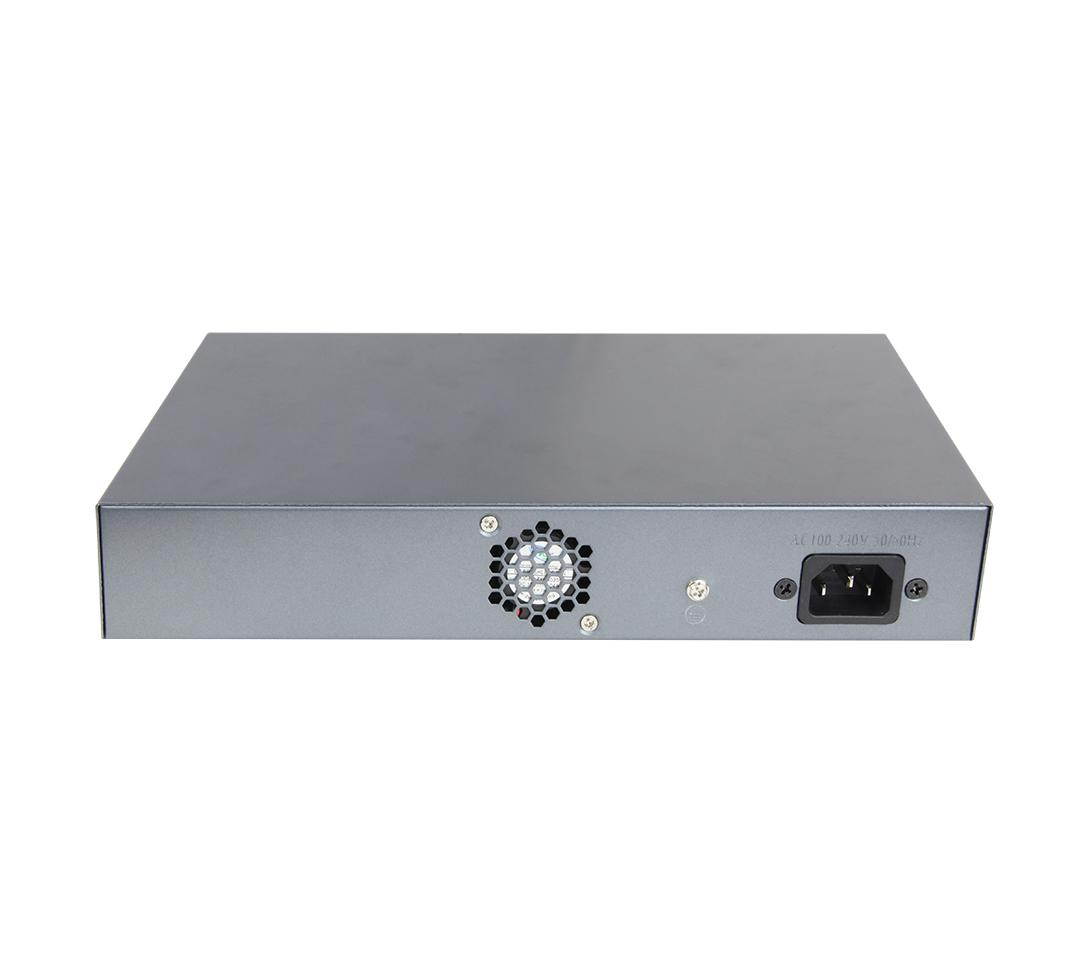

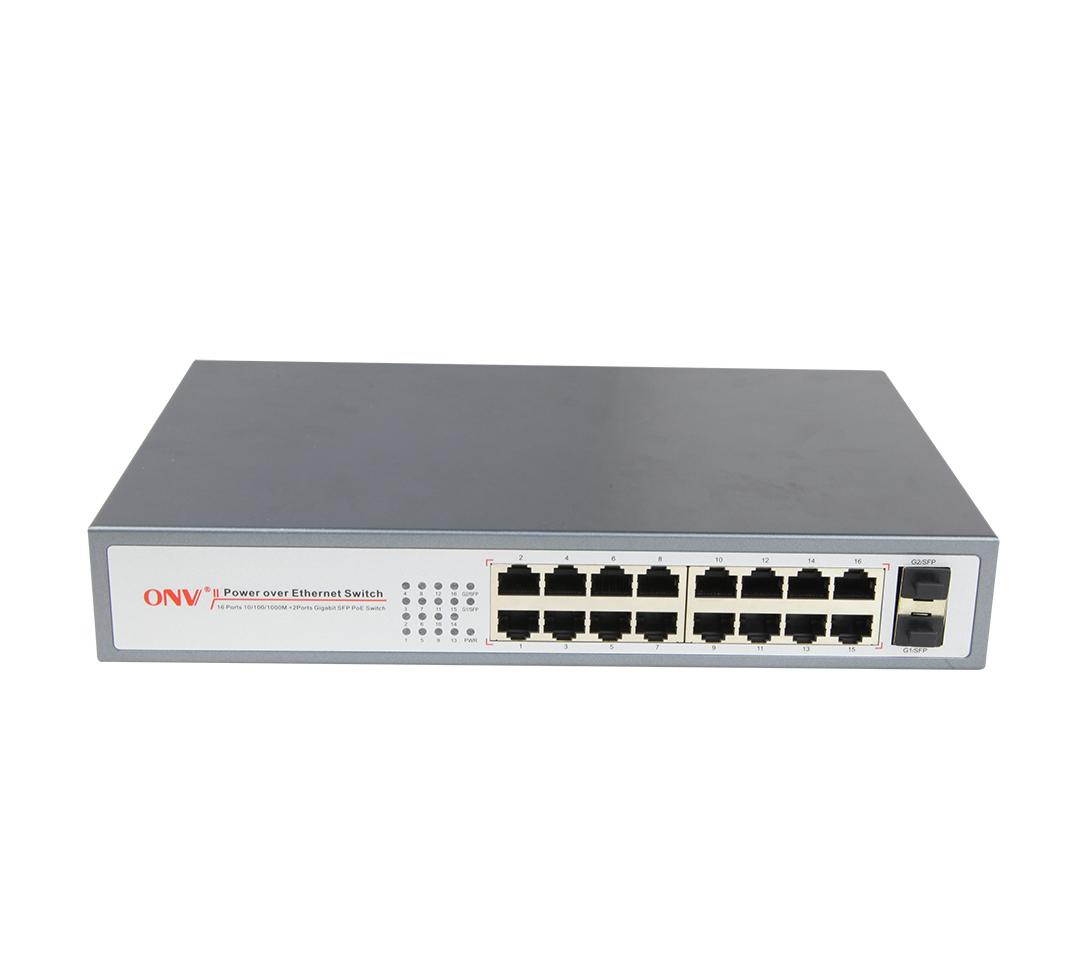

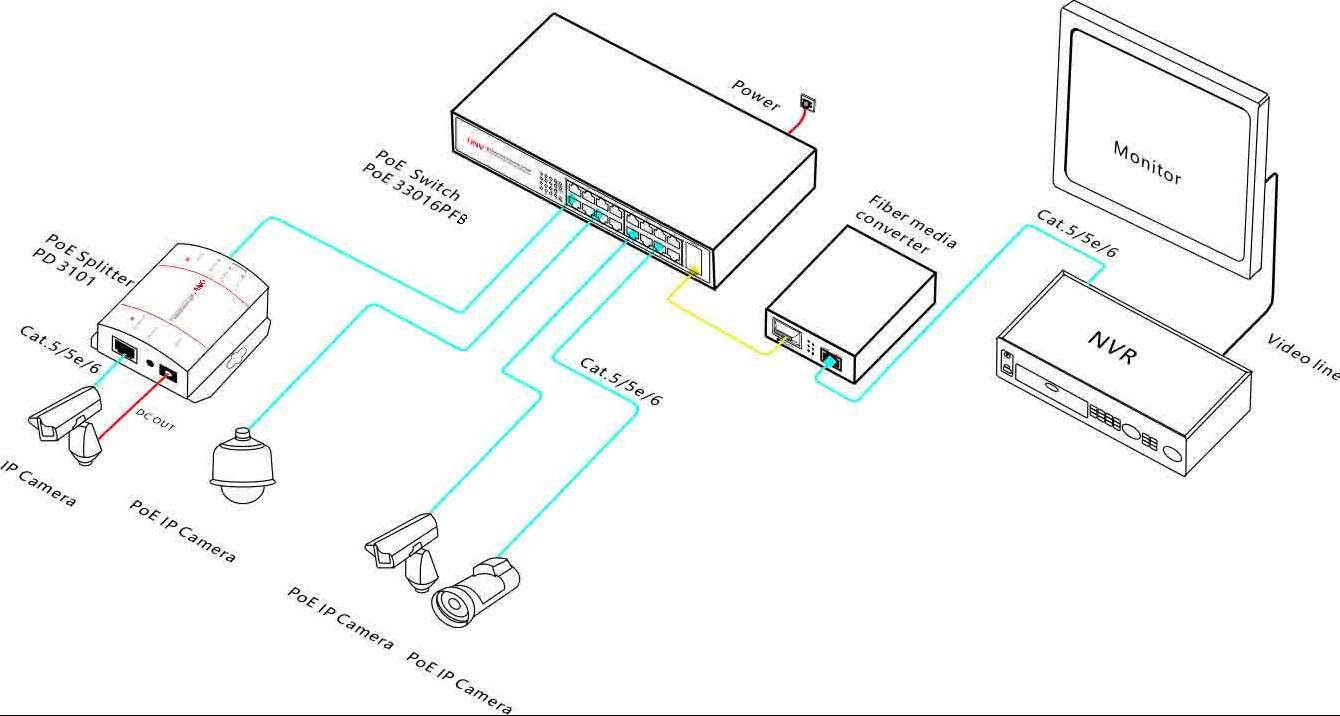

200W POE Ethernet Switch 16x10/100/1000M PoE Ports+2 Gigabit SFP Ports Auto-flip ONV-POE33016PFB

16-Port full gigabit PoE switch. 16*10/100/1000M PoE ports + 2*gigabit SFP ports.IEEE802.3af/at. Max PoE power output for each port is 30W. Total power is 200W. Built-in power supply. ONV-POE33016PFB switch provides a network point for data transmission. All the 16 Ethernet ports can be connected with 10/100/1000Mps quickly. This switch features simple and reliable design, automatic identification Ethernet requirements, duplex and high-speed. This cost-effective switch provides network layout need to simplify wireless access point (AP) and IP-based surveillance cameras network cameras in order to install in commercial network and home network. It is ideal choice for those want to deploy a small commercial network and home network that use wireless access point (AP) and IP-based surveillance cameras. Feature ?Can transfer data for network surveillance cameras ?16*10/100/1000Mbps auto-sensing RJ45 ports + 2*Gigabit SFP ports ?Supports port auto-flip (Auto MDI/ MDIX) ?Maximum power consumption: 200W ?Adopts store-and-forward architecture ?Features with fan design, small, compact and quiet design, suitable for desktop or wall mounting ?Built-in 1U rack power supply series, easy to place it into standard mounting brackets ?Optic fiber module is not included, can be ordered separately Target Industries ?HD monitor transmission and power supply ?Wireless AP layout transmission and power supply ?Network telephone transmission , intelligent house and home system ?Intelligent transportation supervisory system(ITS) ? High-speed Way supervisory/Tele-Communication System ? Security protection system, TV medical treatment ? Long-distance Muti-media Schooling, Campus monitoring ? Long-distance broadcast television transmission system ? High-building Security Protection, Military Tele-Com projects Ordering Information Product Model: ONV-POE33016PFB Product Description: 16-Port full gigabit PoE switch. 16*10/100/1000M PoE ports + 2*gigabit SFP ports.IEEE802.3af/at. Max PoE power output for each port is 30W. Total power is 200W. Built-in power supply. Note: PoE power supply type is 1,2(+), 3,6(-) default

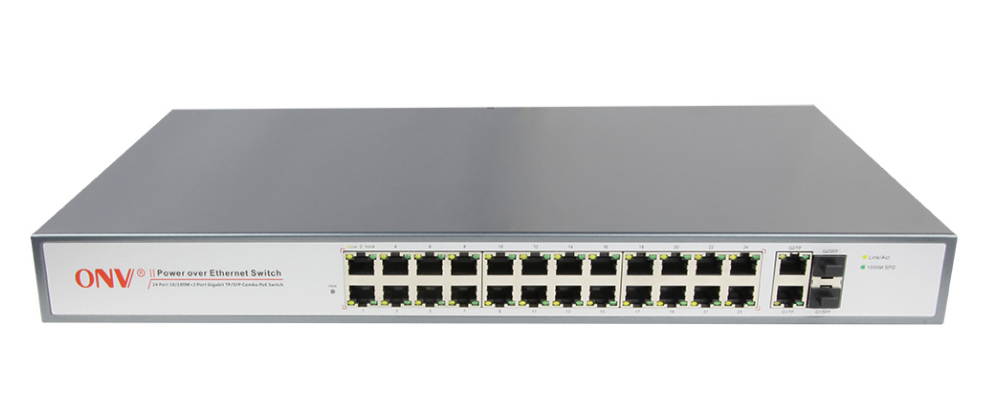

ONV-POE31024PFA 24E Port AF PoE Ports and 2GE/2GF Uplink 26 Port Switch

Technical parameter list Product Name :24-Port PoE Switch with 2 Gigabit TP/SFP Combo ports Model:ONV-POE31024PFA Connector Type:24x 10/100M copper cable RJ45 ports(all ports support MDI/MDIX) 2x 10/100/1000M combo ports Network Media:10BASE-T: Cat3,4,5 UTP(=100 meter) 100BASE-TX: Cat5 and more UTP(=100 meter) Bandwidth :14.8Gbps (non-blocking) Address Database Size:16K MTBF:100,000 hours Network Latency:maximum delay less than 20 microseconds Forwarding Mode:Store-And-Forward Buffer Memory 4M Network Protocols:IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.3af DTE Power via MDI IEEE 802.3af/a LED Display:System: power supply Every Port: connecting, PoE working status Power Supply :AC100-240V 50/60Hz; (every country use a custom power plug) PoE Ports :24*PoE Ports PoE Port Power:Max 30W PoE Standard:IEEE 802.3af/at Working Environment:Operating Temperature: -20 ° ~ 55 ° C Storage Temperature: -20 ° ~ 75 ° C Humidity: 10% ~ 90%, non-condensing Storage Humidity: 10% ~ 95%, non-condensing Working Altitude: 3000 m (10,000 ft) Storage Altitude: 3,000 m (10,000 ft) Certification:CE Mark ,commercial CE/LVD EN60950 Radiation :CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B Product Size:440*225*44mm Warranty:1 year

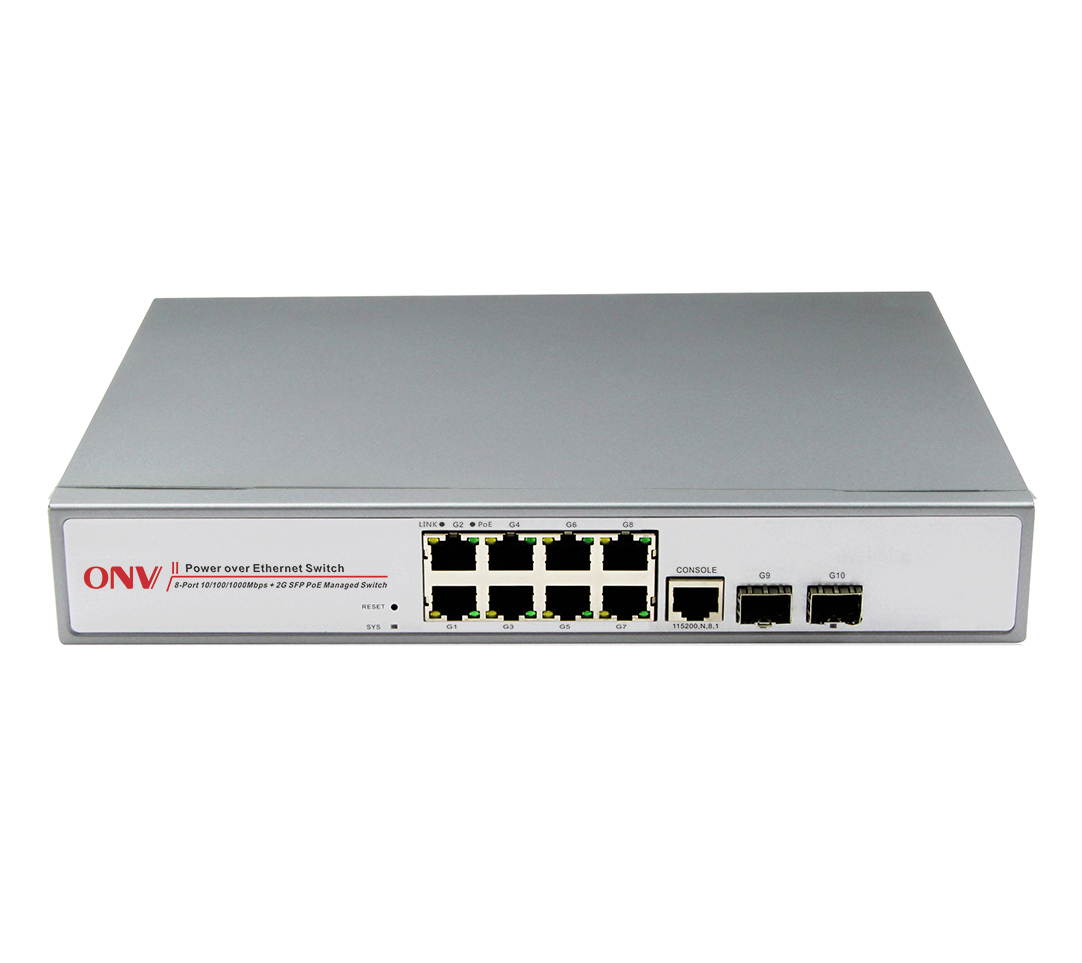

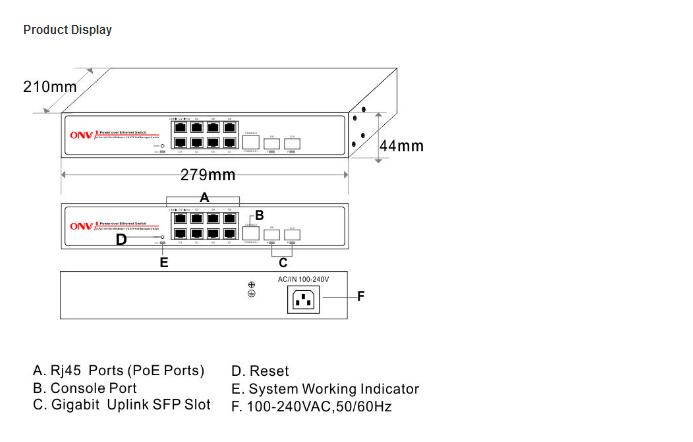

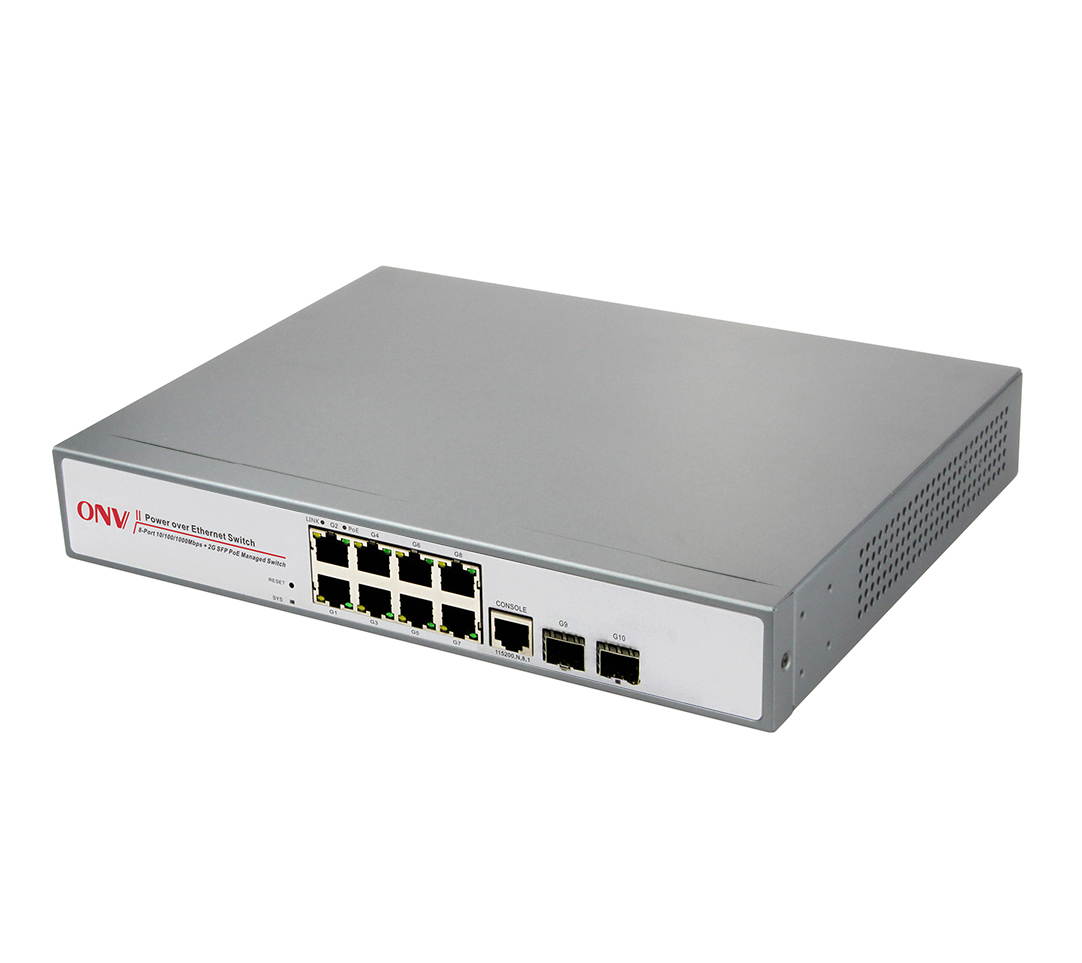

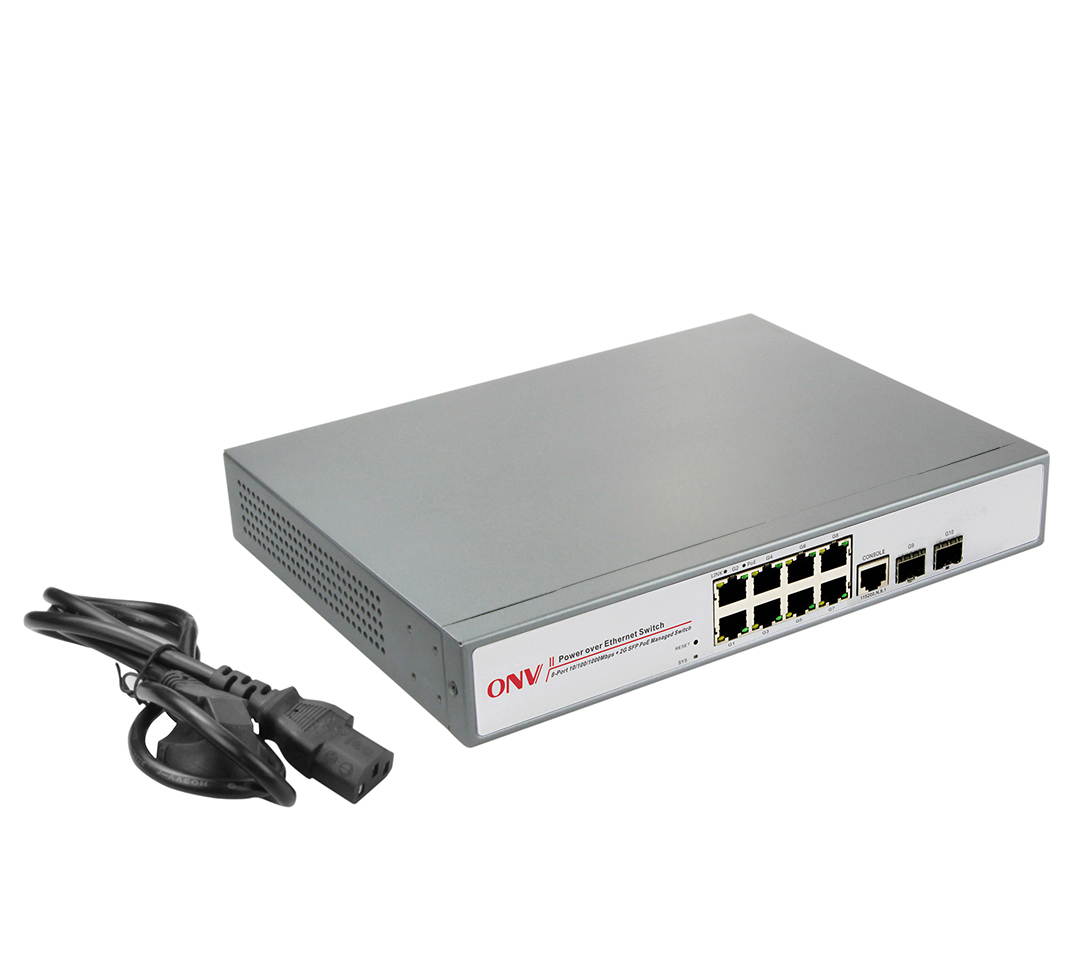

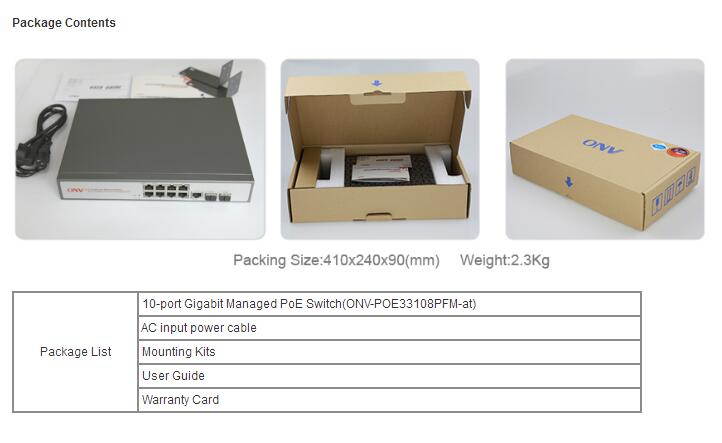

ONV-POE33108PFM 8-Port 10/100/1000Base-T + 2x gigabit SFP slots + 1 console port POE Switch

Features ?All gigabit design, 8x gigabit Ethernet RJ45 ports with AutoUplink™ , 1x console port, and 2x gigabit SFP slots. ?8 PoE ports support power over Ethernet for PDs ?Meet IEEE 802.3af PoE standard. Supports per port PoE configuration function ?L2+ features provide better manageability, security, QoS, and performance. ?Support L2+ Switching features including 802.1Q VLAN, Mirroring, Port isolation, IGMP Snooping, DHCP Snooping, LLDP, POE+ management, IP Source Guard, ARP inspection, ACLs etc. ?Support spanning tree STP(802.1D) and RSTP(802.1W). ?Jumbo frames support up to 9.6K kilobtyes. ?Support enhanced management through WEB, CLI, TELNET, SSH, SNMP. ?Support cable diagnosis ?G.8032, support

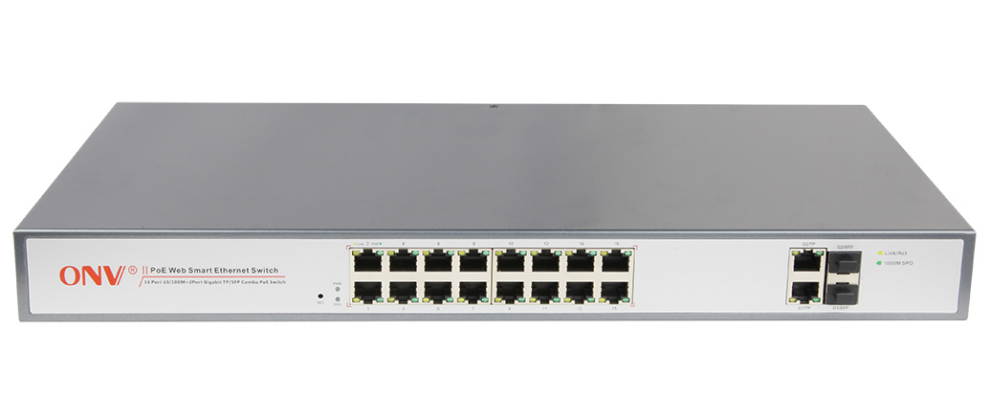

ONV-POE31016PFM-at 16 PoE Ports + 2 Gigabit Combo Electrical and SFP Fiber Ports Intelligent PoE Switch

Technical parameter list Product Name:Intelligent PoE Switch with 16 PoE Ports + 2 Gigabit TP/SFP Combo Ports Model :ONV-POE31016PFM Connector Type:16*10/100M copper cable RJ45 ports(all ports support MDI/MDIX) + 2*gigabit combo ports Network Media:10BASE-T: Cat3,4,5 UTP(=100 meter) 100BASE-TX: Cat5 and more UTP(=100 meter) 100BASE-FX:MMF,SMF 1000BASE-X: MMF, SMF Bandwidth:64Gbps (non-blocking) Address Database Size:16K MTBF:100,000 hours Network Latency:maximum delay less than 20 microseconds Forwarding Mode :Store-And-Forward Buffer Memory:4M Network Protocols: IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE802.3ab IEEE802.3z IEEE 802.3af /at LED Display: System: power supply; Every Port: connecting, Ethernet working status Power Input:AC 100-240V, 50/60HZ input PoE Ports :16 PoE ports PoE Port Power:30W max Maximum PoE power:400W PoE Standard :IEEE802.3af/at Working Environment :Operating Temperature: -20 ° ~ 55 ° C Storage Temperature: -40 ° ~ 75 ° C Humidity: 10% ~ 90%, non-condensing Storage Humidity: 5% ~ 95%, non-condensing Working Altitude: 3000 m (10,000 ft) Storage Altitude: 3,000 m (10,000 ft) Certification:CE, FCC, RoHS Transmission Distance: Single mode(9/125um) optical transmission, transmission distance: 25km(double optical default, single optical alternative) Product Size:440*225*44mm Warranty:1 year warranty

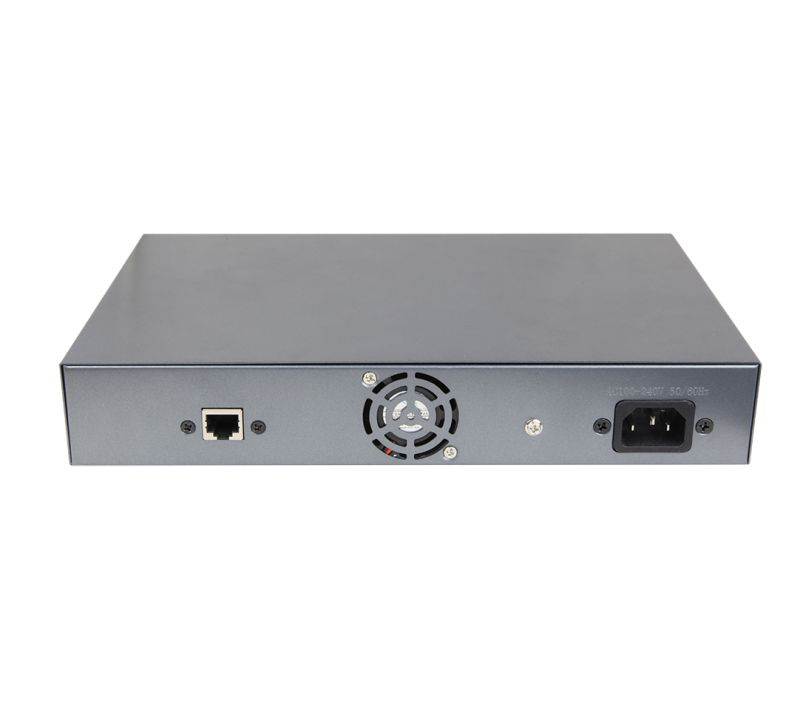

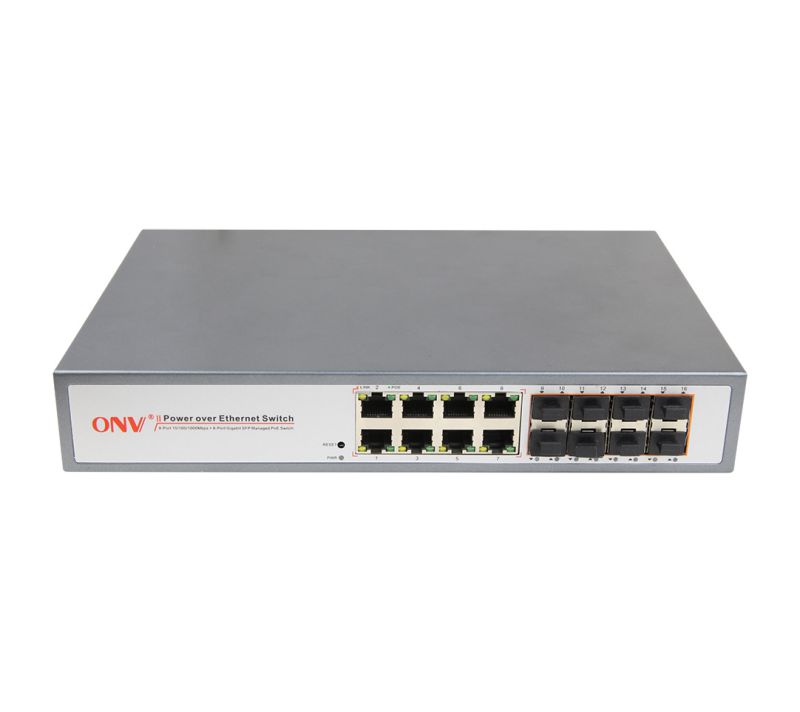

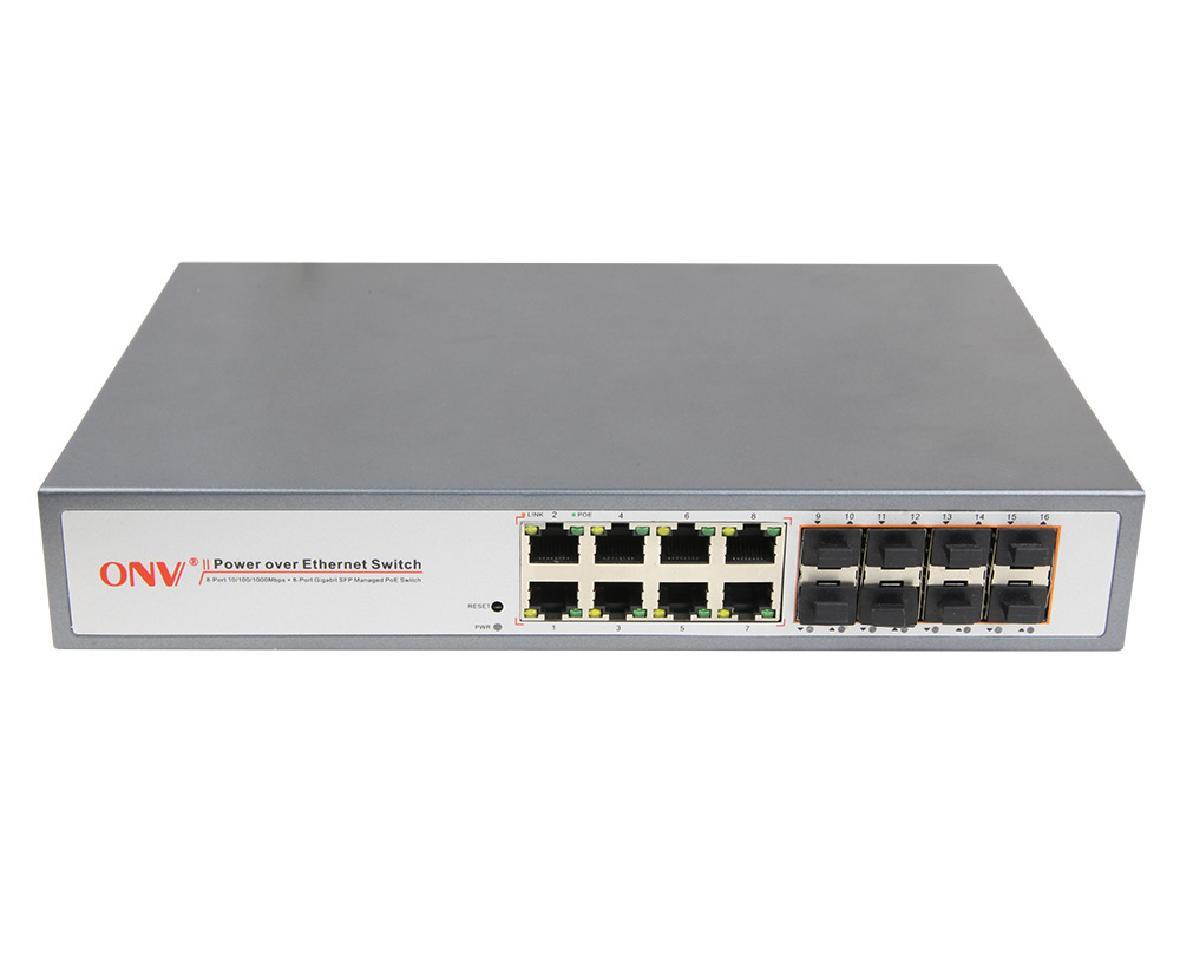

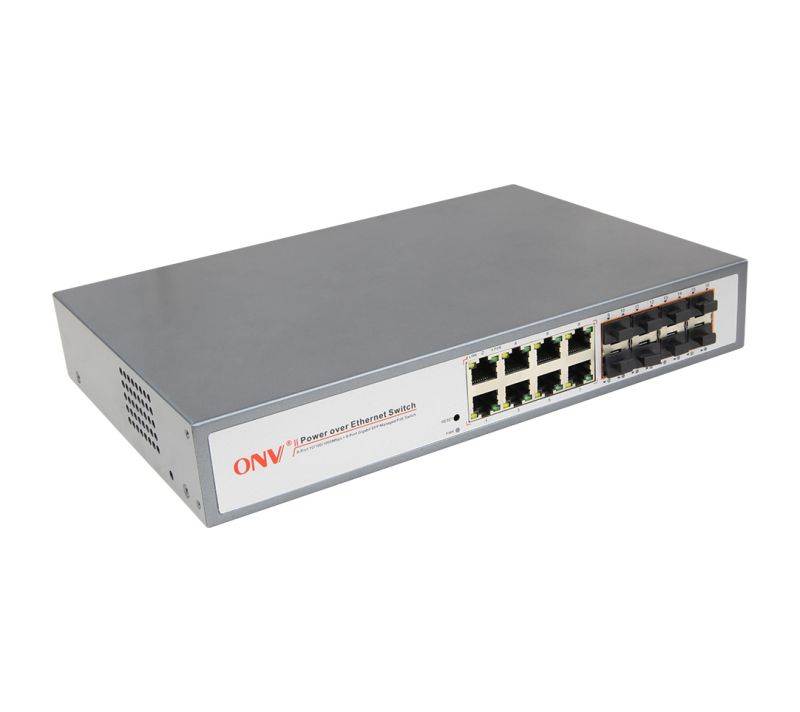

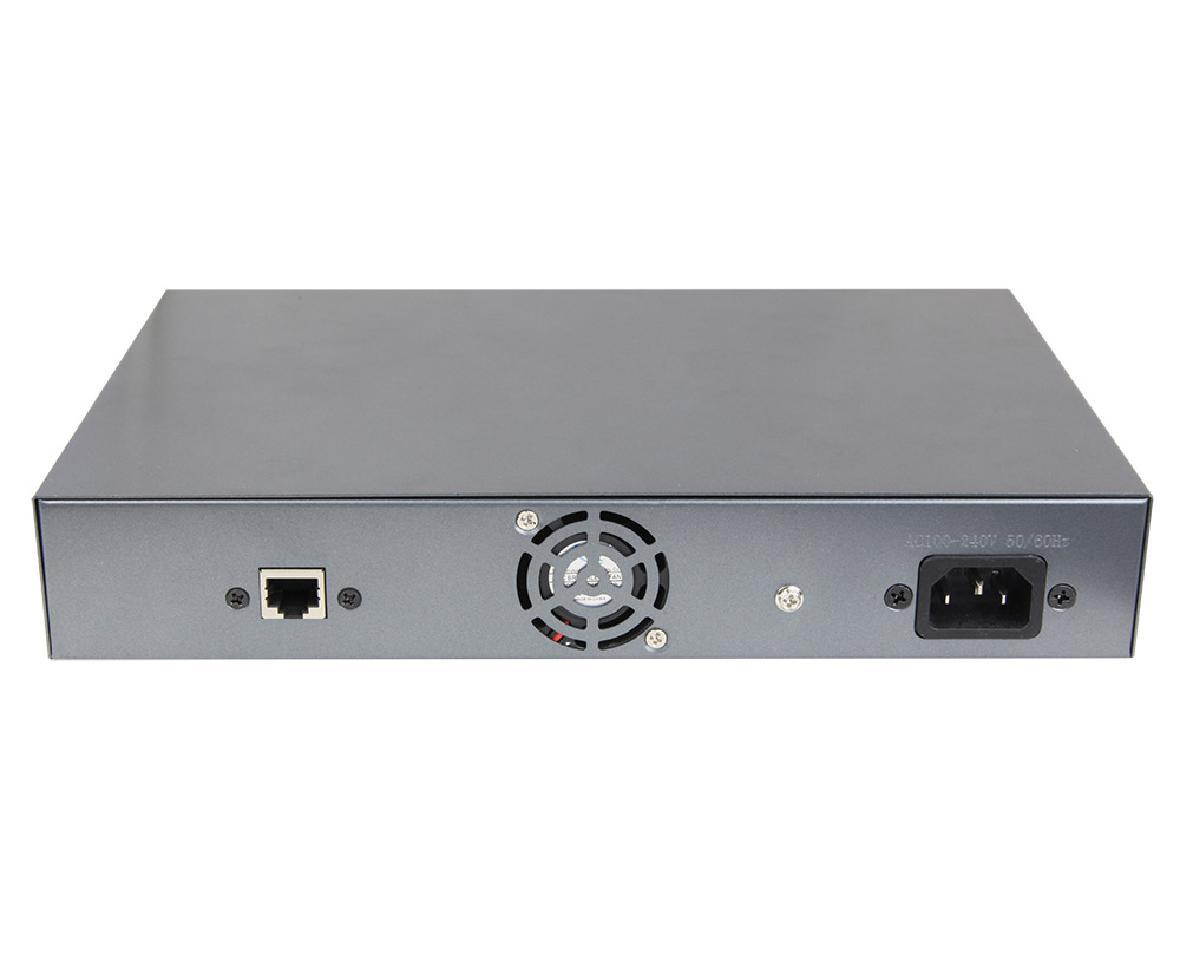

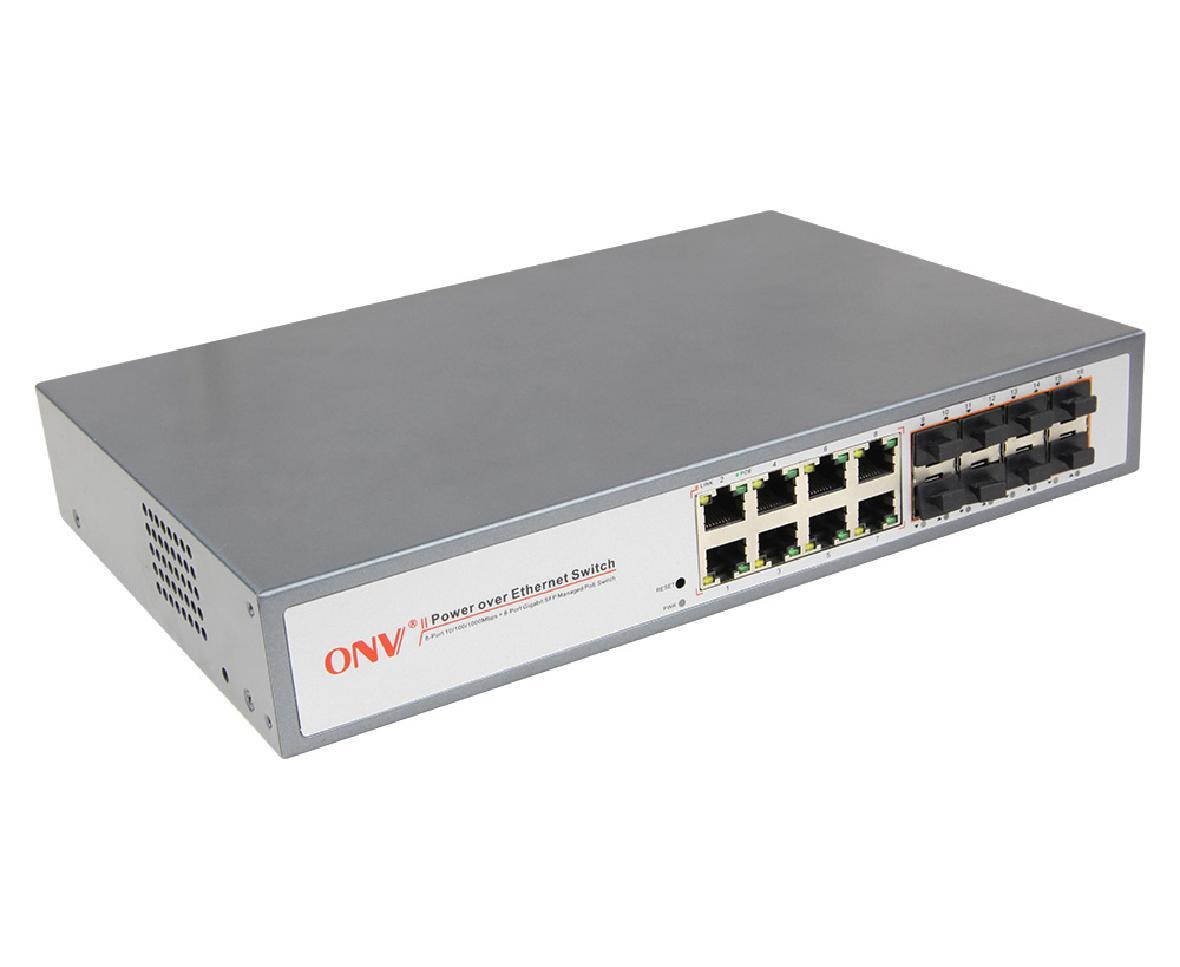

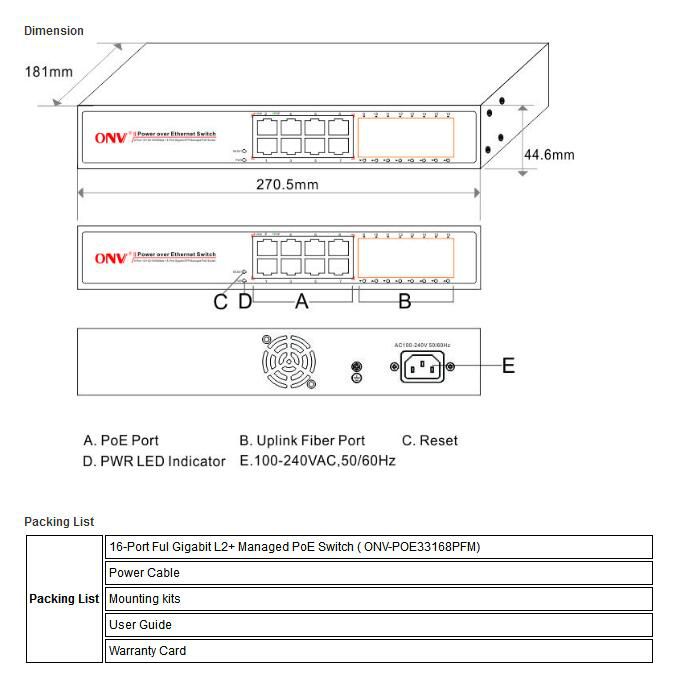

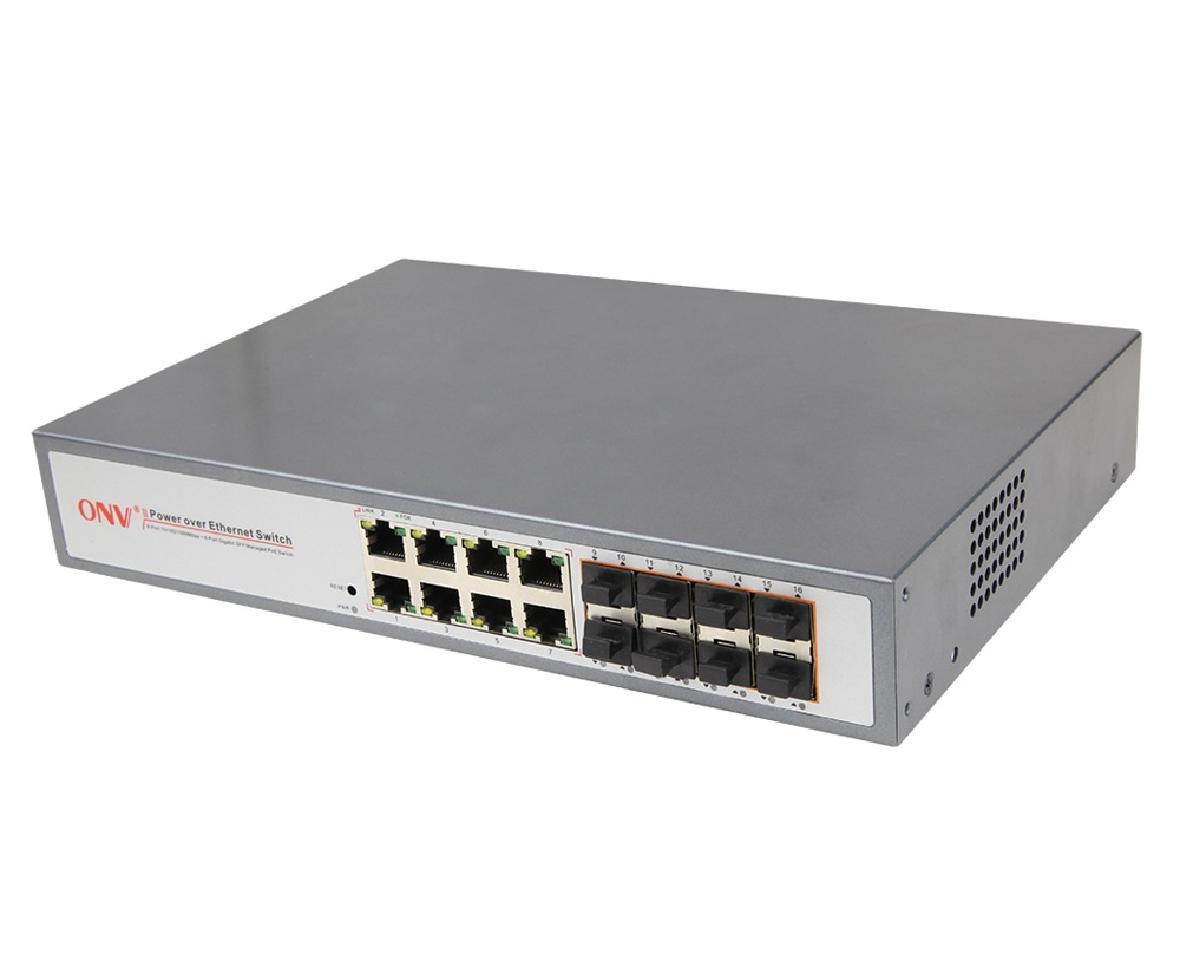

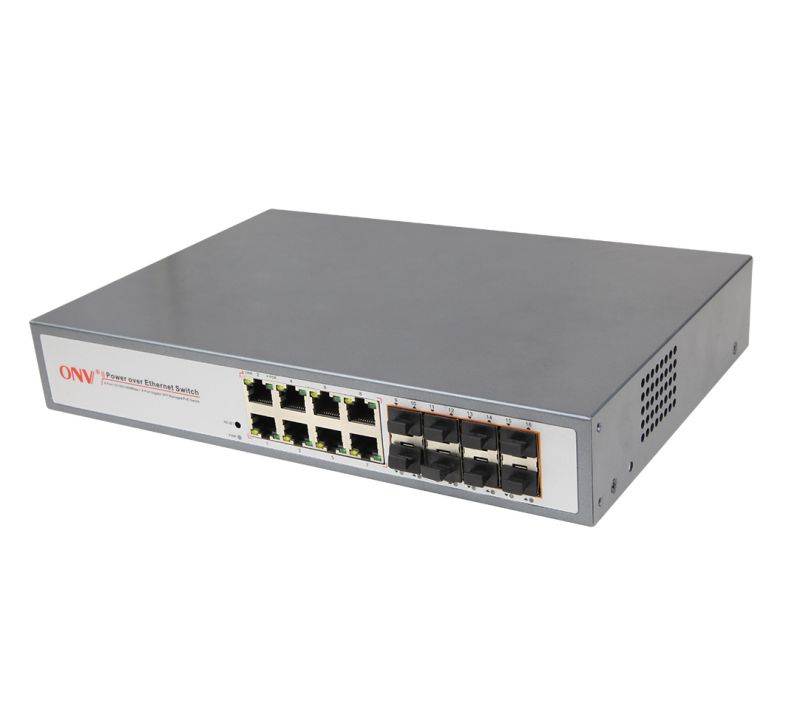

250W 16-Port Ful Gigabit L2+ Managed PoE Switch 8*10/100/1000M PoE+8*Gigabit SFP ONV-POE33168PFM-at

Feature ?All gigabit design, 8*10/100/1000M PoE ports + 8*Gigabit SFP ports ?8 PoE ports support power over Ethernet for PDs ?Meet IEEE 802.3af/at PoE standard. Supports per port PoE configuration function ?L2+ features provide better manageability, security, QoS, and performance. ?Support L2+ Switching features including 802.1Q VLAN, Mirroring, Port isolation, IGMP Snooping, DHCP Snooping, LLDP, POE+ management, IP Source Guard, ARP inspection, ACLs etc. ?Support spanning tree STP(802.1D) and RSTP(802.1W). ?Jumbo frames support up to 9.6K kilobtyes. ?Support enhanced management through WEB, CLI, TELNET, SSH, SNMP. ?Support cable diagnosis ?G.8032, support

ONV-POE31016PA 16*10/100M PoE ports + 2* 10/100/1000M uplink ports IEEE802.3af/at PoE switch

Technical parameter list Product Name: PoE Switch with 16 PoE Ports and 2 Gigabit Uplink RJ45 Model: ONV-POE31016PA Connector Type: 16x10/100Mbps PoE ports and 2x10/100/1000Mbps auto-sensing RJ45 ports Network Media: 10BASE-T: Cat3, 4, 5 UTP(=100 meter) 100BASE-TX: 5 classes and more than 5 classes(=100 meter) Bandwidth: 14.8G Address Database Size: 16K MTBF: 100, 000 hours Network Latency: maximum delay less than 20 microseconds Forwarding Mode: Store-And-Forward Buffer Memory: 4M Network Protocols: IEEE 802.3 i 10BASET IEEE 802.3 u 100BASETX IEEE 802.3 x Flow Control IEEE 802.3 af DTE Power via MDI IEEE 802.3 af/at LED Display: PWR ACT/LINK Power Supply: Power input: AC100-240V 50/60Hz; (every country use a custom power plug) PoE Ports: 16*PoE Ports PoE Port Power: Max 30W PoE Standard: IEEE 802.3 af/at Working Environment: Operating Temperature: -20 ° ~ 55 ° C Storage Temperature: -20 ° ~ 75 ° C Humidity: 10% ~ 90%, non-condensing Storage Humidity: 10% ~ 95%, non-condensing Working Altitude: 3, 000 m (10, 000 ft) Storage Altitude: 3, 000 m (10, 000 ft) Certification: CE Mark, commercial CE/LVD EN60950 Radiation: CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B Transmission Distance: 100 meters Power Supply Type: PoE default power supply is end-span (1/2, 3/6 line pair), alternative PoE Power supply is mid-span (4/5, 7/8 line pair) Product Size: 270.5 *181* 44.5 mm Warranty: 1 year

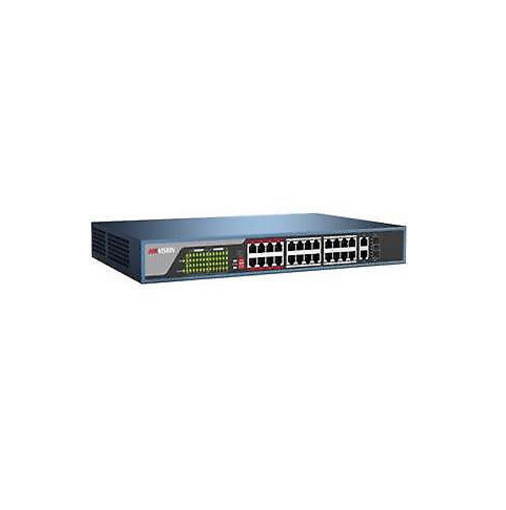

DS-3E0326P-E 24-ports 100Mbps Unmanaged PoE Switch

Ports Network Ports: 26 PoE Port: 24, 10/100Mbps RJ45 ports Uplink Port: 2, 1000M Combo Port Standard Network Protocol: IEEE802.3,802.3u,802.3x, 802.3af, 802.3at Performance Switching Capacity: 8.8Gbps Max. Forwarding Rate: 6.55Mpps High Priority Ports: Ports 1-8 Forwarding Mode: Store-and-forward MAC Address Table: 4k Flow Control: IEEE802.3x full duplex Power Over Ethernet PoE Standard: IEEE802.3af, IEEE802.3at PoE Power Budget: 370W Working Mode: Extend On:250m,10M,CAT 5e Extend Off:100m General Power Supply: 100-240V AC, 50/60Hz Power Consumption: =440W Surge Protection: 4KV Working Temperature: Temperature: 0?-40? Working Humidity: Humidity: 10%-90% , non-condensing Storage Temperature: Temperature: -40?-70? Storage Humidity: Humidity: 5%-90% , non-condensing Weight:4.29kg Dimension: 440mm*285mm*43mm Accessories SFP modules (Optional): HK-1.25G-20-1550: 1000M SFP module, TX1550nm/RX1310nm, LC, single-mode single-fiber, 20km HK-155M-20-1550: 100M SFP module, TX1550nm/RX1310nm, LC, single-mode single-fiber, 20km

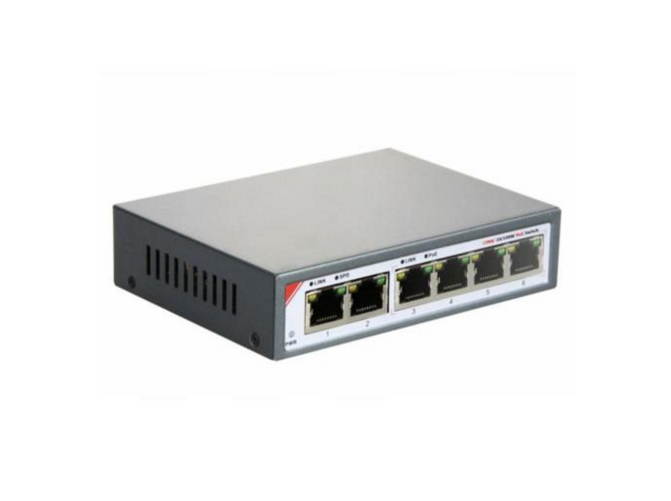

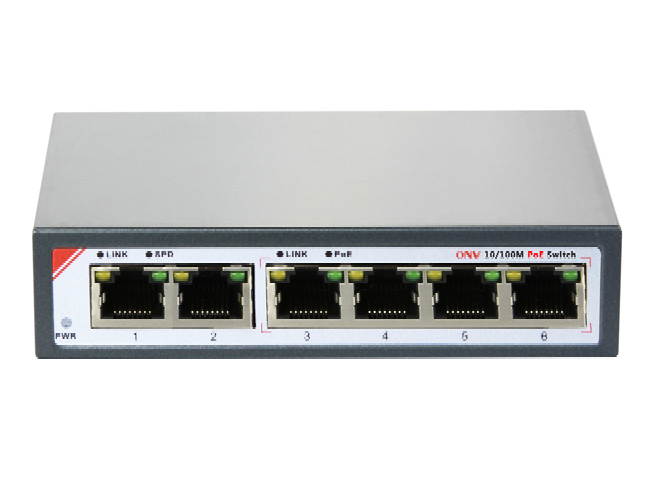

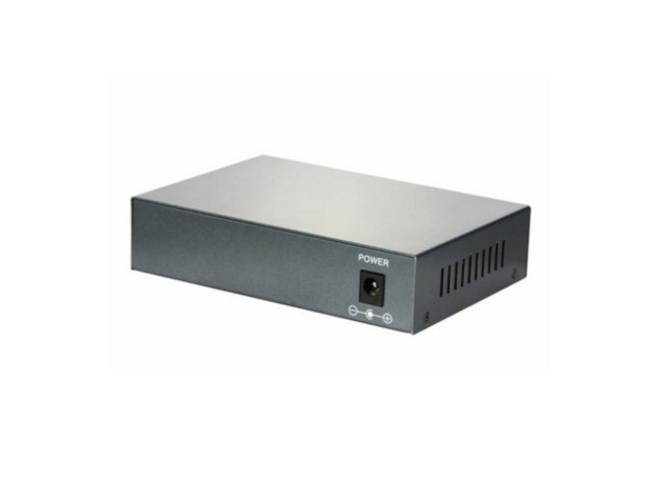

ONV-POE31064P 4 Ports +2x Uplink ports Auto MDIX RJ45 IEEE 802.3af/at PoE Switch

4x 10/100M PoE ports+2x 10/100M Uplink ports PoE switch, among which port 3 - 6 support POE IEEE 802.3af/at. Max PoE power of each port ups to 30W, the total power is 65W.

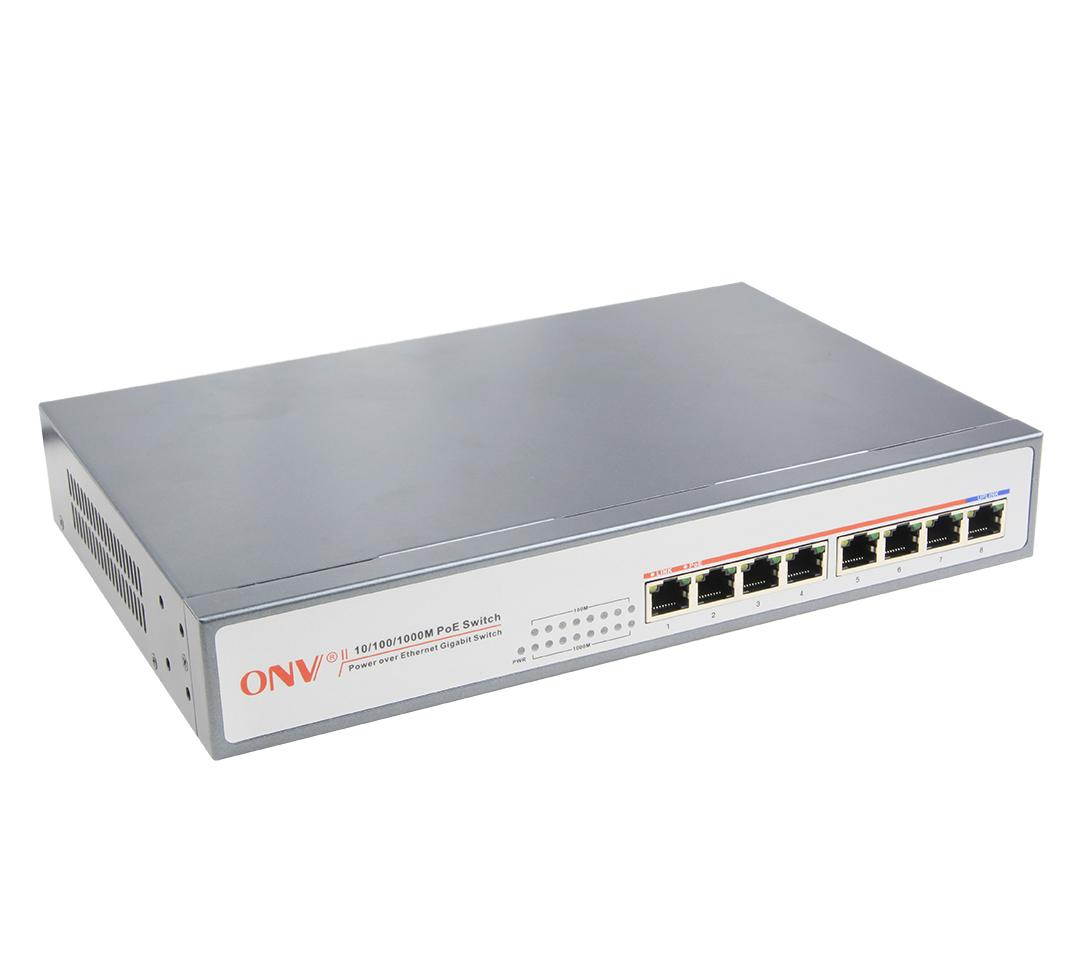

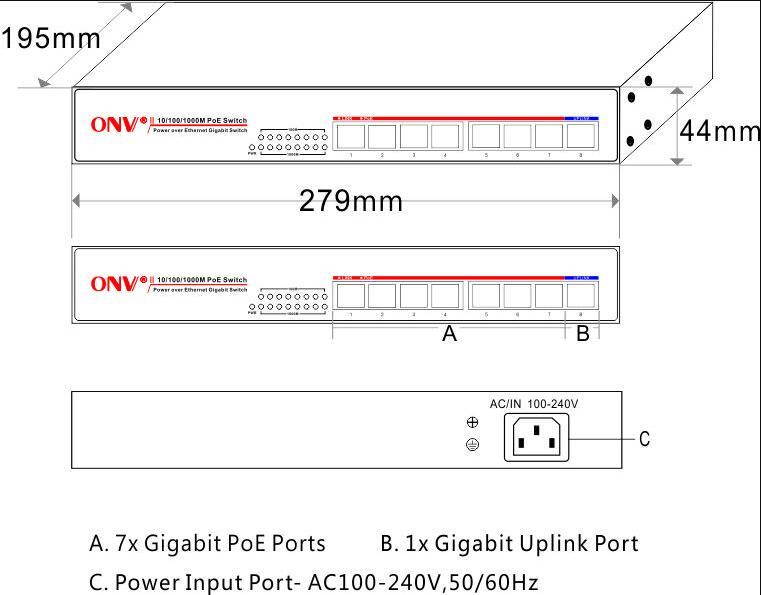

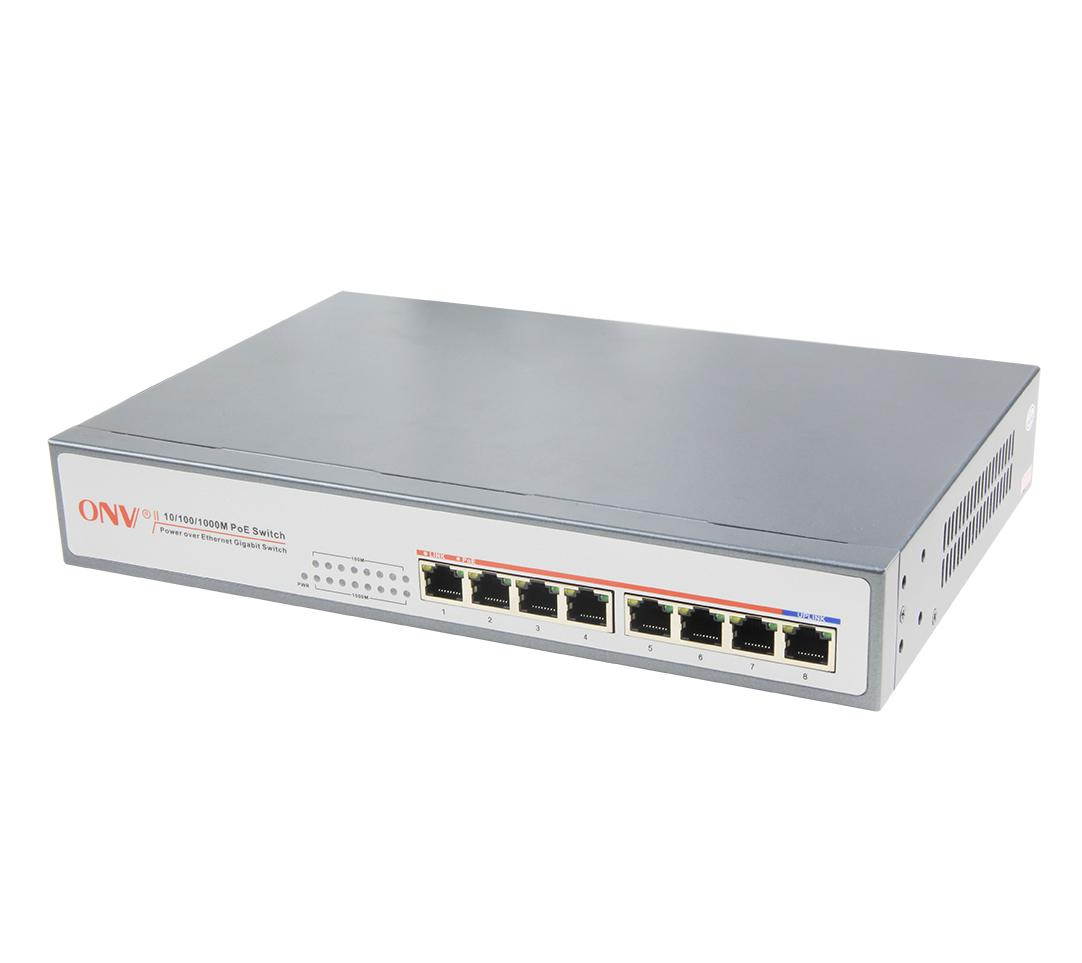

ONV-POE33007PN 8-Port Gigabit PoE 7x 10/100/1000M RJ45 PoE Ports Network Switch

Technical parameter list Product Name:8-Port Gigabit PoE Switch Model:ONV-POE33007PN Connector Type: 7 * 10/100/1000M copper cable RJ45 PoE ports + 1 * 10/100/100M Ethernet Uplink Port (All ports support MDI/MDIX automatic adjustment) Network Media: 1000BASE-TX: Cat5 or more UTP(=100 meters) Bandwidth: 16Gbps (non-blocking) Address Database Size: 8K MTBF: 100,000 hours Forwarding Mode: Store-and-forward architecture, line speed forwarding Buffer Memory: 2M Network Protocols: IEEE 802.3i; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3af/at LED Display: Power, Network, PoE working status Power Input Input: AC100~240V 50/ 60Hz PoE Ports: 7*PoE Ports PoE Port Power: Max 30W PoE Standard: IEEE802.3af/at Working Environment Operating Temperature: -20 ° ~ 55 ° C Storage Temperature: -20 ° ~ 75 ° C Humidity: 10% ~ 90%, non-condensing Storage Humidity: 10% ~ 95%, non-condensing Certification FCC, CE, RoHS Radiation: CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B Product Size : 279 * 195 * 44mm Warranty : 1 year

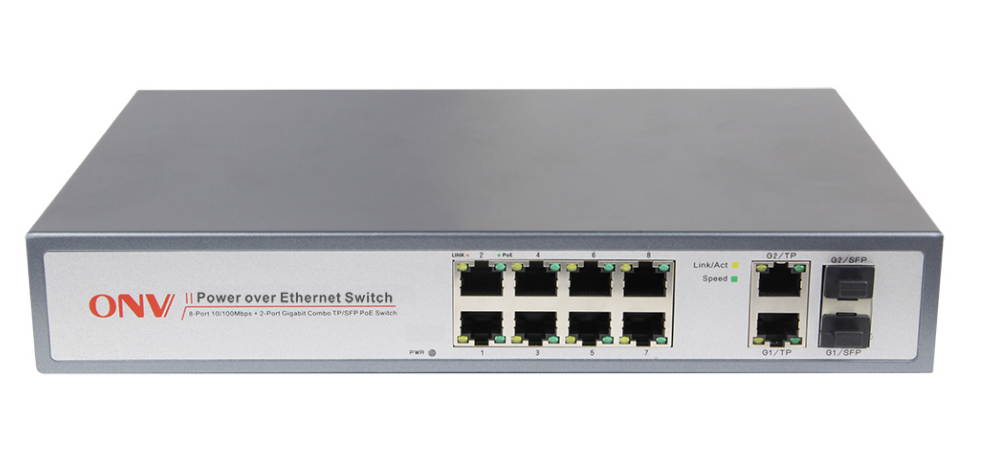

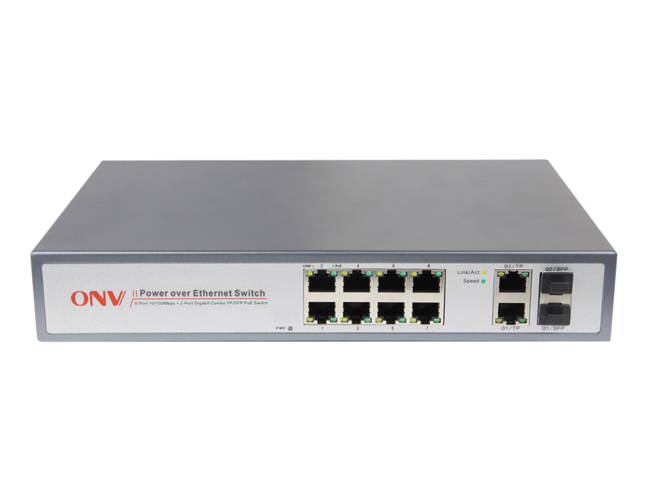

ONV-POE31108PFB-at 8*10/100M auto-sensing RJ45 ports + 2*Gigabit Combo TP/SFP Ports PoE switch

Technical parameter list Product Name :10-Port PoE Switch with 8x PoE Ports and 2x Gigabit Combo Port Model:ONV-POE31108PFB-at Connector Type: 8*10/100M copper cable RJ45 PoE ports+ 2*Gigabit Combo TP/SFP Ports (all ports support MDI/MDIX) Network Media:10BASE-T: Cat3/4/5 UTP(=100 meter) 100BASE-TX: Cat5 or more UTP(=100 meter) Bandwidth :5.6Gbps (non-blocking) Address Database Size: 16K MTBF:100,000 hours Network Latency: maximum delay less than 20 microseconds Forwarding Mode:Store-And-Forward Buffer Memory 4M Network Protocols:IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.3af DTE Power via MDI IEEE 802.3af/at LED Display: System: power supply Every Port: connecting, PoE working status Power Supply:Power input: AC100-240V 50/60Hz; (every country use a custom power plug) PoE Ports:8*PoE Ports PoE Port Power: 30W (Max) PoE Standard:IEEE 802.3af/at Working Environment: Operating Temperature: -20 ° ~ 55 ° C Storage Temperature: -20 ° ~ 75 ° C Humidity: 10% ~ 90%, non-condensing Storage Humidity: 10% ~ 95%, non-condensing Working Altitude: 3000 m (10,000 ft) Storage Altitude: 3,000 m (10,000 ft) Certification:CE Mark ,commercial;CE/LVD EN60950 Radiation:CE mark, commercial;FCC Part 15 Class B;VCCI Class B;EN 55022 (CISPR 22), Class B, RoHS Product Size:270*181*44.6mm Package Size:1.6kg Warranty:1 year warranty

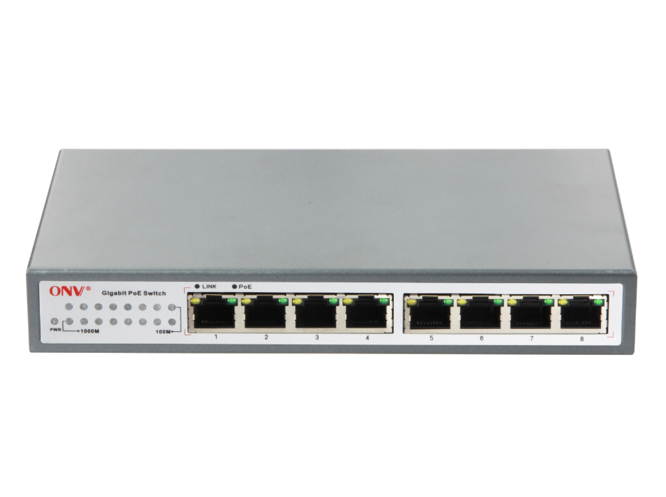

ONV-POE33084P-at 8-Port Gigabit PoE Switch with 4 Gigabit PoE Ports Network Switch

Technical parameter list Product Name:8-Port Gigabit PoE Switch with 4 Gigabit PoE Ports 30W Model: ONV-POE33084P-at Connector Type: 8*10/100/1000M copper cable RJ45 ports(all ports support MDI/MDIX) Network Media: 10Base-T and 100Base-TX (=100m, Cat 5 cable), 100Base-FX Bandwidth: 16Gbps (non-blocking) Address Database Size: 8K MTBF: 100,000 hours Forwarding Mode: Store-And-Forward Buffer Memory: 2M Network Protocols: IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3ab 1000BASETX IEEE 802.3x Flow Control IEEE 802.3af/at LED Display : Power, Ethernet Data, PoE working status PoE Ports: Port1-4 support PoE PoE Port Power: 30W PoE Standard: IEEE802.3af/at Power Consumption : 110W Working Environment Operating Temperature: -20 ° ~ 55 ° C Storage Temperature: -20 ° ~ 75 ° C Operating Humidity: 10% ~ 95%, non-condensing Transmission Distance: =100 meter Power Supply Type:1/2+,3/6- (End-span);Optional order 4/5+,7/8- (Mid-span) Product Size :280x186x44mm Warranty:1 year

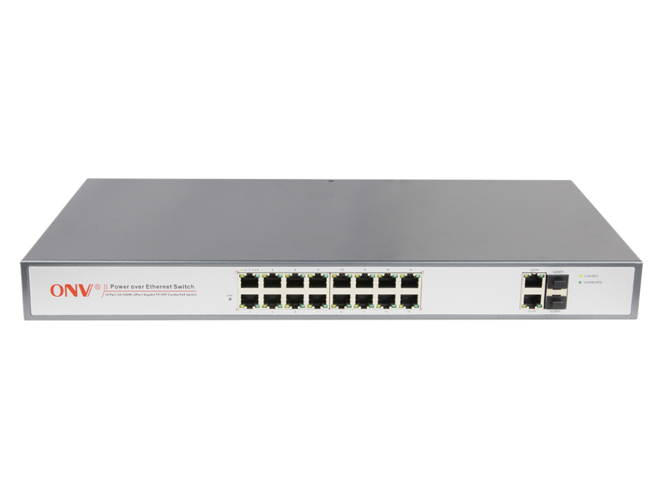

ONV-POE31016PFA 16 AF PoE Ports and 2GE/2GF Uplink PoE Line End-Span(12+,36-) PoE IEEE802.3af/at Switch

Technical parameter list Product Name :16-Port PoE switch with 2 Gigabit TP/SFP Combo Ports Model :ONV-POE31016PFA Connector Type:16x 10/100M copper cable RJ45 ports(all ports support MDI/MDIX) 2x gigabit combo ports Network Media:10BASE-T: Cat3,4,5 UTP(=100 meter) 100BASE-TX: 5 classes and more than 5 classes(=100 meter) Bandwidth :14.8Gbps (non-blocking) Address Database Size:16K MTBF:100,000 hours Network Latency:maximum delay less than 20 microseconds Forwarding Mode:Store-And-Forward Buffer Memory 4M Network Protocols: IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.3af DTE Power via MDI IEEE 802.3af/at LED Display: System: power supply Every Port: connecting, PoE working status PoE Ports:16 * PoE Ports PoE Port Power: Max 30W PoE Standard: IEEE802.3af/at Working Environment:Operating Temperature: -20 ° ~ 55 ° C Storage Temperature: -20 ° ~ 75 ° C Humidity: 10% ~ 90%, non-condensing Storage Humidity: 10% ~ 95%, non-condensing Working Altitude: 3000 m (10,000 ft) Storage Altitude: 3,000 m (10,000 ft) Certification:CE Mark ,commercial CE/LVD EN60950 Radiation:CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B Transmission Distance: Single mode(9/125um) optical transmission, transmission distance: 25km(double optical default, single optical alternative) Product Size:440 * 225 * 44mm Warranty :1 year

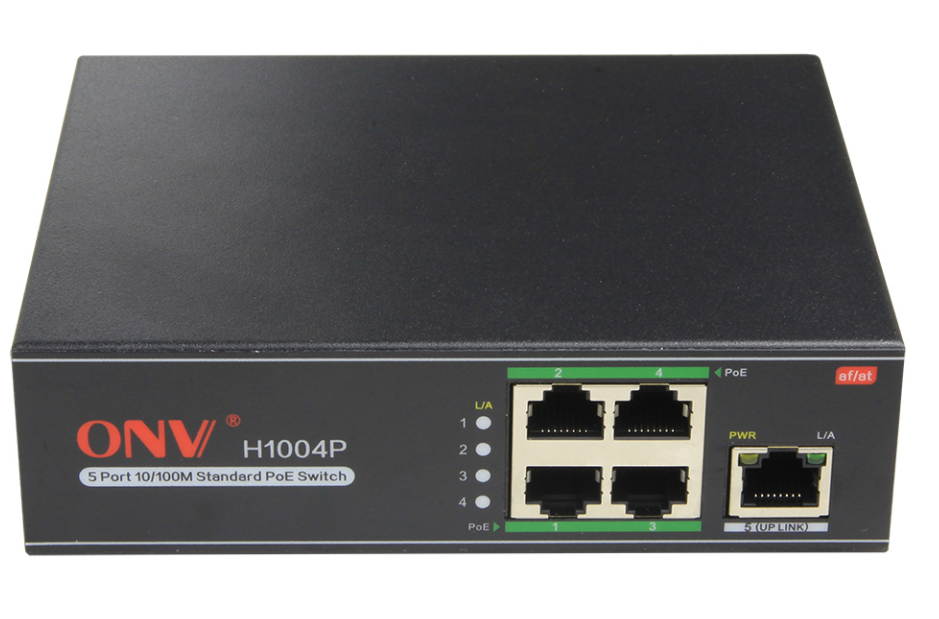

ONV-H1004P 5-Port 10/100M Standard PoE Switch

Technical parameter list Product Name: 10/100M 5-Port Standard PoE Switch Model: ONV-H1004P Connector Type: 4x 10/100M Standard RJ45 PoE Ports + 1x 10/100M RJ45 Uplink Port Network Media: 10BASE-T: Cat3,4,5 UTP(=100 meters); 100BASE-TX: Cat5 or later UTP(=100 meters); Bandwidth: 1.2Gbps (Non-blocking) Address Database Size: 2K MTBF: 100,000 hours Network Latency maximum delay less than 20 microseconds Forwarding Mode: Store-and-forward Buffer Memory: 384K Network Protocols: IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.3af DTE Power via MDI IEEE 802.3at LED Display: SYS: PWR EACH PORT: Connect, PoE Status PoE Ports: 4x PoE Ports PoE Port Power: 15.4W Power Consumption: 60W Working Environment Operating Temperature: -20 ° ~ 55 ° C; Storage Temperature: -40 ° ~ 75 ° C; Humidity: 10% ~ 90%, non-condensing; Storage Humidity: 5% ~ 90%, non-condensing; Working Altitude: 3000 m (10,000 ft); Storage Altitude: 3,000 m (10,000 ft) Certification : CE Mark ,commercial CE/LVD EN60950 Radiation: CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B Transmission Distance: 100 meters Product Size :142x113x40mm Weight: 0.5kg Warranty: 1 year

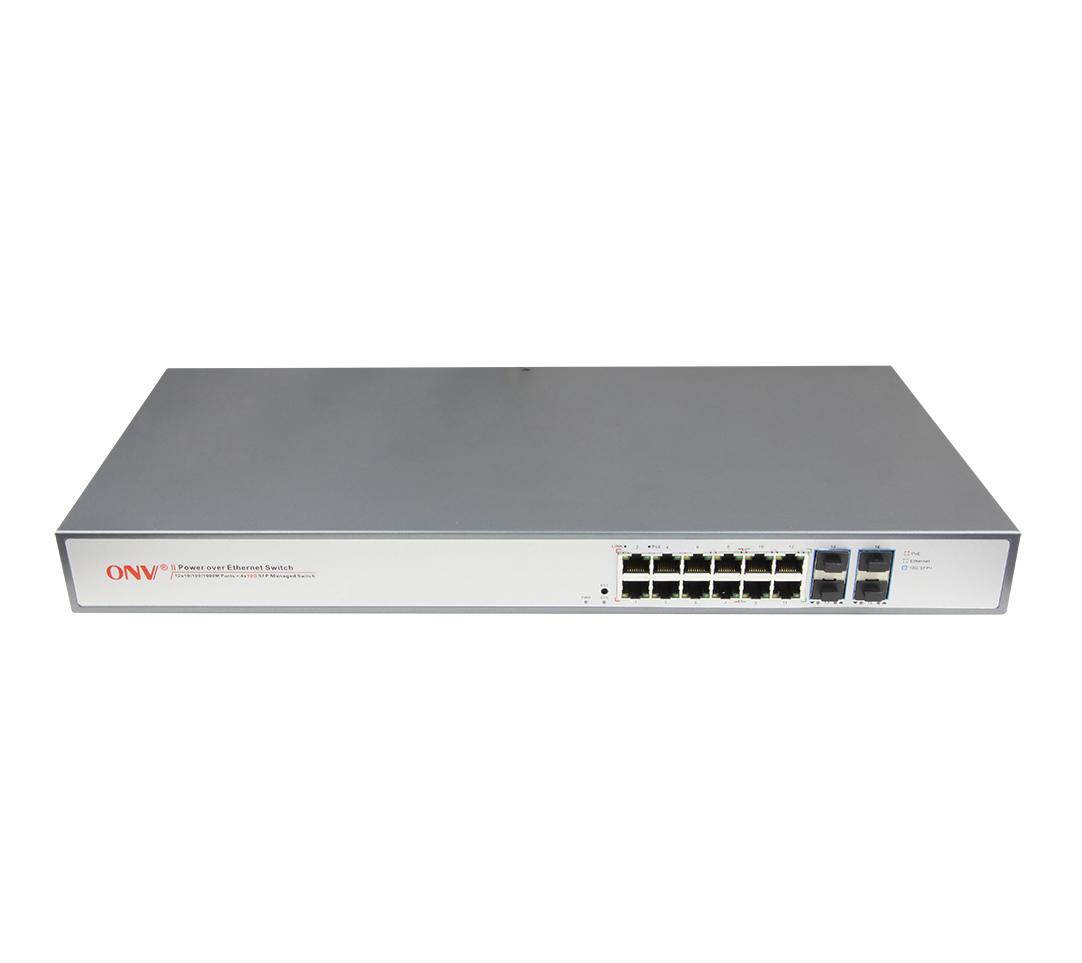

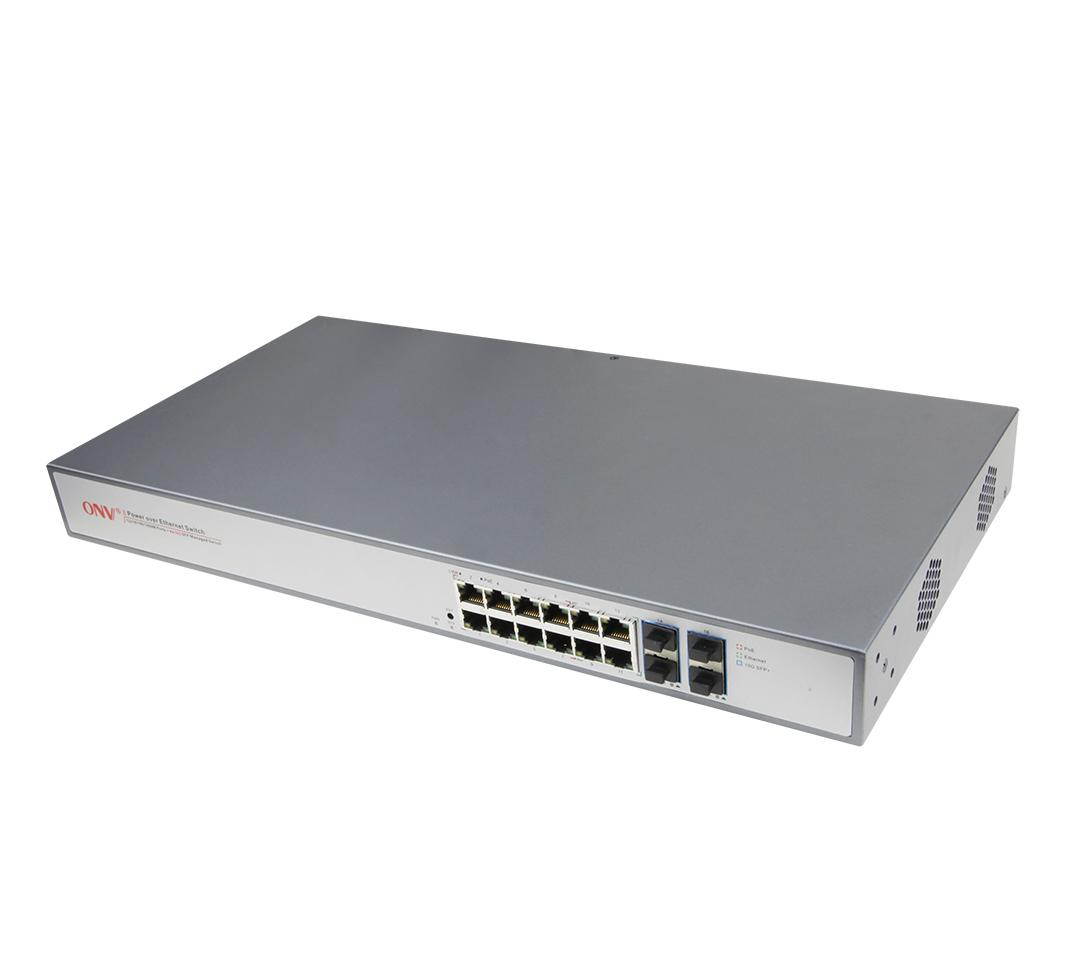

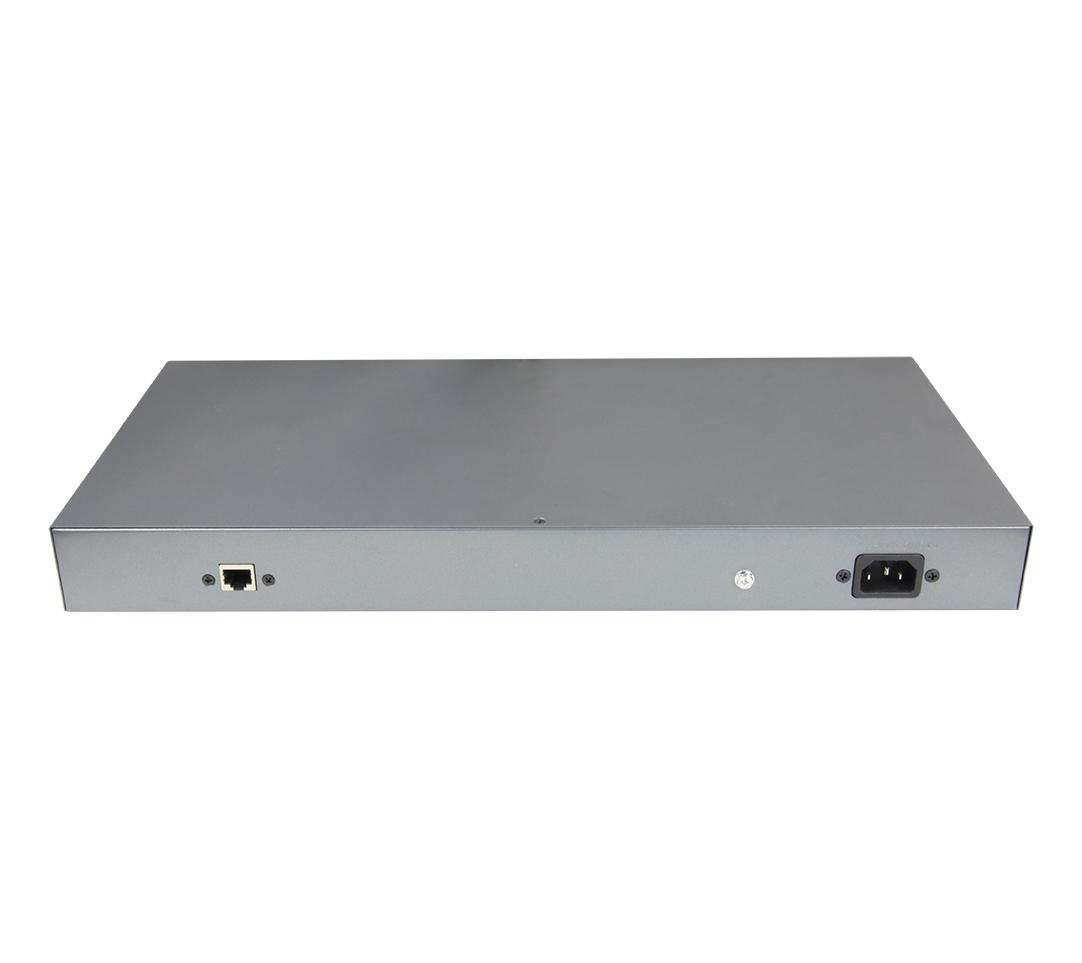

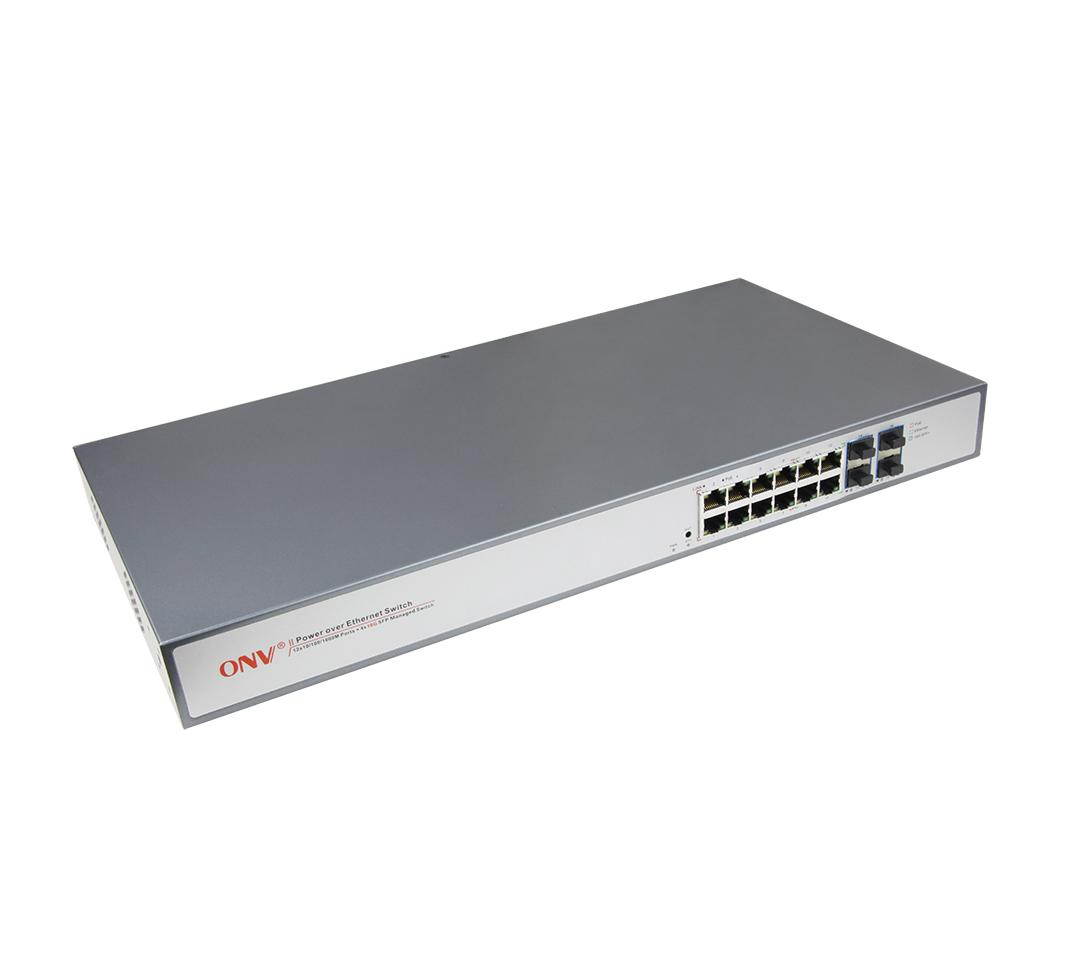

250W 16-Port 10G L2+ Managed PoE Switch 10/100/1000M PoE RJ45 POE36168PFM-at

Feature ? All gigabit design, 8*10/100/1000M PoE ports + 4*10/100/1000M RJ45 ports + 4*10G SFP+ ports ?PoE ports support power over Ethernet for PDs ?Meet IEEE 802.3af/at PoE standard. Supports per port PoE configuration function ?L2+ features provide better manageability, security, QoS, and performance. ?Support L2+ Switching features including 802.1Q VLAN, Mirroring, Port isolation, IGMP Snooping, DHCP Snooping, LLDP, POE+ management, IP Source Guard, ARP inspection, ACLs etc. ?Support spanning tree STP(802.1D) and RSTP(802.1W). ?Jumbo frames support up to 9.6K kilobtyes. ?Support enhanced management through WEB, CLI, TELNET, SSH, SNMP. ?Support cable diagnosis "INPUT: AC100-240V 3.15A Built-in power supply: DC52V/4.8A 250W" Target Industries ?HD monitor transmission and power supply ?Wireless AP layout transmission and power supply ?Network telephone transmission , intelligent house and home system ?Intelligent transportation supervisory system(ITS) ? High-speed Way supervisory/Tele-Communication System ? Security protection system, TV medical treatment ? Long-distance Muti-media Schooling, Campus monitoring ? Long-distance broadcast television transmission system ? High-building Security Protection, Military Tele-Com projects Ordering Information Product Model: ONV-POE36168PFM-at Product Description: 16-Port Gigabit Managed PoE Switch, 8*10/100/1000M PoE ports + 4*10/100/1000M RJ45 ports + 4*10G SFP+ ports. IEEE802.3af/at standard. Max Power per PoE Port: 30W. Total power is 130W. Built-in power supply. Order note: 1. Default PoE power supply type is 1,2(+), 3,6(-) 2.SFP module is not included, need to order it separately

ONV-POE31108PFB-at 8*10/100M auto-sensing RJ45 ports + 2*Gigabit Combo TP/SFP Ports PoE switch

Technical parameter list Product Name :10-Port PoE Switch with 8x PoE Ports and 2x Gigabit Combo Port Model:ONV-POE31108PFB-at Connector Type: 8*10/100M copper cable RJ45 PoE ports+ 2*Gigabit Combo TP/SFP Ports (all ports support MDI/MDIX) Network Media:10BASE-T: Cat3/4/5 UTP(=100 meter) 100BASE-TX: Cat5 or more UTP(=100 meter) Bandwidth :5.6Gbps (non-blocking) Address Database Size: 16K MTBF:100,000 hours Network Latency: maximum delay less than 20 microseconds Forwarding Mode:Store-And-Forward Buffer Memory 4M Network Protocols:IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.3af DTE Power via MDI IEEE 802.3af/at LED Display: System: power supply Every Port: connecting, PoE working status Power Supply:Power input: AC100-240V 50/60Hz; (every country use a custom power plug) PoE Ports:8*PoE Ports PoE Port Power: 30W (Max) PoE Standard:IEEE 802.3af/at Working Environment: Operating Temperature: -20 ° ~ 55 ° C Storage Temperature: -20 ° ~ 75 ° C Humidity: 10% ~ 90%, non-condensing Storage Humidity: 10% ~ 95%, non-condensing Working Altitude: 3000 m (10,000 ft) Storage Altitude: 3,000 m (10,000 ft) Certification:CE Mark ,commercial;CE/LVD EN60950 Radiation:CE mark, commercial;FCC Part 15 Class B;VCCI Class B;EN 55022 (CISPR 22), Class B, RoHS Product Size:270*181*44.6mm Package Size:1.6kg Warranty:1 year warranty

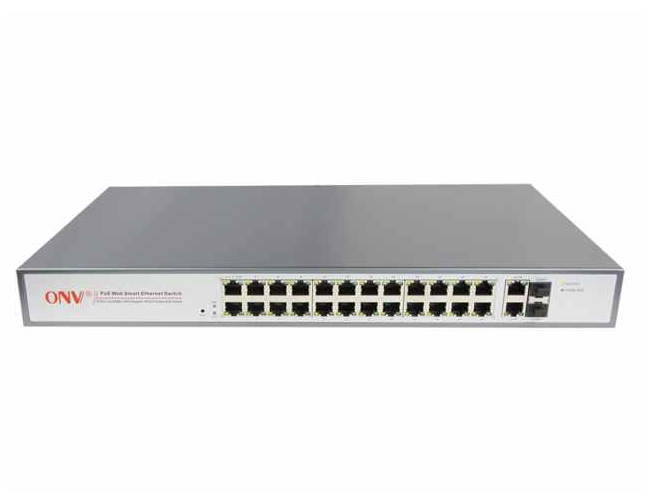

ONV-POE31024PFM 24*10/100M Ethernet ports + 2*gigabit combo ports Managed PoE switch

Technical parameter list Product Name :Managed PoE Switch with 24 Ethernet Ports and 2 Gigabit Combo Ports Model :ONV-POE31024PFM Connector Type:24*10/100M copper cable RJ45 ports(all ports support MDI/MDIX) 2*gigabit combo ports Network Media:10BASE-T: Cat3,4,5 UTP(=100 meter) 100BASE-TX: Cat5 and more UTP(=100 meter) 100BASE-FX:MMF,SMF 1000BASE-X: MMF, SMF Bandwidth :64Gbps (non-blocking) Address Database Size:16K MTBF:100,000 hours Network Latency:maximum delay less than 20 microseconds Forwarding Mode:Store-And-Forward Buffer Memory :4M Network Protocols :IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE802.3ab IEEE802.3z IEEE 802.3af /at LED Display: System: power supply Every Port: connecting, PoE working status Power Input: AC100-240V 50/60Hz PoE Ports : 24*PoE Ports PoE Port Power: Max 30W PoE Standard:IEEE802.3af/at Working Environment:Operating Temperature: -20 ° ~ 55 ° C Storage Temperature: -20 ° ~ 75 ° C Humidity: 10% ~ 90%, non-condensing Storage Humidity: 10% ~ 95%, non-condensing Working Altitude: 3000 m (10,000 ft) Storage Altitude: 3,000 m (10,000 ft) Certification:FCC, CE, RoHS Radiation: CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B QoS: Yes VLAN:Yes Product Size: 440*225*44mm Warranty: 1 year

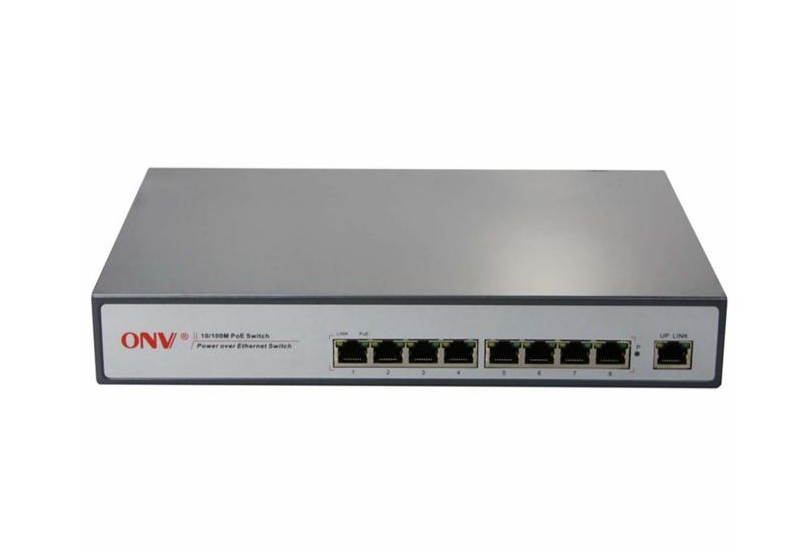

ONV-POE31008PN 30W 8x10/100M AT PoE Ports 1 Ethernet Uplink Port POE Switch

Technical parameter list Product Name :9-Port PoE Switch with 8 PoE Ports 30W Model:ONV-POE31008PN-at Connector Type:9x 10/100M copper cable RJ45 ports(all ports support MDI/MDIX) 8x PoE ports, 1x uplink port Network Media:10BASE-T: Cat3,4,5 UTP(=100 meter) 100BASE-TX: Cat5 or more UTP (=100 meter) Bandwidth:1.6Gbps (non-blocking) Address Database Size:1K MTBF:100,000 hours Network Latency:maximum delay less than 20 microseconds Forwarding Mode:Store-And-Forward Buffer Memory :768KB Network Protocols :IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.3af DTE Power via MDI IEEE 802.3at LED Display:System: power supply Every Port: connecting, PoE working status PoE Ports:8x PoE Ports PoE Port Power:30W PoE Standard:IEEE 802.3at Power Consumption:130W Working Environment:Operating Temperature: -20 ° ~ 55 ° C Storage Temperature: -20 ° ~ 75 ° C Operating Humidity: 10% ~ 95%, non-condensing Certification:CE Mark ,commercial CE/LVD EN60950, RoHS Radiation:CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B Transmission Distance:100 meters Product Size:280 x 186 x 44mm Warranty:1 year

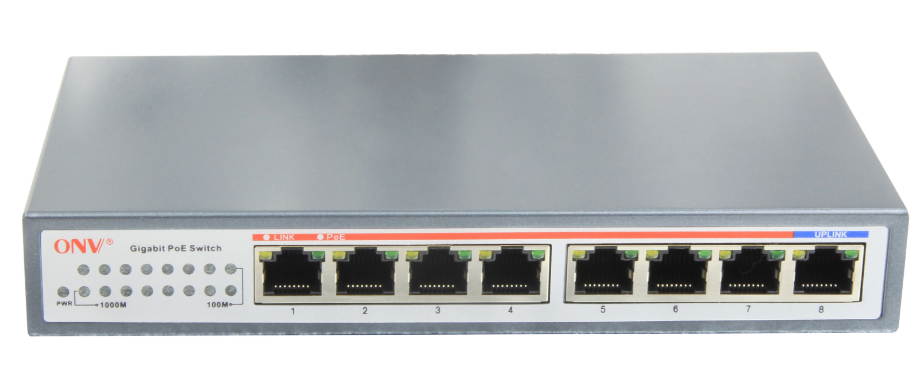

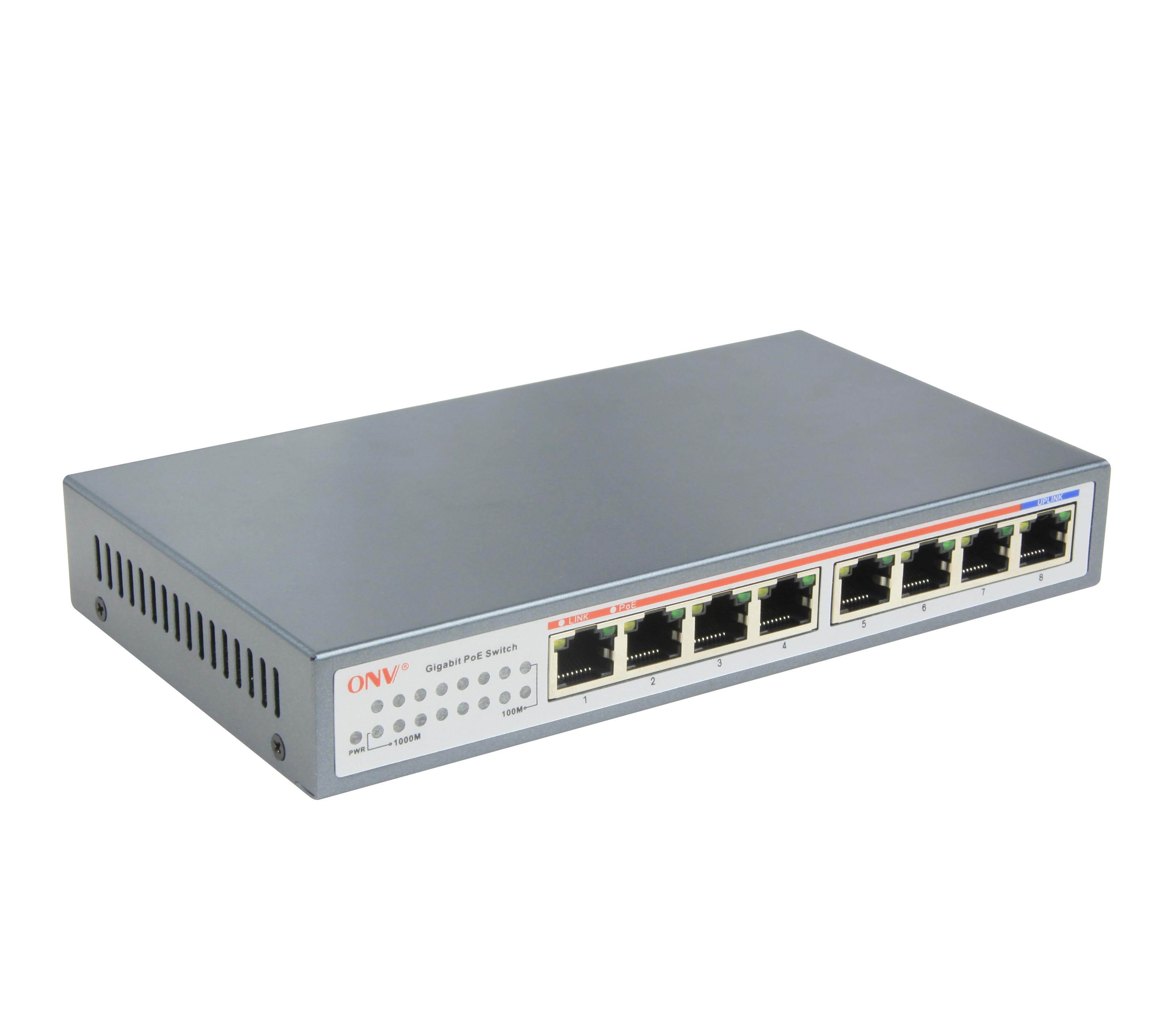

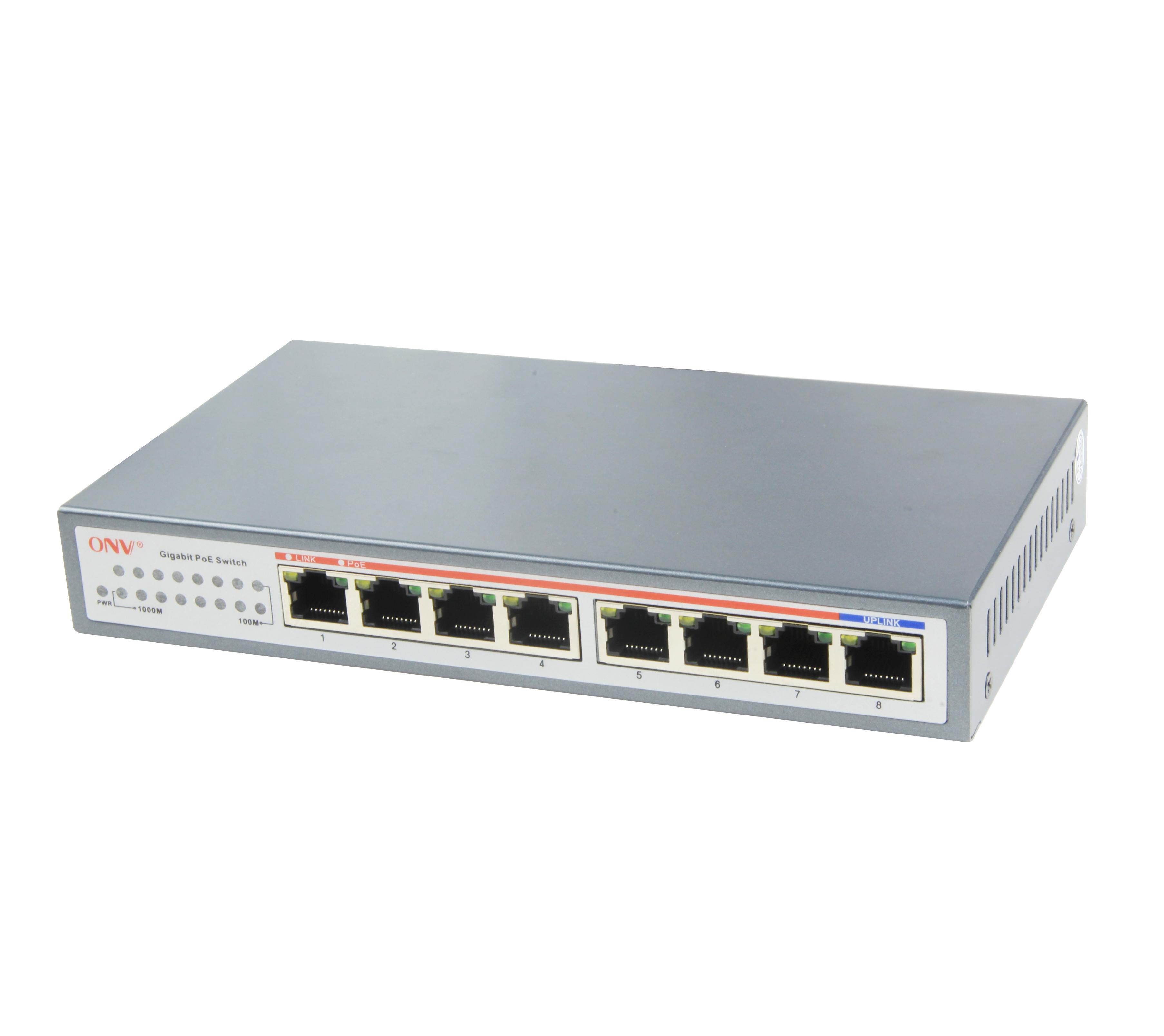

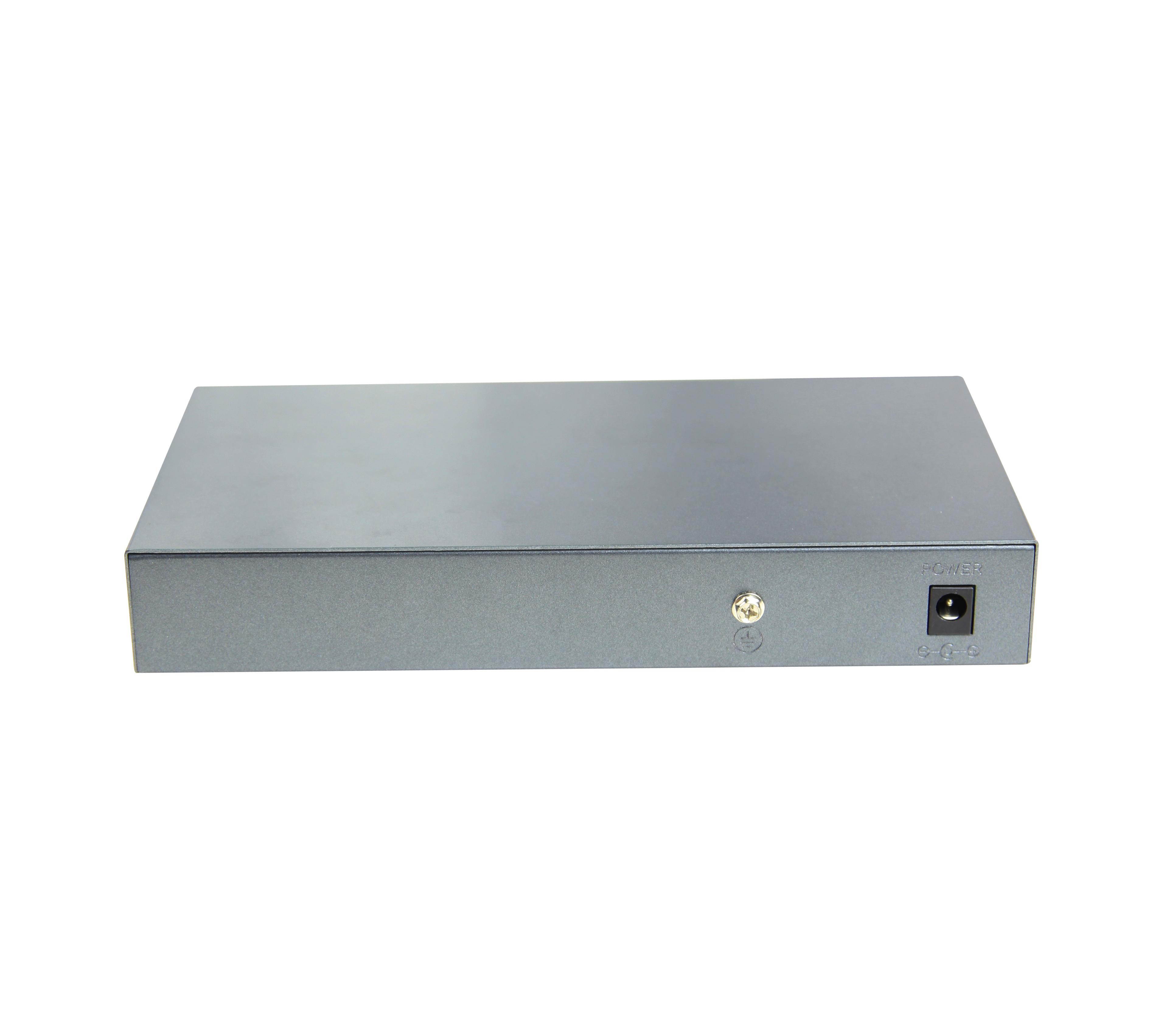

ONV-POE33007P 8-Port Gigabit 7x 10/100/1000M RJ45 PoE Port Network Switch

Technical parameter list Product Name: 8 Port Gigabit PoE Switch IEEE 802.3af 15.4W with External Power Adapter Model: ONV-POE33007P Connector Type: 7 * 10/100/1000M copper cable RJ45 PoE ports, 1 * 10/100/1000M Ethernet Uplink Port (All ports support MDI/MDIX automatic adjustment) Network Media: 1000BASE-TX: Cat.5 or more UTP(=100 meters) Bandwidth: 16Gbps (non-blocking) Address Database Size:8K MTBF: 100,000 hours Forwarding Mode: Store-and-forward architecture, line speed forwarding Buffer Memory: 2M Network Protocols: IEEE 802.3i; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3af/at LED Display Power, Network, PoE working status Power Input : DC 52V, 2.15A PoE Ports: 7*PoE Ports PoE Port Power: Max 30W PoE Standard: IEEE802.3af/at Working Environment Operating Temperature: -20 ° ~ 55 ° C Storage Temperature: -20 ° ~ 75 ° C Humidity: 10% ~ 90%, non-condensing Storage Humidity: 10% ~ 95%, non-condensing Certification FCC, CE, RoHS Radiation: CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B Product Size:189 * 102 * 28mm Warranty: 1 year

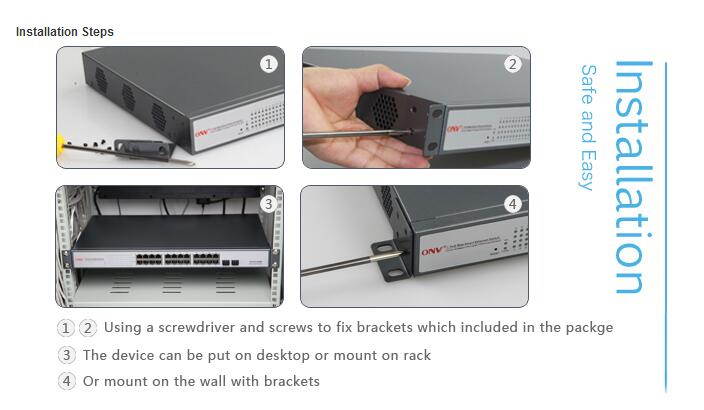

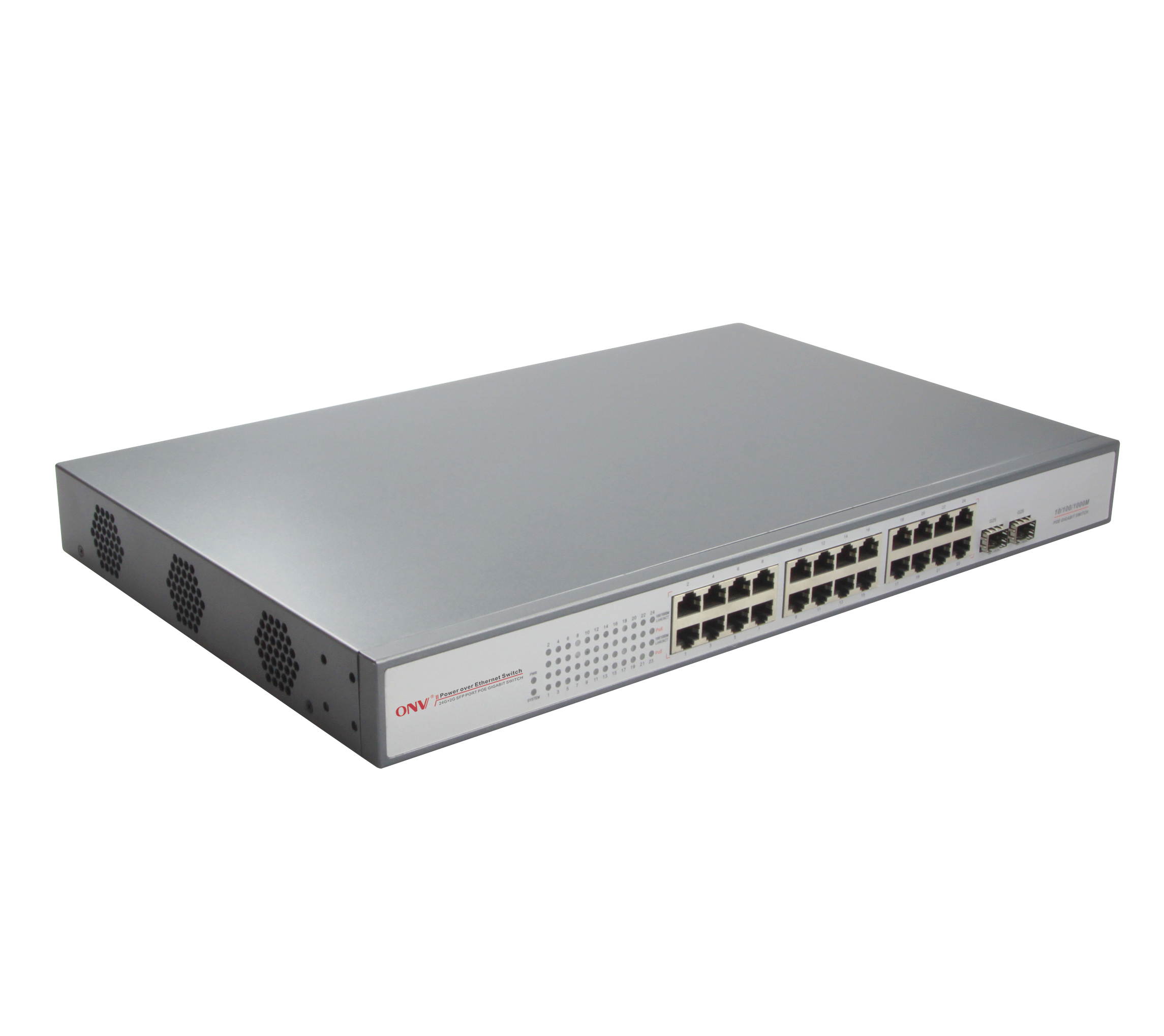

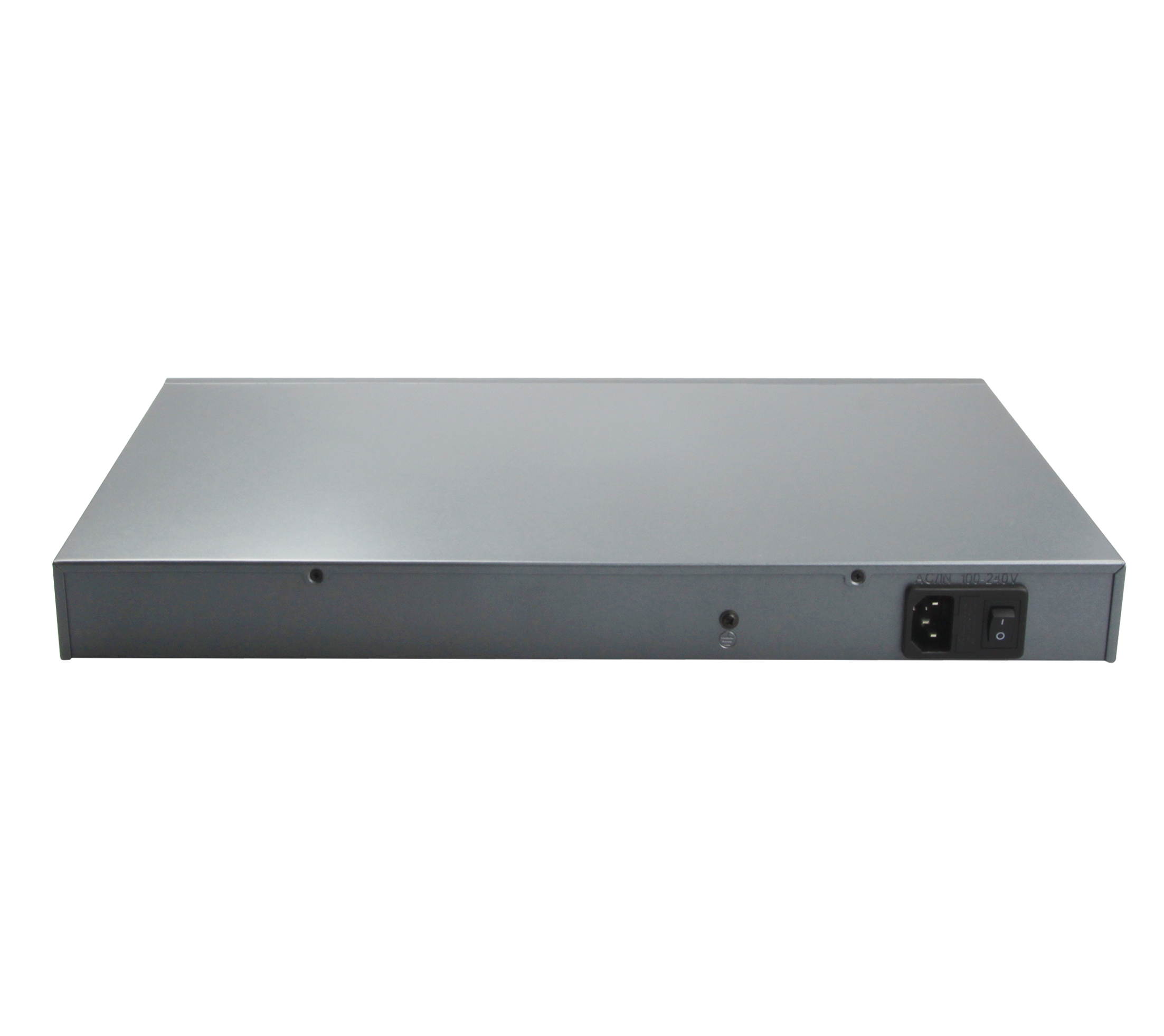

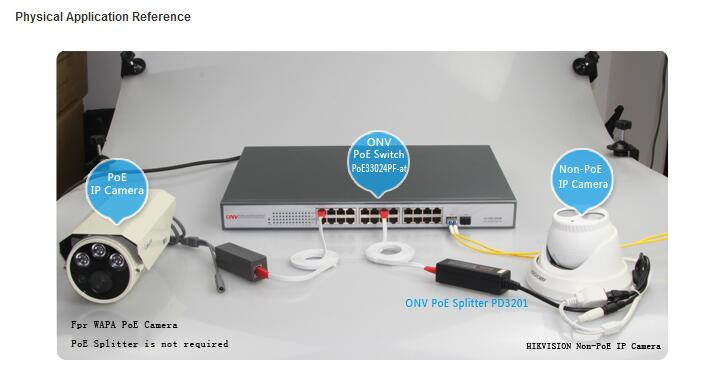

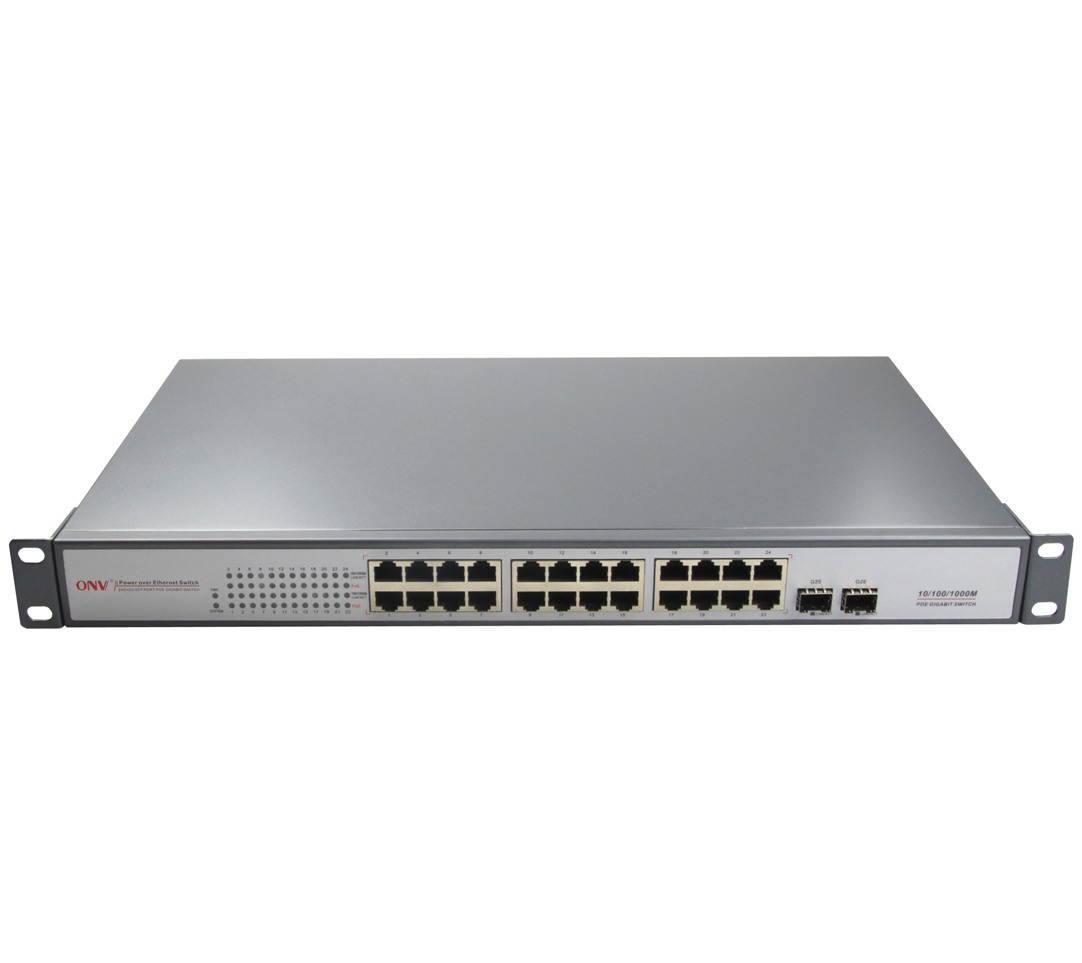

ONV-POE33024PF-at 24x 10/100/1000 Mbps ports + 2x SFP gigabit optical uplink ports supports IEEE802.3at power POE Switch

Feature ? 26-Port Gigabit PoE Switch with 24 PoE Ports and 2 SFP Gigabit Uplink Optical Ports ?Supply power to 5 classes Ethernet wireless access points AP and network IP surveillance cameras ? Port 1 to Port 24 supports IEEE802.3at power (each port maximum power is 30W) ? 24x 10/100/1000 Mbps ports + 2x SFP gigabit optical uplink ports ?Compatible with IEEE 802.3 10i and IEEE 802.3u standard ?The packet forwarding speed is 1.488Mbps of one wire-speed port ?Port features with auto-flip(Auto MDI/MDIX) ?Network port comes with lighting-proof (AC power port: difference module +/-2kV, common module +/-4kV) ?All ports support wire-speed switching, frame size within the range of 64 to 1536 can achieve wire-speed ? Standard 1U rack design, suitable for rack installation mode Flexible Selecting to insert up to 24 Ethernet networks or fast Ethernet devices or hybrid access to 24 IP-based IEEE802.3af PoE devices. Optimized installation and power management, such as the wireless access points (AP), Voice IP (VoIP) phones and IP-based cameras. Power over Ethernet (IEEE802.3af) is used for new construction equipment to improve network efficiency and reduce the time and cost of installation. Easily deploy your wireless access point AP and IP cameras, eliminating the need to power outlets and supply uninterrupted power to the entire PoE device. Application Situations ? Million HD surveillance transmission and power supply ? Wireless AP distribution transmission and power supply ? VoIP transmission, intelligent home systems ? City intelligent traffic monitoring system (ITS), safe city, and wireless city ? Highway surveillance system, electronic road surveillance, snapshot system ? large industrial factory & enterprise security surveillance system, network multifunction system ? Remote multimedia teaching & campus surveillance, video conferencing systems ? Building intercom, wireless communications, video surveillance Technical Specification Product Name 26-Port Gigabit PoE Switch with 24 Gigabit PoE Ports 25.5W Product Model ONV-POE33024PF-at Connector Type 24x 10/100/1000M copper cable RJ45 PoE ports(All ports support MDI/MDIX automatic adjustment); 2x 10/100 /1000Mbps SFP fiber uplink ports Forwarding Mode 1000M line speed forwarding; Packet Length: 10K; Packet Buffer: 4.1M Network Medium 10BASE-T: Cat3,4,5 UTP(=100 meters) 100BASE-TX: Cat5 or more UTP(=100 meters) 1000BASE-TX: Cat5 or more UTP(=100 meters) Performance Specifications Backplane Bandwidth: 52Gbps Network Delay: less than 20 microsecond Packet Buffer: 96KB Address Database size: 1000 MTBF: 190,000 hours (about 21 years) PoE Description IEEE 802.3at, each port power is 25.5W; Port1 to Port24 support PoE power; The even number Port(1/3/5/7/9/11/13/15/17/19/21/23) is end-span(1/2+, 3/6- line pair) power supply, the odd number port(2/4/6/8/10/12/14/16/18/20/22/24) is mid-span(4/5+, 7/8- line pair) power supply PoE Power Port output power is 25.5W (IEEE802.3at) Power Supply Type End-span type(Mid-span optional) Network Protocols IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.x Flow Control LED Indicator Status Power, Network, PoE working status Power IEEE802.3at standard, each port power is 25.5W, total power is 440W Voltage Input: AC100~240V 50/ 60Hz Dimension/ Weight Dimension (LxWxH): 440 x 275 x 44.5mm; Weight:4.6kg Working Environment Working temperature: -20°C ~ 75°C; Storage temperature: -40° ~ 85°C; Working Humidity: 10% ~ 90%, no condensation; Storage Humidity: 5% ~ 90%, no condensation; Working Altitude: 3000 meters (10,000ft); Storage Altitude: 3000 meters (10,000ft) Radiation CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B Safety CE Mark ,commercial CE/LVD EN60950,RoHS Warranty 1 Year Warranty, Life-time Maintenance

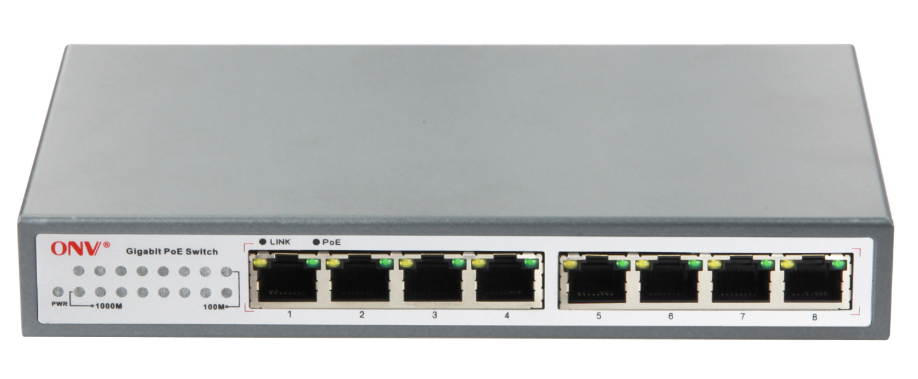

ONV-POE33084P 8*10/100/1000M Ethernet ports with 4*PoE ports Network Switch

Technical parameter list Product Name: 8-Port Gigabit PoE Switch with 4 Gigabit PoE Ports 15.4W Model: ONV-POE33084P Connector Type: 8x 10/100/1000Mbps RJ45 Ports Network Media: 10Base-T and 100Base-TX (=100m, Cat 5 cable), 100Base-FX Bandwidth: 16Gbps (non-blocking) Address Database Size: 8K MTBF: 100,000 hours Forwarding Mode: Store-And-Forward Buffer Memory: 2M Network Protocols: IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3ab 1000BASETX IEEE 802.3x Flow Control IEEE 802.3af/at LED Display: System: power supply Every Port: connecting, PoE working status Power Input : AC100-240V 50/60Hz PoE Ports:Port1-4 support PoE PoE Port Power: 30W max PoE Standard: IEEE802.3af/at Working Environment Operating Temperature: -20 ° ~ 55 ° C Storage Temperature: -20 ° ~ 75 ° C Operating Humidity: 10% ~ 95%, non-condensing Certification Power, Ethernet Data, PoE working status Radiation:CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B Transmission Distance:=100 meter Product Size :189*102*28mm Warranty:1 year
