Buy Planet Audio Products online in United States

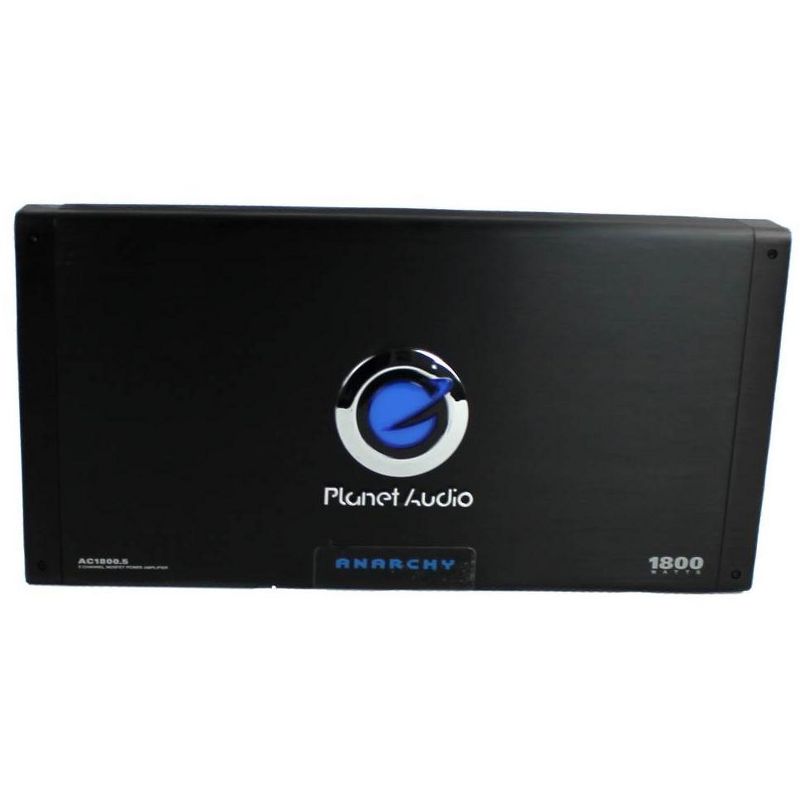

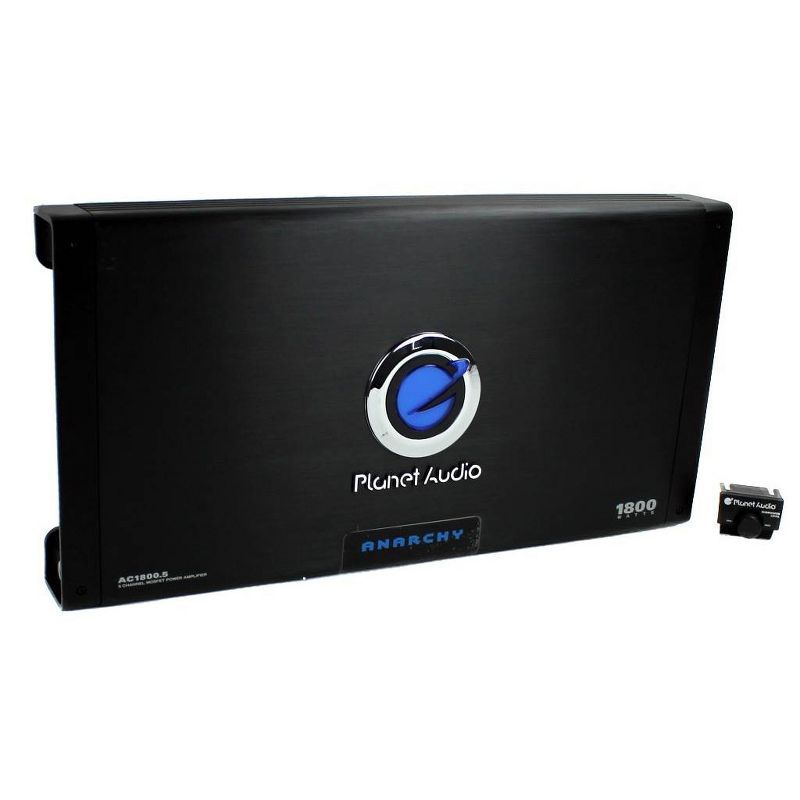

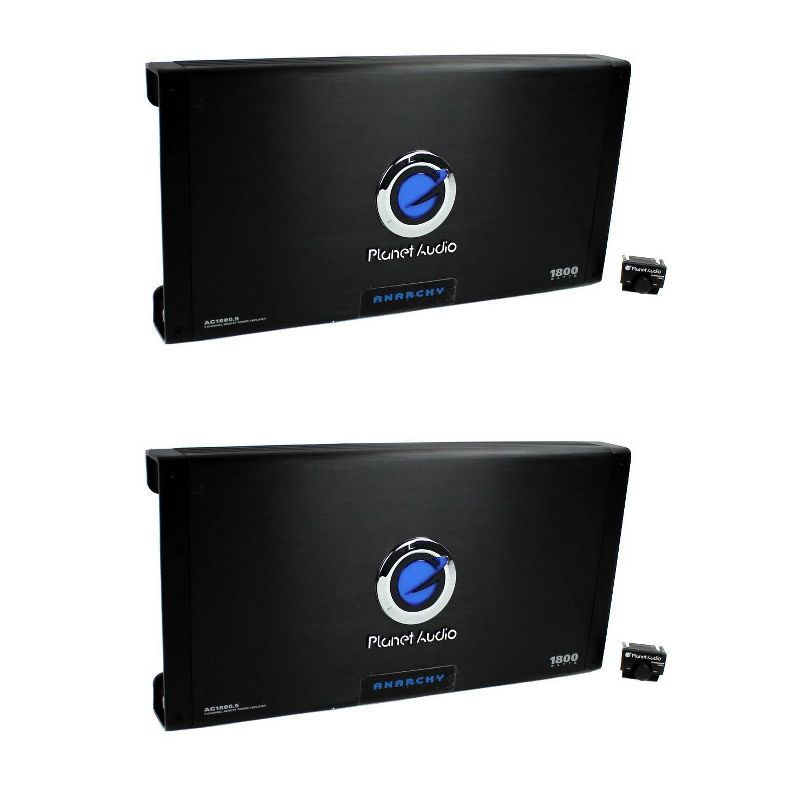

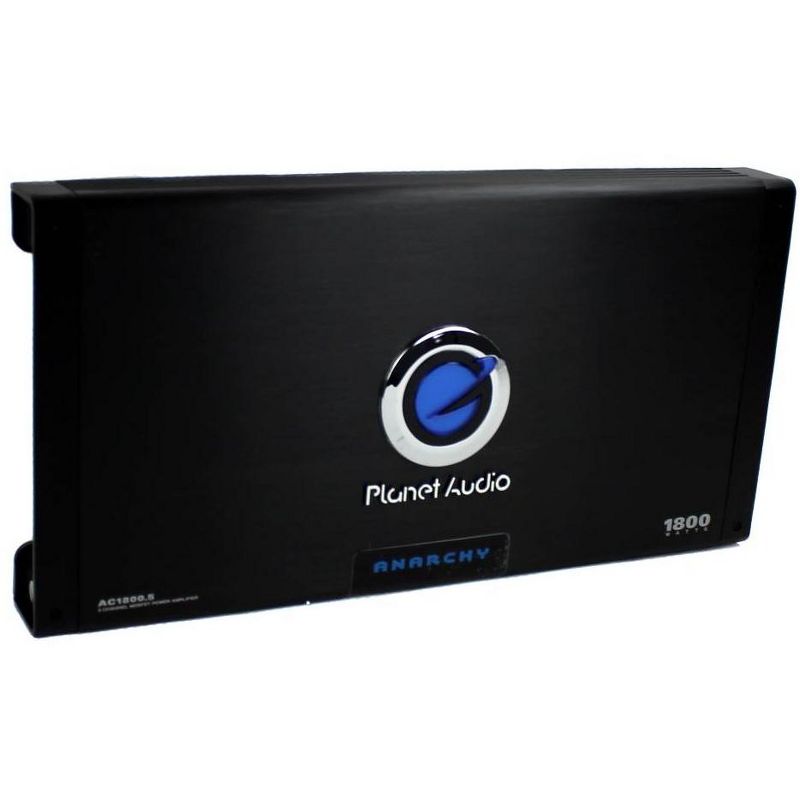

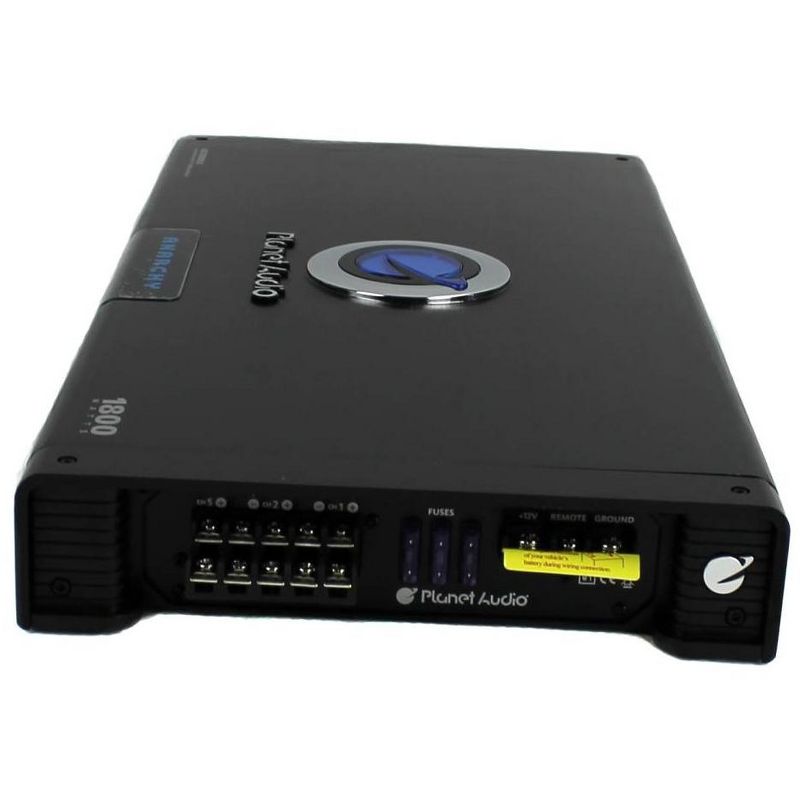

Planet Audio AC1800.5 Anarchy 1800 Watt, 5 Channel, 2/4 Ohm Stable Class A/B, Full Range, Bridgeable, MOSFET Car Amplifier with Remote Subwoofer Control

$ 212 ~~$ 216~~ 2% Off

Planet Torque Series 3" 2-Way Speakers TRQ322

$ 25 ~~$ 26~~ 3% Off

Case of 5 RT21 Walkie Talkies for Adults Long Range Handfree Rugged Two Way Radio with Earpiece for Commercial Construction Warehouse Security 2 Way Radios

$ 136 ~~$ 141~~ 3% Off

Original PMLN7269 2Wire Surveillance Kit with Quick Disconnect Black Compatible with XPR3300 and XPR3500 Series

$ 71 ~~$ 72~~ 2% Off

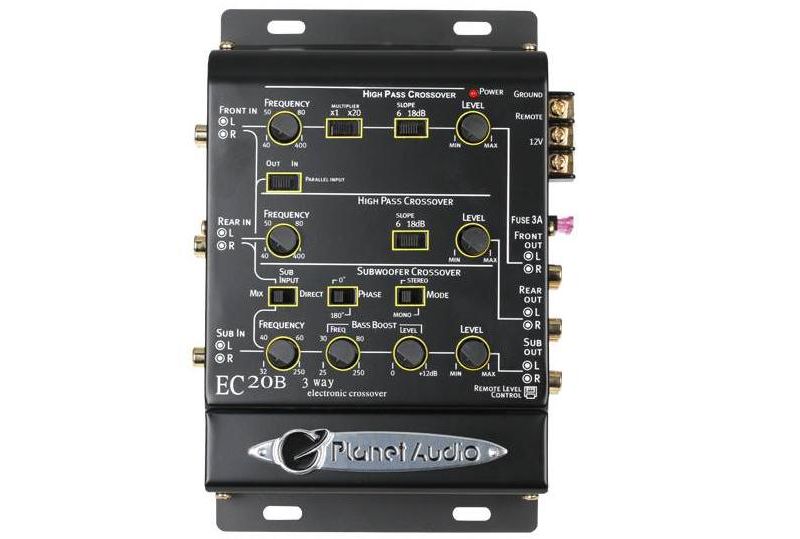

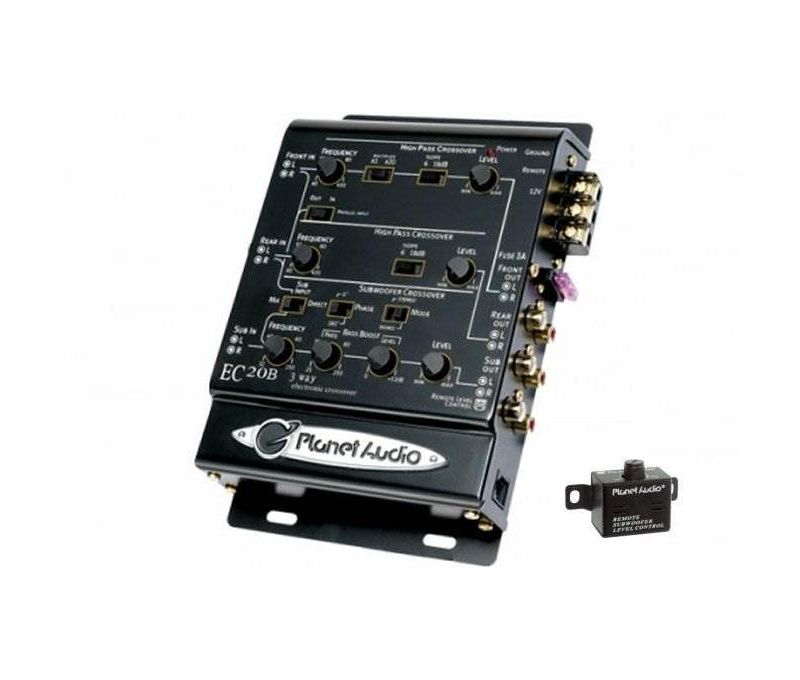

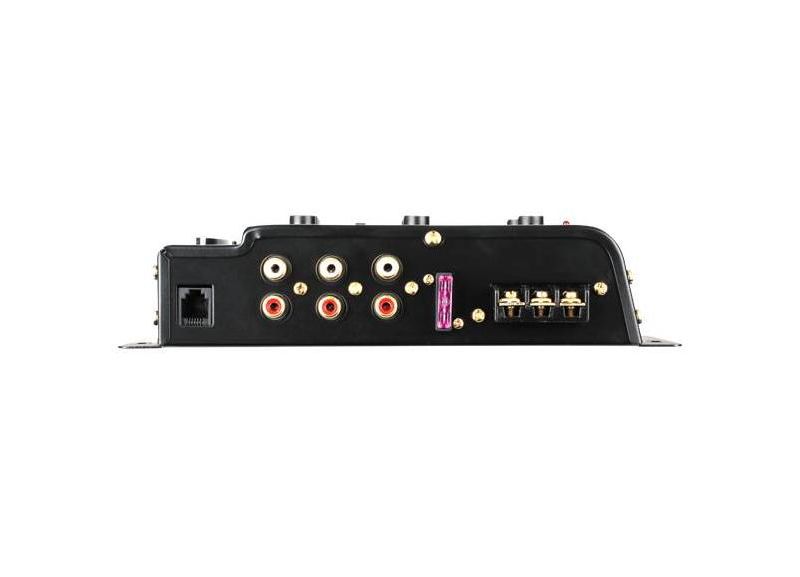

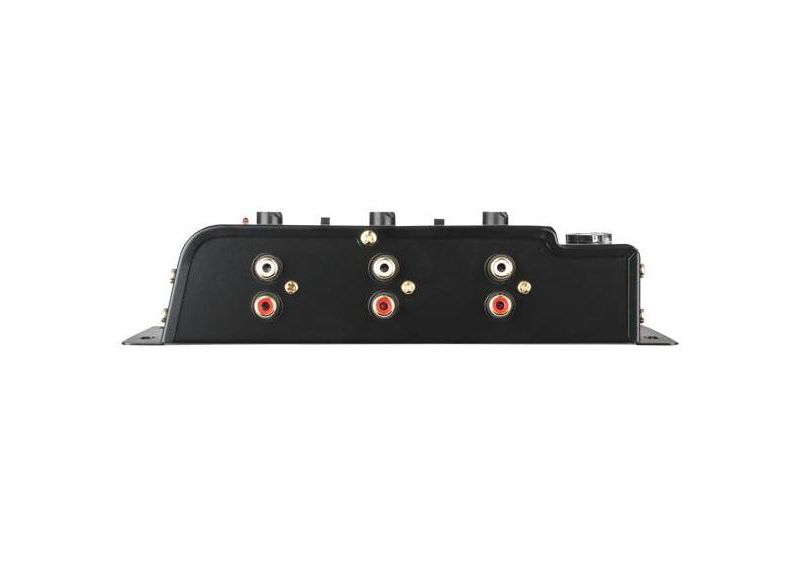

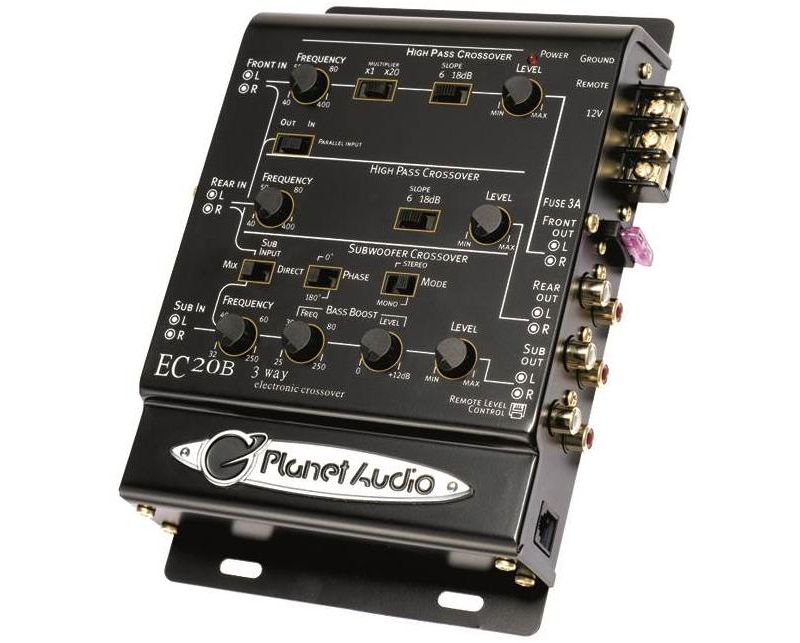

View larger How A Crossover Is Used The Planet Audio EC20B three-way electronic crossover is a high-fidelity signal processor that allows you to customize the low level output of your input source (a car radio), so that the signal can be applied to an amplifier or amplifiers as a part of a two-way or three-way mobile audio system. It is intended for use in a car audio system which includes amplifiers in the signal path after the crossover, and provides front, rear, and subwoofer low level outputs via RCA connectors. Parallel Input Selection The EC20B is optimized for head units which provide outputs for Front (UR), Rear (UR), and Subwoofer (UR) channels. But what if your head unit only provides a single pair of stereo (UR) outputs? By setting the Parallel Input selector control to Out, the signal applied to the Front (UR) EC20B inputs will also be routed to the Rear channel. This eliminates the need for external Y-adaptors, which can sometimes add noise to the system. Now you can provide custom processing to the Rear channel independent of the settings you apply to the front. Specifications Crossover center frequency ranges: Front (high pass) - 40-400Hz or 800Hz-8kHz; Rear (high pass) - 40-400Hz; Subwoofer (low pass) - 32-250Hz Crossover slope, front and rear: selectable 6d8/octave or 18d8/octave Crossover slope, sub channel: 18dB/octave Bass Boost center frequency range: 25-250Hz Bass Boost level adjustment: 0-+12dB Signal-to-Noise Ratio: 110dB THD: 0. 01% Channel separation: 80dB Input impedance: 20kOhms Output impedance: 100 Ohms Output gain: 1:2 (+6dB) Power supply: PWM type Output voltage: 8V maximum1 Dimensions (W x D x H): 5-1/8" x 8-1/4" x 1-3/4" Front Channel Crossover Multiplier By providing a way for you to select a frequency from either a Mids/Highs range or a Tweeter range for the Front channel crossover, we give you the choice to use this crossover in different applications. For example, you can use the Front channel as a stereo Tweeter channel by setting the Crossover Frequency Multiplier to the higher 800Hz-8kHz range, and Rear channel can serve as the Mids/Highs channel, for a three-way stereo system. Or you could create a four-channel system, with Front and Rear channels reproducing the Mids/Highs. Subwoofer Input Mix Option Many head units also lack a subwoofer channel output. In this situation, by setting the Sub Input control to Mix, the EC20B sub channel controls will be delivered a mix of L Front/Rear to the Subwoofer Left Channel and a mix of the R Front Rear to the Subwoofer Right channel. This eliminates the need for external Y adaptors and mixer devices. Input, Output, Remote, and Power ConnectionsView larger Input, Output, Remote, And Power Connections Power LED Front And Rear L/R Inputs: Connect the outputs of your head units to these connections and be sure to place the Parallel Input selector in the In position. Parallel Input Selector: If your audio source only has one pair of RCA inputs, placing this switch in the Out position allows the signal source connected to the front inputs to also be routed to the rear channel of the EC20B. Sub Input Source Selector: If your audio source lacks a subwoofer chann

planet audio ec20b 3way electronic crossover with remote subwoofer control

$ 103 ~~$ 105~~ 1% Off

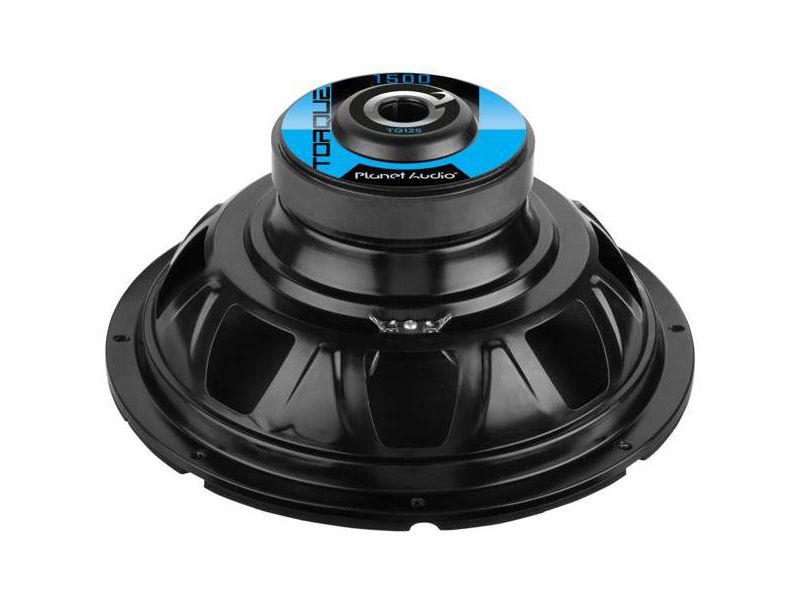

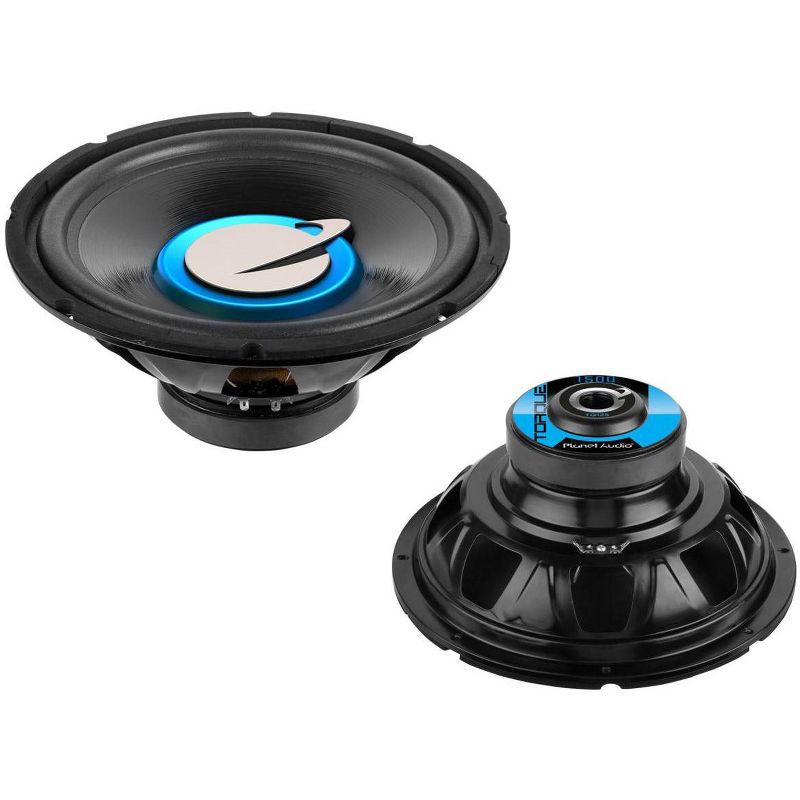

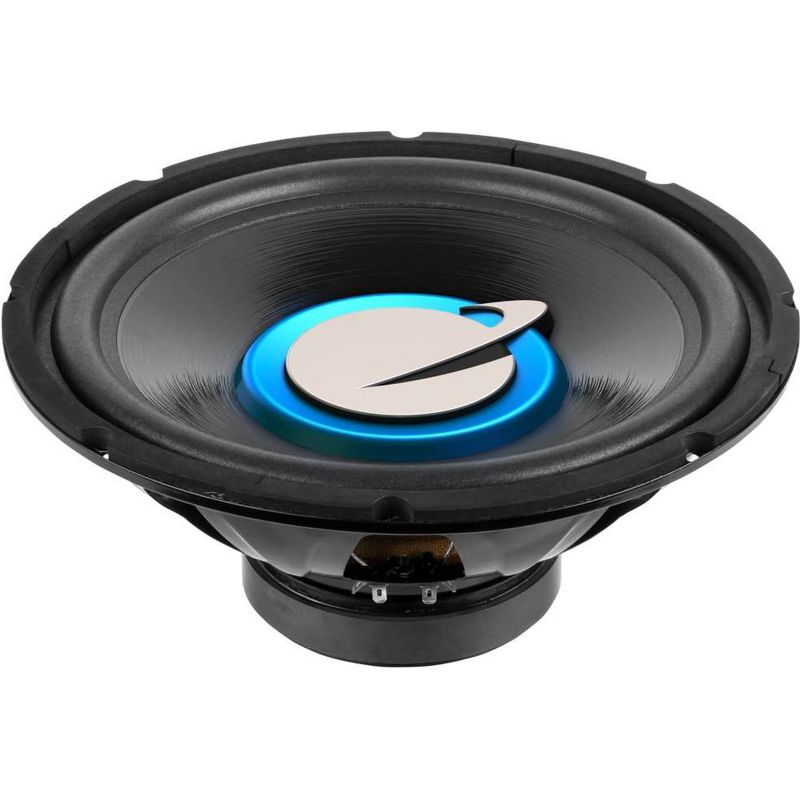

Planet Audio TQ12S 12-Inch Single 4-Ohm Voice Coil Subwoofer - Set of 1

$ 83 ~~$ 84~~ 1% Off

CK1 Cleaning Kit T Cards and Pen for Pronto printer

$ 27 ~~$ 27~~ 2% Off

8K Displayport Cable 14 33ft DisplayPort to DisplayPort Cable DP to DP Cable Gold Plated with 8K60Hz 4K144Hz 2K165Hz Video Resolution amp HDR Support 1M Black

$ 16 ~~$ 16~~ 1% Off

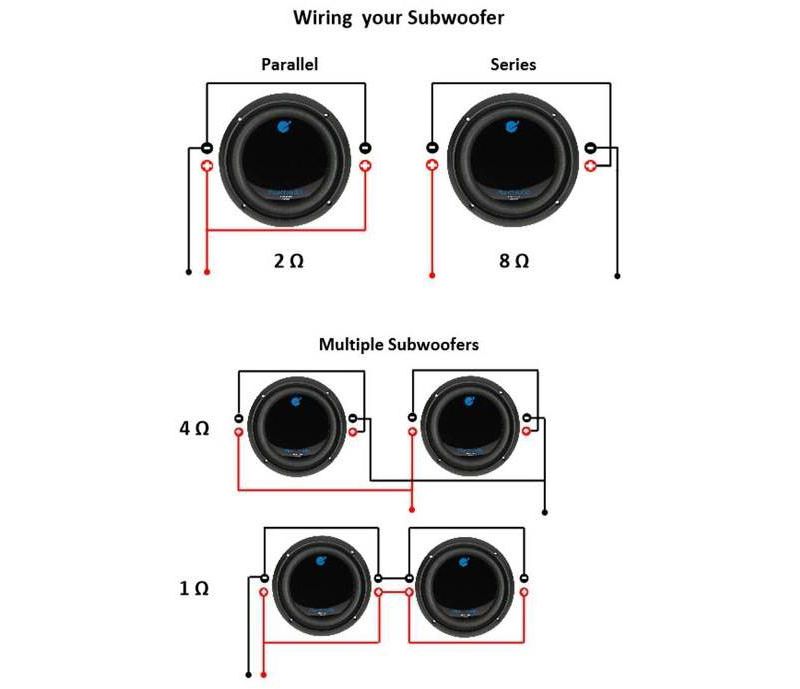

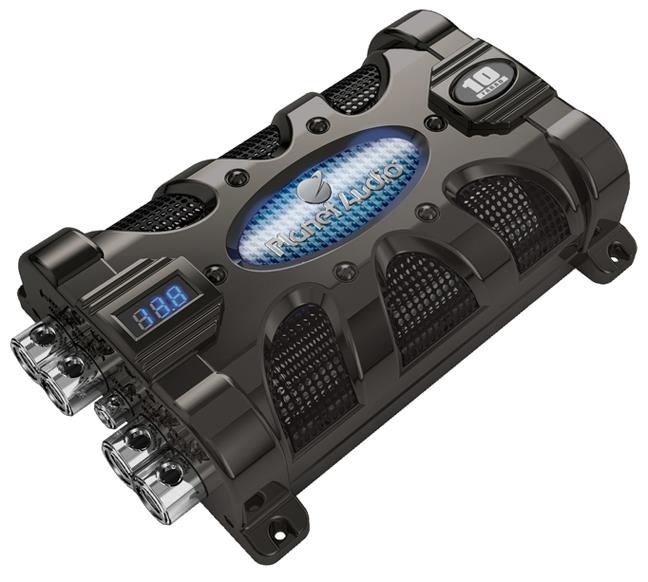

Wiring DiagramView larger What Is A Capacitor? A capacitor is a passive two terminal electrical component (a component that consumes but does not produce energy). In building a sound system for your car, you would want to use a capacitor for a couple of different reasons. Why Do I need One? The main reason a capacitor is recommended is for power reserve. The capacitor stores energy and releases it very quickly to the amplifier(s). How does this help? Its very simple: Music is dynamic, no matter what type you listen to. The dynamics in musical content can very quickly transition from soft voices to thundering bass notes. These moments are where the benefit of having a capacitor is heard. The amplifier requires a constant amount of steady power to function efficiently and power the speakers. A capacitor will keep the power going to the amplifier consistent and stabilized, which means a better sounding system. Important: The remote output of the head unit is connected to the remote turn on of the capacitor. The capacitor will not function if the remote wire is not connected to your head unit.Specifications Three digit, spuer bright blue LED voltage meterVoltage measurement accurate to +/- 0.1VDCBlue illuminated windowWarning tones for the following conditions: Reverse polarity connection, over voltage limit (above 17VDC), and low battery voltage (below 10VDC)Capacitance (microfarads): 10,000,000Working voltage: 16VCDSurge voltage: 24VDCESR (equivalent series resistance): 0.015 Ohm @ 120Hz/25CCapacitance tolerance: +/- 10%Dimensions: 9-5/16 x 7-/16 x 2-11/16 Charging The CapacitorView larger Charging The Capacitor First, make sure that all the connections according to the diagrams in the instruction manual are correct. Pick up the cable coming from the positive (+) battery terminal. Place the supplied charging resistor between the end of this cable and the positive terminal of the capacitor. The capacitor will begin charging. Charging generally takes five to 60 seconds. During charging, the voltage shown in the three digit display will rise rapidly, then slow as it approaches the voltage of your vehicles battery. When fully charged, the display voltage will stop rising. If you have a voltmeter, you can first measure the voltage of your car battery. Then you will know with accuracy that the capacitor is fully charged. Caution: During charging, the resistor will become hot. This is normal, but exercise caution during the charging process. After charging is complete, remove the resistor from the incoming positive cable, and immediately connect it to the positive terminal of the capacitor. UPC NO:086009227082 SKU:ADIB003EJ5ZUE
