RDL D-PSP1AF Decora-Style Active Loudspeaker - Format-A,WHITE
Features: Exceptional Audio Quality for Ultra-Compact Size 2 Watt RMS Audio Amplifier Compressor/Limiter Prevents Clipping Connects to Format-A Sender using Twisted-Pair Cable Powered from RDL Twisted Pair Format-A Sender Gain Set by the Installer Acoustically Optimized Decora Enclosure Fidelity Comparable to Larger Drivers Hemispherical Dispersion Mounted In Wall or Flat Surface
RDL DB-SP1A 2 W RMS - 10 W PMPO Speaker - Black
RDL DB-SP1A 2 Watt Decora-Style 8 Ohm Loudspeaker Features: Acoustically Optimized Decora Enclosure Fidelity Comparable to Larger Drivers Exceptional Audio Quality for Ultra-Compact Size Rich Presence and Detailed Clarity Hemispherical Dispersion Mounted In Wall or Flat Surface Convex Aluminum Cone with Rubber Surround Neodymium Motor The D SERIES-SP1A is a compact 8 ohm loudspeaker that delivers rich, detailed sound in Decora-compatible wall or chassis mounts. The driver is constructed of materials found in premium larger speakers. The unique steel enclosure provides full baffling in a tightly sealed rigid structure. This produces sonic presence within an extended frequency range expected from larger speakers. Internal filtering rolls off out-of-band frequencies to reduce distortion and increase peak power capability. Dispersion covers a hemispherical area of nearly 180 degrees with the speaker mounted in a wall. The input is connected through a 2-position detachable terminal block on the rear panel. The D SERIES-SP1A operates with a continuous audio input up to 2 watts, making it suited to be driven by speech or music content from amplifiers with a maximum rated power of up to 10 W. Models are available with grills in black (DB-SP1A), white (D-SP1A), gray (DG-SP1A) or stainless steel (DS-SP1A). Specifications Input Power: 2 W RMS (modulation peaks limited to 10 W) Input Connection: Detachable terminal block (14 to 24 AWG) Impedance: 8 Ohms (nominal) Frequency Range: 150 Hz to 20 kHz, nominal Sensitivity: 78 dB (1 W, 1m nominal) Enclosure: Powdercoated steel Grill: Formed perforated steel Dimensions: Height: 4.1 in. 10.4 cm; Depth: 2.07 in. 5.26 cm (with terminal block); Width: 1.72 in. 4.37 cm Mounting: Mounts in US electrical box, RDL international wall boxes WB-, surface mount box SMB-, or desktop chassis' DC- available separately. Mounting Box Minimum Depth: 2 in. 5.08 cm Package Type: Cardboard Box Package Dimensions: 3.625 x 4.625 x 2.125 in Shipping Weight: 0.535 lbs. (D-SP1A, DB-SP1A); 0.525 lbs. (DS-SP1A) WEEE weight: 0.390 lbs. (D-SP1A, DB-SP1A); 0.380 lbs. (DS-SP1A) Tariff code: 8518.21.0000
Radio Design Labs (RDL) - STMLDA3 - Ultra Low-Noise Microphone Preamplifier (1 mic in w/phntm; 3 bal/unbal line out,
Input: 1.2 k & #937; balanced Outputs (3): +4 dBu, 150 & #937; balanced Gain: 40 to 60 dB (25 turn adjustable) Frequency Response: 30 Hz to 20 kHz (+/- 0.2 dB)THD+N:
Radio Design Labs FP-RRA Rack Adapter Flat-Pak Series - 19 in. Fixed
FLAT-PAK modules slide into FP-RRA mounting track 2 RU.Modules lock into position with optional FP-CT1.
RU-FP1 RADIO DESIGN LAB-Z RDO DSGN RK FLR PNL/RVS MNT KT
RU-FP1 RL-RUFP1 RADIO DESIGN LAB-Z RDO DSGN RK FLR PNL/RVS MNT KT
RDL DTB STICK-ON-amp;reg; Series Detachable Terminal Block
Package Type: ENVELOPEShipping Weight: 0.1 lbsTariff code: 8536.69. 5050
Decora-Style Active Loudspeaker/Format-A/Stainless Steel
The D SERIES-PSP1A is a compact active loudspeaker that delivers rich, detailed sound in Decora-compatible wall or chassis mounts. It is a single-pair audio amplifier module compatible with RDL Format A twisted pair products. The PSP1A receives audio and 24 Vdc power through a rear-panel RJ45 jack. A rear-panel switch set during installation determines which of the three FORMAT-A pairs is amplified. Amplification is provided by a high-efficiency Class D power stage with audio filtering tailored for crisp, pleasant audio clarity. The high-efficiency Class D output stage produces negligible heat for all levels of expected voice or music modulation. The amplified output level is controlled by a front-panel volume control. The PSP1A includes an analog compressor/limiter that makes higher average sound output levels possible without clipping. The driver is constructed of materials found in premium larger speakers. The unique steel enclosure provides full baffling in a tightly sealed rigid structure. This produces sonic presence within an extended frequency range expected from larger speakers. Internal filtering rolls off out-of-band frequencies to reduce distortion and increase peak power capability. Dispersion covers a spherical area of nearly 180 degrees with the speaker mounted in a wall. Models are available with grills in black (DB-PSP1A), white (D-PSP1A), gray (DG-PSP1A) or stainless steel (DS-PSP1A). Features Exceptional Audio Quality for Ultra-Compact Size 2 Watt RMS Audio Amplifier Compressor/Limiter Prevents Clipping Connects to Format-A Sender using Twisted-Pair Cable Powered from RDL Twisted Pair Format-A Sender Front-Panel Gain Adjustment Acoustically Optimized Decora Enclosure Fidelity Comparable to Larger Drivers Hemispherical Dispersion Mounted In Wall or Flat Surface
Decora-Style Active Loudspeaker/Stainless Steel
The D SERIES-PSP1 is a compact active loudspeaker that delivers rich, detailed sound in Decora-compatible wall or chassis mounts. The input accepts either a -10 dBV unbalanced or a +4 dBu balanced signal on the rear-panel detachable terminal block. Amplification is provided by a high-efficiency Class D power stage with audio filtering tailored for crisp, pleasant audio clarity. The high-efficiency Class D output stage produces negligible heat for all levels of expected voice or music modulation. The amplified output level is controlled by a front-panel volume control. The PSP1 includes an analog compressor/limiter that makes higher average sound output levels possible without clipping. The driver is constructed of materials found in premium larger speakers. The unique steel enclosure provides full baffling in a tightly sealed rigid structure. This produces sonic presence within an extended frequency range expected from larger speakers. Internal filtering rolls off out-of-band frequencies to reduce distortion and increase peak power capability. Dispersion covers a spherical area of nearly 180 degrees with the speaker mounted in a wall. Models are available with grills in black (DB-PSP1), white (D-PSP1), gray (DG-PSP1) or stainless steel (DS-PSP1). Features Exceptional Audio Quality for Ultra-Compact Size 2 Watt RMS Audio Amplifier Compressor/Limiter Prevents Clipping Balanced +4 dBu Input on the Rear Panel Unbalanced -10 dBV input on the Rear Panel Front-Panel Gain Adjustment Acoustically Optimized Decora Enclosure Fidelity Comparable to Larger Drivers Hemispherical Dispersion Mounted In Wall or Flat Surface
1 Watt Music On Hold Amplifier
Input: Unbalanced via standard phono jack Input Level: -10 dBV nominal Gain: -10 dB to +25 dB (adjustable) Frequency Response: Tailored to phone systems within 20 Hz to 20 kHz spectrum THD+N: < 0.5 % (1 kHz @ Maximum Output 1 W) < 0.2 % (1 kHz @ +4 dBu)Residual Noise: < -75 dB (referred to 600 & #937; +4 dBu, or to 1 W RMS)Outputs: 1 Balanced @ 600 & #937; to drive transformer inputs 1 Unbalanced adjustable line-level to 1 WPower Requirement: GROUND-REFERENCED, 24 to 33 Vdc @ 150 mAAmbient Operating Environment: 0 C to 50 C
RDL CP-1B Single Cover Plate - Black
RDL CP-1B Single Cover Plate - BlackDescription: For use with RDL SMB-1, DC-1 and WB-1U for mounting RDL remote controls and jack panels. Compatible with Decora style products and American electrical boxes. SpecificationsDimensions: Height: 4.55 in. 11.6 cm; Width: 2.80 in. 7.1 cmPackage Type: BagPackage Dimensions: 2 x 3 in. Shipping Weight: 0.072 lbs.
RDL D-XLR2 XLR XLR 3pin Female & 3pin Male on Decora Wall Plate Solder
Package Type: Cardboard BoxWEEE Weight: 0.13 lbsShipping Weight: 0.18 lbsTariff code: 8536.69. 4030
Radio Design Labs SR-4 Stick-On Series Mounting Rack - 7 Modules
The SR-4 is a universal module chassis that can mount to a backboard, wall or nearly any other support. It provides mounting for 4 STICK-ON power amplifiers or 7 standard STICK-ON modules. TX & #8482; modules may also be mounted. There is ample space for neat wire harnessing. Hole plugs are included to cover unused wiring holes. Four cable entry ports are provided, two on the bottom and one on each side. Each of these ports is designed either for cabling or mounting any AMS accessory. Two rear mounting holes in the SR-4 align with an RDL WB-2U (or standard double US electrical box) for wall mount installations with rear wire entry.
Radio Design Labs FP-RRAH Rack Adapter Flat-Pak Series - 19 in. Hinged
FP-RRAH hinged panel provides easy module access
DS-XLR3F RADIO DESIGN LAB-Z XLR 3-PIN FEMALE JACK ON D PLT
Radio Design Labs DS-XLR3F XLR 3-pin Female Jack on Decora Wall Plate - Solder type - Stainless steel Package Type: Cardboard Box WEEE Weight: 0.1 lbs Shipping Weight: 0.15 lbs Tariff code: 8536.69.4030
PT-AMG2 RADIO DESIGN LAB-Z PRTBL AUD SIGL GENRTRW/MONITR
PT-AMG2 RL-PTAMG2 RADIO DESIGN LAB-Z PRTBL AUD SIGL GENRTRW/MONITR
STCL2 RADIO DESIGN LAB-Z COMPRESSOR/LIMITER-LINE LEVEL
Input:10 k & Omega; Balanced (may be connected unbalanced)Input Signal Range:-10 to +4 dBu, adjustable (for 6 dB gain reduction); +22 dBu maximumOutput:150 & Omega; Balanced (may be connected unbalanced)Output Signal Range:OFF to +8 dBu, adjustableFrequency Response:10 Hz to 20 kHz (+/- 0.2 dB) over full compression rangeNoise below +4 dBu output:< -78 dB (unweighted; +4 dBu input/output)Total Harmonic Distortion:< 0.05% @ 1 kHz below compression threshold; < 0.1% @ 1 kHz with 3 dB gain reduction; < 0.15% @ 1 kHz with 6 dB gain reductionCMRR: 60dB (50 to 100 Hz)Attack Time:Averaging Compressor: 500 ms (+4 dBu input); Fast Compression:
2 Channel Unbalanced to Balanced Converter
The FP-UBC2 is the ideal choice for connectorized conversion from unbalanced to balanced audio. This module features two identical channels. Gold-plated phono jacks are utilized for each unbalanced input channel. Each output is balanced, connected through an XLR jack. A gain trim potentiometer is provided for each channel. The normal gain setting is indicated for the trimming potentiometer. This setting produces a +4 dBu balanced output for a -10 dBV unbalanced input. The gain is adjustable -5 dB to +10 dB from the normal gain. Therefore, a +4 dBu output signal is possible from input signals ranging from -20 dBV to -5 dBV. Features: Stereo Unbalanced to Balanced Audio Conversion Connectorized Audio Converter Output Level Trim Low-Noise and Low-Distortion Conversion Cabinet, Shelf or Rack Mounting Convenience of RDL FLAT-PAKs
Audio Selector for SourceFlex Distributed Audio System/Black
The D SERIES-SFRC8L Audio Selector is a SourceFlex module for wall mounting in a room, providing source selection from up to 8 audio sources. A numeric display shows the selected source. There are two line-level audio outputs on the rear of the unit, balanced and unbalanced, to feed an external power amplifier. The balanced line output level is +4 dBu nominal. The unbalanced output is -10 dBV. The D SERIES-SFRC8L is designed to be mounted in a wall box. Wiring is connected through a rear-panel detachable terminal block. The -SFRC8L is ideal for office distributed sound systems with background music and a paging source. Features Single Room Listening Station with In-Wall Controls Source Selection Pushbutton Selection From up to 8 Audio Sources Line-Level Audio Output Mounts In Wall Using US Single Gang Electrical Box or RDL? WB-1U Compatible with Other RDL Wall Plates and Controls Ideal for Office Distributed Sound Systems with Music and Paging
Remote Level Controller/Preset Levels/stainless steel
The DS-RLC3 is designed to directly interface with RDL? control modules which feature a 0 to 10 Vdc control input utilizing an external 10 k? resistive control, such as the ST-VCA3, RU-VCA2A and RU-VA6A voltage controlled amplifiers. The DS-RLC3 has four momentary pushbuttons, each corresponding to one of four levels selected. In a typical installation, the DS-RLC3 is wired to an RDL VCA. The DS-RLC3 runs from the same power supply as the VCA. When power is applied, the DS-RLC3 defaults to the?NORM?level. One higher level,?HIGH, and two lower levels,?LOW?and?MIN, are then available for selection. When the DB-RLC3 is set to the?HIGHposition, the VCA is at maximum gain. The?NORM,?LOW, and?MIN?levels are each adjustable by the installer using trimpots on each side of the DS-RLC3?s body. Once installed, the adjustments are concealed from the user. Features Remote Selection of Preset Audio Levels Pushbutton Level Selection 4 Selectable System Levels, or 3 Levels Plus Off LED Indication (Green) Premium-Quality Remote Panel Professional Aesthetic Appearance
4 Channel Remote Control for RU-ASX4D and RU-ASX4DR
Radio Design Labs D-RC4M 4 Channel Remote Control Features: Remote Selection of 4 Sources Single-Button Selection for Each Source LED IndicatioN Single or Multiple Control Locations Up To Ten Remote Control Locations Remote Wiring Using Six Conductors or UTP Cable (CAT5, CAT6) Display is Bright During Adjustment Display Dims After Adjustment Professional Aesthetic Appearance Companion to other RDL Remote Controls Available in Stainless Steel, Black and White The D SERIES-RC4M is a remote control that provides source selection at single or multiple locations. The -RC4M is designed to directly connect to an RDL 4-channel switching module controlled by external momentary pushbuttons. The front panel of the -RC4M features four pushbuttons, each corresponding to one of four inputs. An LED adjacent to each button shows which source is selected. When an -RC4M is not being used, its display switches to a dim intensity to avoid being a visual distraction. The display returns to a bright intensity when a button is pushed. In a typical installation, the -RC4M is wired to an RDL selector module, such as an RU-ASX4D or RU-ASX4DR. As many as nine additional -RC4M controls may be wired in parallel using UTP cable (CAT5, CAT6 or equivalent). The -RC4M operates from the same power supply as the selector. The -RC4M remote controls are constructed on a steel frame. The electronics are fully protected within the rear enclosure. Connections are made through a rear panel detachable terminal block. All the D SERIES-RC4M features combine to make it the ideal choice for single point or multiple location remote source selection in high quality systems. Use them with RDL source selection modules, or side-by-side with other RDL remote accessories as part of a complete audio/video system.
Remote Control for RCX-5C Room Combiner with key lock
The RCX system is an engineered room combining system confi gured from a variety of related products. RCX-CD1L Control and Display Panel: The RCX-CD1L is an RCX-CD1 with a keylock to prevent selecting room combinations. The room combination display operates with the keylock is in either the LOCKED or UNLOCKED position. Features Semi-custom design shows room layout Visual button layout for easy training and operation Remote control panel for RCX-5C controller Rack mounts, or wall mounts with optional bezel Optional key switch available to lock out controls (RCX-CD1L)

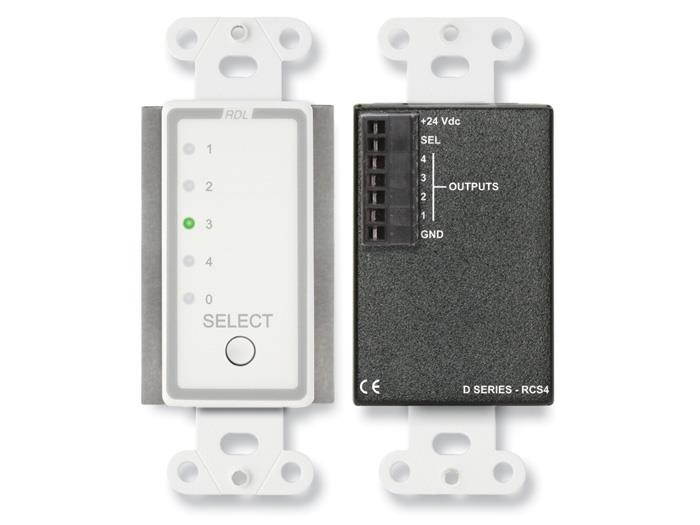

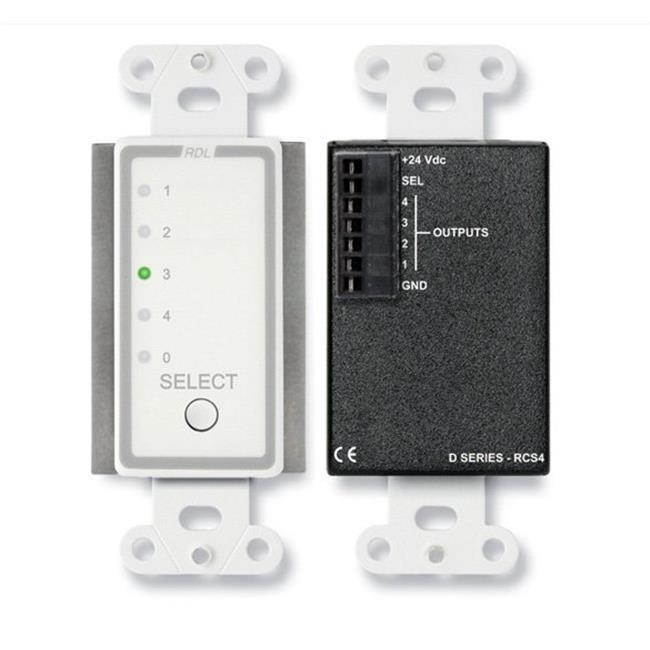

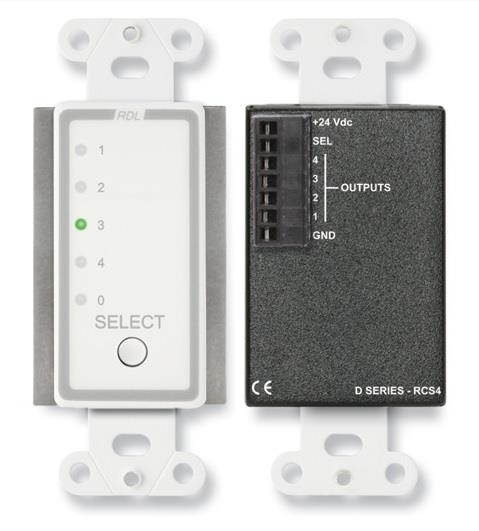

Remote Channel Selector - 4 Channels - controls RU-ASX4D/R
Features: Remote Control for RDL RU-SX4A Audio Selector Remote Source Selection Panel Visual Display of the Selected Source Multiple Control / Indication Locations Premium-Quality Remote Panel Professional Aesthetic Appearance

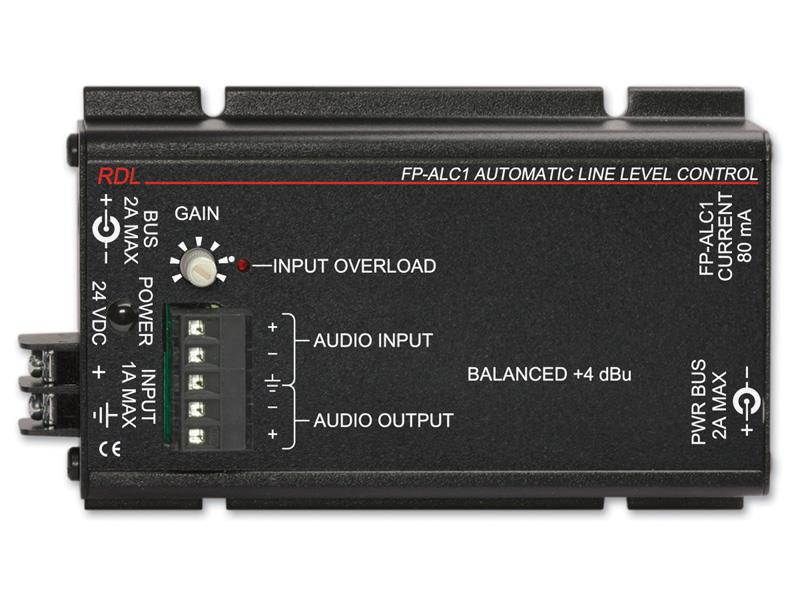

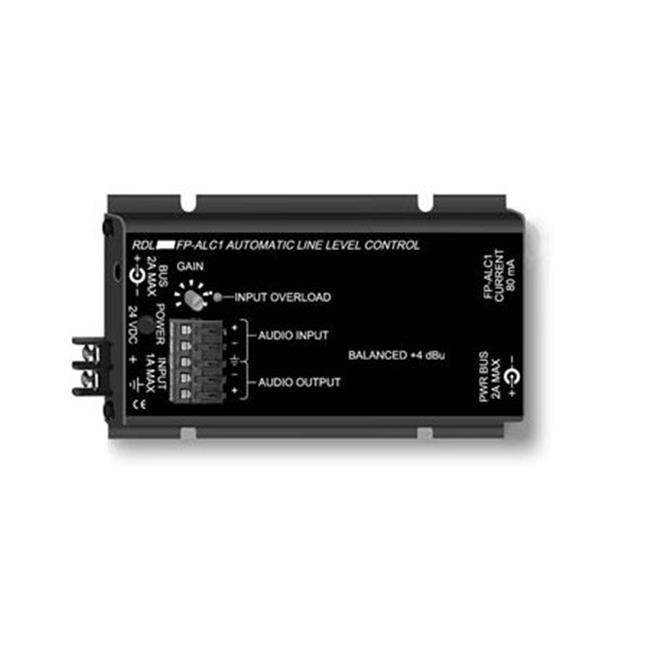

Automatic Level Control/Mono Terminal block
Input:10 k & #937; balanced bridging (may be connected unbalanced)Input Level:+4 dBu (nominal)Output:150 & #937; balanced (may be connected unbalanced)Output Level:+4 dBuAutomatic Level Range:-16 to +14 dBuGate Threshold:-18 dBu (20 Hz to 3 kHz)Frequency Response (excluding AGC):20 Hz to 20 kHz (+/- 0.75 dB)THD+N (excluding AGC):< 0.15% (20 Hz to 20 kHz)Noise:< -90 dB (below +4 dBu output)Headroom: 18 dBIndicator (1):INPUT OVERLOADPower Requirement:GROUND-REFERENCED, 24 Vdc @ 80 mAOverall Dimensions:Height:1.42 in. 3.61 cmWidth:3.25 in. 8.26 cmLength:5.75 in. 14.61 cmAmbient Operating Environment:0 C to 55 C

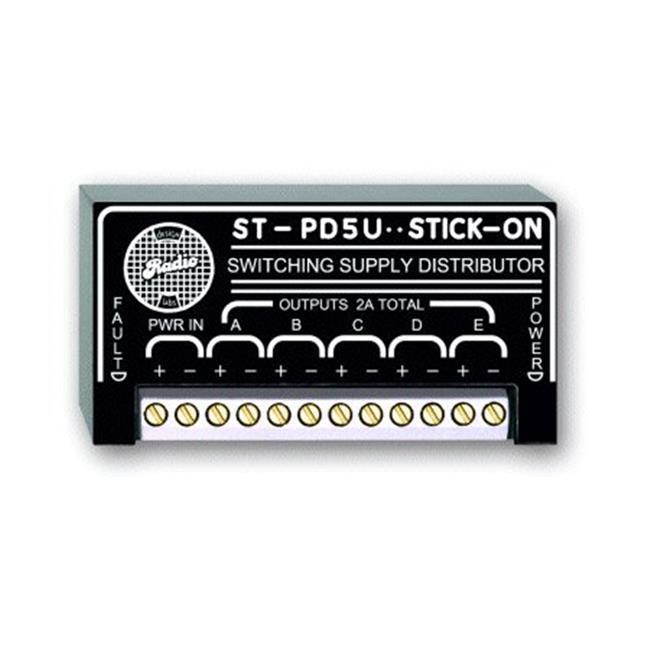

Radio Design Labs ST-PD5U Power Distributor Switching - PS-24V2-A
Input/Output Voltage: 24 Vdc @ 2 A (Intended for use with current limited switching supply) Number of Outputs (5): Total load current must not exceed 2 AIndicators (2): POWER LED FAULT LEDAmbient Operating Environment: 0 C to 50 C
Radio Design Labs ACB-1 Jack Box - Stereo Headphone
Dimensions:0.875 in. x 1.125 in. x 2.25 in. (2.2 cm x 2.9 cm x 5.7 cm)
3.5 Watt Decora Audio Amplifier/Black
The D SERIES-PA3 is a high efficiency 3.5 W power amplifier with two line inputs and an amplified output to drive a 4 or 8 ohm speaker. The -PA3 features a balanced line level input that may be connected unbalanced. The gain range will accommodate standard unbalanced levels as well as professional balanced levels. The amplifier features a stereo Mini-Jack input on the front panel. The input is designed to receive standard -10 dBV consumer level signals from sources such as a computer or personal media player. The left and right audio signals received on the Mini-Jack are summed to mono and amplified. When a source is connected, the rear-panel input is switched off. The amplified output level is controlled by a front-panel volume control. A recessed slide switch on the side of the chassis is set during installation. This switch determines the sensitivity of the balanced rear-panel input. Amplification is provided by a high-efficiency Class D power stage with audio filtering tailored for crisp, pleasant audio clarity. The high-efficiency Class D output stage produces negligible heat for all levels of expected voice or music modulation. The D SERIES-PA3 is designed to be mounted in a wall box. The front panel does not include any illuminated indicators, making the -PA3 ideally suited to installation in dark rooms or areas. Wiring is connected through a rear-panel detachable terminal block. Module operation is from a 24 Vdc ground-referenced power supply. Features Wall-Mounted Amplifier with 2 Inputs Balanced Input on the Rear Panel Mini-Jack Input on the Front Panel Automatic Switching Between Inputs Source Selection Using Solid-State Switching Front-Panel Gain Adjustment 3.5 Watt RMS Audio Amplifier into 8 Ohms 6.5 Watt RMS Audio Amplifier into 4 Ohms Output Drives 4 or 8 Ohm Speaker Speaker Output on the Rear Panel High-Efficiency Class D Operation Speaker Output Connection on Detachable Terminal Block Ultra-Compact All Metal Construction Thermal and Short-Circuit Protection
18 W High Ambient Temperature Audio Power Amplifier w Power Supply
Input:Line level (+4 dBu nominal balanced; 10 dBV nominal unbalanced)Input Impedance:10 k & #937; balanced bridging; 5 k & #937; unbalancedGain Adjustment:Single turn audio taperMinimum Input Levels:Balanced: 18 dBu (to cross compressor threshold) Unbalanced: 20 dBV (to cross compressor threshold)Maximum Input Levels:Balanced: +23 dBu Unbalanced: +21 dBVFrequency Response:20 Hz to 20 kHz (+/ 1 dB)*THD+N:< 0.5% (20 Hz to 20 kHz)*Compressor:Threshold 3 dB below rated output, automatically adjusting attack and release timesCMRR: 45 dB (50 Hz to 3 kHz)Noise:< 72 dB (below 18 W RMS, +4 dBu input)Output Power:18 W RMS into 8 & #937;Output Circuit:Class DOutput Signal Detector Threshold:30 mW @ 20 Hz; 20 mW @ 30 Hz; 10 mW @ 50 Hz; 5 mW @ 65 Hz through 20 kHzOutput Signal Detector Output:Open collector, 5 mAAmbient Operating Environment:0?? C to 70?? C MaximumIndicators (3):Red LED: COMP LED indicates compressor activity Green LED: OUTPUT ACTIVE (controlled by output signal detector) Blue LED: POWER on24 Vdc power supply current:80 mA (idle), 975 mA (max.), Ground referencedPower Supply (included):100 to 240 Vac, 5060 Hz, 1A max.; 24 Vdc output to moduleDimensions:Height: 1.15 in.(2.92 cm); Width: 3.25 in.(8.26 cm); Length: 3 in.(7.62 cm)

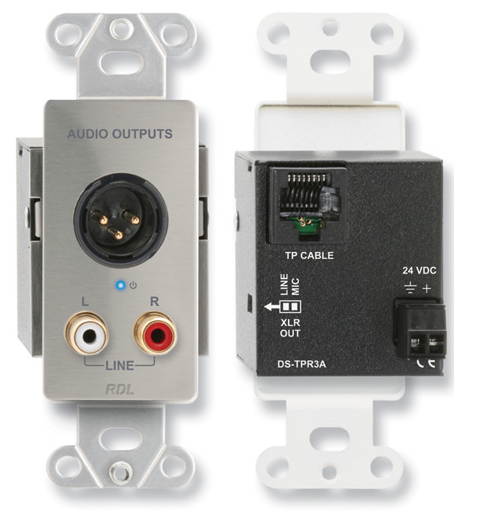

Radio Design Labs (RDL) - DSTPR3A - Active Three-Pair (XLR Mic Stereo Phono) Twisted Pair Format-A Receiver (Stainless
Input:RDL FORMAT-AInput Connection:RJ45 (Models D-, DS-, AF-); Detachable Terminal Block (Model EM-)Format-A Signal Pairs Used (3):A, B, COutputs (3):150 & Omega; balanced; 100 & Omega; unbalancedOutput Connection:XLR (balanced Mic or Line); RCA Phono Jack (2)Output Level:XLR: -45 dBu Mic or +4 dBu Line Level, Switch-selectable on rear panel; RCA phono: -10 dBVFrequency Response:10 Hz to 50 kHz (+/- 0.1 dB)THD+N:< 0.005%Noise below +4 dBu:< -90 dBCrosstalk:< 90 dB (1 kHz); < 75 dB (20 Hz to 20 kHz)Headroom above +4 dBu: 18 dBCMRR: 80 dB (50 Hz to 150 Hz)Indicator:Power InPower Connections (2):Detachable terminal block; RJ45Power Requirement:24 Vdc @ 45 mA plus connected loadsDimensions:EM-TPR3A: 1.77" (45 mm) W and H; 1.93" (4.9 cm) DD-, DS-TPR3A: 1.6" (4.06 cm) W; 4.11" (10.45 cm) H; 1.89" (4.8 cm) DAF-TPR3A: 2.22" (5.64 cm) W; 2.77" (7.04 cm) H; 1.89" (4.8 cm) DMounting Box Minimum Depth:2.4" (Models D-, DS-, AF-); 39 mm (Model EM-)Ambient Operating Environment:0 C to 55 C

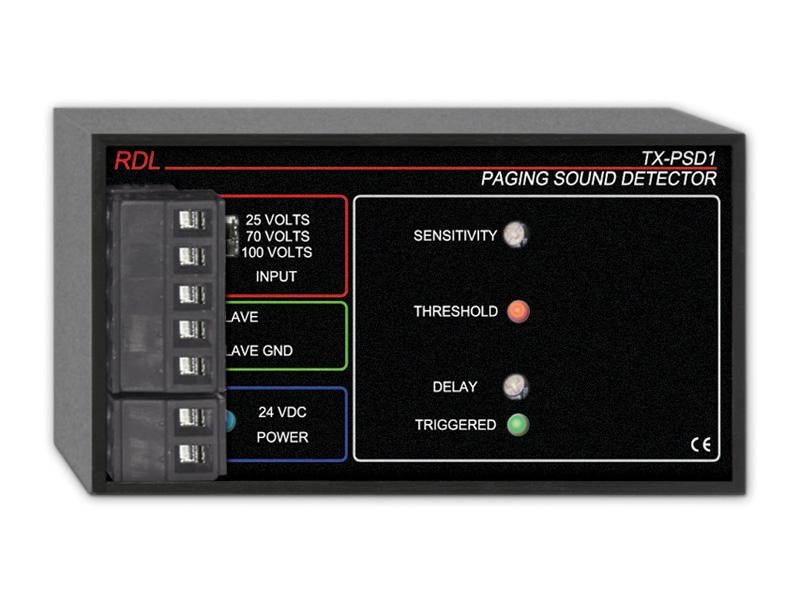

TX-PSD1 RADIO DESIGN LAB-Z PAGING SOUND DETECTOR
Audio Input:Constant-voltage speaker line, transformer-coupled Input Level:Switch-selectable 25 V, 70 V, 100 V Detection Bandwidth:120 Hz to 7.5 kHz (-3 dB) Trigger Threshold:-40 dB to -15 dB (below 25 V, 70 V or 100 V), adjustable (single turn) Release Delay:3 seconds to 25 seconds, adjustable (single turn) Control Output:Open collector @ 25 mA (SLAVE terminal) Indicators (3):Power (blue LED), Threshold (red LED), Triggered (green LED) Power Requirement:24 to 33 Vdc @ 20 mA*, Ground referenced *plus load current connected to SLAVE output
Radio Design Labs (RDL) - STMX2 - RDL 2 Channel Audio Mixer - Microphone or Line Input and Output
The ST-MX2 is used in any application requiring mixing of two audio sources. A mic may be mixed with a line-level music source. Two mics may be mixed to feed the mic or line level input of a power amplifier. A mic or professional +4 dBu line-level mono sum is possible. It may be used to convert mono line-level signals from consumer to professional, or from professional to consumer format. It may also be used as a microphone preamplifier, or conversely to adapt unbalanced or balanced line-level signals into the microphone input of other equipment. Required Power Supply RDL PS24V Sold Separately Features: Two Input Audio Mixer Selectable Mic or Line Level Inputs Simultaneous Mic and Line Outputs Add Additional Inputs to an Existing Mixer Audio Output Dual-LED VU Metering Balanced or Unbalanced Inputs and Outputs Low-Noise and Low-Distortion Performance Learn More About the RDL _DELETE_

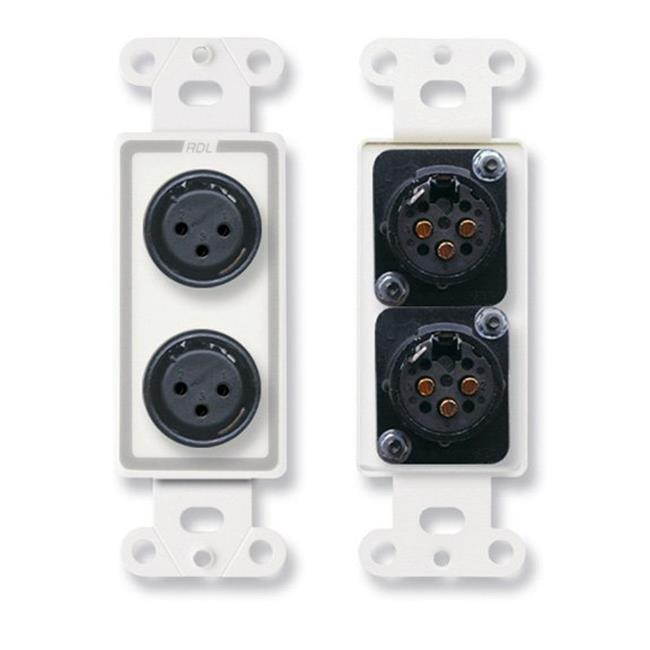

D-XLR2F RADIO DESIGN LAB-Z DUAL XLR 3PIN FML JACKS D PLAT
Radio Design Labs D-XLR2F Dual XLR 3? pin Female Jacks on Decora Wall Plate? Solder type

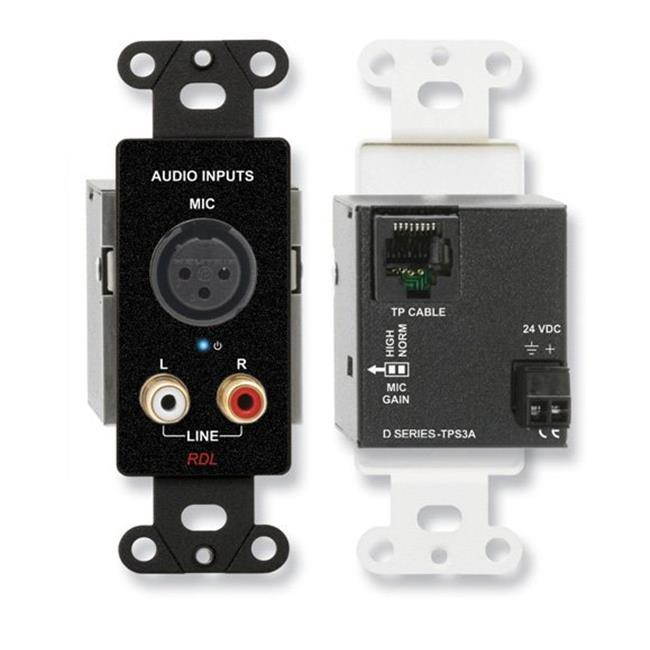

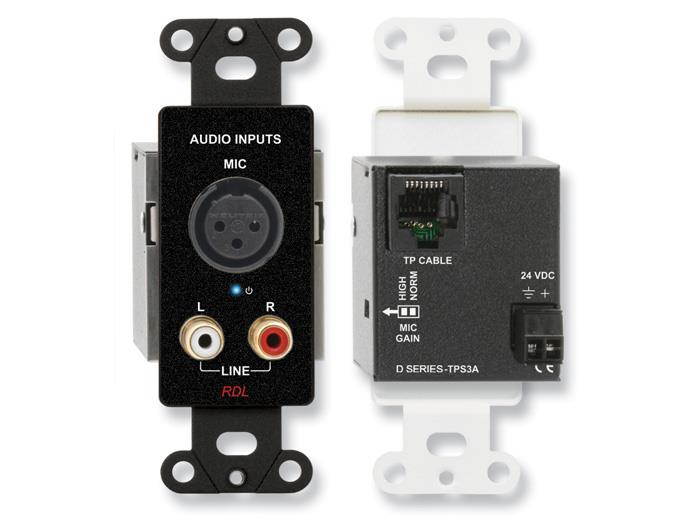

Active 3-Pair Extender (Tx)/Format-A/XLR mic/stereo phono in/Black
The D SERIES-TPS3A modules are three-pair audio sending modules compatible with RDL Format-A twisted pair products. These modules are designed to be mounted in wall boxes, cabinets or other enclosures that allow users to connect audio sources. The -TPS3A models mount in RDL WB-1U and WB-2U wall boxes, or in standard U.S. electrical boxes. The D-TPS3A features a white front-panel laminate with gray lettering that matches RDL Decora?-style remote controls. The DB-TPS3A features a black front-panel laminate. The DS-TPS3A is constructed of stainless steel to coordinate with RDL Decora-style stainless steel remote controls in commercial/industrial installations. APPLICATION: The D SERIES-TPS3A modules features an XLR microphone input and two RCA phono jack inputs, one for the left channel source and one for the right channel source. The unbalanced inputs are designed to receive standard -10 dBV consumer level signals. The microphone input provides 24 Vdc IEC phantom voltage and accepts both dynamic and condenser microphone signals. The input signals are amplified using studio-quality preamplifiers optimized for normal operating levels. A rear-panel GAIN switch is provided to set the amplification of the microphone preamplifier. This switch is normally set by the installer for NORM (normal) gain. If consistently low mic levels are expected, this switch may be set to the HIGH gain position. The pre-amplified microphone source is routed to pair A. The buffered left and right line-level inputs are routed to output cable pairs B and C. These modules drive all three FORMAT-A cable pairs, so they are not equipped to receive inputs from other sender modules. The D SERIES-TPS3A may not be connected together with any other sending modules. The D SERIES-TPS3A may be powered directly from a 24 Vdc power supply using the rear-panel detachable terminal block. Local power connected to the module is also fed to all connected remote modules. The -TPS3A may be remotely powered through the twisted pair cable from any other module, signal distributor or RDL power inserter connected to the same twisted pair cable. Module power is indicated by a front-panel LED. RDL FORMAT-A features superior audio performance that rivals or exceeds shielded wiring. Design simplicity, ease of installation, unsurpassed flexibility, automatic fused power, exceptional hum rejection, low noise, and low distortion provide designers and installers the optimum choice in economical twisted pair products. Features Balanced Microphone XLR Input with Phantom Switch-Selectable Mic Gain on Rear Panel Two Unbalanced -10 dBV Phono Jack Line Inputs MIC Feeds Pair A; L Feeds Pair B; R Feeds Pair C Remote Powering through Twisted Pair Cable Fused Local Power Feeds all Connected Modules Local Power Input on Terminal Block Blue LED Indicates Module is Powered Utilizes All Three Format-A Pairs Studio-Quality Precision Active Balanced Circuitry
ST-GSP1 RADIO DESIGN LAB-Z GATED SPEECH PRE-AMP
Input Impedance:150 to 600 & #937; balanced, 5 k & #937; unbalancedSwitching Time:10 msOff Delay:2 seconds nominal (may be extended using external capacitor)Control Output:Open-Collector @ 50 mAHeadroom: 18 dB (above +4 dBu)THD+N:< 0.030% (1 kHz)CMRR: 45 dBFrequency Response:15 Hz to 20 kHz (+/- 0.5 dB into 10 k & #937; bridging input)Residual Noise:< -80 dB below +4 dBu unweighted (preamp muted)ON Gain:45 to 65 dB (Adjustable)Power Requirement:GROUND-REFERENCED, 24 to 33 Vdc @ 75 mAAmbient Operating Environment:0 C to 55 C
D-J3 RADIO DESIGN LAB-Z MIC/LINE INPUT ASSEMBLY-XLR,RC
Input Connectors:XLR female with gold contacts (1); Phono jacks with gold contacts (2)Output Connector:Terminal blockOutput Connections (5):Line: +, -, SHIELD; Mic: SHIELD (XLR pin 1), + (XLR pin 2), - (XLR pin 3)Frequency Response (line in):30 Hz to 20 kHz (??1 dB)Power Requirement:PassiveDimensions:Height: 4.13 in. 10.49 cm; Width: 1.7 in. 4.32 cm; Depth: 2.15 in. 5.47 cmMounting Box Req.:Width: 1.80 in. 4.57 cm; Depth: 1.75 in. 4.45 cm

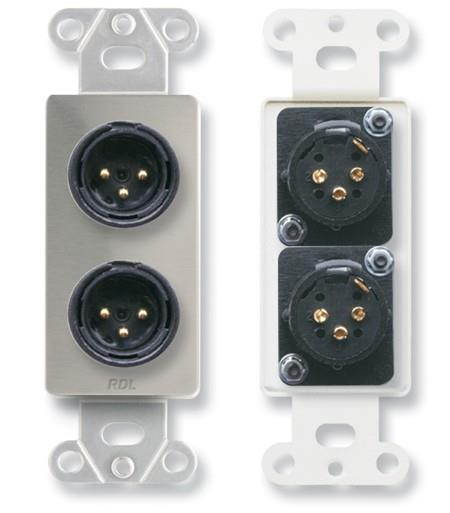

DS-XLR2M RADIO DESIGN LAB-Z DUAL XLR 3 PIN MALE JACKS D PL
Radio Design Labs DS-XLR2M Dual XLR 3-pin Male Jacks on Decora Wall Plate - Solder type - Stainless steel

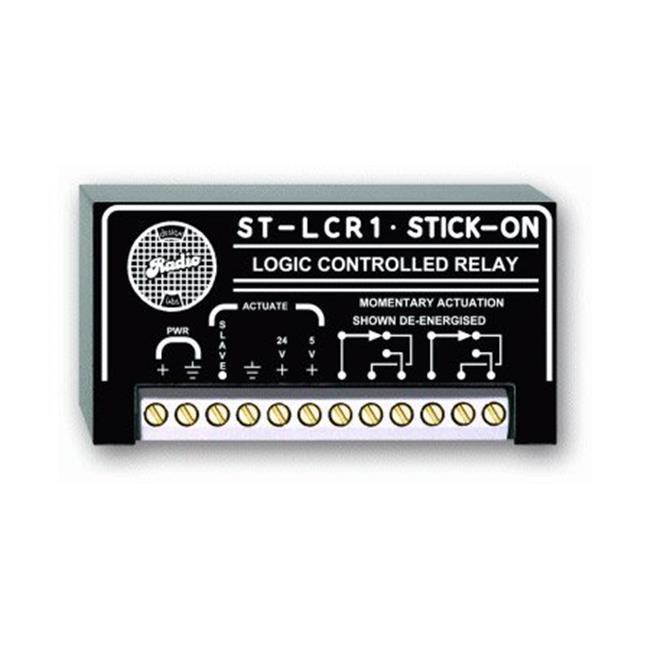

Radio Design Labs ST-LCR1 Logic Controlled Relay - Momentary
Control Inputs: SLAVE terminal used as an input from remote push-button or switch turns on relay when that switch is on. Activation is by connecting this input to Ground. Input from other equipment???s open-collector output turns relay on when open-collector is on. Note: RDL switching STICK-ONs have open-collector outputs suitable for driving an ST-LCR1. 5V+ accepts 3.5 to 12 Vdc to turn on relay. Relay is on only when this control signal is applied. 24V+ accepts 12 to 35 Vdc to turn on relay. Relay is on only when this control signal is applied. Control Output: SLAVE terminal open-collector @ 25 mA suitable to drive indicators or slave LCRs Switching Contacts: Double-pole, double-throw Maximum Switching Power: 60 W (220 Vdc, 125 Vac, 2 A) Power Requirement: GROUND-REFERENCED, 24 to 33 Vdc @ 50 mA * * Assumes 20 mA max load at SLAVE output Ambient Operating Environment: -10C to 55C
RM-MP12A RADIO DESIGN LAB-Z AUDIO MONITOR PANEL,12 CH
Radio Design Labs RM-MP12A Audio Monitor Panel12 Line or Speaker Input Inputs (12): +4 dBu, 25 V, 70.7 V, 100 V (set by rear-panel switches) Input Level: -11 dBu to +9 dBu (+4 dBu input) 25 V, 70.7 V, 100 V (calibrated with gain trim set fully counter-clockwise) Headroom: 18 dB (above calibrated input level) Gain: 0 dB to 20 dB (Adjustable for speaker-level input, 25-turn trim potentiometer) -5 dB to 15 dB (+4 dBu input) Frequency Response: 10 Hz to 20 kHz (+/-0.25 dB) THD+N: < 0.010% (20 Hz to 20 kHz) Intermodulation Distortion: < 0.025% (20 Hz to 20 kHz) Channel to Channel Crosstalk: < -80dB (10Hz to 20 kHz) Residual Noise: < -80 dB (Channel ON; referred to +4 dBu) OFF Attenuation: 80 dB (10 Hz to 20 kHz) Indicators per Channel (2): Red channel active LED above button; Variable intensity audio level LED for each input (minimum intensity at -15 dB, maximum intensity at 0 dB) CMRR: 75 dB (50 to 120 Hz) Outputs (4): 150 Ohms, +4 dBu fixed level (balanced or unbalanced via plug-in terminal block) 150 Ohms, +4 dBu variable level (balanced, controlled by front-panel volume knob) 4.5 W RMS external speaker connection (use of external speaker disconnects internal speaker) 100 mW ??-inch stereo headphone jack Power Requirement: GROUND-REFERENCED, 24 to 33 Vdc @ 700 mA Dimensions: Height: 1.75", 4.40 cm Depth: 5.35". 13.60 cm Ambient Operating Environment: 00 C to 550 C

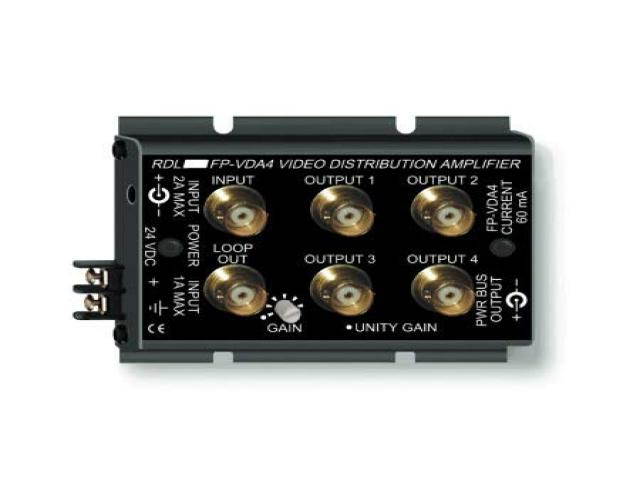

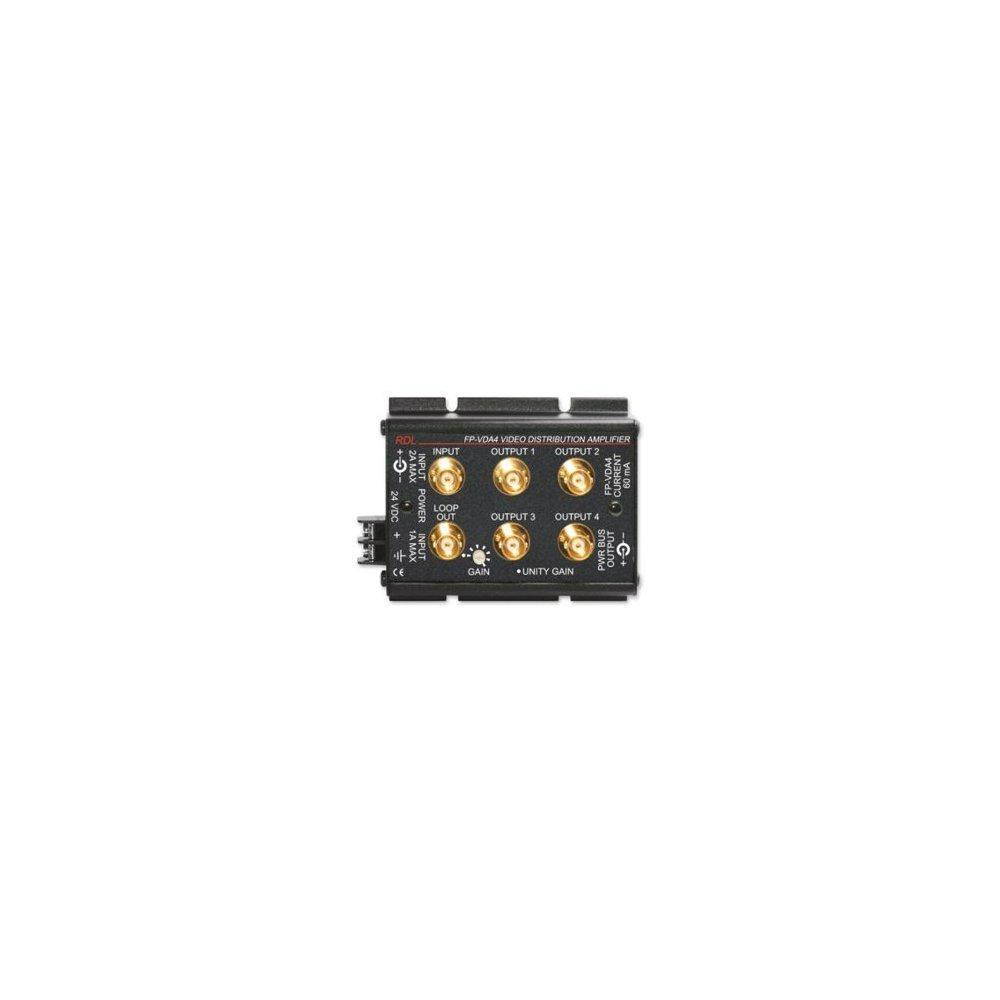

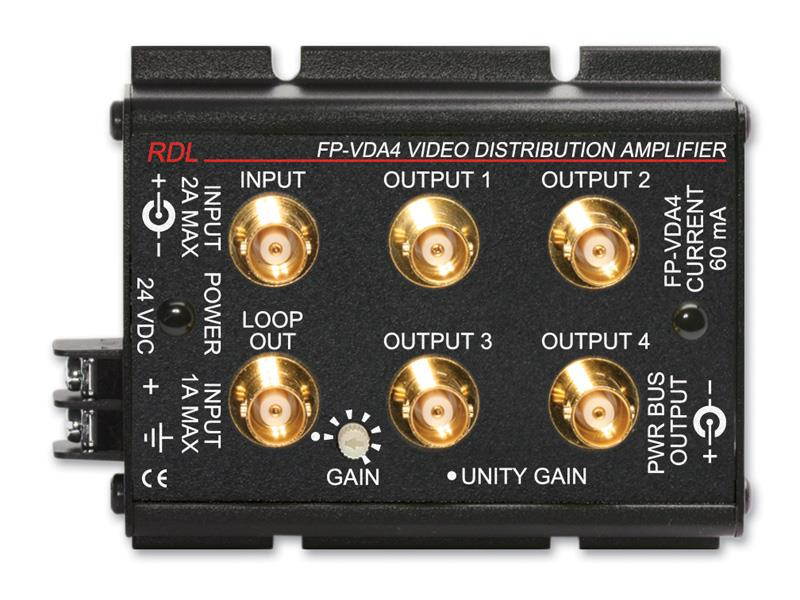

RDL FP-VDA4 NTSC/PAL Video Distribution Amplifier - 1x4 - BNC
Input Impedance: 1 k & #937; (Bridging 75 & #937; Line)Gain: Unity to +6 dB (adjustable) Load Impedance: 75 & #937; Outputs (5): 1 LOOP OUT from Input Signal; 4 amplified outputs Output Level: 1 V p-p (into 75 & #937; )Frequency Response: 10 Hz to 10 MHz (+/- 0.2 dB)Noise: < -75 dB (below 1 V p-p)Output Isolation: 45 dBDifferential Gain: 0.1 %Differential Phase: 0.1 degree (measured at 10% and 90% APL)Connector Type: BNC Power Requirement: GROUND-REFERENCED, 24 Vdc @ 60 mADimensions: Height: 1.34 in 3.40 cmWidth: 3.25 in 8.26 cmLength: 4.43 in 11.25 cmAmbient Operating Environment: -10 C to 55 C

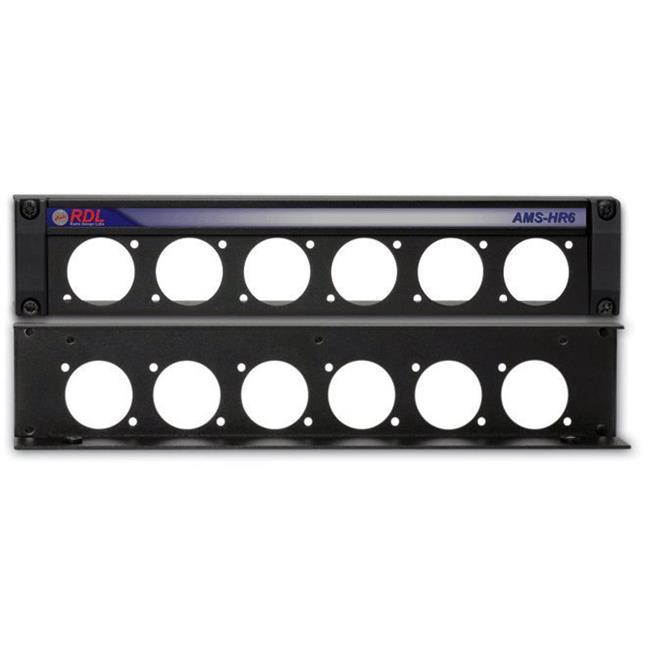

AMS-HR6 RADIO DESIGN LAB-Z MOUNTING PANEL FOR 6 AMS ACCES
The AMS-HR6 permits the mounting of up to six RDL AMS series accessories which include switches, controls, indicators and jacks. The use of AMS accessories allows for easy customization of rack mounted user interfaces. The design of the HR-FP1 complements the appearance of adjacent HALF?RACK products.

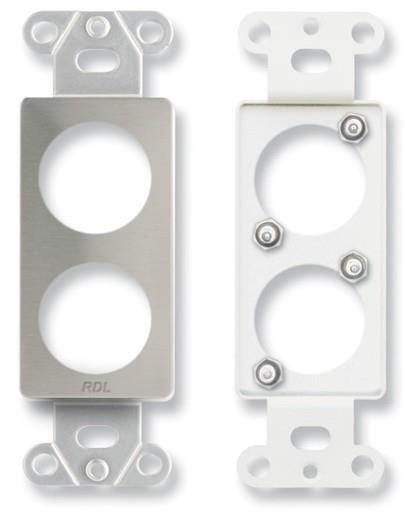

DS-D2 RADIO DESIGN LAB-Z DOUBLE PLATE FOR STAND CONNECT
Radio Design Labs DS-D2 Double plate for standard and specialty connectors

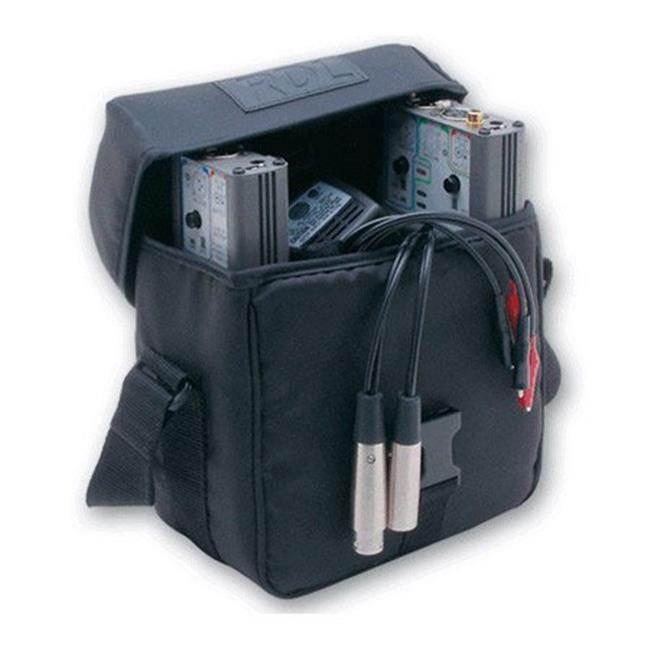

PT-IC1 RADIO DESIGN LAB-Z CARRYING CASE
Features: The PT-IC1 is a compact padded nylon instrument case for carrying one or two RDL portable testers, power supplies and associated test leads. A carrying handle and shoulder strap are both provided. The cover features a zipper pouch for alignment tools.

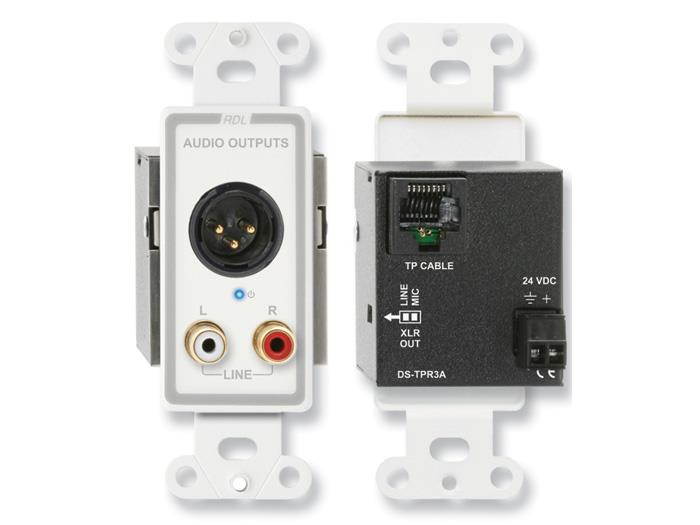

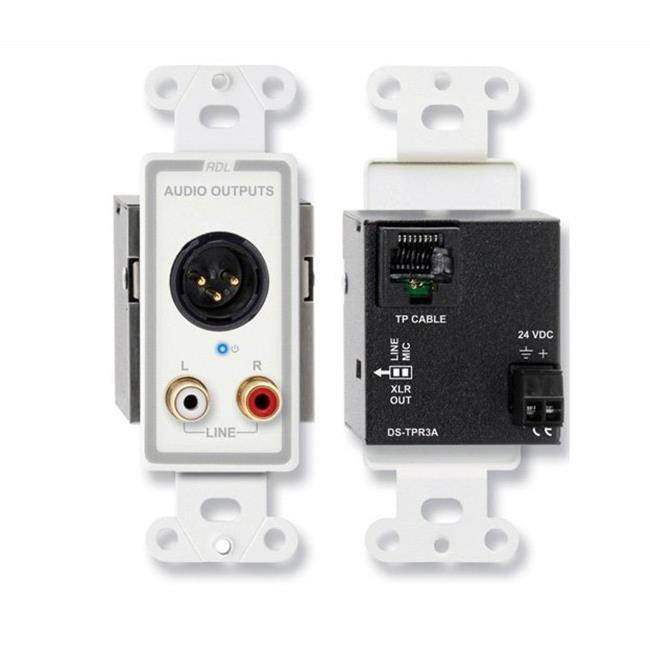

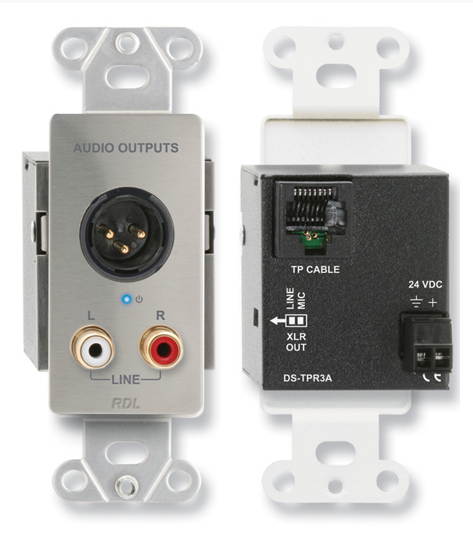

D-TPR3A RADIO DESIGN LAB-Z ACTIVE 3 PR RECEIVER
Input:RDL FORMAT-AInput Connection:RJ45 (Models D-, DS-, AF-); Detachable Terminal Block (Model EM-)Format-A Signal Pairs Used (3):A, B, COutputs (3):150 & Omega; balanced; 100 & Omega; unbalancedOutput Connection:XLR (balanced Mic or Line); RCA Phono Jack (2)Output Level:XLR: -45 dBu Mic or +4 dBu Line Level, Switch-selectable on rear panel; RCA phono: -10 dBVFrequency Response:10 Hz to 50 kHz (+/- 0.1 dB)THD+N:< 0.005%Noise below +4 dBu:< -90 dBCrosstalk:< 90 dB (1 kHz); < 75 dB (20 Hz to 20 kHz)Headroom above +4 dBu: 18 dBCMRR: 80 dB (50 Hz to 150 Hz)Indicator:Power InPower Connections (2):Detachable terminal block; RJ45Power Requirement:24 Vdc @ 45 mA plus connected loadsDimensions:EM-TPR3A: 1.77" (45 mm) W and H; 1.93" (4.9 cm) DD-, DS-TPR3A: 1.6" (4.06 cm) W; 4.11" (10.45 cm) H; 1.89" (4.8 cm) DAF-TPR3A: 2.22" (5.64 cm) W; 2.77" (7.04 cm) H; 1.89" (4.8 cm) DMounting Box Minimum Depth:2.4" (Models D-, DS-, AF-); 39 mm (Model EM-)Ambient Operating Environment:0 C to 55 C
Format-A Stereo Headphone Amplifier/Black
The D SERIES-HA1A is a two pair receiver and audio headphone amplifier compatible with RDL Format A twisted pair products. Each -HA1A receives stereo audio and 24 Vdc power through a rear-panel RJ45 jack fed from a Format-A sender. The left and right audio signals received on pairs B and C of the twisted pair cable are amplified and fed to the left and right channels of the output 3.5 mm Mini-jack. The front panel provides the headphone output jack and a single-turn user volume control. There are no illuminated indicators that could be distracting in dark locations, such as a hotel room. The audio input circuits feature very high common mode rejection and a high quality stereo headphone amplifier for superior audio fidelity and low-noise performance. The -HA1A is ideally suited to guest room installations with bedside and restroom listening stations. The input is fully compatible with all RDL Format-A senders. The -HA1A is equipped with two Format-A RJ45 jacks. Either jack may be used as the input. The other RJ45 may be used to connect an additional -HA1A or other Format-A receiver. Installation is simple and economical. Standard twisted pair cable is used to connect a Format A sender to the -HA1A. RDL FORMAT-A features superior audio performance that rivals or exceeds shielded wiring. Design simplicity, ease of installation, unsurpassed flexibility, automatic fused power, exceptional hum rejection, low noise, and low distortion provide designers and installers the optimum choice in economical twisted pair products. Features Headphone Amplifier with User Level Control Output on Standard Mini Jack Mounts in a Wall or Cabinet Input and Power Connection on RJ45 Connects to Format-A Sender using Twisted-Pair Cable Powered from RDL Twisted Pair Format-A Sender RJ45 Loop-Thru for Connecting Additional Modules Protected by Automatically Resetting Fuse Decora? Design with All Steel Panel and Rear Enclosure

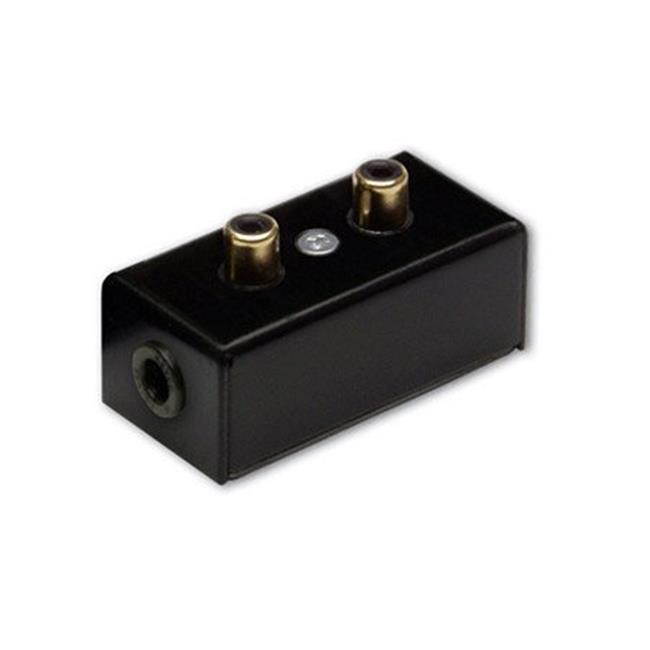

RDL ACB-2 Jack Box - Dual RCA jacks
Dimensions:0.875 in. x 1.125 in. x 2.25 in. (2.2 cm x 2.9 cm x 5.7 cm)

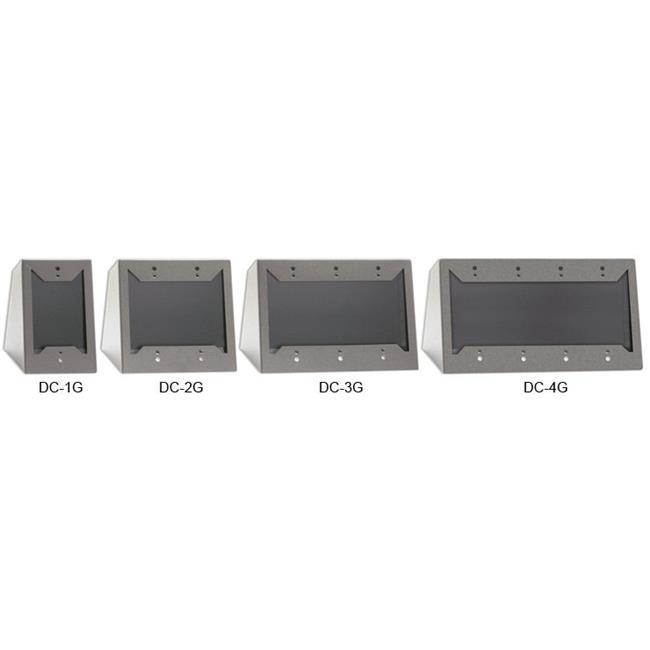

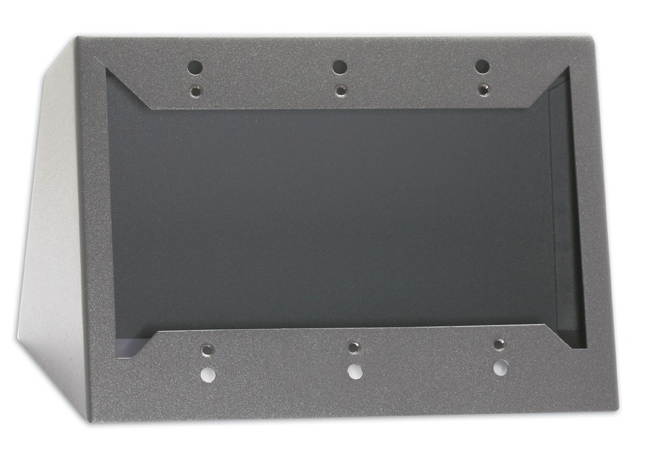

RDL DC-3G Desktop or Wall Mounted Chassis for Decora; Remote Controls
The DC-3G desktop chassis holds one, two or three Decora-style products, including RDL remote controls and connector plates. Installation is facilitated using the included mounting plate, which allows the chassis to mount to a tabletop or on a vertical surface such as a cabinet or wall. The plate is secured in position, then the chassis slides into a locked position where it is secured with screws. Model numbers with a suffix "W" are white, with a suffix "B" are black and with a suffix "G" are gray to complement RDL stainless steel remote controls and plates. All DC- boxes are constructed from welded steel with a high quality powder coated finish.

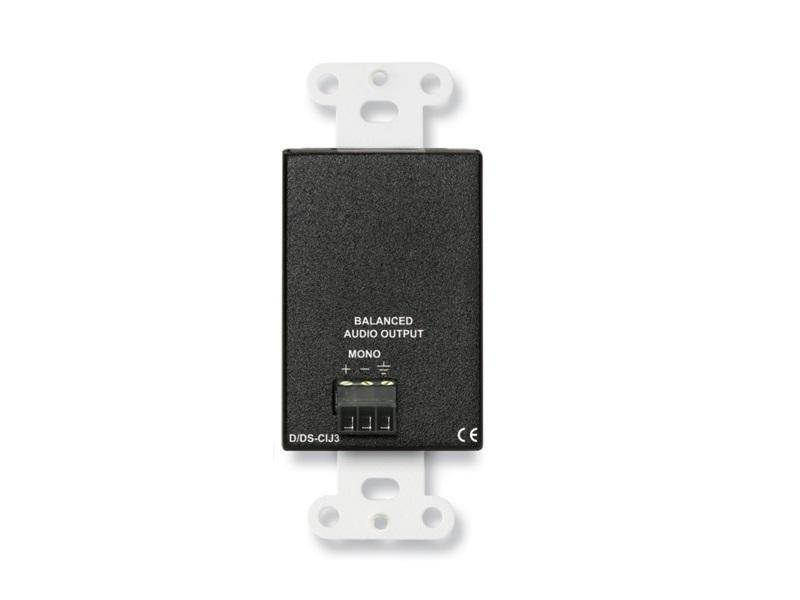

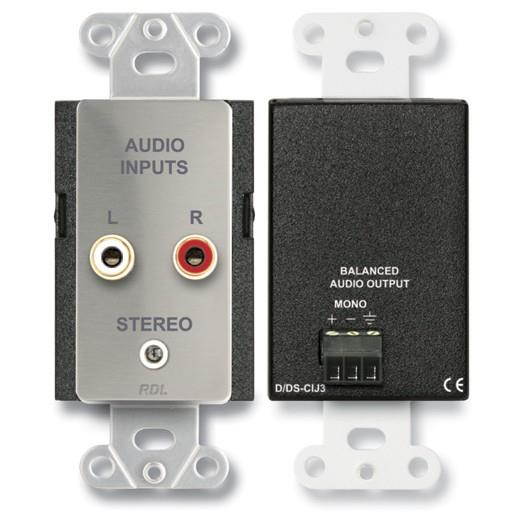

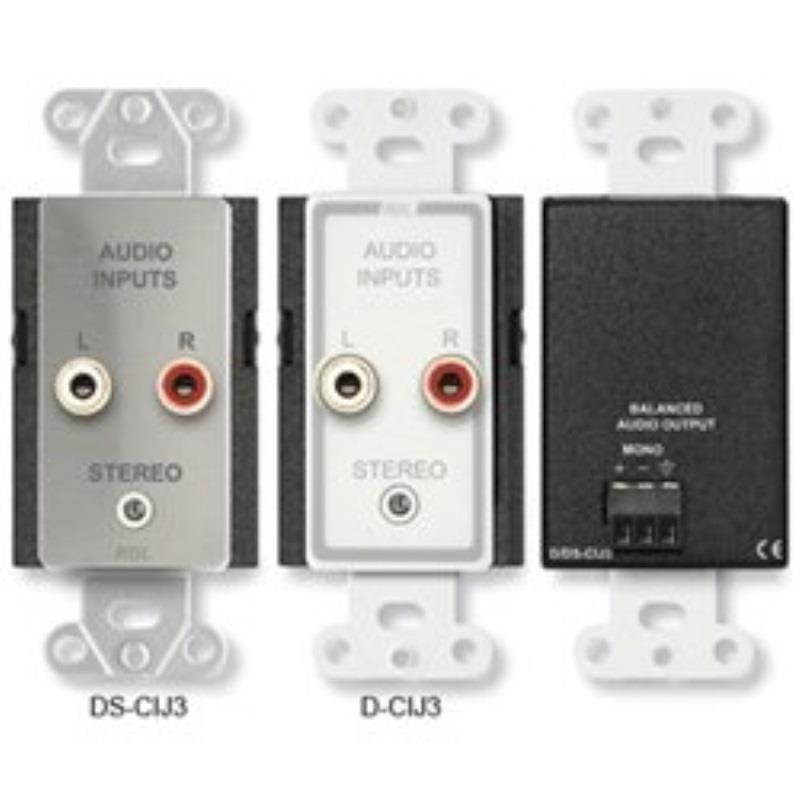

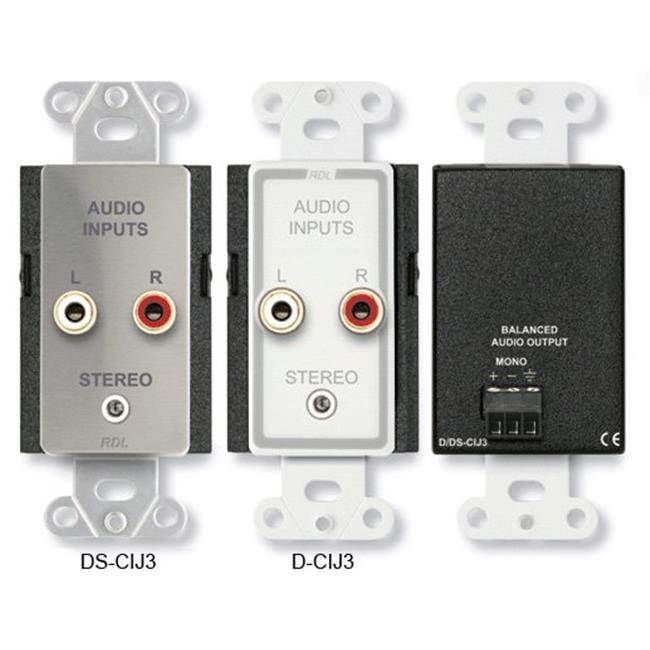

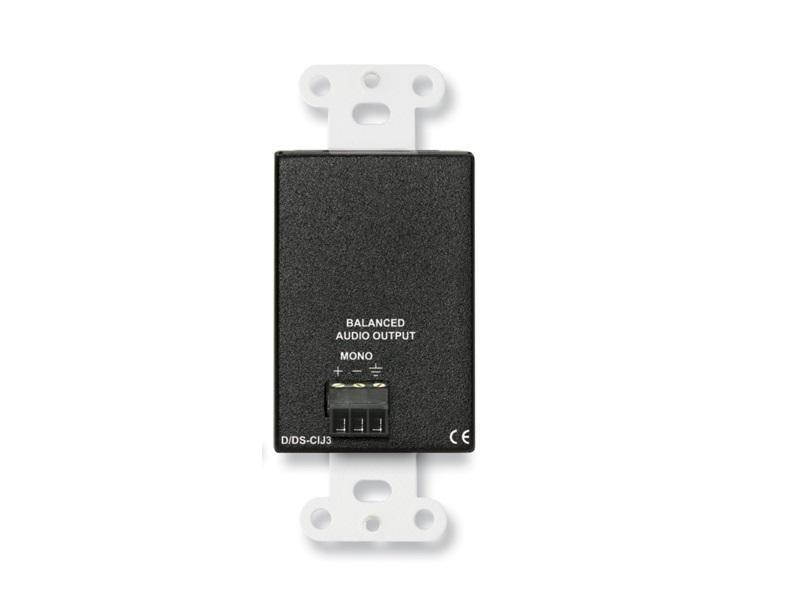

Radio Design Labs DS-CIJ3 Consumer Input Jacks - Mono
Radio Design Labs DS-CIJ3 Consumer Input Jacks ? Mono The D/S-CIJ3 is the ideal choice in installations requiring the passive mixing of two unbalanced line level audio sources to feed a mono balanced (or unbalanced) audio line. The D/S-CIJ3 is a complete unbalanced line-level audio input module. The front panel features two gold plated phono jacks and a single stereo mini-jack, intended for mono or stereo consumer level sources. An input signal may be connected to either the phono jacks or to the mini-jack. The left and right signal inputs are combined and balanced through audio transformers configured to reject induced hum. A mono line-level output is provided on the rear-panel detachable terminal block for connection to a 10 k & Omega; or higher input impedance line-level module or equipment input. Features: Stereo Inputs to Mono Output Stereo Inputs on RCA Jacks and Stereo Mini-Jack Unbalanced to Balanced Conversion Without Gain Transformer Isolation for Unbalanced Line Inputs Hum Cancellation on Unbalanced Line Inputs Line-Level Output to Feed 10 k & Omega; Equipment Inputs Output Connections on Detachable Terminal Block Mix Stereo Inputs to Mono Balanced Available in RDL White/Gray (D-CIJ3) Available in Stainless Steel (DS-CIJ3)

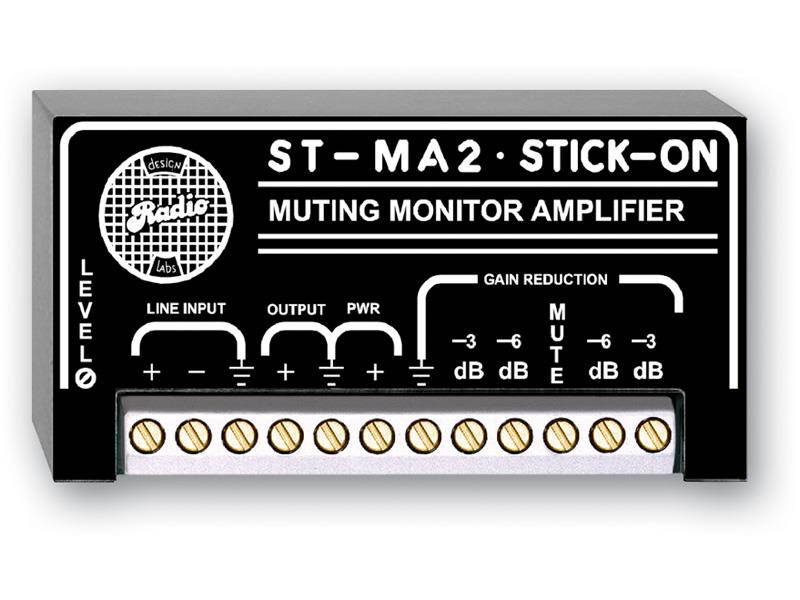

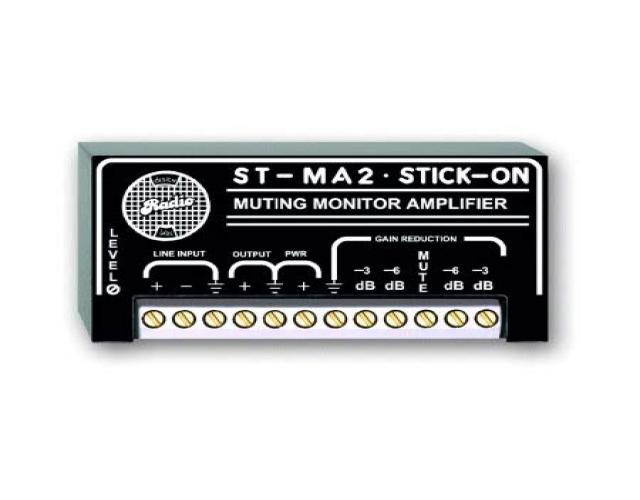

Muting Monitor Amplifier - 2 Watt
Input Impedance:20 k & #937; Balanced or Unbalanced BridgingInput Level:-10 dBV minimum for 2 Watts RMS outputOutput Impedance:8 & #937; (will drive 4 & #937; loads)Output Power:1.75 Watts RMS Continuous; 2 Watts RMS max.THD+N:< 0.5%Bandwidth:45 Hz to 14 kHzCMRR: 60 dB (50 Hz to 120 Hz)Residual Noise:< -80 dB (below 2 Watts RMS)Switching Time:< 50 usAttenuation (Muted): 90 dB (1 kHz), 85 dB (300 Hz to 3 kHz) 75 dB (20 Hz to 20 kHz)Selectable Attenuation:3 dB or 6 dB, each setting individually selectable using two independent inputs (connect to ground to activate)Power Requirement:GROUND-REFERENCED, 24 to 33 Vdc @ 200 mA for rated output (220 mA @ 2 Watts RMS)Ambient Operating Environment:0 C to 50 C
3.5 Watt Audio Power and Headphone Amplifier/Black
The D SERIES-HPA3 is a high efficiency 3.5 W power amplifier with one line input, an amplified output to drive a 4 or 8 ohm speaker and a separate headphone amplifier. The -HPA3 features a balanced line level input that may be connected unbalanced. The gain range will accommodate standard unbalanced levels as well as professional balanced levels. The amplified output levels are controlled by a front-panel volume control. The amplifier features a Mini-Jack headphone output on the front panel. When a headset is plugged in, the power amplifier may be switched off. Two recessed slide switches located on the top of the rear enclosure are set prior to mounting the module. One switch is provided for setting the input sensitivity. The mute switch determines whether the power amplifier operates when headphones are plugged in. Amplification for the speaker output is provided by a high-efficiency Class D power stage with audio filtering tailored for crisp, pleasant audio clarity. The high-efficiency Class D output stage produces negligible heat for all levels of expected voice or music modulation. The D SERIES-HPA3 is designed to be mounted in a wall box. The front panel does not include any illuminated indicators, making the -HPA3 ideally suited to installation in dark rooms or areas. Wiring is connected through a rear-panel detachable terminal block. Module operation is from a 24 Vdc ground-referenced power supply. Features Wall-Mounted Amplifier with 2 Outputs Balanced Input on the Rear Panel Speaker Output on the Rear Panel Mini-Jack Headphone Output on the Front Panel Setting to Turn Off Power Amplifier upon Headphone Connection Amplifier Muting Using Solid-State Switching Single Gain Adjustment for the Speaker and Headphone Amplifiers 3.5 Watt RMS Audio Amplifier into 8 Ohms 6.5 Watt RMS Audio Amplifier into 4 Ohms Output Drives 4 or 8 Ohm Speaker High-Efficiency Class D Operation Speaker Output Connection on Detachable Terminal Block Ultra-Compact All Metal Construction Thermal and Short-Circuit Protection

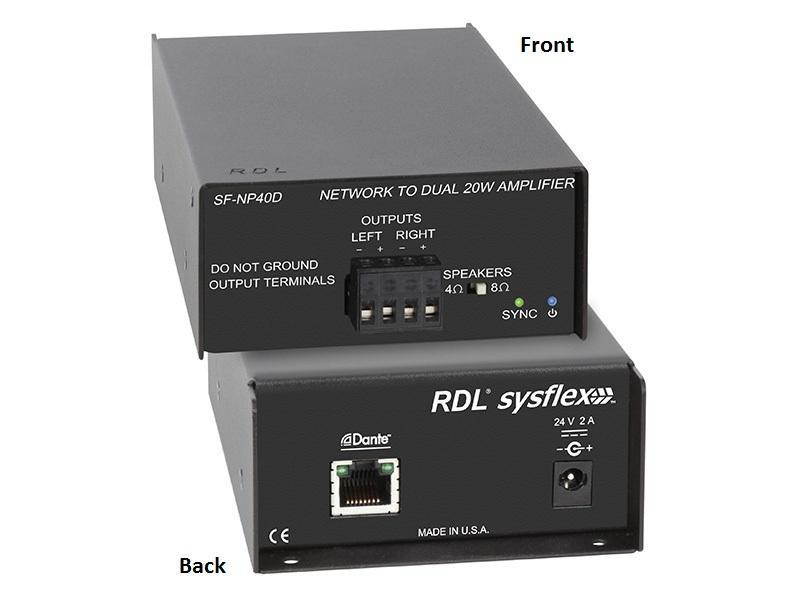

RDL SF-NP40DE Network to 40 Watt Stereo Power Amplifier/Dante/Export Model
The SF-NP40D is an audio power amplifier that converts two Dante network audio channels to two 4 Ohm or 8 Ohms amplified outputs. Each output provides 20 watts into 8 ohms for a network digital audio level of 0 dBFS. Special software is not required to configure the module. A front-panel blue LED illuminates when the SF-NP40D is powered from its included external 24 Vdc power supply. The module is equipped with both thermal and output short-circuit protection. The high-efficiency Class D output stages produce minimal heat for all levels of expected voice or music modulation. Valid synchronization to the Dante network is indicated by a green LED visible from the front of the unit. The SF-NP40D is constructed in a durable, professional all-metal enclosure suitable for free-standing, surface-mounted or rack-mounted operation. This full-featured SYSFLEX product is engineered and manufactured in the U. S. A for continuous duty in demanding installations. The versatility of SYSFLEX products adds enormous flexibility in the design and installation of professional A/V systems. Features Converts Two Dante Network Audio Signals to two 20 W Outputs into 8 Ohms Selectable Dante Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz 0 dBFS Input for 20 W per channel into 8 Ohms or 15 W per channel into 4 Ohms Special Software Not Required for Module Setup LED Indicator for Network Sync High-Efficiency Class D Operation Thermal and Short-Circuit Protection SF-NP40DE excludes Power Cord

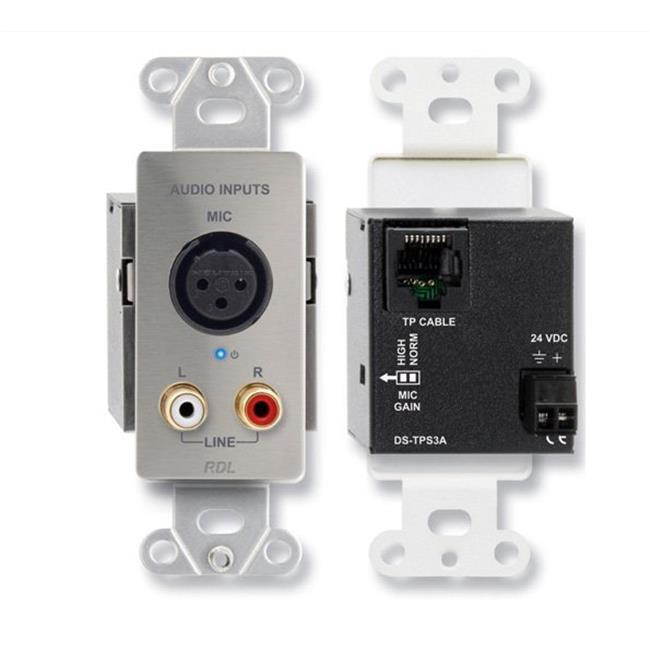

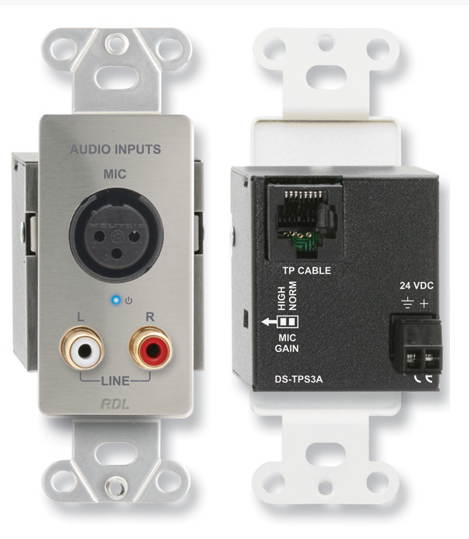

DS-TPS3A RADIO DESIGN LAB-Z ACTIVE THREE PAIR SENDER
Inputs (3):Mic: 1.2 k & Omega; Balanced with IEC 24 Vdc Phantom; Line (left and right): 10 k & Omega; UnbalancedInput Connection:Mic: XLR; Line: RCA PhonoInput Level:Mic: -45 to -65 dBu Balanced; Maximum: -40 dBu (HIGH Gain), -28 dBu (NORM Gain); Line: -10 dBV Unbal.; +10 dBV MaxFormat-A Signal Pairs Used:A (Mic); B (Unbal Line Left); C (Unbal Line Right)Gain:Mic: 50 dB (NORM) or 63 dB (HIGH), Switch-selectable on rear panel; Line: 12 dBOutput:RDL TP Format-AOutput Connection:RJ45 (Models D-, DS-, AF-); Detachable Terminal Block (Model EM-)Frequency Response:Mic: 100 Hz to 30 kHz (+/- 1 dB); integral low-cut filter -10 dB @ 30 Hz; Line: 20 Hz to 50 kHz (+/- 0.5 dB)THD+N:Mic: < 0.1% (80 Hz to 20 kHz); Line: < 0.05% (20 Hz to 50 kHz);

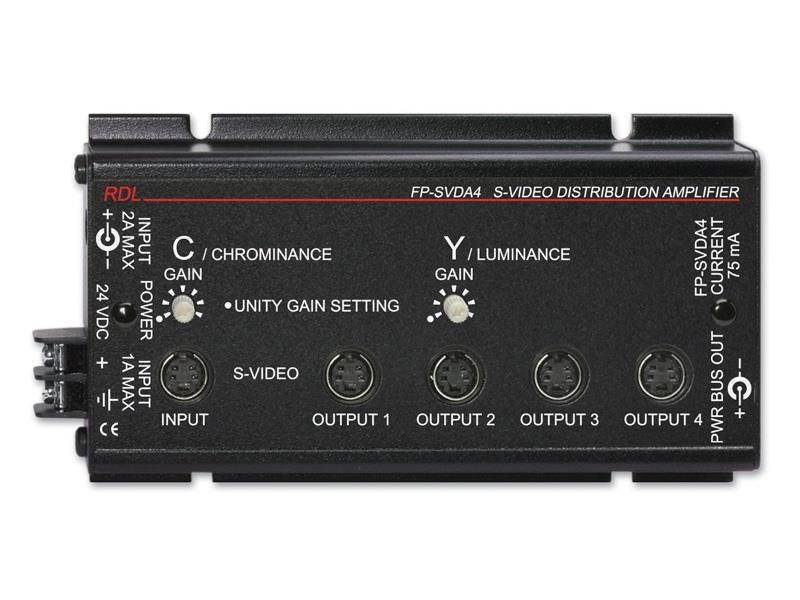

1x4 S-Video Distribution Amplifier
Input Impedance:75 & #937; (separate Y-C components)Gain Range:Unity to +6 dB (adjustable for each video component)Load Impedance:75 & #937;Outputs (4):Amplified outputs (separate Y-C components)Output Level:1 V p-p (into 75 & #937;)Frequency Response:10 Hz to 10 MHz (+/- 0.2 dB)Noise:< -75 dB (below 1 V p-p)Output Isolation: 45 dBDifferential Gain:0.1%Differential Phase:0.1 degree (measured at 10% and 90% APL)Connector Type:4-pin mini-DINPower Requirement:GROUND-REFERENCED, 24 Vdc @ 75 mADimensions:Height: 1.14 in. 2.90 cmWidth: 3.25 in. 8.26 cmLength: 6.41 in. 16.28 cmAmbient Operating Environment:0 C to 55 CAmbient Operating Environment:0 C to 55 C

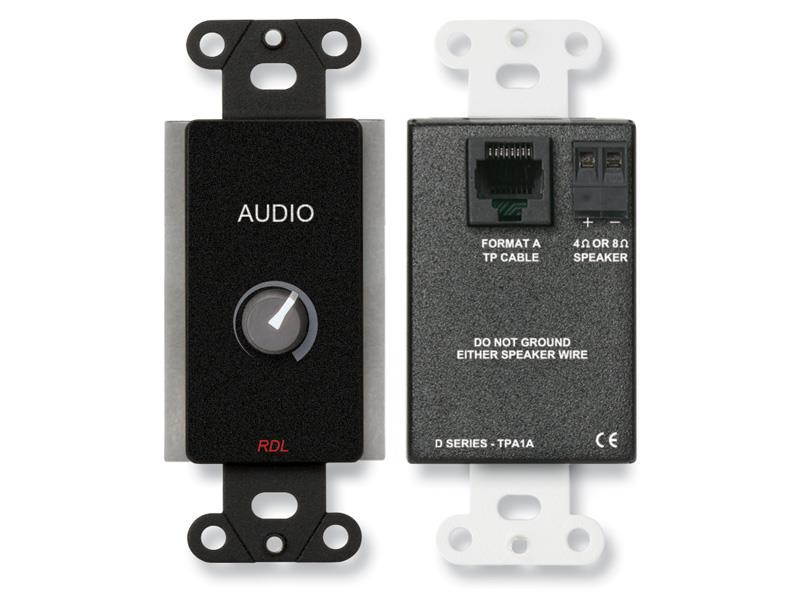

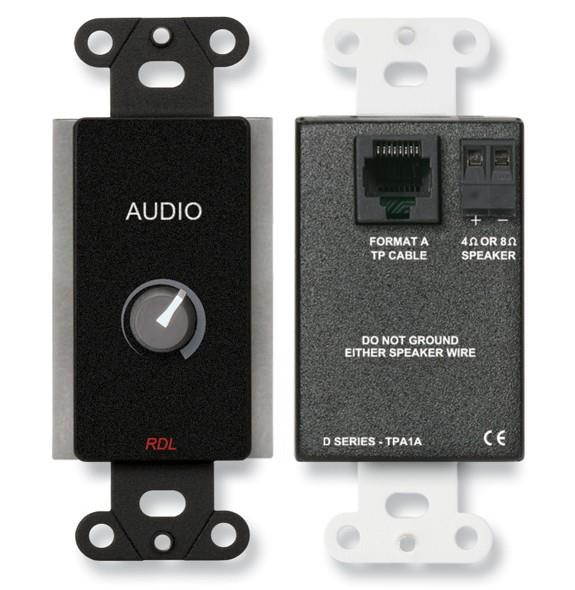

3.5 Watt Decora Audio Power Amplifier/Black/Guest Room Audio System
Radio Design Labs DB-TPA1A 3.5 W Audio Power Amplifier, Black Features: 3.5 Watt RMS Audio Amplifier into 8 Ohms 6.5 Watt RMS Audio Amplifier into 4 Ohms Output Drives 4 or 8 Ohm Speaker Setting Level to Minimum Activates Energy-Saving Sleep Mode High-Efficiency Class D Operation VCA Level Adjustment for Scratch-Free Long Life Input and Power Connection on RJ45 Connects to Format-A Sender using Twisted-Pair Cable Powered from RDL Twisted Pair Format-A Sender Speaker Output Connection on Detachable Terminal Block Ultra-Compact All Metal Construction Thermal and Short-Circuit Protection The -TPA1A modules are two pair audio amplifier modules compatible with RDL Format A twisted pair products. Each -TPA1A receives stereo audio and 24 Vdc power through a rear-panel RJ45 jack. The left and right audio signals received on pairs B and C of the twisted pair cable are summed to mono and amplified. The amplified output level is set by an internal VCA which is controlled by a front-panel volume control. The VCA attenuator provides years of scratch-free gain adjustment. The -TPA1A circuits are all designed for low power consumption. Amplification is provided by a high-efficiency Class D power stage with audio filtering tailored for crisp, pleasant audio clarity. The high-efficiency Class D output stage produces negligible heat for all levels of expected voice or music modulation. When the user reduces the audio level to minimum, the class D output stage is switched off. This sleep mode remains active until the user turns up the output level. The output drives either a 4 Ohm or 8 Ohm speaker. The speaker cable connects to the module using a detachable terminal block. The front panel does not include any illuminated indicators, making the -TPA1A ideally suited to installation in dark rooms or areas. Installation is simple and quick, requiring only the connection of the speaker leads and the twisted pair RJ45. The -TPA1A may be fed and powered from any RDL Format-A sender, and is ideal in hospitality installations fed from a sender connected to a TV monitor (for example: FP-TPS4A Audio Sender from TV with fixed audio output level). Use the -TPA1A wherever a single speaker user-adjustable wall mounted amplifier is needed. Combine the amplifier with other RDL Format-A products for a cost-effective, high-performance audio system.

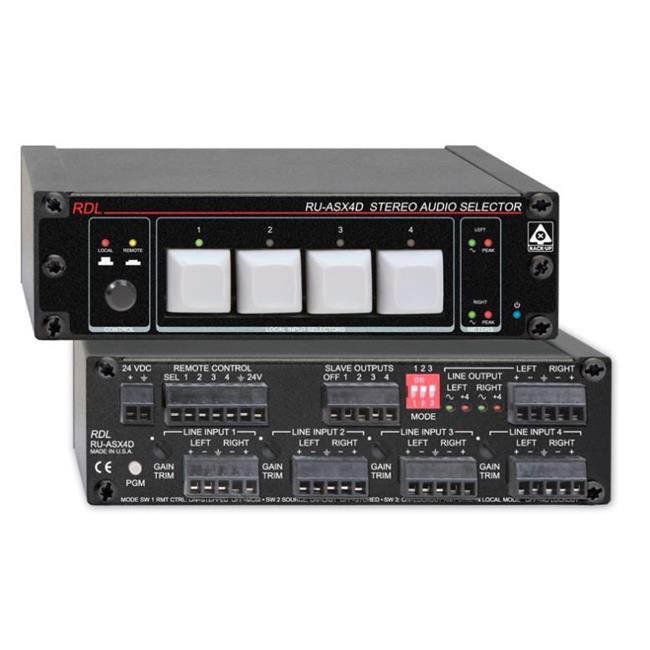

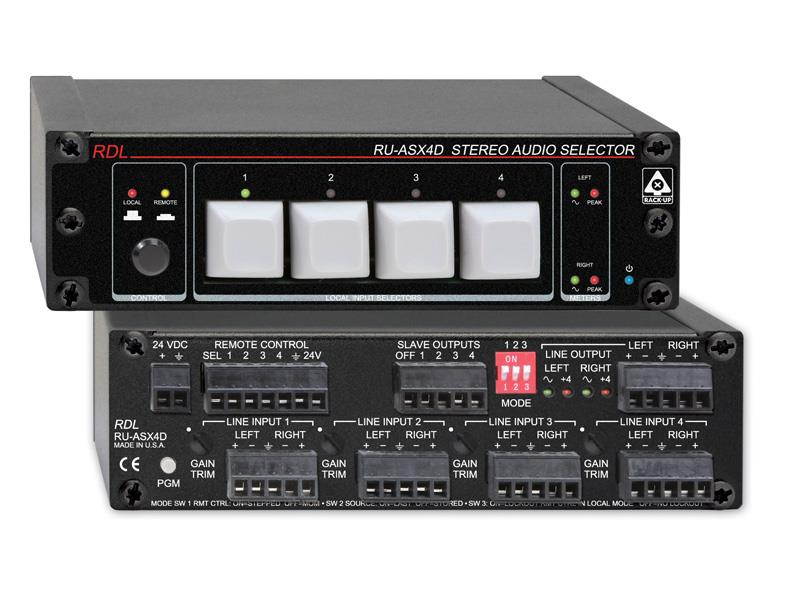

4x1 Stereo Balanced Audio Switcher/Terminal Block
Radio Design Labs RU-ASX4D Stereo Audio Selector 4x1 Features: Local or Remote Controlled Switching Multiple Switching Control Points 4 Stereo Inputs to 1 Stereo Output Line-Level Audio Switching Balanced or Unbalanced Inputs and Output Gain Trim on Each Source Controllable Using Various RDL Remote Controls Open-Collector Output for Selected Input Specifications: Audio Inputs (4): Stereo, Line level on Detachable Terminal Block 10 k & Omega; unbalanced Input Level (for +4 dBu output): -15 dBV to +8 dBu, adjustable on rear-panel trimmers Maximum Input Level: +25 dBu 60 dB (50 Hz to 120 Hz) 20 dB (unity gain) Frequency Response: 10 Hz to 20 kHz ( & plusmn; 0.2 dB) Distortion (THD + N): < 0.01 % (20 Hz to 20 kHz) Noise (below +4 dBu): < -85 dB (with any input selected); < -95 dB (with no input selected) 70 dB (20 kHz) 70 dB (20 kHz) Front-Panel Switches: Momentary pushbuttons (4, 1 per input), LOCAL/REMOTE latching pushbutton Front-Panel Indicators (11): Power, Selected channel (4), LOCAL/REMOTE selector (2), L and R Dual-LED VU meters (4) Audio Output: Stereo, Line level on Detachable Terminal Block Output Impedance: 150 & Omega; balanced, 75 & Omega; unbalanced Output Level: +4 dBu balanced, unbalanced output 6 dB below balanced output level Control inputs (5): 1 mA, pulled to ground (4, source selection); 1 mA, pulled to +15 Vdc (SEL) Control outputs (5): 25 mA, open-collector to ground Rear-Panel Indicators (4): L and R Dual-LED VU meters RDL Remote Control Compatibility: D-RC4M, D-RCS4 Power Connection: Detachable Terminal Block Power Requirement: 24 Vdc @ 150 mA, Ground-referenced Ambient Operating Environment: 0 C to 55 C
D-TPS3A RADIO DESIGN LAB-Z ACTIVE 3 PR SENDER
Inputs (3):Mic: 1.2 k & Omega; Balanced with IEC 24 Vdc Phantom; Line (left and right): 10 k & Omega; UnbalancedInput Connection:Mic: XLR; Line: RCA PhonoInput Level:Mic: -45 to -65 dBu Balanced; Maximum: -40 dBu (HIGH Gain), -28 dBu (NORM Gain); Line: -10 dBV Unbal.; +10 dBV MaxFormat-A Signal Pairs Used:A (Mic); B (Unbal Line Left); C (Unbal Line Right)Gain:Mic: 50 dB (NORM) or 63 dB (HIGH), Switch-selectable on rear panel; Line: 12 dBOutput:RDL TP Format-AOutput Connection:RJ45 (Models D-, DS-, AF-); Detachable Terminal Block (Model EM-)Frequency Response:Mic: 100 Hz to 30 kHz (+/- 1 dB); integral low-cut filter -10 dB @ 30 Hz; Line: 20 Hz to 50 kHz (+/- 0.5 dB)THD+N:Mic: < 0.1% (80 Hz to 20 kHz); Line: < 0.05% (20 Hz to 50 kHz);

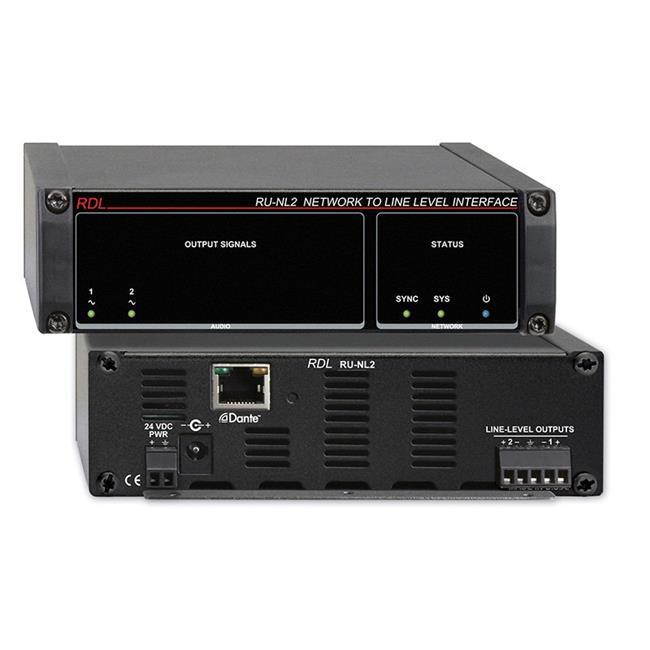

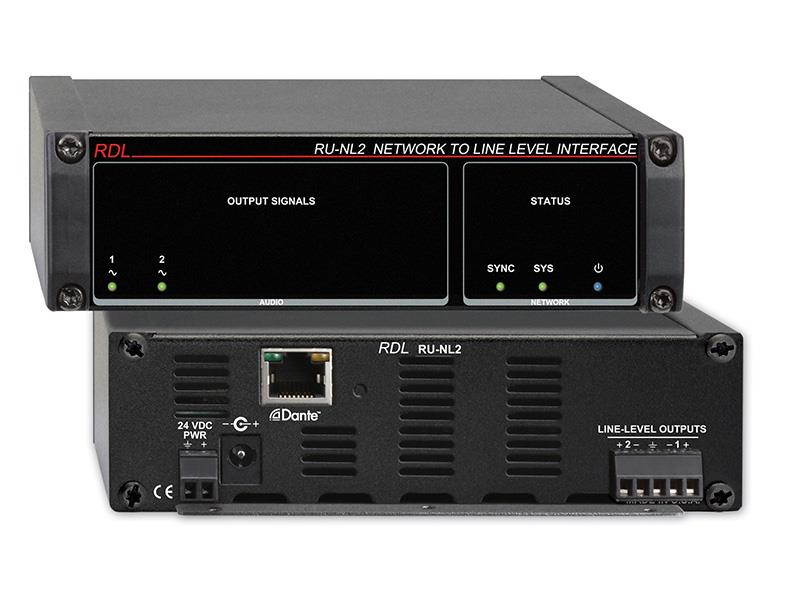

Network to Line Level Interface/Dante In/2 Balanced Line Out
Features: Converts Two Dante Network Audio Signals to Professional Line Level 18 dB Headroom Exceptional Low-Noise and Low-Distortion Performance Crosstalk Below the Noise Floor Signal LEDs Indicate Audio for Each of the Dante Audio Sources High Resolution 24 Bit Digital to Analog Conversion Legendary RDL Analog Filtering Enhances Superb Audio Performance LED Indicators Show Network Sync Status Outputs Mute when Digital Audio Inputs are Inactive Normal or Hot-Standby Operation from PoE (Model RU-NL2P) Equipped for Rack Mounting or Surface Mounting The RU-NL2 modules are Dante audio network interface products compatible with line-level audio equipment inputs. These modules are designed to be mounted in equipment racks, closets, conference tables and on shelves or backboards in commercial/industrial installations. APPLICATION: The RU-NL2 is a high quality converter that provides professional line-level outputs from two Dante network audio channels. Each output provides +4 dBu balanced for a network digital audio level of -18 dBFS. The professional output directly interfaces with other professional and commercial equipment without the need for additional gain. Crosstalk is below the noise floor between all outputs across the entire audio spectrum. The noise floor is better than 80 dB below operating level with greater than 18 dB of headroom. One front-panel green signal LED corresponds to each of the Dante input channels. Received audio level is indicated on the variable-intensity LED indicator, facilitating setup when a networked computer is not connected at the module's location. The RU-NL2 is powered from an external 24 Vdc power supply, available separately. The RU-NL2P is equipped to operate from a PoE enabled network switch. The RU-NL2P will reserve power from the switch even while being powered from an external 24 Vdc supply. If PoE power and an external 24 Vdc supply are both feeding an RU-NL2P, the unit will run from the external supply and will seamlessly switch over to PoE power upon loss of the external supply. The RU-NL2's superior performance specifications make it ideally suited to the most demanding installations, and an exceptional value in commercial networked audio systems. The RU-NL2 is constructed in a durable, professional all-metal enclosure suitable for free-standing, surface-mounted or rack-mounted operation. This full-featured product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. Built to last. Built to outperform. Network Connector: RJ45 with Link and Speed indicators Digital Audio Ethernet Protocol: Dante Transmission Rate: 100 Mbps Sample Rates Supported: 44.1 kHz, 48 kHz (default) Bit Depth Supported: 24 bits Audio Operating Levels: -18 dBFS = +4 dBu Outputs (2): Balanced, detachable terminal block Output Level: +4 dBu (nominal) Output Impedance: 150 & Omega; balanced; 75 & Omega; unbalanced Frequency Response: 20 Hz to 20 kHz ( & plusmn; 0.5 dB) THD+N: < 0.05% Noise below +4 dBu: < -80 dB (output active); < -95 dB (outputs muted) Crosstalk: < 85 dB (20 Hz to 20 kHz) Headroom above +4 dBu: 18 dB Indicators (7): Power In (1); Audio Signal LEDs (4), Network Sys and Sync (2), Ethernet Link and Speed (2) Power Connections (2): Power Jack; Detachable Terminal Block Ambient Operating Environment: 0 C to 40 C Power Requirement: 24 Vdc @ 105 mA, or PoE (RU-NL2P) PoE (RU-NL2P): Class 0, IEEE 802.3af Dimensions: 5.8" (15 cm) W; 1.7" (4.3 cm) H; 5.2" (13.2 cm) D Package Type: Cardboard Box Package Dimensions: 6 x 6 x 2.625 in. Shipping Weight: 1.56 lbs. (RU-NL2); 1.582 (RU-NL2P) WEEE weight: 1.3 lbs. (RU-NL2); 1.325 (RU-NL2P) Tariff code: 8517.18.0050

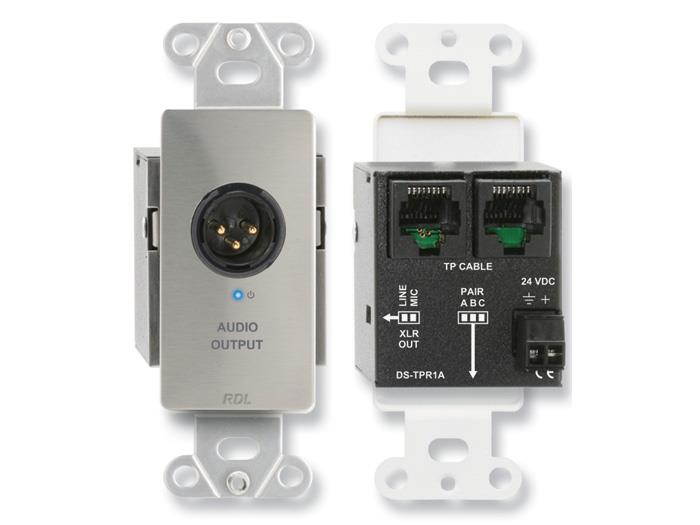

Active Single-Pair Extender (Reciever)/Format-A/Stainless
The D SERIES-TPR1A modules are single-pair audio receiving modules compatible with RDL Format-A twisted pair products. These modules are designed to be mounted in wall boxes, cabinets or other enclosures that allow users to connect external equipment. The -TPR1A models mount in RDL WB-1U and WB-2U wall boxes, or in standard U.S. electrical boxes. The D-TPR1A features a white front-panel laminate with gray lettering that matches RDL Decora?-style remote controls. The DB-TPR1A features a black front-panel laminate. The DS-TPR1A is constructed of stainless steel to coordinate with RDL Decora-style stainless steel remote controls in commercial/industrial installations. APPLICATION: The D SERIES-TPR1A modules feature an XLR output jack. A rear-panel switch set during installation determines which of the three FORMAT-A pairs is buffered to feed the module output. The audio signal received from the selected pair of the RJ45 INPUT jack feeds the XLR audio output jack. The output level from the XLR jack is set to either MIC or LINE level during installation using a rear-panel switch. This module receives signal from only one cable pair, so the D SERIES-TPR1A modules have a second RJ45 jack to connect cables to additional receiver modules. Two other single-pair receivers may be chained to the second RJ45 jack, or a single two-pair receiver may be connected. In addition to completing the reception of signals from all three FORMAT-A pairs, additional receivers may be connected to the same twisted pair feed. The bridging input circuits used in all FORMAT-A twisted pair receivers allow connection of up to 10 receiver outputs for each cable pair. The possibility of multiple receiver locations adds enormous flexibility in the design of audio routing systems using RDL FORMAT-A products. The power pair and all three audio pairs are fed through both rear-panel RJ45 jacks. The D SERIES-TPR1A may be powered directly from a 24 Vdc power supply using the rear-panel detachable terminal block. Local power connected to the module is also fed to all connected remote modules. The -TPR1A may be remotely powered through the twisted pair cable from any other module, signal distributor or RDL power inserter connected to the same twisted pair cable. Module power is indicated by a front-panel LED. RDL FORMAT-A features superior audio performance that rivals or exceeds shielded wiring. Design simplicity, ease of installation, unsurpassed flexibility, automatic fused power, exceptional hum rejection, low noise, and low distortion provide designers and installers the optimum choice in economical twisted pair products. Features Balanced Mic or Line Level XLR Output Switch-Selectable Output Level on Rear Panel Switch Selects which Pair (A, B or C) Feeds the Output Signal and Power Pair Pass-through on RJ45s Remote Powering through Twisted Pair Cable Fused Local Power Feeds all Connected Modules Local Power Input on Terminal Block Blue LED Indicates Module is Powered Daisy-Chain with Additional Format-A Receivers Studio-Quality Precision Active Balanced Circuitry
Serial Controlled Interface/Computer Control
The RU2-CS1 controls 8 open-collector outputs. It also provides 8 separate 0 to 10 Vdc outputs to control external VCAs or other equipment with 0 to 10 Vdc control inputs. Eight status inputs are provided for sensing external switch or transistor closures. The RU2-CS1 connects to a computer through an RS-232 serial link. Commands may be initiated from a terminal program or from user software. OUTPUT TERMINALS - A command will either activate or deactivate each of the eight open-collector outputs. A separate command simultaneously activates or deactivates all outputs. A pulse command will provide a 100 mS pulse at a designated output. Each output is pulled to ground when it is active. 0 TO 10 VOLT OUTPUTS - The ramp rate for each output can be preset individually or globally. Output commands then initiate a ramp from the present level to a newly defined level. The output level (one or all) may also be sent directly to a new level without ramping. A separate command will set the RU2-CS1 to report the completion of ramping. Each 0 to 10 Vdc output may be programmed to output 0 to 5 Vdc without any loss of resolution. STATUS INPUT TERMINALS - The RU2-CS1 may be set to provide an alert any time an individual status input terminal changes state (low to high, high to low). Global commands allow enabling or disabling alerts from all status inputs. The controlling computer can also query the status of an individual terminal or all status terminals. A separate command allows the program to provide an alert when a defined pattern of all eight status terminals occurs. The RU2-CS1 may be operated without any response codes fed back to the computer. An initialization command sets all parameters to known values at the beginning of the user program. Error codes may be enabled to assist in development of controlling software. Front panel LEDs show any active outputs, active status inputs, transmit and receive data, errors and power. Features: RS-232 Control of RDL Modules Serial Control of OEM Products Control of Eight VCA Modules Status Inputs from Eight Sources Interface with Front Panel Indicators Free-Standing or Rack-Mounted Installation

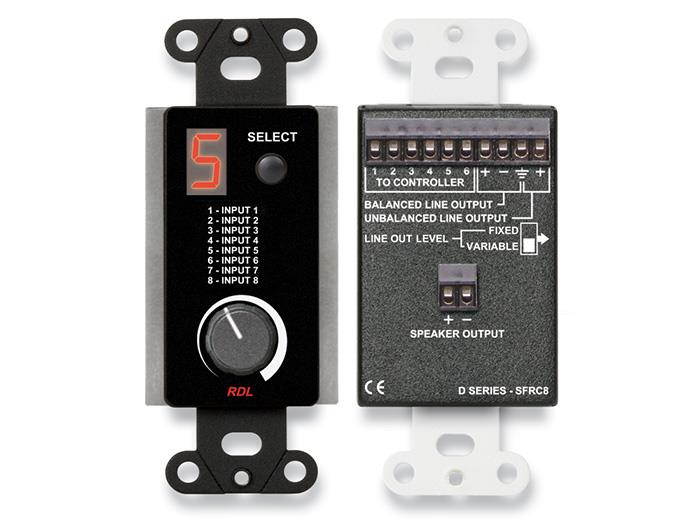

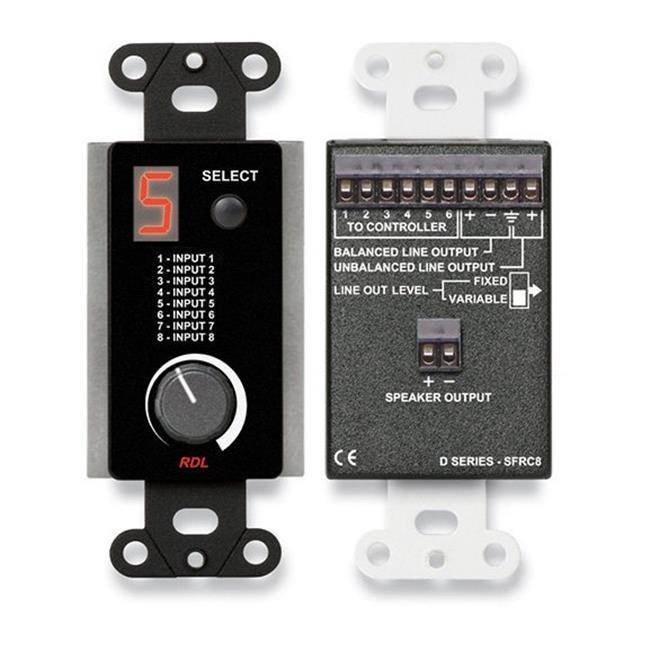

Room Control Station for SourceFlex Distributed Audio System/Black
The D SERIES-SFRC8 Room Control Station is a SourceFlex listening station for wall mounting in a room, providing source selection and volume control from up to 8 audio sources. A numeric display shows the selected source. There are two line-level audio outputs on the rear of the unit, balanced and unbalanced, to feed an external power amplifier. The amplified power output can deliver up to 3.5 Watts RMS into an 8 ohm Speaker. A rear-panel switch set during installation causes the balanced line-level output to produce either a fixed +4 dBu or a variable level adjusted by the front-panel control. The unbalanced output is 12 dB below the balanced output level. Amplification is provided by a high-efficiency Class D power stage with audio filtering tailored for crisp, pleasant audio clarity. The high-efficiency Class D output stage produces negligible heat for all levels of expected voice or music modulation. The D SERIES-SFRC8 is designed to be mounted in a wall box. Wiring is connected through a rear-panel detachable terminal block. The -SFRC8 is ideal for office distributed sound systems with background music and a paging source. Installation is simple, requiring only wiring and an external 8 ohm Speaker for most installations. Features Single Room Listening Station with In-Wall Controls Source Selection Pushbutton Volume Adjustment Using a Single-Turn Control Selection From up to 8 Audio Sources Line-Level Audio Output Line Output Switchable Fixed or Variable Variable Output Follows Front-Panel Level Control 3.5 Watt RMS Audio Amplifier into 8 Ohms, 6.5 Watts into 4 Ohms High-Efficiency Class D Operation Thermal and Short-Circuit Protection Speaker Output Connection on Detachable Terminal Block Mounts In Wall Using US Single Gang Electrical Box or RDL? WB-1U Compatible with Other RDL Wall Plates and Controls Ideal for Office Distributed Sound Systems with Music and Paging
Active 1-Pair Extender (Tx)/Format-A/Mini-Jack/Stereo RCA/SS
Radio Design Labs DS-TPSL1A Active Single-Pair Sender - Twisted Pair Format-A - Mini-Jack & amp; Stereo RCA In, Silver Features: Stereo Audio Input Combined to Mono Output Input on Dual RCA Jacks or Mini-Jack Switch Selects which RJ45 Pair (A, B or C) is Fed Signal and Power Pair Pass-Through between TP CABLE RJ45 Jacks Remote Powering through Twisted Pair Cable Fused Local Power Feeds all Connected Modules Local Power Input on Terminal Block Blue LED Indicates Module is Powered Daisy-Chain with Single-Pair or Two-Pair Format-A Senders Studio-Quality Precision Active Balanced Circuitry Specifications: Input: 10 k & Omega; unbalanced (left and right) Input Connection: Mini-jack or dual RCA phono jacks Input Level: -10 dBV Format-A Signal Pair Used: Switch-selectable A, B, or C Format-A Input: RJ45 Output: RDL TP Format-A Output Connection: RJ45 Frequency Response: 20 Hz to 20 kHz (+/- 0.25 dB) THD+N: & lt; 0.05% (20 Hz to 20 kHz) Noise: & lt; -90 dB Headroom: & gt; 18 dB Indicator: Power In Power Connections (2): Detachable terminal block; RJ45 Power Requirement: 24 Vdc @ 25 mA plus connected loads Dimensions: 1.6" (4.06 cm) W; 4.11" (10.45 cm) H; 1.89" (4.8 cm) D Mounting Box Minimum Depth: 2.4" (6.1 cm) Ambient Operating Environment: 0 C to 55 C
Active 3-Pair Extender (Rx)/Format-A/ XLR/stereo out/Stainless
The D SERIES-TPR3A modules are three-pair audio receiving modules compatible with RDL? Format-A twisted pair products. These modules are designed to be mounted in wall boxes, cabinets or other enclosures that allow users to connect external equipment. The -TPR3A models mount in RDL WB-1U and WB-2U wall boxes, or in standard U.S. electrical boxes. The D-TPR3A features a white front-panel laminate with gray lettering that matches RDL Decora?-style remote controls. The DB-TPR3A features a black front-panel laminate. The DS-TPR3A is constructed of stainless steel to coordinate with RDL Decora-style stainless steel remote controls in commercial/industrial installations. APPLICATION: The D SERIES-TPR3A modules feature an XLR audio output and two RCA phono jack outputs, one for the left channel and one for the right channel. The audio signal received from pair A of the RJ45 INPUT jack feeds the XLR audio output jack. The output level from the XLR jack is set to either MIC or LINE level during installation using a rear-panel switch. The audio signals received from pairs B and C of the twisted pair cable are buffered to drive the RCA output jacks at the standard -10 dBV consumer level. Although the D SERIES-TPR3A modules access signals from all three cable pairs, additional receivers may be connected to the same twisted pair feed. The bridging input circuits used in all FORMAT-A twisted pair receivers allow connection of up to 10 receiver outputs for each cable pair. The possibility of multiple receiver locations adds enormous flexibility in the design of audio routing systems using RDL FORMAT-A products. The D SERIES-TPR3A may be powered directly from a 24 Vdc power supply using the rear-panel detachable terminal block. Local power connected to the module is also fed to all connected remote modules. The -TPR3A may be remotely powered through the twisted pair cable from any other module, signal distributor or RDL power inserter connected to the same twisted pair cable. Module power is indicated by a front-panel LED. RDL FORMAT-A features superior audio performance that rivals or exceeds shielded wiring. Design simplicity, ease of installation, unsurpassed flexibility, automatic fused power, exceptional hum rejection, low noise, and low distortion provide designers and installers the optimum choice in economical twisted pair products. Features Balanced Mic or Line Level XLR Output Switch-Selectable Output Level on Rear Panel Two Unbalanced -10 dBV Phono Jack Audio Outputs XLR From Pair A; L From Pair B; R From Pair C Remote Powering through Twisted Pair Cable Fused Local Power Feeds all Connected Modules Local Power Input on Terminal Block Blue LED Indicates Module is Powered Utilizes All Three Format-A Pairs Studio-Quality Precision Active Balanced Circuitry
