Smart AVI - RK-XTP-RX4S - SmartAVI RK-XTP-RX4S Video Console - 16 Input Device - 16 Output Device - 1000 ft Range - 16 x
One box, one power supply, and up to 16 devices extended easily from a rack without the mess or headache of multiple extenders. That is the purpose of SmartAVI's new Rack Series of A/V component management solutions. Rather than buy multiple extenders for your rack components, and having to find power strips or numerous power outlets for the adapters, our Rack Series of extenders allows for up to 16 inputs and 16 outputs (30 feet each way) and one power supply. Say goodbye to a tangled mess of wires and extension cords and hello to a dynamic, smart component management solution. Rack-XTPro is a high-resolution UXGA and audio extender system (transmitter and receiver) designed to broadcast desktop video, stereo audio, RS-232 and infrared signals over unshielded, twisted pair cabling. Package Contents: RK-XTP-RX4S Video Console Power Plug Cable Product Type: Video Extender Receiver Product Type: Video Extender Receiver Manufacturer Part Number: RK-XTP-RX4S Connectivity Technology: Wired Connectivity Technology: Wired Manufacturer: Smart Audio Video Innovation Product Model: RK-XTP-RX4S Product Name: RK-XTP-RX4S Video Console Brand Name: SmartAVI Brand Name: SmartAVI Height: 5.3 Width: 3.4 Depth: 17.1 Maximum Operating Distance: 1000 ft Number of Network (RJ-45) Ports: 16 Media Type Supported: Twisted Pair Number of Output Devices Supported: 16 Number of Input Devices Supported: 16 Graphics Modes: WUXGA Environmentally Friendly: Yes Environmental Certification: RoHS Maximum Video Resolution: 1920 x 1200 Twisted Pair Cable Standard: Category 8 Maximum Operating Distance: 1000 ft Number of Network (RJ-45) Ports: 16 Network (RJ-45): Yes Serial Port: Yes Number of VGA Outputs: 16 VGA Out: Yes Media Type Supported: Twisted Pair Number of Output Devices Supported: 16 Number of Input Devices Supported: 16
Smart AVI - DVXU-RXS - SmartAVI DVI-D/USB CAT6 STP Receiver - 1 Remote User(s) - 225 ft Range - 2 x Network (RJ-45) - 4 x USB - 1 x DVI
DVX Plus extends Universal Serial Bus (USB 1.1) and Digital Visual Interface (DVI) signals via common twisted pair cable. Using a unique method of transparent data transfer, the system allows a USB peripheral and DVI to be located up to 275 feet from the CPU. Package Contents: DVI-D/USB CAT6 STP Receiver PS5VD4A Product Type: KVM Console Product Type: KVM Console Manufacturer Part Number: DVXU-RXS Platform Supported: PC Limited Warranty: 1 Year Connectivity Technology: Wired Connectivity Technology: Wired Manufacturer: Smart Audio Video Innovation Product Model: DVXU-RXS Product Name: DVI-D/USB CAT6 STP Receiver Brand Name: SmartAVI Brand Name: SmartAVI Country of Origin: United States Maximum Operating Distance: 225 ft USB: Yes DVI: Yes Network (RJ-45): Yes Number of Remote Users Supported: 1 Maximum Video Resolution: 1920 x 1200 Graphic Mode: WUXGA Maximum Operating Distance: 225 ft USB: Yes DVI: Yes Number of Network (RJ-45) Ports: 2 Network (RJ-45): Yes Number of USB Ports: 4 Number of DVI Ports: 1 Number of Remote Users Supported: 1
Smart AVI - HDAV-TXS - SmartAVI Component Video/Audio CAT5 Transmitter - 1 Input Device - 1000 ft Range - 1 x Network
HDX-AV a high-resolution HDTV and stereo audio extender component within SmartAVI's HDControl product family geared speci cally toward home theater owners and designers. Using small transmitter and receiver units, you can broadcast HD video and stereo audio signals over unshielded twisted pair(UTP) cabling. The HDX-Pro is the perfect solution for home theater systems in which the video source is a great distance from the TV. Package Contents: Component Video/Audio CAT5 Transmitter Power Supply Product Type: Video Extender Transmitter Product Type: Video Extender Transmitter Manufacturer Part Number: HDAV-TXS Connectivity Technology: Wired Form Factor: Rack-mountable Connectivity Technology: Wired Form Factor: Rack-mountable Manufacturer: Smart Audio Video Innovation Product Model: HDAV-TXS Product Name: Component Video/Audio CAT5 Transmitter Brand Name: SmartAVI Brand Name: SmartAVI Country of Origin: United States Height: 1 Width: 5.3 Depth: 3.5 Maximum Operating Distance: 1000 ft Number of Network (RJ-45) Ports: 1 Media Type Supported: Twisted Pair Number of Input Devices Supported: 1 Graphics Modes: WUXGA Maximum Video Resolution: 1920 x 1200 Twisted Pair Cable Standard: Category 5 Maximum Operating Distance: 1000 ft Number of Network (RJ-45) Ports: 1 Network (RJ-45): Yes Media Type Supported: Twisted Pair Number of Input Devices Supported: 1
Smart AVI - RK-XTP-TX4S - SmartAVI RK-XTP-TX4S Video Extender - 16 Input Device - 16 Output Device - 1000 ft Range - 16
One box, one power supply, and up to 16 devices extended easily from a rack without the mess or headache of multiple extenders. That is the purpose of SmartAVI's new Rack Series of A/V component management solutions. Rather than buy multiple extenders for your rack components, and having to find power strips or numerous power outlets for the adapters, our Rack Series of extenders allows for up to 16 inputs and 16 outputs (30 feet each way) and one power supply. Say goodbye to a tangled mess of wires and extension cords and hello to a dynamic, smart component management solution. Rack-XTPro is a high-resolution UXGA and audio extender system (transmitter and receiver) designed to broadcast desktop video, stereo audio, RS-232 and infrared signals over unshielded, twisted pair cabling. Package Contents: RK-XTP-TX4S Video Extender Power Plug Cable Product Type: Video Extender Transmitter Product Type: Video Extender Transmitter Manufacturer Part Number: RK-XTP-TX4S Connectivity Technology: Wired Connectivity Technology: Wired Manufacturer: Smart Audio Video Innovation Product Model: RK-XTP-TX4S Product Name: RK-XTP-TX4S Video Extender Brand Name: SmartAVI Brand Name: SmartAVI Height: 5.3 Width: 3.4 Depth: 17.1 Maximum Operating Distance: 1000 ft Number of Network (RJ-45) Ports: 16 Media Type Supported: Twisted Pair Number of Output Devices Supported: 16 Number of Input Devices Supported: 16 Number of VGA Inputs: 16 Graphics Modes: WUXGA Environmentally Friendly: Yes Environmental Certification: RoHS Maximum Video Resolution: 1920 x 1200 Twisted Pair Cable Standard: Category 8 Maximum Operating Distance: 1000 ft Number of Network (RJ-45) Ports: 16 Network (RJ-45): Yes Serial Port: Yes VGA In: Yes Media Type Supported: Twisted Pair Number of Output Devices Supported: 16 Number of Input Devices Supported: 16 Number of VGA Inputs: 16
Smartavi DVN-4Duo-DLS 4-Port Dual-Head/Dual-Link DVI-D KVM Switcher
DVN-4Duo-DL is a dedicated multi-platform KVM switch capable of managing up to four different dual head dual-link computers through two DVI-D monitors, one USB keyboard & mouse, a single set of speakers and a USB 2.0 Device. The USB emulation technology utilized by DVN-4Duo-DL enables immediate hotkey source switching through a remote USB keyboard and mouse. DVN-4Duo-DL uses dual-link connectors providing high resolutions of up to 2560x1600 (@60Hz) or up to 1920x1200 (@60Hz) for single-link connections. Features Supports Mac, PC, Linux and Sun Mac OS, Sun OS, Unix Supports dual-link resolutions up to 2560x1600 (@60Hz) and single-link resolutions up to 1920x1200 (@60Hz) Uses universal DVI Dual-Link connectors Zero pixel loss with TMDS signal correction Supports all USB 2.0 Devices Control Sun, Mac or PC computers from a common KVM console Compatible with all major software including Windows, Linux, Mac OS, Sun OS, Unix Rack mountable in a standard 19 inch rack Flash upgradeable firmware Front panel keys for selecting users and channels manually Supports USB keyboard and mouse Balanced stereo audio output RS-232 control for remote control Optional TCP/IP control Hot-key commands for quick channel selection. Independent (asynchronous) switching of KVM and peripheral USB/audio ports. Users can listen to audio from one computer while working on the other or scan a document and save in another computer. Complete keyboard emulation for error free booting
Smart AVI - HDR4X2S - SmartAVI HDMI 4x2 Router - 1920 x 1080 - Full HD - 4 x 2 - 2 x HDMI Out
HDR 4X2 The HDR4X2 switches multiple resolutions up to 1080p and digital audio from any four HDMI sources to two HD displays HDR4x2 can be used anywhere high-definition video applications are used. In HDTV installations, where several sources need to be switched to different displays, SmartAVI's Matrix Switch Series is the perfect solution. Package Contents: HDMI 4x2 Router PS5VD4A Power Supply Product Type: Audio/Video Switchbox Device Supported: TV Device Supported: Camera Device Supported: Blu-ray Disc Player Device Supported: Gaming Console Device Supported: Computer Device Supported: Display Product Type: Audio/Video Switchbox Device Supported: TV Device Supported: Camera Device Supported: Blu-ray Disc Player Device Supported: Gaming Console Device Supported: Computer Device Supported: Display Manufacturer Part Number: HDR4X2S Limited Warranty: 1 Year Weight (Approximate): 12.80 oz Connectivity Technology: Cable Connectivity Technology: Cable Manufacturer: Smart Audio Video Innovation Product Model: HDR4X2S Product Name: HDMI 4x2 Router Brand Name: SmartAVI Brand Name: SmartAVI Country of Origin: United States Height: 1 Width: 6.6 Depth: 2.9 Number of HDMI Inputs: 4 HDMI In: Yes HDMI Out: Yes Number of Displays Supported: 2 Number of Input Devices Supported: 4 Graphics Modes: Full HD Environmentally Friendly: Yes Environmental Certification: RoHS Maximum Video Resolution: 1920 x 1080 Number of HDMI Inputs: 4 Number of HDMI Outputs: 2 HDMI In: Yes HDMI Out: Yes Number of Displays Supported: 2 Number of Input Devices Supported: 4
Smart AVI - HDX-TX100S - SmartAVI HDX-100 - 1 Input Device - 1 Output Device - 150 ft Range - 1 x Network (RJ-45) - 1 x
The HDX-100 Extends any HDMI Signal up to 150 Feet to Display Monitor and One Local Screen Using HDMI-to-CAT6 STP Cabling while Retaining High-Definition Images at 1080p up to 1920 x 1200 Resolution Smart-AVI's HDX-100 is an innovative solution to extending any HDMI signal - be it a gaming console, Blueray player, computer, etc. - over inexpensive CAT6 STP cabling up to 150 feet away to one remote display and one local screen for real-time monitoring of content. Package Contents: HDX-100 2 x PS5VD1A Product Type: Video Extender Transmitter Product Type: Video Extender Transmitter Manufacturer Part Number: HDX-TX100S Connectivity Technology: Wired Connectivity Technology: Wired Manufacturer: Smart Audio Video Innovation Product Model: HDX-TX100S Product Name: HDX-100 Brand Name: Smart AVI Brand Name: Smart AVI Height: 8.8 Width: 6.4 Depth: 5.2 Maximum Operating Distance: 150 ft Number of Network (RJ-45) Ports: 1 Number of HDMI Inputs: 1 Media Type Supported: Twisted Pair Number of Output Devices Supported: 1 Number of Input Devices Supported: 1 Graphics Modes: WUXGA Maximum Video Resolution: 1920 x 1200 Twisted Pair Cable Standard: Category 6 Maximum Operating Distance: 150 ft Number of Network (RJ-45) Ports: 1 Network (RJ-45): Yes Number of HDMI Inputs: 1 HDMI In: Yes Media Type Supported: Twisted Pair Number of Output Devices Supported: 1 Number of Input Devices Supported: 1
Smart AVI - HDX-RXPLUSS - HDMI 1.3 HDCP over CAT5 Extender/Receiver (DTS-HD/ HDTV) over 200ft
Model: HDX-RXPlusS - HDMI 1.3 HDCP over CAT5 Extender/Receiver (DTS-HD/ HDTV) over 200ft Watch and Control HDTV 1080p video over 200ft from the source HDX-PlusS HDMI, IR, RS-232 Point to Point CAT5 Extender. Includes: [HDX-Plus-TX, HDX-Plus-RX, 2 x (PS5VD2A)] HDX-TXPlusS HDMI, IR, RS-232 Point to Point CAT5 Extender Transmitter. Includes: [HDX-TXPlus & (PS5VD2A)] HDX-RXPlusS HDMI, IR, RS-232 Point to Point CAT5 Extender Receiver. Includes: [HDX-RXPlus & (PS5VD2A)] FEATURES The HDX-Plus uses two CAT5 UTP/STP cables to extend HDMI signals such as HDTV output over 200ft (60m) from the source. It is capable of transmitting high-resolution HD video up to 1080p. Controlling your video source is easy with the HDX-Plus' bi-directional IR and RS-232 extension. Whether it's for a home entertainment system or a commercial installation, the HDX-Plus delivers flexibility and control. *replaces the HDX-1000 Extends HDMI output over two CAT5/5e/6 UTP/STP cable Extends IR and RS-232 control signals for remote control Delivers uncompressed HD video up to 1080p@60Hz@48bits and 3D Data signals up to 3.4Gbps HDMI 1.3 and HDCP compliance IR and RS-232 communication are bi-directional Transmits high-quality Dolby TrueHD, DTS-HD MA audio signals Transmits 1080p resolution over 200 feet (60 meters) from the source Video Format HDMI 1.3 and HDCP compliant HDTV Resolutions 480p, 720p, 1080i, 1080p/60Hz/48bit TV Resolution 480i Input Interface (TX) HDMI Type A 19-pin Female TMDS Output Interface (RX) HDMI Type A 19-pin Female TMDS Input Cable Length (TX) Up to 40 ft. Output Cable Length (RX) Up to 40 ft. AUDIO Format Dolby TrueHD, DTS-HD MA Input Interface HDMI (Integrated) Output Interface HDMI (Integrated) IR Signal Type 38 KHz Interface 3.5 mm Jack Socket (Female) RS232 Baud Rate Up to 19, 200 bps Input Interface (TX) DB-9 (Serial) Female Output Interface (RX) DB-9 (Serial) Male SYSTEM Interface RJ-45 Cable Requirements CAT5/5e/6 Maximum Length 200 feet (60 meters) OTHER Power External 100-240 VAC/5VDC2A @10W Dimensions 5W x 1.125H x 4.125D Weight 0.6 lbs. Approvals UL, CE, ROHS Compliant Operating Temp. 32-131F (0-55 C) Storage Temp. -4-185 F (-20-85 C) Humidity Up to 95%

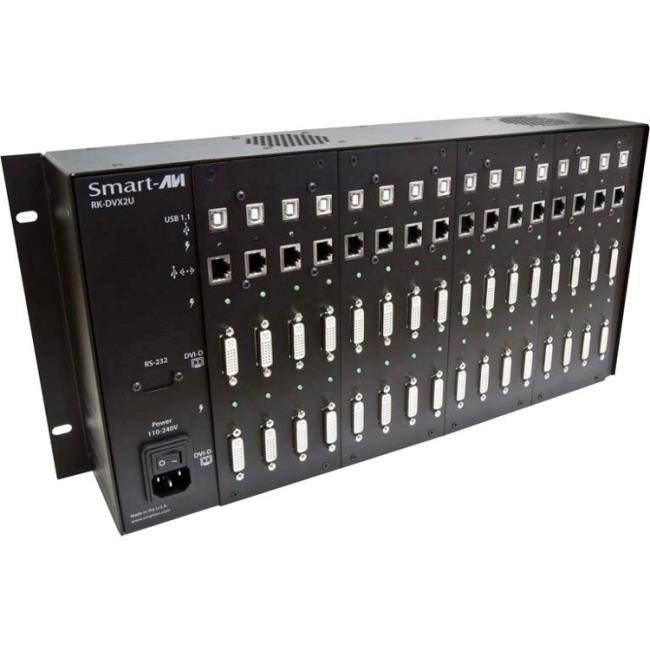

SmartAVI RK-DVX2U KVM Extender
The RK-DVX2U is the perfect solution for extending dual DVI-D displays and USB 1.1 devices to a remote location up to 275 feet away. It is the ideal way to consolidate up to 16 workstation computers into one location. The RK-DVX2U features dual DVI-D extension up to 275 feet over STP. It is fully compatible with MAC, PC and LINUX DVI standards. The RK-DVX2U also features transparent USB 1.1 signal extension, with full support for all USB 1.1 devices and an integrated 4-port hub in the receiver. Flash Drives, Printers, Cameras, Scanners, etc. may all be used with the RK-DVX2U.Features* Package Contents: 325 * Product Type: KVM Extender * Product Type: KVM Extender * Platform Supported: PC * Platform Supported: Mac * Platform Supported: Linux * Connectivity Technology: Wired * Connectivity Technology: Wired * Form Factor: Rack-mountable * Product Model: RK-DVX2U * Product Name: RK-DVX2U KVM Extender * Brand Name: SmartAVI * Brand Name: SmartAVI * Country of Origin: United States * Maximum Operating Distance: 325 ft * USB: Yes * DVI: Yes * Network (RJ-45): Yes * Number of Computers Supported: 12 * Maximum Video Resolution: 1920 x 1200 * Graphic Mode: WUXGA * Maximum Operating Distance: 325 ft * USB: Yes * DVI: Yes * Network (RJ-45): Yes * Number of USB Ports: 12 * Number of DVI Ports: 24 * Number of Computers Supported: 12* Product Type: KVM Extender * Connectivity Technology: Wired * Brand Name: SmartAVI * Maximum Operating Distance: 325 ft * USB: Yes * DVI: Yes * Network (RJ-45): Yes * Number of Computers Supported: 12

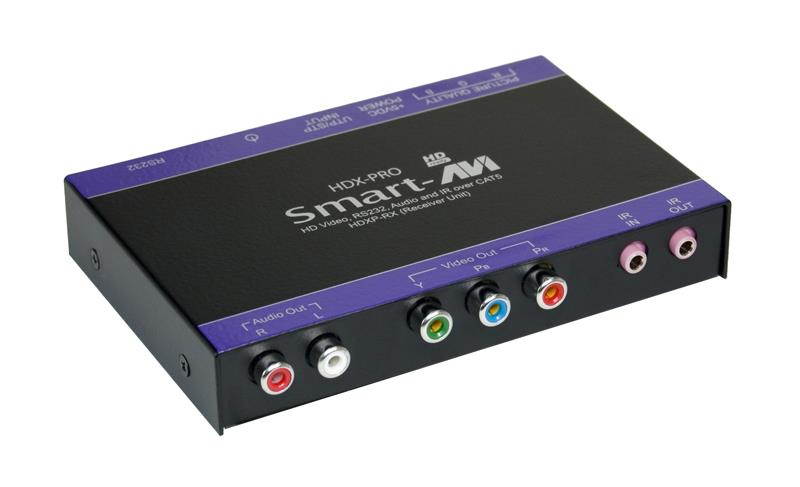

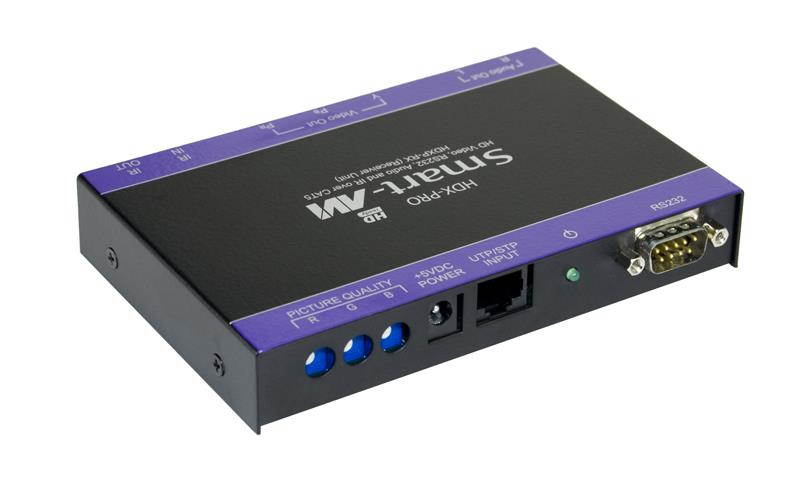

Smart AVI - HDP-RXLS - SmartAVI Component Video/Audio/RS-232/IR CAT5 1699ft Receiver - 1 Input Device - 1699 ft Range -
Model: HDP-RXLS - Component Video/Audio/RS-232/IR over CAT5 Extender/RX 1699ft/1080p The HDXPRO extends high definition video over Cat5 along with stereo audio, RS-232, and IR. Effective up to 1, 000 ft. HDX-PRO Component Video/Audio/RS-232/IR Point-to-Point CAT5 Extender. Includes: [HDP-TX, HDP-RX, 2 x (PS5VD1A)] HDP-TXS Component Video/Audio/RS-232/IR CAT5 Transmitter. Includes: [HDP-TX, (CCVGAMM06) & (PS5VD1A)] HDP-RXS Component Video/Audio/RS-232/IR CAT5 Receiver. Includes: [HDP-RX & (PS5VD1A)] HDP-RXLS Component Video/Audio/RS-232/IR CAT5 1699ft Receiver. Includes: [HDP-RXL & (PS5VD1A)] FEATURES HDX-PRO a high-resolution HDTV and stereo audio extender component within SmartAVI's HDControl product family geared specifically toward home theater owners and designers. Using small transmitter and receiver units, you can broadcast HD desktop video, stereo audio signals, infrared and RS-232 over unshielded twisted pair (UTP) cabling. Using RS-232 and IR support, the HDX-PRO allows users to send commands such as volume control, channel viewing or power on/off, to single or multiple devices from remote locations. Uses easy-to-install, inexpensive CAT5/5e/7/6/8 Extends output up to 1, 000 feet Supports high-resolution video up to 1920 x 1200 HDTV compatible (720p, 1080i, 1080p) Supports Component Video (YPbPr) 300 MHz bandwidth Sends high-resolution HDTV, stereo audio, RS-232 and IR signals from one source to remote location using single cat5 Compatible with line level stereo audio signals High ground loop immunity Built-in power surge and transient protection Designated trimmer in the remote unit to compensate for cable length Compact metal case enclosure External power supply Transparent RS-232 and IR communication Package Contents: Component Video/Audio/RS-232/IR CAT5 1699ft Receiver PS5VD1A Power Supply Product Type: Video Extender Receiver Product Type: Video Extender Receiver Manufacturer Part Number: HDP-RXLS Connectivity Technology: Wired Connectivity Technology: Wired Manufacturer: Smart Audio Video Innovation Product Model: HDP-RXLS Product Name: Component Video/Audio/RS-232/IR CAT5 1699ft Receiver Brand Name: SmartAVI Brand Name: SmartAVI Country of Origin: United States Maximum Operating Distance: 1699 ft Number of Network (RJ-45) Ports: 1 Media Type Supported: Twisted Pair Number of Input Devices Supported: 1 Graphics Modes: WUXGA Maximum Video Resolution: 1920 x 1200 Twisted Pair Cable Standard: Category 8 Maximum Operating Distance: 1699 ft Number of Network (RJ-45) Ports: 1 Network (RJ-45): Yes Serial Port: Yes Media Type Supported: Twisted Pair Number of Input Devices Supported: 1
Smart AVI - RK-XTP-RX16S - SmartAVI RK-XTP-RX16S Video Console - 16 Input Device - 16 Output Device - 1000 ft Range - 16
One box, one power supply, and up to 16 devices extended easily from a rack without the mess or headache of multiple extenders. That is the purpose of SmartAVI's new Rack Series of A/V component management solutions. Rather than buy multiple extenders for your rack components, and having to find power strips or numerous power outlets for the adapters, our Rack Series of extenders allows for up to 16 inputs and 16 outputs (30 feet each way) and one power supply. Say goodbye to a tangled mess of wires and extension cords and hello to a dynamic, smart component management solution. Rack-XTPro is a high-resolution UXGA and audio extender system (transmitter and receiver) designed to broadcast desktop video, stereo audio, RS-232 and infrared signals over unshielded, twisted pair cabling. Package Contents: RK-XTP-RX16S Video Console Power Plug Cable Product Type: Video Extender Receiver Product Type: Video Extender Receiver Manufacturer Part Number: RK-XTP-RX16S Connectivity Technology: Wired Connectivity Technology: Wired Manufacturer: Smart Audio Video Innovation Product Model: RK-XTP-RX16S Product Name: RK-XTP-RX16S Video Console Brand Name: SmartAVI Brand Name: SmartAVI Height: 5.3 Width: 3.4 Depth: 17.1 Maximum Operating Distance: 1000 ft Number of Network (RJ-45) Ports: 16 Media Type Supported: Twisted Pair Number of Output Devices Supported: 16 Number of Input Devices Supported: 16 Graphics Modes: WXGA Environmentally Friendly: Yes Environmental Certification: RoHS Maximum Video Resolution: 1920 x 1200 Twisted Pair Cable Standard: Category 8 Maximum Operating Distance: 1000 ft Number of Network (RJ-45) Ports: 16 Network (RJ-45): Yes Serial Port: Yes Number of VGA Outputs: 16 VGA Out: Yes Media Type Supported: Twisted Pair Number of Output Devices Supported: 16 Number of Input Devices Supported: 16
Smartavi FDX-M2PS Multi-mode Dual DVI-D Fibe Optic Extender Kit (1400ft/ TMDS )
Model: FDX-M2PS - Multi-mode Dual DVI-D Fibe Optic Extender Kit (1400ft/ TMDS ) Multi-mode Dual DVI-D Extender, with Audio and PS/2 Keyboard and Mouse. Extends up to 1,400 feet over 2 Fiber Optic Cables. Point to Point Dual DVI-D, PS/2 Keyboard & Mouse, Audio and RS232 Multimode Fiber Extender. Includes: [FDX-TX2MP, FDX-RX2MP, 2 X (CCPWR06USA)] FEATURES The FDX-M2P consists of a transmitter and receiver that extend two DVI-D outputs, with audio, PS/2 keyboard and mouse, and RS-232 control. For exceptional quality and security, fiber optic extension is the best solution. The FDX-M2P can go the distance with multi-mode fiber optic cabling with a reach of up to 1,400 feet. The SmartAVI FDX-M2P is capable of supporting two DVI-D monitors, with PS/2 keyboard and mouse, stereo audio with serial (RS-232) control. The system includes a transmitter and receiver, which are connected by two fiber optic cables. The transmitter connects to the user's computer with the necessary cables, while the receiver connects to the remote interface devices up to 1,400 feet away. Dual channel DVI-D, audio and PS/2 keyboard and mouse with RS-232 control Top Signal Quality over Multimode Fiber (up to 1,400 feet) Video Resolutions up to 1920 x 1200 WUXGA at 60Hz Customizable/Programmable DDC Table for Mac/PC Supports all PS/2 Keyboards and Mice Fiber Plug Type LC Compatible With all Major KVM Switches Supports Mac, PC, and Linux DVI Uses universal DVI Single Link connectors Zero pixel loss with TMDS signal correction Rack Mountable Solution Plug-and-play
Smart AVI - FDX-AVS - SmartAVI Point to Point DVI-D, Audio and RS232 over Multimode Fiber Extender - 1 Input Device - 1
The FDX-AV consists of a transmitter and receiver that extend DVI-D, audio and RS-232 signals. Equipped with DVI-D connectors for multi-mode signals, this product is the perfect fiber solution for professional digital singage and multimedia presentation needs. It is capable of extending signals up to 1,500 feet over a single multimode fiber optic cable. Package Contents: FDX-TXAV Transmitter FDX-RXAV Receiver 2 X PS5VD4A Product Type: Video Extender Transmitter/Receiver Product Type: Video Extender Transmitter/Receiver Manufacturer Part Number: FDX-AVS Limited Warranty: 1 Year Weight (Approximate): 8 lb Connectivity Technology: Wired Connectivity Technology: Wired Manufacturer: Smart Audio Video Innovation Product Model: FDX-AVS Product Name: Point to Point DVI-D, Audio and RS232 over Multimode Fiber Extender Brand Name: SmartAVI Brand Name: SmartAVI Country of Origin: United States Height: 1.7 Width: 4.5 Depth: 5.5 Maximum Operating Distance: 1500 ft Media Type Supported: Optical Fiber Number of Output Devices Supported: 1 Number of Input Devices Supported: 1 Number of DVI Inputs: 1 Graphics Modes: WUXGA Maximum Video Resolution: 1920 x 1200 Maximum Operating Distance: 1500 ft Number of DVI Outputs: 1 DVI In: Yes DVI Out: Yes Media Type Supported: Optical Fiber Number of Output Devices Supported: 1 Number of Input Devices Supported: 1 Number of DVI Inputs: 1
Smart AVI - UTX-500S - SmartAVI UTX-500S Video Console/Extender - 1 Input Device - 1 Output Device - 300 ft Range - 4 x
The UTX-500 is an VGA and USB extender that sends signals up to 300 feet away via two CAT5 cables. Plug-and-play design means the UTX-500 is ready to use as soon as its connected, and it's excellent 1080p (1920x1080) resolution picture output ensures top-quality presentations from a lengthy distance. Package Contents: UTX-TX500 Transmitter UTXRX500 Receiver 6ft USB MM AB cable 6ft XVGA MM Cable 2 x PS5VDC2A Power Supply Product Type: Video Extender Transmitter/Receiver Product Type: Video Extender Transmitter/Receiver Manufacturer Part Number: UTX-500S Weight (Approximate): 1 lb Connectivity Technology: Wired Connectivity Technology: Wired Manufacturer: Smart Audio Video Innovation Product Model: UTX-500S Product Name: UTX-500S Video Console/Extender Brand Name: SmartAVI Brand Name: SmartAVI Country of Origin: United States Height: 1 Width: 5.5 Depth: 3.4 Maximum Operating Distance: 300 ft Number of Network (RJ-45) Ports: 4 Number of USB Ports: 5 Media Type Supported: Twisted Pair Number of Output Devices Supported: 1 Number of Input Devices Supported: 1 Number of VGA Inputs: 1 Graphics Modes: WUXGA Maximum Video Resolution: 1920 x 1200 Twisted Pair Cable Standard: Category 5 Maximum Operating Distance: 300 ft USB: Yes Number of Network (RJ-45) Ports: 4 Network (RJ-45): Yes Number of USB Ports: 5 Number of VGA Outputs: 1 VGA In: Yes VGA Out: Yes Media Type Supported: Twisted Pair Number of Output Devices Supported: 1 Number of Input Devices Supported: 1 Number of VGA Inputs: 1
Smart AVI - CVH-01 (S) - SmartAVI CVH-01 Component Video / VGA with Audio to HDMI Converter
If you've just invested in a large home theatre setup, you might now be thinking how you can hook up your PC to watch your large collection of media files on the big screen. This converter box is the answer. It takes the VGA output + stereo audio signal from your PC, and converts them to now common HDMI format while maintaining full high-definition(HD) resolution. AC adaptor included. Features: Allows to connect old system to HDMI display Can convert analog video signals to digital HDMI signal Can be used as a VGA to DVI converter Highly precise 10-bit A/D conversion of each color channel, better image quality Supports video and audio signals Ensures to send high-definition signal without signal loss Supports Plug-and-play function, no software installation required Easy to install and simple to link any two or four sources to one HDTV display Supports signal high-definition display for multiple sources, such as DVD players Satellite receivers, digital projectors, A/V receivers, and set up boxes Cost-effective solution (no need to buy more HDTV display) Allows you to convert analog audio/video to digital format, avoiding costly upgrades Allows HD15-pin VGA and audio sources Transfer into HDMI signal out Source Input: HD-15M x 1 3.5Phone Jack x 1 HDMI Output Display: HDMI connector x 1 Max Resolution 1920x1200 or 480p/720i/720p/1080i/1080p Bandwidth: 1.65Gps EX. Power adaptor: DC 5V 2A Housing: Metal Dimension: 5 in W x 3 in D x 1 in H
Smart AVI - UTX-RX500S - SmartAVI WUXGA+AUDIO+USB Receiver - 1 Output Device - 300 ft Range - 2 x Network (RJ-45) - 4 x
The UTX-500 is an VGA and USB extender that sends signals up to 300 feet away via two CAT5 cables. Plug-and-play design means the UTX-500 is ready to use as soon as its connected, and it's excellent 1080p (1920x1080) resolution picture output ensures top-quality presentations from a lengthy distance. Package Contents: WUXGA+AUDIO+USB Receiver PS5VDC2A Power Supply Product Type: Video Extender Receiver Product Type: Video Extender Receiver Manufacturer Part Number: UTX-RX500S Weight (Approximate): 1 lb Connectivity Technology: Wired Connectivity Technology: Wired Manufacturer: Smart Audio Video Innovation Product Model: UTX-RX500S Product Name: WUXGA+AUDIO+USB Receiver Brand Name: SmartAVI Brand Name: SmartAVI Country of Origin: United States Height: 1 Width: 5.5 Depth: 3.4 Maximum Operating Distance: 300 ft Number of Network (RJ-45) Ports: 2 Number of USB Ports: 4 Media Type Supported: Twisted Pair Number of Output Devices Supported: 1 Graphics Modes: WUXGA Maximum Video Resolution: 1920 x 1200 Twisted Pair Cable Standard: Category 5 Maximum Operating Distance: 300 ft USB: Yes Number of Network (RJ-45) Ports: 2 Network (RJ-45): Yes Number of USB Ports: 4 Number of VGA Outputs: 1 VGA Out: Yes Media Type Supported: Twisted Pair Number of Output Devices Supported: 1
Smart AVI - RK-DVS-TX16S - SmartAVI Powered Rack/Chassis with DVI-D 2-Port CAT6 STP Transmitter with Local Loop - 16
Extend DVI-D signals to 32 remote displays up to 220 feet plus 16 local monitors with one unit. Package Contents: Powered Rack/Chassis with DVI-D 2-Port CAT6 STP Transmitter with Local Loop 16 Cards CCPWR06 Cable Product Type: Video Extender Transmitter Product Type: Video Extender Transmitter Manufacturer Part Number: RK-DVS-TX16S Limited Warranty: 1 Year Connectivity Technology: Wired Form Factor: Rack-mountable Connectivity Technology: Wired Form Factor: Rack-mountable Manufacturer: Smart Audio Video Innovation Product Model: RK-DVS-TX16S Product Name: Powered Rack/Chassis with DVI-D 2-Port CAT6 STP Transmitter with Local Loop Brand Name: SmartAVI Brand Name: SmartAVI Country of Origin: United States Height: 5.3 Width: 3.4 Depth: 17.1 Maximum Operating Distance: 220 ft Media Type Supported: Twisted Pair Number of Input Devices Supported: 16 Number of DVI Inputs: 32 Graphics Modes: WUXGA Maximum Video Resolution: 1920 x 1200 Twisted Pair Cable Standard: Category 6 Maximum Operating Distance: 220 ft Network (RJ-45): Yes DVI In: Yes Media Type Supported: Twisted Pair Number of Input Devices Supported: 16 Number of DVI Inputs: 32
Smart AVI - FDX-M2US - SmartAVI FDX-M2US KVM Console/Extender - 1 Computer(s) - 1 Remote User(s) - 1400 ft Range - 3 x USB - 4 x DVI - Rack-mountable
The FDX-M2U consists of a transmitter and receiver that extend two DVI-D outputs, with audio, USB keyboard and mouse, and RS-232 control. For exceptional quality and security, fiber optic extension is the best solution. The FDX-M2U can go the distance with multi-mode fiber optic cabling with a reach of up to 1,400 feet. The SmartAVI FDX-M2U is capable of supporting two DVI-D monitors, with USB 1.1 keyboard and mouse, stereo audio with serial (RS-232) control. The system includes a transmitter and receiver, which are connected by two fiber optic cables. The transmitter connects to the user's computer with the necessary cables, while the receiver connects to the remote interface devices up to 1,400 feet away. Package Contents: FDX-TX2MU Transmitter FDX-RX2MU Receiver 2 X CCPWR06USA Product Type: KVM Console/Extender Product Type: KVM Console/Extender Manufacturer Part Number: FDX-M2US Platform Supported: Linux Platform Supported: Mac Platform Supported: PC Limited Warranty: 1 Year Connectivity Technology: Wired Connectivity Technology: Wired Form Factor: Rack-mountable Manufacturer: Smart Audio Video Innovation Product Model: FDX-M2US Product Name: FDX-M2US KVM Console/Extender Brand Name: SmartAVI Brand Name: SmartAVI Country of Origin: United States Maximum Operating Distance: 1400 ft USB: Yes DVI: Yes Number of Computers Supported: 1 Number of Remote Users Supported: 1 Maximum Video Resolution: 1920 x 1200 Graphic Mode: WUXGA Maximum Operating Distance: 1400 ft USB: Yes DVI: Yes Number of USB Ports: 3 Number of DVI Ports: 4 Number of Computers Supported: 1 Number of Remote Users Supported: 1
Smart AVI - SMX-AV1616S - SmartAVI SuperMatrix - 1920 x 1200 - WUXGA - 1080p16 x 16
SuperMatrix combines all the functions of an audio matrix, video matrix, IR matrix and a full RS-232 matrix into one cost-effective, compact design. Product Type: Audio/Video Switchbox Device Supported: Computer Product Type: Audio/Video Switchbox Device Supported: Computer Manufacturer Part Number: SMX-AV1616S Weight (Approximate): 8.82 lb Manufacturer: Smart Audio Video Innovation Product Model: SMX-AV1616S Product Name: SuperMatrix Brand Name: SmartAVI Brand Name: SmartAVI Height: 3.5 Width: 19 Depth: 17.7 Number of Displays Supported: 16 Number of Input Devices Supported: 16 Connectivity (RJ-45): Yes Number of Connectivity (RJ-45) Ports: 16 Graphics Modes: WUXGA Scan Format: 1080p Maximum Video Resolution: 1920 x 1200 Number of Displays Supported: 16 Number of Input Devices Supported: 16 Connectivity (RJ-45): Yes Number of Connectivity (RJ-45) Ports: 16
Smart AVI - KDX-RX200S - SmartAVI DVI-D/Audio/PS2 CAT6 STP Receiver - 1 Remote User(s) - 250 ft Range - 2 x Network (RJ-45) - 2 x PS/2 Port - 1 x DVI - Rack-mountable
Model: KDX-RX200S - KVM Extender/RX Cat-5 DVI/Audio/Keyboard and Mouse (250ft/1920x1200) KDX200 extends any DVI-D signal, keyboard, mouse and sound up to 250ft with CAT5 cable. KDX-200S DVI-D/Audio/PS2 CAT6 STP Extender. Includes: [KDX-TX200, KDX-RX200, (CCKDMMM06), & 2 X (PS5VD2A)] KDX-RX200S DVI-D/Audio/PS2 CAT6 STP Transmitter. Includes: [KDX-TX200, (CCKDMMM06), & (PS5VD1A)] KDX-TX200S DVI-D/Audio/PS2 CAT6 STP Receiver. Includes: [KDX-RX200 & (PS5VD1A)] FEATURES Top Image Quality at all Resolutions. Video Resolutions up to 1920 x 1200 @ 60Hz (1280 x 1024 @ 75Hz)on all distances up to the maximum distance. User selectable: DCC-Information used from the remotely located monitor, from the locally located monitor or from an internal DDC table. Basic device to remotely locate monitor, keyboard/mouse and sound. Supports PS2-keyboard/mouse. Maximum screen resolution on all distances: 250 ft w/ STP CAT5e. Compatible with all operating systems. Compatible with all major KVM switches. Rack mount options (19): Mount up to 4 devices in a 19/1U rack mount kit. This saves expensive rack space. Supports stereo sound Package Contents: DVI-D/Audio/PS2 CAT6 STP Receiver CCKDMMM06 PS5VD1A Power Supply Product Type: KVM Console Product Type: KVM Console Manufacturer Part Number: KDX-RX200S Platform Supported: Linux Platform Supported: PC Limited Warranty: 1 Year Connectivity Technology: Wired Connectivity Technology: Wired Form Factor: Rack-mountable Manufacturer: Smart Audio Video Innovation Product Model: KDX-RX200S Product Name: DVI-D/Audio/PS2 CAT6 STP Receiver Brand Name: SmartAVI Rack Height: 1U Brand Name: SmartAVI Country of Origin: United States Maximum Operating Distance: 250 ft DVI: Yes Network (RJ-45): Yes PS/2 Port: Yes Number of Remote Users Supported: 1 Maximum Video Resolution: 1920 x 1200 Graphic Mode: WUXGA Maximum Operating Distance: 250 ft DVI: Yes Number of Network (RJ-45) Ports: 2 Network (RJ-45): Yes PS/2 Port: Yes Number of PS/2 Ports: 2 Number of DVI Ports: 1 Number of Remote Users Supported: 1

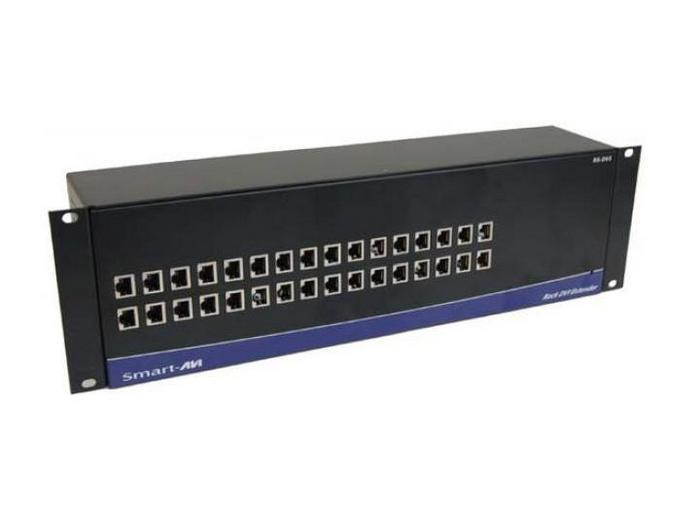

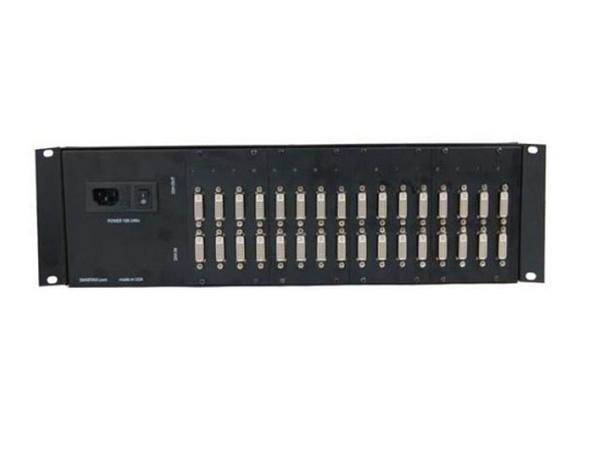

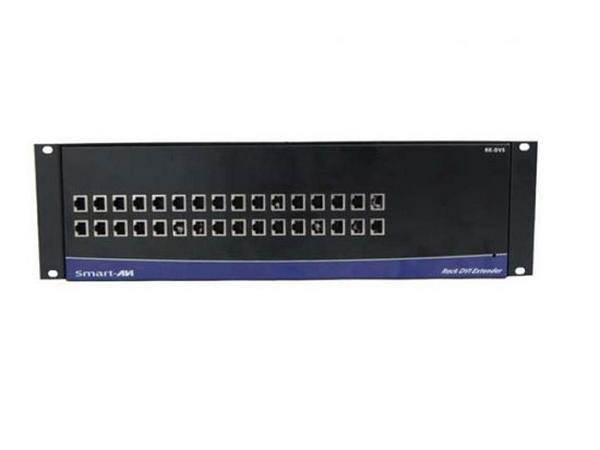

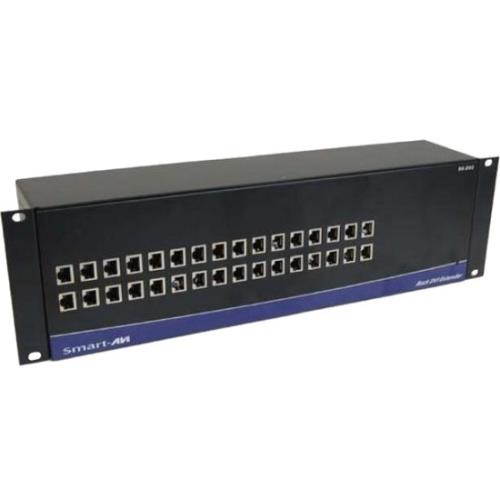

Smart AVI - RK-DVS-TX8S - SmartAVI Powered Rack/Chassis with DVI-D 2-Port CAT6 STP Transmitter with Local Loop - 8 Input
Extend DVI-D signals to 32 remote displays up to 220 feet plus 16 local monitors with one unit. Package Contents: Powered Rack/Chassis with DVI-D 2-Port CAT6 STP Transmitter with Local Loop 8 Cards CCPWR06 Cable Product Type: Video Extender Transmitter Product Type: Video Extender Transmitter Manufacturer Part Number: RK-DVS-TX8S Limited Warranty: 1 Year Connectivity Technology: Wired Form Factor: Rack-mountable Connectivity Technology: Wired Form Factor: Rack-mountable Manufacturer: Smart Audio Video Innovation Product Model: RK-DVS-TX8S Product Name: Powered Rack/Chassis with DVI-D 2-Port CAT6 STP Transmitter with Local Loop Brand Name: Smart AVI Brand Name: Smart AVI Country of Origin: United States Height: 5.3 Width: 3.4 Depth: 17.1 Maximum Operating Distance: 220 ft Media Type Supported: Twisted Pair Number of Input Devices Supported: 8 Number of DVI Inputs: 16 Graphics Modes: WUXGA Maximum Video Resolution: 1920 x 1200 Twisted Pair Cable Standard: Category 6 Maximum Operating Distance: 220 ft Network (RJ-45): Yes DVI In: Yes Media Type Supported: Twisted Pair Number of Input Devices Supported: 8 Number of DVI Inputs: 16
Smartavi VNET+2PS 2x1 USB KVM Switch with Stereo Audio/VNET+ Series (1920x1200)
Model: VNET+2PS - 2x1 USB KVM Switch with Stereo Audio, VNET+ Series (1920x1200) Control 2 computers, PC or Mac, on one display with USB keyboard and mouse, and stereo audio. VNET+2P, 2X1 WUXGA, USB, Audio switch Includes: [VNET+2P & (PS5VD2A)] FEATURES Supports Mac, PC, Linux and Sun DVI Supports High Resolution1920x1200 60Hz WUXGA Supports USB keyboard and mouse Balanced stereo audio output Front panel tactile switch with LED indicator Supports Auto-scan mode for simple discovery
Smart AVI - DVX-TXPROS - Dvi-d/audio/rs-232 Cat6 Stp Transmitter. Includes: Dvx-txpro, (ccdvimm06), & (ps
Model: DVX-TXPROS - PRO DVI Extender/Transmiter over CAT5 up to 250ft (full duplex RS232)Extend any DVI-D signal, full duplex RS232 and stereo sound up to 250ft with Cat5 cable. DVX-PROS DVI-D/Sound/RS-232 CAT6 STP Extender. Includes: [DVXP-TXPRO, DVXP-RXPRO, (CCDVIMM06), & 2 x (PS5VD4A)] DVX-TXPROS DVI-D/Audio/RS-232 CAT6 STP Transmitter. Includes: [DVX-TXPRO, (CCDVIMM06), & (PS5VD4A)] DVX-RXPROS DVI/Audio/RS-232 CAT6 STP Receiver. Includes: [DVX-RXPRO & (PS5VD4A)] FEATURES Top Image Quality at all Resolutions. Video Resolutions up to 1920 x 1200 @ 60Hz (1280 x 1024 @ 75Hz)on all distances up to the maximum distance. User selectable: DCC-Information used from the remotely located Monitor, from the locally located Monitor or from an internal DDC Table. Basic device to remotely locate Touch Screen and Sound. Full duplex RS232 up to 150kbps. Maximum Screen Resolution on all distances: 250 ft w/ STP Cat5e. Compatible with all operating systems. Compatible with all major Touch Screen and Tablet. Rack Mount options 19 Protocol Full duplex, transparent to all baud rate Resolution 1920x1200 @ 60Hz Audio Signal Type Stereo Audio Audio Bandwidth 15MHz, 0dB Audio Impedance 100 Ohm Audio Connector 3.5mm mini jack, Femal RS232 (TX) DB9Female (RX) DB9 Male Power Supply 5VDC Size (L) 6.125 x (W) 6.25 x (H) .825 Weight 0.40 lbs
Smartavi HKM-02S 2-Port HDMI/USB/Audio KVM Switcher for Mac/PC/Linux and Sun
Model: HKM-02S - 2-Port HDMI/USB/Audio KVM Switcher for Mac/PC/Linux and Sun Control 2 Computers, PC or Mac on one Display with USB Keyboard and Mouse, and Stereo Audio. 2X1 KVM HDMI, USB, Audio switch Includes: [HKM-02 & (PS5VD2A) ] FEATURES Compatible with Mac, PC, Linux and Sun Supports High Definition HDMI Supports USB keyboard and mouse Balanced stereo audio output Front panel tactile switch with LED indicator Supports Auto-scan mode for simple discovery

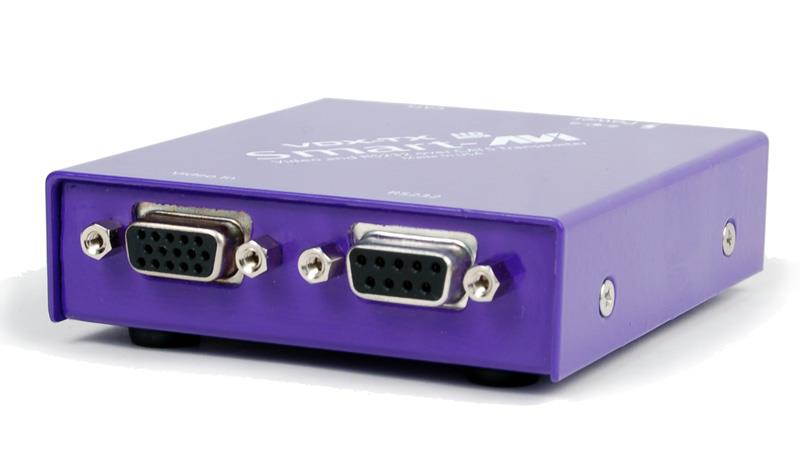

Smart AVI - VDXS - SmartAVI VDX UXGA & RS-232 Point-to-Point CAT5 Extender - 1 Input Device - 1 Output Device - 1000 ft
The VDX allows the extension of high definition video and RS-232 control signals via a single CAT5 twisted pair cable up to 1, 000 feet using a unique method of transparent data transfer. Package Contents: VDX UXGA & RS-232 CAT5 Transmitter VDX UXGA & RS-232 CAT5 Receiver CCVGAMM06 Cable PS5VD1A Power Supply Product Type: Video Extender Transmitter/Receiver Product Type: Video Extender Transmitter/Receiver Manufacturer Part Number: VDXS Limited Warranty: 1 Year Weight (Approximate): 1.60 oz Connectivity Technology: Wired Connectivity Technology: Wired Manufacturer: Smart Audio Video Innovation Product Model: VDXS Product Name: VDX UXGA & RS-232 Point-to-Point CAT5 Extender Brand Name: Smart AVI Brand Name: Smart AVI Country of Origin: United States Maximum Operating Distance: 1000 ft Number of Network (RJ-45) Ports: 2 Media Type Supported: Twisted Pair Number of Output Devices Supported: 1 Number of Input Devices Supported: 1 Number of VGA Inputs: 1 Graphics Modes: WUXGA Maximum Video Resolution: 1920 x 1200 Twisted Pair Cable Standard: Category 8 Maximum Operating Distance: 1000 ft Number of Network (RJ-45) Ports: 2 Network (RJ-45): Yes Serial Port: Yes Number of VGA Outputs: 1 VGA In: Yes VGA Out: Yes Media Type Supported: Twisted Pair Number of Output Devices Supported: 1 Number of Input Devices Supported: 1 Number of VGA Inputs: 1
Smart AVI - RK-DVS-TX4S - SmartAVI Powered Rack/Chassis with DVI-D 2-Port CAT6 STP Transmitter with Local Loop - 4 Input
Extend DVI-D signals to 32 remote displays up to 220 feet plus 16 local monitors with one unit. Package Contents: Powered Rack/Chassis with DVI-D 2-Port CAT6 STP Transmitter with Local Loop 4 Cards CCPWR06 Cable Product Type: Video Extender Transmitter Product Type: Video Extender Transmitter Manufacturer Part Number: RK-DVS-TX4S Limited Warranty: 1 Year Connectivity Technology: Wired Form Factor: Rack-mountable Connectivity Technology: Wired Form Factor: Rack-mountable Manufacturer: Smart Audio Video Innovation Product Model: RK-DVS-TX4S Product Name: Powered Rack/Chassis with DVI-D 2-Port CAT6 STP Transmitter with Local Loop Brand Name: SmartAVI Brand Name: SmartAVI Country of Origin: United States Height: 5.3 Width: 3.4 Depth: 17.1 Maximum Operating Distance: 220 ft Media Type Supported: Twisted Pair Number of Input Devices Supported: 4 Number of DVI Inputs: 8 Graphics Modes: WUXGA Maximum Video Resolution: 1920 x 1200 Twisted Pair Cable Standard: Category 6 Maximum Operating Distance: 220 ft Network (RJ-45): Yes DVI In: Yes Media Type Supported: Twisted Pair Number of Input Devices Supported: 4 Number of DVI Inputs: 8
SmartAVI FDX-MINI-S KVM Console/Extender
For reliable, uninterrupted and long-distance DVI-D KVM extension, the FDX-Mini provides the best solution with its fiber optic extension capabilities. Users can bridge large gaps that they ordinarily could not with this compact device. The FDX-Mini includes the transmitter and receiver, for complete point-to-point signal extension, with no need for any other hardware or software.Using FDX-Mini technology, this fiber DVI extender is capable of sending a DVI-D signal up to 1,400 feet (426.7 meters) over a conventional and inexpensive multimode fiber cable. Supported resolutions up to 1920x1200x60Hz. As with all DVI-D and USB connections, the signals are transmitted via the extender.The FDX-Mini also has USB keyboard, mouse, and RS-232 support, giving you the ability to control your displays or devices remotely.Features* Package Contents: FDX-MINI-TX Transmitter FDX-MINI-RX Receiver 2 X PS5VD4A * Product Type: KVM Console/Extender * Product Type: KVM Console/Extender * Platform Supported: PC * Limited Warranty: 1 Year * Connectivity Technology: Wired * Connectivity Technology: Wired * Product Model: FDX-MINI-S * Product Name: FDX-MINI-S KVM Console/Extender * Brand Name: SmartAVI * Brand Name: SmartAVI * Country of Origin: United States * Maximum Operating Distance: 4593175.85 ft * USB: Yes * DVI: Yes * Number of Computers Supported: 1 * Number of Remote Users Supported: 1 * Maximum Video Resolution: 1920 x 1200 * Graphic Mode: WUXGA * Maximum Operating Distance: 4593175.85 ft * USB: Yes * DVI: Yes * Number of USB Ports: 3 * Number of DVI Ports: 2 * Number of Computers Supported: 1 * Number of Remote Users Supported: 1* Product Type: KVM Console/Extender * Connectivity Technology: Wired * Brand Name: SmartAVI * Maximum Operating Distance: 4593175.85 ft * USB: Yes * DVI: Yes * Number of Computers Supported: 1 * Number of Remote Users Supported: 1
Smart AVI - HR-2PS - SmartAVI HDMI 2x1 Switch - 1920 x 1200 - WUXGA - 2 x 1 - 1 x HDMI Out
Using SmartAVI's HR-2P, it is possible to connect two HDMI components to one display screen for easy and seamless switching between sources. Transmit high-definition source such as Blu-ray player, gaming console, computer or cable receiver easily while viewing on one HDTV monitors. This is perfect for educational lectures, corporate meeting rooms, bars and lounges. A great example of the HR-2P in action would be a bar showing a live football game;during half time, the unit could be switched to another source for entertainment such as music videos on DVD or Blu-ray, another sports even via cable or satellite or even a PowerPoint presentation from a computer displaying half time specials on drinks and appetizers, etc. Once the game resumes, the display can be switched right back using the unit's infrared control from anywhere in the building. Package Contents: HDMI 2x1 Switch PS5VDC1A Power Supply Product Type: Audio/Video Switchbox Device Supported: Gaming Console Device Supported: Blu-ray Disc Player Device Supported: TV Device Supported: Computer Device Supported: DVD Player Device Supported: Display Product Type: Audio/Video Switchbox Device Supported: Gaming Console Device Supported: Blu-ray Disc Player Device Supported: TV Device Supported: Computer Device Supported: DVD Player Device Supported: Display Manufacturer Part Number: HR-2PS Limited Warranty: 1 Year Weight (Approximate): 4 lb Connectivity Technology: Cable Connectivity Technology: Cable Manufacturer: Smart Audio Video Innovation Product Model: HR-2PS Product Name: HDMI 2x1 Switch Brand Name: SmartAVI Brand Name: SmartAVI Country of Origin: United States Height: 1 Width: 3 Depth: 5 Number of HDMI Inputs: 2 HDMI In: Yes HDMI Out: Yes Number of Displays Supported: 1 Number of Input Devices Supported: 2 Graphics Modes: WUXGA Maximum Video Resolution: 1920 x 1200 Number of HDMI Inputs: 2 Number of HDMI Outputs: 1 HDMI In: Yes HDMI Out: Yes Number of Displays Supported: 1 Number of Input Devices Supported: 2
Smart AVI - UTX-TX500S - SmartAVI WUXGA+AUDIO+USB Transmitter - 1 Input Device - 300 ft Range - 2 x Network (RJ-45) - 1
The UTX-500 is an VGA and USB extender that sends signals up to 300 feet away via two CAT5 cables. Plug-and-play design means the UTX-500 is ready to use as soon as its connected, and it's excellent 1080p (1920x1080) resolution picture output ensures top-quality presentations from a lengthy distance. Package Contents: WUXGA+AUDIO+USB Transmitter 6ft USB MM AB cable 6ft XVGA MM Cable PS5VDC2A Power Supply Product Type: Video Extender Transmitter Product Type: Video Extender Transmitter Manufacturer Part Number: UTX-TX500S Weight (Approximate): 1 lb Connectivity Technology: Wired Connectivity Technology: Wired Manufacturer: Smart Audio Video Innovation Product Model: UTX-TX500S Product Name: WUXGA+AUDIO+USB Transmitter Brand Name: SmartAVI Brand Name: SmartAVI Country of Origin: United States Height: 1 Width: 5.5 Depth: 3.4 Maximum Operating Distance: 300 ft Number of Network (RJ-45) Ports: 2 Number of USB Ports: 1 Media Type Supported: Twisted Pair Number of Input Devices Supported: 1 Number of VGA Inputs: 1 Graphics Modes: WUXGA Maximum Video Resolution: 1920 x 1200 Twisted Pair Cable Standard: Category 5 Maximum Operating Distance: 300 ft USB: Yes Number of Network (RJ-45) Ports: 2 Network (RJ-45): Yes Number of USB Ports: 1 VGA In: Yes Media Type Supported: Twisted Pair Number of Input Devices Supported: 1 Number of VGA Inputs: 1
Smart AVI - HDR16X16S - 16x16 HDMI Matrix Switch Transmission Max 40ft (HDCP/1080p/TCP/IP)
Model: HDR16X16S - 16x16 HDMI Matrix Switch Transmission Max 40ft (HDCP/1080p/TCP/IP) Display content from any 16 HDMI sources on any 16 displays independently up to 40 feet away. HDMI 16X16 Router. Includes: [HDR16X16, (SM-CSW) & CCPWR06] FEATURES The HDR16X16 conforms to the HDMI (High Definition Media Interface) standard and provides a connection to view any sixteen HDMI video sources on any combination of sixteen video displays. The matrix configuration provides maximum flexibility, allowing switching between any high-definition source and/or display. The SmartAVI HDMI Router 16X16 provides HDMI output up to 40 feet and at HDTV resolutions of 480p, 720p, 1080i and 1080p. The system works with HD-DVD players, TiVo systems, HT PCs, and satellite set-top boxes that connect to an HDMI display. And users can switch to any source locally or remotely via a RS-232, IR, USB or TCP/IP connection. Our HDMI router is controlled by Windows-based software that is easy to understand and simple to use a cornerstone of all SmartAVI products. Switches 16 HDMI inputs with 16 HDMI outputs Sources can be routed independently to displays Switching controlled via the front panel, RS-232, IR, USB and TCP/IP Supports high definition video resolutions of 480p, 720p, 1080i and 1080p Supports 7.1 Digital Surround Sound Audio HDCP and HDMI 1.4 compliant Supports EDID for total control of compliant displays Delivers uncompressed digital video with zero signal loss Outputs HDMI up to 40 feet Rack-mountable HDTV Resolutions 480p, 720p, 1080i, 1080p TV Resolution 480i Input Interface (16) HDMI Type A 19-pin Female TMDS Output Interface (16) HDMI Type A 19-pin Female TMDS Input Cable Length Up to 40 ft. Output Cable Length Up to 40 ft. Front Panel Keyboard 2x8 for easy switches and setup Software SmartControl Windows Gui via RS232 LCD 4 x 40 LCD Display Dimensions 19W x 5.25H (3U) x 7D Approvals CE, ROHS Compliant SmartControl Software windows based GUI Ethernet Compatible with SMTCP Protocol RS232 9600bps, software flow control easy integration with Crestron, AMX and other RS232 DB9F, 9600 bps for control - Software flow control Internal Adapter 100-240 VAC, 50-60 Hz, 60 Watts
Smart AVI - RK-XTP-TX8S - SmartAVI RK-XTP-TX8S Video Extender - 16 Input Device - 16 Output Device - 1000 ft Range - 16
One box, one power supply, and up to 16 devices extended easily from a rack without the mess or headache of multiple extenders. That is the purpose of SmartAVI's new Rack Series of A/V component management solutions. Rather than buy multiple extenders for your rack components, and having to find power strips or numerous power outlets for the adapters, our Rack Series of extenders allows for up to 16 inputs and 16 outputs (30 feet each way) and one power supply. Say goodbye to a tangled mess of wires and extension cords and hello to a dynamic, smart component management solution. Rack-XTPro is a high-resolution UXGA and audio extender system (transmitter and receiver) designed to broadcast desktop video, stereo audio, RS-232 and infrared signals over unshielded, twisted pair cabling. Package Contents: RK-XTP-TX8S Video Extender Power Plug Cable Product Type: Video Extender Transmitter Product Type: Video Extender Transmitter Manufacturer Part Number: RK-XTP-TX8S Connectivity Technology: Wired Connectivity Technology: Wired Manufacturer: Smart Audio Video Innovation Product Model: RK-XTP-TX8S Product Name: RK-XTP-TX8S Video Extender Brand Name: SmartAVI Brand Name: SmartAVI Height: 5.3 Width: 3.4 Depth: 17.1 Maximum Operating Distance: 1000 ft Number of Network (RJ-45) Ports: 16 Media Type Supported: Twisted Pair Number of Output Devices Supported: 16 Number of Input Devices Supported: 16 Number of VGA Inputs: 16 Graphics Modes: WUXGA Environmentally Friendly: Yes Environmental Certification: RoHS Maximum Video Resolution: 1920 x 1200 Twisted Pair Cable Standard: Category 8 Maximum Operating Distance: 1000 ft Number of Network (RJ-45) Ports: 16 Network (RJ-45): Yes Serial Port: Yes VGA In: Yes Media Type Supported: Twisted Pair Number of Output Devices Supported: 16 Number of Input Devices Supported: 16 Number of VGA Inputs: 16
Smart AVI - DVX-200PS - SmartAVI DVX200 Cat6 DVI Video Console/Extender - 1 x 1 - WUXGA, SXGA, UXGA - 220ft
DVX200 Cat6 DVI Video Console/Extender extends the distance between any computer supporting single-link DVI-D and a monitor or projector with a compatible DVI input. LEDs indicate power and loss of clock signal and have silent fan-less operation. Product Type: Video Extender Transmitter/Receiver Product Type: Video Extender Transmitter/Receiver Manufacturer Part Number: DVX-200PS Weight (Approximate): 3.20 oz Connectivity Technology: Wired Form Factor: Rack-mountable Connectivity Technology: Wired Form Factor: Rack-mountable Manufacturer: Smart Audio Video Innovation Product Model: DVX200 Product Name: DVX200 Cat6 DVI Video Console/Extender Brand Name: SmartAVI Brand Name: SmartAVI Height: 0.1 Width: 3.4 Maximum Operating Distance: 220 ft Number of Network (RJ-45) Ports: 4 Media Type Supported: Twisted Pair Number of Output Devices Supported: 1 Number of Input Devices Supported: 1 Number of DVI Inputs: 1 Graphics Modes: UXGA Graphics Modes: SXGA Graphics Modes: WUXGA Maximum Video Resolution: 1920 x 1200 Twisted Pair Cable Standard: Category 6 Maximum Operating Distance: 220 ft Number of Network (RJ-45) Ports: 4 Network (RJ-45): Yes Number of DVI Outputs: 1 DVI In: Yes DVI Out: Yes Media Type Supported: Twisted Pair Number of Output Devices Supported: 1 Number of Input Devices Supported: 1 Number of DVI Inputs: 1
Smart AVI - RK-DVX-RX4S - SmartAVI 4-Port DVI-D Rack Receiver over Cat6 STP - 4 Output Device - 225 ft Range - 4 x
The RK-DVX200 is the ideal solution for extending DVI-D signals to remote locations up to 225 feet away. It is the ideal way to extend up to 16 workstation computers from one location to another location or various locations. It is fully compatible with Mac, PC and Linux standards. Up to 16 displays can be extended easily from a rack without the complication or expense of multiple extenders. Rather than buy multiple extenders for rack components, and having to find power strips or numerous power outlets for the adapters, the SmartAVI rack series of extenders allows for up to 16 inputs and 16 outputs from a single rack device. The extender comes in three configurations: four inputs and four outputs, eight inputs and eight outputs, and 16 inputs and 16 outputs. The extender can achieve the full output distance of 225 feet when using a Cat6 23AWG STP cable. The RK-DVX200 rack extender can be implemented in three ways. First, the rack device can be used as a transmitter, extending signals to multiple small receivers (DVX-RX200). Second, the rack device can be used as a receiver, taking in signals from multiple small transmitters (DVX-TX200). Third, the rack device can be used in tandem with another rack device. Package Contents: 4-Port DVI-D Rack Receiver over Cat6 STP CCPWR06 Cable Product Type: Video Extender Receiver Product Type: Video Extender Receiver Manufacturer Part Number: RK-DVX-RX4S Limited Warranty: 1 Year Weight (Approximate): 10 lb Connectivity Technology: Wired Form Factor: Rack-mountable Connectivity Technology: Wired Form Factor: Rack-mountable Manufacturer: Smart Audio Video Innovation Product Model: RK-DVX200 Product Name: 4-Port DVI-D Rack Receiver over Cat6 STP Brand Name: SmartAVI Brand Name: SmartAVI Country of Origin: United States Height: 3.5 Width: 17 Depth: 3.3 Maximum Operating Distance: 225 ft Number of Network (RJ-45) Ports: 4 Media Type Supported: Twisted Pair Number of Output Devices Supported: 4 Graphics Modes: WUXGA Maximum Video Resolution: 1920 x 1200 Twisted Pair Cable Standard: Category 6 Maximum Operating Distance: 225 ft Number of Network (RJ-45) Ports: 4 Network (RJ-45): Yes Number of HDMI Outputs: 4 DVI Out: Yes Media Type Supported: Twisted Pair Number of Output Devices Supported: 4
Smart AVI - SMX-AVD6416S - Smart AVI Component/UXGA/Audio & RS-232/IR over CAT5 64x16 Matrix
Model: SMX-AVD6416S - 64x16 Component/VGA +RS-232/IR Control over CAT5 Matrix Switcher SuperMatrix combines all the functions of an audio matrix, video matrix, IR matrix and a full RS-232 matrix into one cost-effective, compact design. SMX-AV0808S Component or UXGA + Audio over CAT5 8x8 Matrix with RS-232 Control. Includes: [SMX-AV0808, CCRS232MF6, SMP-SW & (CCPWR06US)] SMX-AV0816S Component or UXGA + Audio over CAT5 8x16 Matrix with RS-232 Control. Includes: [SMX-AV0816, CCRS232MF6, SMP-SW & (CCPWR06US)] SMX-AV1616S Component or UXGA + Audio over CAT5 16x16 Matrix with RS-232 Control. Includes: [SMX-AV1616, CCRS232MF6, SMP-SW & (CCPWR06US)] SMX-AV3216S Component or UXGA + Audio over CAT5 32x16 Matrix with RS-232 Control. Includes: [SMX-AV3216, CCRS232MF6, SMP-SW & (CCPWR06US)] SMX-AV6416S Component or UXGA + Audio over CAT5 64x16 Matrix with RS-232 Control. Includes: [SMX-AV6416, CCRS232MF6, SMP-SW & (CCPWR06US)] SMX-AVD0808S Component or UXGA/Audio + RS-232/IR over CAT5 8x8 Matrix with RS-232 Control. Includes: [SMX-AVD0808, CCRS232MF6, SMP-SW & (CCPWR06US)] SMX-AVD0816S Component or UXGA/Audio + RS-232/IR over CAT5 8x16 Matrix with RS-232 Control. Includes: [SMX-AVD0816, CCRS232MF6, SMP-SW & (CCPWR06US)] SMX-AVD1616S Component or UXGA/Audio + RS-232/IR over CAT5 16x16 Matrix with RS-232 Control. Includes: [SMX-AVD1616, CCRS232MF6, SMP-SW & (CCPWR06US)] SMX-AVD3216S Component or UXGA/Audio + RS-232/IR over CAT5 32x16 Matrix with RS-232 Control. Includes: [SMX-AVD3216, CCRS232MF6, SMP-SW & (CCPWR06US)] SMX-AVD6416S Component or UXGA/Audio + RS-232/IR over CAT5 64x16 Matrix with RS-232 Control. Includes: [SMX-AVD6416, CCRS232MF6, SMP-SW & (CCPWR06US)] FEATURES Switches 16 inputs to any 16 outputs for unmatched design flexibility. SuperMatrix is a full non-blocking switching matrix. Integrated RS-232 and Infrared matrix offers unparalleled control. Switch signals from devices located up to 1, 000 feet apart. HD compatible (720p, 1080i, 1080p). Supports high resolution video up to 1920x1200. Sends crystal clear stereo audio. Sends high-resolution VGA, stereo audio, RS232 or IR over a single twisted pair cable. Compatible with Video Composite, S-Video, Component and XVGA interface. Increases productivity by providing access to 16 computers from 16 workstations. Can be controlled via software interface, remote control, Internet or RS/232. Full RS-232 Matrix One of the key features of the SuperMatrix is the integrated RS-232 matrix. With RS-232 you can; Remotely power on and off all of the connected display devices. Send commands such as video schedules or input source. Reporting. Enable touch-screen displays to send and receive data. Interrupt displays with Alerts and urgent messages. Controlling the Matrix Another key feature is its capacity to support multiple control interfaces; Control via RS-232 using SmartControl; our Windows based Software included with the system. You can also use a remote control through an Infrared connection _DELETE_
Smart AVI - RK-DVX-RX8S - SmartAVI 8-Port DVI-D Rack Receiver over Cat6 STP - 8 Output Device - 225 ft Range - 8 x
The RK-DVX200 is the ideal solution for extending DVI-D signals to remote locations up to 225 feet away. It is the ideal way to extend up to 16 workstation computers from one location to another location or various locations. It is fully compatible with Mac, PC and Linux standards. Up to 16 displays can be extended easily from a rack without the complication or expense of multiple extenders. Rather than buy multiple extenders for rack components, and having to find power strips or numerous power outlets for the adapters, the SmartAVI rack series of extenders allows for up to 16 inputs and 16 outputs from a single rack device. The extender comes in three configurations: four inputs and four outputs, eight inputs and eight outputs, and 16 inputs and 16 outputs. The extender can achieve the full output distance of 225 feet when using a Cat6 23AWG STP cable. The RK-DVX200 rack extender can be implemented in three ways. First, the rack device can be used as a transmitter, extending signals to multiple small receivers (DVX-RX200). Second, the rack device can be used as a receiver, taking in signals from multiple small transmitters (DVX-TX200). Third, the rack device can be used in tandem with another rack device. Package Contents: 8-Port DVI-D Rack Receiver over Cat6 STP CCPWR06 Cable Product Type: Video Extender Receiver Product Type: Video Extender Receiver Manufacturer Part Number: RK-DVX-RX8S Limited Warranty: 1 Year Weight (Approximate): 10 lb Connectivity Technology: Wired Form Factor: Rack-mountable Connectivity Technology: Wired Form Factor: Rack-mountable Manufacturer: Smart Audio Video Innovation Product Model: RK-DVX200 Product Name: 8-Port DVI-D Rack Receiver over Cat6 STP Brand Name: SmartAVI Brand Name: SmartAVI Country of Origin: United States Height: 3.5 Width: 17 Depth: 3.3 Maximum Operating Distance: 225 ft Number of Network (RJ-45) Ports: 8 Media Type Supported: Twisted Pair Number of Output Devices Supported: 8 Graphics Modes: WUXGA Maximum Video Resolution: 1920 x 1200 Twisted Pair Cable Standard: Category 6 Maximum Operating Distance: 225 ft Number of Network (RJ-45) Ports: 8 Network (RJ-45): Yes Number of HDMI Outputs: 8 DVI Out: Yes Media Type Supported: Twisted Pair Number of Output Devices Supported: 8
Smart AVI - AVS4PS - SmartAVI WUXGA/Audio Splitter 4-Port - 1900 x 1200 - 400 MHzMaximum Video Bandwidth - 100 ft
Presentations The AVS4P series enhances any presentation from commercial products to corporate financial data. It can be used in show rooms, board rooms, trade shows and window displays. Data Broadcasting Data such as news, stock prices, sports results, and flight information can be broadcast in real time to various monitors. Learning and Training AVS4P can be used in educational presentations to multiple locations, in schools and in other training facilities. Package Contents: WUXGA/Audio Splitter 4-Port CCVGAMM06 Cable PS5VD1A Power Supply Material: Metal Product Type: Signal Splitter Product Type: Signal Splitter Manufacturer Part Number: AVS4PS Limited Warranty: 1 Year Length: 7.9 Manufacturer: Smart Audio Video Innovation Product Model: AVS4PS Product Name: WUXGA/Audio Splitter 4-Port Brand Name: SmartAVI Brand Name: SmartAVI Country of Origin: United States Height: 1.6 Width: 3.6 Number of VGA Outputs: 4 Number of Audio Line In: 1 Number of Audio Line Out: 4 Number of VGA Inputs: 1 Maximum Video Resolution: 1900 x 1200 Maximum Operating Distance: 100 ft Audio Line In: Yes Audio Line Out: Yes Number of VGA Outputs: 4 VGA In: Yes VGA Out: Yes Number of Audio Line In: 1 Number of Audio Line Out: 4 Number of VGA Inputs: 1 Maximum Video Bandwidth: 400 MHz
Smart AVI - XTW-TXS - SmartAVI Wall Plate UXGA/Audio/RS-232/IR CAT5 Transmitter - 1 Input Device - 1000 ft Range - 1 x
XTWALL is a high resolution UXGA and stereo audio extender system (transmitter and receiver) designed to broadcast desktop video, stereo audio signals, IR and RS232 over a single unshielded twisted pair (UTP) cable. Its unique wall mounted design itegrates into any interior. With RS232 communication support the XTWALL allows users to send commands to single or multiple devices. This allows the user to change the volume, channel or turn on/off the display panel remotely. Package Contents: Wall Plate UXGA/Audio/RS-232/IR CAT5 Transmitter PS5VD1F Product Type: Video Extender Transmitter Product Type: Video Extender Transmitter Manufacturer Part Number: XTW-TXS Limited Warranty: 1 Year Connectivity Technology: Wired Form Factor: Wall Mountable Connectivity Technology: Wired Form Factor: Wall Mountable Manufacturer: Smart Audio Video Innovation Product Model: XTW-TX Product Name: Wall Plate UXGA/Audio/RS-232/IR CAT5 Transmitter Brand Name: SmartAVI Brand Name: SmartAVI Country of Origin: United States Maximum Operating Distance: 1000 ft Number of Network (RJ-45) Ports: 1 Media Type Supported: Twisted Pair Number of Input Devices Supported: 1 Number of VGA Inputs: 2 Graphics Modes: WUXGA Maximum Video Resolution: 1920 x 1200 Twisted Pair Cable Standard: Category 8 Maximum Operating Distance: 1000 ft Number of Network (RJ-45) Ports: 1 Network (RJ-45): Yes Serial Port: Yes VGA In: Yes Media Type Supported: Twisted Pair Number of Input Devices Supported: 1 Number of VGA Inputs: 2
Smart AVI - HDP-TXS - Component Video/Audio/RS-232/IR over CAT5 Extender/TX 1000ft/1080p
Model: HDP-TXS - Component Video/Audio/RS-232/IR over CAT5 Extender/TX 1000ft/1080p The HDXPRO extends high definition video over Cat5 along with stereo audio, RS-232, and IR. Effective up to 1, 000 ft. HDX-PRO Component Video/Audio/RS-232/IR Point-to-Point CAT5 Extender. Includes: [HDP-TX, HDP-RX, 2 x (PS5VD1A)] HDP-TXS Component Video/Audio/RS-232/IR CAT5 Transmitter. Includes: [HDP-TX, (CCVGAMM06) & (PS5VD1A)] HDP-RXS Component Video/Audio/RS-232/IR CAT5 Receiver. Includes: [HDP-RX & (PS5VD1A)] HDP-RXLS Component Video/Audio/RS-232/IR CAT5 1699ft Receiver. Includes: [HDP-RXL & (PS5VD1A)] FEATURES HDX-PRO a high-resolution HDTV and stereo audio extender component within SmartAVI's HDControl product family geared specifically toward home theater owners and designers. Using small transmitter and receiver units, you can broadcast HD desktop video, stereo audio signals, infrared and RS-232 over unshielded twisted pair (UTP) cabling. Using RS-232 and IR support, the HDX-PRO allows users to send commands such as volume control, channel viewing or power on/off, to single or multiple devices from remote locations. Uses easy-to-install, inexpensive CAT5/5e/7/6/8 Extends output up to 1, 000 feet Supports high-resolution video up to 1920 x 1200 HDTV compatible (720p, 1080i, 1080p) Supports Component Video (YPbPr) 300 MHz bandwidth Sends high-resolution HDTV, stereo audio, RS-232 and IR signals from one source to remote location using single cat5 Compatible with line level stereo audio signals High ground loop immunity Built-in power surge and transient protection Designated trimmer in the remote unit to compensate for cable length Compact metal case enclosure External power supply Transparent RS-232 and IR communication Video Data Receiver Transmitter Bandwidth 400MHz 400MHz Analog Signal Level 1 Volt 1 Volt Impedance 75 ohms 75 ohms Audio Bandwidth 20KHz 20KHz Signal Level 0dB 0dB Impedance 10K ohms 10K ohms Connector RCA Left and Right RCA Left and Right System and Cable Type CAT5 UTP RIA 568A CAT5 UTP RIA 568A Connector RJ45 RJ45 Connector 3 RCA 3 RCA Video DB9 Male/Female baudrate up to 115, 000bps DB9 Male/Female baudrate up to 115, 000bps IR Emitter Output Emitter Output IR Frequencty Range 30KHz to 80KHz 30KHz to 80KHz Emitter Distance Up to 10' Up to 10' Connector 3.5mm stereo jack for emitter 3.5mm stereo jack for emitter Power Requirements 5V DC @500mA 5V DC @500mA Connector 5x2.1 DC Jack 5x2.1 DC Jack Format YPbPr analog component video YPbPr analog component video
Smart AVI - HDX-100S - SmartAVI HDX-100 - 1 Input Device - 1 Output Device - 150 ft Range - 2 x Network (RJ-45) - 1 x
The HDX-100 Extends any HDMI Signal up to 150 Feet to Display Monitor and One Local Screen Using HDMI-to-CAT6 STP Cabling while Retaining High-Definition Images at 1080p up to 1920 x 1200 Resolution Smart-AVI's HDX-100 is an innovative solution to extending any HDMI signal - be it a gaming console, Blueray player, computer, etc. - over inexpensive CAT6 STP cabling up to 150 feet away to one remote display and one local screen for real-time monitoring of content. Package Contents: HDX-100 2 x PS5VD1A Product Type: Video Extender Transmitter/Receiver Product Type: Video Extender Transmitter/Receiver Manufacturer Part Number: HDX-100S Connectivity Technology: Wired Connectivity Technology: Wired Manufacturer: Smart Audio Video Innovation Product Model: HDX-100S Product Name: HDX-100 Brand Name: SmartAVI Brand Name: SmartAVI Height: 8.8 Width: 6.4 Depth: 5.2 Maximum Operating Distance: 150 ft Number of Network (RJ-45) Ports: 2 Number of HDMI Inputs: 1 Media Type Supported: Twisted Pair Number of Output Devices Supported: 1 Number of Input Devices Supported: 1 Graphics Modes: WUXGA Maximum Video Resolution: 1920 x 1200 Twisted Pair Cable Standard: Category 6 Maximum Operating Distance: 150 ft Number of Network (RJ-45) Ports: 2 Network (RJ-45): Yes Number of HDMI Inputs: 1 Number of HDMI Outputs: 1 HDMI In: Yes HDMI Out: Yes Media Type Supported: Twisted Pair Number of Output Devices Supported: 1 Number of Input Devices Supported: 1
Smart AVI - CSWX16X32S - SmartAVI CAT5 Audio/Video and IR/RS232 16 IN X 32 OUT Matrix with RS-232 Control - 1920 x 1200
CATXPro routes audio, video, IR and RS/232 signals from several different video sources out to multiple displays (projectors, monitors, etc.) and speakers via inexpensive Cat5/6 UTP cable. CATXPro is capable of connecting to as many as 16 video sources via transmitters and 16 video displays via receivers with a maximum extension of 1,000 feet between the transmitter and receiver units. A single audio/video output can be routed to one or multiple destinations. Video is transmitted at a resolution of 1920 x 1200 to insure high resolution images. Buffered video outputs and analog delivery of stereo audio maintains optimum integrity throughout the system. Special remote boxes offer compatibility with Video Composite , UXGA, Component Video and S-Video. Package Contents: CAT5 Audio/Video and IR/RS232 16 IN X 32 OUT Matrix with RS-232 Control Software CD CCPWR06US Cable Product Type: Audio/Video Switchbox Device Supported: TV Device Supported: Camera Device Supported: Computer Device Supported: Display Product Type: Audio/Video Switchbox Device Supported: TV Device Supported: Camera Device Supported: Computer Device Supported: Display Manufacturer Part Number: CSWX16X32S Limited Warranty: 1 Year Weight (Approximate): 20 lb Connectivity Technology: Cable Form Factor: Rack-mountable Connectivity Technology: Cable Form Factor: Rack-mountable Manufacturer: Smart Audio Video Innovation Product Model: CSWX16X32S Product Name: CAT5 Audio/Video and IR/RS232 16 IN X 32 OUT Matrix with RS-232 Control Product Line: CATXPro Brand Name: SmartAVI Brand Name: SmartAVI Country of Origin: United States Height: 15.8 Width: 17 Depth: 14 Maximum Operating Distance: 1000 ft Product Family: CATXPro Media Type Supported: Twisted Pair Number of Displays Supported: 32 Number of Input Devices Supported: 16 Connectivity (RJ-45): Yes Number of Connectivity (RJ-45) Ports: 48 Graphics Modes: WUXGA Maximum Video Resolution: 1920 x 1200 Maximum Operating Distance: 1000 ft Media Type Supported: Twisted Pair Number of Displays Supported: 32 Number of Input Devices Supported: 16 Connectivity (RJ-45): Yes Number of Connectivity (RJ-45) Ports: 48

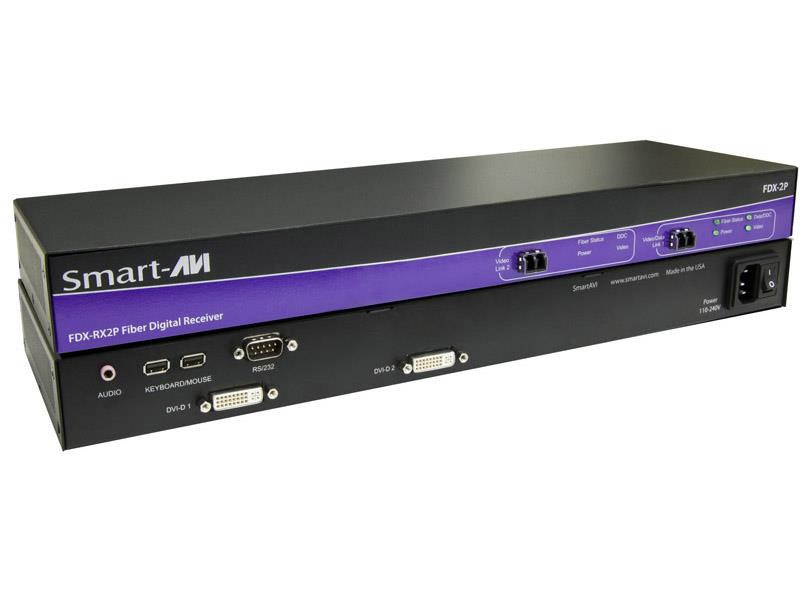

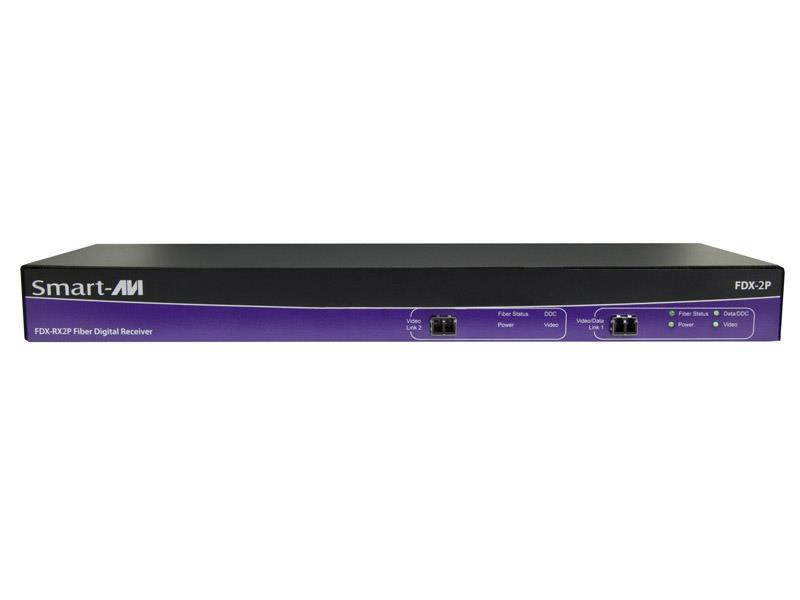

Smart AVI - FDX-S2US - SmartAVI FDX-S2US KVM Console/Extender - 1 Computer(s) - 1 Remote User(s) - 52799.87 ft Range - 3 x USB - 4 x DVI - Rack-mountable
The FDX-S2U consists of a transmitter and receiver that extend two DVI-D outputs, with audio, USB keyboard and mouse, and RS-232 control. For exceptional quality and security, fiber optic extension is the best solution. The FDXS2U can go the distance with single-mode fiber optic cabling with a reach of up to 10 miles. The SmartAVI FDX-S2U is capable of supporting two DVI-D monitors, with USB 1.1 keyboard and mouse, stereo audio with serial (RS-232) control. The system includes a transmitter and receiver, which are connected by two fiber optic cables. The transmitter connects to the user's computer with the necessary cables, while the receiver connects to the remote interface devices up to 10 miles away. Package Contents: FDX-TX2SU Transmitter FDX-RX2SU Receiver 2 X CCPWR06USA Product Type: KVM Console/Extender Product Type: KVM Console/Extender Manufacturer Part Number: FDX-S2US Platform Supported: Linux Platform Supported: Mac Platform Supported: PC Limited Warranty: 1 Year Connectivity Technology: Wired Connectivity Technology: Wired Form Factor: Rack-mountable Manufacturer: Smart Audio Video Innovation Product Model: FDX-S2US Product Name: FDX-S2US KVM Console/Extender Brand Name: SmartAVI Brand Name: SmartAVI Country of Origin: United States Maximum Operating Distance: 52799.87 ft USB: Yes DVI: Yes Number of Computers Supported: 1 Number of Remote Users Supported: 1 Maximum Video Resolution: 1920 x 1200 Graphic Mode: WUXGA Maximum Operating Distance: 52799.87 ft USB: Yes DVI: Yes Number of USB Ports: 3 Number of DVI Ports: 4 Number of Computers Supported: 1 Number of Remote Users Supported: 1
Smart AVI - SMX-AVD0808S - Smart AVI Component or UXGA/Audio & RS-232/IR over CAT5 8x8 Matrix
Model: SMX-AVD0808S - 8x8 Component/VGA +RS-232/IR Control over CAT5 Matrix Switcher SuperMatrix combines all the functions of an audio matrix, video matrix, IR matrix and a full RS-232 matrix into one cost-effective, compact design. SMX-AV0808S Component or UXGA + Audio over CAT5 8x8 Matrix with RS-232 Control. Includes: [SMX-AV0808, CCRS232MF6, SMP-SW & (CCPWR06US)] SMX-AV0816S Component or UXGA + Audio over CAT5 8x16 Matrix with RS-232 Control. Includes: [SMX-AV0816, CCRS232MF6, SMP-SW & (CCPWR06US)] SMX-AV1616S Component or UXGA + Audio over CAT5 16x16 Matrix with RS-232 Control. Includes: [SMX-AV1616, CCRS232MF6, SMP-SW & (CCPWR06US)] SMX-AV3216S Component or UXGA + Audio over CAT5 32x16 Matrix with RS-232 Control. Includes: [SMX-AV3216, CCRS232MF6, SMP-SW & (CCPWR06US)] SMX-AV6416S Component or UXGA + Audio over CAT5 64x16 Matrix with RS-232 Control. Includes: [SMX-AV6416, CCRS232MF6, SMP-SW & (CCPWR06US)] SMX-AVD0808S Component or UXGA/Audio + RS-232/IR over CAT5 8x8 Matrix with RS-232 Control. Includes: [SMX-AVD0808, CCRS232MF6, SMP-SW & (CCPWR06US)] SMX-AVD0816S Component or UXGA/Audio + RS-232/IR over CAT5 8x16 Matrix with RS-232 Control. Includes: [SMX-AVD0816, CCRS232MF6, SMP-SW & (CCPWR06US)] SMX-AVD1616S Component or UXGA/Audio + RS-232/IR over CAT5 16x16 Matrix with RS-232 Control. Includes: [SMX-AVD1616, CCRS232MF6, SMP-SW & (CCPWR06US)] SMX-AVD3216S Component or UXGA/Audio + RS-232/IR over CAT5 32x16 Matrix with RS-232 Control. Includes: [SMX-AVD3216, CCRS232MF6, SMP-SW & (CCPWR06US)] SMX-AVD6416S Component or UXGA/Audio + RS-232/IR over CAT5 64x16 Matrix with RS-232 Control. Includes: [SMX-AVD6416, CCRS232MF6, SMP-SW & (CCPWR06US)] FEATURES Switches 16 inputs to any 16 outputs for unmatched design flexibility. SuperMatrix is a full non-blocking switching matrix. Integrated RS-232 and Infrared matrix offers unparalleled control. Switch signals from devices located up to 1, 000 feet apart. HD compatible (720p, 1080i, 1080p). Supports high resolution video up to 1920x1200. Sends crystal clear stereo audio. Sends high-resolution VGA, stereo audio, RS232 or IR over a single twisted pair cable. Compatible with Video Composite, S-Video, Component and XVGA interface. Increases productivity by providing access to 16 computers from 16 workstations. Can be controlled via software interface, remote control, Internet or RS/232. Full RS-232 Matrix One of the key features of the SuperMatrix is the integrated RS-232 matrix. With RS-232 you can; Remotely power on and off all of the connected display devices. Send commands such as video schedules or input source. Reporting. Enable touch-screen displays to send and receive data. Interrupt displays with Alerts and urgent messages. Controlling the Matrix Another key feature is its capacity to support multiple control interfaces; Control via RS-232 using SmartControl; our Windows based Software included with the system. You can also use a remote control through an Infrared connection _DELETE_

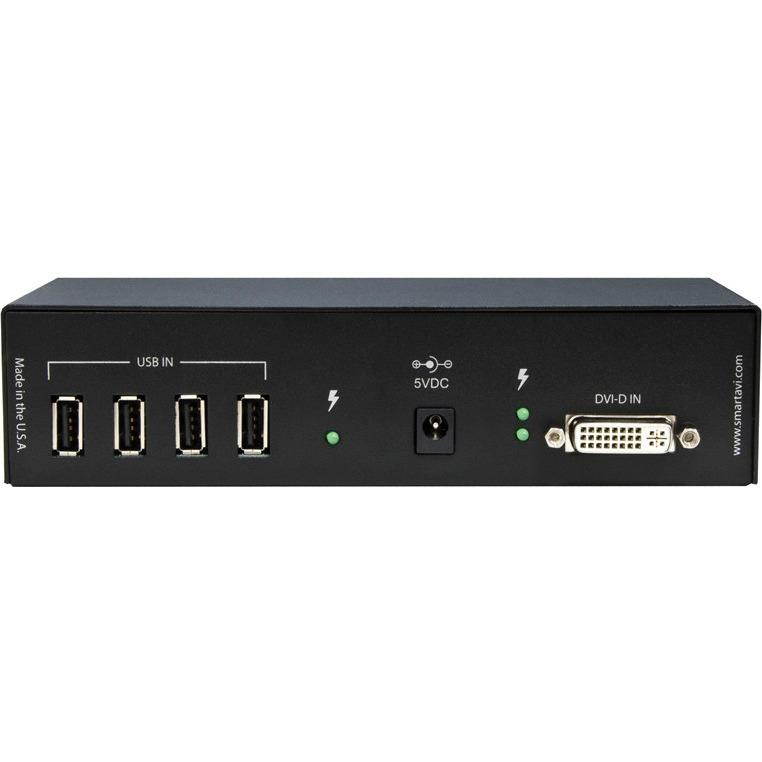

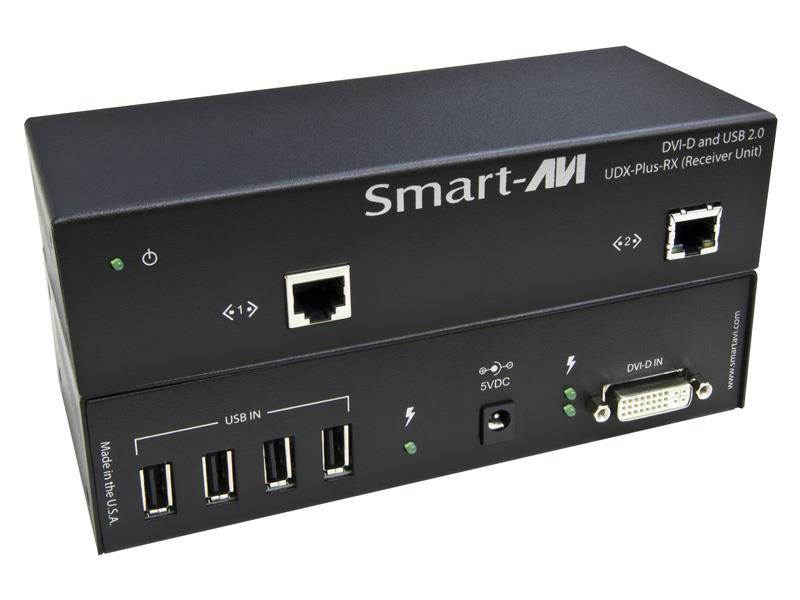

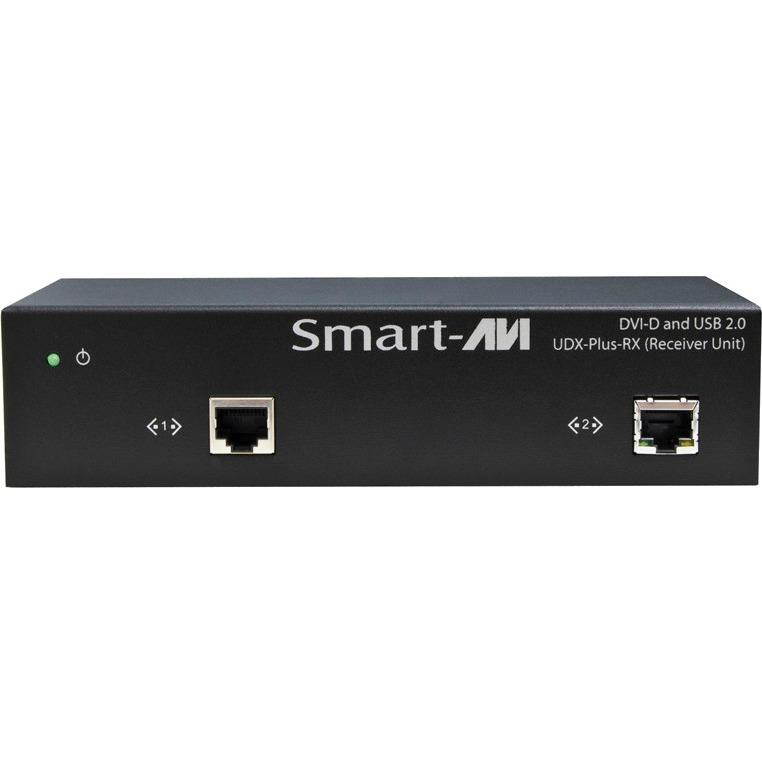

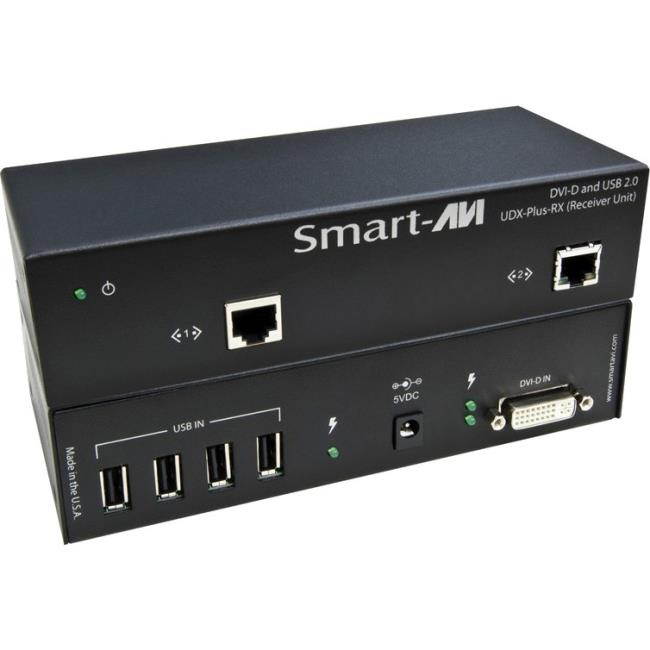

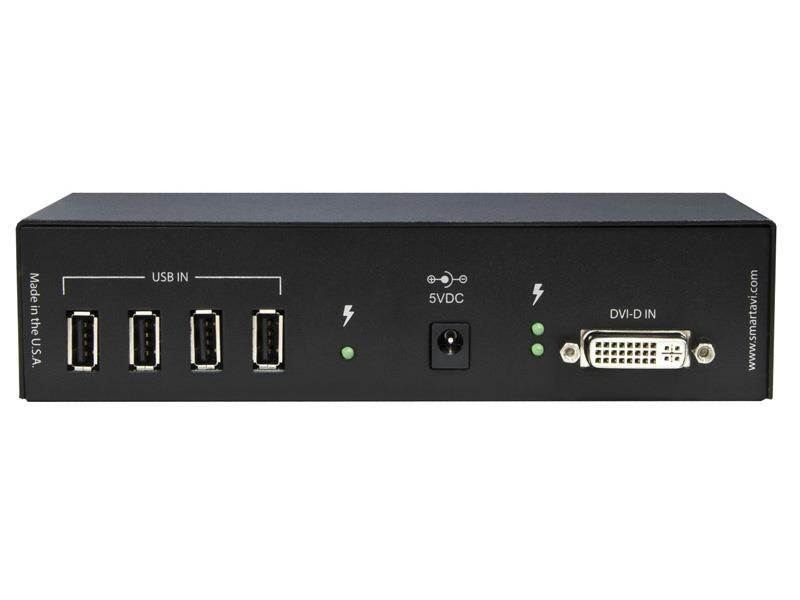

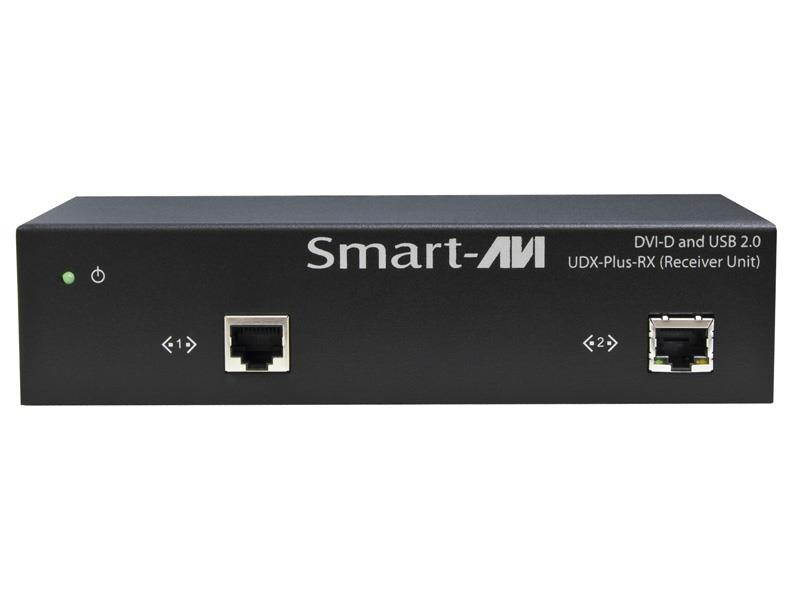

Smart AVI - UDX-PS - SmartAVI DVI-D and USB 2.0 over CAT6 STP Extender - 1 Computer(s) - 1 Remote User(s) - 250 ft Range - 4 x Network (RJ-45) - 5 x USB - 2 x DVI
The UDX-Plus is the perfect solution for extending a DVI-D display and USB 2.0 devices to a remote location. It extends DVI-D and USB 2.0 signals to a remote location up to 250 feet away. The UDX-Plus features pixel accurate signal reclocking which regenerates the input signal into a perfectly sharp and clear output signal. It is fully plug and play with dynamic DDC learning. Package Contents: DVI-D and USB 2.0 over CAT6 STP Extender Transmitter DVI-D and USB 2.0 over CAT6 STP Extender Receiver 2 X PS5VD4A Power Supply Product Type: KVM Console/Extender Product Type: KVM Console/Extender Manufacturer Part Number: UDX-PS Platform Supported: Linux Platform Supported: Mac Platform Supported: PC Limited Warranty: 1 Year Connectivity Technology: Wired Connectivity Technology: Wired Manufacturer: Smart Audio Video Innovation Product Model: UDX-PS Product Name: DVI-D and USB 2.0 over CAT6 STP Extender Product Line: UDX-Plus Brand Name: SmartAVI Brand Name: SmartAVI Country of Origin: United States Maximum Operating Distance: 250 ft USB: Yes DVI: Yes Network (RJ-45): Yes Product Family: UDX-Plus Number of Computers Supported: 1 Number of Remote Users Supported: 1 Maximum Video Resolution: 1920 x 1200 Graphic Mode: WUXGA Maximum Operating Distance: 250 ft USB: Yes DVI: Yes Number of Network (RJ-45) Ports: 4 Network (RJ-45): Yes Number of USB Ports: 5 Number of DVI Ports: 2 Number of Computers Supported: 1 Number of Remote Users Supported: 1
Smart AVI - HDAV-RXS - SmartAVI Component Video/Audio CAT5 Receiver - 1 Output Device - 1000 ft Range - 1 x Network
HDX-AV a high-resolution HDTV and stereo audio extender component within SmartAVI's HDControl product family geared speci cally toward home theater owners and designers. Using small transmitter and receiver units, you can broadcast HD video and stereo audio signals over unshielded twisted pair(UTP) cabling. The HDX-Pro is the perfect solution for home theater systems in which the video source is a great distance from the TV. Package Contents: Component Video/Audio CAT5 Receiver Power Supply Product Type: Video Extender Receiver Product Type: Video Extender Receiver Manufacturer Part Number: HDAV-RXS Connectivity Technology: Wired Form Factor: Rack-mountable Connectivity Technology: Wired Form Factor: Rack-mountable Manufacturer: Smart Audio Video Innovation Product Model: HDAV-RXS Product Name: Component Video/Audio CAT5 Receiver Brand Name: SmartAVI Brand Name: SmartAVI Country of Origin: United States Height: 1 Width: 5.3 Depth: 3.5 Maximum Operating Distance: 1000 ft Number of Network (RJ-45) Ports: 1 Media Type Supported: Twisted Pair Number of Output Devices Supported: 1 Graphics Modes: WUXGA Maximum Video Resolution: 1920 x 1200 Twisted Pair Cable Standard: Category 5 Maximum Operating Distance: 1000 ft Number of Network (RJ-45) Ports: 1 Network (RJ-45): Yes Media Type Supported: Twisted Pair Number of Output Devices Supported: 1
Smartavi FDX-S4US Single-mode Quad DVI-D Fiber Extender Kit (10 miles/4 outs)
Model: FDX-S4US - Single-mode Quad DVI-D Fiber Extender Kit (10 miles/4 output/HDTV) Single-mode Quad DVI-D Extender, with Audio and USB Keyboard and Mouse. Extends up to 10 miles over 4 Fiber Optic Cables. Point to Point Quad DVI-D, USB Keyboard & Mouse, Audio and RS232 Singlemode Fiber Extender. Includes: [FDX-TX4SU, FDX-RX4SU, 2 X (CCPWR06USA)] FEATURES The FDX-S4U consists of a transmitter and receiver that extend four DVI-D outputs, with audio, USB keyboard and mouse, and RS-232 control. For exceptional quality and security, fiber optic extension is the best solution. The FDXS4U can go the distance with single-mode fiber optic cabling with a reach of up to 10 miles. The SmartAVI FDX-S4U is capable of supporting four DVI-D monitors, with USB 1.1 keyboard and mouse, stereo audio with serial (RS-232) control. The system includes a transmitter and receiver, which are connected by four fiber optic cables. The transmitter connects to the user's computer with the necessary cables, while the receiver connects to the remote interface devices up to 10 miles away. Quad channel DVI-D, audio and USB keyboard and mouse with RS-232 control Top Signal Quality over Singlemode Fiber (up to 10 miles) Video Resolutions up to 1920 x 1200 WUXGA at 60Hz Customizable/Programmable DDC Table for Mac/PC Supports all USB 1.1 Keyboards and Mice Fiber Plug Type LC Compatible With all Major KVM Switches Supports Mac, PC, and Linux DVI Uses universal DVI Single Link connectors Zero pixel loss with TMDS signal correction Rack Mountable Solution Plug-and-play

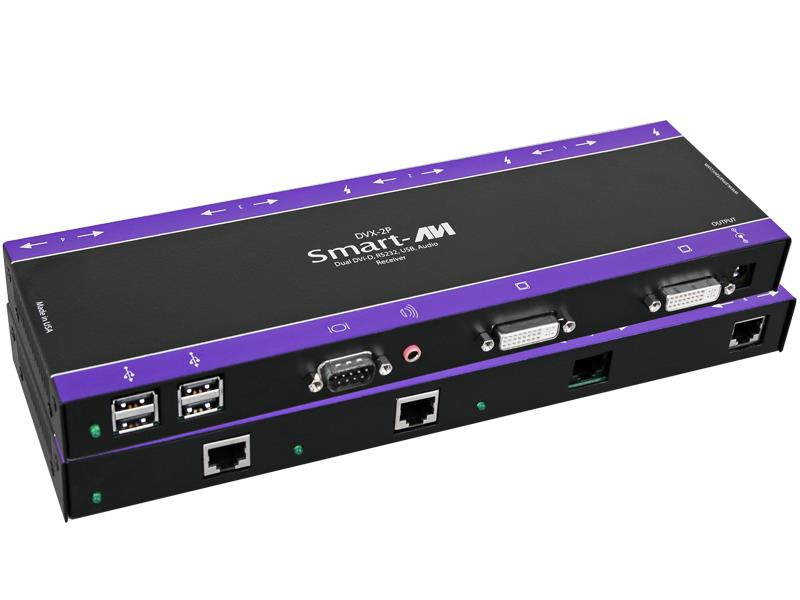

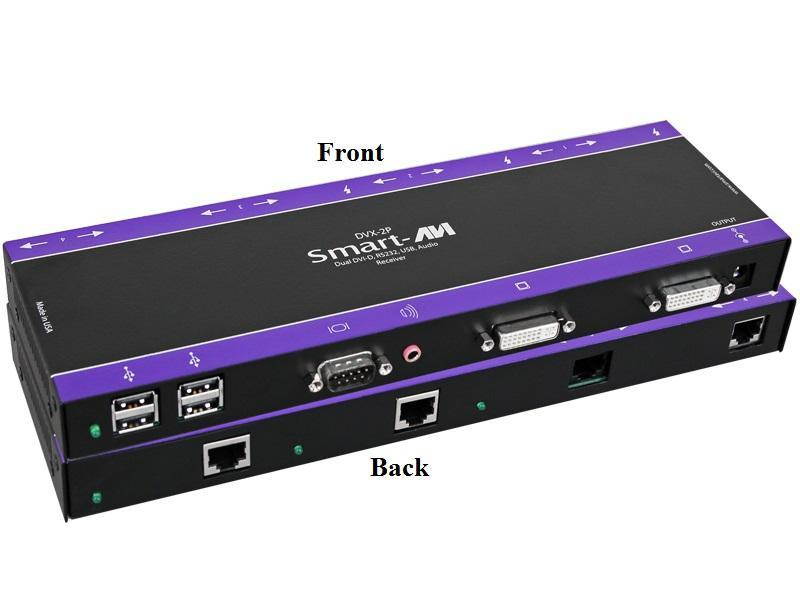

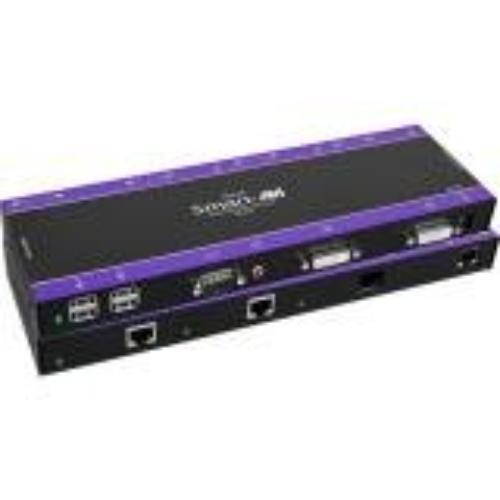

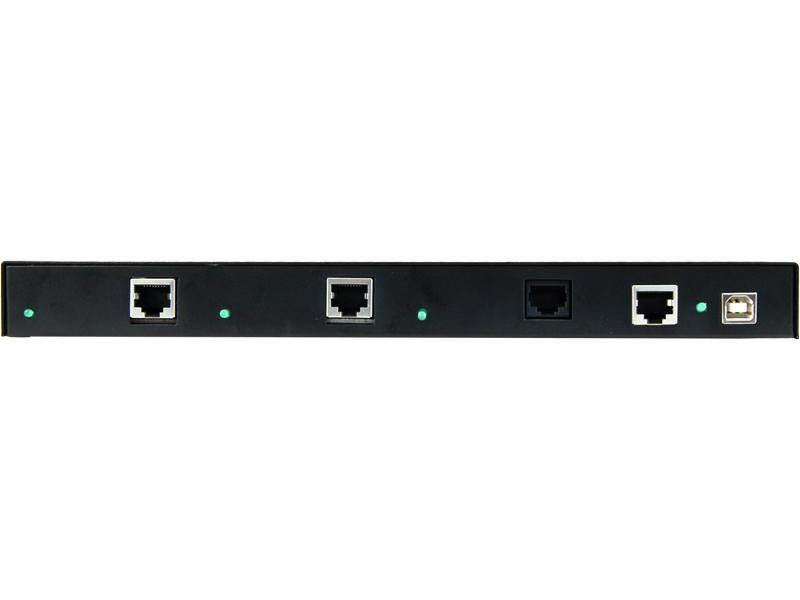

Smart AVI - DVX-2PS - 2x DVI-D USB, Audio, RS-232 over CAT6 STP Extender Kit (275ft/1900x1200)
Model: DVX-2PS - 2x DVI-D USB, Audio, RS-232 over CAT6 STP Extender Kit (275ft/1900x1200) DVX-2P extends DVI-D, USB 1.1, stereo audio, and RS-232 signals up to 275ft over Cat6 cables. DVX-2PS 2 DVI-D, USB, Audio and RS-232 over CAT6 STP Extender. Includes: [DVX-2P-TX, DVX-2P-RX and 2 x (PS5VD3A) ] DVX-2P-TXS DVX-2P Transmitter; supports 2 DVI-D, USB, Audio and RS-232. Includes: [DVX-2P-TX and (PS5VD3A) ] DVX-2P-RXS DVX-2P Receiver; supports 2 DVI-D, USB, Audio and RS-232. Includes: [DVX-2P-RX and (PS5VD3A) ] FEATURES The DVX-2P can extend up to two DVI-D, USB 1.1, stereo audio and RS-232 signals up to 225 feet using CAT6 cables, while retaining perfectly clear, crisp image and audio quality (image resolution up to 1900 x 1200 at 60Hz). Top image quality at all resolutions Video resolutions up to 1900 x 1200 at 60Hz (1280 x 1024 at 75Hz) up to 225 feet Internal DCC cables Distance: 275 feet with a CAT6 STP cable Compatible with all operating systems Compatible with all major KVM switches Rack mount options (19) Supports up to 2 DVI-D sources Supports USB 1.1 keyboard and mouse Uses easy-to-install, inexpensive pair cable Data recovery for digital video Fully-compliant with USB 1.1 specifications Supports 1.5 and 12Mbps data rates External power adaptors for transmitter and receiver units Fully-transparent (does not use any emulation) Plug-and-play _DELETE_
Smartavi VNET+4PS 4x1 USB KVM Switch with Stereo Audio/VNET+ Series (1920x1200)
Model: VNET+4PS - 4x1 USB KVM Switch with Stereo Audio, VNET+ Series (1920x1200) Control 4 computers, PC or Mac, on one display with USB keyboard and mouse, and stereo audio. VNET+4P, 4X1 WUXGA, USB, Audio switch Includes: [VNET+4P & (PS5VD2A) ] FEATURES Supports Mac, PC, Linux and Sun DVI Supports High Resolution1920x1200 60Hz WUXGA Supports USB keyboard and mouse Balanced stereo audio output Front panel tactile switch with LED indicator Supports Auto-scan mode for simple discovery

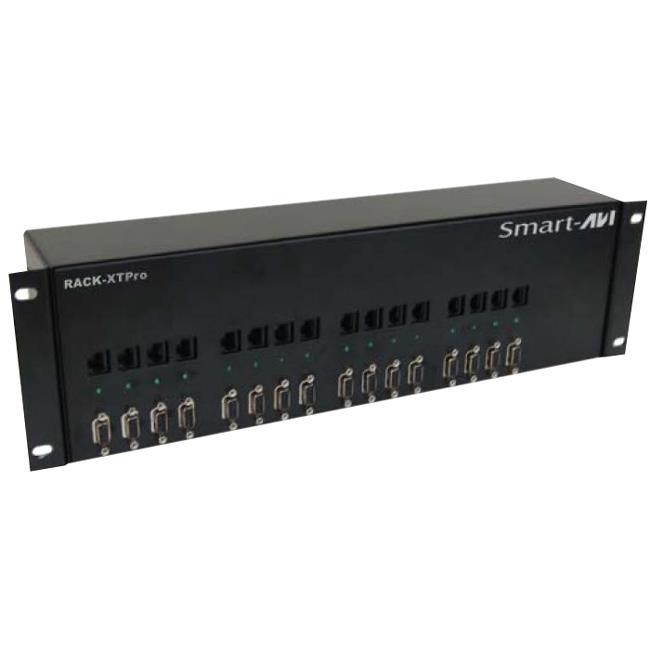

Smart AVI - RK-XTP-TX16S - SmartAVI RK-XTP-TX16S Video Extender - 16 Input Device - 16 Output Device - 1000 ft Range -
One box, one power supply, and up to 16 devices extended easily from a rack without the mess or headache of multiple extenders. That is the purpose of SmartAVI's new Rack Series of A/V component management solutions. Rather than buy multiple extenders for your rack components, and having to find power strips or numerous power outlets for the adapters, our Rack Series of extenders allows for up to 16 inputs and 16 outputs (30 feet each way) and one power supply. Say goodbye to a tangled mess of wires and extension cords and hello to a dynamic, smart component management solution. Rack-XTPro is a high-resolution UXGA and audio extender system (transmitter and receiver) designed to broadcast desktop video, stereo audio, RS-232 and infrared signals over unshielded, twisted pair cabling. Package Contents: RK-XTP-TX16S Video Extender Power Plug Cable Product Type: Video Extender Transmitter Product Type: Video Extender Transmitter Manufacturer Part Number: RK-XTP-TX16S Connectivity Technology: Wired Connectivity Technology: Wired Manufacturer: Smart Audio Video Innovation Product Model: RK-XTP-TX16S Product Name: RK-XTP-TX16S Video Extender Brand Name: SmartAVI Brand Name: SmartAVI Height: 5.3 Width: 3.4 Depth: 17.1 Maximum Operating Distance: 1000 ft Number of Network (RJ-45) Ports: 16 Media Type Supported: Twisted Pair Number of Output Devices Supported: 16 Number of Input Devices Supported: 16 Number of VGA Inputs: 16 Graphics Modes: WUXGA Environmentally Friendly: Yes Environmental Certification: RoHS Maximum Video Resolution: 1920 x 1200 Twisted Pair Cable Standard: Category 8 Maximum Operating Distance: 1000 ft Number of Network (RJ-45) Ports: 16 Network (RJ-45): Yes Serial Port: Yes VGA In: Yes Media Type Supported: Twisted Pair Number of Output Devices Supported: 16 Number of Input Devices Supported: 16 Number of VGA Inputs: 16
SmartAVI SDX-PLUS-TX KVM Extender
Using HDBaseT technology, the SDX-Plus DVI extender is capable of sending a DVI-D signal up to 400 feet over a single conventional and inexpensive Cat5e/6 cable. HDBaseT technology is superior to older DVI extenders that require special Cat6 shielded cable to go a short distance. The SDX-Plus also has USB keyboard and mouse, RS-232 and IR extension, giving you the ability to control your displays or devices remotely.Features* Product Type: KVM Extender * Product Type: KVM Extender * Input Voltage: 120 V AC * Input Voltage: 230 V AC * Input Voltage: 5 V DC * Platform Supported: PC * Limited Warranty: 1 Year * Connectivity Technology: Wired * Connectivity Technology: Wired * Product Model: SDX-PLUS-TX * Product Name: SDX-PLUS-TX KVM Extender * Brand Name: SmartAVI * Brand Name: SmartAVI * Country of Origin: United States * Maximum Operating Distance: 400 ft * USB: Yes * DVI: Yes * Network (RJ-45): Yes * Number of Computers Supported: 1 * Maximum Video Resolution: 1920 x 1200 * Graphic Mode: WUXGA * Maximum Operating Distance: 400 ft * USB: Yes * DVI: Yes * Number of Network (RJ-45) Ports: 1 * Network (RJ-45): Yes * Number of USB Ports: 1 * Number of DVI Ports: 1 * Number of Computers Supported: 1* Product Type: KVM Extender * Connectivity Technology: Wired * Brand Name: SmartAVI * Maximum Operating Distance: 400 ft * USB: Yes * DVI: Yes * Network (RJ-45): Yes * Number of Computers Supported: 1
Smart AVI - AR-100S - RS-232 & Stereo Sound CAT5 Extender Transmitter/Sender up to 3000ft
Model: AR-100S - RS-232 & Stereo Sound CAT5 Extender Transmitter/Sender up to 3000ft Extend any RS-232 and stereo device up to 3, 000 feet using a single CAT5 cable. AR-100S RS-232 & Stereo Sound Point-to-Point CAT5 Extender. Includes: [AR-TX100, AR-RX100, & 2 x (PS5VD1A)] AR-TX100S RS-232 & Stereo Sound CAT5 Transmitter. Includes: [AR-TX100 & (PS5VD1A)] AR-RX100S RS-232 & Stereo Sound CAT5 Receiver. Includes: [AR-TX100 & (PS5VD1A)] FEATURES Unbalanced stereo line level analogue audio to be transmitted via UTP CAT5 Hi-fidelity audio frequency response. Extend any touch screen up to 3000ft. Extend any sound system up 3000ft. Supports all protocol and baud rates. Uses easy to install inexpensive CAT5. Output reaches up to 3000 feet. Compatible with line level stereo audio signals. High ground loop immunity. Built-in lightning, power surge and transient protection. Remote units come with buffered outputs. Compact enclosure. Optional power supply for remote unit. Fully transparent path for all protocols and data transfers. RS232(TX - DB9Female) (RX - DB9Male) Protocol Full duplex, transparent to all baud rate Audio Signal Type Stereo Audio Bandwidth 15MHz, 0dB Impedance 100 Ohm Connector 3.5mm mini jack, Female Cat5 UTP CAT5, up to 3300ft Power 5VDC Mechanical Height 0.08 in. (2 mm.) Width 2.75 in. (69.85 mm.) Depth 3.4 in. (86.3 mm.) Weight 0.20 lb (0.09 kg.)
Smartavi DVN-4QUADS 4x4 DVI-D/USB2.0/1.1 /Stereo Audio KVM Switcher
DVN-4Quad is a dedicated multi-platform KVM switch capable of managing up to 4 different computers through four DVI-D monitors, one USB keyboard & mouse, a single set of speakers and a USB 2.0 Device. The USB emulation technology utilized by DVN-4Quad enables immediate hotkey source switching through a remote USB keyboard and mouse. DVN-4Quad uses single link connectors providing high resolutions of up to 1920x1200 with zero pixel loss from TMDS signal correction. Features Supports Mac, PC, Linux and Sun Mac OS, Sun OS, Unix Supports High Resolution 1920x1200 60Hz WUXGA Uses universal DVI Single Link connectors Zero pixel loss with TMDS signal correction Supports all USB 2.0 Devices Control Sun, Mac or PC computers from a common KVM console Compatible with all major software including Windows, Linux, Mac OS, Sun OS, Unix Rack mountable in a standard 19 inch rack Flash upgradeable firmware Front panel keys for selecting users and channels manually Supports USB keyboard and mouse Balanced stereo audio output Full IR and RS-232 control for remote control Optional TCP/IP control Hot-key commands for quick channel selection. Independent (asynchronous) switching of KVM and peripheral USB/audio ports. Users can listen to audio from one computer while working on the other or scan a document and save in another computer. Complete keyboard emulation for error free booting Superior video quality - 1920 x 1200 @ 60 Hz
Smart AVI - VS8PS - SmartAVI WUXGA 8-Port Splitter - 95 kHz - 50 Hz to 95 kHz - 2048 x 1536 - 300 MHzMaximum Video
The VS8P is a 8-port VGA splitter that allows one VGA signal to be sent to eight displays. Package Contents: WUXGA 8-Port Splitter PS5VDC2A Power Supply Material: Metal Product Type: Signal Splitter Product Type: Signal Splitter Input Voltage: 5 V DC Manufacturer Part Number: VS8PS Limited Warranty: 1 Year Weight (Approximate): 4 oz Manufacturer: Smart Audio Video Innovation Product Model: VS8PS Product Name: WUXGA 8-Port Splitter Brand Name: Smart AVI Brand Name: Smart AVI Country of Origin: United States Height: 1 Width: 5.4 Maximum Frequency: 95 kHz Minimum Frequency: 50 Hz Number of VGA Outputs: 8 Number of VGA Inputs: 1 Maximum Frequency: 95 kHz Minimum Frequency: 50 Hz Green Compliant: Yes Green Compliance Certificate/Authority: RoHS Maximum Video Resolution: 2048 x 1536 Number of VGA Outputs: 8 VGA In: Yes VGA Out: Yes Number of VGA Inputs: 1 Maximum Video Bandwidth: 300 MHz
Smartavi SM-QKVM-S 4-Port DVI USB QuadKVM switch PiP/Dual/Full modes/1900x1200
Model: SM-QKVM-S - 4-Port DVI USB 1.1 Quad KVM switch with PiP/Dual//Full modes/1900x1200 The Quad KVM Switch allows you to view up to four different analog and digital video sources simultaneously on one display device. It also supports keyboard and mouse functionality, allowing you to access all four displays with one set of interface controls. Connections to video sources are managed via DVI-I connectors. Advanced viewing options include dual-mode, quad-mode, full-screen mode, and PIP (picture in picture) mode. Use this device to simplify management of multiple sources by accessing and controlling them all through a single display and set of controls. 4-Port DVI, USB 1.1 KVM switch with PiP/Dual/Quad/Full modes. Includes: [SM-QKVM & (PS5VD4A) ] FEATURES View up to four computers on a single monitor Supports USB keyboard and mouse Display each computer with clean and crisp high-resolution video Supports resolutions up to 1900 x 1200 @ 60 Hz over DVI-D Quad-mode splits the screen to show four computers on one screen Dual-mode splits the screen to show two computers on one screen PiP-mode displays one computer in full screen with three thumbnail views On-screen display makes setup and switching easy Switching is controlled via the front panel, keyboard hot-keys or RS-232 commands Control any one computer while monitoring three others
Smart AVI - DVX-200-PROS - Pro DVI-D CAT6 STP Extender Kit (HDTV/275ft/TMDS signal correction)
Model: DVX-200-PROS - Pro DVI-D CAT6 STP Extender Kit (HDTV/275ft/TMDS signal correction) DVI-D video extender system (transmitter and receiver) designed to broadcast high-definition DVI-D signals up to 250 feet using inexpensive twisted pair cabling DVI-D CAT6 STP Extender with Reclocking. Includes: [DVX-TX200-Pro, DVX-RX200-Pro, (CCDVIMM06) & 2 x (PS5VD2A)] FEATURES The DVX-200-Pro is the perfect solution for extending a DVI-D display to a remote location up to 250 feet away. The DVX-200-Pro features pixel accurate signal reclocking which regenerates the input signal into a perfectly sharp and clear output signal. It is fully plug and play with dynamic DDC learning. Supports DVI-D single-link sources Supports High Resolution 1920x1200 60Hz WUXGA Dedicated switch to learn any DDC Full reclocking for the receiver regenerates digital signal producing top signal quality Extends up to 250ft (275ft with high quality CAT6 STP) Supports Mac, PC, and Linux DVI Uses universal DVI Single Link connectors Zero pixel loss with TMDS signal correction Compatible with all major KVM switches Data recovery for digital video Plug-and-play VIDEO Format DVI-D Single Line Maximum Pixel Clock 165 MHz Input Interface (TX) (1) DVI-D 29-pin female Output Interface (RX) (1) DVI-D 29-pin female Resolution Up to 1920 x 1200 @60Hz DDC 5 volts p-p(TTL) Input Equalization Automatic Input Cable Length Up to 20 ft. Output Cable Length Up to 20 ft. OTHER Power External 100-240 VAC/5VDC2A @10W MECHANICAL Dimensions TX 2.875 in W x 1 in H x 3.375 in D Dimensions RX 3.6875 in W x 1 in H x 3 in D Weight 0.5 lbs
Smart AVI - VS2PS - SmartAVI WUXGA 2-Port Splitter - 95 kHz - 50 Hz to 95 kHz - 2048 x 1536 - 300 MHzMaximum Video
VS2P The VS2P is a 2-port WUXGA splitter that allows a computer to display VGA video on two monitors simultaneously. Package Contents: WUXGA 2-Port Splitter PS5VDC2A Power Supply Material: Metal Product Type: Signal Splitter Product Type: Signal Splitter Input Voltage: 5 V DC Manufacturer Part Number: VS2PS Limited Warranty: 1 Year Weight (Approximate): 4 oz Manufacturer: Smart Audio Video Innovation Product Model: VS2PS Product Name: WUXGA 2-Port Splitter Brand Name: SmartAVI Brand Name: SmartAVI Country of Origin: United States Height: 1 Width: 5.4 Depth: 3.6 Maximum Frequency: 95 kHz Minimum Frequency: 50 Hz Number of VGA Outputs: 2 Number of VGA Inputs: 1 Maximum Frequency: 95 kHz Minimum Frequency: 50 Hz Environmentally Friendly: Yes Environmental Certification: RoHS Maximum Video Resolution: 2048 x 1536 Number of VGA Outputs: 2 VGA In: Yes VGA Out: Yes Number of VGA Inputs: 1 Maximum Video Bandwidth: 300 MHz
Smart AVI - SMX-AVD0816S - Smart AVI Component or UXGA/Audio & RS-232/IR over CAT5 8x16 Matrix
Model: SMX-AVD0816S - 8x16 Component/VGA +RS-232/IR Control over CAT5 Matrix Switcher SuperMatrix combines all the functions of an audio matrix, video matrix, IR matrix and a full RS-232 matrix into one cost-effective, compact design. SMX-AV0808S Component or UXGA + Audio over CAT5 8x8 Matrix with RS-232 Control. Includes: [SMX-AV0808, CCRS232MF6, SMP-SW & (CCPWR06US)] SMX-AV0816S Component or UXGA + Audio over CAT5 8x16 Matrix with RS-232 Control. Includes: [SMX-AV0816, CCRS232MF6, SMP-SW & (CCPWR06US)] SMX-AV1616S Component or UXGA + Audio over CAT5 16x16 Matrix with RS-232 Control. Includes: [SMX-AV1616, CCRS232MF6, SMP-SW & (CCPWR06US)] SMX-AV3216S Component or UXGA + Audio over CAT5 32x16 Matrix with RS-232 Control. Includes: [SMX-AV3216, CCRS232MF6, SMP-SW & (CCPWR06US)] SMX-AV6416S Component or UXGA + Audio over CAT5 64x16 Matrix with RS-232 Control. Includes: [SMX-AV6416, CCRS232MF6, SMP-SW & (CCPWR06US)] SMX-AVD0808S Component or UXGA/Audio + RS-232/IR over CAT5 8x8 Matrix with RS-232 Control. Includes: [SMX-AVD0808, CCRS232MF6, SMP-SW & (CCPWR06US)] SMX-AVD0816S Component or UXGA/Audio + RS-232/IR over CAT5 8x16 Matrix with RS-232 Control. Includes: [SMX-AVD0816, CCRS232MF6, SMP-SW & (CCPWR06US)] SMX-AVD1616S Component or UXGA/Audio + RS-232/IR over CAT5 16x16 Matrix with RS-232 Control. Includes: [SMX-AVD1616, CCRS232MF6, SMP-SW & (CCPWR06US)] SMX-AVD3216S Component or UXGA/Audio + RS-232/IR over CAT5 32x16 Matrix with RS-232 Control. Includes: [SMX-AVD3216, CCRS232MF6, SMP-SW & (CCPWR06US)] SMX-AVD6416S Component or UXGA/Audio + RS-232/IR over CAT5 64x16 Matrix with RS-232 Control. Includes: [SMX-AVD6416, CCRS232MF6, SMP-SW & (CCPWR06US)] FEATURES Switches 16 inputs to any 16 outputs for unmatched design flexibility. SuperMatrix is a full non-blocking switching matrix. Integrated RS-232 and Infrared matrix offers unparalleled control. Switch signals from devices located up to 1, 000 feet apart. HD compatible (720p, 1080i, 1080p). Supports high resolution video up to 1920x1200. Sends crystal clear stereo audio. Sends high-resolution VGA, stereo audio, RS232 or IR over a single twisted pair cable. Compatible with Video Composite, S-Video, Component and XVGA interface. Increases productivity by providing access to 16 computers from 16 workstations. Can be controlled via software interface, remote control, Internet or RS/232. Full RS-232 Matrix One of the key features of the SuperMatrix is the integrated RS-232 matrix. With RS-232 you can; Remotely power on and off all of the connected display devices. Send commands such as video schedules or input source. Reporting. Enable touch-screen displays to send and receive data. Interrupt displays with Alerts and urgent messages. Controlling the Matrix Another key feature is its capacity to support multiple control interfaces; Control via RS-232 using SmartControl; our Windows based Software included with the system. You can also use a remote control through an Infrared connection _DELETE_
Smart AVI - FDX-2000S - Smart AVI DVI-D/keyboard/Mouse/Audio/RS232 Multimode Fiber Extender
The FDX-2000 consists of transmitter and receiver units, which enable long-distance, superior signal extension quality of KVM, DVI-D, stereo audio and RS-232 components. Equipped with DVI-D connectors for a single link and optional keyboard and mouse, this product is the perfect fiber solution for professional KVM extension needs. The maximum extension range from the source component to the digital display for the FDX-2000 is 1, 400 feet, using multimode fiber. Features: Top Signal Quality at Maximum Extension Over Multimode Fiber (1, 400 ft. ) Superior Image Quality at all Resolutions Video Resolutions up to 1920 x 1200 at 60Hz (1280 x 1024 at 75Hz) Customizable/Programmable DDC Table Supports PS/2 Keyboard/Mouse Supports Stereo Audio Supports DVI-D Supports RS-232 Control from 300bps to 19, 200bps Supports all PC/AT and PS/2 Keyboards with Full Emulation Caps Lock, Num Lock and Scroll Lock are Automatically Saved and Restored Fiber Plug Type LC Compatible With all Operating Systems Compatible With all Major KVM Switches Compact Metal Casing Video Data Input Interface DVI-D Female (Single-Link) Resolution 1920x1200 at 60Hz DDC Internal Table can be Re-programmed Audio Signal Type Stereo Audio Bandwidth 15MHz, 0dB Impedance 10K Ohm Connector 3.5 mm Stereo Mini Female Other RS-232 Data up to 115, 000bps DB-9 Female for TX, Male for RX Fiber Extender Fiber 225m @ Multimode 62, 5u 450m @ Multimode 50u Fiber-Plug type LC Dimensions 4.5 x 5.5 Weight 8 lbs
Smart AVI - SMX-AV0808S - 8x8 VGA/Component + Audio Over Cat5 Matrix Switcher with Full RS-232
Model: SMX-AV0808S - 8x8 VGA/Component + Audio Over Cat5 Matrix Switcher with Full RS-232 SuperMatrix combines all the functions of an audio matrix, video matrix, IR matrix and a full RS-232 matrix into one cost-effective, compact design. SMX-AV0808S Component or UXGA + Audio over CAT5 8x8 Matrix with RS-232 Control. Includes: [SMX-AV0808, CCRS232MF6, SMP-SW & (CCPWR06US)] SMX-AV0816S Component or UXGA + Audio over CAT5 8x16 Matrix with RS-232 Control. Includes: [SMX-AV0816, CCRS232MF6, SMP-SW & (CCPWR06US)] SMX-AV1616S Component or UXGA + Audio over CAT5 16x16 Matrix with RS-232 Control. Includes: [SMX-AV1616, CCRS232MF6, SMP-SW & (CCPWR06US)] SMX-AV3216S Component or UXGA + Audio over CAT5 32x16 Matrix with RS-232 Control. Includes: [SMX-AV3216, CCRS232MF6, SMP-SW & (CCPWR06US)] SMX-AV6416S Component or UXGA + Audio over CAT5 64x16 Matrix with RS-232 Control. Includes: [SMX-AV6416, CCRS232MF6, SMP-SW & (CCPWR06US)] SMX-AVD0808S Component or UXGA/Audio + RS-232/IR over CAT5 8x8 Matrix with RS-232 Control. Includes: [SMX-AVD0808, CCRS232MF6, SMP-SW & (CCPWR06US)] SMX-AVD0816S Component or UXGA/Audio + RS-232/IR over CAT5 8x16 Matrix with RS-232 Control. Includes: [SMX-AVD0816, CCRS232MF6, SMP-SW & (CCPWR06US)] SMX-AVD1616S Component or UXGA/Audio + RS-232/IR over CAT5 16x16 Matrix with RS-232 Control. Includes: [SMX-AVD1616, CCRS232MF6, SMP-SW & (CCPWR06US)] SMX-AVD3216S Component or UXGA/Audio + RS-232/IR over CAT5 32x16 Matrix with RS-232 Control. Includes: [SMX-AVD3216, CCRS232MF6, SMP-SW & (CCPWR06US)] SMX-AVD6416S Component or UXGA/Audio + RS-232/IR over CAT5 64x16 Matrix with RS-232 Control. Includes: [SMX-AVD6416, CCRS232MF6, SMP-SW & (CCPWR06US)] FEATURES Switches 16 inputs to any 16 outputs for unmatched design flexibility. SuperMatrix is a full non-blocking switching matrix. Integrated RS-232 and Infrared matrix offers unparalleled control. Switch signals from devices located up to 1, 000 feet apart. HD compatible (720p, 1080i, 1080p). Supports high resolution video up to 1920x1200. Sends crystal clear stereo audio. Sends high-resolution VGA, stereo audio, RS232 or IR over a single twisted pair cable. Compatible with Video Composite, S-Video, Component and XVGA interface. Increases productivity by providing access to 16 computers from 16 workstations. Can be controlled via software interface, remote control, Internet or RS/232. Full RS-232 Matrix One of the key features of the SuperMatrix is the integrated RS-232 matrix. With RS-232 you can; Remotely power on and off all of the connected display devices. Send commands such as video schedules or input source. Reporting. Enable touch-screen displays to send and receive data. Interrupt displays with Alerts and urgent messages. Controlling the Matrix Another key feature is its capacity to support multiple control interfaces; Control via RS-232 using SmartControl; our Windows based Software included with the system. You can also use a remote control through an Infrared connection _DELETE_
Smart AVI - UX-PROS - 4-port USB+VGA+Audio+RS-232/IR CAT5 Extender Kit (275ft/HDTV)
Model: UX-PROS - 4-port USB+VGA+Audio+RS-232/IR CAT5 Extender Kit (275ft/HDTV) UXPRO is a high resolution UXGA and stereo audio extender system(transmitter and receiver) designed to broadcast desktop video, stereo audio signals, IR/RS232 and USB1.1 over unshielded twisted pair(UTP) cabling. With RS232 communication support the UXPRO allows users to send commands to a single or multiple devices. This allows the user to change the volume or turn on/off the display panel remotely. Remotely accessing your USB device is made convenient in a variety of situations. You can locate users away from hazardous industrial enviroments where the USB device is located. Locate devices away from areas vulnerable to theft of hardware and data, reduce noise and heat; increase desk and floor space. Take full control of your remote screens With UXPRO you get full RS232 bidirectional communication to your remote gives you the power to access information such as screen operation logs from your remote gain valuable insight into when and how the screen is being used, it's effectiveness and how much life is left on your can also send power commands such as on/off to one or all of the screens in the group. The RS232 feature saves you time and money by better managing and prolonging the life of your digital signage network. UX-PROS USB+UXGA+Audio+RS-232 or IR CAT5 Extender Link. Includes: [UXP-TX, UXP-RX, (CCUSBAB06), (CCVGAMM06) and 2 x (PS5VD1A)] UXP-TXS USB+UXGA+Audio+RS-232 or IR CAT5 Transmitter. Includes: [UXP-TX, (CCUSBAB06), (CCVGAMM06), & (PS5VD1A)] UXP-RXS USB+UXGA+Audio+RS-232 or IR CAT5 Receiver. Includes: [UXP-RX & (PS5VD1A)] FEATURES Supports Multiple Screens Uses Easy-to-Install CAT5/5e/6/7/8 Each Output Extends 1, 000 Feet Plus Supports High-Resolutions Video up to 1920x1200 HDTV-Compatible(720p, 1080i, 1080p) 300 MHz Bandwidth Sends High-Resolution VGA Stereo Audio, RS-232 and IR Signals From up to *16 Sources to as Many Display Screens(*Model-Dependant) Compatible With VGA, XGA, Sun, Mac and SGI Sync Format/Polarity Preservation Compatible With Line Level Stereo Audio Signals High Ground Loop Immunity Built-In Power Surge and Transient Protection Designated Trimmer in Remote Unit to Compensate for Cable Length Compact Metal Case Enclosure External Power Supply RS-232 Communication Support to Single/Multiple Displays IR Command to Single/Multiple Displays Video data Format RGBHV, RGsB, YUV, Y/C, CVBS Resolution Up to 1900 x 1200 VGA, SVGA, XGA, SXGA Connector Type HD 15 socket USB USB 1.1 (low and full speed) Transmitter USB Type B Receiver 4 USB Type A Audio Signal Type Stereo unbalanced Connector 3.5mm jack socket RS232 DB9M TXD, RXD, Gnd. 9600 bps Power Connector 2.1mm DC jack (center +ve) Mechanical Height 0.937 in. (24 mm.) Width 7.75 in. (197 mm.) Depth 3.38 in. (86 mm.) Weight 0.60 lb. (0.27 kg.)
Smart AVI - VS4PS - SmartAVI WUXGA 4-Port Splitter - 95 kHz - 50 Hz to 95 kHz - 2048 x 1536 - 300 MHzMaximum Video
The VS4P is a 4-port VGA splitter that allows one VGA signal to be sent to four displays. Package Contents: WUXGA 4-Port Splitter PS5VDC2A Power Supply Material: Metal Product Type: Signal Splitter Product Type: Signal Splitter Input Voltage: 5 V DC Manufacturer Part Number: VS4PS Limited Warranty: 1 Year Weight (Approximate): 8 oz Manufacturer: Smart Audio Video Innovation Product Model: VS4PS Product Name: WUXGA 4-Port Splitter Brand Name: SmartAVI Brand Name: SmartAVI Country of Origin: United States Maximum Frequency: 95 kHz Minimum Frequency: 50 Hz Number of VGA Outputs: 4 Number of VGA Inputs: 1 Maximum Frequency: 95 kHz Minimum Frequency: 50 Hz Green Compliant: Yes Green Compliance Certificate/Authority: RoHS Maximum Video Resolution: 2048 x 1536 Number of VGA Outputs: 4 VGA In: Yes VGA Out: Yes Number of VGA Inputs: 1 Maximum Video Bandwidth: 300 MHz
