TAOGLAS ANTENNA SOLUTIONS MA104.C.AB.072 HERCULES SCREWMOUNT GPS
TAOGLAS ANTENNA SOLUTIONS MA104.C.AB.072 HERCULES SCREWMOUNT GPS condition: New Brand: TAOGLASModel: Selfsat H50D4Type: AntennaMPN: MA104.C.AB.072
Taoglas PC104.07.0165C High Performance Cellular, 164.9mm 1.37O coax and IPEX MHF I(U.FL)
The high efficiency PC104 Penta-band PCB antennas slim-line design allows for convenient installation inside the customer device. Omni-directional gain across all bands ensures constant reception and transmission. With its unique dipole design, the PC104 has exceptional industry performance characteristics considering its very low profile at 2.4mm and has a compact size 80mm*20mm. It is suitable for clients that appreciate highest performance with lower price.
Taoglas GP.1575.25.4.A.02 Ceramic GPS Patch antenna, pin fed
This miniaturized ceramic GPS patch antenna is based on smart XtremeGain™ technology. It is mounted via pin and double-sided adhesive and has been tuned as optimal solution for the customer device environment.
Taoglas PCS.07.A Nemesis Low Profile GSM-CDMA-Cellular SMD Dielectric Antenna
The PCS.07.A is a low profile SMT cellular antenna designed for direct SMT mount on the device PCB. It provides highest efficiency in very small factor 35*7*3mm. It is more resistant to detuning compared to other antenna integrations. If tuning is required it can be tuned for the device environment, while there is no need for new tooling. Its rectangular shape and very small size makes it very easy to integrate can be mounted directly on the edge of the PCB board. The PCS.07 antenna is suitable for lower cost cellular applications and is especially suitable for telematics and automotive sector. If higher efficiency or improved radiated spurious emissions are required, especially on smaller ground-planes, please use our PA series antennas, PA.25 or PA.710.
Taoglas CGGP.25.4.E.02 GPS/GLONASS Patch Antenna, pin fed
The CGGP.25.4.E.02 is a 25*25*4 mm embedded ceramic GPS/Glonass Patch antenna. It features a double resonance design at GPS and GLONASS bands, 1575.42 MHz and 1602 MHz respectively. This antenna has been tuned for a centre position on a 70mm *70mm ground plane. Return loss is -28 dB at 1575.42MHz and -22 dB at Glonass. Overall the antenna has greater than 60% efficiency. For further optimization to customer specific device environments where positioning is off centre or a different ground-plane size, custom tuned patch antennas can be supplied.
Taoglas FXP73.07.0100A Blue Diamond Flexible circuit antenna for mounting at right angles to main PCB
The FXP73 Blue Diamond 2.4GHz Antenna works on WiFi, ZigBee, Bluetooth and ISM band at 2.4 GHz. This antenna has been designed with a specific solution to cover the current market applications that require rectangular form-factor, with easy installation through a cable connection.
Taoglas CGGP.35.3.A.02 GPS/GLONASS Patch Antenna, pin fed
This 35mm ceramic GPS/Glonass patch antenna, by means of a double resonance design, has unique wide-band operation over the whole operating bands of GPS and Glonass systems from 1575MHz to 1610MHz. It is mounted via pin and double-sided adhesive. This antenna has been tuned for a centre position on a 50mm*50mm ground-plane. It is manufactured and tested in a TS16949 first tier automotive approved facility. For further optimization to customer specific device environments where positioning is off centre or on different ground-plane sizes, custom tuned patch antennas can be supplied. For more details please Contact Us.
Taoglas SGP.1575.25.4.C.02 SMT Mounted Ceramic GPS Patch Antenna (Tape & Reel)
- This ceramic GPS patch antenna is based on smart XtremeGainTM technology. It is mounted via SMT process and has been selected as optimal solution for the 45x45mm ground plane.
taoglas omb.8912.05f21 824~960mhz and 1710~2170mhz 3.5~5.5dbi omni antenna,with n type female connector, u-bolt
The Penta-band cellular Barracuda Outdoor antenna is designed to a have long distance coverage. Omni-directional high gain across all bands ensures constant reception and transmission. The UV resistant coating with fiberglass housing makes this antenna suitable to be mounted in robust outdoor environment, pole-mounting and wall-mounting bracket is included. The antenna finds its usage in boosting cellular coverage in remote areas or difficult environments indoors and outdoors.
Taoglas ILA.02 SMT Mounted Ceramic 2.4dBi 868MHz Loop antenna (tape & reel)
Antenna type: Ceiling / WallmountFrequency: 4G LTE/ 3G CellularGain: 0 dBi or lessThe ILA.02 is a 868 MHz ISM band antenna featuring an excellent efficiency of 60% across the band. This antenna works the best when placed at the center of the board edge. The antenna, at 10 x 3.2 x 0.5 mm, is low profile and would be suitable for devices with space constraints. The ILA.02 is delivered on tape and reel and now allows M2M customers to use an omni-directional SMT antenna. The omni-directional radiation characteristics allow for excellent performance regardless of device orientation. This is especially useful for devices that are not fixed in one particular spot during use. When there is little PCB space available for antenna placement, but high performance is required, the ILA.02 is the ideal choice. The ILA.02 Loop antenna can be used in automated meter reading (AMR), radio frequency identification (RFID), remote monitoring, healthcare, sensing, and other 868 MHz applications.
taoglas cggp.18.4.c.02 gps/glonass patch antenna, pin fed
This 18mm ceramic GPS/Glonass patch antenna, by means of a double resonance design, has unique wide-band operation over the whole operating bands of GPS and Glonass systems from 1575MHz to 1610MHz. It is mounted via pin and double-sided adhesive. This antenna has been tuned for a centre position on a 70mm*70mm ground-plane. It is manufactured and tested in a TS16949 first tier automotive approved facility. For further optimization to customer specific device environments where positioning is off centre or on different ground-plane sizes, custom tuned patch antennas can be supplied
Taoglas PAD.71X.A Reflection PA.710 & PA.711 SMT Antennas on EVB
The Gemini LTE MIMO 2*2 Embedded Antenna is the only compact MIMO antenna solution for the world LTE M2M and Internet of Things (IOT) market of today. Gemini has two antenna elements, the existing PA. 710 LTE MIMO ceramic antenna successfully used in many LTE MIMO devices today, along with its new brother the PA. 711 LTE MIMO ceramic antenna. By altering the radiation pattern of the PA. 711 to that of the PA. 710 (similar to reflecting), Taoglas has created the worlds first high efficiency MIMO embedded wide-band cellular antenna conforming to an envelope correlation coefficient of below 0.3. This minimal self interference is critical to achieve high data rates in todays advanced LTE systems. The patent pending antenna is ideal for integration into high data throughput devices which depend on high efficiency MIMO antennas. Typical applications: - Intelligent Transport Systems - High Definition Video Broadcast Systems - Wireless LTE MIMO M2M devices with legacy 2G/3G Functionality
taoglas maximus flexible ultra wide-band antenna 700-6000mhz
Features: Patent Granted Ground Plane Independent 700-6000MHz 5 dBi Peak Gain Efficiencies above 60% on all cellular 2G/3G/4G bands 120.4 x 50.4 x 0.2 mm size SMA (M) Connector RoHS Compliant The patent granted Maximus FXUB66 flexible ultra wide band antenna has been designed to cover all working frequencies in the 700-6000 MHz spectrum, including all Cellular, Wi-Fi, ISM and GNSS bands. Its use in a device improves substantially the radiated power and sensitivity, and enables the highest throughput rates of today's broadband devices. The antenna is delivered with a flexible body with ground breaking high efficiencies on all bands, ground-plane independent, with a cable and connector for easy installation. It is made of durable flexible polymer, with a peak gain of 5dBi, an efficiency of more than 60% across all cellular bands and is designed to be mounted directly onto a plastic or glass enclosure / cover. At 120.4 x 50.4 x. 2mm, the antenna is ultra thin. It is assembled by a simple "peel and stick" process, attaching securely to non-metal surfaces via 3M adhesive. The Maximus antenna has a unique hybrid design. Within one antenna structure the electromagnetic waves travel in two predominant propagation modes - one for lower frequencies, (e. g. LTE at 700 MHz) and the other for higher 4G and Wi-Fi frequencies up to 6GHz.
taoglas ma204.a.lb.002 stingray 850/900/1800/1900/2100mhz with gps/glonass, glass/adhesive mount
This is a 2in1 combination high performance GPS/GLONASS and Penta-band Cellular (GSM /CDMA/PCS/ DCS/ / UMTS / GPRS / EDGE / HSPA) antenna to simplify AVL or Fleet management antenna systems worldwide. Its high quality low profile covert housing can be attached onto the glass or even out of sight under the dashboard. This combination of a high gain GPS/GLONASS antenna and a leading edge penta band cellular antenna is ideal for those applications that require durability, small size and covert installation, and reliable reception and transmission crossing through different mobile networks. The standard version has 3 metres RG174 cable and SMA(M) connector on both GPS/GLONASS and Cellular. The cables and connectors are completely customizable according to customer requrest.
taoglas ma412.a.bi.001 2 x cellular(2g/3g/4g) mimo storm antenna 0.3m cfd200 fakra code d jack
The Storm MA412 LTE MIMO antenna is a low profile, heavy-duty, fully IP67 waterproof external M2M antenna for use in worldwide telematics applications which require best in class LTE performance. This unique product, only 30mm high, delivers powerful worldwide 4G LTE MIMO antenna technology at 700MHz / 800MHz / 900MHz / 1700MHz / 1800MHz / 1900MHz / 2600MHz.

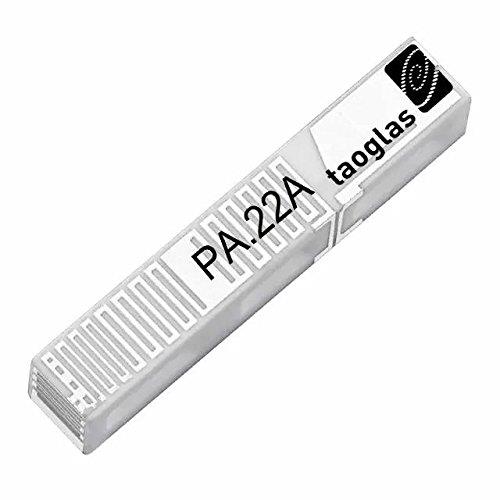

taoglas pa.22a/pa.22e 900/1800/1900mhz tri-band cellular antenna
The PA-22 Planar Inverted F Antenna (PIFA) consists of a rectangular planar element located above a ground plane, a short circuiting plate, and a feeding mechanism for the planar element. The PIFA is a variant of the monopole where the top section has been folded down so as to be parallel with the ground plane. This is done to reduce the height of the antenna, while maintaining a resonant trace length. This parallel section introduces capacitance to the input impedance of the antenna, which is compensated by implementing a short-circuit stub. The stub's end is connected to the ground plane via the short circuiting plate on the edge of the antenna, whose function is to extend the bandwidth of the PIFA.
taoglas WS.24.B.127H821 2.4 5.GHZ EXTERNAL ANTENNA WITH 127 mm 1.37 IPEX MHFHT
taoglas WS.24.B.127H821 2.4 5.GHZ EXTERNAL ANTENNA WITH 127 mm 1.37 IPEX MHFHT condition: New Type: AntennaBrand: taoglasMPN: WS.24.B.127H821Frequency Bands: 2.4 GHz
taoglas ip.1621.25.4.a.02 ceramic iridium patch antenna, pin fed
This miniaturized ceramic Iridium patch antenna is based on smart XtremeGain" technology. It is mounted via pin and double-sided adhesive and has been selected as optimal solution for the customer device environment. Iridium certifies the IP.1621.25.4.A.02 for commercial use in connection with the Iridium Communications systems.
Taoglas ISPC.86A.09.0092E 5dBi ISM 865-867MHz Embedded Ceramic Patch Antenna with 92mm RG-178 MMCX(M) RA
Antenna type: Surface Mount / PatchFrequency: 4G LTE/ 3G CellularGain: 5 dBiThe 5dBi ISPC.868.A antenna is designed primarily for compact fixed wireless applications in the 865MHz to 870MHz frequency range where extra coverage range is required. The antenna functions best when the backside is placed on a metal panel. When placed on a reference 30cm square ground-plane, the antenna has excellent directional hemispherical radiation pattern up to 5dBi on the zenith, and an efficiency of 65%. Even without a ground-plane underneath the antenna achieves 1dBi and an efficiency of 40~50%, with an omni-directional pattern. This ceramic patch antenna with RG178 and MMCX male right angle connector is a great solution for the following typical applications
taoglas gw.05 2.4/5.8ghz monopole antenna rp-sma(m) hinged
Extremely Compact - 62.3mm 1.5mm Aesthetic look and feel Unique can rotate 360 degrees and articulate through 180 degrees Max Peak Gain compliant with most WiFI modules Standard RP-SMA(M) connector ROHS Compliant The GW.05 dual band WiFi Hinged Rotatable Antenna is a high efficiency monopole antenna. Compared to other much larger antennas on the market, it has superior wide-band high efficiency characteristics. The bright green colour of the antenna adds a unique quality look and feel to any modern WiFi application point, device or router. It also provides differentiation if using Taoglas other similar looking antennas (such as the black color Taoglas TG.09 cellular antenna) on same device. The connector used is Rev SMA(M), the standard mating part for an antenna to most WiFi application points and routers in the market. The GW.05, as all monopole antennas, works best connected directly to the ground-plane of the device main PCB or to the outside of a metal housing. However it still has very good performance (>50%) even without connecting to a ground-plane, making it the best all round small WiFi terminal antenna on the market. In the un-grounded installation condition it also comes below the max peak gain requirements for most WiFi modules which are usually 2dBi, so it can comply with FCC regulations. The GW.05 is for Wi-Fi, WLAN, Zigbee, Bluetooth, and 802.11a/b/g/n/ac applications.
Taoglas FXP522.A.07.A.001 2.4/5.0GHz Flex PCB MIMO Antenna Port 1&3-120mm 1.13 cable IPEX MHFI
Antenna type: Embedded / Flex / PCB Frequency: 4G LTE/ 3G Cellular Gain: 6 dBi The FXP. 522 Venti antenna is a 2* MIMO, flexible embedded monopole type antenna designed to be used inside high speed devices on modern WiFi networks. Applications - High speed HD video streaming - High capacity mass transit communication networks Omni-directional, the antenna has excellent efficiency and isolation performance for dual-band WiFi applications. It has over 60% efficiency in the 2.4GH z bands, and over 50% in the 5GHz bands. With a thickness of only 0.15 mm, the FXP. 522 is an ideal solution for maintaining high performance while fitting into narrow spaces such as plastic enclosures for routers, gateways, set-top boxes and other WiFi applications. the FXP. 522 was specifically tuned on ABS plastic, ensuring reliable performance on PC and ABS housings.
