Buy Times Microwave Systems Products online in United States

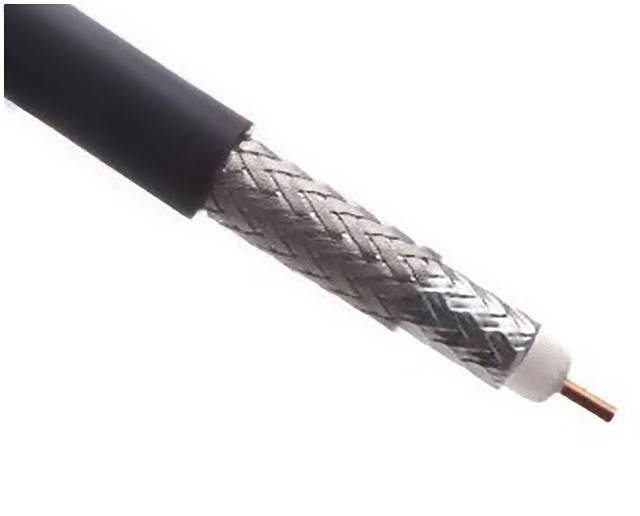

Times Microwave LMR-400 3/8" 50 Ohm Coaxial Cable, 300 Feet, Bulk Roll, No Connectors

The Times Microwave LMR-400 is a low loss braided coaxial cable. This 3/8 inch 50 Ohm coax cable has a stranded outer conductor and a bare copper center conductor. A 100 percent foil and 88 percent coverage braided shield prevents loss.This low loss cable offers similar performance compared to corrugated copper cables but provides higher flexibility (1 inch bending radius) and simplified connectorization. It can be used in almost any application where handling characteristics, improved shielding and low loss is required.Technical SpecsLoss @ 50 MHz: 0.90Loss @ 100 MHz: 1.2 dBLoss @ 400 MHz: 2.5 dBLoss @ 900 MHz: 3.9 dBLoss @ 1000 MHz: 4.10Center Conductor Material: Copper Clad AluminumCenter Conductor Construction: SolidNominal O.D.: 0.405 inNominal Core O.D.: 0.285 inCenter Conductor Diameter: 0.108 inDielectric Insulation: PEVOP: 85 %Nominal Capacitance (pF/ft): 23.9Shield %: 100% foil 88% braided

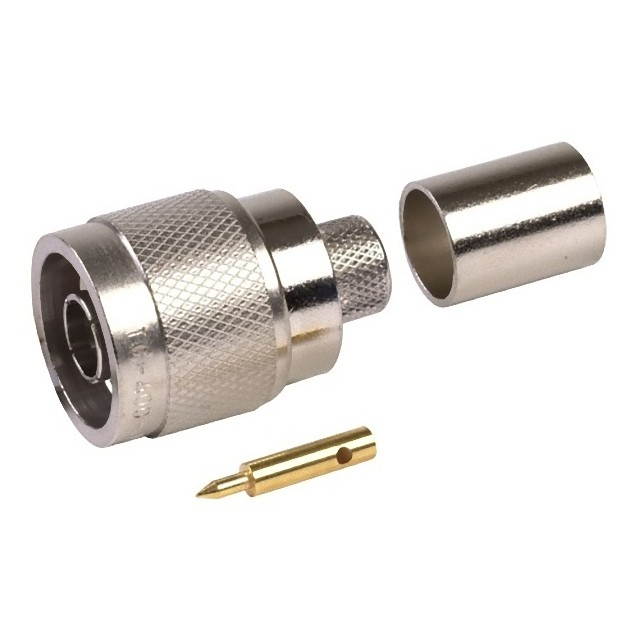

N Male Crimp-LMR400

TIMES N male connector for LMR-400 coaxial cable. Solder center pin, crimp on braid.

Times Microwave LMR-600 1/2" 50 Ohm Coaxial Cable, 300 Feet, Bulk Roll, No Connectors

The Times Microwave LMR-600 1/2 inch standard coax cable with foam dielectric has a UV-resistant Polyethylene jacket for outdoor use. This low loss 50 Ohm coax cable is designed with a stranded outer conductor which allows for a 1.5in bending radius. The center conductor of this transmission line is copper-clad aluminum. Maximum frequency capacity is 15.8 GHz.Technical SpecsCenter Conductor Construction: SolidCenter Conductor Material: Copper Clad AluminumCenter Conductor Diameter: .176 inDielectric Insulation: PEVOP: 87 %

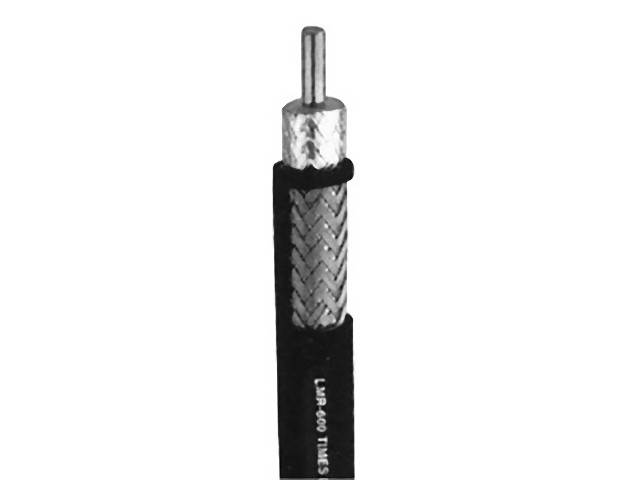

Times Microwave LMR-600 1/2" 50 Ohm Coaxial Cable, 75 Feet, Bulk Roll, No Connectors

The Times Microwave LMR-600 1/2 inch standard coax cable with foam dielectric has a UV-resistant Polyethylene jacket for outdoor use. This low loss 50 Ohm coax cable is designed with a stranded outer conductor which allows for a 1.5in bending radius. The center conductor of this transmission line is copper-clad aluminum. Maximum frequency capacity is 15.8 GHz.Technical SpecsCenter Conductor Construction: SolidCenter Conductor Material: Copper Clad AluminumCenter Conductor Diameter: .176 inDielectric Insulation: PEVOP: 87 %

Times Microwave LMR-400 3/8" 50 Ohm Coaxial Cable, 150 Feet, Bulk Roll, No Connectors

The Times Microwave LMR-400 is a low loss braided coaxial cable. This 3/8 inch 50 Ohm coax cable has a stranded outer conductor and a bare copper center conductor. A 100 percent foil and 88 percent coverage braided shield prevents loss.This low loss cable offers similar performance compared to corrugated copper cables but provides higher flexibility (1 inch bending radius) and simplified connectorization. It can be used in almost any application where handling characteristics, improved shielding and low loss is required.Technical SpecsLoss @ 50 MHz: 0.90Loss @ 100 MHz: 1.2 dBLoss @ 400 MHz: 2.5 dBLoss @ 900 MHz: 3.9 dBLoss @ 1000 MHz: 4.10Center Conductor Material: Copper Clad AluminumCenter Conductor Construction: SolidNominal O.D.: 0.405 inNominal Core O.D.: 0.285 inCenter Conductor Diameter: 0.108 inDielectric Insulation: PEVOP: 85 %Nominal Capacitance (pF/ft): 23.9Shield %: 100% foil 88% braided

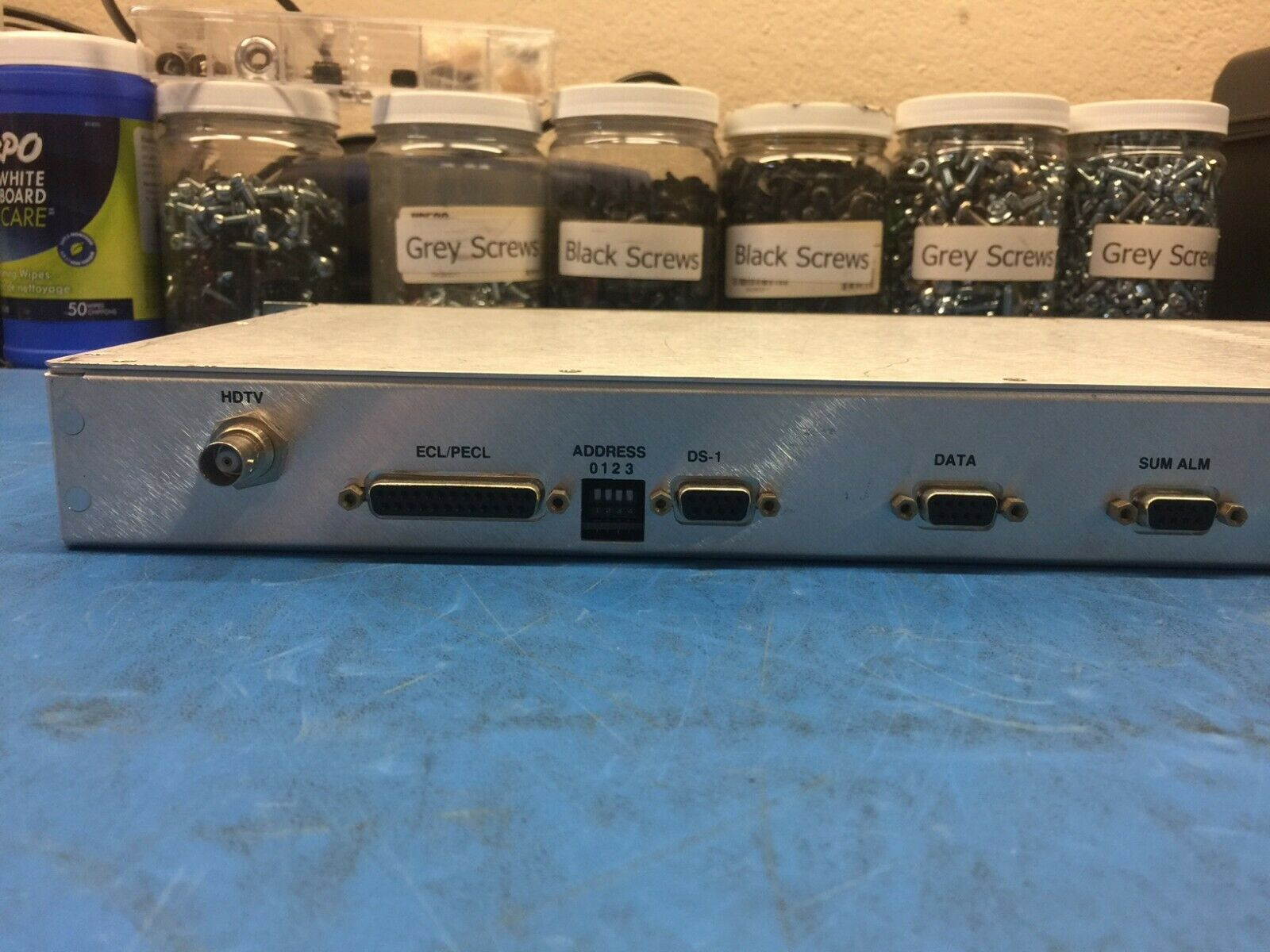

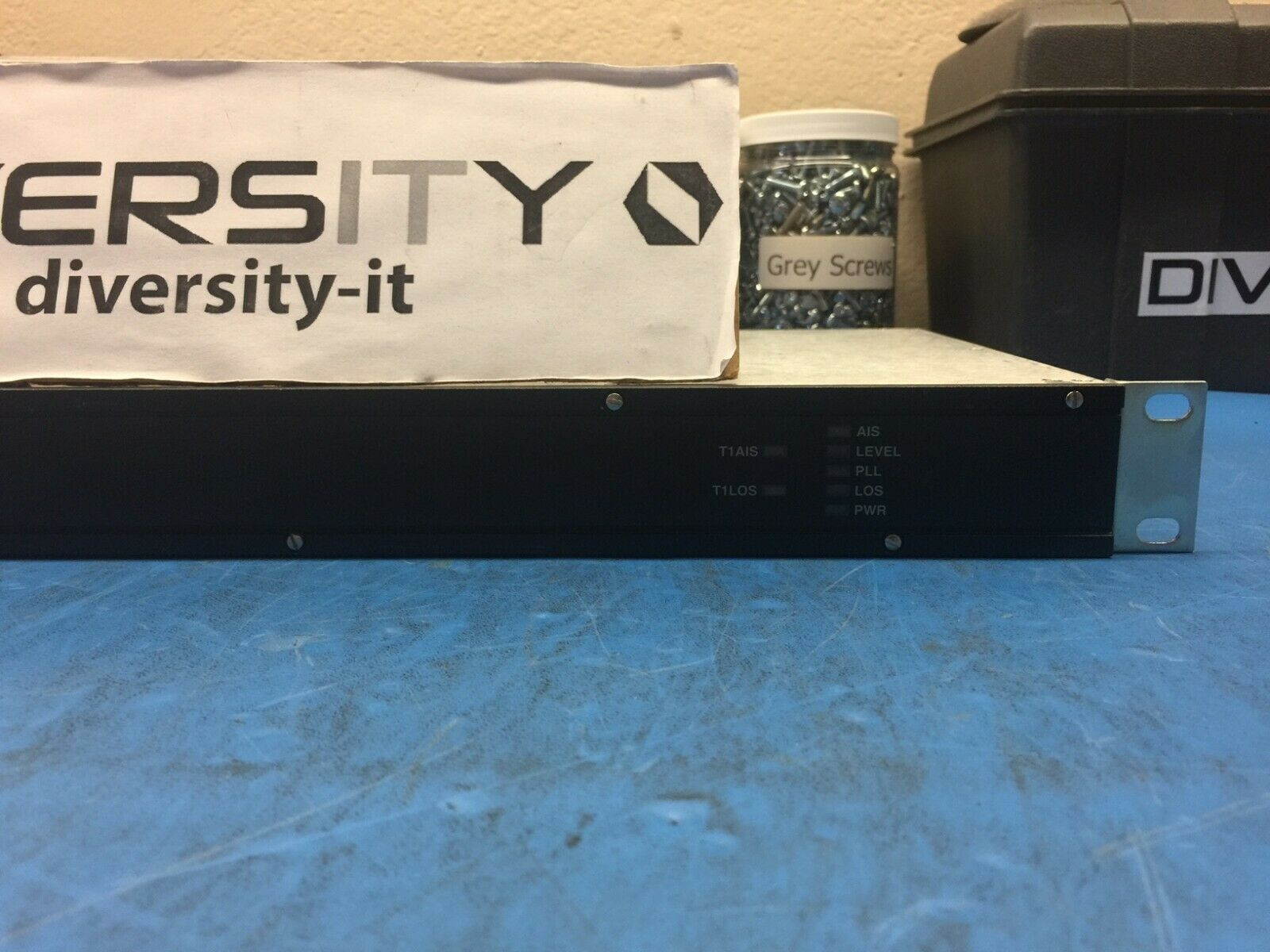

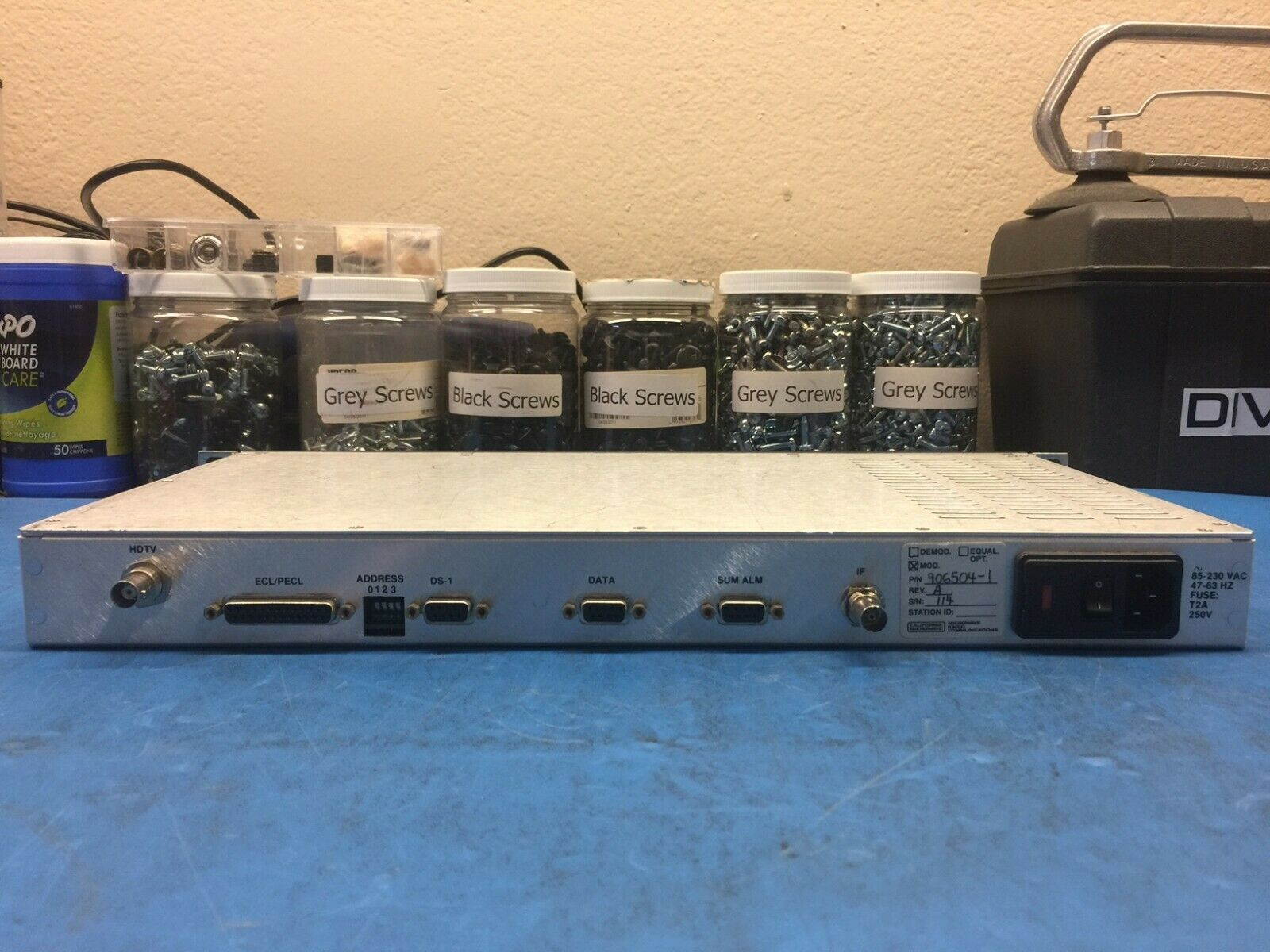

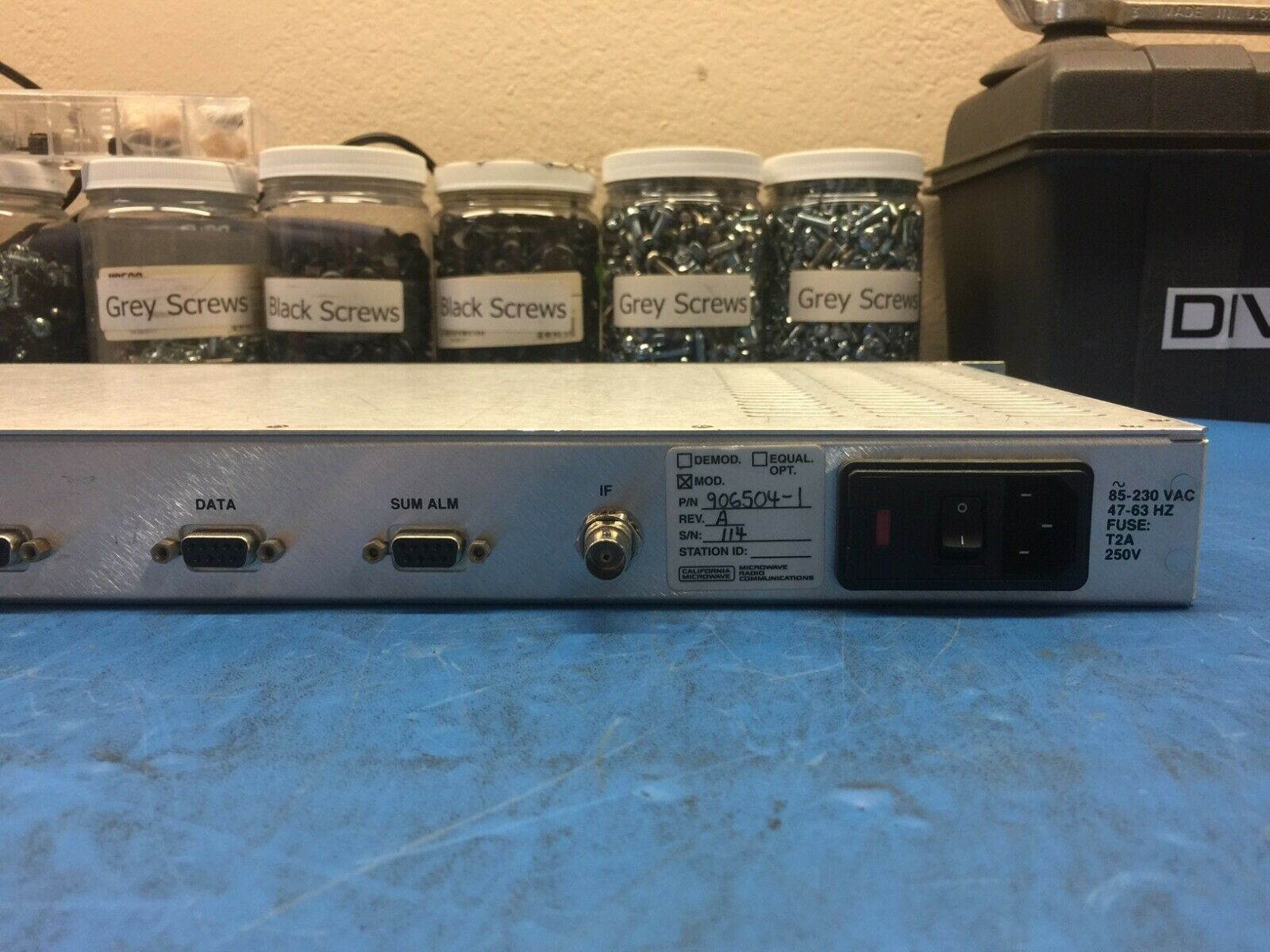

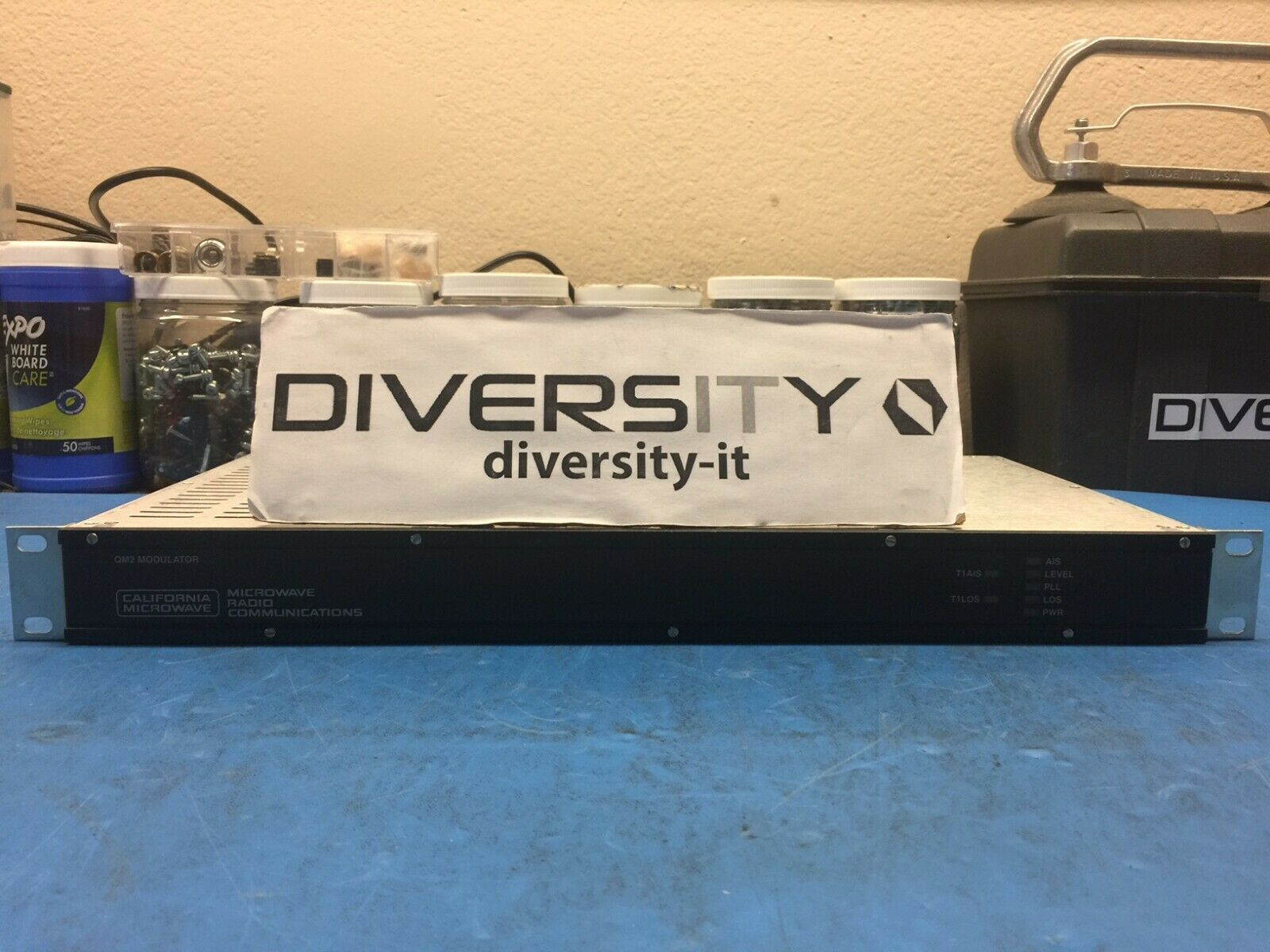

Microwave Radio Communications QM2 Modulator

The QM2 modem/interface is intended for terrestrial transmission of ATSC HDTV transport stream at 19.39 Mbps. With 16QAM modulation, the occupied bandwidth is about 7 MHz. A T1/E1 wayside channel is also provided for an independent application such as an audio or data channel. In addition, an RS–232 interface is available for asynchronous data transmission at a data rate of less than 9.6kb.
