1.6ft USB to RS485 RS422 Serial Converter Adapter Cable FTDI Chip Windows 10 8 7

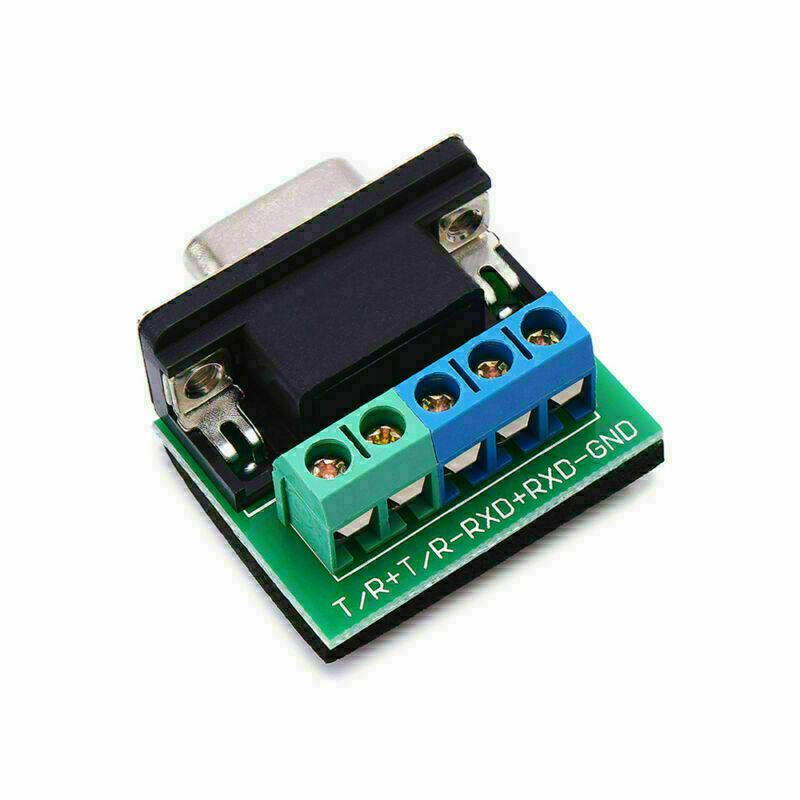

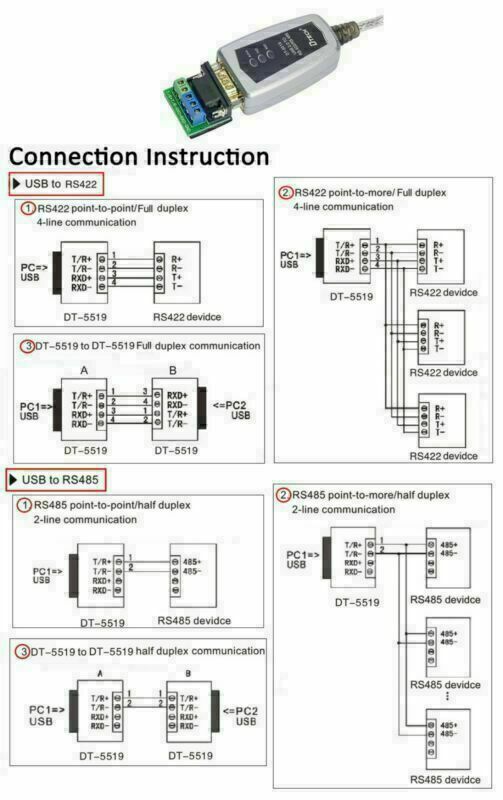

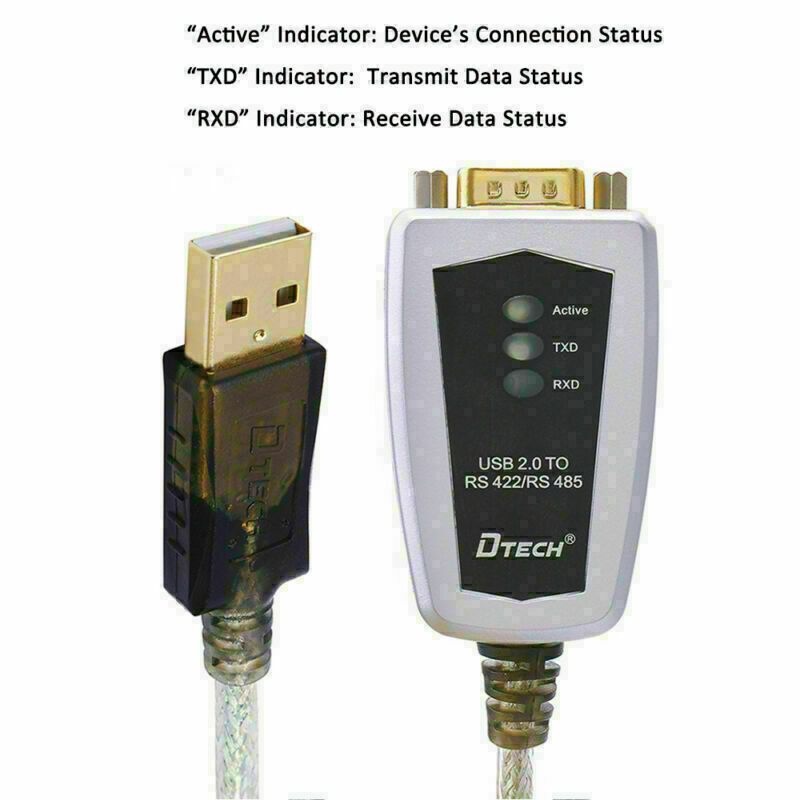

1.6ft USB to RS485 RS422 Serial Converter Adapter Cable FTDI Chip Windows 10 8 7 FTDI Chip supports you the widest possible OS compatibility: Win 10, 8, 8.1, 7, Vista, XP, Linux and Mac; 600W static surge and ±15KV ESD protection protects devices and ensures high speed data communication; TX, RX indicators help you check the communication activity, which is very helpful when troubleshooting; The shielded cable supports four wires full duplex, two wires half duplex; point to point, point to multi-point communication; Transmission distance up to 1.2 km at at baud rate of 9600 bps (the longer distance, the lower baud rate); Terminal block is well-labeled for you to easily wire it to your device correctly! With noise immunity and multi-drop capability (up to 32), it enables you to make a stable connection for your PC and RS485 or RS422 device, without any troubles like computer freeze, IRQ, DMA or COM port conflict. FTDI Chip - Reliable Signal Conversion Between Your Serial Devices and Computer Besides FTDI chip, It is also well bulit with strong materials: copper conductors guarantee signal purity; foil and copper braided shielding layer reduces EMI and RFI noise. 600W static surge and ±15KV static protection for effectively protecting your costly and sensitive control equipment against electrical damage. It features baud rate auto-detected and zero delay automatic transmission so that you can get high speed data transfer over RS-485 or RS-422 port. Specific: Serial Protocol: RS485 / RS422; Specification: USB 2.0; EIA/TIA RS485 and RS422 standard; Chip: FTDI; Max Baud Rate: 921600bps; Max Distance (RS485/422 End): 984ft (300m) at 921600bps, 1968ft (600m) at 38400bps, 3937ft (1.2km) at 9600bps; USB-bus powered, no external power needed. Automatic hand-shaking protocol supported. Item Length: 1.6 Feet/ 0.5meter Important Note: The USB end must be connected to PC or Mac. Other USB devices like digital camera, scanner and printer is not allowed. To avoid reflections on longer cables it is necessary to use appropriate termination resitors (120O, 1/4W). Please do NOT connect the adapter to RS422/ RS485 device until you install the driver on your computer or Mac. What is included? 1 x USB to Serial Converter Cord 1.6ft 1 x RS422 RS485 Serial DB9 to Terminal Block Adapter 1 x Driver CD 4 Kinds of Working Modes: Asynchronous Point to point / four wires full duplex; Point to multiple point / four wires full duplex; Point to point / two wires half duplex; Point to multiple point / two wires half duplex. Applications: Factory automation system Distributed control system LED INFO display equipment PLC control and management CNC management SCADA(Supervisory control and data acquisition) Medical treatment/medication automation Building automation Check on work attendance Human resource management. Measuring instruments and monitoring system Data collection Process control
