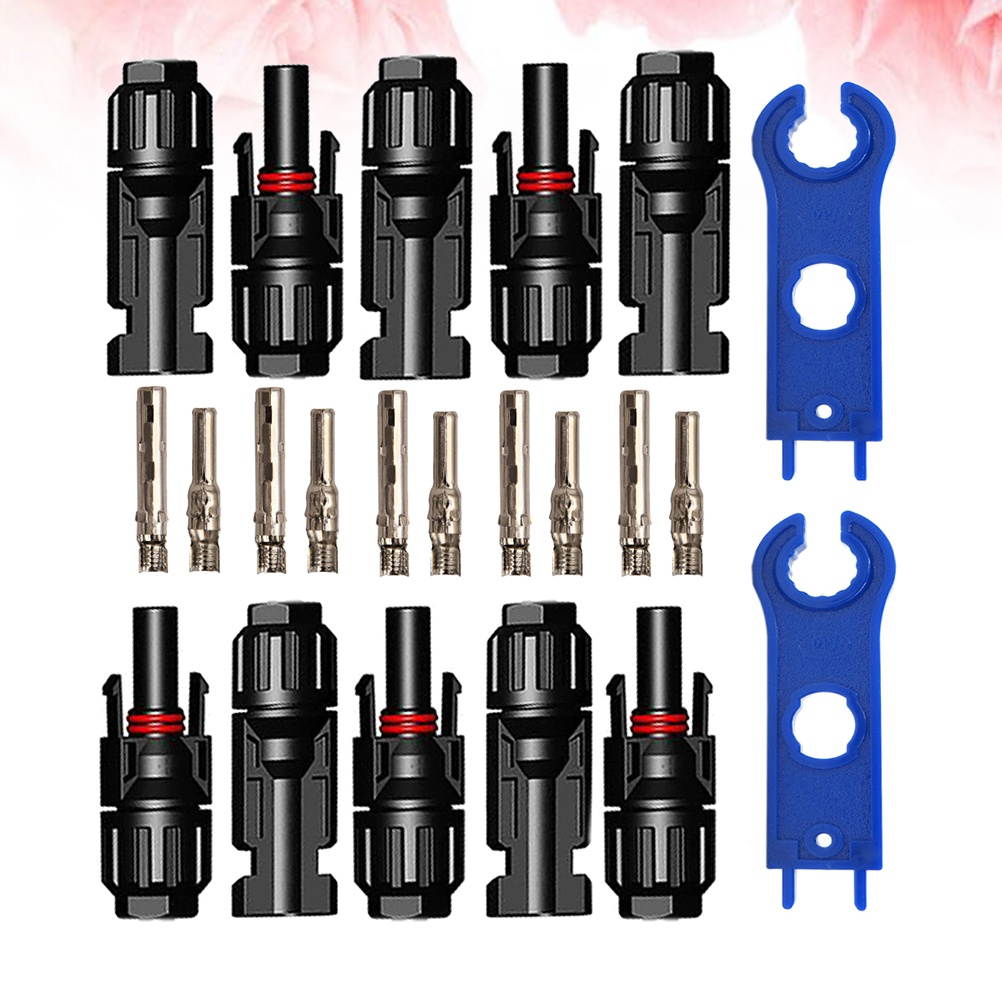

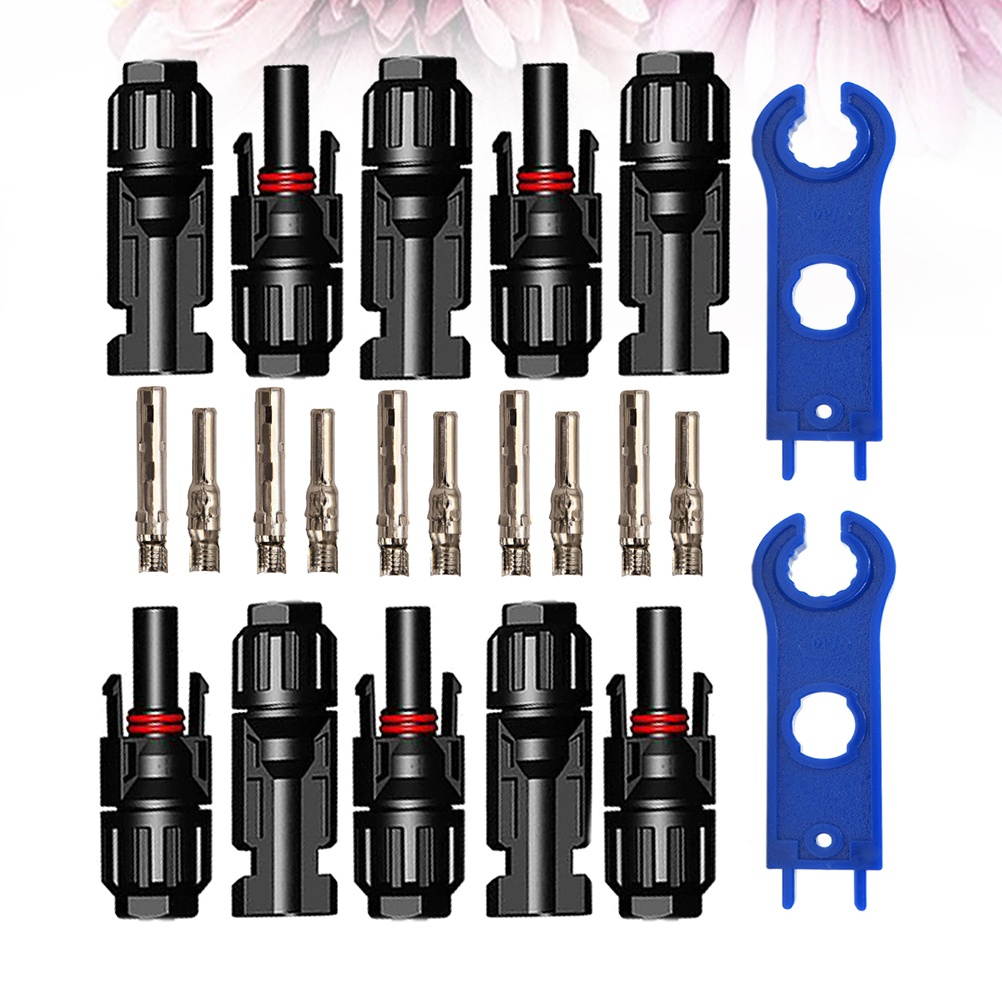

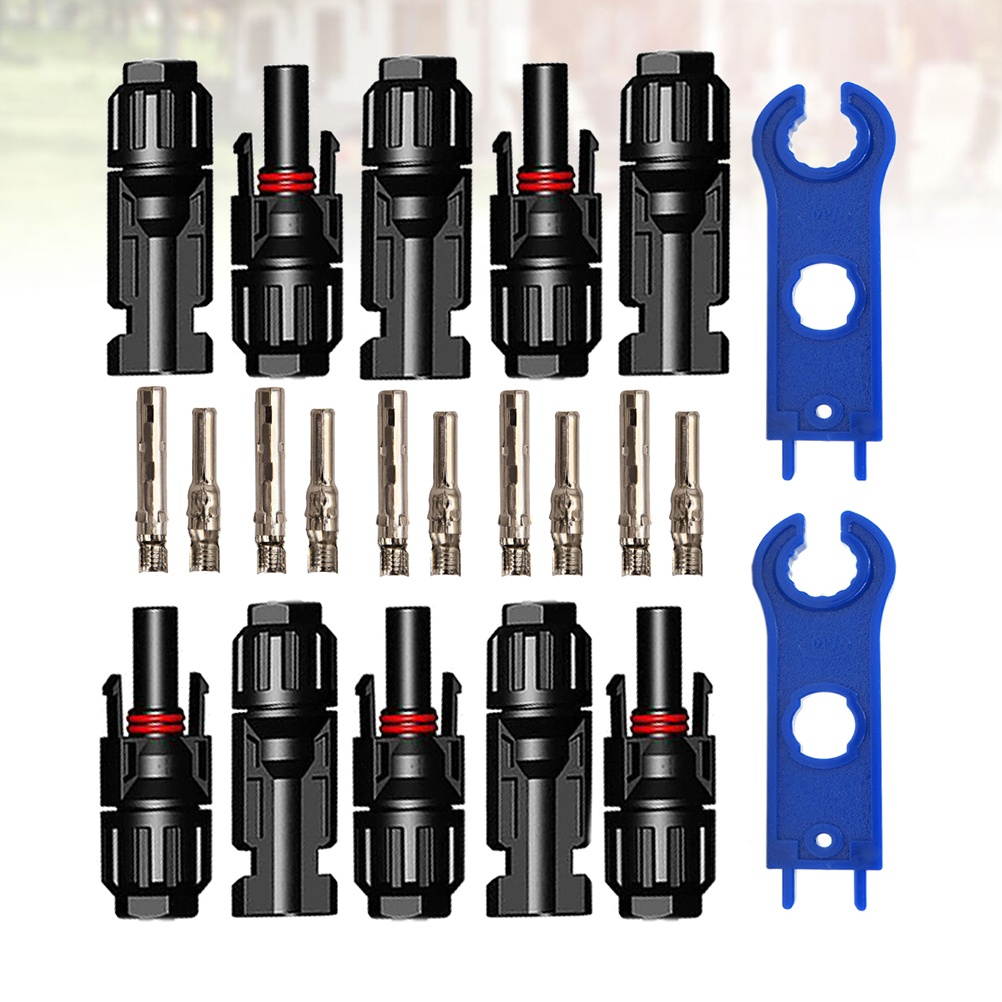

5 Pair of Photovoltaic Module Solar Panel Connector Solar Female and Male Plug Photovoltaic Connector Black (1 Pair Wrench)

Description

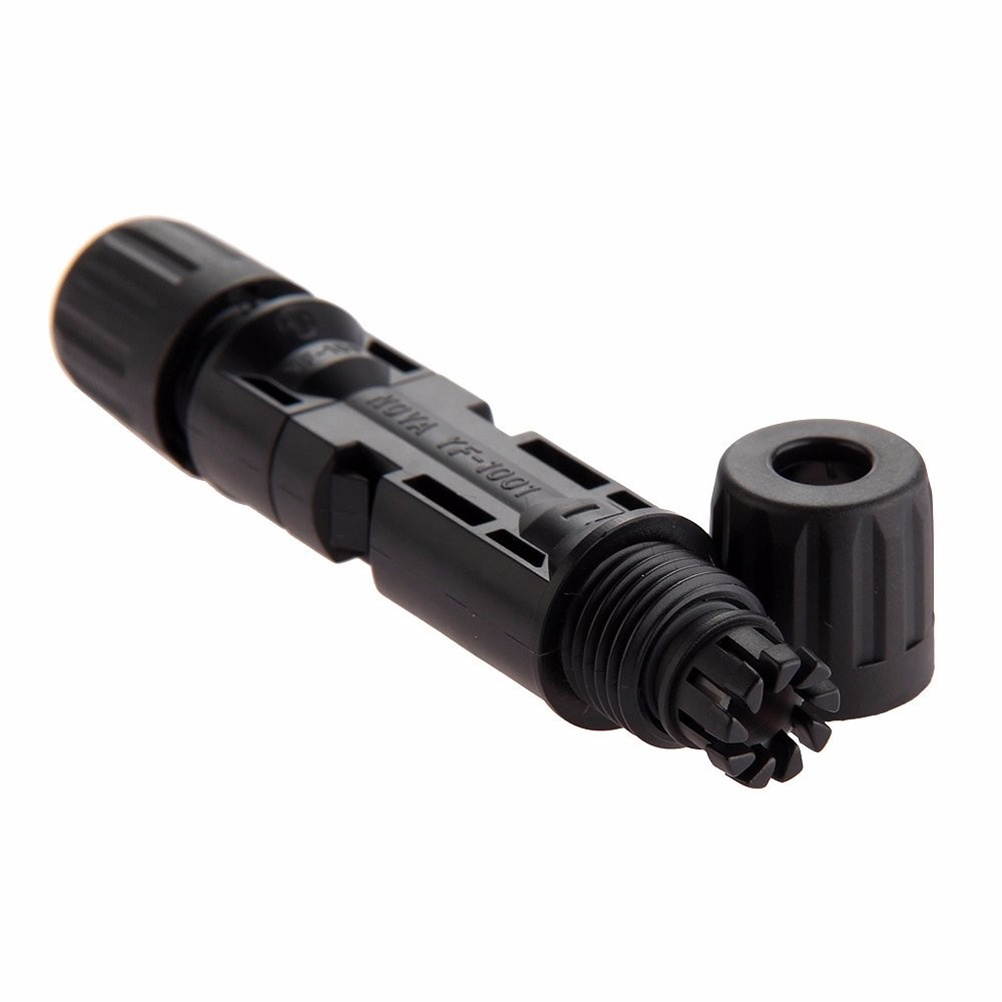

These are Style Connectors. They are used to connect multiple solar panels or groups of solar panels together in a solar field, and typically used in parallel applications. The metal pin is made from high quality machined copper and sealed tip.

Feature

-

Color: Black.

- Material: PPO+Copper.

- Size: 8.9 x 1.9 x 1.9cm.

- The Conductor pin is tinned Copper: It makes a rock solid connection after you crimp the pin to the wire, and these are operated perfectly under heavy load

- No Longer To Deal With Fixing The Connectors On The Roof: The one ring on connection is perfect to seal out water and dust to prevent corrosion and still able to disconnect if needed, and These connectors will survived rain, high force winds and snow more than your expect.

- Durable: With excellent aging resistance and UV endurance, it can be used in harsh environment.

- Good compatibility: Compatible with PV cables with different insulation diameters, connection with cable by the crimping tool.

Specification

Operating current: 30A

Resistance voltage: DC1000V

Contact resistance: lt; = 0.5 m Omega;

Insulation resistance: gt; 500 m Omega;

Applicable single-core cable section: 1.5mm2-6mm2

Cable diameter range: 5 mm ~ Phi; Phi; 7 mm

Ambient temperature: -40 ? ~ + 105 ?

Protection class: IP67

Level of security: ?

Insertion force: le;50N pull output: ge;50N

Insulation :PPO, black

Contact: copper cn, nickel sn

Flame retardant grade: ul94-vo

Terminal connection: compression
