| Brand |
Global Bargains |
| Model |
LW6-2 |
| Type |
Switches |
| Size/Dimensions |
60 x 60 x 88mm / 2.36" x 2.36" x 3.46" (L*W*H) |
| Features |
universal transfer switch;lock switch;combination switch;Panel Mounting Changeover Switch;Terminals Positions Rotary Changeover Switch |
Descriptions:
*Suitable for the thickness between 1mm to 6mm of the mounting board.
*Rotary selector design switch, easy to control, square plate and screws for easily mounting.
*Changeover switch mainly suitable for electrical wiring in the power switch and asynchronous motor start-up, reversing, speed switches, also can make the conversion of the control circuit.
Specification:

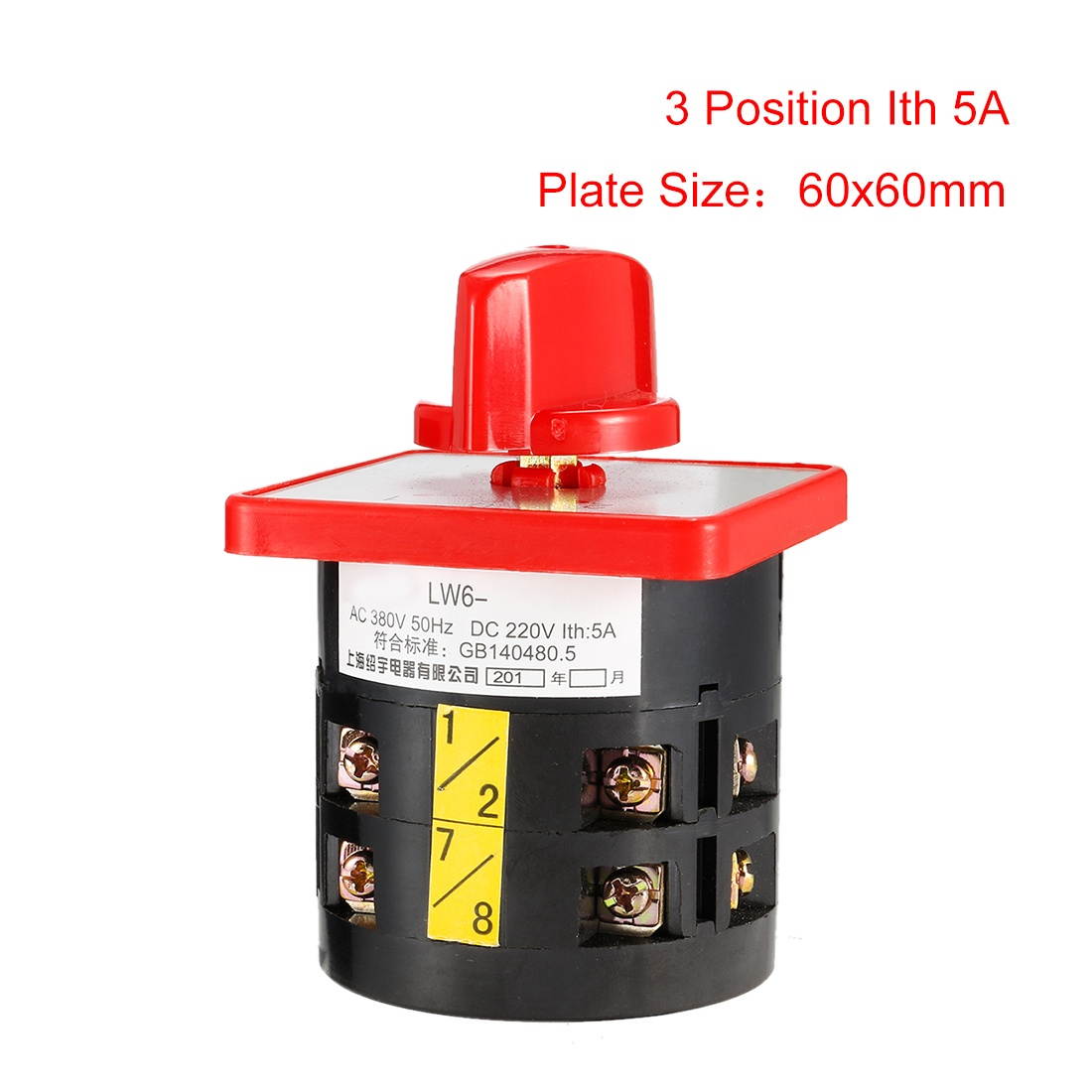

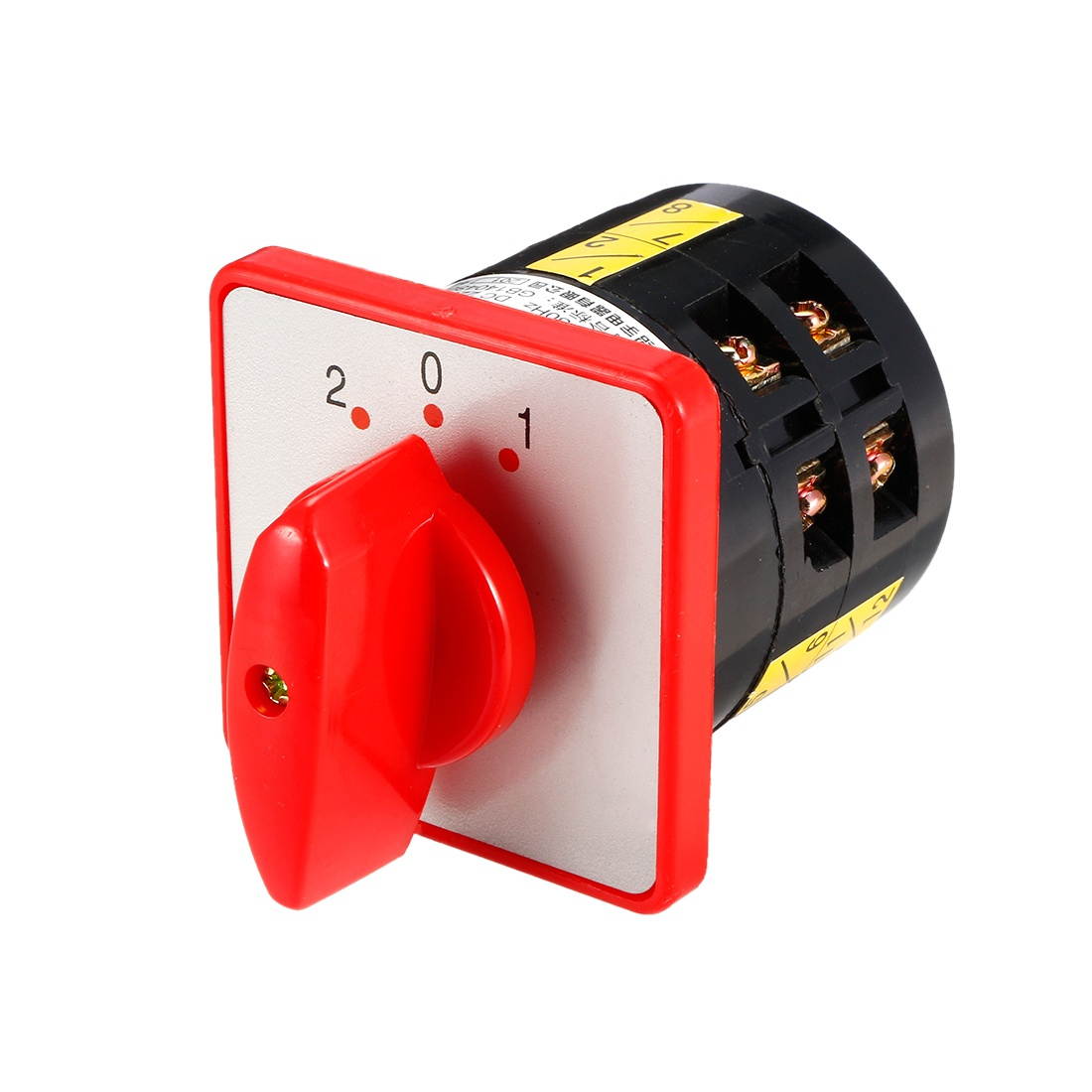

*Model:Â LW6-2Â
*Positions: 3
*Terminals: 12
*AC380V/DC220V ; Ith: 5A
*Action Type: Latching

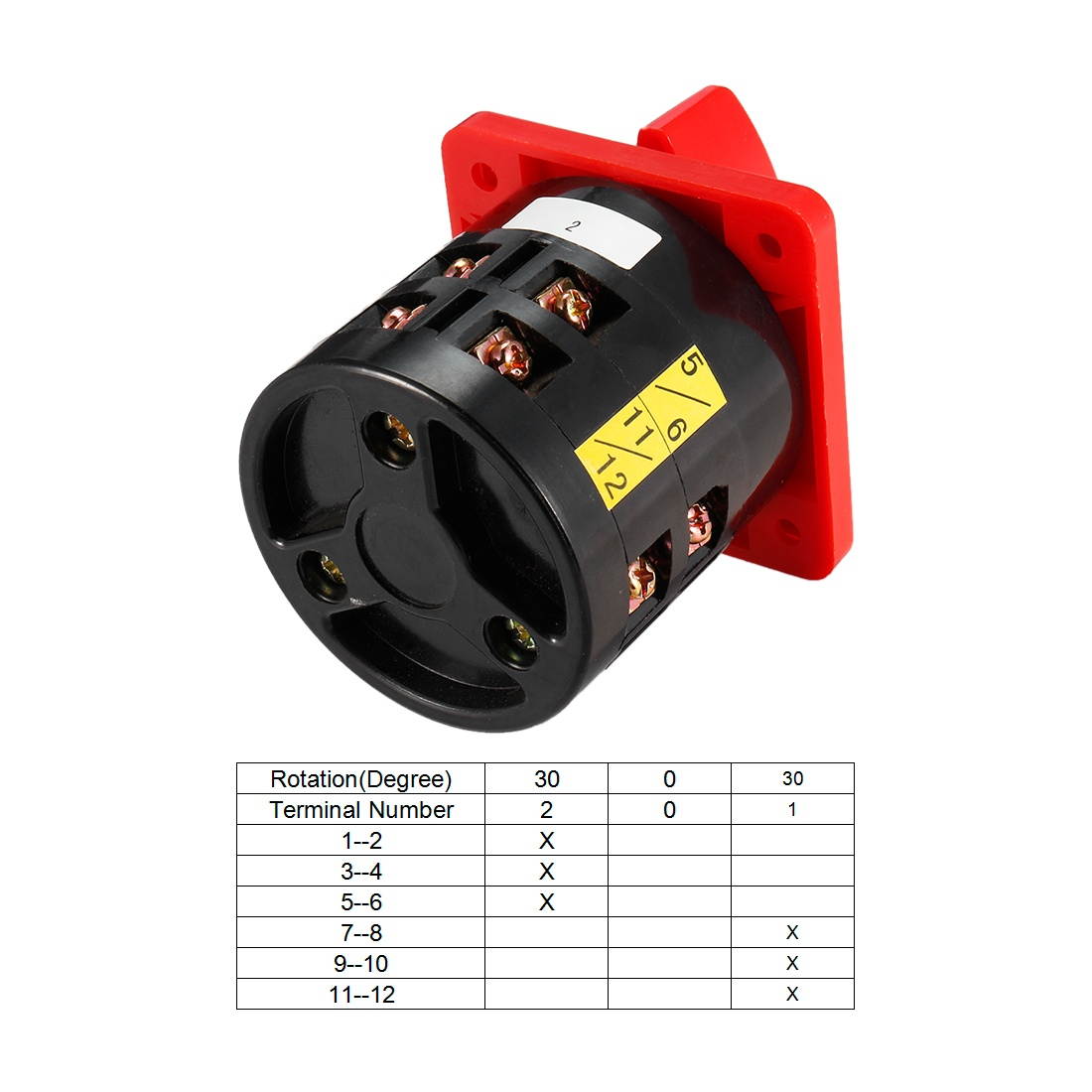

*Positioning angle: 60-0-60 Degree
*Mounting Type: Plate, Screw
*Mounting Hole Distance: 46mm x 46mm / 1.81-inch x 1.81-inch (L*W)
*Overall Size:Â 60 x 60 x 88mm / 2.36-inchx 2.36-inch x 3.46-inch (L*W*H)Â
Package Content :
*1 x Changeover Switch, 4pcs x Screw
