Specification:
Material: Plastic
Working Voltage: DC 5V
Net Weight: 129 g/ 4.55 oz
Applicable scope: PS4 Pro console
Accessories: 1PC USB to DC cable
Big Fan Diameter: Approx. 36 mm/ 1.42 inch
Small Fan Diameter: Approx. 23 mm/ 0.91 inch
Power Cable Length: Approx. 555 mm/ 21.85 inch
Size: Approx. 215 x 58 x 46 mm/ 8.46 x 2.28 x 1.81 inch
Fan Specifications:
a. Big fan DC5V 0.12A, rotating speed 5000±10%RPM
b. Small fan DC5V 0.11A, rotating speed 6000±10%RPM
Operation Instruction:
1. Connect the power cord.
2. Switch to ON button, start the fan.
3. At this point, press the TURBO button to make the TURBO bounce, and the fan will speed down and the wind will weakened.
4. Switch to AUTO button, then it goes into automatic mode; the fan will start as temperature rise to 38 degree and will stop working as temperature fall down to38 degree automatically.
5. When in working state, if five fans are not working together, please switch to OFF; press TURBO button to make TURBO in pressed state, then switch to ON again.
Attention:
1. Make sure the input voltage is the stable and standard DC 5V, its output current need to be over 1000mA.
2. Please check if all accessories are good before using.
3. Make sure all are connected well before it is connected the power.
4. Take out all this product from the PS4 Pro console while no using it for a long time.
5. Do not store or use this product in humid environment.
6. Stop using this product if its included cable is hot.
7. Send this product to the professional to handle not disassemble it by yourself, if it is rain, soaked, or fallen.
8. Do not put this product in high temperature or throw it into fire.
9. Do not use chemicals to clean this product, sharp articles to scratch it, or press this product hard or fall this product.

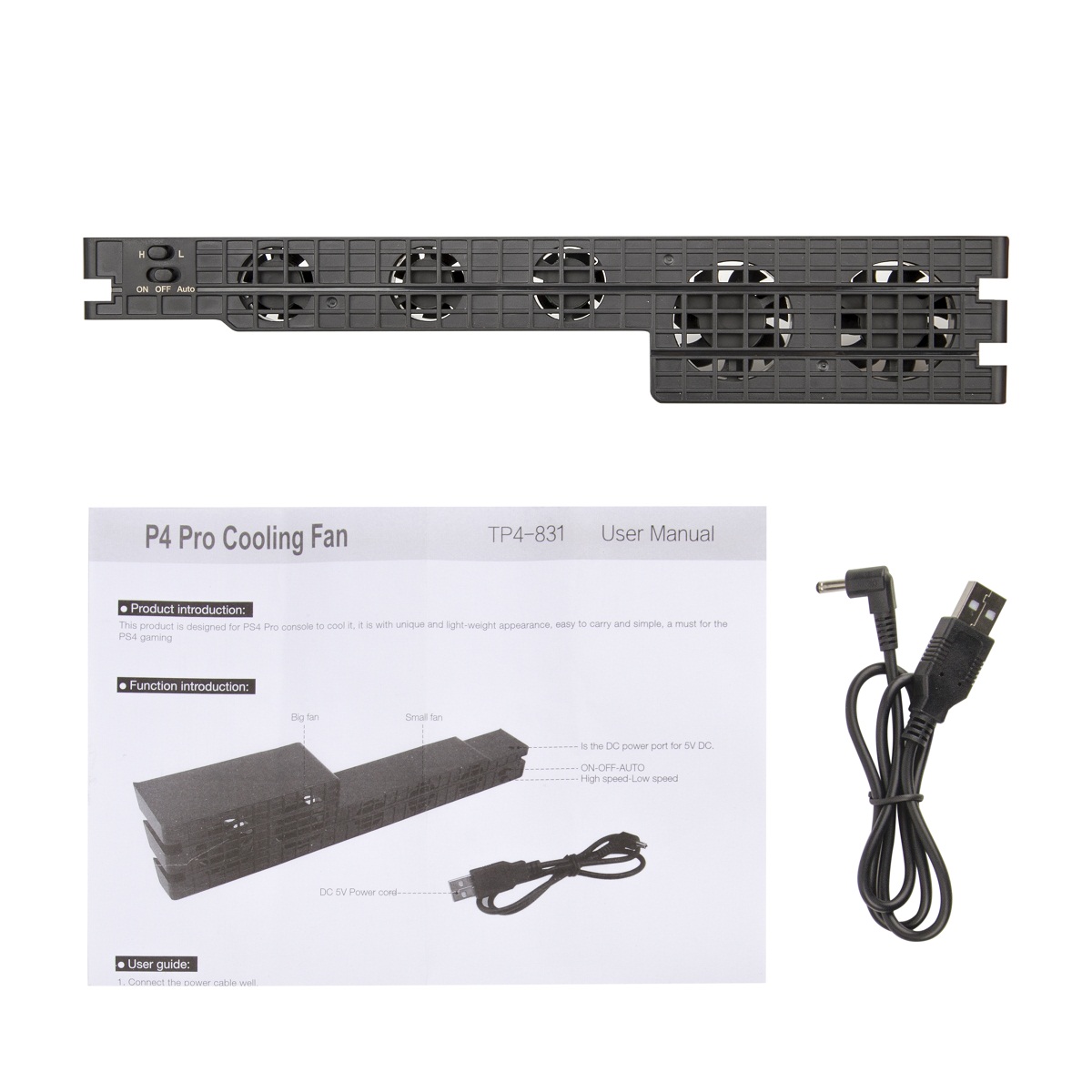

Package Included:
1 x Cooling Fan
1 x Power Cable
