Brand |
GW Security |
Model |
GW7816N |
Type |
Surveillance System / Security Camera Kit |
Camera Type |
IP Camera |
Camera inputs |
16 Channel |
Video Input |
RJ45 (Ethernet Ports) x 16 |
Resolution Recording |
1920P ; 1536P ; 1080P |
Recording Frame Rate |
1920P @ 15fps @ all channels ; 1536P @ real time @ all channels ; 1080P @ real time @ all channels |

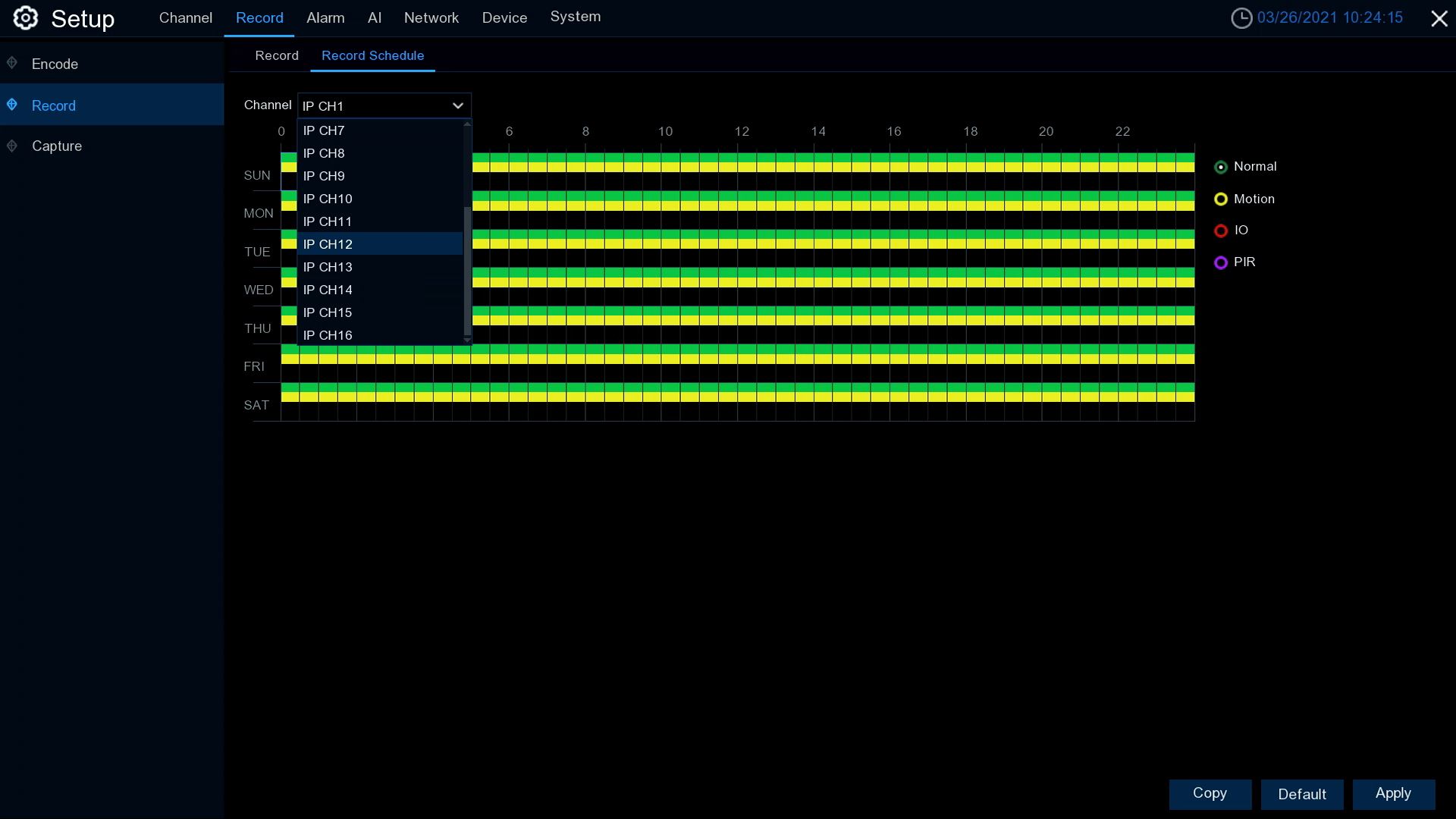

Recording Mode |
Motion Detective / Continues / Time Schedule / Alarm (Each individual camera can be setup with its own recording mode) |
Recording Compression |
H.265 / H.264 |

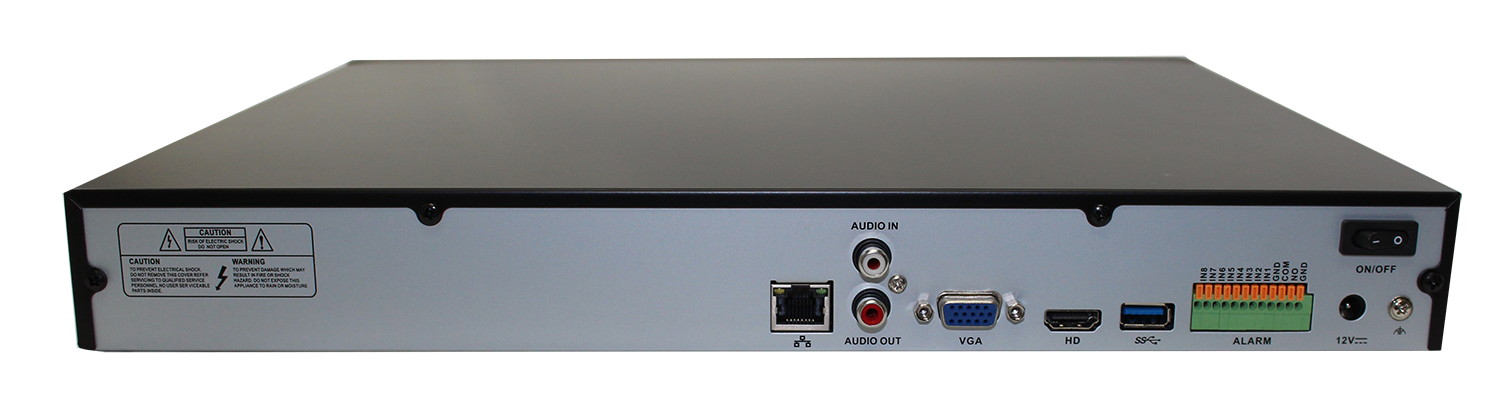

Video Output |
1 x VGA, 1 x HDMI |
ONVIF |
Yes |
Resolution Display |
1920P |
Max Resolution |
4MP (2560 x 1440) or Higher |
Display Frame Rate |
1920P @ real time @ all channels |
Built-In HDD |
Yes |
Storage Capacity |
8TB HDD |
Backup Device |
USB |
Network Connection |
RJ45 |
Network Protocol |
RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/ONVIF (UPnP function: NVR will auto detects and assigns IP cameras) |
Network Remote |
PC, iPhone, iPad, and Android Compatiable (Call Our Free Tech Support if You Need Help to Setup Remote Viewing) |
Operating System |
Linux (embedded) |
Power Supply |
PoE Switch & Power adapter (included) |
PoE (Power-over-Ethernet) |
Yes |
Bundled Camera Number |
16 |
Camera Horizontal Resolution |
5Megapixel |
Package Contents |
NVR with hard drive, PoE switch, bullet cameras, PTZ camera, 1 year warranty |
Camera Resolution |
5 Megapixel |

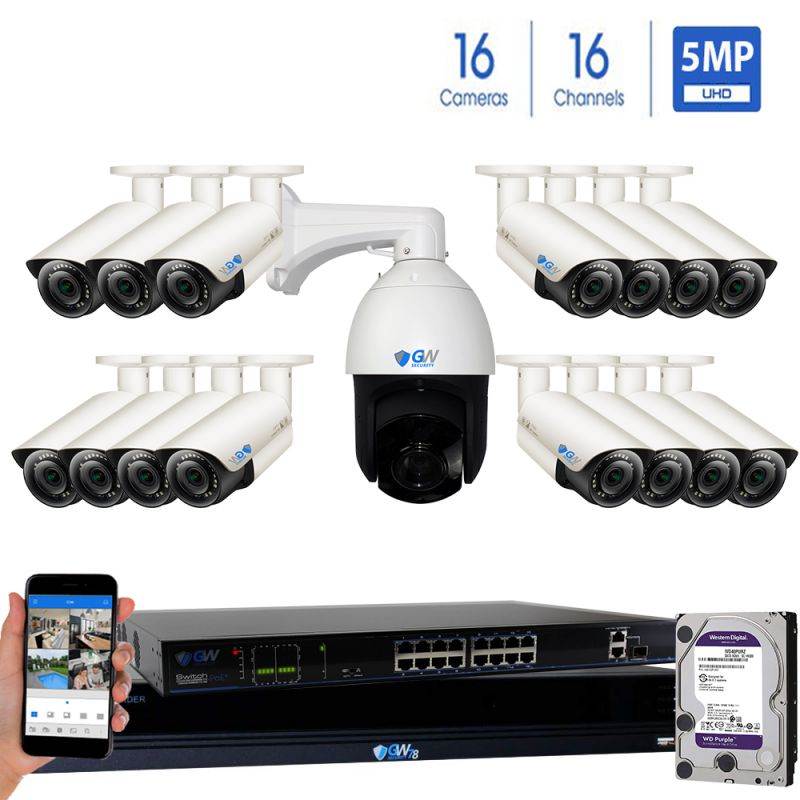

Features: * 16 Channel Max 5MP HD 1920p NVR support up to 5MP/4MP/3MP/2MP 1080p real-time recording & viewing on all channels, 8TB high quality 100% duty-cycle hard drive pre-installed * 15 x high definition 5MP 1920p weatherproof bullet cameras with night Vision up to 120ft. Built in 2.8 ~12mm Manual Zoom Varifocal Lens which allow you to adjust the angle of View * 1 x high definition 5MP 1920p weatherproof PTZ camera with 360° rotation 90° tilt, and a powerful 20 x optical zoom and auto-iris, auto-focus. Pan Tilt Zoom Camera Remotely Through NVR, Computer, Phone, Tablet with 12Pcs Array IR LED up to 500FT IR night Vision. * Power over Ethernet setup is clean and simple with a single network cable, built-P2P service and support ONVIF agreement and QR Code Scan * Instant mobile viewing on iOS and Android smartphones / tablets/Windows 7 8 10/Mac. 1 Year Warranty & Free Tech Support From US

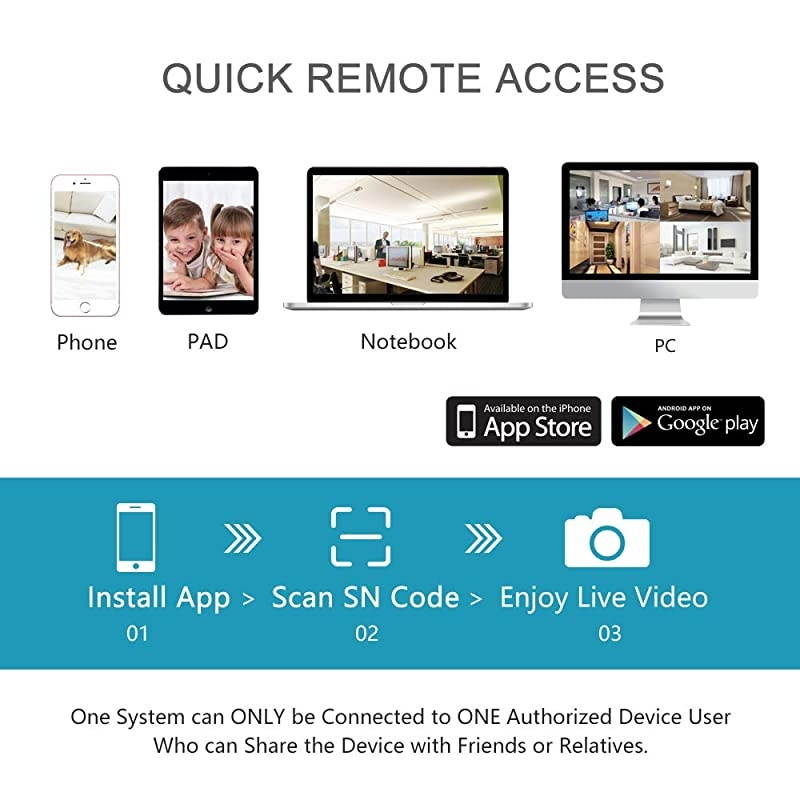

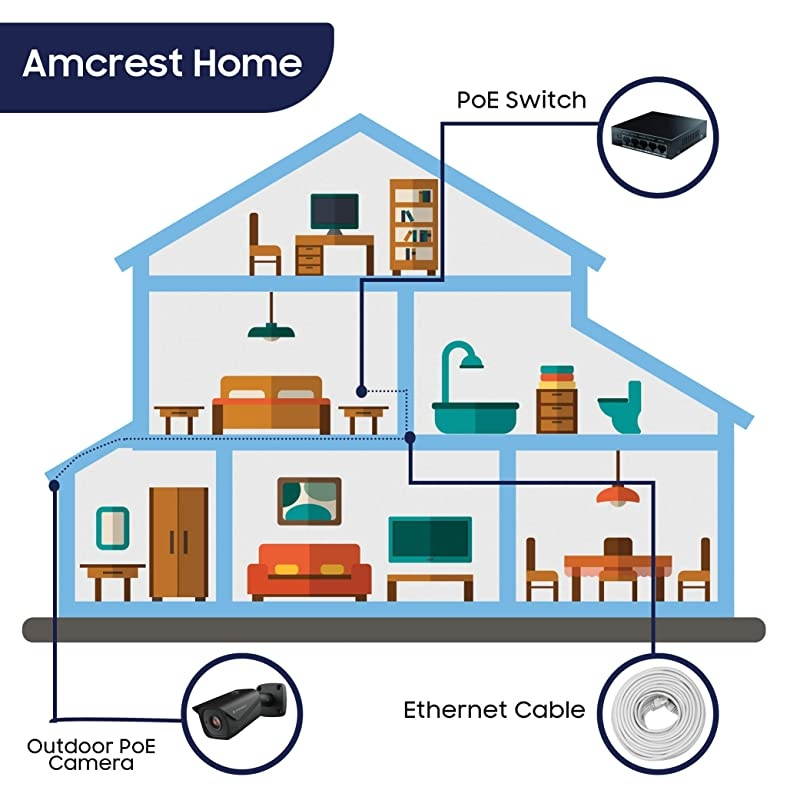

Product description: * Power Over Ethernet A single network cable directly connects each IP camera to the NVR supplying both power and a video signal. This time no extra power cable needed just plug one cable for one camera and its on the go. NVR built-in 8 ports PoE ports, which Provides Power & Data Using a Single Ethernet Cable * Super HD 1920P Capture high-definition 1920p (2592 x 1920 pixels) HD video two times higher than 1080P cameras. * Built-in P2P Cloud service, QR Code Scan, ONVIF supported The new P2P technology and QR Code Scan allows you to access your system anytime from anyplace. We've made it even easier to setup your system with our Free Tech Support, so no need to worry about any difficult programming issues. * 8TB Hard Drive Intelligent motion detect recording allows you to record over 45 days with pre-installed 8TB Hard Drive * Network Remote access Supports Remote View via smartphone & 3G Mobile with each of those systems below: Windows XP, Vista, 7, 8, 10, Mac, iPad, iPhone, Android * 1 x PTZ (Pan Tilt Zoom)

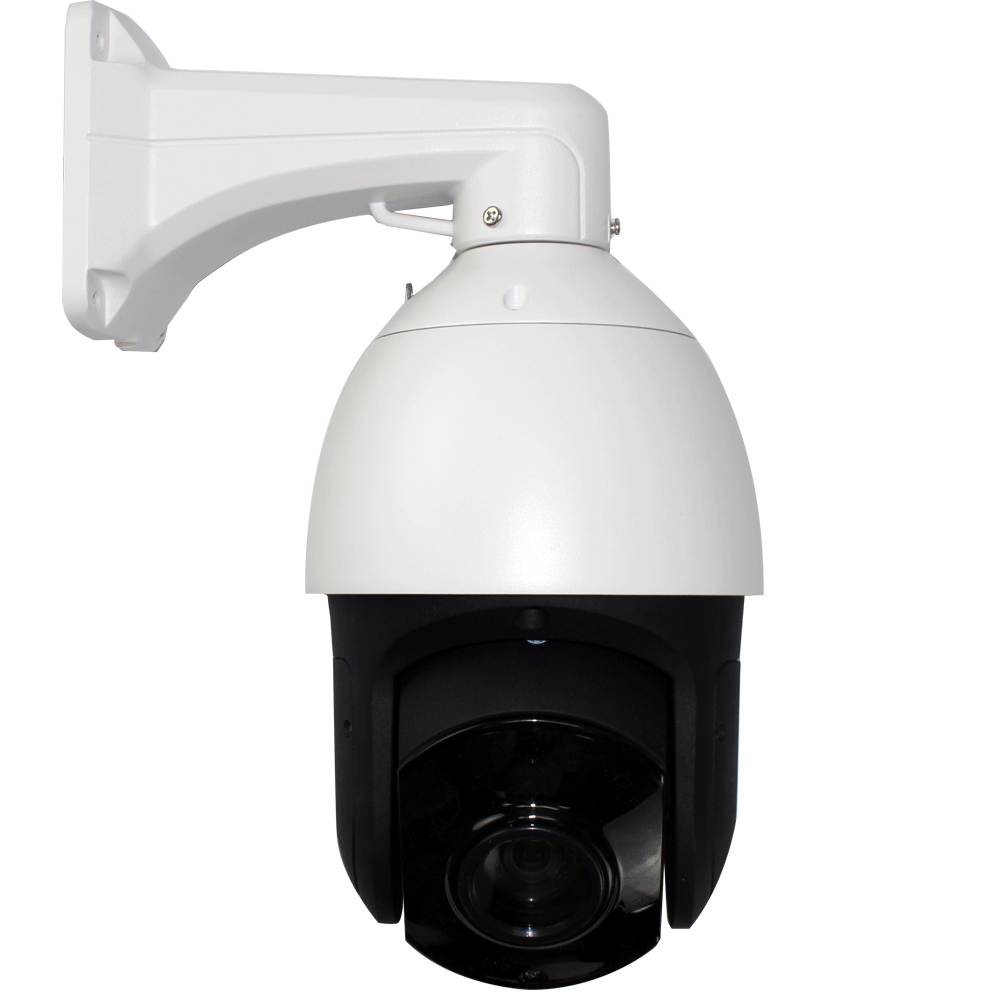

Camera: 5 Megapixel 1920P HD-IP IR High Speed Outdoor / Indoor Dome PTZ Camera, 20X Optical Zoom, 4.7 ~94mm Focus, 128 preset position, Auto-iris, Auto-focus, Auto white balance. Full 360-Degree rotation and 90-Degree tilt, no dead angle, 500ft IR distance for night vision. Pan Tilt Zoom Camera Remotely Through NVR, Computer, Phone, Tablet. PTZ camera is not power over Ethernet, the camera comes with its own power adapter. * 15 x

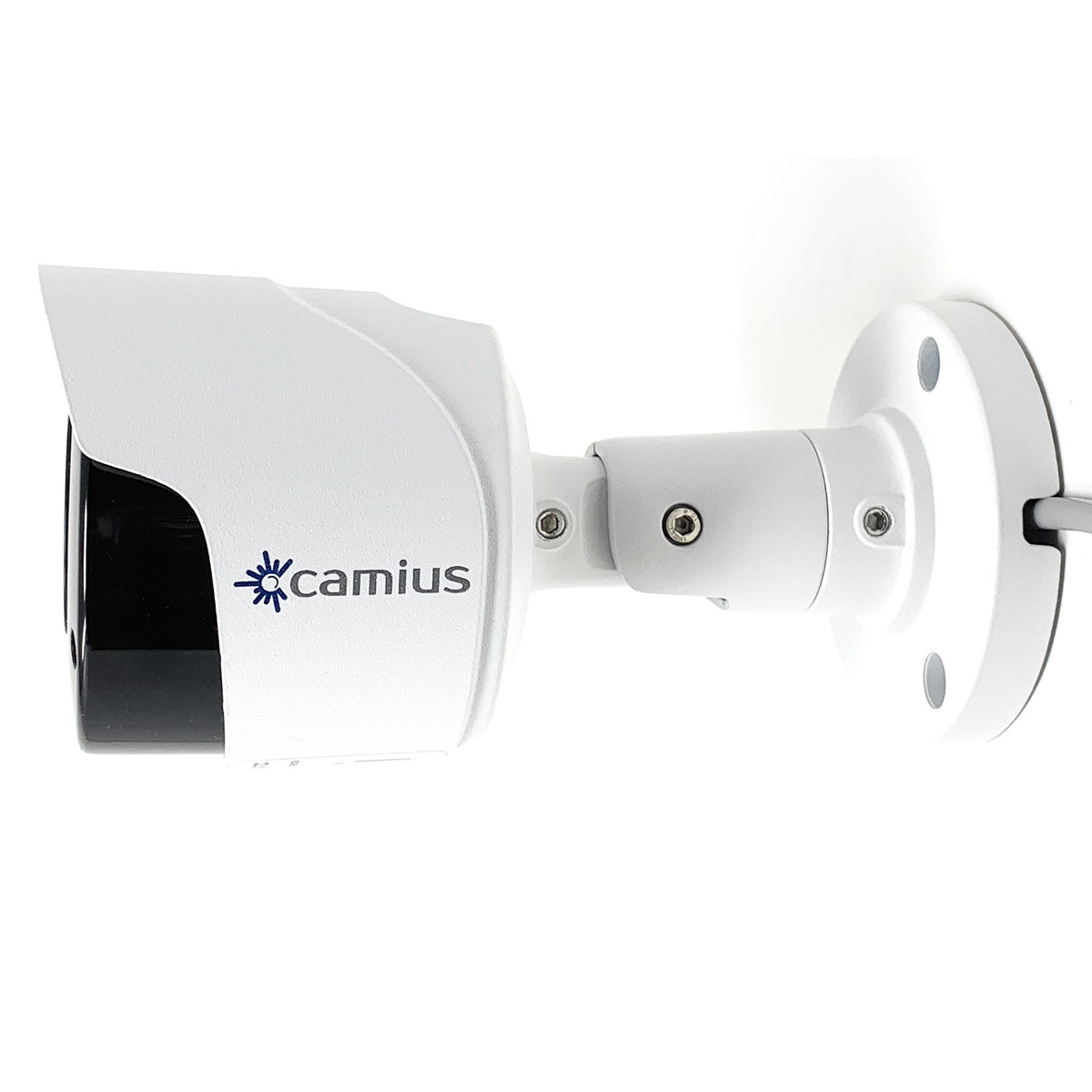

Bullet Camera: 5MP HD 1920P@15fps, 1520P@30fps, 1080P@30fps IP PoE Outdoor / Indoor camera. Built in 2.8 ~12mm Manual Zoom Varifocal Lens which allow you to adjust the angle of View, 42pcs Infrared LED, view up to 120 feet IR distance. Program Motion Detection & Email Alerts & Digital Noise Reduction & Wide Dynamic Range & Digitally zoom anywhere in the frame
Package Includes: * 1 x

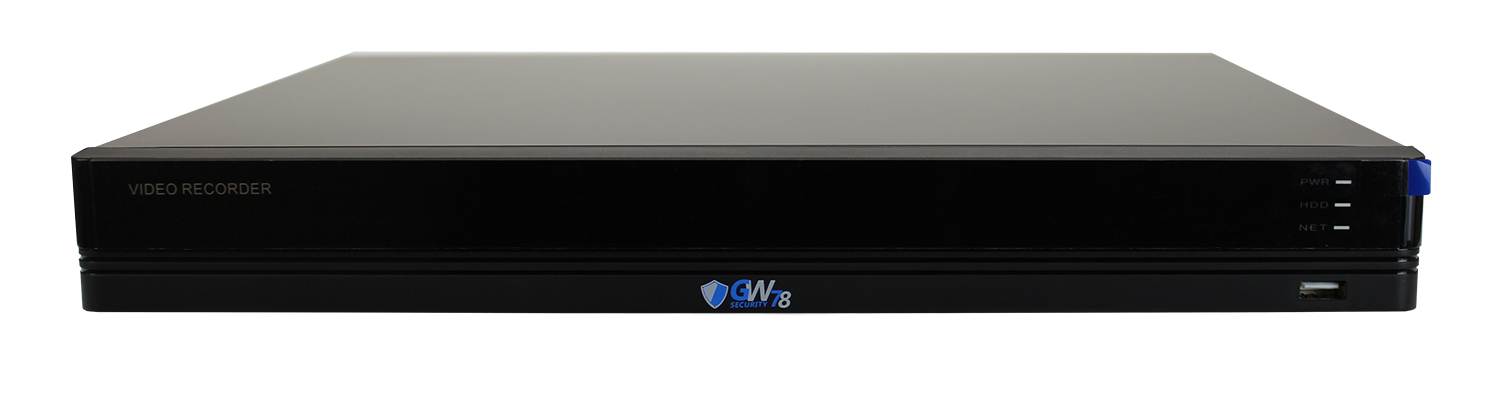

GW7816N: 16CH NVR with 8TB Hard Drive * 1 x

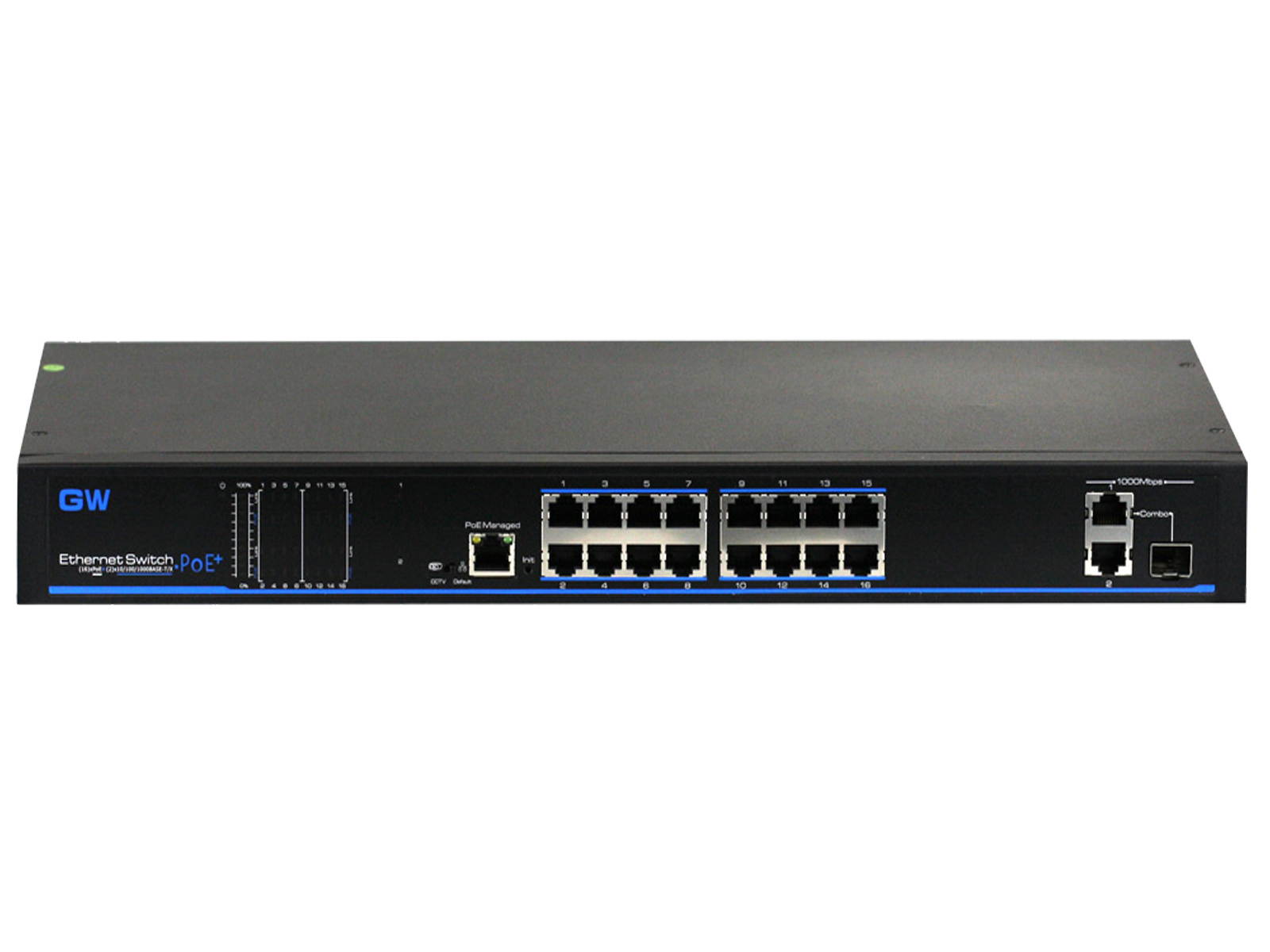

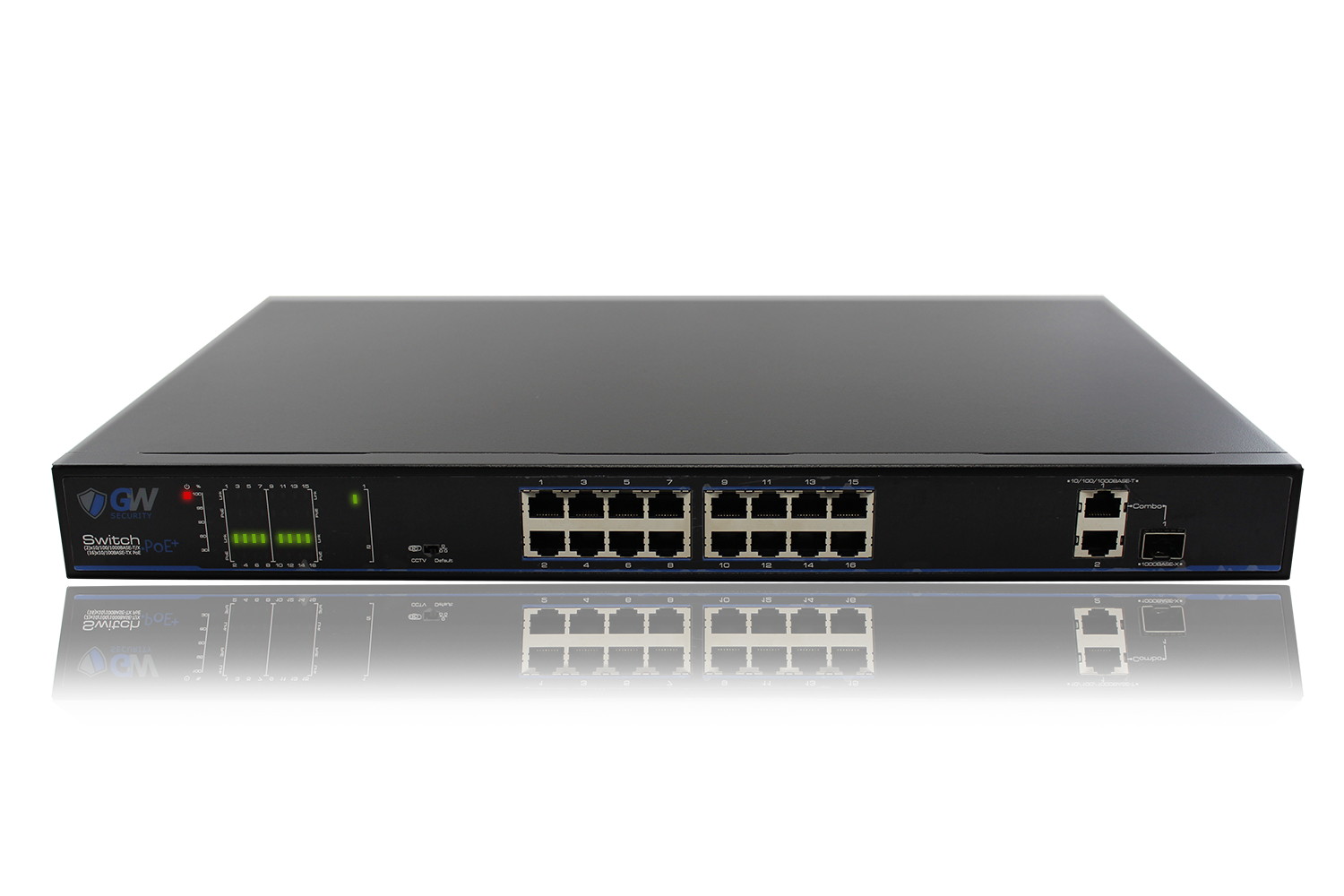

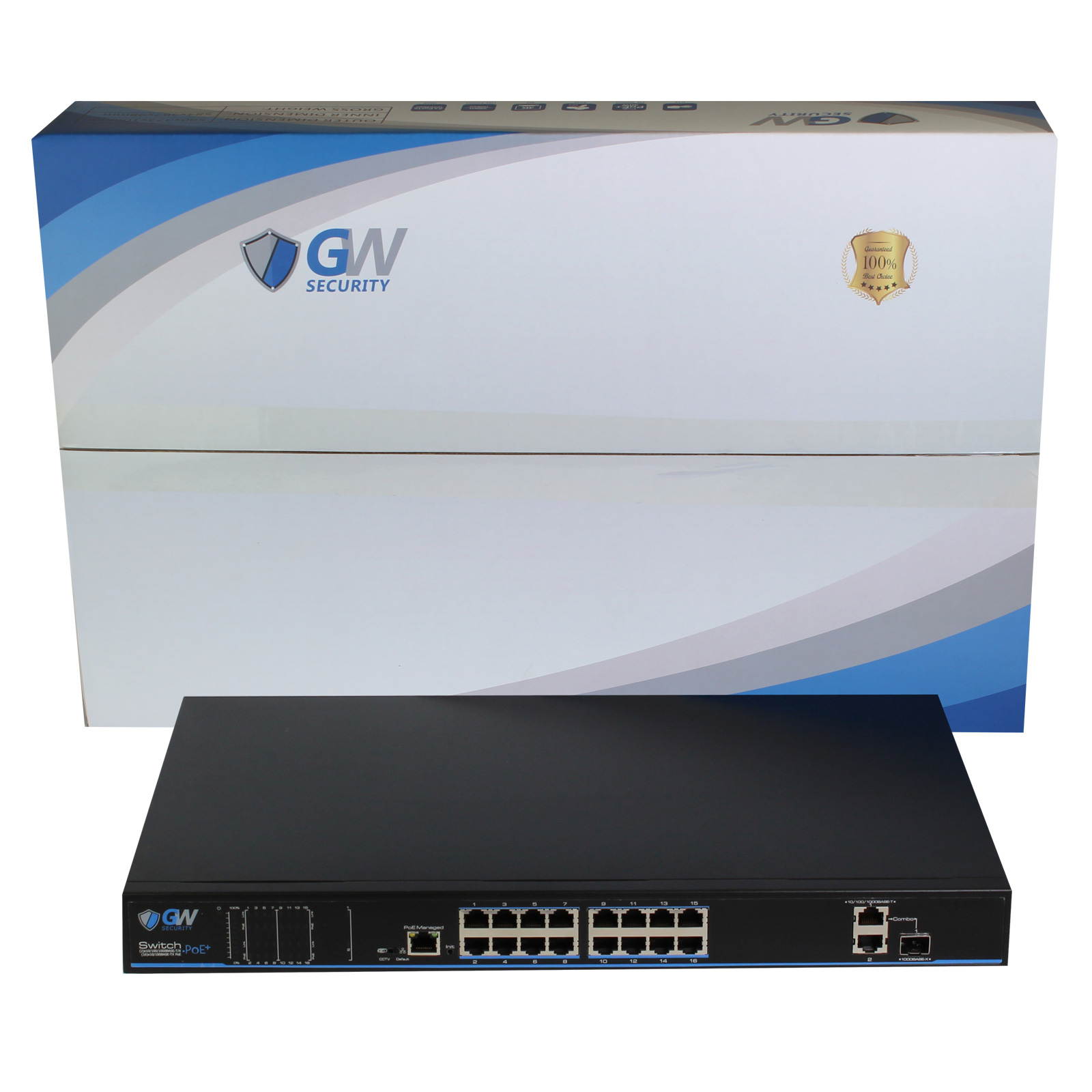

GWSW1602G: 16 ports PoE switch * 1 x
GW550IP: PTZ Camera * 15 x
GW5050IP: Bullet Cameras * 1 Year Warranty and Free Tech Support *Ethernet cables are not included. Sold separately for the convenience of different cable length demands of different customers.
