Brand | GW Security |
---|---|
Series | H.265+ Series |
Model | GW7808XVR |
Type | Surveillance System / Security Camera Kit |
Camera Type | Analog Camera |
Camera inputs | 8 Channel |

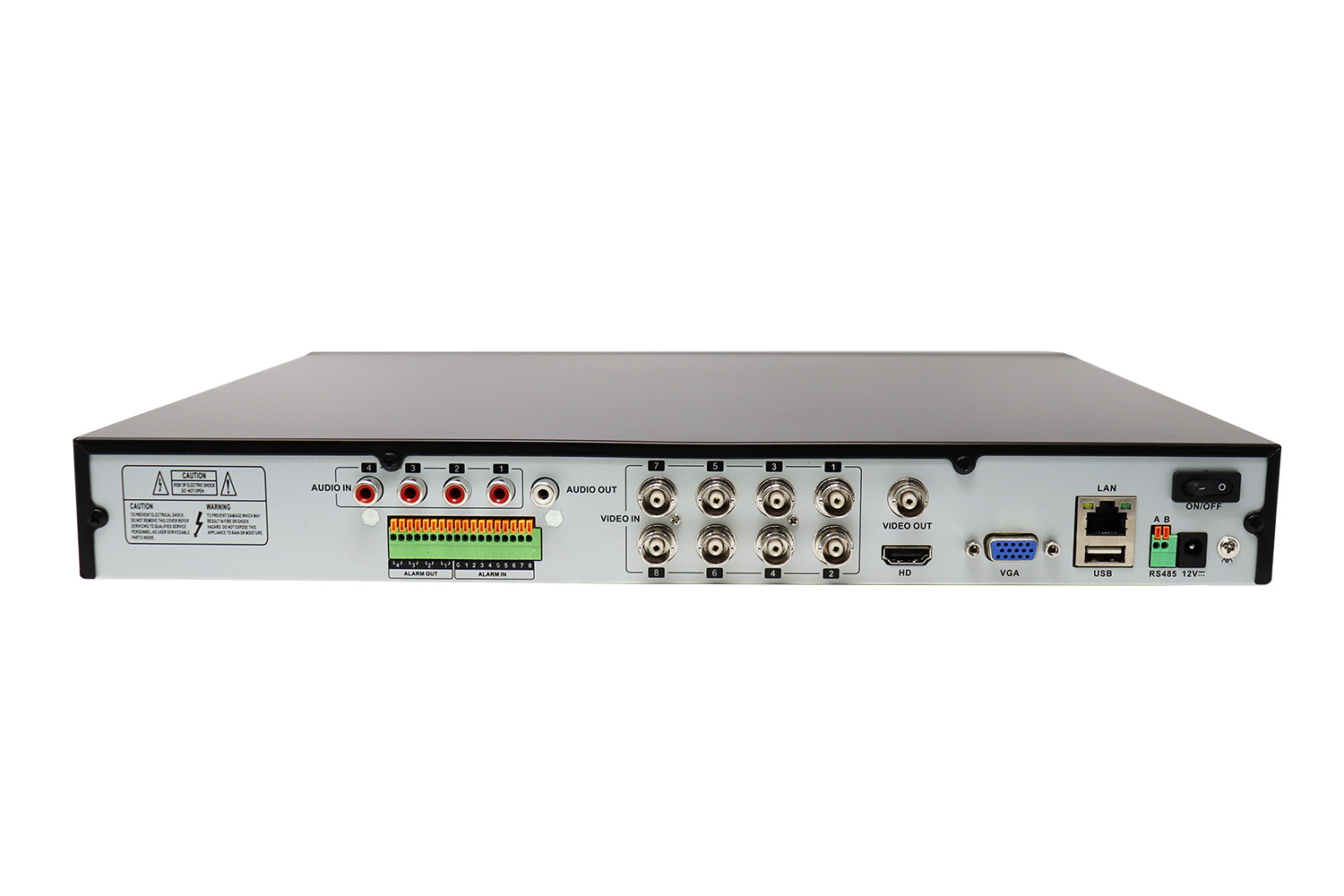

Video Input | 16CH Video-input (Up to 8ch AHD/CVI/TVI/CVBs cameras and 8ch IP cameras) |
Audio Input | RCA x 4 |
Resolution Recording | 4K 2160p/1920p/1520p/1080p |
Recording Frame Rate | 1 ~ 30 FPS |
Recording Mode | Motion Detective / Continues / Time Schedule / Alarm |
Recording Compression | H.265+ |

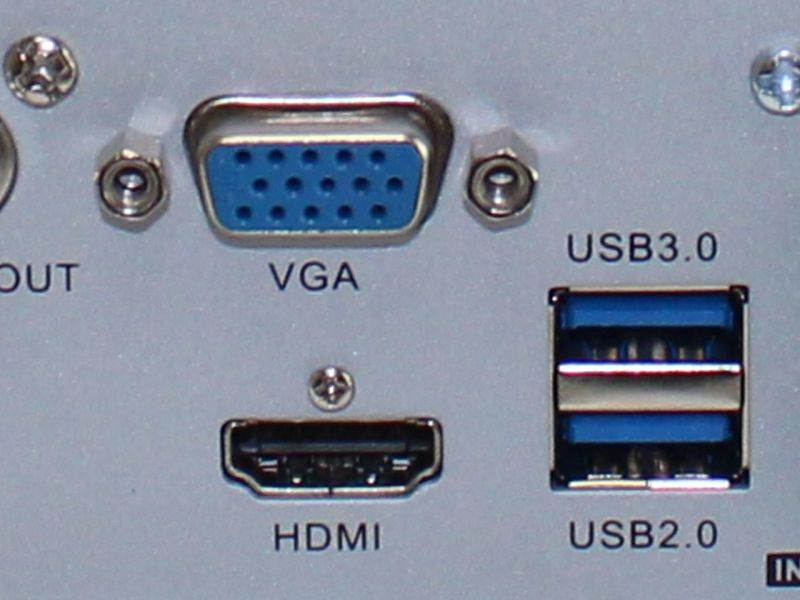

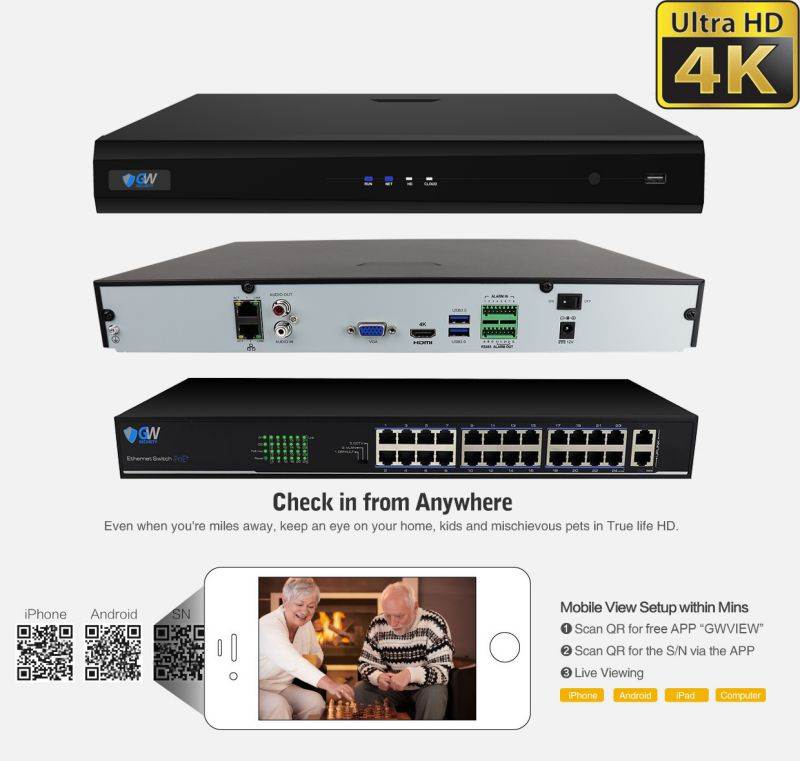

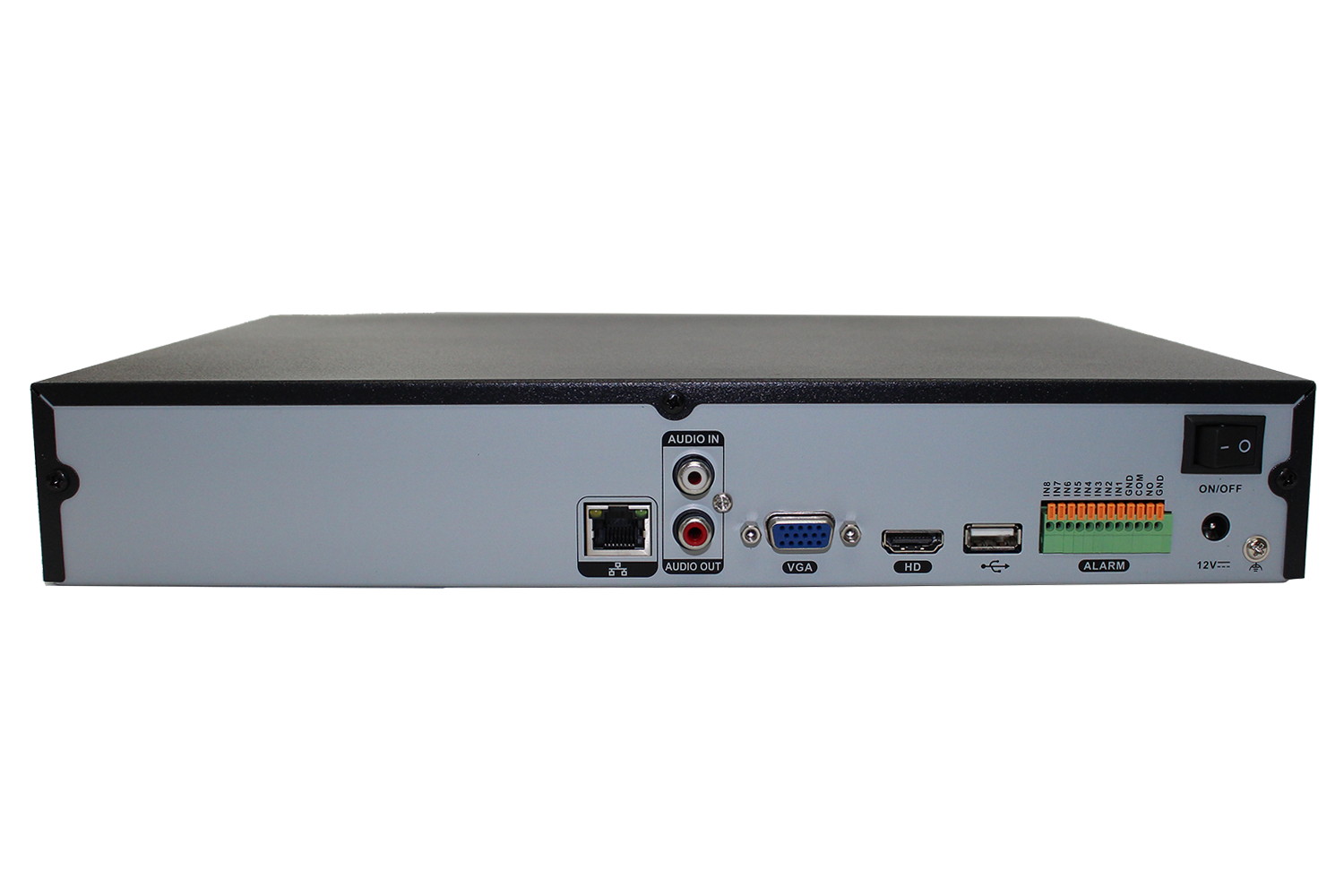

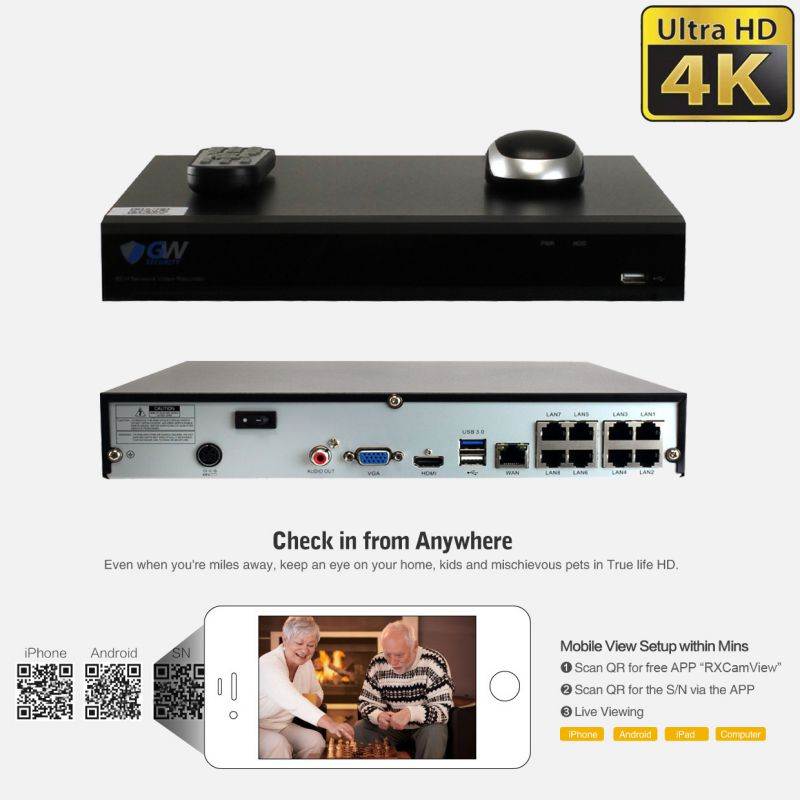

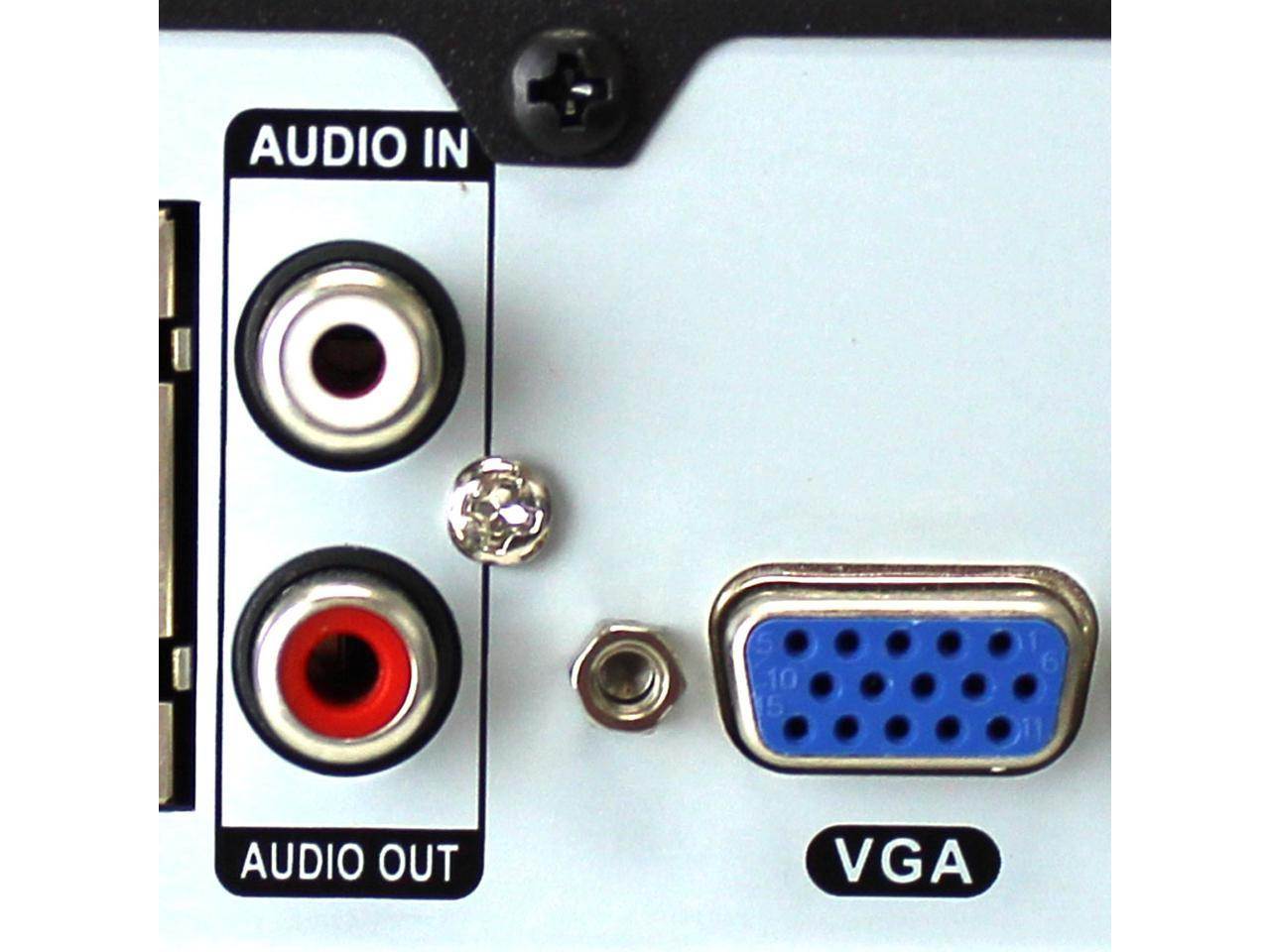

Video Output | 1 x VGA, 1 x HDMI (up to 4K) |
ONVIF | Yes |
Resolution Display | 4K (3840 x 2160) |
Max Resolution | 4K 8MP (3840 x 2160) |
Display Frame Rate | 4K 8MP@7fps, 5MP@12fps, 4MP@15fps, 1080P@30fps |
Built-In HDD | Yes |
Storage Capacity | 1TB HDD |
Backup Device | Local: USB (faster video file trsansfer and backup) / Online: On App( download video through internet ) |
Network Connection | RJ45 |
Network Protocol | HTTPs, HTTP, TCP/IP, IPv4, UPnP, Onvif 2.6, RTSP, RTCP, UDP, SMTP, SNMP, Multicast, IGMP,NTP, DHCP, DNS, DDNS, FTP, P2P |
Network Remote | Computers, Smartphones, and Tablets are All Compatiable (Call Our Free Tech Support if You Need Help to Setup Remote Viewing) |
Features | 5 in 1 H.265+ XVR : Support up to 8MP BNC cameras + up to 8 4MP IP cameras (For IP camera: require PoE switch and Ethernet cable) |
Operating System | Compatible with Windows computer, Mac computer, iPhone, iPad, Android phone, and Android tablet |
Power Supply | Power Supply Included |

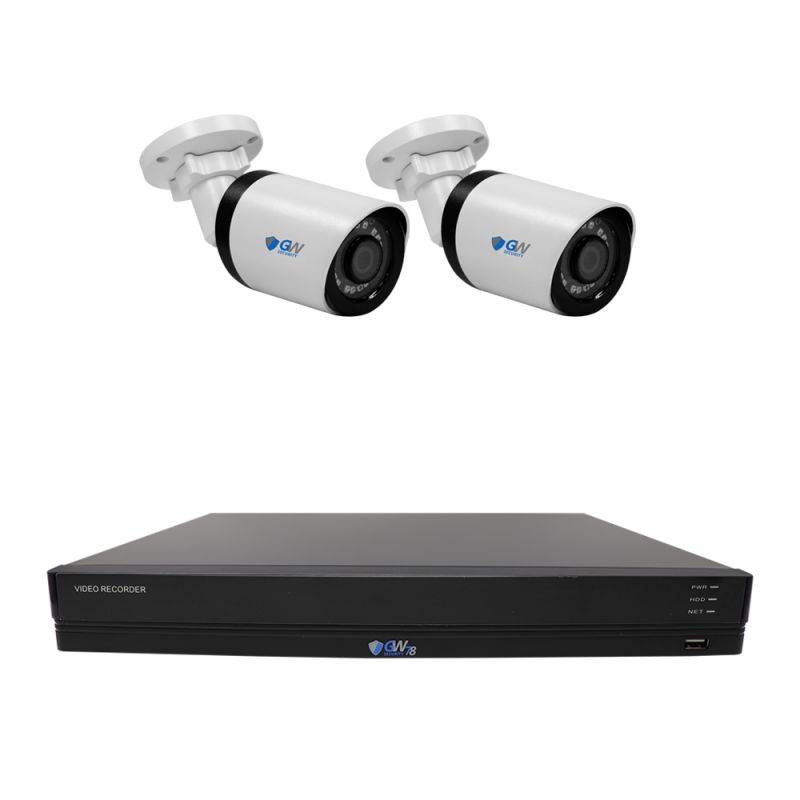

Bundled Camera Number | 2 |

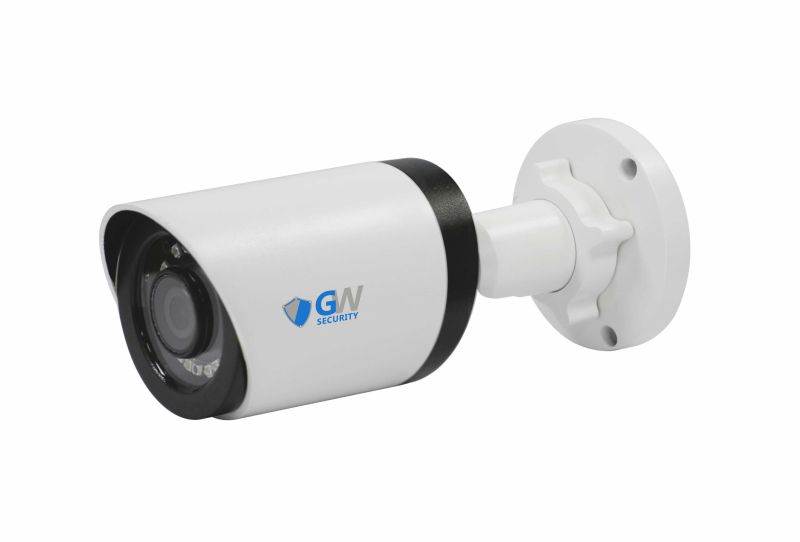

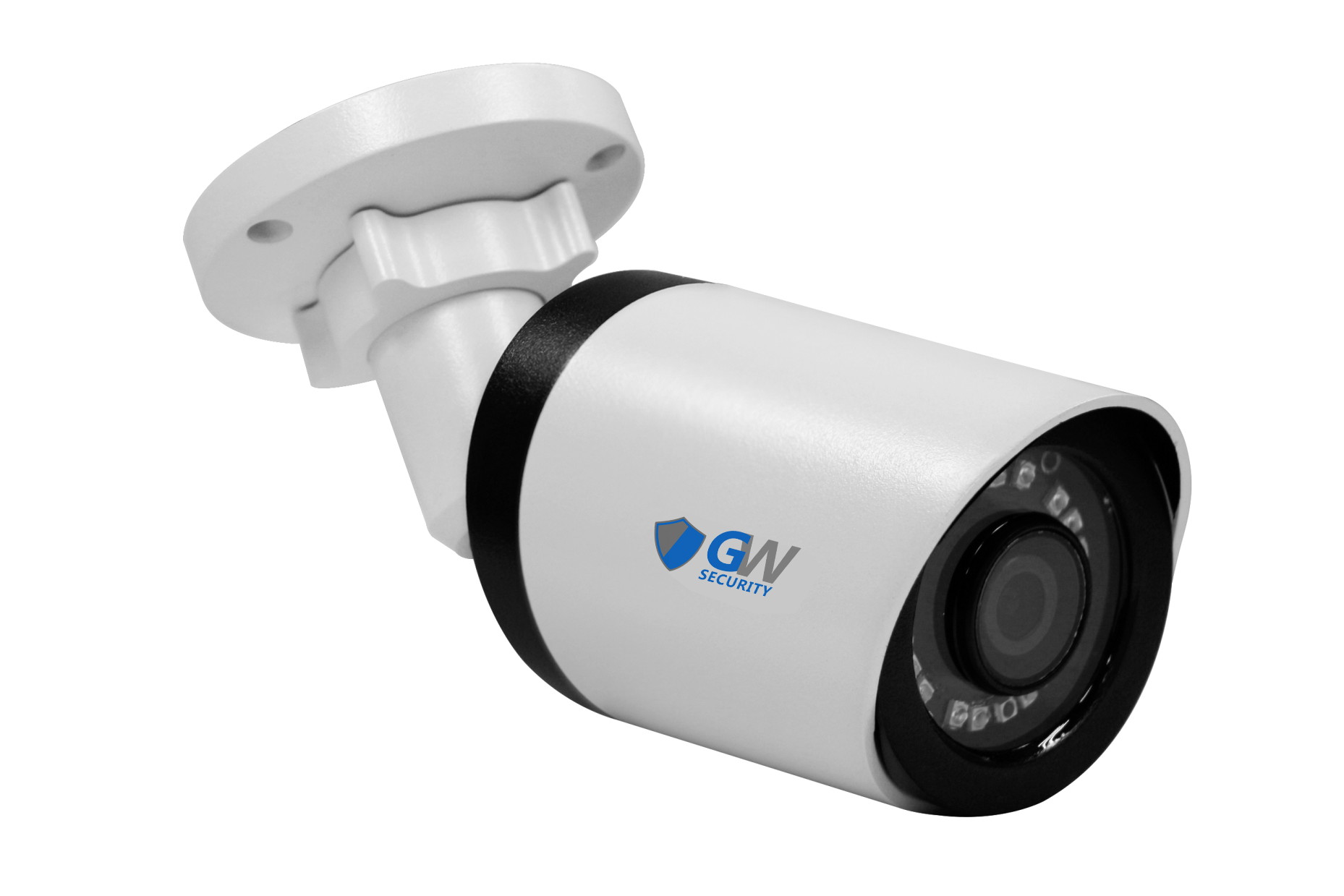

Bundled Camera Spec | 8 MegaPixels 4K IR CCTV Security Camera, 5-IN-1 AHD / HDCVI / HDTVI / CVBS Video Output, 3.6mm Wide Angle Lens, 18PCS SMD IR LED, 100 feet IR Distance |
Camera Horizontal Resolution | 4K Ultra |
Kit Feature Other | • H.265+ is the latest video compression standard which brings extensive possibilities and optimism to the HD-IP Camera by addressing H.264 problems such as shortage of bandwidth, improving transmission efficiency and delivers ultra HD image quality. • Compared with current H.264, the H.265 is able to double the data compression ratio, while improve video quality with low bit-rate, this enables IP camera to deliver smooth Superb HD video with low bandwidth, which in turn, reducing the network bandwidth, and video storage size. |

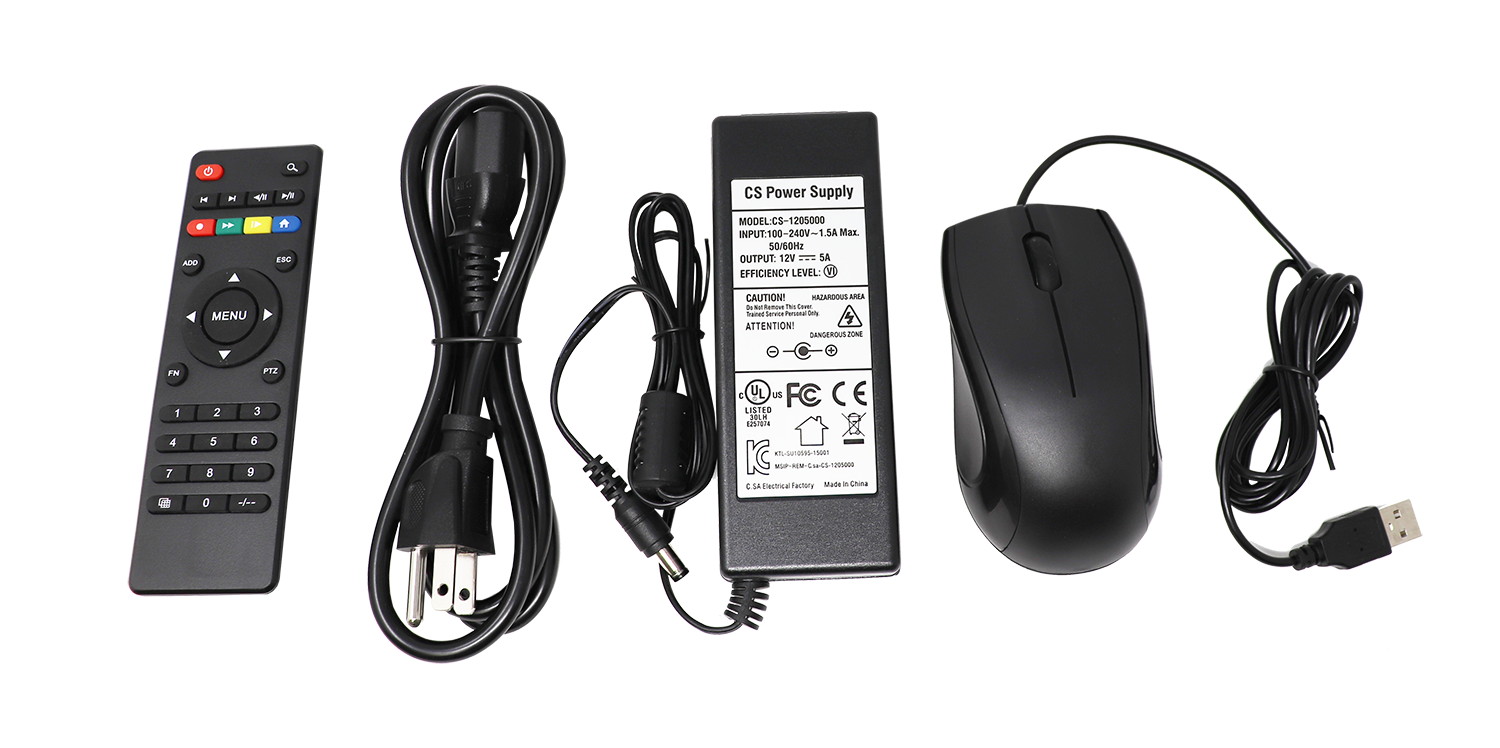

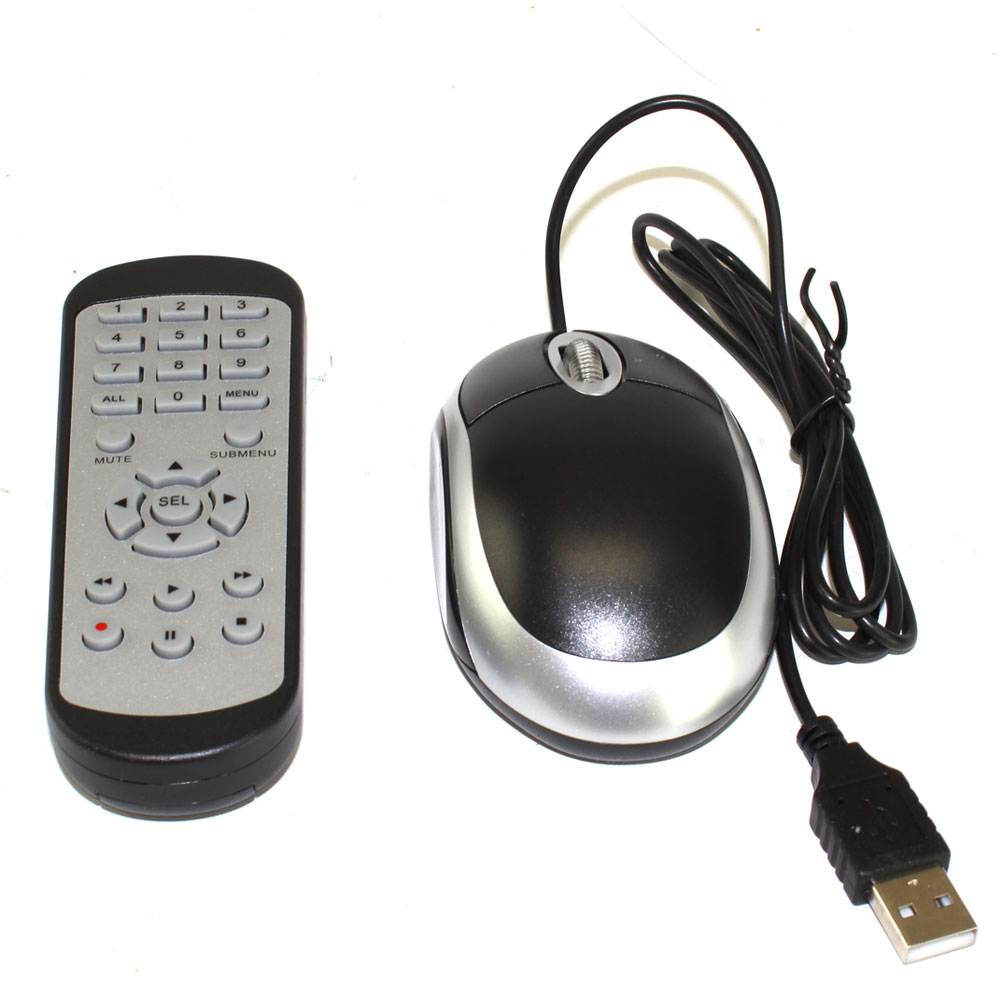

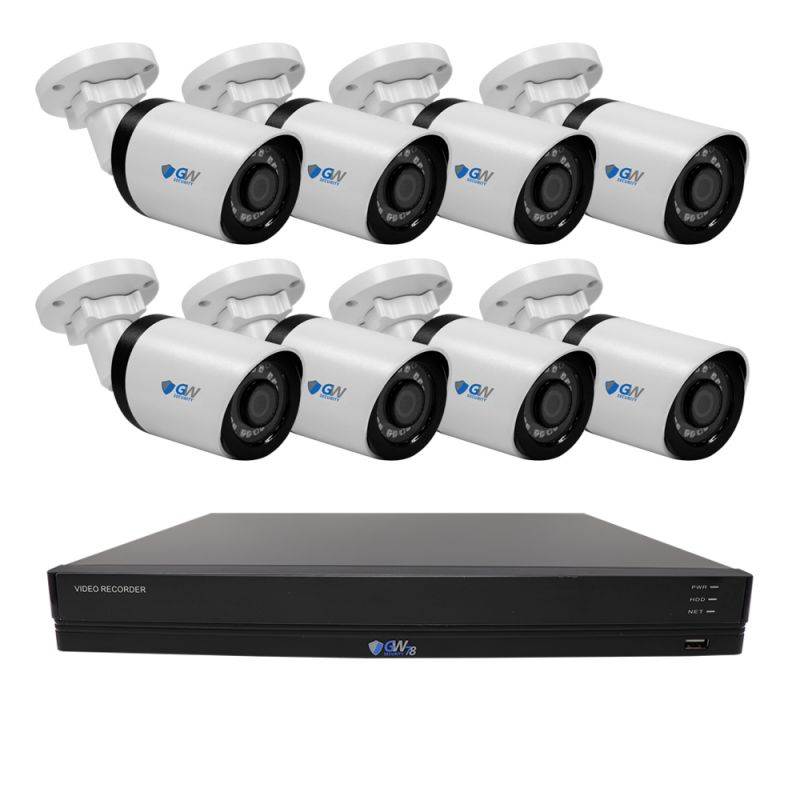

Package Contents | Everything included: HD 8MP 4K Cameras | HD-TVI/CVI/AHD 2160P H.265 DVR/XVR | Pre-installed Hard Drive| Pre-made BNC cables | Remote control | USB mouse | SATA cable for additional HDD | mounting screws | |
Camera Resolution | 4K UltraHD |
