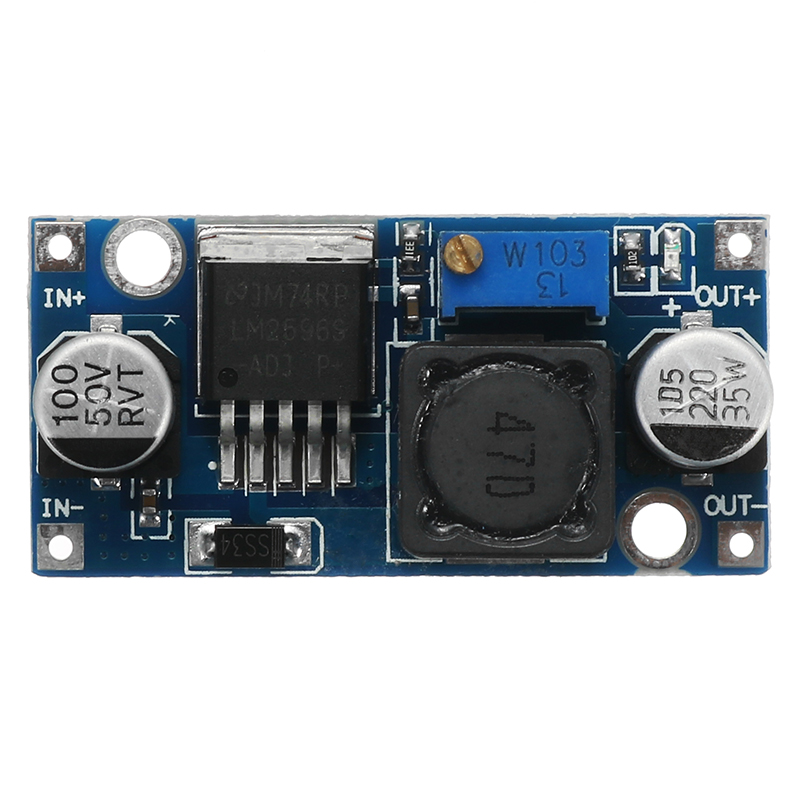

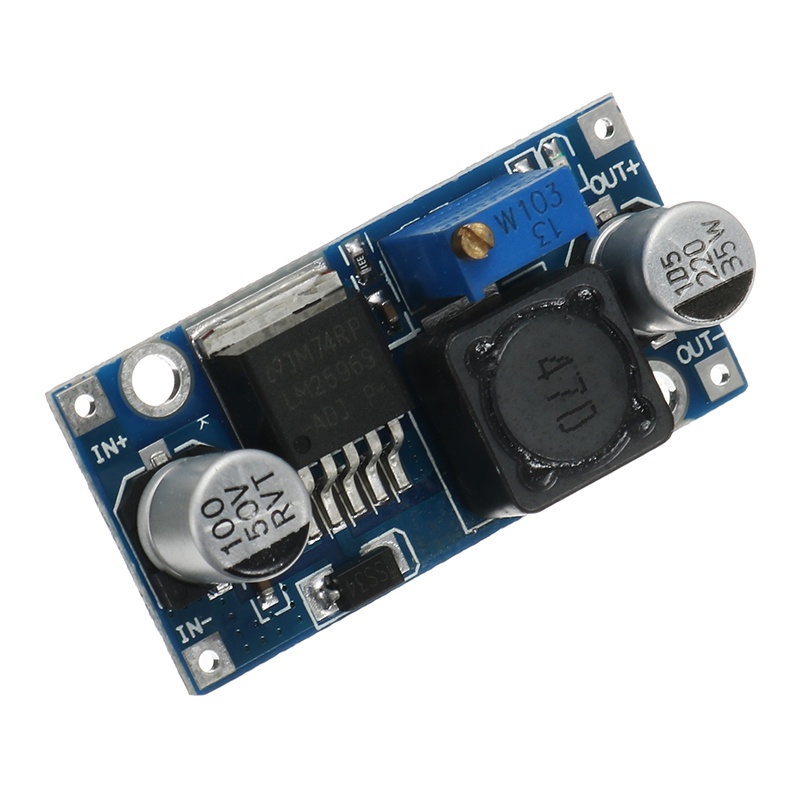

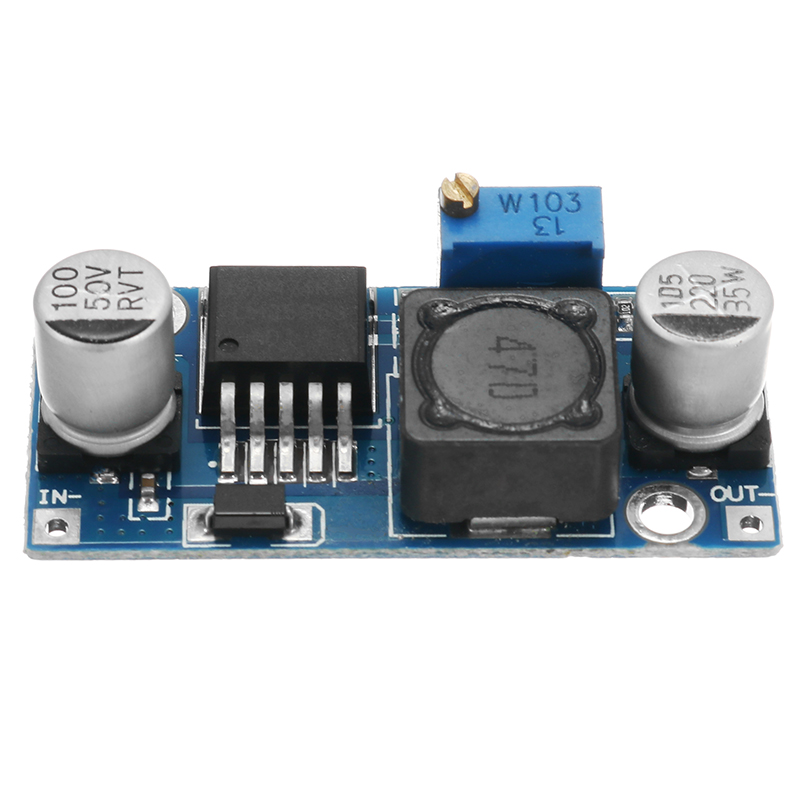

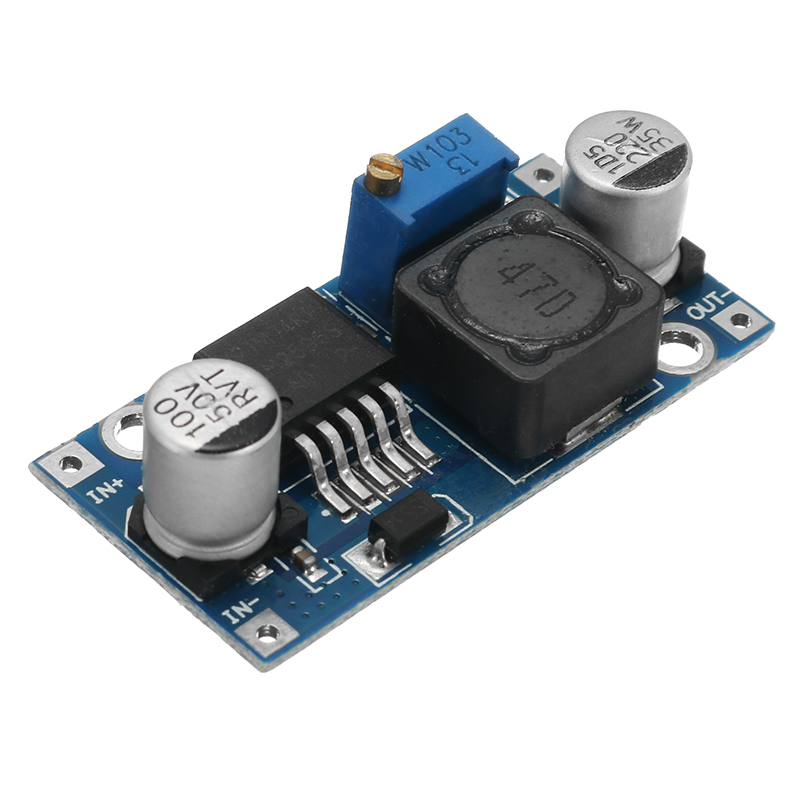

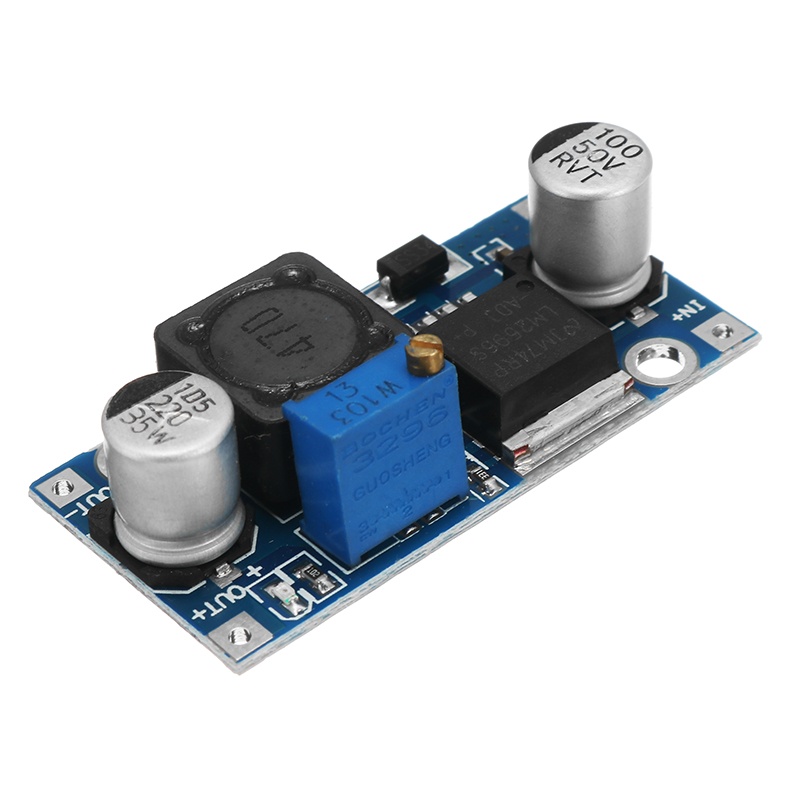

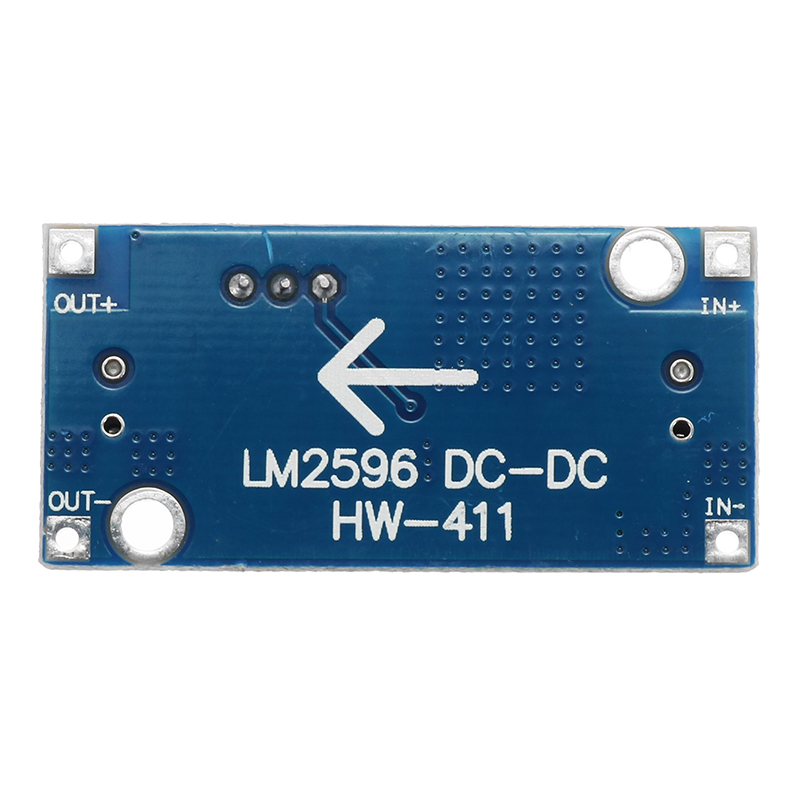

LM2596S DC-DC Step Down Power Module 2A Adjustable Buck Module Super LM2576

Description:; 1,
Input voltage: 3.2
-35VAdjustment method: the first to connect the power supply ( 3.2 -35V) and then use a multimeter to monitor the output voltageand adjust the potentiometer (generally rise the voltage in Clockwise, reverse to buck)2,
Output voltage: 1.25 -30V continuously adjustable (recommended no-load debugging)3,
Output current: rated current 1A, the maximum 2A (need to add heat sink), if the output power is greater than 15W, it is recommended to add heat sink4, Conversion
efficiency: up to 92% (the higher the output voltage, the higher the efficiency)5, Static power consumption is only about 3mA. 6, Because it is a step-down module, in order to ensure stable output, please maintain a minimum of 1.5V pressure.
Package included: 1 x; LM2596S DC-DC Step-down Power Module
