LWS M.2 SATA Enclosure,M.2 SSD to 2.5 inch SATA Adapter with Case, B & M Key SATA Based NGFF SSD Converter to 2.5 Inch SATA 3.0 Card Support 2230 2242 2260 2280 Hard Drive with 7mm Case

LWS M. 2 SATA Enclosure, M. 2 SSD to 2.5 inch SATA Adapter with Case, B & M Key SATA Based NGFF SSD Converter to 2.5 Inch SATA 3.0 Card Support 2230 2242 2260 2280 Hard Drive with 7mm Case


Item Condition: New

Brand: lws
Manufacturer: LWS
Color: black
Size: 3.94" * 2.76" * 0.28" in

Product Information

- Convert a M. 2 NGFF (SATA Channel) SSD into a standard 2.5 inch SATA Hard Disk Drive, B & M Key SATA Based NGFF SSD to SATA 3.0 Converter Card.
- Support SATA I/II/III (up to 6Gbps). Compatible with both laptop and desktop, Plug and play, no driver required.
- Support 22
- 30mm/22
- 42mm/22
- 60mm/22
- 80mm all size of M. 2 NGFF (SATA) SSD.

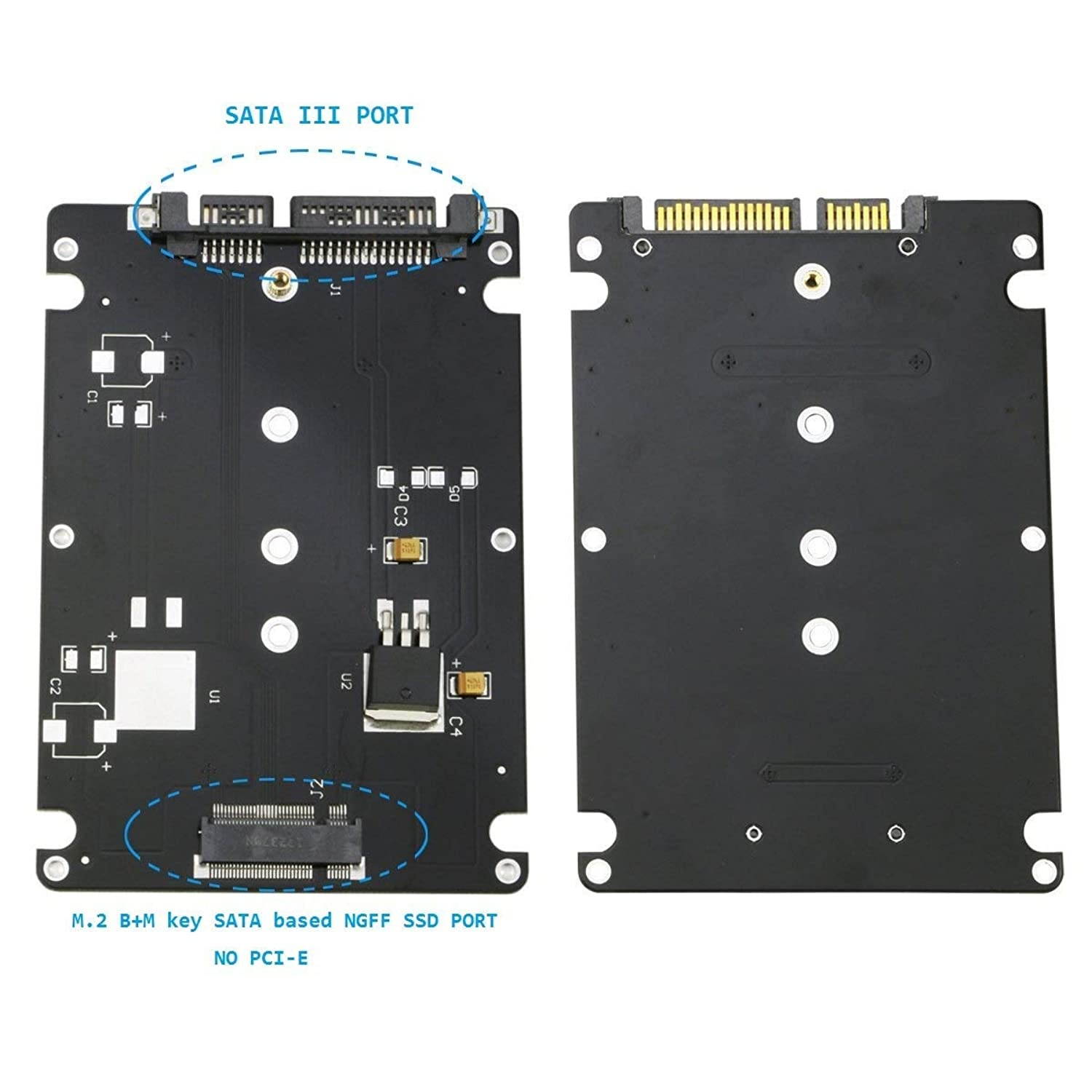

- Input: 1 x NGFF B & M Key SATA Based (SATA Chanel) Female;
Output: 1 x 2.5" SATA 7+15pin Male.
Dimension: 10cm
- 7cm
- 0.7 cm.
- DO NOT SUPPORT M. 2 PCI-E SSD. Before buying, Please Check Your M. 2 SSD is SATA Channel or PCI-E Channel on its Brand Website.

Features and Specification:
* Soket 2 B&M key M. 2 NGFF SSD (SATA transfer mode) to 2.5" SATA adapter.
* The speed and other properties is not changed, only form conversion interface.

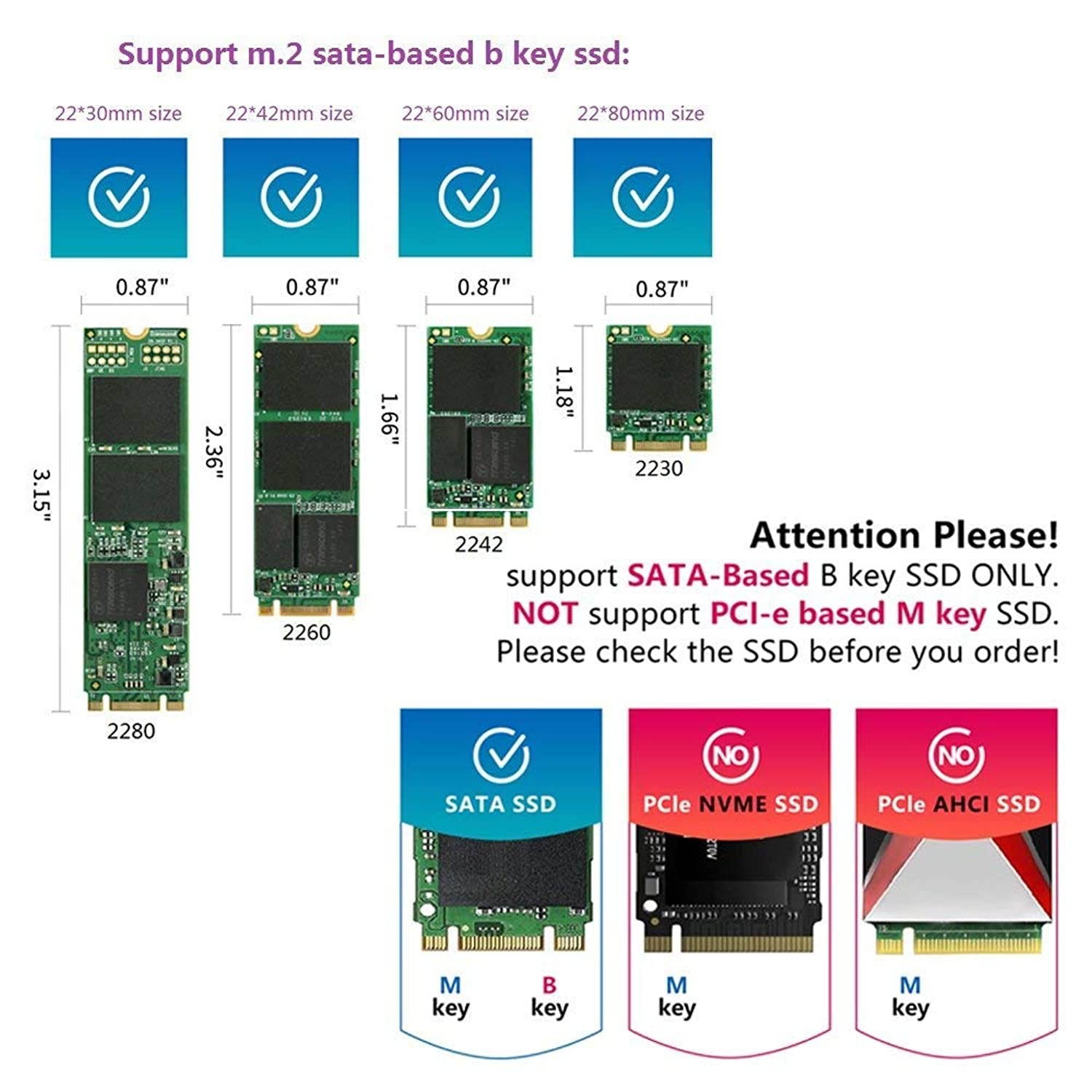

Suport the following form factor M. 2 NGFF (SATA) B/B+M
Key SSD: Type 2230-D2-B+M: 30mm (L) x 22mm (W)
Type 2242-D2-B+M: 42mm (L) x 22mm (W)
Type 2260-D2-B+M: 60mm (L) x 22mm (W)
Type 2280-D2-B+M: 80mm (L) x 22mm (W)
* Compatible with desktop or laptop.
* Transparent to the operating system and does not require any software drivers.
* Iterfation: M. 2 NGFF to 2.5" SATA.

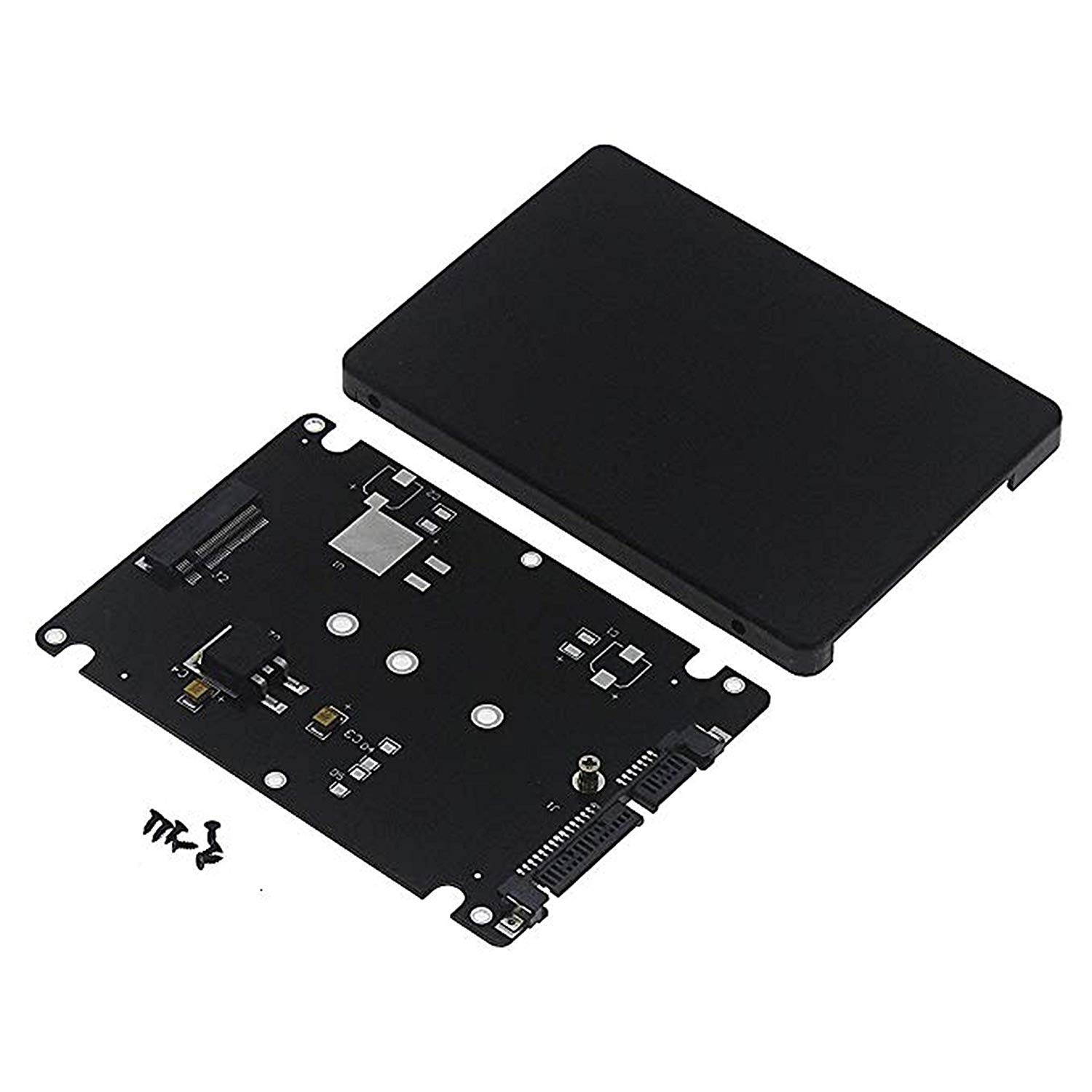

*1 x NGFF (SATA) to SATA Converter Adapter Card with case.
* Size: 3.94 inch x 2.76 inch x 0.31 inch.

WARM PROMPT

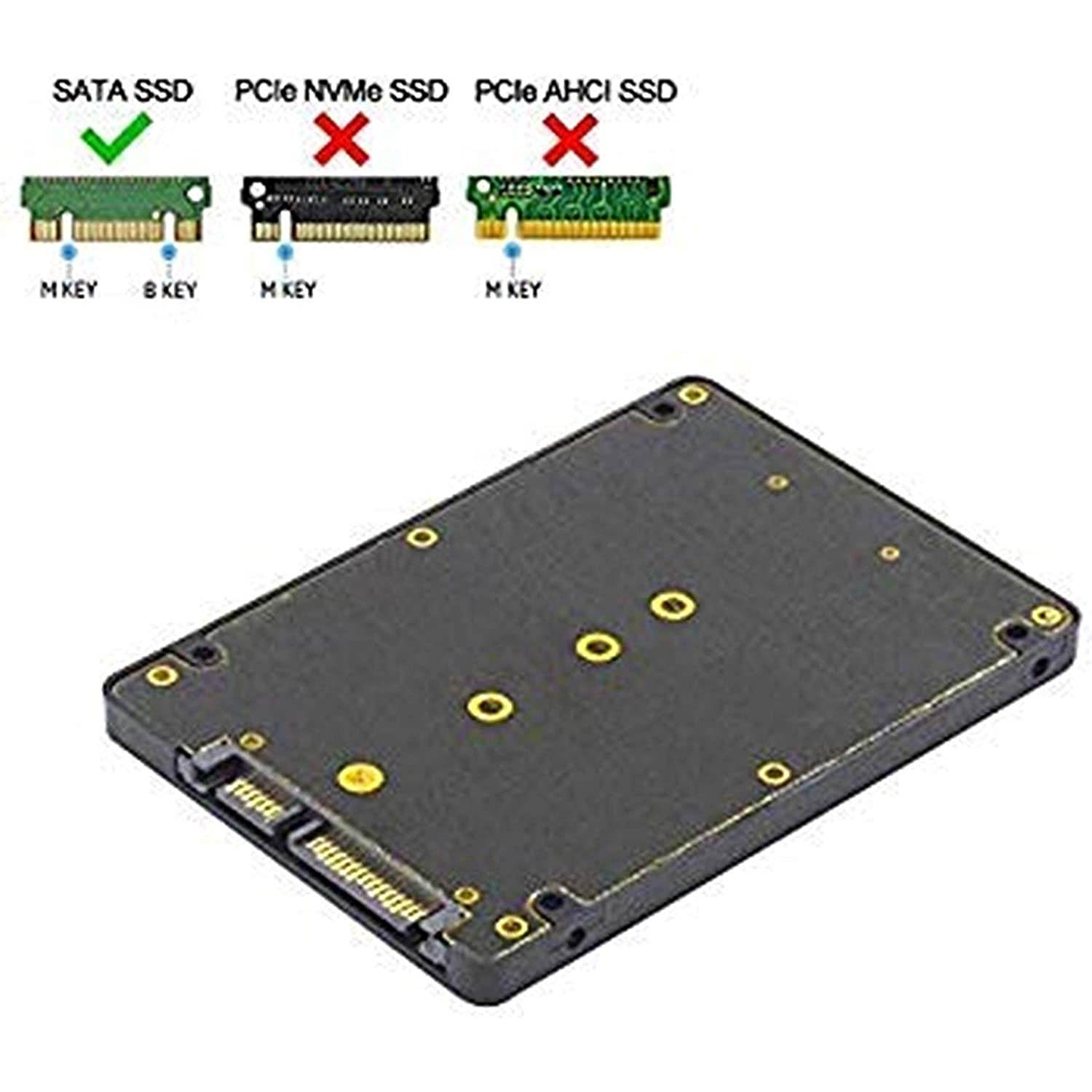

*. Please Check Your M. 2 SSD is SATA Channel or PCI-E Channel on its Brand Website Before Ordering. Support All Size 22*30/22*42/22*60/22*80mm M. 2 NGFF (SATA) B key and B+M Key SSD, DO NOT support PCI-E based B key & any M key M. 2 SSD (such as NVMe).
* Please cancel the hard disk password if your hard drive set a password in the original computer, The other computer doesnt recognize the hard disk if the password not cancel.
