Brand | maxmostcom |
---|
Yagi antenna is ideally suited for providing and/or improving reception in residential homes, work shops, small-sized parking garages, basements, small office areas, rural areas and places where the reception is weak. It will help to boost signal and increase data transfer speed.

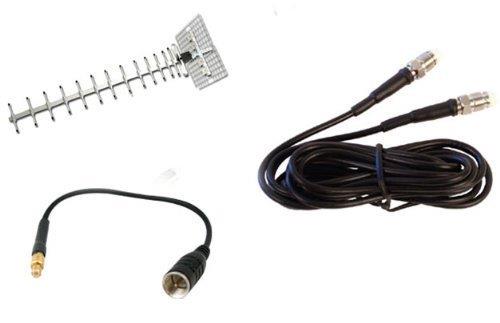

The package contains Wide-Band Log Periodic Yagi Antenna with 30ft cable, mounting hardware and Antenna adapter cable for Zing Hotspot Netgear AC771S AC771

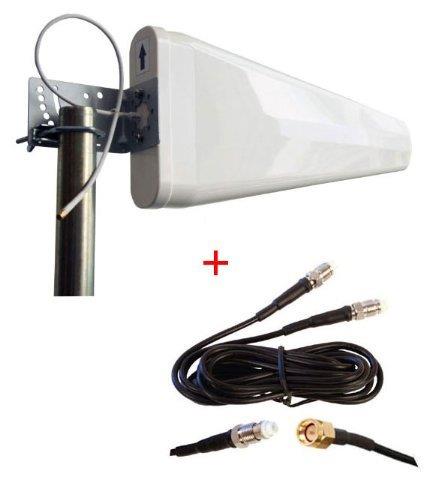

700MHz-2700MHz Log Periodic Yagi Antenna
* Frequency Range (MHz): 698-960/1710-2700 mHz
* Gain: 11 dBi
* VSWR: <=1.7
* Input Impedance: 50 ohms
* Polarization: Vertical or Horizontal
* Horizontal Beamwidth (o) (half-power): 60±8/55±8
* Vertical Beamwidth (o) (half-power): 50±5/45±5
* Front to Back Ratio (dB): >=21
* Max,
power (W): 50
* Connector Type on Antenna: FME male
* Lightning Protection: DC ground
* Antenna Dimension (mm): 445x210x70
* Rated Wind Velocity(km/h): 100
* Radome material: protected ABS
* Cable on Antenna (mm): 400
* Diameter of installation pole (mm): 30~53
* Working Temperature (C): -40~+60
* Extension Cable: 30 feet LMR200
* Extension Cable connector: FME Female

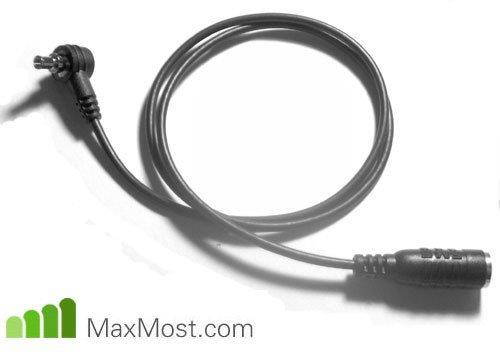

Zing Hotspot Netgear AC771S AC771 External Antenna Adapter
* Connector: FME Male
* Cable: RG174
* Length: 17 inch
* Impedance: 50 ohms
The wide Band Log Periodic Directional Antenna will collect the cell tower signal and send it through the cable to an amplifier, cell phone or cellular data card. When the cell phone or cellular data card transmits, the signal is transferred to an amplifier or directly to the antenna and broadcast back to the cell tower.
