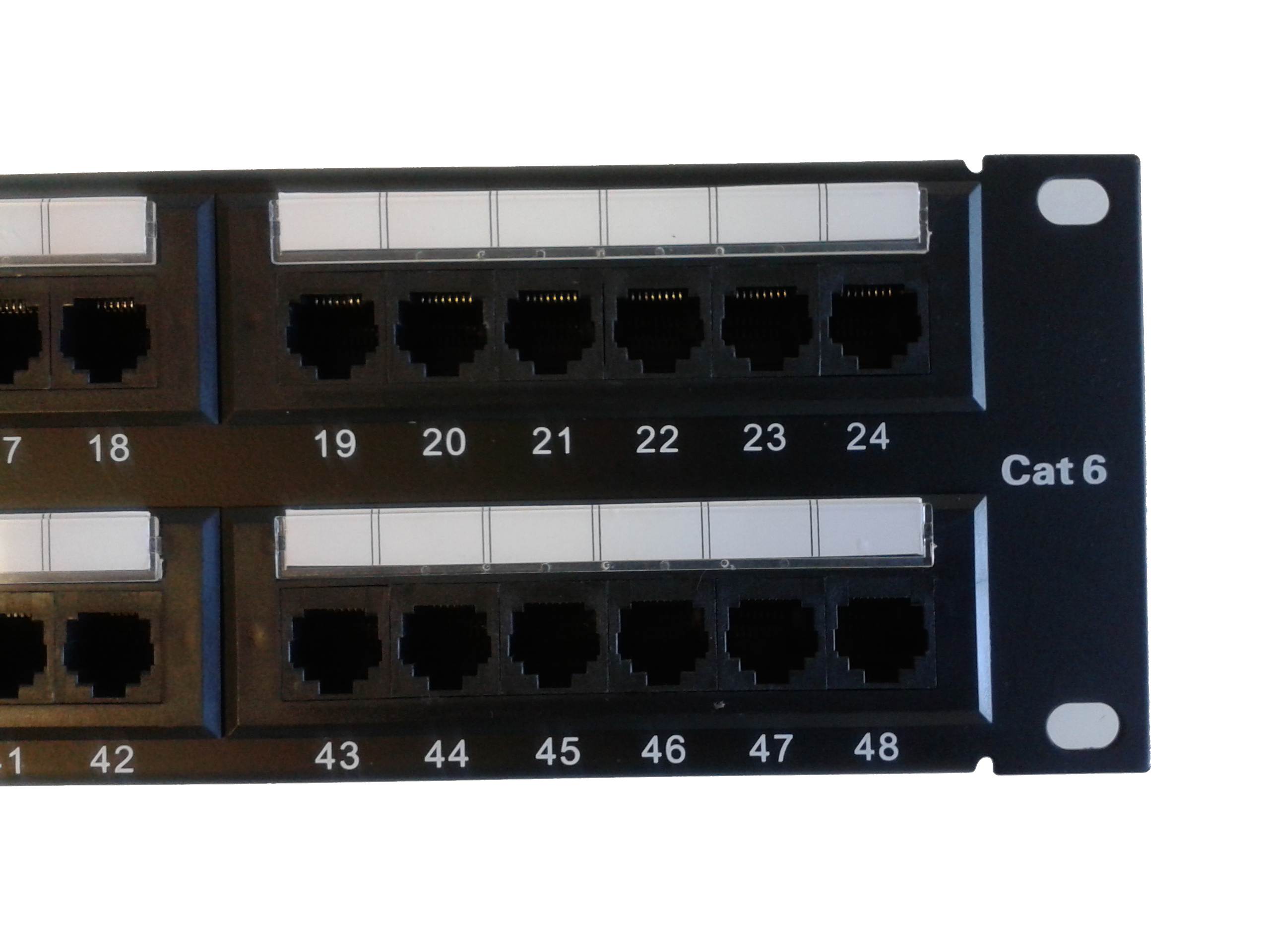

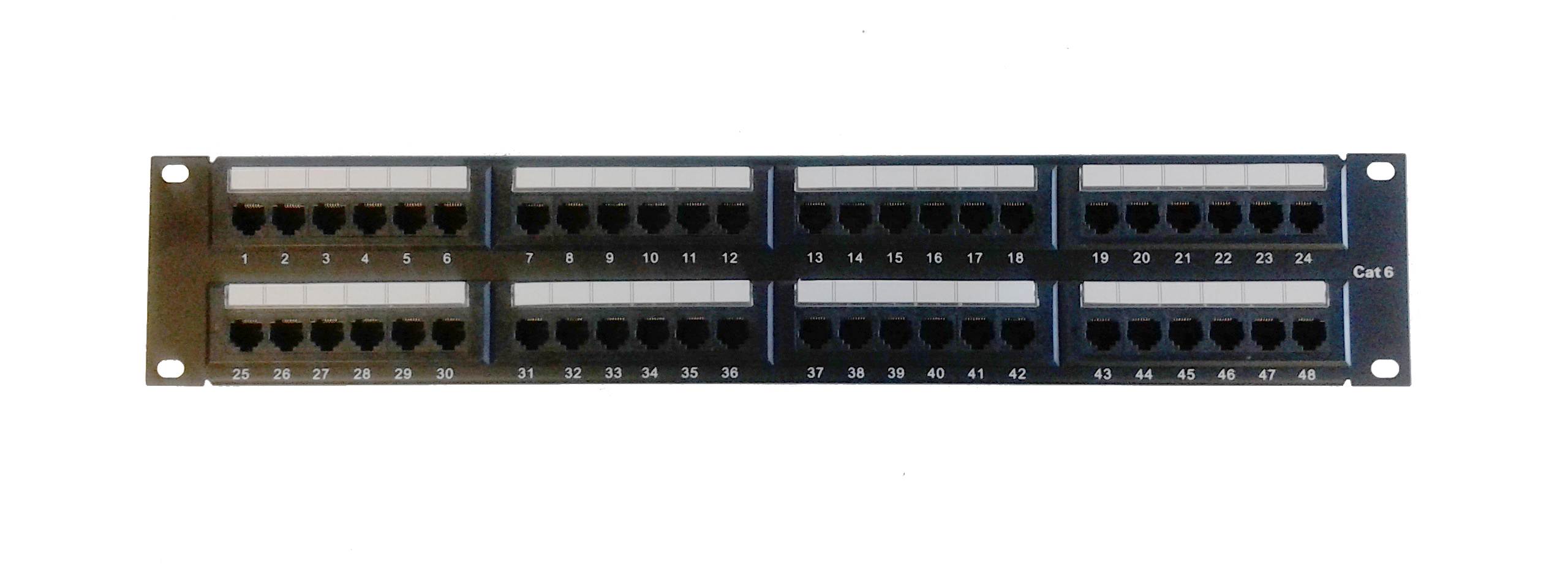

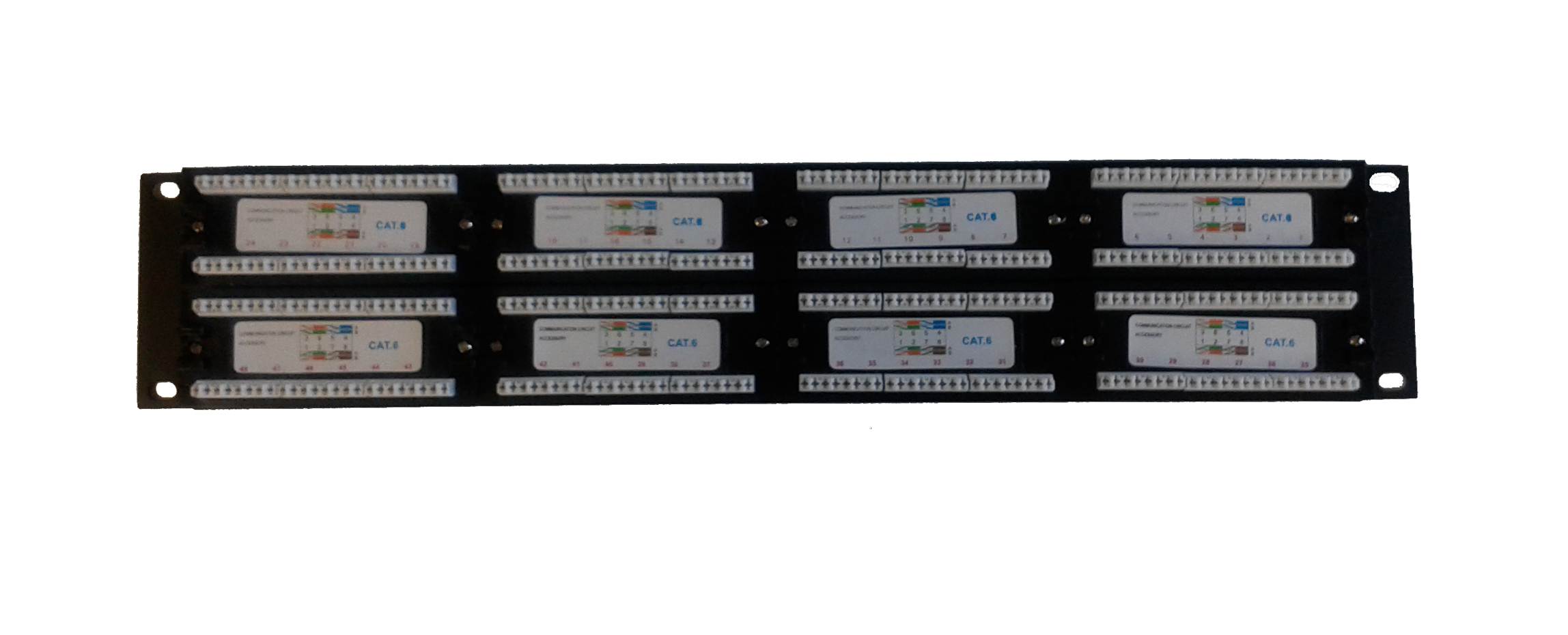

Patch panel CAT6 UTP 48 port 2U 110 IDC T568A & B 22~24AWG PP-CAT6/48

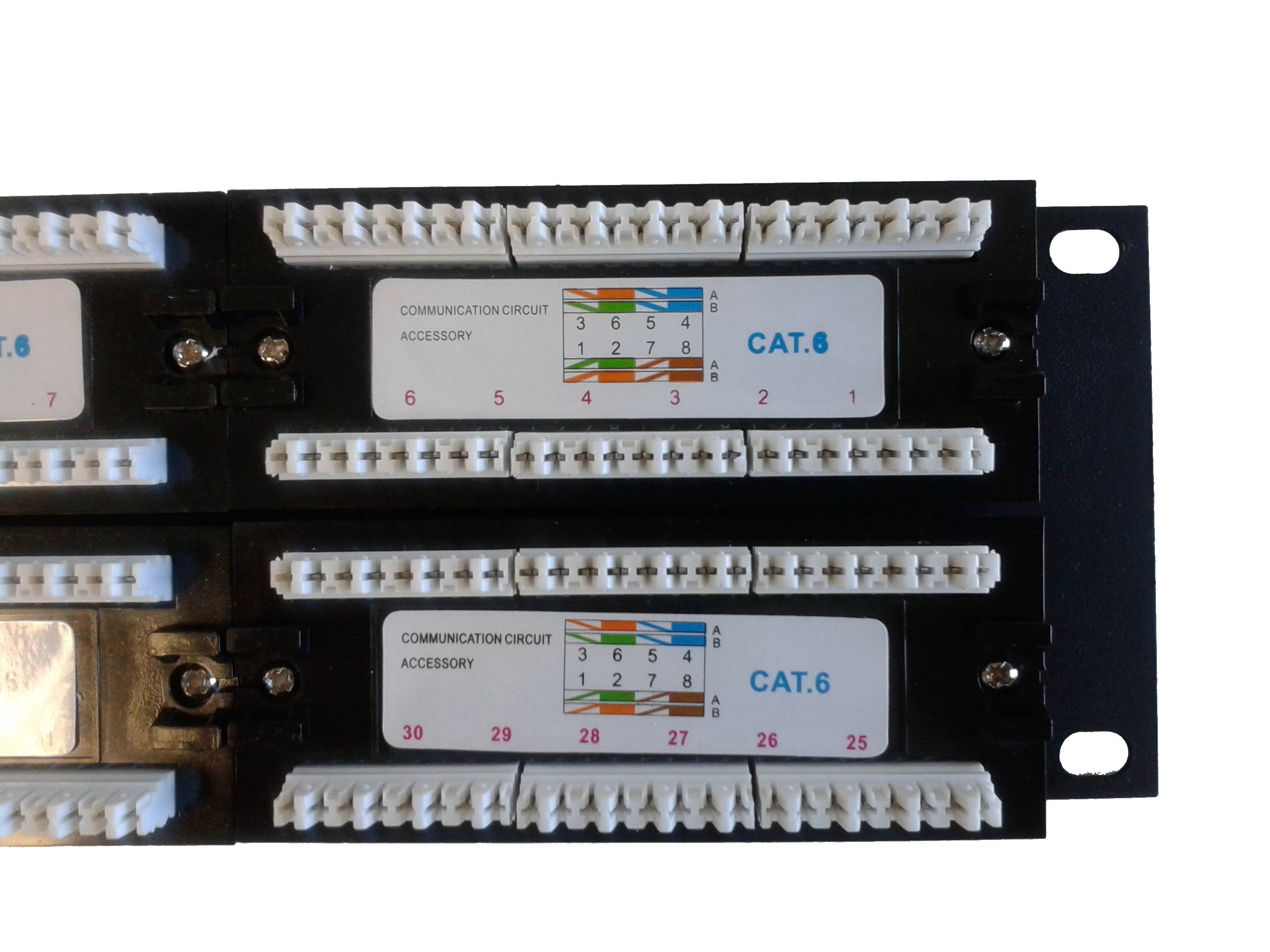

48 port CAT6 patch panel Main Features • 48 ports patch panel, Cat6 UTP type • ISO/IEC 11801:2000 CLASS E and ANSI/TIA/EIA/568B.2-1 standard • FCC port for Cat.6 UTP patch cord and IDC for horizontal distribution cables • Compatible with UTP CAT6 • Entire high-carbon steel outer frame with plastic powder cladding • RJ45 jack frame material: PBT, golden plated phosphor bronze pins • Shielding shell of the RJ45 jack: Brass housing with nicket-plated • IDC clip: Tinned phosphor bronze pins • Fits 22AWG, 23AWG and 24AWG cables • Punching duration: 250 times • FCC ports inserting duration: 750 times • Cabling sequence: T568A & B • Punching tool: Standard 110 tool for 110 IDC, Standard 110 tool or LSA tool for dual IDC • Testing condition of transmitting capability: 250MHz _________________________________________________________ Product description Our Category 6 (CAT 6) 48-port, 2 rack mount spaces patch panels surpass industry requirements for Category 6 performance. These horizontal patch panels are designed with a rear 110 IDC's for quick and easy punch-down termination and come integrated with a universal label allowing for either 568A & B wiring. Package includes mounting screws.
