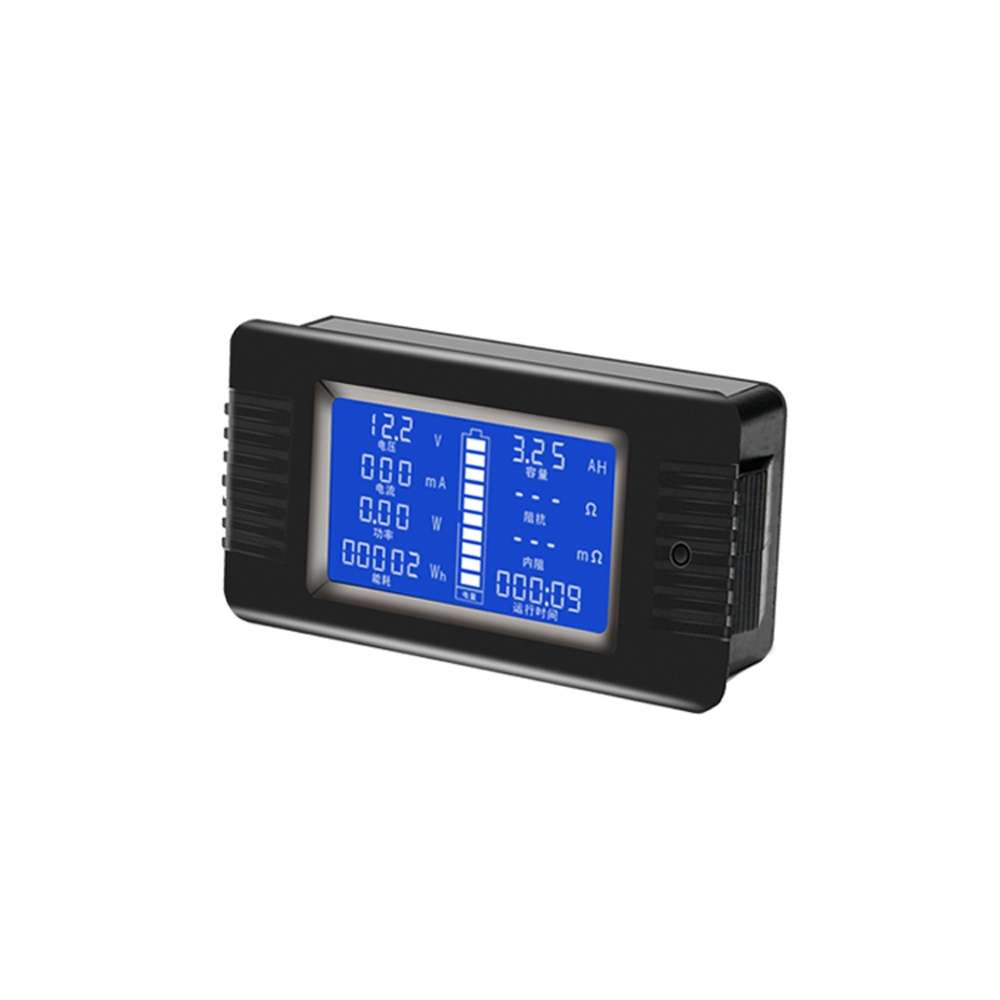

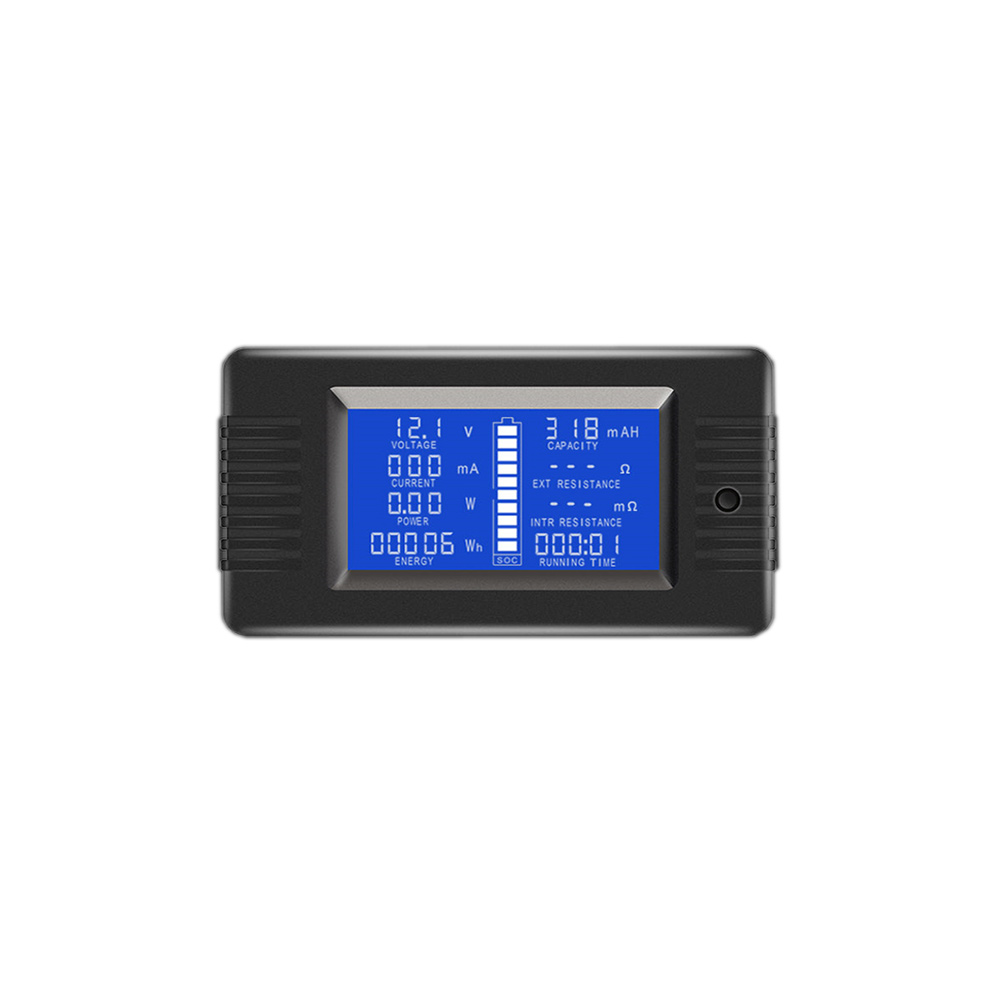

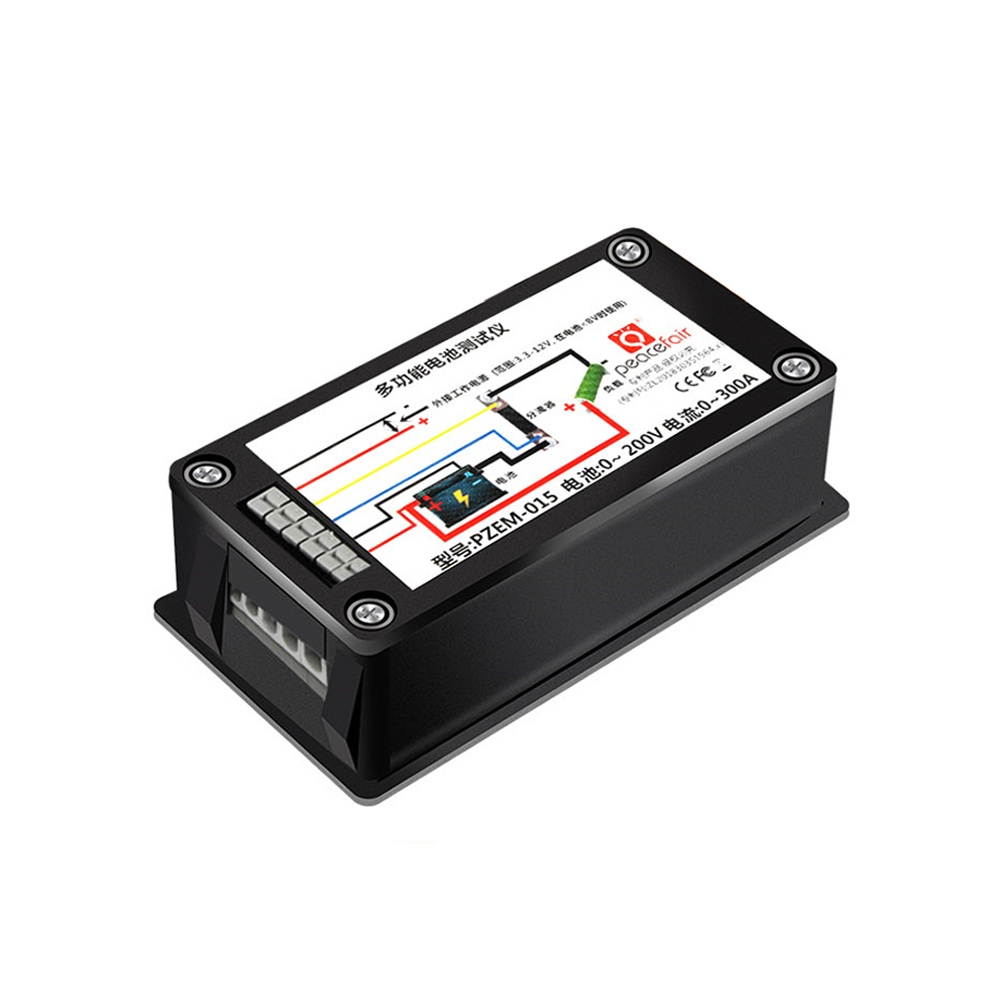

PZEM-015 Battery Tester DC Voltage Current Power Capacity Internal And External Resistance Residual Electricity Meter With 50A Shunt

Description: 9 major functionsFull viewing angle LCD
Screwless installation50A range (with 50A shunt)

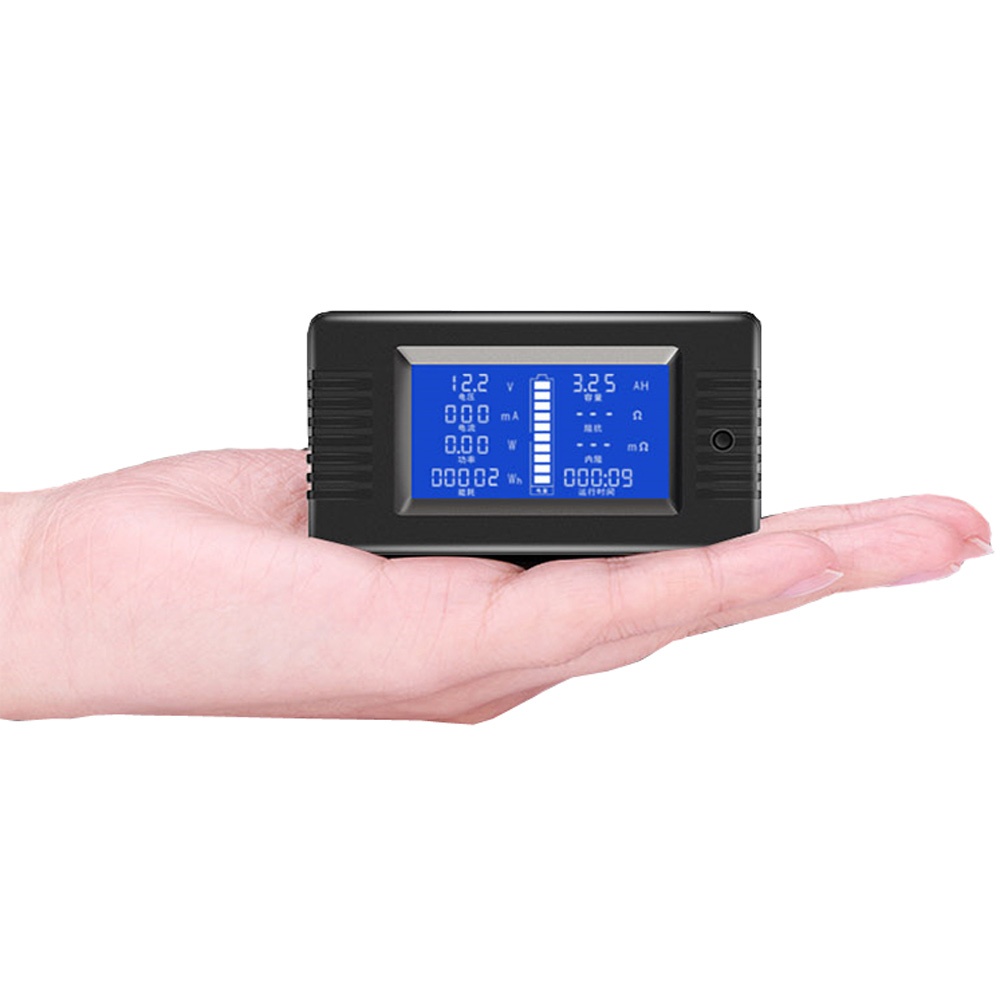

Size: 89.6 x 49.6 x 24.25 mmDisplay size: 51x30mmThis meter is mainly to measure the voltage, discharge current, discharge power, discharge impedance, internal resistance, capacity, remaining power, energy consumption, running time of various types of batteries, and display measurement data through LCD.
Feature: Current
measurement range: 0-300A, <1A
shows 999mAVoltage measurement range: 0-200V, <10V display 9.99VP ower measurement range: 0-60000W, <10W display 9.99WE nergy consumption measurement range: 0-9999kWh, <1kWh
display 999WhImpedance measurement range: 0-1000 Ω, <100 Ω shows 99.9 Ω
Capacity measurement range: 0-1000AH, <1AH shows 999mAHInternal resistance measurement range: 0-999mΩ, format: 999mΩ
Running time range: 0-999 hours, format
0:00: 00~ 999:59 (overflow to 0)
Remaining battery power: Displayed by the battery symbol, a total of 10 grids, each grid represents 10% of the electricity.

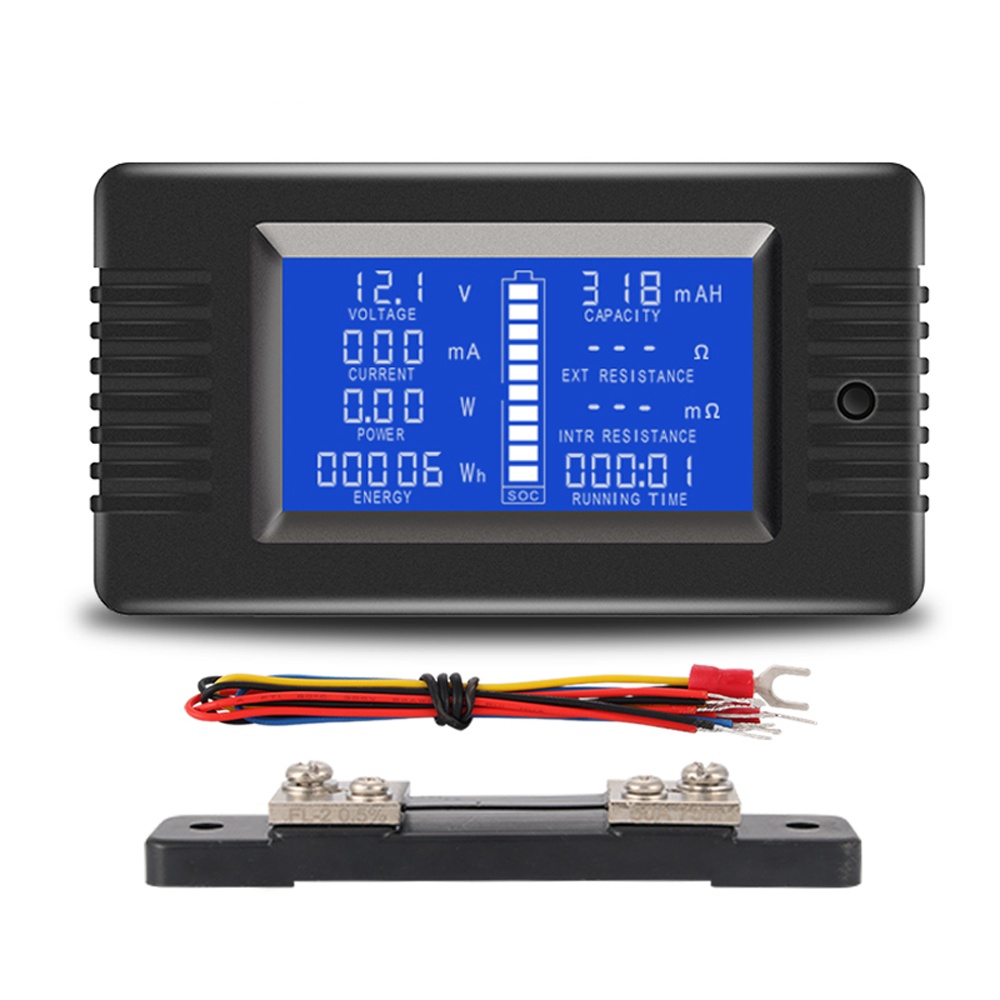

Package included: 1 x PZEM-015 Battery Tester1 x 50A current shunt1 x English manual
