Brand |
StarTech.com |
Model |
ICUSB23208FD |
Color |
Black |
Cable Length |
35.4" (900mm) |
Changer Type |
USB to DB9 (RS-232) |
Specifications |
Bus Type: USB 2.0
Interface: Serial
Data Bits: 7, 8
FIFO: 256 Bytes
Max Baud Rate: 921.6 Kbps
Maximum Data Transfer Rate: 480 Mbps
Parity: Odd, Even, Mark, Space, None
Serial Protocol: RS-232
Stop Bits: 1, 2
LED Indicators: 8 x Data Transmit, 8 x Data Receive
Center Tip Polarity: Positive
Input Current: 1.5 A
Input Voltage: 100 ~ 240 AC
Output Current: 3 A
Output Voltage: 12 DC
Plug Type: B
Power Consumption: 36 W Max.
Humidity: 20 - 80% RH (Non-condensing) |
Connector A |
1x USB 2.0 Type B female |
Connector B |
8x DB-9 male |
Cable Jakcet Type |
Aluminum |
Features |
Gain eight RS232 serial port interfaces through a single USB port
Connect multiple hubs together through daisy chain functionality
921.6Kbps baud rate per port
Rack-mountable design with durable all-metal chassis
Extended operating temperature range: -40 to 85 degree C (-40 to 185 degree F)
256-byte transmit, 128-byte receive FIFO
COM port retention |
Dimensions |
1.80" x 4.70" x 16.90" |
Weight |
48.20 oz. |
Package Contents |
1 x 8-port USB to RS232 hub
1 x USB 2.0 cable
2 x rack-mounting brackets
8 x rack-mounting screws
2 x DIN-rail mounting brackets
4 x DIN-rail mounting screws
4 x washers
4 x nuts
1 x universal power adapter (NA/JP, UK, EU, AU)
1 x driver CD
1 x terminal block plug
1 x quick-start guide |

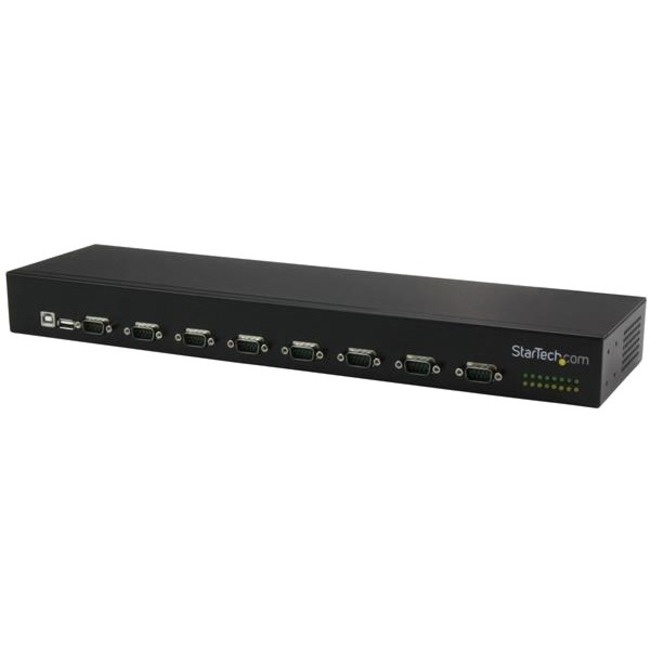

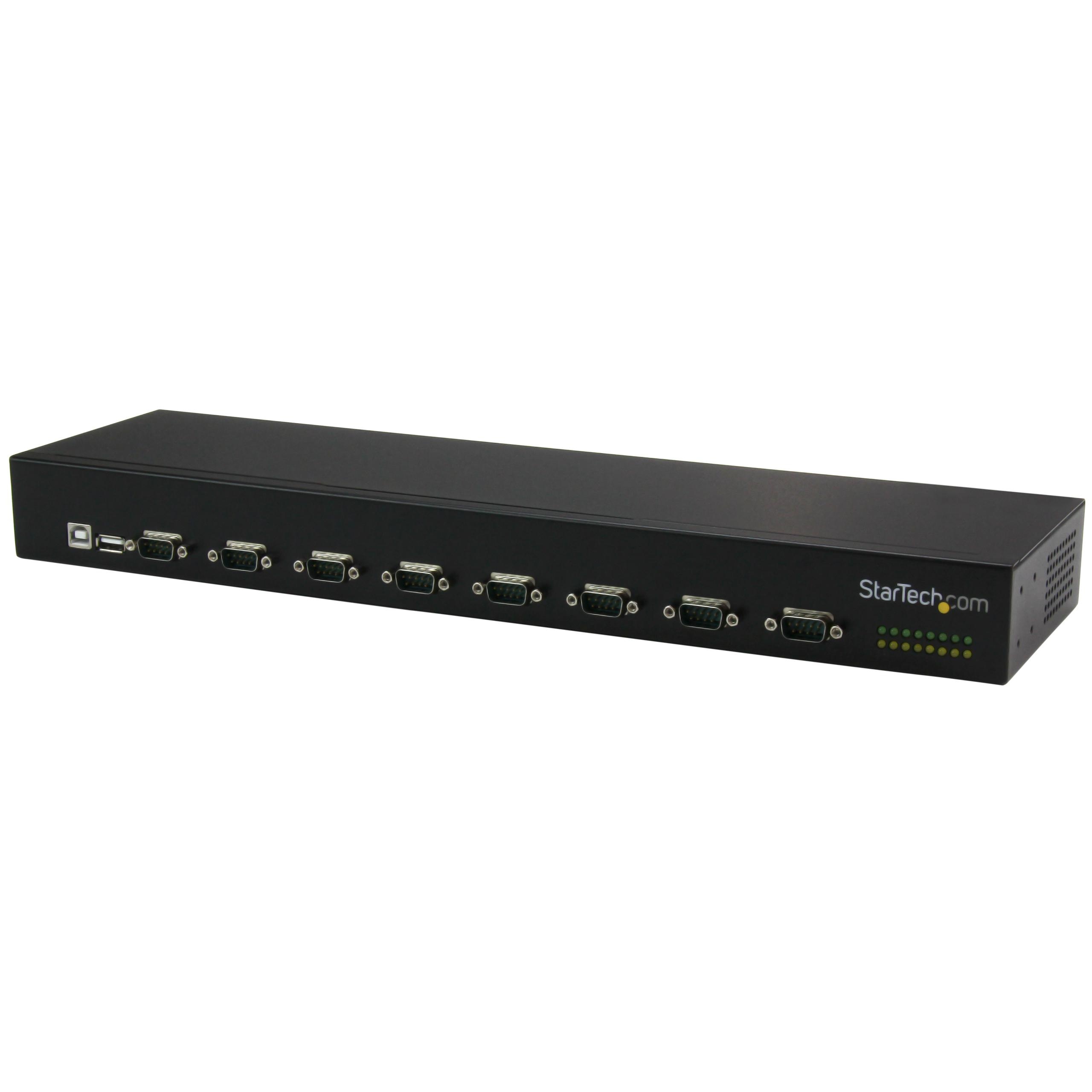

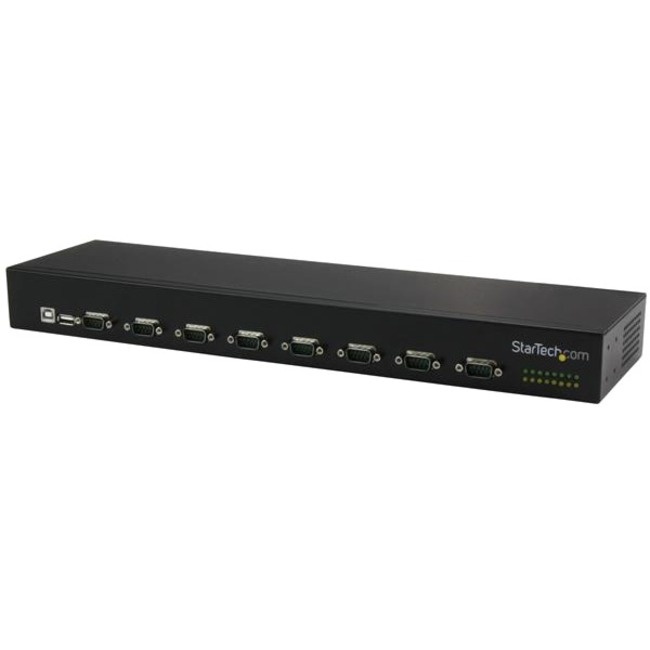

Convert a USB port into 8 RS232 serial ports in an industrial rack-mountable cha
