SuperMicro SuperServer 6028U-TR4T+, 2x 1.8GHz 8-Core CPU, 16GB DDR4 RAM, Adaptec ASR-71605, 12x 3TB 12Gbps SAS, 4x 10GbE RJ45, IPMI
CTNR1780498 CTNR1780498$ 1,735.45 $ 1,770.87 2% Off
SSD (Installed)
HDD
*Product availability is subject to suppliers inventory
SHIPPING ALL OVER UNITED STATES
100% MONEY BACK GUARANTEE
EASY 30 DAYSRETURNS & REFUNDS
24/7 CUSTOMER SUPPORT
TRUSTED AND SAFE WEBSITE
100% SECURE CHECKOUT
| Brand | SUPERMICRO |
|---|---|
| Series | SuperServer |
| Model | SuperServer 6028U-TR4T+ |
| Type | Rack |
| Rack Height | 2U |
| CPU Socket | LGA 2011-3 |
| Number of CPU Cores | 8-Core Processor |
| # of Processors Installed | 2 |
| MAX Processors | 2 |
| Chipset | Intel C612 |
| Installed Memory Size | 16GB |
| Memory Type | DDR4 |
| Max Memory Capacity | 3TB ECC 3DS LRDIMM/1.5TB ECC RDIMM/LRDIMM |
| Number of Memory Slots | 24 |
| Hard Drive (Installed) | 12x 3TB 3.5" 7.2K 12Gbps SAS |
| Storage Controller | Adaptec RAID 71605 6Gbps SAS/SATA PCIe Gen3 RAID Controller, (Supports 0,1,1E,5,6,10,50,60) |
| SSD (Installed) | No |
| Raid Level | RAID 0,1,1E,5,6,10,50,60 |
| Graphic Type | Integrated Graphics |
| Ethernet Controller | 4x Intel® X540 10GBase-T RJ45 LAN ports, AOC-2UR6-i4XT |
| Remote Management | IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| LAN Ports | 4 x Ports |
| Management Port | RJ 45 |
| Operating System | No |
| Dimensions | 28.5" x 17.2" x 3.5" |
| Weight | 72lbslbs |

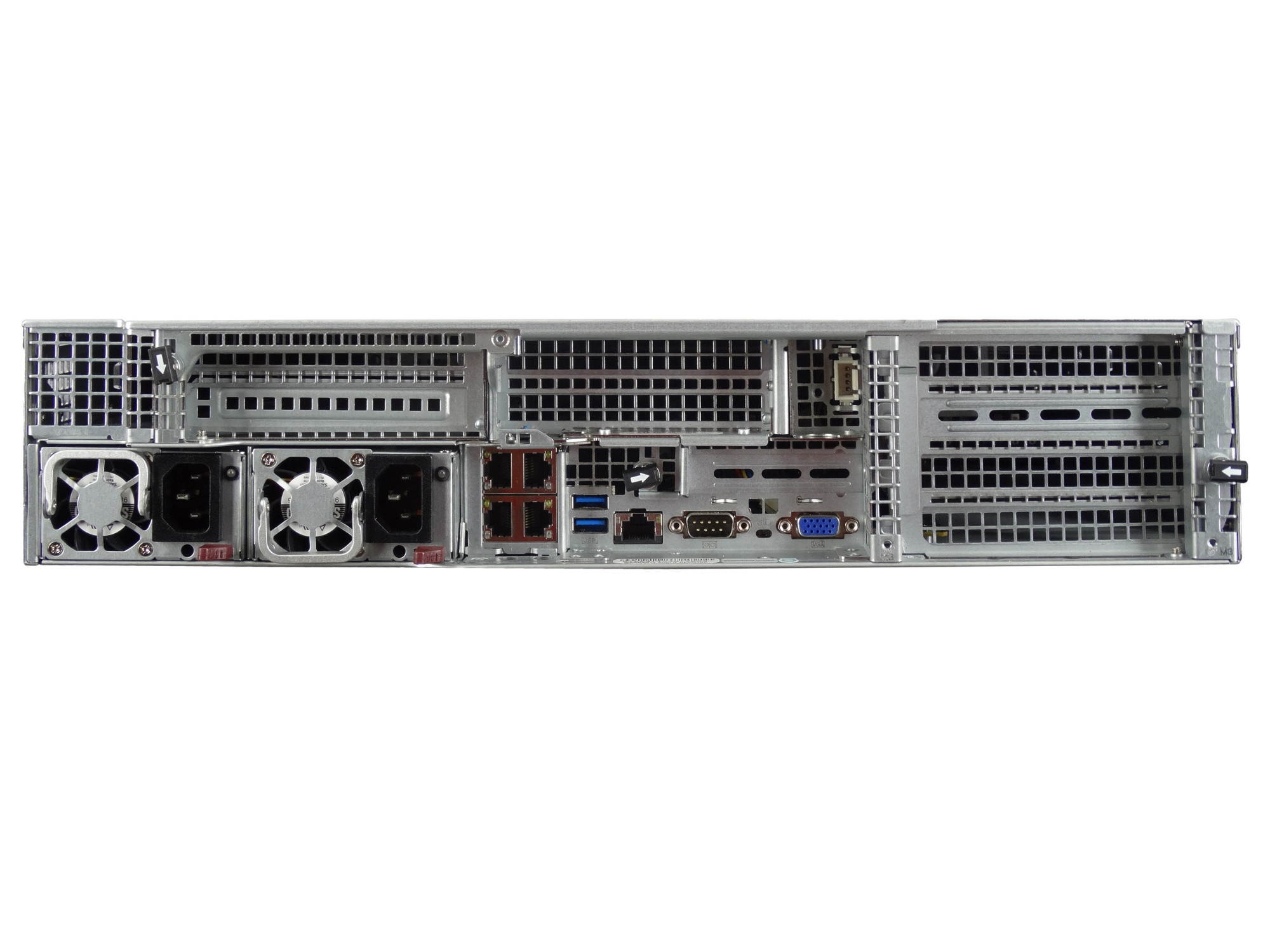

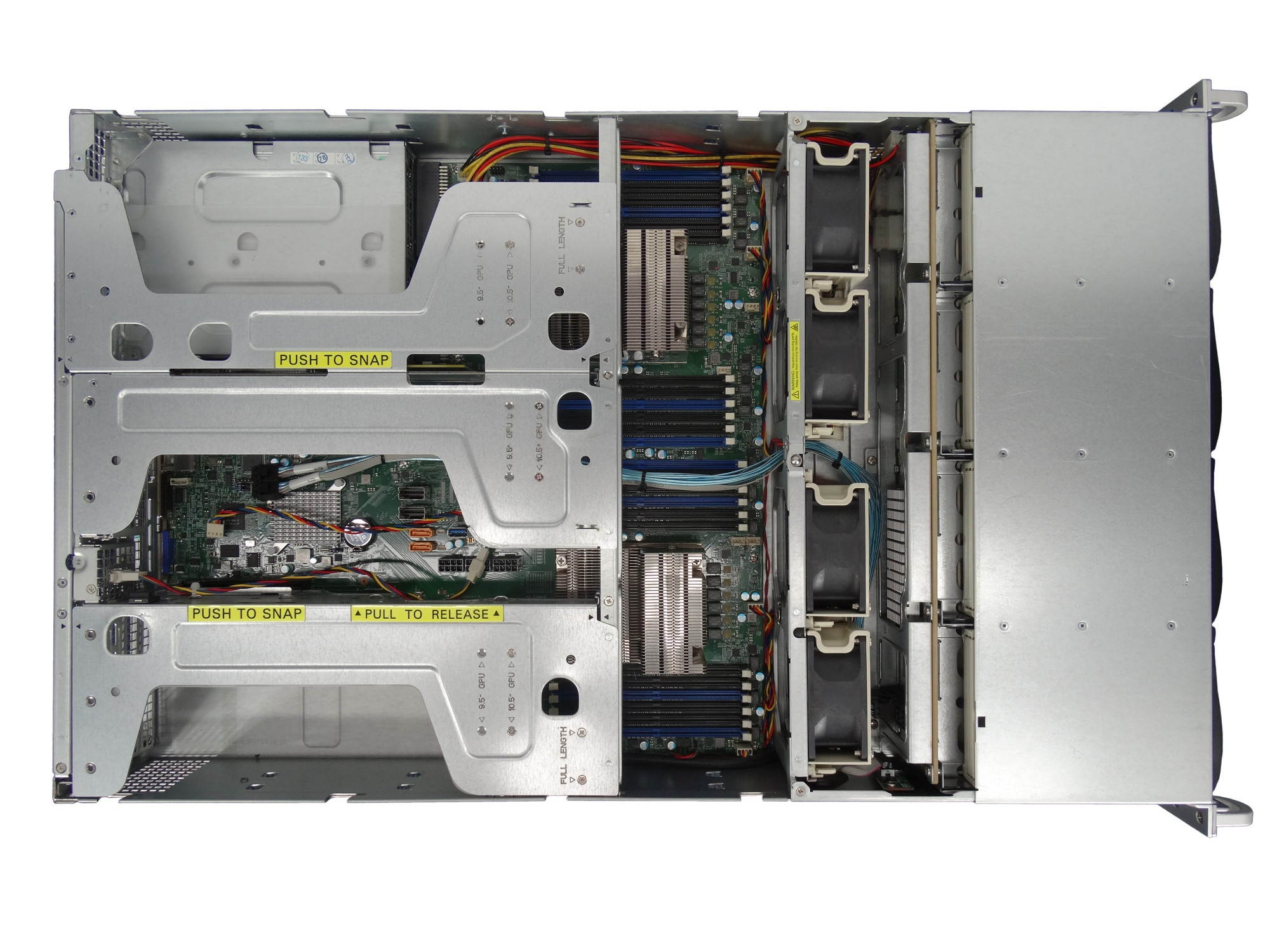

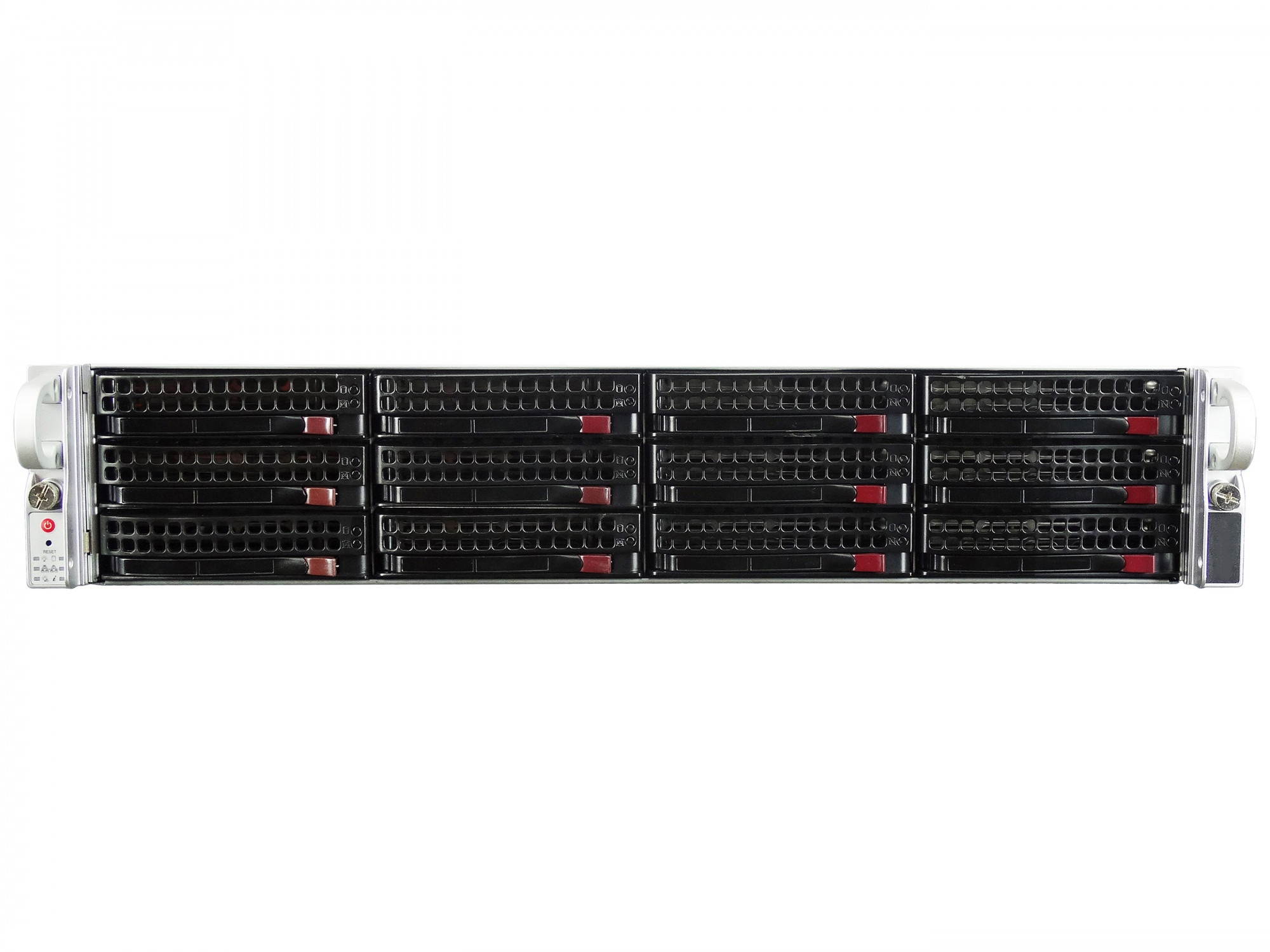

The Supermicro SuperServer 6028U-TR4T+ is a high-end server which utilizes the CSE-829UAC-R1K02-T 2U server chassis where the SC829UAC-R1K02-T 2U server chassis and the X10DRU-i+ dual processor motherboard subsystems reside. The SC829UAC-R1K02-T 2U form factor build is equipped with 12x hot-swappable 3.5” SAS 12Gbps/SATA 6Gbps drive bays and supports full height PCIe expansion cards. The X10DRU-i+ supports E5-2600 v3/v4 processors paired with up to 3TB ECC LRDIMM or 1.5TB ECC RDIMM at 2400MHz and includes the AOC-2UR6-i4XT riser card which has 4x X540 10GBase-T ports, (4x 10Gbps RJ45). The 2U form factor build supports 12x hot-swappable 3.5” SAS 12Gbps/SATA 6Gbps drive bays and 2x 1000W Titanium Level power supplies. The 6028U-TR4T+ offers flexibility for use cases that involve intense application workloads using its equipped 8x SATA3 (6Gbps), 12x SAS3 ports support via optional add-on Cards.
System: SuperMicro SuperServer 6028U-TR4T+
Motherboard: X10DRU-i+
Processor: 2x Xeon E5-2630L v3 1.8GHz Eight Core Processors
Memory: 16GB (2x 8GB) DDR4 Memory
Storage Controller: Adaptec RAID 71605 6Gbps SAS/SATA PCIe Gen3 RAID Controller, (Supports 0,1,1E,5,6,10,50,60)
Hard Drive: 12x 3TB 3.5" 7.2K 12Gbps SAS
Integrated Network: 4x Intel® X540 10GBase-T RJ45 LAN ports, AOC-2UR6-i4XT
Management: IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Power Supply: 2x 1000W 80+ Platinum Power Supplies
Rails: One Set of 4-Post Rack Rails
