USB TTL uart Cable USB Console Serial Cables for Galileo Boards ttl-ft232r-5v 6pin 2.54mm ftdi chipset Support win8 10 Android mac etc

USB TTL uart Cable USB Console Serial Cables for Galileo Boards ttl-ft232r-5v 6pin 2.54mm ftdi chipset Support win8 10 Android mac etc

Item Condition: New

Brand: Usangreen
Manufacturer: Usangreen
Model: USB 5V TTL-6PIN

Product Information

• USB UART TTL level cable FTDI FT232RL chip, TTL-232R_RPi cable

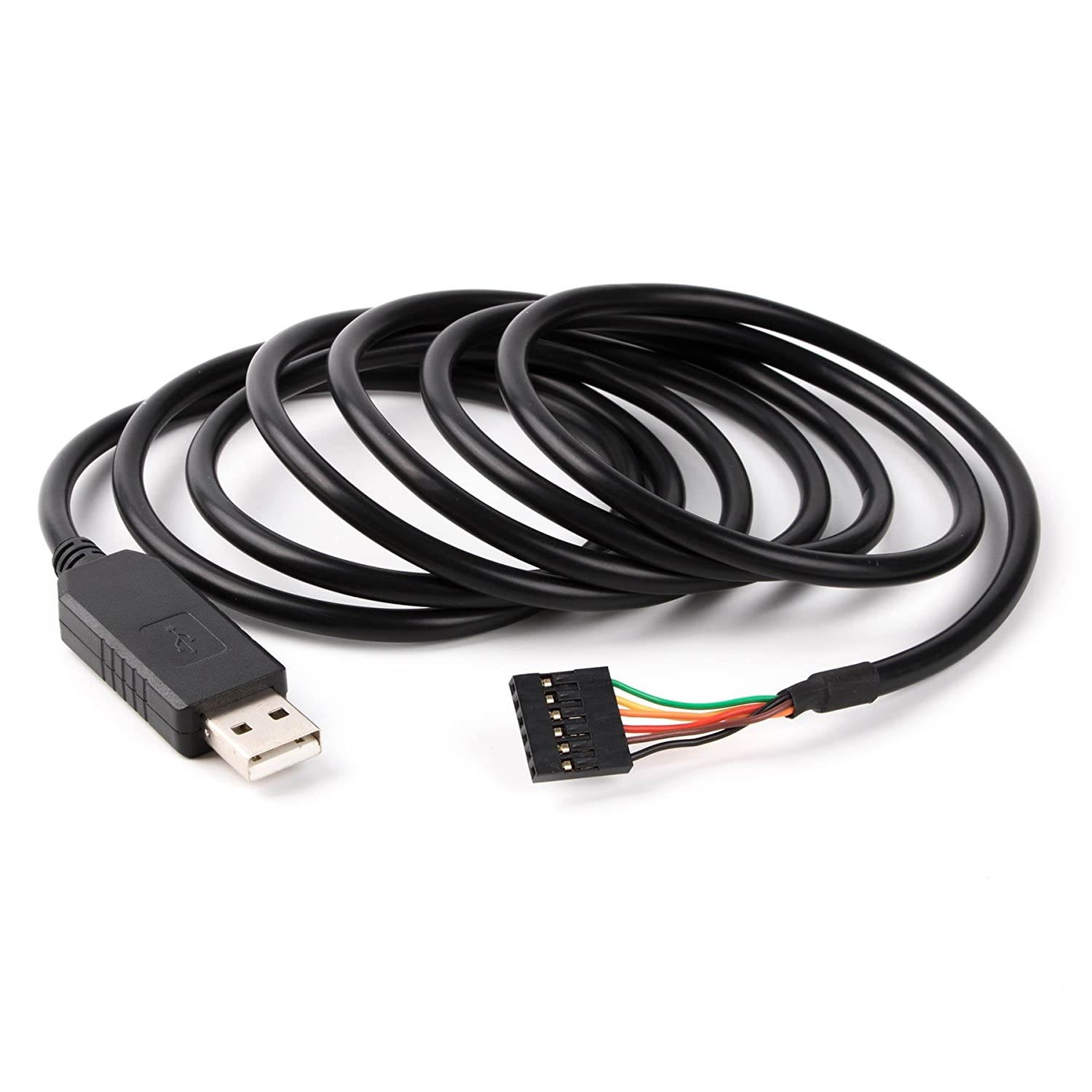

• Support Mac, Android, Win 8.1, Win 10, etc FT232RL USB to UART cable with +5V TTL level UART signals to 6 pin SIL, 0.1" pitch female cable, 1.8m
• TTL-232R_RPi USB UART +5v level signals converter cable.
• The standard pinout is GND (Blk/1), CTS (Brown/2), VCC (red/3), TXD (orange/4), RXD (yellow/5),RTS (Green/6)

USB UART TTL level cable FTDI FT232RL chip, TTL-232R_RPi kable UART TTL 5v level signals Fully integrated 2048 byte EEPROM for storing device descriptors and CBUS I/O configuration. Data transfer rates from 300 baud to 3 Mbaud Compatible with TTL-232R-5v Support VCC/TX/RX/CTS/RTS/GND Support Android, Support Win 8, Win 7, XP, 2000, Linix, Mac OS Support FTDI VCP driver and D2XX driver USB UART to DU PH 0.1"(2.54mm) 1*6p female housing Standard pinout: GND (Blk/1), CTS (Brown/2), VCC(red/3), TXD (orange/4), RXD (yellow/5),RTS (Green/6) 26AWG*6C+AL, 1.8m, OD=4.5mm, black ABS black shell type, PE bag for each cable, 100% test Drivers are available which allow FTDI devices to work with the following operating systems: Windows 8.1 Windows 8.1 x64 Windows 8 Windows 8 x64 Windows Server2012 Windows Server 2008 R2 Windows 7 Windows 7 x64 Windows Server 2008 Windows Server 2008 x64 Windows Vista Windows Vista x64 Windows Server 2003 Windows Server 2003 x64 Windows XP Windows XP x64 Windows ME Windows 98 Linux Mac OS X Mac OS 9 Mac OS 8 Windows CE.NET (Version 4.2 and greater) Android Windows RT Package: 1PC X USB TTL 5V 6PIN
