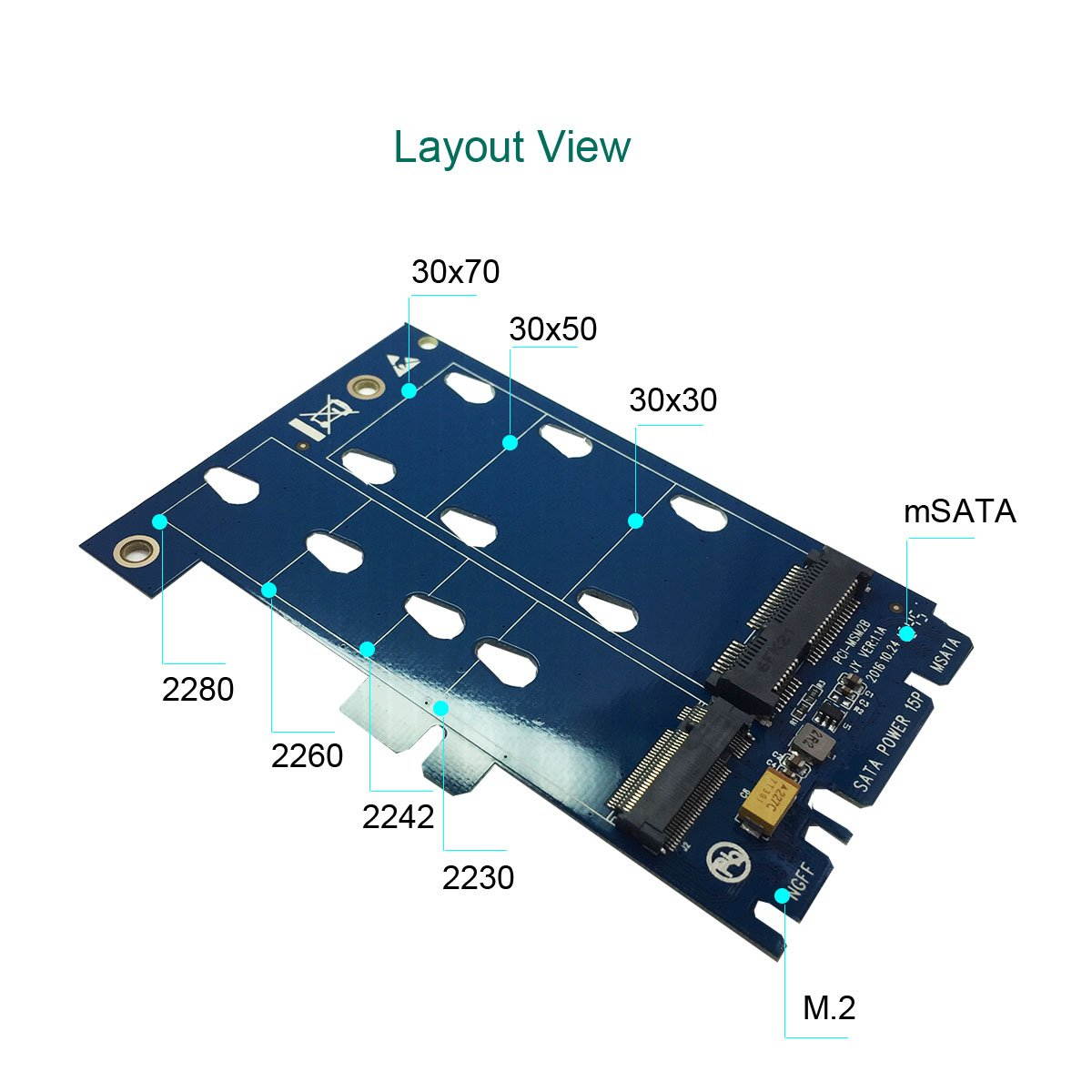

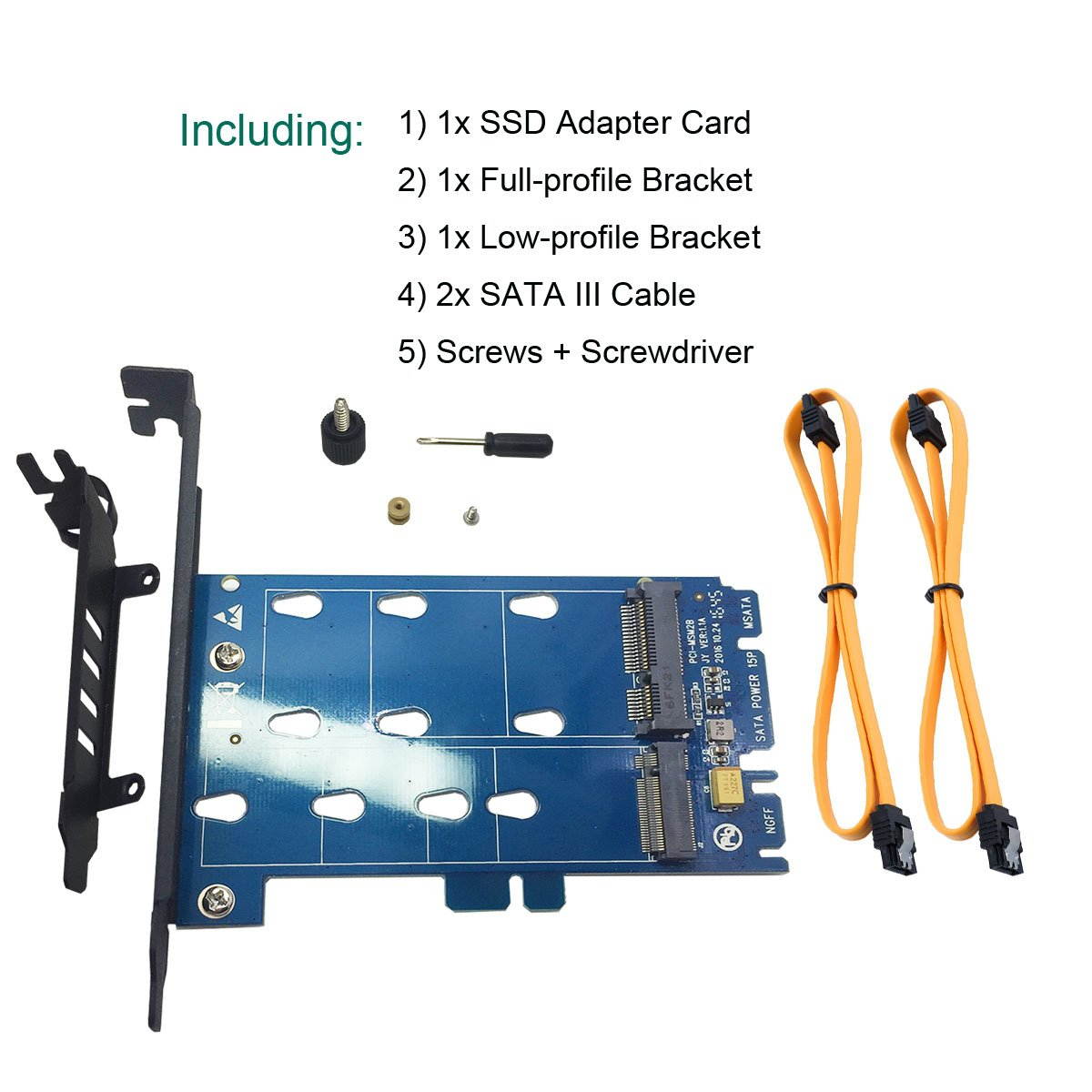

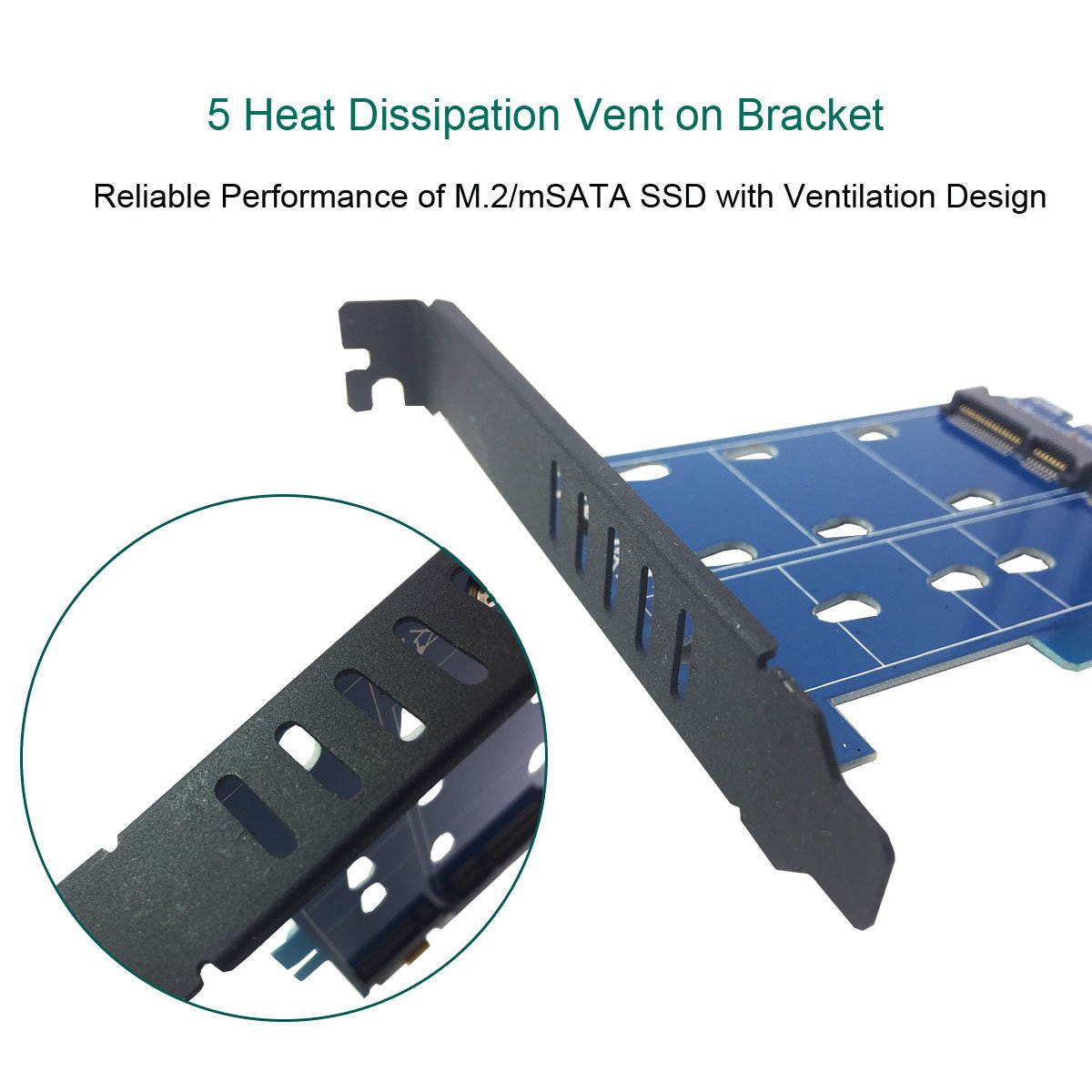

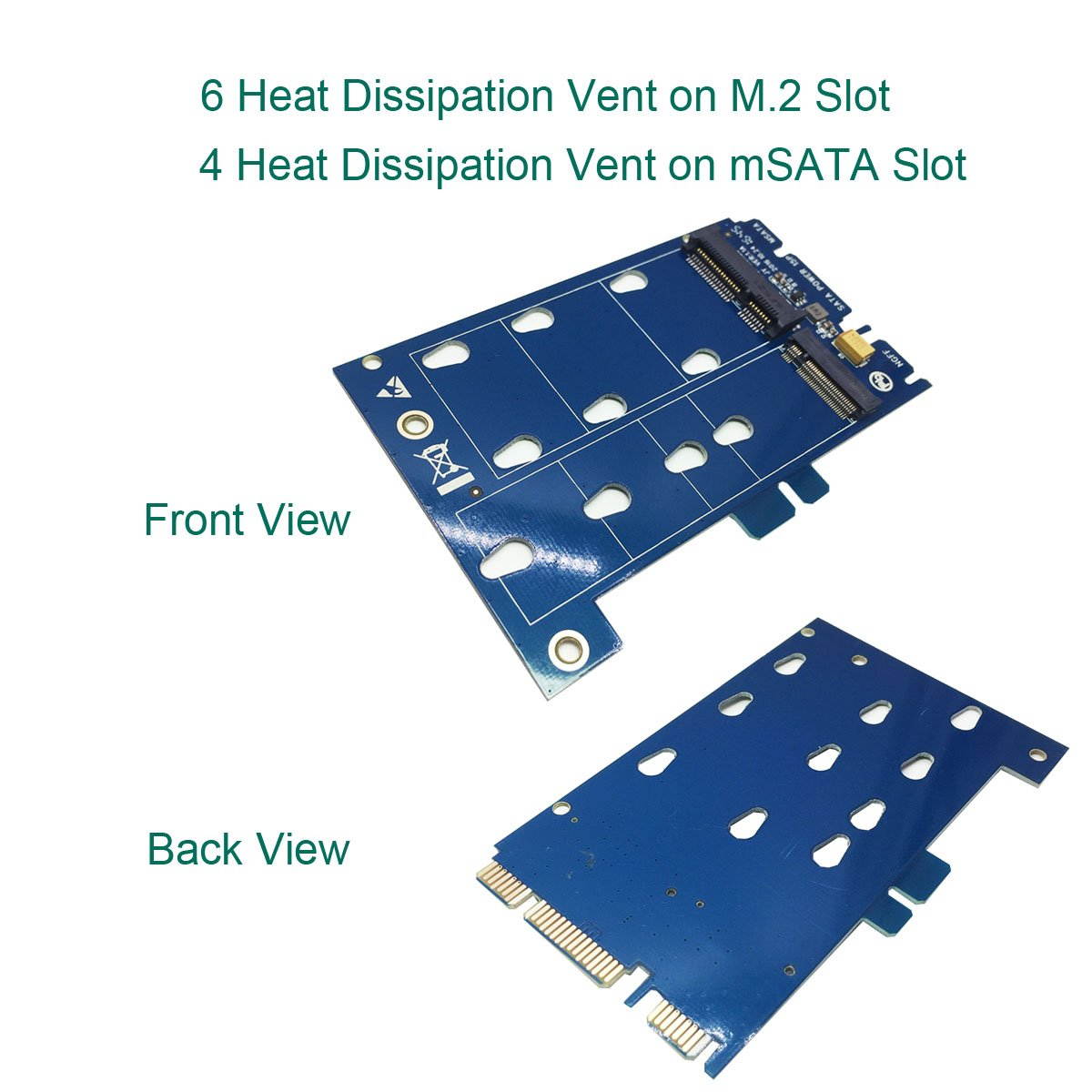

GLOTRENDS PA08 2 in 1 M.2 SATA Adapter Card and mSATA SSD Adapter Card
Features: 1) Supports M. 2 SATA SSD (Key-B/B+M), SATA 6 Gbps bandwidth 2) Apply to 2280/2260/2242/2230mm M. 2 SSD 3) Supports mSATA, 30x27 / 30x50 / 30x70mm, SATA 6 Gbps bandwidth 4) Support TRIM and UASP 5) Compatible with Windows / MAC / Linux, no driver required 6) Operating temperature range: -40 - 85 oC 7) 15pin SATA power supply Full profile bracket Low profile bracket Note: Insufficient power supply may happen if both M. 2 SSD and mSATA SSD are more than 500Gbps storage capacity. In this case, please remove one SSD to make sure the sufficient power supply from 15PIN SATA interface.

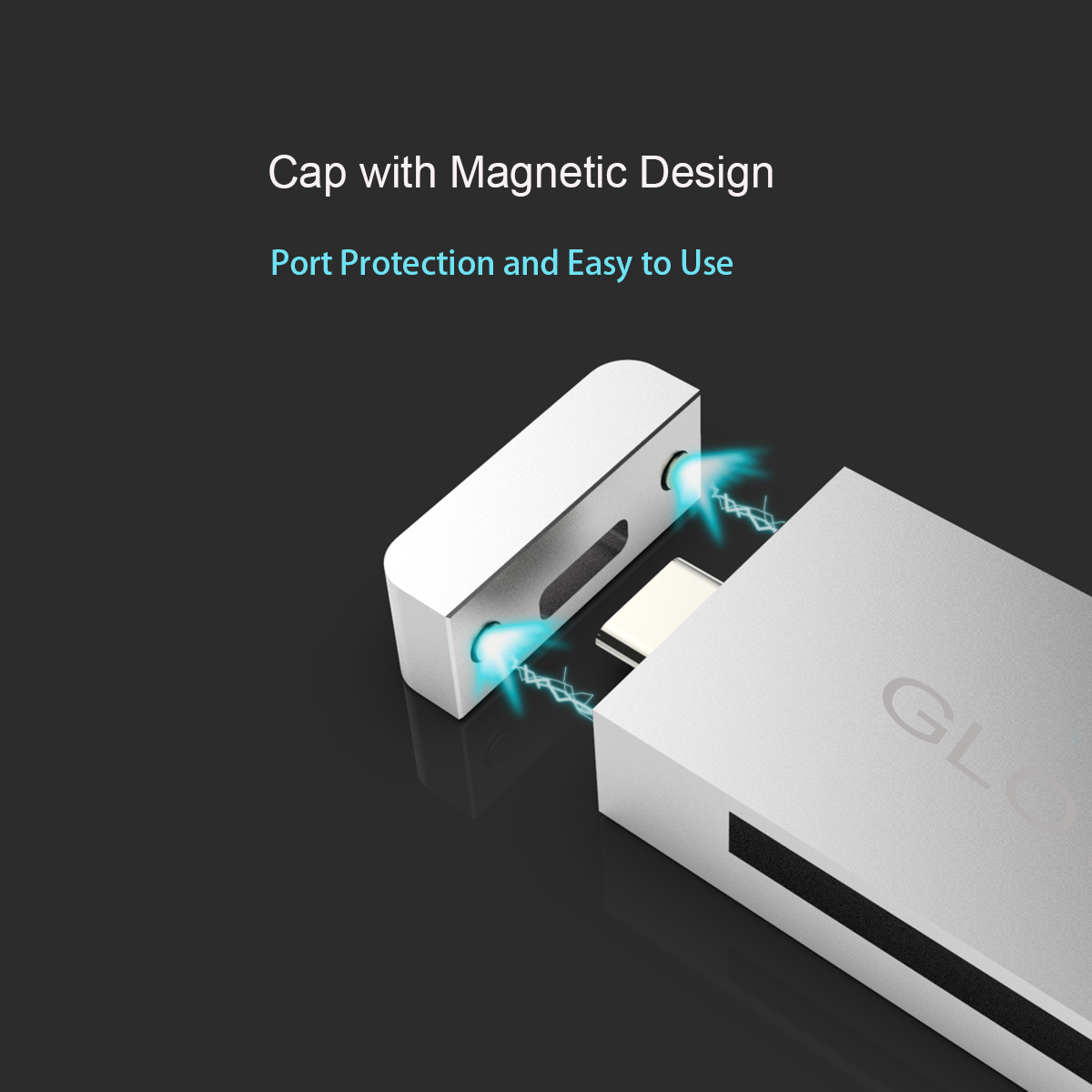

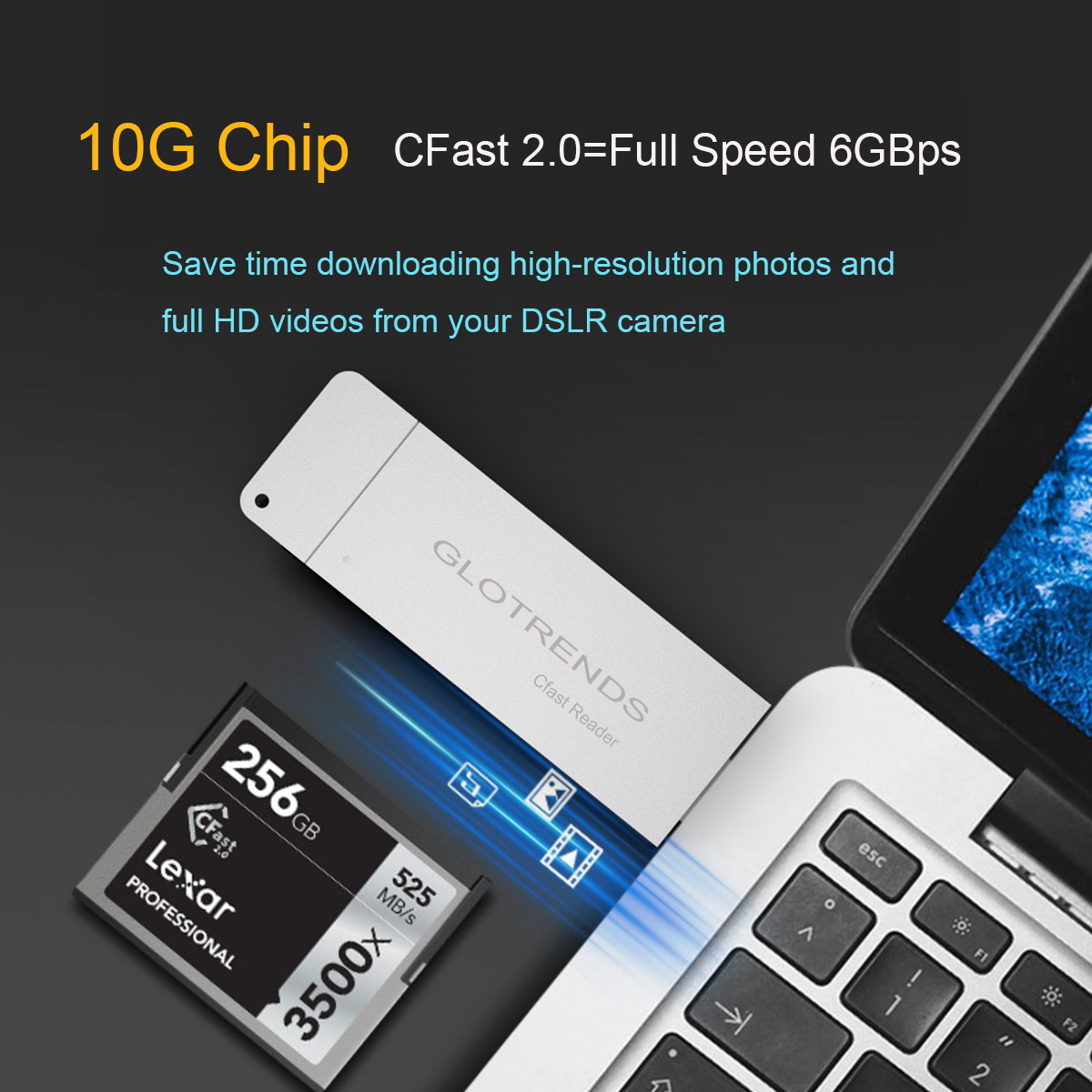

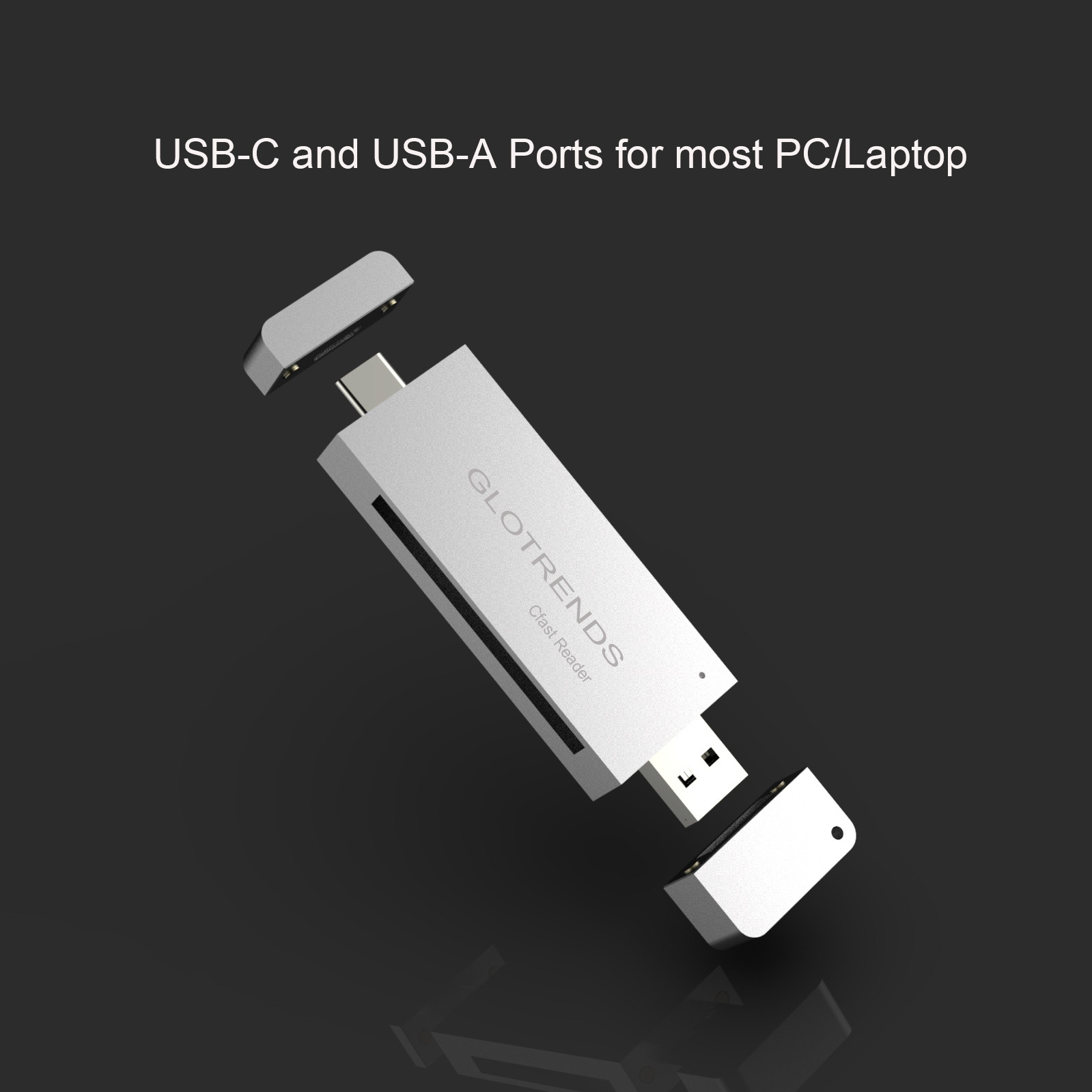

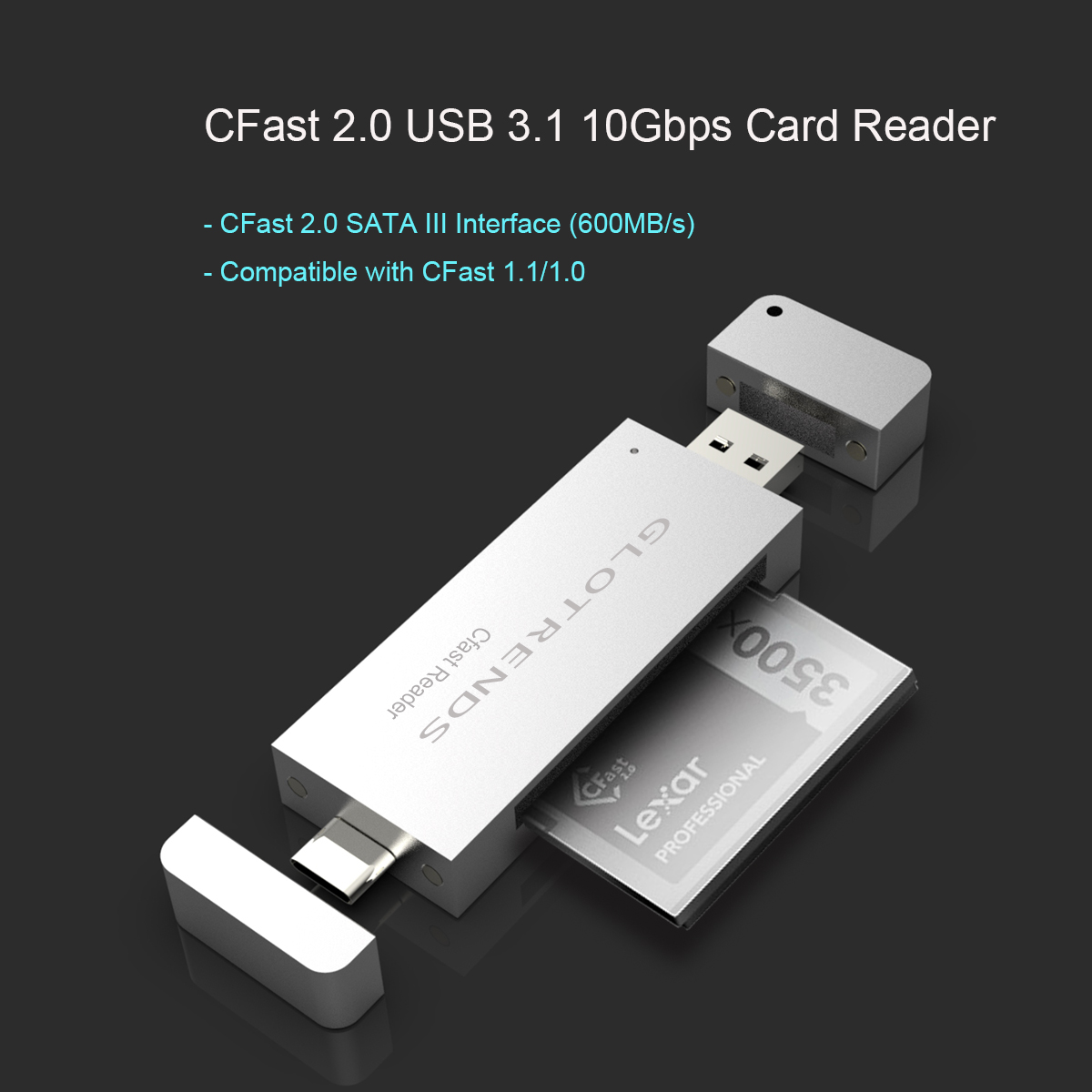

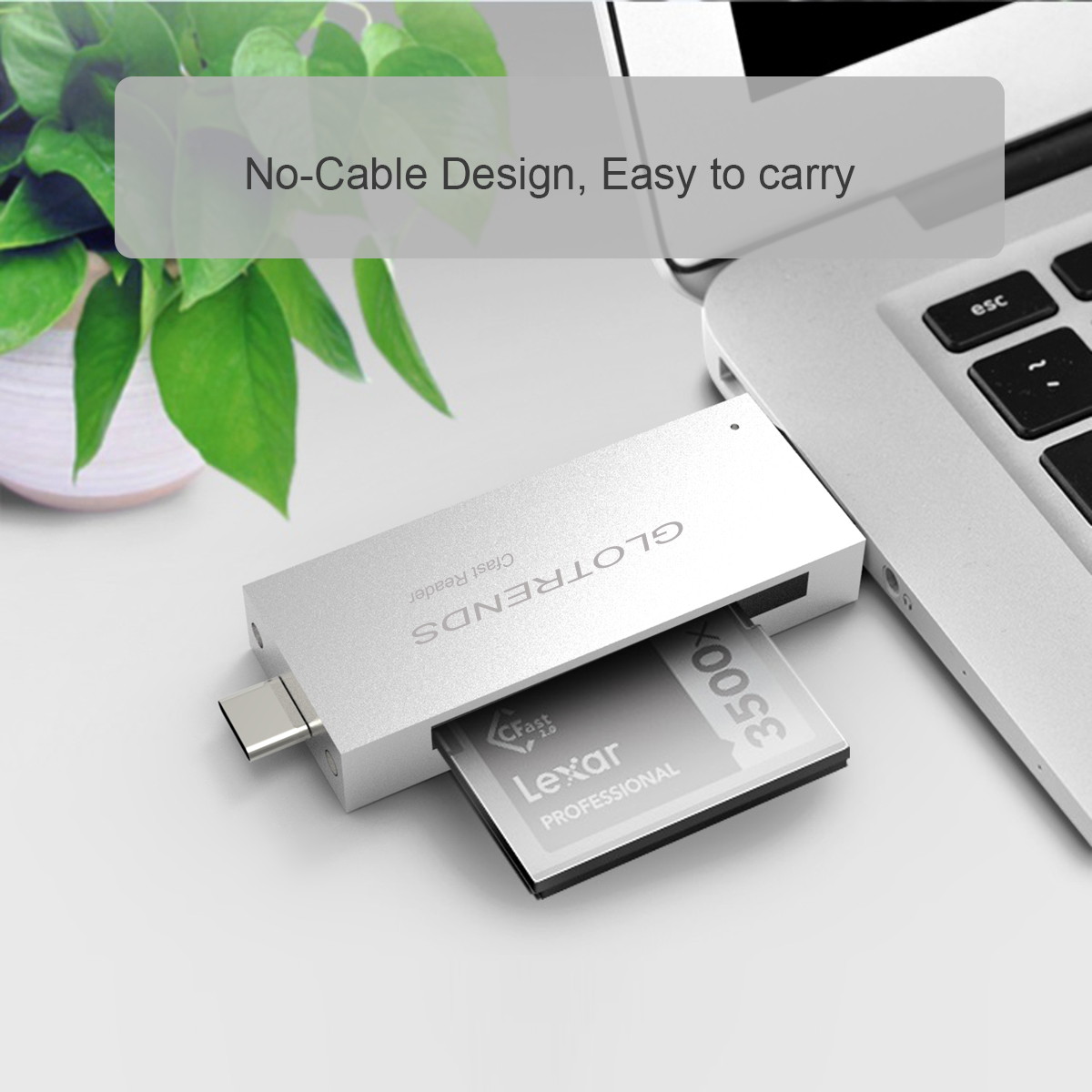

GLOTRENDS CFast Reader 2.0 10Gbps Chip with USB C and USB A Port, Full Aluminum Case Silver Color
CFast Reader with USB-A and USB-C
Supports CFast 2.0 memory card data transfer. Read and write high-resolution photos, full HD videos from your CFast card quickly and transfer speed reaches 600M/S. The combination of USB-A and USB-C is designed to allow one device to compatible with variety macbook pro, mac air, computer,laptop and other type-c devices simultaneously .
Portable CFase Reader
The aluminum alloy cover make the CFast reader durable. Palm-sized design, lightweight and carefully crafted to slide smoothly into any bag for greater portability and convenience.
CFast Card Reader
NOTE: This is a CFast Card Reader. Not a Compact Flash Card Reader.

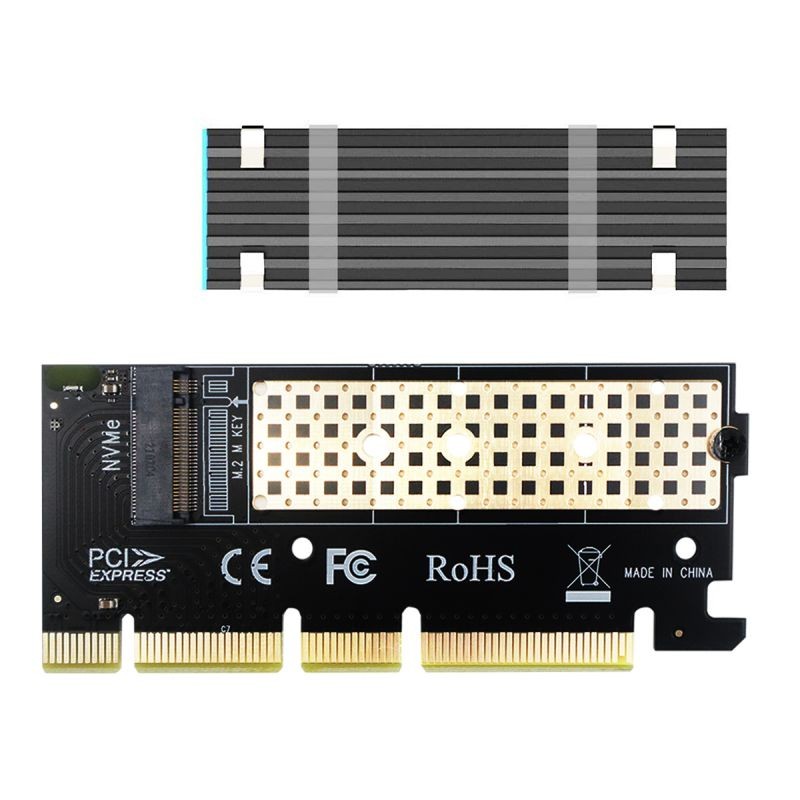

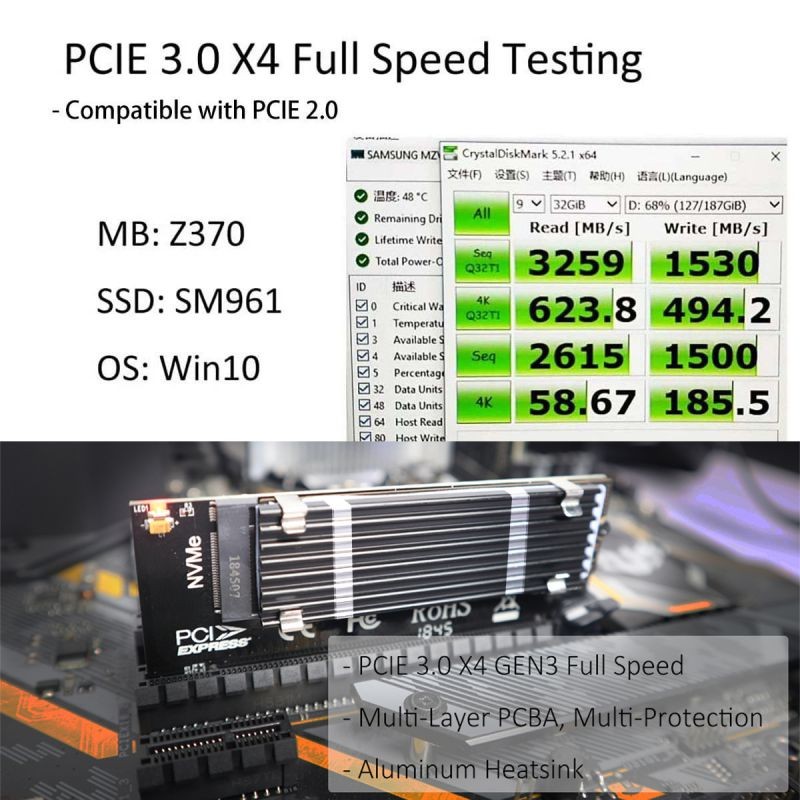

GLOTRENDS M.2 PCIE Adapter with M.2 Heatsink for PC/2U High Server, PCIE GEN3 Full Speed
Technical Specifications
1) Supports M. 2 PCIE NVME/AHCI SSD (Key-M), Compliant with PCIE GEN3.
2) PCIE 3.0 X4 full speed support.
3) PCI Express 3.0 x4 lane host/drvie adapter.

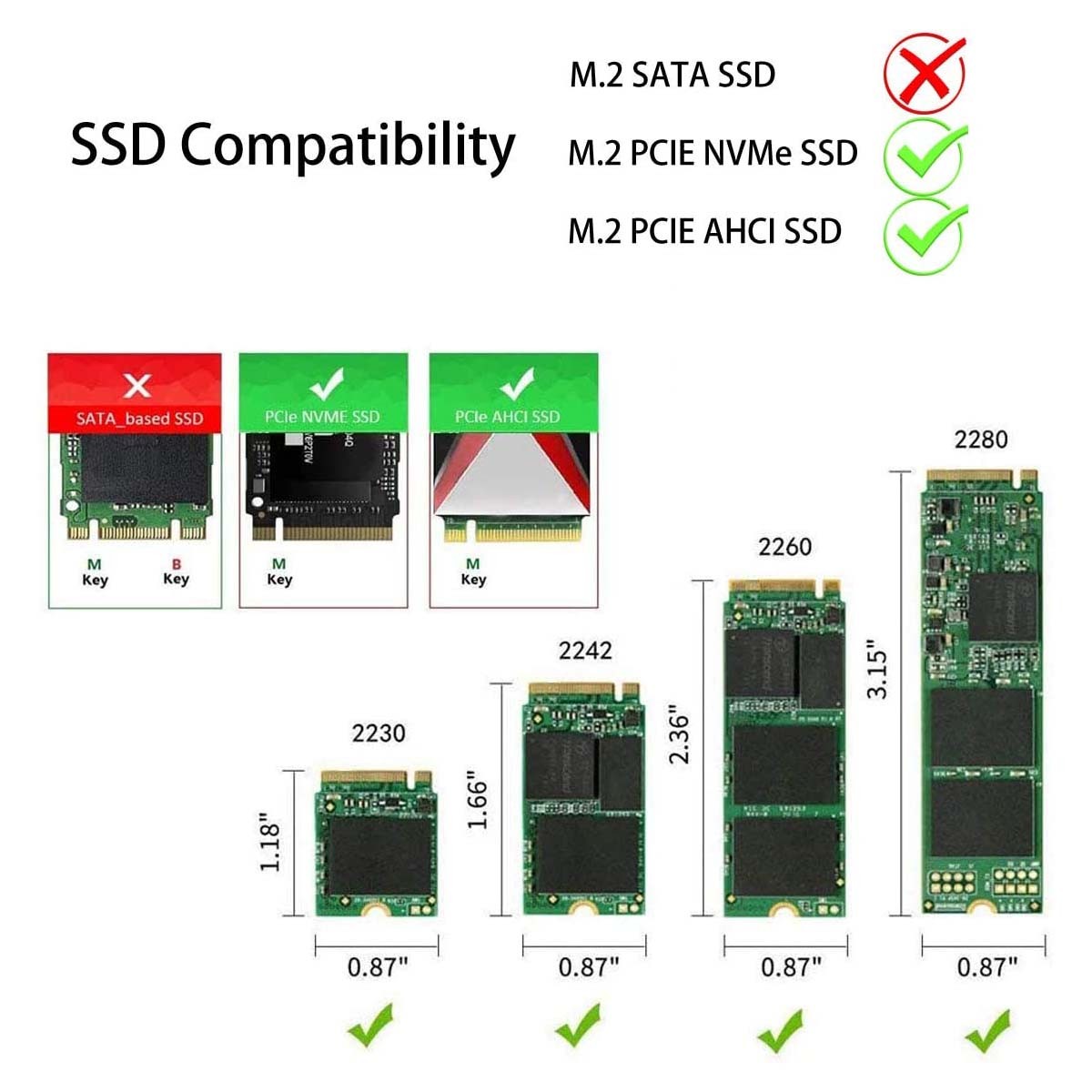

4) Supports PCIe Gen3 and PCIe Gen2 M. 2 NGFF 80mm, 60mm, 42mm, 30mm SSD.
5) M. 2 NGFF type 2280-D5-M connector on board.
6) Supports PCIe 1.0, PCIe 2.0 and PCIe 3.0 motherboard.
7) Supports dual-sided SSD module 1.5 mm component height on the top and bottom side.
8) LED indicates power and data transfer status.
9) Supports any OS like Windows, Mac and Linux.
10)Supports industrial operating temperature range: -40 - 85 oC.
11) M. 2 PCIe SSD power from PCIe bus slot 3.3V.
Compatibility with all kinds of M. 2 PCIe NVMe/AHCI SSD (Incomplete List)
1) Support Samsung 950Pro/ 960Evo/ PM951/ PM961/ SM951/ SM961/970 EVO /970 PRO and other M. 2 SSDs with PCI-E (M-KEY) Interface Type.
2) Support Intel Optane SSD 800P Series, Intel SSD 760p Series, Intel SSD 660p Series, Intel SSD 600p Series

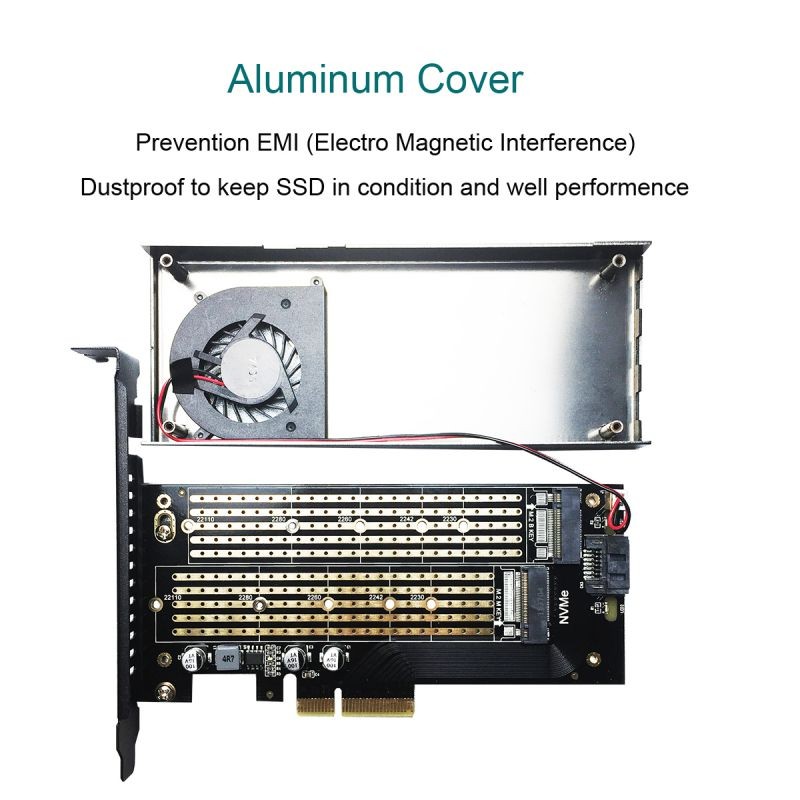

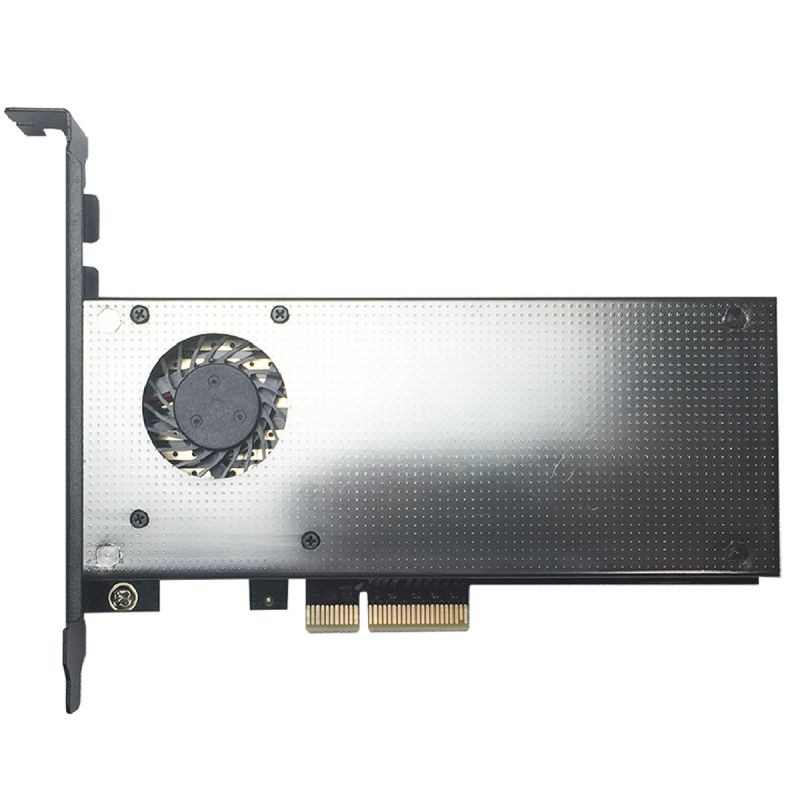

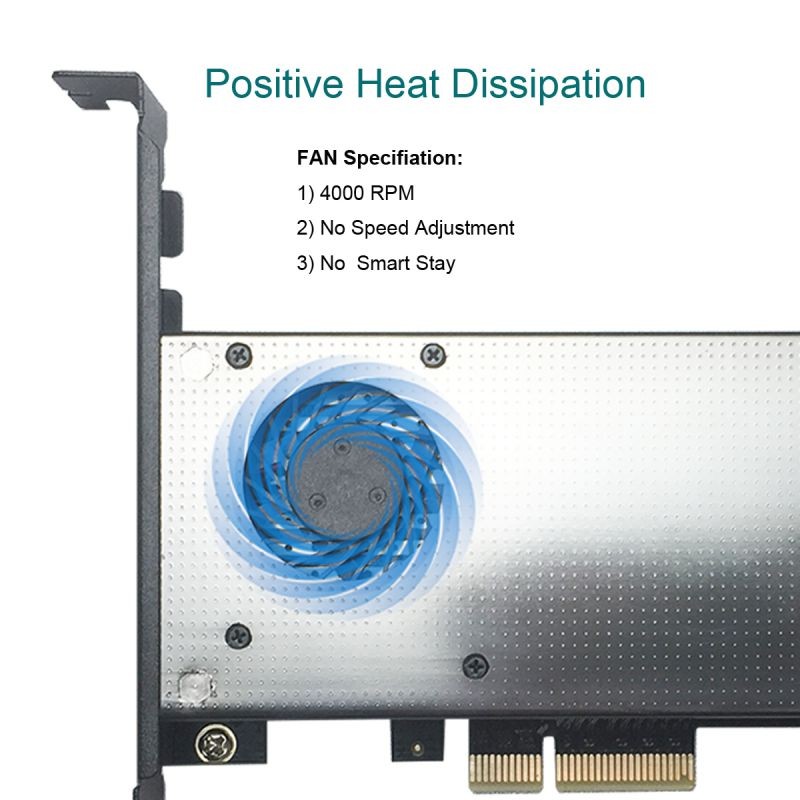

GLOTRENDS 2 in 1 M.2 PCIE Adapter and M.2 NGFF SATA Adapter, EMI Protection Cover with Fan
2 in 1 M.2 Adapter Card
1) Supports M.2 PCIE NVME/AHCI SSD (Key-M), PCIE 3.0 X4 full speed support.
2) Supports M.2 SATA SSD (Key-B / B+M), SATA III 6 Gbps bandwidth
3) EMI Protrection Cover with Built-in FAN

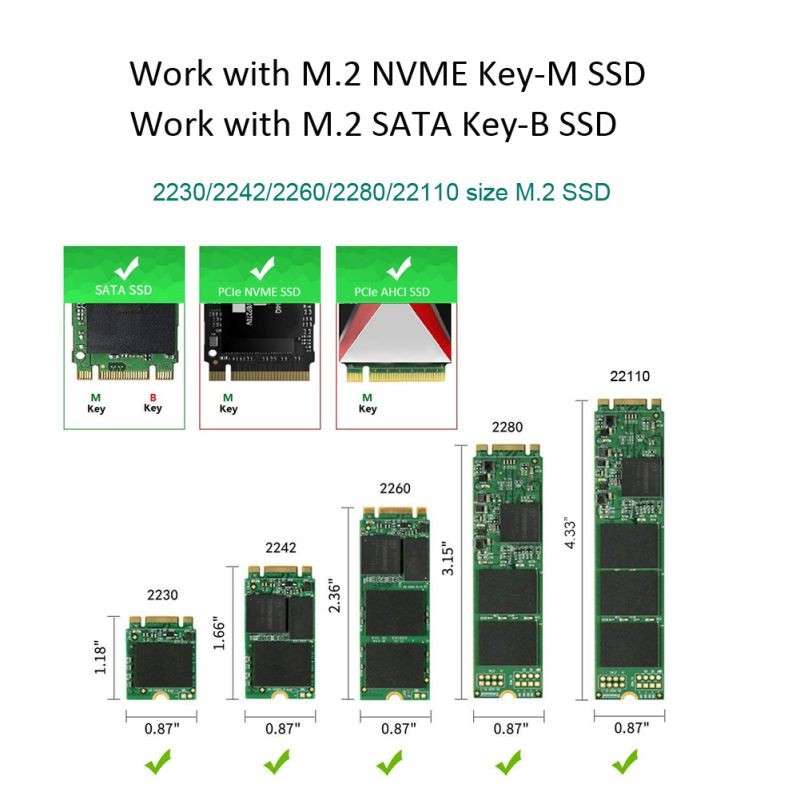

4) Apply to 22110/2280/2260/2242/2230mm M.2 SSD
5) LED Indicator for SSD states

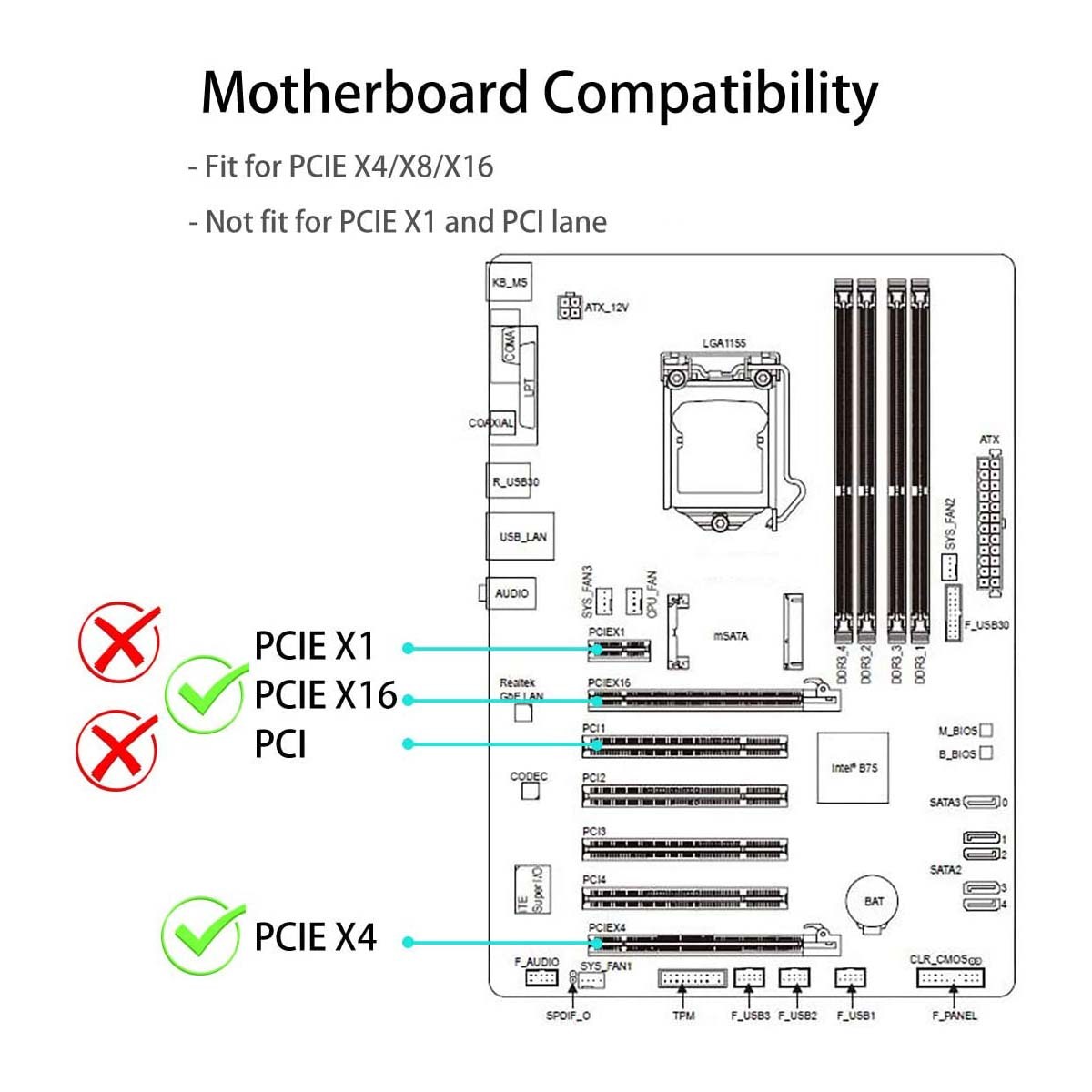

6) PCIE 3.0 X4/X8/X16 lane installation
7) Supports PCIe 1.0, PCIe 2.0 and PCIe 3.0 motherboard
8) Supports any OS like Windows, Mac and Linux.
9) Operating temperature range: -40 - 85 oC.

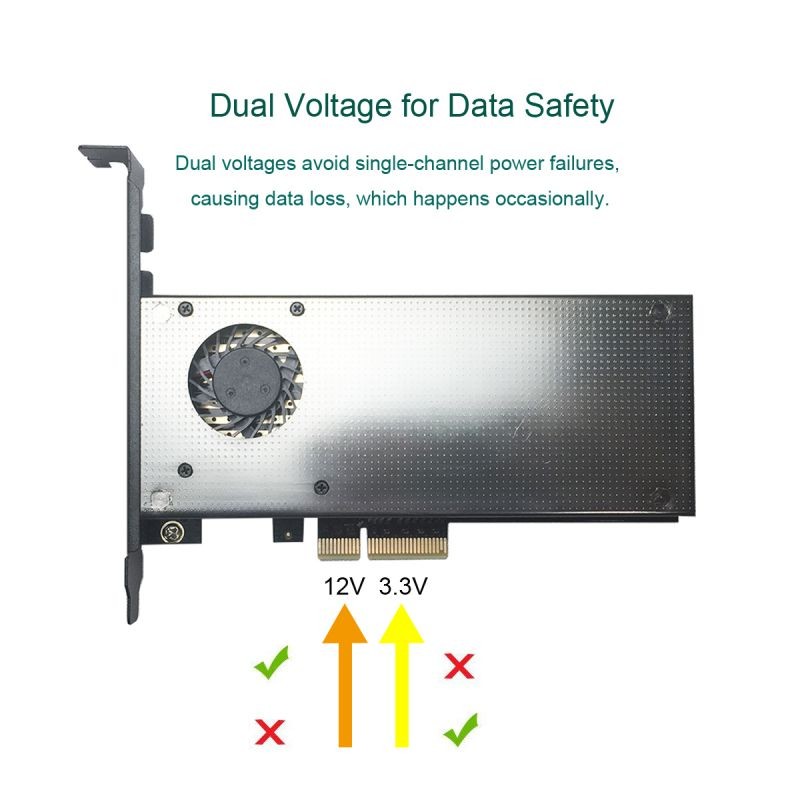

10) PCIE power supply: 3.3V
Note:
To avoid the influence of EMI (Electro Magnetic Interference) , keep your M.2 SSD in good condition and well performance in long term,full aluminum cover is necessary
SATA Channel and PCIE Channel

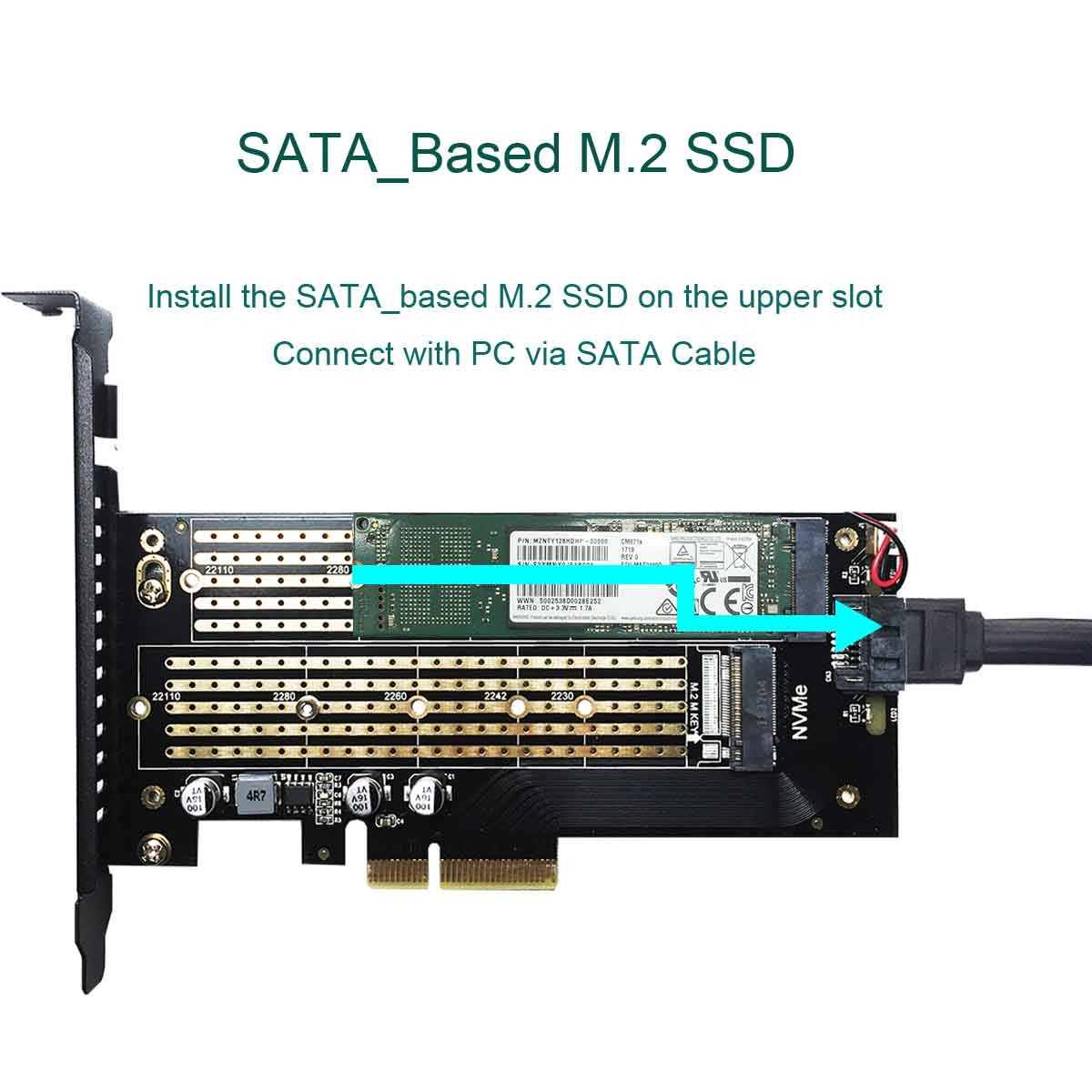

1) (Blue Color) Upper slot for SATA M.2 to SATA III (6Gbps), need to connect with PC via SATA cable
Support M.2 SATA SSD (Incomplete List) :
Samsung 860 EVO/850 EVO/Crucial MX500/Crucial MX300/WD Blue 3D NAND, etc.

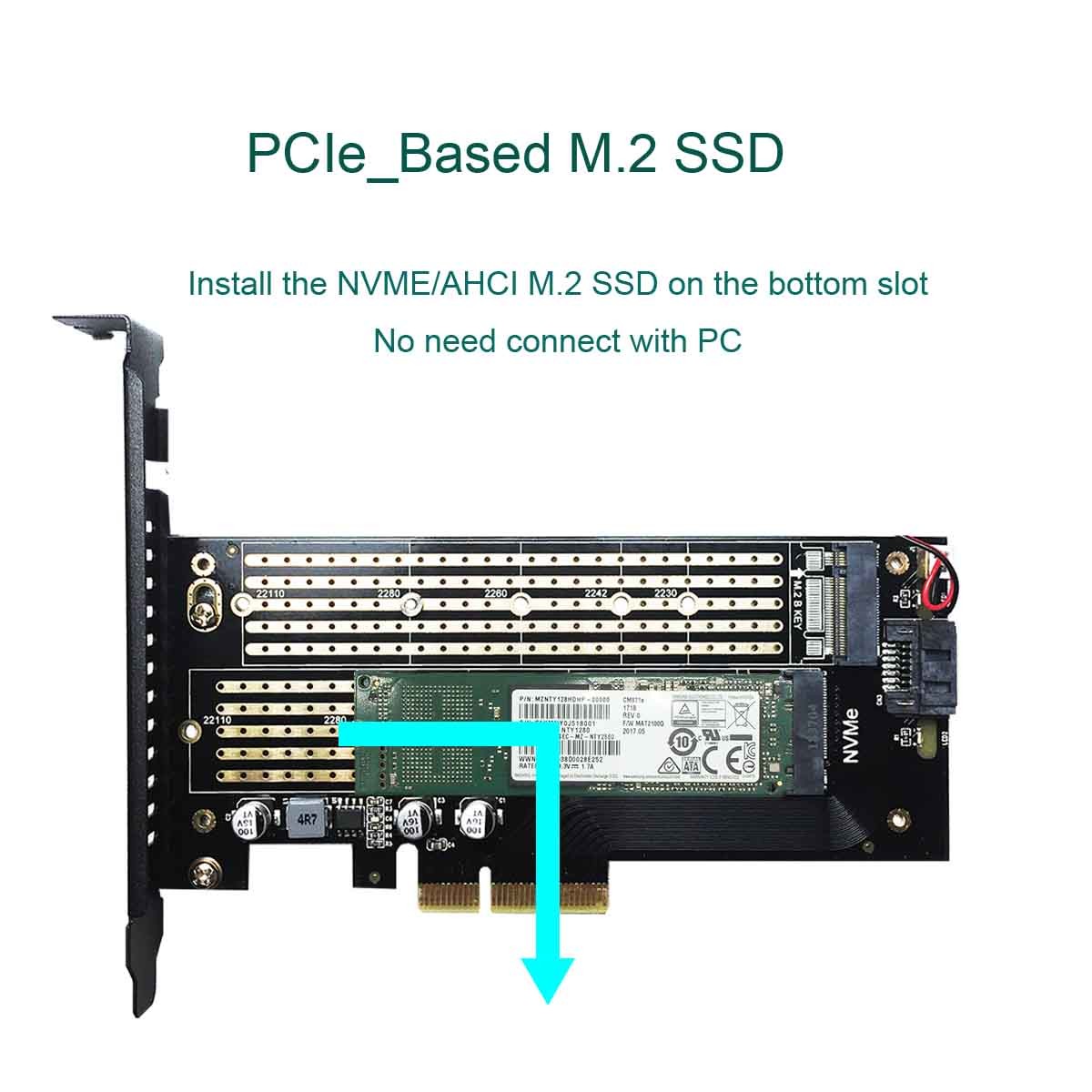

2) (Green Color) Bottom slot for NVME M.2 to PCIE 3.0x4 (32Gbps), no need SATA cable
Support 22x80 size PCIe NVMe/AHCI SSD (Incomplete List) :
Samsung 950Pro/ 960Evo/ PM951/ PM961/ SM951/ SM961/970 EVO /970 PRO and other M.2 SSDs with PCI-E (M-KEY) Interface Type.
Intel Optane SSD 800P Series, Intel SSD 760p Series, Intel SSD 660p Series, Intel SSD 600p Series
Support 22x110 size M.2 PCIE SSD(Partial list):
Samsung PM963, 983 DCT, Intel Optane 905P, etc.

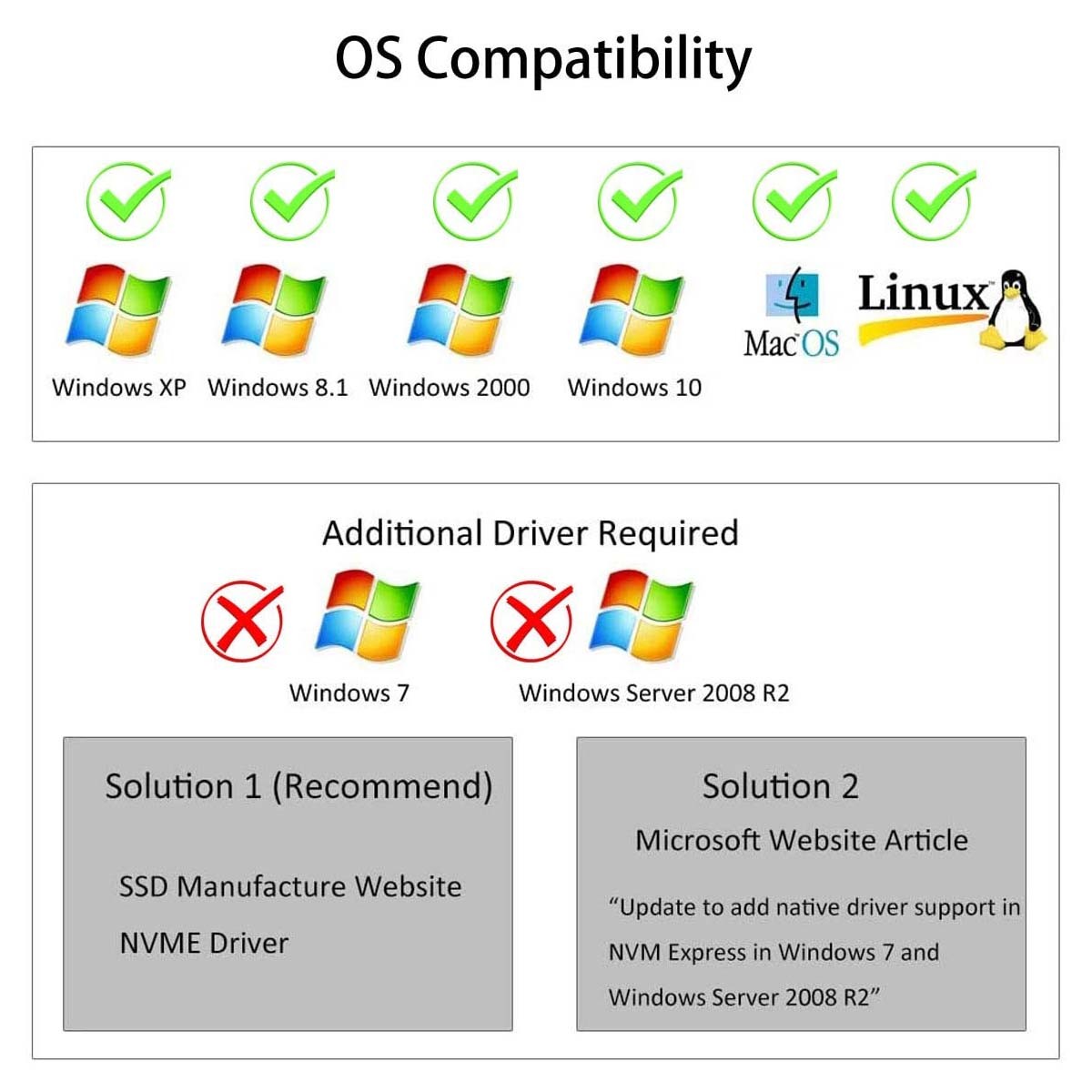

Compatibility and Technical Support
1) GLOTRENDS NVMe adapter card is apply to all kinds of M.2 NVMe/AHCI SSD, and transparent to the operating system and no driver required.
2) Supports any OS like Windows, Mac and Linux.
3) Go to NVMe SSD manufacture website for driver installation if your PC can not recognize M.2 NVMe SSD.
4) Attention should be paid to win7 and Windows Server 2008 R2, which need addtional driver installation for NVMe SSD.

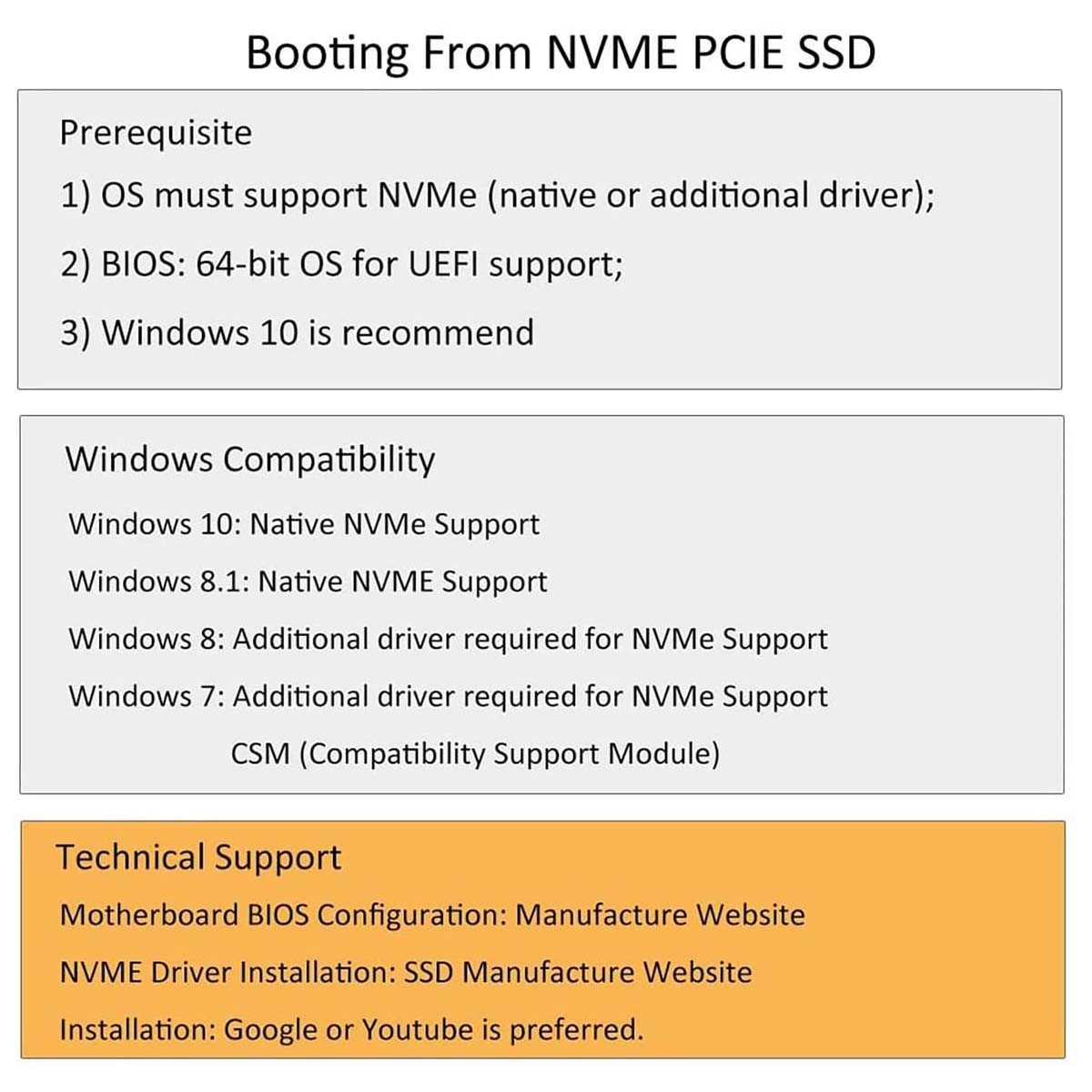

5) OS booting from NVMe SSD is a little complicated, Win10 is recommend.

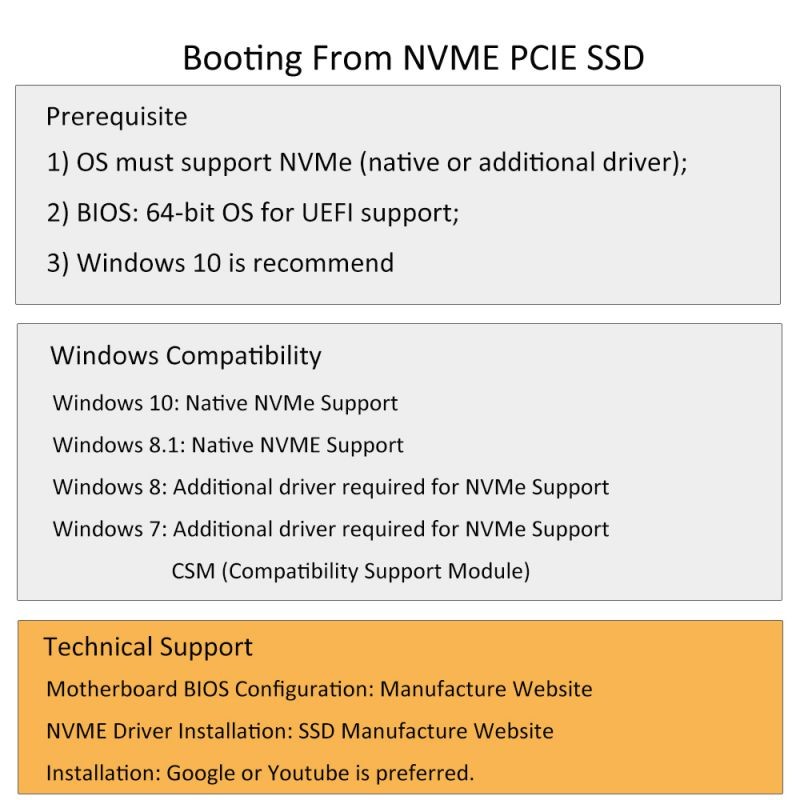

Prerequisites include:
1) OS support NVMe (Native or additional driver);
2) 64-bit OS for UEFI support. Consult motherboard manufacture for installation steps.

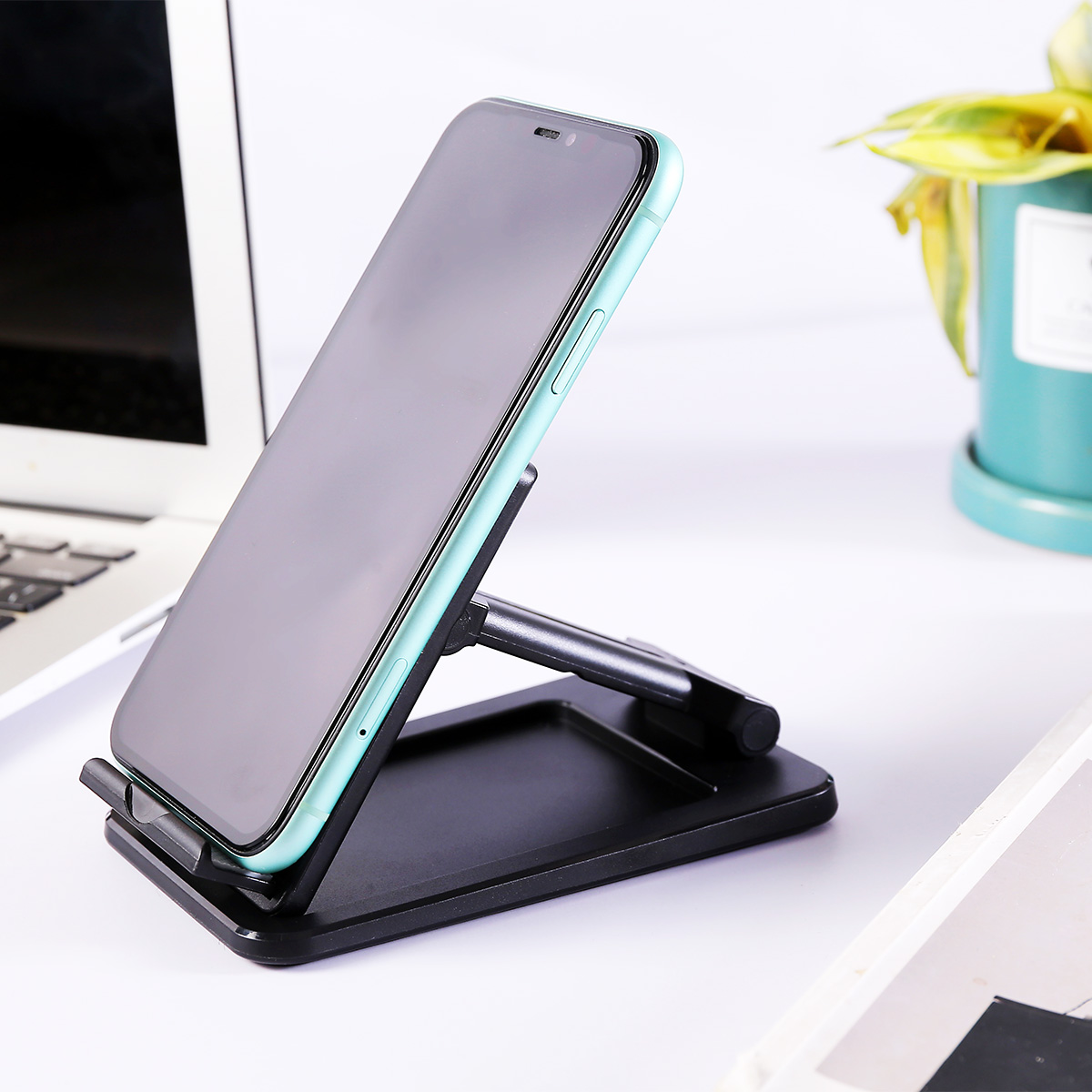

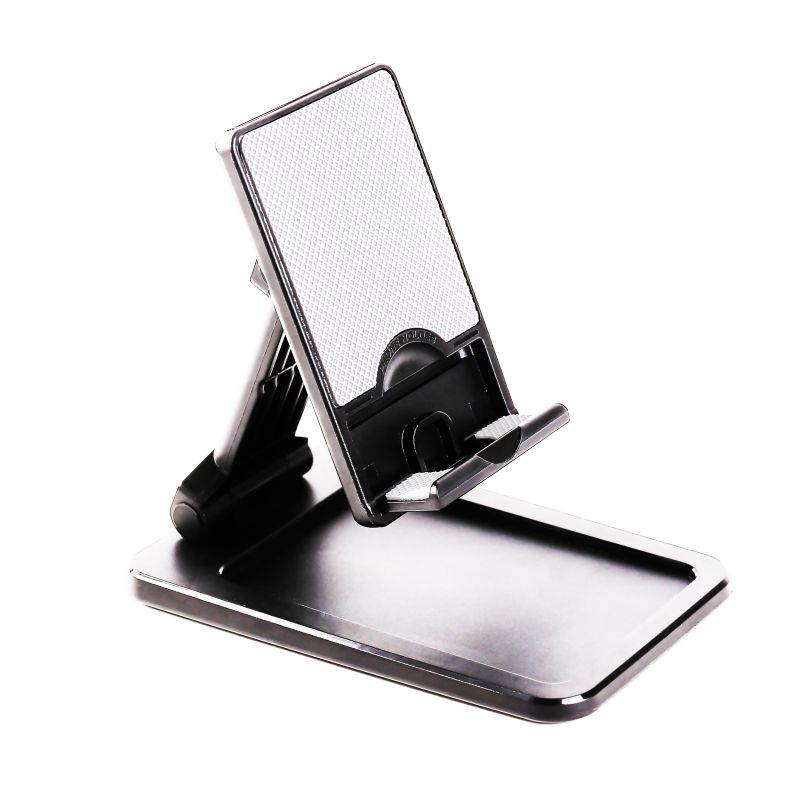

GLOTRENDS Cell Phone Stand Fully Foldable Angle Adjustable Phone Holder Stand for Desk, Compatiable with Smartphones/iPhone/iPad/Tablets/Kindle
1) Angle Adjustable: This phone stand holder for desk is base on ergonomic design, the angles can be adjusted to provide you comfortable viewing angle, which helps to fix your posture and reduce neck & back strain.It's ideal for watching video, reading and studying, playing games, making video phone calls and video conferences ,etc.
2) Universal compatibility: This fully foldable cell phone holder is compatible with all 4-12.9 inches smart phones and Tablets.such as for iPhone 11 Pro Xs Xs Max Xr X 8 7 6 Plus, Switch, iPad (iPad Pro 7.9-12.9 iPad Air Pro mini), Samsung Galaxy S20/S10/S10+/S9 /S9+/S8 /S8+, Samsung Tab, Google Nexus, Kindle,Huawei ,LG and so on.
3) Non-slip and Stable:This desktop cell phone stand equipped with a non-slip base (7.5x12cm area), it's stable enough to support your mobile phone or even iPad, The contact surface between the device and the bracket is designed with silicone anti-skid pad, it is maximum protect your device from scratches and sliding.
4) User-friendly design: A humanized charging port is reserved, the phone stand holder allows you play your device while charging, and the depth of groove fits exactly with the phone and does not block the screen,You can freely use it to watch movies or chat with family and friends.
5) Fully Foldable Phone Holder,Easy to carry : ABS plastic materials and compact size (0.22 lb weight), this portable cell phone tablet stand is easy to fold, you can collect and storage easily to take anywhere , a perfect companion for travel, home ,business trip and office,also an good ideal choice for presents.

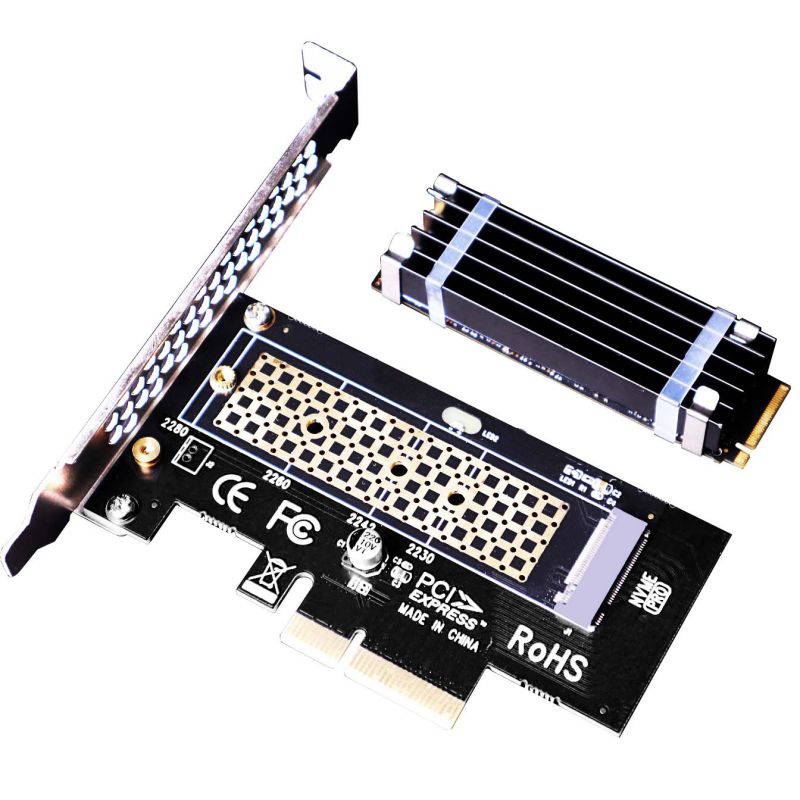

GLOTRENDS M.2 PCIe 4.0 Adapter with 10mm Thick M.2 Heatsink for M.2 PCIe SSD (NVMe and AHCI), PCI-E GEN4 Full Speed, Desktop PC Installation
Technical Specifications:
1) Supports M.2 PCIE (NVME/AHCI) SSD (Key-M)
2) PCIE 4.0 X4 full speed support, backward compatible with PCIe 3.0/2.0
3) PCIE X4/X8/X16 lane installation
4) 2280/2260/2242/2230 form factor
5) FCC certification.
6) No driver required for Windows 10/8, Windows Server 2012 R2?Linux, Fedora, SUSE, Ubuntu, Red Hat
7) Supports industrial operating temperature range: -40 - 85 oC.
8) M.2 PCIe SSD power from PCIe bus slot 3.3V.

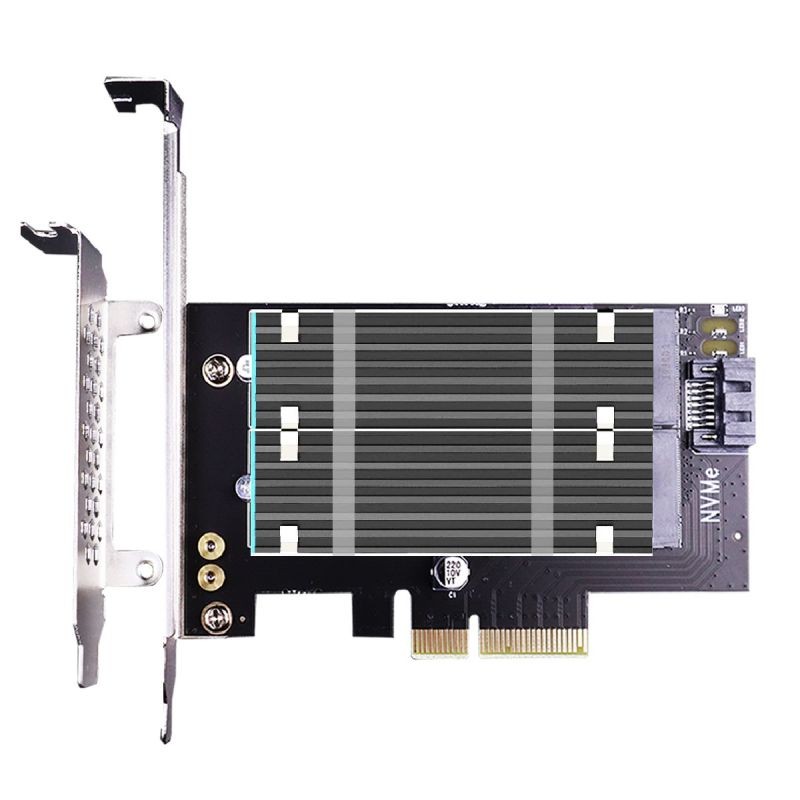

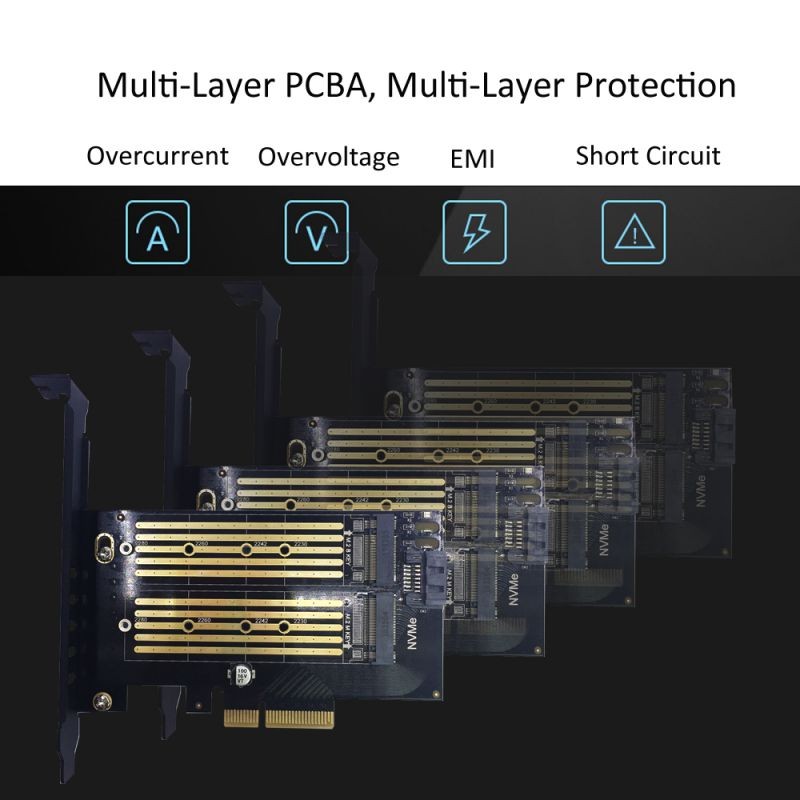

GLOTRENDS 2 in 1 M.2 PCIE 4.0 Adapter Add-on Card with M.2 Heatsink for M.2 PCIE (NVME/AHCI) SSD and M.2 SATA SSD (PA12-HS)
2 in 1 M.2 Adapter Card
1) Supports M.2 PCIE NVME/AHCI SSD (Key-M)
2) Supports M.2 SATA M.2 SSD (Key-B / B+M)
3) 2 sets of M.2 Heatsink
Features:
1) Apply to 2280/2260/2242/2230mm M.2 SSD
2) PCIE X4/X8/X16 lane installation
3) PCIE 4.0 X4 full speed support, backward compatible with PCIe 3.0/2.0
4) No driver required for Windows 10/8, Windows Server 2012 R2, Linux, Fedora, SUSE, Ubuntu, Red Hat
5) Operating temperature range: -40 - 85 oC.
6) PCIE power supply: 3.3V

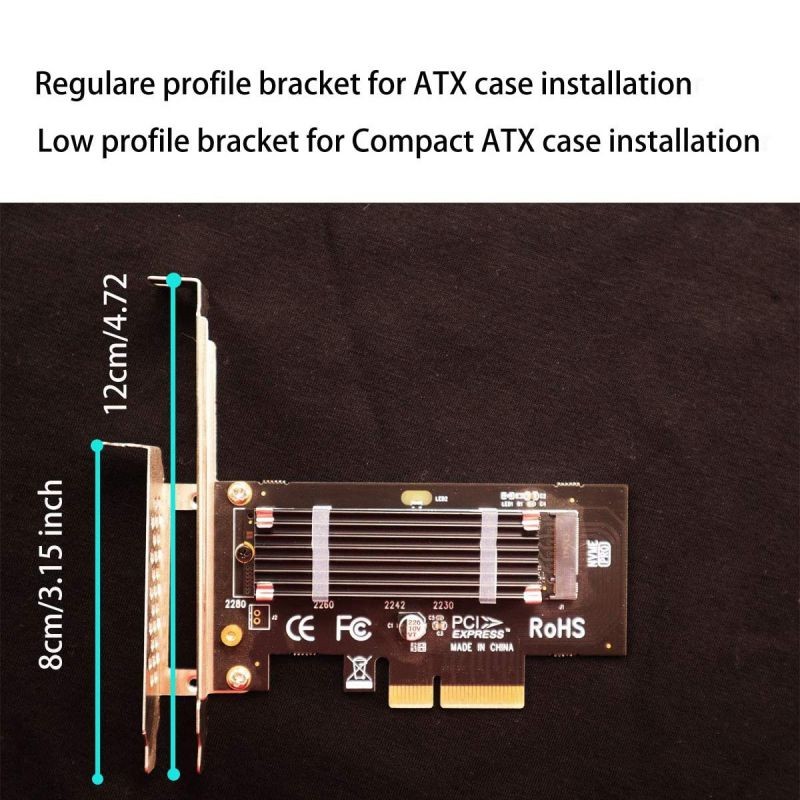

7) Full profile bracket
8) Low-profile bracket

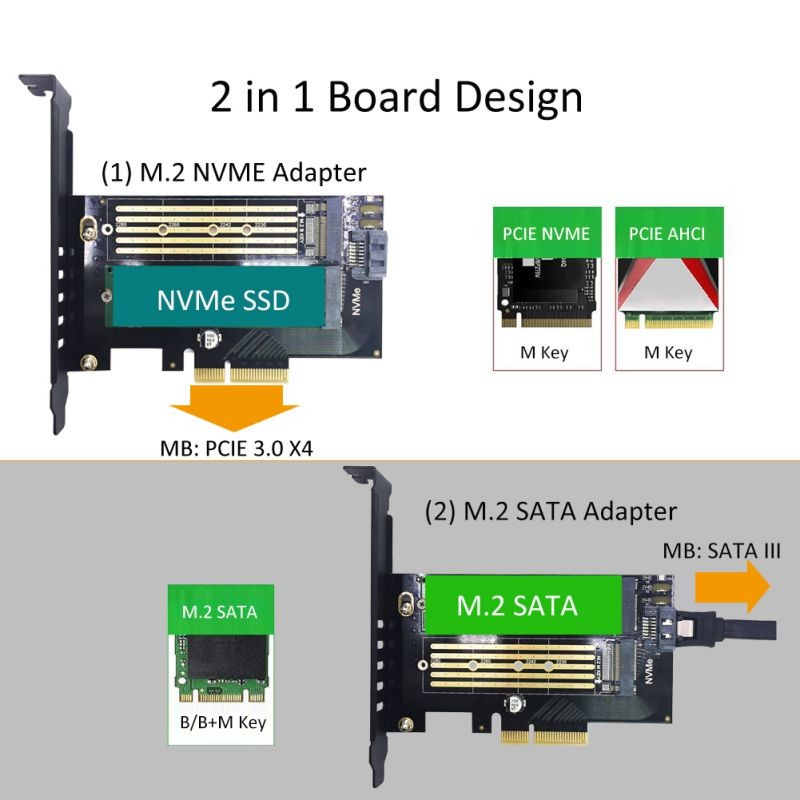

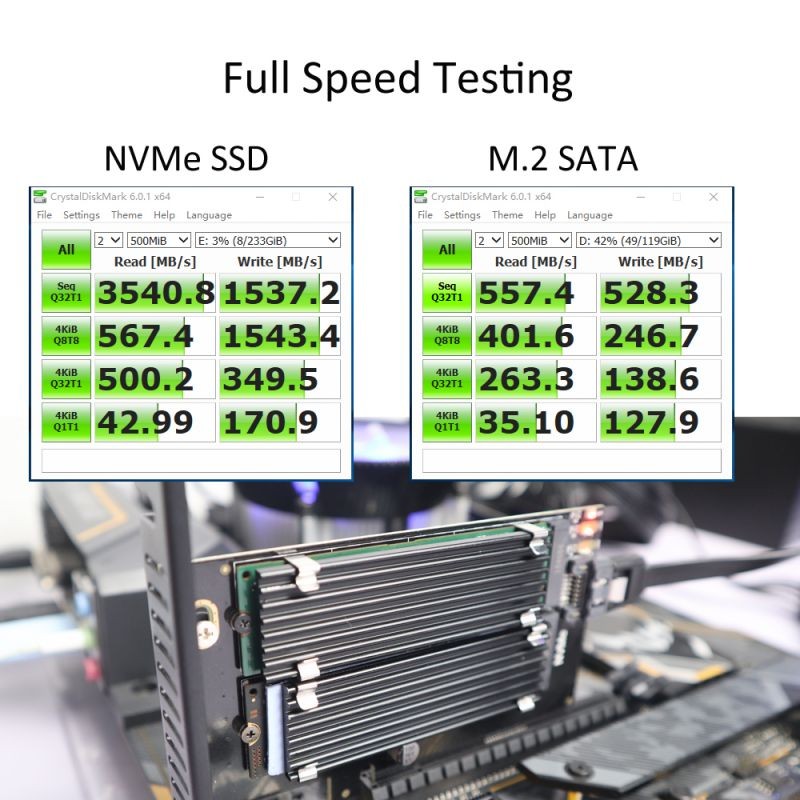

SATA Channel and PCIE Channel
1) (Blue Color) Upper slot for M.2 SATA SSD to SATA III (6Gbps), need to connect with PC via SATA cable
Support M.2 SATA SSD (Incomplete List) :
Samsung 860 EVO/850 EVO/Crucial MX500/Crucial MX300/WD Blue 3D NAND, etc.
2) (Green Color) Bottom slot for M.2 PCIE SSD to PCIE X4
Support 22x80 size PCIe NVMe/AHCI SSD (Incomplete List) :
1) Samsung 950Pro/ 960Evo/ PM951/ PM961/ SM951/ SM961/970 EVO /970 PRO and other M.2 SSDs with PCI-E (M-KEY) Interface Type.
2) Intel Optane SSD 800P Series, Intel SSD 760p Series, Intel SSD 660p Series, Intel SSD 600p Series
3) Any other M.2 PCIe SSD (Key-M)

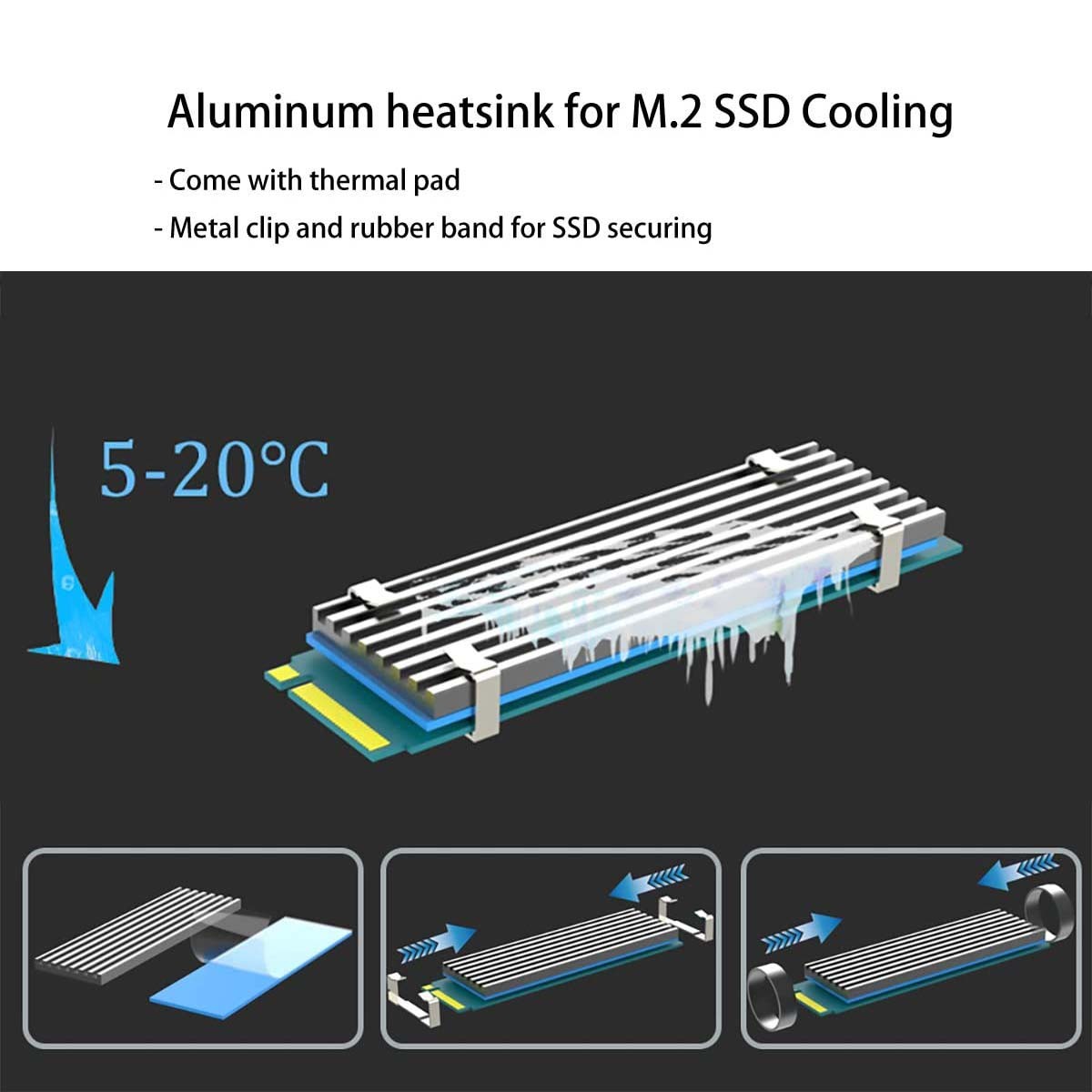

Universal 2280 Aluminum Heatsink for NVME SSD:
GLOTRENDS passive heat dissipation solution full covering 2280 NVMe SSD(Aluminum Heatsink and Thermal Silica Pad) with 5°C- 15°C Cooling Effect (Varies depending on the environment). Economical and practical cooling methods keep NVMe SSD at 50c level even long time loads, No more worry about sudden throttle.
1) Aluminum body, Anodic Oxidation Surface Treatment
2) Groove Design: Greatly Increase the Heat Dissipation Area, with 5°C- 20°C Cooling Effect (Varies depending on the environment).
3) Item Size: 22 x 70 x 3mm, Net Weight: 8g.
4) Heat-conducting Silica Gel Pad (Thickness: 1mm).
5) 2 optional fixing ways: Stainless Mental Clamps (Durable and no deformation even long term condition) and high-temperature Rubber Bands (height adjustable for different height M.2 SSD, but maybe aging if used for a long time, even break)
6) Low Viscosity, Easy to Remove
To be noted:
1) Please remove the transparent protective films of Silica Gel Pad before using otherwise it will reduce the heat conduction effect;
2) Silica Gel Pad is Low Viscosity, will not cause damage to SSD.

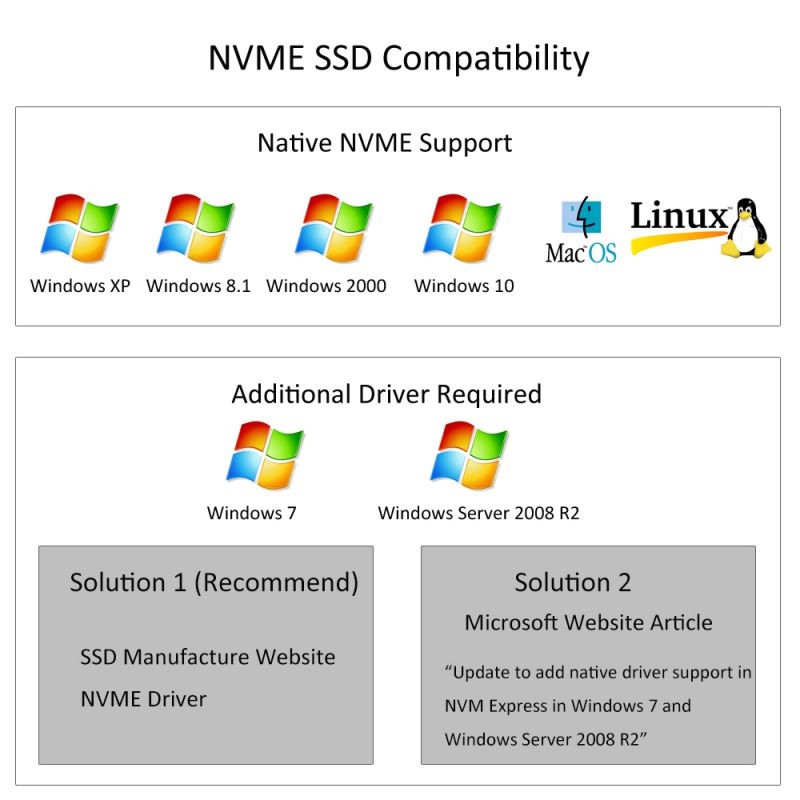

Compatibility and Technical Support
1) GLOTRENDS M.2 PCIe adapter add-on card is applied to all kinds of M.2 NVMe/AHCI SSD, and transparent to the operating system and no driver required.
2) No driver required for Windows 10/8, Windows Server 2012 R2, Linux, Fedora, SUSE, Ubuntu, Red Hat.
3) Go to the NVMe SSD manufacture website for driver installation if your PC can not recognize M.2 NVMe SSD.
4) Attention should be paid to win7 and Windows Server 2008 R2, which need additional driver installation for NVMe SSD.
5) OS booting from NVMe SSD is a little complicated, Win10 is recommended.

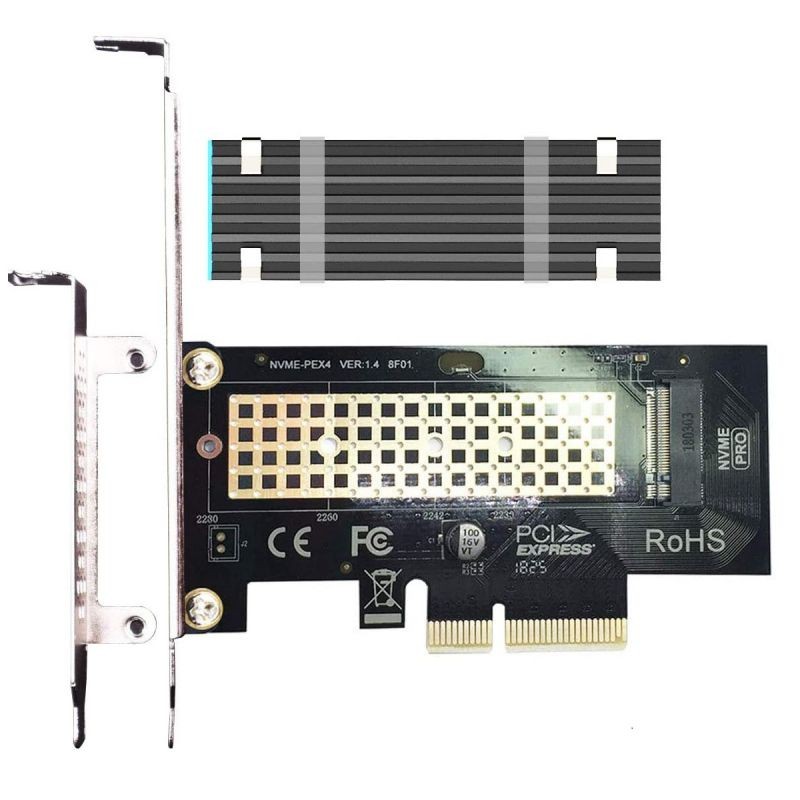

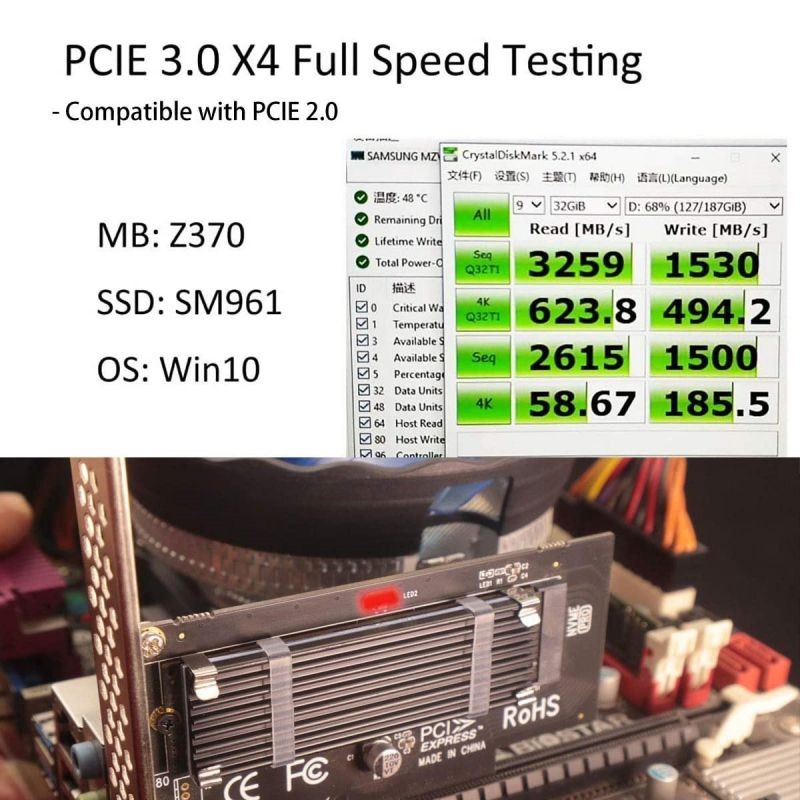

GLOTRENDS M.2 PCIe 4.0 Adapter with 3mm Thick M.2 Heatsink for M.2 PCIe SSD (NVMe and AHCI), PCI-E GEN4 Full Speed, Desktop PC Installation
Technical Specifications:
1) Supports M.2 PCIE (NVME/AHCI) SSD (Key-M)
2) PCIE 4.0 X4 full speed support, backward compatible with PCIe 3.0/2.0

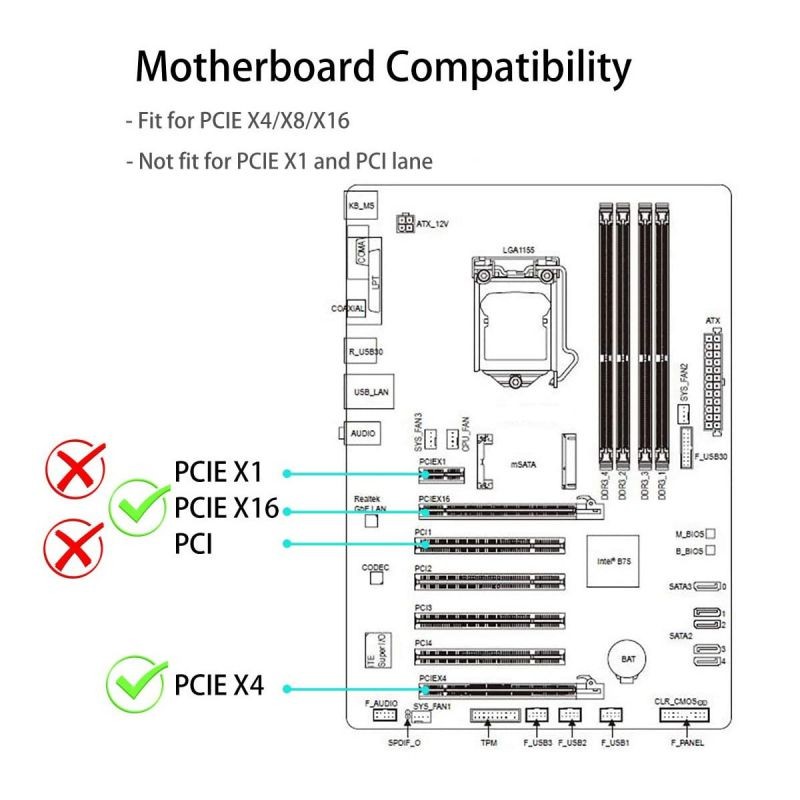

3) PCIE X4/X8/X16 lane installation

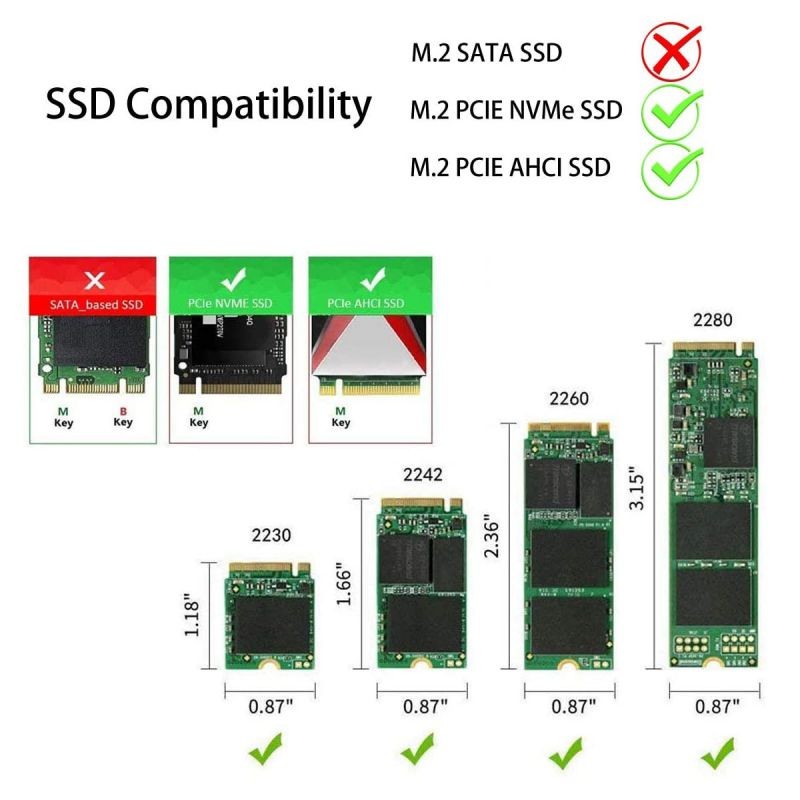

4) 2280/2260/2242/2230 form factor
5) FCC certification.
6) No driver required for Windows 10/8?Windows Server 2012 R2?Linux?Fedora?SUSE?Ubuntu?Red Hat
7) Supports industrial operating temperature range: -40 - 85 oC.
8) M.2 PCIe SSD power from PCIe bus slot 3.3V.
Compatibility with all kinds of M. 2 PCIe NVMe/AHCI SSD (Incomplete List)
Compatible with Samsung 980 Pro/970 EVO/950Pro/960EVO/XP941/PM951/PM961/SM951/SM961, Seagate Firecuda 520 series, Intel Optane SSD 800P Series, Intel SSD 760p Series, Intel SSD 660p Series, Intel SSD 600p Series, Plextor M6e Series, Sabrent Rocket NVMe 4.0, WD_BLACK SN850, Kingston HyperX Predator M.2 SSD, and so on.

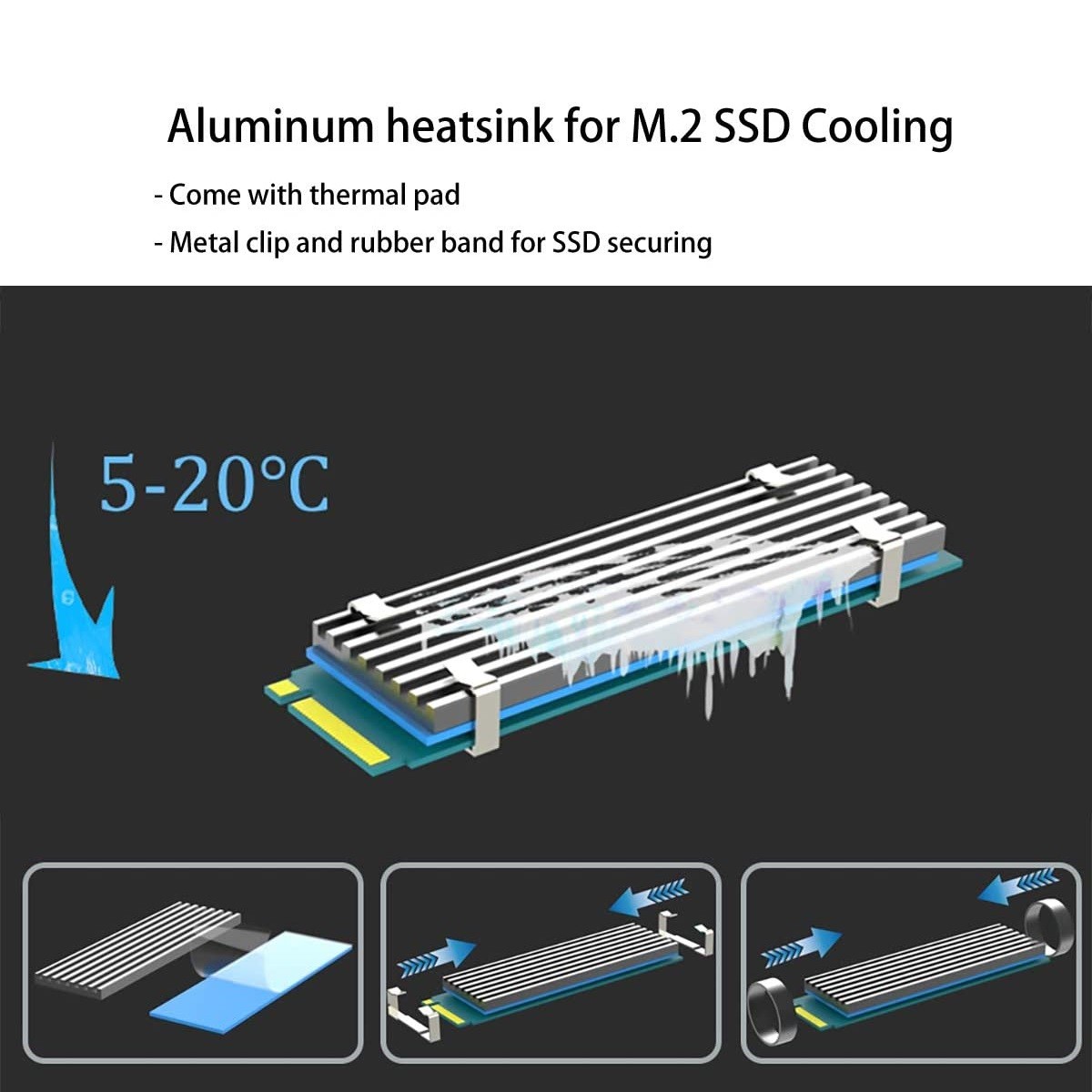

Full Covering 2280 Aluminum Heatsink for M.2 PCIe SSD:
1) GLOTRENDS passive heat dissipation solution full covering 2280 NVMe SSD (Aluminum Heatsink and Thermal Silica Pad) with 5°C- 15°C Cooling Effect (Varies depending on the environment). Economical and practical cooling methods keep NVMe SSD at 50c level even long time loads, No more worry about sudden throttle.
2) Aluminum body, Anodic Oxidation Surface Treatment
3)Groove Design: Greatly Increase the Heat Dissipation Area, with 5°C- 20°C Cooling Effect (Varies depending on the environment).
4) Item Size: 0.87 x 2.76 x 0.12 in. (22 x 70 x 3mm) Net Weight: 0.28 oz / 8g.
5)Heat-conducting Silica Gel Pad (Thickness: 1mm).
6) 2 optional fixing ways: Stainless Mental Clamps (Durable and no deformation even long term condition) and high-temperature Rubber Bands (height adjustable for different height M. 2 SSD, but maybe aging if used for a long time, even break)
7) Low Viscosity, Easy to Remove
To be noted:
1) Please remove the transparent protective films of Silica Gel Pad before using otherwise it will reduce the heat conduction effect;
2) Silica Gel Pad is Low Viscosity, will not cause damage to SSD.

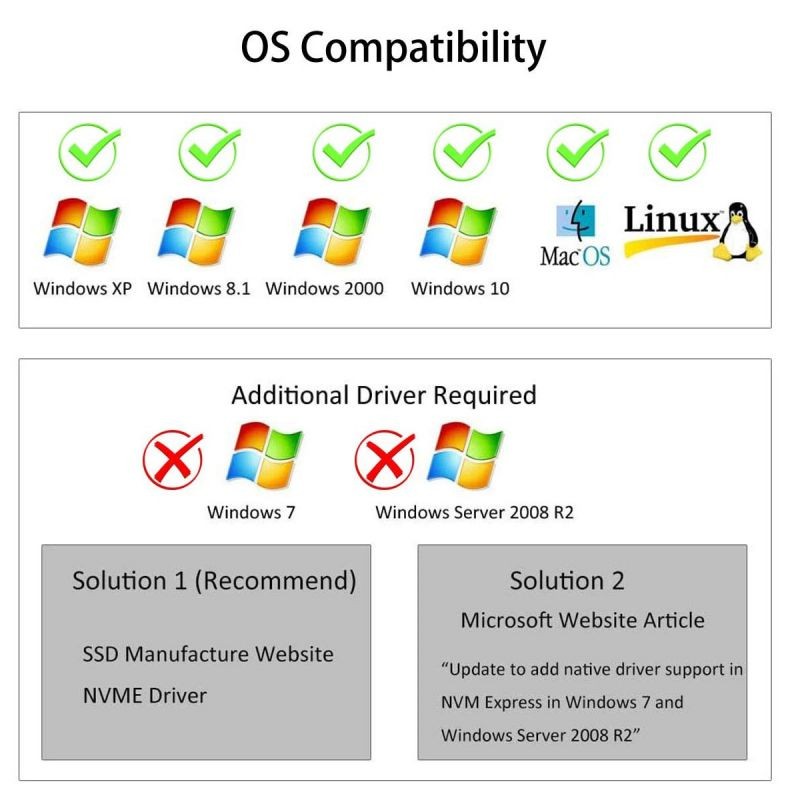

Compatibility and Technical Support
1) GLOTRENDS M.2 PCIe adapter card is applied to all kinds of M.2 NVMe/AHCI SSD, and transparent to the operating system and no driver required.
2) No driver required for Windows 10/8?Windows Server 2012 R2?Linux?Fedora?SUSE?Ubuntu?Red Hat.
3) Go to NVMe SSD manufacture website for driver installation if your PC can not recognize M.2 NVMe SSD.
4) Attention should be paid to win7 and Windows Server 2008 R2, which need additional driver installation for NVMe SSD.
5) OS booting from NVMe SSD is a little complicated, Win10 recommends.
Prerequisites include:
1) OS support NVMe (Native or additional driver);
2) 64-bit OS for UEFI support. Consult motherboard manufac
