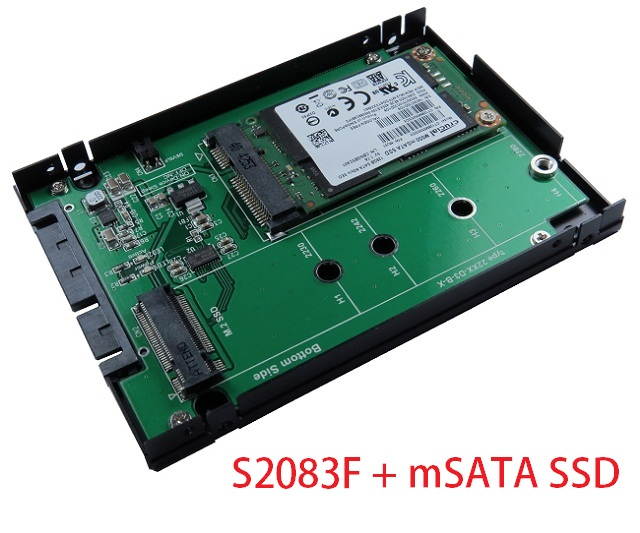

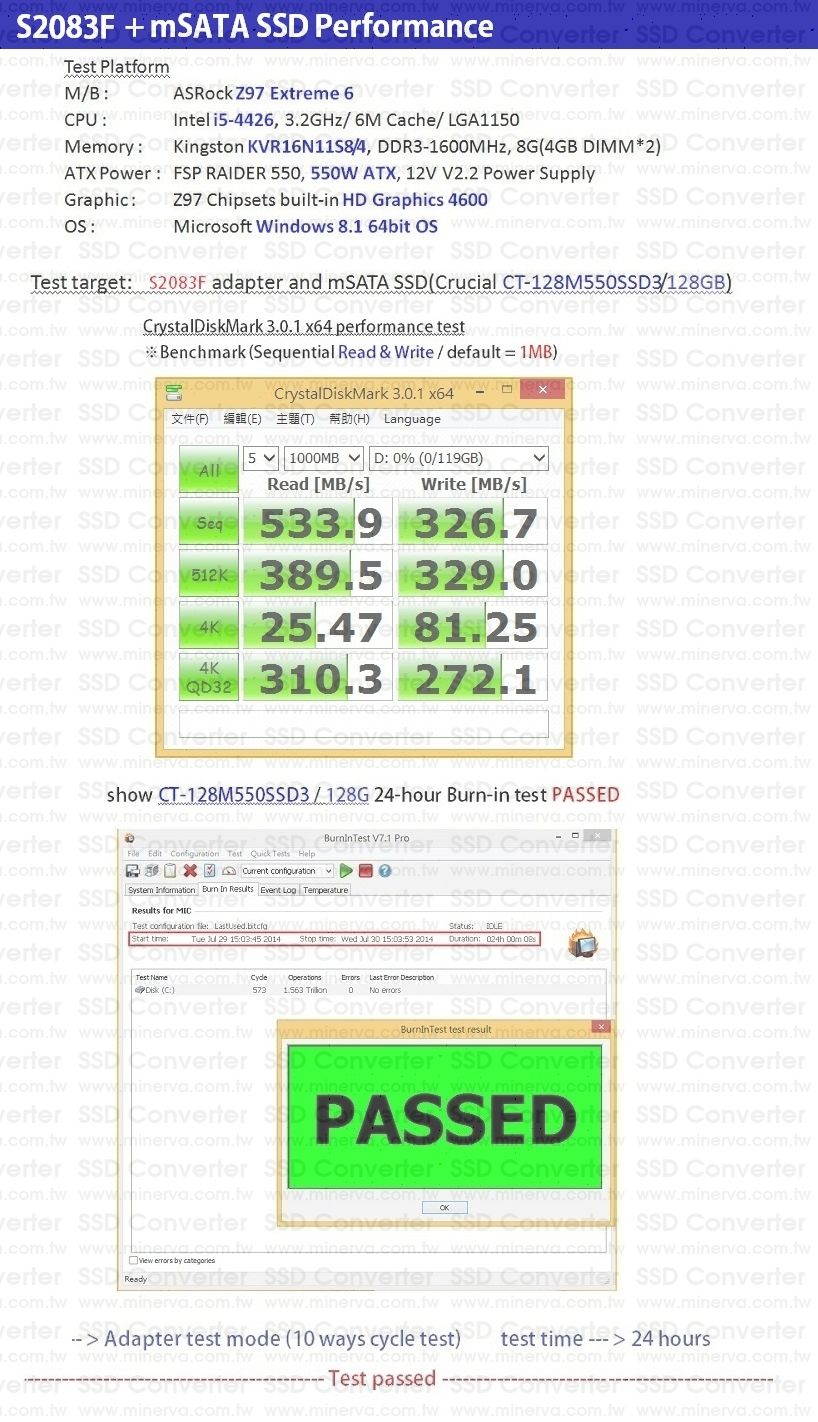

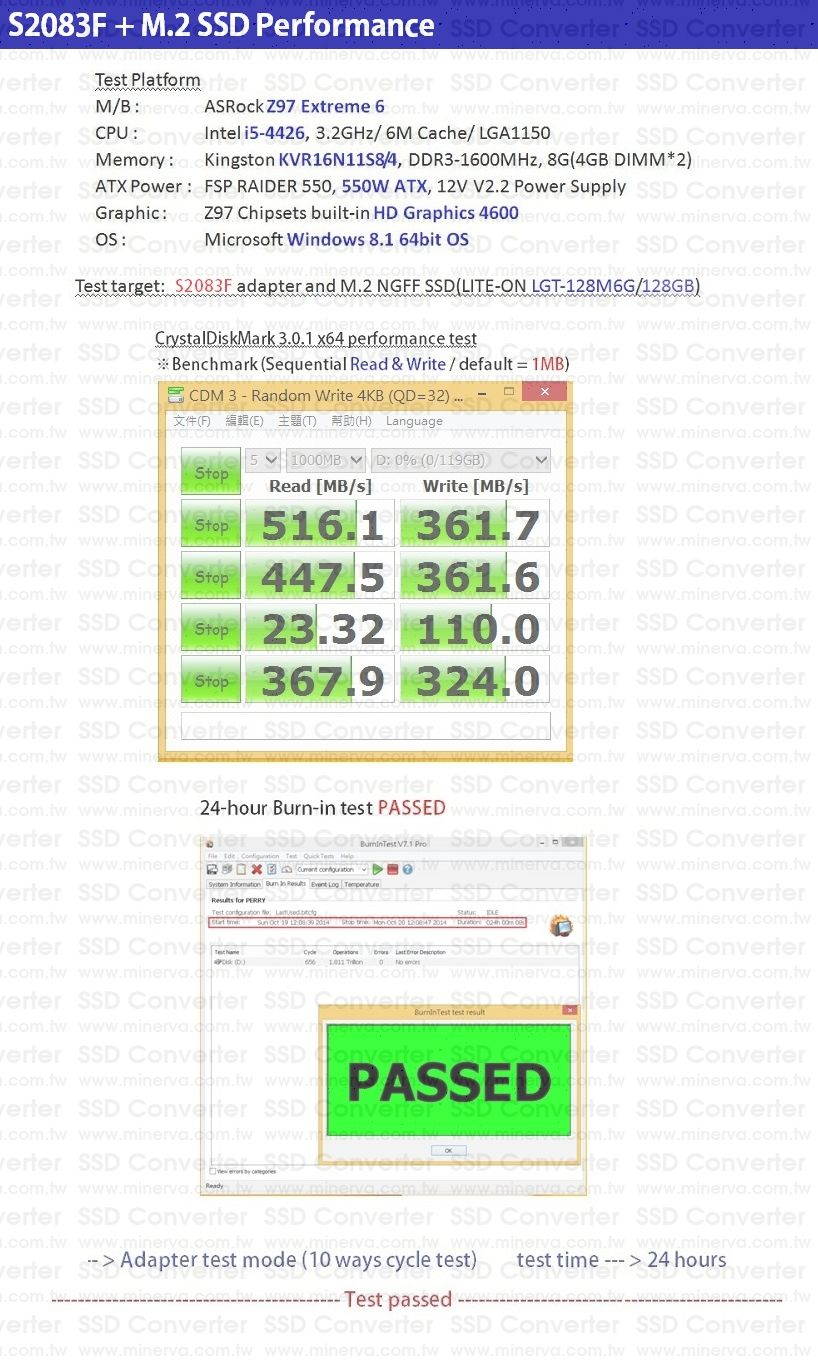

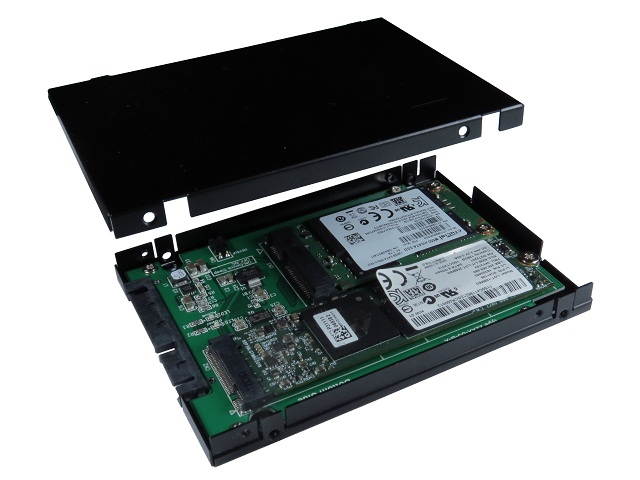

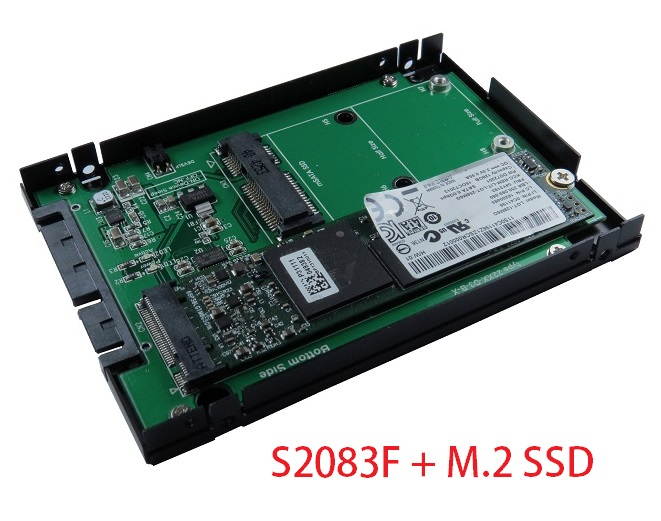

Innocard SATA III to M.2 & mSATA SSD Adapter with 2.5" Aluminum Housing
2.5" SATA SSD Form Factor: 98 x 65.5 mm M. 2 (NGFF) & mSATA to SATA III Module Build in Mini PCI-e 52pin Female connector Build in M. 2 (NGFF) B key Female connector Support SATA Rev. 3.2 DEVSLP function Green LED indicates power status Red LED indicates active status Insert both M. 2 & mSATA SSD on S2083F, M. 2 SSD is the first priority. mSATA won't work. Support SATA Reversion 3.2 PCI Express M. 2 Spec. Revision 0.7, Version 1.0 PCI Express Mini Card Electromechanical Spec. 1.2 Support SFF-8201 for Form Factor of 2.5" Disk Drives PWM synchronous buck converter Power IC 3A maximum output current Short circuit protection In-rush current suppression Thermal shutdown protection ESD HBM (Human Body Mode) /2KV? The item doesn't include SSD.
Innocard
Innocard SATA III to M.2 & mSATA SSD Adapter with 2.5" Aluminum Housing
Innocard USB 3.1 to M.2 SSD Enclosure+ type-A for Gen 2, 10Gbps
Build in ASM1351 USB3.1high performance processor Build in M.2 NGFF Female connector PWM synchronous buck converter Power IC 3A maximum output current Short circuit protection In-rush current suppression Thermal shutdown protection ESD HBM (Human Body Mode)/2KV D1 Green LED on indicates SSD Power ready D2 Red LED Blinking indicates SSD active status Support M.2 SSD Form Factor : 2242 / 2260 / 2280
Innocard
Innocard USB 3.1 to M.2 SSD Enclosure+ type-A  for Gen 2, 10Gbps
Innocard SATA III Dual ports to mSATA SSD x2 Adapter with 3.5" Frame Bracket
SATA III / 6Gbps Dual ports to mSATA SSD x2 Adapter with 3.5 inch Frame Bracket AD963DE9 is SATA to mSATA adapter, providing a set of standard 7 +15 pin SATA connector, a set of 7pin SATA signal connector on the host connection, and two sets of Mini PCI-e 52pin connector on the mSATA connection. When assembled, the two mSATA SSD can operate independently and can install the operating system in the mSATA SSD, such as DOS, Windows 95, 98, XP, 2000, Vista,, Win 7, the Linux, Unix, etc. AD963DE9 adapter allows any of a group of the mSATA SSD as the system disk, boot the operating system directly, without having to install any drivers, but does not affect the execution speed of the SSD storage devices. http: //www. minerva. com. tw/AD963DE9. html The item doesn't include SSD.
Innocard
Innocard SATA III Dual ports to mSATA SSD x2 Adapter with 3.5" Frame Bracket

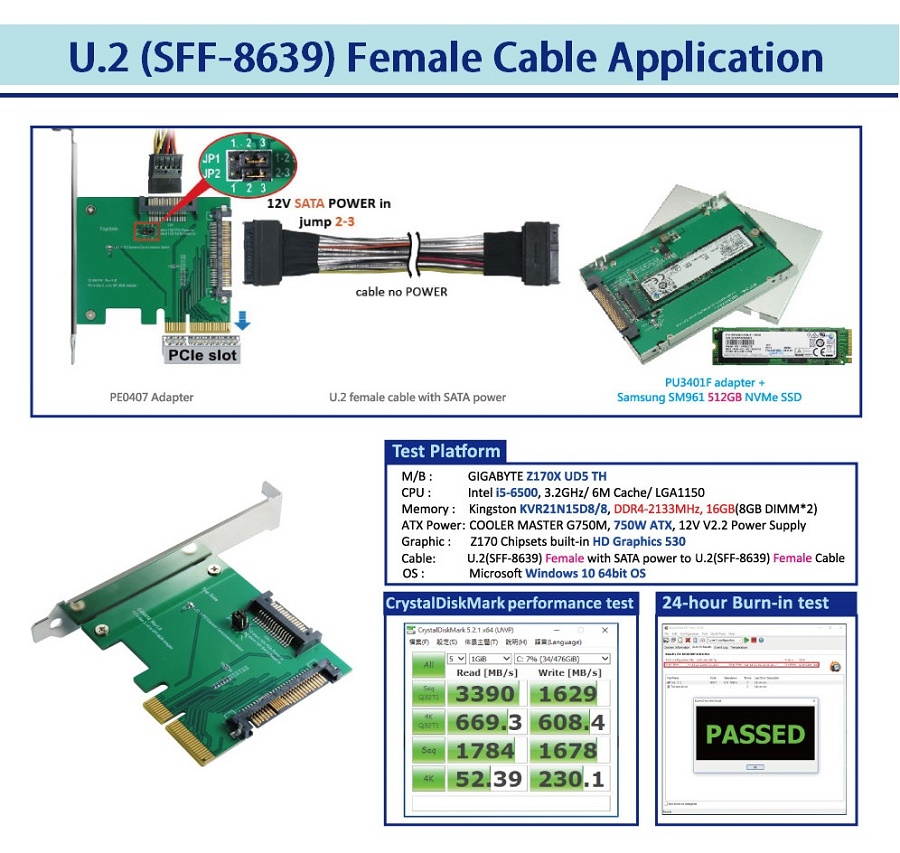

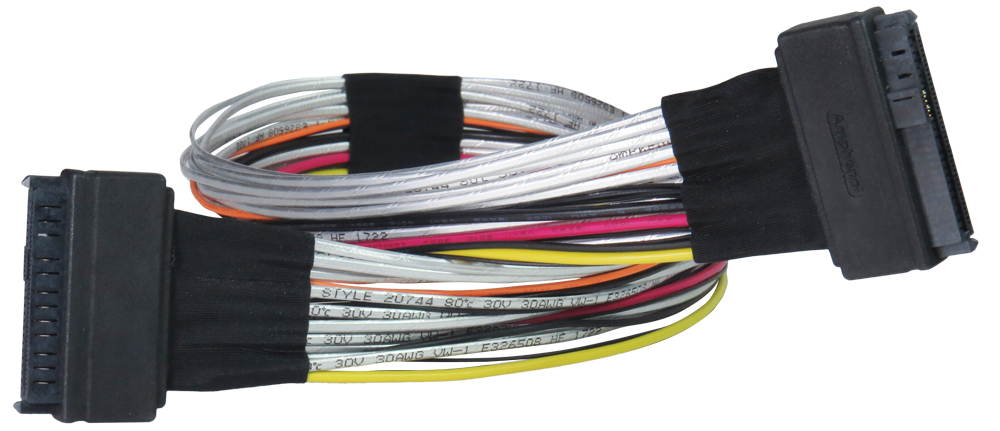

Innocard U.2 (SFF-8639) female to U.2 (SFF-8639) female Cable (50CM)
Part Number:RPC68-0035 AX1-00 Product Description: U.2 (SFF-8639) female to U.2 (SFF-8639) female Series: U.2 (SFF-8639) Cable Length: 50CM Wire Size: 30AWG, Tinned copper,OD: 0.9*2.3mm Lock to Mating Part: With Latch Plating: Au(30u" min) over Ni(100u" min) Color: Over mold Black Environmental Compliance: ROHS Flammability: Cable Horizontal flame,PCB 94V-0,PBT 94V-0
Innocard
Innocard U.2 (SFF-8639) female to U.2 (SFF-8639) female Cable (50CM)
Innocard SATA Express to mSATA SSD x2 Adapter with 2.5" Enclosure & SATA Express Cable
Build in SFF-8639 male connector Build in 2-port Mini PCI-e Female connector PWM synchronous buck converter Power IC 3A maximum output current Short circuit protection In-rush current suppression Thermal shutdown protection ESD HBM (Human Body Mode)/2KV D1, D4 Green LED on indicates SSD Power ready D2, D3 Red LED Blinking indicates SSD active status
Innocard
Innocard SATA Express to mSATA SSD x2 Adapter with 2.5" Enclosure & SATA Express Cable
Innocard SATA III to M.2 SSD x2 RAID Card with 2.5" Aluminum Housing
SATA III / 6Gpbs 7+15pin to M.2 SSD B-Key Dual ports RAID Card with 2.5 inch Aluminum Housing Standard 2.5", 9.5mm(H) Form Factor Support a SATA host & two M.2 NGFF SSD devices Built-in ASM1092R high performance processor RAID mode switch by hardware strapping or GUI controller RAID mode: RAID 0(fast) / RAID 1(safe) / JBOD(volume) 3-button Hardware switch to setup RAID mode Green LED indicate SATA 3 host active Red LED indicate M.2 NGFF SSD error Support SATA Reversion 3.2 Compliant with PCI Express M.2 Spec. Version 1.0 Support SFF-8201 for Form Factor of 2.5" Disk Drives PWM synchronous buck converter Power IC 3A maximum output current Short circuit protection In-rush current suppression Thermal shutdown protection ESD HBM (Human Body Mode)/2KV ? The item doesn't include SSD.
Innocard
Innocard SATA III to M.2 SSD x2 RAID Card with 2.5" Aluminum Housing

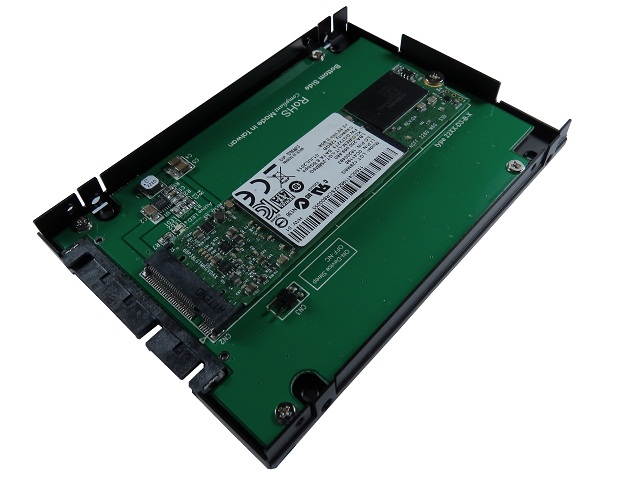

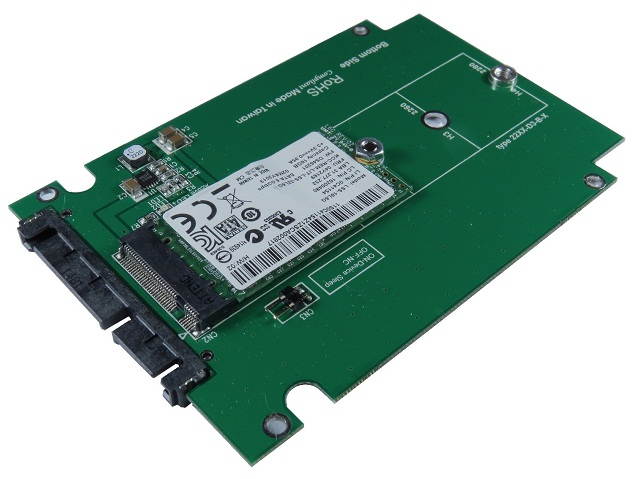

Innocard SATA III to M.2 B-key (SATA I/F) Adapter with 2.5" Aluminum Housing
SATA III / 6Gbps 7+15pin to M. 2 B-Key (SATA Interface) Adapter with 2.5 inch Aluminum Housing Standard 2.5", 9.5 mm (H) Form Factor Support a SATA host & M. 2 NGFF SSD device M. 2 (NGFF) to SATA III Module Support SATA Rev. 3.2 DEVSLP function Green LED indicates the M. 2 SSD's power status Red LED indicates the M. 2 SSD's active status Support SATA Reversion 3.2 Compliant with PCI Express M. 2 Spec. Version 1.0 Support SFF-8201 for Form Factor of 2.5" Disk Drives PWM synchronous buck converter Power IC 3A maximum output current Short circuit protection In-rush current suppression Thermal shutdown protection ESD HBM (Human Body Mode) /2KV? The item doesn't include SSD.
Innocard
Innocard SATA III to M.2 B-key (SATA I/F) Adapter with 2.5" Aluminum Housing

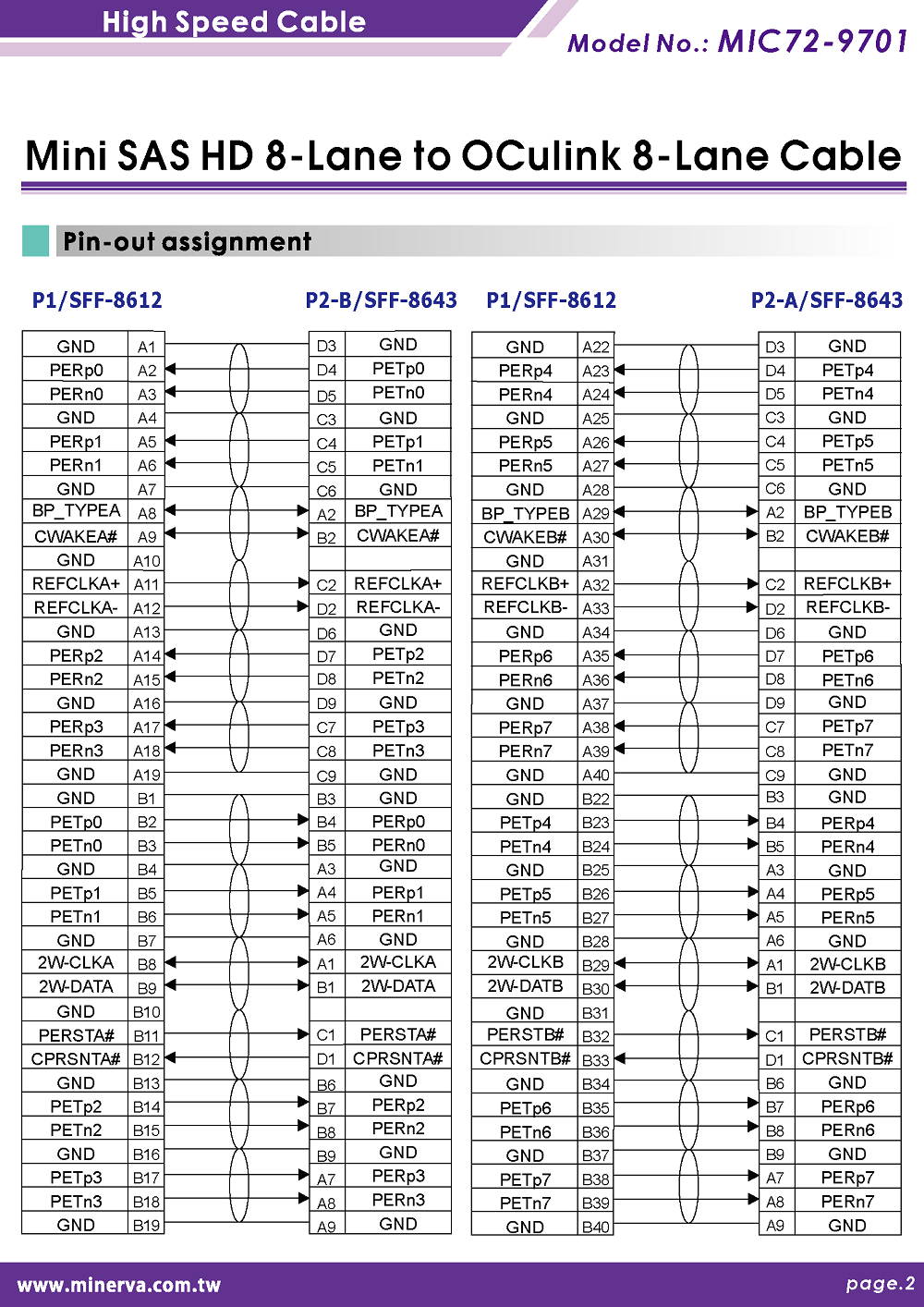

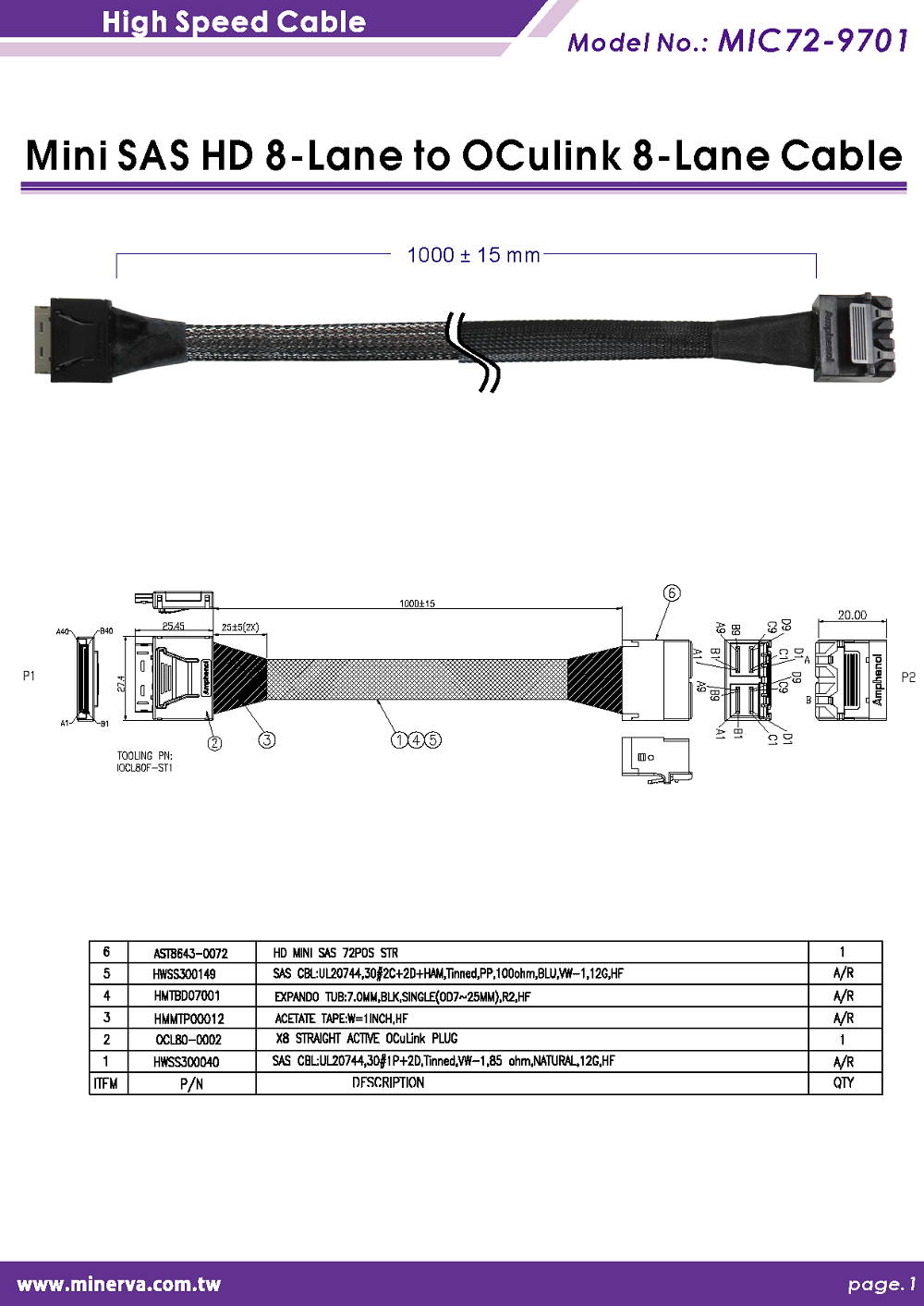

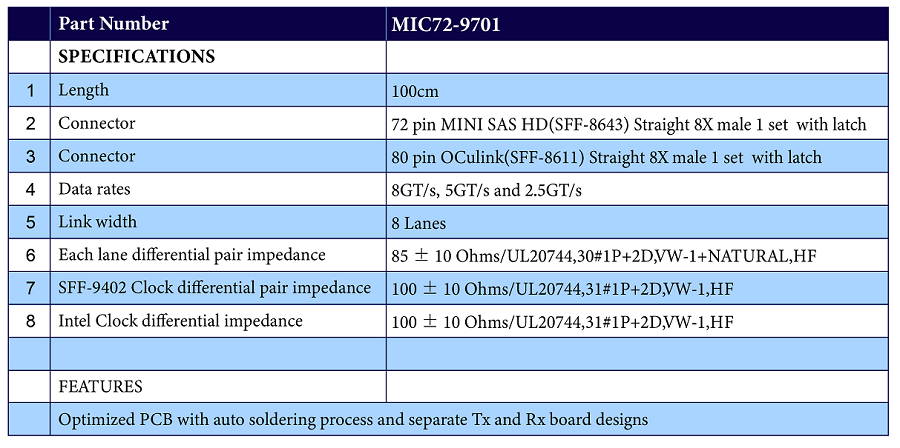

Innocard Mini SAS HD (SFF-8643) 8-Lane to OCulink (SFF-8611) 8-Lane Cable
Part Number: MIC72-9901 Product Description: Mini SAS HD (SFF-8643) 8-Lane to Mini SAS HD 8-Lane Cable Cable Length: 100CM
Innocard
Innocard Mini SAS HD (SFF-8643) 8-Lane to OCulink (SFF-8611) 8-Lane Cable

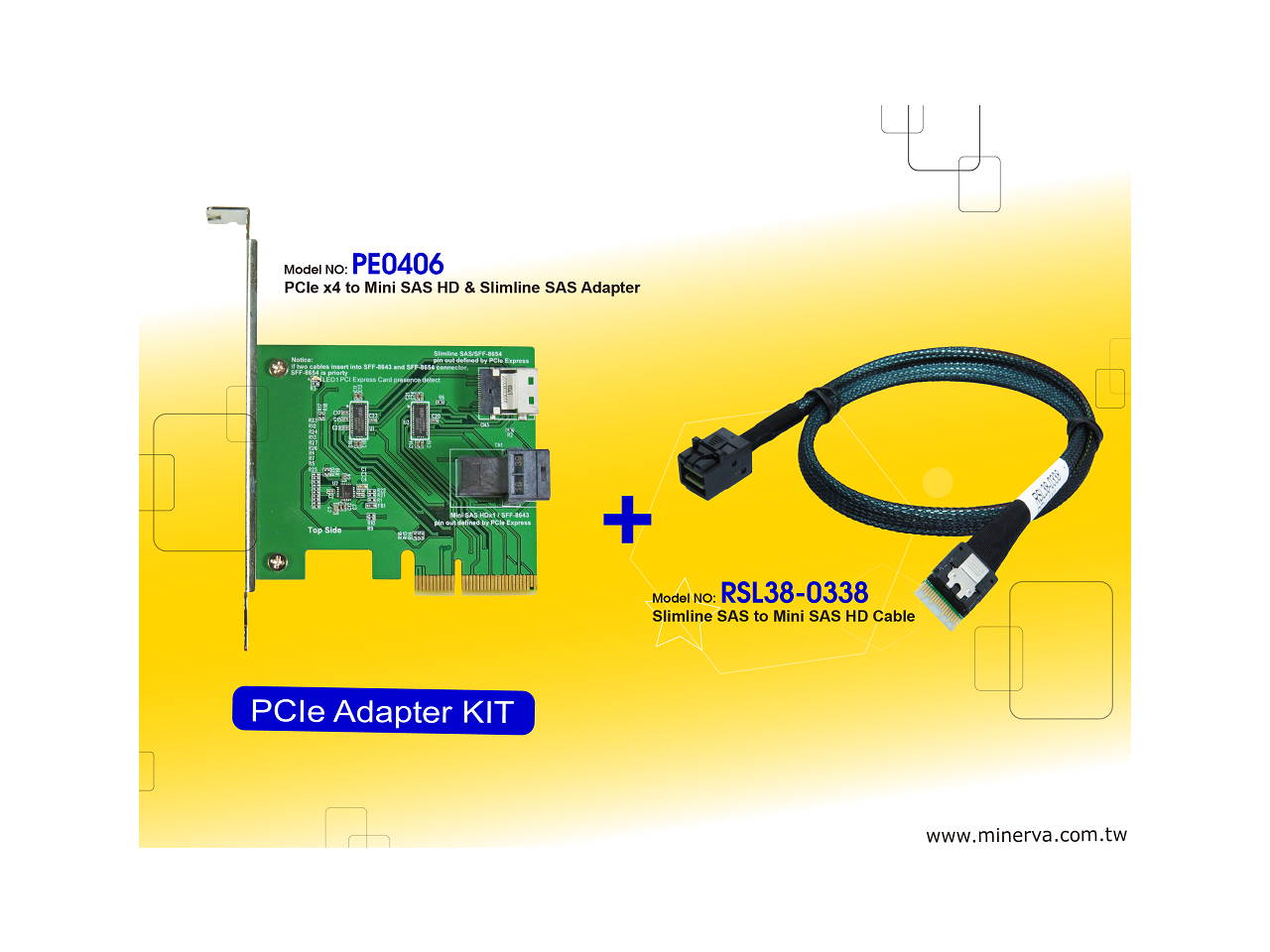

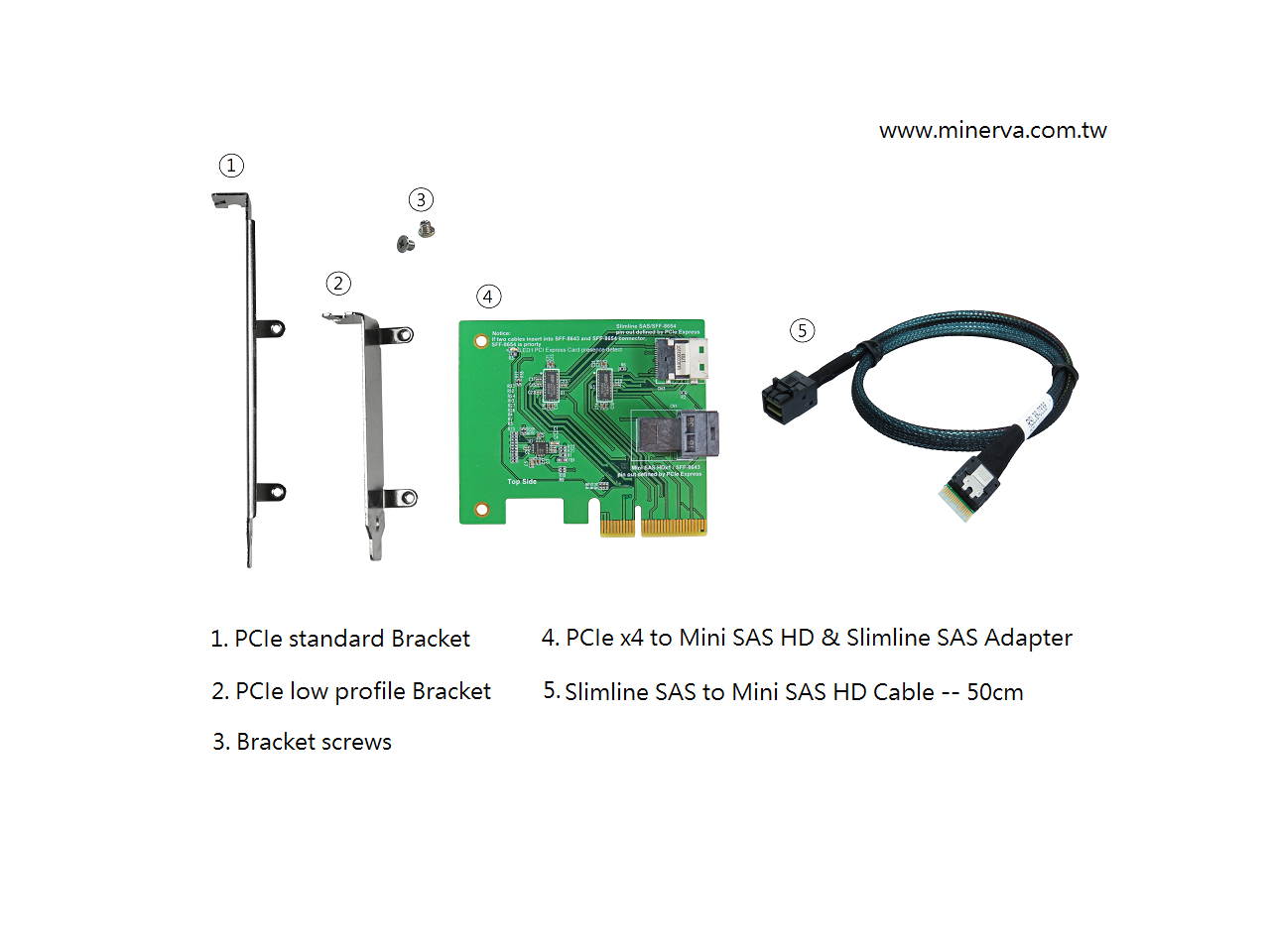

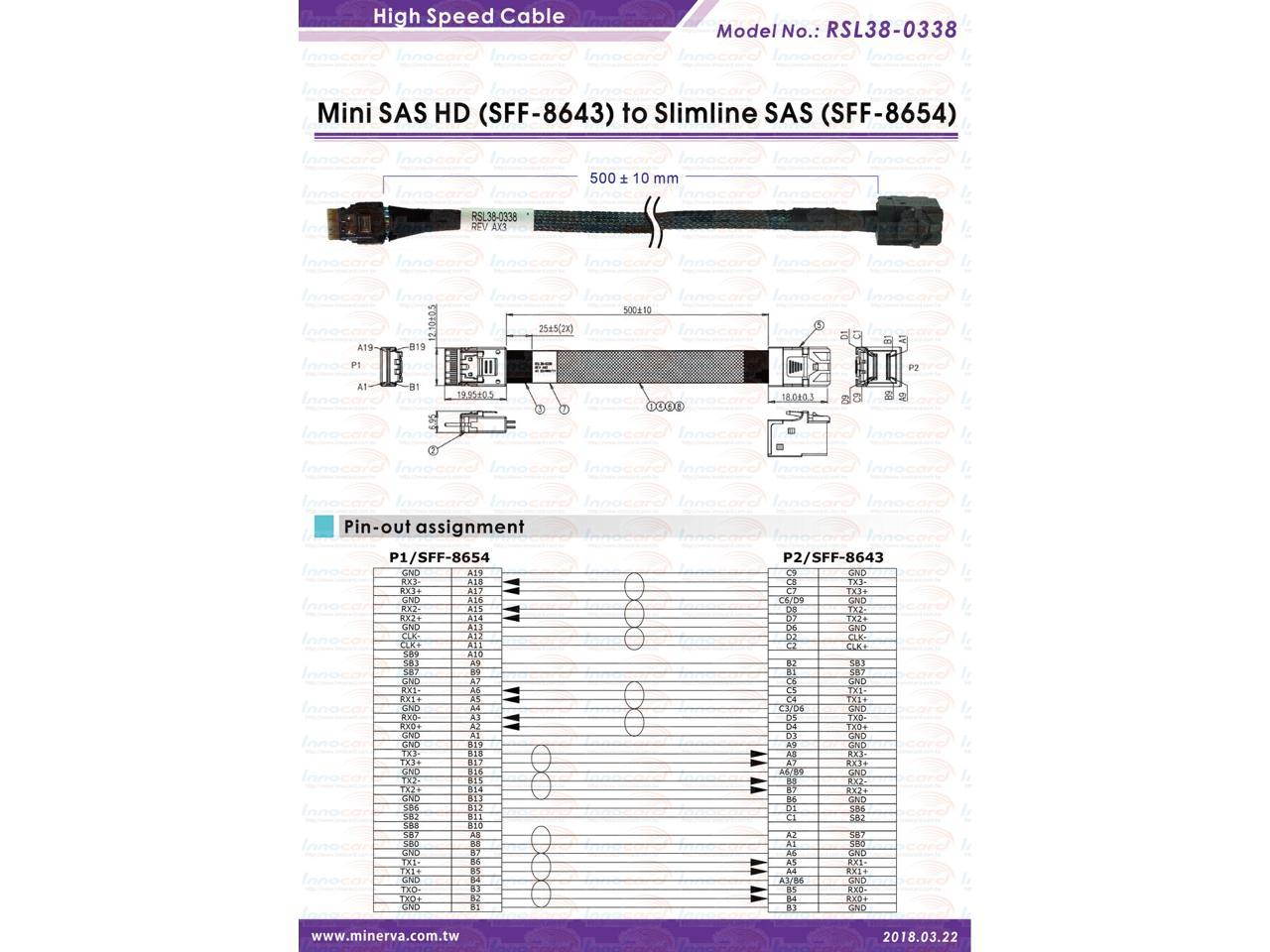

Innocard PCIe x4 to Mini SAS HD & Slimline SAS Adapter with Mini SAS HD to Slimline SAS Cable
PE0406 Specification : Mini SAD HD(SFF-8643) to PCIe convert Slimline SAD(SFF-8654) to PCIe convert Build in SFF-8643 connector, pin-out defined by PCIe Build in SFF-8654 connector, pin-out defined by PCIe D1 Green LED on indicates PE0406 adapter ready RSL38-0338 Specification : Mini SAS HD (SFF-8643) to Slimline SAS (SFF-8654) Cable -- 50cm
Innocard
Innocard PCIe x4 to Mini SAS HD & Slimline SAS Adapter with Mini SAS HD to Slimline SAS Cable
Innocard PCI-e x4 & SATA III to M.2 (M-Key) SSD Adapter with PCI-e Bracket
4-Layer PCB designed 4 Lanes of PCI-e designated M.2 (PCI-e I/F) to PCI-e convert M.2 (SATA I/F) to SATA III convert Built-in M.2 (NGFF) M-key Female connector LED1 ON indicate PS0401 adapter Ready LED2 ON indicate M.2 / PCI-e 4 Lanes device power OK LED3 ON indicate M.2 / SATA III device power OK LED2 & LED3 / OFF (both) indicate M.2 / PCI-e 2 Lanes device power OK LED4 indicate active status Support SATA Reversion 3.2 PCI Express M.2 Spec. Revision 0.7, Version 1.0 PWM synchronous buck converter Power IC 4A maximum output current Short circuit protection In-rush current suppression Thermal shutdown protection ESD HBM (Human Body Mode)/2KV ESD CDM (Charged Device Model) /500V
Innocard
Innocard PCI-e x4 & SATA III to M.2 (M-Key) SSD Adapter with PCI-e Bracket

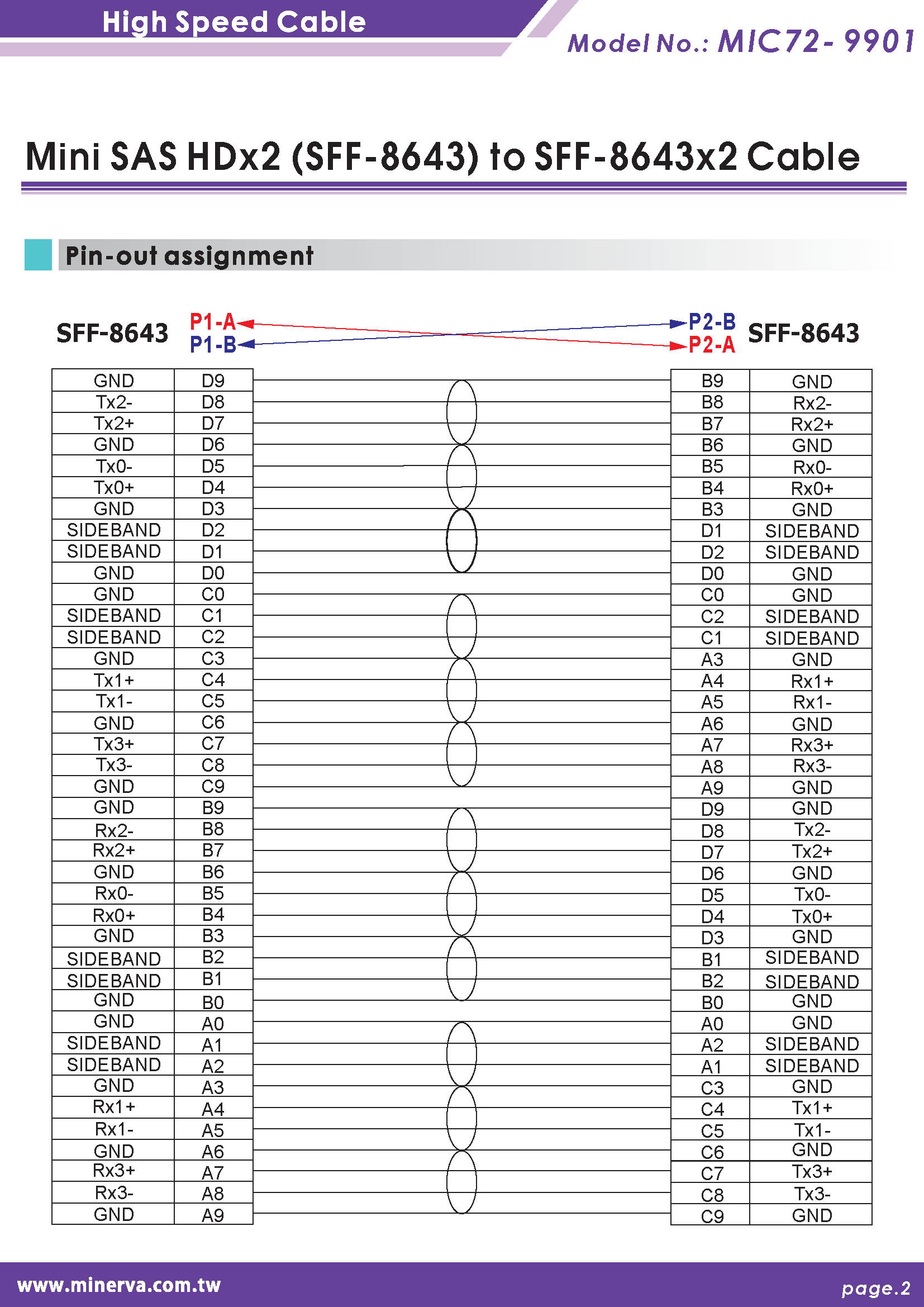

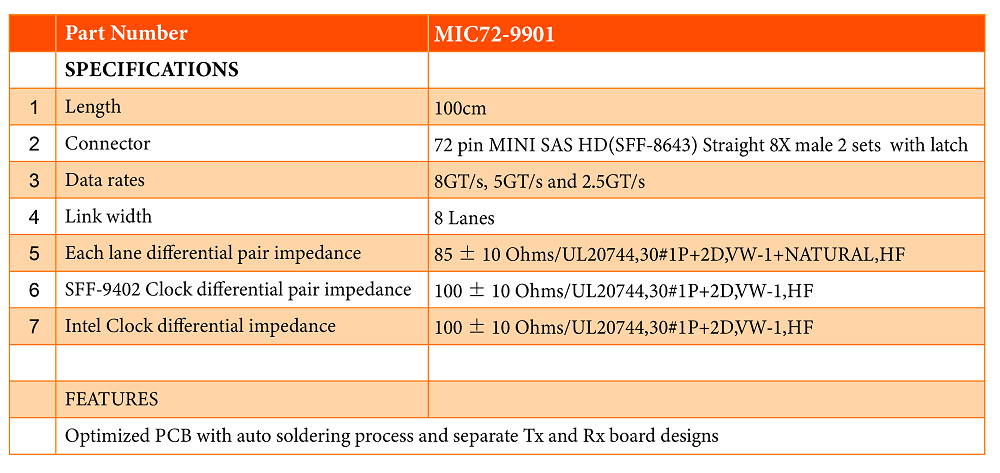

Innocard Mini SAS HD (SFF-8643) 8-Lane to Mini SAS HD (SFF-8643) 8-Lane Cable
Part Number : MIC72-9901 Product Description : Mini SAS HD (SFF-8643) 8-Lane to Mini SAS HD 8-Lane Cable Cable Length : 100CM
Innocard
Innocard Mini SAS HD (SFF-8643) 8-Lane to Mini SAS HD (SFF-8643) 8-Lane Cable

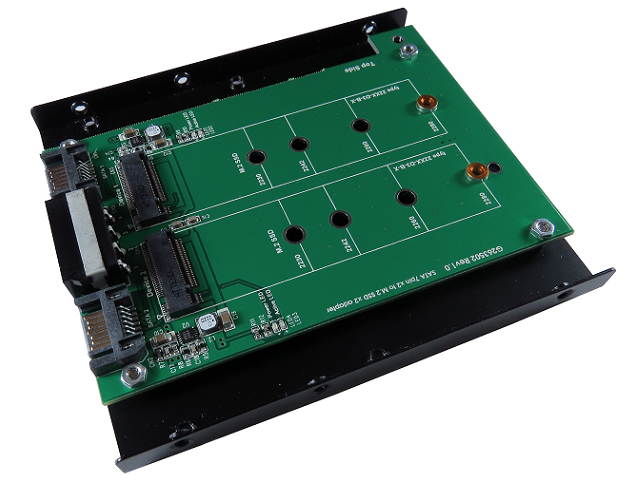

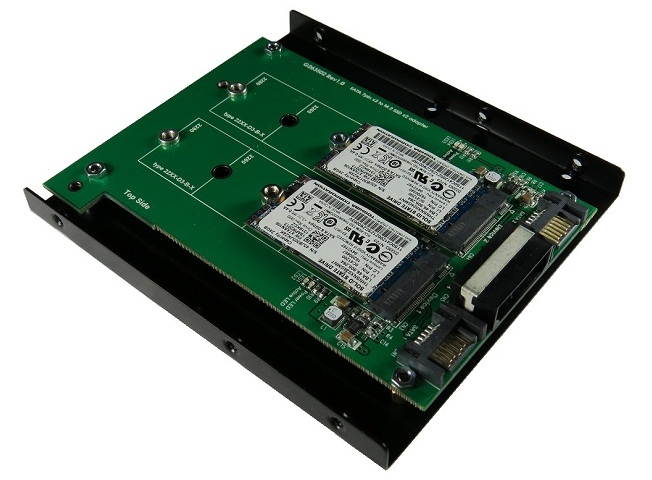

Innocard SATA III Dual ports to M.2 SSD (M-Key) x2 Adapter with 3.5" Frame Bracket
SATA III / 6Gbps Dual ports to M.2 M-Key SSD ( SATA Interface) Adapter with 3.5" Frame Bracket M.2 (NGFF) to SATA III Module Support SATA Reversion 3.2 Compliant with PCI Express M.2 Spec. Version 1.0 PWM synchronous buck converter Power IC 3A maximum output current Short circuit protection In-rush current suppression Thermal shutdown protection ESD HBM (Human Body Mode)/2KV Suport the following form factor M.2(NGFF) SSD: Type 2230-D2-B-M: 30mm(L) x 22mm(W) Type 2242-D2-B-M: 42mm(L) x 22mm(W) Type 2260-D2-B-M: 60mm(L) x 22mm(W) Type 2280-D2-B-M: 80mm(L) x 22mm(W) The item doesn't include SSD.
Innocard
Innocard SATA III Dual ports to M.2 SSD (M-Key) x2 Adapter with 3.5" Frame Bracket

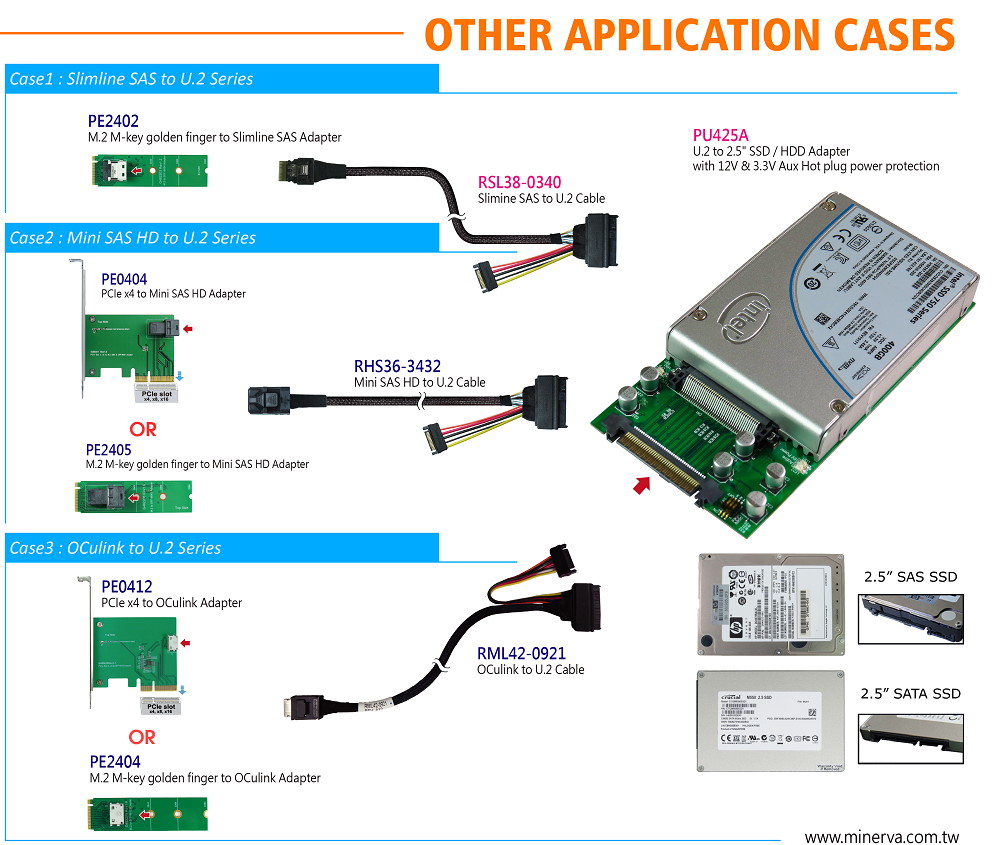

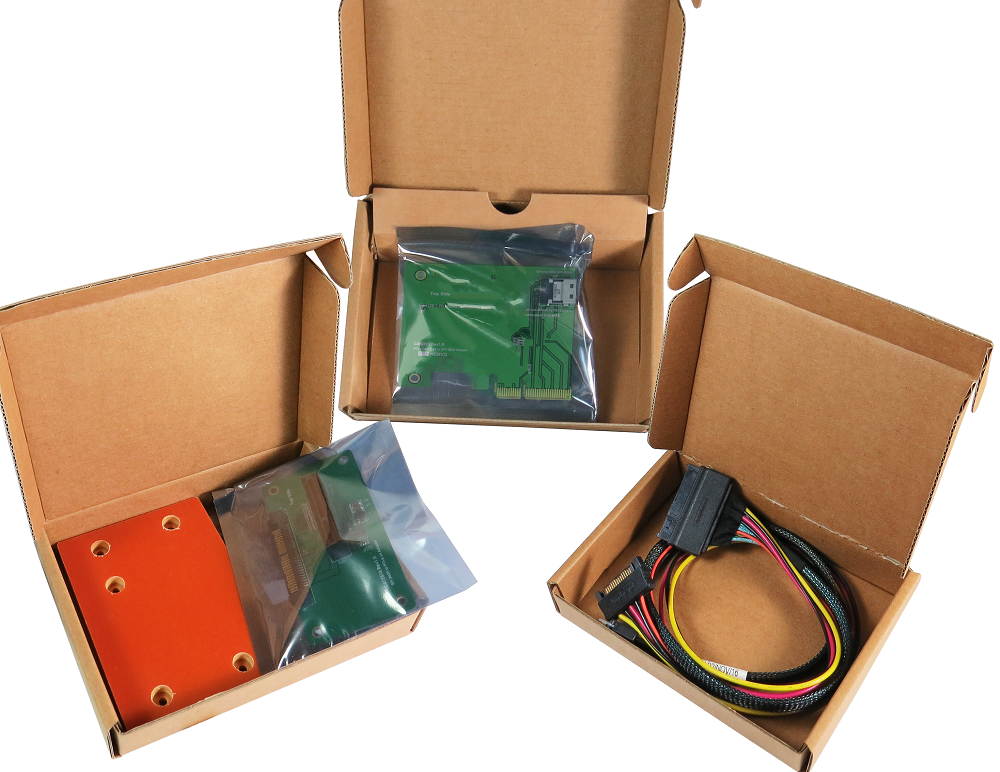

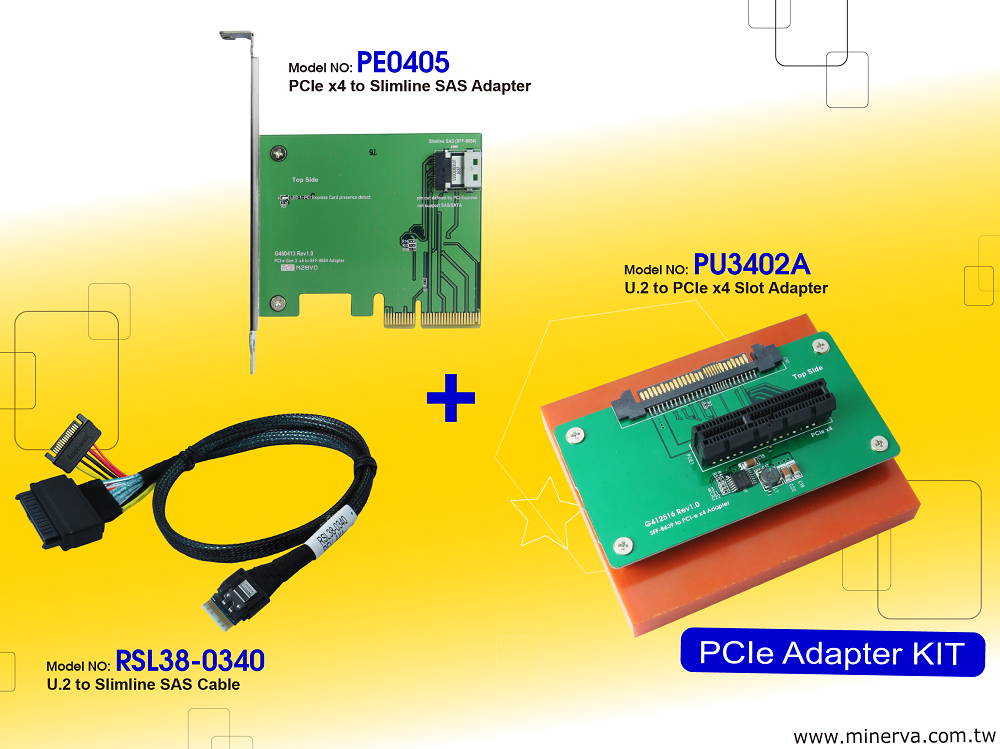

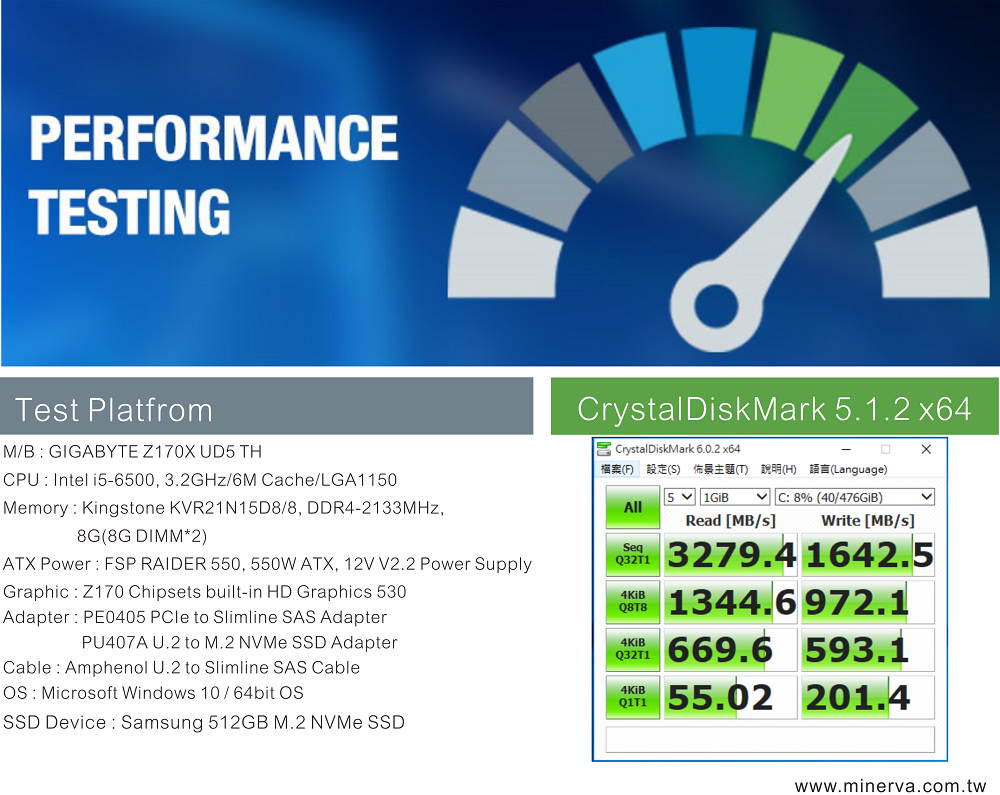

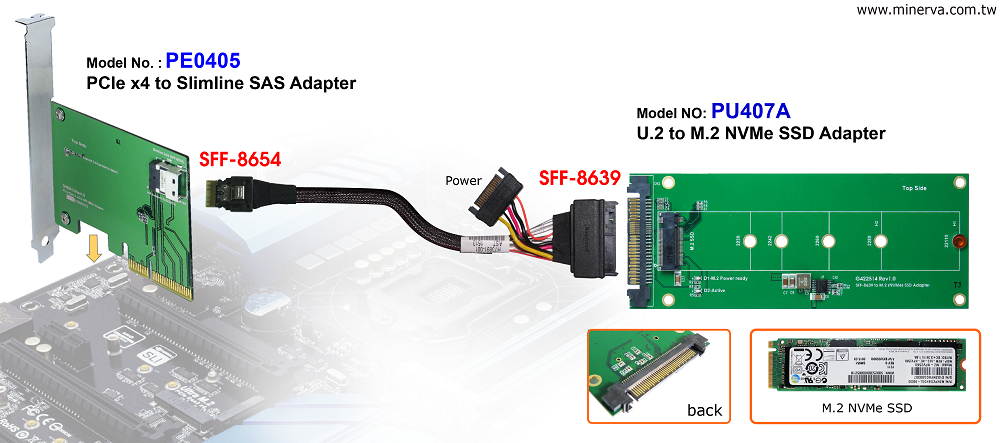

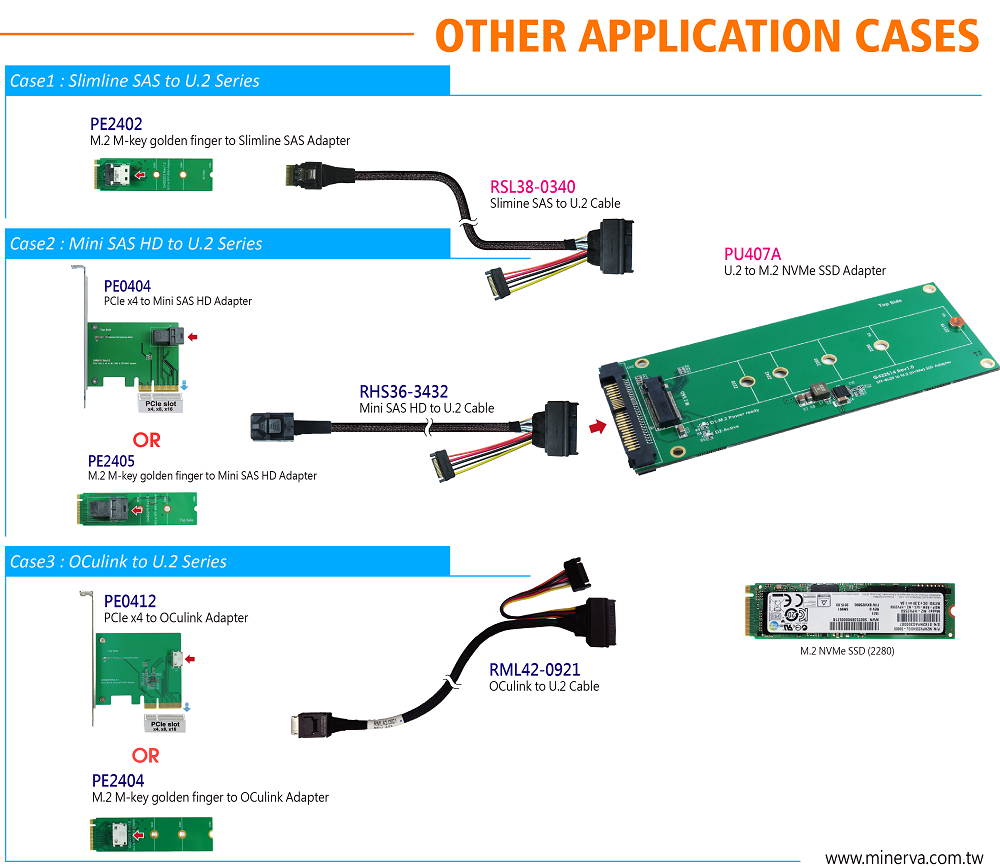

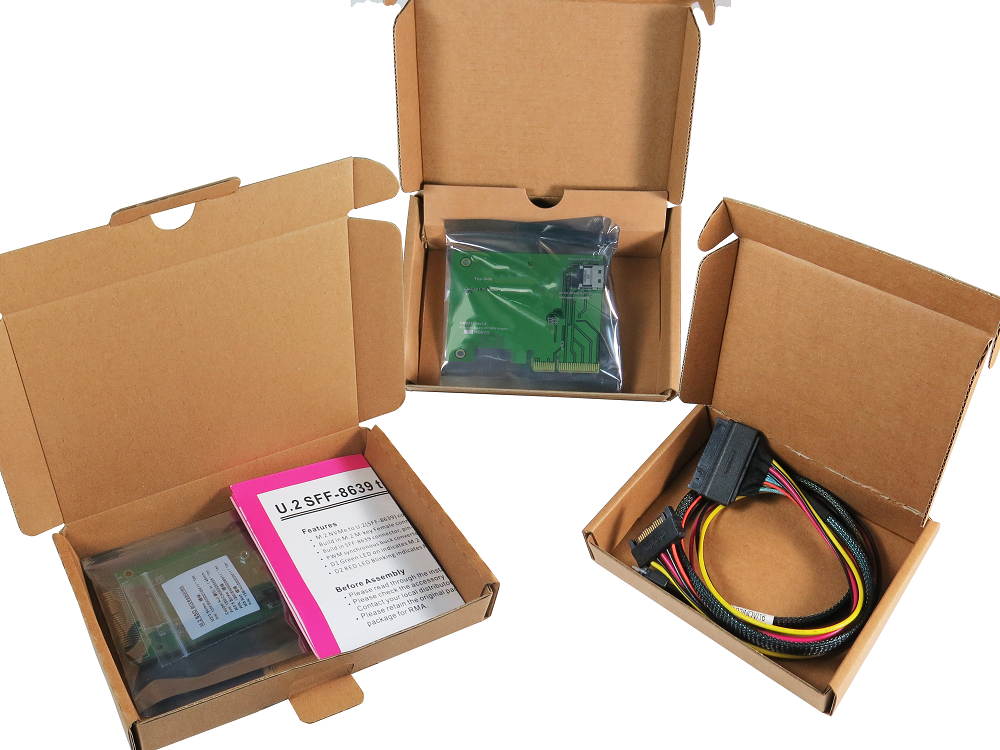

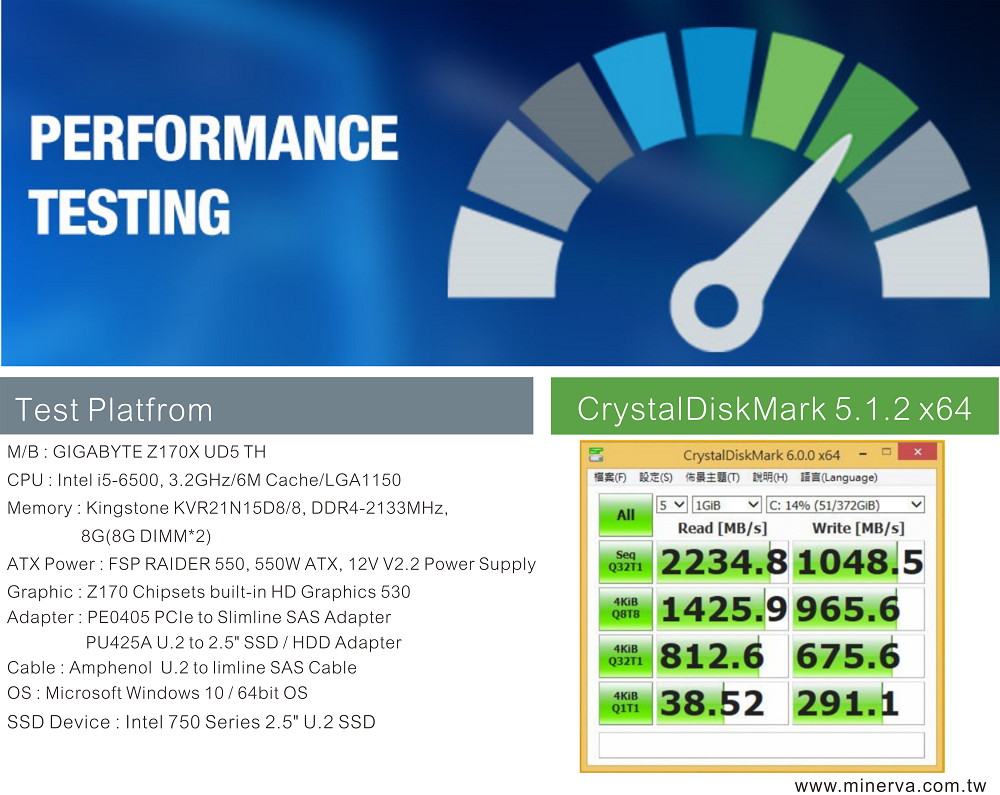

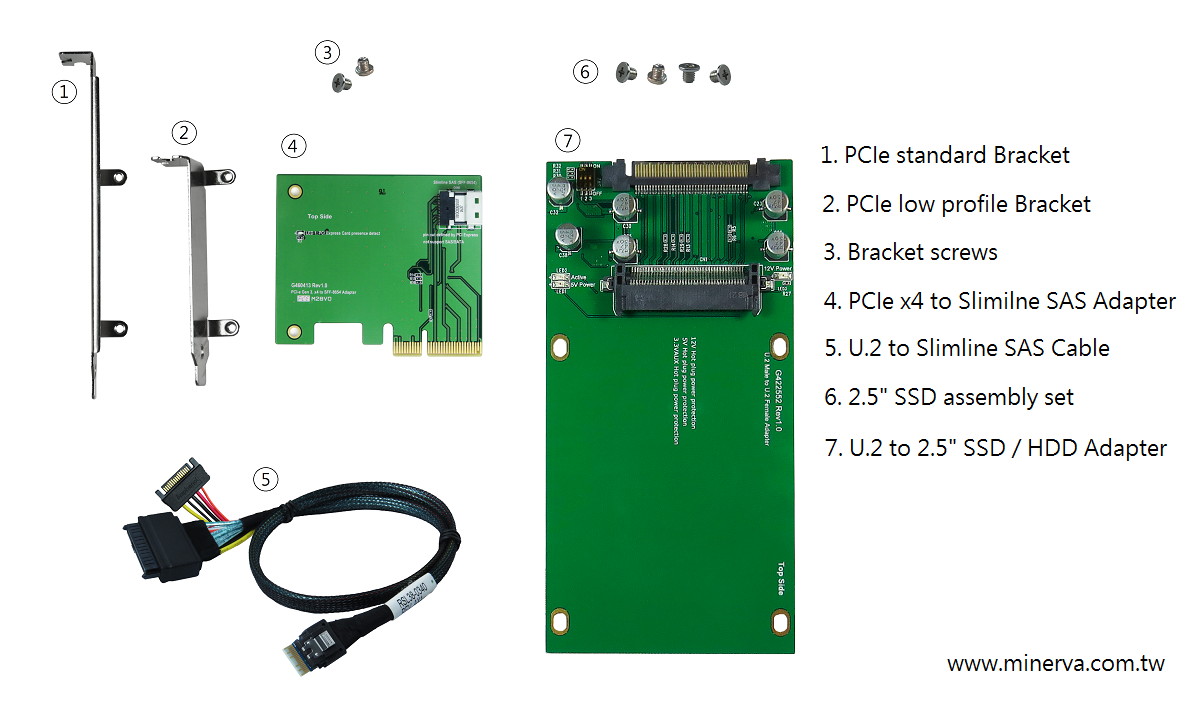

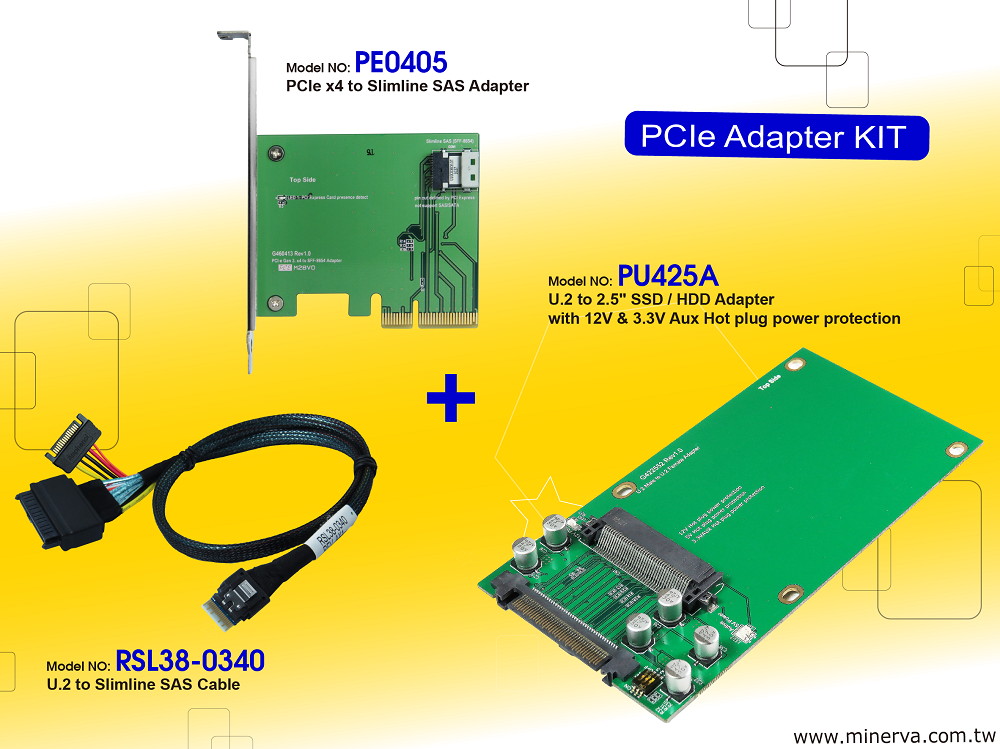

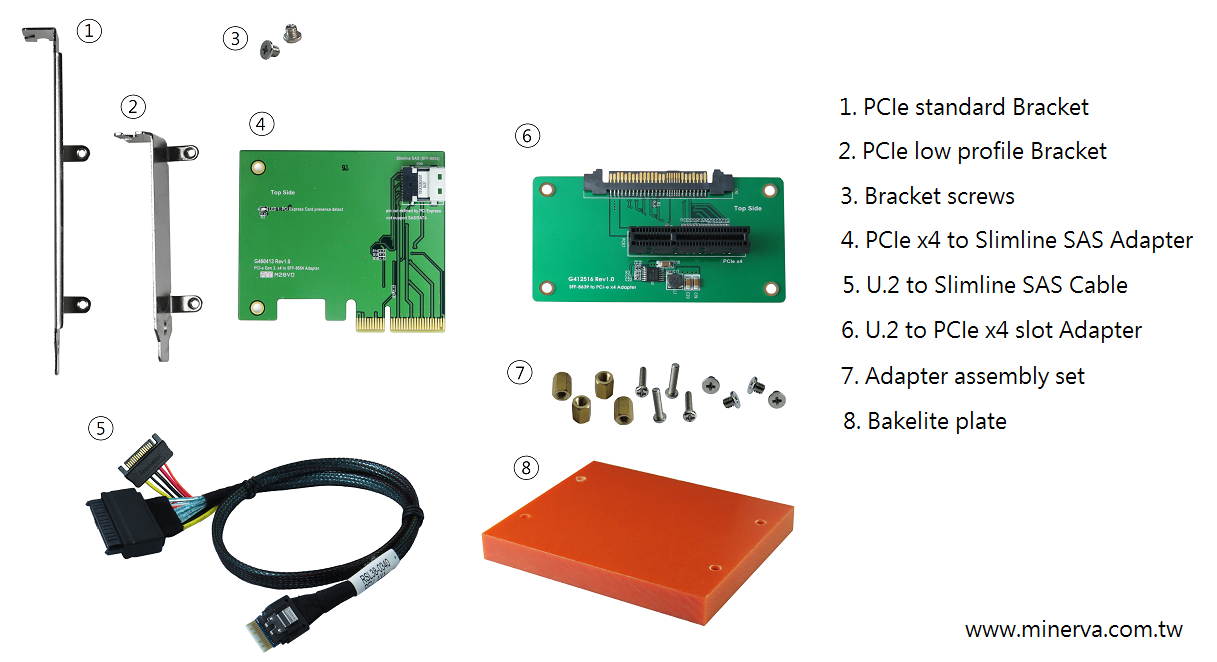

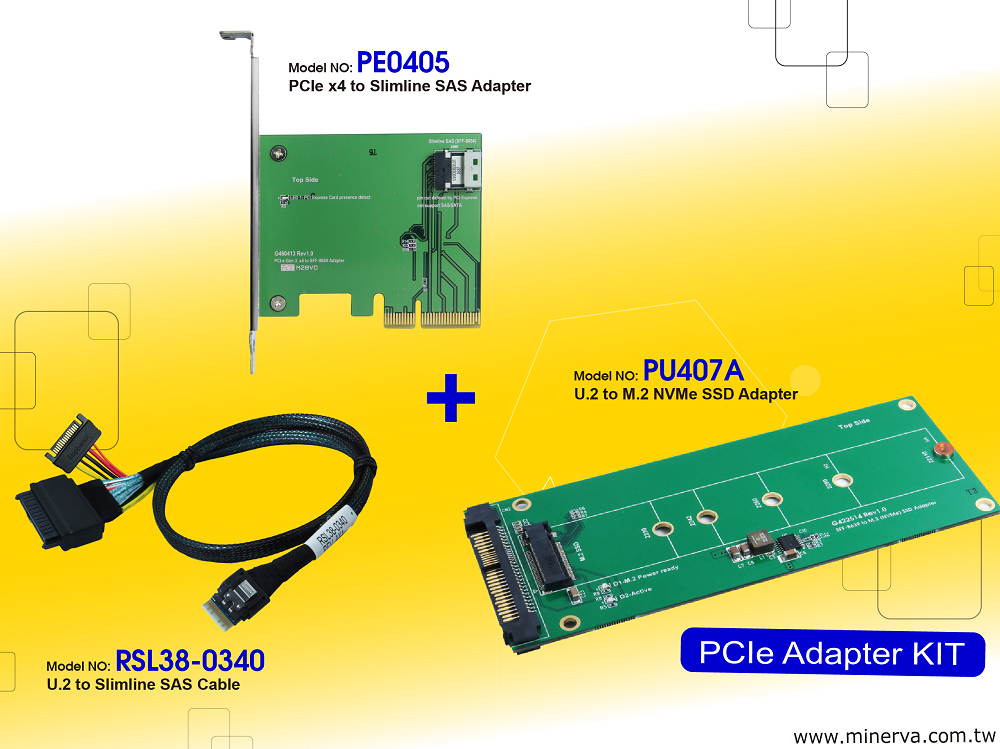

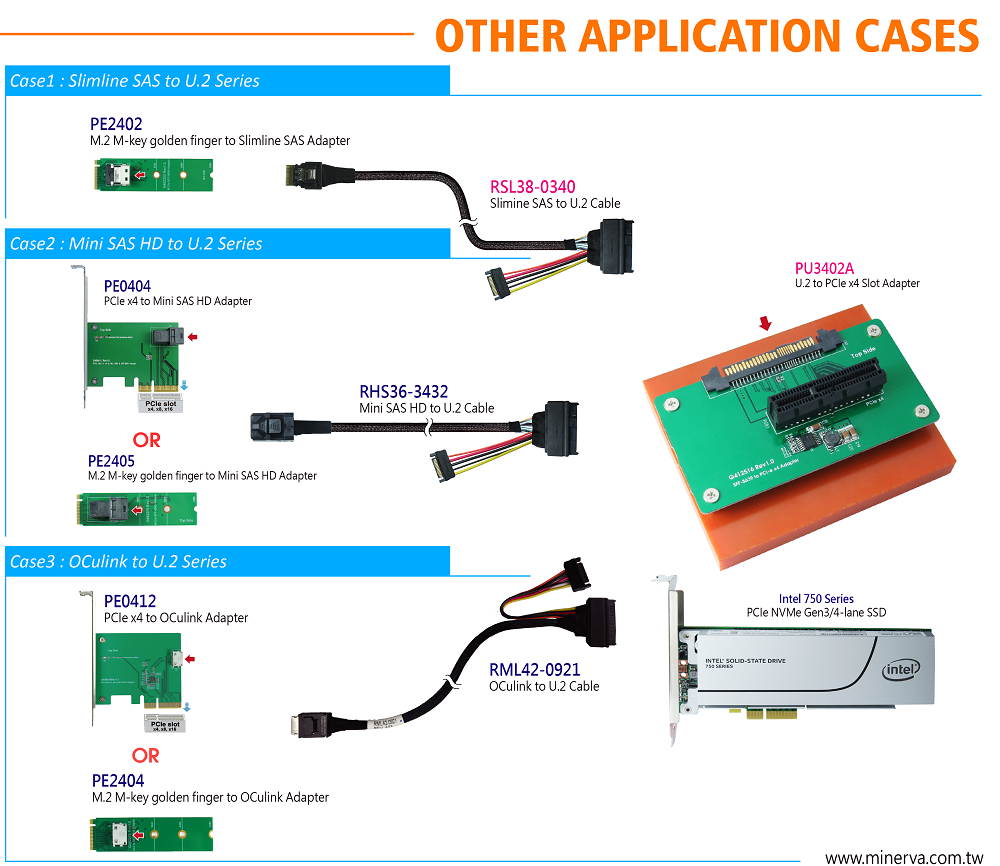

Innocard PCIe x4 to Slimline SAS Adapter & U.2 to Slimline SAS Cable with U.2 to PCIe x4 slot Adapter KIT
PE0405 – PCIe x4 to Slimline SAS Adapter Specification : 4-Layer PCB designed Built-in SFF-8654 plug connector LED1 ON indicates PE0405 adapter Ready PCI Express Base Specification Rev 3.0 SFF-8654 Slimline SAS Version 3.5 PCI Express Card Electro-Mechanical* (CEM) Specification Rev 2.0 SSD_ Form_Factor_Version1_a SFF-8654 Rev 1.1 SFF-9402 Rev 0.5 NVM Express* 1.2 RSL38-0340 U.2 to Slimline SAS Cable Specification : U.2 (SFF-8639) to Slimline SAS (SFF-8654) Cable – 50cm PU3402A U.2 to PCIe x4 slot Adapter Specification : 4-Layer PCB designed Built-in SFF-8639 plug connector Built-in PCI-e Gen 3 x4 slot connector PCI Express Base Specification Rev 3.0 SFF 8639 Enterprise SSD Form Factor Version 1.0a PCI Express Card Electro-Mechanical* (CEM) Specification Rev 2.0 NVM Express* 1.1 PWM synchronous buck converter Power IC ? 3.3V, 4A maximum output current ?Short circuit protection ?In-rush current suppression ?Thermal shutdown protection ?ESD HBM (Human Body Mode)/2KV ?ESD CDM (Charged Device Model) /500V
Innocard
Innocard PCIe x4 to Slimline SAS Adapter & U.2 to Slimline SAS Cable with U.2 to PCIe x4 slot Adapter KIT
Innocard PCIe x4 to Slimline SAS Adapter & U.2 to Slimline SAS Cable with U.2 to M.2 NVMe SSD Adapter KIT
PE0405 – PCIe x4 to Slimline SAS Adapter Specification: 4-Layer PCB designed Built-in SFF-8654 plug connector LED1 ON indicates PE0405 adapter Ready PCI Express Base Specification Rev 3.0 SFF-8654 Slimline SAS Version 3.5 PCI Express Card Electro-Mechanical* (CEM) Specification Rev 2.0 SSD_ Form_Factor_Version1_a SFF-8654 Rev 1.1 SFF-9402 Rev 0.5 NVM Express* 1.2 RSL38-0340 U. 2 to Slimline SAS Cable Specification: U. 2 (SFF-8639) to Slimline SAS (SFF-8654) Cable – 50cm PU407A U. 2 to M. 2 NVMe SSD Adapter Specification: M. 2 NVMe to U. 2(SFF-8639) convert Build in M. 2 M-key Female connector Build in SFF-8639 connector, pin-out defined by PCIe PWM synchronous buck converter Power IC? 4A maximum output current? Short circuit protection? In-rush current suppression? Thermal shutdown protection? ESD HBM (Human Body Mode) /2KV D1 Green LED on indicates M. 2 NVMe SSD power ready D2 RED LED Blinking indicates M. 2 SSD active status
Innocard
Innocard PCIe x4 to Slimline SAS Adapter & U.2 to Slimline SAS Cable with U.2 to M.2 NVMe SSD Adapter KIT
Innocard PCIe Gen 3 / 4-Lane to Oculink (SFF-8612) Adapter with Oculink (SFF-8611) to Mini SAS HD (SFF-8643) Cable
OCulink(SFF-8612) to PCIe convert Build in SFF-8612 connector, pin-out defined by PCIe D1 Green LED on indicates PE0412 adapter ready Offer Oculink (SFF-8611) to Mini SAS HD (SFF-8643) Cable -- 50cm
Innocard
Innocard PCIe Gen 3 / 4-Lane to Oculink (SFF-8612) Adapter with Oculink (SFF-8611) to Mini SAS HD (SFF-8643) Cable

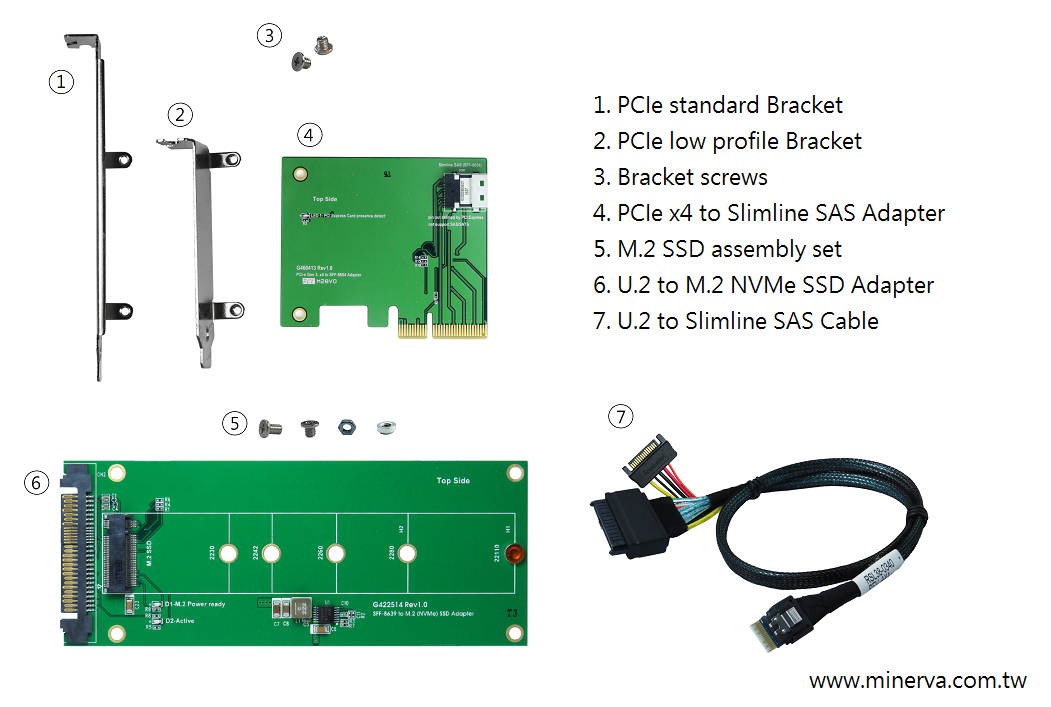

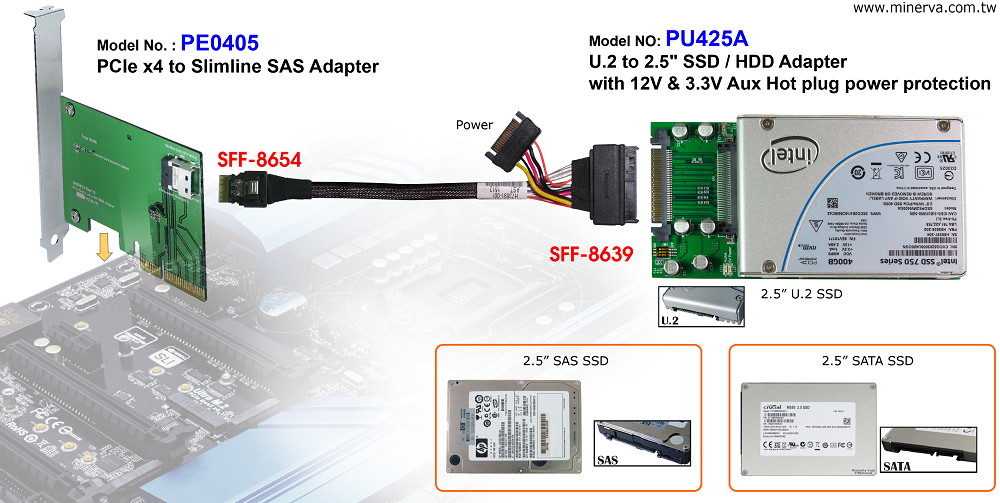

Innocard PCIe x4 to Slimline SAS Adapter & U.2 to Slimline SAS Cable with 2.5” U.2 to 2.5" SSD / HDD adapter KIT
PE0405 – PCIe x4 to Slimline SAS Adapter Specification: 4-Layer PCB designed Built-in SFF-8654 plug connector LED1 ON indicates PE0405 adapter Ready PCI Express Base Specification Rev 3.0 SFF-8654 Slimline SAS Version 3.5 PCI Express Card Electro-Mechanical* (CEM) Specification Rev 2.0 SSD_ Form_Factor_Version1_a SFF-8654 Rev 1.1 SFF-9402 Rev 0.5 NVM Express* 1.2 RSL38-0340 U. 2 to Slimline SAS Cable Specification: U. 2 (SFF-8639) to Slimline SAS (SFF-8654) Cable – 50cm PU425A U. 2 to 2.5" SSD / HDD Adapter Specification: Build in 12V Hot Plug Power protection circuit Build in 5V Hot Plug Power protection circuit Build in 3.3VAUX Hot Plug Power protection circuit Build in U. 2(SFF-8639) Male & Female connector Supports SMB_CLK Supports SMB_DATA Supports U. 2 Daul port design Supports SAS Primary & Secondary port design Support 2.5 ” U. 2 NVMe SSD, SAS & SATA HDD, SSD LED1, LED3 green LED on indicates SSD & HDD power ready LED2 reed LED Blinking indicates U. 2 SSD active status
Innocard
Innocard PCIe x4 to Slimline SAS Adapter & U.2 to Slimline SAS Cable with 2.5” U.2 to 2.5" SSD / HDD adapter KIT

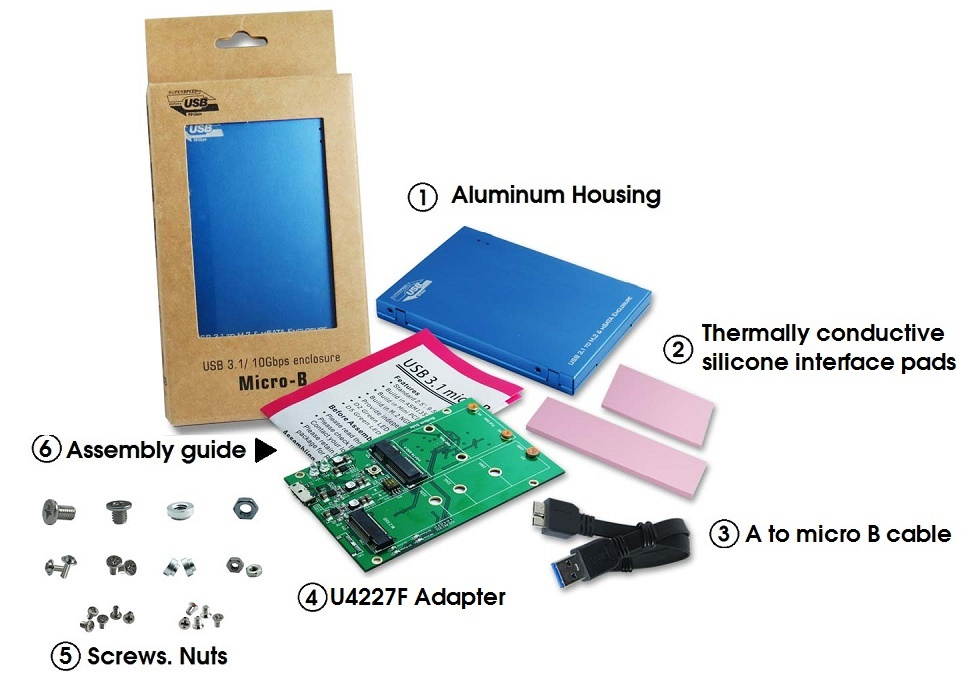

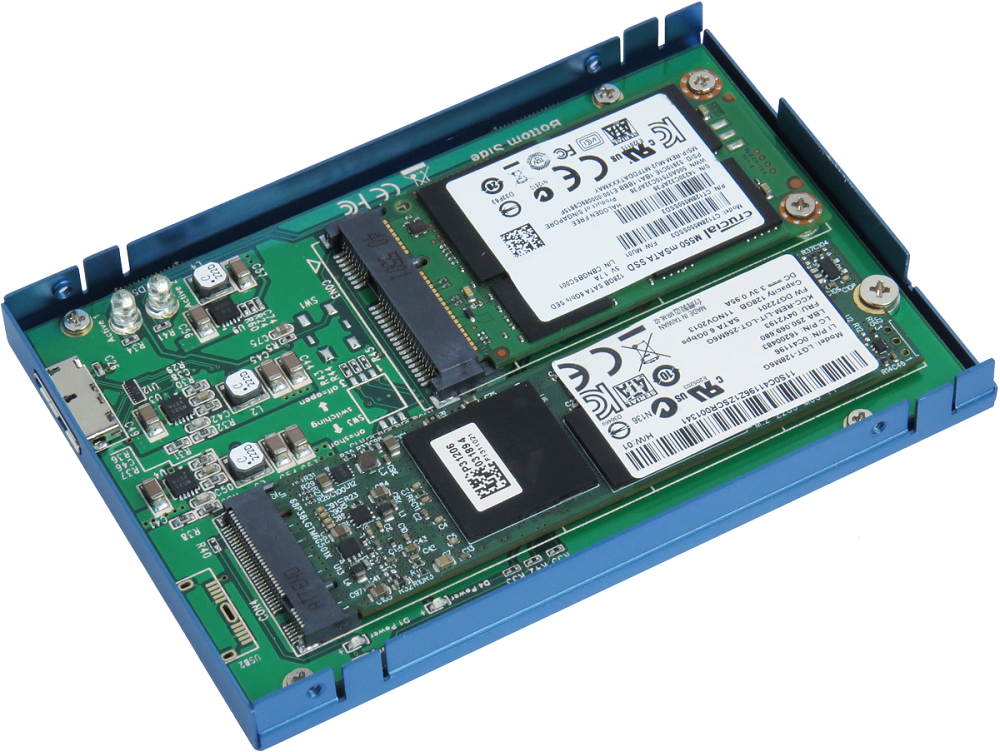

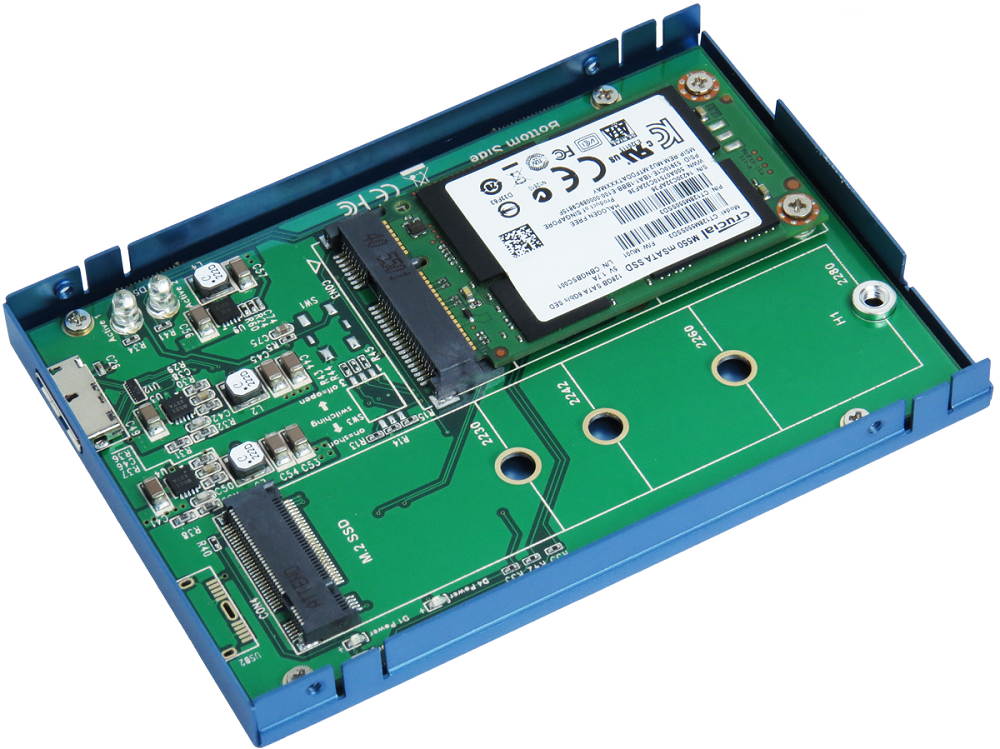

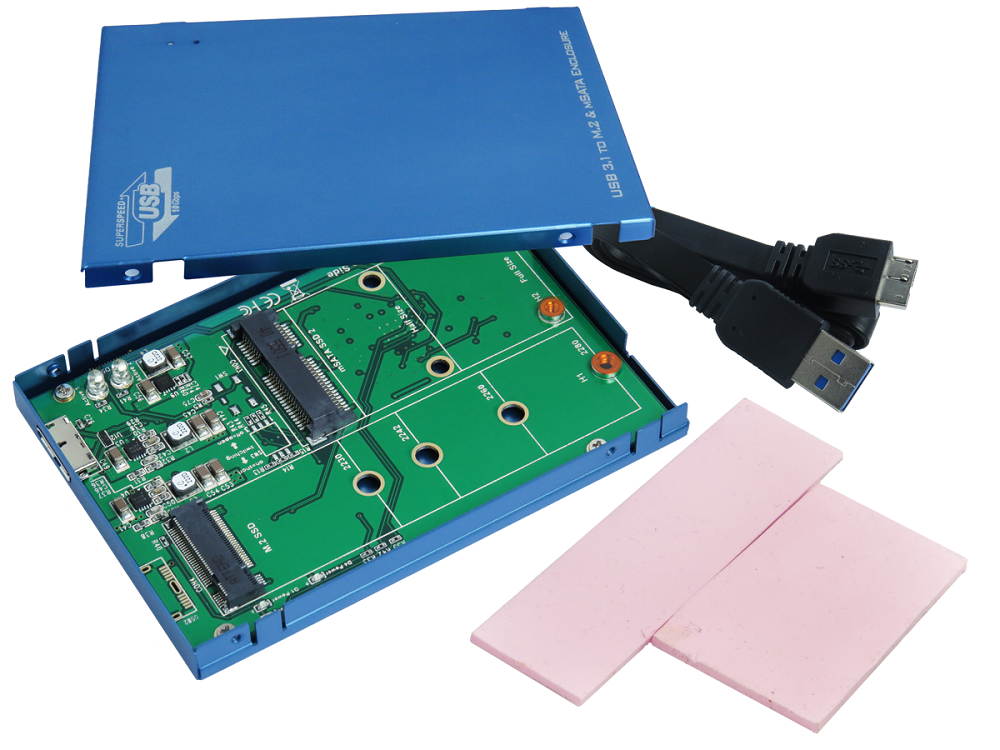

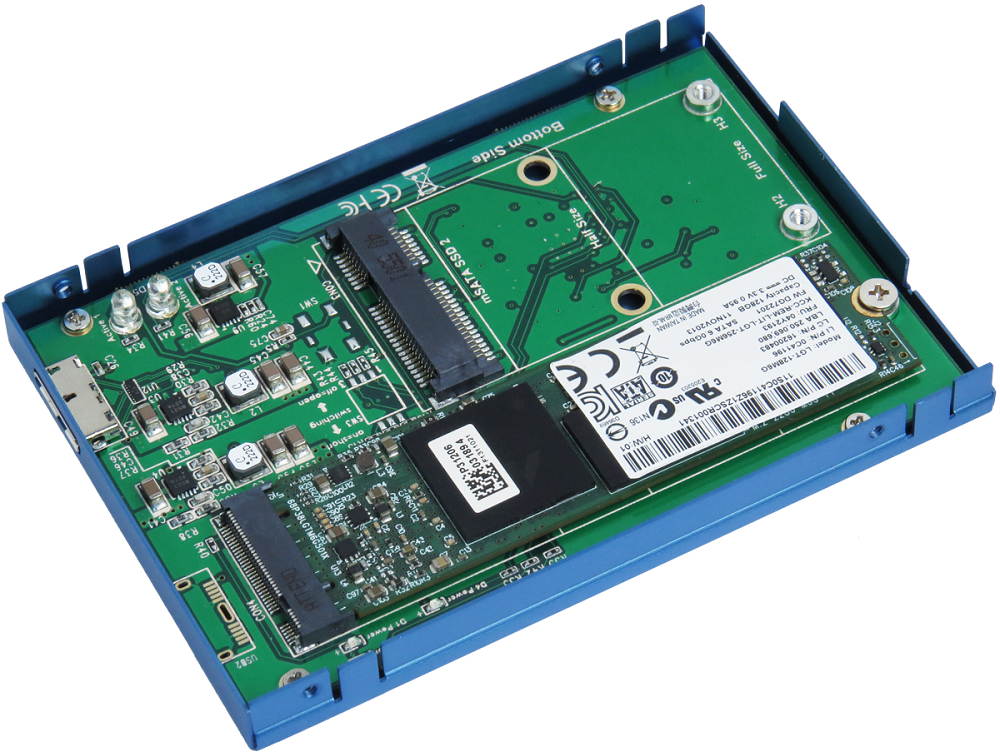

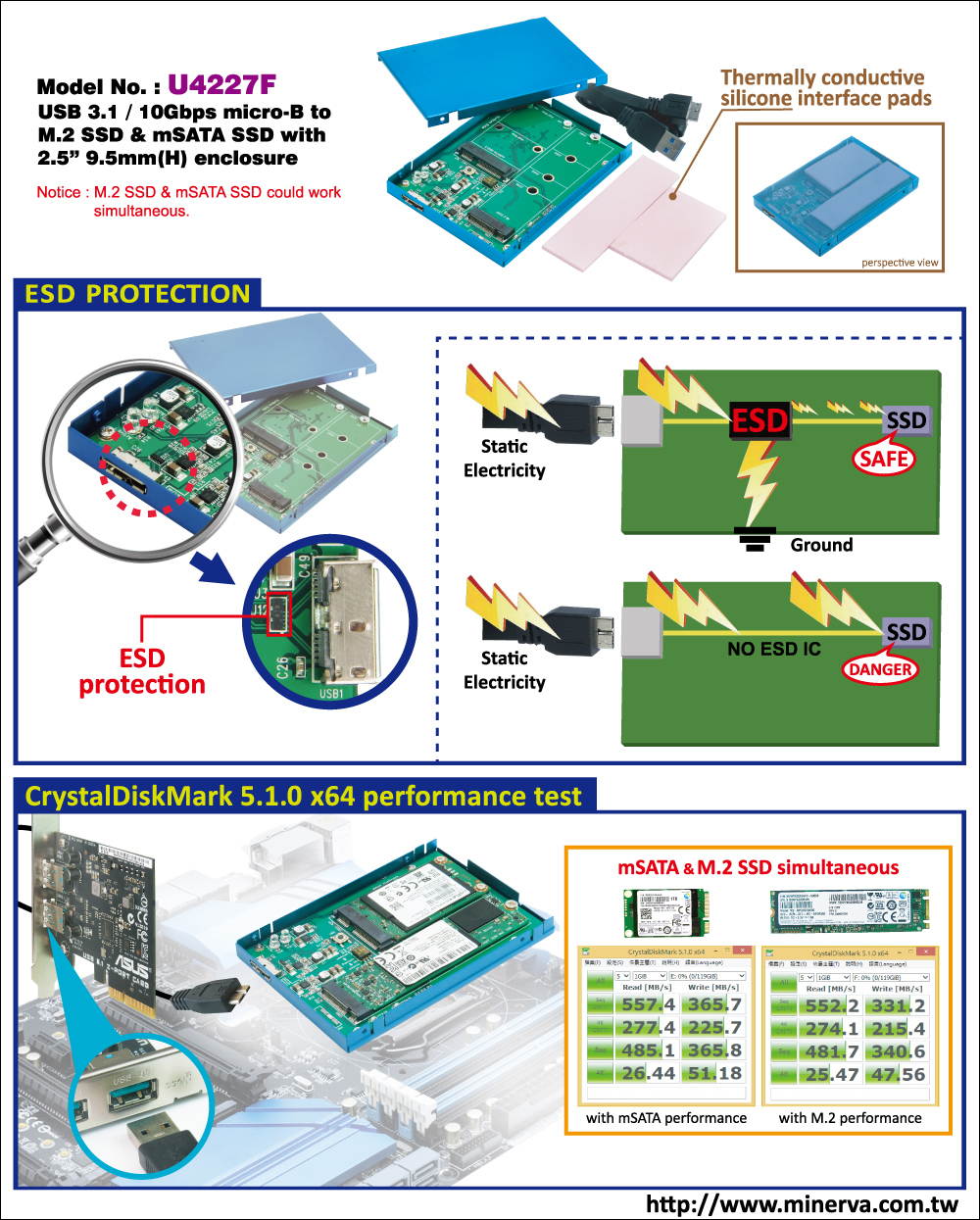

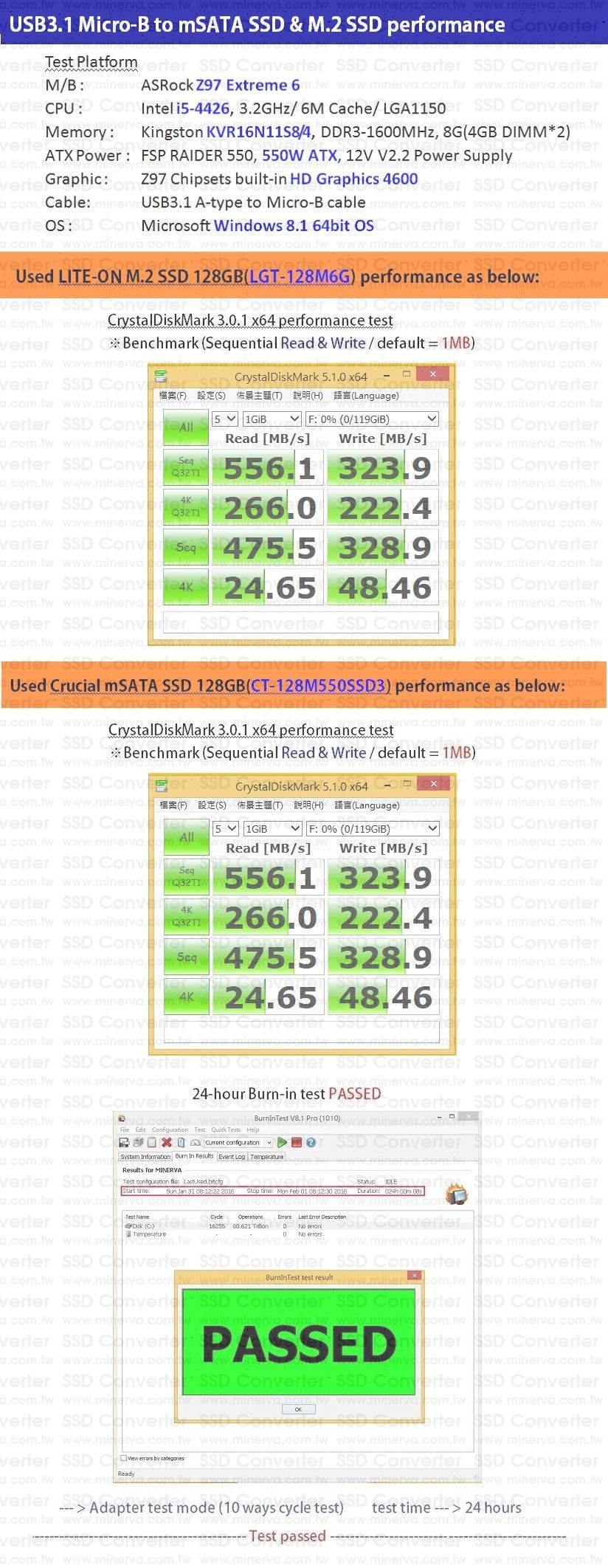

Innocard USB 3.1 / 10Gbps micro B type to M.2 SSD & mSATA SSD Convertor with 2.5" Enclosure (M.2 & mSATA SSD simultaneous)
Build in ASM1352R USB3.1/10Gbps high performance processor Build in Mini PCI-e Female connector Build in M.2 NGFF Female connector Provide independent Power for M.2 SSD & mSATA SSD PWM synchronous buck converter Power IC 3A maximum output current Short circuit protection In-rush current suppression Thermal shutdown protection ESD HBM (Human Body Mode)/2KV D2 Green LED Blinking indicates mSATA SSD active status D5 Green LED Blinking indicates M.2 SSD active status ? The item doesn't include SSD.
Innocard
Innocard USB 3.1 / 10Gbps micro B type to M.2 SSD & mSATA SSD Convertor with 2.5" Enclosure
(M.2 & mSATA SSD  simultaneous)

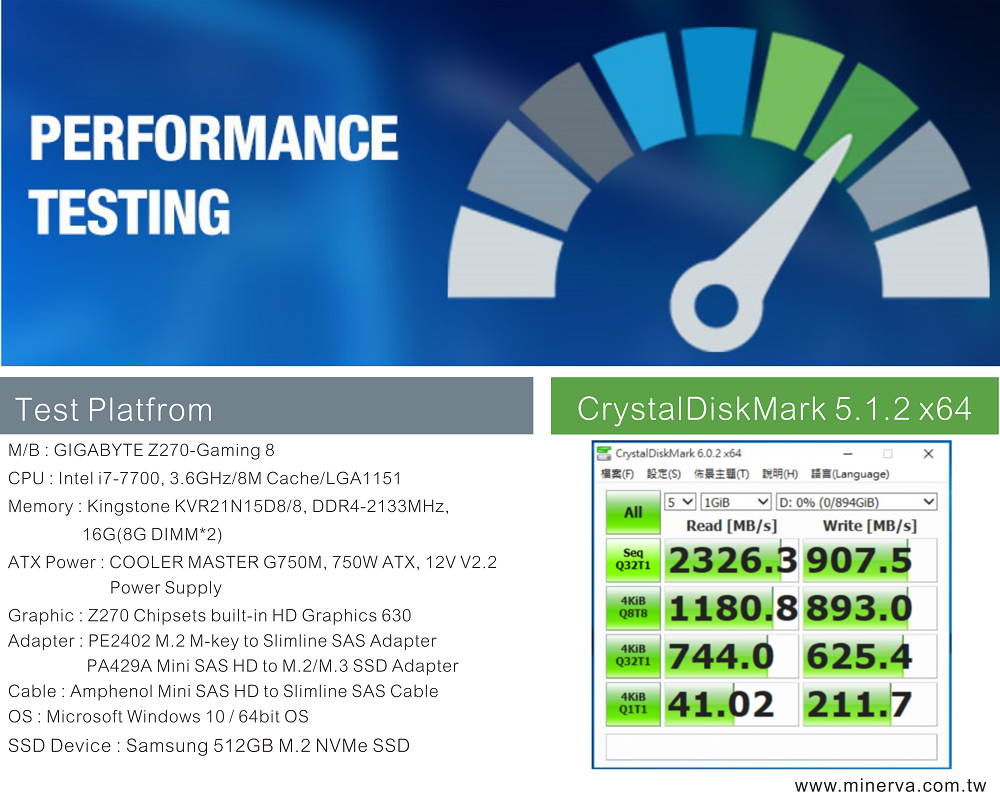

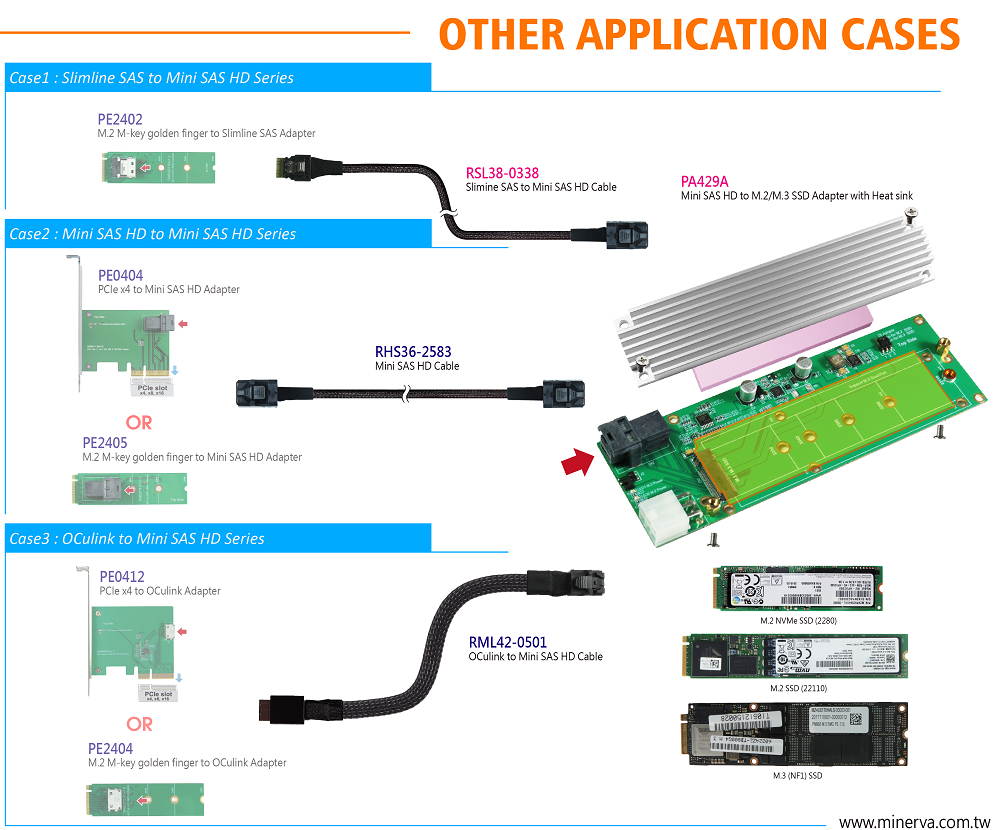

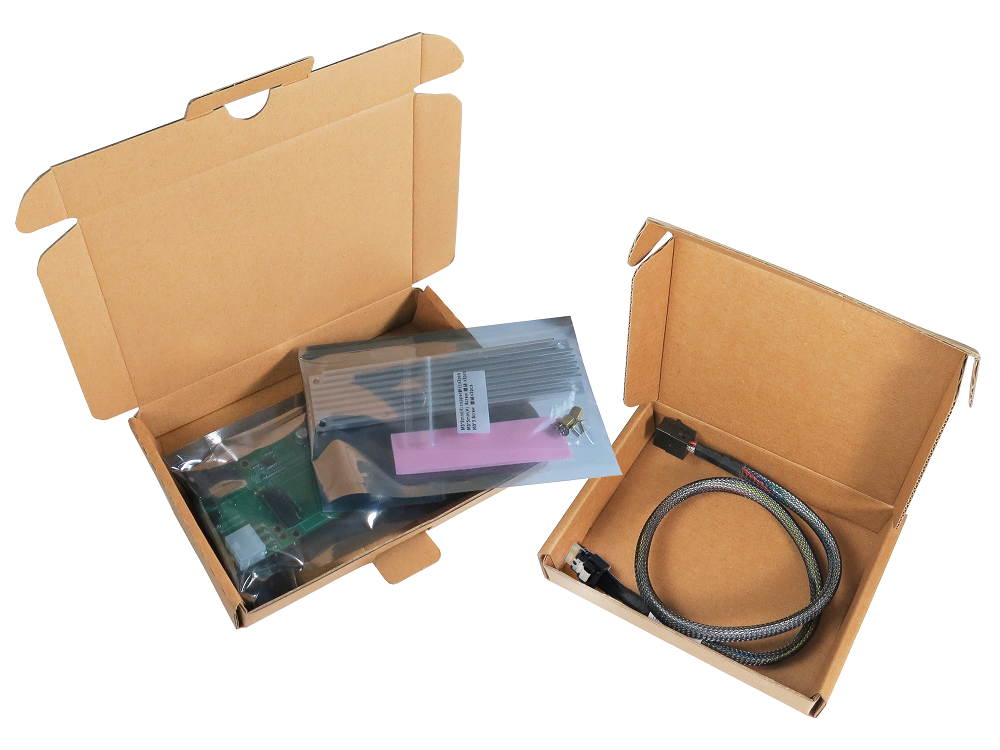

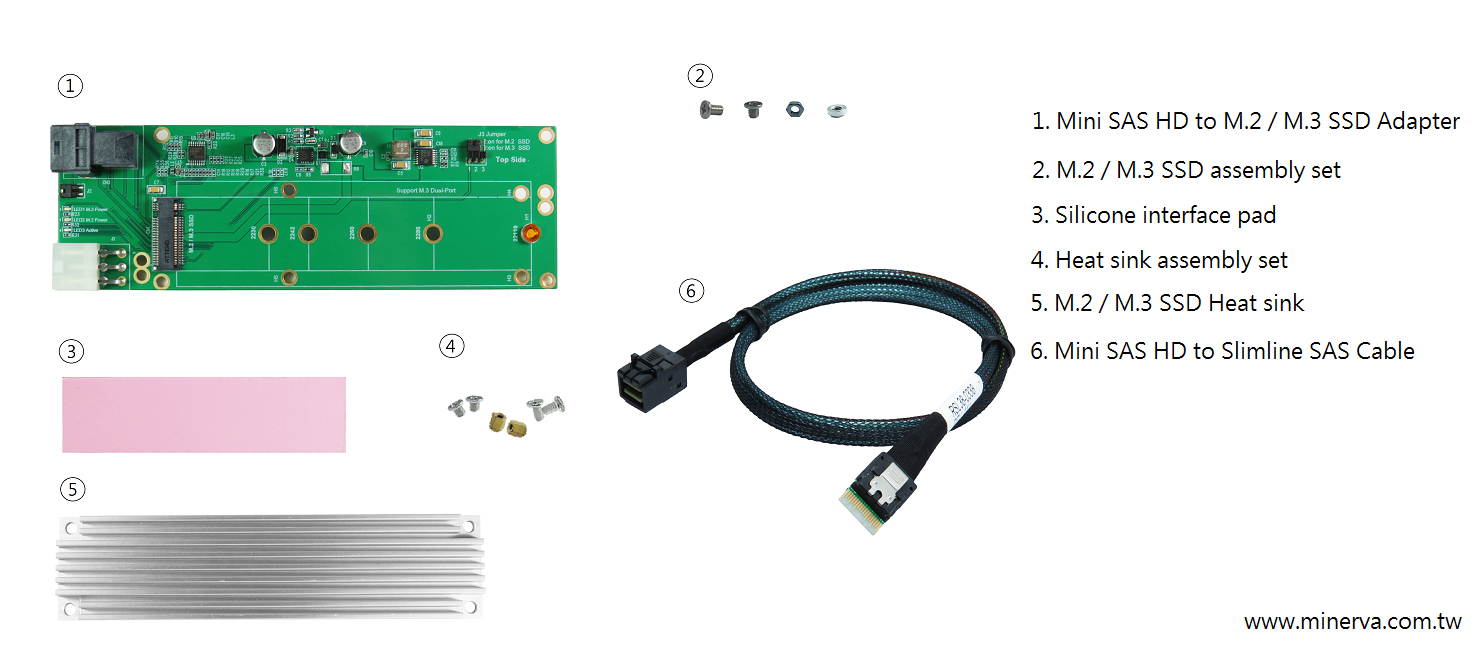

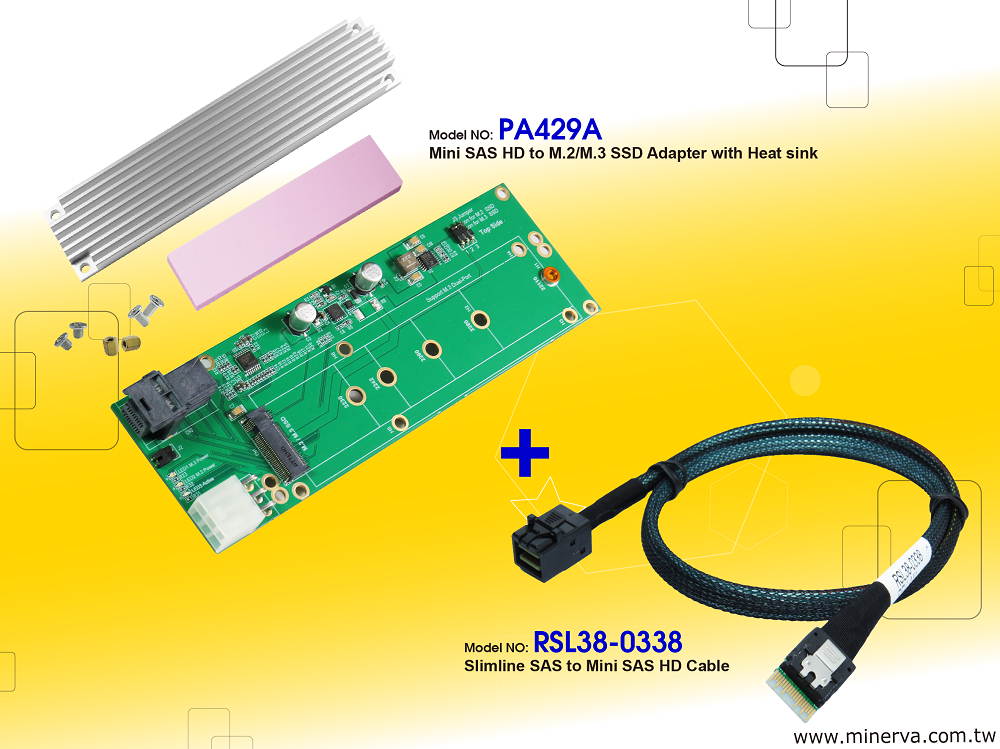

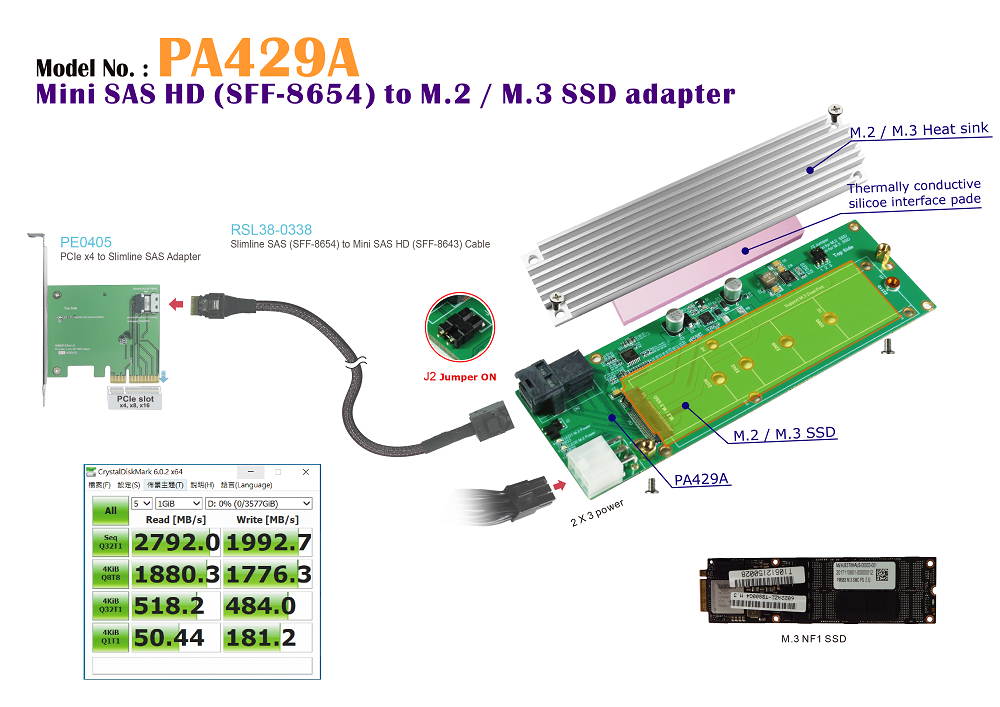

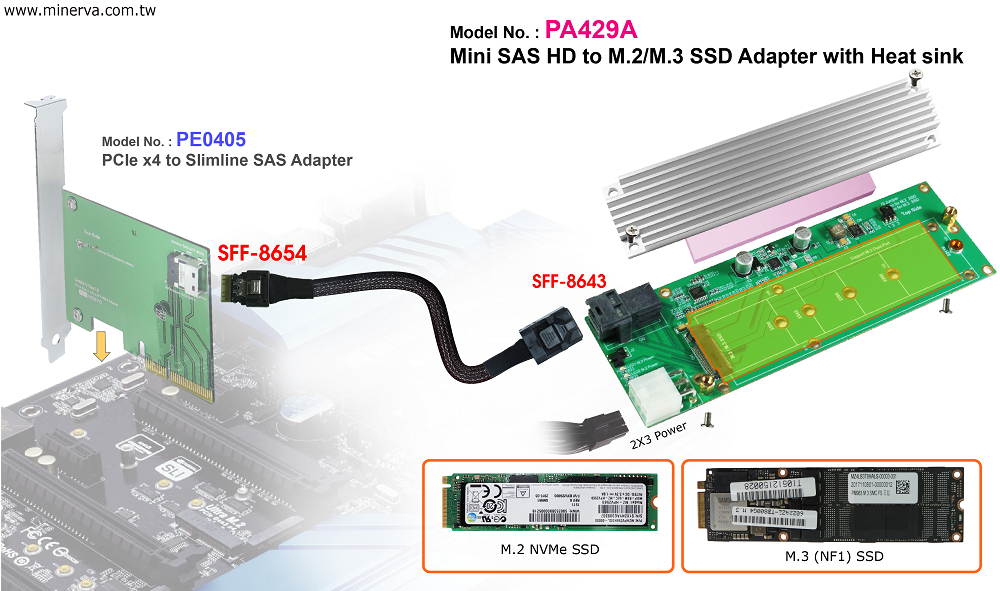

Innocard Mini SAS HD to M.2 / M.3 (NF1) Adapter with SSD heat sink with Mini SAS HD (SFF-8643) to Slimline SAS (SFF-8654) Cable KIT
PA429A Specification : Build in Hot Plug power IC protection for M.2, M.3 SSD SFF-8643 mini SAS HD to M.2, M.3 convert Build in SFF-8643 connector, pin-out defined by PCIe Build in M.2 M-key connector, pin-out defined by PCIe LED 1 Green LED on indicates M.3 NF1 SSD power ready LED 2 Green LED on M.2 SSD power ready LED 3 Red LED Blinking indicates SSD active status RSL38-0338 Specification : Mini SAS HD (SFF-8643) to Slimilne SAS (SFF-8654) Cable -- 50cm
Innocard
Innocard Mini SAS HD to M.2 / M.3 (NF1) Adapter with SSD heat sink with Mini SAS HD (SFF-8643) to Slimline SAS (SFF-8654) Cable KIT

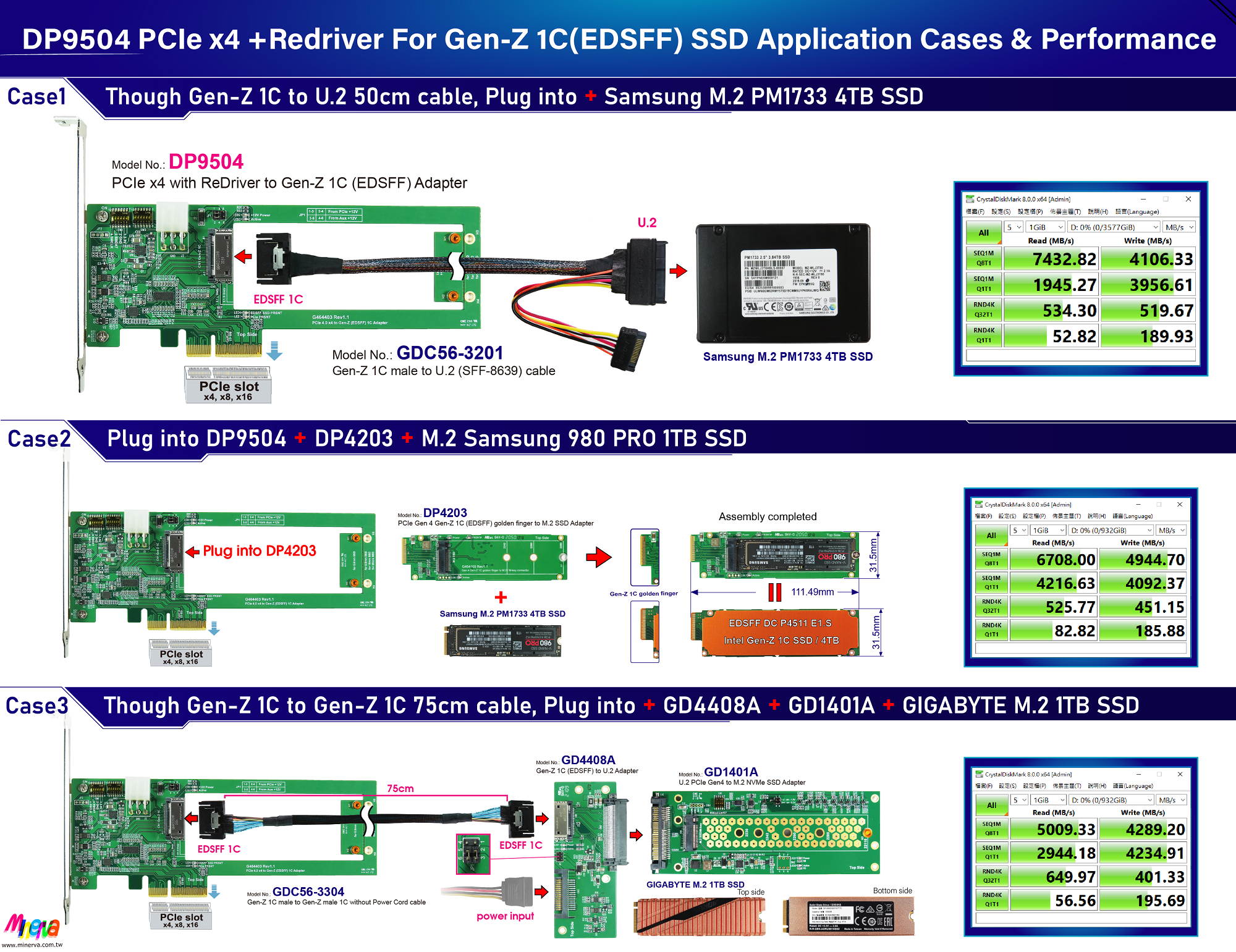

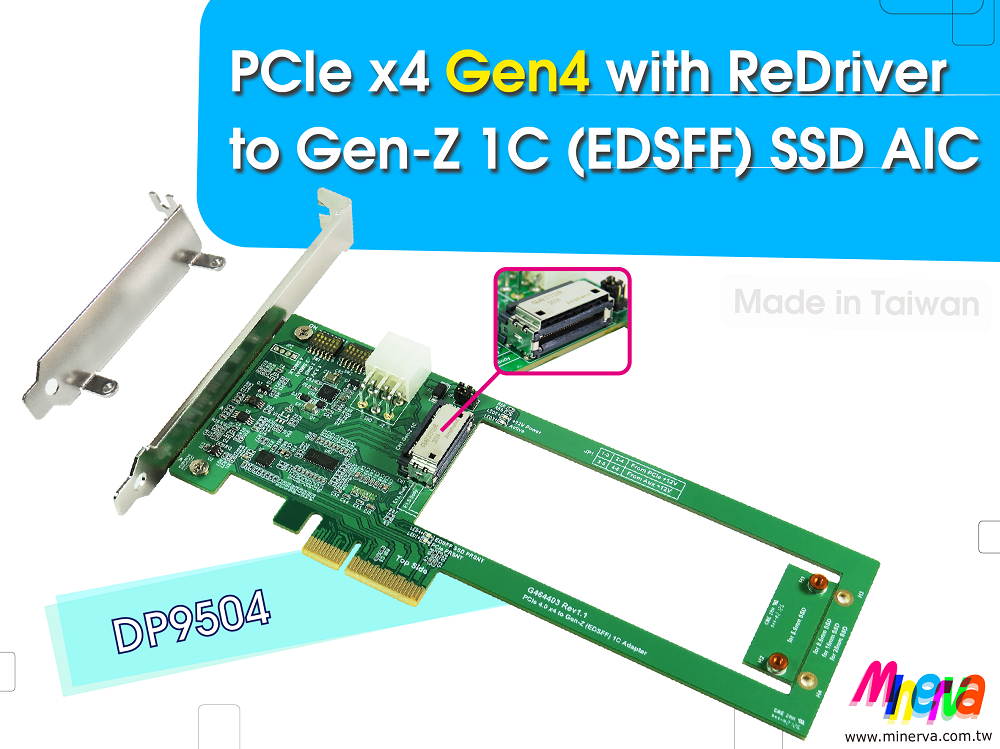

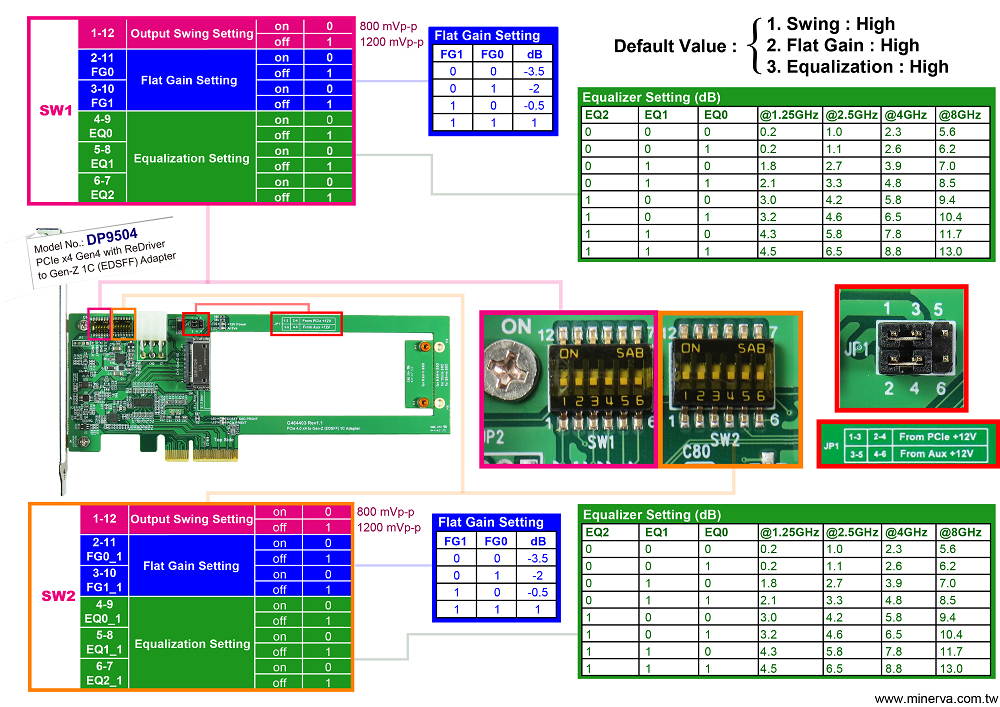

PCIe x4 Gen4 with ReDriver & Hot Plug controllers for SFF-TA-1006 E1.S
#DP9504 adapter : Features : * Gen-Z 1C (EDSFF) to PCI Express 4.0 x4 convert * Built- in EDSFF 1C with latch connector * Built- in PCIe ReDriver to extend PCIe Gen4, 16GT/s differential pair signals * Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable * Built- in SMBCLK, SMBDAT bidirectional buffer repeater * Built- in SMBUS I/O Expander(Address: 0x41) for EDSFF PWRDIS control * Built- in SMBUS I/O Expander(Address: 0x41) for EDSFF SMBRST# control * Built- in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable * Built- in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable * Built- in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable * Built- in PWRBRK# Bus Buffer Gate to be used over longer trace lengths and longer over cable Specifications : * PCI Express Base Specification Rev 4.0 * PCIe_CEM_SPEC_R4_V1_0_08072019_NCB * Support SSD_Form_Factor_Version1_a * Compliant with SFF-TA-1002 Specification Version 1.3 * Compliant with SFF-TA-1009 Specification Version 2.0 Supports the following form factor EDSFF 1C(Gen-Z) SSD : * EDSFF 1C(Gen-Z) E1.S 5.9mm Height * EDSFF 1C(Gen-Z) E1.S 9.5mm Height * EDSFF 1C(Gen-Z) E1.S 15mm Height * EDSFF 1C(Gen-Z) E1.S 25mm Height Applications : * Rack server * Microserver and Tower server * High performance computing * Hareware accelerator * Storage Controller HBA(Host Bus Adapter) * Desktop PC/motherboard
Innocard
PCIe x4 Gen4 with ReDriver & Hot Plug controllers for SFF-TA-1006 E1.S
PCIe x4 Gen4 with ReDriver& Hotswap controllers for SFF-TA-1009 Spec
#DP9504 adapter : Features : * Gen-Z 1C (EDSFF) to PCI Express 4.0 x4 convert * Built- in EDSFF 1C with latch connector * Built- in PCIe ReDriver to extend PCIe Gen4, 16GT/s differential pair signals * Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable * Built- in SMBCLK, SMBDAT bidirectional buffer repeater * Built- in SMBUS I/O Expander(Address: 0x41) for EDSFF PWRDIS control * Built- in SMBUS I/O Expander(Address: 0x41) for EDSFF SMBRST# control * Built- in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable * Built- in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable * Built- in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable * Built- in PWRBRK# Bus Buffer Gate to be used over longer trace lengths and longer over cable Specifications : * PCI Express Base Specification Rev 4.0 * PCIe_CEM_SPEC_R4_V1_0_08072019_NCB * Support SSD_Form_Factor_Version1_a * Compliant with SFF-TA-1002 Specification Version 1.3 * Compliant with SFF-TA-1009 Specification Version 2.0 Supports the following form factor EDSFF 1C(Gen-Z) SSD : * EDSFF 1C(Gen-Z) E1.S 5.9mm Height * EDSFF 1C(Gen-Z) E1.S 9.5mm Height * EDSFF 1C(Gen-Z) E1.S 15mm Height * EDSFF 1C(Gen-Z) E1.S 25mm Height Applications : * Rack server * Microserver and Tower server * High performance computing * Hareware accelerator * Storage Controller HBA(Host Bus Adapter) * Desktop PC/motherboard
Innocard
PCIe x4 Gen4 with ReDriver& Hotswap controllers for SFF-TA-1009 Spec

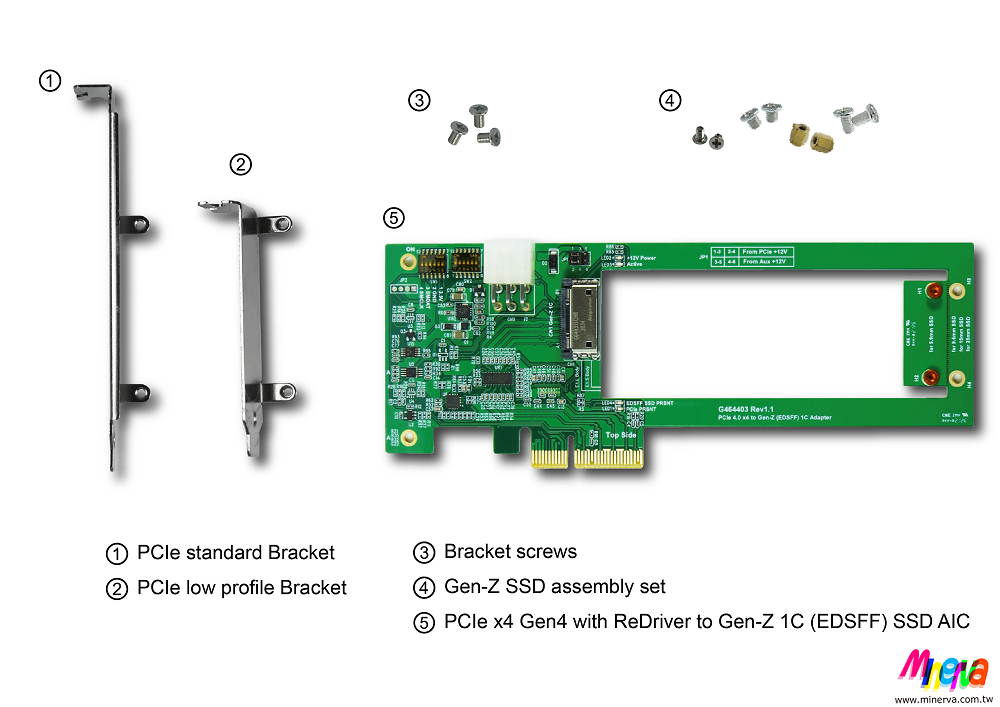

PCIex4 Gen4 with ReDriver For KIOXIA XD6 Series E1.S 9.5mm, E1.S 15mm, E1.S 25mm
#DP9504 adapter : Features : * Gen-Z 1C (EDSFF) to PCI Express 4.0 x4 convert * Built- in EDSFF 1C with latch connector * Built- in PCIe ReDriver to extend PCIe Gen4, 16GT/s differential pair signals * Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable * Built- in SMBCLK, SMBDAT bidirectional buffer repeater * Built- in SMBUS I/O Expander(Address: 0x41) for EDSFF PWRDIS control * Built- in SMBUS I/O Expander(Address: 0x41) for EDSFF SMBRST# control * Built- in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable * Built- in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable * Built- in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable * Built- in PWRBRK# Bus Buffer Gate to be used over longer trace lengths and longer over cable Specifications : * PCI Express Base Specification Rev 4.0 * PCIe_CEM_SPEC_R4_V1_0_08072019_NCB * Support SSD_Form_Factor_Version1_a * Compliant with SFF-TA-1002 Specification Version 1.3 * Compliant with SFF-TA-1009 Specification Version 2.0 Supports the following form factor EDSFF 1C(Gen-Z) SSD : * EDSFF 1C(Gen-Z) E1.S 5.9mm Height * EDSFF 1C(Gen-Z) E1.S 9.5mm Height * EDSFF 1C(Gen-Z) E1.S 15mm Height * EDSFF 1C(Gen-Z) E1.S 25mm Height Applications : * Rack server * Microserver and Tower server * High performance computing * Hareware accelerator * Storage Controller HBA(Host Bus Adapter) * Desktop PC/motherboard
Innocard
PCIex4 Gen4 with ReDriver For KIOXIA XD6 Series E1.S 9.5mm, E1.S 15mm, E1.S 25mm

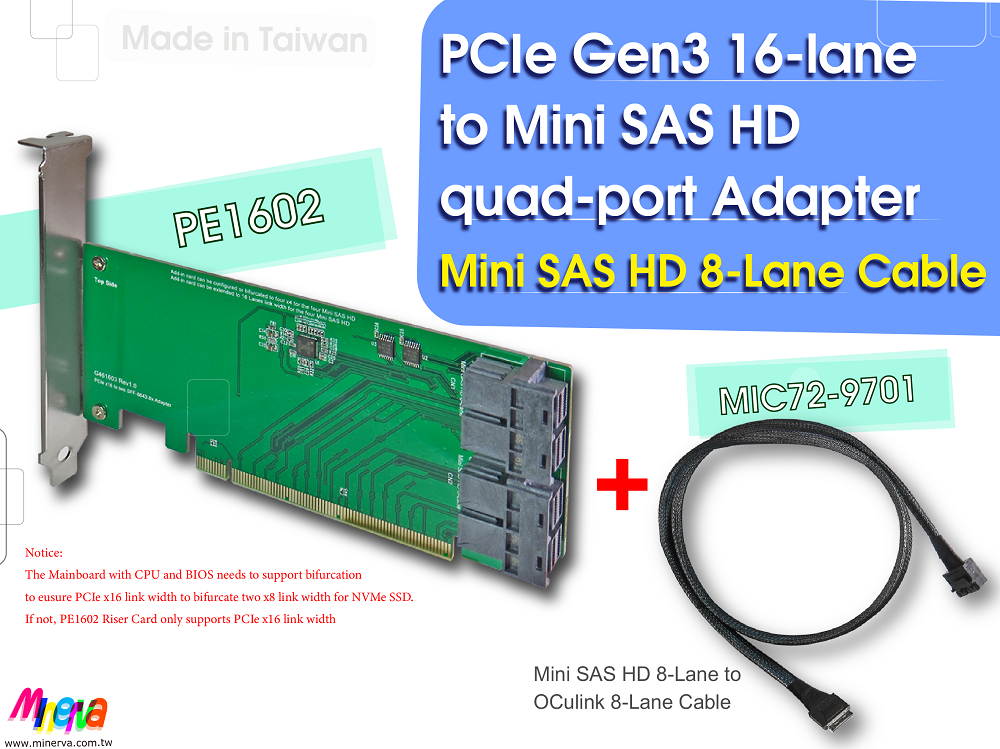

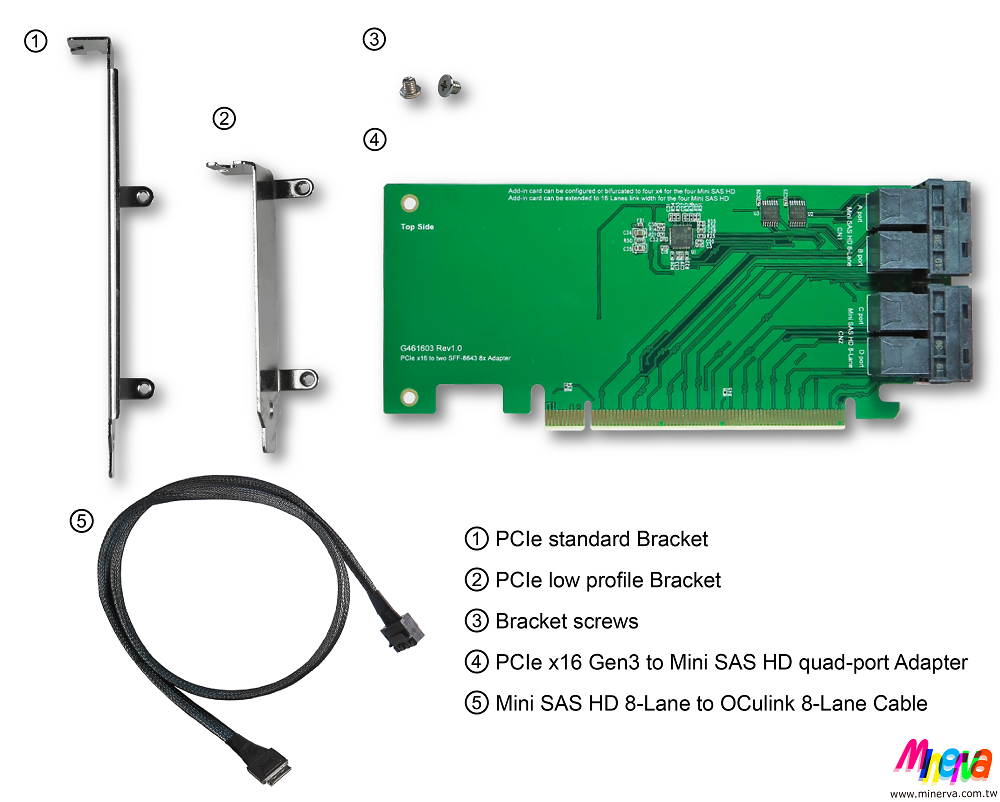

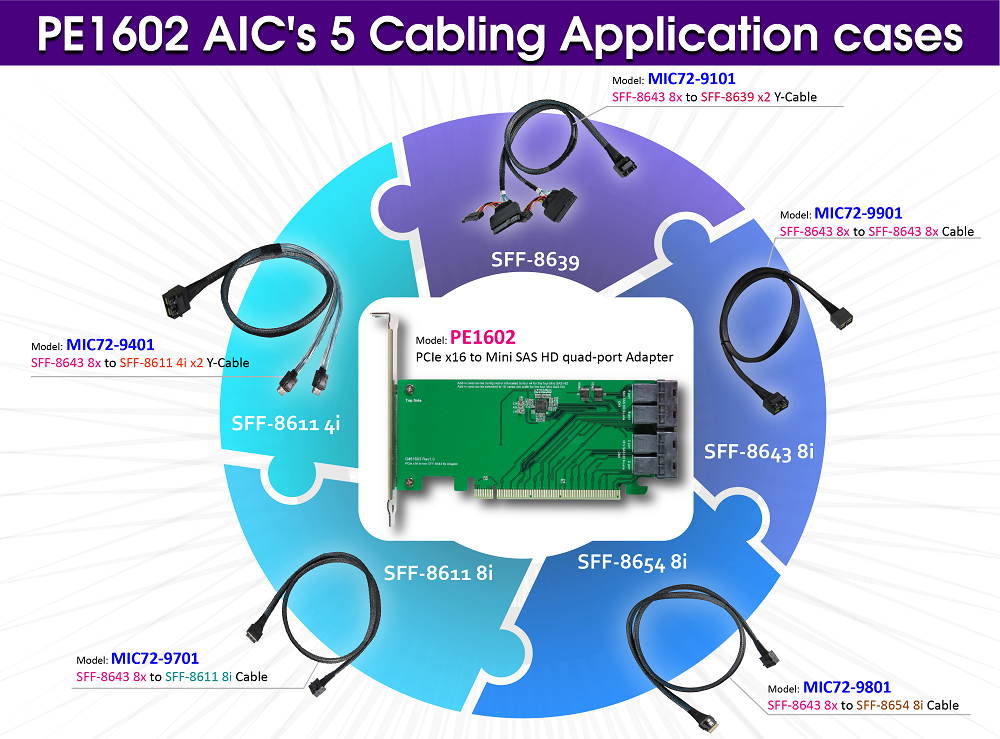

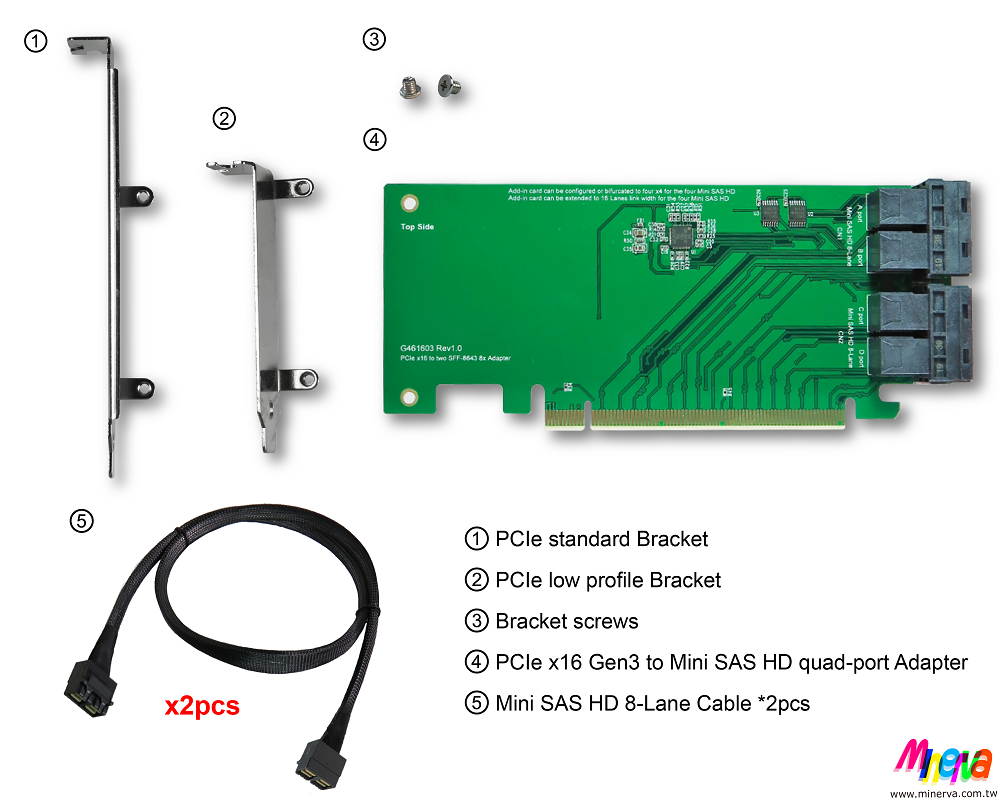

PCIe x16 Gen3 to Mini SAS HD (SFF-8643) quad-port Adapter with Mini SAS HD 8-Lane to Slimline SAS (SFF-8654) 8-Lane Cable x2pcs KIT
Features : * PE1602 can be bifurcated in quad x4(need CPU and BIOS both support) and x4 data link width configurations * PE1602 features four internal NVMe(SFF-8643) for high-perfoemace storage connectivity. * Build in Mini SAS HD(SFF-8643) 8x connector 2 sets, pin-out defined by SFF-9402 * Four internal lanes per Mini SAS HD port, 3.2Gb/s per port * Supports four physical NVMe devices * Supports SFF-9402 clock pin out * Supports Intel define Mini SAS HD(SFF-8643) clock pin out * Supports SFF-9402 perst# pin out * Supports Intel Define Mini SAS HD(SFF-8643) perst# pin out * Enables the system clock signal to be used over longer trace lengths and over a cable * Enables the system perst# signal to be used over longer trace lengths and over a cable #MIC72-9101 Cable x2pcs : Mini SAS HD (SFF-8643) 8-Lane to Slimline SAS (SFF-8654) 8-Lane Cable / 100CM
Innocard
PCIe x16 Gen3 to Mini SAS HD (SFF-8643) quad-port Adapter with Mini SAS HD 8-Lane to Slimline SAS (SFF-8654) 8-Lane Cable x2pcs KIT

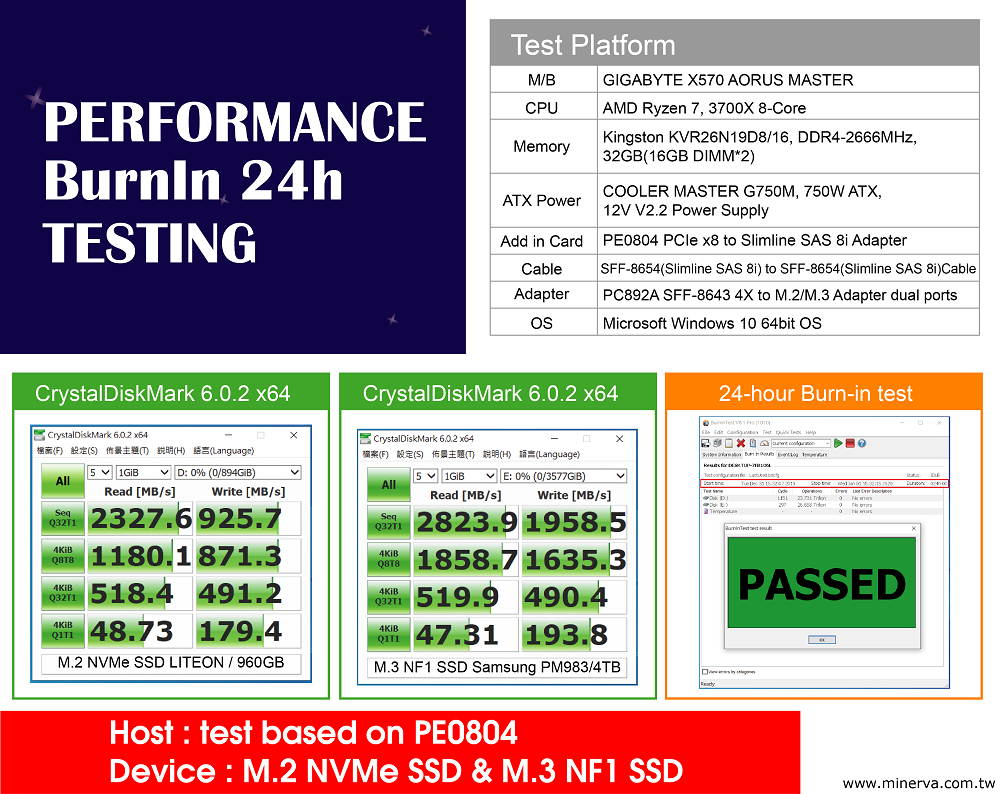

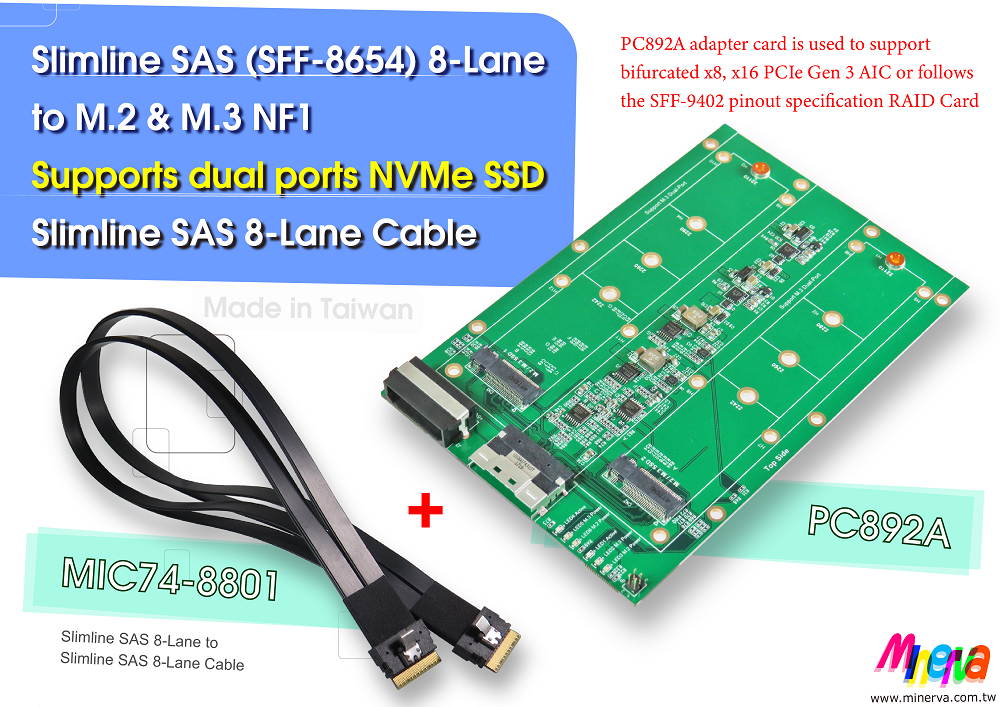

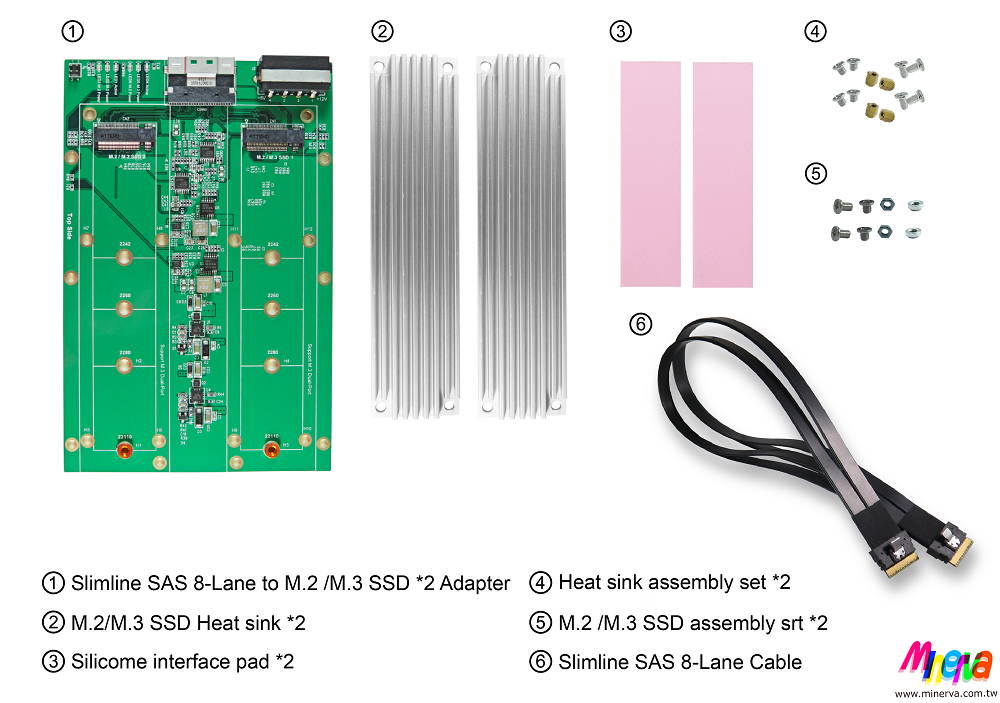

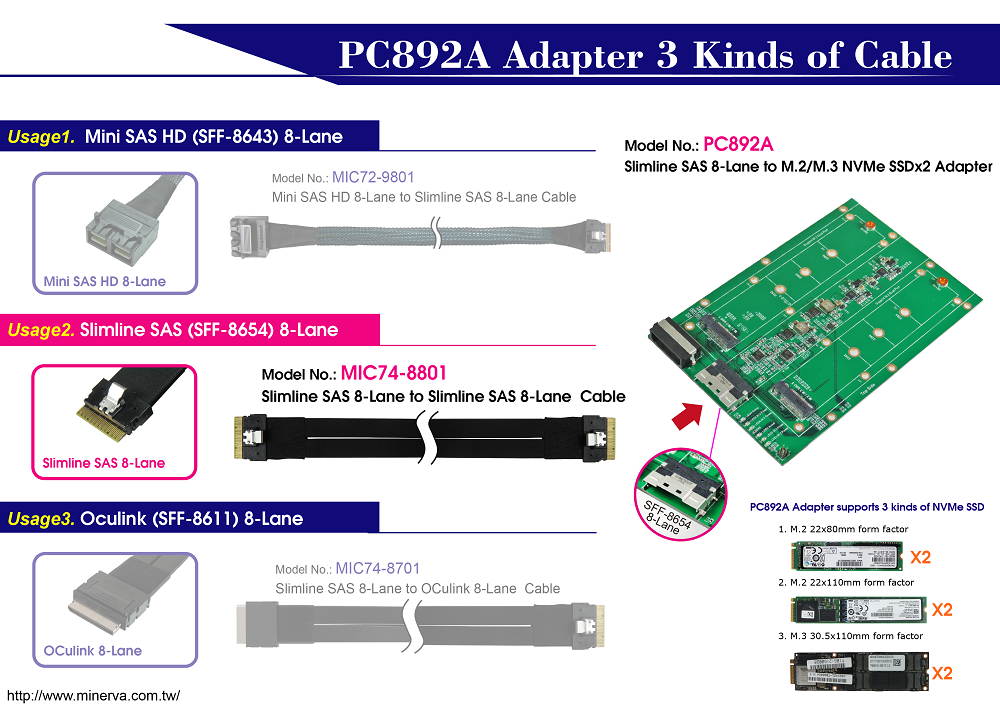

PC892A - Slimilne SAS (SFF-8654) 8-Lane to M.3 NF1 SSD dual ports Adapter to Slimline SAS 8-Lane to Slimline SAS 8-Lane Cable KIT
#PC892A adapter : Features : * Built-in +12V Hot Plug protection power module for M.3 NVMe SSD * Built-in +3.3V Hot Plug protection power module for M.2 NVMe SSD * SFF-8654 Slimline SAS 8i to M.2, M.3 convert * Built-in SFF-8654 8i connector, pin-out defined by PCIe * Built-in M.2 M-key connector, pin-out defined by PCIe * LED 1, LED4 Red LED Blinking indicates SSD active status * LED 2, LED 5 Green LED on M.3 SSD power ready * LED 3, LED 6 Green LED on M.2 SSD power ready Specifications: * Compliant with NVM Express 1.2a * Supports PCI Express Base Specification Rev 3.1 * Supports PCI Express M.2 Specification Revision 3.0, Version 1.2 _06262019 * Compliant with SFF-8654 Specification Rev 1.2 * Support Samsung M.3 NF1 Datasheet_v0.4 * The adapter SFF-8654 Slimline SAS 8i connector pinout based on SFF-9402 Rev1.1 Supports the following form factor M.2 , M.3 SSD : * Type 2242-D2-B-M: 42mm(L) x 22mm(W) * Type 2260-D2-B-M: 60mm(L) x 22mm(W) * Type 2280-D2-B-M: 80mm(L) x 22mm(W) * Type 22110-D2-B-M: 110mm(L) x 22mm(W) * Type 305110-D2-B-M: 110mm(L) x 30.5mm(W) Various high speed cable application cases: * SFF-8654 8i to SFF-8654 8i Cable for SFF-8654 Slimline SAS Host by SFF-9402 defined PCIe REFCLKp,n * SFF-8611 8i to SFF-8654 8i Cable for SFF-8654 Slimline SAS Host by SFF-9402 defined PCIe REFCLKp,n * SFF-8643 8x to SFF-8654 8i Cable for SFF-8643 mini SAS HD Host by Intel define PCIe REFCLKp,n #MIC74-8801 Cable : Slimline SAS 8-Lane to Slimline SAS (SFF-8654) 8-Lane Cable / 50CM
Innocard
PC892A - Slimilne SAS (SFF-8654) 8-Lane to M.3 NF1 SSD dual ports Adapter to Slimline SAS 8-Lane to Slimline SAS 8-Lane Cable KIT

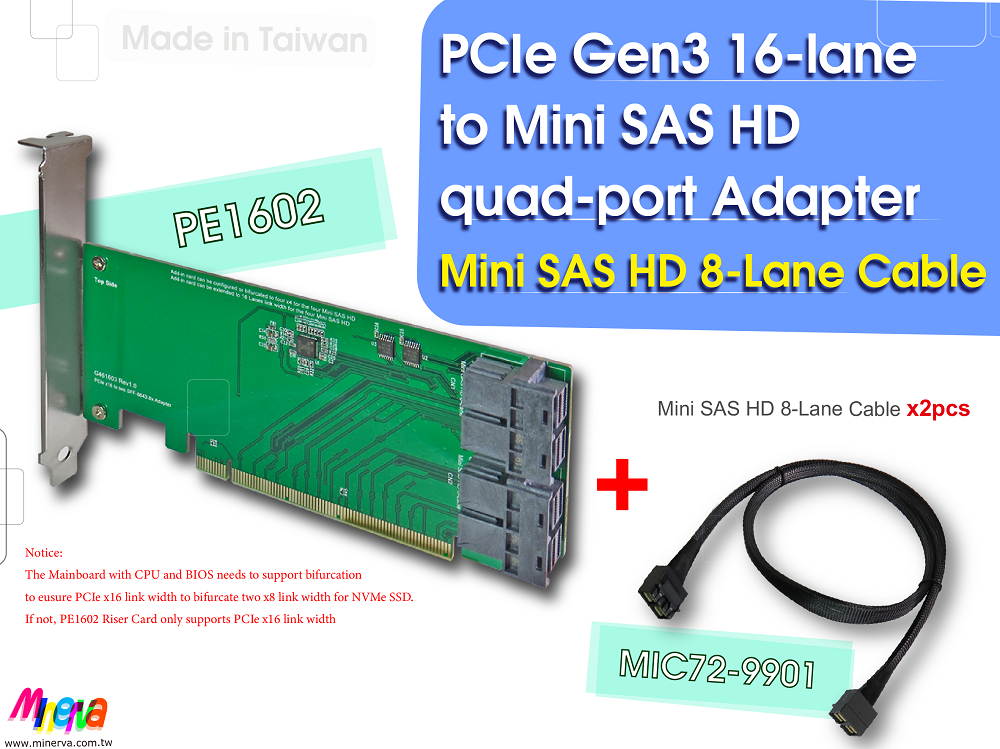

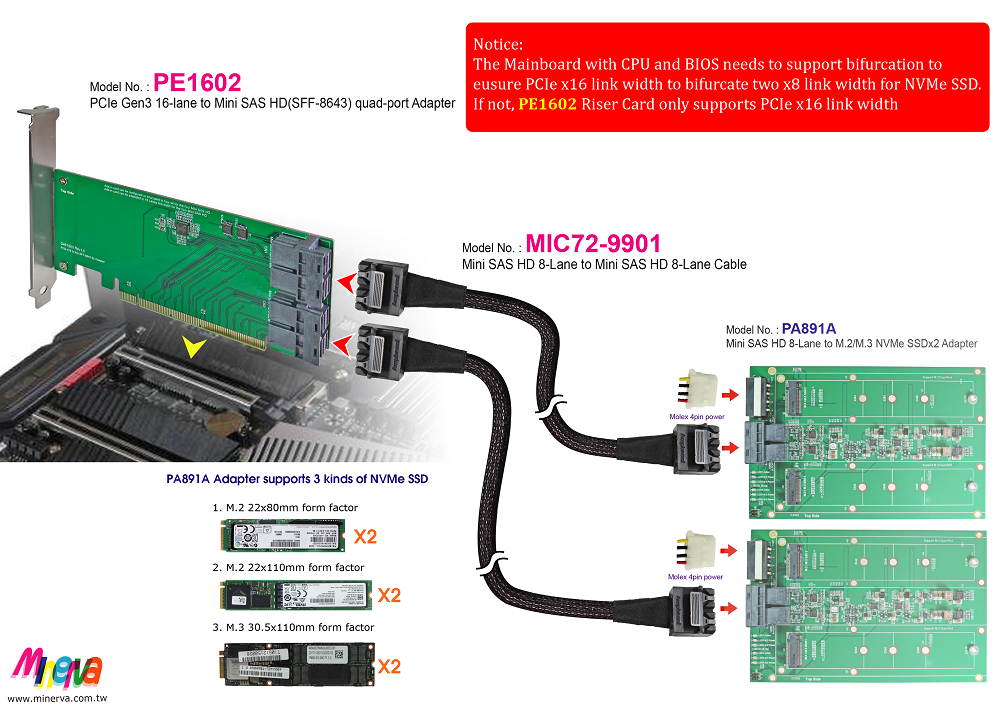

PCIe x16 Gen3 to Mini SAS HD (SFF-8643) quad-port Adapter with Mini SAS HD 8-Lane to Mini SAS HD 8-Lane Cable x2pcs KIT
Features: * PE1602 can be bifurcated in quad x4 (need CPU and BIOS both support) and x4 data link width configurations * PE1602 features four internal NVMe(SFF-8643) for high-perfoemace storage connectivity. * Build in Mini SAS HD(SFF-8643) 8x connector 2 sets, pin-out defined by SFF-9402 * Four internal lanes per Mini SAS HD port, 3.2G b/s per port * Supports four physical NVMe devices * Supports SFF-9402 clock pin out * Supports Intel define Mini SAS HD(SFF-8643) clock pin out * Supports SFF-9402 perst# pin out * Supports Intel Define Mini SAS HD(SFF-8643) perst# pin out * Enables the system clock signal to be used over longer trace lengths and over a cable * Enables the system perst# signal to be used over longer trace lengths and over a cable #MIC72-9901 Cable x2pcs : Mini SAS HD (SFF-8643) 8-Lane to Mini SAS HD 8-Lane Cable / 100CM
Innocard
PCIe x16 Gen3 to Mini SAS HD (SFF-8643) quad-port Adapter with Mini SAS HD 8-Lane to Mini SAS HD 8-Lane Cable x2pcs KIT

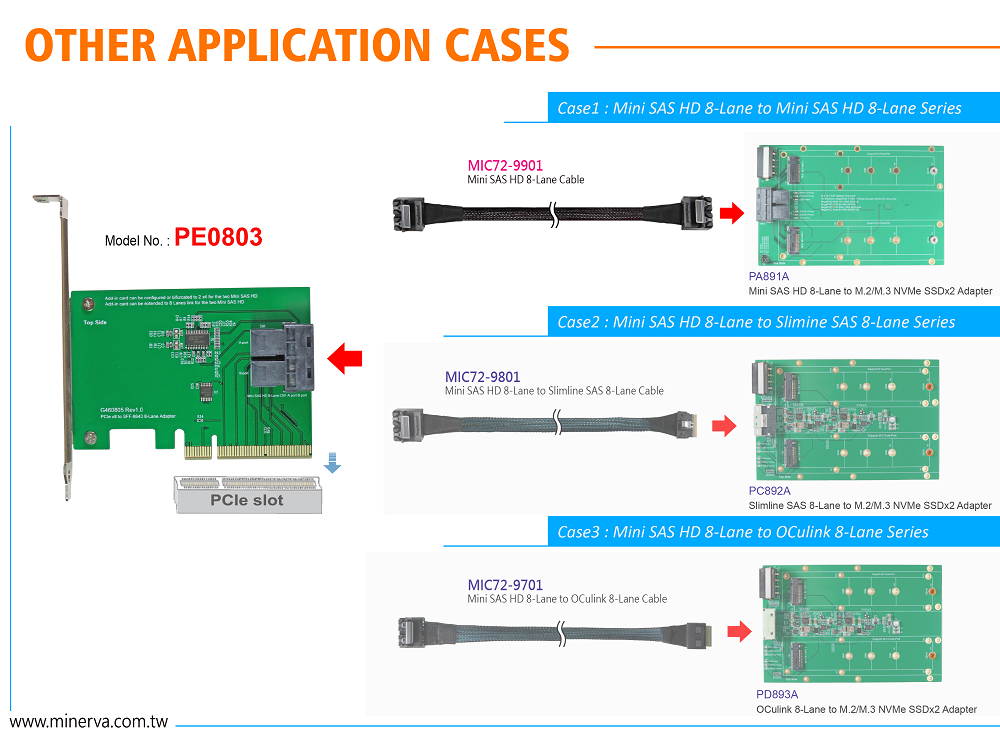

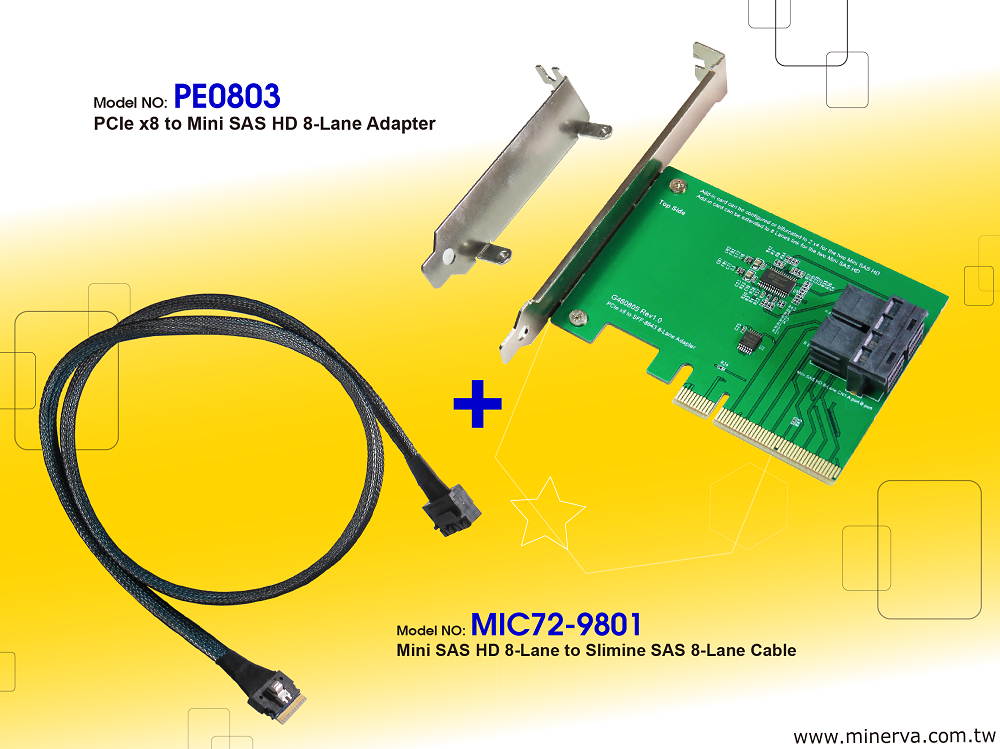

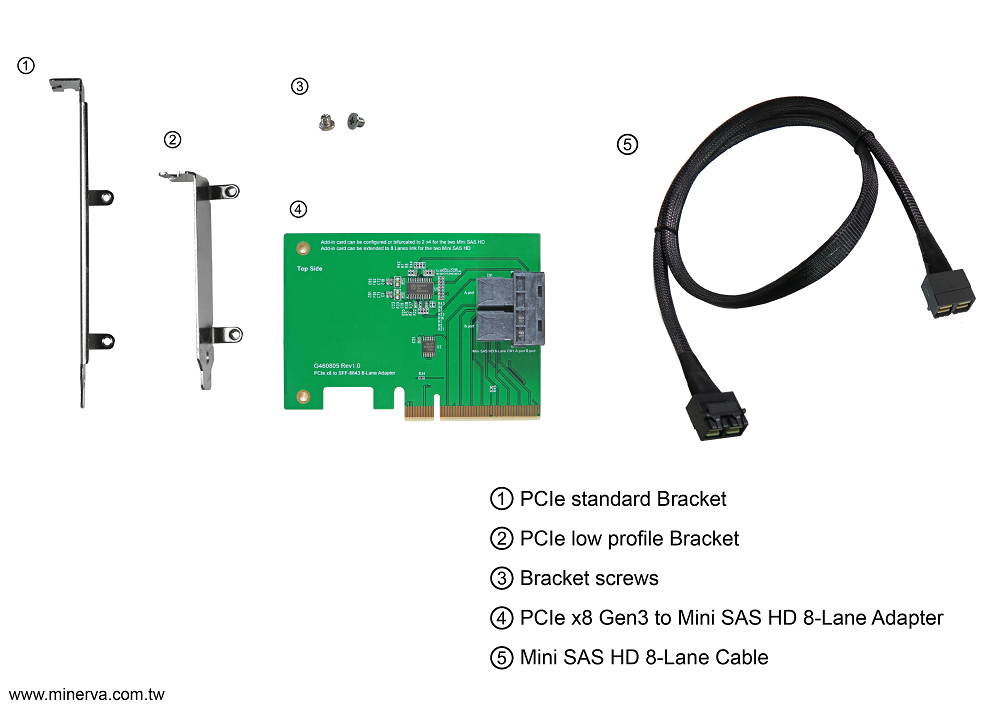

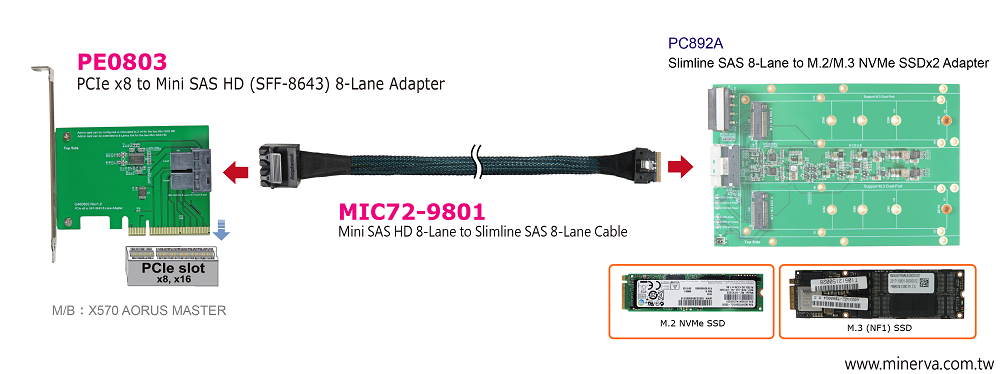

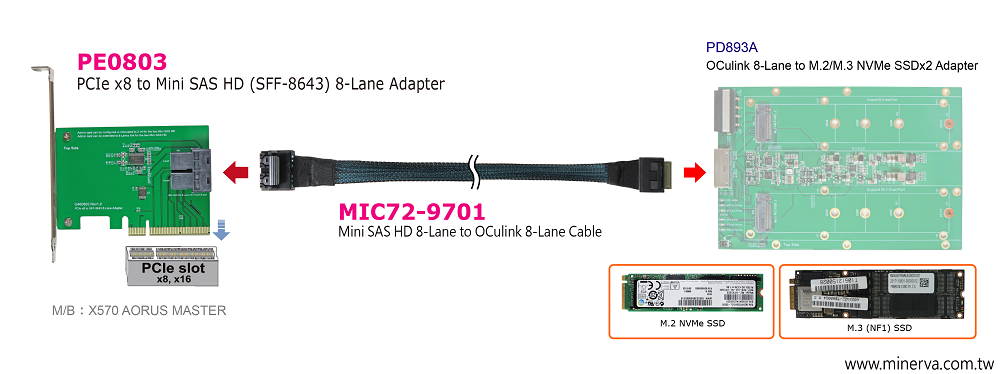

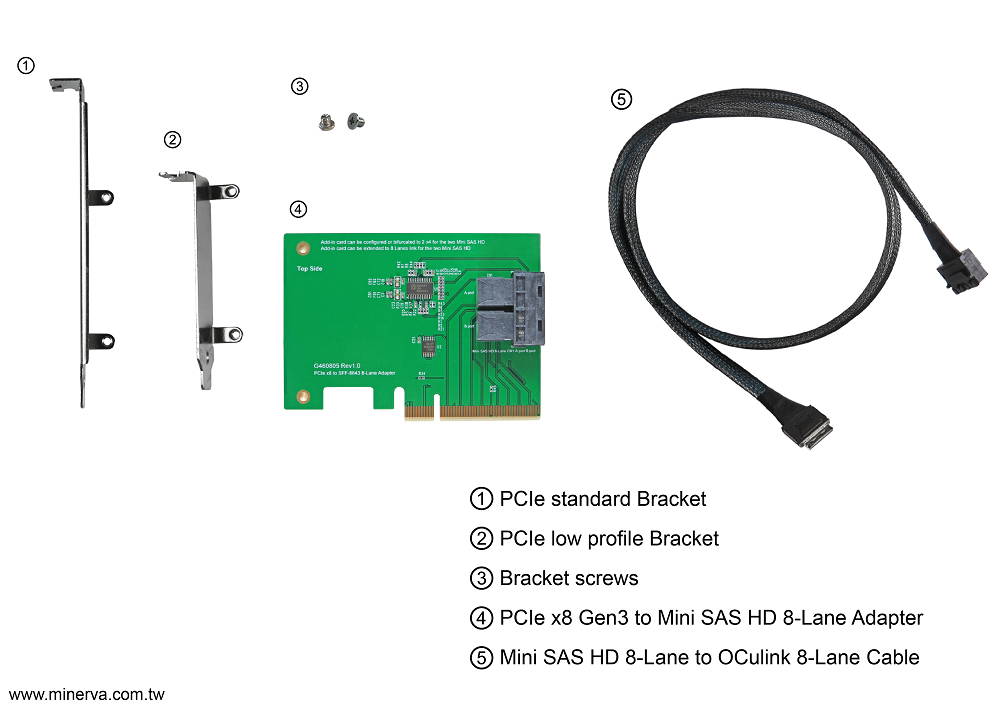

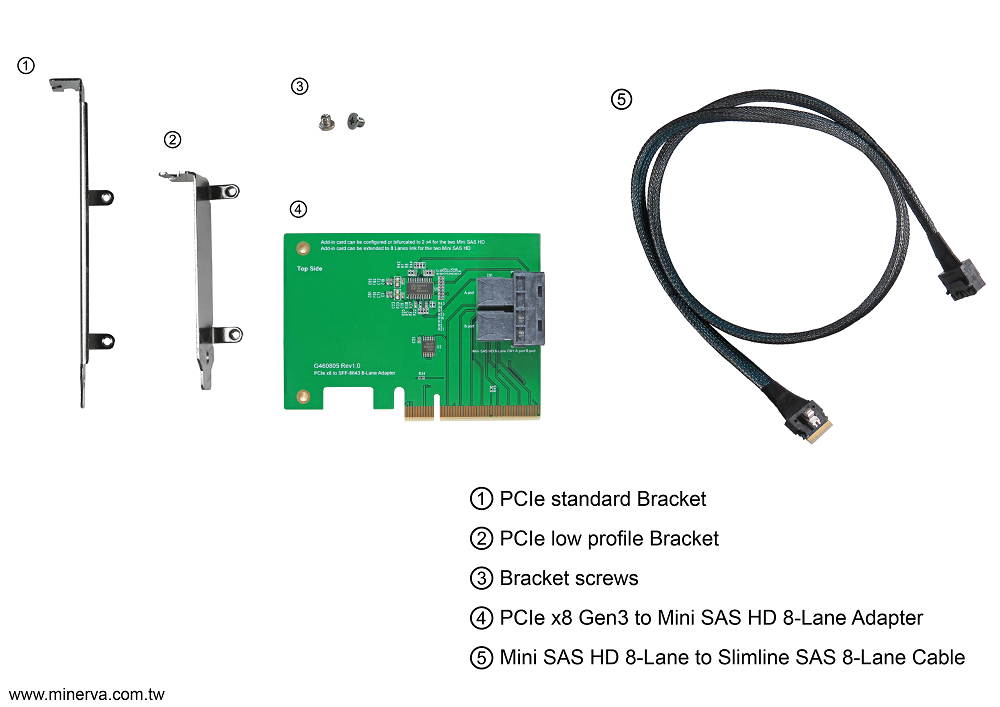

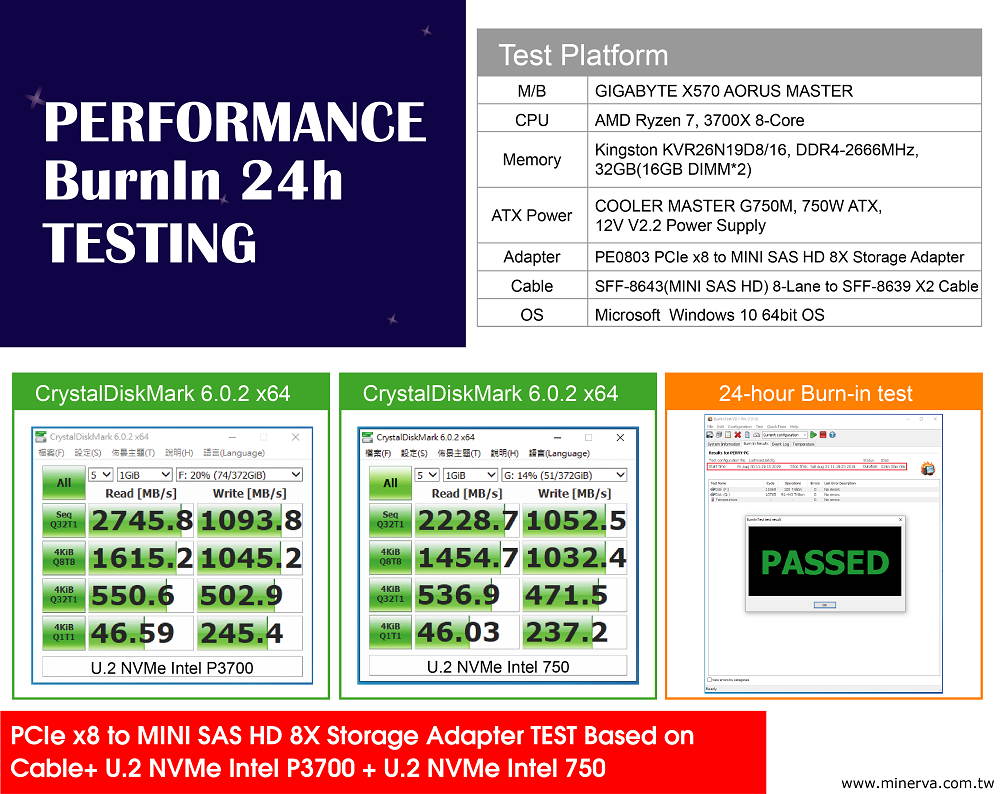

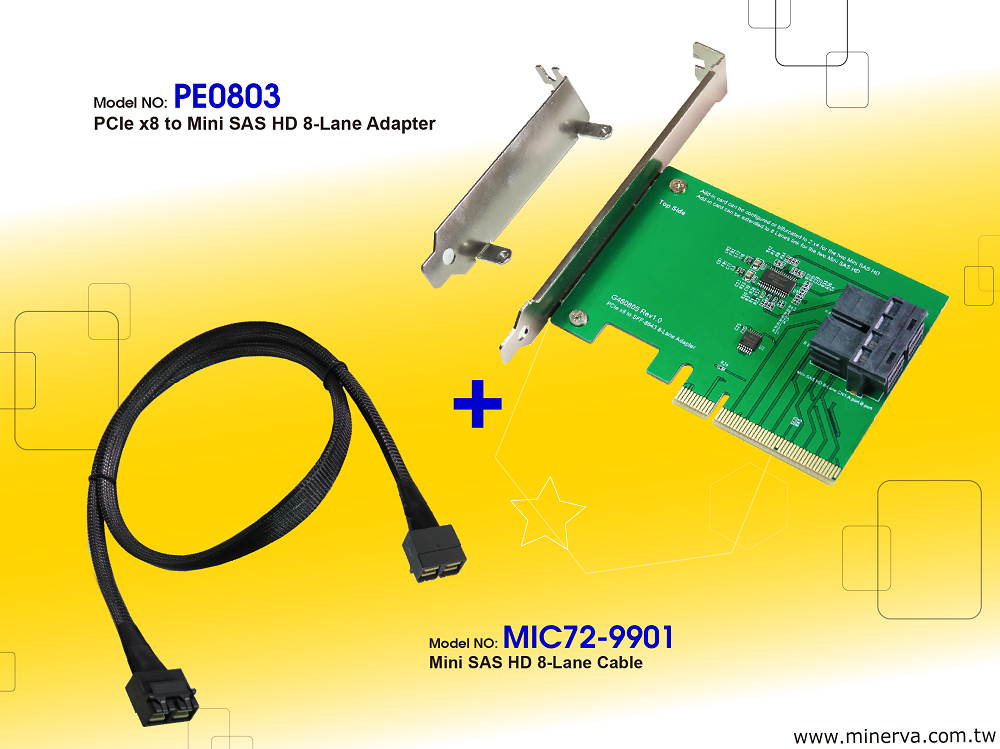

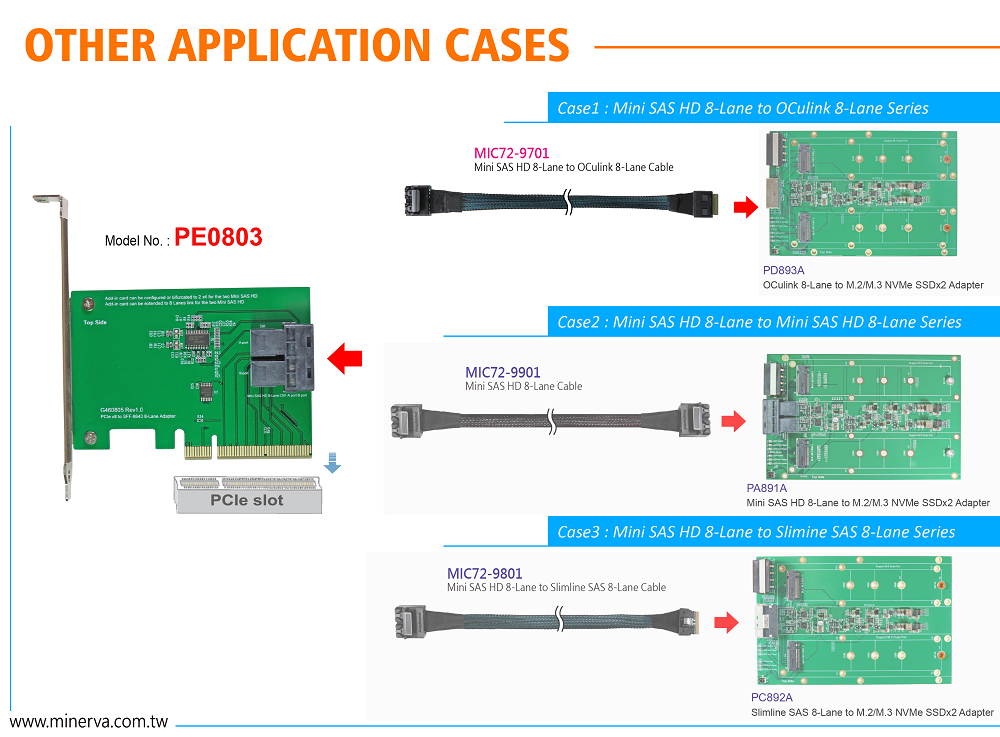

PCIe x8 Gen3 to Mini SAS HD (SFF-8643) 8-Lane Adapter with Mini SAS HD 8-Lane to Slimline SAS 8-Lane Cable KIT
Features: * PE0803 can be offered in two x4 (need CPU and BIOS both support) and x8 configurations * PE0803 features two internal NMVe(SFF-8643) for high-perfoemace storage connectivity. * Build in 8x Mini SAS SFF-8643 connector 1 sets, pin-out defined by PCIe * Dual-port PCIe Gen 3 NVMe controller * Four internal lanes per Mini SAS HD port, 3.2B /s per port * Supports two physical NVMEe devices * Supports SFF-9402 clock pin out * Support Intel Define Mini SAS HD SFF-8643 clock pin out * Supports SFF-9402 perst# pin out * Supports Intel Define Mini SAS HD SFF-8643 perst# pin out Specifications: * Compliant with NVM Express 1.2 a * Support PCI Express Base Specification Rev 3.0 * Support SSD_Form_Factor_Version1_a * Compliant with SFF-8643 Specification Version 3.5 Part Number: MIC72-9701 Product Description: Mini SAS HD (SFF-8643) 8-Lane to Slimline SAS (SFF-8654) 8-Lane Cable Cable Length: 100CM
Innocard
PCIe x8 Gen3 to Mini SAS HD (SFF-8643) 8-Lane Adapter with Mini SAS HD 8-Lane to Slimline SAS 8-Lane Cable KIT

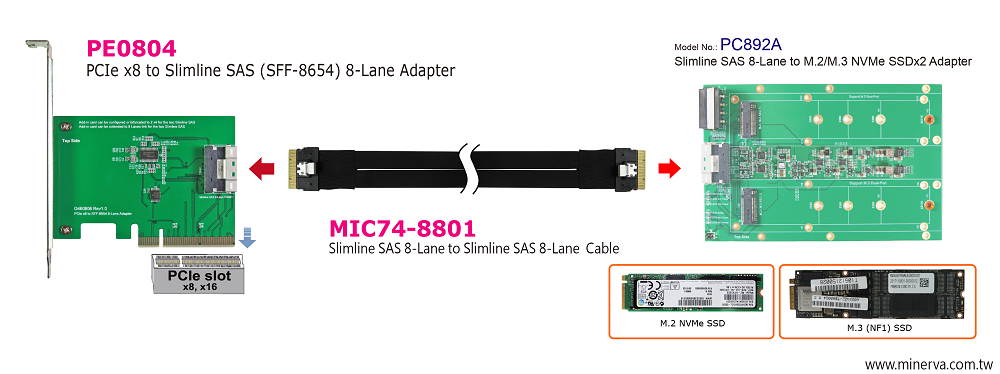

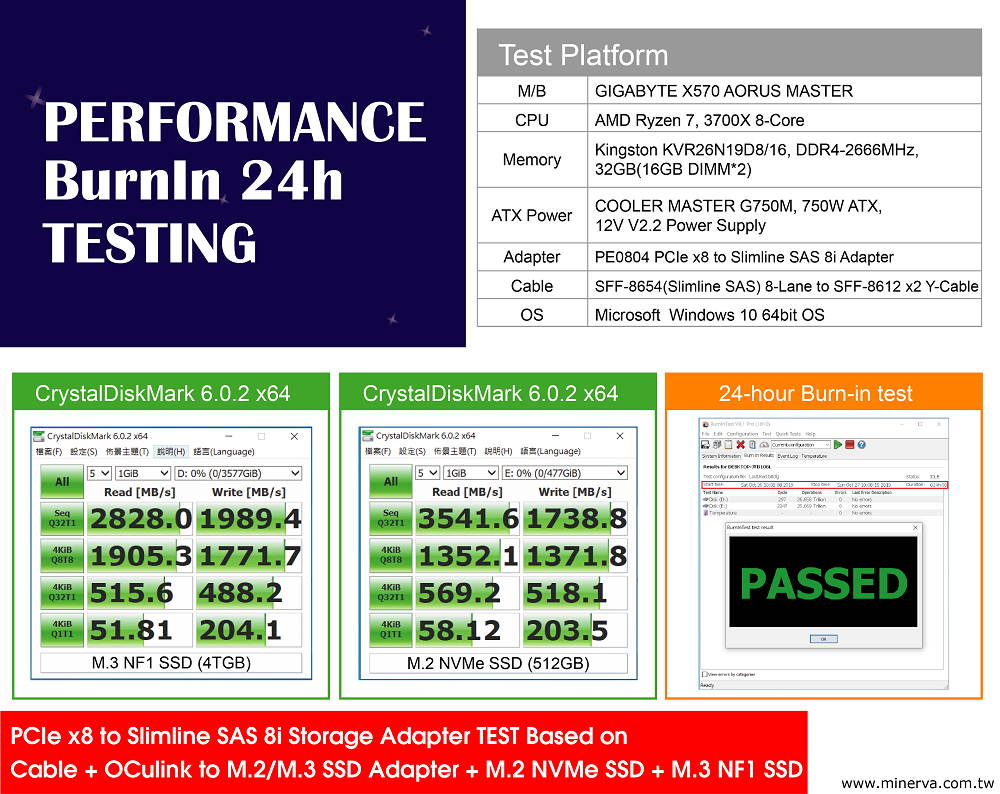

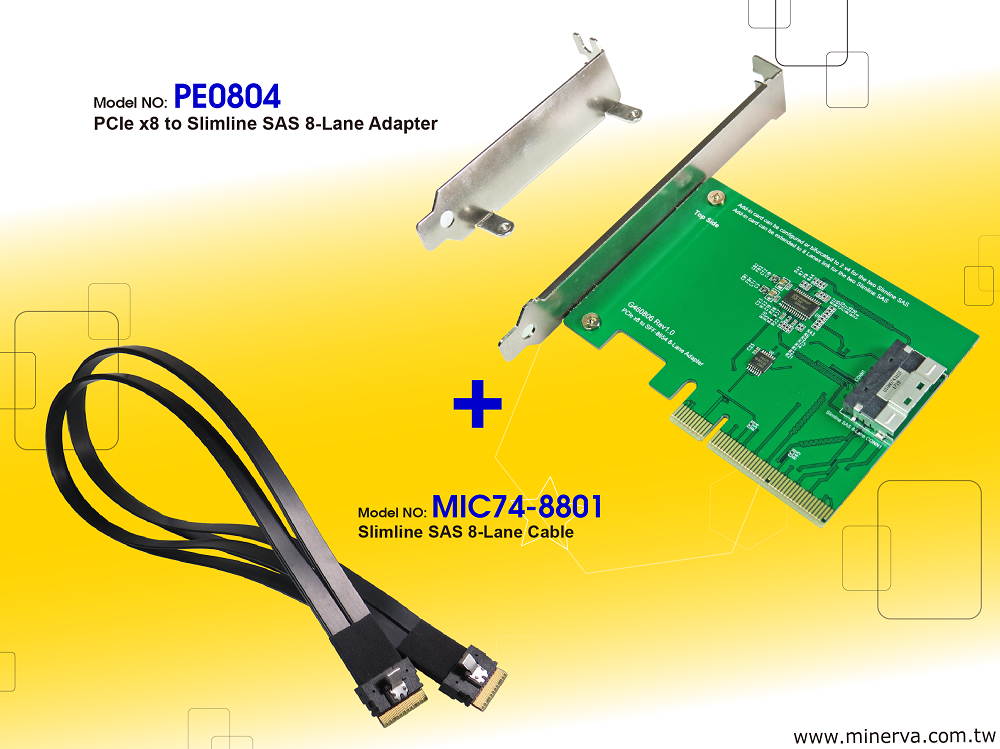

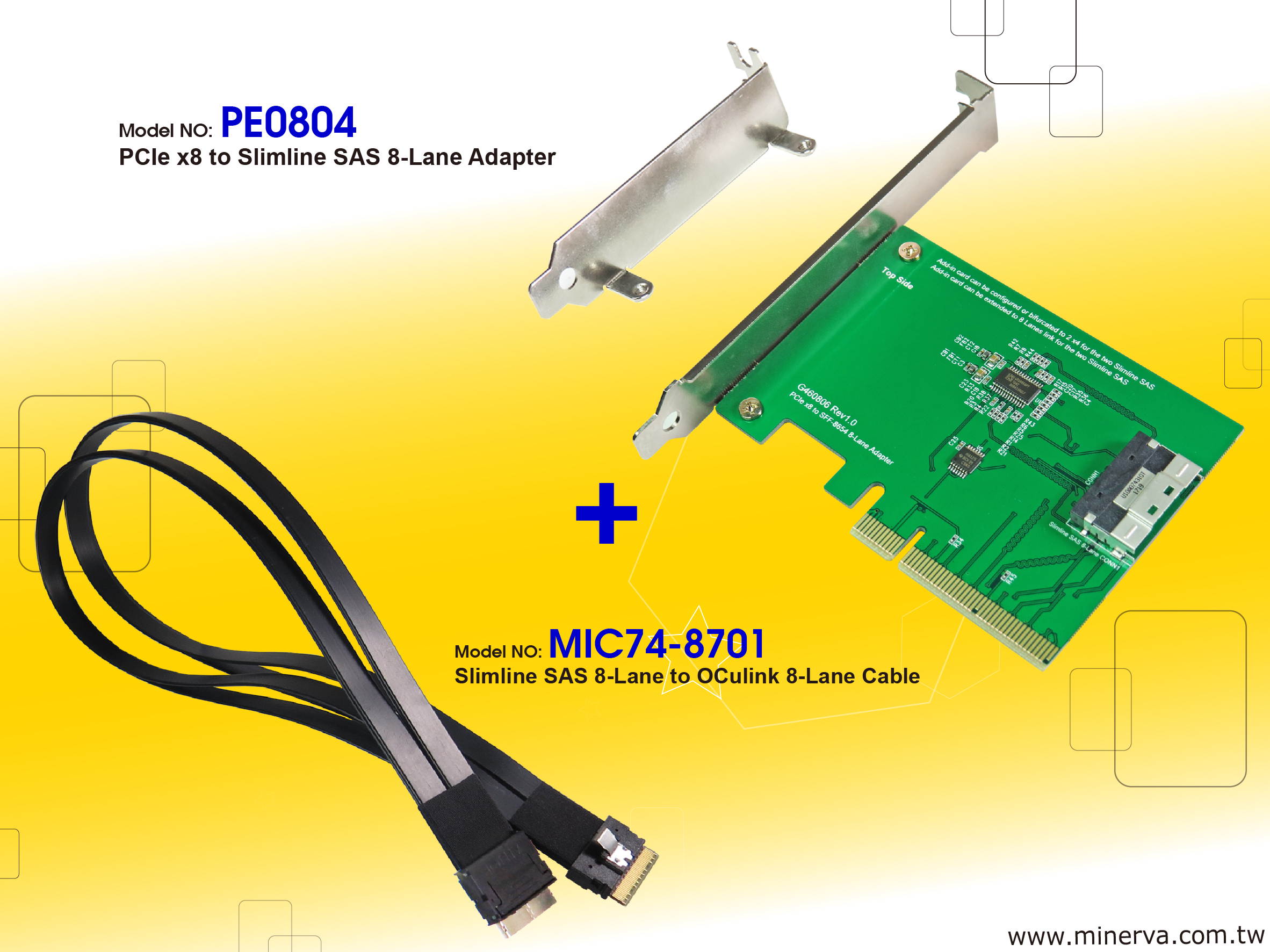

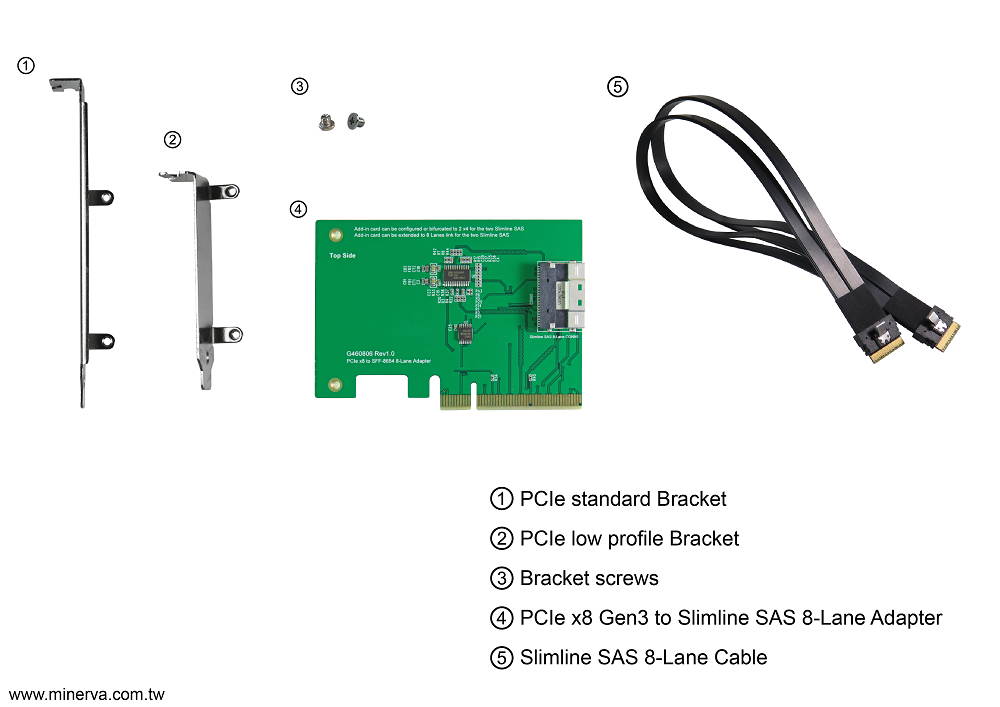

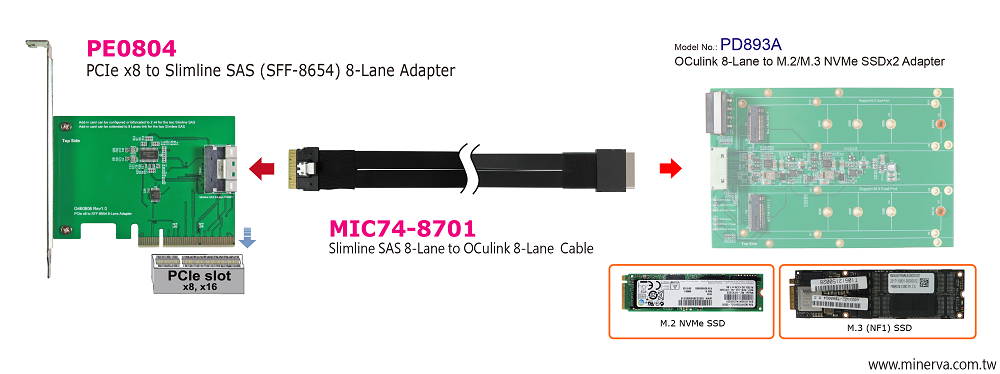

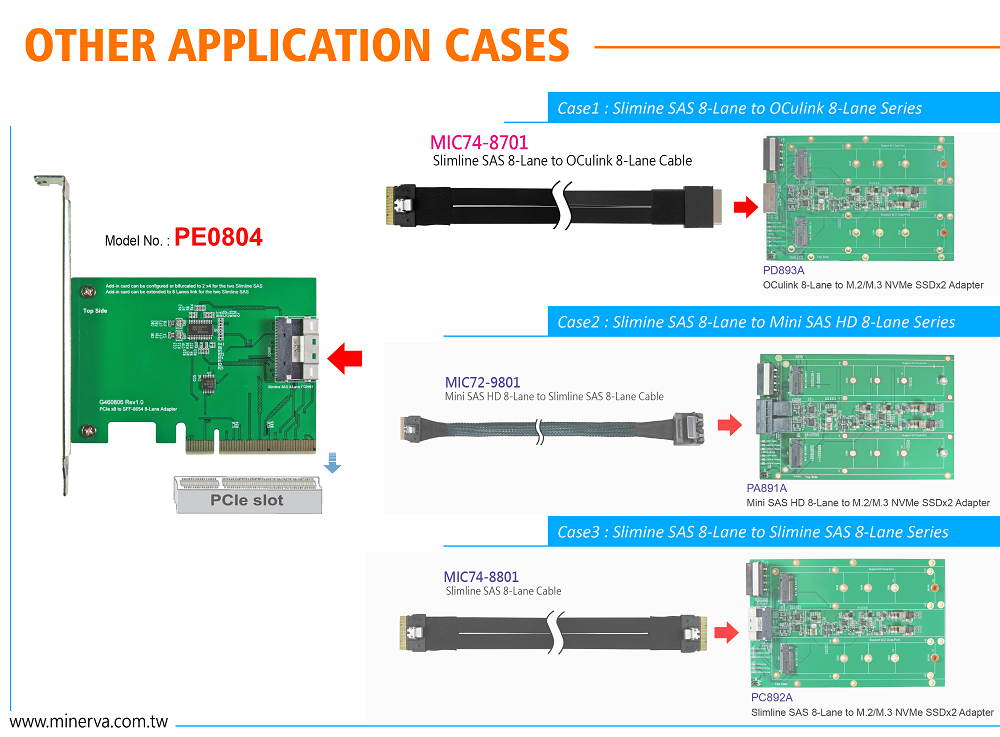

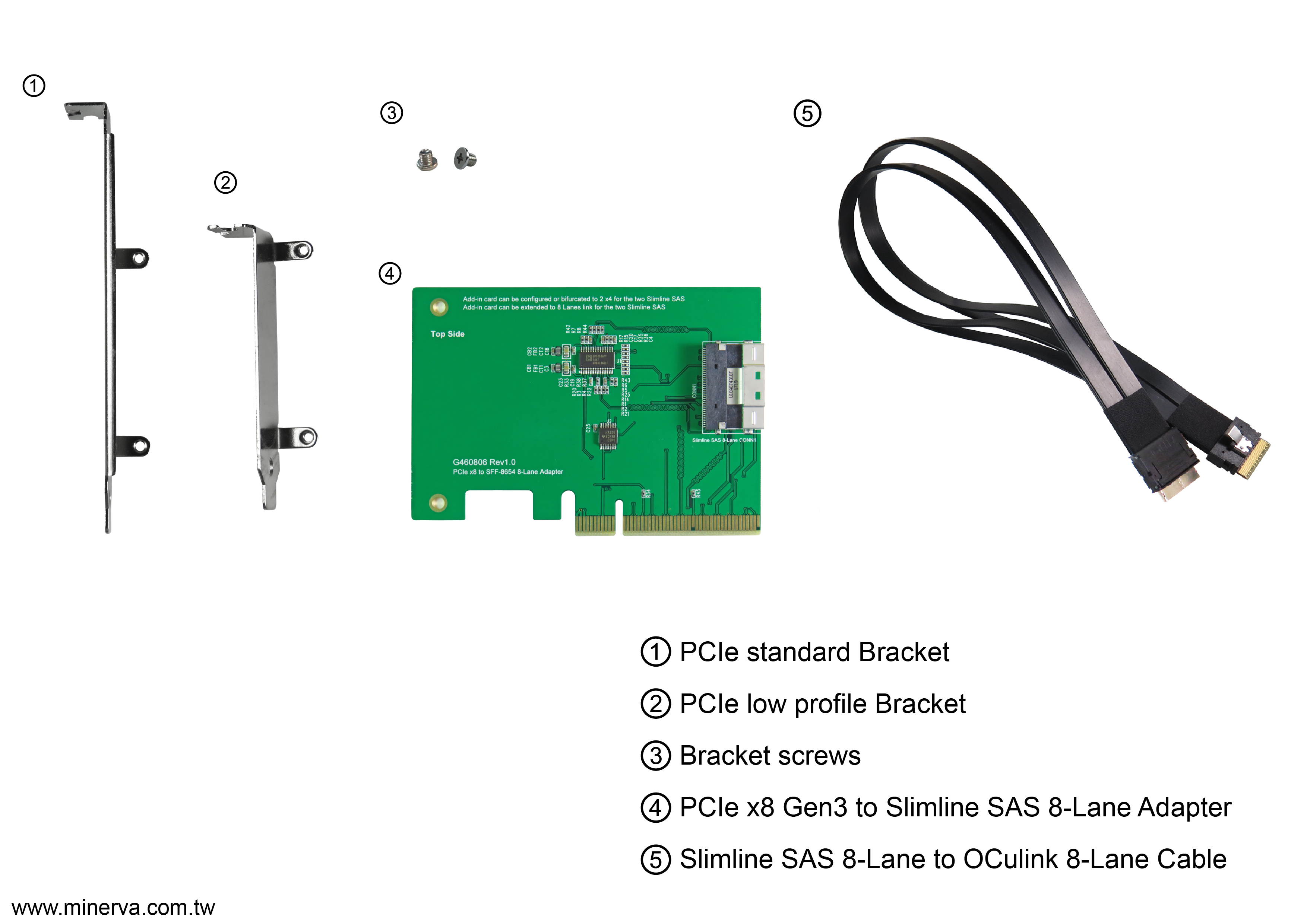

PE0804 - PCIe Gen3 8-lane to Slimline SAS (SFF-8654 8i) Add-in Card(AIC) with Slimline SAS 8-Lane to OCulink 8-Lane Cable KIT
Features : * PE0804 can be offered in two x4(need CPU and BIOS both support) or can be extended x8 data width configurations. * PE0804 features one internal Slimline SAS connector(SFF-8654 8i) for high-perfoemace storage connectivity. * Build in SFF-8654 8i Slimline SAS connector, pin-out defined by PCIe * Dual-port PCIe Gen 3 NVMe controller * Eight internal lanes for SFF-8654 8i, 6.4GB/s * Supports two physical NVMe devices * Supports SFF-9402 clock & perst# pin out * Support Intel Define Slimline SAS SFF-8654 clock & perst# pin out * Enables the system perst# signal to be used over longer trace lengths and over a cable Specifications : * Compliant with NVM Express 1.2a * Support PCI Express Base Specification Rev 3.0 * Support SSD_Form_Factor_Version1_a * Compliant with SFF-8654 Specification Version 1.2 Part Number : MIC74-8701 Product Description : Slimline SAS (SFF-8654) 8- Lane to OCulink (SFF-8611) 8-Lane Cable Cable Length : 50CM
Innocard
PE0804 - PCIe Gen3 8-lane to Slimline SAS (SFF-8654 8i) Add-in Card(AIC) with Slimline SAS 8-Lane to OCulink 8-Lane Cable KIT
PCIe x8 Gen3 to Mini SAS HD (SFF-8643) 8-Lane Adapter with Mini SAS HD 8-Lane to Mini SAS HD 8-Lane Cable KIT
Features: * PE0803 can be offered in two x4 (need CPU and BIOS both support) and x8 configurations * PE0803 features two internal NMVe(SFF-8643) for high-perfoemace storage connectivity. * Build in 8x Mini SAS SFF-8643 connector 1 sets, pin-out defined by PCIe * Dual-port PCIe Gen 3 NVMe controller * Four internal lanes per Mini SAS HD port, 3.2B /s per port * Supports two physical NVMEe devices * Supports SFF-9402 clock pin out * Support Intel Define Mini SAS HD SFF-8643 clock pin out * Supports SFF-9402 perst# pin out * Supports Intel Define Mini SAS HD SFF-8643 perst# pin out Specifications: * Compliant with NVM Express 1.2 a * Support PCI Express Base Specification Rev 3.0 * Support SSD_Form_Factor_Version1_a * Compliant with SFF-8643 Specification Version 3.5 Part Number: MIC72-9901 Product Description: Mini SAS HD (SFF-8643) 8-Lane to Mini SAS HD (SFF-8643) 8-Lane Cable Cable Length: 100CM
Innocard
PCIe x8 Gen3 to Mini SAS HD (SFF-8643) 8-Lane Adapter with Mini SAS HD 8-Lane to Mini SAS HD 8-Lane  Cable KIT

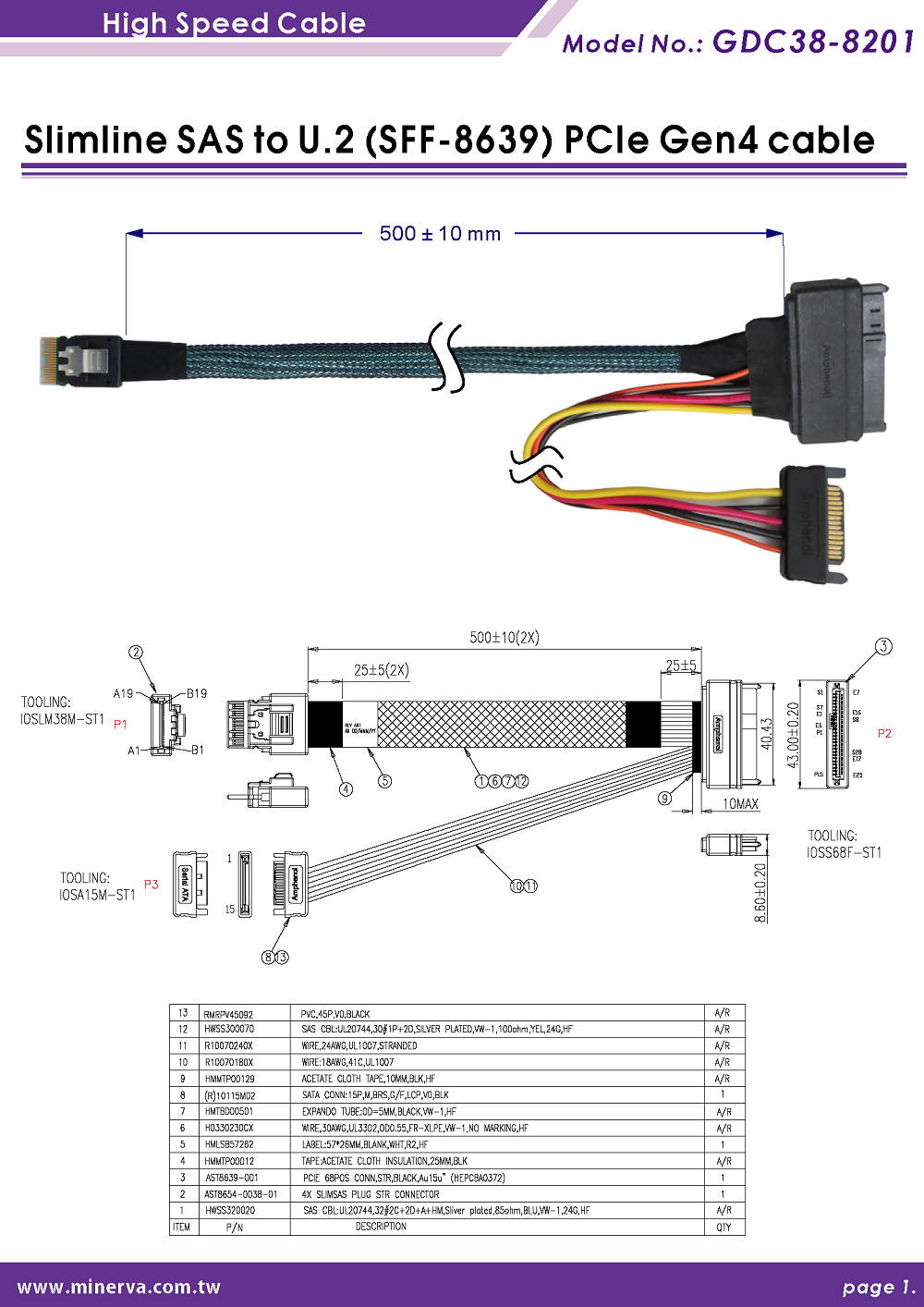

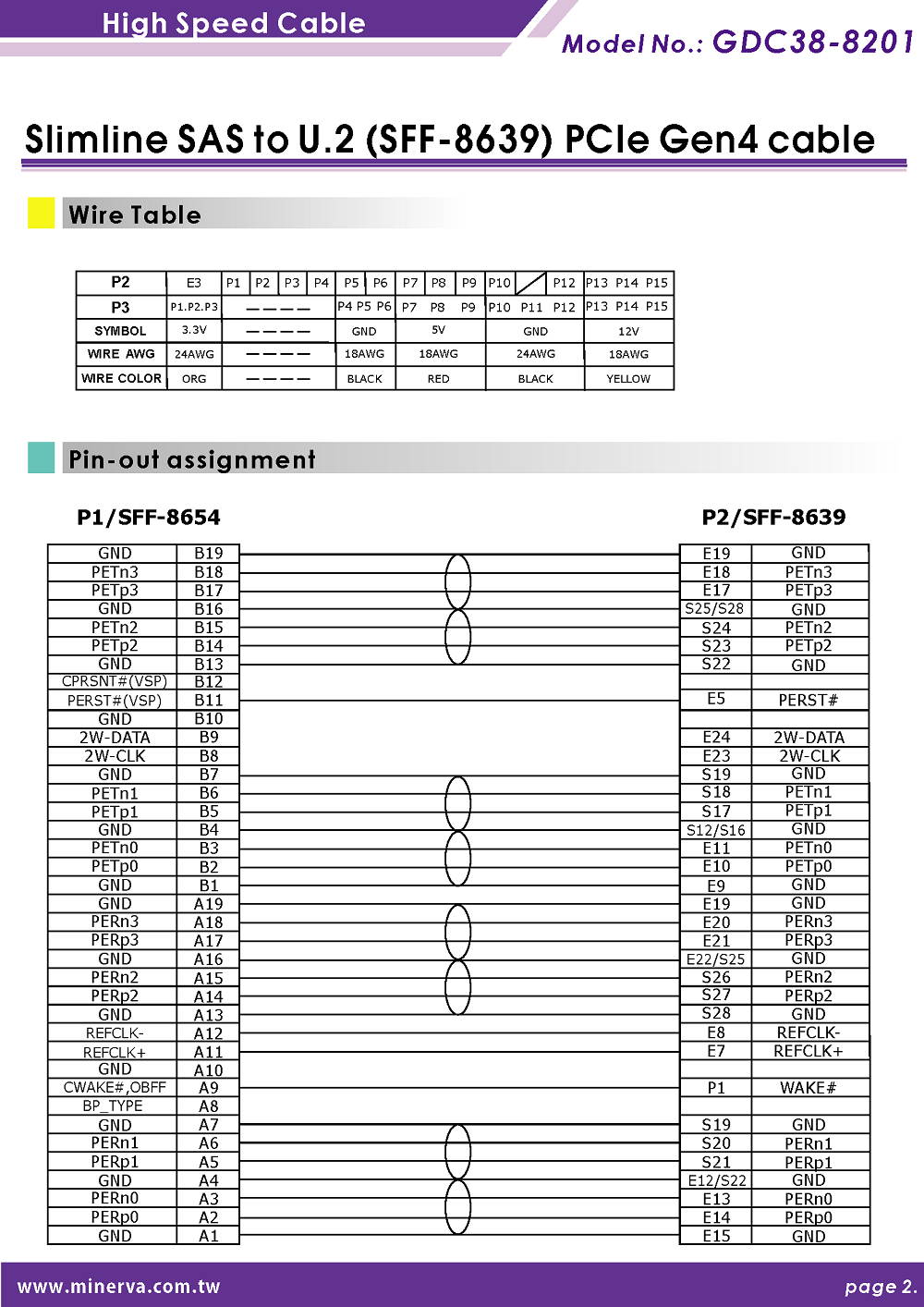

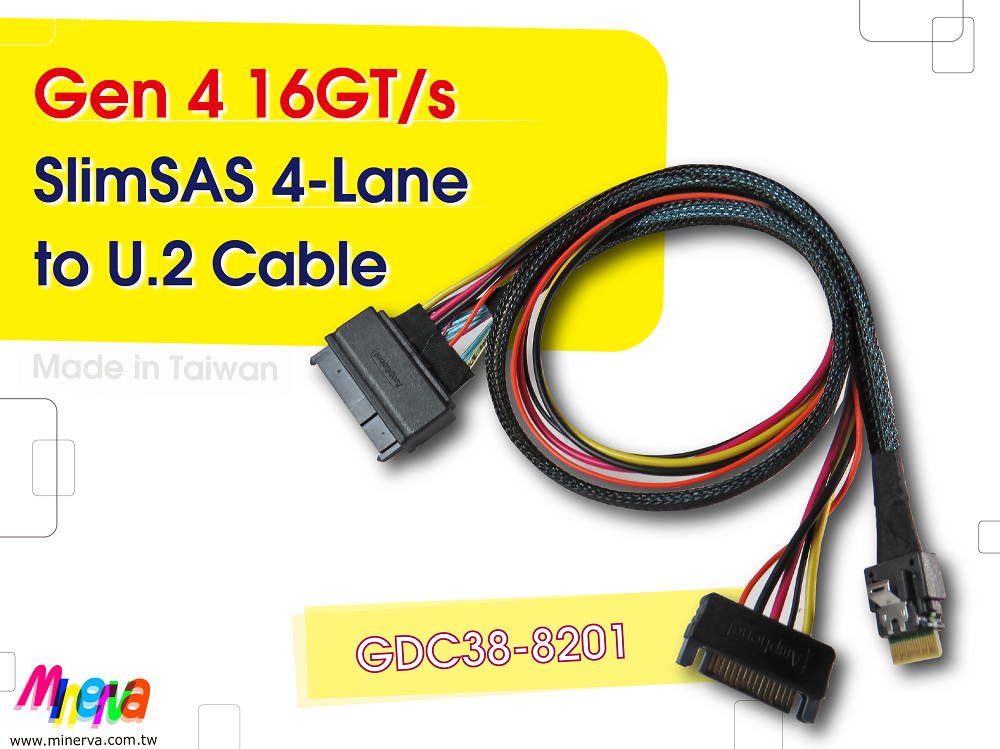

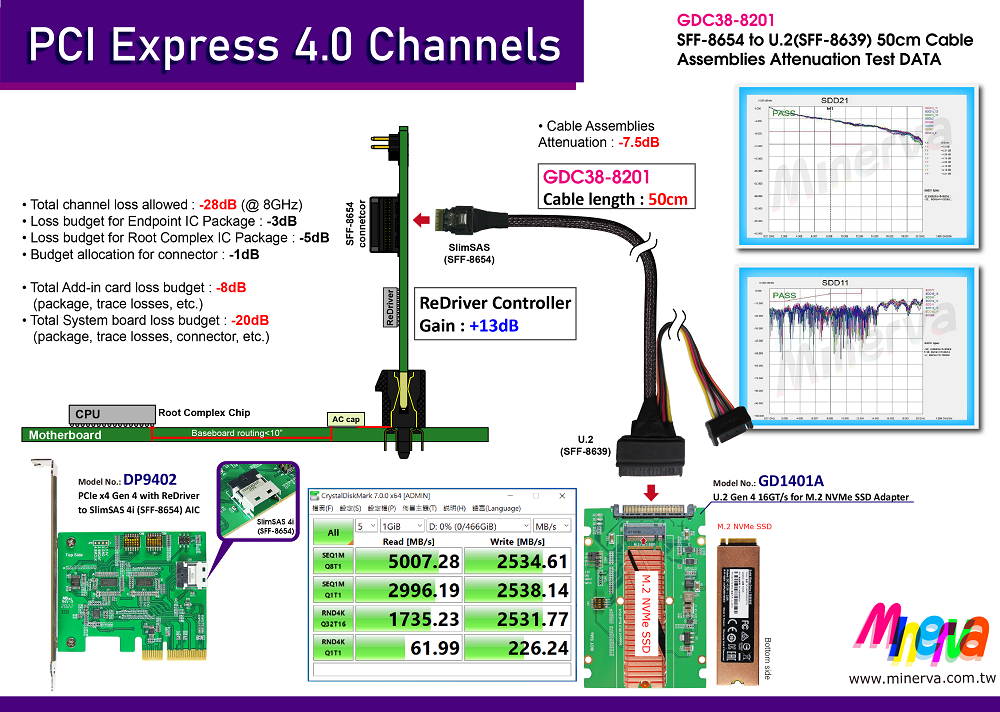

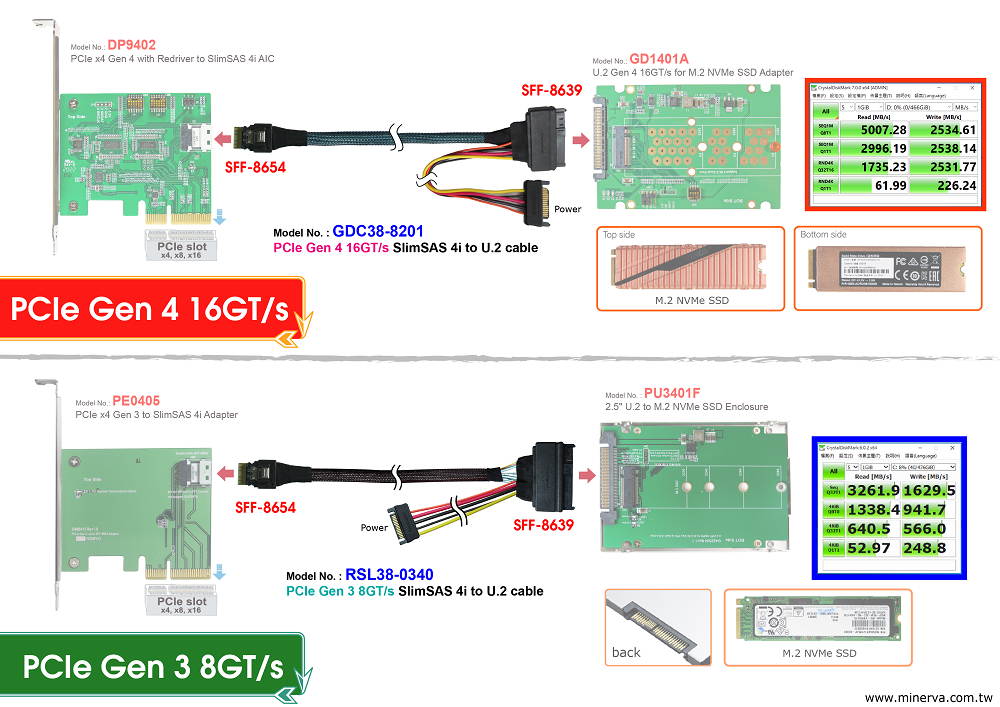

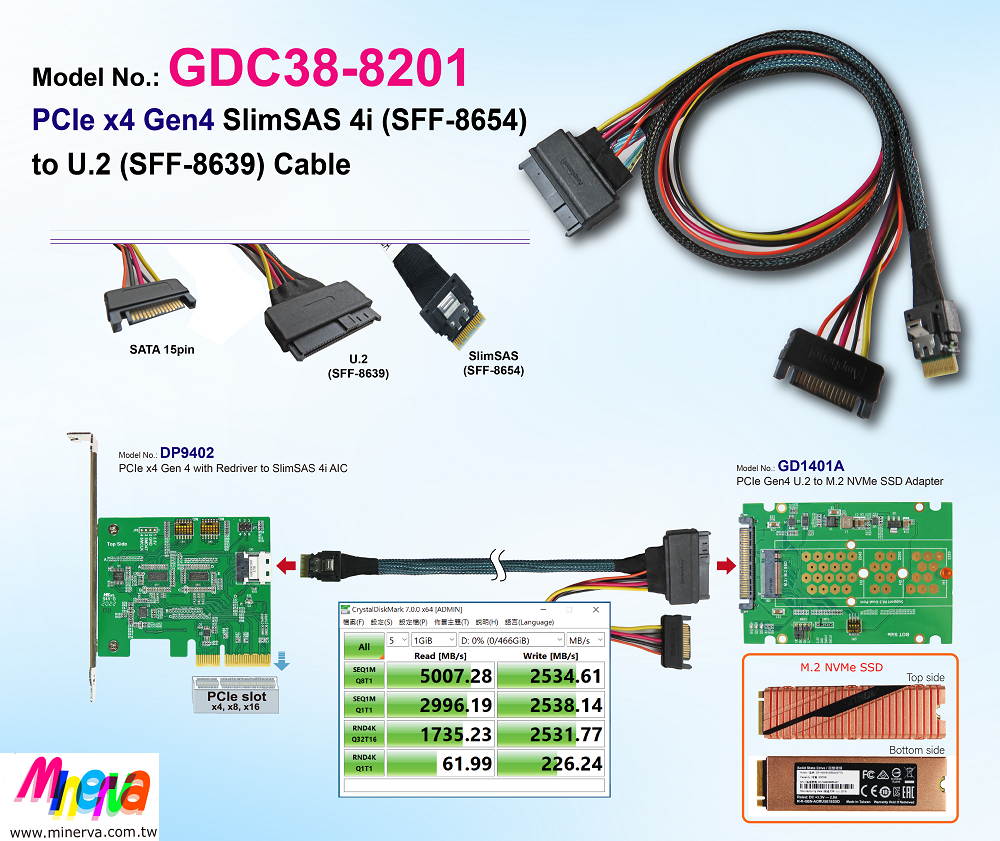

PCIe Gen 4 16 GT/s SFF-8654 4i to U.2 (SFF-8639) Cable / 50cm
Part Number : GDC42-6201 Product Description : Gen 4 Slim SAS (SFF-8654) to U.2 (SFF-8639) Cable Cable Length : 50CM
Innocard
PCIe Gen 4 16 GT/s SFF-8654 4i to U.2 (SFF-8639) Cable / 50cm

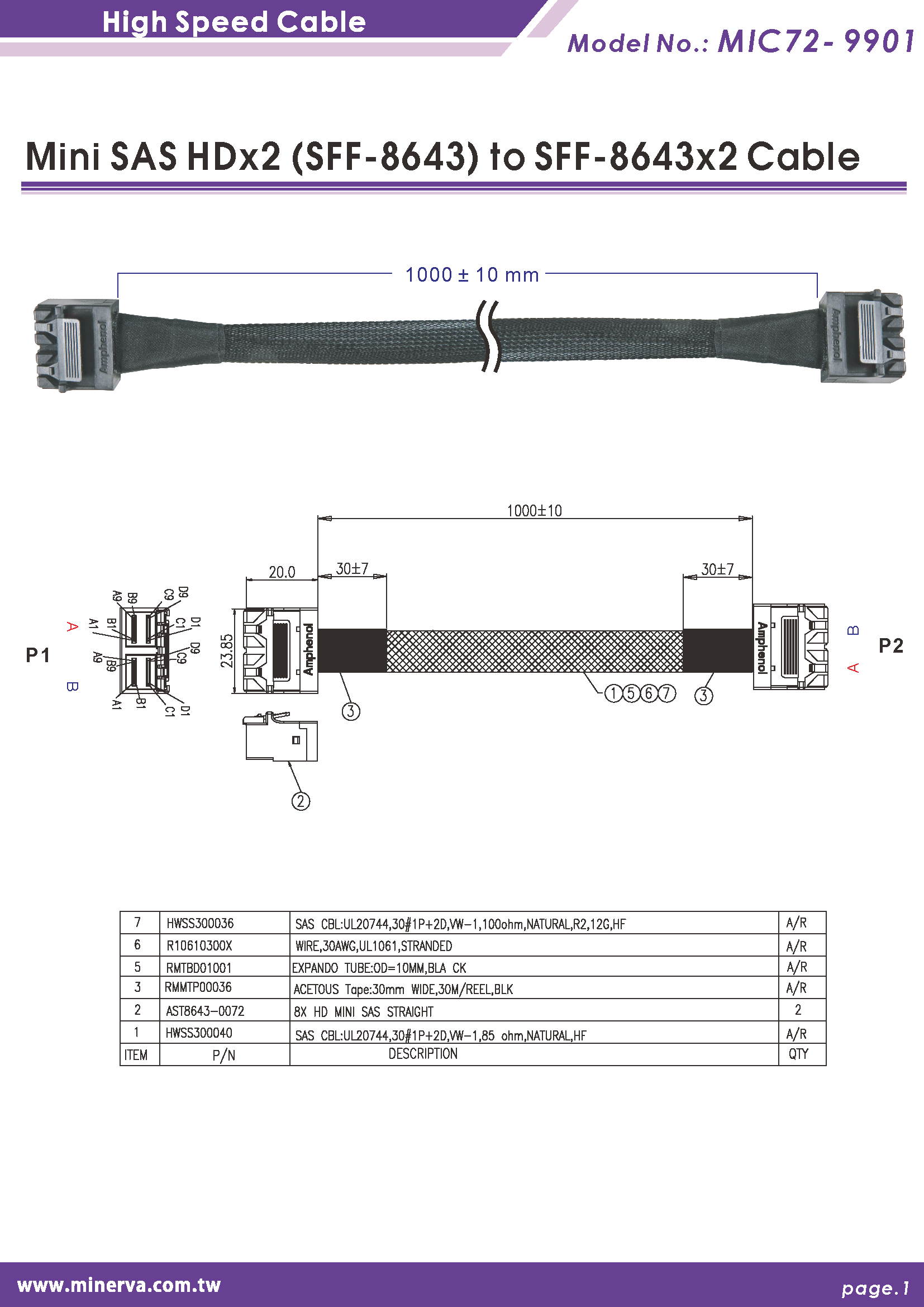

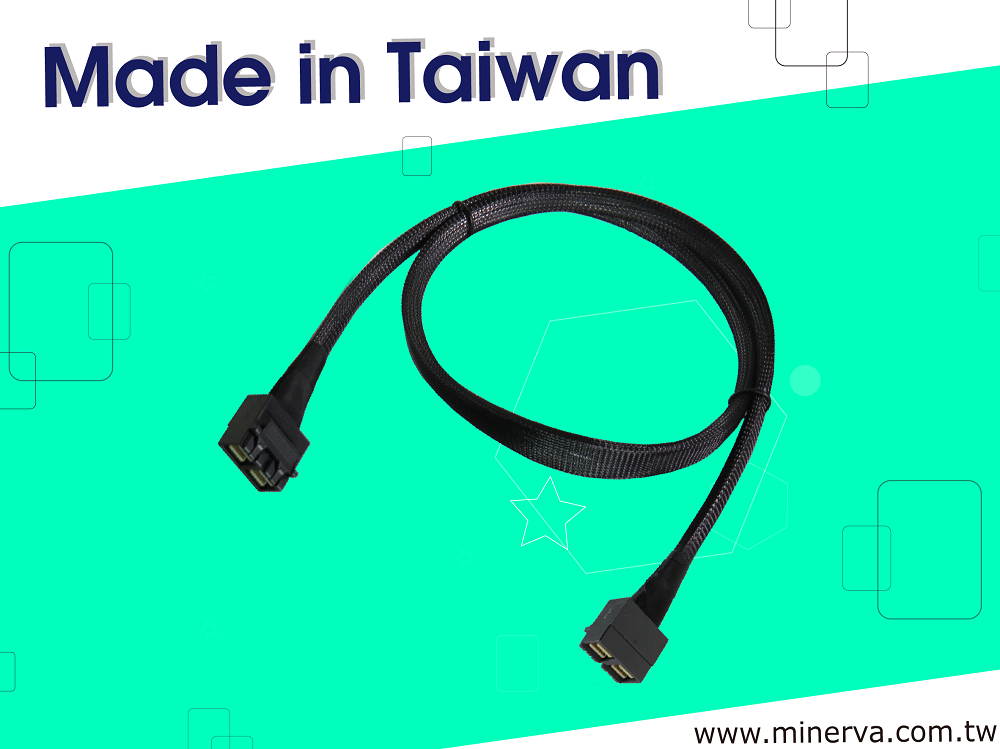

Intel TriMode RSP3MD088F for Mini SAS HD (SFF-8643) 8-Lane to Mini SAS HD 8-Lane Cable
Part Number : MIC72-9901 Product Description : Mini SAS HD (SFF-8643) 8-Lane to Mini SAS HD 8-Lane Cable Cable Length : 100CM #MIC72-9901 Cable Application Note When HOST Side is SFF-8643 8x use as follows: Case1. For Broadcom MegaRAID® and HBA Tri-Mode Storage Adapters *MegaRAID 9460-16i Tri-Mode Storage Adapter *MegaRAID 9460-8i Tri-Mode Storage Adapter *MegaRAID 9480-8i8e Tri-Mode Storage Adapter *MegaRAID 9440-8i Tri-Mode Storage Adapter *HBA 9400-16i Tri-Mode Storage Adapter *HBA 9400-8i Tri-Mode Storage Adapter *HBA 9400-8i8e Tri-Mode Storage Adapter *HBA 9405W-16i Tri-Mode Storage Adapter Case 2. For Intel Tri-Mode Storage Adapters *RSP3TD160F – Full featured tri-mode RAID adapter with 16 internal ports *RSP3MD088F– Full featured tri-mode RAID adapter with 8 internal and 8 external ports *RSP3DD080F– Full featured tri-mode RAID adapter with 8 internal ports *RSP3WD080E– Entry level tri-mode RAID adapter with 8 internal ports Case 3. For motherboard and BIOS support Bifurcation function PCIe x16 lane bifurcated to quad PCIe x4 or PCIe x8 lane bifurcated to two PCIe x4
Innocard
Intel TriMode RSP3MD088F for Mini SAS HD (SFF-8643) 8-Lane to Mini SAS HD 8-Lane Cable
Intel TriMode RSP3TD160F for Mini SAS HD (SFF-8643) 8-Lane to Mini SAS HD 8-Lane Cable
Part Number : MIC72-9901 Product Description : Mini SAS HD (SFF-8643) 8-Lane to Mini SAS HD 8-Lane Cable Cable Length : 100CM #MIC72-9901 Cable Application Note When HOST Side is SFF-8643 8x use as follows: Case1. For Broadcom MegaRAID® and HBA Tri-Mode Storage Adapters *MegaRAID 9460-16i Tri-Mode Storage Adapter *MegaRAID 9460-8i Tri-Mode Storage Adapter *MegaRAID 9480-8i8e Tri-Mode Storage Adapter *MegaRAID 9440-8i Tri-Mode Storage Adapter *HBA 9400-16i Tri-Mode Storage Adapter *HBA 9400-8i Tri-Mode Storage Adapter *HBA 9400-8i8e Tri-Mode Storage Adapter *HBA 9405W-16i Tri-Mode Storage Adapter Case 2. For Intel Tri-Mode Storage Adapters *RSP3TD160F – Full featured tri-mode RAID adapter with 16 internal ports *RSP3MD088F– Full featured tri-mode RAID adapter with 8 internal and 8 external ports *RSP3DD080F– Full featured tri-mode RAID adapter with 8 internal ports *RSP3WD080E– Entry level tri-mode RAID adapter with 8 internal ports Case 3. For motherboard and BIOS support Bifurcation function PCIe x16 lane bifurcated to quad PCIe x4 or PCIe x8 lane bifurcated to two PCIe x4
Innocard
Intel TriMode RSP3TD160F for Mini SAS HD (SFF-8643) 8-Lane to Mini SAS HD 8-Lane Cable

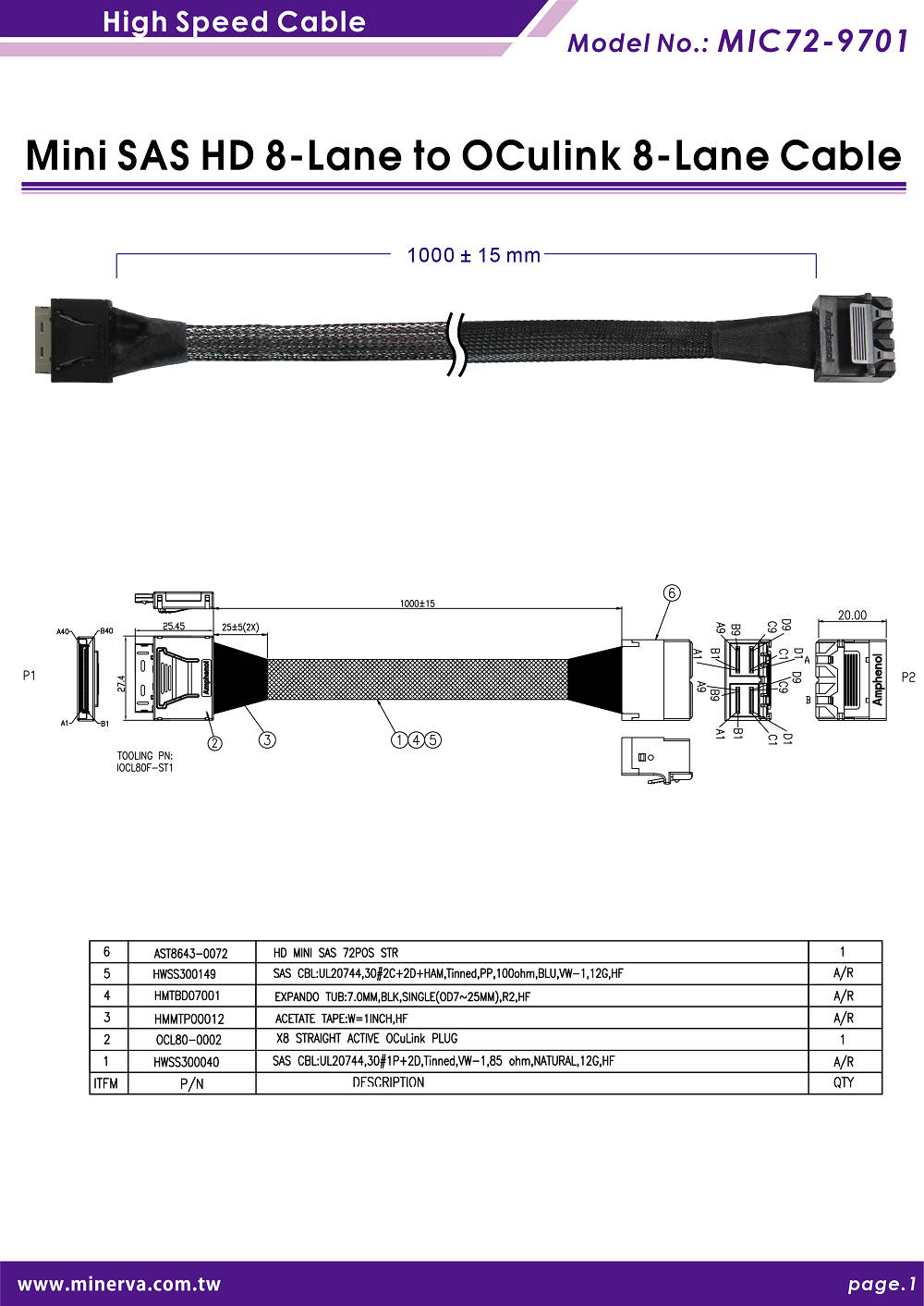

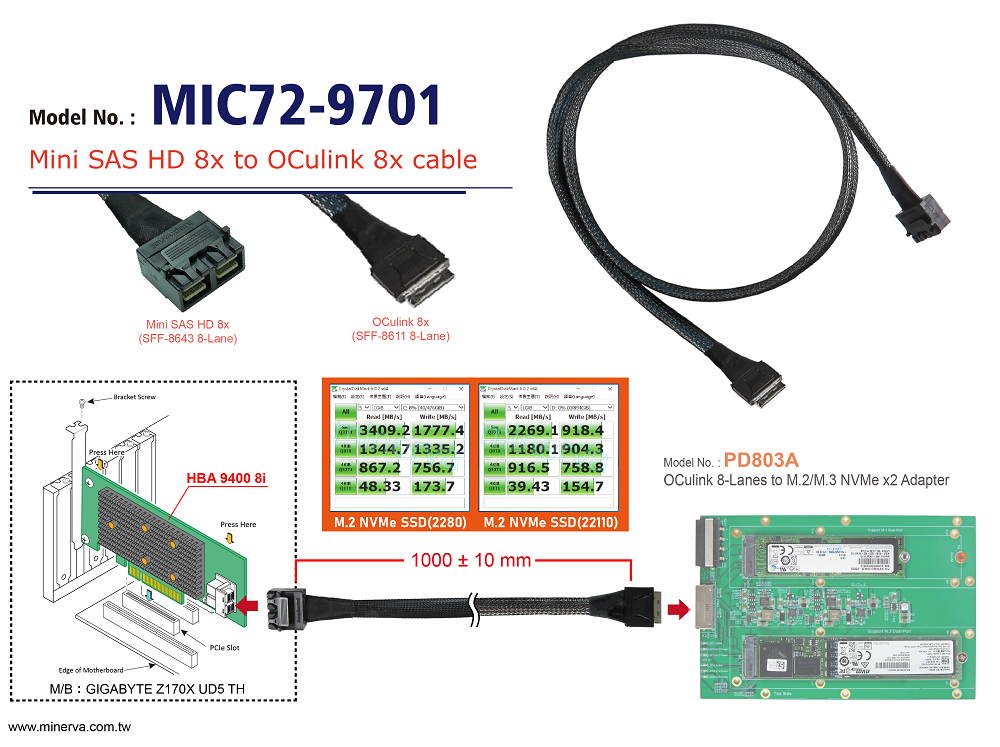

Intel TriMode RSP3MD088F for Mini SAS HD (SFF-8643) 8-Lane to OCulink (SFF-8611) 8-Lane Cable
Part Number : MIC72-9701 Product Description : Mini SAS HD 8-Lane to OCulink 8-Lane Cable Cable Length : 100CM #MIC72-9701 Cable Application Note When HOST Side is SFF-8643 8x use as follows: Case1. For Broadcom MegaRAID® and HBA Tri-Mode Storage Adapters *MegaRAID 9460-16i Tri-Mode Storage Adapter *MegaRAID 9460-8i Tri-Mode Storage Adapter *MegaRAID 9480-8i8e Tri-Mode Storage Adapter *MegaRAID 9440-8i Tri-Mode Storage Adapter *HBA 9400-16i Tri-Mode Storage Adapter *HBA 9400-8i Tri-Mode Storage Adapter *HBA 9400-8i8e Tri-Mode Storage Adapter *HBA 9405W-16i Tri-Mode Storage Adapter Case 2. For Intel Tri-Mode Storage Adapters *RSP3TD160F – Full featured tri-mode RAID adapter with 16 internal ports *RSP3MD088F– Full featured tri-mode RAID adapter with 8 internal and 8 external ports *RSP3DD080F– Full featured tri-mode RAID adapter with 8 internal ports *RSP3WD080E– Entry level tri-mode RAID adapter with 8 internal ports Case 3. For motherboard and BIOS support Bifurcation function PCIe x16 lane bifurcated to quad PCIe x4 or PCIe x8 lane bifurcated to two PCIe x4
Innocard
Intel TriMode RSP3MD088F for Mini SAS HD (SFF-8643) 8-Lane to OCulink (SFF-8611) 8-Lane Cable

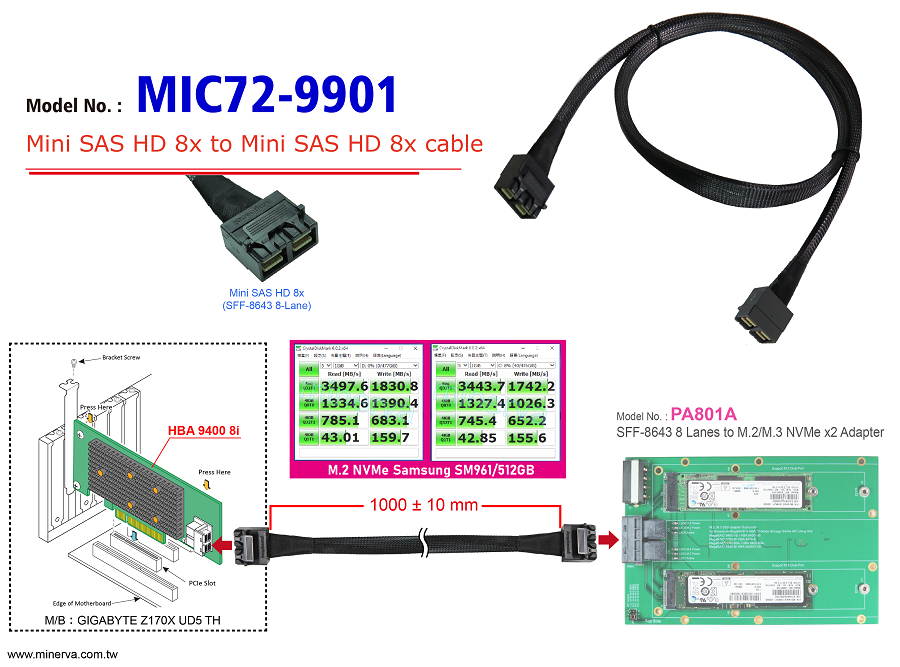

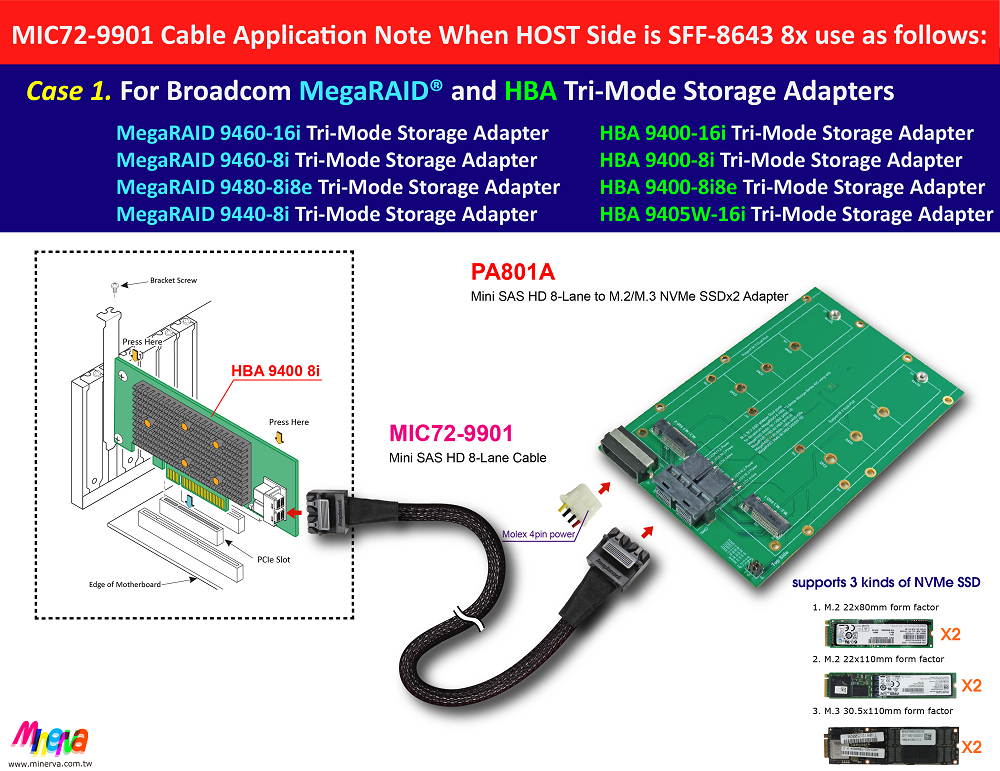

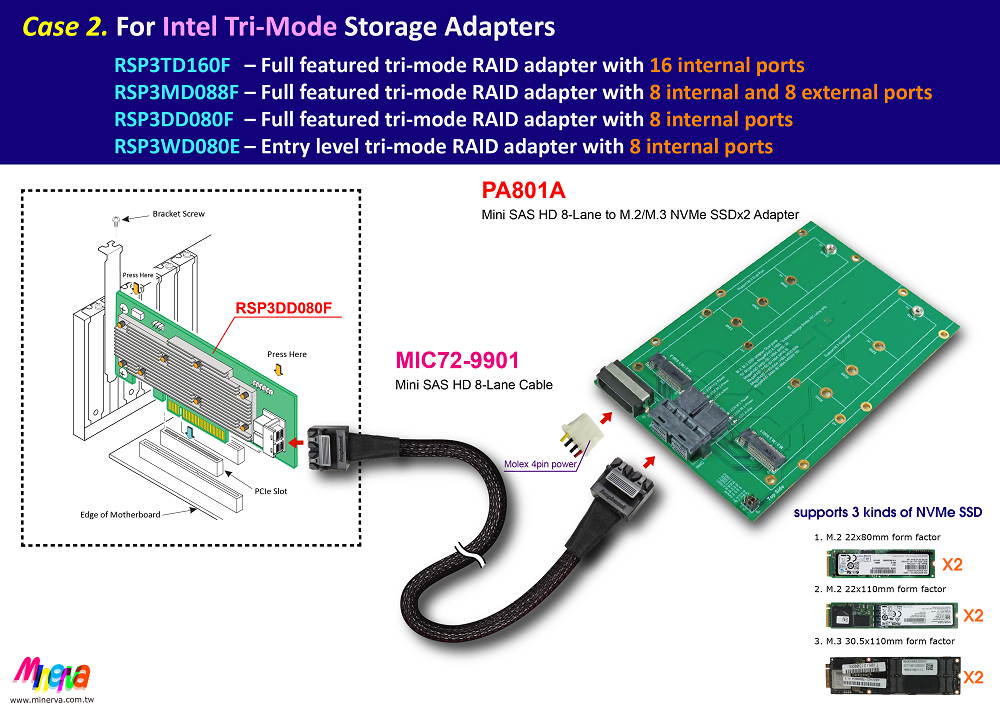

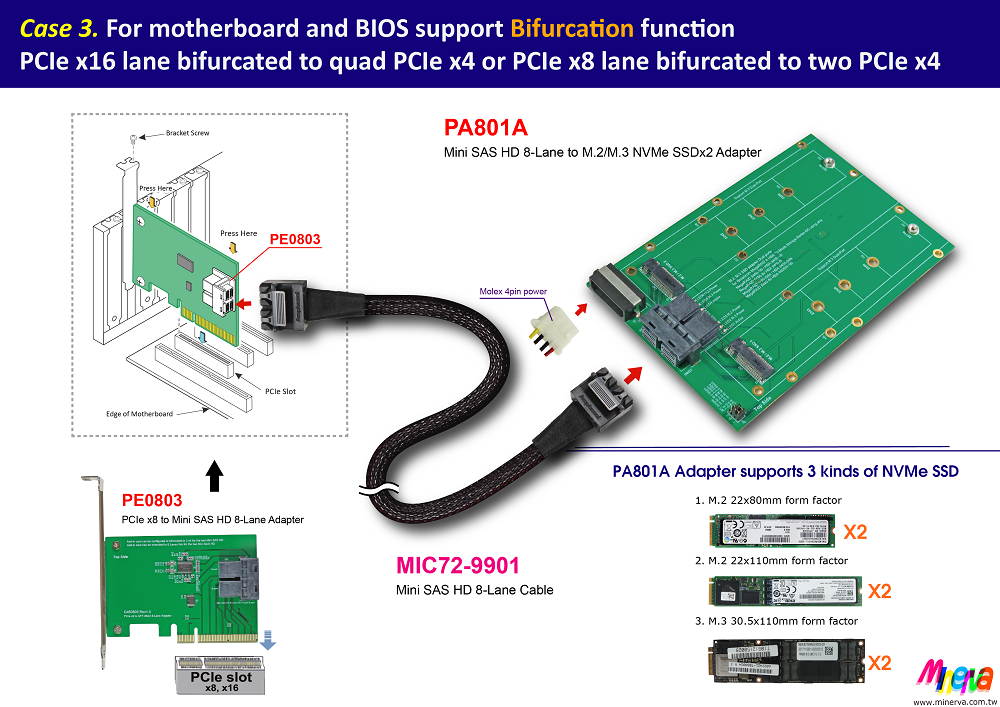

Broadcom HBA 9400-16i Tri-Mode for Mini SAS HD (SFF-8643) 8-Lane to Mini SAS HD 8-Lane Cable
Part Number : MIC72-9901 Product Description : Mini SAS HD (SFF-8643) 8-Lane to Mini SAS HD 8-Lane Cable Cable Length : 100CM #MIC72-9901 Cable Application Note When HOST Side is SFF-8643 8x use as follows: Case1. For Broadcom MegaRAID® and HBA Tri-Mode Storage Adapters *MegaRAID 9460-16i Tri-Mode Storage Adapter *MegaRAID 9460-8i Tri-Mode Storage Adapter *MegaRAID 9480-8i8e Tri-Mode Storage Adapter *MegaRAID 9440-8i Tri-Mode Storage Adapter *HBA 9400-16i Tri-Mode Storage Adapter *HBA 9400-8i Tri-Mode Storage Adapter *HBA 9400-8i8e Tri-Mode Storage Adapter *HBA 9405W-16i Tri-Mode Storage Adapter Case 2. For Intel Tri-Mode Storage Adapters *RSP3TD160F – Full featured tri-mode RAID adapter with 16 internal ports *RSP3MD088F– Full featured tri-mode RAID adapter with 8 internal and 8 external ports *RSP3DD080F– Full featured tri-mode RAID adapter with 8 internal ports *RSP3WD080E– Entry level tri-mode RAID adapter with 8 internal ports Case 3. For motherboard and BIOS support Bifurcation function PCIe x16 lane bifurcated to quad PCIe x4 or PCIe x8 lane bifurcated to two PCIe x4
Innocard
Broadcom HBA 9400-16i Tri-Mode for Mini SAS HD (SFF-8643) 8-Lane to Mini SAS HD 8-Lane Cable

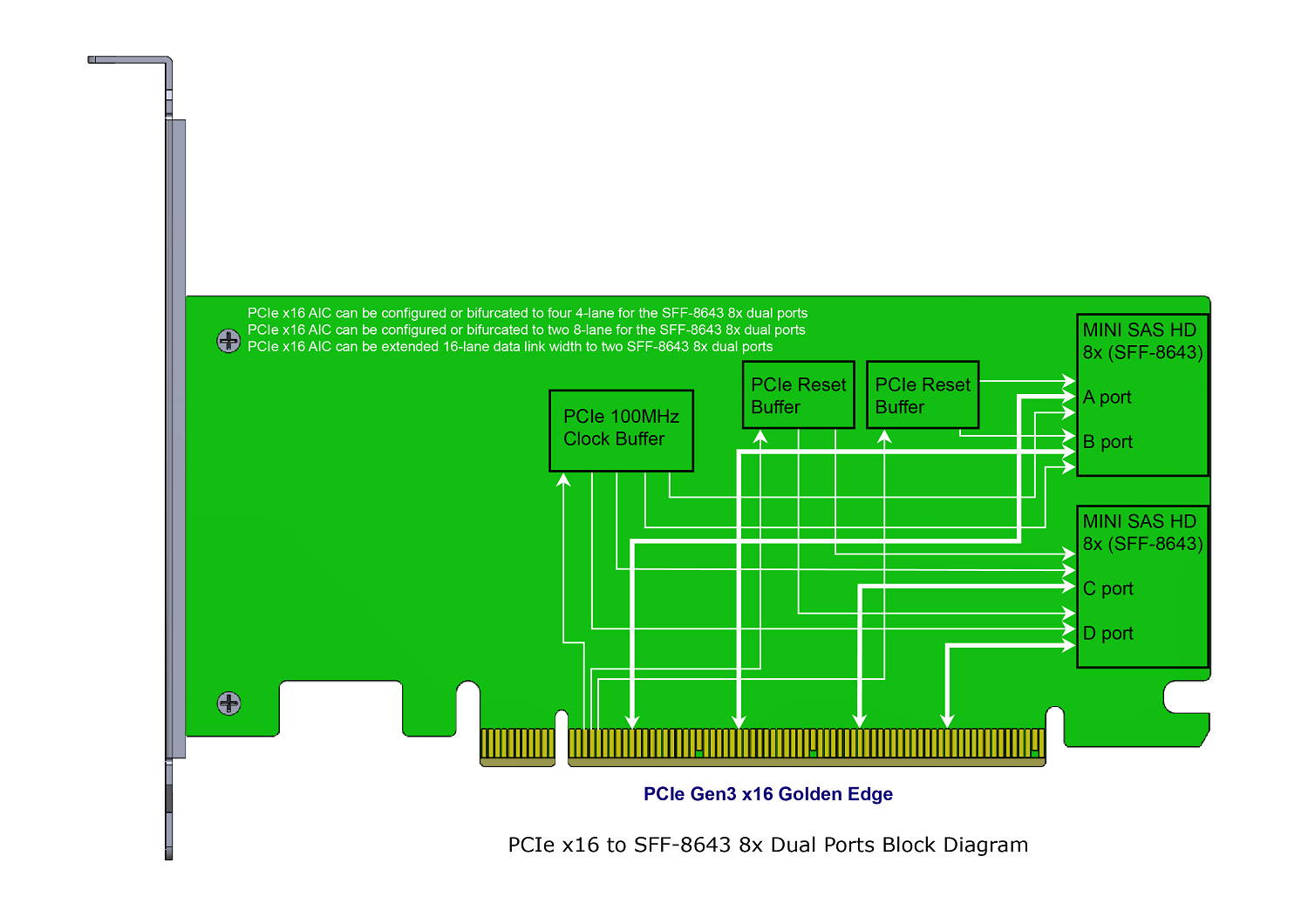

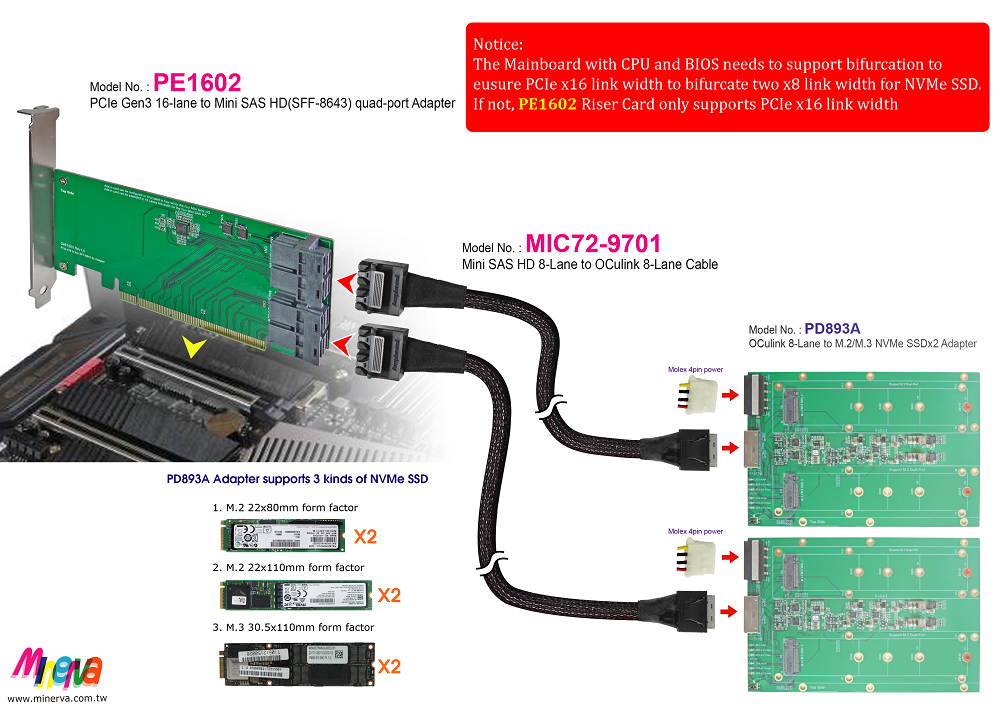

PCIe x16 Gen3 to Mini SAS HD (SFF-8643) quad-port Adapter with Mini SAS HD 8-Lane to OCulink (SFF-8611) 8-Lane Cable KIT
Features : * PE1602 can be bifurcated in quad x4(need CPU and BIOS both support) and x4 data link width configurations * PE1602 features four internal NVMe(SFF-8643) for high-perfoemace storage connectivity. * Build in Mini SAS HD(SFF-8643) 8x connector 2 sets, pin-out defined by SFF-9402 * Four internal lanes per Mini SAS HD port, 3.2Gb/s per port * Supports four physical NVMe devices * Supports SFF-9402 clock pin out * Supports Intel define Mini SAS HD(SFF-8643) clock pin out * Supports SFF-9402 perst# pin out * Supports Intel Define Mini SAS HD(SFF-8643) perst# pin out * Enables the system clock signal to be used over longer trace lengths and over a cable * Enables the system perst# signal to be used over longer trace lengths and over a cable #MIC72-9701 Cable : Mini SAS HD (SFF-8643) 8-Lane to OCulink (SFF-8611) 8-Lane Cable / 100CM
Innocard
PCIe x16 Gen3 to Mini SAS HD (SFF-8643) quad-port Adapter with Mini SAS HD 8-Lane to OCulink (SFF-8611) 8-Lane Cable KIT

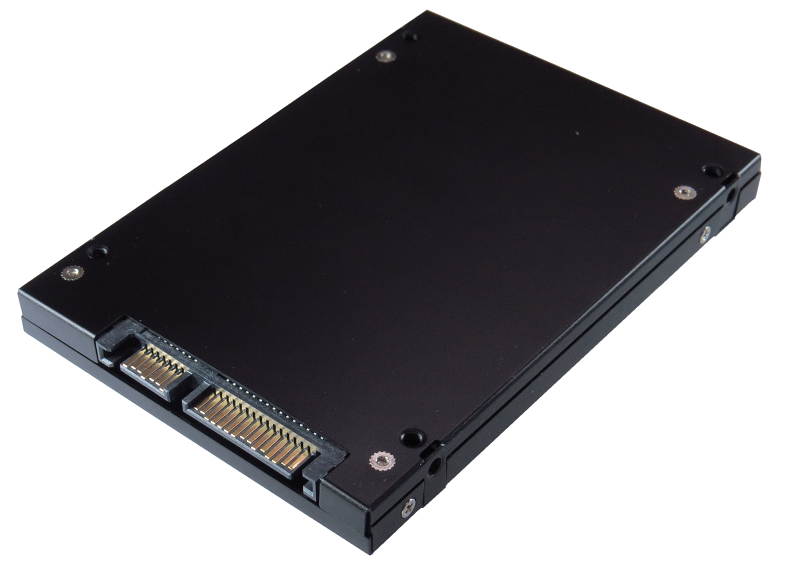

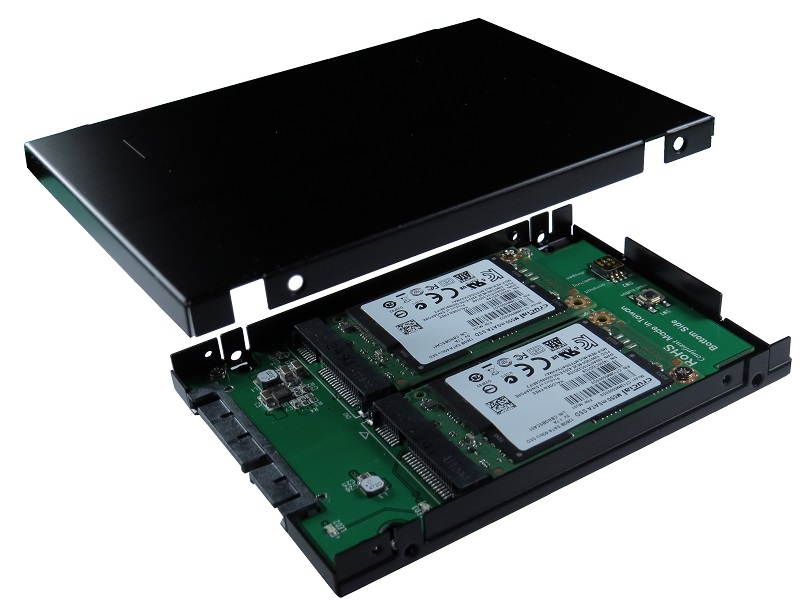

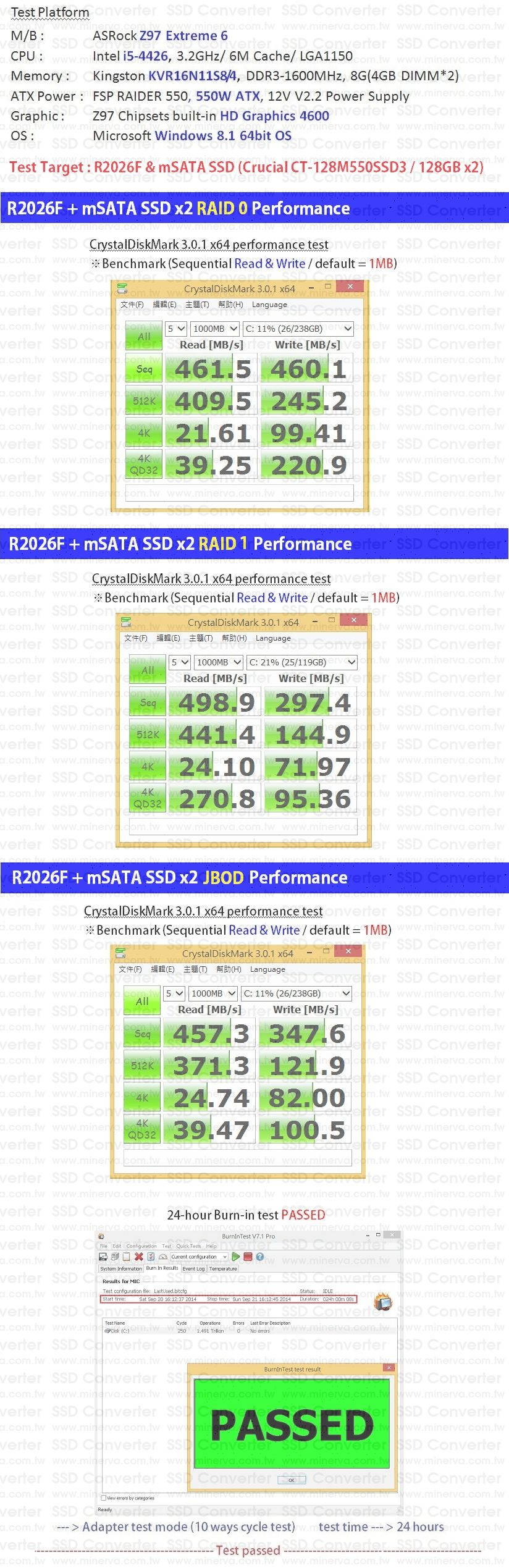

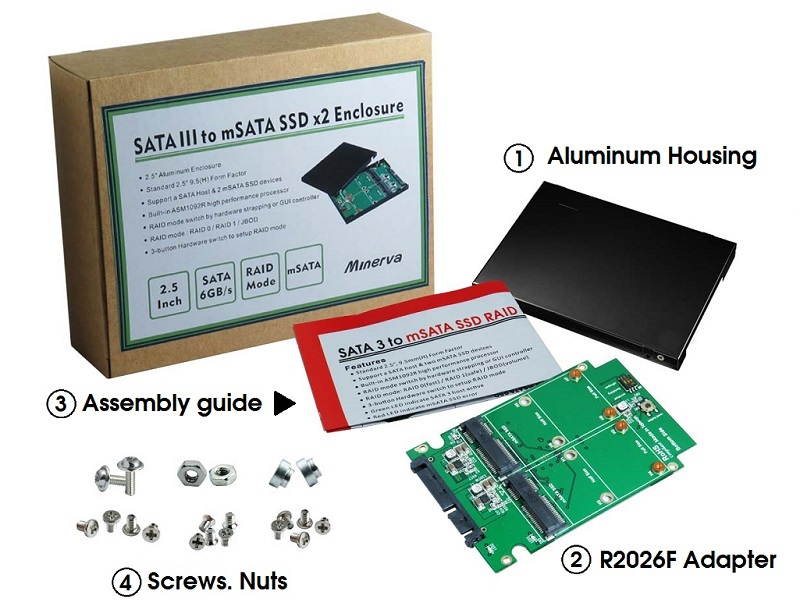

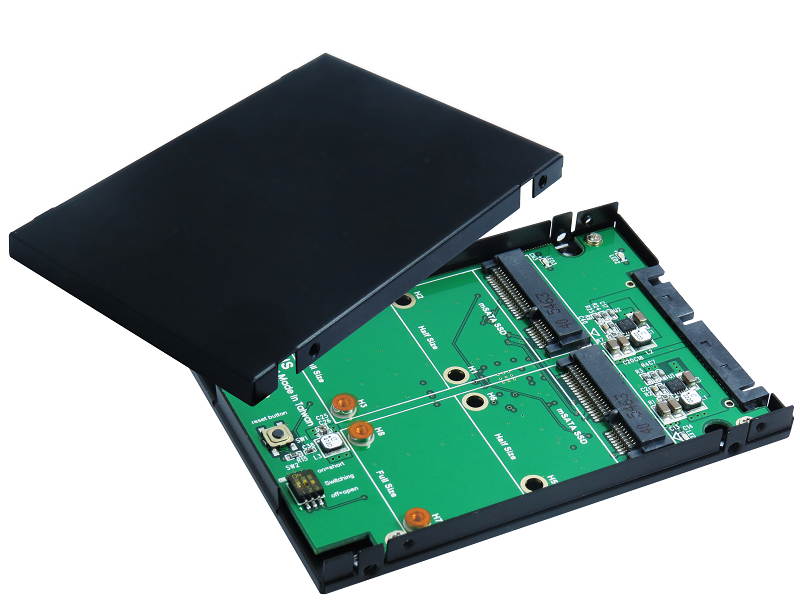

SATA III to mSATA SSD x2 RAID Card with 2.5" Aluminum Housing
SATA III / 6Gbps 7+15pin to mSATA SSD Dual ports RAID Card with 2.5 inch Aluminum Housing Standard 2.5", 9.5mm(H) Form Factor Support a SATA host & two mSATA SSD devices Built-in ASM1092R high performance processor RAID mode switch by hardware strapping or GUI controller RAID mode: RAID 0(fast) / RAID 1(safe) / JBOD(volume) 3-button Hardware switch to setup RAID mode Green LED indicate SATA 3 host active Red LED indicate mSATA SSD error Support SATA Reversion 3.2 PCI Express Mini Card Electromechanical Spec. 1.2 PCI-E Card Electromechanical Specification Revision 1.1 Support SFF-8201 for Form Factor of 2.5" Disk Drives PWM synchronous buck converter Power IC 3A maximum output current Short circuit protection In-rush current suppression Thermal shutdown protection ESD HBM (Human Body Mode)/2KV ? The item doesn't include SSD.
Innocard
SATA III to mSATA SSD x2 RAID Card with 2.5" Aluminum Housing
USB 3.1 / 10Gbps C type to M.2 & mSATA SSD Enclosure with USB 3.1 A to C type Cable (M.2 & mSATA SSD could work simultaneous)
Build in ASM1352R USB 3.1 /10Gbps high performance processor Build in Mini PCI-e Female connector Build in M. 2 NGFF Female connector Provide independent Power for M. 2 SSD & mSATA SSD PWM synchronous buck converter Power IC 3A maximum output current Short circuit protection In-rush current suppression Thermal shutdown protection ESD HBM (Human Body Mode) /2KV D2 Green LED Blinking indicates mSATA SSD active status D5 Green LED Blinking indicates M. 2 SSD active status
Innocard
USB 3.1 / 10Gbps C type to M.2 & mSATA SSD Enclosure with USB 3.1 A to C type Cable (M.2 & mSATA SSD could work simultaneous)

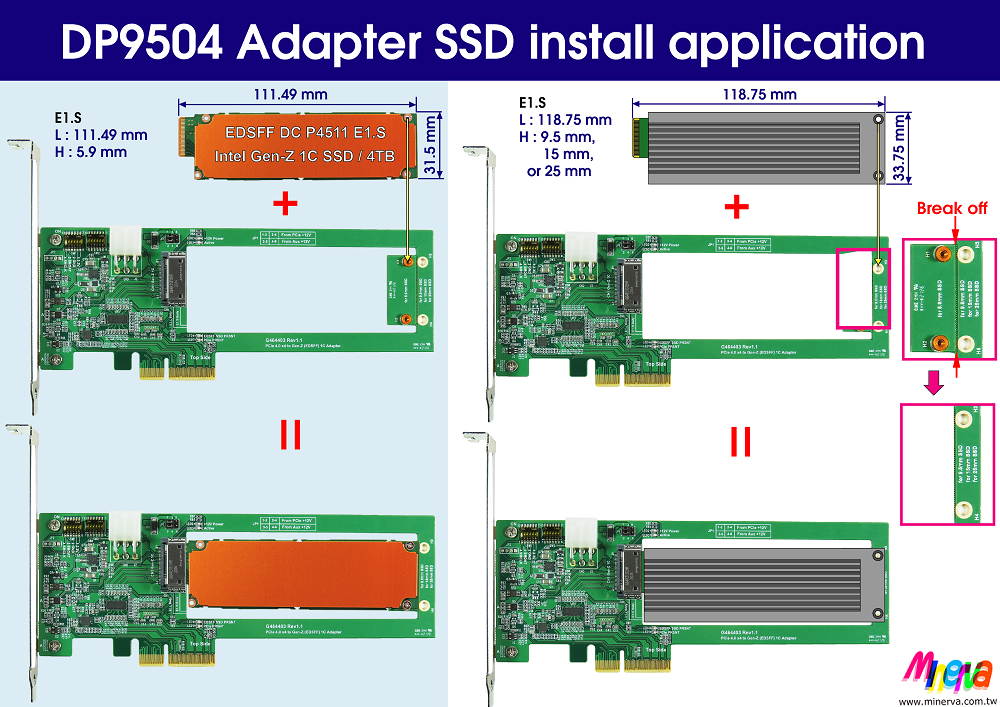

PCIe x4 Gen4 with ReDriver& Hotswap controllers for Gen-Z 1C
#DP9504 adapter : Features : * Gen-Z 1C (EDSFF) to PCI Express 4.0 x4 convert * Built- in EDSFF 1C with latch connector * Built- in PCIe ReDriver to extend PCIe Gen4, 16GT/s differential pair signals * Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable * Built- in SMBCLK, SMBDAT bidirectional buffer repeater * Built- in SMBUS I/O Expander(Address: 0x41) for EDSFF PWRDIS control * Built- in SMBUS I/O Expander(Address: 0x41) for EDSFF SMBRST# control * Built- in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable * Built- in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable * Built- in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable * Built- in PWRBRK# Bus Buffer Gate to be used over longer trace lengths and longer over cable Specifications : * PCI Express Base Specification Rev 4.0 * PCIe_CEM_SPEC_R4_V1_0_08072019_NCB * Support SSD_Form_Factor_Version1_a * Compliant with SFF-TA-1002 Specification Version 1.3 * Compliant with SFF-TA-1009 Specification Version 2.0 Supports the following form factor EDSFF 1C(Gen-Z) SSD : * EDSFF 1C(Gen-Z) E1.S 5.9mm Height * EDSFF 1C(Gen-Z) E1.S 9.5mm Height * EDSFF 1C(Gen-Z) E1.S 15mm Height * EDSFF 1C(Gen-Z) E1.S 25mm Height Applications : * Rack server * Microserver and Tower server * High performance computing * Hareware accelerator * Storage Controller HBA(Host Bus Adapter) * Desktop PC/motherboard
Innocard
PCIe x4 Gen4 with ReDriver& Hotswap controllers for Gen-Z 1C

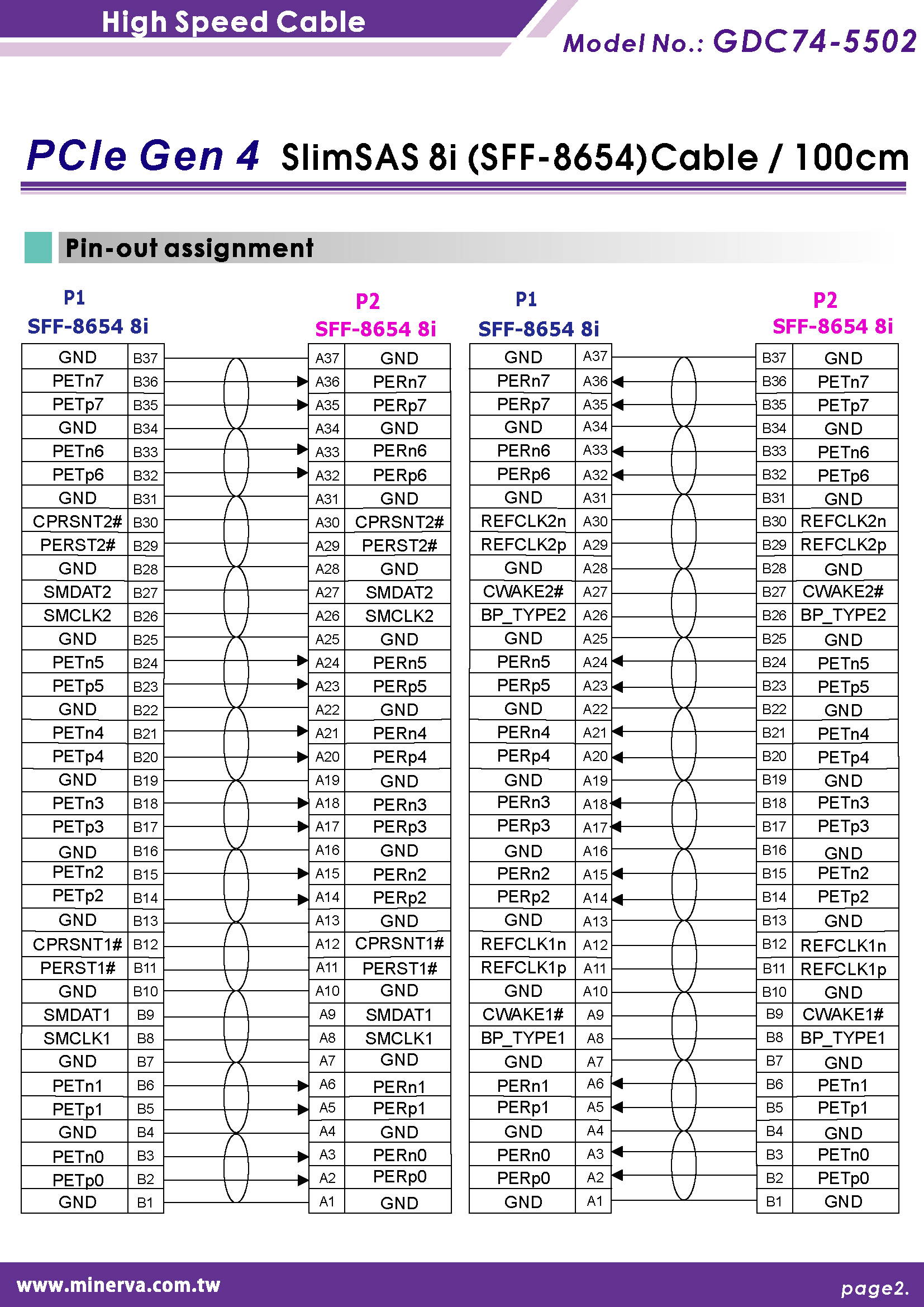

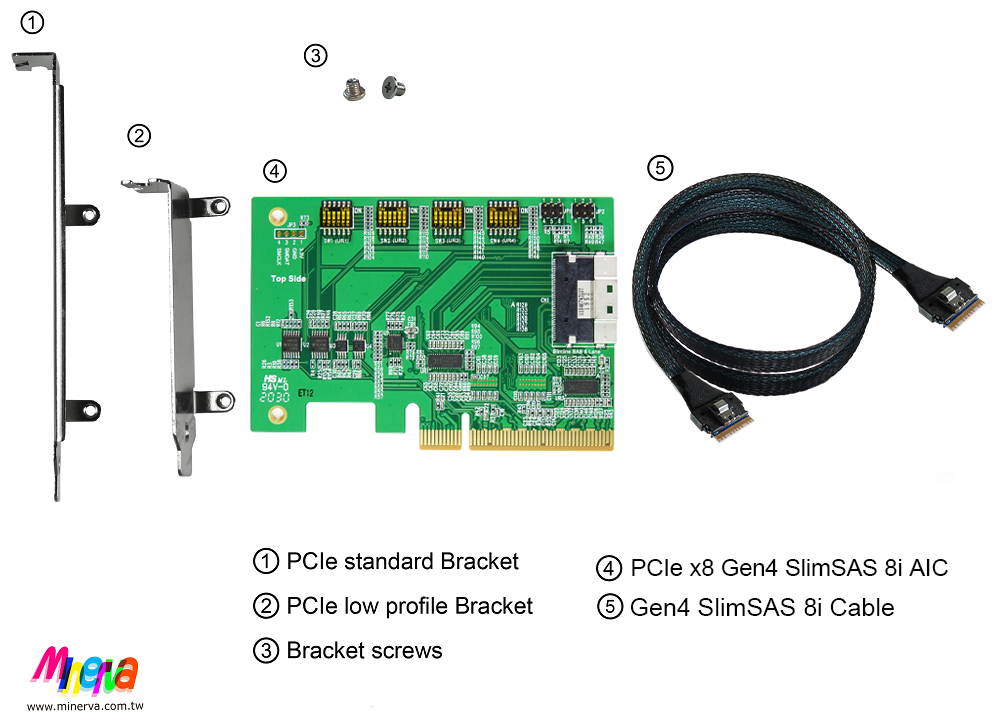

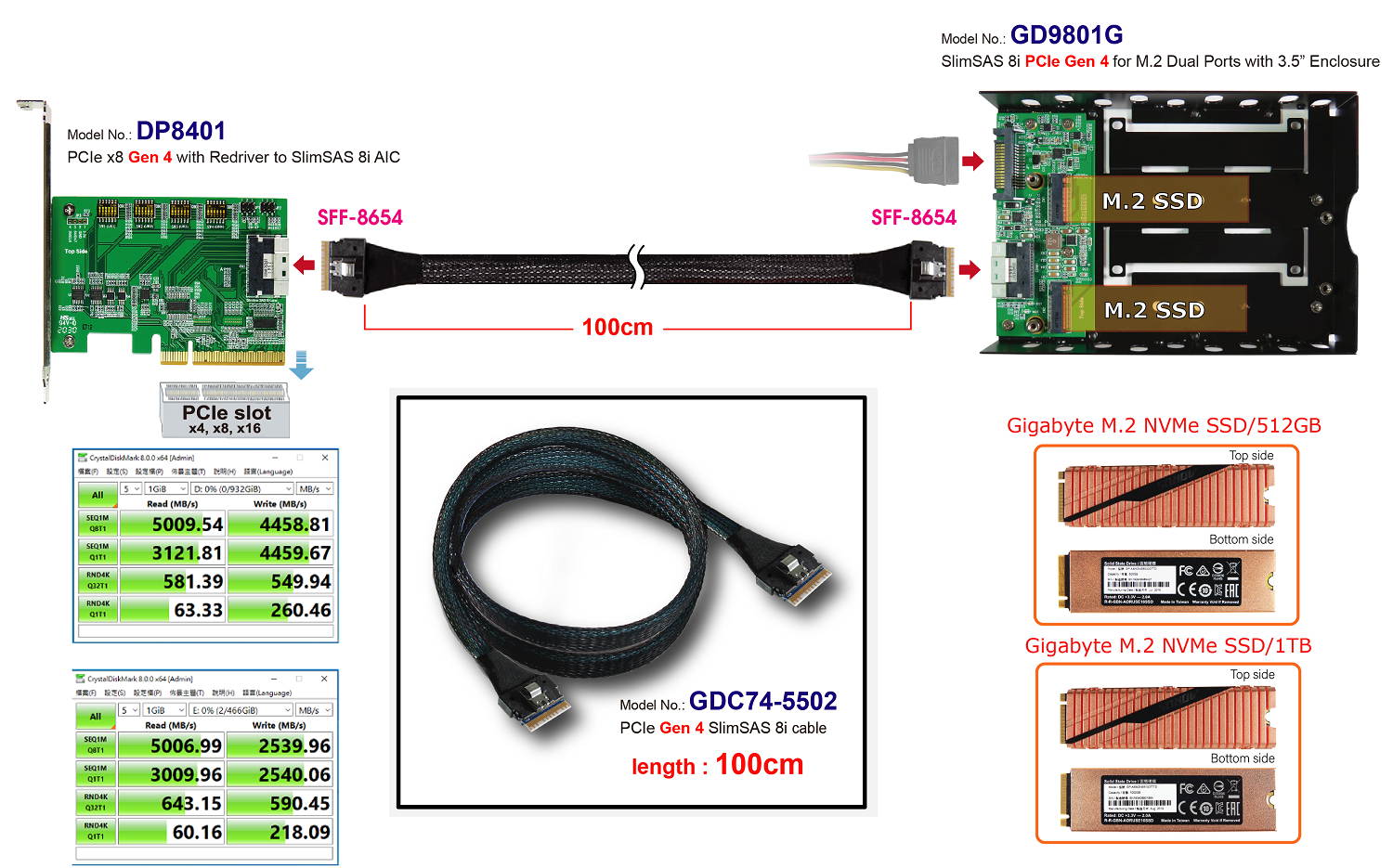

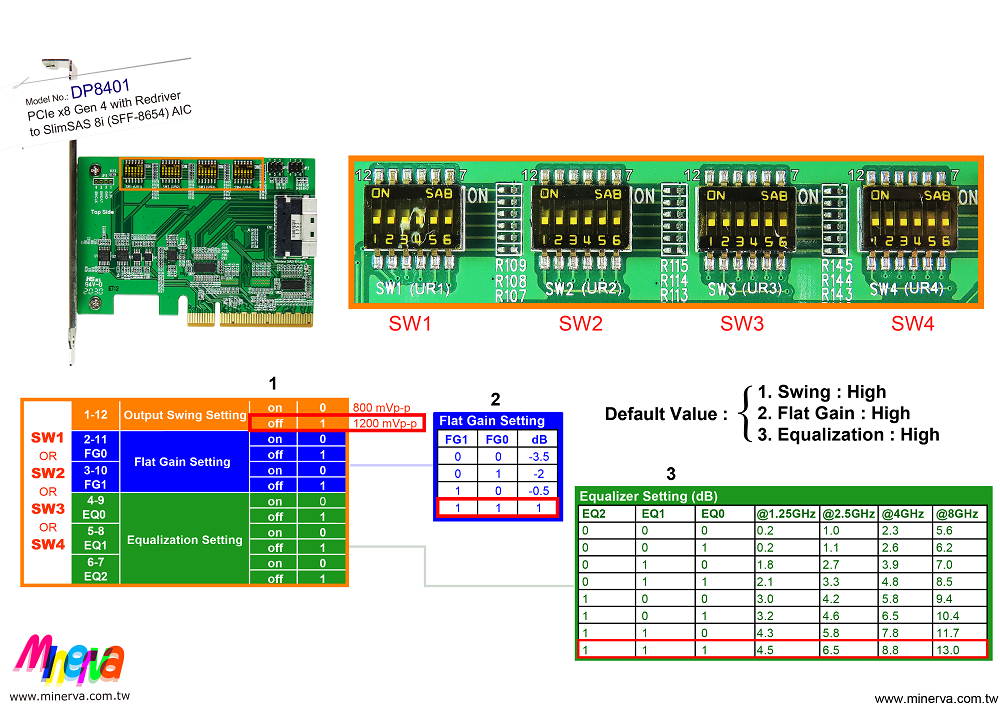

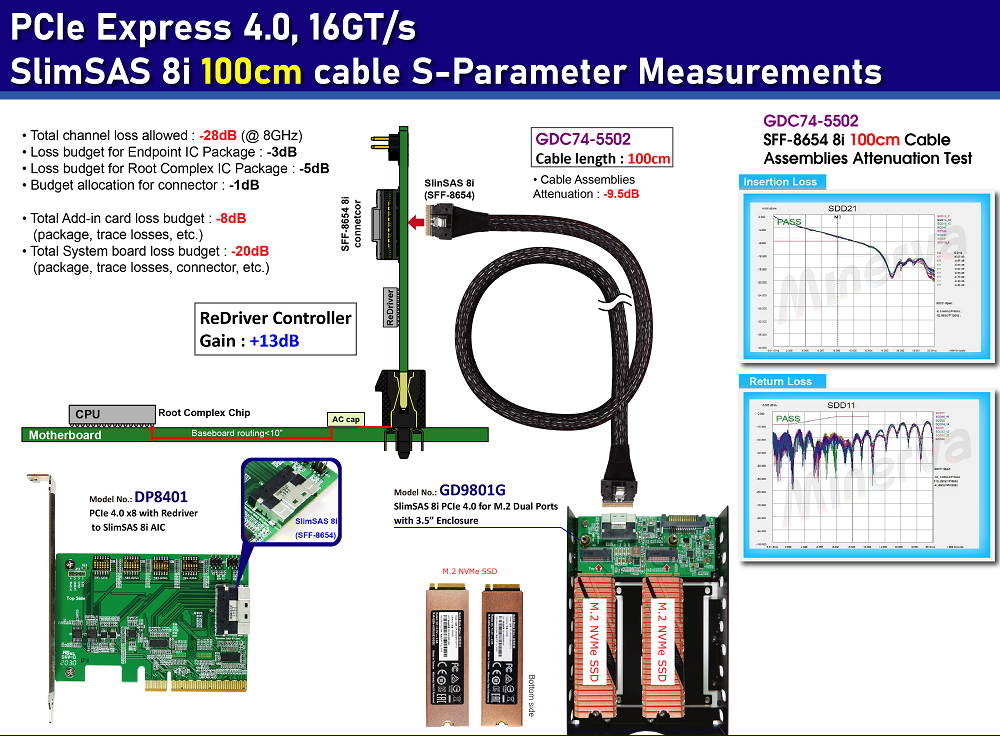

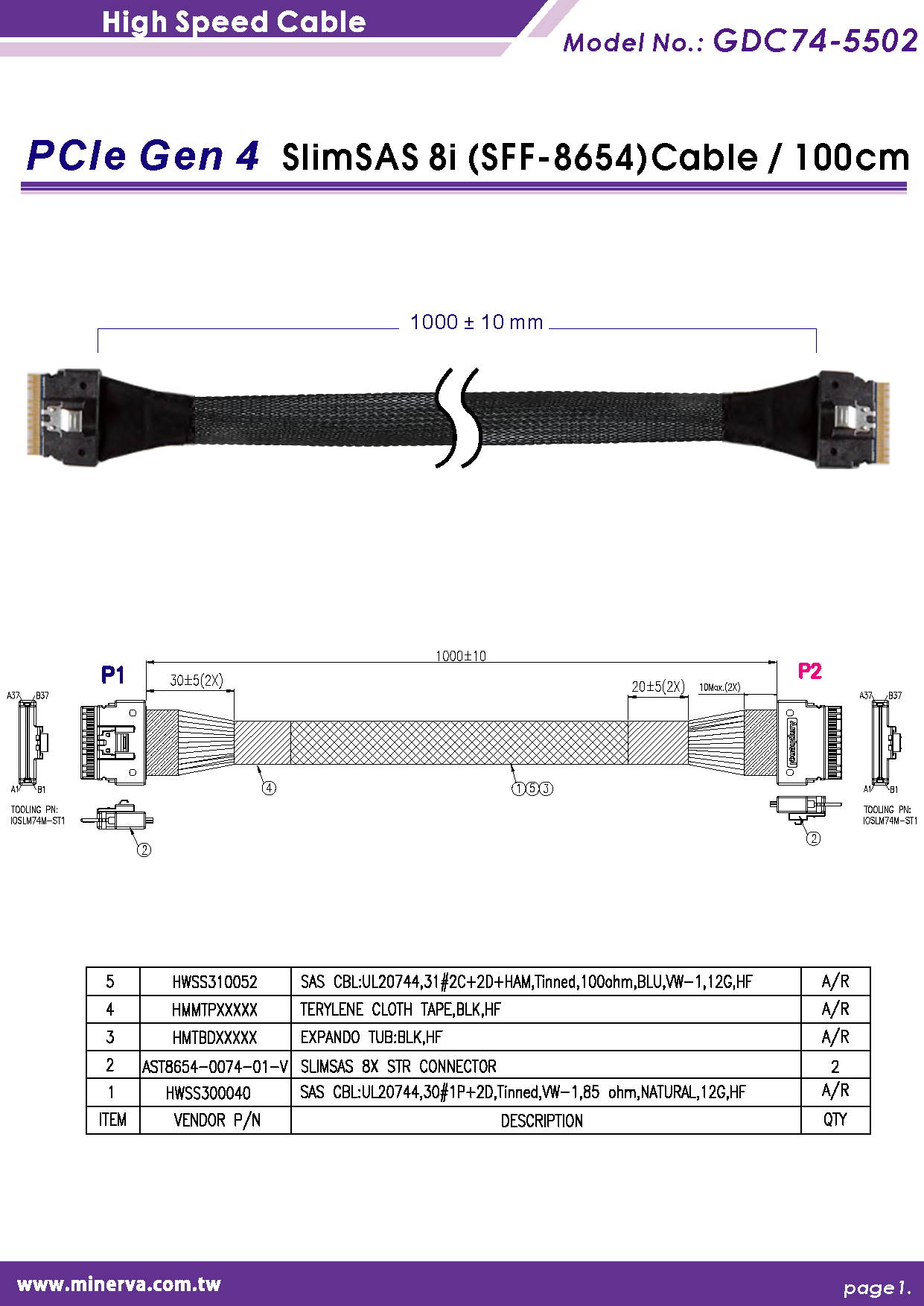

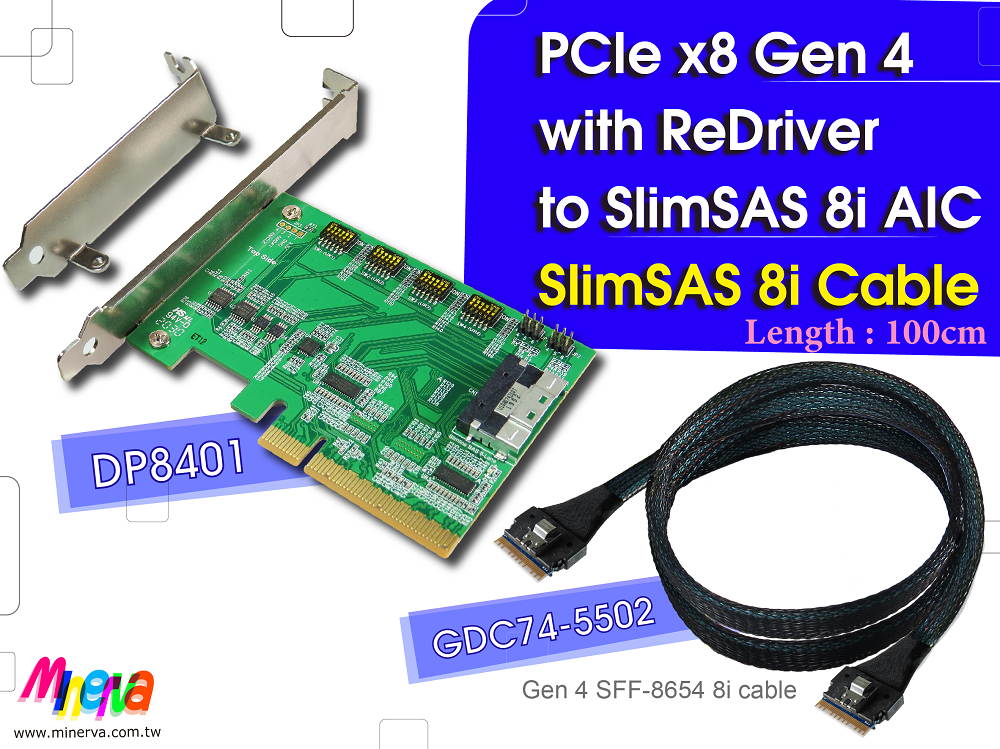

PCIe x8 Gen 4 with ReDriver to SlimSAS 8i Adapter + SlimSAS 8i cable,100cm KIT for AMD EPYC 7002 Series
#"DP8401"adapter : Features : * SlimSAS 8i (SFF-8654) to PCI Express 4.0 convert * Built-in SFF-8654 8i connector, pin-out defined by SFF-9402 Rev1.1 * Built-in PCIe ReDriver to extend PCIe Gen4, 16GT/s 8 Lanes differential pair signals * Built-in PCIe 100MHz Clock buffer to drive longer trace length and longer length cable * Built-in PCIe SMCLK, SMDAT bidirectional buffer repeater * Built-in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable * Built-in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable * Built-in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable * Built-in PWRBRK# Bus Buffer Gate to be used over longer trace lengths and longer over cable * D1 Green LED on indicates AIC ready Specifications: * PCI Express Base Specification Rev 4.0 * PCIe_CEM_SPEC_R4_V1_0_08072019_NCB * Support SSD_Form_Factor_Version1_a * Compliant with SFF-8654 Specification Version 1.2 Operating system support: * Windows 7 * Windows 8 & 8.1 * Windows 10 * UEFI 2.3.1 or later Applications: * Rack server * Microserver and Tower server * High performance computing * Hareware accelerator * Storage Controller HBA(Host Bus Adapter) * Desktop PC/motherboard #Part Number : GDC74-5502 Product Description : PCIe Gen 4 SlimSAS 8i (SFF-8654) to SlimSAS 8i cable Cable Length : 100CM
Innocard
PCIe x8 Gen 4 with ReDriver to SlimSAS 8i Adapter + SlimSAS 8i cable,100cm KIT for AMD EPYC 7002 Series
PE0804 - PCIe Gen3 8-lane to Slimline SAS (SFF-8654 8i) Add-in Card(AIC) with Slimline SAS 8-Lane to Slimline SAS 8-Lane Cable KIT
Features : * PE0804 can be offered in two x4(need CPU and BIOS both support) or can be extended x8 data width configurations. * PE0804 features one internal Slimline SAS connector(SFF-8654 8i) for high-perfoemace storage connectivity. * Build in SFF-8654 8i Slimline SAS connector, pin-out defined by PCIe * Dual-port PCIe Gen 3 NVMe controller * Eight internal lanes for SFF-8654 8i, 6.4GB/s * Supports two physical NVMe devices * Supports SFF-9402 clock & perst# pin out * Support Intel Define Slimline SAS SFF-8654 clock & perst# pin out * Enables the system perst# signal to be used over longer trace lengths and over a cable Specifications : * Compliant with NVM Express 1.2a * Support PCI Express Base Specification Rev 3.0 * Support SSD_Form_Factor_Version1_a * Compliant with SFF-8654 Specification Version 1.2 Part Number : MIC74-8801 Product Description : Slimline SAS (SFF-8654) 8-Lane Cable Cable Length : 50CM
Innocard
PE0804 - PCIe Gen3 8-lane to Slimline SAS (SFF-8654 8i) Add-in Card(AIC) with Slimline SAS 8-Lane to Slimline SAS 8-Lane Cable KIT

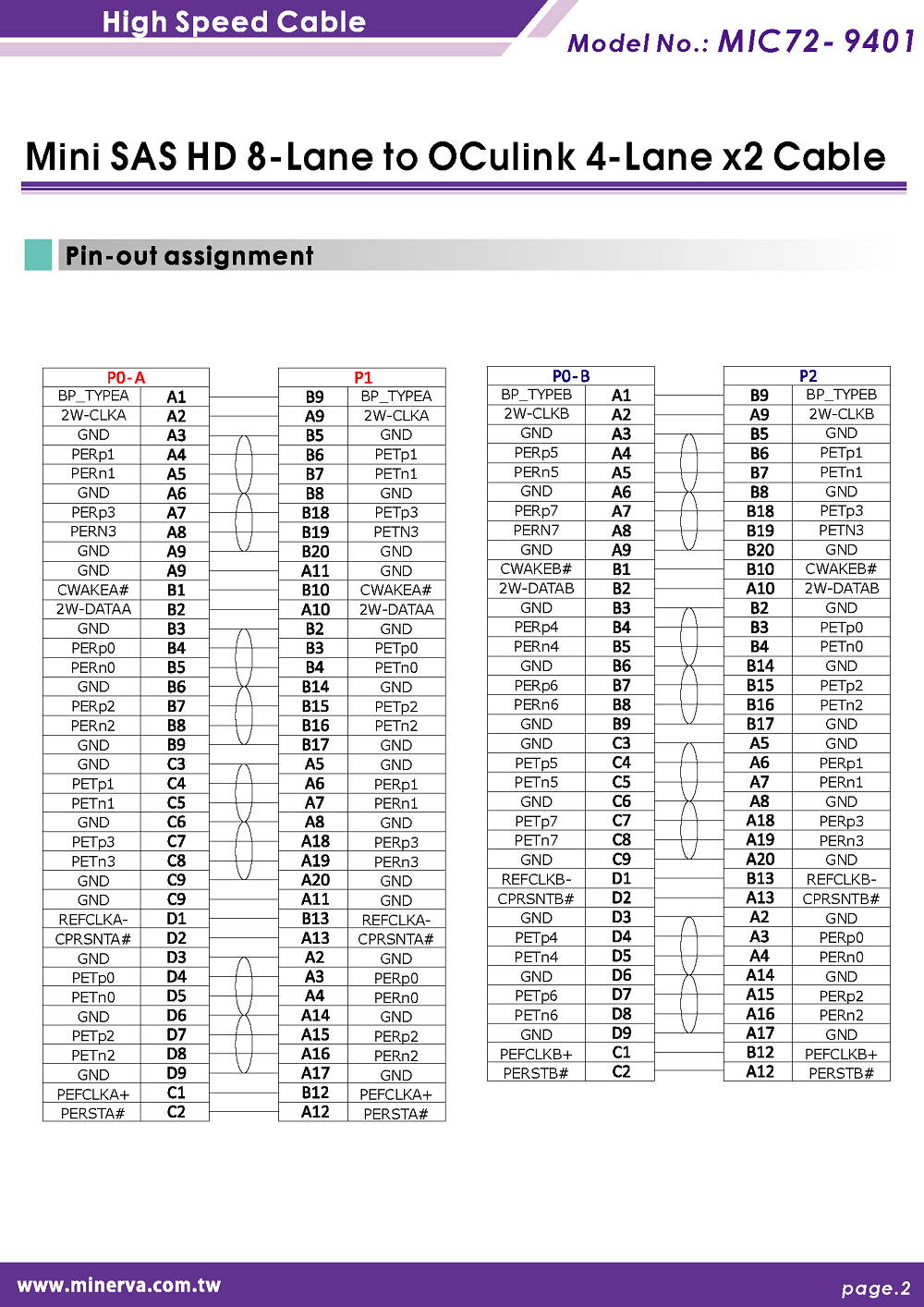

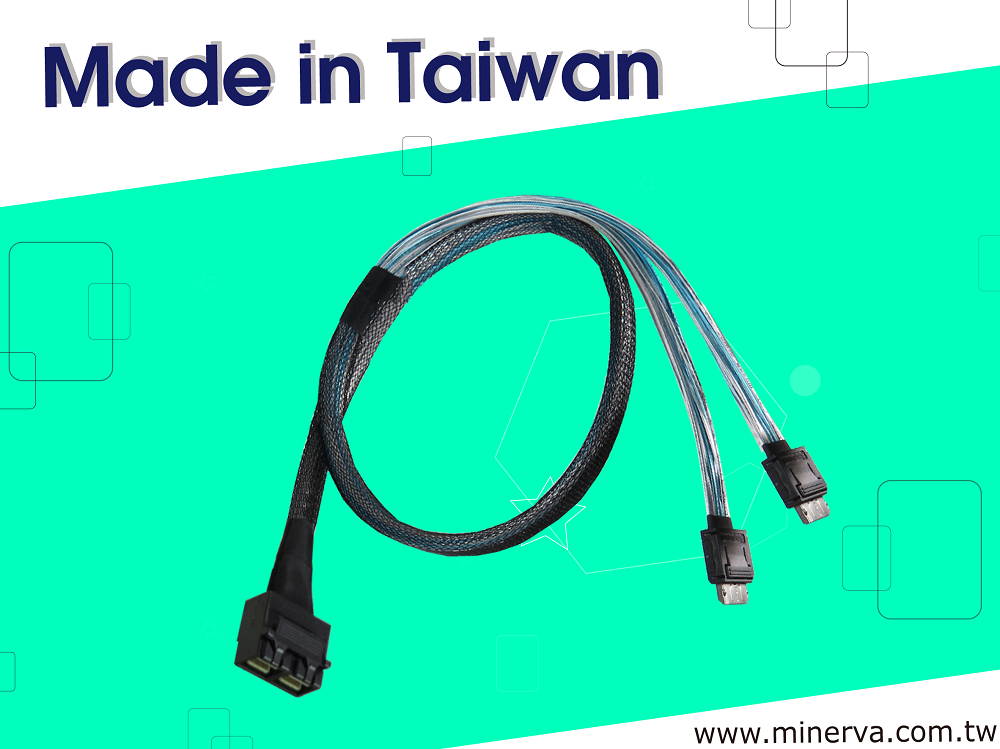

Mini SAS HD (SFF-8643) 8-Lane to OCulink (SFF-8611) 4-Lane x2 Y Cable
#MIC72-9401 Cable : Mini SAS HD (SFF-8643) 8-Lane to OCulink (SFF-8611) 4-Lane x2 Y Cable / 75CM
Innocard
Mini SAS HD (SFF-8643) 8-Lane to OCulink (SFF-8611) 4-Lane x2 Y Cable

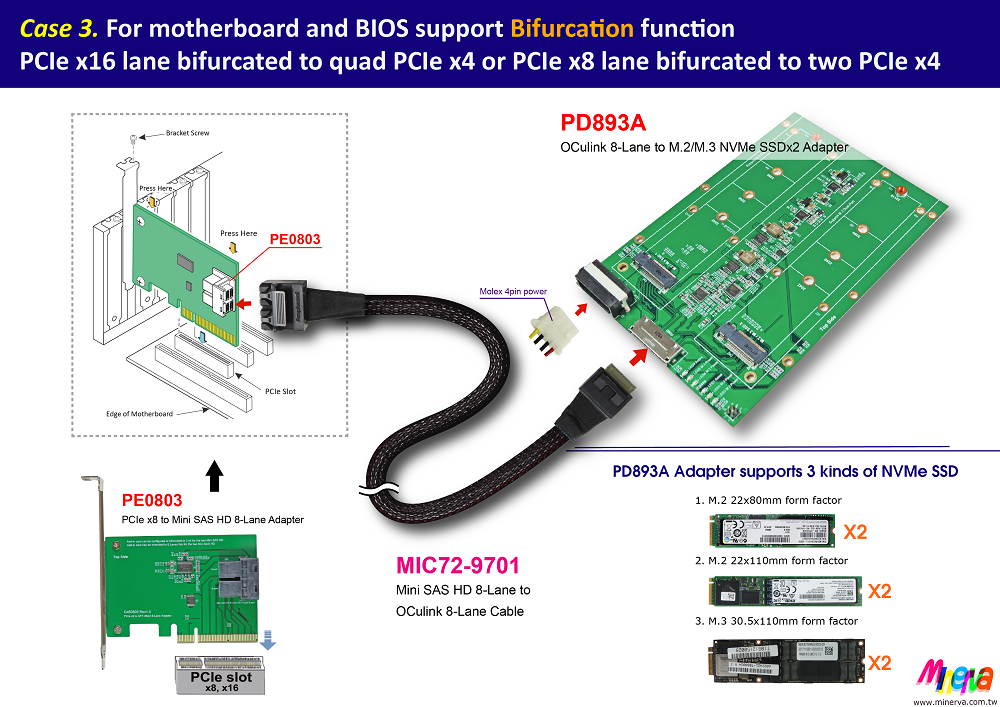

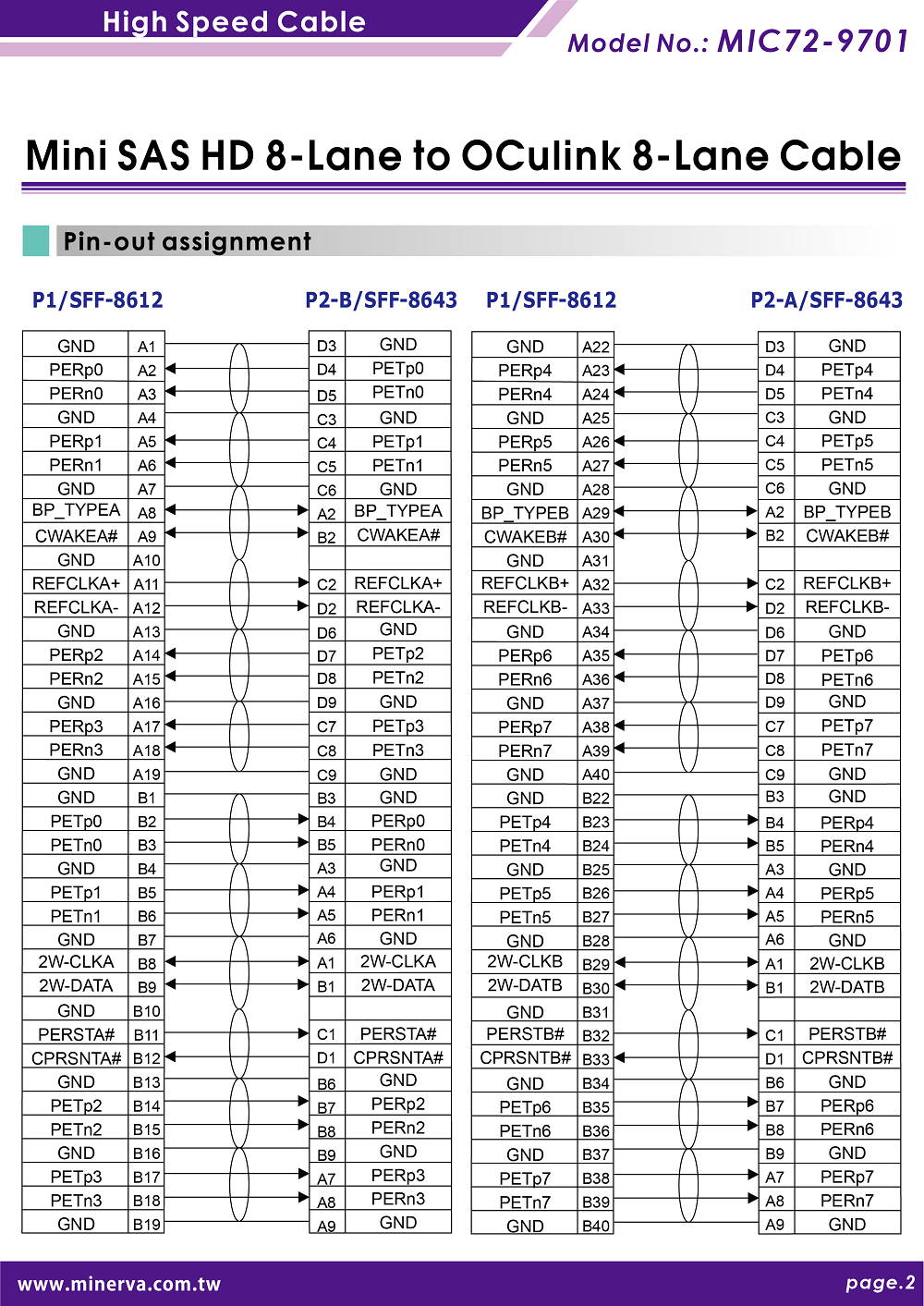

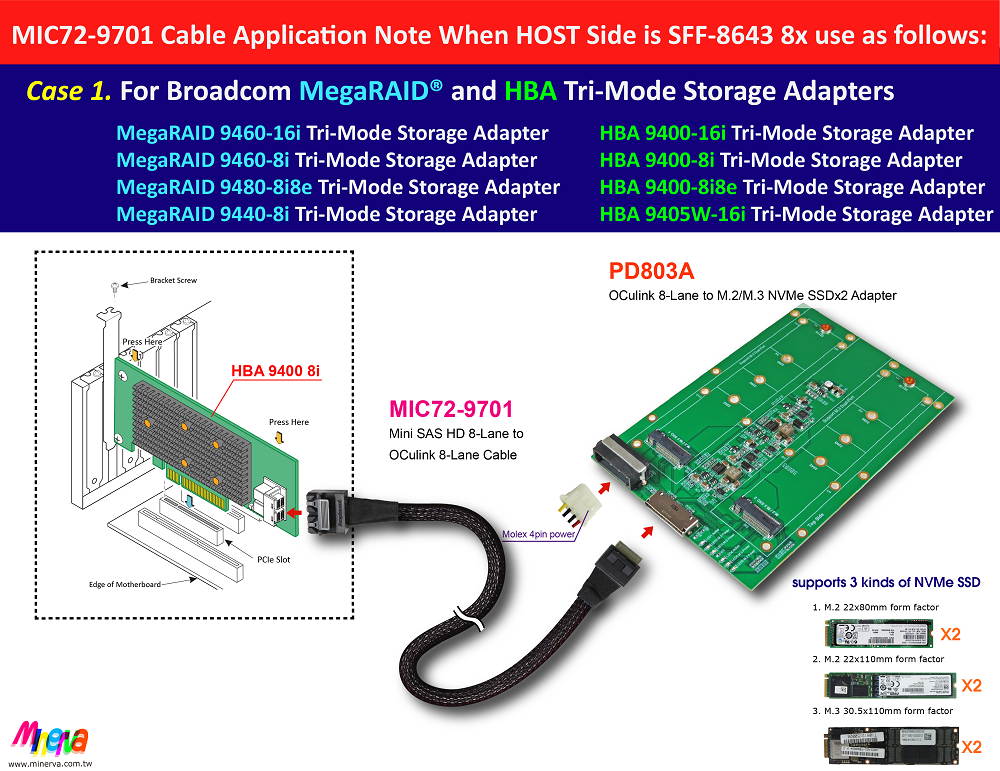

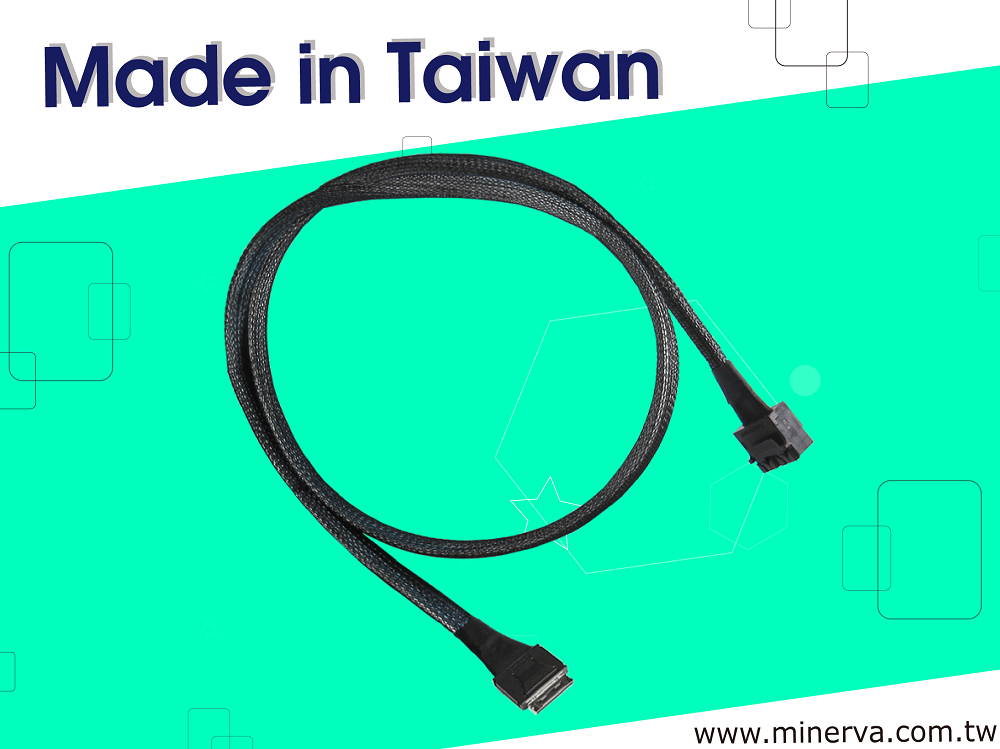

Broadcom HBA 9400-8i8e Tri-Mode for Mini SAS HD (SFF-8643) 8-Lane to OCulink (SFF-8611) 8-Lane Cable
Part Number : MIC72-9701 Product Description : Mini SAS HD 8-Lane to OCulink 8-Lane Cable Cable Length : 100CM #MIC72-9701 Cable Application Note When HOST Side is SFF-8643 8x use as follows: Case1. For Broadcom MegaRAID® and HBA Tri-Mode Storage Adapters *MegaRAID 9460-16i Tri-Mode Storage Adapter *MegaRAID 9460-8i Tri-Mode Storage Adapter *MegaRAID 9480-8i8e Tri-Mode Storage Adapter *MegaRAID 9440-8i Tri-Mode Storage Adapter *HBA 9400-16i Tri-Mode Storage Adapter *HBA 9400-8i Tri-Mode Storage Adapter *HBA 9400-8i8e Tri-Mode Storage Adapter *HBA 9405W-16i Tri-Mode Storage Adapter Case 2. For Intel Tri-Mode Storage Adapters *RSP3TD160F – Full featured tri-mode RAID adapter with 16 internal ports *RSP3MD088F– Full featured tri-mode RAID adapter with 8 internal and 8 external ports *RSP3DD080F– Full featured tri-mode RAID adapter with 8 internal ports *RSP3WD080E– Entry level tri-mode RAID adapter with 8 internal ports Case 3. For motherboard and BIOS support Bifurcation function PCIe x16 lane bifurcated to quad PCIe x4 or PCIe x8 lane bifurcated to two PCIe x4
Innocard
Broadcom HBA 9400-8i8e Tri-Mode for Mini SAS HD (SFF-8643) 8-Lane to OCulink (SFF-8611) 8-Lane Cable
Broadcom HBA 9400-8i Tri-Mode for Mini SAS HD (SFF-8643) 8-Lane to Mini SAS HD 8-Lane Cable
Part Number : MIC72-9901 Product Description : Mini SAS HD (SFF-8643) 8-Lane to Mini SAS HD 8-Lane Cable Cable Length : 100CM #MIC72-9901 Cable Application Note When HOST Side is SFF-8643 8x use as follows: Case1. For Broadcom MegaRAID® and HBA Tri-Mode Storage Adapters *MegaRAID 9460-16i Tri-Mode Storage Adapter *MegaRAID 9460-8i Tri-Mode Storage Adapter *MegaRAID 9480-8i8e Tri-Mode Storage Adapter *MegaRAID 9440-8i Tri-Mode Storage Adapter *HBA 9400-16i Tri-Mode Storage Adapter *HBA 9400-8i Tri-Mode Storage Adapter *HBA 9400-8i8e Tri-Mode Storage Adapter *HBA 9405W-16i Tri-Mode Storage Adapter Case 2. For Intel Tri-Mode Storage Adapters *RSP3TD160F – Full featured tri-mode RAID adapter with 16 internal ports *RSP3MD088F– Full featured tri-mode RAID adapter with 8 internal and 8 external ports *RSP3DD080F– Full featured tri-mode RAID adapter with 8 internal ports *RSP3WD080E– Entry level tri-mode RAID adapter with 8 internal ports Case 3. For motherboard and BIOS support Bifurcation function PCIe x16 lane bifurcated to quad PCIe x4 or PCIe x8 lane bifurcated to two PCIe x4
Innocard
Broadcom HBA 9400-8i Tri-Mode for Mini SAS HD (SFF-8643) 8-Lane to Mini SAS HD 8-Lane Cable

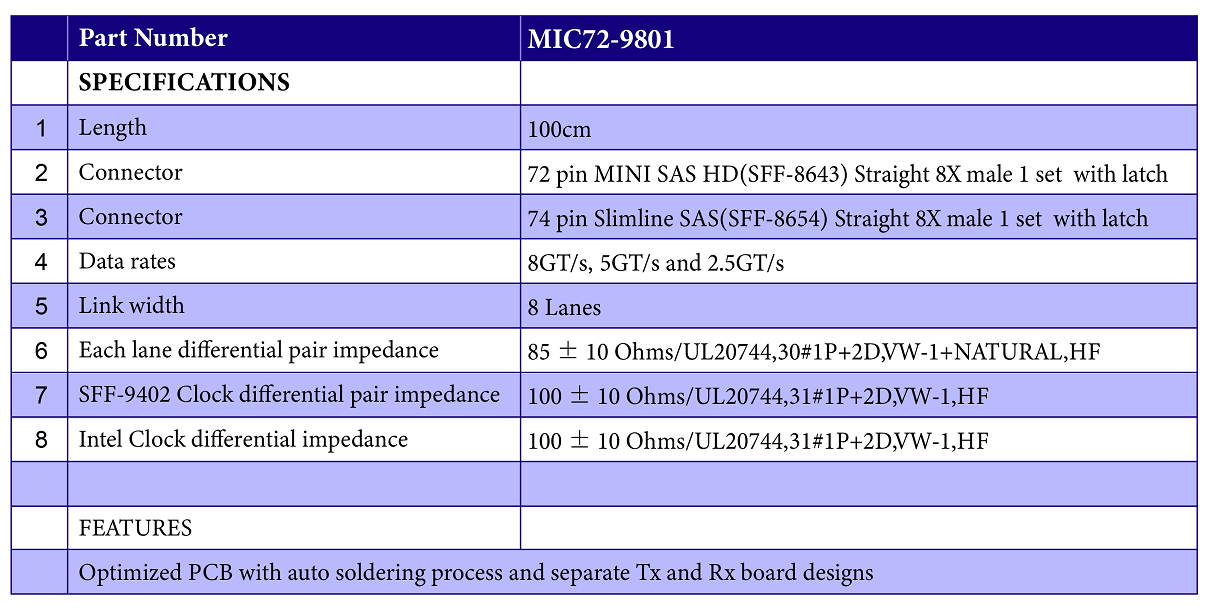

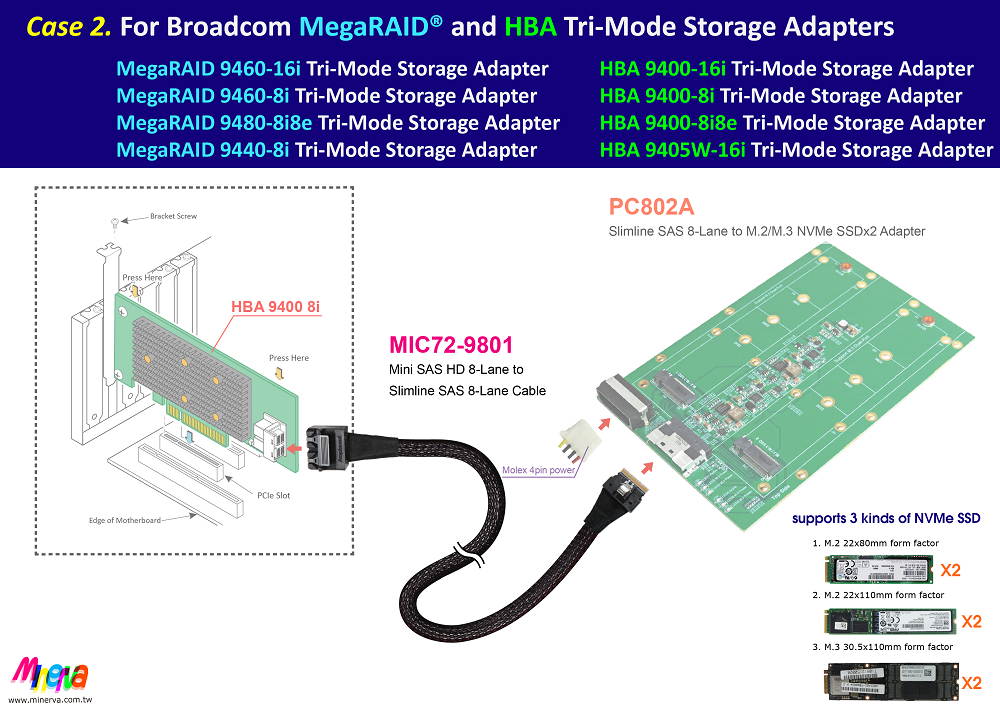

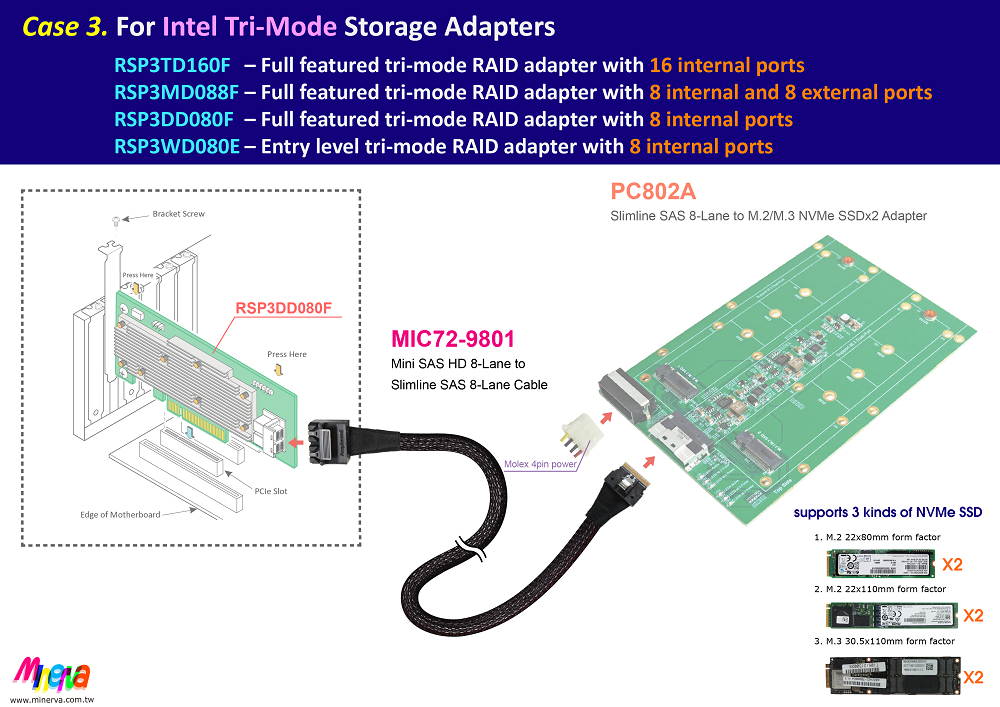

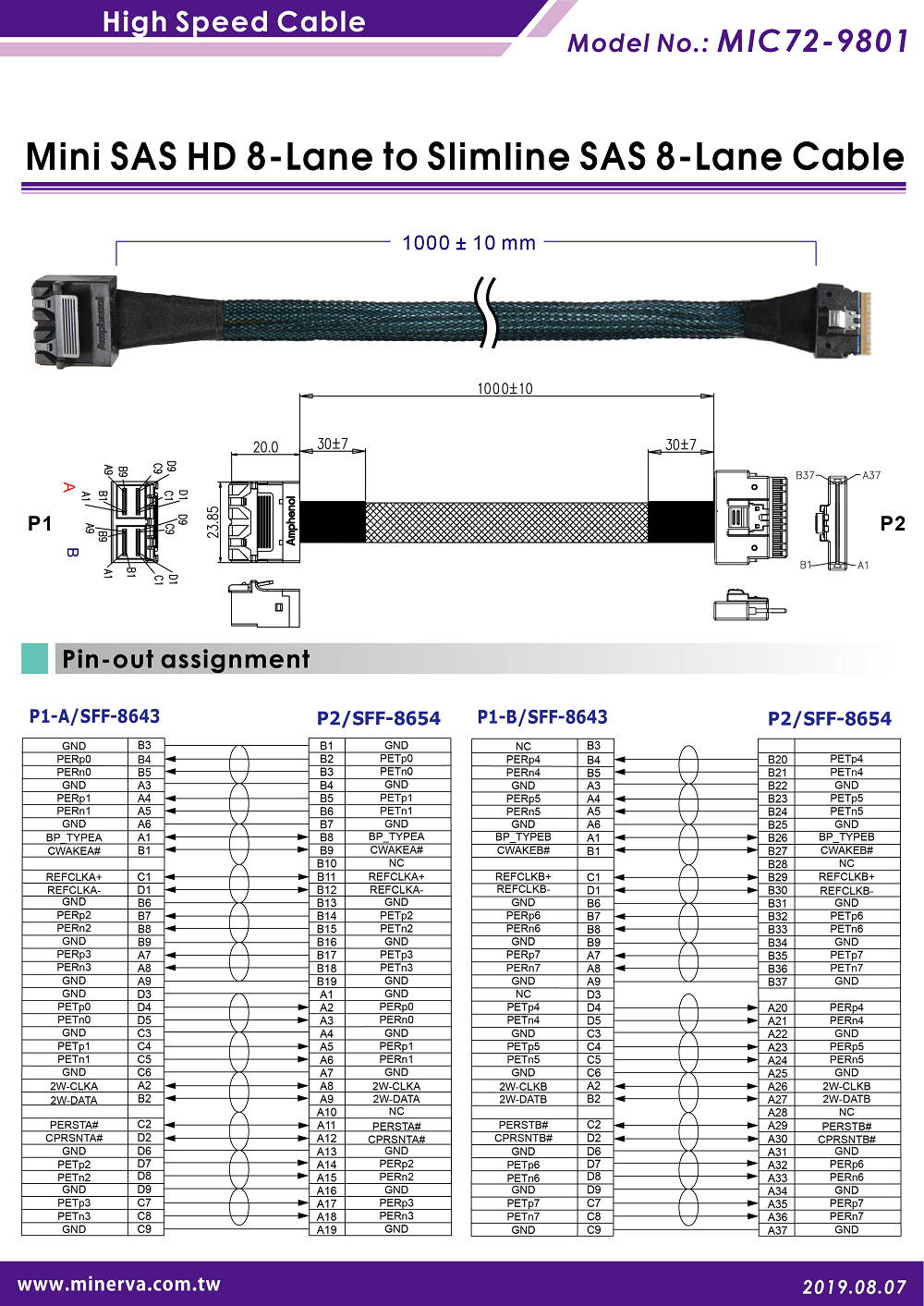

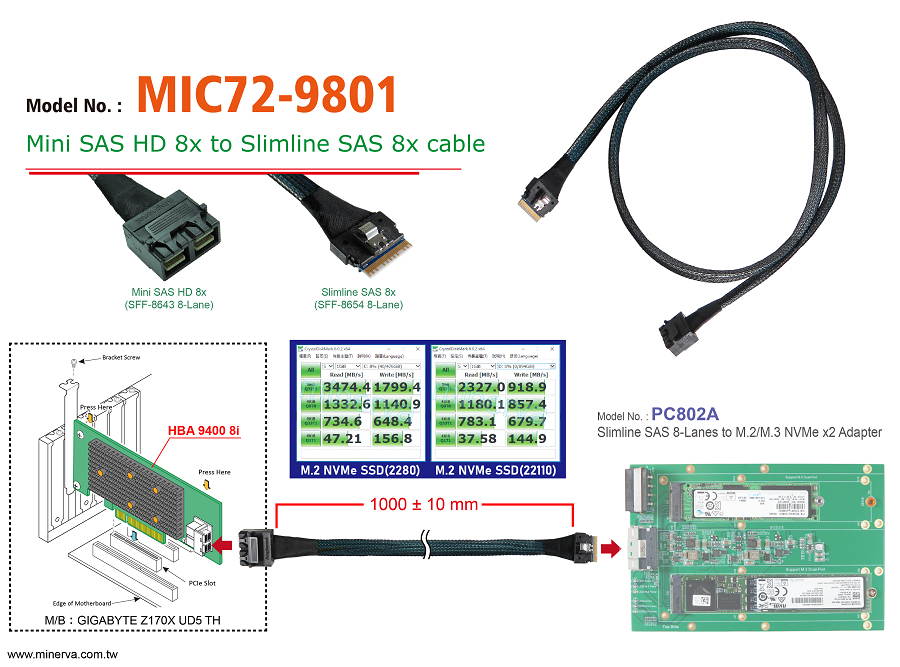

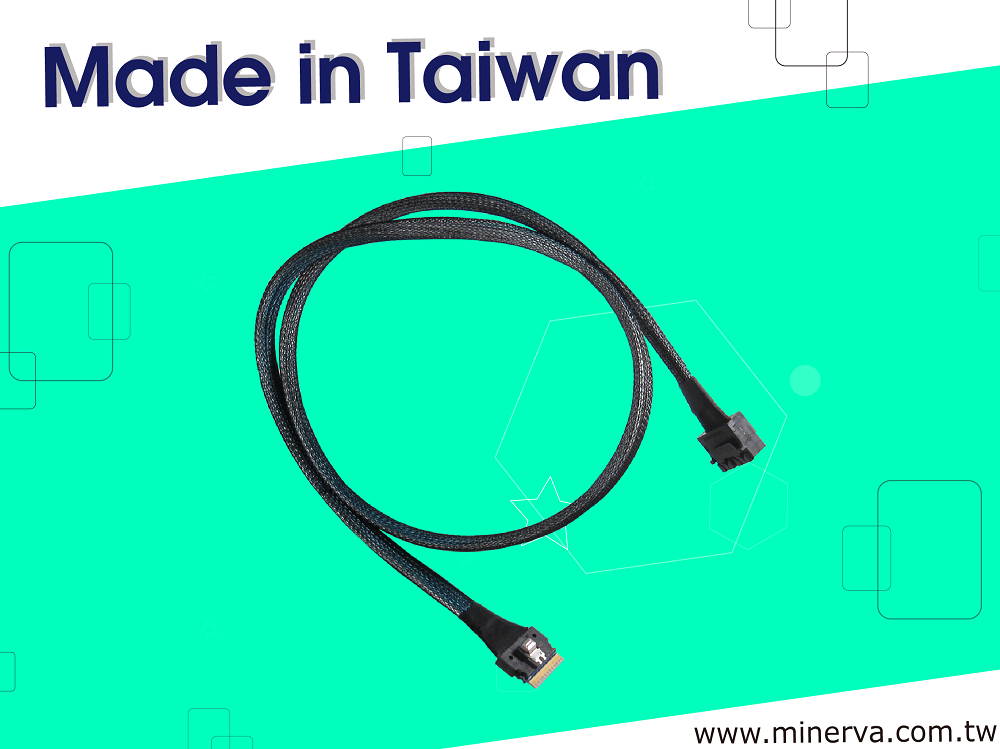

Mini SAS HD (SFF-8643) 8-Lane to Slimline SAS (SFF-8654) 8-Lane Cable for RSP3MD088F
#MIC72-9801 Cable : Mini SAS HD (SFF-8643) 8-Lane to Slimline SAS (SFF-8654) 8-Lane Cable / 100CM MIC72-9801 Cable Application Note When HOST Side is SFF-8643 8x use as follows: Case 1. For motherboard and BIOS support Bifurcation function PCIe x16 lane bifurcated to quad PCIe x4 or PCIe x8 lane bifurcated to two PCIe x4 Case 2. For Broadcom MegaRAID® and HBA Tri-Mode Storage Adapters * MegaRAID 9460-16i Tri-Mode Storage Adapter * MegaRAID 9460-8i Tri-Mode Storage Adapter * MegaRAID 9480-8i8e Tri-Mode Storage Adapter * MegaRAID 9440-8i Tri-Mode Storage Adapter * HBA 9400-16i Tri-Mode Storage Adapter * HBA 9400-8i Tri-Mode Storage Adapter * HBA 9400-8i8e Tri-Mode Storage Adapter * HBA 9405W-16i Tri-Mode Storage Adapter Case 3. For Intel Tri-Mode Storage Adapters * RSP3TD160F – Full featured tri-mode RAID adapter with 16 internal ports * RSP3MD088F– Full featured tri-mode RAID adapter with 8 internal and 8 external ports * RSP3DD080F– Full featured tri-mode RAID adapter with 8 internal ports * RSP3WD080E– Entry level tri-mode RAID adapter with 8 internal ports
Innocard
Mini SAS HD (SFF-8643) 8-Lane to Slimline SAS (SFF-8654) 8-Lane Cable for RSP3MD088F

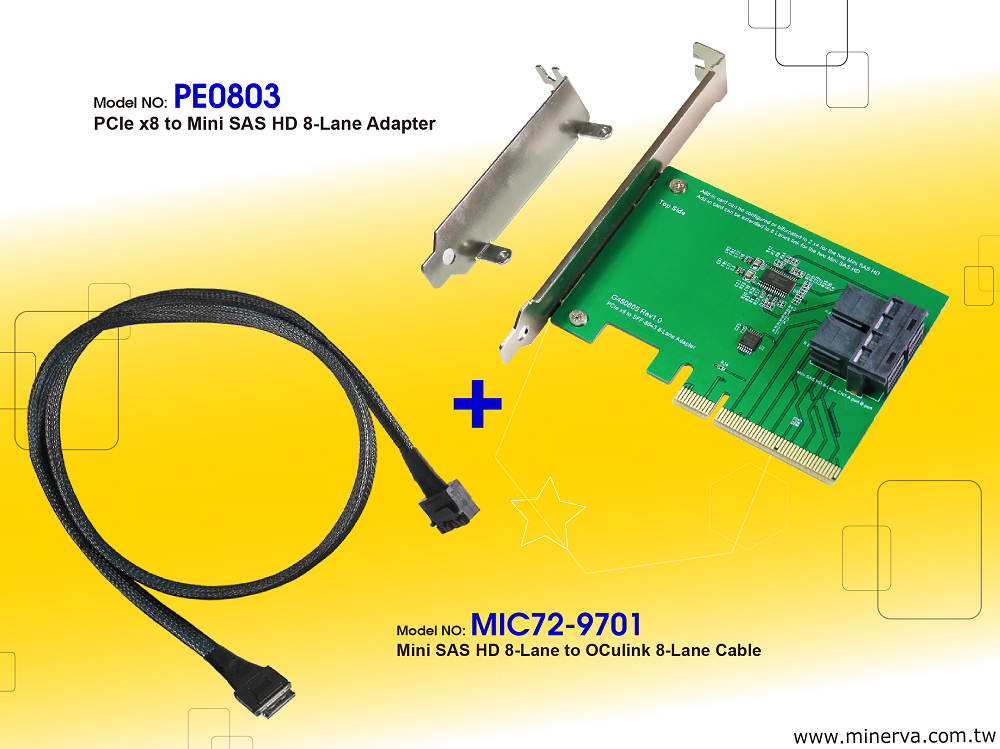

PCIe x8 Gen3 to Mini SAS HD (SFF-8643) 8-Lane Adapter with Mini SAS HD 8-Lane to OCulink 8-Lane Cable KIT
Features: * PE0803 can be offered in two x4 (need CPU and BIOS both support) and x8 configurations * PE0803 features two internal NMVe(SFF-8643) for high-perfoemace storage connectivity. * Build in 8x Mini SAS SFF-8643 connector 1 sets, pin-out defined by PCIe * Dual-port PCIe Gen 3 NVMe controller * Four internal lanes per Mini SAS HD port, 3.2B /s per port * Supports two physical NVMEe devices * Supports SFF-9402 clock pin out * Support Intel Define Mini SAS HD SFF-8643 clock pin out * Supports SFF-9402 perst# pin out * Supports Intel Define Mini SAS HD SFF-8643 perst# pin out Specifications: * Compliant with NVM Express 1.2 a * Support PCI Express Base Specification Rev 3.0 * Support SSD_Form_Factor_Version1_a * Compliant with SFF-8643 Specification Version 3.5 Part Number: MIC72-9701 Product Description: Mini SAS HD (SFF-8643) 8-Lane to OCulink (SFF-8611) 8-Lane Cable Cable Length: 100CM
Innocard
PCIe x8 Gen3 to Mini SAS HD (SFF-8643) 8-Lane Adapter with Mini SAS HD 8-Lane to OCulink 8-Lane Cable KIT
PCIe x16 Gen3 to Mini SAS HD (SFF-8643) quad-port Adapter with Mini SAS HD 8-Lane to OCulink (SFF-8611) 4-Lane x2 Y Cable KIT
Features: * PE1602 can be bifurcated in quad x4 (need CPU and BIOS both support) and x4 data link width configurations * PE1602 features four internal NVMe(SFF-8643) for high-perfoemace storage connectivity. * Build in Mini SAS HD(SFF-8643) 8x connector 2 sets, pin-out defined by SFF-9402 * Four internal lanes per Mini SAS HD port, 3.2G b/s per port * Supports four physical NVMe devices * Supports SFF-9402 clock pin out * Supports Intel define Mini SAS HD(SFF-8643) clock pin out * Supports SFF-9402 perst# pin out * Supports Intel Define Mini SAS HD(SFF-8643) perst# pin out * Enables the system clock signal to be used over longer trace lengths and over a cable * Enables the system perst# signal to be used over longer trace lengths and over a cable #MIC72-9401 Cable: Mini SAS HD (SFF-8643) 8-Lane to OCulink (SFF-8611) 4-Lane x2 Y Cable / 75CM
Innocard
PCIe x16 Gen3 to Mini SAS HD (SFF-8643) quad-port Adapter with Mini SAS HD 8-Lane to OCulink (SFF-8611) 4-Lane x2 Y Cable KIT
PC892A - Slimilne SAS (SFF-8654) 8-Lane to M.2 NVMe SSD dual ports Adapter to Slimline SAS 8-Lane to OCulink 8-Lane Cable KIT
#PC892A adapter: Features: * Built-in +12V Hot Plug protection power module for M. 3 NVMe SSD * Built-in + 3.3V Hot Plug protection power module for M. 2 NVMe SSD * SFF-8654 Slimline SAS 8i to M. 2, M. 3 convert * Built-in SFF-8654 8i connector, pin-out defined by PCIe * Built-in M. 2 M-key connector, pin-out defined by PCIe * LED 1, LED4 Red LED Blinking indicates SSD active status * LED 2, LED 5 Green LED on M. 3 SSD power ready * LED 3, LED 6 Green LED on M. 2 SSD power ready Specifications: * Compliant with NVM Express 1.2 a * Supports PCI Express Base Specification Rev 3.1 * Supports PCI Express M. 2 Specification Revision 3.0, Version 1.2 _06262019 * Compliant with SFF-8654 Specification Rev 1.2 * Support Samsung M. 3 NF1 Datasheet_v 0.4 * The adapter SFF-8654 Slimline SAS 8i connector pinout based on SFF-9402 Rev 1.1 Supports the following form factor M. 2, M. 3 SSD: * Type 2242-D2-B-M: 42mm (L) x 22mm (W) * Type 2260-D2-B-M: 60mm (L) x 22mm (W) * Type 2280-D2-B-M: 80mm (L) x 22mm (W) * Type 22110-D2-B-M: 110mm (L) x 22mm (W) * Type 305110-D2-B-M: 110mm (L) x 30.5 mm (W) Various high speed cable application cases: * SFF-8654 8i to SFF-8654 8i Cable for SFF-8654 Slimline SAS Host by SFF-9402 defined PCIe REFCL Kp, n * SFF-8611 8i to SFF-8654 8i Cable for SFF-8654 Slimline SAS Host by SFF-9402 defined PCIe REFCL Kp, n * SFF-8643 8x to SFF-8654 8i Cable for SFF-8643 mini SAS HD Host by Intel define PCIe REFCL Kp, n #MIC74-8701 Cable: Slimline SAS (SFF-8654) 8-Lane to OCulink (SFF-8611) 8-Lane Cable / 50CM
Innocard
PC892A - Slimilne SAS (SFF-8654) 8-Lane to M.2 NVMe SSD dual ports Adapter to Slimline SAS 8-Lane to OCulink 8-Lane Cable KIT
PCIe x16 Gen3 to Mini SAS HD (SFF-8643) quad-port Adapter with Mini SAS HD 8-Lane to Slimline SAS (SFF-8654) 8-Lane Cable KIT
Features : * PE1602 can be bifurcated in quad x4(need CPU and BIOS both support) and x4 data link width configurations * PE1602 features four internal NVMe(SFF-8643) for high-perfoemace storage connectivity. * Build in Mini SAS HD(SFF-8643) 8x connector 2 sets, pin-out defined by SFF-9402 * Four internal lanes per Mini SAS HD port, 3.2Gb/s per port * Supports four physical NVMe devices * Supports SFF-9402 clock pin out * Supports Intel define Mini SAS HD(SFF-8643) clock pin out * Supports SFF-9402 perst# pin out * Supports Intel Define Mini SAS HD(SFF-8643) perst# pin out * Enables the system clock signal to be used over longer trace lengths and over a cable * Enables the system perst# signal to be used over longer trace lengths and over a cable #MIC72-9101 Cable : Mini SAS HD (SFF-8643) 8-Lane to Slimline SAS (SFF-8654) 8-Lane Cable / 100CM
Innocard
PCIe x16 Gen3 to Mini SAS HD (SFF-8643) quad-port Adapter with Mini SAS HD 8-Lane to Slimline SAS (SFF-8654) 8-Lane Cable KIT
PC892A - Slimilne SAS (SFF-8654) 8-Lane to M.2 NVMe SSD dual ports Adapter to Slimline SAS 8-Lane to Slimline SAS 8-Lane Cable KIT
#PC892A adapter: Features: * Built-in +12V Hot Plug protection power module for M. 3 NVMe SSD * Built-in + 3.3V Hot Plug protection power module for M. 2 NVMe SSD * SFF-8654 Slimline SAS 8i to M. 2, M. 3 convert * Built-in SFF-8654 8i connector, pin-out defined by PCIe * Built-in M. 2 M-key connector, pin-out defined by PCIe * LED 1, LED4 Red LED Blinking indicates SSD active status * LED 2, LED 5 Green LED on M. 3 SSD power ready * LED 3, LED 6 Green LED on M. 2 SSD power ready Specifications: * Compliant with NVM Express 1.2 a * Supports PCI Express Base Specification Rev 3.1 * Supports PCI Express M. 2 Specification Revision 3.0, Version 1.2 _06262019 * Compliant with SFF-8654 Specification Rev 1.2 * Support Samsung M. 3 NF1 Datasheet_v 0.4 * The adapter SFF-8654 Slimline SAS 8i connector pinout based on SFF-9402 Rev 1.1 Supports the following form factor M. 2, M. 3 SSD: * Type 2242-D2-B-M: 42mm (L) x 22mm (W) * Type 2260-D2-B-M: 60mm (L) x 22mm (W) * Type 2280-D2-B-M: 80mm (L) x 22mm (W) * Type 22110-D2-B-M: 110mm (L) x 22mm (W) * Type 305110-D2-B-M: 110mm (L) x 30.5 mm (W) Various high speed cable application cases: * SFF-8654 8i to SFF-8654 8i Cable for SFF-8654 Slimline SAS Host by SFF-9402 defined PCIe REFCL Kp, n * SFF-8611 8i to SFF-8654 8i Cable for SFF-8654 Slimline SAS Host by SFF-9402 defined PCIe REFCL Kp, n * SFF-8643 8x to SFF-8654 8i Cable for SFF-8643 mini SAS HD Host by Intel define PCIe REFCL Kp, n #MIC74-8801 Cable: Slimline SAS 8-Lane to Slimline SAS (SFF-8654) 8-Lane Cable / 50CM
Innocard
PC892A - Slimilne SAS (SFF-8654) 8-Lane to M.2 NVMe SSD dual ports Adapter to Slimline SAS 8-Lane to Slimline SAS 8-Lane Cable KIT
PD803A - OCulink 8-Lane (SFF-8612 8i) to M.2 NVMe SSD for Tri-Mode HBA 9400-16i with Mini SAS HD 8-Lane (SFF-8643 8x) to OCulink 8-Lane Cable KIT
#PD803A Adapter: Features: * Built-in SFF-8612 8i (OCulink) Female connector, pin defined by PCIe * Built-in M. 2 M-key Female connector, pin-out defined by PCIe * D1 Green LED on indicates M. 2 SSD power ready * D2 Green LED on indicates M. 3 SSD power ready * D3 RED LED Blinking indicates M. 2 or M. 3 NF1 active status * D4 Green LED on indicates M. 2 SSD power ready * D5 Green LED on indicates M. 3 SSD power ready * D6 RED LED Blinking indicates M. 2 or M. 3 NF1 active status Specifications: * Compliant with NVM Express 1.0 a * Supports PCI Express Base Specification Rev 3.1 * Compliant with PCI Express M. 2 Specification Version 1.1 * Compliant with Samsung M. 3 Specification Ver. 0.4 * Supports SSD_Form_Factor_Version1_a * Compliant with SFF-8612 Specification Rev 1.0 * Compliant with SFF-9402 Specification Rev 1.0 * Compliant with Broadcom Mega RAID and HBA Tri-mode Storage Adapter Support M. 2 / M. 3 Form factor: * Type 2242-D2-B-M: 42mm (L) x 22mm (W) * Type 2260-D2-B-M: 60mm (L) x 22mm (W) * Type 2280-D2-B-M: 80mm (L) x 22mm (W) * Type 22110-D2-B-M: 110mm (L) x 22mm (W) * Type 305110-D2-B-M: 110mm (L) x 30.5 mm (W) for M. 3 NF1 Application: * The adapter card PD803A is design for use by Broadcom Mega RAID Tri-mode Storage Adapter Table 1 as below: Mega RAID 9460-16i Mega RAID 9460-8i Mega RAID 9480-8i8e Mega RAID 9440-8i * The adapter card PD803A is design for use by Broadcom HBA Tri-mode Storage Adapter Table 2 as below: HBA 9400-16i HBA 9400-8i HBA 9400-8i8e HBA 9405W-16i * The adapter card PD803A is designed for using with Intel Tri Mode_Adapter_Hardware_User_Guide Rev 1.2 -2019-12 as below: RSP3TD160F RSP3MD088F RSP3DD080F RSP3WD080E #MIC72-9701 Cable: Mini SAS HD (SFF-8643) 8-Lane to OCulink (SFF-8611) 8-Lane Cable / 100CM
Innocard
PD803A - OCulink 8-Lane (SFF-8612 8i) to M.2 NVMe SSD for Tri-Mode HBA 9400-16i with Mini SAS HD 8-Lane (SFF-8643 8x) to OCulink 8-Lane Cable KIT
SlimSAS 4i (SFF-8654)/PCIe Gen3 to U.2(SFF-8639) Cable, 50cm
Part Number: RSL38-0340 Product Description: U.2 (SFF-8639) to Slimline SAS (SFF-8654) Cable Length: 50CM Color: Over mold Black
Innocard
SlimSAS 4i (SFF-8654)/PCIe Gen3 to U.2(SFF-8639) Cable, 50cm
PCIe x16 Gen3 to Mini SAS HD (SFF-8643) quad-port Adapter with Mini SAS HD 8-Lane to OCulink (SFF-8611) 8-Lane Cable x2pcs KIT
Features : * PE1602 can be bifurcated in quad x4(need CPU and BIOS both support) and x4 data link width configurations * PE1602 features four internal NVMe(SFF-8643) for high-perfoemace storage connectivity. * Build in Mini SAS HD(SFF-8643) 8x connector 2 sets, pin-out defined by SFF-9402 * Four internal lanes per Mini SAS HD port, 3.2Gb/s per port * Supports four physical NVMe devices * Supports SFF-9402 clock pin out * Supports Intel define Mini SAS HD(SFF-8643) clock pin out * Supports SFF-9402 perst# pin out * Supports Intel Define Mini SAS HD(SFF-8643) perst# pin out * Enables the system clock signal to be used over longer trace lengths and over a cable * Enables the system perst# signal to be used over longer trace lengths and over a cable #MIC72-9701 Cable x2pcs : Mini SAS HD (SFF-8643) 8-Lane to OCulink (SFF-8611) 8-Lane Cable / 100CM
Innocard
PCIe x16 Gen3 to Mini SAS HD (SFF-8643) quad-port Adapter with Mini SAS HD 8-Lane to OCulink (SFF-8611) 8-Lane Cable x2pcs KIT

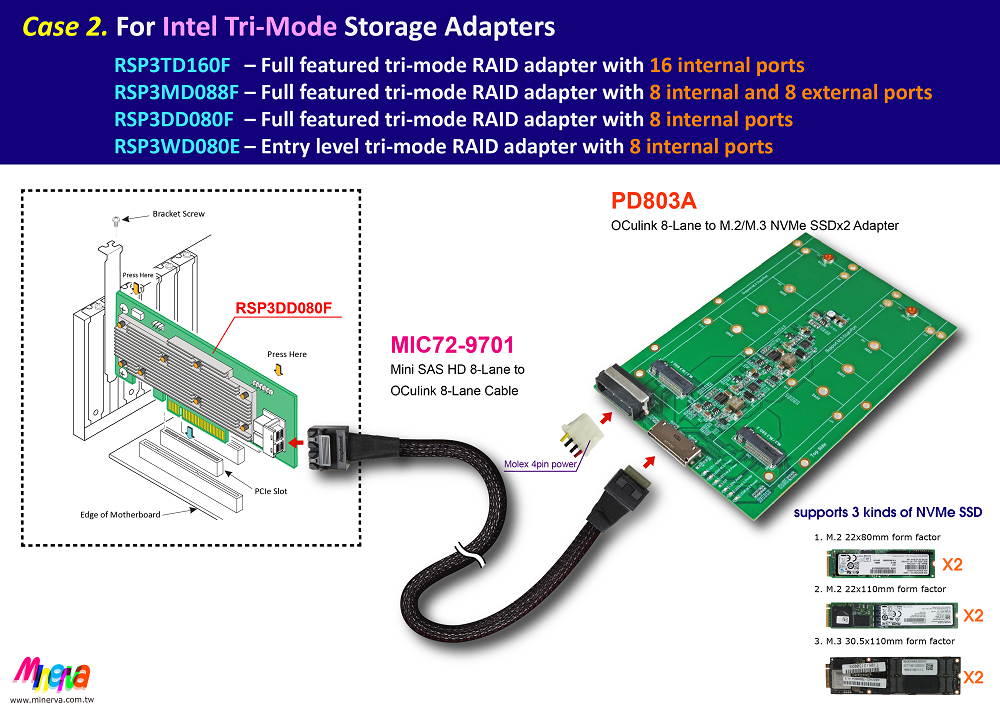

Intel TriMode RSP3DD080F for Mini SAS HD (SFF-8643) 8-Lane to OCulink (SFF-8611) 8-Lane Cable
Part Number : MIC72-9701 Product Description : Mini SAS HD 8-Lane to OCulink 8-Lane Cable Cable Length : 100CM #MIC72-9701 Cable Application Note When HOST Side is SFF-8643 8x use as follows: Case1. For Broadcom MegaRAID® and HBA Tri-Mode Storage Adapters *MegaRAID 9460-16i Tri-Mode Storage Adapter *MegaRAID 9460-8i Tri-Mode Storage Adapter *MegaRAID 9480-8i8e Tri-Mode Storage Adapter *MegaRAID 9440-8i Tri-Mode Storage Adapter *HBA 9400-16i Tri-Mode Storage Adapter *HBA 9400-8i Tri-Mode Storage Adapter *HBA 9400-8i8e Tri-Mode Storage Adapter *HBA 9405W-16i Tri-Mode Storage Adapter Case 2. For Intel Tri-Mode Storage Adapters *RSP3TD160F – Full featured tri-mode RAID adapter with 16 internal ports *RSP3MD088F– Full featured tri-mode RAID adapter with 8 internal and 8 external ports *RSP3DD080F– Full featured tri-mode RAID adapter with 8 internal ports *RSP3WD080E– Entry level tri-mode RAID adapter with 8 internal ports Case 3. For motherboard and BIOS support Bifurcation function PCIe x16 lane bifurcated to quad PCIe x4 or PCIe x8 lane bifurcated to two PCIe x4
Innocard
Intel TriMode RSP3DD080F for Mini SAS HD (SFF-8643) 8-Lane to OCulink (SFF-8611) 8-Lane Cable

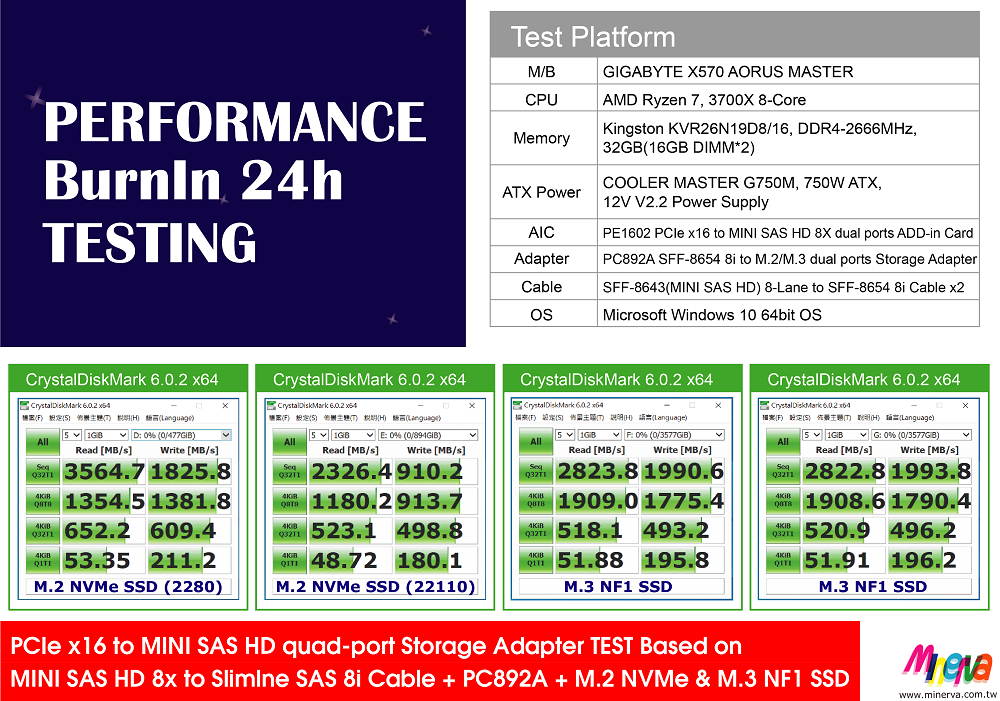

PC892A - Slimilne SAS (SFF-8654) 8-Lane to M.2 NVMe SSD dual ports Adapter to Slimline SAS 8-Lane to Mini SAS HD 8-Lane Cable KIT
#PC892A adapter : Features : * Built-in +12V Hot Plug protection power module for M.3 NVMe SSD * Built-in +3.3V Hot Plug protection power module for M.2 NVMe SSD * SFF-8654 Slimline SAS 8i to M.2, M.3 convert * Built-in SFF-8654 8i connector, pin-out defined by PCIe * Built-in M.2 M-key connector, pin-out defined by PCIe * LED 1, LED4 Red LED Blinking indicates SSD active status * LED 2, LED 5 Green LED on M.3 SSD power ready * LED 3, LED 6 Green LED on M.2 SSD power ready Specifications: * Compliant with NVM Express 1.2a * Supports PCI Express Base Specification Rev 3.1 * Supports PCI Express M.2 Specification Revision 3.0, Version 1.2 _06262019 * Compliant with SFF-8654 Specification Rev 1.2 * Support Samsung M.3 NF1 Datasheet_v0.4 * The adapter SFF-8654 Slimline SAS 8i connector pinout based on SFF-9402 Rev1.1 Supports the following form factor M.2 , M.3 SSD : * Type 2242-D2-B-M: 42mm(L) x 22mm(W) * Type 2260-D2-B-M: 60mm(L) x 22mm(W) * Type 2280-D2-B-M: 80mm(L) x 22mm(W) * Type 22110-D2-B-M: 110mm(L) x 22mm(W) * Type 305110-D2-B-M: 110mm(L) x 30.5mm(W) Various high speed cable application cases: * SFF-8654 8i to SFF-8654 8i Cable for SFF-8654 Slimline SAS Host by SFF-9402 defined PCIe REFCLKp,n * SFF-8611 8i to SFF-8654 8i Cable for SFF-8654 Slimline SAS Host by SFF-9402 defined PCIe REFCLKp,n * SFF-8643 8x to SFF-8654 8i Cable for SFF-8643 mini SAS HD Host by Intel define PCIe REFCLKp,n #MIC72-9801 Cable : Mini SAS HD (SFF-8643) 8-Lane to Slimline SAS (SFF-8654) 8-Lane Cable / 100CM
Innocard
PC892A - Slimilne SAS (SFF-8654) 8-Lane to M.2 NVMe SSD dual ports Adapter to Slimline SAS 8-Lane to Mini SAS HD 8-Lane Cable KIT

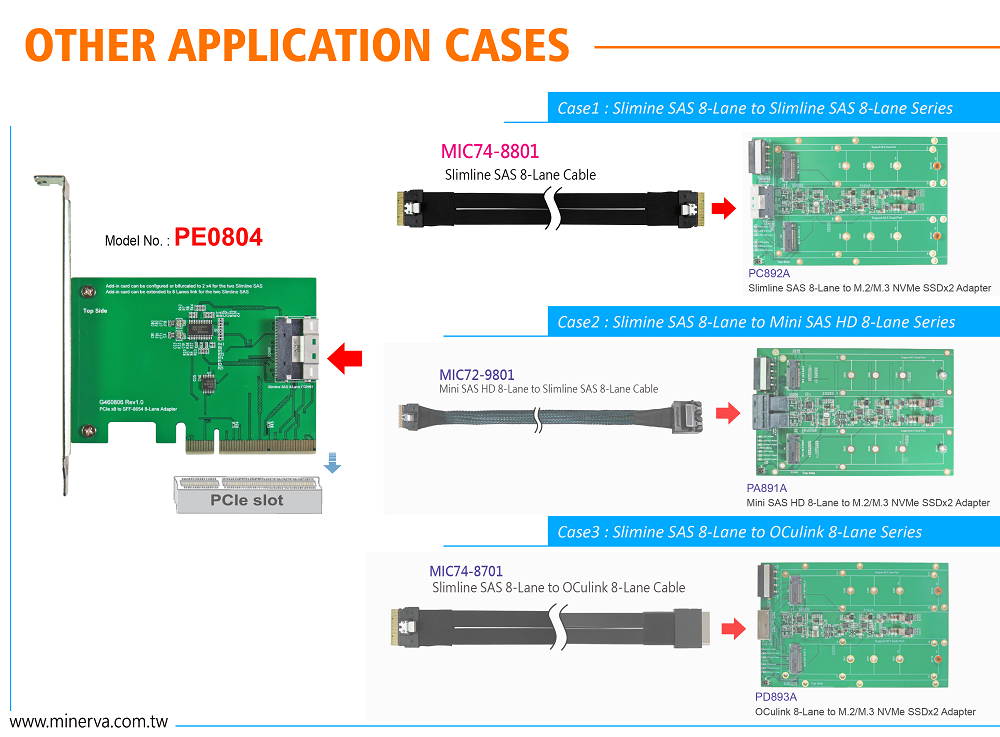

PE0804 - PCIe Gen3 8-lane to Slimline SAS (SFF-8654 8i) Add-in Card(AIC) with Slimline SAS 8-Lane to Mini SAS HD 4-Lane x2 Y Cable KIT
Features : * PE0804 can be offered in two x4(need CPU and BIOS both support) or can be extended x8 data width configurations. * PE0804 features one internal Slimline SAS connector(SFF-8654 8i) for high-perfoemace storage connectivity. * Build in SFF-8654 8i Slimline SAS connector, pin-out defined by PCIe * Dual-port PCIe Gen 3 NVMe controller * Eight internal lanes for SFF-8654 8i, 6.4GB/s * Supports two physical NVMe devices * Supports SFF-9402 clock & perst# pin out * Support Intel Define Slimline SAS SFF-8654 clock & perst# pin out * Enables the system perst# signal to be used over longer trace lengths and over a cable Specifications : * Compliant with NVM Express 1.2a * Support PCI Express Base Specification Rev 3.0 * Support SSD_Form_Factor_Version1_a * Compliant with SFF-8654 Specification Version 1.2 Part Number : MIC74-8201 Product Description : Slimline SAS (SFF-8654) 8- Lane to Mini SAS HD (SFF-8643) 4-Lane x2 Y Cable Cable Length : 50CM
Innocard
PE0804 - PCIe Gen3 8-lane to Slimline SAS (SFF-8654 8i) Add-in Card(AIC) with Slimline SAS 8-Lane to Mini SAS HD 4-Lane x2 Y Cable KIT
Mini SAS HD (SFF-8643) 8-Lane to Slimline SAS (SFF-8654) 8-Lane Cable for RSP3TD160F
#MIC72-9801 Cable : Mini SAS HD (SFF-8643) 8-Lane to Slimline SAS (SFF-8654) 8-Lane Cable / 100CM MIC72-9801 Cable Application Note When HOST Side is SFF-8643 8x use as follows: Case 1. For motherboard and BIOS support Bifurcation function PCIe x16 lane bifurcated to quad PCIe x4 or PCIe x8 lane bifurcated to two PCIe x4 Case 2. For Broadcom MegaRAID® and HBA Tri-Mode Storage Adapters * MegaRAID 9460-16i Tri-Mode Storage Adapter * MegaRAID 9460-8i Tri-Mode Storage Adapter * MegaRAID 9480-8i8e Tri-Mode Storage Adapter * MegaRAID 9440-8i Tri-Mode Storage Adapter * HBA 9400-16i Tri-Mode Storage Adapter * HBA 9400-8i Tri-Mode Storage Adapter * HBA 9400-8i8e Tri-Mode Storage Adapter * HBA 9405W-16i Tri-Mode Storage Adapter Case 3. For Intel Tri-Mode Storage Adapters * RSP3TD160F – Full featured tri-mode RAID adapter with 16 internal ports * RSP3MD088F– Full featured tri-mode RAID adapter with 8 internal and 8 external ports * RSP3DD080F– Full featured tri-mode RAID adapter with 8 internal ports * RSP3WD080E– Entry level tri-mode RAID adapter with 8 internal ports
Innocard
Mini SAS HD (SFF-8643) 8-Lane to Slimline SAS (SFF-8654) 8-Lane Cable for RSP3TD160F
Broadcom HBA 9400-16i Tri-Mode for Mini SAS HD (SFF-8643) 8-Lane to OCulink (SFF-8611) 8-Lane Cable
Part Number : MIC72-9701 Product Description : Mini SAS HD 8-Lane to OCulink 8-Lane Cable Cable Length : 100CM #MIC72-9701 Cable Application Note When HOST Side is SFF-8643 8x use as follows: Case1. For Broadcom MegaRAID® and HBA Tri-Mode Storage Adapters *MegaRAID 9460-16i Tri-Mode Storage Adapter *MegaRAID 9460-8i Tri-Mode Storage Adapter *MegaRAID 9480-8i8e Tri-Mode Storage Adapter *MegaRAID 9440-8i Tri-Mode Storage Adapter *HBA 9400-16i Tri-Mode Storage Adapter *HBA 9400-8i Tri-Mode Storage Adapter *HBA 9400-8i8e Tri-Mode Storage Adapter *HBA 9405W-16i Tri-Mode Storage Adapter Case 2. For Intel Tri-Mode Storage Adapters *RSP3TD160F – Full featured tri-mode RAID adapter with 16 internal ports *RSP3MD088F– Full featured tri-mode RAID adapter with 8 internal and 8 external ports *RSP3DD080F– Full featured tri-mode RAID adapter with 8 internal ports *RSP3WD080E– Entry level tri-mode RAID adapter with 8 internal ports Case 3. For motherboard and BIOS support Bifurcation function PCIe x16 lane bifurcated to quad PCIe x4 or PCIe x8 lane bifurcated to two PCIe x4
Innocard
Broadcom HBA 9400-16i Tri-Mode for Mini SAS HD (SFF-8643) 8-Lane to OCulink (SFF-8611) 8-Lane Cable
Slimline SAS (SFF-8654) 8-Lane to Mini SAS HD (SFF-8643) 4-Lane x2 Y Cable
Part Number : MIC74-8201 Product Description : Slimline SAS (SFF-8654) 8-Lane to Mini SAS HD (SFF-8643) 4- Lane X2 cable Cable Length : 50CM Color : Over mold Black *MIC74-8201 Cable Application Note When Host Side is SlimSAS(SFF-8654 8i) for use as follows: For Motherboard and BIOS support Bifurcation function PCIe x8 to SFF-8654(SlimSAS 8i) Add-on Card PCI 8-lane can be bifurcated to dual PCIe x4 data link width with SFF-8654(SlimSAS 8i) connector
Innocard
Slimline SAS (SFF-8654) 8-Lane to Mini SAS HD (SFF-8643) 4-Lane x2 Y Cable

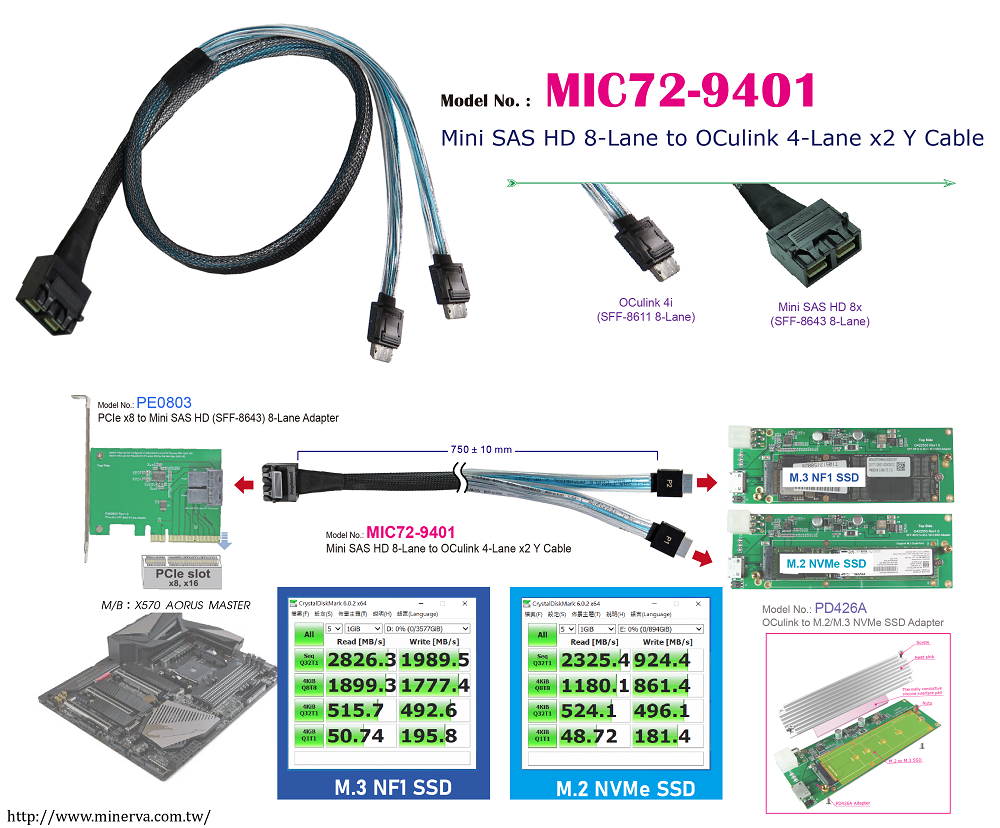

PCIe x8 Gen3 to Mini SAS HD (SFF-8643) 8-Lane Adapter with Mini SAS HD 8-Lane to OCulink 4-Lane x2 Y Cable KIT

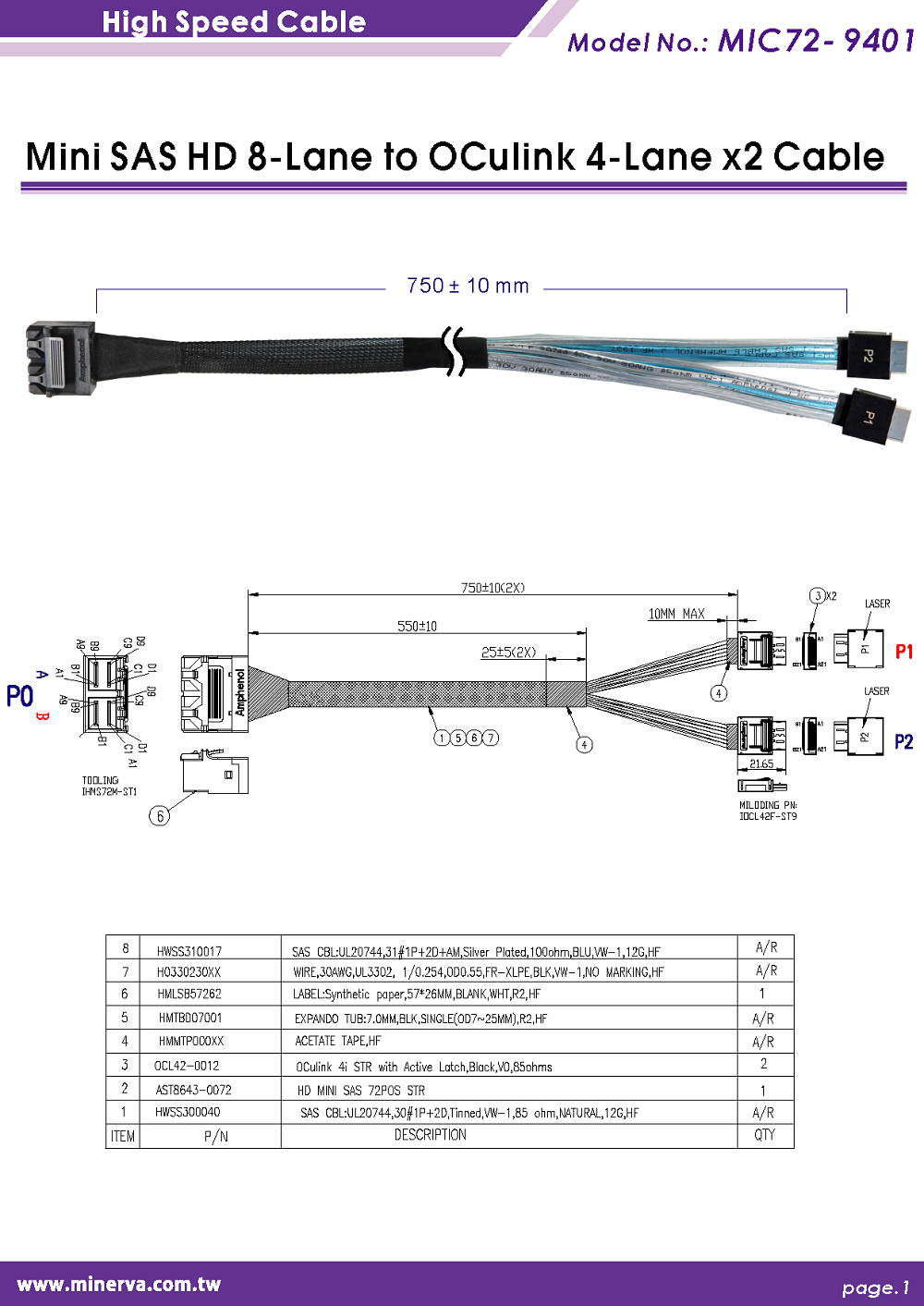

Features : * PE0803 can be offered in two x4(need CPU and BIOS both support) and x8 configurations * PE0803 features two internal NMVe(SFF-8643) for high-perfoemace storage connectivity. * Build in 8x Mini SAS SFF-8643 connector 1 sets, pin-out defined by PCIe * Dual-port PCIe Gen 3 NVMe controller * Four internal lanes per Mini SAS HD port, 3.2B/s per port * Supports two physical NVMEe devices * Supports SFF-9402 clock pin out * Support Intel Define Mini SAS HD SFF-8643 clock pin out * Supports SFF-9402 perst# pin out * Supports Intel Define Mini SAS HD SFF-8643 perst# pin out Specifications : * Compliant with NVM Express 1.2a * Support PCI Express Base Specification Rev 3.0 * Support SSD_Form_Factor_Version1_a * Compliant with SFF-8643 Specification Version 3.5 Part Number : MIC72-9401 Product Description : Mini SAS HD (SFF-8643) 8-Lane to OCulink (SFF-8611) 4-Lane x2 Y Cable Cable Length : 75CM
Innocard
PCIe x8 Gen3 to Mini SAS HD (SFF-8643) 8-Lane Adapter with Mini SAS HD 8-Lane to OCulink 4-Lane x2 Y Cable KIT
OCulink (SFF-8611) 8-Lane to Slimline SAS (SFF-8654) 4-Lane x2 Y Cable
Part Number: MIC80-7301 Product Description: OCulink (SFF-8611) 8-Lane to Slimline SAS (SFF-8654) 4-Lane x2 Y Cable Cable Length: 50CM *MIC80-7301 Cable Application Note When Host Side is OCulink(SFF-8612 8i) for use as follows: For Motherboard and BIOS support Bifurcation function PCIe x8 to SFF-8612 (OCulink 8i) Add-on Card PCI 8-lane can be bifurcated to dual PCIe x4 data link width with SFF-8612 (OCulink 8i) connector
Innocard
OCulink (SFF-8611) 8-Lane to Slimline SAS (SFF-8654) 4-Lane x2 Y Cable
Slimline SAS (SFF-8654) 8-Lane to OCulink (SFF-8611) 8-Lane Cable
Part Number: MIC74-8701 Product Description: Slimline SAS (SFF-8654) 8-Lane to OCulink (SFF-8611) 8-Lane Cable Cable Length: 50CM MIC74-8701 Cable Application Note * When Host Side is Slimline SAS(SFF-8654 8i) for use as follows: Case 1. For motherboard and BIOS support Bifurcation function PCIe x8 to SFF-8654 (Slimline SAS 8i) AIC PCI 8-lane can be bifurcated to dual PCIe x4 data link width or PCIe x8 lane can be extended to SFF-8654 (Slimline SAS 8i) for PCIe x8 data link width * When Host Side is OCulink(SFF-8612 8i) for use as follows: Case 2. For motherboard and BIOS support Bifurcation function PCIe x8 to OCulink(SFF-8612 8i) AIC PCI 8-lane can be bifurcated to dual PCIe x4 data link width or PCIe x8 lane can be extend to OCulink(SFF-8612 8i) for PCIe x8 data link width
Innocard
Slimline SAS (SFF-8654) 8-Lane to OCulink (SFF-8611) 8-Lane Cable
