PLANET FT-806A20 10/100TX - 100Base-FX (WDM) Bi-directional Fiber Converter (SM, SC, 1310nm, 20 km, LFPT)
PLANET TECHNOLOGY FT-806A20 10/100TX - 100Base-FX (WDM) Bi-directional Fiber Converter - 1310nm - 20KM LFPT The PLANET FT-80X is Fast Ethernet Bridge 100Base-FX fiber to 10/100Base-TX shielded twisted pair (STP) converter. It supports selectable for half-duplex and full-duplex operations and supports a variety of fiber options. The converter auto-adapts to the highest level of performance supported by the device connected to the STP port. When the device is a switch or a workstation that supports full duplex the converter adapts to the full-duplex mode and provides an effective 200Mbps bandwidth. When the connected device is a hub or a workstation that supports only half duplex the converter adapts to the half-duplex mode and provides the nominal 100Mbps bandwidth. An override switch provides total manual control over the half/full-duplex operation in fiber-optic interface. The fiber port of converter operates at 1310 nm and uses ST SC MT-RJ VF-45 or WDM connectors. Multi-mode models that support distances up to 2 km and single-mode models that support distances up to 15/35/50 km are available.The FT-80x series are with LFP (Link Fault Pass Through function) (LLCF/LLR) and the DIP Switch design. LLCF/LLR can immediately alarm administrators the problem of the link media and provide efficient solution to monitor the net. The DIP Switch provides disable or enable the LFP function.LLCF (Link Loss Carry Forward) means when a device connected to the converter and the TP line loss the link the converter's fiber will disconnect the link of transmit. LLR (Link Loss Return) means when a device connected to the converter and the fiber line loss the link the converter's fiber will disconnect the link of transmit. Both can immediately alarm administrators the problem of the link media and provide efficient solution to monitor the net. Â Ordering Information FT-801 10/100Base-TX to 100Base-FX (ST MM) Bridge Media Converter -2km FT-802 10/100Base-TX to 100Base-FX (SC MM) Bridge Media Converter -2km FT-802S15 10/100Base-TX to 100Base-FX (SC SM) Bridge Media Converter - 15km FT-802S35 10/100Base-TX to 100Base-FX (SC SM) Bridge Media Converter - 35km FT-802S50 10/100Base-TX to 100Base-FX (SC SM) Bridge Media Converter - 50km FT-803 10/100Base-TX to 100Base-FX (MT-RJ MM) Bridge Media Converter FT-806A20 * 10/100Base-TX to 100Base-FX (WDM TX:1310nm SM) Bridge Media Converter -20km FT-806B20 * 10/100Base-TX to 100Base-FX (WDM TX:1550nm SM) Bridge Media Converter -20km Remark * FT-806A20/806B20 should runs in pair. It means you must connect FT-806A20 in one end another FT-806B20 in other end.
Planet MFB-F20 SFP-Port 100Base-FX Transceiver (1310 nm) - 20 km
Planet MFB-F20 SFP-Port 100Base-FX Transceiver (1310 nm) - 20 km
PLANET MC-700 7-Slot Media Converter Chassis (Fixed AC Power Supply)
PLANET MC-700 7-Slot Media Converter Chassis (Fixed AC Power Supply)
Planet GT-806A15 10/100/1000Base-T to 1000Base-LX (WDM) Media Converter TX:1310nm - 15km
Planet GT-806A15 10/100/1000Base-T to 1000Base-LX (WDM) Media Converter TX:1310nm - 15km
Planet MFB-FA20 SFP-Port 100Base-BX Transceiver (WDM, TX: 1310 nm) -20 km
Planet MFB-FA20 SFP-Port 100Base-BX Transceiver (WDM,TX:1310nm) - 20km
PHY Type
100Base-BX
Fiber Type
Single Mode
Connector
WDM / Bidi LC
Wavelength
TX: 1310nm, RX: 1550nm
Maximum Distance
20km
Operating Temperature
0 ~ 60 Degree C
Planet MGB-TLX SFP-Port 1000BASE-LX mini-GBIC module - 10 km (-40 ~ 75 Degree C)
The MGB family consists of Small Form Factor Pluggable (SFP) transceiver modules that are specifically designed for high performance integrated duplex data link over single mode optical fiber. These transceiver modules are compliant with the SFP Multisource Agreement (MSA) and hot pluggable. These modules offer an easy way to be installed in SFP MSA compliant ports at any time without the interruption of the host equipment operation. The MGB family of SFP Mini-GBIC Gigabit Ethernet modules can be installed in PLANET Switch products with SFP mini-GBIC interface. The deployment distance can be extended from 100 meters (TP), 550 meters (Multi-Mode, LC), and up to 120 kilometers (Single-Mode, LC). To meet the increasing demand of the Industrial Ethernet fiber solution, Planet releases the MGB-T series 1000Base-SX / LX transceivers that can operate reliably in electrically harsh, climatically demanding, and wide temperature range (-40°C to 75°C) environment. The MGB-T series 1000Base-SX / LX transceivers provide easy and fast 1000Base-SX / LX connection for Planet wide temperature industrial equipment. • Complies with the IEEE 802.3 ab / 802.3 z Gigabit Ethernet standard • 1 X 1000Mbps TP/ LC fiber port • Industry standard small form pluggable (SFP) package (for model MGB-TSX / MGB-TLX / MGB-TL30 / MGB-TL70) • Duplex LC connector • Differential PECL inputs and outputs • Single power supply 3.3V • TTL signal detect indicator • Hot Pluggable • Class 1 laser product complies with EN 60825-1 • Plug and Play Installation • -40 to 75 degrees C operating temperature for MGB-TSX / MGB-TLX / MGB-TL30 / MGB-TL70 PHY Type IEEE 802.3 z 1000Base-LX Fiber Type Single Mode Connector LC Wavelength 1310nm Maximum Distance 10km Operating Temperature -40 ~ 75 degrees C
Planet MGB-LB20 SFP-Port 1000BASE-BX (WDM, TX: 1550 nm) mini-GBIC module - 20 km
MGB-LB20PHY TypeIEEE 802.3ah 1000BASE-BXFiber TypeSingle ModeConnectorWDM/Bidi LCWavelengthTX: 1550nm, RX: 1310nmMaximum Distance20kmOperating Temperature0 ~ 60 degrees C

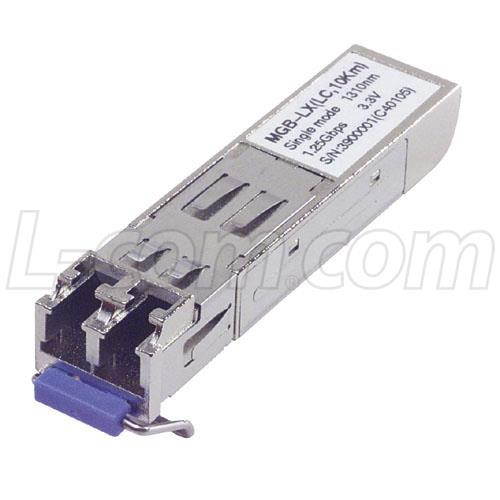

PLANET MGB-LX Compatible 1000BASE-LX SFP 1310nm 10km DOM Transceiver - 01748
PLANET MGB-LX Compatible 1000BASE-LX SFP 1310nm 10km DOM Transceiver - 01748
PLANET Genuine MGB-LX
Vendor Name Fiberopticdistribution
Form Type SFP Max
Data Rate 1000Mbps
Wavelength 1310nm
Max Cable Distance 10km
Interface LC duplex
Optical Components FP 1310nm
Cable Type SMF
DOM Support Yes
TX Power -9 ~ -3dBm
Receiver Sensitivity < -21dBm
Commercial Temperature Range
0 to 70°C (32 to 158°F)
HTS-Harmonized Code 8517706000
wgs-803 industrial 8-port 10/100/1000t wall-mount switch (-10~60 degrees c)
For full product specifications, please visit to be installed in a wall enclosure or simply mounted at any convenient location on a wall, PLANET's WGS-803 is an innovative, wall-mounted industrial 8-port Gigabit Ethernet Switch. It comes in a compact but rugged IP30 metal housing. Featuring ultra networking speed and operating temperature ranging from -10 to 60C. The WGS-803 is able to operate reliably, stably and quietly in any environment without affecting its performance, and provides a quick, safe and easy deployment of home automation network. The WGS-803 is specially designed to be installed in a narrow environment, such as wall enclosure or electric weak box. The compact, flat and wall-mounted design fits easily in any space-limited location. It adopts the user-friendly Front Access design, making the installing, cable wiring, LED monitoring and maintenance of the WGS-803 placed in an enclosure very convenient for technicians. The WGS-803 can be installed by fixed wall mounting, magnetic wall mounting or DIN rail, thereby making its usability more flexible. The WGS-803 features a strong dual power input system (12V~48V DC) incorporated into customer's automation network to enhance system reliability and uptime. In the example below, when the 3-pin terminal block fails to work, the hardware failover function will be activated automatically to keep powering the WGS-803 via the DC plug power alternatively without any loss of operation. The WGS-803 is designed for a high-performance architecture. With the 8 10/100/1000Mbps Gigabit Ethernet ports providing non-blocking switch fabric and wire-speed throughput as high as 16Gbps, and the 8K MAC address table, the WGS-803 can perform wire-speed packets transfer without the risk of packet loss.
PLANET ISW-800T IP30 Compact Size 8-Port 10/100TX Industrial Fast Ethernet Switch (-40~75 degrees C)
The ISW-800T Industrial 8-Port 10/100TX compact Ethernet switch is suitable for industrial use, features 8 10/100Mbps auto-negotiation ports, IP30-rated compact case and a wide-ranging redundant power system (12~48V DC or 24V AC). The ISW-800T is able to operate in harsh environments with operating temperatures ranging from -40 to 75°C. With the rise of the IIoT (Industrial Internet of Things), the ISW-800T includes a 'Plug and Play' feature that is designed for easy industrial network deployment. It is also stable and reliable when it comes to a fast data and power transmission. The ISW-800T provides link-on cable length power saving and link-down power saving methods. These features allow the ISW-800T to consume very low amounts of power in full loading operation mode, which helps conserve energy and maintains high performance. With 'Auto Power Saving' and IEEE 802.3 az Energy Efficient Ethernet (EEE) Protocol, the ISW-800T can automatically detect cable link status and network traffic, and thus is able to adjust power consumption accordingly. It enables the switch to consume less power when it's less active. The ISW-800T features a strong dual power input system with a wide-ranging voltage (12V~48V DC or 24V AC) that is incorporated into a customer's automation network to enhance system reliability and uptime. The ISW-800T provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users networks from devastating ESD attacks, making sure the flow of operation does not fluctuate. The ISW-800T offers a high-performance switch architecture. With the 8 10/100Mbps Fast Ethernet ports providing non-blocking switch fabric and wire-speed throughput as high as 1.6G bps and a 1K MAC address table, the ISW-800T can perform wire-speed packets transfer without the risk of packet loss. Product informationProduct Dimensions 4.09 x 2.76 x 1.18 inchesItem Weight 10.6 ouncesManufacturerPlanetASINB07456X99GCountry of OriginTaiwanItem model numberISW-800TBest Sellers Rank#3, 266 in Computer Networking SwitchesIs Discontinued By ManufacturerNoDate First AvailableJuly 21, 2017Warranty & SupportProduct Warranty: For warranty information about this product, please click here FeedbackWould you like to tell us about a lower price? VideosPage 1 of 1Start OverPage 1 of 1Previous pageVideos for related products 16:43 Click to play videoMultigig Networking on a Budget - 2.5 and 10 gig options! Lon. TVVideos for related products 3:20 Click to play videoIndustrial DIN Rail Security & Networking POE+ Switch Unboxing-| POE-SW802-DIN PoE DepotVideos for related products 1:56 Click to play videoIntroducing NETGEAR 16-Port PoE+ Gig Ethernet Plus Switches Netgear IncVideos for related products 1:25 Click to play videoIntroducing NETGEAR Business Unmanaged Switches Netgear IncVideos for related products 2:18 Click to play videoNETGEAR ProSAFE 10-Gigabit Ethernet Switches | XS708Ev2 & XS716E NETGEAR Videos for related products 1:38 Click to play videoNETGEAR ProSAFE Gigabit Web Managed Click Switches NETGEAR Videos for related products 1:28 Click to play video300 Series Switches Demo Merchant VideoVideos for related products 2:51 Click to play videoIndustrial Switches Video TREN DnetVideos for related products 2:18 Click to play videoLearn About the New NETGEAR Smart Plus Switches GUI Netgear IncVideos for related products 1:28 Click to play videoHow to Setup Link Aggregation on the Nighthawk X10 Router and S8000 Switch | NETGEAR NETGEAR Next pageUpload your video Customer Review: Multigig Networking on a Budget - 2.5 and 10 gig options! See full review Lon. TVOnsite Associates ProgramAmazon Influencer Products related to this itemSponsoredHide feedbackPage 1 of 1Start overPage 1 of 1Previous page of related Sponsored Products Feedback
Planet IGS-5225-16T4S Industrial L2+ 16-Port 10/100/1000T + 4-Port 100/1000X SFP Managed Ethernet Switch (-40 - 75 degrees C)
Planet IGS-5225-16T4S Industrial L2+ 16-Port 10/100/1000T + 4-Port 100/1000X SFP Managed Ethernet Switch (-40 - 75 degrees C)
400-Series CABLE TYPE N-MALE TO N-FEMLAE CONNECTORS 20FT.
CAB-NM-NF-L4-20FT LOW-LOSS RF-400 LMR-400 EQUIVALENT CABLE TYPE N-MALE TO N-FEMALE CONNECTORS 20FT. SECTION (NEW)
Planet IGS-801T 8-Port 10/100/1000Mbps Industrial Gigabit Ethernet Switch w/ Wide Operating Temperature
New slim type with more practicability and convenience After entering the Industrial Ethernet market with popular ISW / IFT series Fast Ethernet Switch / Converter products, PLANET now releases the advanced industrial hardened Gigabit Ethernet Switch series with new slim type, IP-30 metal case. The compact, IP-30 standard metal case allows either DIN rail or wall mounting for efficient use of cabinet space. The IGS-801T, one of the new series model, equips with 8 10/100/1000Mbps auto negotiation ports and operates reliably in Heavy Industrial demanding environments. Stable performance under difficult environments The IGS-801T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degree C, the IGS-801T can be placed in almost any difficult environment. The IGS-801T also possesses an integrated power supply source with wide range of voltages (12 to 48V DC) for worldwide high availability applications requiring dual or backup power inputs. Robust Switch performance The IGS-801T offers high performance switch architecture. With the 8 10/100/1000Mbps Gigabit Ethernet ports providing non-blocking switch fabric and wire-speed throughput as high as 16Gbps and the 8K MAC Address table, the IGS-801T can perform wire-speed packets transfer without risk of packet loss. The flow control function enables the IGS-801T to provide fast and reliable data transfer. The Gigabit port with 9K Jumbo frame supported can handle extremely large amounts of data transmission in industrial topology that forward data to central control room. All of the RJ-45 copper interfaces in the IGS-801T support 10/100/1000Mbps Auto-Negotiation for optimal speed detection through RJ-45 Category 6, 5 or 5e cables. The standard Auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. Physical Port • 8-Port 10/100/1000Base-T RJ-45 with auto MDI/MDI-X function Layer 2 Features • Complies with IEEE 802.3 10Base-T, IEEE 802.3 u 100Base-TX, IEEE 802.3 ab 1000Base-T Ethernet standard • Supports Auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode • High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth • Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3 x PAUSE frame flow control (Full-Duplex) • Backplane (Switching Fabric): 16Gbps • Integrated address look-up engine, support 8K absolute MAC addresses • 176 kilobytes on-chip frame buffer • 9K Jumbo packet size support • Automatic address learning and address aging • CSMA/CD Protocol Industrial Case / Installation • IP-30 Metal case / Protection • DIN Rail and Wall Mount Design • 12 to 48V DC, redundant power with polarity reverse protect function and connective removable terminal block for master and slave power • Supports EFT protection 6000 VDC for power line • Supports 6000 VDC Ethernet ESD protection • -40 to 75 Degree C operation temperature
PLANET HPOE-460 4-Port IEEE 802.3at High Power Over Ethernet Injector Hub
High Power PoE for SOHO PoE Applications The PLANET HPOE-460 is the next generation 4-Port Gigabit High Power PoE injector Hub, featuring both IEEE 802.3 af and High Power IEEE 802.3 at PoE standard that combines up to 30 Watts power output and data per port over one CAT 5/5e/6 Ethernet cable. The HPOE-460 is designed specifically to satisfy the growing demand of higher power consuming network PD (powered devices) such as PTZ (Pan, Tilt & Zoom) / Speed Dome IP cameras, multi-channel ( 802.11 a/b/g/n) wireless LAN access points and other network devices in SOHO and SMB network applications. The IEEE 802.3 at Power over Ethernet standard is defined to provide each PoE device maximum up to 30 Watts input power which is double amount of PoE power than conventional 802.3 af PoE PSE. The IEEE 802.3 at PoE standard is an ideal solution to fulfill the high power requirements directly via the RJ-45 Port interface. Compliant with IEEE 802.3 at, the HPOE-460 possesses stronger power capability than the existing 802.3 af PoE PSE. • 8-Port RJ-45 - 4 -Port 10/100/1000Mbps “Data input” - 4 -Port 10/100/1000Mbps “Data + Power output” Power over Ethernet • Complies with IEEE 802.3, IEEE 802.3 u, IEEE 802.3 ab 10/100/1000Base-T Ethernet standard • IEEE 802.3 at and IEEE 802.3 af Power over Ethernet Mid-Span PSE • Provides DC 52V power over RJ-45 Ethernet cable to IEEE 802.3 at / 802.3 af compliant devices ( up to 4 PD devices) • PoE power up to 30.8 Watts ( 802.3 at PoE) / 15.4 Watts ( 802.3 af PoE) for each PoE port • Remote power feeding up to 100m • Full power support for each PoE port • Automatically detect the powered device (PD) • Circuit protection prevents power interference between ports • 100~240V AC, 50/60Hz, 2A universal power supply adapter with DC 52V / 2.31A power output Hardware • Desktop palm size, wall mountable • LED indicator power input indication • FCC Part 15 Class B, CE • Plug & play Standard Compliance • IEEE 802.3 10Base-T • IEEE 802.3 u 100Base-TX • IEEE 802.3 ab 1000Base-T • IEEE 802.3 at Enhancement Power over Ethernet • IEEE 802.3 af Power over Ethernet
Planet IGS-10020HPT L2+ Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Managed Switch with Wide Operating Temperature
Environmentally Hardened Design The Industrial 8-Port Gigabit 802.3 at PoE Switch, IGS-10020HPT is equipped with rugged IP30 metal case for stable operation in heavy Industrial demanding environments. With IP30 industrial case protection, the IGS-10020HPT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. Being able to operate under wide temperature range from -40 to 75 Degree C, the IGS-10020HPT can be placed in almost any difficult environment. The IGS-10020HPT also allows either DIN rail or wall mounting for efficient use of cabinet space. Redundant Ring, Fast Recovery for Surveillance System The IGS-10020HPT supports redundant ring technology and features strong rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced Redundant Ring technology, Spanning Tree Protocol ( 802.1 w RSTP), and redundant power supply system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. The IGS-10020HPT also protects customer’s industrial network connectivity with switching recovery capability that is used for implementing fault tolerant ring and mesh network architectures. If the Industrial network was interrupted accidentally, the fault recovery times could be less than 50ms to quickly bring the network back to normal operation. Physical Port • 8-Port 10/100/1000Base-T Gigabit Ethernet RJ-45 with IEEE 802.3 af / 802.3 at PoE Injector • 2 100/1000Base-X mini-GBIC/SFP slots, SFP type auto detection • One RJ-45 console interface for basic management and setup Power over Ethernet • Complies with IEEE 802.3 af / IEEE 802.3 at Power over Ethernet / End-Span PSE • Up to 8 IEEE 802.3 af / 802.3 at devices powered • Supports PoE Power up to 30.8 Watts for each PoE ports • Auto detect powered device (PD) • Circuit protection prevent power interference between ports • Remote power feeding up to 100m • PoE Management features - IEEE 802.3 af and IEEE 802.3 at mode switch control - Total PoE power budget control - Per port PoE function enable/disable - PoE Admin-mode control - PoE Port Power feeding priority - Per PoE port power limit - PD classification detection - Temperature Threshold Control - PoE Usage Threshold Control - PD Alive Check - PoE schedule Industrial Case / Installation • IP30 Aluminum metal case protection • DIN Rail and Wall Mount Design • 48V DC, redundant power with polarity reverse protect function • Supports EFT protection 6000 VDC for power line • Supports 6000 VDC Ethernet ESD protection • -40 to 75 Degree C operating temperature Digital Input / Digital Output • 2 Digital Input (DI) • 2 Digital Output (DO) • Integrate sensors into auto alarm system • Transfer alarm to IP network via email and SNNP trap Layer 2 Features • Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3 x PAUSE frame flow control (Full-Duplex) • High performance of St
PLANET GS-4210-16P2S 16-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Managed Switch
PLANET GS-4210-16P2S 16-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Managed Switch

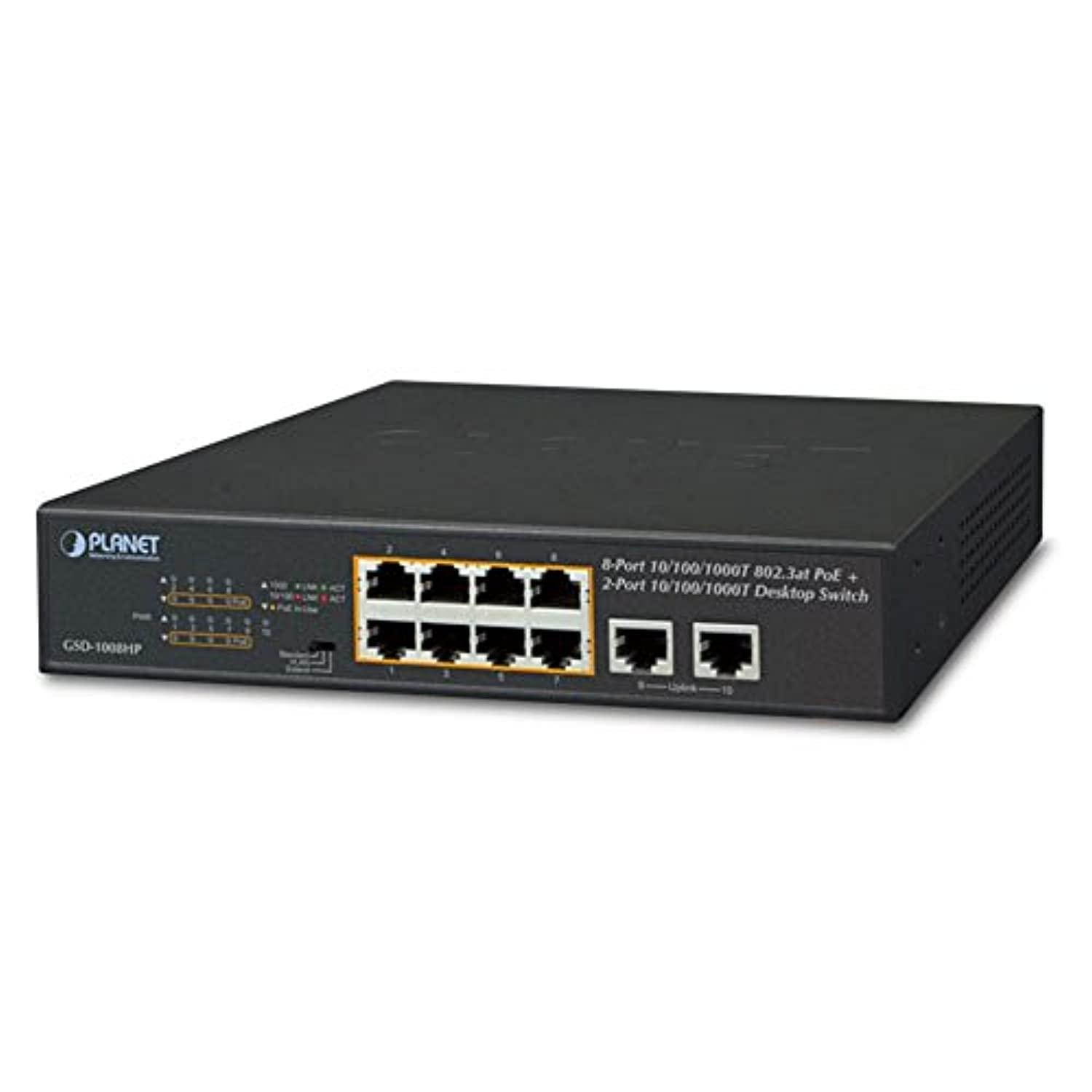

PLANET GSD-1008HP 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Desktop Switch (120 watts)
PLANET GSD-1008HP 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Desktop Switch (120 watts)
Planet GS-4210-24P4C IPv6/IPv4 24-Port Managed 802.3at POE+ Gigabit Switch 4-Port Gigabit TP/SFP (220W)
A Perfect Managed PoE+ Switch with Advanced L2/L4 Switching and Security
The GS-4210-24P(L)4C is a new generation of PLANET managed Gigabit PoE+ Switch featuring PLANET intelligent PoE functions to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit switching engine along with 24 10/100/1000BASE-T ports featuring 30-watt 802.3at PoE+ and 4 additional Gigabit TP/SFP combo ports. With a total power budget of up to 220 watts and 440 watts for different kinds of PoE applications, respectively, the GS-4210-24P4C and GS-4210-24PL4C provide a quick, safe and cost-effective Power over Ethernet network solution for small businesses and enterprises.
Physical Port
28-port 10/100/1000BASE-T Gigabit RJ45 copper with 24-port IEEE 802.3at/af PoE injector
4 100/1000BASE-X mini-GBIC/SFP slots, shared with port-25 to port-28 compatible with 100BASE-FX SFP
RJ45 console interface for switch basic management and setup
Power over Ethernet
Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
Backward compatible with IEEE 802.3af Power over Ethernet
Up to 24 ports of IEEE 802.3af / 802.3at devices powered
Supports PoE power up to 30.8 watts for each PoE port
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100 meters
PoE management
- Total PoE power budget control
- Per port PoE function enable/disable
- PoE Port power feeding priority
- Per PoE port power limitation
- PD classification detection
- PD alive-check
- PoE schedule
Layer 2 Features
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
Supports VLAN
- IEEE 802.1Q tagged VLAN
- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
- Protocol VLAN
- Voice VLAN
- Private VLAN
- Management VLAN
- GVRP
Supports Spanning Tree Protocol
- STP (Spanning Tree Protocol)
- RSTP (Rapid Spanning Tree Protocol)
- MSTP (Multiple Spanning Tree Protocol)
- STP BPDU Guard, BPDU filtering and BPDU forwarding
Supports Link Aggregation
- IEEE 802.3ad Link Aggregation Control Protocol (LACP)
- Cisco ether-channel (static trunk)
- Maximum 8 trunk groups, up to 8 ports per trunk group
Provides port mirror (many-to-1)
Loop protection to avoid broadcast loops
Quality of Service
Ingress and egress rate limit per port bandwidth control
Storm control support
- Broadcast / Unknown unicast / Unknown multicast
Traffic classification
- IEEE 802.1p CoS
- TOS / DSCP / IP precedence of IPv4/IPv6 packets
Strict priority and Weighted Round Robin (WRR) CoS policies
Multicast
- Supports IPv4 IGMP snooping v2 and v3
- Supports IPv6 MLD snooping v1, v2
- IGMP querier mode support
- IGMP snooping port filtering
- MLD snooping port filtering
Security
Authentication
- IEEE 802.1X port-based network access authentication
- Built-in RADIUS client to co-operate with the RADIUS servers
- RADIUS / TACACS+ login user access authentication
Access control list
- IPv4 / IPv6 IP-based ACL
- MAC-based ACL
MAC security
Static MAC
MAC filtering
Port security for source MAC address entries filtering
DHCP snooping to filter distrusted DHCP messages
Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
IP source guard prevents IP spoofing attacks
DoS attack prevention
SSH/SSL
Planet ISW-500T IP30 Compact Size 5-Port 10/100TX Industrial Fast Ethernet Switch (-40~75 degrees C)
Compact Size for More Practicability and Convenience PLANET ISW-500T Industrial 5-Port 10/100TX Compact Ethernet Switch, suitable for industrial use, features 5 10/100Mbps auto-negotiation ports, IP30-rated rugged but compact case and a wide-ranging redundant power system (12~48V DC or 24V AC). The ISW-500T is able to operate in any harsh environment with operating temperature ranging from -40 to 75 degrees C. Physical Port * 5-port 10/100BASE-TX RJ45 with auto MDI/MDI-X function Layer 2 Features * Complies with IEEE 802.3 10BASE-T, IEEE 802.3 u 100BASE-TX Ethernet standard * Supports auto-negotiation and 10/100Mbps half/full duplex mode * Prevents packet loss with back pressure (half-duplex) and IEEE 802.3 x pause frame flow control (full-duplex) * Complies with IEEE 802.3 az Energy Efficient Ethernet (EEE) * IEEE 802.1 p CoS * Supports 1K MAC address * Automatic address learning and address aging Industrial Case and Installation * IP30 metal case * DIN rail and wall-mount design * 12 to 48V DC, redundant power with polarity reverse protect function * 24V AC power input acceptable * Supports 6000 VDC Ethernet ESD protection * -40 to 75 degrees C operating temperature * Free fall, shock-proof and vibration-proof for industries
PLANET IVC-234GT Industrial 1-Port BNC / RJ11 to 4-Port Gigabit Ethernet Extender
PLANET IVC-234GT Industrial 1-Port BNC / RJ11 to 4-Port Gigabit Ethernet Extender
Planet IGS-504HPT Industrial 5-Port Gigabit Switch w/ 4-Port 802.3at PoE+
PLANET IGS-504HPT is an Industrial Gigabit 802.3 at PoE+ Switch providing Power over Ethernet capability and non-blocking wire-speed Gigabit performance in harsh industrial environment. It provides 4-port 10/100/1000Base-T copper with 802.3 af/at PoE injector delivered in an IP30 rugged strong case with redundant power system. The IGS-504HPT is well suited for applications in deploying surveillance system, and securing control and wireless service in climatically demanding environments with wide temperature range from -40 to 75 degrees C. High Power PoE for Security and Public Service Applications To fulfill the demand of High Power PoE for network applications with Gigabit speed transmission under wide temperature, the IGS-504HPT provides 4 10/100/1000Mbps ports featuring both IEEE 802.3 af and IEEE 802.3 at Power over Ethernet Plus (PoE+) that combine up to 30 watts of power output and data per port over one Cat. 5E / 6 Ethernet cable. With totally 120-watt PoE budget on the whole system, the IGS-504HPT is designed specifically to satisfy the growing demand of higher power consuming network PD (powered devices) such as PTZ (Pan, Tilt & Zoom) / Speed Dome network cameras, multi-channel ( 802.11 a / b / g / n) outdoor wireless LAN access points and other PoE network devices by providing double PoE power, rather than the current conventional 802.3 af PoE. Intelligent LED Indicator for Real-time PoE Usage The IGS-504HPT helps users to monitor the current status of PoE power usage easily and efficiently by its advanced LED indication. Called “PoE Power Usage”, the front panel of the Industrial Gigabit PoE+ Switch has four orange LEDs indicating 30W, 60W, 90W and 120W of power usage. Physical Port - 5-port 10/100/1000Base-T RJ-45 with 4-port IEEE 802.3 af / 802.3 at PoE Injector Power over Ethernet - Complies with IEEE 802.3 af / IEEE 802.3 at Power over Ethernet Plus End-Span PSE - Up to 4 IEEE 802.3 af / 802.3 at devices powered - Supports PoE Power up to 30.8 watts for each PoE port - Provides DC 52V power over RJ-45 Ethernet cable to PD with Ethernet port - Auto-detects IEEE 802.3 af/at equipment and protects devices from being damaged by incorrect installation - Remote power feeding up to 100m Layer 2 Features - Supports Auto-Negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode - Prevents packet loss with back pressure (half-duplex) and IEEE 802.3 x PAUSE frame flow control (full-duplex) - Automatic address learning and address aging Industrial Case / Installation - IP30 aluminum metal case protection - DIN Rail and Wall Mount Design - 48V DC redundant power with polarity reverse protect function and removable terminal block for master and slave power - Supports EFT protection of 6000 VDC for power line - Supports 6000 VDC Ethernet ESD protection - -40 to 75 degrees C operating temperature

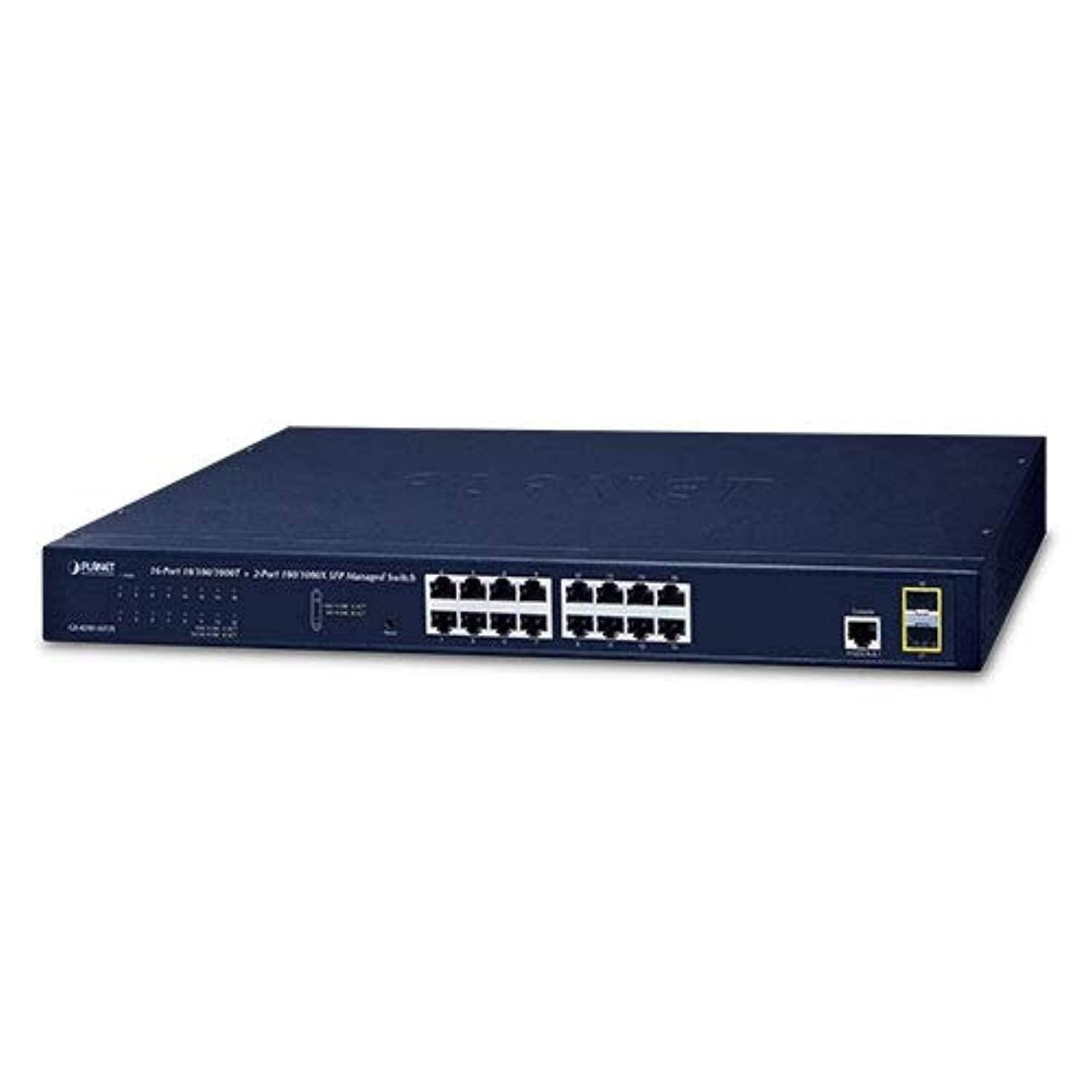

gs-4210-16t2s 16-port layer 2 managed gigabit ethernet switch w/2 sfp interfaces
For full product specifications, visit GS-4210-16T2S is a managed Gigabit Switch which provides cost-effective advantage to local area network and is widely accepted in the SMB office network. It offers intelligent Layer 2 data packet switching and management functions, friendly web user interface and stable operation. Besides the hot IPv6 / IPv4 management and abundant L2 / L4 switching functions, the GS-4210-16T2S comes with a fanless feature and green technology to provide a quiet, energy-saving, high-speed and reliable office network environment. The GS-4210-16T2S is equipped with 16 10/100/1000BASE-T Gigabit Ethernet ports and 2 additional 100/1000BASE-X SFP interfaces with inner power system. It offers a rack-mountable, affordable, safe and reliable Gigabit network switch solution for SMBs deploying networks, or requiring enhanced data security and network traffic management. The GS-4210-16T2S can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree protocol (MSTP), Loop and BPDU Guard, IGMP Snooping, and MLD Snooping. Via the link aggregation, the GS-4210-16T2S allows the operation of a high-speed trunk to combine with multiple ports such as a 16Gbps fat pipe, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain. The GS-4210-16T2S is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions.
PLANET IGS-1020TF Industrial 8-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch (-40~75 Degrees C)
PLANET IGS-1020TF Industrial 8-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch (-40~75 Degrees C)

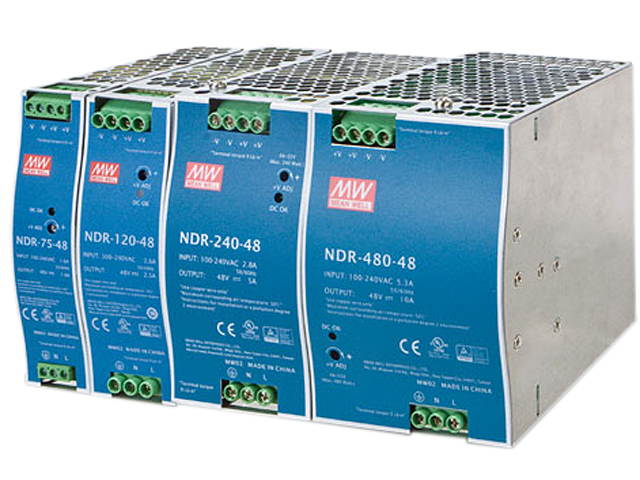

PLANET PWR-480-48 DC Single Output Industrial DIN Rail Power Supply Units
PLANET PWR-480-48 DC Single Output Industrial DIN Rail Power Supply Units

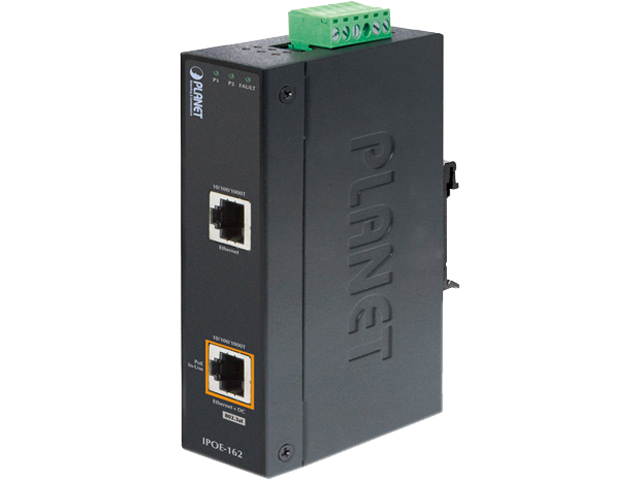

Planet IPOE-162 Industrial IEEE 802.3at Gigabit High Power Over Ethernet Injector (Mid-Span)
The IPOE-162 is a Single-Port, Mid-Span Industrial IEEE 802.3 at high power PoE injector that offers up to 30W of power output through Ethernet cables.

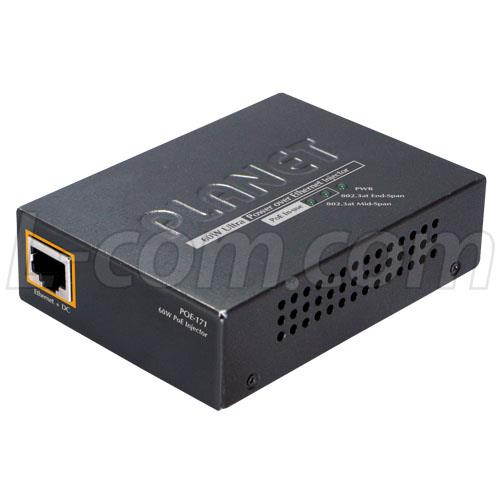

Planet POE-171 Single-Port 10/100/1000 Mbps Ultra PoE Injector (60 Watts)
Planet POE-171 Single-Port 10/100/1000 Mbps Ultra PoE Injector (60 Watts)
PLANET MC-1500R (AC Power) 19 2.4U 15-Slot Media Converter Chassis with Optional Redundant Power Supply
PLANET MC-1500R (AC Power) 19 2.4U 15-Slot Media Converter Chassis with Optional Redundant Power Supply

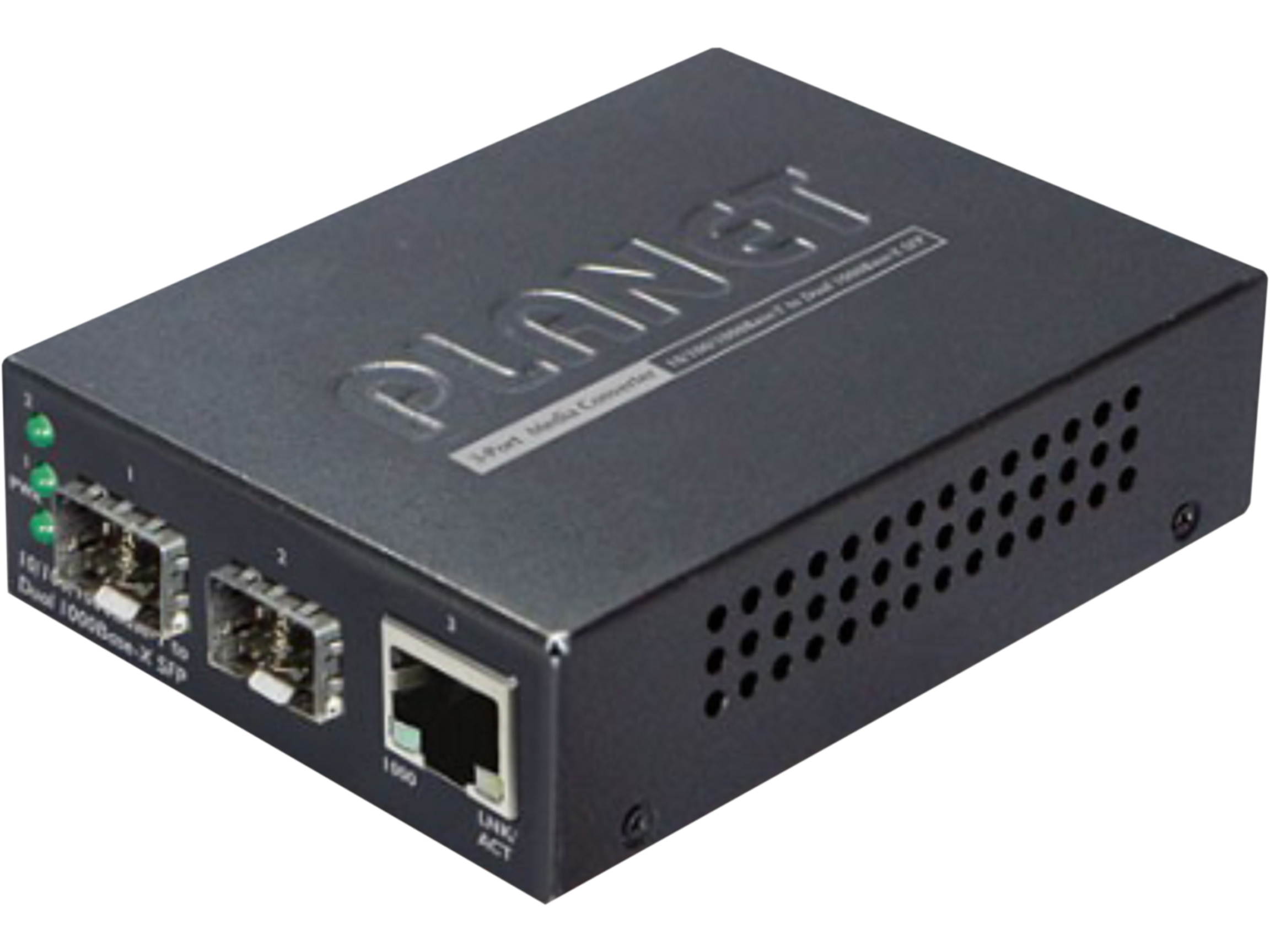

PLANET GT-1205A 1-Port 10/100/1000Base-T - 2-Port 1000FX (SFP) Switch Media Converter
Easy & Chassis Installation Highly Convenient and Distance ExtendableThe GT-1205A Gigabit SFP Media Converter provides 1 TP and dual SFP ports to support conversion between 10/100/1000Base-T and 1000Base-X network. With the two 1000Base-SX / LX SFP ports the GT-1205A provides high reliability and flexibility to extend the media transmission distance up to 550m 120km or longer depending on the 1000Base-SX / LX SFP transceiver modules. It allows the two types of segment to connect easily efficiently and inexpensively. The GT-1205A can be used as a stand-alone unit or as a slide-in module to the PLANET Media Converter Chassis  MC-700 and MC-1500 series chassis. The GT-1205A can be fed DC power from these media chassis and help the administrators to maintain the fiber-optic network at one central location. With the 3-Port Switch mode they work in high performance Store and Forward mechanism and prevent packet loss with IEEE 802.3 x Flow Control (Full-Duplex) and Back Pressure (Half-Duplex) function. Plug & PlayAs the GT-1205A Media Converter fully complies with IEEE 802.3 10Base-T IEEE 802.3 u 100Base-TX IEEE 802.3 ab 1000Base-T and IEEE 802.3 z 1000Base-LX / SX the Gigabit media conversion installation is quite quick and easy by simply plug and play. Easy & Chassis InstallationThe GT-1205A can be used as a stand-alone unit or as a slide-in module to the PLANET Media Converter Chassis  MC-700 and MC-1500 series chassis. The GT-1205A can be fed DC power from these media chassis and help the administrators to maintain the fiber-optic network at one central location. With the 3-Port Switch mode they work in high performance Store and Forward mechanism and prevent packet loss with IEEE 802.3 x Flow Control (Full-Duplex) and Back Pressure (Half-Duplex) function. Plug & PlayAs the GT-1205A Media Converter fully complies with IEEE 802.3 10Base-T IEEE 802.3 u 100Base-TX IEEE 802.3 ab 1000Base-T and IEEE 802.3 z 1000Base-LX / SX the Gigabit media conversion installation is quite quick and easy by simply plug and play.

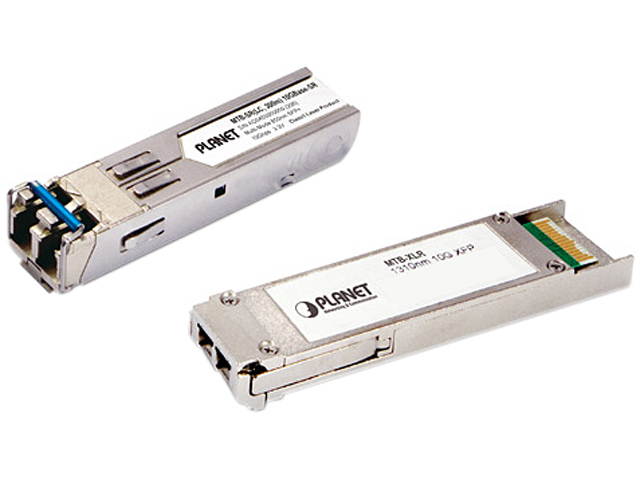

Planet MTB-TLR 1-Port 10GBASE-LR SFP+ Fiber Optic Module - 10 km (-40 ~ 75 degrees Celsius)
Planet MTB-TLR 1-Port 10GBASE-LR SFP+ Fiber Optic Module - 10 km (-40 ~ 75 degrees Celsius)

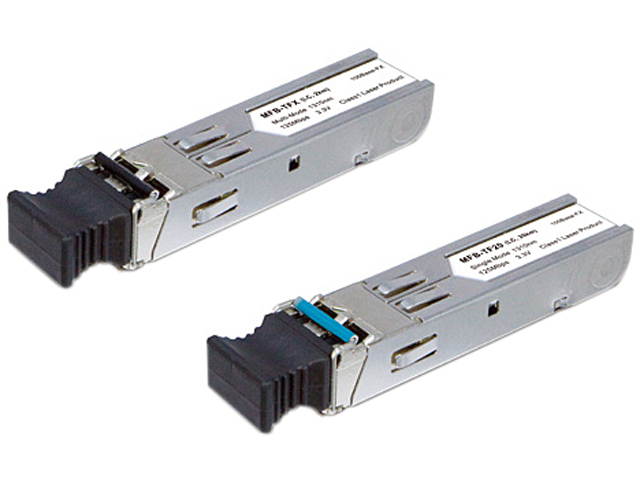

Planet MFB-FX SFP-Port 100Base-FX Transceiver (1310 nm) - 2 km
Planet MFB-FX SFP-Port 100Base-FX Transceiver (1310 nm) - 2 km

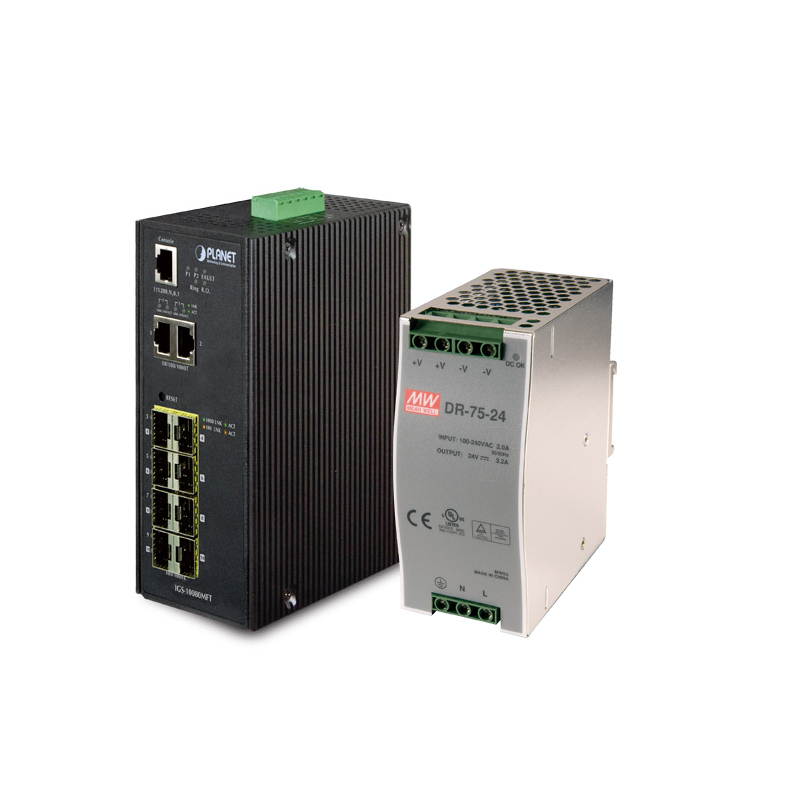

Planet IGS-10080MFT Industrial 8 100/1000X SFP + 2-Port 10/100/1000T Managed Switch (-40 ~ 75 degrees C)
Physical Port8 100/1000Base-SX/LX mini-GBIC SFP slots2 10/100/1000Base-T Ethernet interfaceIP30 Aluminum case protectionRedundant Power Design- 12 to 48V DC, redundant power with polarity reverse protect function- AC 24V power adapter acceptableSupports EFT protection 6000 VDC for power lineSupports 6000 VDC Ethernet ESD protection -40 to 75 Degree C operation temperatureLayer 2 Features- Multicast / Unknown-UnicastSupports VLAN- IEEE 802.1Q Tagged VLAN- Up to 255 VLANs groups, out of 4095 VLAN IDs- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)- Private VLAN- Protocol-Based VLAN- MAC-Based VLAN- Voice VLANSupports Spanning Tree Protocol- STP, IEEE 802.1D Spanning Tree Protocol- RSTP, IEEE 802.1w Rapid Spanning Tree Protocol- MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN- BPDU GuardSupports Link Aggregation- 802.3ad Link Aggregation Control Protocol (LACP)- Cisco ether-channel (Static Trunk)- Maximum 5 trunk groups, up to 10 ports per trunk group- Up to 20Gbps bandwidth(Duplex Mode)Provides Port Mirror (many-to-1)Port Mirroring to monitor the incoming or outgoing traffic on a particular portSupports E.R.P.S. (Ethernet Ring Protection Switching, *Function to expect in future)Quality of ServiceIngress Shaper and Egress Rate Limit per port bandwidth control8 priority queues on all switch portsTraffic classification- IEEE 802.1p CoS- IP TOS / DSCP / IP Precedence- IP TCP/UDP port number- Typical network applicationStrict priority and Weighted Round Robin (WRR) CoS policiesSupports QoS and In/Out bandwidth control on each portTraffic-policing policies DSCP remarkingMulticastSupports IGMP Snooping v1, v2 and v3Supports MLD Snooping v1 and v2Querier mode supportIGMP Snooping port filteringMLD Snooping port filteringMVR (Multicast VLAN Registration)SecurityIEEE 802.1x Port-Based / MAC-Based network access authenticationBuilt-in RADIUS client to co-operate with the RADIUS TACACS+ login users access authenticationRADIUS / TACACS+ users access authenticationIP-Based Access Control List (ACL)MAC-Based Access Control ListSource MAC / IP address bindingDHCP Snooping to filter un-trusted DHCP messagesDynamic ARP Inspection discards ARP packets with invalid MAC address to IP address bindingIP Source Guard prevents IP spoofing attacksLoop ProtectionManagementSwitch /Management Interfaces- Web switch management- SNMP v1, v2c, and v3 switch management- SSH / SSL secure accessFour RMON groupsIPv6 IP Address / NTP / DNS managementBuilt-in Trivial File Transfer Protocol (TFTP) clientBOOTP and DHCP Firmware upload/download via HTTP / TFTPDHCP RelayDHCP Option82User Privilege levels controlNTP (Network Time Protocol)PTP (Precision Time Protocol)

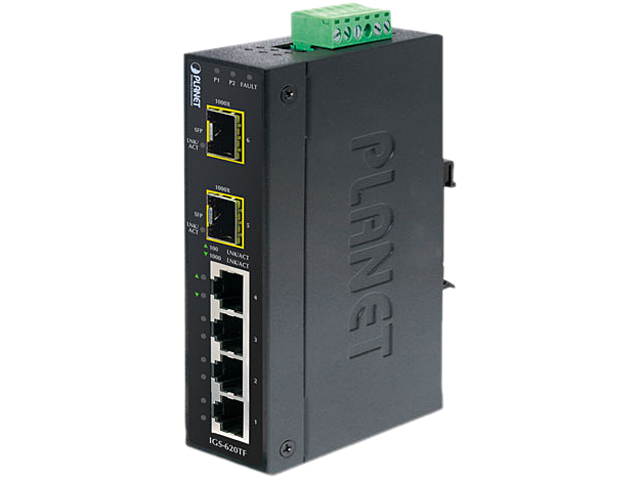

PLANET IGS-620TF Industrial 4-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch
PLANET IGS-620TF Industrial 4-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch
PLANET WGS-5225-8P2SV Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Wall-mount Managed Switch with LCD Touch Screen
PLANET WGS-5225-8P2SV Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Wall-mount Managed Switch with LCD Touch Screen
Planet WGS-4215-8T Industrial 8-Port 10/100/1000T Wall-mount Managed Switch (-40 - 75 degrees C)
Planet WGS-4215-8T Industrial 8-Port 10/100/1000T Wall-mount Managed Switch (-40 - 75 degrees C)
400-Series TYPE N-MALE TO N-MALE PIGTAIL 36" JUMPER
CAB-NM-NM-L4-3FT LOW-LOSS RF-400 LMR-400 EQUIVALENT CABLE TYPE N-MALE TO N-MALE PIGTAIL CONNECTORS 36" JUMPER CABLE ASSEMBLY

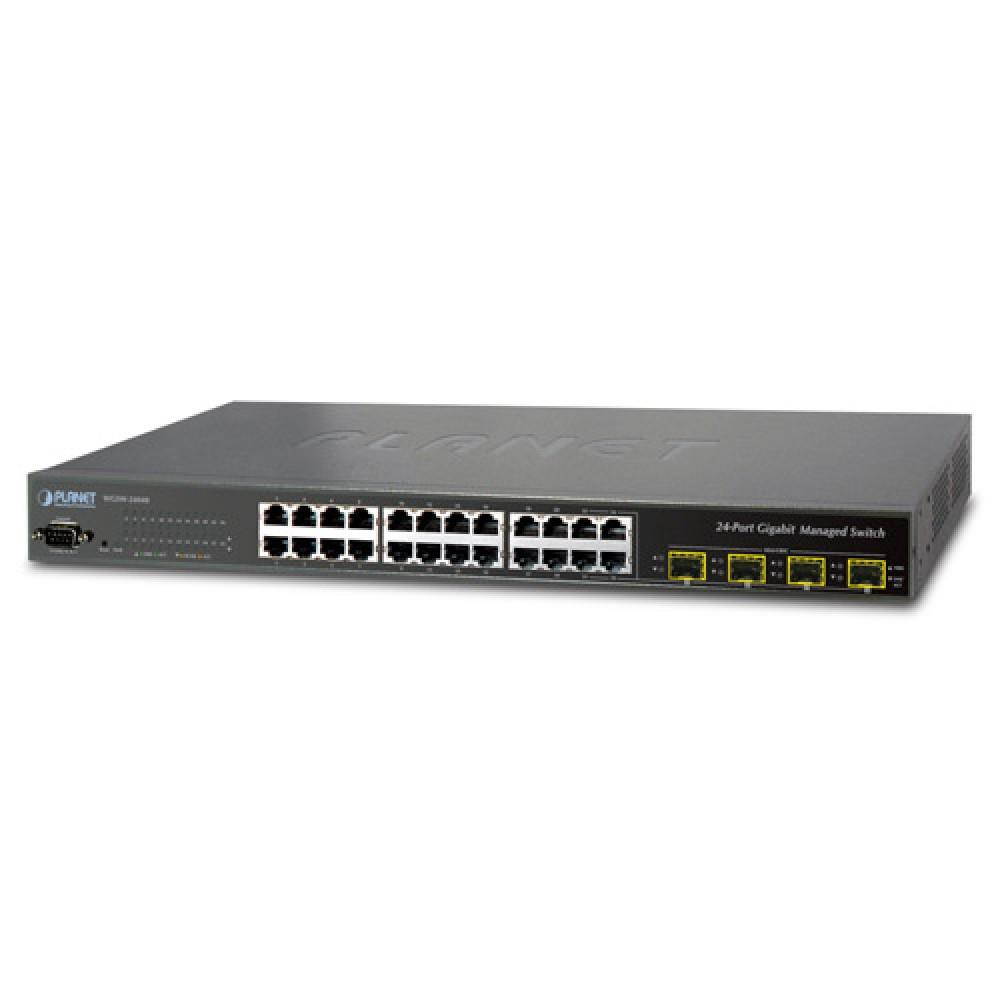

Planet WGSW-24040 L2+ 20-Port 10/100/1000T + 4-Port Gigabit TP / SFP Combo Managed Switch
Cost-effective IPv6 Managed Gigabit Switch Solution for SMB
Nowadays, lots of electronic products or mobile devices can browse the Internet, which means the need of IP Address increases. However, the current IPv4 network infrastructure is not capable enough to provide IP Address to each single users / Clients. The situation forces the ISP to build up the IPv6 (Internet Protocol version 6) network infrastructure speedily. To fulfill the demand, PLANET releases the IPv6 management Gigabit Ethernet Switch, the WGSW-24040 series which supports both IPv4 and IPv6 management functions. It can work with original network structure (IPv4) and also support the new network structure (IPv6) in the future. With easy and friendly management interfaces and plenty of management functions included, the WGSW-24040 series is the best choice for ISP to build the IPv6 FTTx edge service and for SMB to connect with the IPv6 network.
Physical Port
• 24-Port 10/100/1000Base-T Gigabit Ethernet RJ-45
• 4 mini-GBIC/SFP slots, shared with Port-21 to Port-24
• Console interface for Switch basic management and setup
Layer 2 Features
• Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z Gigabit
Ethernet standard
• Supports Auto-negotiation and Half-Duplex / Full-Duplex modes for all 10Base-T/100Base-TX and 1000Base-T ports.
• Auto-MDI/MDI-X detection for each RJ-45 port
• Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame flow control (Full-Duplex)
• High performance of Store-and-Forward architecture, broadcast storm control and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
• 8K MAC address table, automatic source address learning and ageing
• 1392Kbytes embedded memory for packet buffers
• Supports VLAN
–IEEE 802.1Q Tagged VLAN
–Up to 255 VLANs groups, out of 4041 VLAN IDs
–Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
–Private VLAN Edge (PVE)
• Supports Spanning Tree Protocol
–STP, IEEE 802.1d (Spanning Tree Protocol)
–RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
• Supports Link Aggregation
–802.3ad Link Aggregation Control Protocol (LACP)
–Cisco ether-channel (Static Trunk)
–Maximum 12 trunk groups, up to 16 ports per trunk group
–Up to 32Gbps bandwidth(Duplex Mode)
• Provides Port Mirror (many-to-1)
• Port Mirroring to monitor the incoming or outgoing traffic on a particular port
Quality of Service
• 4 priority queues on all switch ports.
• Supports for strict priority and weighted round robin (WRR) CoS policies
• Ingress Shaper and Egress Rate Limit per port bandwidth control
• Traffic-policing policies on the switch port
Multicast
• Supports IGMP Snooping v1, v2 and v3
• Querier mode support
Security
• IEEE 802.1x Port-Based / MAC-Based network access authentication
• IP-Based Access Control List (ACL)
• MAC-Based Access Control List
• Static MAC
Management
• WEB-based, Telnet, Console Command Line management
• Accesses through SNMPv1, v2c and v3 security set and get requests.
• Built-in Trivial File Transfer Protocol (TFTP) client
• BOOTP and DHCP for IP address assignment
• Firmware upload/download via HTTP / TFTP
• SNTP (Simple Network Time Protocol)
• Link Layer Discovery Protocol (LLDP) Protocol
• PLANET Smart Discovery Utility for deploy management
Redundant Power System (WGSW-24040R)
• 100~240V AC / -48V DC Dual power redundant
• Active-active redundant power failure protection
• Backup of catastrophic power failure on one supply

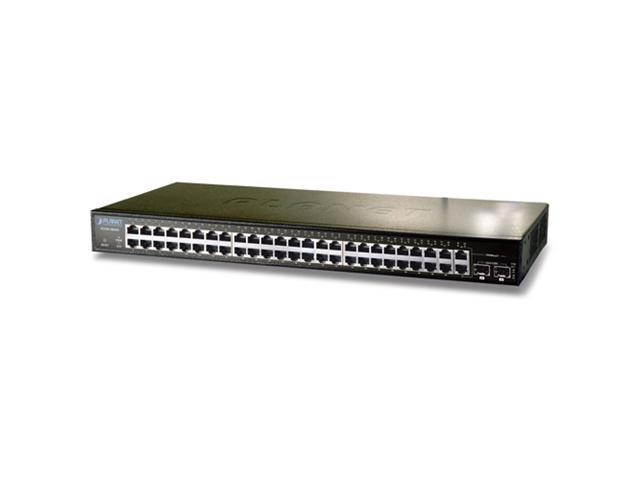

Planet FGSW-4840S 48-Port 10/100TX + 2-Port Gigabit + 2-Port 1000X SFP Managed Switch
High-Density / Cost-effective Network Connection Solution The PLANET FGSW-4840S is a 10 / 100 / 1000Mbps Ethernet Switch that provides 48 10 / 100Base-TX Ports respectively with 2 10 / 100 / 1000Base-T ports and 2-SFP Mini-GBIC interfaces. The FGSW-4840S offers wire-speed packet transfer performance without risks of packet loss. The high data throughput of this device makes it ideal for most Gigabit environments, especially upgrading network to a Gigabit environment. The 48 Fast Ethernet Ports and 2 Gigabit Ethernet ports support 10 / 100Mbps and 10 / 100 / 1000Mbps Auto-Negotiation for optimal speed detection through RJ-45 category 6, 5 or 5e cables. All the ports also support Auto-MDI / MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. Moreover, the FGSW-4840S provides 2 SFP Mini-GBIC interfaces for fiber extension to uplink to a server or a network backbone as well. Friendly / Advanced Web-Based Management After configured IP address, the FGSW-4840S will shortly provide Smart management functions through the Web management interface. Functions such as per port speed, QoS settings, Trunking and port-based VLAN can be found in the friendly user interface of web browsers. The FGSW-4840S provides 802.1Q Tagged VLAN. The VLAN groups allowed on the FGSW-4840S will be maximally up to 256. And the FGSW-4840S also supports MTU VLAN (Multi-Tenant Unit VLAN) which means to the uplink ports and buildup several VLANs with each of the other ports. Each VLAN contains two ports, the uplink port and one of the other ports, in the FGSW-4840S, so the uplink port can communicate with any other ports but other ports can't communicate with each other. These features provide a cost-effective method to manage the devices from Internet whenever you are at work or at home.ApplicationBackbone Switch With up to 17.6 Gigabits per second of non-blocking switch fabric, the switch can easily provide the high bandwidth for demands at present and in the future. Providing 48 Fast Ethernet ports with 2 Gigabit Ethernet ports and 2 SFP Mini-GBIC interfaces, the FGSW-4840S is ideal to be used as a server farm switch connecting to your servers and powerful desktops.
Department Switch With 48 ports, the FGSW-4840S can connect up to 48 workstations in your Ethernet environment. The 4-Gigabit uplink to a department backbone via either 2 Gigabit ports or 2 SFP Mini-GBIC interfaces.
Physical Port48-port 10/100Base-TX Fast Ethernet RJ45 copper, auto MDI / MDIX2-port 10/100/1000Base-T Gigabit Ethernet RJ45 copper, auto MDI / MDIX2 1000Base-X mini-GBIC/SFP slotsReset button for system factory defaultLayer 2 FeaturesPrevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)High-performance Store and Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidthSupports VLAN- IEEE 802.1Q tagged VLAN, up to 512 VLAN groups, out of 4094 VLAN IDs- Management VLANSupports Spanning Tree Protocol- STP (Spanning Tree Protocol)- RSTP (Rapid Spanning Tree Protocol)- MSTP (Multiple Spanning Tree Protocol)- Loop Guard, Root Guard, TC, BPDU Guard, STP BPDU Guard, BPDU FilteringSupports Link Aggregation- IEEE 802.3ad Link Aggregation Control Protocol (LACP)- Cisco ether-channel (Static Trunk)- Maximum 6 trunk groups, up to 4 ports per trunk groupProvides port mirror (many-to-1)Quality of ServiceIngress / Egress Rate Limit per port bandwidth controlStorm Control support- Broadcast / Unknown Unicast / Un

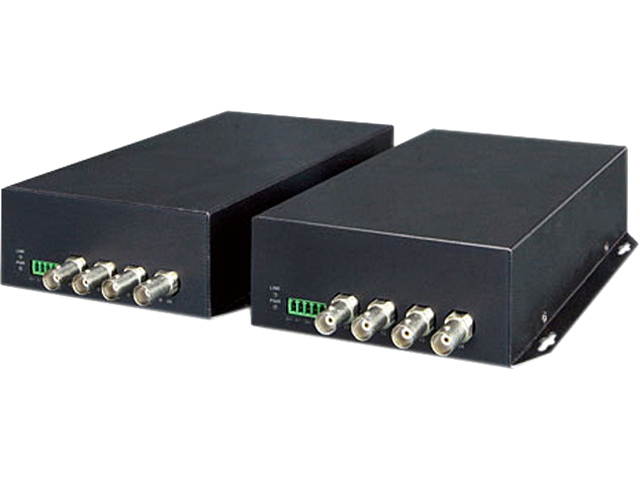

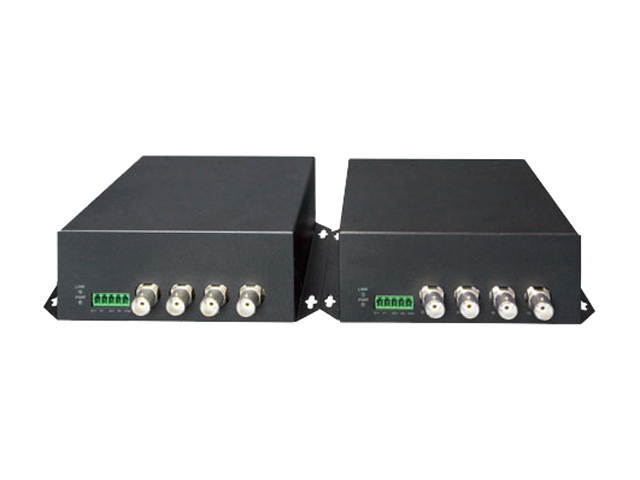

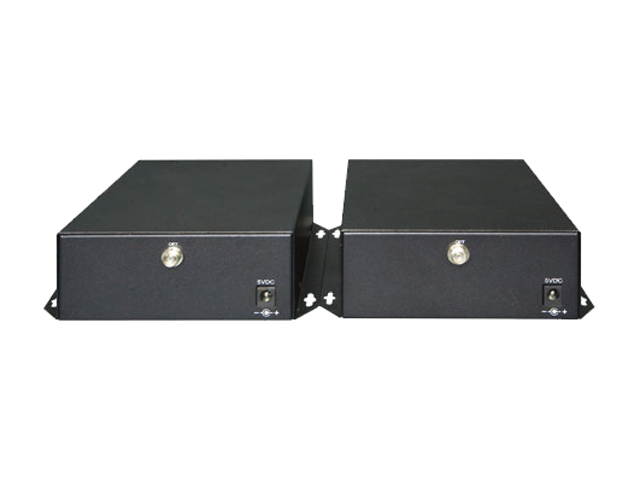

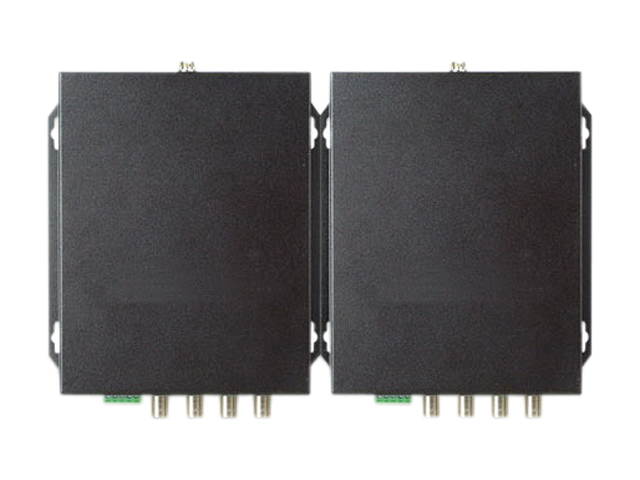

Planet VF-402-KIT 4-Channel Video over Fiber Bundled Kit
Overview Application Key Features Reliable Long Distance Solution for Analog Surveillance System To help current analog camera deployment in long distances efficiently and provide high video quality and reliable signal PLANET develops the Video over Fiber media converter kit VF-402-KIT which is ideal for extending the distance and signal conversion by transmitting the Video and data over the fiber-optic cable. Applies the intelligent encoding / decoding technology in the compact size mini box the CCTV over Fiber media converter VF-402-KIT enables the videos to be delivered in high quality up to 20km long distance. Fiber Optic Communication for Video and Serial DataThe VF-402-KIT consists of a Video Transmitter and a Video Receiver: 　　• VF-402-T: 4-Channel Video over Fiber Transmitter　• VF-402-R: 4-Channel Video over Fiber ReceiverIt is a digital fiber-optic transmission system to bring users a cost-effective solution for transmission of 4 channels uncompressed digital video and 1 reverse RS-485 async-data over one single fiber cable. The VF-402-KIT is an adjustment free device while providing high quality and real-time video transmission. It can be widely used in Intelligent Transportation Systems (ITS) Traffic Surveillance security monitoring automation control intelligent residential districts and etc. Industrial Level Monitoring SystemsThe VF-402-KIT can be applied to Industrial level operation under wide temperature range -25 to 75 Degree C. It performs zero distortion of high quality video transmission and clear graphics in long distance by adopting advanced international uncompressed full digital error correction and gigabit fiber optical transmission technology. This series of optical transceiver supports hot plug and can be deployed independently or in rack-mounted structure. It is simple to operate without requiring field adjustment. Therefore the VF-402-KIT is very applicable to different working environments. The VF-402-KIT consists of 4 channels video over fiber optical transceiver and receiver to transmit video and RS-485 signal through a reliable single mode / single fiber link. It is an ideal cost-effective solution for surveillance system that requires high display quality and high performance signal transmission over long distances. The VF-402-KIT features easy plug and play; that means the operator does not need to configure the pair of the video over fiber transmission in advance. Typical Applications• Intelligent Transportation Systems (ITS) • Toll Collection• Traffic Surveillance• Air Traffic Management (ATM) • Rail Signaling• Perimeter Alarms and Area Monitors• Telemedicine and Teleconference• Industrial Surveillance• Intelligent Building• CCTV network • High-Speed synchronous digital transmission up to 20km• Fiber optic transmission of four video signals on one fiber with RS-485 data signals• Friendly status indication for power supply optical signal and video• No electromagnetic interference radio frequency interference and ground current • Guarantees safe transmission under poor electromagnetic environment• Maximum tolerable link loss for single mode single fiber is 18db• Video bandwidth of 6.5 MHz SNR > 63dB• Industrial level of operating under wide temperature range -25 to 75 Degree
Planet IGS-20160HPT Industrial 16-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch (-40 - 75 degrees C)
Planet IGS-20160HPT Industrial 16-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch (-40 - 75 degrees C)
Planet POE-E202 1-Port 802.3at PoE+ to 2-Port 802.3af/at Gigabit PoE Extender
Brand: Planet Features: 3-port 10/100/1000BASE-T Gigabit RJ45 interface 1-port data + power input 2-port data + power output Complies with IEEE 802.3 af/IEEE 802.3 at Power over Ethernet end-span PSE Supports PoE power up to 25 watts for each PoE port Binding: Electronics Publisher: PLANET TECHNOLOGY Details: PoE Solution for Breaking RJ45 100m Limitation PLANET POE-E202 is a 1-port PoE+ to 2-port 802.3 af/at Gigabit PoE Extender designed especially for point to multipoint PoE application. The POE-E202 can obtain a maximum of 30-watt PoE power from PoE+ input port and supplies a maximum of 25-watt PoE power budget for two PoE output ports extending both the Gigabit Ethernet Data and IEEE 802.3 at/ 802.3 af Power over Ethernet over the standard 100m (328 ft. ) Cat. 5/5e/6 UTP cable to up to two 200m powered devices at the same time. The POE-E202 provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter. Plug and Play Installation The POE-E202 is quite easy to be installed by simple plug and play. It is used between a power source equipment (PSE) and a powered device (PD). The POE-E202 injects power to the PD without affecting the data transmission performance. The POE-E202 offers a cost-effective and quick solution to doubling the standard range of PoE from 100 to 200 meters. The POE-E202 is designed in a compact box containing three RJ45 ports of which one "PoE IN" port functions as PoE (Data and Power) input and the other two "PoE OUT" ports function as PoE output. The "PoE OUT" port is also the power injector that transmits DC voltage over the Cat5/5e/6 cable and transfers data and power simultaneously between the PSE and PD. UPC: 847690005843 EAN: 0847690005843 Package Dimensions: 6.5 x 4.9 x 3.7 inches
PLANET IGS-4215-4P4T2S Industrial 4-Port 10/100/1000T 802.3at PoE + 4-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch (-40~75 degrees C)
PLANET IGS-4215-4P4T2S Industrial 4-Port 10/100/1000T 802.3at PoE + 4-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch (-40~75 degrees C)
PLANET GT-802 10/100/1000Base-T to 1000SX Gigabit Media Converter (MM, SC, 550m)
Complies with IEEE 802.3 10Base-T, IEEE 802.3 u 100Base-TX, IEEE 802.3 ab 1000Base-T, IEEE 802.3 z 1000Base-SX/LX TP port supports 10/100/1000Base-T auto-negotiation and auto-MDI/MDI-X 1000Base-SX: 50/125µm or 62.5 /125µm multi-mode fiber cable, up to 220/550m (GT-802) 1000Base-LX: 9/125µm single-mode cable provides long distance for 10km (GT-802S) 10/100/1000Base-T: 2-pair Cat. 5/5e/6 UTP cable, up to 100 meters Auto-Negotiation for 10/100/1000Base-T; Half-Duplex or Full-Duplex for 10Mbps and 100Mbps Layer 2 key Feature â?? IEEE 802.3 x Full-Duplex Flow-Control and Back-Pressure in Half-Duplex eliminate the loss of packets â?? Support auto MDI/MDI-X function â?? Store-and-Forward mechanism â?? Non-blocking full wire-speed forwarding rate Media conversion between 10/100/1000Base-T and 1000Base-SX/LX Fiber media allows: â?? Multi-mode fiber using SC connector â?? Single-mode fiber using SC connector Compacts size for easy installation and working with MC family Media Chassis( MC-700 / MC-1000R / MC-1500) Wall-Mountable design LED indicators for easy network diagnose Choice of fiber-connector from SC, multi-mode / single-mode fiber for 1000Base 9K Jumbo Frame Supported OAM (TS-1000 and IEEE 802.3 ah) supported
Planet POE-E304 1-Port Ultra PoE to 4-Port 802.3af/at Gigabit PoE Extender
PoE Solution for Breaking RJ45 100m Limitation PLANET POE-E304 is a 1-port 60W Ultra PoE to 4-port 802.3 af/at Gigabit PoE Extender designed especially for point to multipoint PoE applications. The POE-E304 can obtain a maximum of 60-watt PoE power from Ultra PoE input port and supplies a maximum of 55-watt PoE power budget for four PoE output ports, extending both the Gigabit Ethernet Data and IEEE 802.3 at/ 802.3 af Power over Ethernet over the standard 100m (328 ft. ) Cat. 5/5e/6 UTP cable to up to two 200m powered devices at the same time. The POE-E304 provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter. Plug and Play Installation The POE-E304 is quite easy to be installed by simple plug and play. It is used between a power source equipment (PSE) and a powered device (PD). The POE-E304 injects power to the PD without affecting the data transmission performance. The POE-E304 offers a cost-effective and quick solution to doubling the standard range of PoE from 100 to 200 meters. The POE-304 is designed in a compact box containing five RJ45 ports, of which one " PoE IN " port functions as PoE (Data and Power) input and the other four " PoE OUT " ports function as PoE output. The " PoE OUT " port is also the power injector that transmits DC voltage over the Cat5/5e/6 cable and transfers data and power simultaneously between the PSE and PD. Applications One Power Sourcing for Multiple Powered Devices Solution Is 100-meter cable long enough for a wide range of IP surveillance network deployments? The answer is certainly not. To achieve the benefits of IP surveillance and the long-distance IP camera distribution, PLANET POE-E304 is quite a useful Gigabit PoE extender if users have most of their network already set up, and hope to expand network communications and overcome cable distance limitations offering connections to devices in locations where traditional networking does not allow.
Planet GSW-2401 24-Port 10/100/1000 Mbps Gigabit Ethernet Switch
Cost-effective Gigabit Solution for Enterprise Backbone and Data Center Networking PLANET GSW-2401 Gigabit Ethernet Switch provides 24 RJ-45 10/100/1000Mbps ports for high-speed network connectivity. It can automatically identify and determine the correct transmission speed and half / full duplex mode of the attached devices with its 24 Gigabit ports that support 9K jumbo frame feature. Therefore the GSW-2401 can handle extremely large amounts of data transmission in a secure topology linking to a backbone or high-power servers. High Performance The GSW-2401 provides high performance architecture of switch that is capable of providing the non-blocking switch fabric and wire-speed throughput as high as 48Gbps which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands. Besides the Flow Control function of the GSW-2401 enables routers and servers directly connect to the Switch for fast and reliable data transfer. All RJ-45 copper interfaces in the GSW-2401 support 10/100/1000Mbps Auto-Negotiation for optimal speed detection through RJ-45 Category 6 5 or 5e cables. It also supports standard for Auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. Excellent Traffic Transmission The GSW-2401 supports Store-and-Forward forwarding scheme to ensure low latency and high data integrity which eliminates unnecessary traffic and relieves congestion on critical network paths. With an intelligent address recognition algorithm the GSW-2401 could recognize up to 8K different MAC address. The high data throughput and 48Gbps internal switching fabric makes it ideal for most Gigabit network environments especially helpful for the network upgrading to a Gigabit environment. Fanless Design The GSW-2401 successfully reduces substantial power consumption with the fanless and noiseless design collocating with the effective cooler. Therefore the GSW-2401 is able to operate stably and quietly in any environment without affecting its performance. Application Backbone SwitchWith up to 48 Gigabits per second of non-blocking switch fabric the GSW-2401 can easily provide the high bandwidth required for both now and future. Server Farm SwitchmProviding 24 Gigabit Ethernet ports the GSW-2401 is ideal to be used as a server farm Switch connecting to your servers and powerful desktops. Key Features • Comply with IEEE 802.3 10Base-T IEEE 802.3 u 100Base-TX IEEE 802.3 ab 1000Base-T Ethernet 　standard• 24 10/100/1000Mbps Gigabit Ethernet ports• Features Store-and-Forward mode with wire-speed filtering and forwarding rates• Hardware based 10/100Mbps half / full duplex and 1000Mbps full duplex mode flow control and 　auto-negotiation• IEEE 802.3 x flow control for full duplex operation and Backpressure for half duplex operation• Integrated address look-up engine support 8K absolute MAC addresses• 9K Jumbo packet support• Automatic address learning and address aging• Supports Auto MDI/MDI-X function • Supports CSMA / CD protocol• 100-240V AC 0.6A 50/60Hz universal Power input• FCC CE class A compliant
PLANET ISW-801T 8-Port 10/100TX Industrial Fast Ethernet Switch (-40~75 Degrees C Operating Temperature)
Slim type with more practicability and convenience After PLANET ISW / IFT series Fast Ethernet Switch / Converter products being popular PLANET now releases the advanced industrial hardened Fast Ethernet Switch series with slim type IP-30 metal case. The compact IP-30 standard metal case allows either DIN rail or wall mounting for efficient use of cabinet space. The ISW-801T one of the new series model equips with 8 10/100Mbps auto negotiation ports and operates reliably in Heavy Industrial demanding environments. Stable operate performance under difficult environments The ISW-801T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 Degree C the ISW-801T can be placed in almost any difficult environment. The ISW-801T also possesses an integrated power supply source with wide range of voltages (12 to 48V DC) for worldwide high availability applications requiring dual or backup power inputs. Robust Switch performance The ISW-801T offers high performance switch architecture. With the 8 10/100Mbps Fast Ethernet ports providing non-blocking switch fabric and wire-speed throughput as high as 1.6Gbps and the 2K MAC Address table the ISW-801T can perform wire-speed packets transfer without risk of packet loss. The flow control function enables the ISW-801T to provide fast and reliable data transfer. All of the RJ-45 copper interfaces in the ISW-801T support 10/100Mbps Auto-Negotiation for optimal speed detection through RJ-45 Category 3 4 or 5 cables. The standard Auto-MDI / MDI-X support can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.
Planet IGS-5225-4UP1T2S Industrial L2+ 4-Port 10/100/1000T Ultra PoE + 1-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch
Planet IGS-5225-4UP1T2S Industrial L2+ 4-Port 10/100/1000T Ultra PoE + 1-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch
Planet IGS-10020PT Industrial 8-Port 10/100/1000T 802.3af PoE + 2 100/1000X SFP Managed Switch (-40 ~ 75 Degrees C)
Physical Port 8-Port 10/100/1000Base-T Gigabit Ethernet RJ-45 with IEEE 802.3 af PoE Injector 2 100/1000Base-X mini-GBIC/SFP slots, SFP type auto detection One RJ-45 console interface for basic management and setup Power over Ethernet Complies with IEEE 802.3 af Up to 8 IEEE 802.3 af devices powered Auto detects powered device (PD) PoE Management Digital Input / Digital Output 2 Digital Input (DI) 2 Digital Output (DO) Integrate sensors into auto alarm system Transfer alarm to IP network via SNMP trap Layer 2 Features Storm Control support - Broadcast / Multicast / Unicast Supports VLAN - IEEE 802.1Q Tagged VLAN - Up to 255 VLA Ns groups, out of 4094 VLAN IDs - Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1 ad) - Private VLAN Edge (PVE) - Protocol-based VLAN - MAC-based VLAN - Voice VLAN Spanning Tree Protocol - STP, IEEE 802.1D - RSTP, IEEE 802.1 w - MSTP, IEEE 802.1 s - BPDU Guard Supports Link Aggregation - 802.3 ad Link Aggregation Control Protocol (LACP) - Cisco ether-channel (Static Trunk) - Maximum 5 trunk groups, up to 8 ports per trunk group - Up to 16Gbps bandwidth (Duplex Mode) Provides Port Mirror (1-to-1) Port Mirroring to monitor the incoming or outgoing traffic on a particular port Loop protection to avoid broadcast loops Supports ERPS (Ethernet Ring Protection Switching) Quality of Service 8 priority queues on all switch ports Traffic classification - IEEE 802.1 p CoS - IP TOS / DSCP / IP Precedence - IP TCP/UDP port number - Typical network application Strict priority and Weighted Round Robin (WRR) CoS policies Supports QoS and In/Out bandwidth control on each port Traffic-policing policies on the switch port DSCP remarking Multicast Supports IGMP Snooping v1, v2 and v3 Supports MLD Snooping v1 and v2 Querier mode support IGMP Snooping port filtering MLD Snooping port filtering MVR (Multicast VLAN Registration) Security IEEE 802.1 x Port-based / MAC-based network access authentication Built-in RADIUS client to co-operate with the RADIUS servers TACACS+ login users access authentication RADIUS / TACACS+ users access authentication IP-based Access Control List (ACL) MAC-based Access Control List Source MAC / IP address binding DHCP Snooping to filter untrusted DHCP messages Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding IP Source Guard prevents IP spoofing attacks IP address access management to prevent unauthorized intruder Management Switch Management Interfaces - Web switch management - SNMP v1 and v2c switch management - SSH / SSL and SNMP v3 secure access Four RMON groups IPv6 IP Address / NTP / DNS management Built-in Trivial File Transfer Protocol (TFTP) client BOOTP and DHCP for IP address assignment DHCP Relay DHCP Option 82 User Privilege levels control NTP Link Layer Discovery Protocol (LLDP) Protocol SFP- DDM
planet technology gsd-1008hp 8-port 10/100/1000t 802.3at poe + 2-port 10/100/1000t desktop switch (120 watts)
The GSD-1008HP provides 8 10/100/1000T ports featuring 30-watt (30W) 802.3 at PoE+, a total 120-watt PoE budget and extra two uplink ports. This switch fulfills the demand of sufficient PoE power for HD IP surveillance and Wi-Fi systems in a small-scale but high-performance network. The desktop-sized and compact metal housed unit makes placement convenient and provides a quick and easy PoE PD deployment with power feeding. The built-in DIP switch provides "Standard", "VLAN" and "Extend" operation modes. The GSD-1008HP operates as a normal IEEE 802. at PoE+ switch in the "Standard" operation mode. The "VLAN" mode features a port-based VLAN function that helps to prevent the IP camera's multicast or broadcast storm from influencing each other. The VLAN function isolates each port so as to prevent broadcast storm and defend DHCP spoofing in the "Extend" operation mode. In the "Extend" operation mode, the GSD-1008HP operates on a per-port basis at 10Mbps duplex operation but supports 30W PoE power output over a distance of up to 250 meters. With this brand-new feature, the GSD-1008HP provides an additional solution for 802.3 at PoE+ distance extension, thus saving the cost of Ethernet cable installation. The GSD-1008HP includes two uplink ports with 1000Mbps transfer rate. This ensures high-speed data and video transmission, reliable assurance for connection between the surveillance system and outside network where the 8 PoE+ ports can be used to their full potential. The GSD-1008HP has an 8K MAC address table, featuring high performance switch architecture capable of providing the non-blocking 20Gbps switch fabric and wire-speed throughput as high as 14.88M pps. This greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands. The 802.3 x full-duplex flow control function enables PD devices and servers to be directly connected to the switch for wire-speed packet transfer performance without the risk of packet loss.
PLANET Technology - GSD-604HP - 4-Port 10/100/1000T 802.3at POE + 2-Port 10/100/1000T Desktop Switch (55W POE Budget,
The GSD-604HP features “Port-based VLAN and Loop Protection” whose ports can be isolated from each other via one DIP switch. This can help to prevent the IP camera’s multicast or broadcast storm from influencing each other. Even more, the GSD-604HP can block and protect the loop network storm from the client, thus fully meeting the requirements of the IP surveillance systems and Ethernet projects. RJ45 Interface 6 10/100/1000Mbps Gigabit Ethernet ports 4 ports support 54V DC power to PoE powered device Power over Ethernet Complies with IEEE 802.3 af/at Power over Ethernet end-span PSE Up to 4 IEEE 802.3 af/at devices powered Supports PoE power up to 30 watts for each PoE port 65-watt PoE budget Auto detects powered device (PD) Circuit protection prevents power interference between ports Remote power feeding up to 100m Switching Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X Flow control for full duplex operation and back pressure for half duplex operation 9216 bytes jumbo packet size support Integrates address look-up engine, supporting 8K absolute MAC addresses Automatic address learning and address aging Supports port-based VLAN and loop protection Hardware LED indicators for PoE ready and LINK/ACT One 55V DC power jack Connections Total Ports 6 gigabit ethernet 802.3 af/at POE Ports 4 POE+ Fans No Fans Installation Switch Type Unmanaged Rack Ears None – small form factor 1U Rack Space 6.3 ? x 3.6 ? x 1.1 ? POE Specs Total Watt Capability 65 Watts Performance Port Speed Gigabit Backplane 12Gbps / non-blocking
PLANET GS-5220-8UP2T2X L3 8-Port 10/100/1000T 802.3bt PoE + 2-Port 10/100/1000T + 2-Port 10G SFP+ Managed Switch
PLANET GS-5220-8UP2T2X L3 8-Port 10/100/1000T 802.3bt PoE + 2-Port 10/100/1000T + 2-Port 10G SFP+ Managed Switch
Planet ISW-511T 4+1 100FX Port Multi-mode Industrial Ethernet Switch - 2 km (-40 ~ 75 Degrees C Operating Temperature)
Planet ISW-511T 4+1 100FX Port Multi-mode Industrial Ethernet Switch - 2 km (-40 ~ 75 Degrees C Operating Temperature)
Planet FNSW-1601 16-Port 10/100 Mbps Fast Ethernet Switch
>Power-Saving High Performance Ethernet NetworkingIn line with the energy-saving trend worldwide PLANET delivers the new generation Green Networking Switch- FNSW-1601. The FNSW-1601 is a 16-Port 10/100Base-TX Fast Ethernet Switch upgraded from earlier version and brings both benefits of energy saving and high performance. It is specially designed for SOHO SMB and Workgroup users. The FNSW-1601 uses new engine that provides power saving up to 22% less energy but maintains high performance efficiently. Energy SavingThe FNSW-1601 incorporates advanced Green Networking technology:　　• Intelligent scales power based on cable lengthThe intelligent scales power is an intelligent algorithm that actively determines the appropriate power level based on cable length. When connecting to the FNSW-1601 with Ethernet cable longer than 10m a device can obtain maximum power saving because the FNSW-1601 would automatically detect the Ethernet cable length and reduce power usage. The connected device can substantially reduce overall power consumption which makes a significant contribution to energy saving.High PerformanceThe high performance throughput (filtering / forwarding rate: 14 880 packets per second in 10Mbps 148 800pps in 100Mbps) and dynamic shared memory buffer help the FNSW-1601 boost bandwidth eliminate unnecessary traffic and relieve congestion on your critical server path. It also supports IEEE 802.1p Class of Service (CoS) features to improve network utilization more efficiently. The FNSW-1601 is the ideal choice to alleviate bottlenecks in client / server and peer-to-peer environments in a cost effective way.Plug and PlayThe FNSW-1601 provides users with high speed network connections. With its Auto-Negotiation capability all the RJ-45/STP ports of the FNSW-1601 can be configured to speeds of 10/20Mbps or 100/200Mbps automatically. What`s more is the MDI/ MDIX auto-detection for easy plug and play connection regardless of the cabling type straight through or crossover. Application Backbone SwitchWith up to 3.2Gbps switching fabric the FNSW-1601 can provide high bandwidth Fast Ethernet network workgroup and connect workstations and other network devices quickly and easily.Department Switch　Uplink directly by any straight or crossover cable to the backbone switch the FNSW-1601 provides the connectivity to back plane yet segment the network traffic of the department to your backbone. Key Features Physical Port　• 16 -Port 10/100Mbps Fast Ethernet ports 　• Supports Auto MDI/MDI-X functionLayer 2 Features 　• Comply with IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX Ethernet standard　• Supports powerful Green Ethernet to power saving 　• Features Store-and-Forward mode with wire-speed filtering and forwarding rates　• Handles up to 1522 bytes packet size　• Comply IEEE 802.3x flow control for full duplex operation and Backpressure for half duplex operation　• Integrated address look-up engine support 8K absolute MAC addresses　• Automatic address learning and address aging　• Support CSMA/CD protocol Hardware Features　• 100~240V AC 50~60Hz 0.6A universal Power input　• FCC CE class A compliant
PLANET GT-905A Web / SNMP Manageable 10/100/1000Base-T to 1000X (SFP) Gigabit Converter
PLANET GT-905A Web / SNMP Manageable 10/100/1000Base-T to 1000X (SFP) Gigabit Converter
Planet FT-802 10/100BASE-TX to 100BASE-FX (SC, MM) Bridge Media Converter - 2 km
Planet FT-802 10/100BASE-TX to 100BASE-FX (SC, MM) Bridge Media Converter - 2 km
Planet MGB-LA10 SFP-Port 1000BASE-BX (WDM, TX: 1310 nm) mini-GBIC module - 10 km
MGB-LA10PHY TypeIEEE 802.3ah 1000BASE-BXFiber TypeSingle ModeConnectorWDM/Bidi LCWavelengthTX: 1310nm, RX: 1550nmMaximum Distance10kmOperating Temperature0 ~ 60 degrees C
Planet MC-1610MR 16-slot Managed Media Converter Chassis (AC power)
Planet MC-1610MR 16-slot Managed Media Converter Chassis (AC power)
Planet MGB-LB10 SFP-Port 1000BASE-BX (WDM, TX: 1550 nm) mini-GBIC module - 10 km
MGB-LB10PHY TypeIEEE 802.3ah 1000BASE-BXFiber TypeSingle ModeConnectorWDM/Bidi LCWavelengthTX: 1550nm, RX: 1310nmMaximum Distance10kmOperating Temperature0 ~ 60 degrees C
Planet MGB-LX SFP-Port 1000BASE-LX mini-GBIC module - 10 km
MGB-LX PHY Type IEEE 802.3 z 1000BASE-LX Fiber Type Single Mode Connector LC Wavelength 1310nm Maximum Distance 10km Operating Temperature 0 ~ 60 degrees C
vc-231 single port 100/100 mbps ethernet to vdsl2 converter - 30a profile
PLANET VC-231 is an Ethernet-over-VDSL2 Converter with high performance. It is designed based on two core networking technology, Ethernet and VDSL2 (Very-high-data-rate Digital Subscriber Line 2). The VDSL2 technology offers absolutely fastest data transmission speed over existing copper telephone lines without the need of rewiring. The VC-231 supports ultra-high performance to the pervasive telephone line network with up to 100/100Mbps symmetric data rate within 300m and 50/2Mbps for 1.4 km long range connections.
Planet IP30 Industrial 8* 1000TP + 2* 100/1000F SFP Full Managed Ethernet Switch (-10 to 60 degree C)
Specification
Model IGS-10020M
Hardware Specification
Copper Ports: 8 10/ 100/1000Base-T RJ-45 Auto-MDI / MDI-X ports
SFP/mini-GBIC Slots: 2 1000Base-SX/LX/BX SFP interfaces (Port-9 and Port-10)
Compatible with: 100Base-FX SFP
Switch Architecture: Store-and-Forward
Switch Fabric: 20Gbps / non-blocking
Throughput: (packet per second) 14.8Mpps
Address Table: 8K entries, automatic source address learning and ageing
Share data Buffer: 512 kilobytes
Flow Control: IEEE 802.3x Pause Frame for Full-Duplex. Back pressure for Half-Duplex
Jumbo Frame: 9Kbytes
Reset Button: " 5 sec: System reboot " 5 sec: Factory Default
LED Indicator System: Power 1 (Green), Power 2 (Green), Fault Alarm (Green)
Per 10/100/1000T RJ-45 Ports: LNK/ACT (Green), 1000 (Orange)
Per SFP Interface: LNK/ACT (Green), 1000 (Orange)
Dimension:(W x D x H) 87.8 x 135 x 56 mm
Weight: 720g
Power Requirement: 12 to 48V DC, redundant power with polarity reverse protection
-AC 24V Power Adapter
-Power Consumption 10 Watts / 34BTU (Full loading)
-ESD Protection 6KV DC
- EFT Protection 6KV DC
Enclosure IP30 Aluminum Metal Case
Installation DIN Rail Kit and Wall Mount Kit
- Alarm One relay output for power fail
- Alarm Relay current carry capability: 1A @ DC 24V
Layer 2 Function
- Basic Management Interfaces Web Browser, Remote Telnet, SNMPv1, v2c
-Secure Management Interface SSH, SSL, SNMP v3
-Port configuration Port disable / enable
-Auto-Negotiation 10/100/1000Mbps full and half duplex mode selection
-Flow Control disable / enable
-Power saving mode control
-Port Status Display each port’s speed duplex mode, link status, Flow control status,Auto negotiation status, trunk status
-Port Mirroring TX / RX / Both
-Many to 1 monitor
-VLAN 802.1Q Tagged Based VLAN, up to 255 VLAN groups
-Q-in-Q tunneling
-Private VLAN Edge (PVE)
-MAC-Based VLAN
-Protocol-Based VLAN
-Voice VLAN
-MVR (Multicast VLAN Registration)
-Up to 255 VLAN groups, out of 4096 VLAN IDs
-Link Aggregation IEEE 802.3ad LACP / Static Trunk
-Supports 5 groups of 10-Port trunk
-QoS Traffic classification based, Strict priority and WRR
*8-level priority for switching
¦ Port Number
¦ 802.1p priority
¦ 802.1Q VLAN tag
¦ DSCP/TOS field in IP Packet
-IGMP Snooping IGMP (v1/v2/V3) Snooping, up to 255 multicast Groups
-IGMP Querier mode support
-MLD Snooping MLD (v1/v2) Snooping, up to 255 multicast Groups
-MLD Querier mode support
-Access Control List IP-Based ACL / MAC-Based ACL
-Up to 123 entries
Bandwidth Control Per port bandwidth control
-Ingress: 500Kb~80Mbps
-Egress: 64Kb~80Mbps
-SNMP MIBs RFC-1213 MIB-II
-IF-MIB
-RFC-1493 Bridge MIB
-RFC-1643 Ethernet MIB
-RFC-2863 Interface MIB
-RFC-2665 Ether-Like MIB
-RFC-2819 RMON MIB (Group 1, 2, 3 and 9)
-RFC-2737 Entity MIB
-RFC-26
