Waveshare RPi Camera
Original Raspberry Pi Camera Module, fixed-focus Features Original Raspberry Pi Camera, supports all revisions of the Pi 5 megapixel OV5647 sensor in a fixed-focus module 2592 x 1944 still picture resolution Support 1080p30, 720p60 and 640x480p60/90 video record Dimension: 25mm x 24mm x 9mm Part List: RPi Camera x 1 15-pin FFC x 1
WaveShare
Waveshare RPi Camera
waveshare barcode scanner module 1d/2d codes reader with usb and uart interface
Overview This is a small 1D/2D codes reader by using the intelligent image recognition algorithm it will decode the barcode or 2D code on paper or screen fast and accurately. Through the onboard USB and UART interface it can be directly plugged into a computer or be easily integrated to kinds of devices due to its small form factor. Features Easy to use requires no knowledges of image recognition Decodes various common 1D/2D codes such as Barcode QR code etc. Onboard micro USB and UART serial port allows to connect with computers or embedded devices Configurable via scanning 'configuration code' Onboard light source works in the darkSpecifications Operating voltage: 5V Operating current: 135mA (scanning) 58mA (standby) 2mA (sleep) Operating temperature: 0C~60C Operating humidity: 5%~95% (Non-condensing) Communication interface: UART USB Decodes 1D codes: Codebar Code 11 Code 39/Code 93 UPC/EAN Code 128/EAN128 Interleaved 2 of 5 Matrix 2 of 5 MSI Code Industrial 2 of 5 GS1 Databar (RSS) Decodes 2D codes: QR code Data Matrix PDF417 Light source: white Scan angels: roll 360 skew 65 pitch 60 Field of view: 28 (horizontal) 21.5 (vertical) Dimension: 53.3 mm x 21.4 mmDevelopment Resources Wiki: www. waveshare. com/wiki/Barcode_Scanner_Module
WaveShare
waveshare barcode scanner module 1d/2d codes reader with usb and uart interface
Waveshare AT45DBXX DataFlash Board AT45DB041D Flash Memory Module Development Board Kit
AT45DBXX MCU onboardSPI pinheaderSPI female connectorDataFlash storage toolnon-volatile memory module-
WaveShare
Waveshare AT45DBXX DataFlash Board AT45DB041D Flash Memory Module Development Board Kit
Waveshare RS485 to Ethernet Converter with High-Speed Low-Power High-Stability Up-gradable Easy to Communicate Between RS485 and RJ45 Port Ethernet
OverviewThe? RS485 TO ETH? module provides an easy way to communicate between RS485 and RJ45 port Ethernet, it can be configured via webpage. FeaturesM0 series 32-bit ARM processor, fast speed, high efficiency 10/100M Auto-MDI/MDIX ethernet interface, regardless of cross-over or straight-through cable Configurable RS485 baudrate (600bps~ 230.4K bps), supports five parity check options: None, Odd, Even, Mark, Space Available working modes: TCP Server, TCP Client, UDP Server, UDP? Client, HTTPD? Client (supports GET and POST) Configurable via webpage, AT commands, serial protocol, and network protocol, provides configuration protocol which can be integrated to your own software Supports customized heartbeat packets, make sure the connection is truthful, as well as for actively retrieving sensor data Supports customized registration packets, auto passing the registered packet as identifier after the connection is established, so that different devices can be distinguished Supports customized webpage, allows user to customize the module configuration page Supports RFC2217-like protocol, be able to communicate with devices whose serial setting (baudrate, data bit, etc. ) may change KeepAlive mechanism, detects broken connection, auto re-connecting Supports time-out reboot (no-data reboot), ensures a long-term stable connection, configurable reboot time Supports DNS domain name resolution, configurable DNS server Supports DHCP, auto-obtained IP or static IP Firmware is upgradable via the network Restore to factory settings via software and/or hardware Comes with default MAC address, which is customizable Provided software: module configuration software, TCP/UDP testing tool, VCOM virtual serial port software Example code: host computer (socket ), VB, C++, Delphi, Android, iOS, etc.
WaveShare
Waveshare RS485 to Ethernet Converter with High-Speed Low-Power High-Stability Up-gradable Easy to Communicate Between RS485 and RJ45 Port Ethernet
Waveshare Raspberry Pi Zero WH The Low-Cost Pared-Down Pi with Built-in WiFi and Bluetooth Pre-soldered GPIO Headers (RaspberryPiZeroWH)
Overview The Raspberry Pi Zero W / WH extends the Pi Zero family. Launched at the end of February 2017, the Pi Zero W has all the functionality of the original Pi Zero, but comes with added WiFi and Bluetooth connectivity. Now this new Raspberry Pi Zero WH offers all the benefits of the Pi Zero W, plus 40PIN pre-soldered GPIO headers. It's perfect for everyone who doesn't own a soldering iron or who wants the soldering legwork done for them. Raspberry Pi Zero WH Features Broadcom BCM2835 1GHz ARM11 single-core processor 512MB RAM Added wireless connectivity 802.11 b/g/n wireless LAN Bluetooth 4.1 Bluetooth Low Energy (BLE) 40PIN pre-soldered GPIO headers Micro SD card slot Mini-HDMI port (1080p60 video output) Micro-USB power Micro-USB OTG port CSI camera connector Composite video header Composite reset header Dimension: 65mm x 30mm x 11.6 mm PACKAGE CONTENT Raspberry Pi Zero WH x1
WaveShare
Waveshare Raspberry Pi Zero WH The Low-Cost Pared-Down Pi with Built-in WiFi and Bluetooth Pre-soldered GPIO Headers (RaspberryPiZeroWH)
waveshare barcode scanner module 1d/2d codes barcode, qr code reader onboard micro usb and uart serial port directly plugged in
waveshare barcode scanner module 1d/2d codes barcode, qr code reader onboard micro usb and uart serial port directly plugged into computer Overview This is a small 1D/2D codes reader, by using the intelligent image recognition algorithm, it will decode the barcode or 2D code on paper or screen, fast and accurately. Through the onboard USB and UART interface, it can be directly plugged into a computer, or be easily integrated to kinds of devices due to its small form factor. Features Easy to use, requires no knowledges of image recognition Decodes various common 1D/2D codes such as Barcode, QR code etc. Onboard micro USB and UART serial port, allows to connect with computers or embedded devices Configurable via scanning 'configuration code' Onboard light source, works in the dark Specifications Operating voltage: 5V Operating current: 135mA (scanning), 58mA (standby), 2mA (sleep) Operating temperature: 0C~60C Operating humidity: 5%~95% (Non-condensing) Communication interface: UART, USB Decodes 1D codes: Codebar, Code 11, Code 39/Code 93, UPC/EAN, Code 128/EAN128, Interleaved 2 of 5, Matrix 2 of 5, MSI Code, Industrial 2 of 5, GS1 Databar (RSS) Decodes 2D codes: QR code, Data Matrix, PDF417 Light source: white Scan angels: roll 360, skew 65, pitch 60 Field of view: 28 (horizontal), 21.5 (vertical) Dimension: 53.3 mm x 21.4 mm PACKAGE CONTENT Barcode Scanner Module x1 USB type A plug to micro B plug cable x1 PH 2.0 4Pin x1
WaveShare
waveshare barcode scanner module 1d/2d codes barcode, qr code reader onboard micro usb and uart serial port directly plugged in
Waveshare Raspberry Pi Camera Module OV5647 Night Vision 5MP Webcam Video 1080p for Any Version of Raspberry-pi A/A+/B/B+/2 B
Features Raspberry Pi Night Vision Camera, supports all revisions of the Pi 5 megapixel OV5647 sensor Camera specifications CCD size: 1/4inch Aperture (F): 2.9 Focal Length: 3.29MM Angle of View (diagonal): 69.1 degree Sensor best resolution: 1080p 4 screw holes Used for attachment Provides 3.3V power output Supports connecting infrared LED and/or fill flash LED Dimension: 25mm x 24mm x 6mm Note: to use the camera with Raspberry Zero v 1.3, you need to buy a specific cable: Raspberry Pi Zero v 1.3 Camera Cable PACKAGE CONTENT The included FFC is 16cm, if you need a longer cable, please consider: RPi Camera Cable 60cm RPi Camera (E) x1 Infrared LED Board (B) x2 15-pin FFC (opposite sides contact) x1
WaveShare
Waveshare Raspberry Pi Camera Module OV5647 Night Vision 5MP Webcam Video 1080p for Any Version of Raspberry-pi A/A+/B/B+/2 B
Waveshare nRF52840 Bluetooth 5.0 Evaluation Kit Support Arduino Shields Raspberry Pi Hats Integrates CP2102 USB to UART Bluetooth MESH & 2.4GHz Radio Available
Arduino connectivity, supports Arduino shields; Raspberry Pi connectivity, supports Raspberry Pi HATs^^It supports the new generation Bluetooth 5.0, compared to Bluetooth 4.0, the data rate is twice, up to 2Mbps, the transfer distance is quadruple^^Integrates CP2102 USB TO UART, for serial debugging^^Onboard several peripherals and interfaces, convenient for study / development
WaveShare
Waveshare nRF52840 Bluetooth 5.0 Evaluation Kit Support Arduino Shields Raspberry Pi Hats Integrates CP2102 USB to UART Bluetooth MESH & 2.4GHz Radio Available
4 inch HDMI LCD IPS Display 800x480 Resolution Resistive Touch Screen HDMI Interface for Raspberry Pi 3 B/3 B+/2 B/B+/B Zero W
Brand: waveshareColor: 4inch HDMI LCD ScreenFeatures: 800x480 high hardware resolution 4 inch touch screen IPS display high quality and perfect displaying from very wide viewing angle.Backlight can be turned off to lower power consumption. Compatible and Direct-connect with any revision of Raspberry Pi (except the Pi 1 model B or Pi Zero which requires an HDMI cable) Drivers provided (works with your own Raspbian/Ubuntu/Kali/Retropie)Also works as a computer monitor in this case touch panel is unavailable and HDMI cable is required HDMI interface for displaying no I/Os required (however the touch panel still needs I/Os) Technical Support is provided please contact us if you have any problem . Publisher: WaveshareDetails: 800x480 4inch Resistive Touch Screen LCD HDMI interface IPS Screen Designed for Raspberry Pi Features 4 inch 800x480 high hardware resolution Touch Screen a good solution for those seeking for a small size with bigger resolution display  Resistive touch control with a touch pen easy to use  IPS technology high quality and perfect displaying from very wide viewing angle Not only can be used with any revision of Raspberry Pi (except the Pi 1 model B or Pi Zero which requires an HDMI cable) but also works as a computer HDMI monitor.When working as a computer monitor touch panel is unavailable and HDMI cable is required. Drivers provided to work with Raspbian/Ubuntu/Kali/Retropie  Backlight can be turned off to lower power consumption Package Content 4inch HDMI LCD x 1 HDMI connector x 1 Touch pen x 1 RPi screws pack (4pcs) x 1 Quick start sheet x1 Note The touch of the LCD can be driven in two ways:  Method 1: Install driver manually; Method 2: Using ready-to-use Image The images drivers user manual and software are provided please contact us via Amazon message to get . FAQ 1.It seems not to work as a computer monitor for a Windows PC right? This LCD is used for portrait display. You can set the orientation on Windows: desktop right click -- & gt; display settings -- & gt; orientation: portrait 2.What are the power requirements? When working with 5V input the current is about 200mA with back light on and 30mA with back light off. UPC: 614591448426EAN: 614591448426Package Dimensions: 5.4 x 3.8 x 1.6 inches
WaveShare
4 inch HDMI LCD IPS Display 800x480 Resolution Resistive Touch Screen HDMI Interface for Raspberry Pi 3 B/3 B+/2 B/B+/B Zero W
4.3inch dsi lcd capacitive touch display with protection case for raspberry pi 4 b/3 b+/3 b,800480 resolution ips screen wide a
4.3 inch dsi lcd capacitive touch display with protection case for raspberry pi 4 b/3 b+/3 b, 800480 resolution ips screen wide angle, mipi dsi interface 4.3 inch Capacitive Touch Display For Raspberry Pi, With Protection Case, 800480, IPS Wide Angle, MIPI DSI InterfaceSpecificationsDisplay Port: DSI Display Panel: IPS Resolution: 800*400View Angle: 160Touch Type: CapacitiveTouch Point: 5 PointsTouch Port? I2CTouch Panel: Toughened GlassPower Consumption: Low PowerFeatures1. Device & System SupportRaspberry PiSupports Raspbian, 5-points touch, driver freeSupports Ubuntu / Kali / WIN10 IoT, single point touch, driver freeSupports Retropie, driver freeSupports Pi 4B/3B+/3B2. DisplayIPS Panel3. Touch ControlCapacitive TouchUp to 5-Point TouchPackage Content 4.3 inch DSI LCD x13D-Printed Case x1Cooling Fan x1Screws pack x1Screwdriver x1Development ResourcesWiki: Case is only compatible with Raspberry Pi 4B/3B+/3B. If you need the development resources, please check in the WIKI or contact us via buyer message.
WaveShare
4.3inch dsi lcd capacitive touch display with protection case for raspberry pi 4 b/3 b+/3 b,800480 resolution ips screen wide a
3.5 inch Resistive Touch Screen IPS LCD 480x320 Hardware Resolution XPT2046 Controller for Any Revision of Raspberry Pi (3B+/3B/2B/A+/B+)
Brand: waveshareColor: 3.5inch RPi IPS Screen (B)Features: 3.5 inch Resistive Touch ScreenIPS LCDSPI LCD Interface.Touch Screen Controller:XPT2046. Supports any revision of Raspberry Pi (directly-pluggable) Drivers provided (works with your own Raspbian/Ubuntu/Kali) Supports FBCP software driver as well allows to config software resolution and set up dual-display Size perfectly fits the Pi (Raspberry Pi B+/2B/3B/3B+)High quality immersion gold surface plating.IPS technology high quality and perfect displaying from very wide viewing angle. Combined with the Raspberry Pi allows you to: Take photos by touching (up to 17 camera modes) Use software keyboard (system interaction without keyboard/mouse) Publisher: WaveshareDetails: Features 480x320 hardware resolution Resistive touch control Supports any revision of Raspberry Pi (directly-pluggable) Drivers provided (works with your own Raspbian/Ubuntu/Kali) Supports FBCP software driver as well allows to config software resolution and set up dual-display IPS technology high quality and perfect displaying from very wide viewing angle Size perfectly fits the Pi (Raspberry Pi B+/2B/3B/3B+) High quality immersion gold surface plating Combined with the Raspberry Pi allows you to: Take photos by touching (up to 17 camera modes) Use software keyboard (system interaction without keyboard/mouse) Key Parameters LCD Type:IPS LCD Interface:SPI Touch Screen Type: Resistive Touch Screen Controller:XPT2046 Colors:65536 Backlight:LED Resolution :320*480 (Pixel) Aspect Ratio :8:5 Power Consumption :TBD Backlight Current :TBD Operating Temp. (?):TBD Package Content 1.3.5inch RPi LCD (B) x 1 2.Touch pen x 1 3.RPi screws pack (2pcs) x 1 4.Quick start sheet x1 Note: If LCD doesn't work with my Raspbianplease use the LCD with the Raspberry Pi official image driver should be installed first. Please refer to the user manual.However for the first testing you may want to use our provided image directly. For more info please send us Amazon message to get it .UPC: 778365986214 EAN: 778365986214 Package Dimensions: 4.2 x 3.1 x 1.1 inches
WaveShare
3.5 inch Resistive Touch Screen IPS LCD 480x320 Hardware Resolution XPT2046 Controller for Any Revision of Raspberry Pi (3B+/3B/2B/A+/B+)
for Raspberry Pi 7 inch Capacitive Touch Screen IPS Display HDMI LCD Module 1024×600 Touchscreen for Raspberry Pi 3/2/1 Model B B+ A+/BeagleBone Black/Banana Pi, Support Windows 10/8.1/8/7
Brand: waveshareColor: 7inch HDMI LCD (C) ScreenFeatures: Raspberry Pi display with capacitive touch screen Monitor supports various systems HDMI Interface for displaying USB Interface for touching. Backlight can be turned off to lower power consumption. 7inch IPS screen with 1024x600 high hardware resolution a ideal choice for those who want a large screen and larger image with high resolution. The 7'' touchscreen supports Raspberry Pi 3 B/ B+ /2 B/B/ A+ BB Black Banana Pi Banana Pro and other mainstream mini-PCs as well as the LCD can work as a general desktop computers. When works with Raspberry Pi supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT driver freeWhen work as a computer monitor LCD supports Windows 10/8.1/8/7 five-points touch and driver free Note:Please set the config.txt file by addding [the hdmi_drive=1] into the end of code if you connect it with raspberry pi (like Quick Start in picture). Otherwise the LCD could not work properly. Note:If the LCD work in abnormal states for long time it may be broken if you don't set the config.txt file at the beginning.After setting config fileplease power off the screen and put it aside for a few hours to avoid the flickers. Publisher: WaveshareDetails: Latest Version Rev 3.1 Features 7inch IPS screen Capacitive Touch Screen LCD1024x600 hardware resolutionwide viewing angle clear displaying stronger anti-interference ability. Capacitive touch controlusing better Touch-Panel Controller ICwith better touch effects. Standard HID protocol easy to be integrated into your system Supports mini PCs such as Raspberry Pi BB Black and general desktop computers When works with Raspberry Pi supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT driver free.When work as a computer monitor supports Windows 10/8.1/8/7 five-points touchdriver free Backlight can be turned off to lower power consumption Package Content 7inch HDMI LCD (C) x 1 HDMI cable x 1 USB type A plug to micro B plug cable x 1 RPi screws pack (4pcs) x 1  Quick start sheet x1  Note 1.To use the LCD with following mini-PCs additional cables are required and should be purchased separately: Raspberry Pi Zero: HDMI cable USB-type-A-receptacle-to-Micro-B-plug-cable  BB Black: HDMI cable 1.If there are some red lines on the edge of the screenPlease adjust the config.txt file by addding [the hdmi_drive=1] into the end of code. After that please power off the srceen and put it aside for a few hours to avoid the flickers. 2.If there are some ghost picturesPlease adjust the adjustable resistor on the back which we point out in the picture. And after the screen can display the desktop rotate the resistor until it can get the best display of desktop.Then please leave the screen for a whilewaiting for the ghost to disappear (may take several hours). Development Resources Wiki : www.waveshare.com/wiki/7inch_HDMI_LCD_(C)?AmazonUPC: 614591448358EAN: 614591448358Package Dimensions: 8.2 x 5.9 x 2.1 inches
WaveShare
for Raspberry Pi 7 inch Capacitive Touch Screen IPS Display HDMI LCD Module 1024×600 Touchscreen for Raspberry Pi 3/2/1 Model B B+ A+/BeagleBone Black/Banana Pi, Support Windows 10/8.1/8/7
7 inch C LCD Touch Screen 1024600 Win10 HDMI Interface Capacitive Monitor Display for Raspberry pi4/3B+/3B/2 B/B+/A (7+incheslcdC)
7 inch C LCD Touch Screen 1024600 Win10 HDMI Interface Capacitive Monitor Display for Raspberry pi4/3B+/3B/2 B/B+/A
WaveShare
7 inch C LCD Touch Screen 1024600 Win10 HDMI Interface Capacitive Monitor Display for Raspberry pi4/3B+/3B/2 B/B+/A (7+incheslcdC)
7inch HDMI LCD (H) 1024x600 IPS Capacitive Touch Screen LCD Display HDMI Module for Raspberry Pi, BeagleBone Black, Banana Pi Support Microsoft XBOX360, Sony PS4, and Nintendo Switch
Brand: waveshare Color: 7inch HDMI LCD (H) Screen Features: 7 inch IPS display capacitive Touchscreen LCD HDMI interface1024x600 hardware resolution configurable by software (up to 1920x1080) Supports popular mini PCs such as Raspberry Pi 3/2/1 B+ B A+ Jetson Nano BB Black Banana Pi as well as general desktop computers When works with Raspberry Pi supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT driver free When work as a computer monitor supports Windows 10/ 8.1 /8/7 five-points touch and driver free Supports popular game consoles like Microsoft XBOX360 Sony PS4 and Nintendo Switch etc. Multi languages OSD menu for power management brightness/contrast adjustment etc. 3.5 mm audio jack speaker connector supports HDMI audio output Also supports VGA input (specific cable is required and should be purchased separately) Publisher: Waveshare Details: 7inch 1024x600 Capacitive Touch Screen LCD HDMI interface Supports Multi mini-PCs Multi Systems Features IPS screen 1024x600 hardware resolution configurable by software (up to 1920x1080) Supports popular mini PCs such as Raspberry Pi Jetson Nano BB Black Banana Pi as well as general desktop computers When works with Raspberry Pi supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT driver free When work as a computer monitor supports Windows 10/ 8.1 /8/7 five-points touch and driver free Supports popular game consoles like Microsoft XBOX360 Sony PS4 and Nintendo Switch etc. Multi languages OSD menu for power management brightness/contrast adjustment etc. 3.5 mm audio jack speaker connector supports HDMI audio output Also supports VGA input (specific cable is required and should be purchased separately) Keys Power: Open or Close LCD display Menu: Open OSD menu (It can also work as OK after entering the menu) Up/Left: Direction button Down/Right: Direction button Exit: it can also work as Return after entering the menu Note 1. You can use "Power" button to close LCD display for reducing consumption ifit will be idle for a long time. 2. Limited by the game console OS the touch function is unavailable. 3. Raspberry Pi and Speaker (8O 5W) in the photos are NOT included. 4. More resources needed please feel free to contact via Amazon message to get. Package Content 7inch HDMI LCD (H) x1 HDMI cable x1 USB type A plug to micro B plug cable x1 Quick start sheet x1 UPC: 614591448334 EAN: 614591448334 Package Dimensions: 8.2 x 5.9 x 2.1 inches
WaveShare
7inch HDMI LCD (H) 1024x600 IPS Capacitive Touch Screen LCD Display HDMI Module for Raspberry Pi, BeagleBone Black, Banana Pi Support Microsoft XBOX360, Sony PS4, and Nintendo Switch
Wireless-AC8265 Dual Mode Intel 8265AC Chip Wireless NIC Module for Jetson Nano Developer Kit Support 2.4GHz/5GHz 300Mbps/867Mbps Dual Band WiFi and Bluetooth 4.2
Brand: waveshare Color: Wireless-AC8265 Features: Wireless-AC8265 is a dual mode wireless NIC module applicable for NVIDIA Jetson Nano Developer Kit. Supports 2.4GH z / 5GHz dual band WiFi and Bluetooth 4.2. Chip: Intel 8265AC; Bands: 2.4GH z / 5GHz; Speed: 300Mbps / 867Mbps WiFi protocol: 802.11 ac; Bluetooth version: 4.2 ; NIC interface: NGFF (M. 2); Antenna interface: IPEX connector Supported OS: Linux Windows 10/ 8.1 /8/7; Dimensions: 22mm × 30mm × 2.4 mm Binding: Personal Computers Details: AC8265 Wireless NIC 2.4G / 5G WiFi Bluetooth 4.2 Applicable for Jetson Nano Overview This is a dual mode wireless NIC module applicable for Jetson Nano supports 2.4GH z / 5GHz dual band WiFi and Bluetooth 4.2. Features Chip: Intel 8265AC Bands: 2.4GH z / 5GHz Speed: 300Mbps / 867Mbps WiFi protocol: 802.11 ac Bluetooth version: 4.2 NIC interface: NGFF (M. 2) Antenna interface: IPEX connector Supported OS: Linux Windows 10/ 8.1 /8/7 Dimensions: 22mm × 30mm × 2.4 mm How to Use: 1. Remove the two screws on Jetson Nanodetach the Jetson Nano 2. Connect the extension cable to Wireless-AC8265 on IPEX connector tighten the nut and washer to each SMA connector 3. Remove the NIC screw onboard insert the Wireless-AC8265 into the M. 2 socket screw it tightly 4. Insert the Jetson Nano into the socket and screw it again connect the antennas Please check detailed Graphic and Textual instruction from the picture above PACKAGE CONTENT 1. Wireless-AC8265 x1 2. Antenna x2 3. IPEX to SMA cable x2 Package Dimensions: 9.0 x 6.0 x 0.8 inches
WaveShare
Wireless-AC8265 Dual Mode Intel 8265AC Chip Wireless NIC Module for Jetson Nano Developer Kit Support 2.4GHz/5GHz 300Mbps/867Mbps Dual Band WiFi and Bluetooth 4.2
Jetson Nano Metal Case/Enclosure for Jetson Nano Developer Kit and B01(A02 & B01) with Camera Holder,Reset and Power Buttons, Support Single or Binocular Camera,Cooling Fan,Wireless-AC8265
Brand: waveshare Jetson Nano Metal Case/Enclosure for Jetson Nano Developer Kit and B01(A02 & B01) with Camera HolderReset and Power Buttons Support Single or Binocular CameraCooling FanWireless-AC8265Color:Jetson Nano Metal Case Assembly Steps: Check the components before assembling. 1.Remove the Jetson nano assemble the wireless module and replace it. 2.Mount the buttons on the metal box note that the button with four wires is the Power button and another which has two wires are the Reset button. 3.Connect buttons to Jetson Nano please refer to the diagram. Insert the micro SD adapter board to the Micro SD slot of Jetson nano. Press it to let it locked. Note that you should press the adapter to make sure that the adapter is pop-up then remove it. You cannot directly pull it out otherwise you will break the Micro SD slot. 4.Adjust the cables mount the Jetson Nano developer Kit in the Metal box and fix it by screws. You should also fix the Micro SD adapter board by screw. 5.Fix the Jetson Nano GPIO adapter board in metal box by skews. 6.Fix the antennas of the wireless module on the metal box. Assemble the cooling fan 7.Connect Jetson nano to the GPIO adapter by cable. 8.Fix the camera holder-bottom on the metal cover. 9.Fix camera on camera holder-top by nylon screws. 10.Assemble camera holders by screws adjust the angle and turn it tightly.. 11.Connect the cable cables to Jetson Nano (you can first remove it from cameras) If you have only one camera just need to connect one cable. 12.Assemble the case connect the Camera and antennas. For more information about Assembly please check in the wiki: https://www.waveshare.com/wiki/Jetson_Nano_Case_(C)?AmazonPackage Content 1.Body case (top and bottom) 2.Camera holder bottom mount 3.Camera holder top mount 4.Jetson Nano adapter board 5.Micro SD card adapter board 6.Flat ribbon cable 2*20PIN 7.Spanner 8.Screwdriver 9.Button with 2PIN wires 10.Button with 4PIN wires 11.Screws pack 12.Jumper Jetson Nano Metal Case is compatible with : Jetson Nano Developer Kit (Both of the original version and B01 version) ( Case only) Special camera holder Mounting holes for single camera or binocular camera up to 180° roll angle. Recommendation: 8MP IMX219 Camera(8MP IMX219-200 Camera8MP IMX219-170 Camera8MP IMX219-120 Camera8MP IMX219-160 Camera8MP IMX219-77 Camera). IMX219-83 Stereo Binocular Camera. Internal Fan Design Heat dissipation through the airflow vent on the top more elegant design.Recommendation: Fan-4020-PWM-5V RESET and POWER buttons with system status indicator (B01 only NOT available for the original version). Allows installing 4G module inside Recommendation: SIM7600G-H 4G for Jetson Nano. Precise opening design: Cut-outs for GPIO header TF card and peripheral ports Recommendation: Wireless-AC8265
WaveShare
Jetson Nano Metal Case/Enclosure for Jetson Nano Developer Kit and B01(A02 & B01) with Camera Holder,Reset and Power Buttons, Support Single or Binocular Camera,Cooling Fan,Wireless-AC8265
1.54inch NFC-Powered e-Paper Display, 200x200 Resolution Three-Color E-Ink Display,Wireless Powering and Data Transfer, Refresh by Smartphone with NFC Function, or NFC Reader (White Case)
Instruction This is an NFC-powered 1.54inch e-Paper Module, with 200x200 resolutionUsers can transmit data from smartphone or NFC reader to e-Paper and refresh by NFCFeaturesNo backlight required, e-Paper keep displaying the last content for a long time without power No power adapter required You can modify the display content by smartphone Compe with ABS case App is providedSpecificationPower: NFC-powered Resolution: 200x200 Dot pitch: 0.138 × 0.138 Refresh time: 8s (Transmit time is not included) Display color: black, white, red Viewing angle: >170°Package Content 1.54inch NFC-Powered e-Paper (BW) x1Product informationColor:1.54inch NFC-Powered e-Paper(W)Item Weight0.352 ouncesManufacturerWaveshareASINB088M24B5ZItem model number1.54inch NFC-Powered e-Paper(W)Best Sellers Rank#483,858 in Electronics (See Top 100 in Electronics)#8,754 in Computer MonitorsDate First AvailableMay 14, 2020Warranty & SupportProduct Warranty: For warranty information about this product, please click here FeedbackWould you like to tell us about a lower price? Brief content visible, double tap to read full content.Full content visible, double tap to read brief contentVideosHelp others learn more about this product by uploading a video!Upload video Products related to this itemSponsoredHide feedbackPage 1 of 1Start overPage 1 of 1Previous page of related Sponsored Products Feedback
WaveShare
1.54inch NFC-Powered e-Paper Display, 200x200 Resolution Three-Color E-Ink Display,Wireless Powering and Data Transfer, Refresh by Smartphone with NFC Function, or NFC Reader (White Case)
GamePi43 Accessories Classic Portable Retro Video Game Console Compatible with Raspberry Pi 3 B+/3B/2B/B+, with 800×480 4.3inch IPS Display
GamePi43 Accessories, Add-ons for Raspberry Pi to Build GamePi43 Overview The GamePi43 is a portable retro video game console based on Raspberry Pi, recalls you all the gaming pleasures in the memory. This accessory pack includes add-ons required to build your own GamePi43, excerpt for the Raspberry Pi and micro SD card. Features 4.3inch IPS display, 800×480 pixels 60 fps smooth gaming experience Compatible with Raspberry Piandnbsp;B+/2B/3B/3B+ Integrates battery charge circuitry, powered from 18650 lithium batteries (NOT included), plays anywhere anytime Battery life indicator Onboard speaker and earphone jack, listen to the familiar BGM from the old days Volume and backlight adjustment keys, adjust the device status according to specific game, better experience Package Content GamePi43 board x1 Power adapter x1 Acrylic case x1 TF card extension board x1 HDMI connector x1 Keys x1 Screws pack x1 Phillips screwdriver 2.0 x1 Note 1.Raspberry Pi and micro SD card are NOT included. 2.if you don't have, please consider the full version:andnbsp;GamePi43andnbsp;for Pi. 3.Please make sure you mount the batteries in correct direction, otherwise it may damage charging circuity 4.More resources and support you need , please contact us via message to get , thanksandnbsp;
WaveShare
GamePi43 Accessories Classic Portable Retro Video Game Console Compatible with Raspberry Pi 3 B+/3B/2B/B+, with 800×480 4.3inch IPS Display
XBee USB Adapter, UART Communication Board Module Xbee USB Interface Easy to Program/Configure The XBee Modules
UART communication board, XBee interface, USB interface XBee USB Adapter is a UART communication board which supports XBee connectivity, features UART interface, USB interface, and onboard buttons/LEDs, provides an easy way for developing/debugging. It can be used in the following situations: Test XBee modules: onboard buttons/LEDs for easy testing, Program/Configure XBee modules: make it easy to program/configure the XBee modules frequently, USB to UART module: features CP2102, provides UART interface and power output interface, connect it to your system easily XBee modules above refer to modules with XBee-compatible interface, like: Core2530 (B), Dual-mode Bluetooth, etc Note: The XBee/ZigBee modules and Core2530 (B) in the photos are NOT included. -
WaveShare
XBee USB Adapter, UART Communication Board Module Xbee USB Interface Easy to Program/Configure The XBee Modules
2.8inch Resistive Touch LCD, 320¡A24
2.8 inch 320¡Á240 Pixels IPS LCD, Resistive Touch, SPI Interface Overview This is a multicolor graphic IPS LCD display, 2.8 inch diagonal, 320¡Á240 pixels, with resistive touch screen. Features Onboard touch controller, smoother touch experience than solutions that directly use AD pins for touching SPI interface, requires a few pins Programmable backlight control, power saving Comes with development resources and manual (examples for STM32/AVR/PIC) Key Parameters
WaveShare
2.8inch Resistive Touch LCD, 320¡A24
GamePi20 Accessories Portable Retro Video Game Console Add-ons for Raspberry Pi Zero/Zero W/Zero WH to Build GamePi20,with 2.0inch IPS Display on Board
GamePi20 Accessories, Add-ons for Raspberry Pi Zero / Zero W / Zero WH to Build GamePi20 Overview The GamePi20 is a mini retro video game console based on Raspberry Pi Zero / Zero W / Zero WH, recalls you all the gaming pleasures in the memory. This accessory pack includes add-ons required to build your own GamePi20, excerpt for the Raspberry Pi and micro SD card. Features Compatible with Raspberry Pi Zero / Zero W / Zero WH 2.0inch IPS display, 320x240 pixels Integrates battery charge circuitry, powered from 14500 lithium battery, plays anywhere anytime Battery life indicator Immersion gold process, high quality material, carefully crafted Onboard speaker and earphone jack, listen to the familiar BGM from the old days Volume and backlight adjustment, make the most comfortable experience by your own Package Content GamePi20 main board x1 Acrylic front panel x1 Metal bottom case x1 Conductive rubber pad x2 Button set x1 Mini cross wrench sleeve x1 Screws pack x1 Screwdriver x1 Note Raspberry Pi and micro SD card are required, if you don't have, please consider the full version:andnbsp;GamePi20andnbsp;Kit
WaveShare
GamePi20 Accessories Portable Retro Video Game Console Add-ons for Raspberry Pi Zero/Zero W/Zero WH to Build GamePi20,with 2.0inch IPS Display on Board

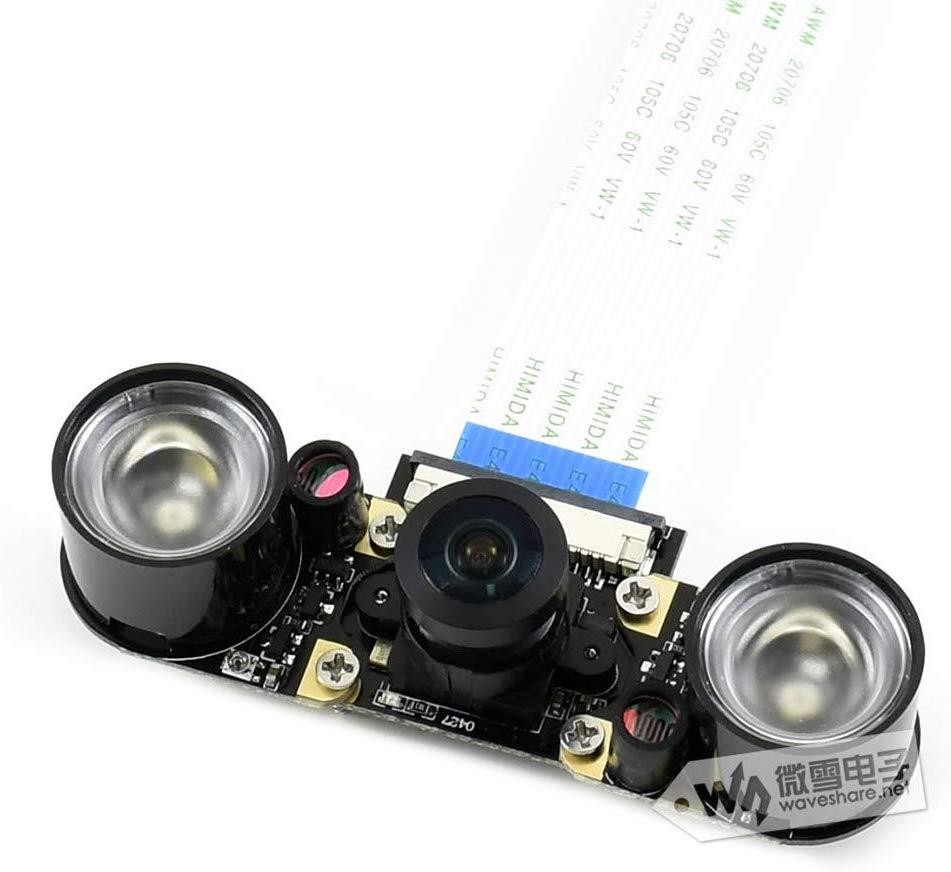

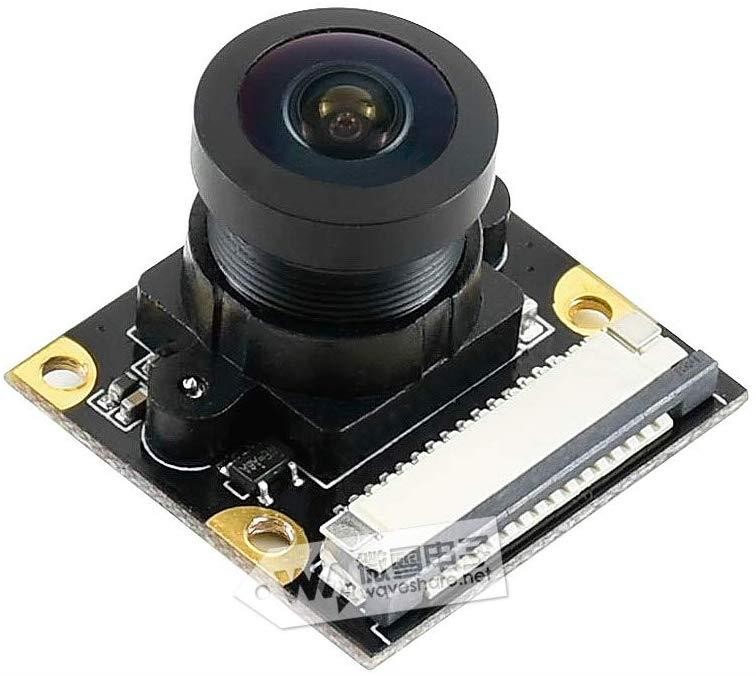

IMX219-160IR Camera 8 Megapixels IMX219 32802464 Resolution Supports NVIDIA Jetson Nano Developer Kit
IMX219-160IR Camera, Applicable for Jetson Nano, 8 Megapixels, Infrared Night Vision, 160° FOV Features Supports NVIDIA Jetson Nano Developer Kit 8 Megapixels Sensor: Sony IMX219 Resolution: 3280 × 2464 Lens specifications: CMOS size: 1/4inch/Aperture (F): 2.35 /Focal Length: 3.15 mm/Angle of View (diagonal): 160 degree/Distortion: 4 screw holes: Used for attachment/Provides 3.3V power output/Supports connecting infrared LED and/or fill flash LED Dimension: 25mm × 24mm Applications Combined with the Jetson Nano AI computer, this camera suits for AI projects such as: Face recognition Road mark detection License plate recognition Package Content Weight: 0.031 kg The included FFC is 16cm, if you need a longer cable, please consider: RPi Camera Cable 60cm IMX219-160IR Camera x1 Infrared LED Board (B) 2PCS x1 15-pin FFC (opposite sides contact) x1
WaveShare
IMX219-160IR Camera 8 Megapixels IMX219 32802464 Resolution Supports NVIDIA Jetson Nano Developer Kit
