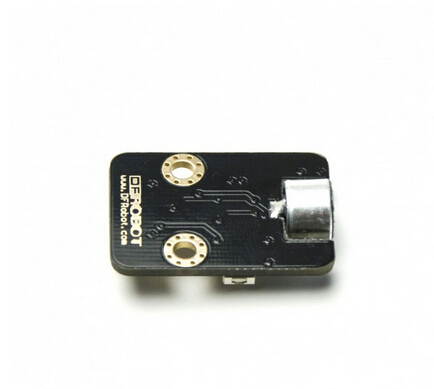

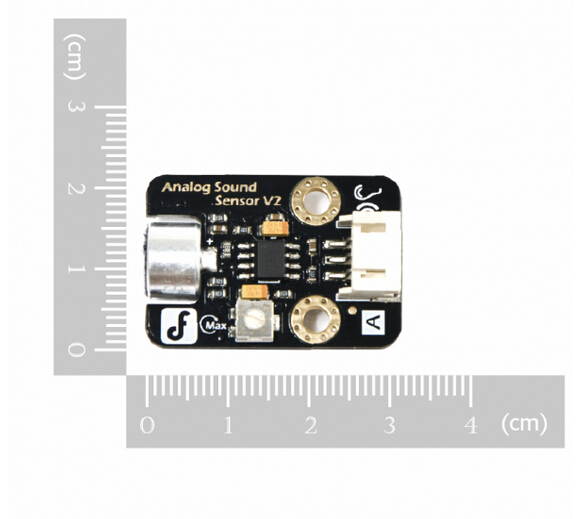

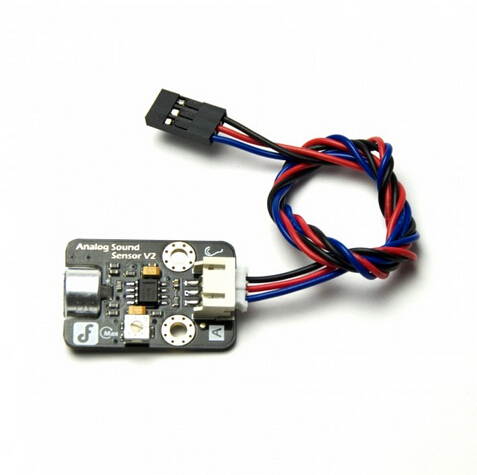

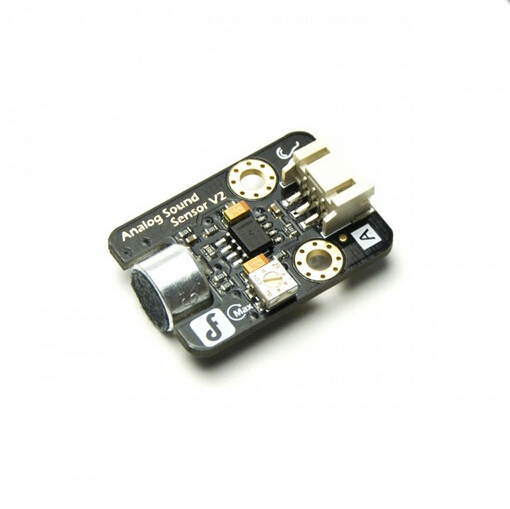

WWH-Analog Sound Sensor
Introduction
This is an updated version of the Analog Sound Sensor. Analog Sound Sensor is typically used in detecting the loudness in ambient, the Arduino can collect its output signal by imitating the input interface. You may use it to make some funny interactive works such as a voice operated switch.
As one of our new version of breakout boards, we have improved the analog sound sensor in below:
Wide voltage range from 3.3V to 5V
Standard assembling structure (two 3mm holes with multiple of 5cm as interval)
Easily recognitive interfaces of sensors ("A" for analog and "D" for digital)
Icons to simplely illustrate sensor function
High quality connector
Immersion gold surface
Notice:The new version of analog sensor port pin mapping has been changed as the following two features.Please check the tips for changing sensor cable pin mapping while using the I/O Expansion shield. We will continue to update. For the inconvenience caused, please understand.
Specification
Supply Voltage: 3.3V to 5V
Swift sound intensity detection
Interface: Analog
Size:22x32mm
Shipping List
Analog Sound Sensor (1 unit)

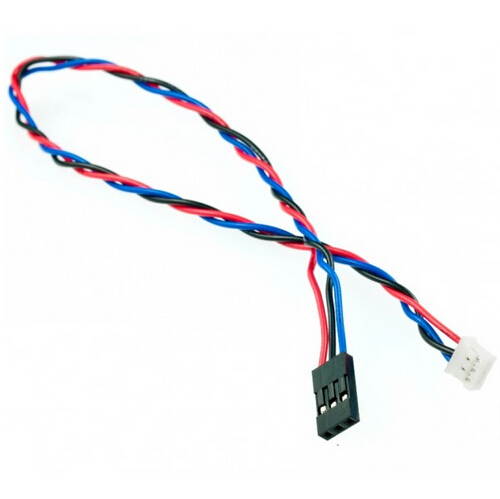

Analog cable (1 unit)
Weiweihui Technology Co., Ltd.
WWH-Battery internal resistance tester ESR capacitor circuit tester
First, an overview:
HR530 is a small ESR ohm meter can measure electrolytic capacitor ESR values (measurement of battery internal resistance of the battery voltage value), but also measure the resistance milliohms table to use, simple to use.
Second, product applications:
Measuring electrolytic capacitor ESR values;
Measure the resistance value;
Measure battery internal resistance of the battery voltage;
Third, the technical parameters:
No. Item Parameter Unit Remark
1 measuring range of 0.001 ~ 120 O resistor
2 1 mO sense resistor differentiate degrees
3 measuring battery voltage 0 ~ 25 VDC
4 measuring 0.01 VDC battery voltage differentiate degrees
5 100K Hz output frequency measurement
6 7 ~ 12 VDC operating voltage
7 working current
Weiweihui Technology Co., Ltd.
WWH- ArduIMU+ V3 Module
ArduIMU+ V3 Module Important Note : ArduIMU is not an Autopilot. It's just an orientation solution (the heart of an Autopilot) and can be used on anything where you want to know its orientation in respect to the ground--boats, cars, rockets or even your dog. To learn more about IMUs read here.
Description : ArduIMU V3 features the new MPU-6000 that includes 3 axis gyros & accells built-in, the latest 3 axis I2C magnetometer HMC-5883L and the classic but very robust Arduino Atmega328 running at 16Mhz. MPU-6000 uses SPI for max performance.
Specifications : 1?Tri-Axis angular rate sensor (gyro) with a sensitivity up to 131 LSBs/dps and a full-scale range of ±250, ±500, ±1000, and ±2000dps 2?Tri-Axis accelerometer with a programmable full scale range of ±2g, ±4g, ±8g and ±16g 3?Reduced settling effects and sensor drift by elimination of board-level cross-axis alignment errors between accelerometers and gyroscopes 4?Digital Motion ProcessingTM (DMPTM) engine offloads complex MotionFusion, sensor timing synchronization and gesture detection with supported software (not yet currently supported in DIY Drones code)
5?Full Chip Idle Mode Supply Current: 5µA 6?On-chip timing generator with ±1% frequency variation over full temperature range 7?User self test 8?10,000g shock tolerant Other ArduIMU V3
features :
1?Pin compatible with ArduIMU V2.
2?Breadboard compatible (ArduIMU V2 was not!).
3?Smaller size (1.5" x 1.0").
4?Atmega CPU has more % available for other tasks.
5?The 6 analog pins are now available!
6?Arduino compatible and open source.
7?3 status LED's (RGB).
8?I2C port with 3.3V translation.
9?GPS port with FTDI autoswitch.
10?This device is suitable for ANY application from rockets to simple movement detection
Weiweihui Technology Co., Ltd.

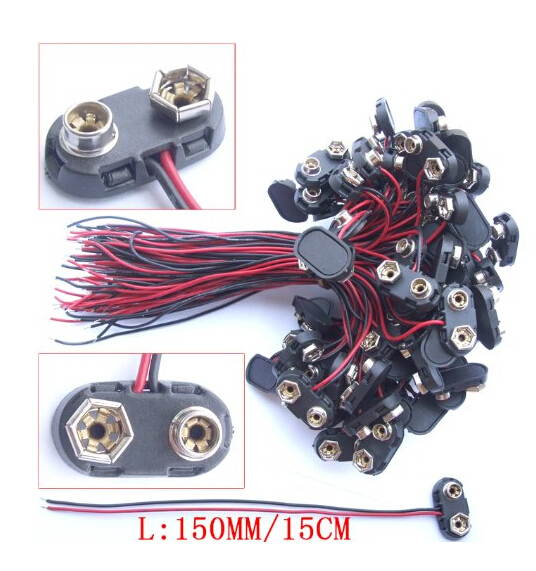

WWH- 10 pcs 15CM Hard DC 9V batteries Battery Button Cables
9 Volt 9V SNAP ON BATTERY CLIP T-CONNECTOR PLUG T-Type With 15CM Wire
Weiweihui Technology Co., Ltd.

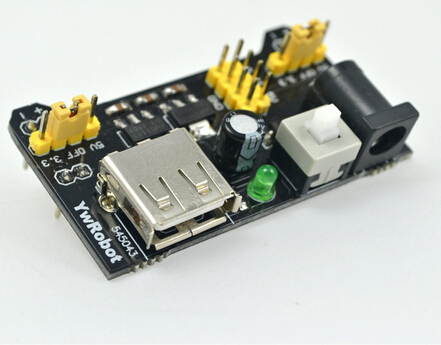

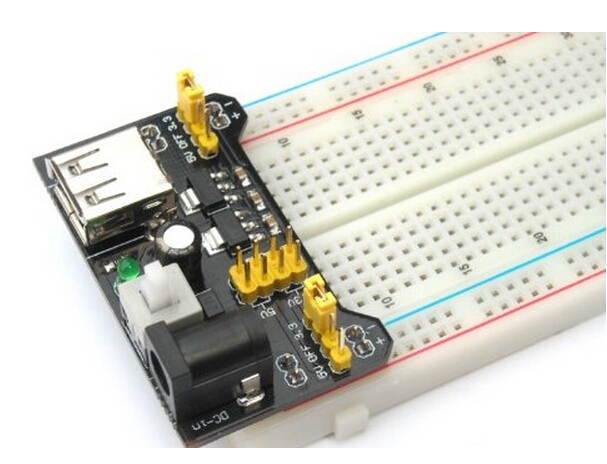

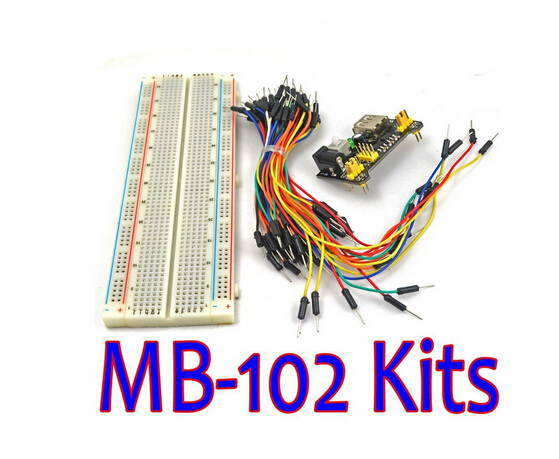

WWH-MB-102 MB102 Solderless Breadboard Power Supply Module Jumper cable Kits for Arduino Project
1 X MB-102 MB102 PCB Prototype Bread Board Solderless Breadboard 830 Points
1 X MB102 Breadboard Power Supply Module Board 3.3/5V

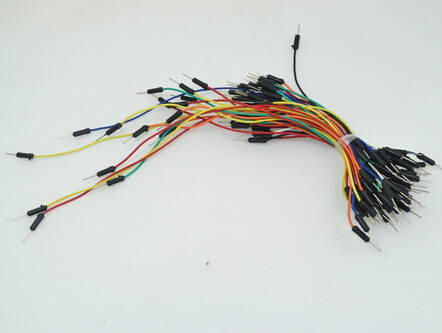

1 X 65 pcs Breadboard Jumper Wires Connectors Cables Set Lead
Weiweihui Technology Co., Ltd.
WWH-10 Pcs TCRT5000L TCRT5000 Reflective Optical Sensor Infrared IR 950mm 5V 3A
Compact construction, sense the presence of an object by using the reflective IR beam from the object
Consist of a phototransistor
Snap-in construction for PCB mounting.
Plastic polycarbonate housing construction which prevents crosstalk
Specifications:
Sensing Distance: 12mm
Operating Wavelength: 950 mm
Package Height: 7 mm
Sensing Method: Reflective
Reverse Voltage: 5V
Forward Current: 60mA
Forward Surge Current: 3A
Emitter Power Dissipation: 100mW
Collector Emitter Voltage: 70V
Emitter Collector Voltage: 5V
Collector Current: 100mA
Detector Power Dissipation: 100mW
Sensor Total Power Dissipation: 200mW
Operating Temperature: -25°C ~ +85°C
Package includes: 10pcs
Weiweihui Technology Co., Ltd.

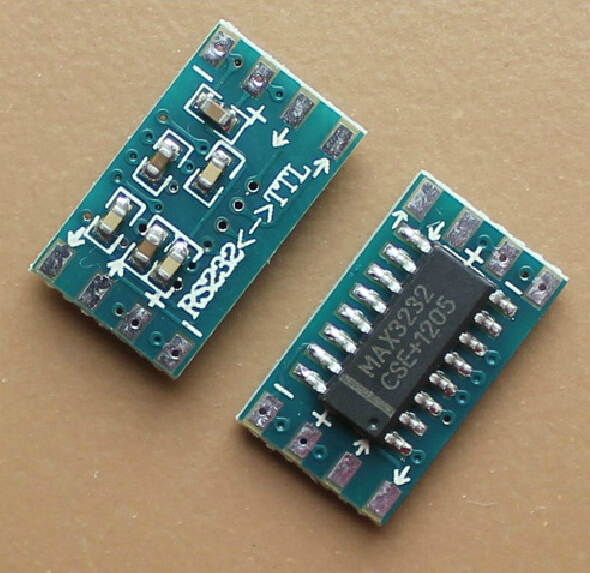

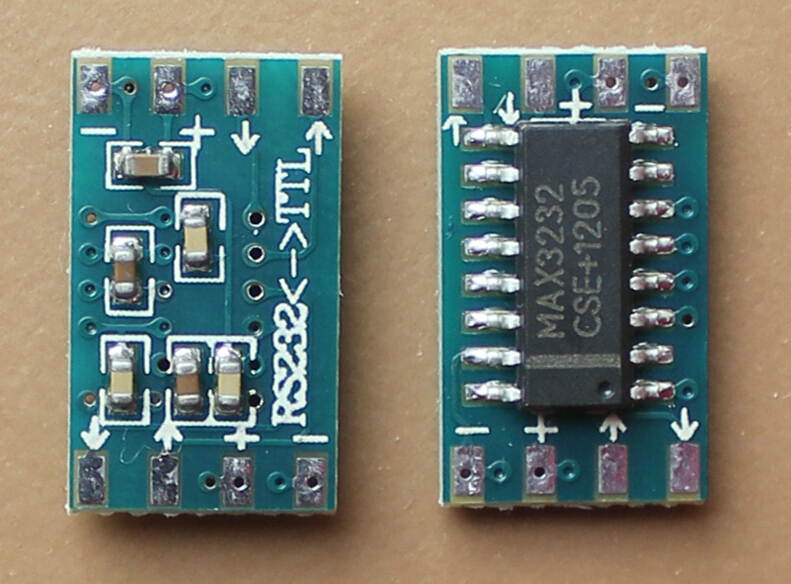

WWH-XD-26 MCU mini RS232 MAX3232 level to TTL level converter board serial converter board
XD-26 MCU mini RS232 MAX3232 level to TTL level converter board serial converter board
Technical parameters:
Chip: Domestic MAX3232CSE
Voltage Range: 3V ~ 5V
Highest baud rate: not recommended higher than 120kbps
Size: 9.4mm * 15.9mm
The following is a block diagram positive and negative, are connected together on both sides of the power supply, then only one side to both sides of each of two separate channels can be used, arrows indicate the flow of signals, instructions are input to the inside outward Description is the output, RS232 character near the end of the RS232 level, near the end of the character TTL TTL level
Module dimensions, the standard 2.54mm pad pitch
Weiweihui Technology Co., Ltd.
WWH-10pcs GY-521 6DOF MPU6050 Module 3 Axis Gyroscope + Accelerometer for MWC Arduino
Parts NO.: GY-521 MPU-6050 Module
Package : Quantity : 10PCs
Electronics Description :
MPU-6050 modules (three-axis gyroscope + three-axis accelerometer)
Use the chip: MPU-6050
Power supply :3-5v (internal low dropout regulator)
Communication modes: standard IIC communications protocol
Chip built-in 16bit AD converter, 16-bit data output
Gyroscope range: 250 500 1000 2000 / s
Acceleration range: 2 4 8 16g
Immersion Gold PCB machine welding process to ensure quality
Pin pitch 2.54mm
Weiweihui Technology Co., Ltd.
WWH- LM2596 DC-DC Buck Converter Step Down Module Power Supply Output 1.23V-30V
3V-40V to 1.23V -30V-3A-LM2596 Input: DC 3V to 40V (input voltage must be higher than the output voltage to 1.5 v above can not boost) Output: DC 1.5V to 35V voltage continuously adjustable, high-efficiency maximum output current of 3A. Features: All SANYO solid capacitors, the 36u thickening circuit boards, high-Q inductance with output value of high-power LED indicator Dimensions: 45 (L) * 20 (W) * 14 (H) mm (with potentiometer)
Weiweihui Technology Co., Ltd.

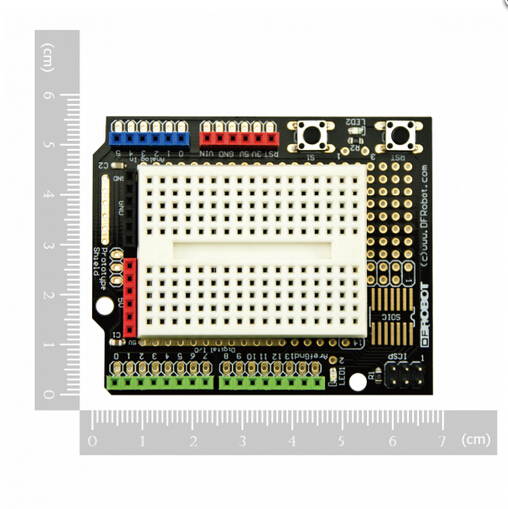

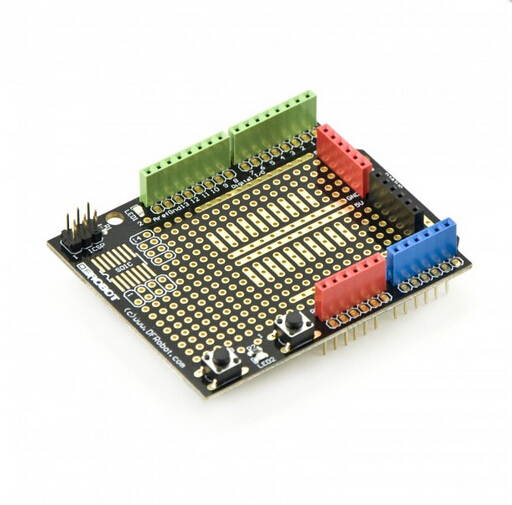

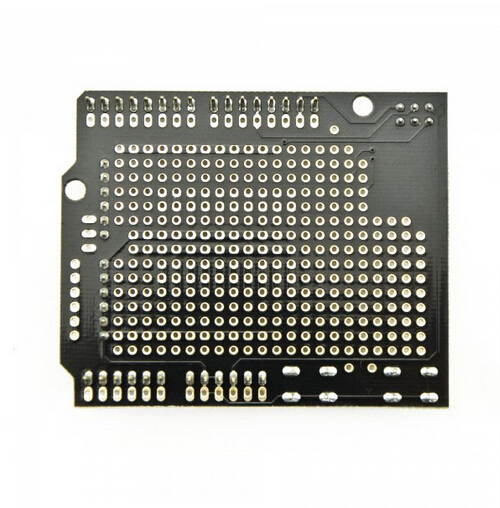

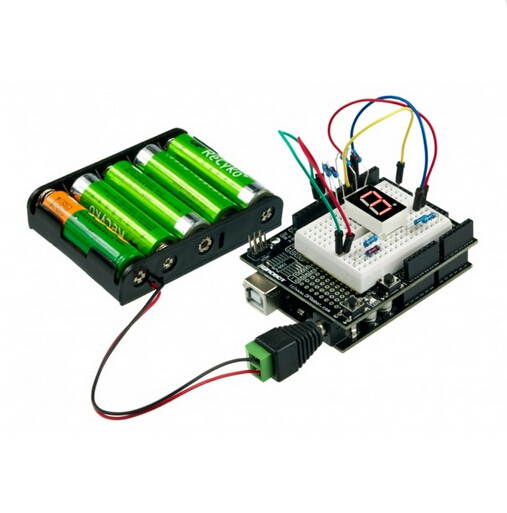

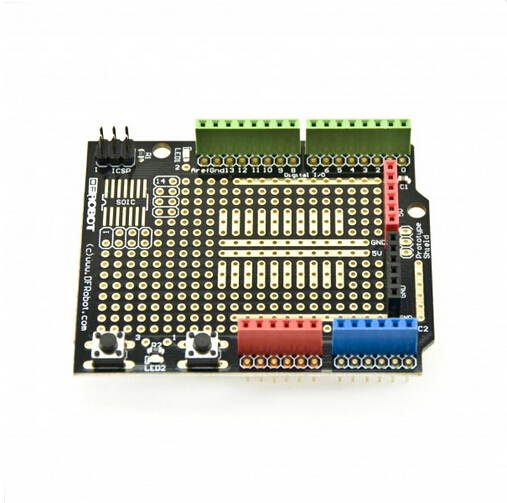

WWH-Prototyping Shield For Arduino
Introduction
This is a design for an open-source prototyping shield for Arduino NG/Diecimila. It has tons of cool features, to make prototyping on your Arduino easy. Shipped with fully assembled.
Features
Reset button up top
ICSP header
Lots of GND and +5V rails
DIP prototyping area makes it easy to add more chips
SOIC prototyping area above USB jack for up to 14-pin SOIC chip, narrow medium or wide package.
A 'mini' breadboard included
Extra 6mm button
Weiweihui Technology Co., Ltd.

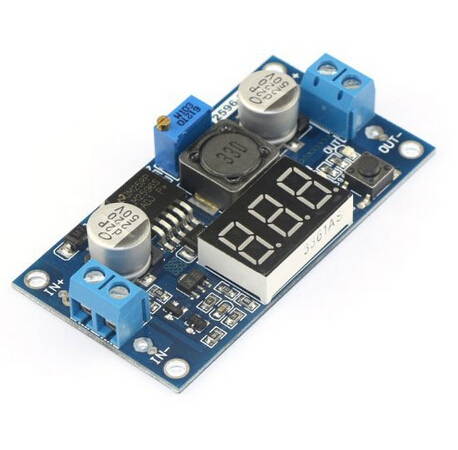

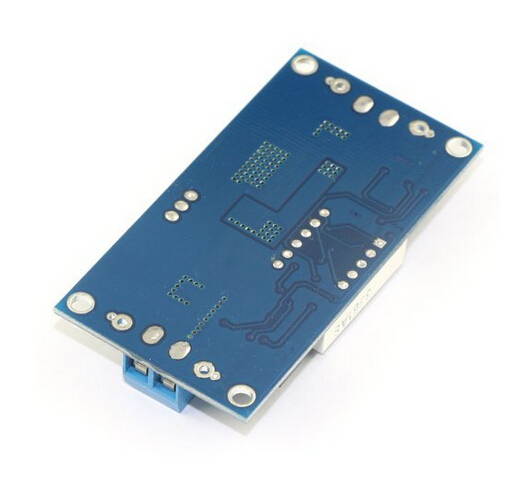

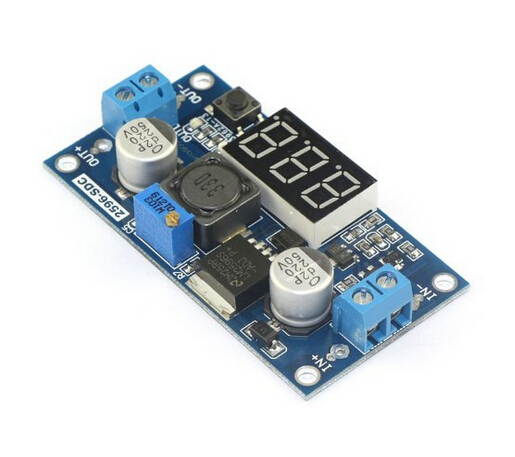

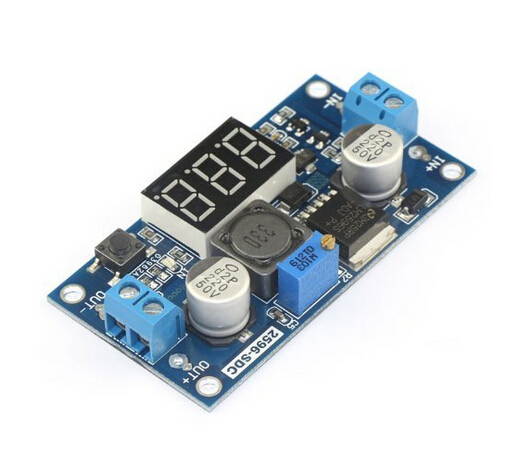

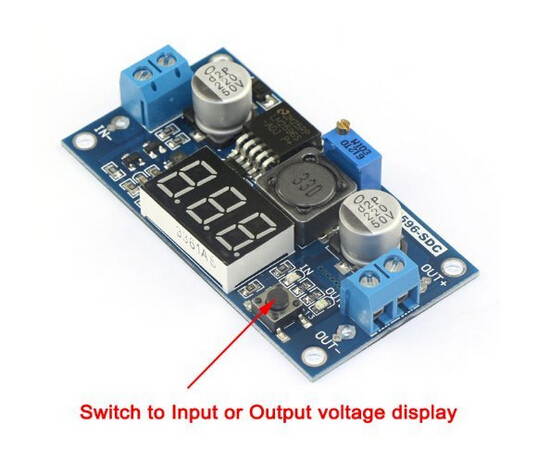

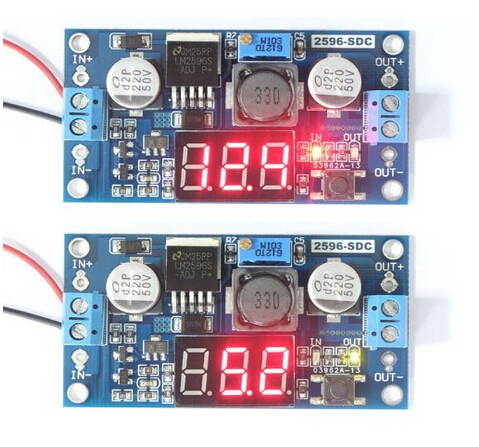

WWH-LM2596 Adjustable 4.0-40V to 1.25-37V 5/12V DC Voltage Regulator Experimental Power Buck Converter with LED Voltmeter
Specific:
Module Model: LM2596 Buck Converter + Voltmeter

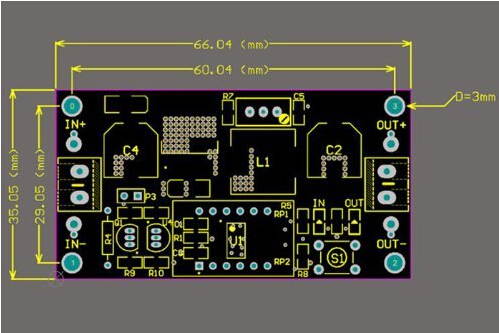

Cutting Size: 66.04mm x 35.05mm
Input Voltage: DC 4.0~40V
Output Voltage: 1.25V~37V (continuously adjustable, the input voltage must be 1V higher than the output voltage)
Output Current: 2A(normal and stable), 3A Max.
Ripple Frequency: About 150Khz
Ripple Peak: About 100mV
Display Color: Red
Voltage Meter Error: ± 0.1V
Measure Range:4~40V (for measure accurately, please ensure that the input voltage is more than 4V)
IN+: Input Postive
IN-: Input Negative
Out+: Output Postive
Out-: Ouput Negative
Features:
A key switch input and output voltage green light: measuring the output voltage red light: measuring the input voltage with terminal and retain the wire bonding wiring point If remove the P3 jumper cap, the voltmeter shutdown Lower Power Consumption (Please refer to the picture for more details.)
Weiweihui Technology Co., Ltd.
WWH-Budaschnozzle 2.0 PTFE Tube for 3mm Filament
Description:
This PTFE tube for 3mm filament is a direct swap or replacement for use on the Budaschnozzle 2.0 hot end.
This part is compatible with the Budaschnozzle 2.0. This part is not compatible with any of the 1.x Budaschnozzle versions.
Weiweihui Technology Co., Ltd.
WWH-GY-86 10DOF MS5611 HMC5883L MPU6050 module MWC flight control sensor module
10DOF modules (three-axis gyroscope axis accelerometer + + + triaxial magnetic pressure)
Immersion Gold PCB technology adoption
Use Chip: MPU6050 + HMC5883L + MS5611
Power supply :3-5v
Communication: IIC communication protocol (fully compatible with 3-5v system, including the LLC circuit)
Size: 2.2cm * 1.7cm
Weiweihui Technology Co., Ltd.

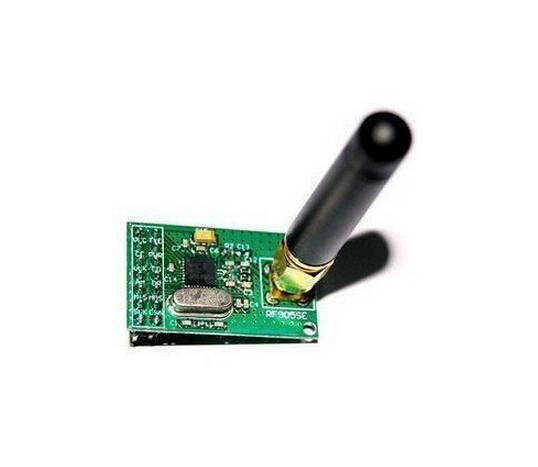

WWH-1pc NRF905 wireless module (PTR8000) wireless transmission 433486915MHz
nRF905 working band: 433/868/915MHzchannel number: 170input voltage: 2.7v to 3.3vMaximum output power: 10dBm1 x NRF905 wireless transmission module(PTR8000+) wireless Transceiver Module
Weiweihui Technology Co., Ltd.
WWH-100pieces DB9 Female / hole Serial Plug RS232 welding head
WWH-100pieces DB9 Female / hole Serial Plug RS232 welding head
Weiweihui Technology Co., Ltd.
WWH-SYB-130 Solderless Breadboard 760 Tie Point PCB Panel 190mm x 45mm x 8mm
Specification:
Product Name : Solderless Breadboard;Model : SYB-130
Color : Offwhite;Size : 190 x 45 x 8mm / 7.5" x 1.8" x 0.3" (L*W*T)
Main Material : Plastic, Electronic Components;Connector Aquantity : 760 Pcs
Net Weight : 94g
Weiweihui Technology Co., Ltd.
WWH- 1set G.t.power FPV Combo 5.8g 250mw A/v Video Audio Microwave Transmitting Module Tx + Receiver Module Rx
- Video Format: Pal/NTSC & nbsp;- Output impedance: 50 Ohm & nbsp;- Output power: 21-23 dBm & nbsp;- Channels: 8 & nbsp;- Transmitter operating voltage: 7.4-12.6 V DC/200mA & nbsp;- Video bandwidth: 0-8.0 MHZ & nbsp;- Audio input impedance: 10K/Ohm & nbsp;- Audio input level: 0.5-2.0 Vp-p & nbsp;- Audiofrequency: 6.5 MHZ & nbsp;- Antenna connector: SMA & nbsp;- Video input level: 0.8-1.2 Vp-p & nbsp;- Video input impedance: 75 Ohm & nbsp;- Dimensions: 55x26x17 mm & nbsp;- Weight: 25 g & nbsp;
Weiweihui Technology Co., Ltd.

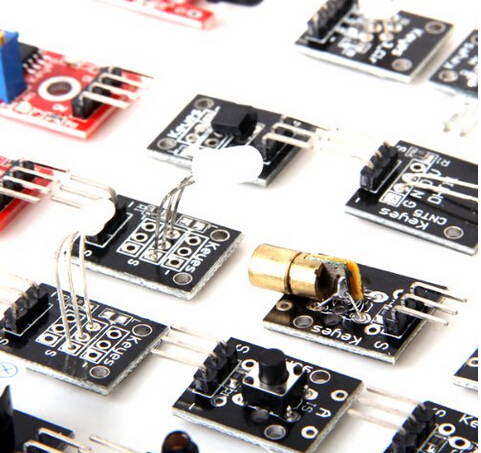

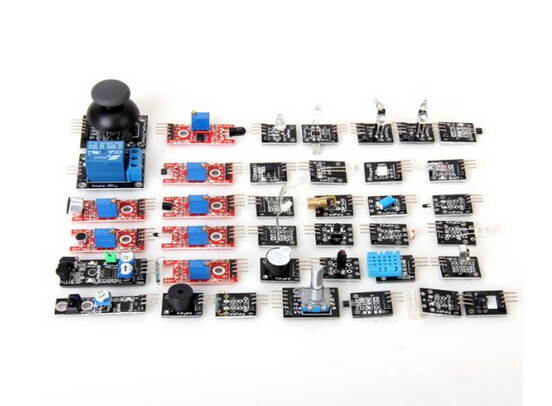

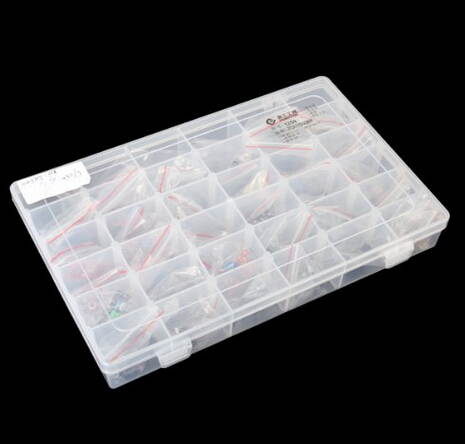

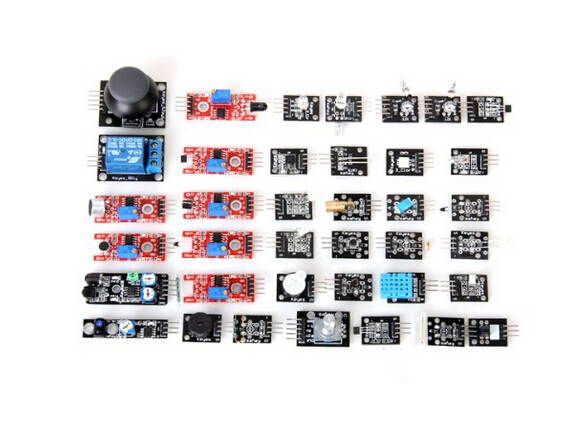

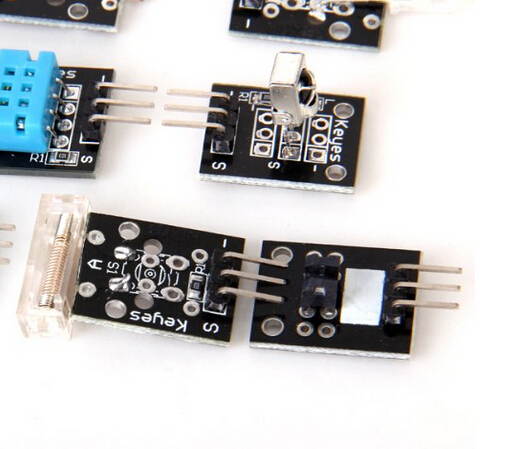

WWH- 37 in 1 Sensor Module Kits compatible with Arduino
Material: Circuit Board
Dimensions: Approx. 0.98 x 0.59 x 0.24 inches (2.5 x 1.5 x 0.6 cm)
Condition: A brand-new, unused, unopened, undamaged item in its original (where packaging is applicable).
All sensors in a nice plastic box, protecting the sensor during transport and makes it easier to store. In the boxing each sensor is packaged in a plastic bag. The overall quality of the sensors is good.
Note: Since the size above is measured by hand, the size of the actual item that may be slightly different from the above size. Meanwhile, please be reminded that due to lighting effects, monitor's brightness / contrast settings etc, there could be some slight differences in the color tone of the pictures and the actual item.
Weiweihui Technology Co., Ltd.
WWH-1pc Passive signal generator 4 ~ 40MHz crystal oscillator
Passive crystal signal generator
1.1 module parameters
Parameter Unit
Passive crystal frequency range of 4 ~ 40 MHz
0.1 ~ 3 Vpp voltage output
Operating voltage 3 ~ 9 v
Size 42 * 22 mm
2.0 P2 Interface: +: positive power supply;
-: Negative power supply;
P1 Interface: pulse oscillator output signal. (RP SMA KE KHD within the outer screw pin female)
Weiweihui Technology Co., Ltd.

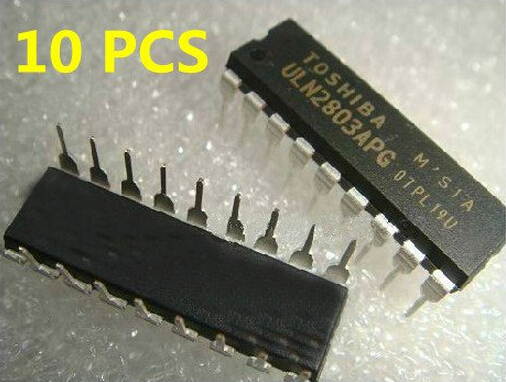

WWH-10pcs TOSHIBA ULN2803APG ULN2803 DARLINGTON ARRAYS DIP-18 IC
Parsts No. : ULN2803APGPackage: DIP18Quantity: 10
Weiweihui Technology Co., Ltd.
WWH-Arduino Wireless Bluetooth Transceiver Module Slave 4Pin Serial
Usage
Bluetooth protocal : Bluetooth Specification v2.0+EDR
Frequency : 2.4GHz ISM band
Modulation : GFSK(Gaussian Frequency Shift Keying)
Emission power : regular work status.
* With build-in reset circuit, reset is completed automatically after powered on.
* Steps to set to MASTER:
* Set PIO11 HIGH with a 10K resistor in between.
* Power on, module comes into AT Command Response Status
* Open HyperTerminal or other serial tool, set the baud rate 38400, 8 data bits, 1 stop bit, no parity bit, no Flow Control
* Via serial port, send characters "AT + ROLE = 1 r n",if successful, return "OK r n", where r n is carriage return.
* Set PIO11 LOW, re-power, then in Master state, automatically search for slave module and connect.
Package List:
1 * Arduino Serial Port Bluetooth Module (Slave)
Weiweihui Technology Co., Ltd.
WWH-10 DOF Mems IMU Sensor
Introduction
At the beginning,the inertial measurement unit is an electronic device that measures and reports on a craft's velocity, orientation, and gravitational forces, using a combination of accelerometers,gyroscopes, and magnetometers. Now IMUs are commonly used in the Human-computer interaction(HCI), navigational purposes and balancing technology used in the Segway Personal Transporter as we all known.
The 10 DOF(degrees of the freedom) sensor is a compact and low cost IMU from DFRobot. It integrates the ADXL345 accelerometer, the HMC5883L magnetometer,the ITG-3205 gyro and the BMP085 barometric pressure sensor. It's suitable for most of the controlling system because of the small dimension. The mounting holes make it possible to provide the highly accurate and stable sensor data.It embeds a low noise LDO regulator for supplying a wide range power input.Works with 3~8 volts power input.Certainly,the 10 DOF sensor is directly compatible with your Arduino boards.
Applications
Aircraft
Balancing robots
Indoor inertial navigation
Altimeter
Human–computer Interaction (HCI)
Specification
Wide power input range from 3 to 8 volts
Low noise LDO regulator
Low cost IMU
Interface: I2C
M3x2 holes for easily mounted on your mobile platforms,robots,HCI or UAVs
LED power indication
Integrate 10 dof sensors
Adxl345 accelerometer
ITG3200 gyro
HMC5883L Compass
BMP085 pressure sensor
Compact size design and easy-to-use
Compatible with Arduino controllers
Electricity gold PCB
Size: 26x18mm
Shipping List
10 Dof Sensor 1unit
4P Pin Headers 1unit
Weiweihui Technology Co., Ltd.
WWH-100pcs Dupont Connector Housing Female 2.54mm 1x10P
Housing, Female, 1x10P
Spacing: 2.54mm
100pcs Dupont Connector Housing Female 2.54mm 1x10P
Weiweihui Technology Co., Ltd.
WWH-Mechanical End Stop Endstop Switch Module V1.2
Description:
The mechanical endstop uses a lever switch to detect when it is activated. The switch is wired up so that when activated, it pulls the signal to LOW. There is also an LED on the board that will light up when the switch is activated.It uses a standard 4 pin .100" pitch header and accepts a standard, old-style CD-ROM audio connector cable.
Package list:
1 x Mechanical Endstop Switch Module
Weiweihui Technology Co., Ltd.

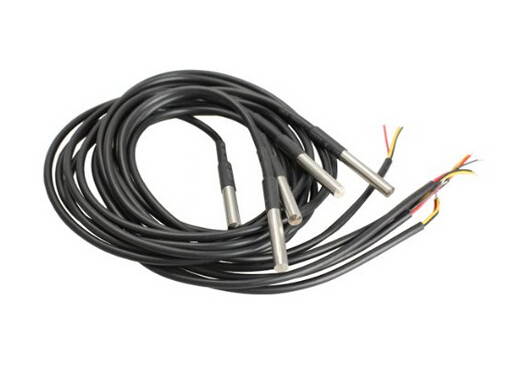

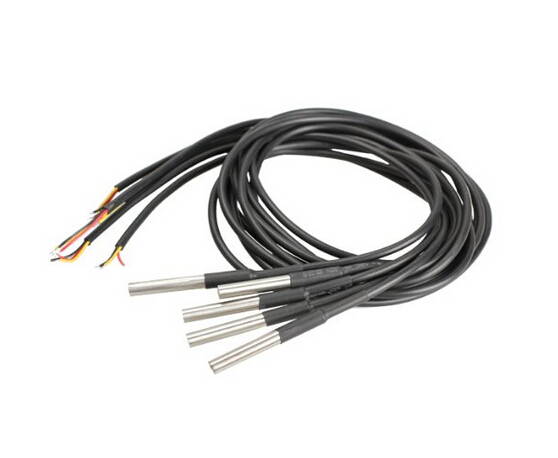

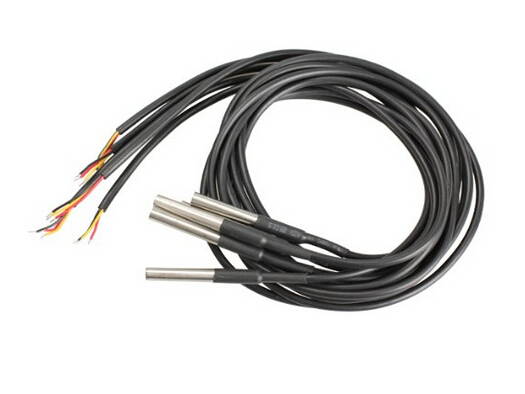

WWH-5pcs 100cm DS18b20 Waterproof Temperature Sensors Temperature Transmitter
9 ~ 12 adjustable resolution
Power supply range:3.0V-5.5V
No other components, unique single bus interface
Output lead:red (VCC), yellow or white (DATA) , black(GND)
able length:Approx.100 cm
Weiweihui Technology Co., Ltd.

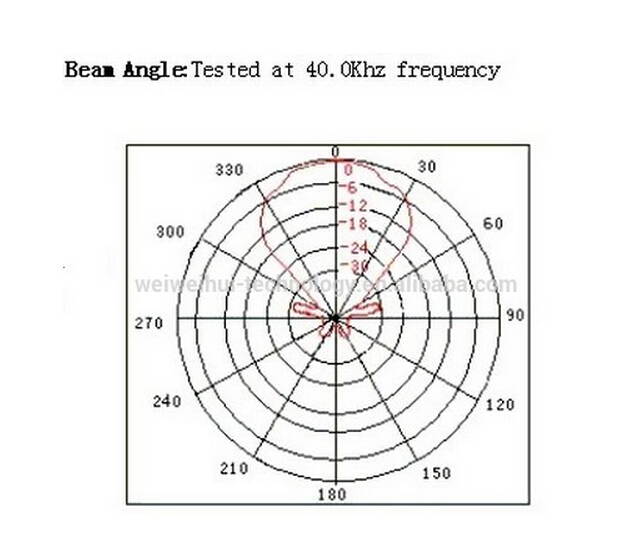

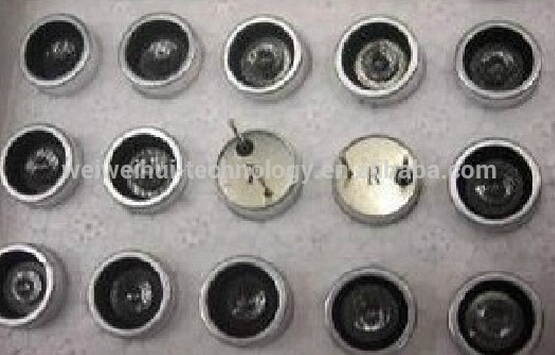

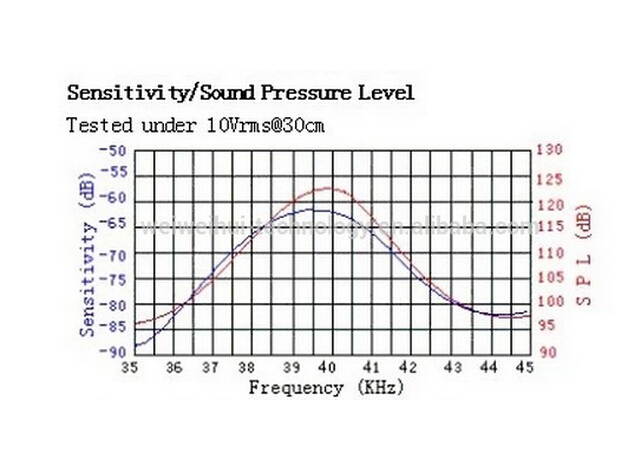

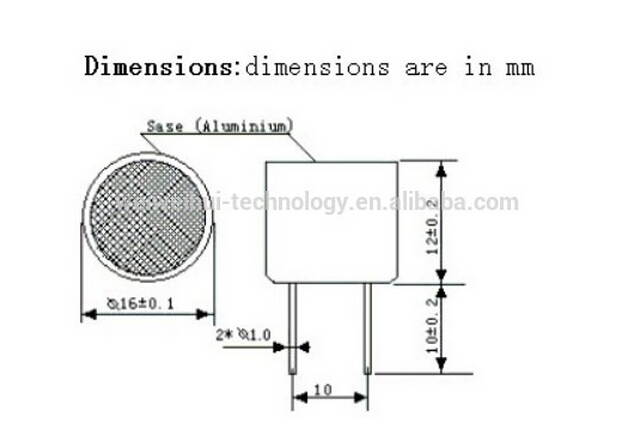

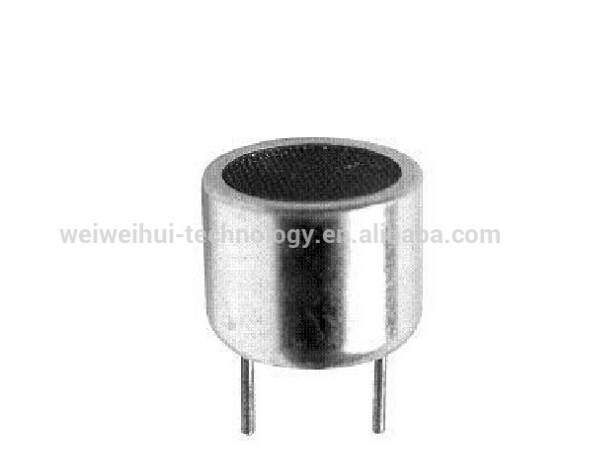

WWH-16MM transmitting and receiving ultrasonic transducer probe ultrasound probe R & T 1pair
Model: TCT40-16R / T (diameter 16mm)
1 nominal frequency (KHz): 40KHz
2 emission sound pressure at10V (0dB = 0.02mPa):. = 117dB
3 receiver sensitivity at40KHz (0dB = V / ubar): =-65dB
4 capacitance at1KHz,
Weiweihui Technology Co., Ltd.
WWH-1pc Fingerprint Scanner - 5V TTL (GT-511C3)
Fingerprint scanners are awesome. Why use a key when you have one right at the tip of your finger? Unfortunately, they're usually unreliable or difficult to implement. Well not anymore! We've found this great fingerprint module from ADH-Tech that communicates over TTL Serial so you can easily embed it into your next project.
The module itself does all of the heavy lifting behind reading and identifying the fingerprints with an on-board optical sensor and 32-bit CPU. All you need to do is send it simple commands. To get started, just register each fingerprint that you want to store by sending the corresponding command and pressing your finger against the reader three times. The fingerprint scanner can store different fingerprints and the database of prints can even be downloaded from the unit and distributed to other modules. As well as the fingerprint "template," the analyzed version of the print, you can also retrieve the image of a fingerprint and even pull raw images from the optical sensor!
This is the updated version of the GT-511 which has an increased memory capacity. The module can store up to 200 different fingerprints (that's 10x more than the old version!) and is now capable of 360° recognition.
The module is small and easy to mount using two mounting tabs on the side of the sensor. The on-board JST-SH connector has four signals: Vcc, GND, Tx, Rx. A compatible JST-SH pigtail can be found in the related items below. Demo software for PC is available in the documents below, simply connect the module to your computer using an FTDI Breakout and start the software to read fingerprints!
Note: The module does not come with a cable, check below for an appropriate one.
Simple UART protocol (Default 9600 baud)
Capable of 1:1 Verification and 1:N Identification
Dimensions: 37 x 17 x 9.5 mm
SHIPPING LIST
Fingerprint Scanner - 5V TTL x1
Weiweihui Technology Co., Ltd.
WWH-10pcs ME-8104 Rotary Plastic Roller Arm Enclosed Limit Switch
Model :ME-8104 Power:AC 250V, 5A DC 115V, 0.4A Fixing Thread Diameter:4mm/0.15" Lever Arm Length :4.6cm / 1.8" Roller Dimension :~1.8 x 0.7cm / 0.7 x 0.3"(D*H) Overall Size:12.3 x 2.8 x 3.9cm/4.8" x 1.1" x 1.5"(L*W*H) Material:Plastic, Metal & amp; Rubber & nbsp;
Weiweihui Technology Co., Ltd.
WWH-SYB-170 Colorful Mini Prototyp Breadboard Experiment 6pcs/pack
Parts NO.: SYB-170
Package :
Quantity : 6 pcs
Electronics Description :
Mini Solderless Breadboard
Tie-point :170
Size: 35x47x8.5mm
Plastic material:ABS
Use: experimental, testing, robot
matching jumper, diameter 0.8mm
Completely Hard Lock Nuts are
The Coloured coordinates for easy the component placement
Phosphor bronze nickel plated spring clips
Accepts a variety of wire sizes (29-20 the AWG)
Features:
can be recycled, recycling
Structure of the color is clear and easy to use
Note:one color on piece
Weiweihui Technology Co., Ltd.
WWH-20pcs Rain Sensor Module Sensitivity Weather Module for Arduino interface
1. Heating voltage 3-5±0.2V (DC) 2. Operating Current 3mA 3. Response time =100mS 4. Detection area ?48MM 5. Output signal High low level signal and analog signal 6. Analog output 0-5V 7. Operating temperature 0-60°C (nominal temperature 20°C) 8. Operating Humidity 95% RH non-condensing (nominal humidity 65% RH) 9. Life 2 years 10. Size module (37mm×13mm×12mm) probe (50mm×50mm×10mm)Packing including:WWH-20pcs Rain Sensor Module Sensitivity Weather Module for Arduino interface
Weiweihui Technology Co., Ltd.
WWH-Soil Hygrometer Detection Module Soil Moisture Sensor Arduino Compatible
This is a simple water sensor ,can be used to detect soil moisture .Module Output is high level when the soil moisture deficit,or output is low.Can be used in module plant waterer device, and the plants in your garden no need people to manage.
Adjustable sensitivity by adjusting the digital potentiometer (shown in blue)
Operating voltage:3.3V~5V
With power indicator (red) and digital switching output indicator (green)
Having LM393 comparator chip, stable
Weiweihui Technology Co., Ltd.
WWH-Triple Axis Accelerometer MMA7361
Introduction
The MMA7361 from Freescale is a very nice sensor with easy analog interface. The MMA7361 is a 3.3V part and outputs an analog voltage for each of the three outputs. This voltage is in ratio to the measured acceleration and to the supply voltage (ratiometric). It has selectable sensitivity by dip switch. You will need some extra hardware to convert this analog signal to a usable digital one. The Arduino is really good option for it. This break board is especially designed for Arduino which has 3 JST connector that can be easily plug into our IO/Sensor expansion board.
Notice:The new version of analog sensor port pin mapping has been changed as the following two features.Please check the tips for changing sensor cable pin mapping while using the I/O Expansion shield. We will continue to update. For the inconvenience caused, please understand.
Applications
Measure the acceleration information for your robot or other devices
Using for slope alarm or other kinds of alarm such as shock
Improvement List
Standard assembling structure (Times-of-5mm Center distance between two 3mm mounting holes)
Easily recognitive interfaces of sensors ("A" for analog and "D" for digital)
Icons to simplely illustrate sensor function
High quality connector
Immersion gold surface
Specification
Voltage:3.3-8V
Selectable sensitivity:±1.5g/6g
Low power:500µA @ measurement mode,3µA @standby ;
High sensivity: 800 mV/g @ 1.5g;
Interface:Analog Output
Low pass filter
Size:26*37mm
Weight: 15 gram
Weiweihui Technology Co., Ltd.
WWH-RS232 To TTL Serial Converter Interface Module Board with Indicator Light Color Blue
RS232 To TTL Serial Converter Interface Module Board With Send & Receive Indicator Light This module can be used to Upgrade on DVD/devices such as router/hard drive, such as STC series program download; communications extension module and can be used
Weiweihui Technology Co., Ltd.
WWH-32 servo controller with offline mode Compatible SSC32 Basic instructions USB
32 servo controller
Operating Current: 31mA
Analog output: 32
Current capacity: each side of the steering control up to 16, the maximum current capacity of 15A, 30A on both sides with a total capacity
Serial Input: USB/TTL232 (Baud Rate: 19200)
Servo Control Resolution: 0.09 ° / 1us (pulse width)
PC board size: 40mmx 50mm
Action Storage: 4KB
AK-32 control instructions Introduction (description):
AK-32 servo controller via serial commands transmitted to achieve PWM outputs to control 32 servos ports
The steering gear is connected to the servo 0 moves to the pulse width 1500us pin position (ie, generally 180 ° steering median).
The steering gear in 10 seconds to move from the original 1500 to 2250 the position corresponding to the position of the pulse width. (Ie timed move)
This directive makes steering pin number 0 from the last 1500uS a position to 2250uS, while steering the 1st pin location moved from 1000uS 750uS. Although two different steering angle turned size, but the two servo steering actions will be completed in one second later. (Synchronous movement)
Weiweihui Technology Co., Ltd.
WWH-10 Pin to Standard 6 Pin Adapter Board For ATMEL AVRISP USBASP STK500
The standard 10PIN AVRISP USBASP STK500 programmer can be used to interface to standard 6PIN Interface
AVR MCU development board can be used to download Interface Converter
Arduino development board can be used for the ISP interface converter
Weiweihui Technology Co., Ltd.
WWH-28YBJ-48 DC 5V 4 Phase 5 Wire Stepper Motor With ULN2003 Driver Board
28YBJ-48 DC 5V 4 Phase 5 Wire Stepper Motor With ULN2003 Driver Board Description: This is 28YBJ-48 DC 5V 4 phase 5 wire stepper motor with ULN2003 driver board 5-wire phase can drive ordinary uln2003 chip can also be connected as phase 2 may be supporting the development board, direct plug, easy to use stepper motor used in the development board If you need English file for this product, please write email to wangzhanxiemeijuan@banggood. cn Motor: Diameter: 28mm Voltage: 5V Step angle: 5.625 x 1/64 Reduction ratio: 1/64 ULN2003 driver board: A, B, C, D LED indication Four-phase stepper motor work status Size: 31x35mm Package included: 1 x ULN2003 driver board 1 x 28BYJ-48 stepper motor
Weiweihui Technology Co., Ltd.
WWH-Analog Sensor Cable For Arduino (10 Pack)
Introduction
The analog sensor cables are especially designed for our popular IO Expansion shield and sensors. It connects most of our analog sensor to the IO board.
This price includes 10 pieces of cables.
Specification
Length:30cm
Maximum voltage:
Weiweihui Technology Co., Ltd.
WWH-GY-30 Digital Optical Modules light intensity sensor module BH1750FVI
Digital light intensity detection module: GY-30
Original BH1750FVI chip using ROHM
Power supply :3-5v
Illumination range :0-65535 lx
Sensor built 16bitAD converter
Direct digital output, omitting complex calculations, calibration is omitted
Does not distinguish between ambient light
Spectral characteristics close to visual sensitivity
Brightness can be a wide range of high-precision measurement lux
Weiweihui Technology Co., Ltd.
WWH-1pc URU4000B Digital Persona Fingerprint Reader USB Biometric Fingerprint Scanner
Supply voltage: 5.0V + / -. 25V USB offers Intake fingerprint: 200mA (typical) Image crawl area: 14.6 mm (center standard width); 18.1 mm (standard length) Scanner Size: about 79mm * 49mm * 19mm Support Windows98, Me, NT 4.0, 2000, XP, Vista, Windows 7, 64 bit and 32 bit Package include: 1 x Fingerprint reader 1 x Software CD
Weiweihui Technology Co., Ltd.
WWH-1pc RC 150A Hight Precision Watt Meter and Power Analyzer w/ Backlight LCD
Specifications:Operates voltage: 4.8V-60VOV with optional auxiliary batteryMeasures:0-150A, resolution 0.01A;0-60V, resolution 0.01v;0-6554W, resolution 0.1w;0-65Ah,resolution 0.001An;0-6441Wh,resolution 0.1Wh;backlit LCD displayPackage size: 13 * 8 * 4cm / 5.1 * 3.1 * 1.6inPackage weight: 127g / 4.5ozPackage list:1 * 150A Watt Meter and Power Analyzer1 * Manual
Weiweihui Technology Co., Ltd.
WWH-5pieces ENC28J60 Ethernet LAN Network Module For 51 AVR STM32 LPC
1, chip board ENC28J60-I/SO 2, the board 25MHZ crystal 3, the network interface board HR911105A 4, 3.3V power supply pin 5, size: 56 (mm) x 34 (mm)
packing list :WWH-5pieces ENC28J60 Ethernet LAN Network Module For 51 AVR STM32 LPC
Weiweihui Technology Co., Ltd.
WWH- DC-DC Converter Module Step up and down In 3.5-28V Out 1.25-26V Adjustable (LM2596S+LM2577S)
Using ICs: LM2596S+LM2577S
Input: 3.5-28V, rate amperage 1A, max 3A
Output: 1.25V-26V, rate amperage 1A, max 3A
Weiweihui Technology Co., Ltd.
WWH-100pieces DB9 core / DB-9 pin male / pin / RS232 connector
WWH-100pieces DB9 core / DB-9 pin male / pin / RS232 connector
Weiweihui Technology Co., Ltd.
WWH-APM2.52 Flight Controller Board
APM is an open source flight control system, it is a multifunction system that can support quadrocopter, as well as aircrafts of fixed -wing, three-axis, 6-axis,8 -axis etc.
APM flight control is a rather mature technique with formidable capabilities: it supports GPS designated cruise and automatic return; supports data transmission to realize the remote receiving of real-time data from the aircraft; supports pan-tilt control technique of professional cameras to ensure anti-vibration aerial photograph; supports peripheral interfaces as airspeed meter and galvanometer to ensure stable flight and low voltage protection of voltage detection in real time.
Features:
1. Adapts PPM decoder chip- Atmega32U2 to take charge of the surveillance and controlling of PWM signal of mode channel so as to switch between manual mode and other modes, thus improving the security of the whole system.
2. The directional data provided by the inertial measurement unit (two-axis gyro and single-axis gyro) and triaxial accelerometer (to measure the speed of three axes and accelerate the speed), cooperating with the three axis magnetometer or GPS can be corrected to realize directional cosine algorithm and calculate the attitude of aircraft.
3. Integrated with MPU6000 (three-axis gyroscope + triaxial accelerometer), MS5611 berometer and HMC5883L three axis electronic compass.
4. Supports data transmission to realize the remote receiving of real-time data from the aircraft
5. Supports pan-tilt control technique of professional cameras to ensure anti-vibration aerial photograph
6. Supports airspeedometer to measure the airspeed of aircraft.
7. Supports airspeedometer to ensure stable flight and low voltage protection of voltage detection in real time.
8. Integrated with 12-bite high-precision AD chip which can convert the analog voltage output by airspeedometer and the temperature output by three-axis gyroscope, triaxial accelerometer and dual-axis gyroscope into digital value.
Package list:
1 x APM2.52 flight controller board
Weiweihui Technology Co., Ltd.
WWH-10 sets M3 * 20 nylon standoffs
Introduction
Suitable for all kinds of circuit boards, sensors, mechanical support of the installation.?
They are great for building a multi-level robot chassis.?
This 10-pack of standoffs includes 10 sets screws and nuts for securing the top of the standoff to your project.
Nylon product has its advantages like less weight and electric insulativity.
Specification
Standoff length:20 mm
Gross weight: 15g
Weiweihui Technology Co., Ltd.
WWH-50pcs GY-521 6DOF MPU6050 Module 3 Axis Gyroscope + Accelerometer for MWC Arduino
Parts NO.: GY-521 MPU-6050 Module
Package : Quantity : 50PCs
Electronics Description :
MPU-6050 modules (three-axis gyroscope + three-axis accelerometer)
Use the chip: MPU-6050
Power supply :3-5v (internal low dropout regulator)
Communication modes: standard IIC communications protocol
Chip built-in 16bit AD converter, 16-bit data output
Gyroscope range: 250 500 1000 2000 / s
Acceleration range: 2 4 8 16g
Immersion Gold PCB machine welding process to ensure quality
Pin pitch 2.54mm
Weiweihui Technology Co., Ltd.
WWH-GY-4988 A4988 3D Printer Driver stepper motor drive module
GY-4988 A4988 3D Printer Driver stepper motor drive module
A4988 is a complete microstepping motor driver with built-in translator for easy operation. The product is available in full, half , 1/4, 1 / 8 and 1 /16 step mode to operate bipolar stepper motors of an output drive capability of up to 35 V and ± 2 A. A4988 includes a fixed off-time current regulator , the regulator can operate in slow or mixed decay modes. Converter is easy to implement key A4988 . Just enter a pulse in the "step" input drives the motor to produce micro-step . Without the need for phase sequence tables, high frequency control lines, or complex interfaces to program . A4988 interface is ideal for complex microprocessor is unavailable or overloaded applications.
In the micro-step operation, the chopper control A4988 automatically selects within the current decay mode ( slow or mixed ) . In mixed decay mode , the device is initially set to a fixed part of the rapid decay in downtime and slow decay for the remainder of downtime. Mixed decay current control scheme results in reduced audible motor noise, increased step accuracy, and reduced power consumption. Internal synchronous rectification control circuitry provides to improve the pulse-width modulation (PWM) operation power consumption. Internal circuit protection includes : thermal shutdown with hysteresis , undervoltage lockout (UVLO) and crossover current protection . Special power sequencing.
Feature
Low RDS ( ON) outputs
Automatic current decay mode detection / selection
Mixed with slow current decay mode
Synchronous rectification for low power dissipation
Internal UVLO
Crossover current protection
3.3 and 5 V compatible logic supply
Thermal shutdown circuit
Ground short circuit protection
Load short-circuit protection
Step five selectable modes: full , 1/ 2, 1 / 4, 1 / 8 and 1/ 16
Weiweihui Technology Co., Ltd.
WWH-Serial port module RS232 to TTL module (with transceiver indicator)
Serial port module RS232 to TTL module (with transceiver indicator)
1,2 --- VCC (3.3V or 5V)
3,4 --- data transmission (TX)
5,6 --- Data Receive (RX)
7,8 --- GND
Note: P1 Interface
Two 4-pin
Pin
Features the same!
shipping list :1*WWH-Serial port module RS232 to TTL module (with transceiver indicator)
Weiweihui Technology Co., Ltd.
WWH-3D Printer Smart Adapter for Sanguinololu Board
Description:
This adapter is for Sanguinololu Board Smart Controller LCD 2004 & LCD 12864. You can easy connect it to your Sanguinololu Board using this "smart adapter". After connecting the panel to your Sanguinololu Board you can print your 3D designs without PC, just with a g-code design stored on the SD card.
Package list:
1 x Smart Adapter for Sanguinololu Board
Weiweihui Technology Co., Ltd.
WWH-10pcs DS18B20 Wire Digital Temperature Sensor IC
Dallas Semiconductor/Maxim DS18B20 digital temperature sensor IC, 10 pack
Weiweihui Technology Co., Ltd.
WWH-10Pieces Test clip with pin connection for equipment testing green
Metal material:COPPER,Stainless Steel
Insulator material:PA
Surface:Gold plated
Rated voltage/current:30Vac-60Vdc/Max.2A,
Connect method:L:25cm wire with 0.6mm terminals on both ends
Application scope:the accessories of Circuit tester,Logic analyzer,Oscilloscope
Product features:
1.Pure copper and stainless steel gold plated can win the lower contact resistance and close contact
2.super elasticity and clamping force,PA housing can insure to use thousands of times
Weiweihui Technology Co., Ltd.
WWH-Beetle (1Pc)
INTRODUCTION
The new generation "Beetle" controller derives its core notion from minimalism without compromising functionality. It comes with Atmel AtMega32u4 (datasheet) @16MHz clock time and has expanded amounts of interfaces: 10 digital pins, 5 analog pins and 4 pwn pins. To further make it user-friendly, it is compatible with Micro USB so that direct programming and testing is no longer a headache. Select "Arduino Leonardo (tools >board > Arduino Leonardo in Arduino IDE), the ATmega32U4 comes preburned with a bootloader that allows you to upload any new code that is applicable to Arduino Leonardo.
As a minimalized version of Arduino Leonardo, it enjoys similar powerful functionalities. Beetle aims to solve problems of low-cost controller, ease-of-using properly, and to provide a low cost solution for disposable projects, such as DIY projects, workshops, gift projects, E-Textiles and educational. For students and makers who can not afford too much on hardware purchasing, Beetle can be a great solution for them.
left to right: DFRduino Leonardo, Nano, Nova and Beetle
FEATURES
20mm X 22mm compact size
Direct downloading and testing via Micro USB
V-shaped large-size gold-plated IO ports make it convenient for the user to twist wires upon, and can also be directly sewn on clothes with conductive thread.
Two honeycomb shape gold-plated power interface
Magic light blue soft BLINK indicator
SPECIFICATION
Microcontroller: ATmega32u4
Clock Speed: 16 MHz
Operating Voltage: 5V DC
Digital I/O Pins: 10
PWM Channels: 4
Analog Input Channels: 5
UART: 1
I2C: 1
Micro USB: 1
Power Ports: 2
Flash Memory: 32 KB of which 4KB used by bootloader
SRAM: 2.5 KB
EEPROM: 1 KB
SHIPPING LIST
Beetle x1
Weiweihui Technology Co., Ltd.
WWH-1pc DHT22 Temperature and Humidity Sensor
DHT22 is a compound digital temperature and humidity sensor which outputs calibrated digital signals. Thanks to the dedicated digital module acquisition technology and temperature and humidity sensing technology applied to the module, DHT22 comes with very high reliability and excellent long-term stability.
DHT22 includes a capacitive moisture sensor and a NTC temperature measuring element which is connected to a high-performance 8-bit microcontroller, resulting an excellent quality, super fast response time, strong anti-interference ability and extremely cost-efficient.
Compared with SHT10 temperature and humiditiy sensor, DHT22 enjoys a higher precision and lower price, making it an ideal choice for mid price range, high performance temperature & humidity sensors.
If used together with Arduino expansion boards, you'll easily get interactives of correlation between temperature and humidity perception.
Note: DHT22 digital temperature and humidity sensor is designed for analog sensor interfaces. The analog interface is used as a digital one which will not occupy other digital interfaces on the Arduino. You can also use the analog-to-digital-converting cable to connect DHT22 to digital interfaces.
Humidity Response Rime: condition: 1/e(63%)25?, 1m/s in the air
Weiweihui Technology Co., Ltd.
WWH-RS232 to terminals Serial terminal DB9 to terminal DB9 connector Female
Module Uses: DB9 adapter terminals to facilitate the project, site commissioning equipment.
Board size: 4.0cm * 3.1cm
Shipping list:
1*DB9 connector
Weiweihui Technology Co., Ltd.
WWH-5Pieces Test clip with pin connection for equipment testing blue
Metal material:COPPER,Stainless Steel
Insulator material:PA
Surface:Gold plated
Rated voltage/current:30Vac-60Vdc/Max.2A,
Connect method:L:25cm wire with 0.6mm terminals on both ends
Application scope:the accessories of Circuit tester,Logic analyzer,Oscilloscope
Product features:
1.Pure copper and stainless steel gold plated can win the lower contact resistance and close contact
2.super elasticity and clamping force,PA housing can insure to use thousands of times
Weiweihui Technology Co., Ltd.
WWH-1pc C3-400 Access Controller / Access control panel access control / Four door one way controller fire linkage
Network function: · Adopt a true dual Ethernet plus RS485 industrial bus communication technology to ensure the reliability of communication. Alarm function: · Access Controller with multiple auxiliary input / output interface, auxiliary input interface can be connected to the alarm front-end devices, you can start the associated auxiliary relay linkage set alarm equipment. Safety features: · Controller built-in hardware watchdog, to prevent crashes. · Controller power input with over-current, overvoltage, reverse voltage protection. · The power supplied to the reader with overcurrent protection. · The power supplied to the electric lock with overcurrent protection. • All input / output ports with instant overvoltage protection. • Communication port has an instant overvoltage protection. Accessibility: · Provide development kits for secondary development, our products integrate seamlessly into your desired system. · Provide software and hardware OEM / ODM production or custom develop. Technical parameters: · Power supply: Rated voltage 12V (± 20%) DC, rated current = 0.5A. · Operating environment: Temperature 0 ? ~ 55 ?, Humidity 10 ~ 80%. · Output load parameters: Operating voltage AC = 30V, rated current = 8A; DC = 36V, rated current = 5A. · Reader Interface: Provides a TTL level signal, 12V DC, 500mA reading sensor power supply. · Connect the card reader cable: 6-core shielded cable, 24AWG, up to 100 meters. · C-type electric lock relay output terminals, 10A contact current, 12V DC, with LED status indication. • The auxiliary relay output terminals, 2A contact current, 30VDC, with LED status indication. · Adopt removable terminals, non-magnetic steel flange material. · Control PCB board Dimensions: C3-400: 218mm (length) * 106mm (width). · Control PCB board mounting hole dimensions: C3-400: 203.2mm (length) * 106mm (width). · Carton size: 345mm x 275mm x 70mm.
Weiweihui Technology Co., Ltd.
WWH-1pc 51 AVR ISP Downloader USBASP USBISP 3.3V / 5V AVR Programmer USB ATMEGA8
On-board ATMega8(L) chipWith power and program the two indicators.On-board over-current protection.Support 5V and 3.3V power supply to the target board.
Weiweihui Technology Co., Ltd.
WWH-5 pcs CD4017 HCF4017 C-MOS Decimal Counter/Divider IC DIP 16
HCF4017BE / CD4017 DIP-16PIN IC NEW (J75)CD4017 HCF4017 CD4017BE CD4017 HCF4017BE HEF4017BPWWH-5 pcs CD4017 HCF4017 C-MOS Decimal Counter/Divider IC DIP 16
Weiweihui Technology Co., Ltd.
WWH-USB Blaster programmer Mini Altera FPGA CPLD cable
CPLD: MAX3000, MAX7000, MAX9000, MAXII... FPGA: Stratix, StratixII, StratixIII, StratixIV, Cyclone, CycloneII, CycloneIII, CycloneIV, ACES1K, APEX20k, FLEX10K.. Active serial configuration device: EPCS1, EPCS4, EPCS16, EPCS64... Enhanced configuration device: EPC1, EPC4... Support AS, PS and JTAG mode Support SignalTap II embeded logic analyzer Support NIOS II debug* USB interface Support Quartus II 4.0 and above version Support Windows XP, windows Vista, Windows 7 and linux. Shipping list: 1 pcs Mini USB BLASTER Programmer 1 pcs 10-Pin JTAG Connection Cable 1pcs USB cable
Weiweihui Technology Co., Ltd.
WWH-1pc LA2016 logic analyzer usb oscilloscope 16 full channel sampling rate 200M and 100M PWM output
WWH-1pc LA2016 logic analyzer usb oscilloscope 16 full channel sampling rate 200M and 100M PWM output
Weiweihui Technology Co., Ltd.
