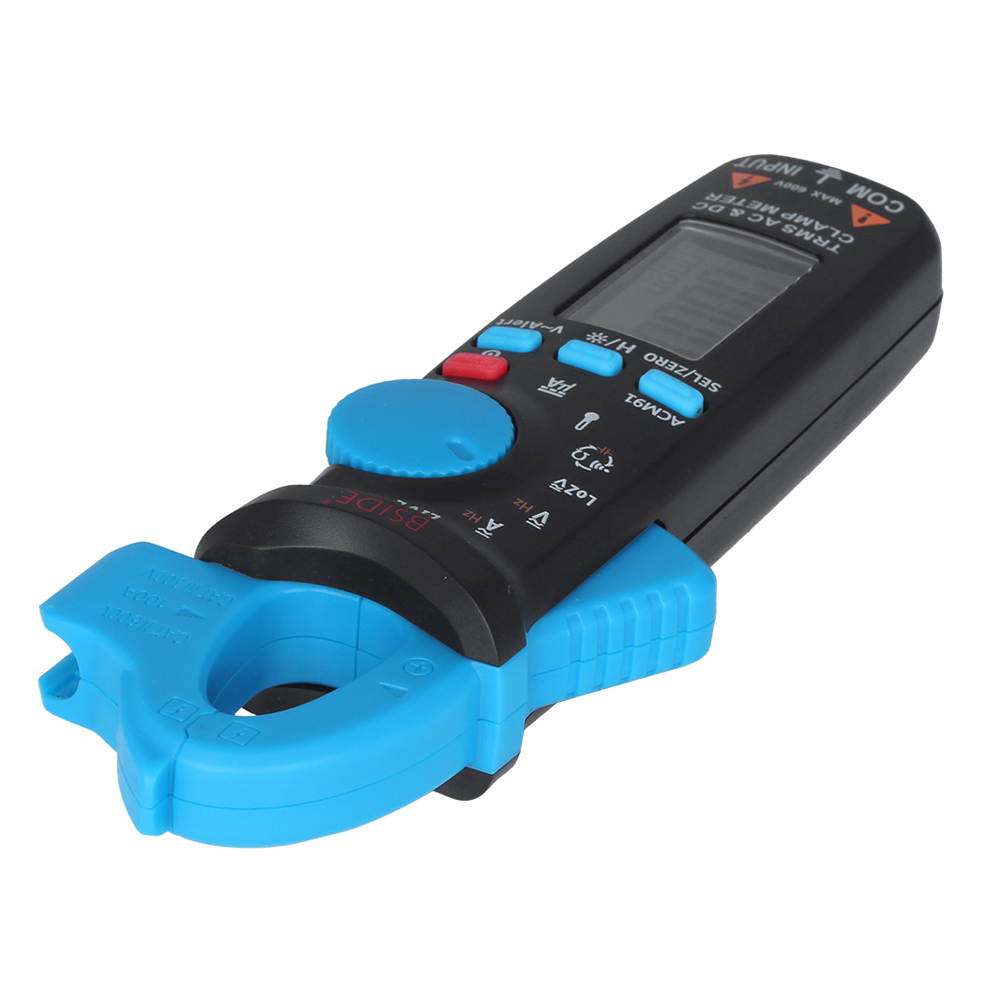

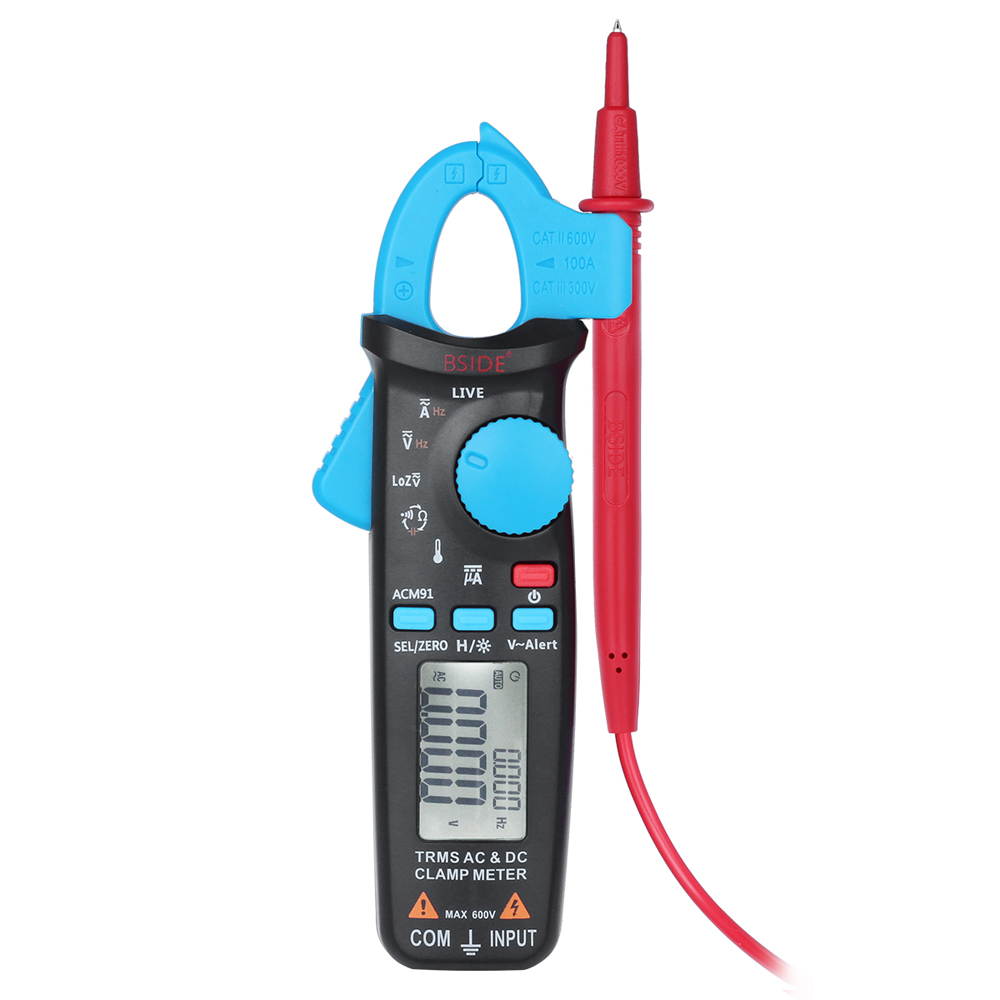

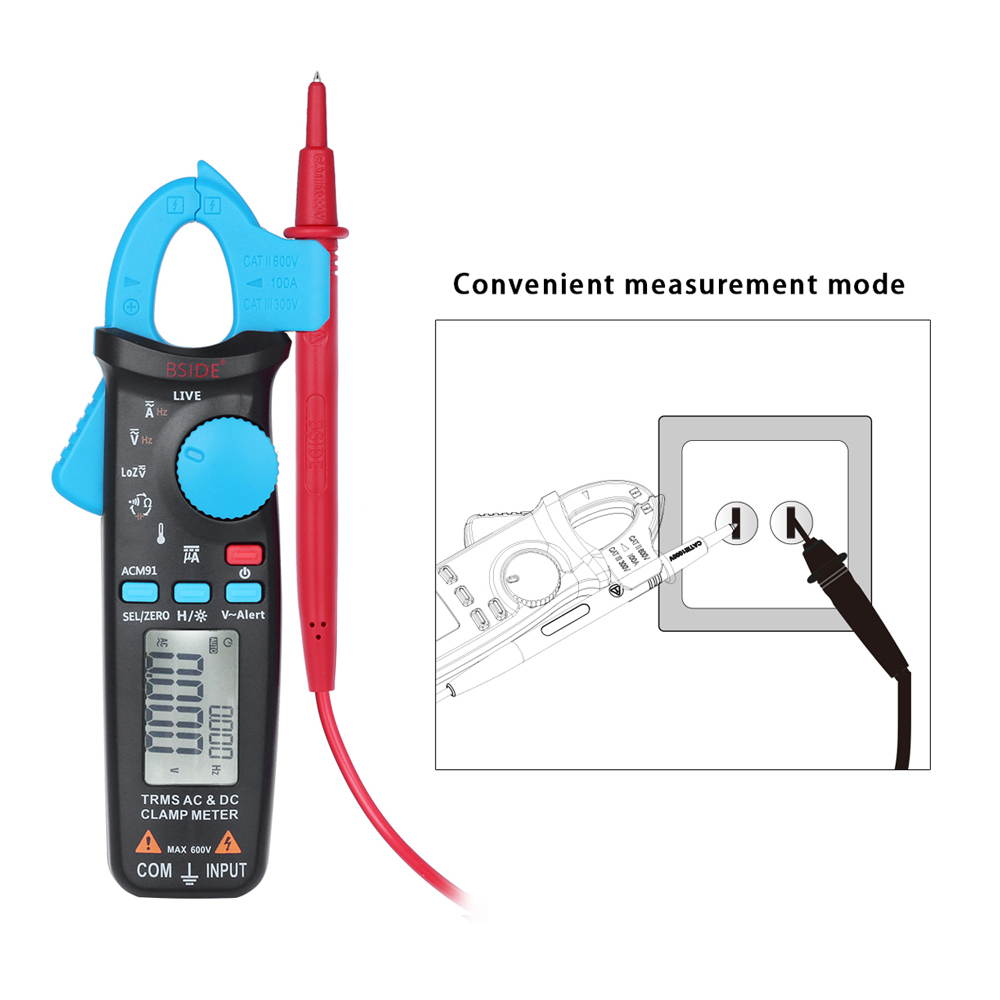

This clamp meter is a professional meter that measures AC/DC voltage/current, resistance, capacitance, frequency, temperature, continuity and live wire. This meter is suitable for professional users or amateurs, and perfect for field, laboratory, shop and home applications.
Features: Maximum
display value:
6000. With auto range control, convenient to use. LCD display with backlight, convenient to operate and read. Can measure AC/DC voltage/current, resistance, capacitance, frequency, temperature, continuity and live wire. V-Alert testwith warning alarm function and Loz low impedance voltage test. Can test the temperature with unit of C / F. Includes data hold, low battery indication, and auto power off functions. Equipped with a rear hook for supporting multimeter and also a slot for collecting test probe. Protected by a bag, portable to carry. Suitable for electrical equipment testing and maintenance.
Specifications:

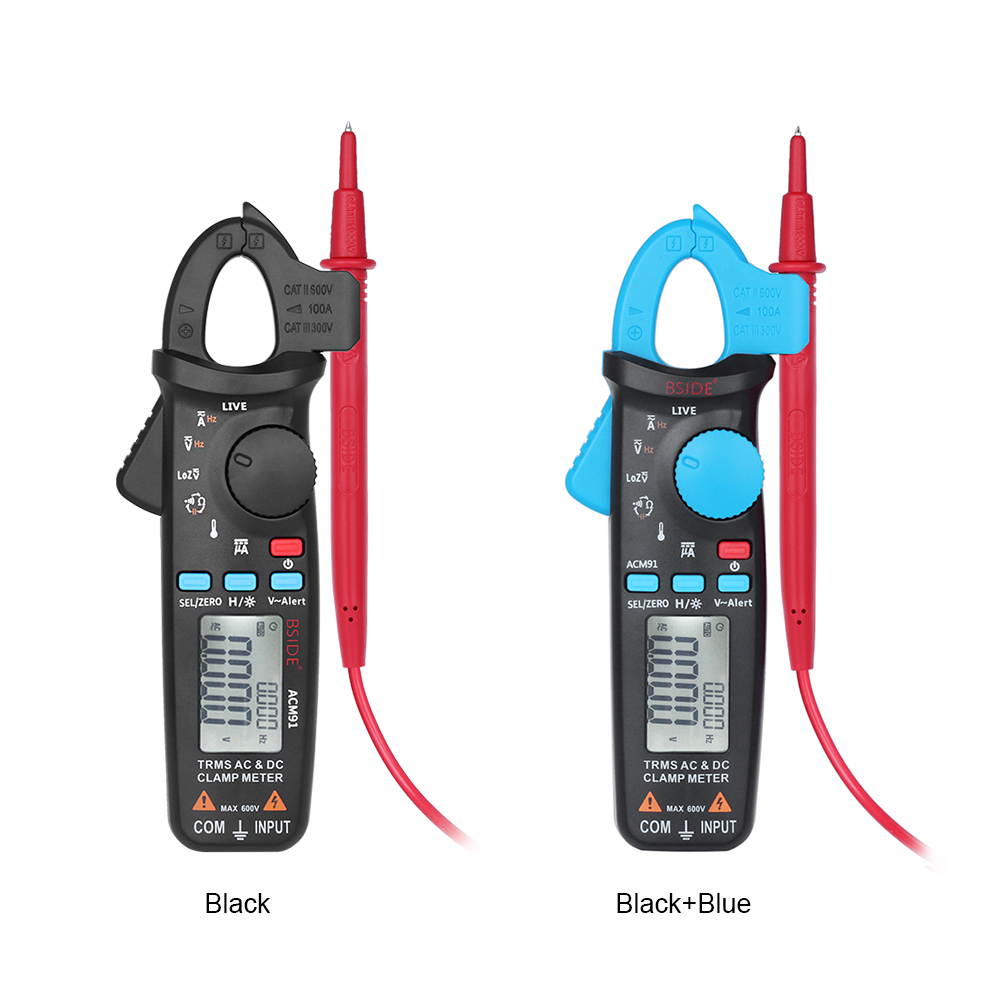

Color: Grey +
Blue Material: ABS Max.
Display Value: 6000
Range Control: Auto Range
DC Voltage: 6V/60V/600V
AC Voltage: 6V/60V/600V
DC Current: 6A/60A/100A
AC Current: 6A/60A/100A
Resistance: 600O/6KO/60KO/600KO/6MO/60MO
Capacitance: 600µF/6000µF
Frequency: 60Hz/1000Hz
Temperature: -20~500C / -4~932F
Continuity Buzzer: Yes
Sampling Rate: 3 times/s
Altitude: 0~2000m AC
Frequency Response: Current(50-60)Hz/Voltage(45-1000)Hz Auto
Power Off: about 20mins
Power Supply: 2 * 1.5V AAA
Batteries (NOT Included) Operating Temperature: 0~40C(32~104F), relative
humidity: 75%
Storage Temperature: -10~50C(14~122F), relative
humidity: 75%

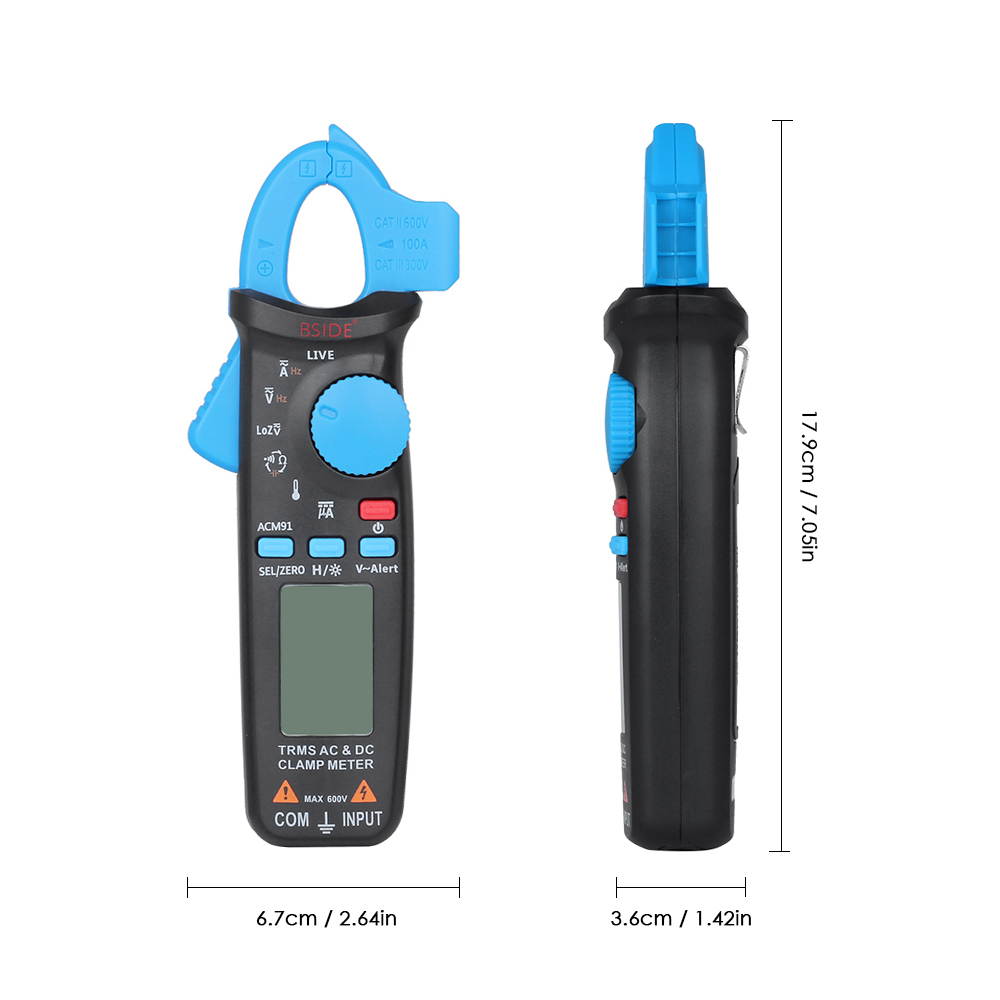

Item Size: Approx. 17.9 * 6.7 * 3.6 cm / 7.05 * 2.64 * 1.42 in
Item Weight: Approx. 137g / 4.83 oz (Without Battery)
Package Size: Approx. 20.5 * 8.5 * 5.5 cm / 8.07 * 3.35 * 2.17 in
Package Weight: Approx. 333g / 11.75 oz
Package List: 1 * Clamp Meter 1 * Pair of Test Leads 1 * Pair of Temperature Probes 1 * Carry Bag 1 * User Manual (English)
