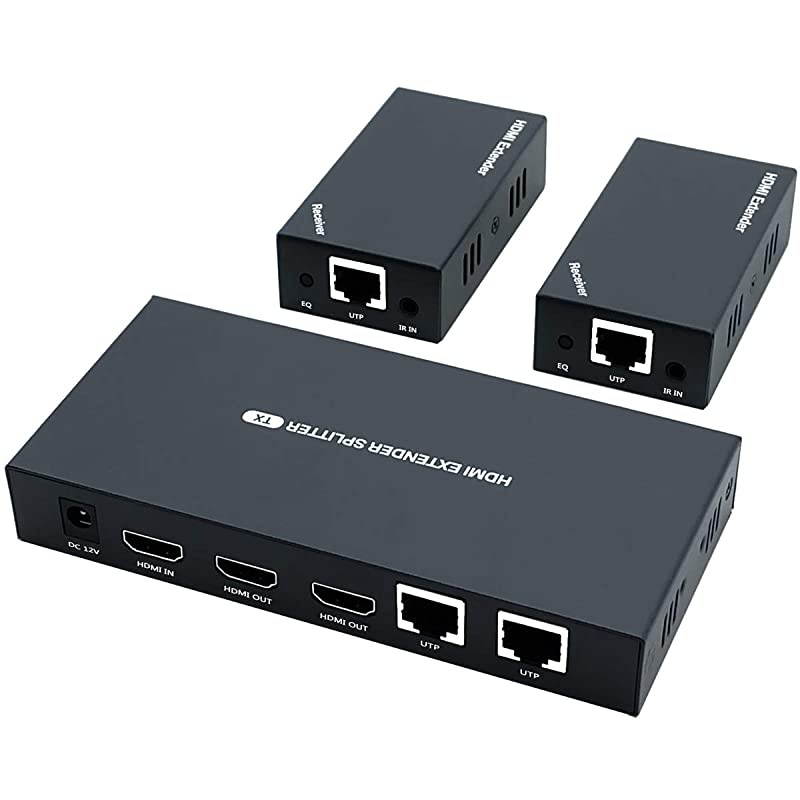

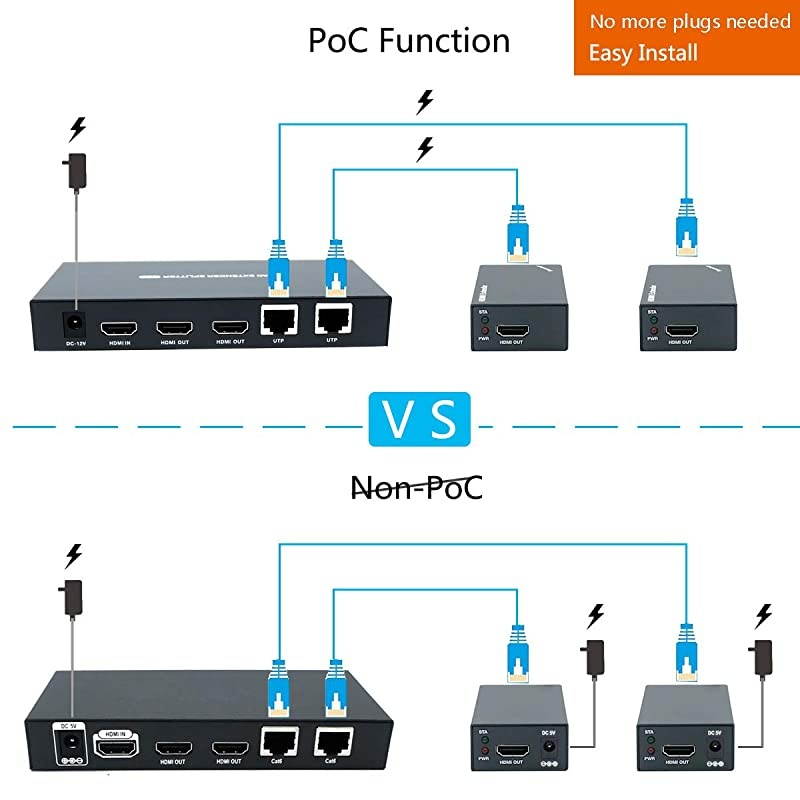

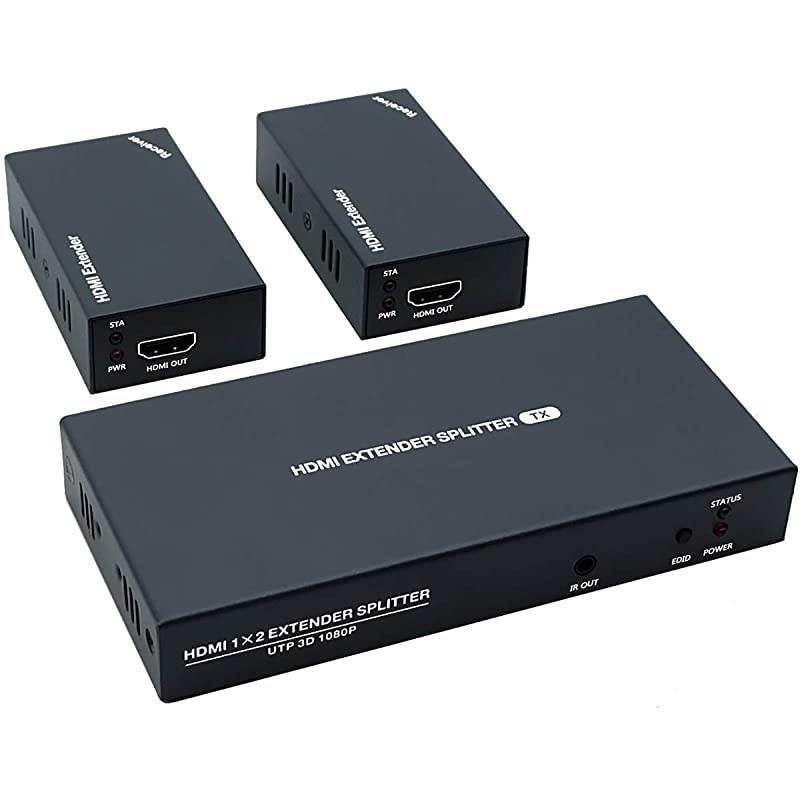

Extender Splitter with IR 1x2 1080P Over Ethernet Cable Cat 5E67 Up to 50m 165ft Support 2 loopout EDID Copy POC Function 1 in 2 Out

Length: 1x2 IR 1080P 164ftEXTENDER/SPLITTER
Change the mode of audio and video signals for longer distance transmission, IN --- CAT X --- OUT. 2-channel simultaneous transmission.

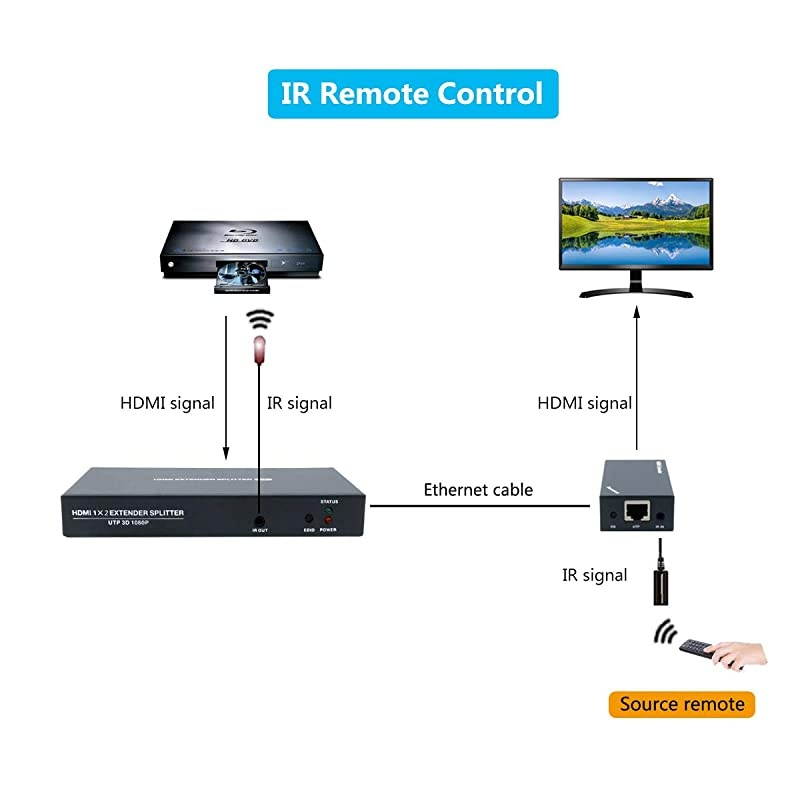

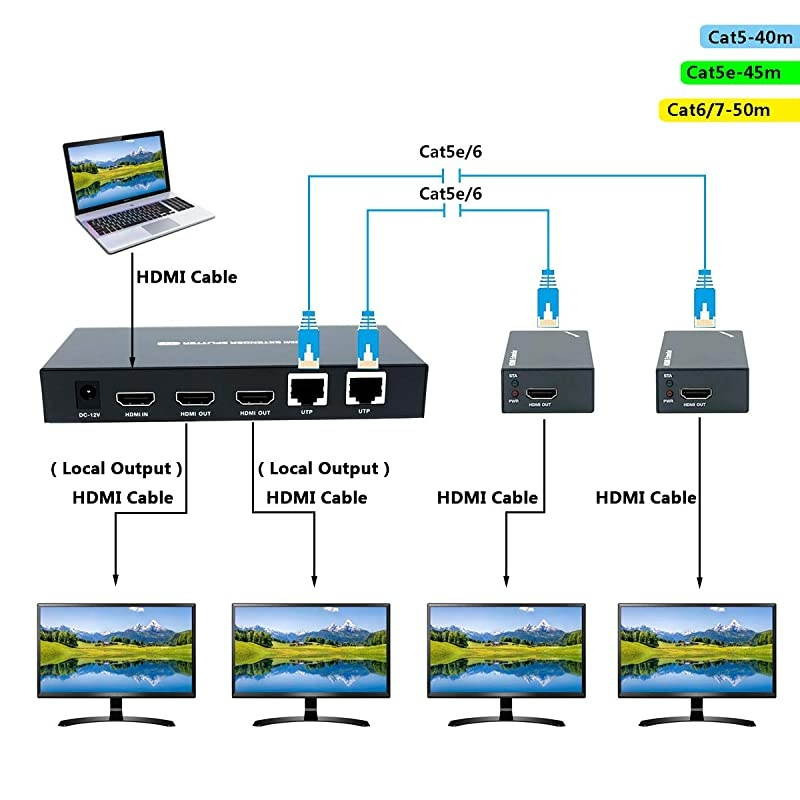

Specifications: 1. Video Standards--- 1.3; HDCP 1.2 Maximum pixel clock---165MHz Maximum data rate--- 6.75G bps Resolution---1920X1080@60Hz, 3D Connector----A Impedance---1002. Ethernet Interface---RJ45 Transmission distance---CAT6---50m/164ft; CAT5E---40m/130ft; CAT5-30m/100ft. When the Ethernet cable is between 1~10 feet, it may have no image, please try another longer cable. 3. IR Interface--- 3.5 mm IR frequency---20~60KHz4.
Others Power supply---Input: 110~220V;
Output: 12V Power dissipation---MAX 12W
Temperature---Operating: -5 ~ +70
Humidity---Operating: 5% ~ 90%
Dimension---TX: 150*71*23mm /

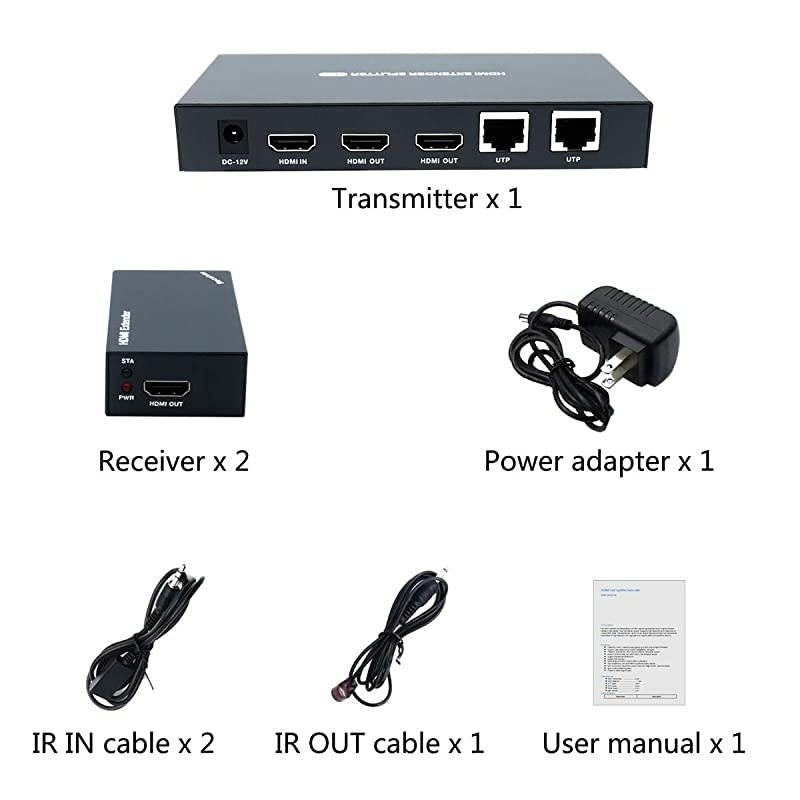

RX: 81*45*23 The warranty---1 year free warranty5. Packing list transmitter---1 pcs receiver---2 pcs IR TX cable---1 pcs IR RX cable---2 pcs Power adapter---1 pcs User manual---1 pcsAbout EDID
When the EDID cannot automatically identify the monitor parameters, the image may not be displayed, please perform the following steps. (1) Connect the monitor to the IN on transmitter. (2) Connect the power supply to transmitter. (3) Press and hold the EDID button for 3-5 seconds. The green light on transmitter side stops flashing, indicating EDID copy is complete. Last but not least, if the signal loss or unstable, it may be caused by Ethernet cable compatibility, please adjust the EQ button on the receiver (RX), press and hold for one second and release. If have any product problems, please feel free to contact us via.
