Hall Research ULTRA-4K-S Dual UHD HDMI & USB 2.0 Extender w/3-Yr Warranty

Hall Research ULTRA-4K-R Dual UHD HDMI and USB 2.0 Extender with 3-Port Splitter Sender is comprised of the ULTRA-4K-S Sender and the ULTRA-4K-R Receiver. The system is used to extend USB 2.0 and dual display HDMI video (with resolutions up to 4K UHD) to one or more remote locations up to a maximum distance of 100m (328ft) over a single CAT5e/CAT6 cable.

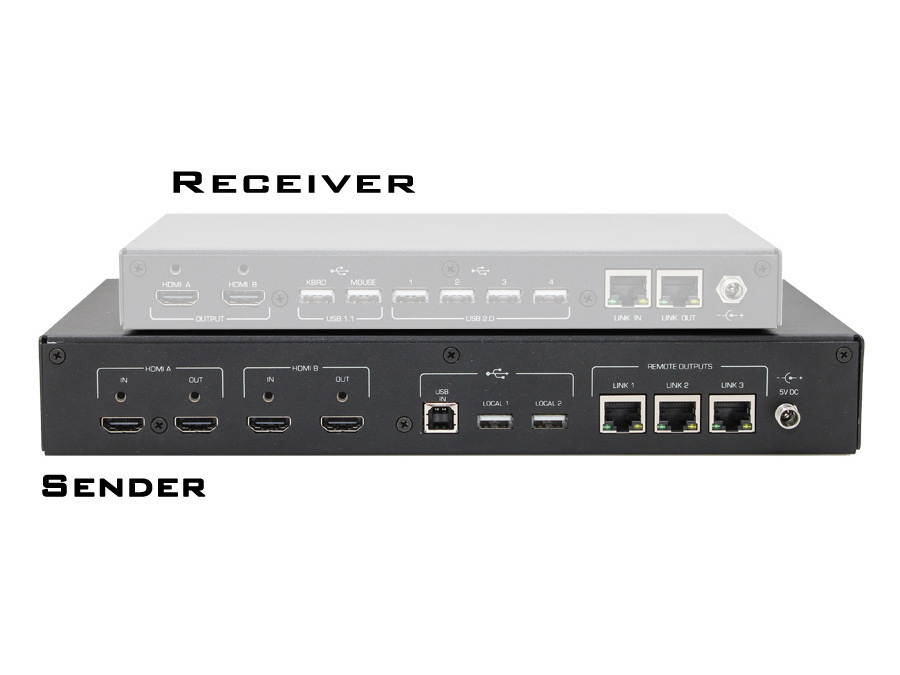

The Sender features two HDMI inputs and one USB input. It has two HDMI outputs (corresponding to the two HDMI inputs) and two USB outputs for local control of the PC. Additionally, there are three separate RJ45 output ports to extend video and control to multiple remote locations simultaneously.

The Receiver provides two HDMI outputs and 6 USB ports. Two of the USB ports are dedicated for use with keyboard and mouse. When more than one Receiver is present, the keyboard and mouse ports work seamlessly among the Receivers on a first-come, first-served basis (autoswitching based on keyboard or mouse activity). You can use either the Keyboard or the Mouse port on the Receiver to connect a KVM switch (for keyboard and mouse data).

Hall Research ULTRA-4K-S Dual UHD HDMI and USB 2.0 Extender with 3-Port Splitter Sender Features:

• Supports high resolution HDMI video including FHD (1920x1080), WQHD (2560x1440), and 4K UHD (3840x2160)
• Two video heads and one USB port extended over a single CAT5e/CAT6 cable up to 100m/328ft
• Full plug-and-play support with USB keyboard, mouse, and connected peripherals
• Computer OS independent - No driver or software required
• Local HDMI and USB outputs at Sender
• Three Sender extension outputs and one Receiver daisy-chain output to distribute video to multiple locations
• No video calibration required; no video quality reduction due to cable length or type
• Locking power supply connector to prevent inadvertent disconnection
• Sender includes mounting ears for standard 19” rack; Receiver includes mounting brackets for surface-mounting.
