Model |
B7-10510U-8G128G |
Part Number |
B7-10510U-8G128G |
Form Factor |
Mini PC |
Colors |
Black |
Monitor |
Monitor not included |
CPU Type |
Intel Core i7 |
CPU Speed |
1.80 GHz |
GPU/VGA Type |
Intel UHD Graphics 630 |
Memory Capacity |
8 GB DDR4 |
SSD |
128 GB |
HDD |
No |
Screen Size |
No Screen |
LAN Speed |
10/100/1000Mbps |

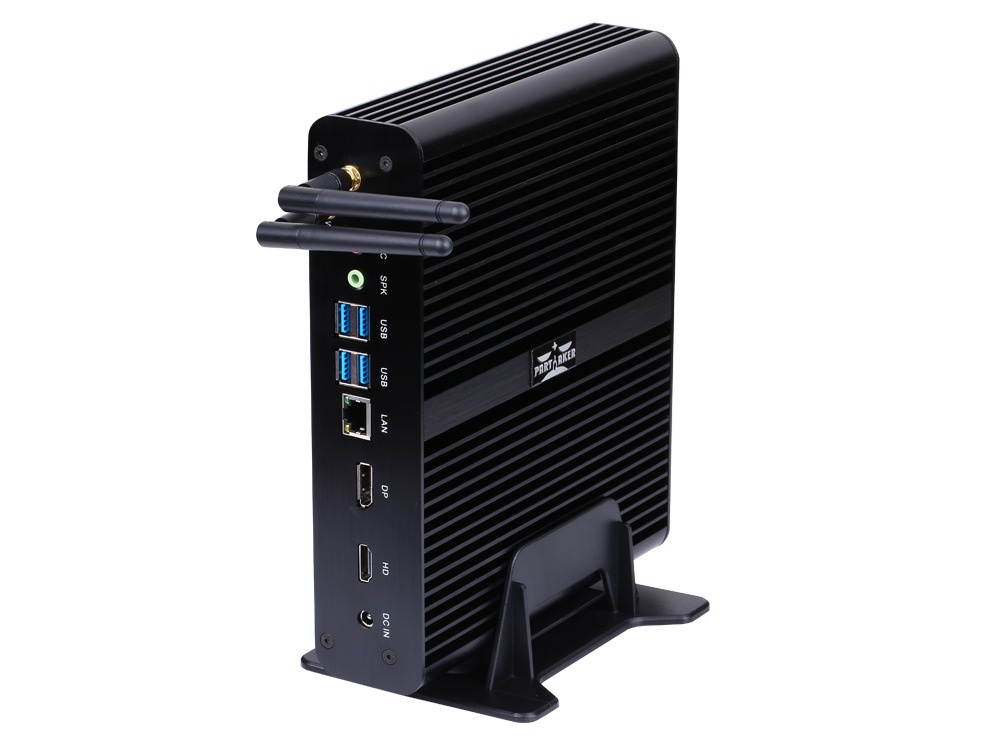

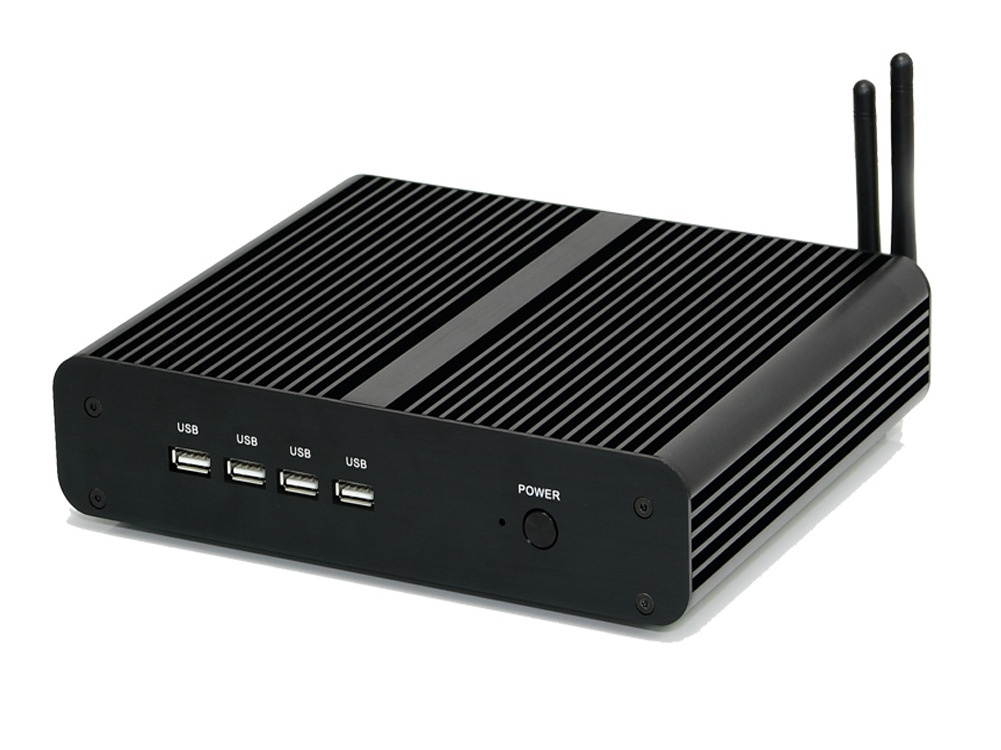

Model Number: Partaker
B7 Color: Black
Version: Fanless
Processor: The Intel i7-10510U CPU, 4 Cores, 1.8GH z, Max 4.9GH z
Chipset: Intel SOC chipset with
L3 Cache 8MB Graphic: Intel UHD Graphics, support 4K, dual monitor capable
Memory: 2* SO-DIMM DDR4-2400-2666, max.
64GB RAM Storage: 1* Msata SSD+1* M. 2 2280 SSD+1* 2.5 Inch
HDD NIC: RTL8168/8111/8112 PCI-E 10/100/1000
LAN Audio Cards: ALC892 chip, providing 6-channel sound
Drive Interface: 1* mSATA 3.0, 1* NGFF/NVMe with 2280 M. 2 Size, 1*
SATA 3.0 WIFI: 1*PCI-e for half size wireless network card, 300M 2.4 /5Ghz dual band Wi-Fi built-in module, dual external antennas enhanced signal 802.11.
b/g/n USB: 8 USB with 4 USB 3.0 + 4

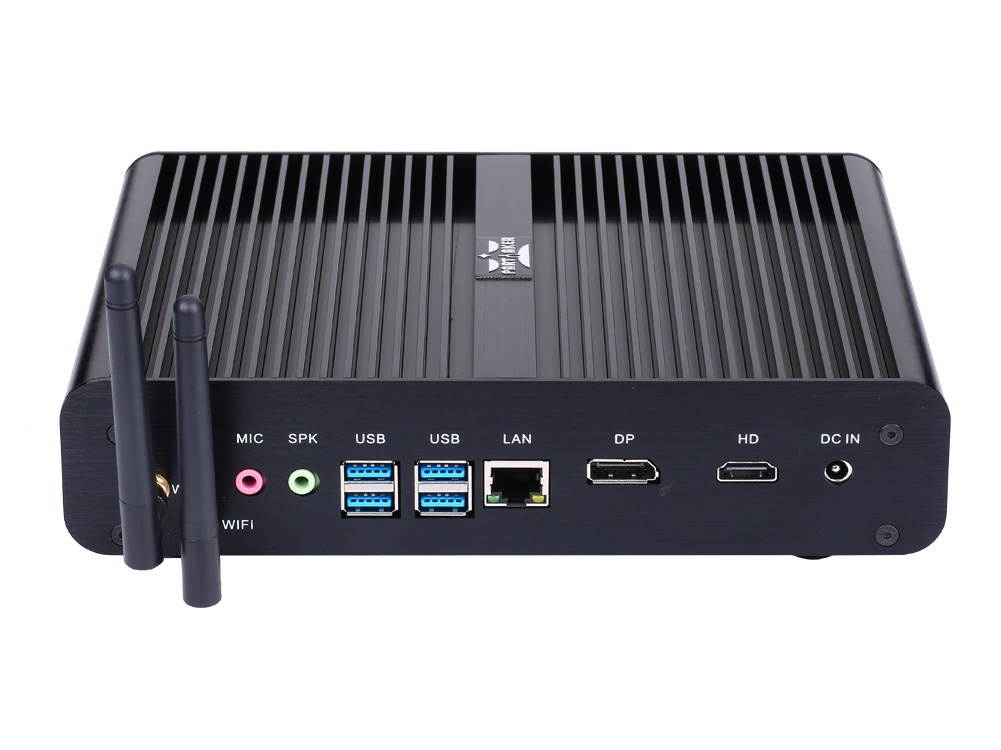

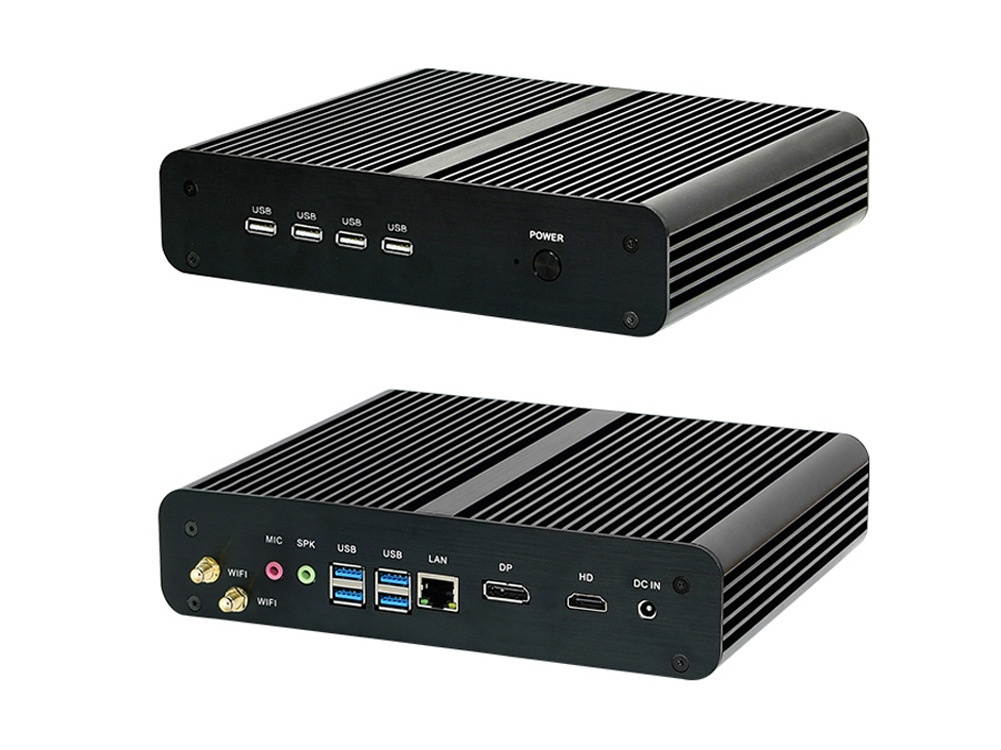

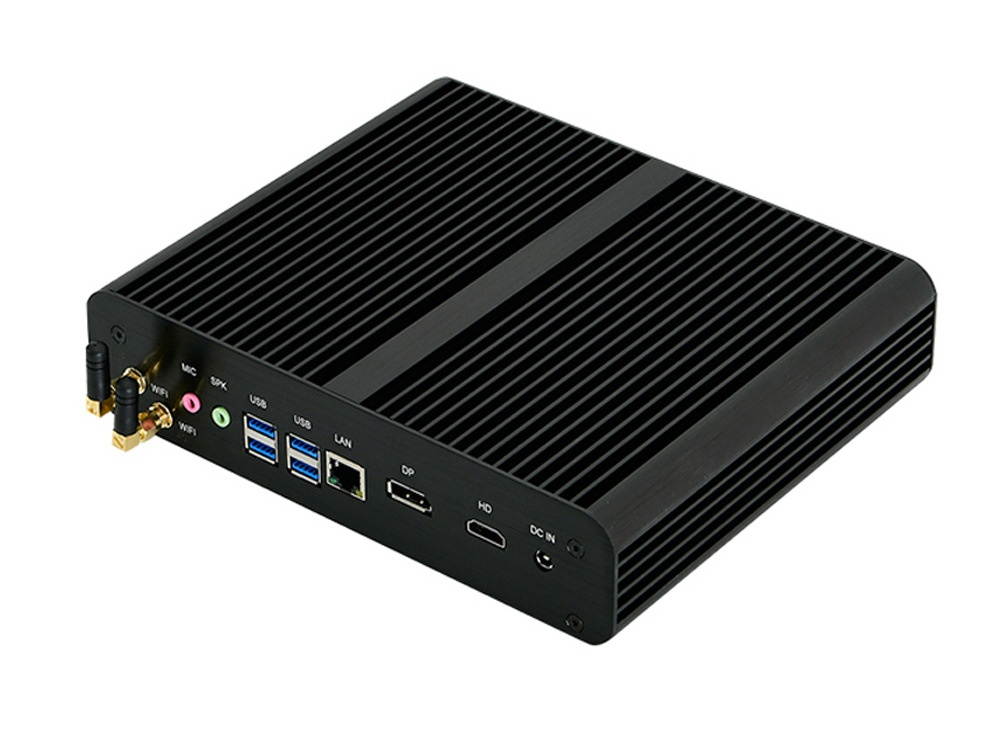

USB 2.0 Ports: DP+ HD+ 4*USB 3.0 + 4*USB 2.0 + LAN+ Spk+
Mic Power supply: DC100-240V AC/50-60Hz, DC 12V5A
Size: 225*185*45mm
Net Weight: 3KGS
Operating Temperature: 0°C~70°C (32°F~140°F)
Storage Temperature: -20°C~80°C (-68°F~176°F)
Relative Humidity: 10%~90% (non-condensing)
Function: 1. Support diskless boot,
2. Support Restore AC Power Loss,
3. Support dual screen (DP+HD) for simultaneous display or synchronous different display, 4.
HD 1.4 4K: 4096x2304@30Hz, 5.
DP 1.2 4K: 4096x2304@60Hz, support DP to VAG transfer only (Not support DP to HD transfer)
System: The pre-installed operating system is windows 10 pro, Installing a new system from USB drive, continuously press the button of "F11" Entering the interface of BIOS, continuously press the button of "Delete"
ATTENTION: Barebone, Single RAM, Single SSD or SSD+HDD without any system., Linux ubuntu or other OS, Do need to leave us message on the order, thank you.
