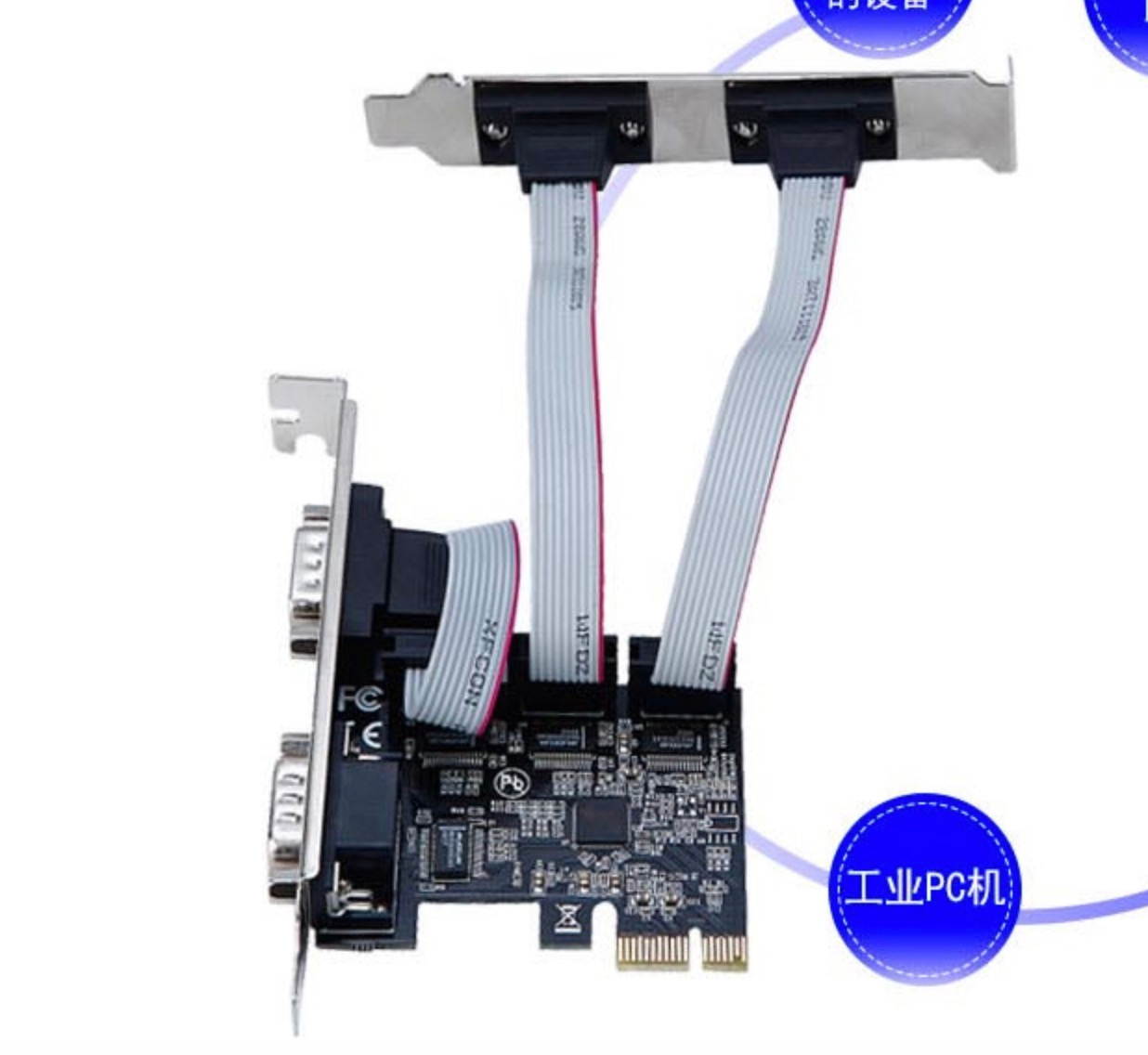

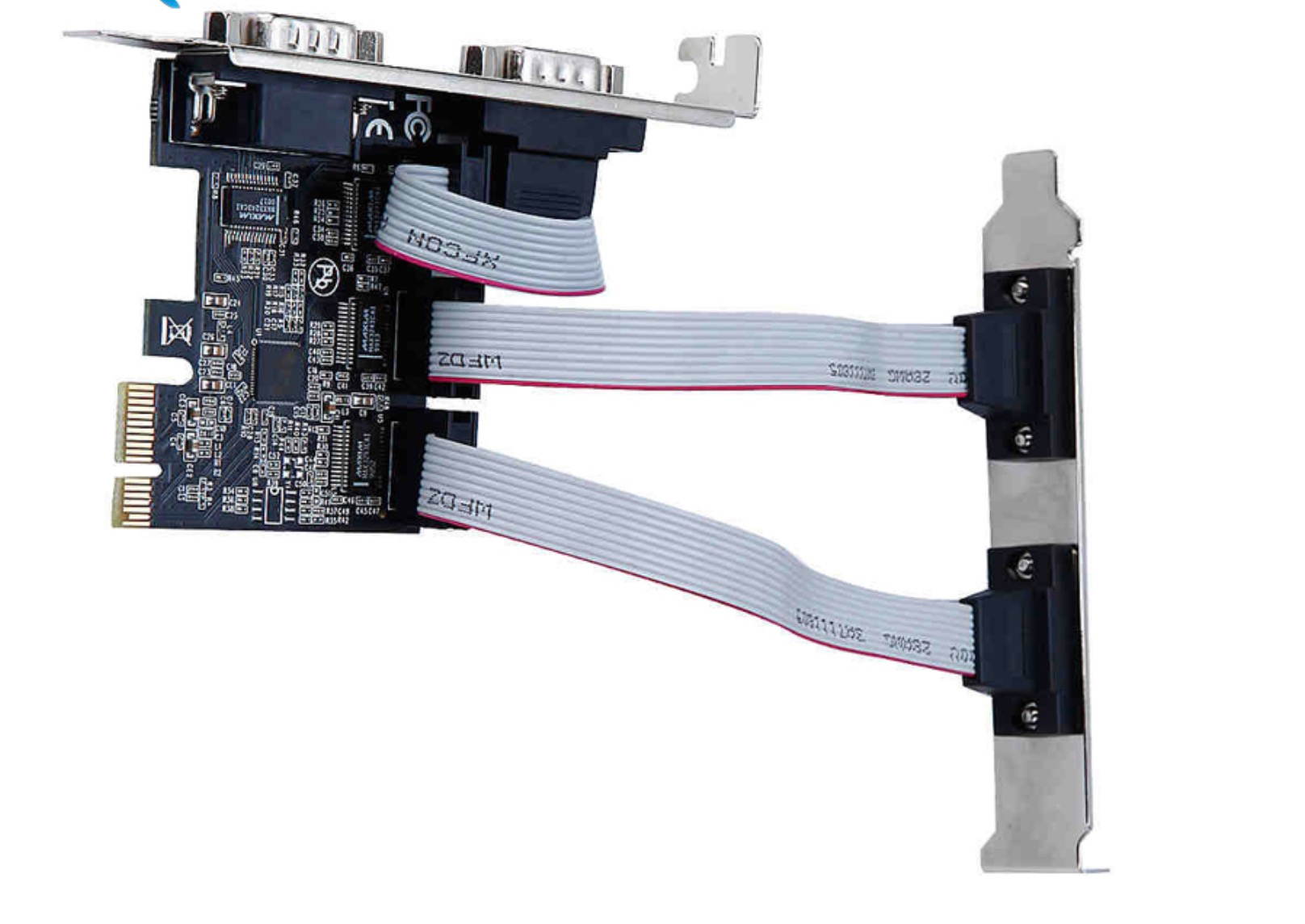

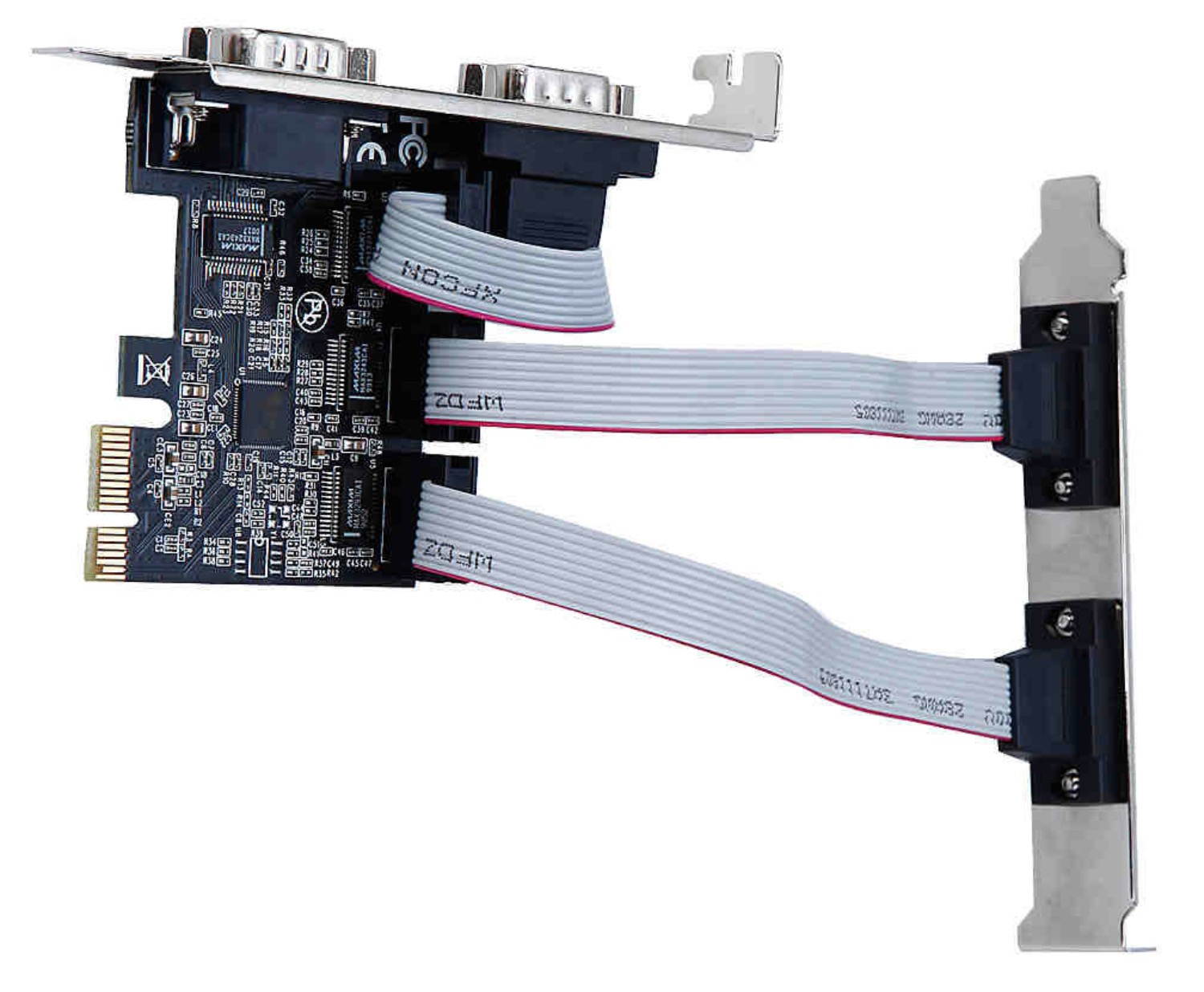

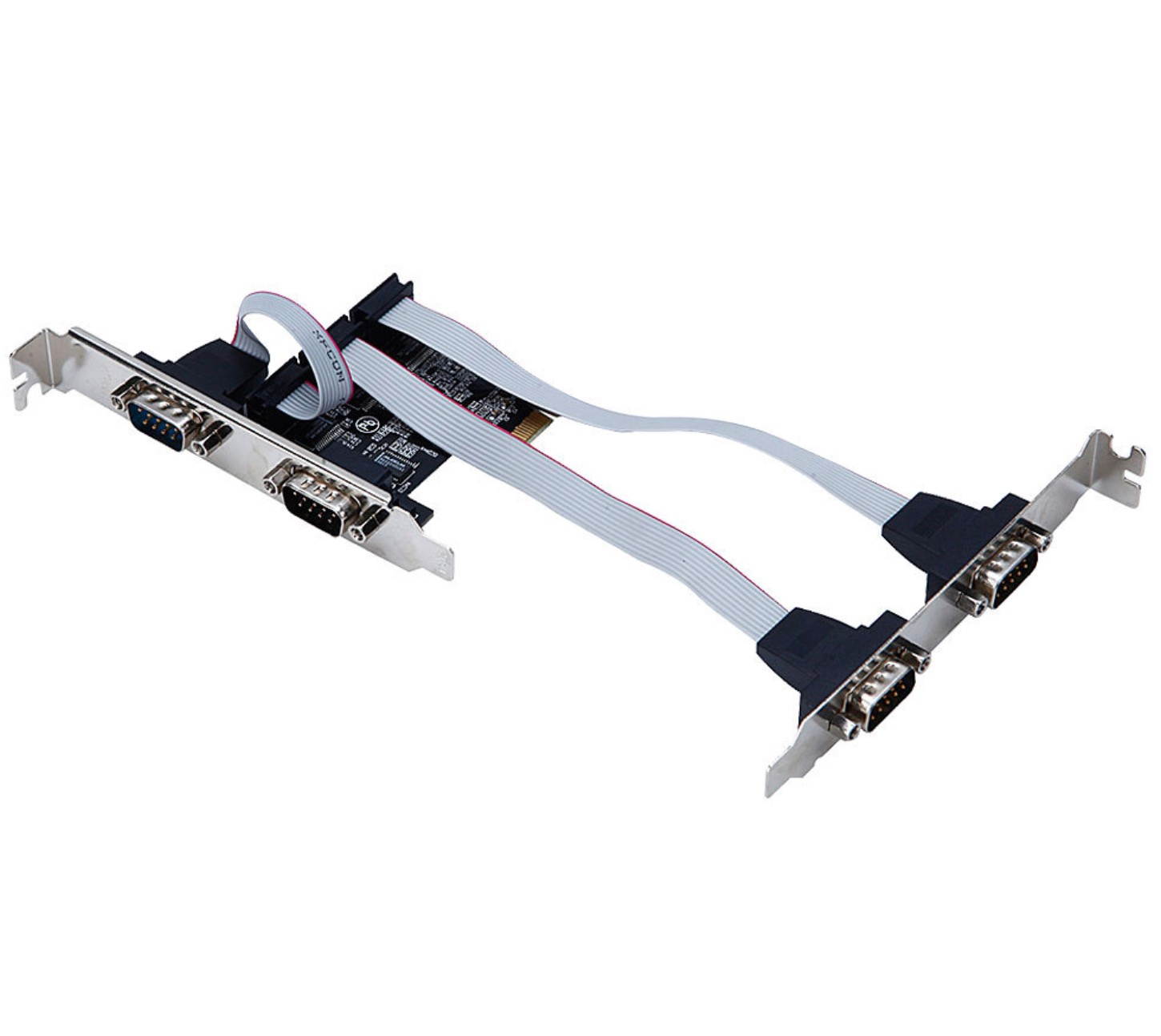

PCI-E 1X to 4 ports Serial add on card Multi RS232 DB9 COM Serial Expansion I/O riser card
CTNR1400940 0908500845087 CTNR1400940ETopSell
2027-01-08
/itm/pci-e-1x-to-4-ports-serial-add-on-card-multi-rs232-db9-com-serial-expansion-io-riser-card-1400940
USD
31.01
$ 31.01 $ 31.32 1% Off
Item Added to Cart
customer
*Product availability is subject to suppliers inventory
SHIPPING ALL OVER UNITED STATES
100% MONEY BACK GUARANTEE
EASY 30 DAYSRETURNS & REFUNDS
24/7 CUSTOMER SUPPORT
TRUSTED AND SAFE WEBSITE
100% SECURE CHECKOUT
| External Ports | 4 x Serial Ports |
|---|
Model number
TXB077
Chipset
AX99100
Port number
4* Serial
Interface
PCI Express 1x slot
Dimension
72*120.3*18.5mm
Support OS
Windows®10(32/64), 8/ 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000
Windows Server® 2012, 2008 R2, 2003(32/64)
Mac OS® 10.x (Intel based, tested up to 10.9)
Linux 2.4.x and later (Tested up to 3.5)
Environment
Operating Temperature: 0 'C-50 ®C
Relative Humidity: 10% 90%(non-condensing)
Storage Temperature: -0%C-80PC
Relative Humidity: 5%-90%(non-condensing)
Feature:
. PCI Express
o Single-lane (X1) PCI Express End-point Controller with PHY integrated
o Compliant with PCI Express 2.0 Gen 1
o Compliant with PCI Express card specifications
o Compliant with PCI Power Management 1.2
Supports four PCI Express functions
o Supports both legacy and MSI Interrupt
o Supports ASPM Power Management
. Serial Port Interface
o Dual or Quad UARTs
o Supports RS-232/RS 422/RS 485 multiprotocol
o Bi-directional speeds up to 25 Mbps per port
o Full Serial Modem Control
o Supports Hardware, Software Flow Control
o Supports 5, 6, 7, 8 and 9-bit Serial format
o Supports Even, Odd, None, Space and Mark parity
o Supports Custom baud rate by internal PLL or external clock
o Supports On Chip 256 Byte depth FIFOs in Transmit, Receive path of each Serial Port
o Supports remote wakeup and power management features
o Serial Port transceiver shutdown support
o Supports Slow IrDA mode (up to 115200bps) on all Serial Ports
o Supports multi-drop application for 9-bit mode
o Supports DMA burst transfer
. Parallel Port
o Compatible with IEE 1284 - SPP/Byte/ECP Mode
. SPI Interface
o Programmable SPI clock frequency up to 42MHz
o Supports Mode 0, Mode 1, Mode 2 and Mode 3 timing modes
o Supports MSB/LSB first transfer fashion
o Programmable peripheral chip select, selecting up to 7 SPI devices
o Supports Non-Burst-Type transfer up to 8 bytes and/or Burst-Type transfer via DMA mode for high performance
