Buy PCI express 4 ports Serial PCI-e 1x card Multi RS232 DB9 COM port PCIe I/O riser expansion card in United States - Cartnear.com

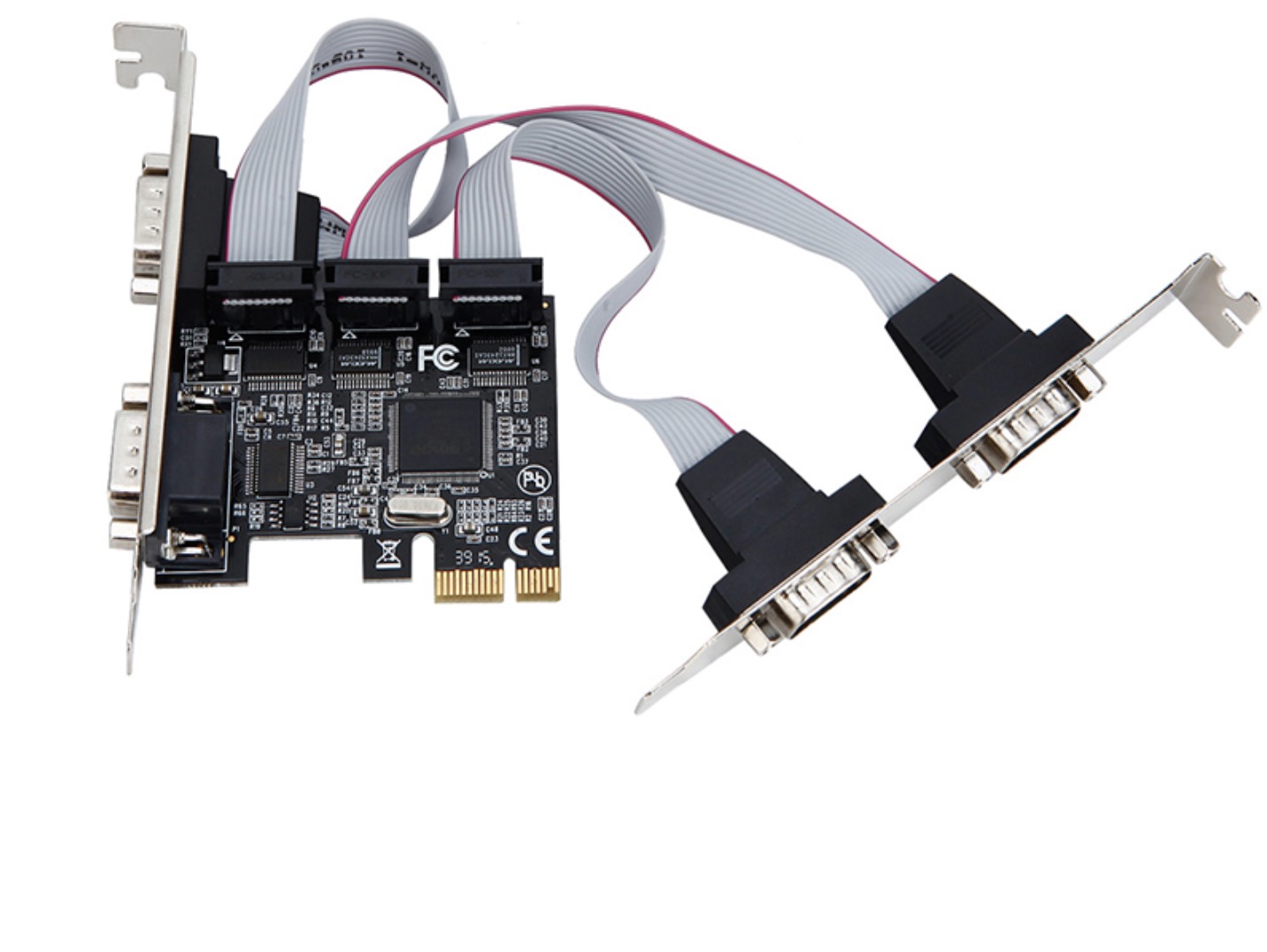

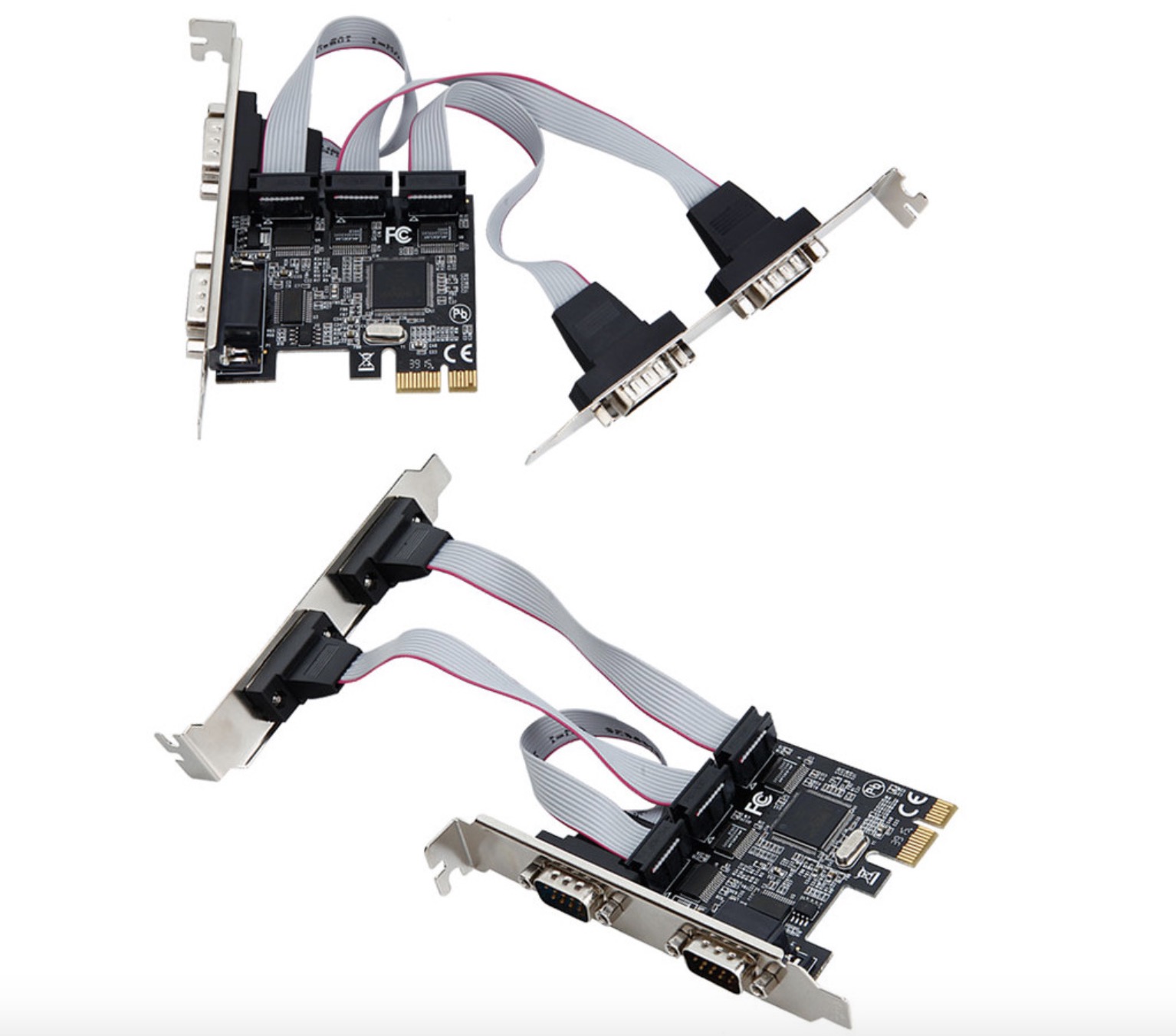

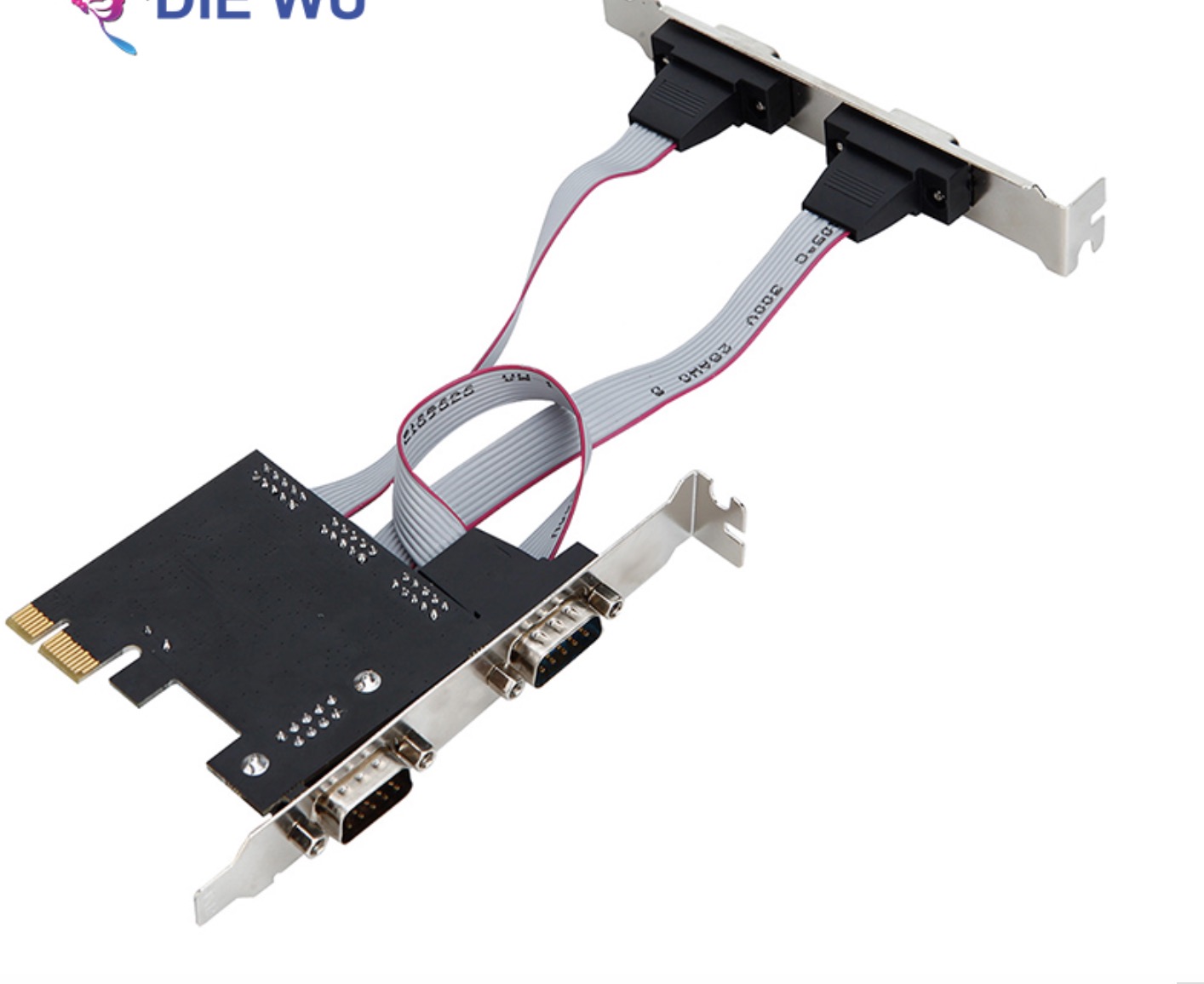

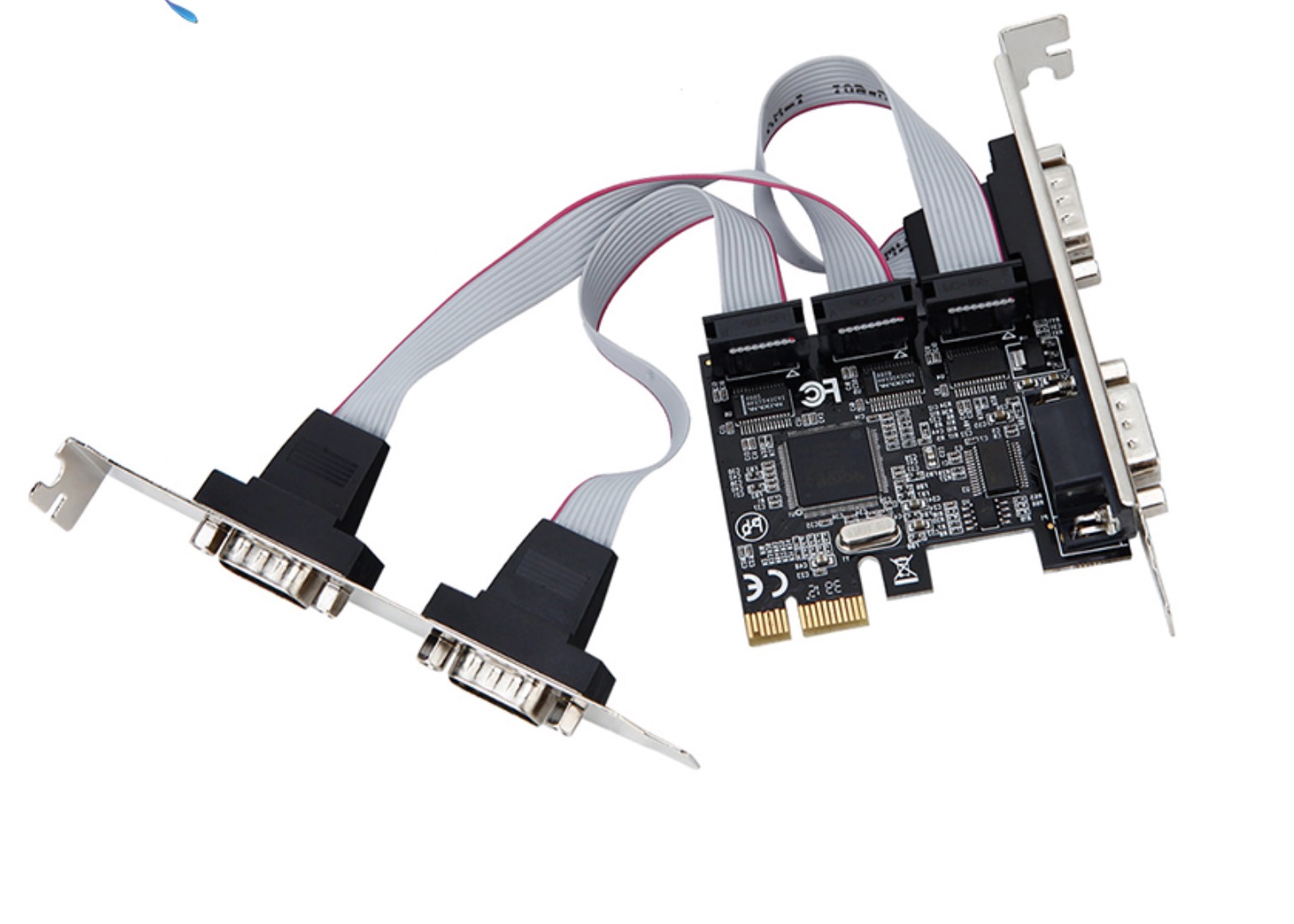

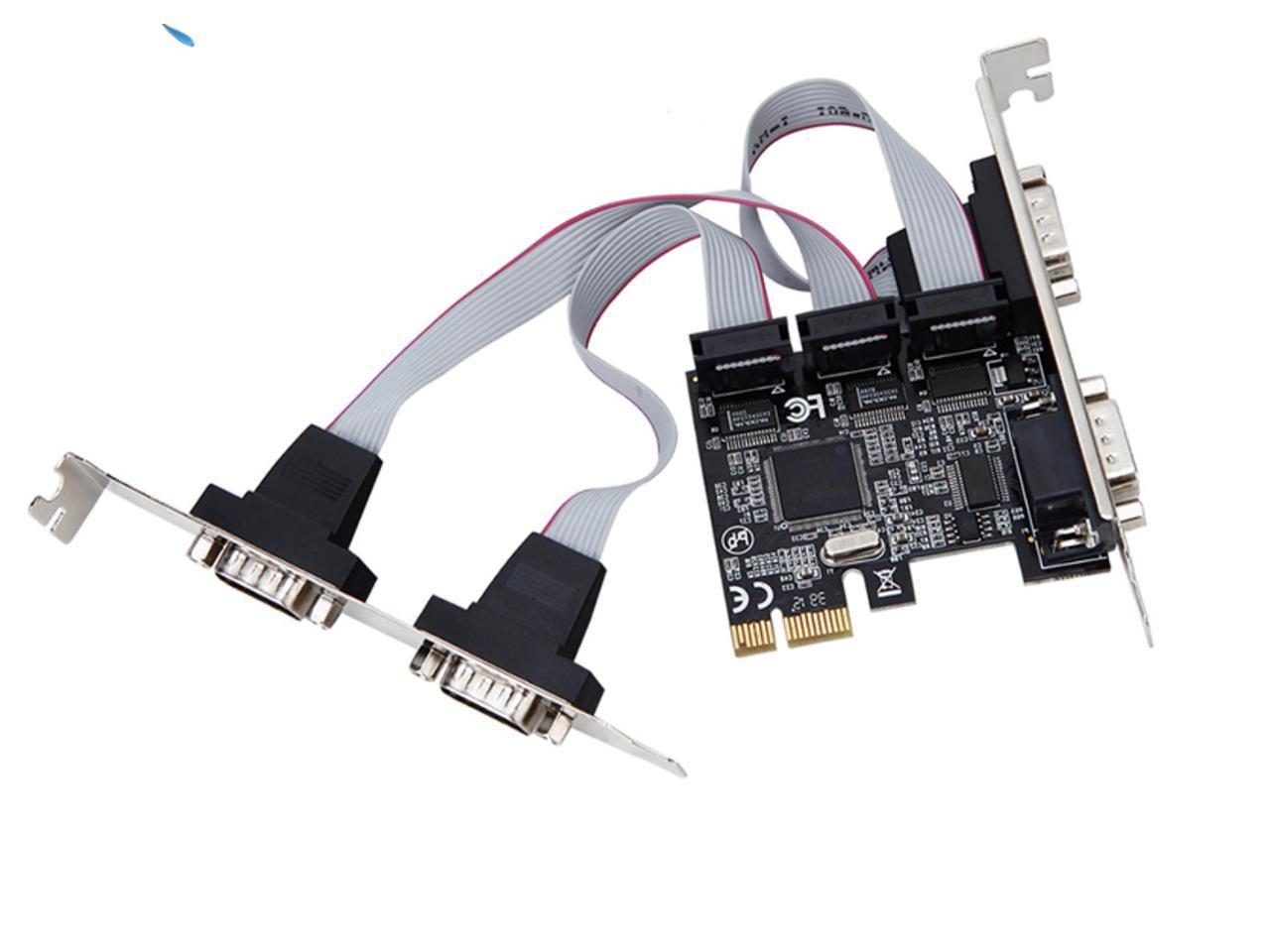

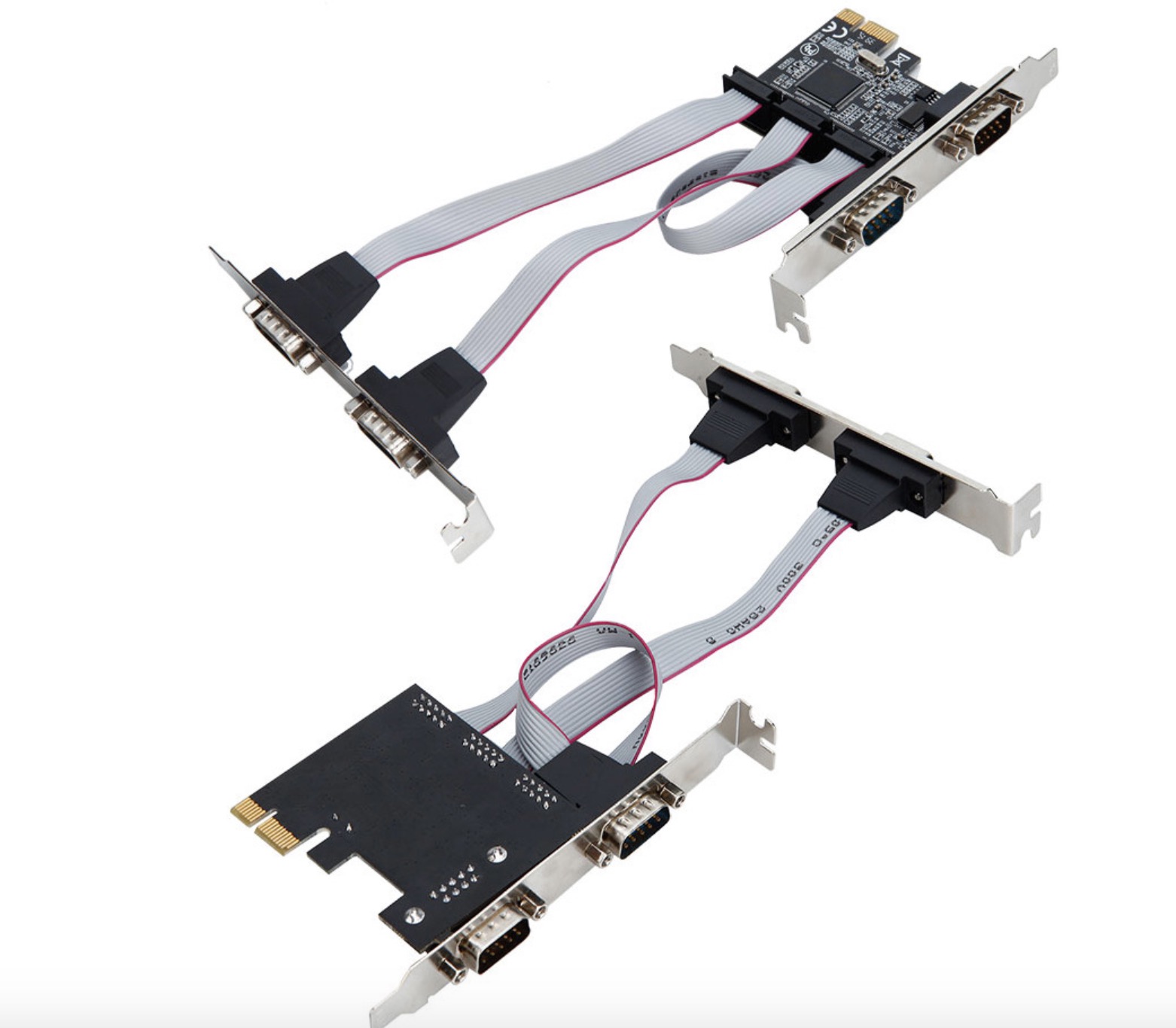

PCI express 4 ports Serial PCI-e 1x card Multi RS232 DB9 COM port PCIe I/O riser expansion card

CTNR1205560 0908500844097 CTNR1205560

ETopSell

ETopSell
2025-09-19 USD 36.27

$ 36.27 $ 37.39

Item Added to Cart

*Product availability is subject to suppliers inventory

PCI express 4 ports Serial PCI-e 1x card Multi RS232 DB9 COM port PCIe I/O riser expansion card
SHIPPING ALL OVER UNITED STATES
PCI express 4 ports Serial PCI-e 1x card Multi RS232 DB9 COM port PCIe I/O riser expansion card
100% MONEY BACK GUARANTEE
PCI express 4 ports Serial PCI-e 1x card Multi RS232 DB9 COM port PCIe I/O riser expansion card
EASY 30 DAYSRETURNS & REFUNDS
PCI express 4 ports Serial PCI-e 1x card Multi RS232 DB9 COM port PCIe I/O riser expansion card
24/7 CUSTOMER SUPPORT
PCI express 4 ports Serial PCI-e 1x card Multi RS232 DB9 COM port PCIe I/O riser expansion card
TRUSTED AND SAFE WEBSITE
PCI express 4 ports Serial PCI-e 1x card Multi RS232 DB9 COM port PCIe I/O riser expansion card
100% SECURE CHECKOUT
Model number TXBO71 Chipset ASIX/MCS9900 Port number 4*SeriaI Port Interface PCI Express 1x slot Dimension 65.3*58.2*16mm Support OS Windows®10(32/64), 8/ 8.1 (32/64), 7 (3264), Vista(32/64), XP(32/64), 200 Windows Server® 2012, 2008 R2, 2003(32/64) Mac OS® 10.x (Intel based, tested up to 10.9) Linux 2.4.x and later (Tested up to 3.5) Environment Operating Temperature: 0 *C-50 'C Relative Humidity: 10% .90%(non- condensing) Storage Temperature: -0%C-80*C Relative Humidity: 5%-90%(non- condensing) Features Supports RS232, RS485 & RS422 modes Bi-directional speeds from 50 bps to 16 Mbps/Port Full Serial modem control Supports Hardware, Software flow control 5, 6, 7, 8 and 9-bit Serial format support Even, Odd, None, space & Mark parity supported Custom BAUD Rates supported with external clock or by programming internal PLL On Chip 256 Byte depth FIFOs in Transmit, Receive path of each Serial Port Supports remote wake up and power management features Serial Port transceiver shutdown support Supports Slow IrDA on all Serial Ports IEEE1284 Features: . . Single-lane (X1) PCI Express End-point Controller with integrated PHY Compliant with PCI Express Base Specification, Revision 1.1 . Compliant with PCI Express card specifications . Supports four PCI Express functions Supports auto completion of configuration requests Supports built in flow control Supports Message TLP (Error) generation · Supports integrated time out handling of Non-posted request . Supports both legacy and MSI Interrupt , Supports PCle Power Management . Serial Port Four 16C450/550 / Extended 550 / 650 / Enhanced Mode compatible UARTs . Supports RS232, RS422 & RS485 modes . Bi-directional speeds from 50 bps to 16 Mbps per port . Full Serial Modem Control . Supports Hardware, Software Flow Control Supports 5, 6, 7, 8 bit Serial format . Supports Even, Odd, None, Space and Mark parity Supports Custom baud rate by programming internal PLL or external clock · Supports On Chip 256 Byte depth FIFOs in Transmit, Receive path of each Serial Port . Supports remote wakeup and power management features Serial Port transceiver shutdown support , Supports Slow IrDA mode (up to 115200bps) on all Serial Ports . Parallel Port , Compatible with IEE 1284 , Nibble Mode Byte Mode . Enhanced Parallel Port (EPP 1.9) . Extended Capability Port (ECP) . FIFO mode (Buffered SPP mode) . Cascade : MCS9900 supports a 13-Pin proprietary interface to connect to other cascade supported ASIX devices for IO expansion. For example, MCS9900 can interface with another MCS9900 to derive following product configurations . PCle to 8 Serial Ports . PCle to 6 Serial Ports and 1 Parallel Port . PCle to 4 Serial Ports and 2 Parallel Ports Note the main product (without affecting the normal use, the configuration has increased or decreased) Compare the detail sizes with yours, please allow 1-3cm error, due to manual measurement. Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
