Brand |
SWIFT HITCH |
Series |
Digital Portable Wireless Backup Camera System |
Model |
SH04 |
Bundled Camera Number |
1 Camera |
Camera Type |
1 Pack |
Color |
Gold |
Pixels |
0.3 Megapixel |
Main Application Scenario

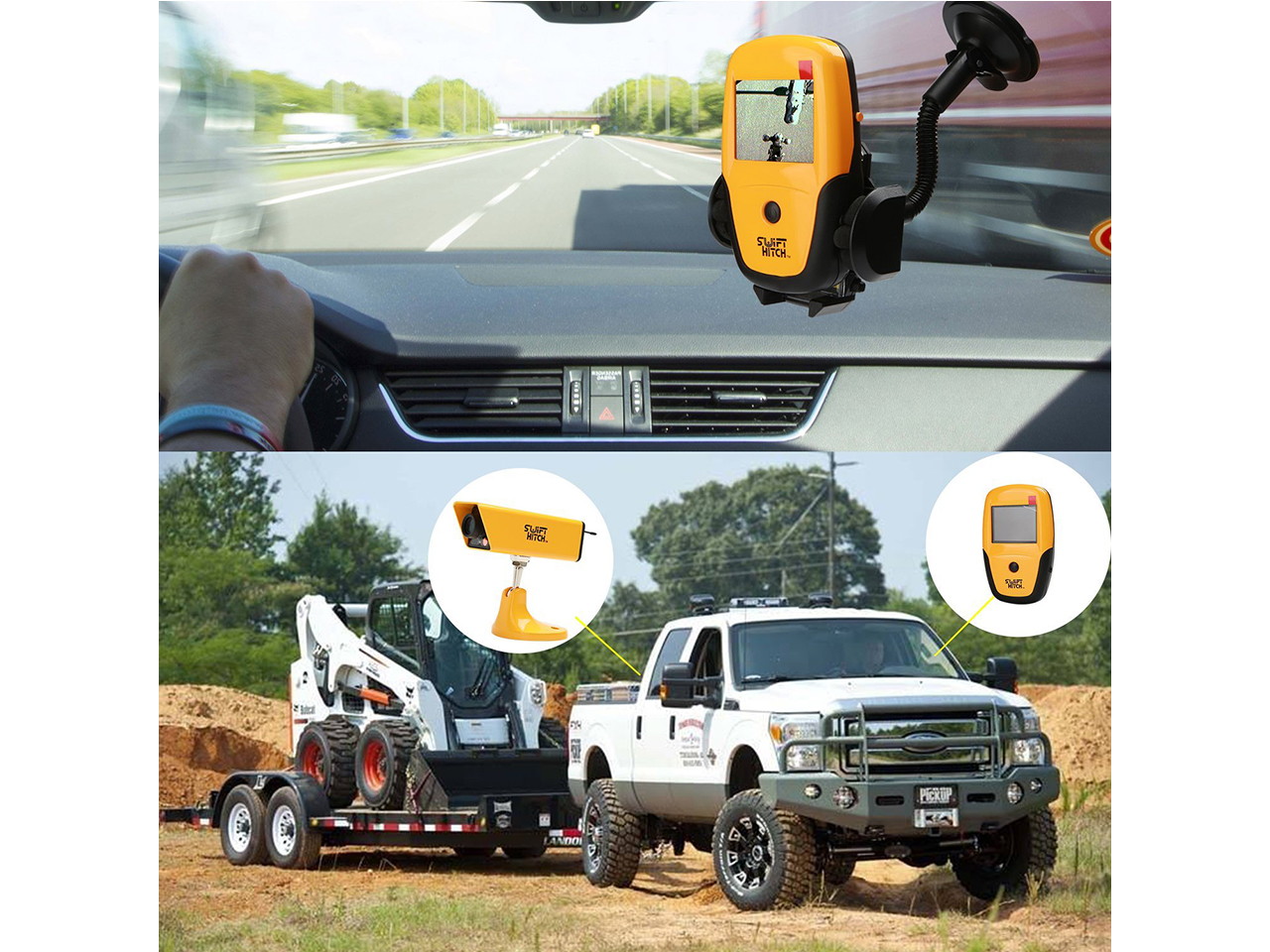

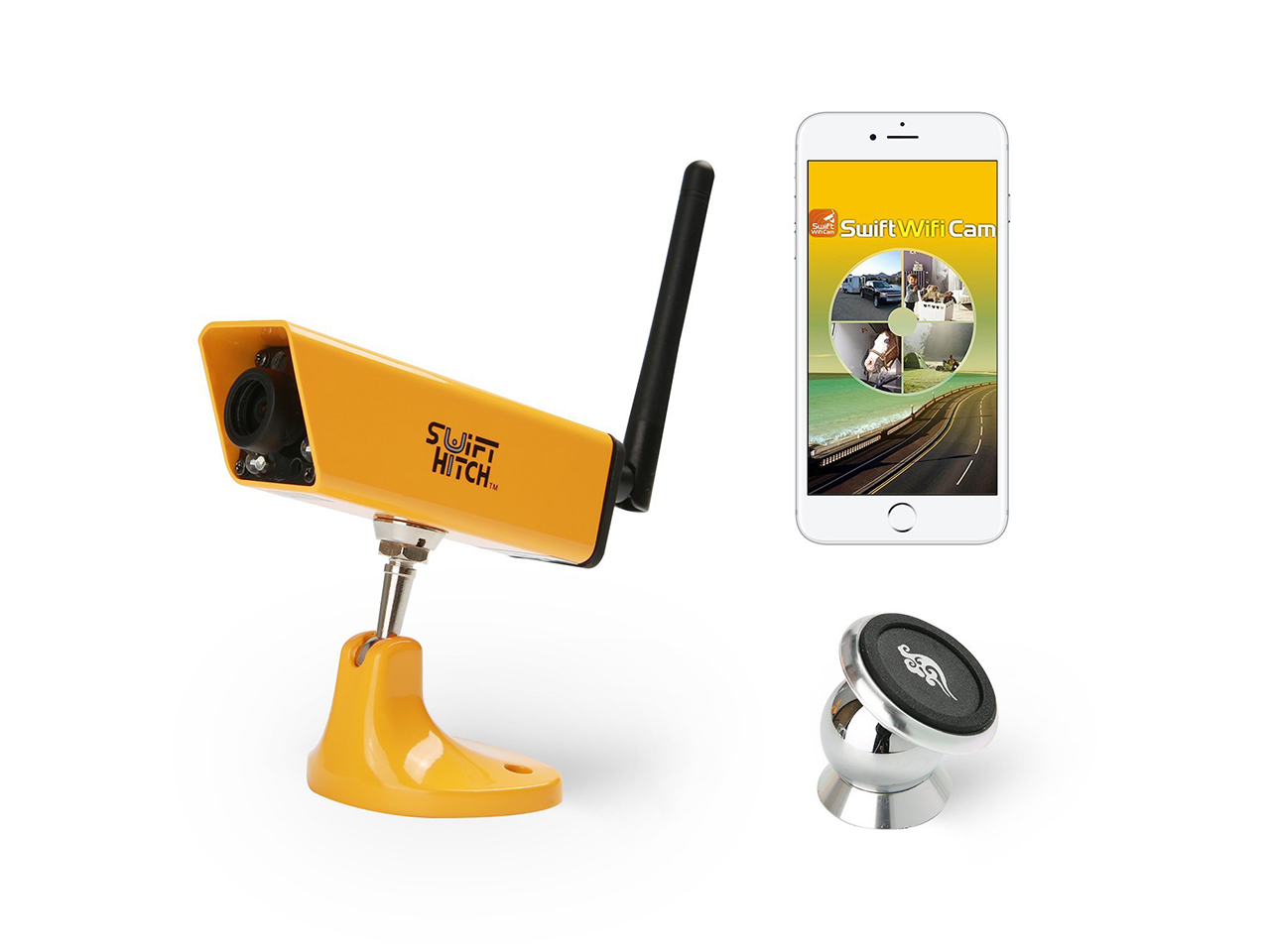

SH04 is Swift Hitch latest developed multi purpose camera. It can be viewed by iPhone DIRECTLY or via Router as an IP Security Camera to be seen anywhere. Its compact portable design can fit in many applications. It can be hitch-up camera, rear view camera, back up camera. It could be a very useful tool for RVer, trailer owner, truck/tow ower, combine tractor owner, fifth wheel trailer owner, mobilehome owner, boat trailer owner, farming machine owner, barn watching, warehouse & store watching, camping site watching, construction site watching, porch watching, home security, even babycare watching. You can even view multiple cameras in one phone or allow multiple person to share one camera. It could give you third eye when you back up, hitch up, driving and do regular security jobs.

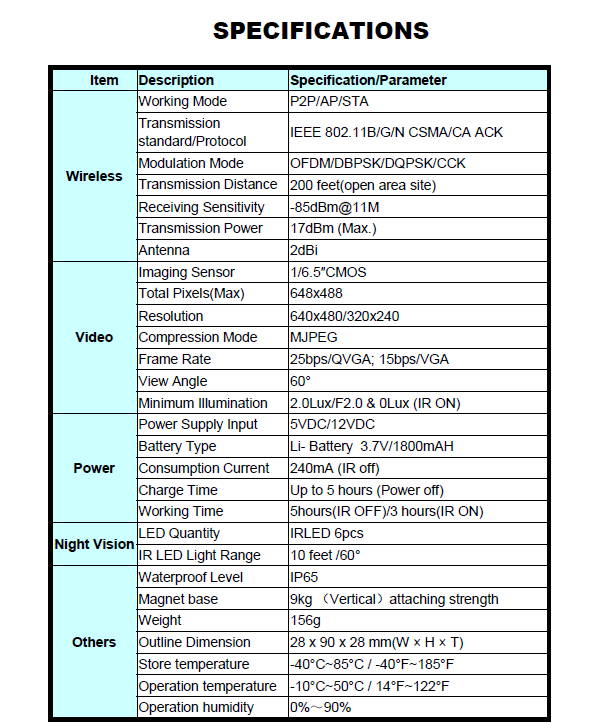

SPECIFICATIONS
Specification about Wireless
Working Mode P2P/AP/STA
Transmission Standard/Protocol IEEE 802.11B/G/N CSMA/CA ACK
Modulation Mode OFDMDBPSK/DQPSK/CCK
Transmission Distance 200 feet(open area site)
Receiving Sensitivity -85dBm@11M
Transmission Power 17dBm (Max.)
Antenna 2dBi
Specification about Video
Imaging Sensor 1/6.5"CMOS
Total Pixels(Max) 648x488
Resolution 640x480/320x240
Compression Mode MJPEG
Frame Rate 25bps/QVGA; 15bps/NVGA
View Angle 60°
Minimum llumination 2.0Lux/F2.0 & 0Lux (IR ON)
Specification about Power
Power Supply Input 5VDC/12VDC
Battery Type Li-Battery 3.7V/1800mAH
Consumption Current 240mA (IR of)
Charge Time Up to 5 hours (Power off)
Working Time 5 hours(IR OFF)/3 hours(IR ON)
Specification about Night Vision
LED Quantity IRLED 6pcs
IRLED Light Range 10 feet /60°
Specification about Others

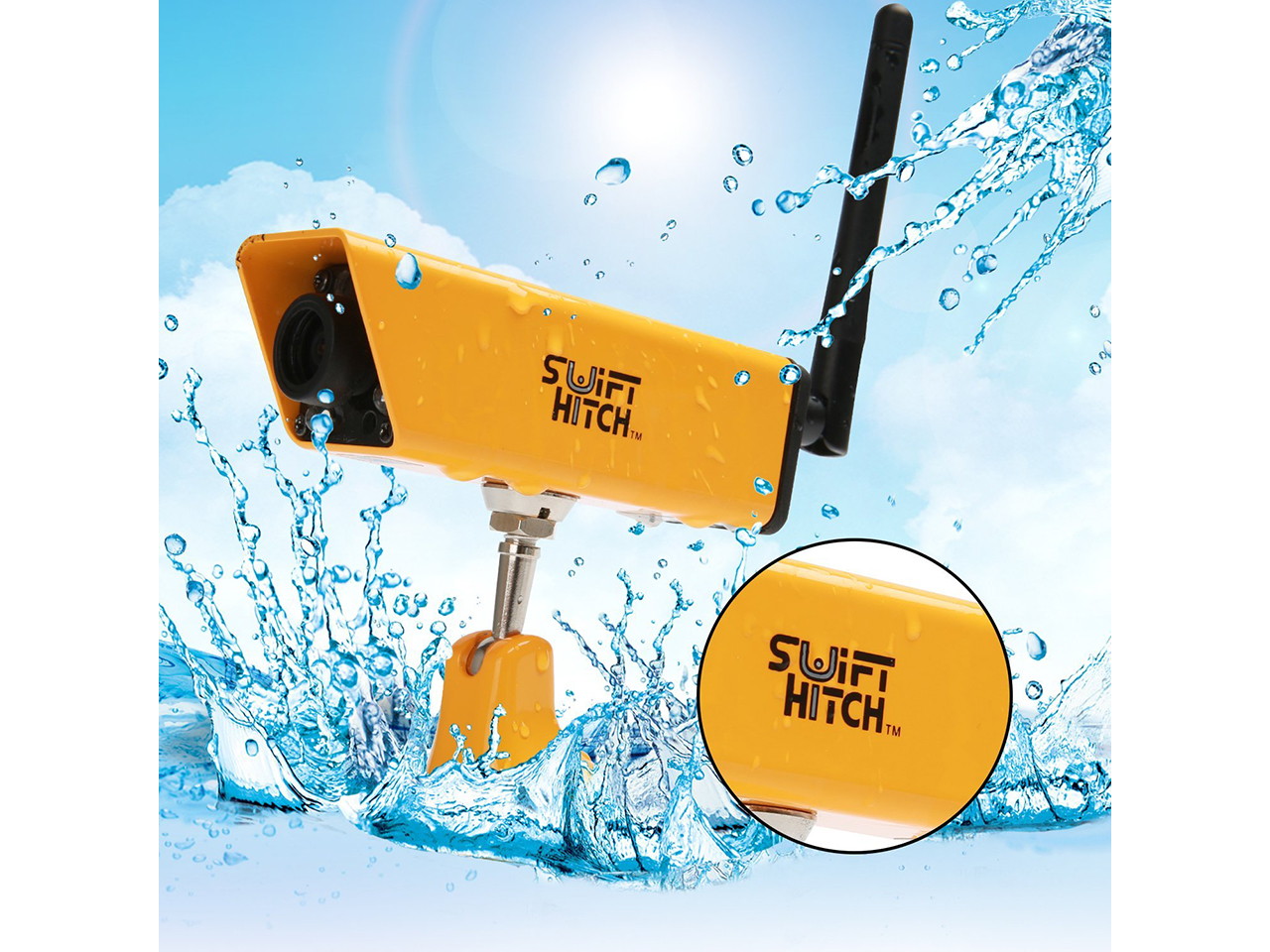

Waterproof Level IP65
Magnet base 9kg (Vertical) attaching strength
Weight 156g (5.50oz)
Outline Dimension 28x 90 x 28 mm(WxHx T)
Store temperature -40C~85°C/ -40*F~185"F
Operation temperature -10*C~50*C/ 14°F~122*F
Operation humidity 0%~ 90%

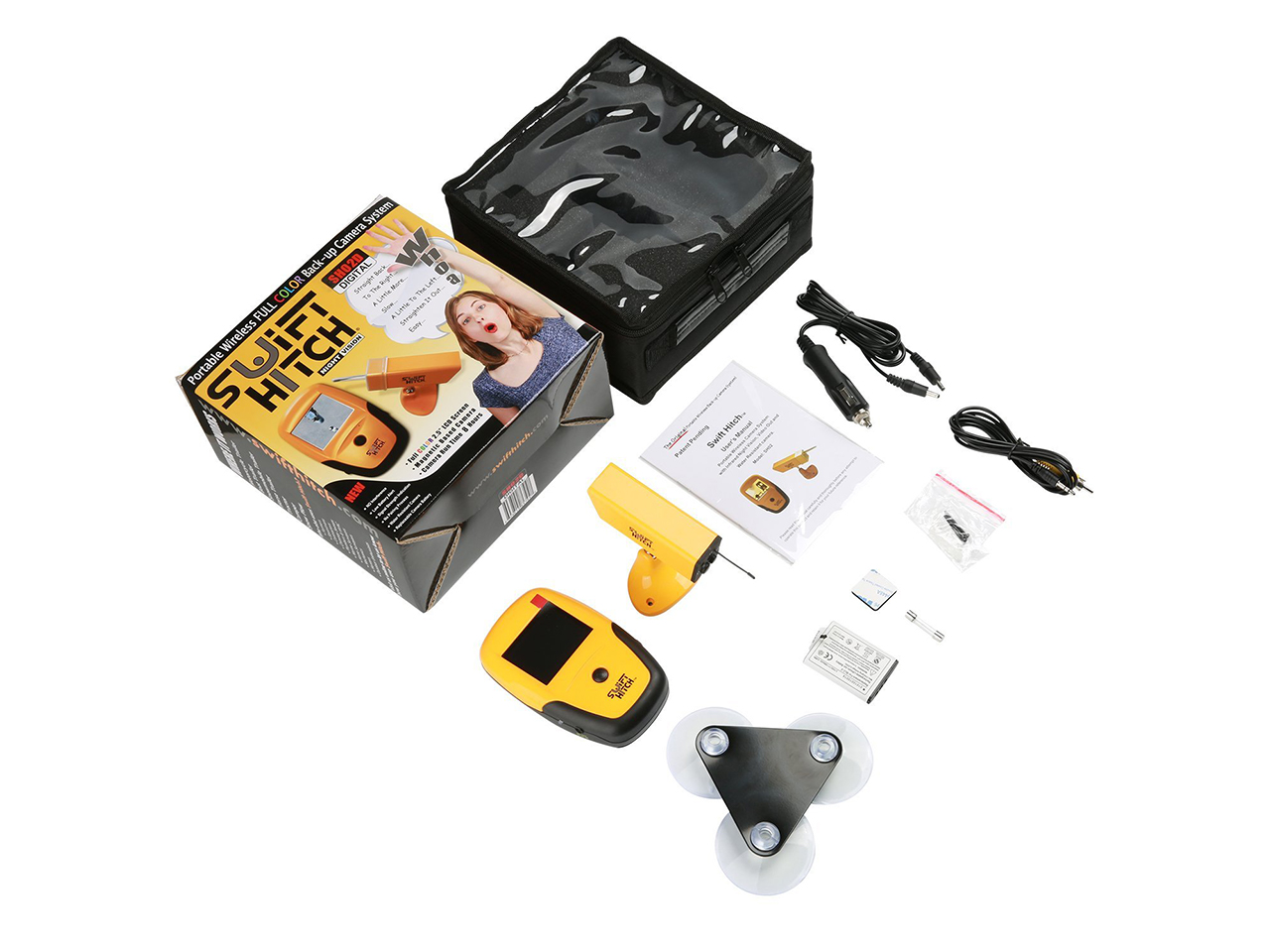

Packing List
Camera x1
AC adapter x1 (USB port)
USB charging cable x1
9 feet hard wired DC charging cable for 12V car battery x 1

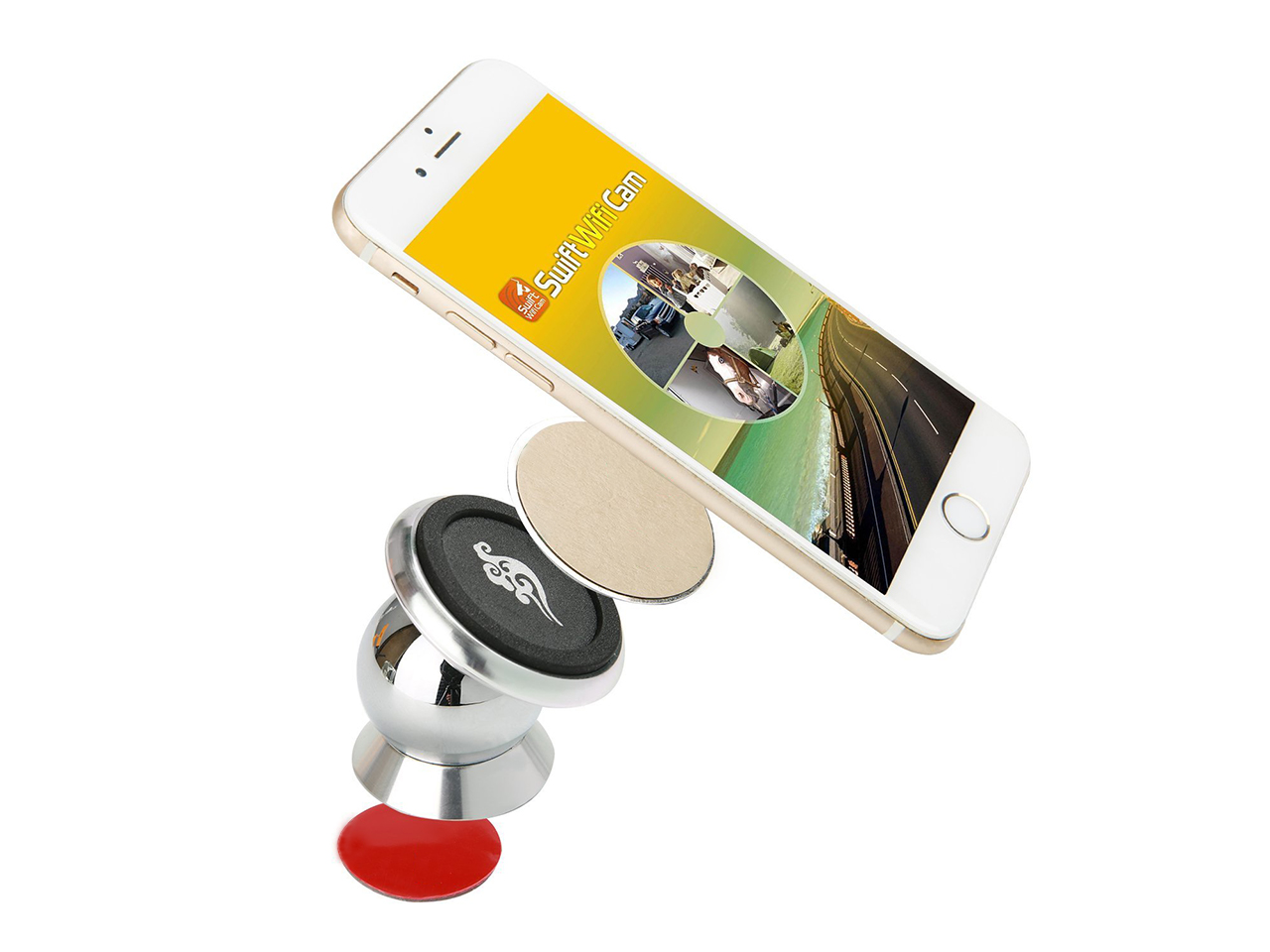

Magnet phone/pad holder x 1
Screws (x2) to fix the camera x 1
User manual x 1
Quick guide x 1
