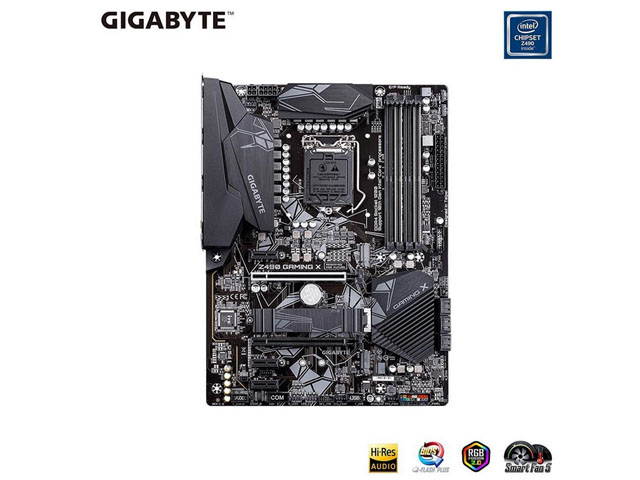

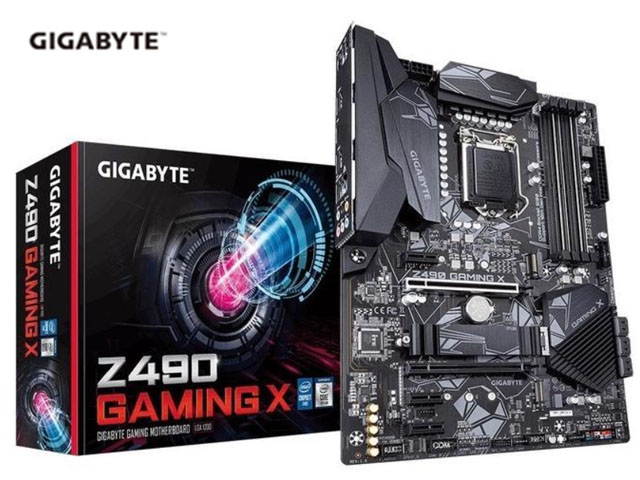

GIGABYTE Z490 Gaming X (Intel LGA1200/Z490/ATX/2xM.2/Realtek ALC892/Intel LAN/SATA 6Gb/s/USB 3.2 Gen 2/HDMI/Gaming Motherboard)

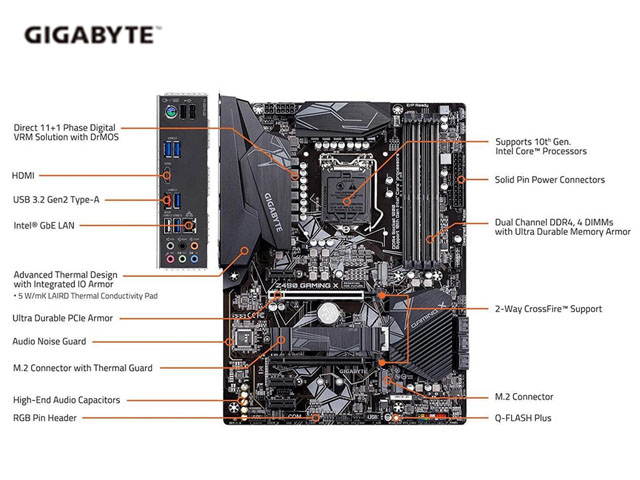

Intel® Z490 GAMING Motherboard with Direct 11+1 Phases Power Design, 2-Way CrossFire™ Multi-Graphics, Intel® GbE with cFosSpeed, USB 3.2 Gen2 Type-A, Dual M.2 with 1 Thermal Guard, Smart Fan 5, Dual Armor with Ultra Durable™ Technology, RGB FUSION 2.0, Q-FLASH PLUS
Supports 10th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Intel® Optane™ Memory Ready
Direct 11+1 Phases Digital VRM Solution with DrMOS
Enlarged VRM Heatsink with 5W/mK Thermal Conductive Pad
Intel® GbE LAN with cFosSpeed Internet Accelerator Software
Multi-Way Graphics Support with Dual Armor and Ultra Durable™ Design

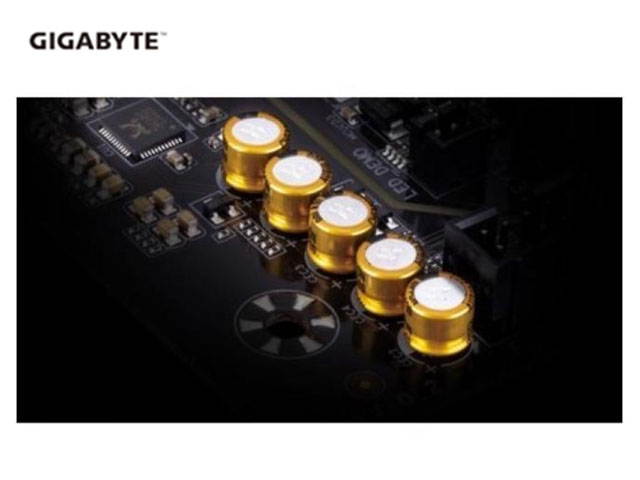

ALC1200 Multi-Channel Audio with High Quality Audio Capacitors and Audio Noise Guard
Dual Ultra-Fast M.2 with PCIe Gen3 X4 (1 with Thermal Guard) & SATA Interface
Intel® Native USB 3.2 Gen2 Type-A with Speed Up To 10Gbps
RGB FUSION 2.0 Support Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card
CEC 2019 Ready, Save the Power as Easy as One Click
Lightning-Fast Intel® Thunderbolt™ 3 AIC Support
PERFORMANCE

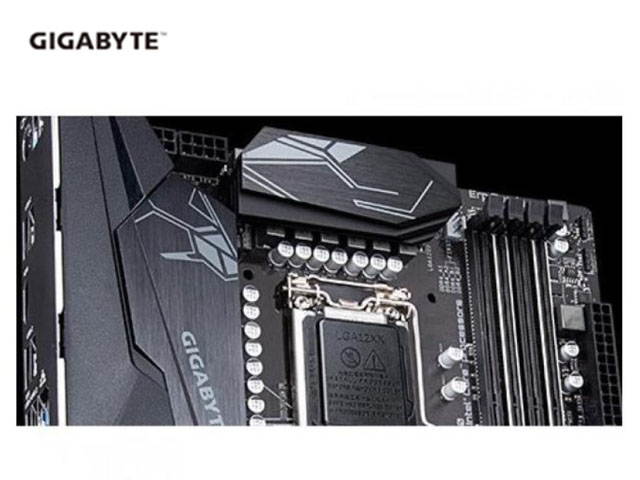

Direct 11+1 Phase Digital VRM Solution with DrMOS
Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
Optimized gate charge to minimize switching losses.
Lower temperature, smaller size, better thermal characteristics.
Support for DDR4 XMP Up to 4600MHz and Beyond
GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 4600MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.
Shielded Memory Routing
All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.
2-Way CrossFire™ Multi-Graphics
Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
PCIe 4.0 Hardware Design
For most of prosumers and gamers, high bandwidth storage and high performance graphics card are critical for their applications. To support most cutting edge devices, this motherboard uses the groundbreaking PCIe 4.0 grade hardware design.
Dual NVMe PCIe Gen3 x4 M.2 Connectors
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.
M.2 Thermal Guard
GIGABYTE Ultra-Efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
CONNECTIVITY
Intel® GbE LAN with cFosSpeed Internet Accelerator Networking
Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
