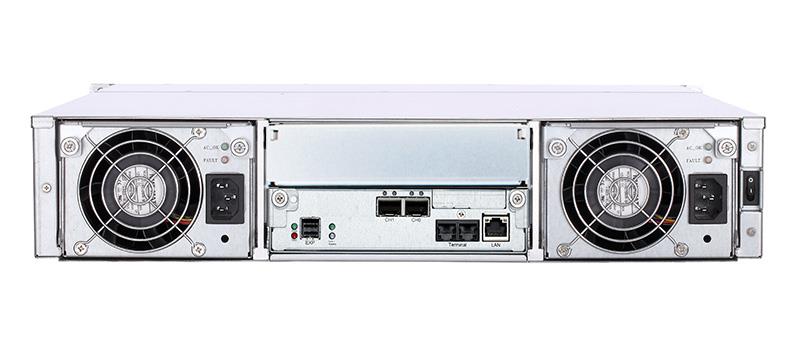

RAID Machine S7224RE 2.5" 24-bay 10GbE iSCSI SAN Rackmount Single Controller
RAID Machine products combine a precisely targeted feature set to address your needs with excellent value and impeccable support.Our Dual (optional) Controller 10gbE RAID Subsystems are a great choice for proven, reliable and high performance SAN setup.The cable free design is completely plug & play, with all hot-swap components, redundant everything, no single point-of-failure and complete thermal management. We combine solid construction, 48-hour burn-in testing, lifetime phone and email support, and 3-year warranty to provide you with a robust package.Compatible with a vast array of HBAs or NIC, SAS, SATA HDs and SSDs (2.5â€). Optional dual controllers provide fault tolerance, increased connectivity and performance.Enterprise grade 3Y Redundant PSU. Connectors 2 iSCSI 10gbE SFP+ Connectors per controller for host connectivity, 1 mini-SAS HD SFF-8644 per controller for expansion.RAID Features 0, 1, 10 (1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD. Online RAID level migration. Online capacity expansion. Support for native 4K devices. Max 128 LUNs.ClusteringShared storage support for VMware and Hyper-V for high availability clusters.ControllersDual redundant Active/Active controllers with load-balancing and multi-path support. 2GB cache expandable to 8 GB.Drive CarriersTray design compatible with both 3.5†and 2.5â€. Interposer board required for SATA drives.ManagementUser-friendly Web GUI, backup text interface via serial connection.MonitoringActivity, Failure, Locator lights. LCD screen for management. SMTP and SNMP notifications. Fan, temperature and voltage monitoring.Protocols SupportedSAS3 (backwards compatible), SATA3 (backwards compatible) w/interposer boards, SES, I2C, SGPIO.RailsIncluded (21†to 35.5â€).
