Ubiquiti US-24-250W UniFi Switch - 24 Ports Managed
Ubiquiti - Unifi Switch - 24 Ports - Manageable - 2 X Expansion Slots - 10/100/1000Base-T 1000Base-X - 2 X Sfp Slots - 2 Layer Supported - 1U High - Rack-Mountable(Us-24-250W)Weight 5.1H eight1Width1Length1"
Netgear XS712T-200NES 12-port 10-Gigabit Smart Managed Pro Switch (XS712Tv2)
The NETGEAR XS712Tv2 10-Gigabit Ethernet Smart Managed Pro Switch brings the second generation of 10-Gigabit Copper switching to SMBs. The XS712Tv2 is a powerful Smart Managed Switch that includes 12 ports of 10-Gigabit connectivity (12 copper with 2 shared combo copper/SFP+ Fiber ports). NETGEAR 10-Gigabit Smart Managed Pro Switches are purposely designed as a cost-effective way to provide 10G connections to 10G-capable servers and NAS (Network Attached Storage) systems. Advanced features include Layer 3 static routing, IPv6, DiffServ QoS, LACP link aggregation and Spanning Tree. XS712Tv2 is backed by NETGEAR ProSAFE Lifetime Limited Warranty and 24/7 support including lifetime chat.
NETGEAR 28-Port PoE Gigabit/10G Stackable Smart Switch (GS728TXP) - Managed with 24 x PoE+ @ 195W, 2 x 10G Copper and 2 x 10G SFP+, Desktop/Rackmount,
General InformationManufacturer: Netgear, IncManufacturer Part Number: GS728TXP-100NES Manufacturer Website Address: http: //www. netgear. comBrand Name: NetgearProduct Line: ProSafeProduct Series: S3300Product Model: S3300-28X-PoE+Product Name: 28 PoE+ Port Gigabit Stackable Smart SwitchProduct Type: Layer 3 SwitchInterfaces/PortsTotal Number of Network Ports: 24Modular: NoStack Port: YesPort/Expansion Slot Details: 24 x Gigabit Ethernet Network2 x 10 Gigabit Ethernet Network2 x 10 Gigabit Ethernet Expansion SlotMedia & PerformanceMedia Type Supported: Twisted PairEthernet Technology: 10 Gigabit EthernetGigabit EthernetNetwork Technology: 10GBase-T10GBase-X10/100/1000Base-TI/O ExpansionsNumber of Total Expansion Slots: 2Expansion Slot Type: SFP+Number of SFP+ Slots: 2Network & CommunicationLayer Supported: 3Management & ProtocolsManageable: YesPower DescriptionPoE (RJ-45) Port: NoPower Source: Power SupplyPhysical CharacteristicsForm Factor: Rack-mountableHeight: 1.7"W idth: 17.3"D epth: 10.1"W eight (Approximate): 8.31 lb
5-Port Unmanaged Gigabit GREENnet Desktop Metal Switch, Ethernet-Network Switch, 5 x Gigabit Ports, Fanless, 10 Gbps Switching Fabric, Lifetime Protec
Energy Savings
Embedded GREENnet technology provides cost savings and reduces power consumption by up to 70%, by limiting port power consumption during periods of low link utilization. Look for the GREENnet logo available only on TRENDnet products.
Including:
Link Down Detect technology, delivering less power to unused ports.
Standby Mode delivers less power when devices are off.
Cable Length Detect. Delivers less power with shorter cable lengths.
Gigabit Speeds
5 gigabit ports provide high-speed network connections to devices and a 10Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.
Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 10Gbps with full-duplex mode.
Featuring
Easy Setup: Simply power up the switch and plug in connected devices
Fanless design lowers energy consumption and eliminates operating noise
Compact and lightweight metal housing
LED indicators convey power, link, and activity
Sends larger packets (Jumbo Frames), up to 9KB for increased
Maximum data rate: 2000Mbps (full duplex)
BZ-RMX4 Micro Switch Honeywell Switch Snap Action N.O./N.C. SPDT Straight Lever
BZ-RMX4 Micro Switch Honeywell Switch Snap Action N. O. /N. C. SPDT Straight Lever condition: New Brand: MICRO SWITCH MPN: BZ-RMX4
Youanshanghang Electronic Accessories 5-Port 10/100Mbps Ethernet Desktop Switch,Plug and Play, no Configuration Needed
1. Five Megabit auto-negotiation RJ45 ports greatly expand network capacity. 2. Energy efficient technology which saves up to 60% lower in power consumption3. High integration design, small and exquisite, portable, suit for medium and small office and home network4. Plug and play, no configuration needed5. Using store and forward technology, combined with dynamic memory allocation, ensure allocate to each port effectively6. Its wire speed switching that forward packets can be as fast as the speed tha your network delivers those packets to them. Product informationPackage Dimensions 4.33 x 3.15 x 2.36 inchesItem Weight 6.4 ouncesASINB089H2BNV4Date First AvailableJune 1, 2020ManufactureryouanshanghangWarranty & SupportProduct Warranty: For warranty information about this product, please click here FeedbackWould you like to tell us about a lower price? VideosPage 1 of 1Start OverPage 1 of 1Previous pageVideos for related products 16:43 Click to play videoMultigig Networking on a Budget - 2.5 and 10 gig options! Lon. TVVideos for related products 3:20 Click to play videoIndustrial DIN Rail Security & Networking POE+ Switch Unboxing-| POE-SW802-DIN PoE DepotVideos for related products 1:56 Click to play videoIntroducing NETGEAR 16-Port PoE+ Gig Ethernet Plus Switches Netgear IncVideos for related products 1:25 Click to play videoIntroducing NETGEAR Business Unmanaged Switches Netgear IncVideos for related products 2:18 Click to play videoNETGEAR ProSAFE 10-Gigabit Ethernet Switches | XS708Ev2 & XS716E NETGEAR Videos for related products 1:38 Click to play videoNETGEAR ProSAFE Gigabit Web Managed Click Switches NETGEAR Videos for related products 1:28 Click to play video300 Series Switches Demo Merchant VideoVideos for related products 2:51 Click to play videoIndustrial Switches Video TREN DnetVideos for related products 2:18 Click to play videoLearn About the New NETGEAR Smart Plus Switches GUI Netgear IncVideos for related products 1:28 Click to play videoHow to Setup Link Aggregation on the Nighthawk X10 Router and S8000 Switch | NETGEAR NETGEAR Next pageUpload your video Customer Review: Multigig Networking on a Budget - 2.5 and 10 gig options! See full review Lon. TVOnsite Associates ProgramAmazon Influencer Customer Questions & Answers
Huacomm 5 Port Gigabit PoE+ Switch, 4 Port PoE 65W, 802.3at/af Compliant, Desktop, Sturdy Metal, Fanless, Plug-and-Play, Smart Power Management (GHC50
Product DescriptionRead more Huacomm GHC5004P 5-Port Gigabit Ethernet PoE+ Switch New Product for our customers in 2019! Huacomm 4 ports 10/100/1000Mbps PoE switch GHC5004P, which can be used for any 10/100/1000Mbps link and supply standard IEEE 802.3af/at power. Advanced auto-sensing algorithm gives power to 802.3af/at end devices. In addition, the PoE switch provide AI Smart-link, Step-link function etc., it can protect your terminals better and make the network more stable! Application: This PoE switch is ideal for powering PoE devices such as IP cameras,WLAN access points, IP phones, office access control systems, and other PD devices and offers a line of high quality products that provide a total solution for ethernet application in different environments. Technical Specification 4 PoE+ port + 1 Uplink portNetwork Standard: IEEE802.3af IEEE802.3atMAX POE output: 30W Total power consumption: 65WLED Indicators: PWR/POE MAX, PoE indicator, Link/Act Bandwidth: 10GbpsPacket forwarding rate: 7.44Mpps:MAC address: 2KPower Input: DC52V 1.25A
NETGEAR 5-Port Gigabit Ethernet Smart Managed Plus Switch (GS105Ev2) - Desktop, and ProSAFE Limited Lifetime Protection (GS105E-200NAS)
The NETGEAR GS105Ev2 Smart Managed Plus Desktop Switch features 5-Port Gigabit Ethernet, ProSAFE Lifetime Protection and more.
WS-C2960X-48LPD-L Catalyst 2960-X Switch Catalyst 2960-X 48 GigE PoE 370W, 2 x 10G SFP+ LAN Base
Enclosure type
Rack-mountable - 1U
Ports
48 x 10/100/1000 + 2 x 10G SFP+
Network management Interface
10/100 Mbps Ethernet (RJ-45)
Available PoE Power
370W
Forwarding bandwidth(Gbps)
108Gbps
Maximum stacking number
8
Stack Bandwidth
80 G
Forwarding Performance
130.9Mpps
Switching bandwidth
216Gbps
Maximum active VLANs
1023
MAC Address Table Size
16K (default)
CPU
APM86392 600MHz dual core
RAM
256 MB
Flash Memory
64 MB
Status Indicators
Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed
Expansion / Connectivity
Console ports
USB (Type-B), Ethernet (RJ-45)
Stacking cable
Optional
Power Redundancy
Option (PWR-RPS2300)
Voltage range (Auto)
110V-240V
Power Consumption Operational
0.48KVA
Miscellaneous
Width
17.5 Inches (44.5 cm)
Depth
14.5 Inches (36.8 cm)
Height
1.75 Inches (4.5 cm)
Weight
12.9 lb (5.9 Kg)
Package Weight
23.48 lb (10.65 Kg)
Rack Mounting Kit
optional
MTBF in hours
277,960
Compliant Standards
? IEEE 802.1D Spanning Tree Protocol
? IEEE 802.1p CoS Prioritization
? IEEE 802.1Q VLAN
? IEEE 802.1s
? IEEE 802.1w
? IEEE 802.1X
? IEEE 802.1ab (LLDP)
? IEEE 802.3ad
? IEEE 802.3af and IEEE 802.3at
? IEEE 802.3ah (100BASE-X single/multimode fiber only)
? IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
? IEEE 802.3 10BASE-T
? IEEE 802.3u 100BASE-TX
? IEEE 802.3ab 1000BASE-T
? IEEE 802.3z 1000BASE-X
? RMON I and II standards
? SNMP v1, v2c, and v3
? IEEE 802.3az
? IEEE 802.1ax
wgs-803 industrial 8-port 10/100/1000t wall-mount switch (-10~60 degrees c)
For full product specifications, please visit to be installed in a wall enclosure or simply mounted at any convenient location on a wall, PLANET's WGS-803 is an innovative, wall-mounted industrial 8-port Gigabit Ethernet Switch. It comes in a compact but rugged IP30 metal housing. Featuring ultra networking speed and operating temperature ranging from -10 to 60C. The WGS-803 is able to operate reliably, stably and quietly in any environment without affecting its performance, and provides a quick, safe and easy deployment of home automation network. The WGS-803 is specially designed to be installed in a narrow environment, such as wall enclosure or electric weak box. The compact, flat and wall-mounted design fits easily in any space-limited location. It adopts the user-friendly Front Access design, making the installing, cable wiring, LED monitoring and maintenance of the WGS-803 placed in an enclosure very convenient for technicians. The WGS-803 can be installed by fixed wall mounting, magnetic wall mounting or DIN rail, thereby making its usability more flexible. The WGS-803 features a strong dual power input system (12V~48V DC) incorporated into customer's automation network to enhance system reliability and uptime. In the example below, when the 3-pin terminal block fails to work, the hardware failover function will be activated automatically to keep powering the WGS-803 via the DC plug power alternatively without any loss of operation. The WGS-803 is designed for a high-performance architecture. With the 8 10/100/1000Mbps Gigabit Ethernet ports providing non-blocking switch fabric and wire-speed throughput as high as 16Gbps, and the 8K MAC address table, the WGS-803 can perform wire-speed packets transfer without the risk of packet loss.
FAST Network 5 Port Gigabit Switch Ethernet Network Switch Adapter Hub Ethernet Splitter Traffic Optimization Desktop Unmanaged Switch
Size ConversionInchesCentimetersPlease according to your own measurements to choose your suitable size. The tags inside the items will show in our Asian (Type) size. nullSpecifications:?? 1. Brand: FAST? 2. Network standard: IEEE 802.3, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 ab? 3. Protocol: CSMA/ CD? 4. Port: 5*10/100/1000M(Auto MDI/ MDIX)? 5. Support network cable:? 10Base-T: CAT3 or above UTP? 100Base-TX: CAT5 UIP 1000Base-T: CAT5 or above UTP? 6. Indicator: Power, Status Indicator? 7. Dimension: 82mmx49mmx21mm? 8. Switch method: Store-and-Forward, Wire-speed filtering and forward.? 9. Power: External power adapter? 10. Mode switch: 1 over-range switch, after opening, 1 ~ 4 ports work at 10Mbps, transmission distance can reach 260m11.? Filtering and forwarding rates: 10Mbps:14880pps100Mbps:148800pps1000Mbps:1488000pps? 12. Working environment: Working temperature: 0~40?Storage temperature: -40~70?Working humidity: 10%~90%RH Non-condensingStorage humidity: 5%~90%RH Non-condensing?? Features:? 1.? Comply with IEEE 802.3, IEEE 802.3 u, IEEE 802.3 ab standards2. Provide 4 ultra-distance ports, support long-distance transmission of monitoring data3. Provide 2 priority protection ports to ensure the priority transmission of monitoring data4. Intelligent flow control method and intelligent cache to avoid data loss5. Store-and-forward architecture6. 5*10/100 / 1000M self-adaptive RJ45 ports, support port auto flip (Auto MDI / MDIX)6. 5 ports support 10M full / half duplex, 100M full / half duplex, 1000M full duplex7. UTP port supports auto-negotiation function to automatically adjust transmission mode and transmission rate8. Support MAC address self-learning9. Dynamic LED indicator provides simple working status prompts and troubleshooting10. External power supply, desktop type plastic shell structure design, support wall mounting11. Mini-sized design for easy storage in message boxes?? Package Included:?? 1 XFAST Network 5 Port Gigabit Switch?
24 Port 10/100/1000 Gigabit Ethernet Switch, Matte Grey
71X6-00124 is a 24-port Gigabit Ethernet Switch that gives you a high-performance, low-cost, easy-to-use, seamless upgrade to boost your network to 1000Mbps. Increase the speed of your network backbone to a massive 48Gbps and bring lightning fast Gigabit connections to all your computers.
16Port Gigabit Ethernet Smart Managed Plus Switch GSS116E with Virtually Anywhere CLICK Mount System and ProSAFE Lifetime Protection
Model: 16 port | CLICK MountThe GSS116E Smart Managed Plus Switch features 16-Port Gigabit Ethernet, a CLICK Mount System for mounting it virtually anywhere, ProSafe Lifetime Protection and more.
Linkskey 8-Port 10/100/1000 Gigabit Ethernet Switch (LKS-SG8P)
Link-On and Cable Length Power SavingLink-Down Power SavingSupports Jumbo Frame and 8K MAC address entriesCompact design for desktop or wall mountingPlug-and-play enabled for easy setup and configuration
NETGEAR - 8-Port 10/100/1000 Mbps Gigabit Unmanaged Switch - White
NETGEAR - 8-Port 10/100/1000 Mbps Gigabit Unmanaged Switch - White condition: New Brand: NETGEARMPN: GS608NAType: N/A
Perle IDS-205F - Managed Industrial Ethernet Switch with Fiber
Perle Systems, Inc, Perle IDS-205F - Managed Industrial Ethernet Switch with Fiber, 07012150

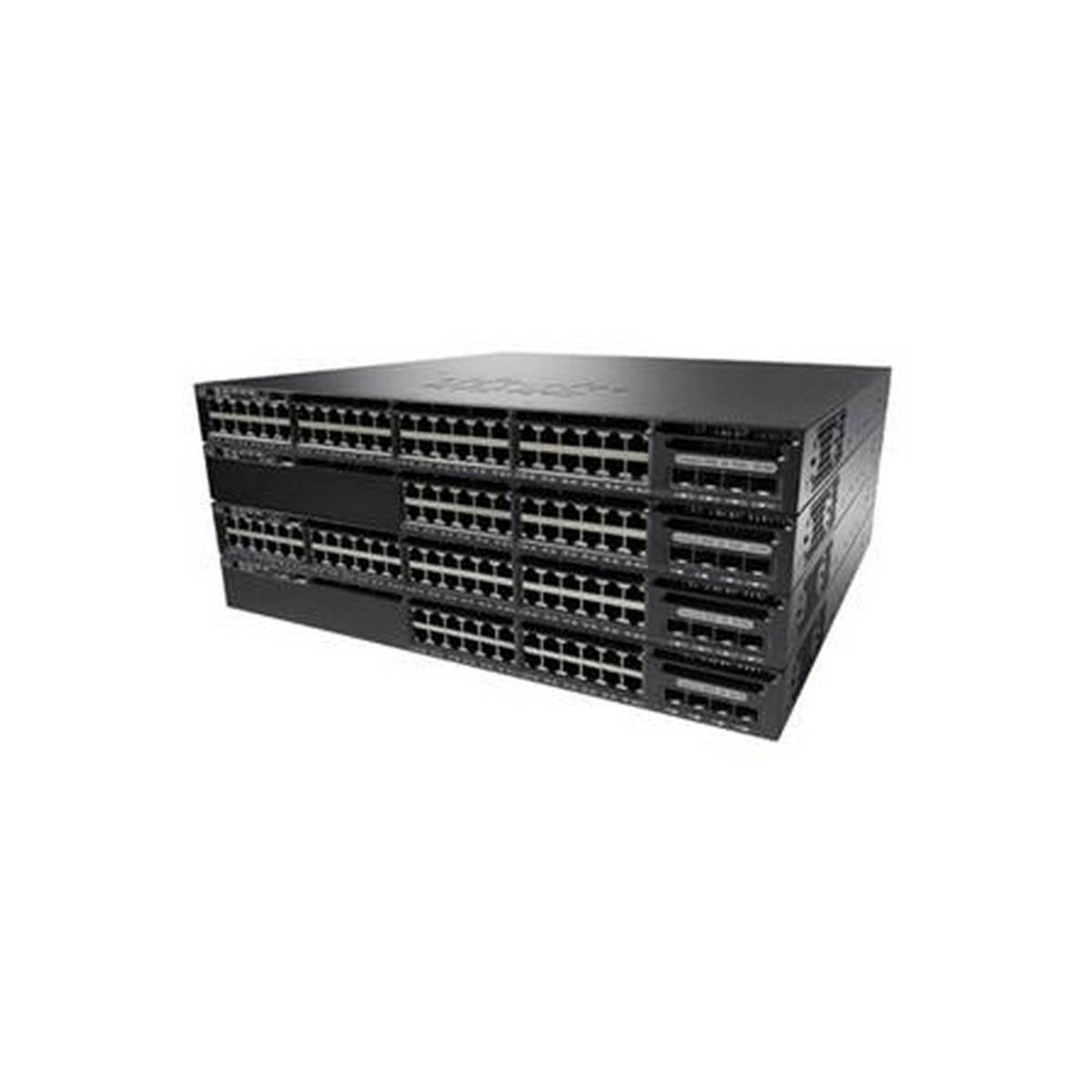

WS-C3650-48FS-E Catalyst 3650 Switch Cisco Catalyst 3650 48 Port Full PoE 4x1G Uplink IP Services
Enclosure type
Rack-mountable - 1U
Ports
48 x 10/100/1000 (POE+) + 4 x 1G SFP
Network management Interface
· Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
· Management console port: RJ-45-to-DB9 cable for PC connections
Available PoE Power
775W
Switching Capacity
176Gbps
Maximum stacking number
9
Stack Bandwidth
160Gbps
Forwarding Performance
77.37Mpps
FNF entries
48000
Maximum VLANs IDs
4,094
MAC Address Table Size
32K
CPU
Multicore CPU
RAM
4 G
Flash Memory
2 G
Wireless
Number of AP per switch/stack
50
Number of wireless clients per switch/stack
1000
Total number of WLANs per switch
64
Wireless bandwidth per switch
up to 40Gbps
Supported Aironet AP series
3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040
Expansion / Connectivity
Console ports
USB (Type-B), Ethernet (RJ-45)
Expansion Slot(s)
power redundant slot
Accessory & Rack Moubt Kits
· ACC-KIT-T1: Accessory kit
· RACK-KIT-T1: Rack mount kit
· 4PT-KIT-T1:Extension rails and brackets for four-point mounting
Stacking module & cable
· C3650-STACK-KIT: Stack Module
· STACK-T2-50CM: StackWise-160 stacking cable with a 0.5 m length
· STACK-T2-1M: StackWise-160 stacking cable with a 1.0 m length
· STACK-T2-3M: StackWise-160 stacking cable with a 3.0 m length
Power supply
PWR-C2-1025WAC
Power Device
Power supply - redundant - plug-in module
Power Redundancy
optional
Voltage range (Auto)
100V-240V
Power Consumption of standalone (in Watts)
109.4 (max)
Miscellaneous
Width
17.5 Inches (44.5 cm)
Depth
19.125 Inches (48.6 cm)
Height
1.73 Inches (4.4 cm)
Shipping Weight
17.49 Kg
Rack Mounting Kit
optional
MTBF in hours
383,760
Gigabit Plastic Case, Plastic Case Plug and Play Automatic Learning Lightweight for Home Network Connections for Office Network Connections
Features: 1. Plug and play, just connect the network cable and power cable to the switch to work properly. 2. Smart connection, automatic learning and updating of MAC addresses. 3. Adaptive 10/100 Mbps transmission for home or small office network connections. 4. LED light dynamic indication. 5. Compact and lightweight, simple and generous. Specification: Number of ports: 5 10/100 / 1000M adaptive RJ45 ports Supporting protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.3x Network media: 10Base-T: Category 3 or above UTP:10Base-T: Category 5 UTP LED indication: 10/100Mbps (LINK / ACT), power supply Package List: 1 * Plastic Case 1 * Instruction Manual 1 * Power SupplyProduct informationProduct Dimensions3.94 x 1.57 x 2.36 inchesItem Weight5.4 ouncesManufacturerKAKAKEASINB094NPCBRLDate First AvailableMay 11, 2021Warranty & SupportProduct Warranty: For warranty information about this product, please click here FeedbackWould you like to tell us about a lower price? VideosPage 1 of 1Start OverPage 1 of 1Previous pageVideos for related products 16:43Click to play videoMultigig Networking on a Budget - 2.5 and 10 gig options! Lon.TVVideos for related products 3:20Click to play videoIndustrial DIN Rail Security & Networking POE+ Switch Unboxing-| POE-SW802-DIN PoE DepotVideos for related products 1:56Click to play videoIntroducing NETGEAR 16-Port PoE+ Gig Ethernet Plus Switches Netgear IncVideos for related products 1:25Click to play videoIntroducing NETGEAR Business Unmanaged Switches Netgear IncVideos for related products 2:18Click to play videoNETGEAR ProSAFE 10-Gigabit Ethernet Switches | XS708Ev2 & XS716E NETGEARVideos for related products 1:38Click to play videoNETGEAR ProSAFE Gigabit Web Managed Click Switches NETGEARVideos for related products 1:28Click to play video300 Series Switches Demo Merchant VideoVideos for related products 2:51Click to play videoIndustrial Switches Video TRENDnetVideos for related products 2:18Click to play videoLearn About the New NETGEAR Smart Plus Switches GUI Netgear IncVideos for related products 1:28Click to play videoHow to Setup Link Aggregation on the Nighthawk X10 Router and S8000 Switch | NETGEAR NETGEARNext pageUpload your video Customer Review: Multigig Networking on a Budget - 2.5 and 10 gig options!See full review Lon.TVOnsite Associates ProgramAmazon Influencer Customer Questions & Answers
HPE Aruba 8320
MAIN OVERVIEW FEATURES: Modular: YesPort/Expansion Slot Details: 48 x 10 Gigabit Ethernet Expansion Slot6 x 40 Gigabit Ethernet Expansion SlotMedia Type Supported: Optical FiberEthernet Technology: 10 Gigabit Ethernet40 Gigabit EthernetNetwork Technology: 10GBase-X40GBase-XNumber of Total Expansion Slots: 54Expansion Slot Type: SFP+QSFP+Shared SFP Slot: NoNumber of SFP+ Slots: 48Layer Supported: 3Power Source: Power SupplyRedundant Power Supply Supported: YesCompatible Rack Unit: 1UForm Factor: Rack-mountablePackage Contents: 8320 Ethernet Switch 5 x Fan Trays 2 x Power Supplies 2 x Post Rack Kit
Cisco 350 CBS350-16FP-2G 16-Port Managed Ethernet Switch CBS35016FP2GNA
The Cisco Business 350 Series Switches, part of the Cisco Business line of network solutions, is a portfolio of affordable managed switches that provides a critical building block for any small office network. Intuitive dashboard simplifies network setup, and advanced features accelerate digital transformation, while pervasive security protects business critical transactions. The Cisco Business 350 Series Switches provide the ideal combination of affordability and capabilities for small office and helps you create a more efficient, betterconnected workforce. The Cisco Business 350 Series Switches is a family of fixed-configuration managed Ethernet switches. Models are available with 8 to 48 ports of Gigabit Ethernet connectivity and Gigabit or 10-Gigabit uplinks, providing optimal flexibility to create exactly the right building block for small office networks. However, unlike... Total Number of Network Ports: 18Uplink Port: YesModular: YesPort/Expansion Slot Details: 16 x Gigabit Ethernet PoE+Port/Expansion Slot Details: 2 x Gigabit Ethernet Expansion SlotMedia Type Supported: Optical FiberMedia Type Supported: Twisted PairEthernet Technology: Gigabit EthernetNetwork Technology: 1000Base-TNetwork Technology: 1000Base-XNumber of Total Expansion Slots: 2Expansion Slot Type: SFP (mini-GBIC)Shared SFP Slot: NoNumber of SFP Slots: 2Layer Supported: 2Manageable: YesPoE (RJ-45) Port: YesPoE Budget: 240 WPower Source: PoE+Power Source: AC AdapterPower Consumption: 26.68 WHeight: 1.7W idth: 10.6"D epth: 12.1"W eight (Approximate): 5.49 lbPackage Contents: 350 CBS350-16FP-2G Ethernet Switch Power Cord Power Adapter Mounting Kit Quick Start Guide Environmentally Friendly: YesEnvironmental Certification: WEEE Limited Warranty: LifetimePackage Contents 350 CBS350-16FP-2G Ethernet Switch Power Cord Power Adapter Mounting Kit Quick Start Guide "
dericam 5-port poe switch 10/100mbps ieee 802.3af compliant, ethernet network switch, plug-and-play, for traffic optimization
Overview4 ports 10/100Mbps PoE switch PoE switch provides power and data froma single point, using Power over Ethernet (PoE) over a single Cat-5 cable. LS1705PAseries can be used for any 10/100Mbps link and supply standard IEEE 802.3 af/atpower. Advanced auto-sensing algorithm gives power to 802.3 af/at end devices. The device supports one-key VLAN which isolates thecommunication between downlink and uplink ports. In addition, the PoE switch automaticallydetermines PoE requirements, speed, and duplex. Easy to operate and reliable. This PoE switch is ideal for powering PoE devices such as IP cameras, WLA Naccess points, IP phones, office access control systems, and other PD devices andoffers a line of high quality products that provide a total solution for Ethernetapplication in different environments. Ports DescriptionPOE Port: Port 1-4: 10/100M Auto-Negotiation RJ45Uplink Port: Port 5: 10/100M Auto-NegotiationRJ45MAX PoE output: 30WTotal power consumption: 65WInput Voltage: DC 52V 1.25AN etwork standardIEEE 802.3 i 10 BASE-TIEEE 802.3 u 100 BASE-TXIEEE 802.3 x Flow ControlIEEE 802.3 af Power over EthernetIEEE 802.3 at Power over EthernetIEEE 802.3 az EEEZ
