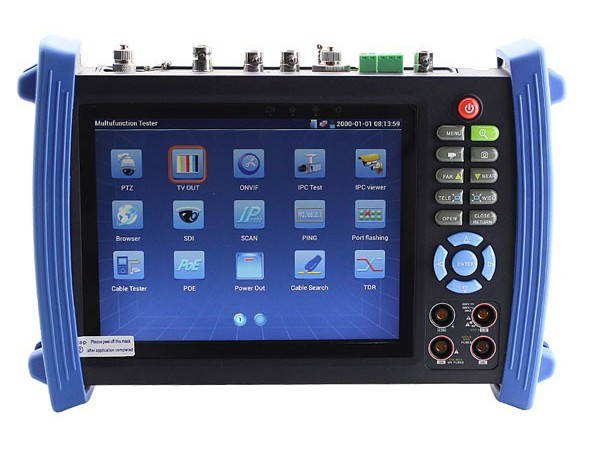

7 Inch Touch Screen 1080P HDMI IP Camera Tester/POE, WIFI, UTP Cable scan, Ping Test, AHD Camera Test

Description: IP camera tester is great CCTV tools for IP camera's installation and maintenance, both for Analog and IP camera test, built in video level meter, Analog and digital video signal output, IP address scan, Ping test, Port flashing, cable test, easy to operate Improved IP camera tester, After charging 7~8 hours, normal working time 16 hours, built in WIFI, test Wireless IP Camera; 12V 2A power output for camera, 48V PoE power supply, Directly provide PoE power to IP Camera 5V 2A power output (as a power bank 13000mAh), HDMI output; Audio input and output, Network bandwidth testing, image 180 degree rotating, the power and network ports on the top of the tester, easy to connect the cable.

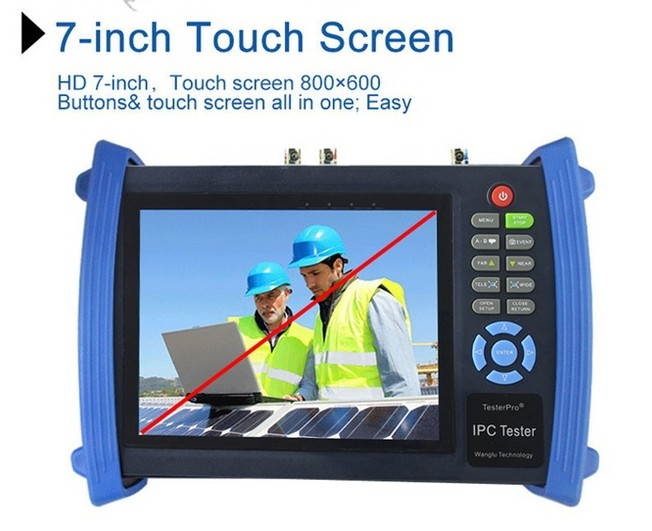

Features: 1.7 inch touch screen, 800*600 resolution; 2. Capacitive touch screen, OSD menu; 3. Touch screen and key operation; 4. Built-in WIFI, wireless network camera test; 5. Support 1080P HD camera; 6. Support ONVIFcamera, and Support DAHUA, Haikang, KEDA, Samsung, HIKVISION and TIANDY camera ect; 7. Support running the mobile phone or tablet mobile client software of the IP camera manufacturers; 8. Image can rotate 180 degrees; 9. Display real resolution of the IP camera images; 10. Video screenshot, video recording, files named and save, easy to find; 11. Support network PTZ controller (ONVIF); 12. Support 1080P HD video files and MKV/MP4 media files play; 13. PTZ controller, Photograph, Video record, Record playback; 14. Video level meter, Video PEAK lever, SYNC level, COLOR BURST measurement; 15. POE voltage measurement, PING test, IP address scan, port flashing etc; 16. PoE DC48V power output, Max power 24W; 17.12V /2A power output; 18.5V 2A power output, as the power bank; 19.

HDMI output, 1920*1080P Resolution; 20. Audio in /out; 21. LED lamp, calculators, music players and other application tools; 22. Support customers self update software; 23. Lithium Ion Polymer Battery, working time lasts 16 hours; 24. Digital video color bar output, analog video color bar and testing image output. 25. AHD Camera test Packing list 1, Tester 2, Adaptor DC12v 2a 3, Network cable tester 4, Polymer lithium ion battery( 7.4V DC 6500mAh) 5, BNC Cable 6, RS485 Cable 7, Output Power cable 8, 4G SD card 9, Tool bag 10, Audio cable 11, Safety cord 12, Manual 13, TDR alligator clamp (only for TDR models)

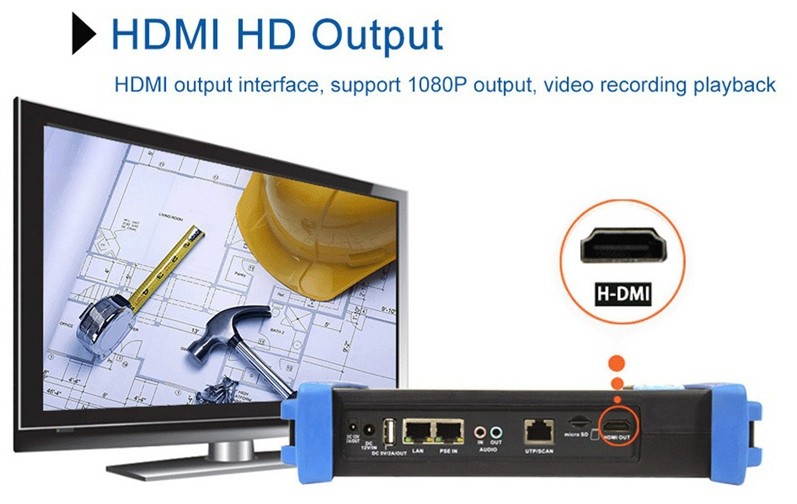

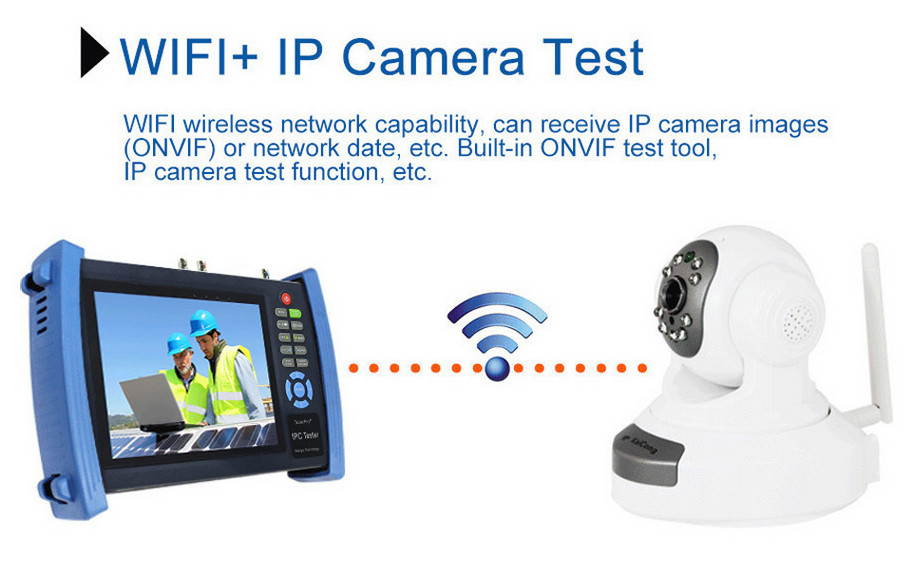

Specification: *WIFI--Built in WIFI, speeds150M, receive wireless camera image etc. *Video level test--1 channel BNC Input & 1 channel Output, NTSC/PAL (Auto adapt). *Video level meter--PEAK video signal level, SYNC signal level, COLOR BURST chroma level measurement. *Zoom Image--Support Analog camera and IP camera image zoom /move *Snapshots, Video record, Record playback--Image Screenshots, record, save, view and record play back. *HDMI output--1 channel HDMI output, support 1920*1080P. *12V/2Apower output--Output DC12V/2A power for camera. *5V power output--5V 2A power output, as a mobile phone Power bank. *PoE power output--48V PoE power output, Max power 24W. *Audio test--1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone. *Video Signal Generator--Output one channel PAL/NTSC color bar video signal for testing monitor or video cable. (red, green, blue, white and black color ). *UTP Cable tester--Test UTP cable connection status and display in the screen. Read the number on the screen. *Data monitor--Captures and analyzes the command data from controlling device, also can send hexadecimal. *Network test--IP address scan, link scan, Ping test, Quickly search the connection IP camera and other device’s IP address.

*Cable scan--Search the cable by the audio signal. *PoE test--Measurement POE switch or PSE power supply voltage and cable connection status. *AHD Camera test--Support 1280x720P 25FPS / 1280x720P 30FPS / 1920x1080P 25FPS / 1920x1080P 30FPS If coaxial control PTZ control of the AHD camera, it does not need to set the parameters
