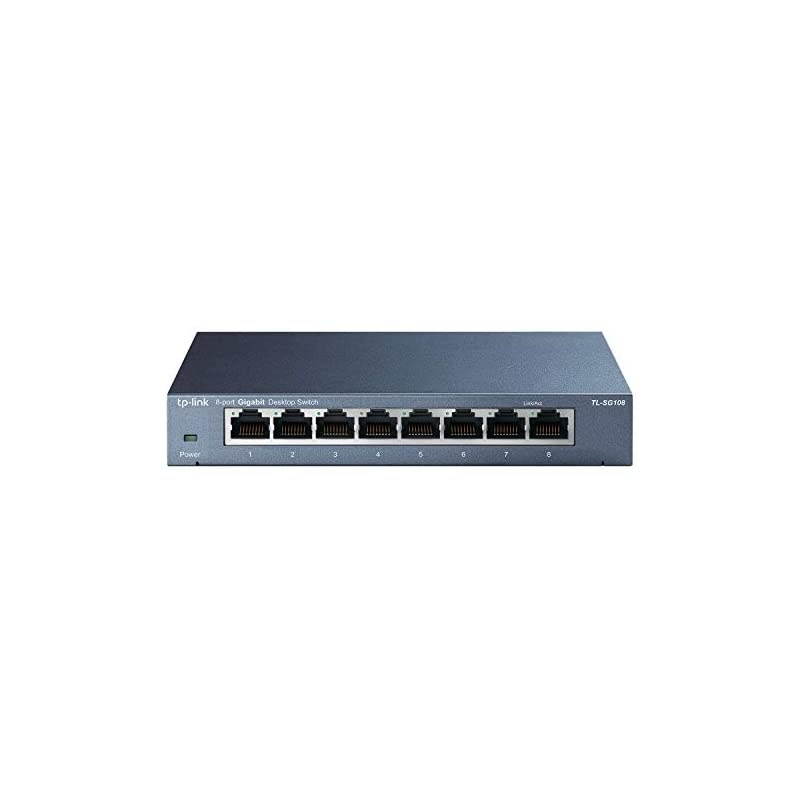

TL-SG108 | 8 Port Gigabit Unmanaged Ethernet Network Switch, Ethernet Splitter | Plug & Play | Fanless Metal Design | Shielded Ports | Traffic Optimization | Limited Lifetime Protection

Size: 8 Port |

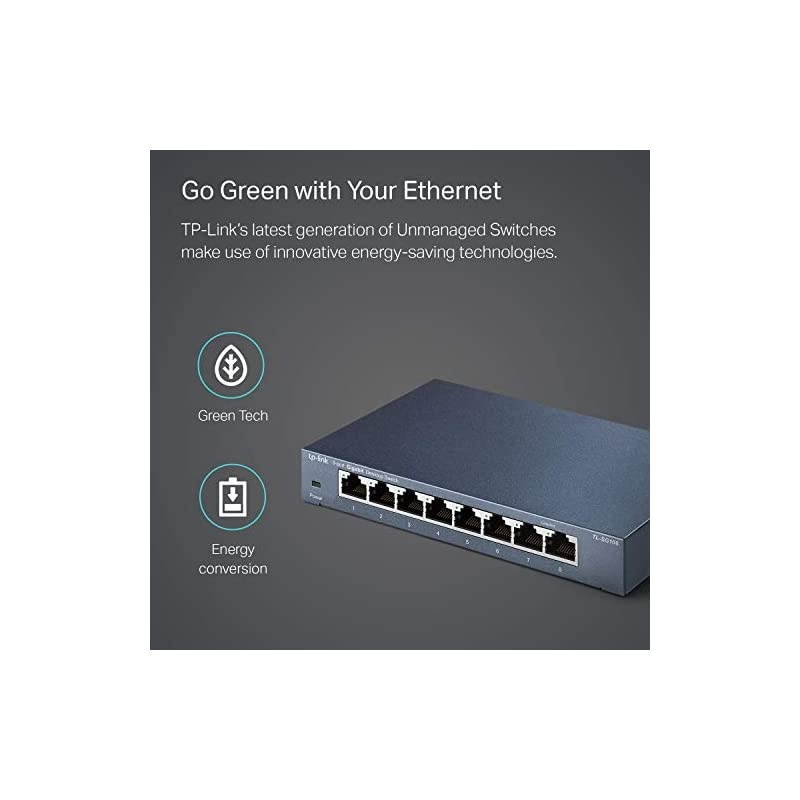

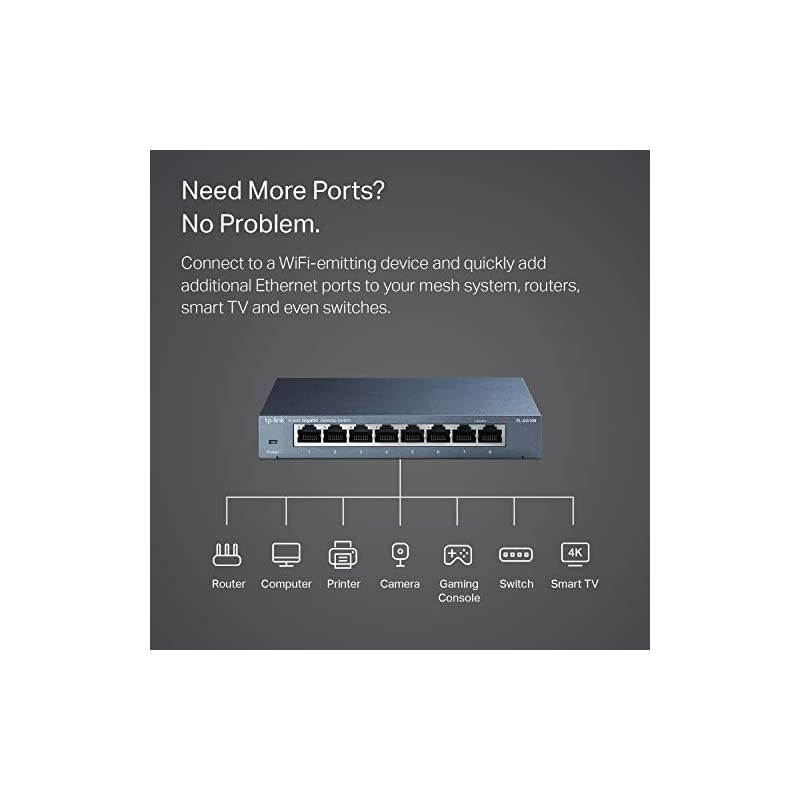

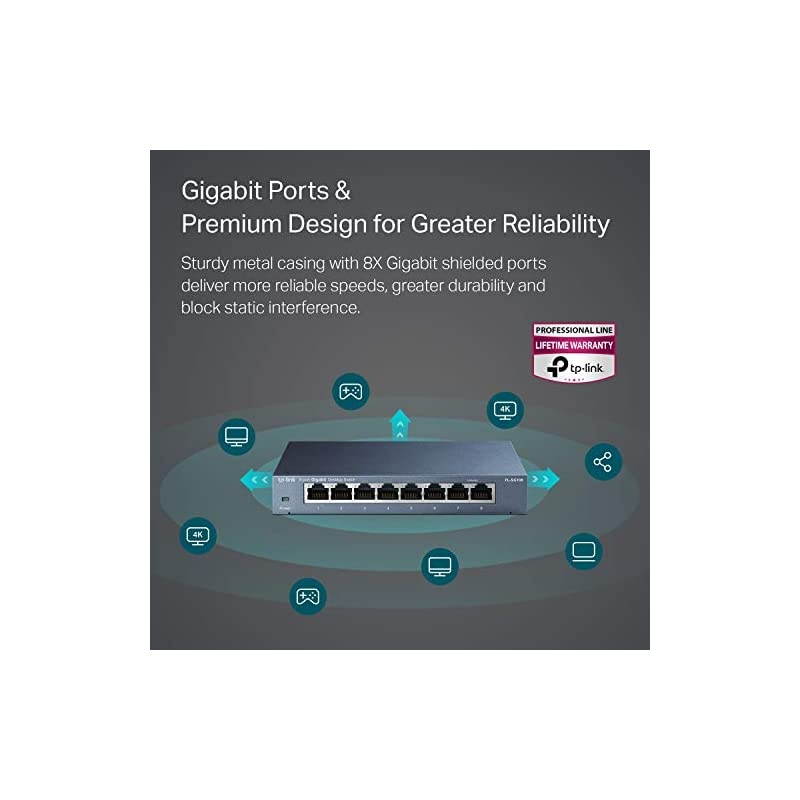

Style: Unmanaged What This Product Does ’s TL-SG108 provides an easy way to expand your wired network. All 8 ports support Auto-MDI/MDIX, eliminating the need to worry about what type of cable to use. Featuring full duplex mode, the device can process data at a rate of up to 2000Mbps, making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology, the TL-SG108 can save energy up to 72%. Key Features Gigabit Switch Featured with 8 10/100/1000Mbps ports, the TL-SG108 enables ultra-fast wired connectivity, enabling instant large files transferring. Steel Housing The TL-SG108 is housed in a compact steel case for longer life span. With the desktop or wall-mounting design, you can place the device wherever it’s convenient. Easy to Use The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network Go Green with Your Ethernet The TL-SG108 features the latest innovative energy-efficient technologies that can save power up to 72%.

It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. Specifications Support IEEE 802.3 x flow control for Full Duplex mode and backpressure for Half Duplex mode Support QoS (IEEE 802.1 p) Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput 16Gbps Switching Capacity, 8K MAC address table, 12KB Jumbo Frame, 2MB Buffer Memory Auto-MDI/MDIX eliminates the need for crossover cables Support MAC address auto-learning and auto-aging Auto-negotiation ports allow smart integration between 10Mbps, 100Mbps, and 1000Mbps devices Fanless desgin to keep a quiet environment Support 100-240V power supply What's in the Box 8-Port Gigabit Switch Power Adapter User Guide Unmanaged Switches Series Which Unmanaged Switch is Right for Me? TL-SG1005D TL-SG1008D TL-SG105 TL-SG108 TL-SG1016D TL-SG1024D TL-SG1016 TL-SG1024 Product Name 5-Port Gigabit Desktop Switch 8-Port Gigabit Desktop Switch 5-Port Gigabit Desktop Switch 8-Port Gigabit Desktop Switch 16-Port Gigabit Desktop/Rackmount Switch 24-Port Gigabit Desktop/Rackmount Switch 16-Port Gigabit Rackmount Switch 24-Port Gigabit Rackmount Switch Case Material Plastic Plastic Steel Steel Steel Steel Steel Steel Port Number 5 8 5 8 16 24 16 24 Size Desktop Desktop Desktop Desktop 13-inch 13-inch 19-inch 19-inch QoS - - ✓ ✓ - - - - IGMP Snooping - - ✓ - - - - - AUTO MDI/MDIX ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ IEEE 802.3X Flow Control ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ Power Saving ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ Plug and Play ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
Interface Available: 8 x 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX;
Internal Memory: 1.5M b;
Protocols Supported: IEEE 802.3 i IEEE 802.3 u IEEE 802.3 ab IEEE 802.3 af, IEEE 802.3 x IEEE 802.1 q IEEE 802.1 p;
System Requirement: Microsoft Windows for running Utility
