StarTech.com Model SAS729PW18 18" SAS 29 Pin to SATA Cable with LP4 Power
Ideal for use with SAS external storage devices Host Bus Adapters and RAID controllers this high quality 18in SAS (29Pin) to SATA Cable delivers both power (LP4) and data connectivity.
HP Model J9285B X242 SFP+ 7m Direct Attach Cable
Product Details:Product Type: Network CableProduct Name: Direct Attach CableMfg Number: J9285BDescription: Hp - 10G Sfp+ To Sfp+ 7M Direct Attach Copper CableManufacturer: Hp
StarTech.com Model SAS8087S4100 39.4" (1m) Serial Attached SCSI SAS Cable - SFF-8087 to 4x Latching SATA
Connect a SATA/SAS Controller to 4 SATA drives - mini sas to sata - sff 8087 to
6G Internal Mini SAS SFF-8087 to SFF-8087 Cable, 100-Ohms, 1-m(3.3ft), 2 Pack
CAB-8087/8087-PMini Serial Attached SCSI (mini SAS) Internal Cable Assemblies provide forhigh speed transmission up to 6 G bps. It is an ideal interconnect solution for thegrowing server and storage market. Mini SAS are designed to significantly reducethe cable size for storage systems currently using SAS 4-lane (4x or 4-lanes of data)and are being widely adopted for next-generation designs.The 36-position internal mini SAS cable assemblies are available in customlengths of up to one meter. They are also available in three standard sideband confi gurations.Customized side band configurations are available upon request.Features:Mini SAS SFF-8087 to SFF-8087Cable Length: 0.5~1 meterConnector on First End: 1 x 36-pin SFF-8087Connector on Second: 1 x 36-pin SFF-8087Support data rates at 6.0 G bpsInternal 36 pin mini SAS interconnect between controllers, expanders, backplanes and internal-to-external adapters.Applications:Data CenterServersWorkstations and desktops
10Gtek Transceivers Co., LTD

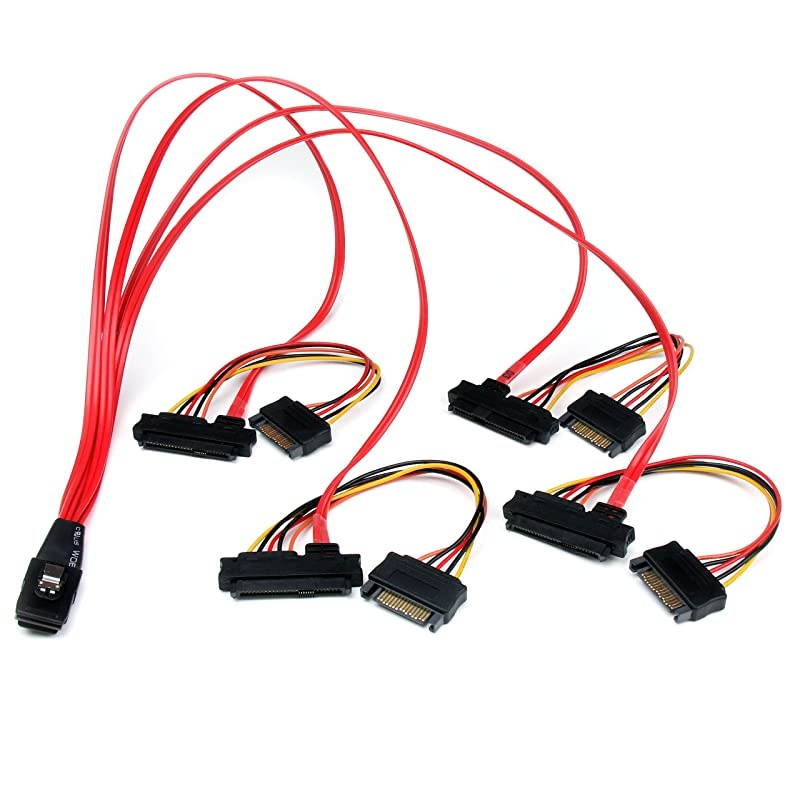

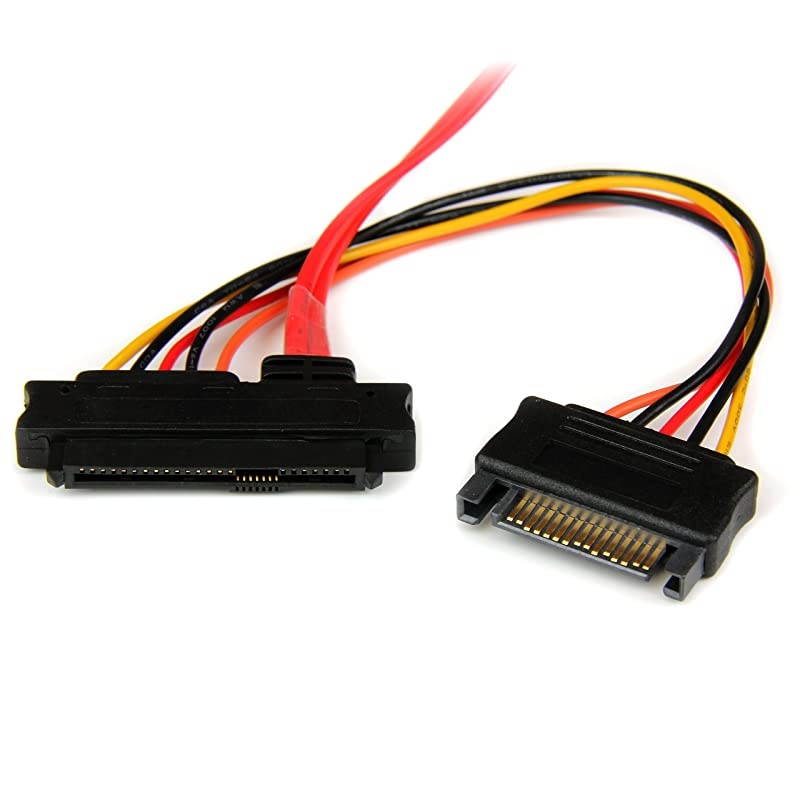

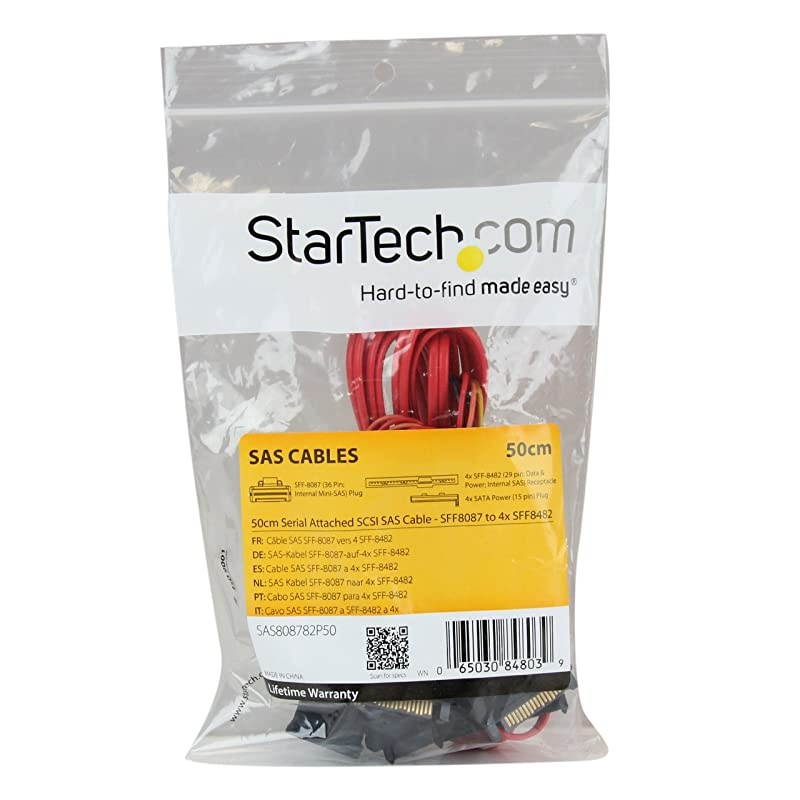

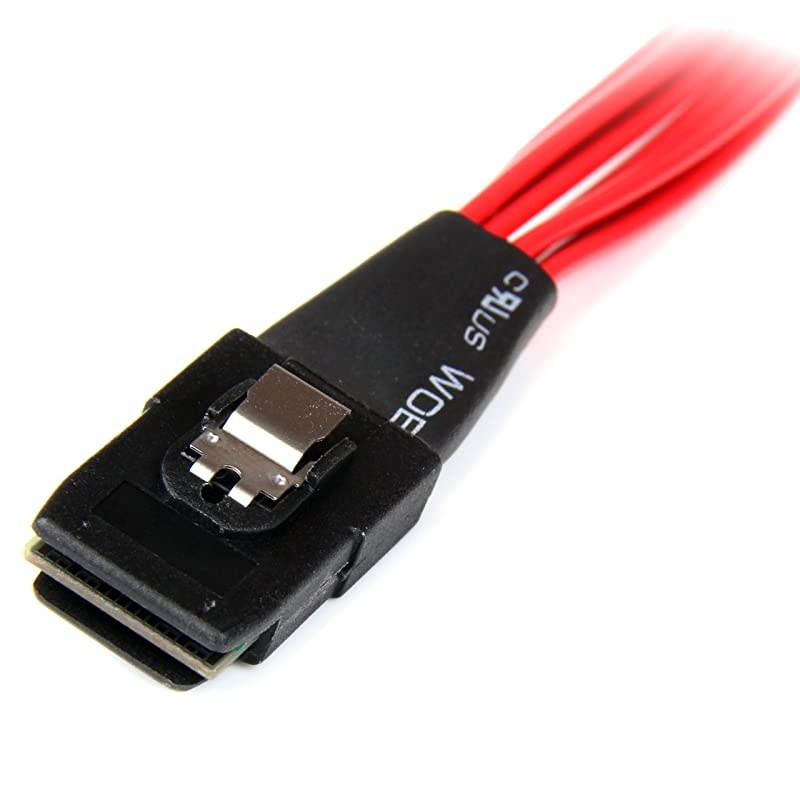

StarTech.com Model SAS808782P50 1.6 ft. Internal Serial Attached SCSI Mini SAS Cable
SAS internal cable - SAS 6Gbit/s - 36 pin 4i Mini MultiLane (P) to SATA power - 29 pin internal SAS (SFF-8482) - 1.6 ft - red
StarTech.com SFPCMM5M Cisco SFP-H10GB-CU5MÂ Compatible SFP+ 10-Gigabit Ethernet Passive Twinax Direct Attach Cable - 5 m (16.4 ft) - 10 GbE
5m Cisco Compatible SFP+ 10-Gigabit Ethernet (10GbE) Twinax Direct Attach Cable Connect 10GbE SFP+ network devices with this high-quality replacement SFP-H10GB-CU5M cable.
CY SFF-8482 SAS 22 Pin to 7 Pin + 15 Pin SATA Adapter SF-092
SFF-8482 SAS 22 Pin to 7 Pin + 15 Pin SATA Hard Disk Drive Adapter with 15 Pin Port Note: 1. It can connect the SATA hard disk to SATA motherboard. 2. It can connect the SAS hard disk to SAS motherboard. 3. It can't connect the SAS hard disk to normal SATA motherboard. (it will be worked if your motherboard has the SAS chipset, Otherwise can't work. ) 4. It can't connect the SATA hard disk to normal SAS motherboard. (it will be worked if your hard disk has the SAS chipset, Otherwise can't work. )
SHENZHEN CHENYANG DIGITAL TECH. CO,. LTD

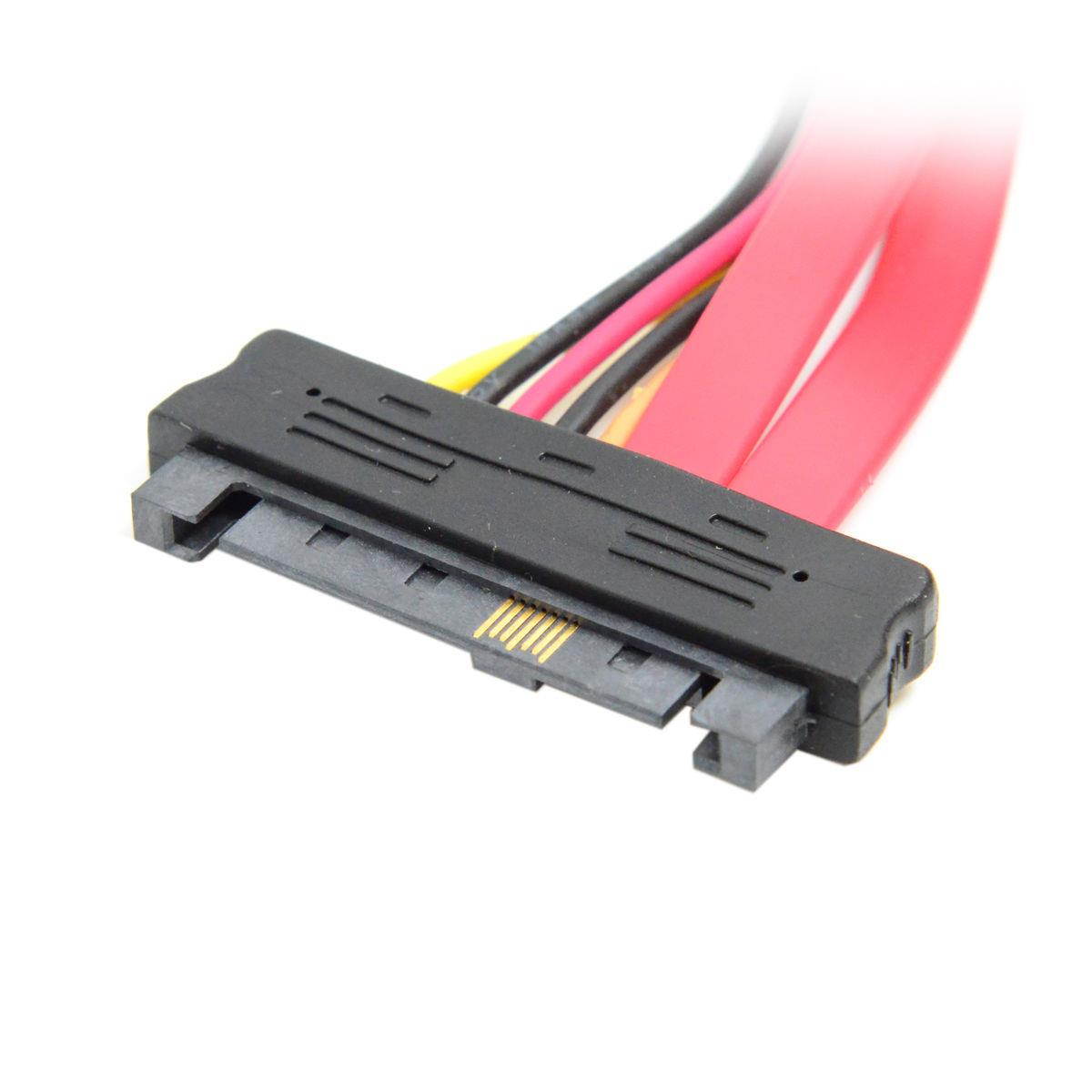

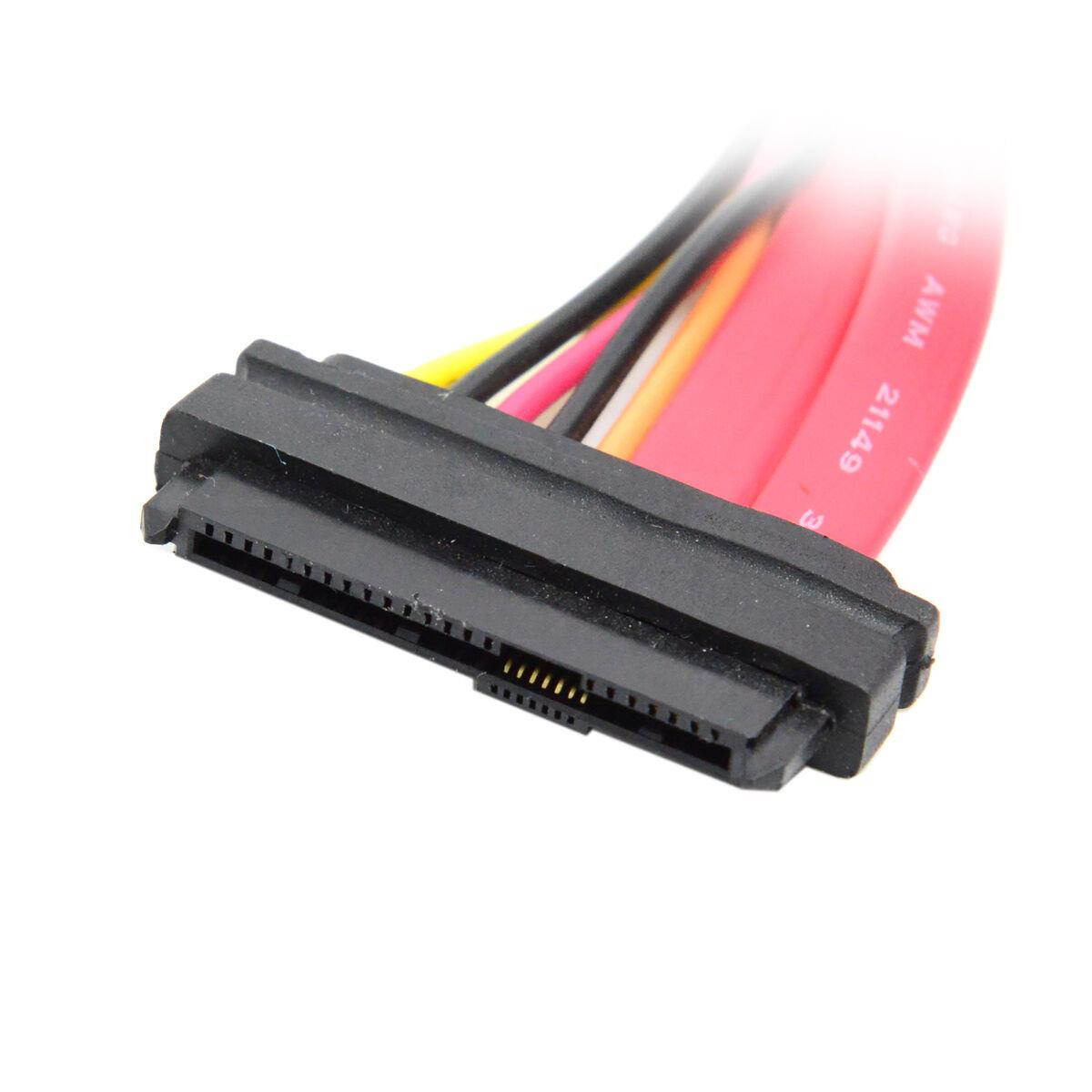

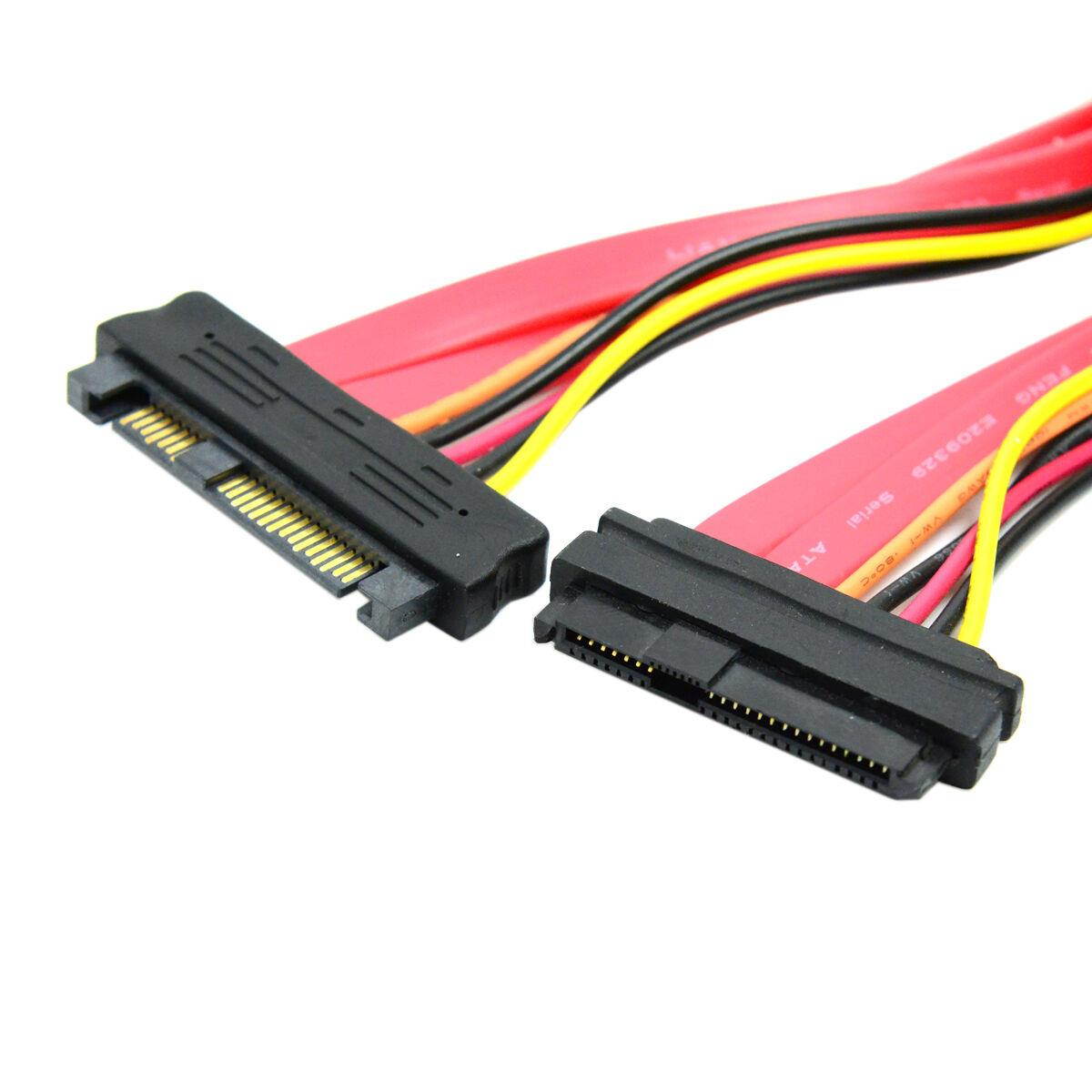

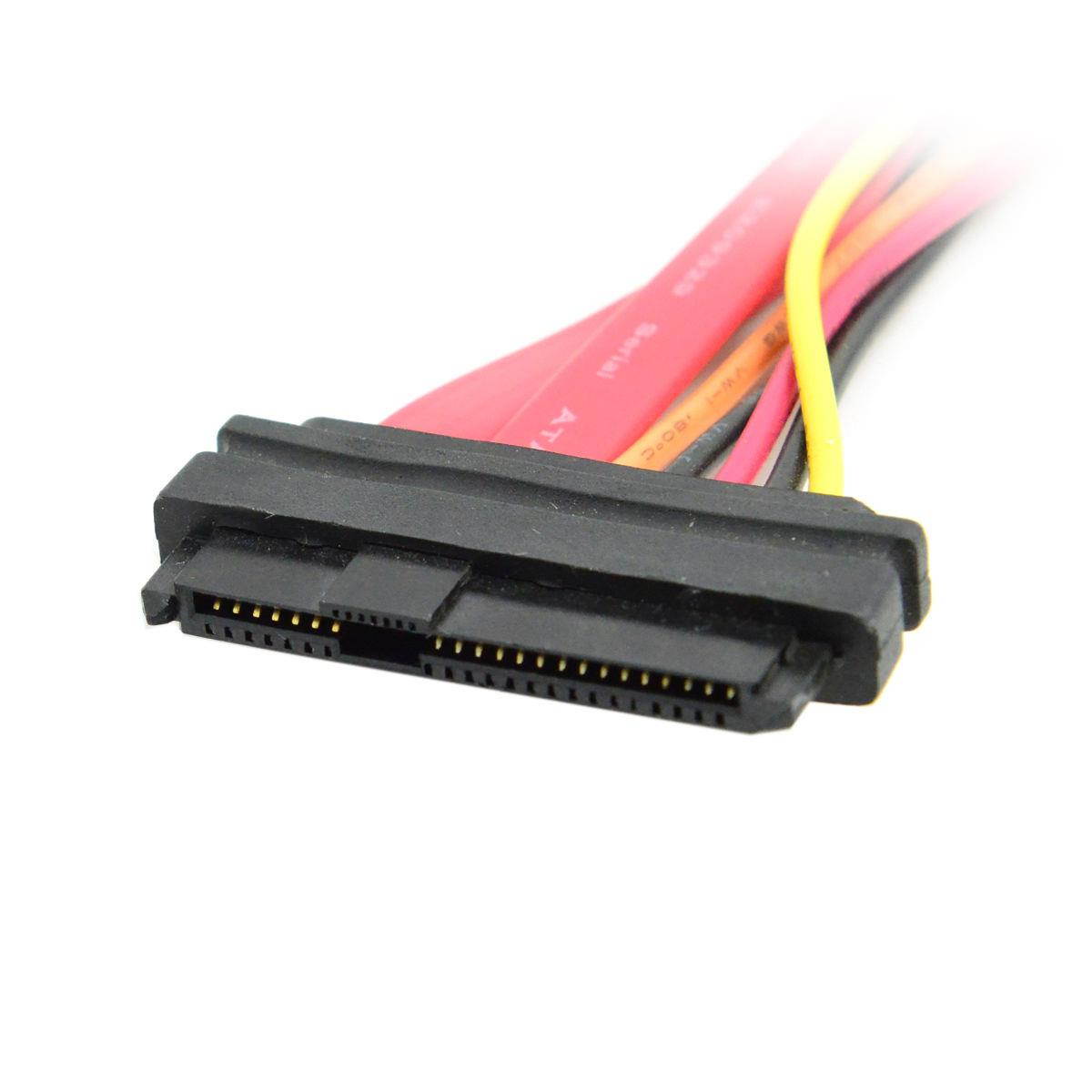

Jimier SAS Hard Disk drive SFF-8482 SAS Cable 29Pin Male to Female Extension Cable 0.5m SF-062-0.5M
Hard Disk SFF-8482 SAS Cable 29Pin Male to Female Extension Cable SAS 29 pin straight SFF-8482 & nbsp; Male to Female cable 50cm UL2725 26AWG SATA CABLE JACKET RoHS
SHENZHEN JIMIER ELECTRONICS CO,. LTD.
Plugadget 50cm/100cm Mini SAS HD SFF 8643 Cable Internal SFF-8643 SAS Cable Mini SAS SFF-8643 to 8643 Cable Adapter for Computer Hard Disk
Features:
Colour: Black
Size: 50cm/100cm
Weight: 50g
SFF-8643 to SFF-8643 cable
Support 12Gbps bandwidth.
SAS (Serial Attached SCSI) is a new generation of SCSI technology, which is the same as the popular Serial ATA (SATA) hard disk. It uses serial technology to obtain better transmission speed and shorten the connection cable. Improve internal space, etc.
SAS is a new interface developed after the parallel SCSI interface. This interface is designed to improve the performance, availability, and expandability of the storage system, and to provide compatibility with SATA hard drives.
SAS interface technology can be backward compatible with SATA. Specifically, the compatibility of the two is mainly reflected in the compatibility of the physical layer and the protocol layer.
At the physical layer, the SAS interface and the SATA interface are fully compatible. SATA hard disks can be used directly in the SAS environment. From the interface standard, SATA is a sub-standard of SAS.
Therefore, the SAS controller can directly control SATA hard disks. However, it cannot be used directly in the SATA environment, because the SATA controller cannot control the SAS hard disk; at the protocol layer, SAS is composed of three types of protocols, and the corresponding protocol is used for data transmission according to different connected devices.
Among them, the serial SCSI protocol (SSP) is used to transmit SCSI commands; the SCSI management protocol (SMP) is used to maintain and manage connected devices; and the SATA channel protocol (STP) is used to transfer data between SAS and SATA. Therefore, under the cooperation of these three protocols, SAS can seamlessly integrate with SATA and some SCSI devices.
Package included:
1 x SFF-8643 to SFF-8643 connection cable
Supermicro Cable CBL-SAST-0929 OCuLink controller to MiniSAS HD backplane V.91 Brown Box
OCULINK V 1.0 SOURCE TO MINISAS HD INT PCIE 57CM 34AWG
FVH U.2 U2 SFF-8639 NVME PCIe SSD Cable for Mainboard SSD M.2 SFF-8643 Mini SAS HD SF-093-0.5M
U. 2 U2 Kit SFF-8639 NVME PCIe SSD Cable Length: 50cm for Mainboard SSD 750 M. 2 SFF-8643 Mini SAS HD Hyper Kit Storage controller Ultra M. 2 Card 4 GBps PCIe 3.0 x4 Cable only, the adapter / card not included.
Shenzhen Shenzhong TECH. CO. LTD.
Cablecc Right Angled 90 Degree SFF-8482 SAS 22 Pin to 7 Pin + 15 Pin SATA Hard Disk Drive Raid Adapter
SFF-8482 SAS 22 Pin to 7 Pin + 15 Pin SATA Hard Disk Drive Raid Adapter with 15 Pin Power Port Right Angled 90 Degree Adapter Note: 1. It can connect the SATA hard disk to SATA motherboard. 2. It can connect the SAS hard disk to SAS motherboard. 3. It can't connect the SAS hard disk to normal SATA motherboard. (it will be worked if your motherboard has the SAS chipsit, Otherwise can't work. ) 4. It can't connect the SATA hard disk to normal SAS motherboard. (it will be worked if your hard disk has the SAS chipsit, Otherwise can't work. ) This SAS adapter to 1x SATA 22pin, enables you to connect a SAS HDD with SFF 8482 port to a SAS compatible SATA controller (hybrid controller). 7 Pin SATA Connector to 15 Pin Male Power Connector and SFF-8482 SAS Connector. Connector Details: 1 x 7 Pin Serial ATA Male. Connector Details: 1 x 15Pin Male. Connector Details: 1 x 22 Pin SAS. Package: 1 x Adapter
CY U.2 U2 Kit SFF-8639 NVME PCIe SSD Adapter for Mainboard SSD M.2 SFF-8643 Mini SAS HD SF-094
U. 2 U2 Kit SFF-8639 NVME PCIe SSD Adapter for Mainboard SSD 750 M. 2 SFF-8643 Mini SAS HD Hyper Kit Storage controller Ultra M. 2 Card 4 GBps PCIe 3.0 x4
SHENZHEN CHENYANG DIGITAL TECH. CO,. LTD
CableDeconn Sans Digital mini-SAS HD to mini SAS HD (SFF-8644 to SFF-8644) Cable 1M
Cable Deconn Mini SAS SFF 8644 to Mini SAS SFF 8644 External HD Cable Specifications: Side 1: Mini SAS SFF-8644 Side 2: Mini SAS SFF-8644 Cable Length: 1 Meter Cable Color: Black What You will Get: 1xCable Deconn Mini SAS SFF 8644 to Mini SAS SFF 8644 Guarantee: Cable Deconn Provides a 18 Months Worry-free Guarantee, Life Time Guarantee
Xiwai SFF-8639 U.2 U2 NVME PCIe SSD Cable for Mainboard Intel SSD 750 p3600 p3700 M.2 SFF-8643 Mini SAS HD
U. 2 U2 Kit SFF-8639 NVME PCIe SSD Cable Length: 50cm for Mainboard Intel SSD 750 M. 2 SFF-8643 Mini SAS HD Hyper Kit Storage controller Ultra M. 2 Card 4 GBps PCIe 3.0 x4 Cable only, the adapter / card not included. Note: for M-key or NVME SSD, please Update to add native driver support in NVM Express in Windows 7 and Windows Server 2008 R2
Weastlinks Mini SAS 4x Mini SAS26P SFF-8088 to 4 SFF 8482 SAS29P Power Cable
Features:
Connect the external mini SAS 26 pin connector on your controller to four 29 pin SAS connectors on your SAS hard drives.
Also works with SATA drives. Power is supplied via the pass-through Molex 4 Pin power connectors, so you would need up to four Molex-style power connectors available - see Related Items on the description page for adapters that may help.
Specifications:
Type: Internal to External SAS / SATA Cable.
Connector 1: SFF-8088 (internal mini SAS, 26 pin mini SAS).
Connector 2: SFF-8482 (SAS 29 pin / Power).
Length: 1m(3.28 ft)/2m(6.56 ft).
Speed: 6Gbps.
Package Included:
1 x SFF-8088 to 4 SFF 8482 SAS29P Power Cable
6G Internal Mini SAS SFF-8087 to SFF-8087 Cable, 100-Ohms, 0.8-m(2.64ft), 2 Pack
10Gtek Mini Serial Attached SCSI (miniSAS) Internal Cable Assemblies provide for high speed transmission up to 6 Gbps. It is an ideal interconnect solution for the growing server and storage market. MiniSAS are designed to significantly reduce the cable size for storage systems currently using SAS 4-lane (4x or 4-lanes of data) and are being widely adopted for next-generation designs.The 36-position internal miniSAS cable assemblies are available in custom lengths of up to one meter. They are also available in three standard sideband configurations. Customized sideband configurations are available upon request.Specification: Mini SAS SFF-8087 to Mini SAS SFF-8087 (36Pin), With SidebandLength: 0.7-Meter(2.6ft), AWG 30 Impedance = 100 OhmsUp to 6.0Gbps data rates Thin, High-bandwidth, Low-skew cable Temperature range: -20?-80? RoHS Compliant Application: Servers RAID systems Storage systems SAS/SATA HBA interfaces Direct-attached storage (DAS)
10Gtek Transceivers Co., LTD
Weastlinks SFF-8088 to 4x ESATA 7Pin Cable Mini SAS 26P TO 4 E SATA cable 1m(3.3 ft)
Features:
SFF-8088 TO 4x E SATA 7Pin Mini-SAS 26P TO 4 ESATA cable SAS (Serial Attached SCSI) Supports transfer rate up to 2-3 Gbs, use for Work Station, Blade Servers, External Storage Arrays, SAS Expanders, Host Adapters (HBA'S) and RAID Controller
Side 1: External Mini SAS 26pin (SFF-8088)
Side 2: 4 x Esata 7Pin
Compliant with Mini SAS 1.0 specification.
Data transfer rate up to 3.0Gbps.
Mini SAS SFF-8088 26 pin male connectors for controller.
4 ESATA 7 pin female connectors for drives.
Cable Length:1.0M(3.3 ft)
Cable Color: Black
Quantity: 1pcs
Package Included:
1 x 3.3 ft SFF-8088 To 4 esata Cable
StarTech.com Model SAS87431M 3.3 ft. Internal Mini-SAS Cable - SFF-8087 to SFF-8643
SFF 8087 TO SFF 8643 CABLE 1M
QSFP SFF-8436 Mini SAS SFF-8088 Cable 1 Meter 3 Ft Netapp DS4243 DS4246 DS2246
QSFP SFF-8436 To Mini SAS SFF-8088 Cable 1 Meter / 3 Ft
For use with Windows operating systems with Netapp DS4243, DS4246, DS2246 Arrays.(To use as a JBOD)
CHENYANG SFF-8482 SAS 29 Pin to 7 Pin SATA Hard Disk Drive Raid Cable with 15 Pin SATA Power Port
SFF-8482 SAS 29 Pin to 7 Pin SATA Hard Disk Drive Raid Cable with 15 Pin SATA Power Port Note: 1. It can connect the SATA hard disk to SATA motherboard. 2. It can connect the SAS hard disk to SAS motherboard. 3. It can't connect the SAS hard disk to normal SATA motherboard. (it will be worked if your motherboard has the SAS chipsit, Otherwise can't work. ) 4. It can't connect the SATA hard disk to normal SAS motherboard. (it will be worked if your hard disk has the SAS chipsit, Otherwise can't work. ) This SAS cable to 1x SATA with 50 cm length, enables you to connect a SAS HDD with SFF 8482 port to a SAS compatible SATA controller (hybrid controller). 7 Pin SATA Connector to 15 Pin Male Power Connector and 29 Pin SAS Connector. Connector Details: 1 x 7 Pin Serial ATA Male. Connector Details: 1 x 15Pin Male. Connector Details: 1 x 29 Pin SAS. Length: 50cm (approx).
HongKong ChenYang Electronic CO. LTD
TRIPP LITE N280-20N-BK 1.64 ft Network Ethernet Cable
0.5M SFP+ 10Gbase-CU Twinax Passive Copper Cable Black 20 inch
CHENYANG SFF-8482 SAS 22 Pin to 7 Pin + 15 Pin SATA Hard Disk Drive Raid Adapter with 15 Pin Power Port
SFF-8482 SAS 22 Pin to 7 Pin + 15 Pin SATA Hard Disk Drive Raid Adapter with 15 Pin Power Port Note: 1. It can connect the SATA hard disk to SATA motherboard. 2. It can connect the SAS hard disk to SAS motherboard. 3. It can't connect the SAS hard disk to normal SATA motherboard. (it will be worked if your motherboard has the SAS chipsit, Otherwise can't work. ) 4. It can't connect the SATA hard disk to normal SAS motherboard. (it will be worked if your hard disk has the SAS chipsit, Otherwise can't work. ) This SAS adapter to 1x SATA 22pin, enables you to connect a SAS HDD with SFF 8482 port to a SAS compatible SATA controller (hybrid controller). 7 Pin SATA Connector to 15 Pin Male Power Connector and SFF-8482 SAS Connector. Connector Details: 1 x 7 Pin Serial ATA Male. Connector Details: 1 x 15Pin Male. Connector Details: 1 x 22 Pin SAS. Package: 1 x Adapter
HongKong ChenYang Electronic CO. LTD
CORN SAS 22 Pin to 7 Pin + 15 Pin SATA Hard Disk Drive Raid Adapter with 15 Pin Power Port
Description: SAS 22 Pin to 7 Pin + 15 Pin SATA Hard Disk Drive Raid Adapter with 15 Pin Power Port This SAS adapter to 1x SATA 22pin, enables you to connect a SAS HDD with SFF 8482 port to a SAS compatible SATA controller 7 Pin SATA Connector to 15 Pin Male Power Connector and SAS Connector. Connector Details: 1 x 7 Pin Serial ATA Male. Connector Details: 1 x 15Pin Male. Connector Details: 1 x 22 Pin SAS. Explanation about SAS: Please pay attention! The motherboard must support SAS, (you can use SATA cable), but you must connect to the SAS interface, then you can't recognize the hard disk on the SATA! No SAS connector on the motherboard does not support this connector! Must be a SAS interface!! The purpose of the product is to connect the SAS hard disk to the motherboard with SATA through the adapter. Can not be used in reverse, please be aware! Note: Please check if the hard disk manual supports SATA mode before purchase. Not all SAS hard disks can be used.
6G Internal Mini SAS HD SFF-8643 to Mini SAS SFF-8087 Cable,SAS2.1 RoHS 100 Ohms 0.8-m(2.6ft), 2 Pack
10Gtek's High Density (HD) MiniSAS SFF-8643 to MiniSAS SFF-8087 Internal cable assemblies are available for SAS 2.1, 6Gb/s and SAS 3.0, 12Gb/s specification. Like the external HD MiniSAS, this new connector uses less PCB real estate and allows higher port density for internal hosts and devices. Hybrid versions of these new cables will allow for a smooth transition from 6Gb. Specification: Mini SAS HD SFF-8643 to Mini SAS SFF-8087 (36Pin) Length: 0.8 -Meter( 2.6 ft), AWG 30 Impedance = 100 Ohms Up to 12.0G bps data rates High-bandwidth, Low-skew cable Temperature range: -20?-80? RoHS Compliant Application: Servers RAID systems Storage systems SAS/SATA HBA interfaces Direct-attached storage (DAS)
10Gtek Transceivers Co., LTD
Cablecc SFF-8482 SAS 22 Pin to 7 Pin + 15 Pin SATA Hard Disk Drive Raid Adapter with 15 Pin Power Port
SFF-8482 SAS 22 Pin to 7 Pin + 15 Pin SATA Hard Disk Drive Raid Adapter with 15 Pin Power Port Note: 1. It can connect the SATA hard disk to SATA motherboard. 2. It can connect the SAS hard disk to SAS motherboard. 3. It can't connect the SAS hard disk to normal SATA motherboard. (it will be worked if your motherboard has the SAS chipsit, Otherwise can't work. ) 4. It can't connect the SATA hard disk to normal SAS motherboard. (it will be worked if your hard disk has the SAS chipsit, Otherwise can't work. ) This SAS adapter to 1x SATA 22pin, enables you to connect a SAS HDD with SFF 8482 port to a SAS compatible SATA controller (hybrid controller). 7 Pin SATA Connector to 15 Pin Male Power Connector and SFF-8482 SAS Connector. Connector Details: 1 x 7 Pin Serial ATA Male. Connector Details: 1 x 15Pin Male. Connector Details: 1 x 22 Pin SAS. Package: 1 x Adapter
Cablecc 1m External Mini SAS 4x SFF-8088 to SFF 8088 data Cable
External Mini SAS SFF-8088 to SFF-8088 Cable 3.28 Ft External SAS Cable features "mini-SAS" SFF-8088 to SFF-8088 with heavy- duty metal backshells. This 4-channel cable is constructed with a high-performance Madison cable, which features individually shielded parallel pairs, double EMI/RFI shielding, EMI Noise Suppressor, and 3.0 Gigabytes per second performance on each channel. MINI SAS 26P TO 26P, support 10gbps band> Item sold as pictured. No other accessories are included in this listing.
Plugadget Internal HD Mini SAS SFF-8643 to Mini SAS 36Pin SFF-8087 HD Server Storage Array Data Cable
Features:
Side 1: Mini SAS SFF-8643
Side 2: Mini SAS SFF-8087
Cable: 30AWG
Cable Length: 0.5M/1M
Cable Color: Black
Internal HD Mini SAS SFF-8643 to Mini SAS 36Pin (SFF-8087) Connection Cable
High Density (HD) MiniSAS SFF-8643 Internal cable assemblies are available for SAS 2.1, 6Gb/s and SAS 3.0, 12Gb/s specification
SFF-8643 is the new connector uses less PCB real estate and allows higher port density for internal hosts and devices
Hybrid versions of these new cables will allow for a smooth transition from 6Gb to 12Gb
Package included:
1 x MINI SAS SFF-8643 to SFF-8087 cable
Supermicro OCulink/SAS Data Transfer Cable
Features* Cable Length: 1.18 ft & lt;br / & gt; * Cable Length: 1.18 ft & lt;br / & gt; * Product Type: Data Transfer Cable & lt;br / & gt; * Product Type: Data Transfer Cable & lt;br / & gt; * Product Name: OCulink/SAS Data Transfer Cable & lt;br / & gt; * Product Line: Slim-Line & lt;br / & gt; * Brand Name: Supermicro & lt;br / & gt; * Brand Name: Supermicro & lt;br / & gt; * Connector on First End: OCuLink & lt;br / & gt; * Connector on Second End: SAS & lt;br / & gt; * Cable Type: OCulink/SAS & lt;br / & gt; * American Wire Gauge: 34 AWG & lt;br / & gt; * Connector on First End: 2 x OCuLink & lt;br / & gt; * Connector on Second End: SAS & lt;br / & gt; * Environmentally Friendly: Yes & lt;br / & gt; * Environmental Certification: RoHS & lt;br / & gt; * Cable Type: OCulink/SAS & lt;br / & gt; * American Wire Gauge: 34 AWG & lt;br / & gt;* Cable Length: 1.18 ft & lt;br / & gt; * Product Type: Data Transfer Cable & lt;br / & gt; * Brand Name: Supermicro & lt;br / & gt; * Connector on First End: OCuLink & lt;br / & gt; * Connector on Second End: SAS & lt;br / & gt; * Cable Type: OCulink/SAS & lt;br / & gt; * American Wire Gauge: 34 AWG & lt;br / & gt;
SAS 29-pin Male to SATA 7-pin and 15-pin SATA Power Cable - 12"
SAS 29 Pin Male to SATA 7 Pin and 15 Pin SATA Power Cable - 12 Inches
Features
Internal 29-position SAS Male to SATA 7 Pin Cable with Single Data Lane Support
29 position drive Male connector and molded 7 pin SATA connector
Conforms to SFF-8482 with 15 Pin SATA Female power.
Unified data and power assemblies
Cable is 12 Inches
& nbsp;
Micro SATA Cables PN # SASM-15PF-7P-12IN
Slimline SAS (SFF-8654) 8-Lane to OCulink (SFF-8611) 8-Lane Cable
Part Number: MIC74-8701 Product Description: Slimline SAS (SFF-8654) 8-Lane to OCulink (SFF-8611) 8-Lane Cable Cable Length: 50CM MIC74-8701 Cable Application Note * When Host Side is Slimline SAS(SFF-8654 8i) for use as follows: Case 1. For motherboard and BIOS support Bifurcation function PCIe x8 to SFF-8654 (Slimline SAS 8i) AIC PCI 8-lane can be bifurcated to dual PCIe x4 data link width or PCIe x8 lane can be extended to SFF-8654 (Slimline SAS 8i) for PCIe x8 data link width * When Host Side is OCulink(SFF-8612 8i) for use as follows: Case 2. For motherboard and BIOS support Bifurcation function PCIe x8 to OCulink(SFF-8612 8i) AIC PCI 8-lane can be bifurcated to dual PCIe x4 data link width or PCIe x8 lane can be extend to OCulink(SFF-8612 8i) for PCIe x8 data link width
Plugadget Mini Sas 26P SFF-8088 TO 4x SATA 7Pin Mini-SAS 26P TO 4SATA Cable with Latch 1m 2m
Features:
It has an external 26-pin SFF-8088 male Mini-SAS plug (with release ring) on one end and 4x 7Pin Sata on the other.
Serial Attached SCSI (SAS) is a high-speed data storage interface designed for high-throughput and fast data access.
Intended primarily for data storage centers, the SAS interface is backwards compatible with SATA.
Mini SAS guarantees performance at 3.0 Gigabits per second. This SAS cable features Mini SAS type SFF-8088 connectors and Internal SATA connectors.
This cable connects a to SFF-8088 Mini SAS Controller directly to 4 SATA drives.
Side 1: External Mini SAS 26pin (SFF-8088)
Side 2: 4x 7Pin Sata
Cable: 30AWG
Cable Length:1.0M/2.0M
Cable Color: Black.
Material: plastic + metal
Package included:
1 x SFF-8088 to sata Cable
Weastlinks SAS To SATA Adapter High Speed Hard Drive Adapter
Features:
1. SFF-8482 computer cable / connectors SAS to SATA 22 pin Hard Disk Drive; Raid Adapter with 15 Pin Power Port.
2. NOTE: The SAS hard disk mast have SATA logo!!!!
3. SFF-8482 SAS 22 Pin to 7 Pin + 15 Pin SATA Hard Disk Drive Raid Adapter
With 15 Pin Power Port Note:
It can connect the SATA hard disk to SATA motherboard.
It can connect the SAS hard disk to SAS motherboard.
It can't connect the SAS hard disk to normal SATA motherboard.
it will be worked if your motherboard has the SAS chipsit, Otherwise can't work.
It can't connect the SATA hard disk to normal SAS motherboard.
it will be worked if your hard disk has the SAS chipsit, Otherwise can't work.
4. This SAS adapter to 1x SATA 22pin, enables you to connect a SAS
HDD with SFF 8482 port to a SAS compatible SATA controller
5. 7 Pin SATA Connector to 15 Pin Male Power Connector and SFF-8482 SAS Connector.
6. Connector Details: 1 x 7 Pin Serial ATA Male.
7. Connector Details: 1 x 15Pin Male.
8. Connector Details: 1 x 22 Pin SAS.
Quantity: 1 pcs
Package Included:
1 x SFF-8482 SAS To SATA adapter

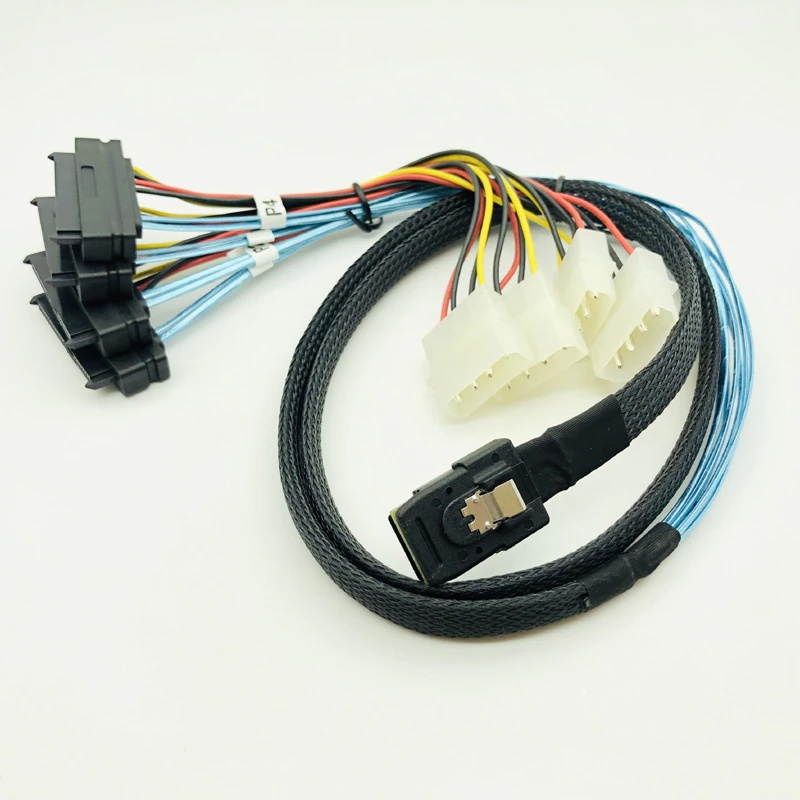

Mini SAS 26P SFF-8088 to 4 X SAS 29 Pin SFF-8482 with 4 Pin Power Cable 1M
SFF-8088 TO SFF-8482 Mini SAS 26P TO 4SAS 29P 3.28 Ft. SAS (Serial Attached SCSI) Supports transfer rate up to 2-3 Gbs, use for Work Station, Blade Servers, External Storage Arrays, SAS Expanders, Hos
2x Mini SAS to 4-SATA SFF-8087 Multi-Lane Forward Breakout Internal Cable 50CM
SFF-8087 COMPATIBLE with popular RAID cards such as:
• 3Ware 9650SE-8LPML RAID
• Adaptec ASR-5805/512MB SAS RAID
• Adaptec 2258200-R 5405 RAID
• Adaptec 2258500-R 51645 RAID
• Dell PERC H700 Raid
• Dell PERC H200
• Dell PowerEdge 8-port SAS SATA Controller
• Dell PERC H310
• HighPoint RocketRAID 2720
• HighPoint RocketRAID 620
• HighPoint RocketRAID 4520
• HighPoint RocketRAID 4522
• LSI Logic SAS9211-8I HBA Card
• StarTech.com PCI Express RAID
• Syba 4-Port RAID HyperDuo
• Syba PCI Express SATA II 4 x Ports RAID
• Supermicro AOC-SAS2LP-MV8 8-Channel SAS/SATA
iStarUSA K-SF87XSA-50 1.64 ft. miniSAS SFF-8087 to 4x SATA Forward Breakout 50 cm Cable
iStarUSA K-SF87XSA-50 1.64 ft. miniSAS SFF-8087 to 4x SATA Forward Breakout 50 cm Cable
Mini SAS HD SFF-8643 to SFF-8643 Cable 50 CM
Mini SAS HD SFF-8643 to SFF-8643 Cable 50 CM?
Specifications :
Part Number: RHS36-2583
Product Description: HD Mini SAS 36P Straight to 36P Straight
Series: HD Mini SAS
Cable Length: 50CM
Wire Size: 30AWG, Tinned copper,OD: 0.9*2.3mm
Lock to Mating Part: With Latch
Plating: Au(30u min) over Ni(100u min)
Color: Over mold Black
Environmental Compliance: ROHS
Flammability: Cable Horizontal flame,PCB 94V-0,PBT 94V-0
Micro SATA Cables PN # RHS36-2583
cabledeconn Internal Mini SAS SFF-8643 to (4) 29pin SFF-8482 connectors with SATA Power cable 1M
Specifications Side 1: Internal Mini SAS SFF-8643 Side 2: (4) 29pin SFF-8482 connectors Cable: 30AWG Cable Length: 1.0M Cable Color: Black. Notice: Please note that Mini SAS (SFF-8643) is Host, 4 SAS 29 (SFF-8482) is target, Internal mini Serial Attached SCSI x4 (SFF-8643) to (4) x1 (SFF-8482) Serial Attached SCSI (controller based) fan-out cables Packing Contents: 1x Cable Deconn SFF-8643 Internal Mini SAS HD to (4) 29pin SFF-8482 connectors Power Port 12GB/S Cable Warranty Policy: 18 Month worry-free warranty, Lifetime Technical Support 24 hr dedicated email customer support High quality, cutting edge technology at affordable prices

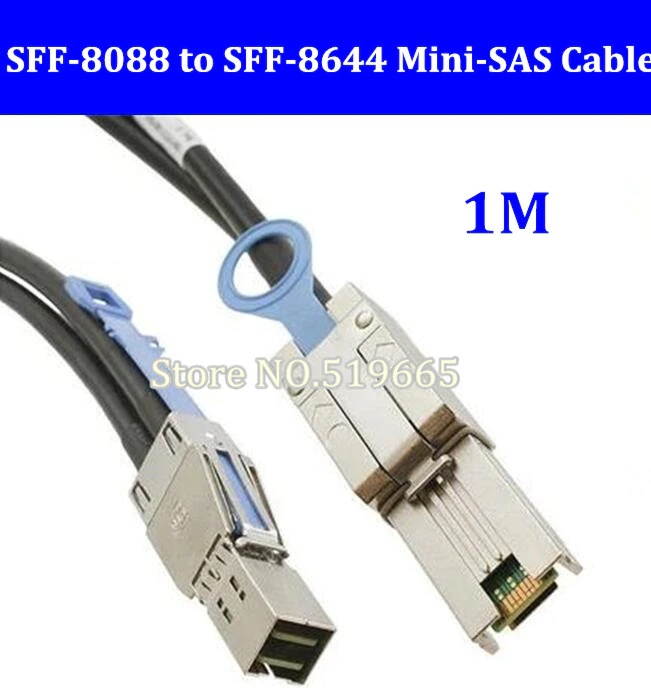

Cablecc External Mini SAS 4x SFF-8088 to mini sas High Density HD SFF-8644 data server Raid Cable 50cm
HD Mini-SAS cable configurations It is an external Mini Serial Attached SCSI HD x4 (SFF-8644) to Mini Serial Attached SCSI x4 (SFF-8088) cable The High Density (HD) system referenced as HD Mini-SAS (SFF-8644) in the SAS 2.1 standard, meets the 6Gb/s SAS specification. These new HD Connectors will be used on the SAS 3.0 specification when it is released. Cable material may change but the connectors will be the next generation of SAS to run at 12Gb/s. External HD Mini-SAS Copper Cables Length: 50cm
HD Mini SAS 36 Pin SFF-8644 (Host) to 4 X SATA (Target)
HD Mini SAS 36 Pin SFF8644 (Host) to 4 X SATA (Target)
Description:
This is a SFF8644 – 4 X SATA cable. It is designed for the following use: the SFF8644 HD Mini SAS 36 Pin at the Host-end (HBA Card), and the 4 X SATA fan-out -end (such as SSD or HDD).
Specifications:
Cable length is 1 Meter
Micro SATA Cables PN # SFF-1003-HST
FVH Dual Ports Mini SAS SFF-8088 To SAS 36Pin SFF-8087 PCBA Female Adapter With PCI Bracket SF-035
Dual Ports Mini SAS SFF-8088 To SAS 36Pin SFF-8087 PCBA Female Adapter With PCI Bracket 2-Ports SFF-8087 to SFF-8088 Adapter with Full PCI Slot Profile Mounting Bracket; External 8088 to internal 8087 adapter, will work both on the host and device side. Supports External SFF-8088 26-pin Host Connectors. Supports Internal SFF-8087 36-pin Device Connectors Supports up to 6Gb/s Mini SAS Data Transfer Rate Supports SFF-8087 to SATA Device Octopus Cables, SFF-8087 to SAS Device Octopus Cables, SFF-8087 to SFF-8087 Mini SAS Device Cables With Lowe Profile and Standard Profile bracket.
Shenzhen Shenzhong TECH. CO. LTD.
EnLabs SFF80874SATA1M90 Internal Mini SAS to 4 x Right Angle SATA Cable (SFF-8087 to SATA Forward Breakout),Mini SAS Host/Controller to 4 SATA Target/Backplane-3.3ft
Features Internal Mini SAS SFF-8087 is a high-speed data storage interface designed for high-throughput and fast data access. Connects a RAID or PCIe controller with an SFF-8087 port to 4 discrete SATA drives; Mini SAS to SATA adapter provides reliable internal connectivity between a Serial attached SCSI controller card in a computer system and direct attached storage devices with a SATA connector Connect up to 4 SATA drives to span RAID controller arrays and share performance across two PCIe 2.0 x8 lanes with compatible host bus adapters; Supports up to 6Gbs data transfer rate per drive Woven mesh sheath covers half of the cable for easy routing; P1 to P4 markers provide easy ID after installation; COMPATIBLE with popular controller HBA cards such as 3Ware 9650SE-8LPML SATA2 Hardware RAID Controller Kit, Adaptec ASR-5805/512MB SAS RAID Controller, Adaptec 2258200-R 5405 RAID, Adaptec 2258500-R 51645 RAID, Dell 512MB PERC H700 Raid Controller, Dell Perc H200 Integrated Sas Pci-e 2.0 Raid Controller, Dell PowerEdge 8-port 6GB/s PCIe x8 SAS SATA RAID Controller PERC H310, HighPoint RocketRAID 2720SGL 8-Port SAS 6Gb/s PCIe 2.0 x8 RAID HBA, HighPoint RocketRAID 620 2 SATA Port PCI-Express, Intel Gigabit CT PCI-E Network Adapter, SAS9211-8I 8PORT Int 6GB Sata+sas Pcie 2.0 HBA Card, Specification Side 1: Mini SAS 36Pin (SFF-8087) Male with Latch Side 2:4 x Right Angle SATA 7Pin female with latch Cable Length: 3.3 ft / 1M Cable Color: Black+Blue
EnLabs SFF80874XSAS84821M Internal Mini SAS SFF-8087 to 4 x SAS 29pin SFF-8482 Cable w/ Molex 4pin Power ,Mini SAS Host/Controller to 4 SAS SFF-8482 Target/Backplane-3.3ft
DIY or pro installers require a forward fan-out cable with an internal mSAS connector when expanding storage needs for Storage Area Network (SAN) or Direct Attached Storage (DAS) applications; Internal MINI SAS DATA + POWER cable connects a SAS controller to 4 separate SAS HDD drives; Forward fanout cable has 1x SFF 8087 Mini SAS host connector and 4x discrete SAS target hard drive SFF 8482 connectors SCSI CONTROLLER TO SAS cable provides internal computer connectivity between a Serial Attached SCSI controller card host and direct attached storage hard drives; 36 pin SFF-8087 Host connector and 4x SAS 29 pin SFF-8482 data and power Target drive connectors Integrated Molex 4pin power supply cables make it easy to see what is connected MINI SAS CONTROLLER COMPATIBLE with popular HBA cards from Adaptec RAID 6405E Storage Controller, Adaptec U320 PCI Express X1 1-Channel SCSI Host Bus Adapter, HP Smart Array P410 8-Port SAS RAID Controller, HighPoint RocketRAID 2710 x8 RAID HBA, HighPoint RocketRAID 2720SGLx8 RAID HBA, LSI Logic RAID 8 PORT 6GB SAS/SATA PCie, LSI LOGIC SAS 9207-8i Storage Controller, and StarTech. com Mini SAS Hot Swap Backplane Specification Side 1: Mini SAS 36Pin (SFF-8087) Male with Latch Side 2:4 x SAS 29pin SFF-8482 with 7 inches molex 4pin power cable Cable Length: 3.3 ft / 1M Cable Color: Red
Jimier U.2 U2 Kit SFF-8639 NVME PCIe SSD Adapter for Mainboard SSD M.2 SFF-8643 Mini SAS HD SF-094
U. 2 U2 Kit SFF-8639 NVME PCIe SSD Adapter for Mainboard SSD 750 M. 2 SFF-8643 Mini SAS HD Hyper Kit Storage controller Ultra M. 2 Card 4 GBps PCIe 3.0 x4
SHENZHEN JIMIER ELECTRONICS CO,. LTD.
0.5m SFF-8643 (host) to 4x7pin (device) Internal SAS cable
Connects to a controller with an SFF-8643 connector and supports up to four 7pin SATA or SAS drives. Usually used for connecting controller to a backplane with 7pin connections. 12Gb/s rated.
Xiwai SFF-8639 NVME PCIe SSD U.2 U2 Kit Adapter for Mainboard Intel SSD 750 p3600 p3700 M.2 SFF-8643 Mini SAS HD
U. 2 U2 Kit SFF-8639 NVME PCIe SSD Adapter for Mainboard Intel SSD 750 M. 2 SFF-8643 Mini SAS HD Hyper Kit Storage controller Ultra M. 2 Card 4 GBps PCIe 3.0 x4 Note: for M-key or NVME SSD, please Update to add native driver support in NVM Express in Windows 7 and Windows Server 2008 R2
HP JD097C 9.84 ft. FlexNetwork X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable
HP X240 10G SFP+ SFP+ 3m DAC Cable
8-Port SFF-8087 to SFF-8088 miniSAS Adapter (Slot-L Bracket)
Dual-connector external 8088 to internal 8087 adapter, will work both on the host and device side on a slot-L bracket. If you are converting from miniSAS to SATA, make sure you have the correct cable for your application.
Athena Power Model CABLE-32SAS47 30" 32pin SAS to 4 x SATA 7pin cable
Athena Power Model CABLE-32SAS47 30" 32pin SAS to 4 x SATA 7pin cable
Enlabs SFF86434SATA1M Internal 12G HD Mini SAS SFF-8643 to 4 x SATA Cable Hard Drive Cable,HD Mini SAS Host/Controller to 4 SATA Target/Backplane-3.3ft
Internal HD Mini SAS cable is specifically designed to connect a 12 Gbps host or RAID controller with SFF-8643 to 4 discrete SATA drives; Mini SAS HD to SATA adapter cable provides reliable internal connectivity between a high density RAID controller card and direct attached storage devices with a SATA plug Hybrid versions of HD MiniSAS cable with a 36 pin SFF 8643 connector and 4 x 7 pin SATA connectors provides both 3 Gbps and 6 Gbps compatibility while migrating to a to 12 Gbps storage area network system Forward HD Mini SAS cable has an internal SFF-8643 (HOST) HD Mini-SAS 36 pin connector and 4 x SATA 7 pin (TARGET) drive connectors; Target drive SATA connectors with stainless steel latches to provide a secure connection SFF 8643 compatible with the Adaptec RAID 71605 / 7895 Storage Controllers HD MiniSAS breakout cable includes acetate cloth tape over slim ribbon cables for strain relief to protect cables without rigidity; Woven mesh sheath covers half of the cable for easy routing; P1 to P4 markers provide easy ID after installation; Specification Side 1: HD Mini SAS 36Pin (SFF-8643) Male Side 2:4 x SATA 7Pin female with latch Cable Length: 3.3 ft / 1M Cable Color: Black+Blue
SYBA U.2 (SFF-8639) NVMe PCIe to Mini SAS (SFF-8643) SSD Cable - SI-CAB40120
Use this cable to connect a U.2 port (SFF-8639) to a mini SAS HD (SFF-8643) connector. U.2 Ports come in M.2 Adapters that use M-key (NVMe).Cable Type: Mini-SAS HD/U.2Cable Length: 1.64 ftConnector on First End: 1 x U.2 (SFF-8639) Mini-SASConnector on First End: 1 x 15-pin SATA Male mini-SATAConnector on Second End: 1 x SFF-8643 Mini-SAS HDDevice Supported: MotherboardDevice Supported: PCI CardColor: Black
Supermicro CBL-SAST-0531 MiniSAS HD to MiniSAS HD 80cm Cable
MAIN OVERVIEW FEATURES: Cable Type: Mini-SAS HDCable Length: 2.62 ftConnector on First End: SFF-8643 Mini-SAS HDConnector on Second End: SFF-8643 Mini-SAS HDDevice Supported: RAID ControllerAmerican Wire Gauge: 30 AWG Data Transfer Rate: 1.50 GB/sCompatibility: Supermicro M28SACB-OEM Storage Controllers Supermicro SAS3 storage controllers
Netgear Inc. AXC761-10000S 1m Prosafe Direct Attach SFP+ Cable
NetGear AXC761 1m Direct Attach SFP+ Cable.
Bran
External 6Gbps Mini SAS HD SFF-8644 to Mini SAS SFF-8088 Hybrid Cable, 30AWG SCSI Cable 1 meter
CAB-8644/8088-PxM10Gtek's CAB-8644/8088 is a hybrid External SAS cable, one side is SFF-8644 connector, one side is SFF-8088, for connecting between interface SAS 2.0 and SAS 3.0, with speed up to 6 Gb/s. Features:Length: 0.5~7 metersPassiveWire Size (AWG) : 30/28/26/24SFF-8644 compliantSFF-8088 compliantConnector A: External SAS HD (SFF-8644)Connector B: External SAS HD (SFF-8088)Impedance: 100 OhmsData Rate: 6 Gb/s per channel Applications:SFF-8644 to SFF-8088
10Gtek Transceivers Co., LTD
CY Internal 36 Pin Mini SAS SFF-8087 Host to 4 SFF-8482 Target SAS Hard Disk and SATA Power Cable 100cm SF-091-1.0M
Internal 36 Pin Mini SAS SFF-8087 Host to 4 SFF-8482 Target SAS Hard Disk and SATA Power Cable enables you to connect e. g. a controller with mini SAS 36pin connector (SFF 8087) to 4 SAS (SFF 8482) HDD. & nbsp; Hard Disk Fanout Raid cable Host: SFF-8087 connector Target: & nbsp; SFF-8482 SAS connector With SATA 15pin power connector 100cm & nbsp;
SHENZHEN CHENYANG DIGITAL TECH. CO,. LTD
JacobsParts Mini SAS to 4-SATA SFF-8087 Multi-Lane Forward Breakout Internal Cable, 3.3 Feet
INTERNAL MINI SAS DATA CABLE connects a RAID or PCIe controller with an SFF-8087 port to 4 discrete SATA drives • Mini SAS to SATA adapter provides reliable internal connectivity between a Serial attached SCSI controller card in a computer system and direct attached storage devices with a SATA connector
LEVERAGE HARDWARE RAID PERFORMANCE with this SATA multi-lane cable • Two cables can connect up to 8 SATA drives to span RAID controller arrays and share performance across two PCIe 2.0 x8 lanes with compatible host bus adapters • Supports up to 6Gbs data transfer rate per drive
DIY OR PRO INSTALLERS both appreciate the convenience of a forward fan-out cable with an internal mSAS connector when expanding storage needs • Slim ribbon cables minimize airflow impact in a computer case
FLEXIBLE DESIGN of SAS breakout cable includes acetate cloth tape over slim ribbon cables for strain relief to protect cables without rigidity • Woven mesh sheath covers half of the cable for easy routing • P1 to P4 markers provide easy ID after installation • Low profile SATA connectors have easy-grip treads with stainless steel latches to prevent accidental disconnection and reduce vibration disconnection
Length: 3.3 Feet / 1m
SFF-8087 COMPATIBLE with popular RAID cards such as:
• 3Ware 9650SE-8LPML RAID
• Adaptec ASR-5805/512MB SAS RAID
• Adaptec 2258200-R 5405 RAID
• Adaptec 2258500-R 51645 RAID
• Dell PERC H700 Raid
• Dell PERC H200
• Dell PowerEdge 8-port SAS SATA Controller
• Dell PERC H310
• HighPoint RocketRAID 2720
• HighPoint RocketRAID 620
• HighPoint RocketRAID 4520
• HighPoint RocketRAID 4522
• LSI Logic SAS9211-8I HBA Card
• StarTech.com PCI Express RAID
• Syba 4-Port RAID HyperDuo
• Syba PCI Express SATA II 4 x Ports RAID
• Supermicro AOC-SAS2LP-MV8 8-Channel SAS/SATA
FVH Internal 36 Pin Mini SAS SFF-8087 Host to 4 SFF-8482 Target SAS Hard Disk and SATA Power Cable 100cm SF-091-1.0M
Internal 36 Pin Mini SAS SFF-8087 Host to 4 SFF-8482 Target SAS Hard Disk and SATA Power Cable enables you to connect e. g. a controller with mini SAS 36pin connector (SFF 8087) to 4 SAS (SFF 8482) HDD. & nbsp; Hard Disk Fanout Raid cable Host: SFF-8087 connector Target: & nbsp; SFF-8482 SAS connector With SATA 15pin power connector 100cm & nbsp;
Shenzhen Shenzhong TECH. CO. LTD.
Rosewill SFF8087-MM-1M 3.28 ft. 30 AWG Internal Mini SAS 36-Pin SFF-8087 Male to Mini SAS 36-Pin SFF-8087 Male Cable with Nylon Braiding
Rosewill SFF8087-MM-1M 3.28 ft. 30 AWG Internal Mini SAS 36-Pin SFF-8087 Male to Mini SAS 36-Pin SFF-8087 Male Cable with Nylon Braiding
CableDeconn External Mini SAS 4x SFF 8088 to SFF 8088 26P Cable External Mini SAS Cable 2m
Specification: Serial Attached SCSI (SAS) is a high-speed data storage interface designed for high-throughput and fast data access. Intended primarily for data storage centers the SAS interface is backwards compatible with SATA. This allows the user to mix more expensive lower-capacity SAS drives for applications that require faster data access and higher reliability with lower-cost higher-capacity SATA drives for applications with lower access speed requirements. Deconn carries a full line of quality SAS cables with connectors for every possible application both internal and external. This 1 meter long cable uses 28 AWG wires and is intended for external use. It has a 26-pin SFF-8088 male Mini-SAS plug (with release ring) on each end. Guide to SAS Connectors Type # of Pins Environment SFF-8087 36 Internal SFF-8088 26 External SFF-8482 29 SFF-8484 32 SFF-8470 34 External (also sometimes internal)
Weastlinks SAS SATA Cables SFF-8643 To 4 SFF-8482 Internal Mini SAS HD to 4 29pin SFF-8482 connector with SAS 15pin Power Port 12GB/S Cable
Features:
Note: 29pin SFF-8482 is 7+7+15 pin, the middle 7 pin is empty, it don't effect to use.
side 1: Internal Mini SAS sff-8643
side 2: (4) 29pin SFF-8482 connectors with SAS 15pin power port
cable: 30awg
cable length: 0.5(1.64ft)/1m(3.28ft).
cable Color: black & Blue.
Transmission rate 12 Gbps.
Internal Mini SAS SFF-8643 to (4) 29pin SFF-8482 connectors with power connecting a SAS controller (SFF-8643) to four SATA/SAS disks (SFF-8482)
Please note that Mini SAS (SFF-8643) is host, 4 SAS 29 (SFF-8482) is target, internal Mini Serial Attached SCSI x4 (SFF-8643) to (4) x1 (SFF-8482) Serial Attached SCSI (controller based) fan-out cables
Before you buy this cable, Please make sure the Mini SAS (SFF-8643) on your motherboard or RAID controller. If the Mini SAS (SFF-8643) on your backplane, this cable will not work with them
Mini SAS (SFF-8643) connect to the controller, 4 SAS connect to the HDD (hard disc driver)
Applications
Data/Communications
1.RAID (Redundant Array of Independent Disks ),2.Workstations,3.Rack-mount server,4.Servers,5.Storage rack.
Package included:
1 x SFF-8643 To 4 SFF-8482 cable
