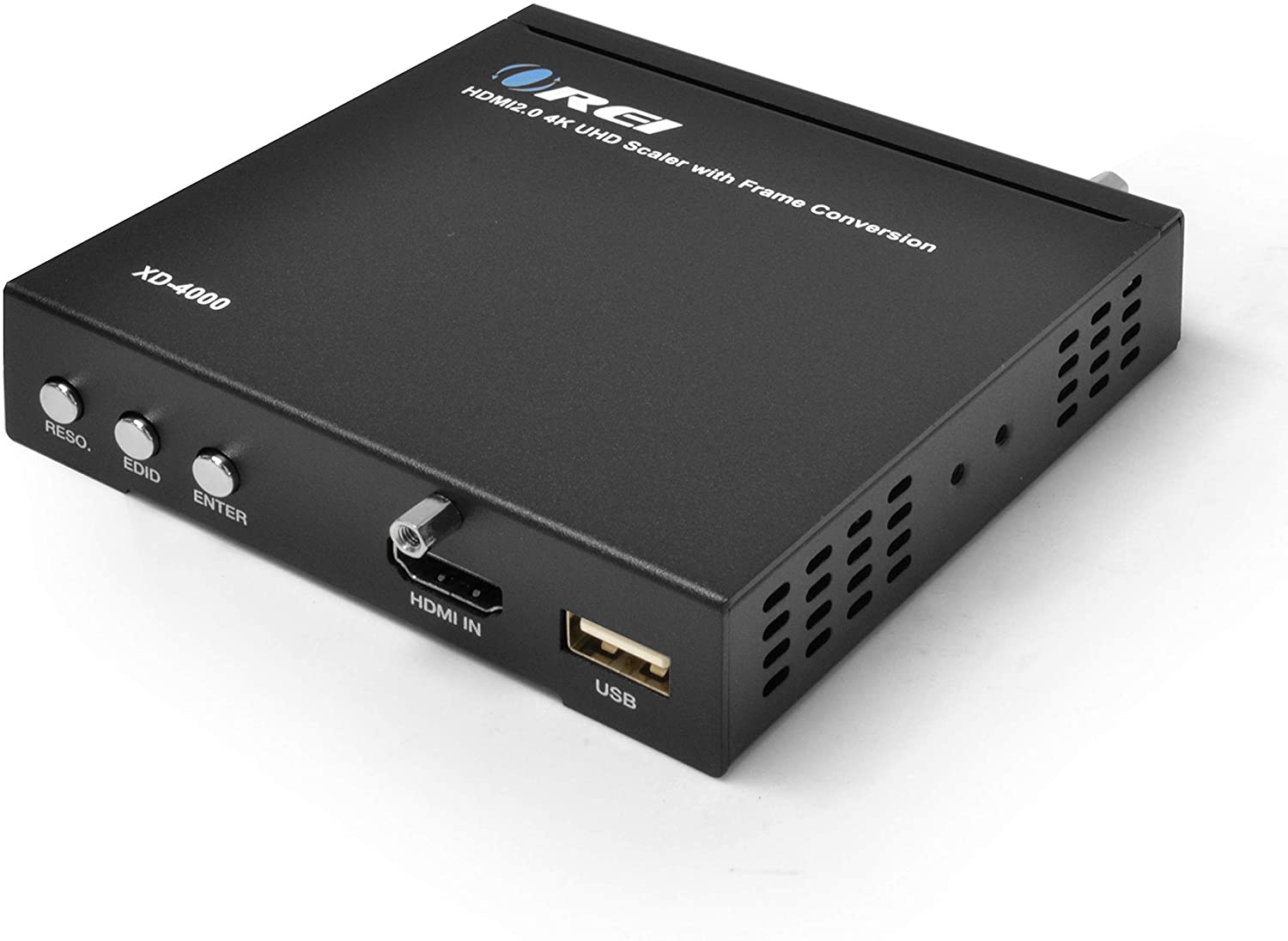

4K HDMI Scaler by OREI Up and Down Function Convert Resolutions at 720p, 1080p, 4K 30Hz, 4K 60Hz, with Optical Analog Audio Extractor, RS-232 Support

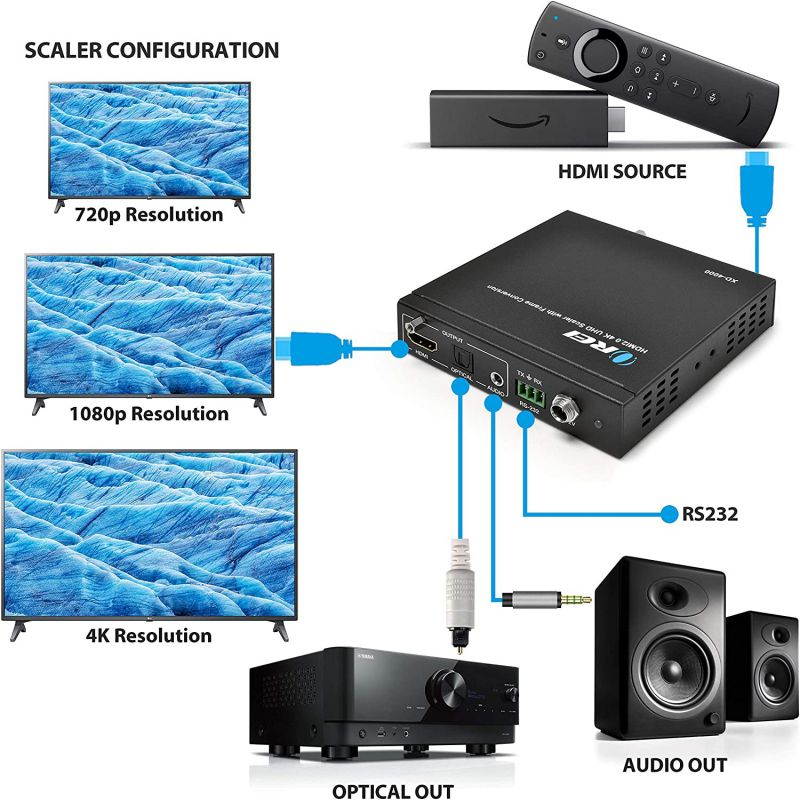

Features Orei XD-2400 is an advanced HDMI to HDMI Scalar Box. It accepts HDMI input with a separate analog audio ( 3.5MM ) and scale it to HDMI output (a number of selectable resolutions and frequencies (PAL/NTSC) ) with additional digital audio (optical) and analog audio ( 3.5MM ) output. It provides one HDMI input and one HDMI output and automatically scales any input signal to match the native resolution of the display, or any connected HDMI device. The output can also be manually set to a specific resolution if desired.
Specifications: Technical
HDMI Version: HDMI 2.0
HDCP Compliance: HDCP 2.2
Data Rate: 18 Gbps Supporting
Display Resolutions: Ultra HD/4K up to 4096 x 2160 @50/60Hz (RGB 4:4: 4, YCbCr
4:4: 4, 4:2: 2, 4:2: 0)
HDMI Audio: LPCM 2/ 5.1 / 7.1 Ch, Dolby Atmos, Dolby Digital+, Dolby TrueHD, Dolby Digital, DTS: X, DTS-HD Master Audio, DTS 5.1

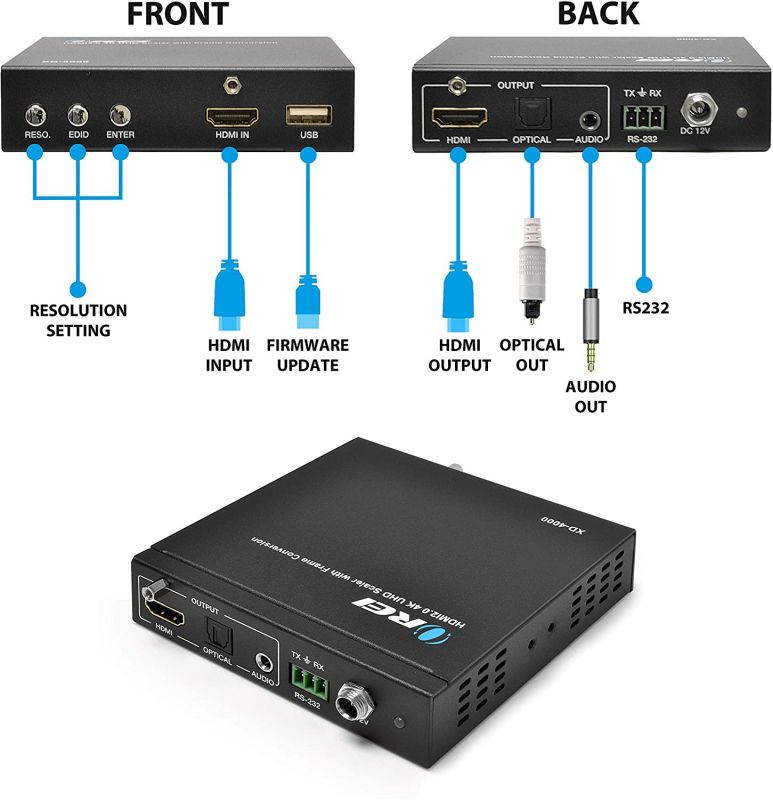

Input Ports: 1 x HDMI Type A [19-pin female], 1 x RS232 [Phoenix connector], 1 x Firmware [Mini USB]
Output Ports: 1 x HDMI Type A [19-pin female], 1 x Optical digital audio, 1 x 3.5 mm analog audio
Product informationStyle: ConverterProduct Dimensions 4.02 x 4.02 x 0.98 inchesItem Weight 1.1 poundsASINB07CP138D6Item model numberXD-4000Customer Reviews 4.1 out of 5 stars22 ratings 4.1 out of 5 starsBest Sellers Rank#407 in Video ConvertersIs Discontinued By ManufacturerNoDate First AvailableApril 13, 2016ManufacturerOREI
