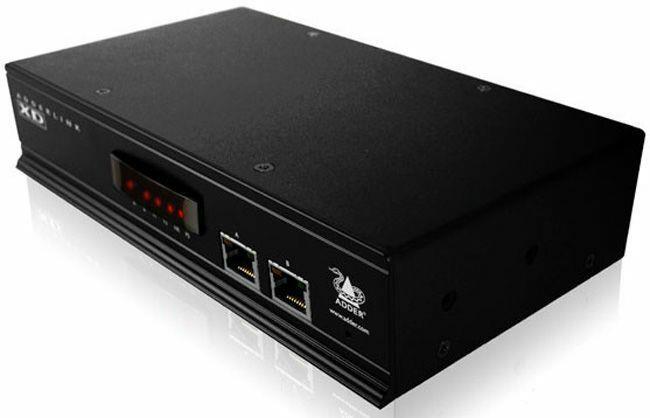

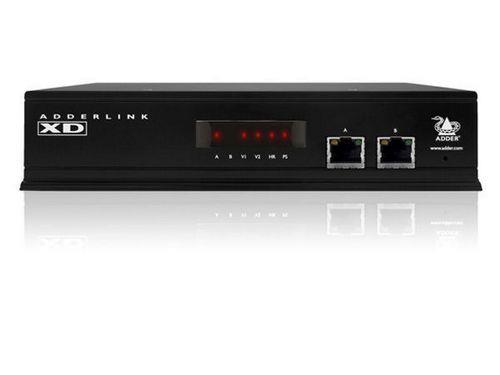

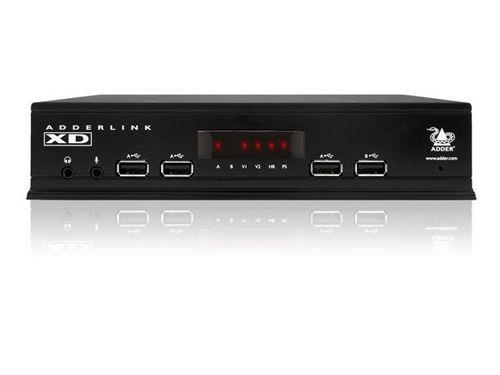

Adder - XD522-DP-PAIR-US - AdderLink XD522 DisplayPort, USB, Audio extender - 100 meters

ADDER
Link XD522 is a high performance KVM (Keyboard, Video, Mouse) extender that enables you to locate your critical computing hardware in a secure and temperature controlled environment away from the user work station whilst maintaining the same user desktop experience. It can transmit either two 1920 x 1200 video streams or one higher resolution video stream (2560 x 1600 WQXGA), digital audio (S/PDIF), analog audio, Hi-Speed USB 2.0 and USB 2.0 (full and low speed) over CATx cables. Plug and play. 150 meter extension distance for a single 1920 x 1080 screen. 100 meter extension distance for two 1920x 1200 screens or a single high resolution screen to 2560 x
1600. Supports Mac Cinema and Thunderbolt Display (2560 x 1440). USB 2.0 Hi-Speed for mass storage devices plus: Keyboard, mouse tablet and touch, S/PDIF, and analog audio.
Features: Perfect digital video, real
time control: The system is uncompressed, where by every pixel of every frame are sent without loss. The receiver supports Display
Port Dual Mode (DP++) which means that monitors which only support HDMI or DVI can be used (with the correct adapter cable). Display
Port and thunderbolt display resolutions

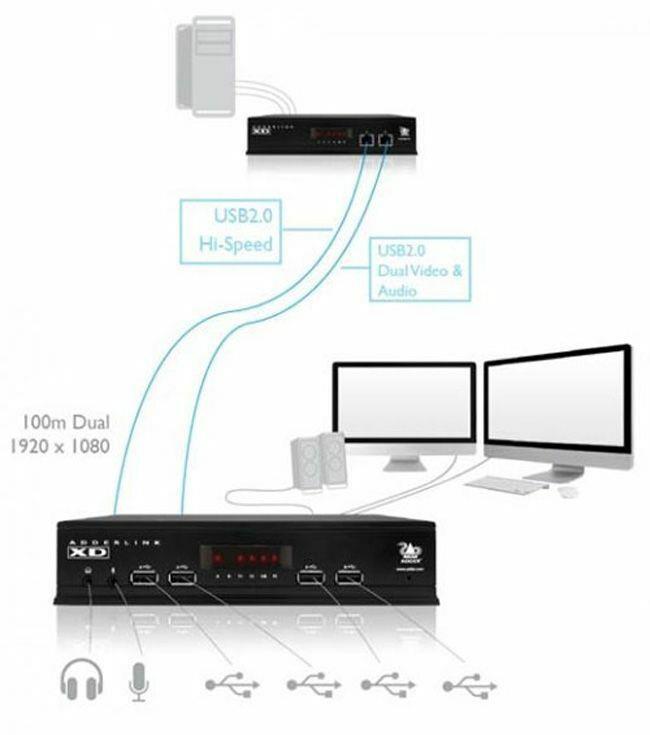

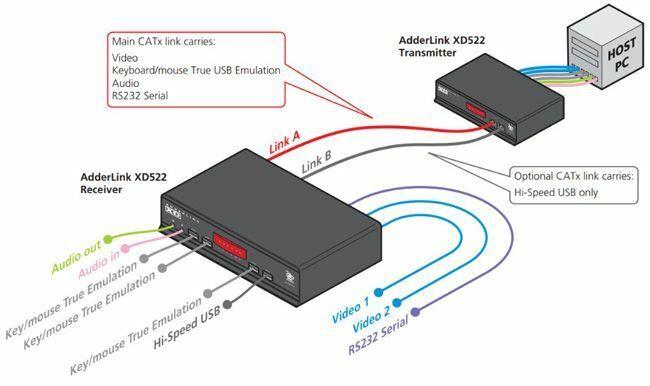

Single CATx cable: Video, USB 2.0 (HID-only) and audio all pass along a single cable. A second CATx cable is required for the Hi-Speed USB 2.0 extension. Up to 150 meter extension distances: Distance is dependent on the monitor resolution, number of monitors, cable type and the number of connection breaks for patch panels and wall plates. See table on reverse for details.
USB 2.0: Enables connection of any USB human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers. Mass storage devices and isochronous devices such as webcams and headsets can be used through the transparent USB 2.0 Hi-Speed port.
EDID management: The system has intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.
Plug and play: The ADDER Link XD522 extender is delivered in a zero config state so you can plug the units in and start working with them straight away. There is no need for drivers or software to be installed.
Digital audio: Supports the S/PDIF interface via an optical 3.5 mm jack socket (dual use with analog audio via mini Toslink).
HD quality analog audio: HD audio quality (stereo channel 24 bit sampled at 96kHz) is available to transfer audio from local to remote for Line In / Line. Microphone in and headphone use cases are also supported.
Specifications: Hardware
compatibility: All computers with Display
Port, USB, audio, RS232 - requirement dependent. Display
Port interface: The system supports resolutions to a maximum of 2560 x1600 or two 1920 x1200 screens. The receiver unit supports Display
Port Dual Mode (DP++) also. DPCP and HDCP are not supported.
USB 2.0: Supports up to six USB 2.0 devices (low or full speed). The system does not allow non-HID devices on ports marked A. Isochronous devices are supported (i. e. USB audio or video devices) on the Hi-Speed link only marked
B Digital stereo audio: The system delivers analog stereo audio (Line in, Line out) and supports microphone input and headphones. It also delivers S/PDIF (optical input) via a 3.5 mm jack line in connector (mini Toslink).
RS232: RS232 can be passed between the units to a maximum baud rate of 115K2 via the options port.
Software compatibility: All known operating systems.

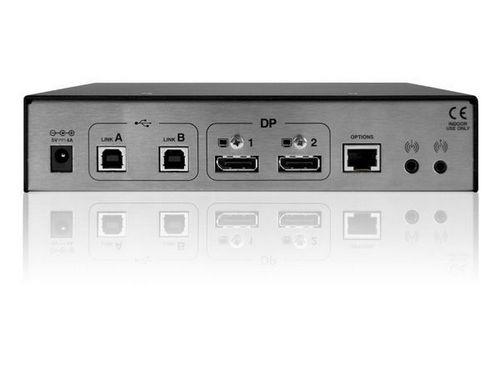

Computer connections Transmitter (TX): Display
Port x 2, Audio 3.5 mm in, Audio 3.5 mm out, USB type B x 2, RS232 10p10c options port.
Peripheral connections Receiver (RX): Display
Port ++ x 2, Audio 3.5 mm in, Audio 3.5 mm out, Headphone 3.5 mm out, Microphone 3.5 mm in, USB type A x 4, RS232 10p10c options port.
Physical design: 1U compact case, robust metal construction. 198mm/ 7.92 (w), 44mm/ 1.76 (h), 120mm/ 4.8 (d), 0.75 kg/ 1.65 lbs.
Power: 2.5 mm DC jack (power adapter included), 100-240VAC 50/60Hz, 0.8A, input to power adapter, 5VDC
